JETWAY NF9T Series User manual

Technical Manual
Of
Intel Bay Trail Series CPU
Based Mini-ITX M/B
NO.G03-NF9T-F
Revision: 2.0
Release date: October 1, 2019
Trademark:
* Specifications and Information contained in this documentation are furnished for information use only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.

ii
Environmental Protection Announcement
Do not dispose this electronic device into the trash while discarding. To minimize
pollution and ensure environment protection of mother earth, please recycle.

iii
ENVIRONMENTAL SAFETY INSTRUCTION...........................................................................iv
USER’S NOTICE .......................................................................................................................v
MANUAL REVISION INFORMATION.......................................................................................v
ITEM CHECKLIST.....................................................................................................................v
CHAPTER 1 INTRODUCTION OF THE MOTHERBOARD
1-1 FEATURE OF MOTHERBOARD................................................................................1
1-2 SPECIFICATION.........................................................................................................2
1-3 LAYOUT DIAGRAM....................................................................................................3
CHAPTER 2 HARDWARE INSTALLATION
2-1 JUMPER SETTING .....................................................................................................8
2-2 CONNECTORS AND HEADERS................................................................................17
2-2-1 CONNECTORS .............................................................................................17
2-2-2 HEADERS .....................................................................................................20
CHAPTER 3 INTRODUCING BIOS
3-1 ENTERING SETUP .....................................................................................................27
3-2 BIOS MENU SCREEN ................................................................................................28
3-3 FUNCTION KEYS .......................................................................................................28
3-4 GETTING HELP ..........................................................................................................29
3-5 MEMU BARS...............................................................................................................29
3-6 MAIN MENU................................................................................................................30
3-7 ADVANCED MENU.....................................................................................................31
3-8 CHIPSET MENU..........................................................................................................42
3-9 SECURITY MENU.......................................................................................................45
3-10 BOOT MENU...............................................................................................................46
3-11 SAVE & EXIT MENU...................................................................................................47
TABLE OF CONTENT

iv
Environmental Safety Instruction
Avoid the dusty, humidity and temperature extremes. Do not place the product in
any area where it may become wet.
0 to 60 centigrade is the suitable temperature. (The figure comes from the request
of the main chipset)
Generally speaking, dramatic changes in temperature may lead to contact
malfunction and crackles due to constant thermal expansion and contraction from
the welding spots’ that connect components and PCB. Computer should go
through an adaptive phase before it boots when it is moved from a cold
environment to a warmer one to avoid condensation phenomenon. These water
drops attached on PCB or the surface of the components can bring about
phenomena as minor as computer instability resulted from corrosion and oxidation
from components and PCB or as major as short circuit that can burn the
components. Suggest starting the computer until the temperature goes up.
The increasing temperature of the capacitor may decrease the life of computer.
Using the close case may decrease the life of other device because the higher
temperature in the inner of the case.
Attention to the heat sink when you over-clocking. The higher temperature may
decrease the life of the device and burned the capacitor.

v
USER’S NOTICE
COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL,
INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED
OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN
PERMISSION OF THE MANUFACTURER.
THIS MANUAL CONTAINS ALL INFORMATION REQUIRED TO USE THIS MOTHER-BOARD SERIES AND WE
DO ASSURE THIS MANUAL MEETS USER’S REQUIREMENT BUT WILL CHANGE, CORRECT ANY TIME
WITHOUT NOTICE. MANUFACTURER PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY
KIND, AND WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTIAL OR CONSEQUENTIAL
DAMAGES (INCLUDING DAMANGES FOR LOSS OF PROFIT, LOSS OF BUSINESS, LOSS OF USE OF DATA,
INTERRUPTION OF BUSINESS AND THE LIKE).
PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY NOT BE
REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE COMPANIES, AND THEY ARE
USED ONLY FOR IDENTIFICATION OR EXPLANATION AND TO THE OWNER’S BENEFIT, WITHOUT
INTENT TO INFRINGE.
Manual Revision Information
Reversion Revision History Date
2.0 Second Edition October 1, 2019
Item Checklist
Motherboard
Cable(s)

1
Chapter 1
Introduction of the Motherboard
1-1 Feature of Motherboard
Onboard Intel®Bay Trail series processor, with low power consumption never
denies high performance
Support DDR3L SO-DIMM 1066/1333 MHz up to 8GB
Support Mini-PCIE connector
Support m-SATA connector
Support 2 * SATAII device
Integrated with 1 * 24-bit dual channel LVDS header
Support HDMI display output
Support USB 3.0 data transport demand
Support CPU Smart FAN
Compliance with ErP standard
Support Watchdog function

2
1-2 Specification
Spec
Description
Design
6 layers; PCB size: 17x 17 cm
Embedded CPU
Integrated with Intel®Bay Trail-D/M/I series CPU
Memory Slot
1* DDR3L SODIMM Slot for un-buffered DDR3L 1066* Mhz or
1333* Mhz SDRAM, expandable to 8GB
*Memory clock support
ing range is decided by specific CPU of the model.
For more memory compatibility information please consults your local dealer.
Expansion Slot
1* Half-size Mini-PCIE slot

1* PCIE x1 slot
LAN Chip
Integrated with lntel 82583V PCI-E Gigabit LAN chip
Support Fast Ethernet LAN function of providing
10/100/1000Mbps Ethernet data transfer rate
Audio Chip
Realtek ALC662 2-CH HD Audio Codec integrated

Audio driver and utility included
Storage
2* SATAII 3Gb/s port

1* mSATA slot (shared with SATA2 port)
BIOS
AMI 64MB Flash ROM
Rear I/O
1* DC 12V power-in connector
1* Parallel port
1* HDMI port
1* VGA port
1* PS/2 keyboard & mouse combo port
2* COM port
3* USB 2.0 port
1* USB 3.0 port
1* RJ-45 LAN port
1* Line-out port

1* MIC port

3
Internal I/O
1* DC 12V internal power connector
1* SATA Power connector
1* CPU FAN connector
2* SYSFAN connector
1* Front panel audio header
1* SPDIF Out header
1* LAN LED activity header
1* SPEAK_CON header
3* Serial port header
2* 9-pin USB 2.0 header (Expansible to 4* USB 2.0 ports)
1* 4-pin USB 2.0 header (Expansible to 1* USB 2.0 ports)
1* Front panel header
1* Power LED & speaker header
1* GPIO_CON header
1* SMBUS header
1* LVDS inverter

1* LVDS header
1-3 Layout Diagram
Rear IO Panel Diagram:
Line-Out Port
USB 2.0 Ports
RJ-45 LAN Port
12V
DC Power-in
Connector
USB 2.0 Port
Parallel Port
COM1 Port
HDMI Port
VGA Port
PS/2 KB & MS Port
COM2 Port
USB 3.0 Port
MIC Port

4
Motherboard Internal Diagram
Note: 1.The module for SODIMM1 should be DDR3L 1.35V SODIMM and not exceeding 8GB total
capacity. 2. The SODIMM installed should be of or above the memory clock the model supported,
otherwise the board will not start. 3. MSATA slot shares function with SATA2port; i.e. only one can
function at a time.
12V Internal
Power Connector
Intel CPU
PCI Express x1 Slot
Front Panel
Audio Header
Front Panel Header
LVDS Inverter
Serial Port Headers
(COM3/4/5)
GPIO Header
SATA Hard Disk
Power-Out Connector
Speaker
Connector
LVDS Header
SATAII Ports
SYSFAN1 Header
LAN_LED Header
*DDR3L SODIMM Slot
(SODIMM1)
SMBUS Header
Power LED Header &
Speaker Header
Half-size Mini-PCIE
Slot (MPE)
Full-size M-SATA
Slot (MSATA)
USB 2.0 Headers
*Rear IO
(Please
refer to
Page3)
CPUFAN Header
JP10
SYSFAN2 Header
HDMI_SPDIF Header

5

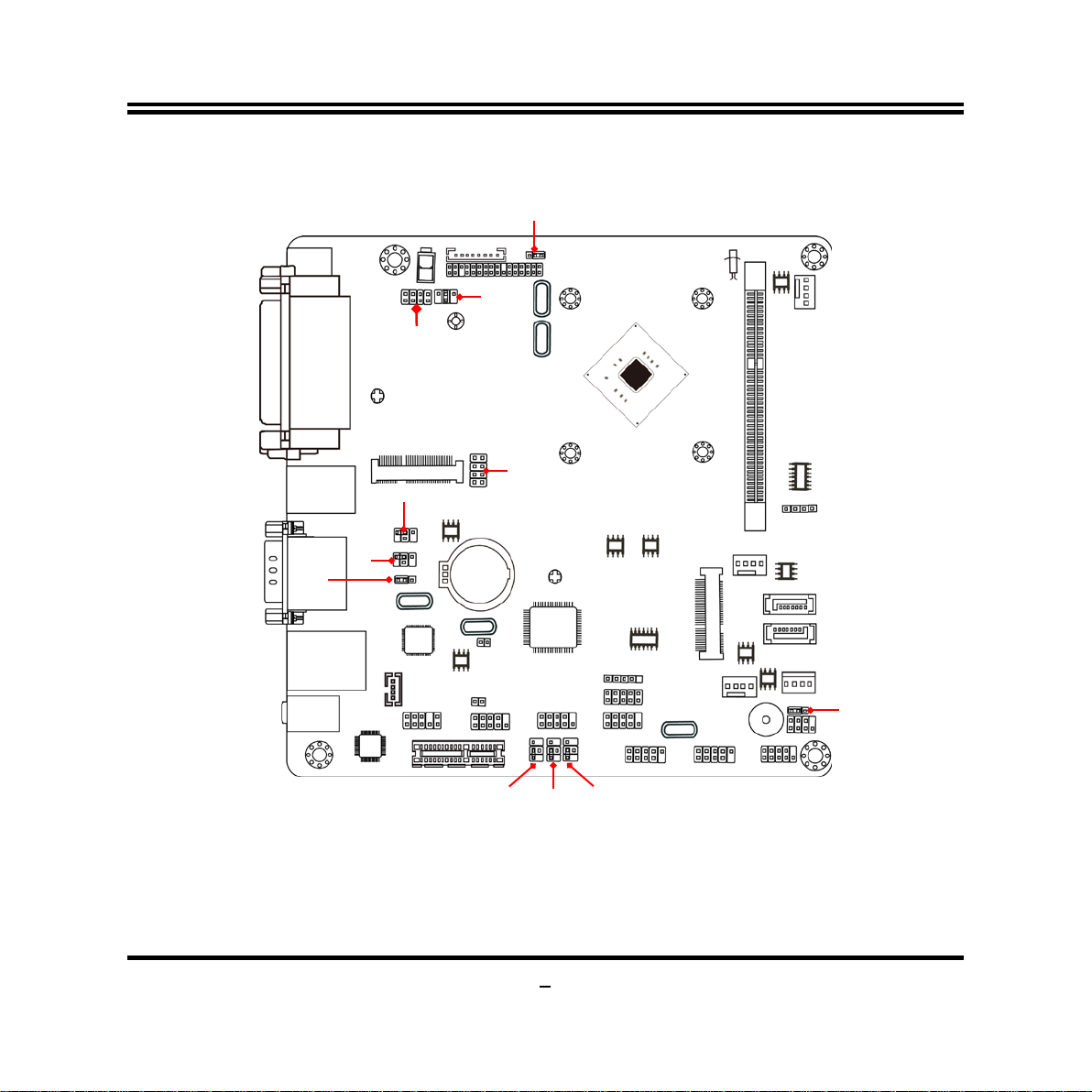

Jumper Position:
JP1
JP6
SYSFAN-DET
JP7
JP8
JP9
JP3
JP10
JP5
JME
JP2

6
Jumper
Jumper
Name
Description
JP10(Pin 1-2)
Disable ME Function Select
2-Pin Block
JP10(Pin 3-4)
CMOS RAM Clear Function Select
2-Pin Block
JP10(Pin 5-6)
AT Mode Function Select
2-Pin Block
JP10(Pin 7-8)
Case Open Message Display Function
2-Pin Block
JME
Clear ME RTC Function Setting
3-Pin Block
SYSFAN_DET
SYSFAN1/SYSFAN2 R.P.M. Select
3-Pin Block
JP1
LCD Back Light 5V/12V Select
3-Pin Block
JP3
LVDS PVCC 5V/3.3V /12V Select
4-Pin Block
JP6
COM1 Port Pin9 Function Select
4-Pin Block
JP5
COM2 Header Pin9 Function Select
4-Pin Block
JP7
COM3 Header Pin9 Function Select
4-Pin Block
JP8
COM4 Header Pin9 Function Select
4-Pin Block
JP9
COM5 Header Pin9 Function Select
4-Pin Block
JP2
LVDS Panel Resolution Type Select
8-Pin Block
Connectors
Connector
Name
DCIN
DC 12V Power–in Connector
J2
DC 12V Internal Power Connector
SATA1/SATA2
SATAII Port Connector
SATAPW
SATA Power out Connector
HDMI
High-Definition Multimedia Interface
VGA
VGA Port Connector
LPT
Parallel Port Connector
PS2_USB1(Top)
PS2 KB & MS Combo Connector
PS2_USB1( Bottom )
USB 2.0 Port Connector X 2
COM1_COM2
Serial Port X 2

7
UL1(Top)
RJ-45 LAN Port Connector
UL1(Middle)
USB 2.0 Port Connector
UL1(Bottom)
USB 3.0 Port Connector
AUDIO(Top)
Audio Line Out Connector
AUDIO(Bottom)
Audio MIC In Connector
CPUFAN
CPUFAN Connector
SYSFAN1/SYSFAN2
SYSFAN Connector X2
Headers
Header
Name
Description
FP_AUDIO
Front Panel Audio Header
9-pin Block
SPDIF
HDMI_SPDIF Out Header
2-pin Block
LAN_LED
LAN Activity LED Header
2-pin Block
SPEAK_CON
Speaker Header
4-pin Block
COM2/3/4
Serial Port Header X3
9-pin Block
F_USB2/ F_USB3
USB 2.0 Header X2
9-pin Block
F_USB1
USB 2.0 Header
4-pin Block
JW_FP
Front Panel Header(PWR LED/
HDD LED/Power Button /Reset)
9-pin Block
SPK-LED
Power LED & Speaker Header
7-pin Block
GPIO_CON
GPIO Header
10-pin Block
SMBUS
SMBUS Header
4-pin Block
INVERTER
LVDS Inverter
8-pin Block
LVDS
LVDS Header
30-pin Block

8
Chapter 2
Hardware Installation
2-1 Jumper Setting

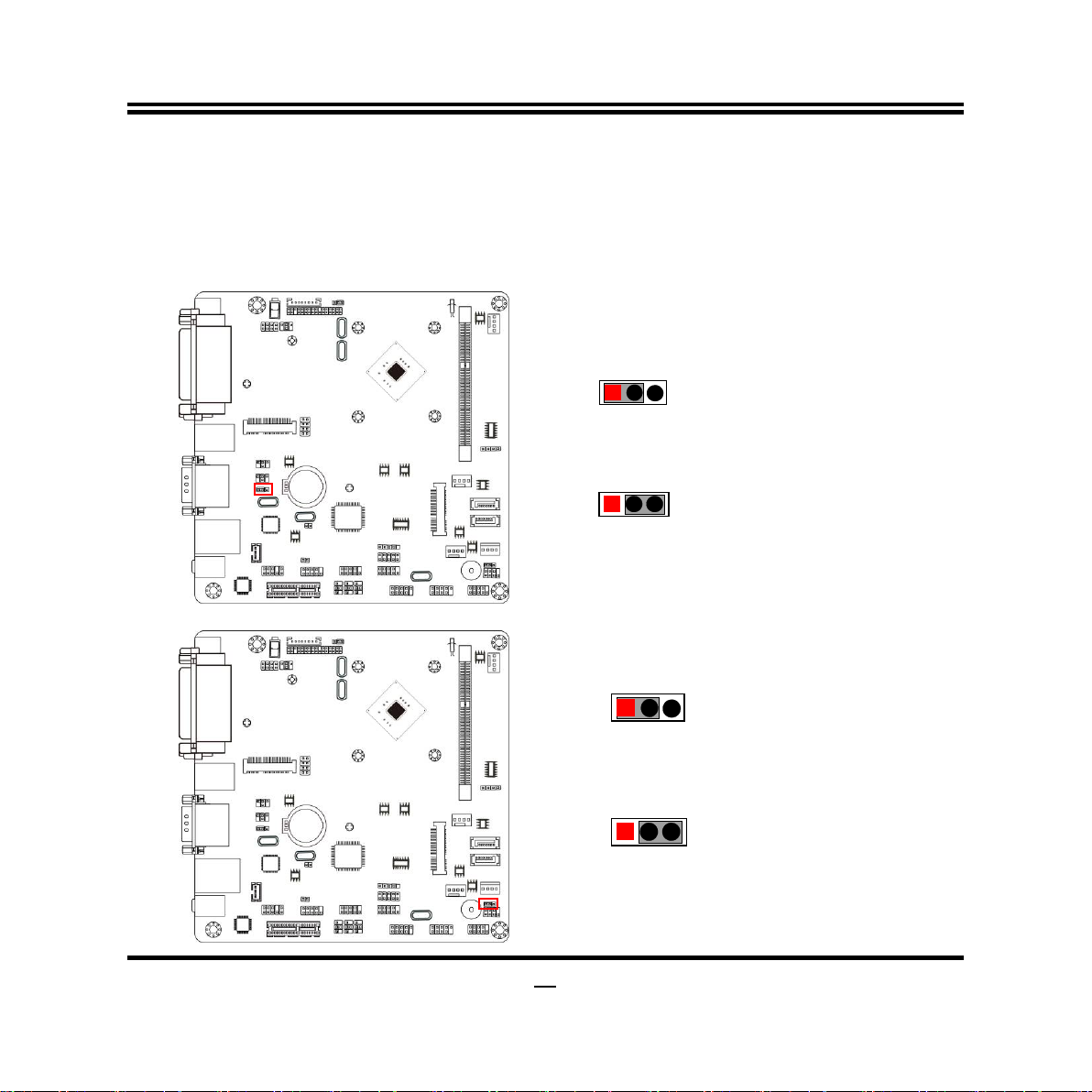

Pin 1-2 of JP10 (8-pin): Security Measure Function Select
Pin 1-2 of JP10→Disable ME Function Select
Pin 1
1-2 Closed:
Disable ME Function Selected.
1-2 Open: Normal;
Pin 1
Pin 3-4 of JP10 (8-pin): Clear CMOS Setting
Pin 3-4 of JP10→Clear CMOS Setting
Pin 3
3-4 Closed: Clear CMOS.
3-4 Open: Normal;
Pin 3

9
Pin 5-6 of JP10 (8-pin): AT Mode Function Select
Pin 5-6 of JP10→AT Mode Select
Pin 5
5-6 Closed: AT Mode Selected.
5-6 Open: ATX Mode Selected;
Pin 5
*ATX Mode Selected: Press power button to power on after power input ready;
AT Mode Selected: Directly power on as power input ready.
Pin 7-8 of JP10 (8-pin): Case Open Message Display Function Select
Pin 7-8 of JP10→Case Open Function Select
Pin 7
7-8 Closed: Case Open Function
Selected (One Touch).
7-8 Open: Normal;
Pin 7

10
Pin 7-8 Closed: When Case open function pin short to GND, the Case open function
was detected. When Used, needs to enter BIOS and enable ‘Case Open Detect’
function. In this case if your case is removed, next time when you restart your computer,
a message will be displayed on screen to inform you of this.

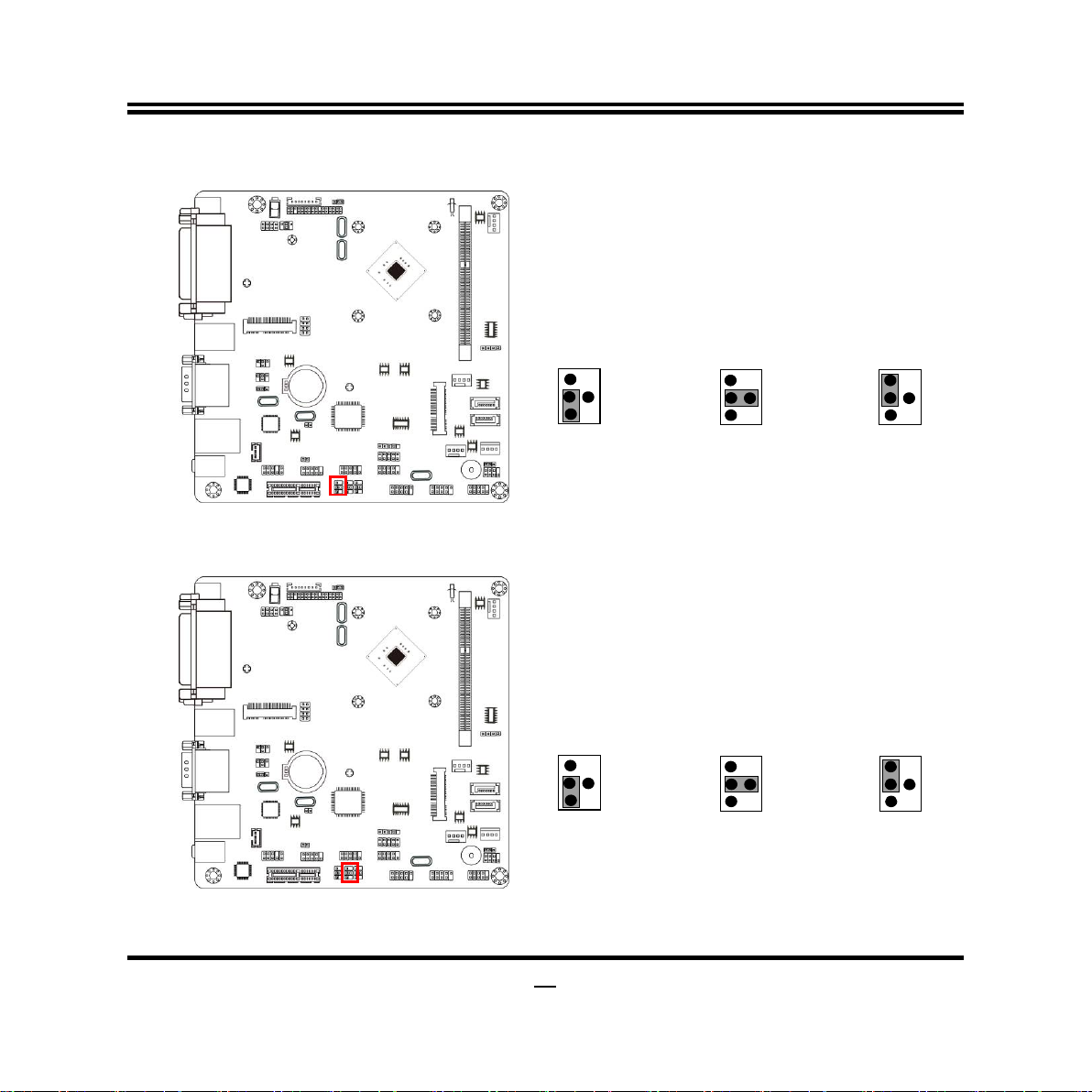

JME (3-pin): Clear ME_RTC Function Setting
2-3 Closed：Clear ME_RTC.
JME→Clear ME_RTC Function Setting
1-2 Closed Normal；
1
1
3
3
SYSFAN_DET (3-pin): SYSFAN1/SYSFAN2 R.P.M. Select
2-3 Closed：SYSFAN2 R.P.M. Selected.
SYSFAN_DET
1-2 Closed：SYSFAN1 R.P.M. Selected;
1
1
3
3

11
JP1 (3-pin): LCD Back Light VCC 5V/12V Select
JP1→LCD Backlinght
1-2 Closed：VCC=5V;
1
1
3
3
2-3 Closed：VCC=12V.
JP3 (4-pin): LVDS PVCC 3.3V/5V/12V Function Select
JP3→LVDS PVCC
4-6 Closed:
VCC= 12V.
6
4
2
3-4 Closed:
VCC= 5V;
2-4 Closed:
VCC=3.3V;
3
1
5
1
3
5
2
4
6
1
3
5
2
4
6

12
JP6 (4-pin): COM1 Port Pin9 Function Select
JP6→COM1
4-6 Closed:
RI= 12V.
6
4
2
3-4 Closed:
RI= 5V;
2-4 Closed:
RI=RS232;
3
1
5
1
3
5
2
4
6
1
3
5
2
4
6
JP5 (4-pin): COM2 Header Pin9 Function Select
JP5→COM2
4-6 Closed:
RI= 12V.
6
4
2
3-4 Closed:
RI= 5V;
2-4 Closed:
RI=RS232;
3
1
5
1
3
5
2
4
6
1
3
5
2
4
6

13
JP7 (4-pin): COM3 Header Pin9 Function Select
JP7→COM3Header
4-6 Closed:
RI= 12V.
1
3
5
3-4 Closed:
RI= 5V;
2-4 Closed:
RI=RS232;
4
6
2
6
5
3
1
4
2
5
3
1
6
4
2
JP8 (4-pin): COM4 Header Pin9 Function Select
JP8→COM4 Header
4-6 Closed:
RI= 12V.
1
3
5
3-4 Closed:
RI= 5V;
2-4 Closed:
RI=RS232;
4
6
2
6
5
3
1
4
2
5
3
1
6
4
2

14
JP9 (4-pin): COM5 Header Pin9 Function Select
JP9→COM5Header
4-6 Closed:
RI= 12V.
1
3
5
3-4 Closed:
RI= 5V;
2-4 Closed:
RI=RS232;
4
6
2
6
5
3
1
4
2
5
3
1
6
4
2
JP2 (8-pin): LVDS Panel Resolution Type Select
Pin1
2
8
7

15
User can select Panel resolution by jumper settings. There are two basic setting
modes:
Short: in which user can close pin 1-pin2, pin3-pin4, pin5-pin6, pin7-pin8
respectively;
Open: in which user leave jumper hat just in pin 2, pin4, pin6 or pin8.
Option
Jumper Setting
Description
Panel Resolution
Color Depth
1
1
2
Pin 1-2: Short
Pin 3-4: Short
Pin 5-6: Short
Pin 7-8: Short
640 x 480 @ 60Hz 18-bit
2
1
2
Pin 1-2: Open
Pin 3-4: Short
Pin 5-6: Short
Pin 7-8: Short
800 x 600 @ 60Hz 18-bit
3
1
2
Pin 1-2: Short
Pin 3-4: Open
Pin 5-6: Short
Pin 7-8: Short
1024 x 600 @ 60Hz 18-bit
4
1
2
Pin 1-2: Open
Pin 3-4: Open
Pin 5-6: Short
Pin 7-8: Short
1024 x 768 @ 60Hz 24-bit
5
1
2
Pin 1-2: Short
Pin 3-4: Short
Pin 5-6: Open
Pin 7-8: Short
1280 x 720 @ 60Hz 18-bit
6
1
2
Pin 1-2: Open
Pin 3-4: Short
Pin 5-6: Open
Pin 7-8: Short
800 x 480 @ 60Hz 18-bit
7
1
2
Pin 1-2: Short
Pin 3-4: Open
Pin 5-6: Open
Pin 7-8: Short
1366 x 768 @ 60Hz 18-bit
8
1
2
Pin 1-2: Open
Pin 3-4: Open
Pin 5-6: Open
Pin 7-8: Short
1440 x 900 @ 60Hz 18-bit
