TECHNICAL MANUAL
Of
Intel Q87 Express Chipset
Based Mini-ITX M/B
NO. G03-NF9QU-F
Revision: 5.0
Release date: October 1, 2019
Trademark:
* Specifications and Information contained in this documentation are furnished for information use only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.

i
Environmental Protection Announcement
Do not dispose this electronic device into the trash while discarding. To minimize
pollution and ensure environment protection of mother earth, please recycle.

ii
ENVIRONMENTAL SAFETY INSTRUCTION...........................................................................iii
USER’S NOTICE .......................................................................................................................iv
MANUAL REVISION INFORMATION.......................................................................................iv
ITEM CHECKLIST.....................................................................................................................iv
CHAPTER 1 INTRODUCTION OF THE MOTHERBOARD
1-1 FEATURE OF MOTHERBOARD................................................................................1
1-2 SPECIFICATION .........................................................................................................2
1-3 LAYOUT DIAGRAM....................................................................................................3
CHAPTER 2 HARDWARE INSTALLATION
2-1 JUMPER SETTING .....................................................................................................8
2-2 CONNECTORS AND HEADERS................................................................................12
2-2-1 CONNECTORS .............................................................................................12
2-2-2 HEADERS .....................................................................................................14
CHAPTER 3 INTRODUCING BIOS
3-1 ENTERING SETUP .....................................................................................................21
3-2 BIOS MENU SCREEN ................................................................................................22
3-3 FUNCTION KEYS .......................................................................................................22
3-4 GETTING HELP ..........................................................................................................23
3-5 MEMU BARS...............................................................................................................23
3-6 MAIN MENU................................................................................................................24
3-7 ADVANCED MENU.....................................................................................................25
3-8 CHIPSET MENU..........................................................................................................34
3-9 BOOT MENU...............................................................................................................37
3-10 SECURITY MENU.......................................................................................................39
3-11 SAVE & EXIT MENU...................................................................................................40
TABLE OF CONTENT

iii
Environmental Safety Instruction
Avoid the dusty, humidity and temperature extremes. Do not place the product in
any area where it may become wet.
0 to 60 centigrade is the suitable temperature. (The figure comes from the request
of the main chipset)
Generally speaking, dramatic changes in temperature may lead to contact
malfunction and crackles due to constant thermal expansion and contraction from
the welding spots’ that connect components and PCB. Computer should go
through an adaptive phase before it boots when it is moved from a cold
environment to a warmer one to avoid condensation phenomenon. These water
drops attached on PCB or the surface of the components can bring about
phenomena as minor as computer instability resulted from corrosion and oxidation
from components and PCB or as major as short circuit that can burn the
components. Suggest starting the computer until the temperature goes up.
The increasing temperature of the capacitor may decrease the life of computer.
Using the close case may decrease the life of other device because the higher
temperature in the inner of the case.
Attention to the heat sink when you over-clocking. The higher temperature may
decrease the life of the device and burned the capacitor.

iv
USER’S NOTICE
COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL,
INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED
OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN
PERMISSION OF THE MANUFACTURER.
THIS MANUAL CONTAINS ALL INFORMATION REQUIRED TO USE THIS MOTHER-BOARD SERIES AND WE
DO ASSURE THIS MANUAL MEETS USER’S REQUIREMENT BUT WILL CHANGE, CORRECT ANY TIME
WITHOUT NOTICE. MANUFACTURER PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY
KIND, AND WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFIT, LOSS OF BUSINESS, LOSS OF USE OF DATA,
INTERRUPTION OF BUSINESS AND THE LIKE).
PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY NOT BE
REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE COMPANIES, AND THEY ARE
USED ONLY FOR IDENTIFICATION OR EXPLANATION AND TO THE OWNER’S BENEFIT, WITHOUT
INTENT TO INFRINGE.
Manual Revision Information
Reversion Revision History Date
5.0 Fifth Edition October 1, 2019
Item Checklist
Motherboard
Cable(s)
I/O Back panel shield

1
Chapter 1
Introduction of the Motherboard
1-1 Feature of Motherboard
Intel®Q87 express chipset
Support Intel®LGA 1150 Socket Intel®Core™ i3, i5, i7 & Pentium Processors in
LAG1150 Package (Max. 65W TDP)
Support 2* DDRIII SO-DIMM 1333/1600 MHz up to 16GB and dual channel
function
Integrated with Intel®i211AT and Intel®i217-LM Gigabit Ethernet LAN chip
Integrated ALC662 HD audio codec
Support HDMI , DVI-D and VGA video outputs
Support 4* SATAIII 6GB/S ports with RAID 0,1,5,10 function
Support 1*full-size Mini-PCIE slot (Selectable with MSATA)
Support 1*half-size Mini-PCIE slot
Support PCI Express x4 slot
Support USB 3.0 data transport demand
Support CPU Smart FAN
Supports ACPI S3 Function
Compliance with EuP Standard
Support TPM function
Support Watchdog Timer Technology

2
1-2 Specification
Spec
Description
Design
Mini-ITX form factor; 6 layers ; PCB size: 17.0x17.0cm
Chipset
Intel®Q87 Express Chipset
CPU Socket
Supports Intel®Core™ i7, Core™ i5, Core™ i3 series,
Pentium®processor in LAG1150 Package (Max. 65W TDP)
* for detailed CPU support information please visit our website
Memory Slot
DDRIII SO-DIMM slot x2
Support DDRIII 1333/1600 MHz DDRIII SO-DIMM
expandable to 16GB

Support dual channel function
Expansion Slot
1* PCI Express x 4 slot
1 * full-size Mini-PCIE slot (Selectable with MSATA)

1 * half-size Mini-PCIE slot
Storage 
4 * SATAIII 6Gb/s ports support RAID 0, 1, 5, 10 function
Dual LAN Chip

Integrated Intel®i211AT and i217-LM Gigabit Ethernet LAN
chip that support Fast Ethernet LAN function of providing
10/100/1000Mbps Ethernet data transfer rate
Audio Chip
Realtek ALC662 Audio Codec integrated

Audio driver and utility included
BIOS
64M bit Flash ROM
Multi I/O
Rear Panel I/O:
1* 9V~24V DC power in jack
1* HDMI port connector
1* VGA port connector
1* DVI-D port connector
1* RS232/422/485 Serial port connector(COM1)
1* RS232 Serial port connector (COM2)
4* USB 3.0 port connector
2* RJ-45 LAN connector
1* Audio Line-out connector

1* Audio MIC connector

3
Internal I/O Connectors& Headers:
1 *4-pin 9V~24V internal power connector
4* SATAIII connector
1* 4-pin SATA hard disk power connector
1* Front panel audio header
1* HDMI_SPDIF out header
2* LAN port activity indicator LED header
2* RS232 Serial port header(COM3/COM4)
1* GPIO header
1* PS/2 KB & MS header
1* SM BUS header
2* USB 2.0 header (support four expansion USB 2.0 ports)
1* USB 3.0 header (support two expansion USB 3.0 ports)
1* Speaker header + PWRLED header
1* Front panel header
1* CPU fan header

2* System fan header
1-3 Layout Diagram

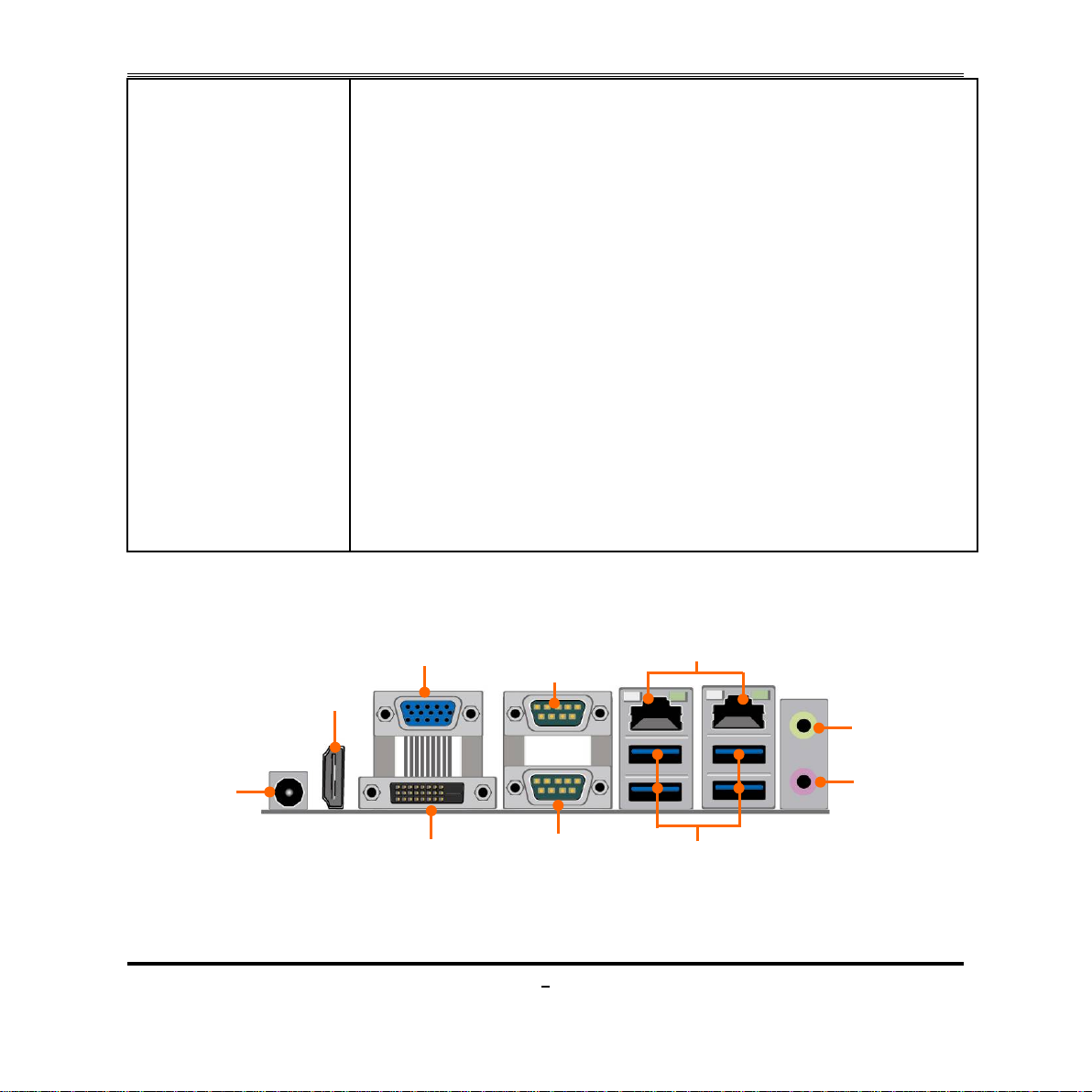

Rear IO Diagram
MIC-IN
Line-OUT
RJ-45 LAN Ports
DVI-DPort
USB 3.0 Ports
VGA Port
HDMI Port
9V~24V
DC Power-in
Connector
Serial Port
(COM1)
Serial Port
(COM2)

4
Motherboard Internal Diagram
USB 2.0 Headers
9V～24V Internal
Power Connector
DDRIII SODIMM Slot x 2
（DDRIII 1333/1600）
Audio Connectors
Intel LGA 1150
CPU Socket
HDMI_SPDIF Header
GPIO Header
Intel Q87 Chipset
*PCI Express x4 Slot (PCIE1)
CPUFAN Header
RJ-45 Port over
USB 3.0 Ports
SATAIII Ports
Front Panel
Audio Header
Front Panel Header
SYSFAN1Header
Speaker &
Power LED Header
RJ-45 Port over
USB 3.0 Ports
Serial Ports
USB 3.0 Header
LAN2LED Header
SYSFAN2 Header
SM BUS
Header
PS2
KB &MS Header
9V~24V DC
Power-in
Connector
HDMI Port
VGA Port over
DVI-D Port
Full-size Mini-PCIE
/ M-SATA Connector
Half-size Mini-PCIE
Connector
COM3
Serial Port Header
LAN1LED Header
Hard Disk
Power Connector
COM4
Serial Port Header

5
Motherboard Jumper Positions
JBAT
JP2
COPEN
JP5
JP7
JP1
AT-MODE
JP4

6
Jumper
Jumper
Name
Description
JP1
COM1 Port Pin9 Function Select
4-pin Block
JP2
COM2 Port Pin9 Function Select
4-pin Block
JP5
MPE Slot VCC3.3V /3VSB Select
3-pin Block
JP7
MMPE Slot VCC3.3V /3VSB Select
3-pin Block
JBAT
CMOS RAM Clear Function Setting
3-pin Block
JP4
Security Measure Function Select
2-pin Block
AT-MODE
ATX Mode & AT Mode Select
2-pin Block
COPEN
Case Open Message Display Function
2-pin Block
Connectors
Connector
Name
DCIN
9V~24V Main Power Connector

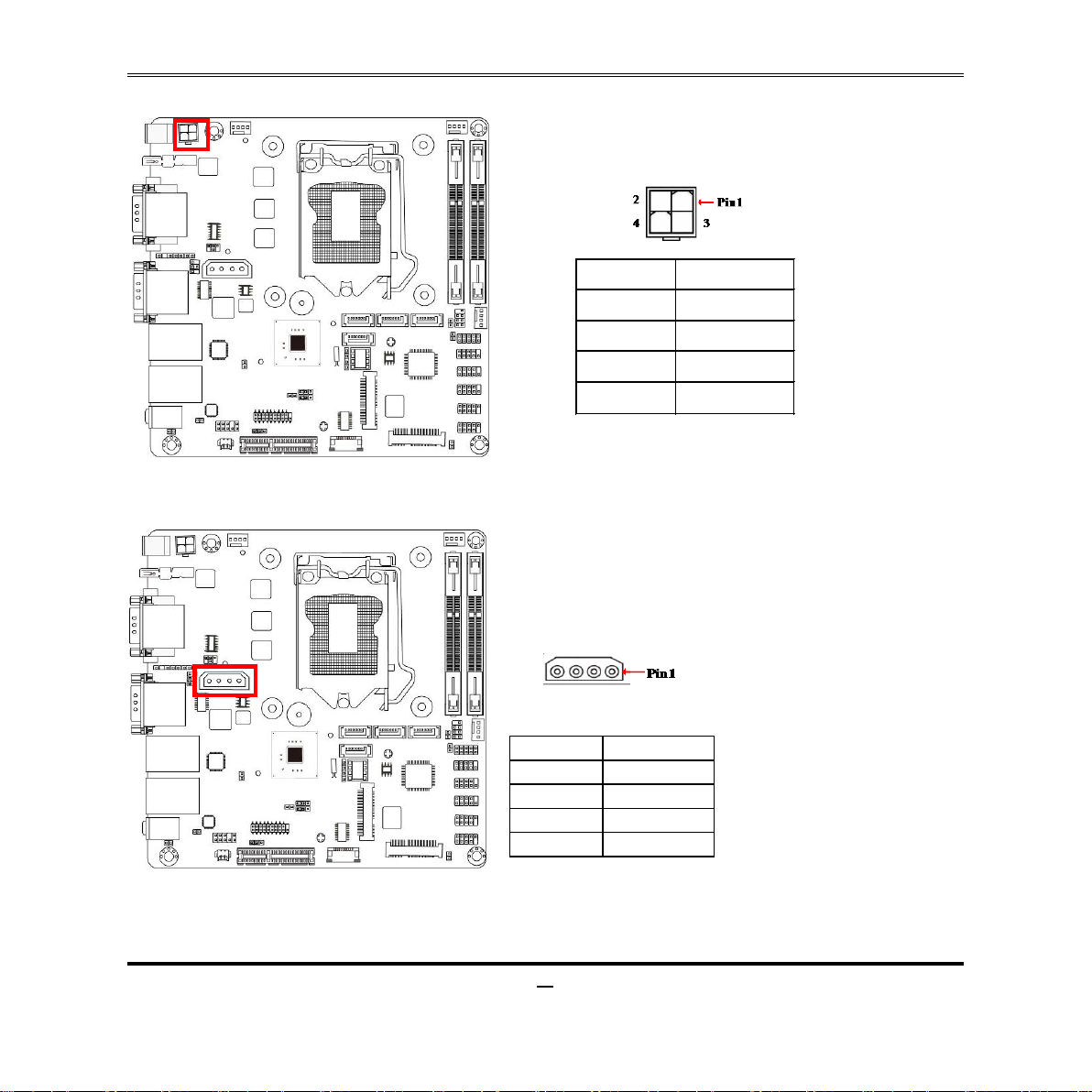

DCPWRIN
9V~24V Internal Power Connector
PWROUT
SATA Hard Disk Power Connector
SATA1/2/3/4
SATAIII Connector x 4
HDMI
High-Definition Multimedia Interface
DVI
DVI-D Port Connector
VGA
VGA Port Connector
USB1
USB 3.0 Port Connector x2
COM1 (Top)
RS232/422/485 Serial Port Connector
COM2 ( Bottom )
RS232 Serial Port Connector
UL1(Middle & Bottom)
/UL2(Middle & Bottom)
USB 3.0 Port Connector x4
UL1(Top) / UL2(Top)
RJ-45 LAN Connector x2
AUDIO( Bottom )
Audio MIC Audio Connector
AUDIO(Top)
Audio Line out Audio Connector

7
Headers
Header
Name
Description
FP_AUDIO
Front Panel Audio Header
9-pin Block
SPDIFOUT
HDMI_SPDIF Out Header
2-pin Block
LAN1LED/LAN2LED
LAN LED Header
2-pin Block
COM3/COM4
RS232 Serial Port Header X2
9-pin Block
GPIO
GPIO Header
10-pin Block
PS2KBMS
PS2 KB & MS Header
6-pin Block
SMBUS
SM BUS Header
4-pin Block
USB2/USB3
USB 2.0 Port Header x2
9-pin block
USB1
USB 3.0 Port Header
19-pin block
SPK-LED
Power LED+ Speaker Header
7-pin Block
FP
Front Panel Header(PWR LED/
HD LED/ /Power Button /Reset)
9-pin Block
SYSFAN1/SYSFAN2
/CPU FAN
FAN Header x3
4-pin Block

8
Chapter 2
Hardware Installation
2-1 Jumper Setting

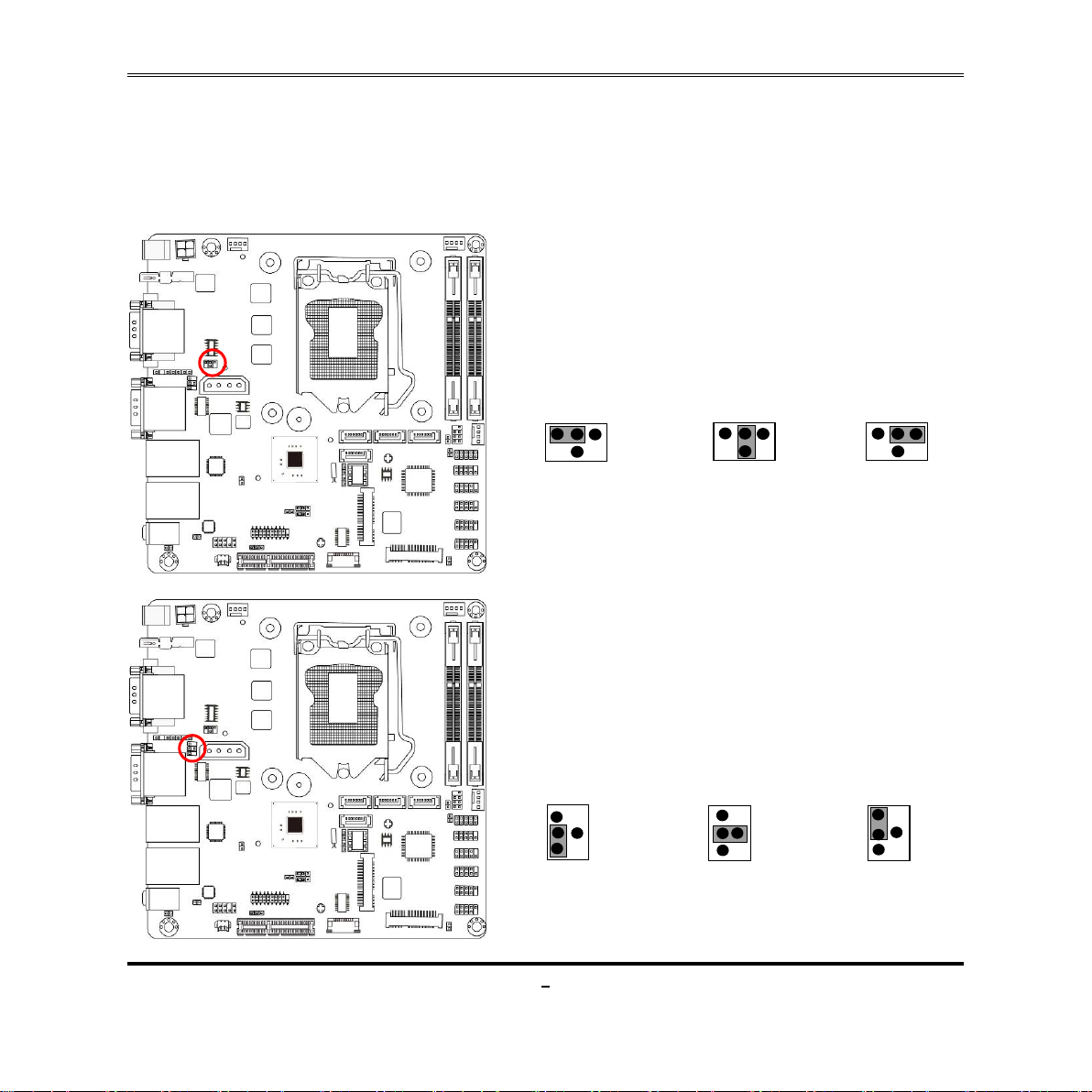

(1) JP1 (4-pin): COM1 Port Pin9 Function Select
JP1→COM1 Port
4-6 Closed:
RI= 12V.
6
4
2
3-4 Closed:
RI= 5V;
2-4 Closed:
RI=RS232;
3
1
5
1
3
5
2
4
6
1
3
5
2
4
6
(2) JP2 (4-pin): COM4 Header Pin9 Function Select
JP2→COM4 Port
4-6 Closed:
RI= 12V.
5
3
1
3-4 Closed:
RI= 5V;
2-4 Closed:
RI=RS232;
4
2
6
2
1
3
5
4
6
1
3
5
2
4
6

9
(3) JP5 (3-pin): MPE Slot VCC3.3V/ 3VSB Select
2-3 Closed: MPESlot VCC= 3VSB.
JP5→MPESlot(Half-size Mini-PCIE Slot)
1-2 Closed: MPESlot VCC= 3.3V;
1
3
1
3
(4) JP7 (3-pin): MMPE Slot VCC3.3V/ 3VSB Select
2-3 Closed: MMPESlot VCC= 3VSB.
JP7→MMPE Slot(Full-size Mini-PCIE/MSATA Slot)
1-2 Closed: MMPESlot VCC= 3.3V;
1
3
1
3

10
(5) JBAT (3-pin): Clear CMOS Function Settings
2-3 Closed:Clear CMOS.
JBAT→Clear COMS
1-2 Closed: Normal;
1
3
1
3
(6)JP4 (2-pin): Security Measure Function Select
1-2 Closed: Disable Security Measures
in the Flash Descriptor(Override).
JP4
1
2
1-2 Open:Enable Security Measures
in the Flash Descriptor(Default);
1
2

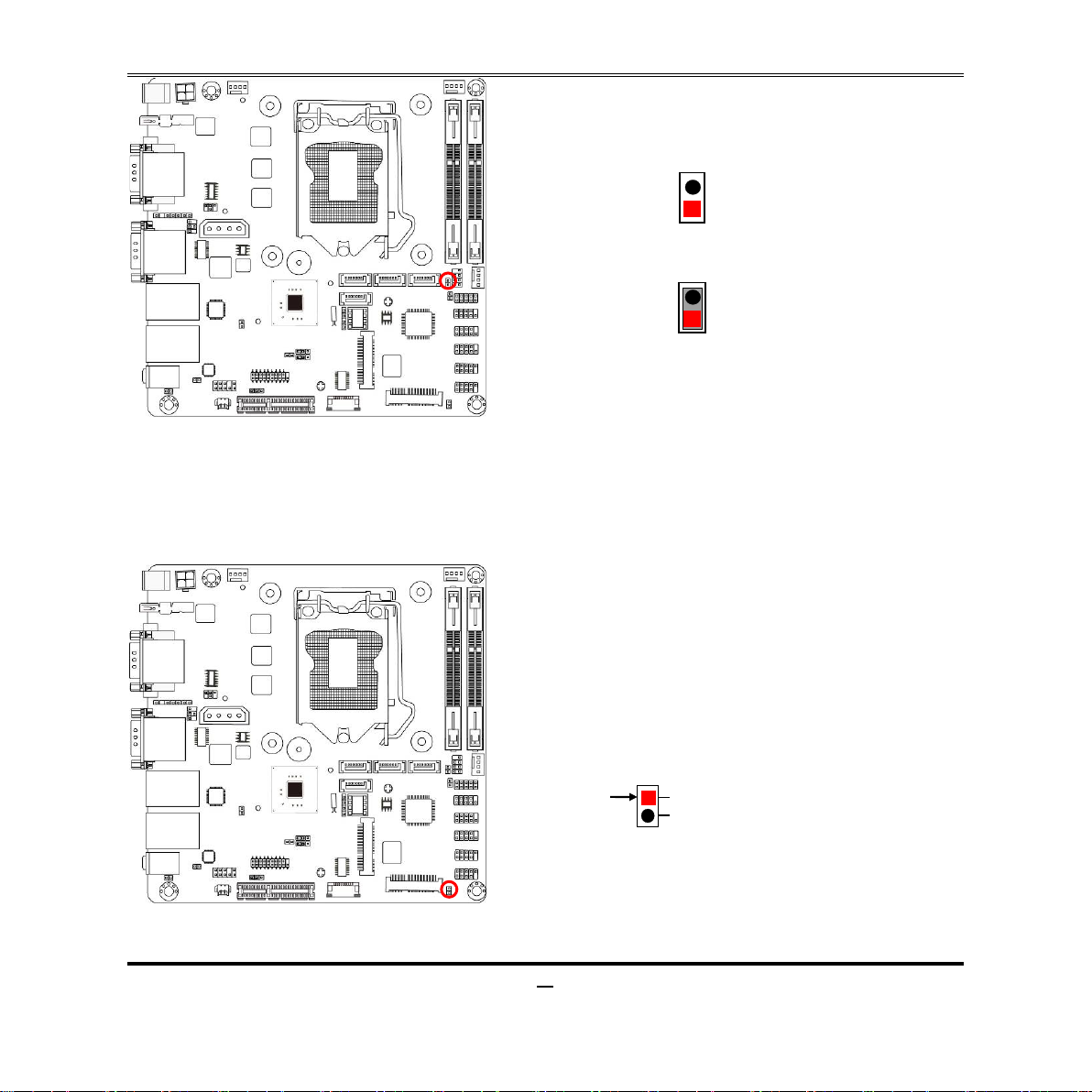

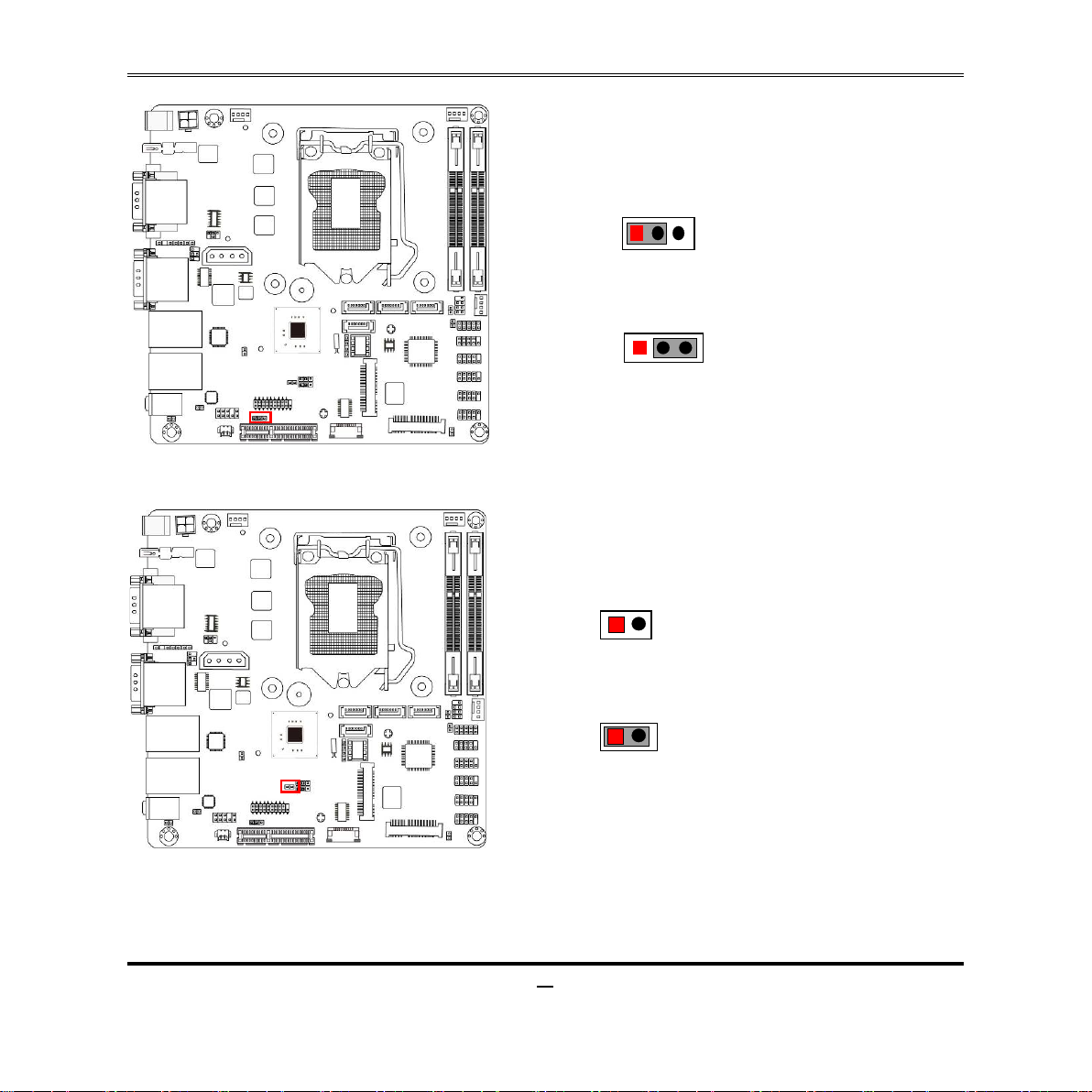

(7)AT_MODE (2-pin): AT Mode Function Select
Pin 1-2 closed: AT_MODE function is enabled. In this case your computer will
automatically turns on after a sudden power failure when power supply resumes.

11
1-2 Closed: AT Mode Selected.
AT-MODE
1
2
1-2 Open: Normal;
1
2
(8)COPEN (2-pin): Case Open Message Display Function Select
Pin 1-2 Closed: When Case open function pin short to GND, the Case open function
was detected. When Used, needs to enter BIOS and enable ‘Case Open Detect’
function. In this case if your case is removed, next time when you restart your computer,
a message will be displayed on screen to inform you of this.
COPEN
Case open function
GND
Pin1

12
2-2 Connectors and Headers
2-2-1 Connectors
(1) Rear Panel Connectors
(2) COM1 (9-pin Block): RS232/422/485 Serial Port
COM1 port can function as RS232/422/485 port. In normal settings COM1 functions
as RS232 port. With compatible COM cable COM1 can function as RS422 or RS 485
port.
User also needs to go to BIOS to set ‘Transmission Mode Select’ for COM1 (refer to
Page 31) at first, before using specialized cable to connect different pins of this port.
MIC-IN
Line-OUT
RJ-45 LAN Ports
DVI-D Port
USB 3.0 Ports
VGA Port
HDMI Port
9V~24V
DC Power-in
Connector
Serial Port
(COM1)
Serial Port
(COM2)

13
(3) DCPWRIN (4-pin block): 9V~24V Internal Power Connector
Pin No.
Definition
1
GND
2
GND
3
+9V~+24V
4
+9V~+24V
(4) PWOUT (4-pin block): SATA Hard Disk Power Connector
Pin No.
Definition
1
+12V
2
GND
3
GND
4
VCC

14

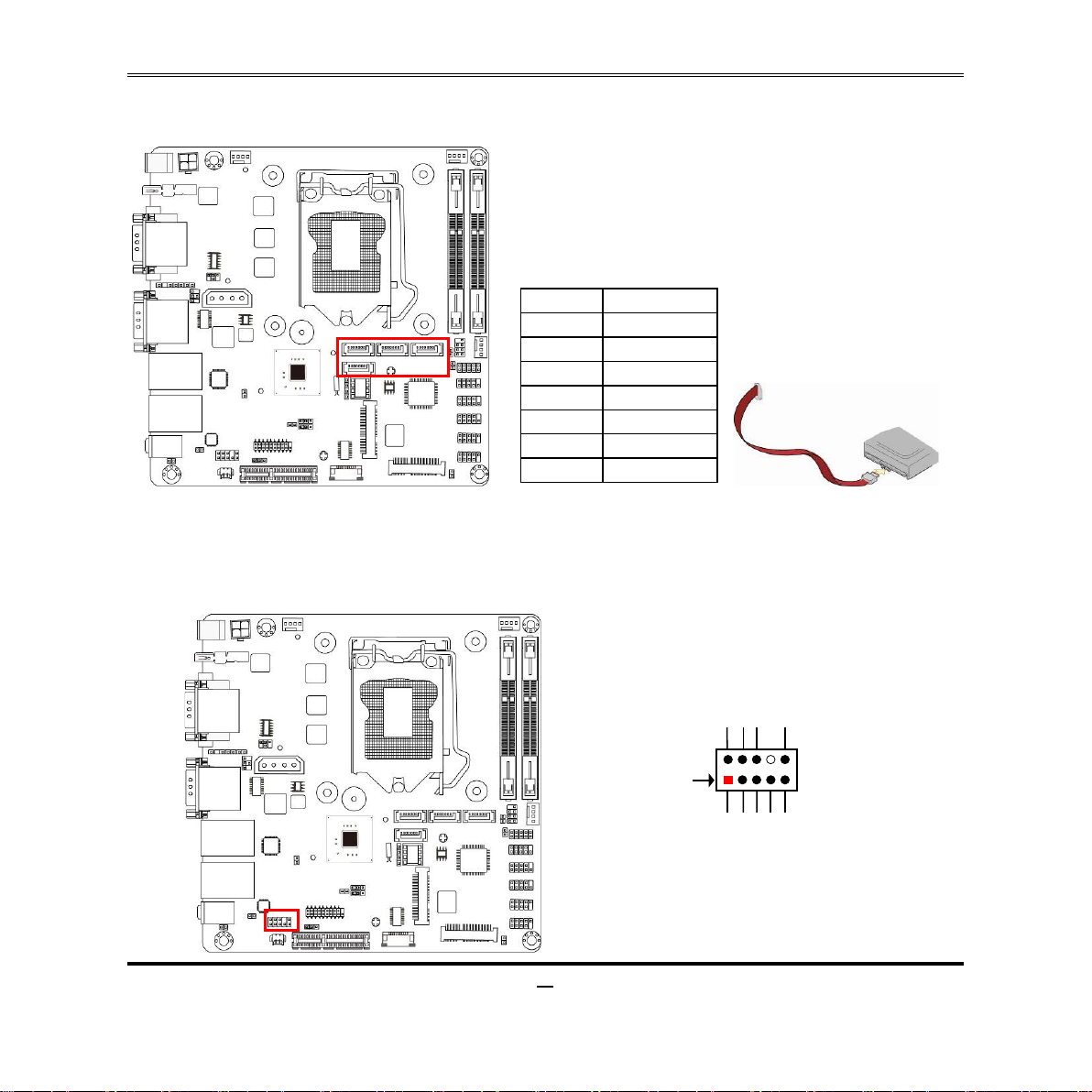

(5) SATA1/2/3/4(7-pin block): SATAIII Port connector
These connectors are high-speed SATAIII ports that support 6 GB/s transfer rate.
Pin No.
Definition
1
GND
2
TXP
3
TXN
4
GND
5
RXN
6
RXP
7
GND
2-2-2 Headers
(1) FP_AUDIO (9-pin): Line-Out, MIC-In Header
This header connects to Front Panel Line-out, MIC-In connector with cable.
Line-Out, M I C Header
FP_AUDIO
Pin 1
MIC2-L
LINE OUT-L
MIC2-R
LINE OUT-R
NC
GND
NC
NC
NC
2

15
(2) SPDIFOUT (2-pin): HDMI-SPDIF Out Header
HDMI_SPDIF Header
Pin1
SPDIF
GND
(3) LAN1LED/LAN2LED (2-pin): RJ-45 LAN LED Activity Headers
LED+
LED-
Pin1
LAN1LED
LAN2LED
Pin1
LED+
LED-
