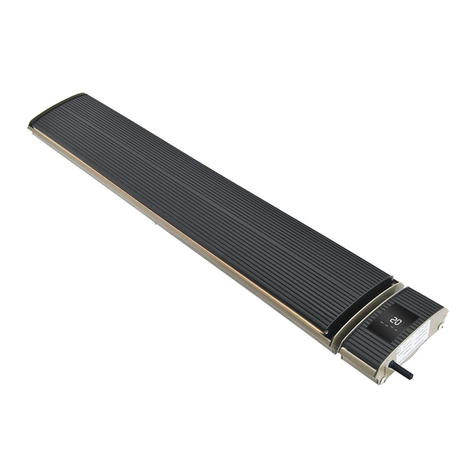

JH 13C Series User manual

Models: HEATER-13C SERIES
Read instructions carefully before setting up and operating the unit.
This manual is designed to provide you with important information needed to setup,
operate, maintain, and troubleshoot your heater.
Due to continuous research and development the specifications herein are subject
to change without notice.

Page | 2
TABLE OF CONTENTS
1. FOREWORD...............................................................................................................3
2. PRINCIPLE OF WORK .............................................................................................3
3. PERFORMANCE FEATURES .................................................................................3
4. WORKING CONDITION ...........................................................................................4
5. INSTALLATION REQUIREMENTS .........................................................................4
6. INSTALLATION INSTRUCTION ..............................................................................5
7. INSTALLATION DIAGRAM.......................................................................................7
8. MANUAL FOR REMOTE ..........................................................................................8
9. INSPECTION ITEMS AFTER INSTALLATION....................................................11
10. ATTENTION...........................................................................................................11
11. INSPECTION ITEMS FOR COMMISSIONING ...............................................11
12. SAFETY PRECAUTIONS ...................................................................................12
13. PACKING LIST......................................................................................................13
14. SPECIFICATIONS................................................................................................13

Page | 3
1. FOREWORD
Thank you for your trust and support in choosing the Radiant Heater, please read
the instructions carefully before operating product.
2. PRINCIPLE OF WORK
Far-infrared radiant heater is produced by unique design and manufacturing
technique.
Adopted special aluminum alloy radiation panel, surface of panel process with
special coating, inside of panel embed with heating element, heating element
generate and transfer heat to people and objects after power.
The heat is spread in the form of radiation, emitted from radiant panel surface,
transferred to people, wall, floor, ceiling, furniture etc, like sunshine.
Radiant heating, will not lead to air convection, air is fresh and clean, to maintain
indoor relative humidity and heat distribution, makes sense of natural, fresh,
comfortable, like the warmth of sunshine bathing.
3. PERFORMANCE FEATURES
Comfortable:
No wind, light or odor will be caused during the running of this product, so the
indoor air is clean without floating dust.
Energy-saving:
High heat generation efficiency and good heat radiation effect, controlling the
temperature intelligently, and saves power and energy.
Reliable:
The indoor temperature can be adjusted freely, free of the limitation of heating
season.
Physical therapy:
The heat radiant can change body microcirculation, cell organization under skin
producing resonance, clearing the barrier of microcirculation, adjusting and
balancing nervous system, promoting metabolism, increasing body physical power.
It is very good for people's health.

Page | 4
4. WORKING CONDITION
Ambient temperature: -30℃ ~ +30℃
Rated Voltage: 220-240V~
Rated frequency: 50Hz/60Hz
Relative humidity: less than 95%
5. INSTALLATION REQUIREMENTS
1. Qualified installer:
Electrical installation certificate shall be held by professional installation personnel,
the installation process should meet the national electrical safety standards.
2. Installation conditions:
(1) Supply voltage fluctuation range should be within ± 10%, if do not meet, must
be revised before installation.
(2) If there is a serious security risk in users' electricity environment, the installation
should be refused, until eliminate the security risks.
(3) Electricity lines should be equipped with earth leakage protection devices and
master switch.
(4) Ground wire should be connected to the grounding device on the building, if
not, please consult to professional installer, please do not put ground wire to gas
pipe, water pipe, lightning rod or telephone grounding wire.
Electrical Parameters
Model No.
Power(W)
Rated
Current(A)
Voltage(V)
Cable
length(mm)
JH-NR10-13C
1000
4.3
220-240
2000
JH-NR18-13C
1800
7.8
220-240
2000
JH-NR24-13C
2400
10.4
220-240
2000
JH-NR32-13C
3200
13.9
220-240
500

Page | 5
6. INSTALLATION INSTRUCTION
Model No.
Dimension A(mm)
Dimension B(mm)
JH-NR10-13C
975
200
JH-NR18-13C
1375
700
JH-NR24-13C
1875
1200
JH-NR32-13C
2375
1700

Page | 6
Step 1：Installation of adjusting bracket & sliding bracket.
Step 2：Installation of sliding bracket & heater, as arrow points.

Page | 7
Step 3：Fix adjusting bracket into the wall by expansion screws.Installation of two
adjusting brackets; make sure lock brackets tight by butterfly hand screw.
7. INSTALLATION DIAGRAM

Page | 8
8. MANUAL FOR REMOTE

Page | 9
Heater LED indicate manual
AS aboved pic shows: There are 4 indicate lights in the temperature controller
parts, these 4
indicate lights are used to indicate machine's running level. No.5 is far infrared
receiver;
Attention: The No. 1 indicate light has two color state, red and green.
1. After connected with electrical, but keep turn off heater. You will see all indicate
lights not
shines , like , please press (ON&OFF BUTTON ) to turn on heater. Please noted:
Heater default setting runs in 100% power.
2. Press (POWER BUTTON) to adjust heater running power.
3. Press (CLOCK BUTTON) to control heater turn off on setting hours.
Power levels
No. 1 indicate light has two color state, red and green.
Shines red: No.2 to No 4 lights shows in power setting;
Shines green: No.2 to No.4 lights shows in clock setting (time setting).
power level 25%
power level 50%
On&off button
Turn on&off the heater
Power button：
Running power between:
25%-50%-75%-100%
Clock button：
Control heater turn off in
setting hours：normal→
2 hours→4 hours→8 hour

Page | 10
power level 75%
power level 100%
light closed red light shines green light shines
No in clock function(without time setting)
heater will auto close after 2 hours
heater will auto close after 4 hours
heater will auto close after 8 hours
Bluetooth Speaker
The Bluetooth speaker is turned on when the heater is powered on, speaker will
enter pairing mode, then access the Bluetooth functionality on your device(such
as mobile phone ,laptop, PDA etc.); Search for the device JH-HEATER-
SPEAKER; When found, select and pair your device.
When the phone (or other device) is connected to Bluetooth, you can use the
Bluetooth speaker to play music.
Bluetooth reset button:
Long press this button
to disconnect the
Bluetooth speaker.
Bluetooth working status indicator
Speaker

Page | 11
Bluetooth working status indicator:
The green light is flashing: Bluetooth speaker is connected.
Red-Green light is flashing: Bluetooth speaker waiting for connection.
Note:
1. The speaker do not support phone hands-free function
2.Due to the 2.4G radio interference, if the speaker does not match or play the
music well, turn off the heater and re-power the heater.
9. INSPECTION ITEMS AFTER INSTALLATION
Items to be checked
Situation caused by improperly
installation
Is installation stable?
The equipment may fall off or shake.
Is heat insulation adequate?
Damage objects close to equipment.
Does power voltage same as voltage
shown on product nameplate?
Equipment failure.
Does wire connection correct?
Equipment failure.
Does electricity ground connected
safely?
There is electricity leakage risk.
Does wiring conform to standard?
Equipment failure or circuit damage.
10.ATTENTION
Due to thermal expansion and contraction, the heater would make noise when
turning on or off. It’s a normal phenomenon, and won’t make bad affection.
11. INSPECTION ITEMS FOR COMMISSIONING
1. Cannot turn on power before finishing all installation works.
2. All wires connection are correct and firm.
3. All scattered objects must be removed from radiant heater body.
4. Connect with power to observe radiant heater working status.

Page | 12
12.SAFETY PRECAUTIONS
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the
appliance.
WARNING: In order to avoid overheating, do not cover the heater.
1 .If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
2. The heater must not be located immediately below a socket outlet.
3. Do not use the same socket together with other appliances, in case of current
overload. Make sure the plug and socket good contact.
4. Please pull plugs out when power off. Be care, do not pull wires by hands.
5. Please stop power immediately once heaters failure or wires are broken. Users
can not repair heaters by themselves. Please contact authorized servicer for
maintenance if heaters failure.
6. Radiant heater can not be placed directly below the power outlet.
7. Radiant heater surface temperature is high, must be installed higher than 2.2
meters above ground.
8. Radiant heater surface can not be covered and can not hang objects on
equipment.
9. The distance between back of radiant heater and roof should be larger than
150mm, can not objects within 1000mm distance in front of heater, the side
should be kept at least 200mm away from the surrounding space.
10. Must cut off power and wait till equipment surface cool before cleaning,
flushed by water is prohibited.
11. Users can not repair the radiant heater, if equipment failure and need
maintenance, please contact authorized servicer.
12. Do not install and use radiant heaters on areas occur with flammable,
explosive, easy to shock.
13. Please do not insert any metal or foreign objects to inside of radiant heater, to
avoid accident or personal injury.
14. Radiant heater panel surface with high temperature, touch is forbidden,

Page | 13
prohibit touch, beware of scalding accident.
13. PACKING LIST
No.
Name
QTY
1
Heater
1pc
2
Adjusting bracket
4pc
3
Sliding bracket
2pc
4
Fastener
1set
5
Owner manual
1copy
6
Certification
1pc
14. SPECIFICATIONS
Model No.
Dimension(mm)
Package
size(mm)
N.W.
(kg)
G.W.
(kg)
JH-NR10-13C
975*189*67
1070*250*150
9
7.2
JH-NR18-13C
1375*189*67
1470*250*150
9.7
11.3
JH-NR24-13C
1875*189*67
1970*245*145
12.3
14.5
JH-NR32-13C
2375*189*67
2470*245*145
15.1
17.5
Bluetooth Speaker Technical Parameter:
Technical
Frequency
80Hz-18kHz
SNR
≥90dB
Sensitivity Rate
80dB
THD
0.10%
Bluetooth standard
V4.1+EDR(A2DP)
Speaker
4Ω 5W×2
Working range
≤10m
Output power
10W

Page | 14
CORRECT DISPOSAL OF THIS PRODUCT
This marking indicates that this product should not
be disposed with other household wastes.
To prevent possible harm to the environment or
human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable
reuse of material resources.
To return your used device, please use the return
and collection systems or contact the retailer
where the product was purchased.
They can take this product for environmental safe
recycling.
The product has applied for the patent, anyone who copies will be investigated into
law responsibility!
All rights reserved.
Due to continuous research and development the specifications herein are subject
to change without notice.
