Instruction Manual Model: JH-W5
Please read this user manual thoroughly and
completely before using the product.
HEARING AID
VER: W5(A620)-20211213-V01
Life cycle of product is three years

-1- -2-
CONTENTS
03
07
08
09
15
14
11
11
09
17
23
25
28
30
30
31
32
33
21
17
I.IMPORTANT SAFETY INSTRUCTIONS
1.CONTRAINDICATION
2.WARNINGS
3.NOTICE
II.DO NOT USE IF ANY OF THE FOLLOWING APPLY TO YOU
III.MATTERS NEEDING ATTENTION, WARNINGS AND TIPS
IV.HOW TO USE YOUR DEVICE
1.HOW TO APPLY DOMES
2.LEFT & RIGHT HEARING AID MARKINGS
3.WEARING/REMOVE HEARING AID
4.TURN ON/TURN OFF
5.VOLUME ADJUSTMENT
6.HEARING AID CHARGING
7.HOW TO USE THE CHARGING CASE
V.MAINTENANCE AND CLEANING
VI.HEARING AID CARE
VII.TROUBLESHOOTING GUIDE
VIII.TIPS FOR BETTER COMMUNICATION
IX.TECHNICAL SPECIFICATION
X. ACCESSORIES LIST
XI.NORMALIZED SYMBOLS
XII.MAINTENANCE, STORAGE, AND DISPOSAL
XIII.WARRANTY

-3- -4-
I.IMPORTANT SAFETY INSTRUCTIONS
1. CONTRAINDICATION
The device should not be used in the following situations:
- Patients with chronic suppurative otitis media (CSOM),
congenital ear atresia, or any type of ear discharge
- Anyone under 36 months old
2. WARNINGS
- Keep small parts (hearing instrument, ear domes, battery or
other detachable parts) that can be swallowed out of children’s
reach. Dropping, immersing in liquid, exposure to strong
electromagnetic fields or excessive heat will damage the
hearing aids. Remove devices prior to any type of X-ray, MRI,
or CT scan. If parts become stuck in the ear canal, seek
medical assistance - do not attempt to remove by yourself.
3. Notice
- Do not use at high volume for extended periods of time - ear
injury can result.
- If you experience any pain or strong discomfort using the
devices, remove and consult a doctor.
- Routine maintenance to keep the device clean is required.
Ensure that ear domes are free of debris and moisture at all
times.
- Avoid shocks or dropping the product.
- Do not store or use the product in environments of high
humidity or temperature (such as sauna room), to avoid
damage.
- Batteries should be properly recycled and not disposed in the
trash.
- Keep the devices away from small children. Injury or damage
may result.
- Do not set volume levels too high. Listening with high-output
devices for extended periods at high volume levels can cause
further hearing damage.
- Do not share your hearing aids with others. Using a hearing
aid configured for someone else can result in hearing damage
or injury.
- Monitor for any unusual skin reaction. If you notice any
allergic reaction (itchiness, swelling, or rash), stop wearing the
hearing aids and consult a medical specialist.
- Do not touch the hearing aids to any type magnet or magne-
tized object. Your hearing aids are delicate electronic instru-
ments and may be damaged by contact with strong
Read all the information in this instruction manual and any
other literature included in the box before using the device.

-5-
magnetic fields.
- Do not attempt to open or repair the devices yourself.
Damage can result and will void the warranty.
- Do not store your devices in a hot/humid locations. You
should never leave your hearing aids near heating appliances
or in direct sunlight.
- Do not leave your hearing aids in the car as inside tempera-
tures can reach dangerous levels which could damage the
devices.
- Do not use the hearing aids together with a cell phone
earpiece directly - excessive noise and distortion may result.
Instead, use via Bluetooth pairing with your cell phone. Radio
wave emissions from mobile phones can cause noise in the
hearing aids or result in reduced volume.
- Please contact the MANUFACTURER:
• For assistance, if needed, in setting up, using or maintaining
your devices or to report any unexpected operation or events.
-6-
Specific warnings / statements
Keep small parts away from and out of children´s reach to
avoid accidental ingestion
Warning not to use in explosive or oxygen-enriched
atmospheres, as doing so may damage the device
Warning that it should only be used by intended person as
using hearing aids designed for someone else may result in
hearing damage

II. DO NOT USE IF ANY OF THE FOLLOWING APPLY
TO YOU:
1) Congenital atresia of external ear or deformity of any part of
the ear canal
2) Deafness is unstable, and the degree of hearing loss often
fluctuates
3) Persistent headaches, dizziness, earaches, tinnitus or other
symptoms that are not suitable for adaptation
4) Sudden onset of hearing loss within the past 3 months; rapid
progressive deafness; unilateral hearing loss or other acute
ear disease;
5) Effusion (secretions/discharge) in the ear and/or frequent
purulence (pus)
6) Central deafness (central nervous system) or non-organic
deafness
7) Patients with acute otitis externa and tympanitis
8) Patients with acute and chronic suppurative otitis media (in
the period of purulent infection)
9) Patients who are allergic to the materials of this product
1. Do not immerse the hearing aid in any liquid. Remove the
hearing aid before swimming or bathing. After swimming or
washing, wait for the ear canal to dry before wearing the
hearing aid.
2. After removing the hearing aid at night, it should be placed
in a case with a desiccant if possible, protected from light,
high temperature and high humidity environment.
3. The external surfaces of the hearing aid should be kept
clean, and earwax in the ear domes should be cleaned out
daily
4. Applicable objects: Suitable for people with air-conducting
hearing loss of about 30-50dB
5. When you do not use hearing aids, please charge the
product regularly to avoid battery damage; the recommend-
ed charging time interval of hearing aids is ≤28 days
-7- -8-
III. MATTERS NEEDING ATTENTION, WARNINGS AND TIPS

-9- -10-
IV.HOW TO USE YOUR DEVICE
1. Volume Control
2. Microphone
3. Ear Dome
4. In Ear Detection Sensor
5. Charging Contacts
1.【HOW TO APPLY DOMES】
Step 2: Push the ear dome rim membrane outward.
Step 3: Hold on to the end of the hearing aid and push firmly
to ensure that the dome is fastened securely.
1
2
3
4
5
12
L M S M S
Please follow these steps to mount domes, because Incorrect
dome replacement could result in the dome being left in the ear
when you remove the hearing aid.
Step 1: Choose a suitable size ear dome.
Warning:
Make sure the notch point of the ear dome is aligned with the
hearing aid.
Notes:
After the ear dome is installed, pull the ear dome gently to see if it
is firmly installed and ensure the ear dome does not fall off easily.

-12--11-
2.【LEFT & RIGHT HEARING AID MARKINGS】
3.【WEARING/REMOVE HEARING AID】
For comfort, your hearing aid always automatically standby
when you remove them.
The in ear detection sensor will carry out real-time intelligent
detection on the operation status of the hearing aid. When the
hearing aid is removed, it will automatically enter the standby
status. When you place the hearing aid in the ear, it will
automatically turn on.
There is a L or R marking on the hearing aid. This will tell you if it is
a left or a right hearing aid.
Notice:Don’t block the sensor by hands which will result in the
unexpected scream!
3.1 Wearing hearing aid
Step 1: Hold the hearing aid body (hard part), place in the ear
(Make sure it is in right direction like picture).
Step 2: Move the body slightly into auricle for holding.
3.2 Removing the hearing aid
Step 1: Grasp the protruding hearing aid and remove it.
L marking for left hearing aid. R marking for right hearing aid.
12

-13- -14-
4.【TURN ON/TURN OFF】
*Note:
1. It may be in few circumstances that the ear dome remain
attached to the auditory meatus after the hearing aid is taken
out. In that case, please ask a professional doctor to take the
Turn On: Take the hearing aid out of the charging case, the
hearing aid will enter the standby status. The hearing aid will
turn on automatically in 3 seconds when you wear the hearing
aid correctly in the ears.
Turn Off: The hearing aid will automatically enter the standby
status when you have remove it from your ear. Put the hearing
aid back into the correct slot of the charging case , they will
automatically turn off and start charging.
12
2
ear dome out.
2. Before the hearing aid is appropriately secured, it may give
out the creak sound, which is a normal phenomenon. The
creak sound can be used as a reference to determine whether
the hearing aid is secured. If the hearing aid gives out
squeaking, please check if it is taken on correctly; if so, but the
squeaking remains, please replace with the other set of ear
dome. When the hearing aid is not in use, please turn it off
without delay.
3. When the hearing aid is not functioning properly, please
check the “Troubleshooting Guide”. If none of the solutions
work, please contact our after-sales service team.

To increase the volume, turn the volume control towards the
"+" direction .
To decrease the volume, turn the volume control towards the
"-" direction .
-15- -16-
1. Lip
2. Hearing aid charging inserts with left/right indicators
3. Left-side hearing aid charging indicator
4. Charging case charging indicator
5. Right-side hearing aid charging indicator
6. Battery check button
7. Micro USB connection to external power supply
5.【VOLUME ADJUSTMENT】
Note: The hearing aid built in with ‘delay turn on’ function, after
placing correctly in the ear canal, automatically turn on after 3
seconds delay from the ‘beep’ tone.
67
1
2
3
4
5

6.【HEARING AID CHARGING】
7.【HOW TO USE THE CHARGING CASE】
-17- -18-

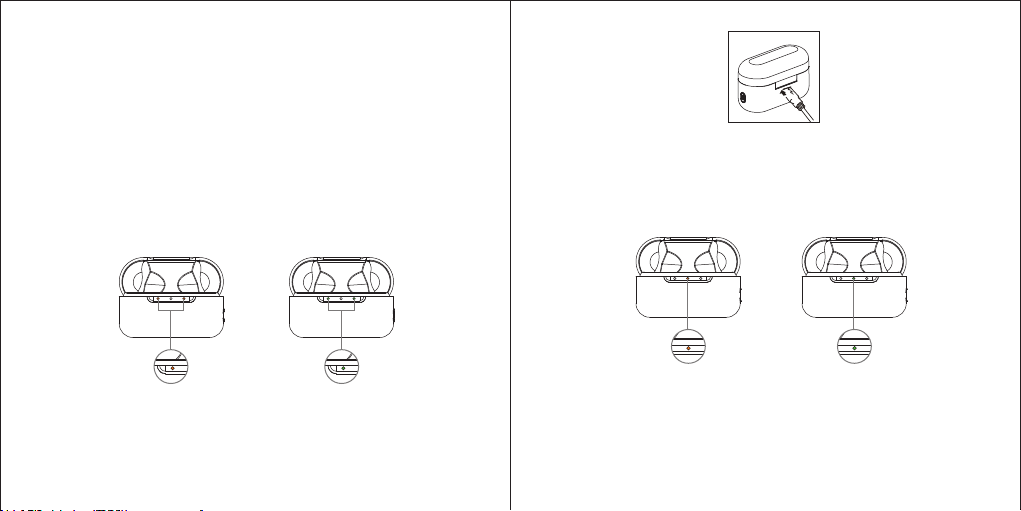

Put the hearing aid back into the correct slot of the charging
case, they will automatically turn off and start charging. Orange
light will indicate hearing aids are charging. After fully charged,
they will light in green and the light turn off in dicates charging
is complete.
(See details in table for Charging Indicator Changes of the
Charging Case)
*Note: hearing aid Low Power: You will hear the notification
sound when the hearing aid battery drops below 25%, and
when the battery below 10%, you will hear the notification
sound again.
7.1 Plug the small Micro-USB cable tip into the USB charging
port of the Case. Plug the large USB-A end into a USB-A power
source such as a wall charger or your computer.
7.2 The indicator light will show the charging status of the
battery until the hearing aid is fully charged. When the case is
charging, the indicator shows a orange solid light, and fully
charged the indicator light will shows a solid green light will be
constant.
7.3 With the hearing aids in the case, all charging will automati-
cally turn off when the case and hearing aids are fully charged.
The case will continue charging with or without the case lid
closed but it is recommended to close the lid when charging
overnight to keep out dust and moisture.

-19- -20-
7.4 The charging process will automatically stop when the case
and hearing aids are fully charged, so the hearing aids can be
safely left in the charger. Place it on a flat even surface away from
exposure to moisture, dust, or extreme temperatures.
7.5 Charging case Turn ON/OFF
Press and hold the lower part of button for 5 seconds until the
solid orange light indicates the charging case is off.
*The fully charged case offers 3 full charging cycles for a pair of
hearing aids.
*Note:
1.To check the remaining battery status of the charging case,
press the battery check button. The indicator will show the
status.
2.Charging case Low Power: The charging case indicator will
flash orange when the charging case battery drops below 25%,
please charge the case.
3.When the case is fully charged, the indicator will show a solid
green light will be constant and the light turn off indicates
charging is complete.
Charging Indicator Changes of the Charging Case
Indicator will flash in
green once a second,
flashing by 1 second
alternately and lasting
by 3 times
Charging case is turn on
Indicator will flash in
orange once a second,
flashing by 1 second
alternately and lasting
by 3 times
Charging case is turn off
Orange Light Flashing Indicator off
Solid Orange LightSolid Green Light
Hearing aid
Charging
Charging
Case
Charging
Discharging
Power
100%
100%
≥ 25%
≥ 25%
≤ 25%
≤ 25%
(Charging Case
battery below 25%)
Left hearing
aid charging
indicator
Charging
indicator of the
charging case
Right hearing
aid charging
indicator
Flash

-21- -22-
1. Daily maintenance
It is important to keep your devices clean and dry. On a daily
basis, wipe them clean using a soft cloth or tissue.
V. MAINTENANCE AND CLEANING
All data in this manual, such as service time, charging time,
continuous working time, and charging times are derived from
our internal laboratory testing and meant for reference purpos-
es only. Your exact usage and times may differ depending on
various conditions and use patterns. It is a normal phenome-
non to hear some high-pitched whistling or buzzing when the
hearing aid is at a high volume level and not fitted well into the
ear as a result of mic feedback. If this occurs, lower the volume
and adjust the hearing aid within the ear. Also check to make
sure you are wearing the best size ear domes to ensure a
proper fit in the ear canal, as this may also induce some minor
feedback if not snug in the ear.
To avoid potential damage from excess humidity or
perspiration, the use of a drying kit is also recommended.
2. Care and maintenance
When not in use, store in a secure area away from small
children and pets.
Do not place hearing aids or charging case near high-tem-
perature areas such as stoves or direct sunlight.
Do not leave the devices in a humid place for a long time,
such as bathroom.
Take care not to poke the microphone holes with any sharp
objects to avoid damage.
Do not disassemble or attempt any repairs by yourself. Doing
so will void your warranty.
3. Cleaning
1) Cleaning the ear tips
Remove any earwax buildup using the
enclosed tool. Wipe clean with a tissue or soft cloth.
2) Cleaning Tool
Use a soft cloth or tissue to wipe any moisture, perspira-
tion, or debris from the surface of the tool.
4.When the hearing aid and case is not functioning properly,
please check the “troubleshooting guide”. If none of the
solutions work, please contact our after-sales service team.

- Keep your hearing aids clean. Extreme temperatures (heat or
cold), moisture, and foreign substances can result in poor
performance.
- Use the cleaning brush tool or soft cloth to clean debris from
around the buttons, microphones, and charging contacts;
inspect the receiver, ear tips, and charging case regularly.
- Never use water, solvents, cleaning fluids or oils to clean your
hearing aids.
- Charging contacts should always be kept clean and dry.
- Always store your hearing aids in the charging case when not
in use or cleaning.
Charging Case Care
- Keep your charger clean. Heat, moisture and foreign mater-
ials can result in poor performance.
- Using the provided cleaning brush keep the charging ports
clear of debris.
- Do not use water, solvents or cleaning fluids to clean the
charging ports.
- Keep lid closed as much as possible to avoid dust and debris
build up.
- Store your charger in a clean and dry location, i.e. a dresser
or shelf rather than the bathroom or kitchen.
- To ensure the longest life of your rechargeable hearing aids
batteries and the batteries in the charger:
- Fully charge hearing aids batteries every night.
Service and Repair
If, for any reason, your hearing aid does not operate
properly, do NOT attempt to fix it yourself. Not only are you
likely to violate any applicable warranties or insurance, you
could easily cause further damage.Should your hearing
aid fail or perform poorly, check the Troubleshooting Guide on
the next page for possible solutions. If problems
continue, contact us or your hearing professional for advice
and assistance. Many common problems may be solved right
in your hearing professional’s office or clinic.
WARNING:
DO NOT OPEN HEARING AID OR CHARGER, NO
USER-SERVICEABLE PARTS INSIDE.
-23- -24-
VI. HEARING AIDS CARE

-25- -26-
VII.TROUBLESHOOTING GUIDE
No Sound
Incorrect wearing, the in
ear detection sensor failure
Remove the hearing aid, wear
it correctly
Volume too low Increase volume if volume control
available
Device is not charged
Microphones are clogged
Ear Domes or speaker tip
are clogged
Place charging the hearing aid
until the indicator is lighted in
green color.
Clean out any debris from the mic
holes
Clean out any debris from the ear
domes and receiver area with the
cleaning brush
Battery fully discharged Connect the hearing aid to the
charging case for charging
Voices are low,
very weak, or
unclear
Low battery Place the aids into the Charging
Case for at least 1.5 hours
Volume is set too low Increase volume if volume control
available
Ear Domes are too loose Hearing aid not inserted correctly
into ear , wear it correctly
Earwax in ear dome Clean out any debris from the ear
domes and receiver area with the
cleaning brush
SYMPTOM POSSIBLE CAUSES SOLUTIONS
Hearing Aid plays
notification sound
Inconsistent
performance
Distorted sound
Indication for low battery Charge hearing aid
Restart required
Incorrect orientation
Charger battery depleted
Poor contact between
hearing aid and charging
case
Place aids in charger until charging
begins and remove-this will power
cycle your hearing aids
Ensure the USB cable is connected
to the Charging Case plugged into
power. The Case power status
lights will shows a solid orange to
indicate charging.
Reposition your hearing aids in their
slots, ensuring the contact points
are touching the charge points in
the case.
Reinsert the hearing aid into the
charging case
Hearing aid reverse Check to see if the hearing aid is
reversed
Hearing aids
whistling in the
charger
After the hearing
aids is connected,
the device
indicator is not lit
Hearing has changed Contact your physician to report
any sudden drop in hearing
Hearing aid fault self-checking table

-27- -28-
It will take practice, time, and patience for your brain to adapt
to the new sounds that your hearing aids provide. Hearing is
only part of how we share thoughts, ideas and feelings.
Reading lips, facial expressions, and gestures can help the
learning process and add to what amplification alone may
miss.
Please review the following simple communication tips:
For You
- Move closer to and look at the speaker
- Sit face-to-face in a quiet room if possible
- Try out different locations to find the optimal places to
listen
- Minimize distractions
- Background noises may be frustrating at first; remember,
you have not heard them for a while
- Let others know what you need; keep in mind that people
cannot “see” your hearing loss
VIII.TIPS FOR BETTER COMMUNICATION
[Fault self-check]
project
Possible Causes
Poor contact between
hearing aid and
charging case
Reinsert the hearing aid into the
charging case
Hearing aid reverse Check to see if the hearing aid
is reversed
Solution
hearing aid
indicator lights
are dark or dim
Charging does
not start
Low battery Connect USB cable to charge
Dirty charging contacts Clean the contacts of the hearing
aid and the charger
Hearing aid not inserted
correctly into charger
Insert hearing aid correctly
into charger
Charging case fault self-checking table
Hearing aid not inserted
correctly into charger
Insert hearing aid correctly
into charger
Charger not connected to
power source
Connect charger to external power
supply
Battery fully discharged Wait three hours after placing
hearing aid in charger, regardless
of LED behavior
Indicator light of
hearing aid does
not light up when
hearing aid placed
in charging inserts
*Note: If the problem persists, contact your hearing care professional for
assistance.

OSPL90 Max.
FOG Gain
EQ Input Noise
Working Current
Total Harmonic Distortion
Working Voltage
≤120dB+3dB
≤35dB+3dB
≤29dB+3dB
450Hz～4000Hz
5mA
≤7%+3%
d.c.3.7V
-29- -30-
- Develop realistic expectations of what your hearing aids
can and cannot do
- Better hearing with hearing aids is a learned skill combin-
ing desire, practice, and patience. You will learn and adjust, it
just takes a little time. Remember to be patient with yourself.
For Your Family and Friends
Your family and friends are also affected by your hearing loss.
Request that they:
- Get your full attention before beginning to speak
- Look at you or sit face-to-face
- Speak clearly and at a normal rate and level; shouting can
actually make understanding more difficult
- Rephrase rather than repeat the same words; different
words may be easier to understand
- Minimize distractions while speaking
Item
Charging case Input voltage
Charging case input current
Charging case output current
Charging case output voltage
Charging Case
d.c.5.0V
400mA
35mA X2
d.c.4.2V
Frequency Range(Not narrower than )
IX.TECHNICAL SPECIFICATION
* Optional accessories list:
Hearing Aids: 2 Ear Dome: 10
Cleanning Tools: 1 Manual: 1
USB Cable: 1
Adapte：1
Input：100-240V~50/60Hz 0.2A
Output：5V 1A 5W
X.Accessories List
Operating Temperature/Humidity
Storage Temperature/Humidity
0℃~+40℃(32℉-104℉),
≥30%RH,≤75%RH
-10℃~+55℃(14℉-131℉),
≥10%RH,≤90%RH
*Notice: The above parameter index testing is on basis of FONIX8000Hearing Aid Test
System;Inspection standard: IEC 60118-7 2005, 2CC coupling cavity HA-1

-31- -32-
Maintenance
1) We do not authorize any institution or individual to maintain
and/or repair the product. If you suspect that the products may be
in question, please contact us immediately.
2) The user must not attempt any repairs to the device or any of its
accessories. Please contact us for any repair needs.
3) Opening of the equipment by unauthorized agencies is not
allowed and will terminate any claim to warranty. Warning: No
modification of this equipment is permitted.
Storage
1) Always store your devices in the Charging Case when not in
use.
2) Do not store or expose the devices and/or case to extreme
hot/cold temperatures, moist/humid environments, or shock/vibra-
tion.
3) Keep the devices and case in following environmental ranges:
-10℃～55℃, 10%-90%RH, 700-1060 hPa
XII．MAINTENANCE, STORAGE, AND DISPOSAL
XI. NORMALIZED SYMBOLS
Test Condition:
Access to hazardous parts :The test wire of 10 mm Ø shall not
penetrate and adequate clearance shall be kept.
No dust entered the sample after testing the function is normal.
IPX3 Test Condition:
Water flow rate:0.07L/min±5% per multiplied by Number of holes
10L/min±5%
Duration of test: 10min 1 min/m2 at least 5 min
Test Condition:14.2.3a) 14.2.3b)
There is no water enter the sample inside. The function is normal
after the test.
IP53
Follow operating instructions
B type applied part
Disposal in accordance with Directive 2002/96/EC (WEEE)
Date of manufacture
Serial number
Warning/ Danger: Improper use might cause serious injuries.
Permissible storage and transport temperature and humidity
Permissible operating temperature and humidity
Complies with the European Medical Device Directive (93/42/EEC and
amended Directive 2007/47/EC. Notified Body is SGS Belgium.
Manufacturer information
Shanghai International Holding Corp. GmbH(Europe)
Address:Eiffestrasse 80,20537 Humburg,Germany
Notes:This hearing aid is produced under the strict quality system
of Huizhou JINGHAO Medical Technology Co.,Ltd.
The device fulfils the provisions of the EC directive 93/42/EEC
(Medical Device Directive) and the Harmonize Standard as IEC
60601-1, IEC 60601-2-66, IEC 60118-7, IEC 60118-13, EN ISO
10993-1/-5/-10 and EN ISO 14971.

-33-
This limited warranty covers defects in material and
workmanship for a period of one (1) year from the date of
purchase, which includes the hearing devices, charger case,
and cord within the warranty period.
Any damage caused by improper handling and care, exposure
to elements or chemicals, or unauthorized service will not be
covered by the warranty. All other damage claims excluded. A
warranty claim must be submitted with the purchase receipt.
XIII.WARRANTY
Huizhou Jinghao Medical Techology Co., Ltd.
Address: Floor 6, Huicheng Industry Building, No.9
Huifeng Dong’er Road, Zhongkai High-tech Zone,
Huizhou City, Guangdong Province, China.
Tel: [phone] Website: www.jinghao.cc
Email: [email protected]
Shanghai International Holding Corp. GmbH(Europe)
Eiffestrasse 80,20537 Hamburg, Germany
Tel：[phone]
Fax ：[phone]
Disposal
Please dispose of the device in accordance with the
directive 2002/96/EC – WEEE (Waste Electrical and
Electronic Equipment). If you have any questions,
please refer to your local authority responsible for
waste disposal.
