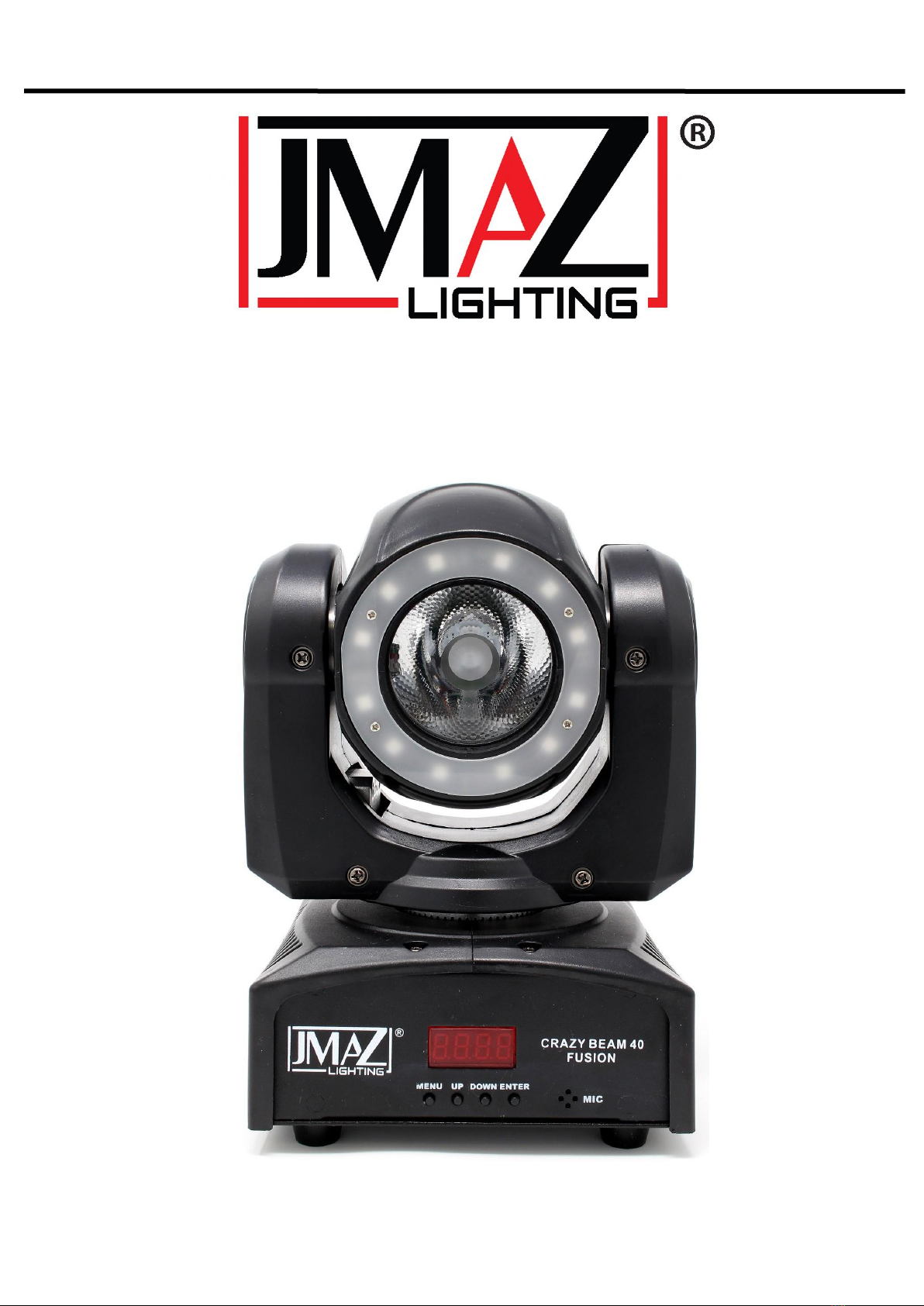

Jmaz Lighting CRAZY BEAM 40 FUSION User manual

User Manual
CRAZY BEAM 40 FUSION
WWW.JMAZLIGHTING.COM

Congratulations to the purchase of this light. Please read this manual thoroughly prior to using the unit in order to
benefit fully from all features.
Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to
avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock.
Keep the manual for future reference.
- Prior to using the unit, please ask advice from a
specialist. When the unit is switched on for the first time,
some smell may occur. This is normal and will disappear
after a while.
- The unit contains voltage carrying parts. Therefore do
NOT open the housing.
- Do not place metal objects or pour liquids into the unit
This may cause electrical shock and malfunction.
- Do not place the unit near heat sources such as
radiators, etc. Do not place the unit on a vibrating
surface. Do not cover the ventilation holes.
- The unit is not suitable for continuous use.
- Be careful with the mains lead and do not damage it. A
faulty or damaged mains lead can cause electrical shock
and malfunction.
- When unplugging the unit from a mains outlet, always
pull the plug, never the lead.
- Do not plug or unplug the unit with wet hands.
- If the plug and/or the mains lead are damaged, they
need to be replaced by a qualified technician.
- If the unit is damaged to such an extent that internal
parts are visible, do NOT plug the unit into a mains outlet
and DO NOT switch the unit on. Contact your dealer. Do
NOT connect the unit to a rheostat or dimmer.
- To avoid fire and shock hazard, do not expose the unit to
rain and moisture.
- All repairs should be carried out by a qualified technician
only.
- Connect the unit to an earthed mains outlet (220-
240Vac/50Hz) protected by a 10-16A fuse.
- During a thunderstorm or if the unit will not be used for a
longer period of time, unplug it from the mains. The rule
is: Unplug it from the mains when not in use.
- If the unit has not been used for a longer period of time,
condensation may occur. Let the unit reach room
temperature before you switch it on. Never use the unit in
humid rooms or outdoors.
- During operation, the housing becomes very hot. Do not
touch it during operation and immediately after.
- To prevent accidents in companies, you must follow the
applicable guide lines and follow the instructions.
- Secure the unit with an extra safety chain if the unit is
ceiling mount. Use a truss system with clamps. Make
sure nobody stands in the mounting area. Mount the
effect at least 50cm away from inflammable material and
leave at least 1 meter space on every side to ensure
sufficient cooling.
- This unit contains high intensity LEDs. Do not look into
the LED light to prevent damage to your eyes.
- Do not repeatedly switch the fixture on and off. This
shortens the life time.
- Keep the unit out of the reach of children. Do not leave
the unit unattended.
- Do not use cleaning sprays to clean switches. The
residues of these sprays cause deposits of dust and
grease. In case of malfunction, always seek advice from
a specialist.
- Only operate the unit with clean hands.
- Do not force the controls.
- If the unit has fallen, always have it checked by a
qualified technician before you switch the unit on again.
- Do not use chemicals to clean the unit. They damage the
varnish. Only clean the unit with a dry cloth.
- Keep away from electronic equipment that may cause
interference.
- Only use original spares for repairs, otherwise serious
damage and/or dangerous radiation may occur.
- Switch the unit off prior to unplugging it from the mains
and/or other equipment. Unplug all leads and cables
prior to moving the unit.
- Make sure that the mains lead cannot be damaged when
people walk on it. Check the mains lead before every use
for damages and faults!
- The mains voltage is 110-240Vac/50Hz. Check if power
outlet match. If you travel, make sure that the mains
voltage of the country is suitable for this unit.
- Keep the original packing material so that you can
transport the unit in safe conditions
This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient
magnitude to cause a shock hazard.
This mark attracts the attention of the user to important instructions that are contained in the manual and that he should
read and adhere to.
DO NOT LOOK DIRECTLY INTO THE LENS. This can damage your eyes. Persons who are subject to epileptic attacks
should be aware of the effects that this light effect may have on them.
The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and
their guarantee!
NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5°C/41°F and
35°C/95°F.
Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your
dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other.
Specifications can be changed without prior notice.

UNPACKING INSTRUCTION
CAUTION! Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are
present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if
any parts appear damage from shipping or the package itself shows signs of mishandling. Save the package and all packing
materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original
factory box and packing.
If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The
arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.
POWERSUPPLY
On the label on the backside of the controller is indicated on this type of power supply must be connected. Check that the mains
voltage corresponds to this, all other voltages than specified, the light effect can be irreparably damaged. The controller must
also be directly connected to the mains and may be used. No dimmer or adjustable power supply.

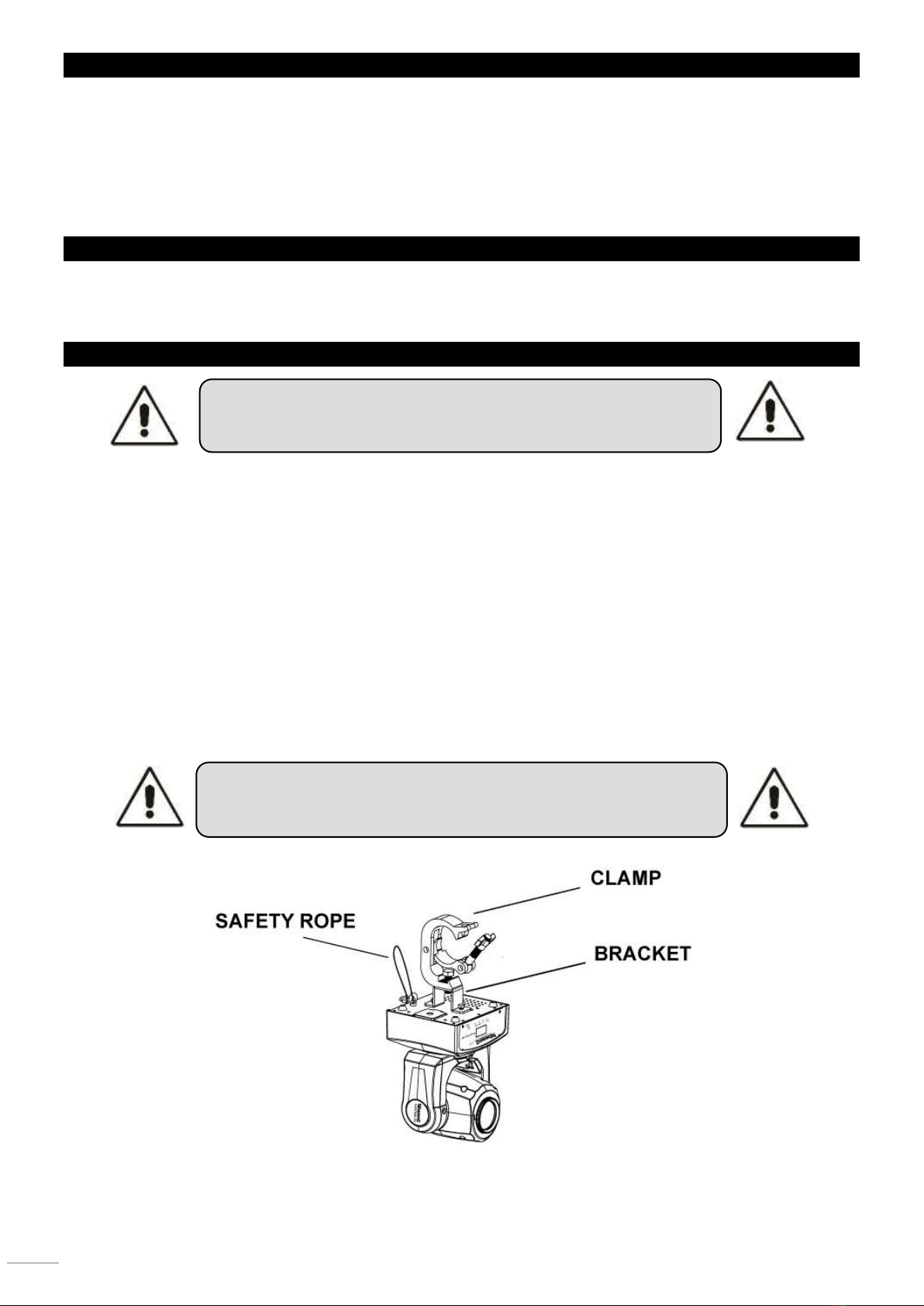

INSTALLATION
Attention:
 The installation of the fixture has to be built and constructed in a way that it can hold 10 times the weight
for 1 hour without any harming deformation.
 The installation must always be secured with a secondary safety attachment, e.g. an appropriate catch net.
This secondary safety attachment must be constructed in a way that no part of the installation can fall down
if the main attachment fails.
 Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging
and servicing.
 The operator has to make sure that safety-relating and machine-technical installations are approved by an
expert before taking into operation for the first time and after changes before taking into operation another
time.
 The operator has to make sure that safety-relating and machine-technical installations are approved by a
skilled person once a year.
 The fixture should be installed in the position where persons cannot reach and where persons may walk by
or be seated.
CAUTION: Please consider the respective national norms
during the installation! The installation must only be
carried out by an authorized employee or dealers!
CAUTION: When installing the device, make sure there is no
highly in inflammable material (decoration articles,
etc.) in between a distance of min 0.5 meter.

Operation: Menu display Instruction
Menu
Sub Menu
Function
Addr
DMX address
DMX Address (1-512)
Chnd
Channel mode
16/21 CH setting DMX channerl model
Slnd
Mast
Master-setting
SL1/SL2
Slave 1/ Slave 2 setting
D512
When no DMX signal is received,no function:Blackout
Shnd
Show model
Show 1--4 internal programs
Auto
Auto model
Auto 1—4speed (0—9 increasing)
Soun
Sound sense
Sound controlled model
Led
LED Screen
Screen LED lighting on/off
Disp
Display
Display recerse 180
Pan
Pan Inversion
YES/NO
Reverse movement PAN/TILT
Tilt
Tilt
YES/NO
Test
Test
Function test
Hour
Hour
Fixture running time
Ver
Software version
Software version
Rest
Reset
Rest
Channel Contents
16 Channel:
Channel
DMX Value
Function
1
000-255
Pan 0°~ 540°
2
000-255
Tilt 0°~ 210°
3
000-255
Pan&Tilt Speed with decreasing speed
4
000-255
Master Dimmer0%~ 100%
5
000-008
No function
009-255
LED Strobe with increasing speed
6
000-255
RED LED Dimmer0%~ 100%
7
000-255
Green LED Dimmer0%~ 100%

8
000-255
Blue LED Dimmer0%~ 100%
9
000-255
White LED Dimmer0%~ 100%
10
000-255
5050 SMD Dimmer0%~ 100%
11
000-008
No function
009-255
5050 SMD Strobe with increasing speed
12
SMD Section 1
000-010
No Function
011-044
Red
045-079
Green
080-114
Blue
115-149
Red and Green
150-184
Red and Blue
185-219
Green and Blue
220-255
5050 SMD section 1 RGB
13
SMD Section2
000-010
No Function
011-044
Red
045-079
Green
080-114
Blue
115-149
Red and Green
150-184
Red and Blue
185-219
Green andBlue
220-255
RGB
14
SMD Section 3
000-010
No Function
011-044
Red
045-079
Green
080-114
Blue
115-149
Red and Green
150-184
Red and Blue
185-219
Green and Blue
220-255
RGB
15
SMD Section 4
000-010
No Function
011-044
Red
045-079
Green
080-114
Blue
115-149
Red and Green

150-184
Red and Blue
185-219
Green and Blue
220-255
RGB
16
000-199
No function
200-209
Reset
210-239
No function
240-255
Sound Active
21 Channel:
Channel
DMX Value
Function
1
000-255
Pan 0°~ 540°
2
000-255
Pan Fine
3
000-255
Tilt 0°~ 210°
4
000-255
Tilt Fine
5
000-255
Pan&Tilt Speed with increasing speed
6
000-255
LED Dimmer0%~ 100%
7
000-008
No function
009-255
LED Strobe with increasing speed
8
000-255
RED LED Dimmer0%~ 100%
9
000-255
Green LED Dimmer0%~ 100%
10
000-255
Blue LED Dimmer0%~ 100%
11
000-255
White LED Dimmer0%~ 100%
12
000-255
5050 SMD Dimmer0%~ 100%
13
000-008
No function
009-255
5050 SMD Strobe slow to fast
14
000-255
5050 SMD RED Dimmer0%~ 100%
15
000-255
5050 SMD Green Dimmer0%~ 100%
16
000-255
5050 SMD Blue Dimmer0%~ 100%
17
SMD Section1
000-010
No Function
011-044
Red
045-079
Green
080-114
Blue
115-149
Red and Green

150-184
Red and Blue
185-219
Green and Blue
220-255
RGB
18
SMD Section2
000-010
No Function
011-044
5050 SMD section 2 Red
045-079
5050 SMD section 2 Green
080-114
5050 SMD section 2 Blue
115-149
5050 SMD section 2 Red mix Green
150-184
5050 SMD section 2 Red mix Blue
185-219
5050 SMD section 2 Green mix Blue
220-255
5050 SMD section 2 RGB
19
SMD Section3
000-010
No Function
011-044
Red
045-079
Green
080-114
Blue
115-149
Red and Green
150-184
Red and Blue
185-219
Green and Blue
220-255
RGB
20
SMD Section4
000-010
No Function
011-044
Red
045-079
Green
080-114
Blue
115-149
Red and Green
150-184
Red and Blue
185-219
Green and Blue
220-255
RGB
21
000-199
No function
200-209
Reset
210-239
No function
240-255
Sound Active

Technical Specifications :
Light Source: 1 x 60W Quad LED & 12 x 5050 SMD 3in1 LED
Long Life LED (Rated over 10000 hours)
3 Operating Modes: Sound Active, Show Mode, &DMX Controlled
4 Built-in Lighting Shows
16 & 21 DMX Channels Modes
Electronic Dimming: 0% - 100%
Fast Pan Tilt Movement
Pan: 540- degree; Tilt: 210-degree
Beam Angle: 8° 3-pin XLR In/ Out
Strobe/ Pulse effect Fan Cooled
Pan/ Tilt Invert Mode for Contrasting Movement when fixtures are linked
together
Multi-voltage Operation: 110-240V, 50HZ/60HZ
Power Consumption: 90W
Dimension: 11.41” x 8.26” x 8.66” / 290 x 210 x 220mm
Weight: 8 lbs. / 4 kgs
Remote Control
To control the Moving Head easily via the supplied remote control, you must aim the
remote at the front of the fixture and be no
more than 30 feet away.
Power: IR ON/OFF
COLOR/PAN: Press this button to select the individual color (main beam light) via the
number buttons. Adjust the brightness level via “DIMMER +” and “DIMMER -“.
STROBE: Press this button to activate the strobe and select the speed with the
number buttons.
SOU/TILT: Select the color for the outer LED ring
DIMMER+ and DIMMER-: Press this button to adjust the brightness level or the
strobe speed
FULL ON: Auto Run
GOBO/FADE: Fade function
SOUND ON: Sound mode on
SOUND OFF: Sound mode off
Customer Service
The JMAZ Lighting Customer Service department is dedicated to ensuring that your
ordering, purchasing, and delivery experience is second to none. If you have any
problem with your order, please give us an opportunity to make it right. You can
contact JMAZ lighting Customer Service representative via email
[email protected] or call us at [phone].
