USER MANUAL
VISION PROFILE 250Z RGBW
●Be sure to read the USER MANUAL carefully before using this product
●Be sure to keep the USER MANUAL properly for future needs
●Use this product correctly when you can fully understand the user manual

Caution! .................................................................................................................. 3
Introduction............................................................................................................. 3
Safety instructions .................................................................................................. 3
Overview................................................................................................................. 4
Installation .............................................................................................................. 5
Read ‘Safety information’ before installing the xture............................................................................5
Fastening the xture to a at surface.....................................................................................................5
Mounting the xture on a truss ..............................................................................................................5
Securing with a safety cable ..................................................................................................................6
Power connection ..................................................................................................................................7
Operation................................................................................................................ 7
Control Menu Map .................................................................................................................................7
Main Menu .............................................................................................................................................9
Addressing.............................................................................................................................................9
Universal DMX Control ....................................................................................................................... 10
RDM control........................................................................................................................................10
Rotary Knob function .......................................................................................................................... 10
Set dimmer curves.............................................................................................................................. 11
Zoom...................................................................................................................................................12
DMX Protocol ....................................................................................................... 13
Fixture Cleaning ................................................................................................... 14
Fuse Replacement ............................................................................................... 14
Troubleshooting.................................................................................................... 14
The xture does not work, no light...................................................................................................... 15
Technical specications........................................................................................ 15
Table of contents

3
VISION PROFILE 250Z RGBW Product Datasheet
3Ver 2.0jmazlighting.com
Caution!
Be careful with your operations. With a dangerous voltage you can su󰀨er a dangerous electric
shock when touching the wires!
Avoid looking directly into the light source!
Wear protective glasses and other PPE (personal protective equipment) when working on or near
the xture.
For your own safety, please read this user manual carefully before you initial start-up.
Follow operating safety precautions and pay attention to warning signs methods and equipment
on the user manual.
Indoor use only! To prevent risk of re or shock, do not expose this product to rain or moisture. IP
20 rating.
The ambient temperature must always be between -5° C and +45° C.
Always make sure you are connecting this product to the proper voltage in accordance with the
specications in this manual or on the product’s specication label.Make sure it is grounded when
using it!
Unplug mains lead before opening the housing!
Make sure that the power cord is never crimped or damaged by sharp edges. Check the xture
and the powercord from time to time.
Make sure to replace the fuse with another of the same type and rating.
Warning! This symbol indicates a hot surface. Certain parts of the housing can become hot during
operation. After use, wait for a cool-down period of at least 10 minutes before handling or trans-
porting the device.
Every person involved with the installation, operation and maintenance of this device has to
- be qualied
- follow the instructions of this manual
- consider this manual to be part of the total product
- keep this manual for the entire service life of the product
- pass this manual on to every further owner or user of the product
- download the latest version of the user manual from the Internet
Introduction
Thank you for having chosen VISION PROFILE 250Z RGBW. You will see you acquired a powerful and
versatile device.
Unpack your item. Before you initial start-up, please make sure that there is no damage caused by trans-
portation. Should there be any, consult your dealer and do not use the device.
Safety instructions
This device has left our premises in absolutely perfect condition. In order to maintain this condition and to
ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warn-
ing notes written in this user manual. Always disconnect from the mains, when the device is not in use

4
VISION PROFILE 250Z RGBW Product Datasheet
4Ver 2.0jmazlighting.com
or before cleaning it. Keep away children and amateurs from the device! There are no serviceable parts
inside the device. Maintenance and service operations are only to be carried out by authorized dealers.

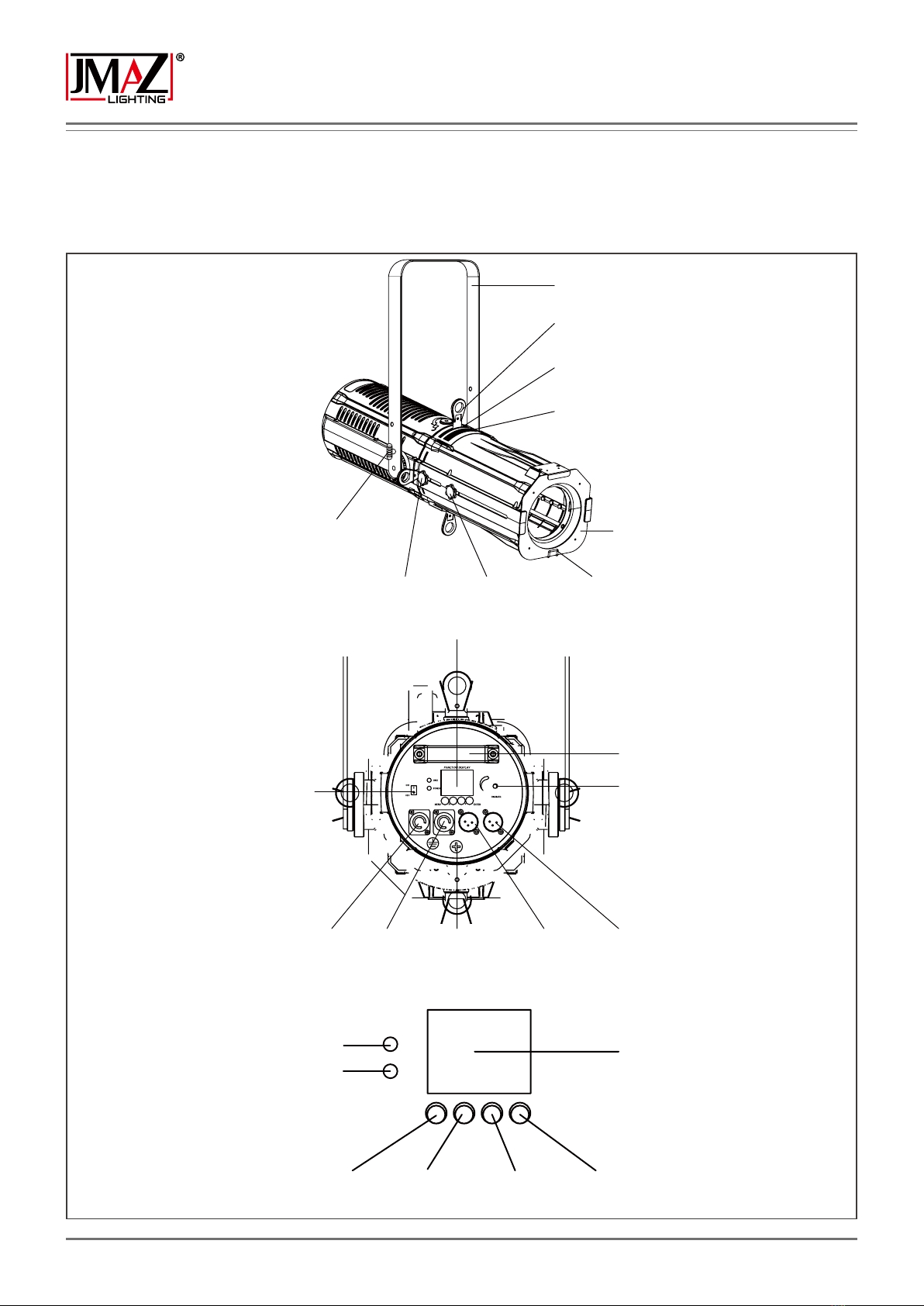

Overview
LCD display
Menu
button
Up
button
Down
button
Enter
button
Dmx signal indicator
Power indicator
Handle
Rotary
button
Dmx outDmx inFusePower
out
Power
in
On/off
switch
LCD display
Yoke
Shutters
Gobo holder slot
Iris slot
Focus knob
Yoke locking knob
Zoom knob Color frame clip
Color frame

5
VISION PROFILE 250Z RGBW Product Datasheet
5Ver 2.0jmazlighting.com
Installation
Read ‘Safety information’ before installing the xture.
The xture is designed for indoor use only and must be used in a dry location with adequate ventilation.
Ensure that none of the xture’s ventilation slots are blocked.
Fasten the xture to a secure structure or surface. Do not stand it on a surface or leave it where it can
be moved or fall over. If you install the xture in a location where it may cause injury or damage if it falls,
secure it as directed in this user manual using a securely anchored safety cable that will hold the xture if
the primary fastening method fails.
Fastening the xture to a at surface
The xture can be fastened to a hard, xed, at surface that is oriented at any angle. Ensure that the sur-
face and all fasteners used can support at least 10 times the weight of all xtures and equipment to be
installed on it.
Fasten the xture securely. Do not stand it on a surface or leave it where it can be moved or fall over. If
you install the xture in a location where it may cause injury or damage if it falls, secure it as directed be-
low with a securely anchored safety cable that will hold the xture if the primary fastening method fails.

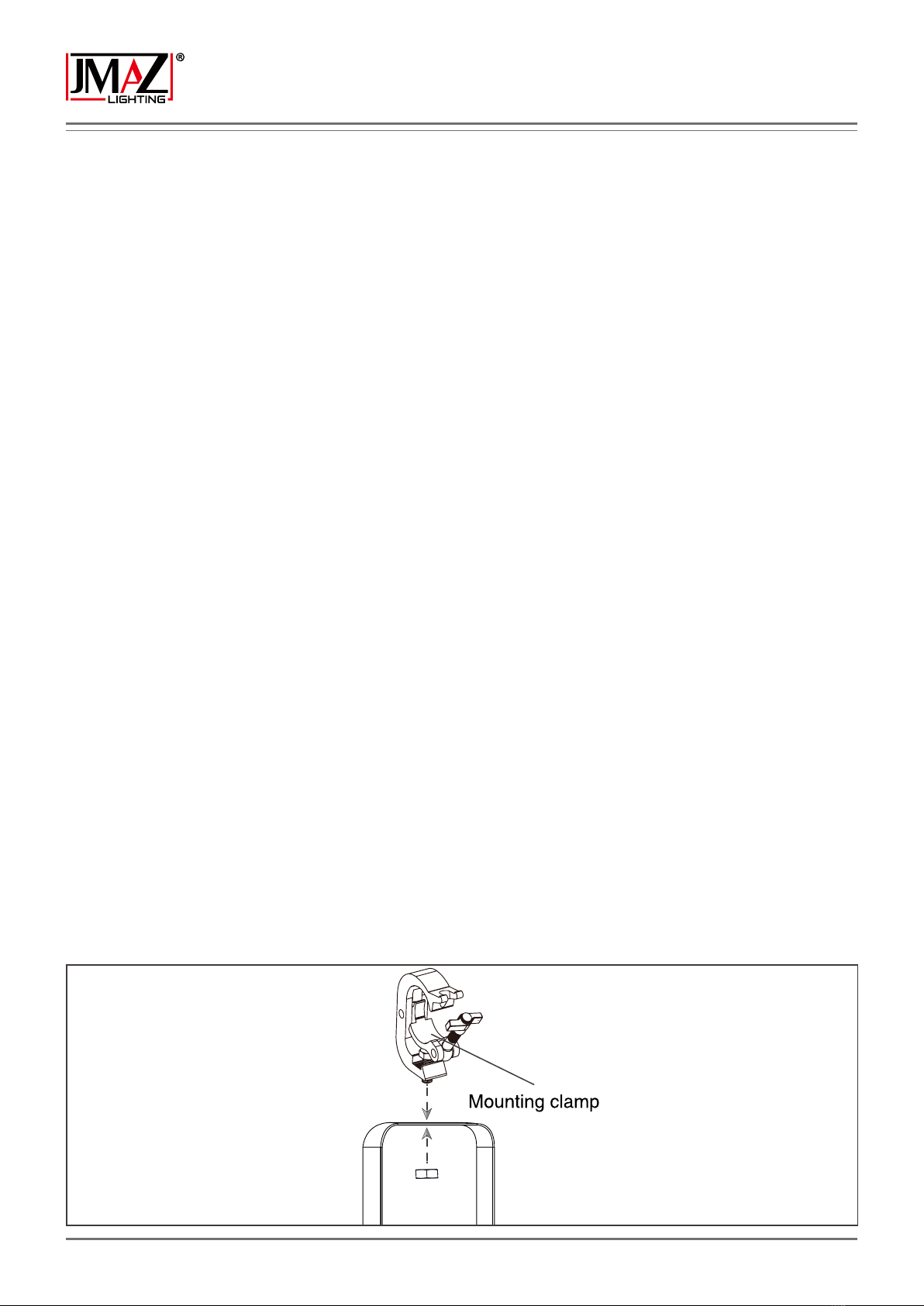

Mounting the xture on a truss
The xture can be clamped to a truss or similar rigging structure in any orientation. When installing the
xture hanging vertically down, you can use an open-type clamp such as a G-clamp. When installing in
any other orientation, you must use a half-coupler clamp that completely encircles the truss chord.
To clamp the xture to a truss:
1. Check that the rigging structure can support at least 10 times the weight of all xtures and equipment
to be installed on it.
2. Block access under the work area.
3. Fold the legs of the mounting bracket together and bolt a rigging clamp securely to the mounting
bracket. The bolt used must be M10, grade 8.8 steel minimum. It must pass through both mounting
bracket legs and be fastened with a self-locking nut.
4. Working from a stable platform, hang the xture with its clamp on the truss and fasten the clamp se-
curely.
5. Secure the xture with a safety cable as directed below.

6
VISION PROFILE 250Z RGBW Product Datasheet
6Ver 2.0jmazlighting.com
Securing with a safety cable
Secure the xture with a safety cable (or other secondary attachment) that is approved for the weight of
the xture so that the safety cable will hold the xture if a primary attachment fails.
Loop the safety cable through the eyebolt in the back of the xture and around a secure anchoring point.
Do not loop the safety cable around the xture’s mounting bracket only, as this will leave the xture unse-
cured if it separates from the bracket.DMX-512 connection/connection between xtures
Occupation of the XLR-connection:
1. Group
2. Signal (-)
3. Signal (+)
DMX OUT
1. Group
2. Signal (-)
3. Signal (+)
DMX IN
If you are using controllers with this occupation, you can connect the DMX-output of the controller directly
with the DMX-input of the rst xture in the DMX-chain. If you wish to connect DMX-controllers with other
XLR-outputs, you need to use adapter-cables.
Building a serial DMX-chain:
Connect the DMX-output of the rst xture in the DMX-chain with the DMX-input of the next xture.
Always connect one output with the input of the next xture until all xtures are connected.
DMX-512 connection with DMX terminator:
For installations where the DMX cable has to run a long distance or is in an electrically noisy environ-
ment, such as in a discotheque, it is recommended to use a DMX terminator. This helps in preventing
corruption of the digital control signal by electrical noise. The DMX terminator is simply an XLR plug with
a 120 resistor connected between pins 2 and 3, which is then plugged into the output XLR socket of the

7
VISION PROFILE 250Z RGBW Product Datasheet
7Ver 2.0jmazlighting.com
last xture in the chain.
At the last xture, the DMX-cable has to be terminated with a terminator. Solder a 120 Ω resistor be-
tween Signal (–) and Signal (+) into a 3-pin XLR-plug and plug it in the DMX-output of the last xture.
Power connection
Power Requirements
The VISION PROFILE 250Z RGBW zoom luminaire operates on 100 to 240 volts AC (+/- 10%, au-
to-ranging). The luminaire contains an auto-ranging power supply.
Power linking between xtures:
The xture with powercon in and out socket. Connect the power out to the power in socket in the next x-
ture till all are connected.
maximum power linking - 6 units.
Connection with the mains:
Connect the device to the mains with the enclosed power supply cable.
The occupation of the connection cables as below:
Cable color Connection International
Brown Live L
Blue Neutral N
Yellow/green Earth(Ground)
Operation
The VISION PROFILE 250Z RGBW zoom can operate in three di󰀨erent modes. In each mode you can
run the xture as a stand alone xture or in a master/slave conugration. This next section will detail the
di󰀨erences in the operating modes.
Control Menu Map
Default setting in bold.
DMX 001-512 DMX address setting
Mode
DMX 1/4/6/10CH DMX channel mode
Auto Program 001-005 Preset programs
Speed 001-009 Programs speed
Maunal
Red 000-255 Red dimmer 0-100%
Green 000-255 Green dimmer 0-100%
Blue 000-255 Blue dimmer 0-100%
White 000-255 White dimmer 0-100%
Strobe 000-255 Strobe with speed increasing

8
VISION PROFILE 250Z RGBW Product Datasheet
8Ver 2.0jmazlighting.com
Dimmer
Curve 0.3-3.0 Dimmer curves adjustment
Mode
Standard Dimmer mode, Standard
Stage Dimmer mode, Stage
TV Dimmer mode, TV
Architecture Dimmer mode, Architecture
Theatre Dimmer mode, Theatre
Studio Studio power mode, super silent

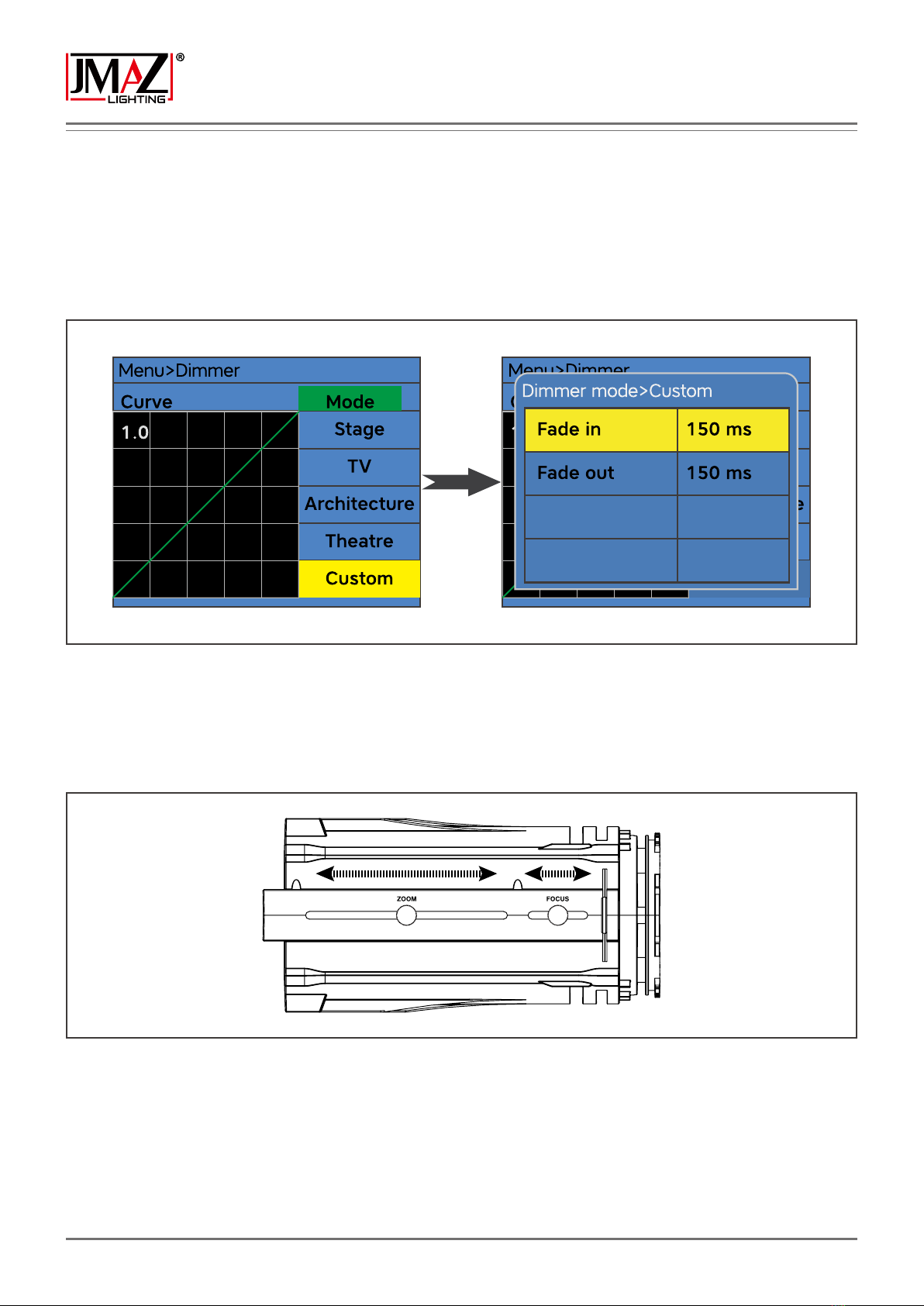

Custom
Fade in
(150 ms~2230 ms) Custom dimmer curve
Fade out
(150 ms~2230 ms)

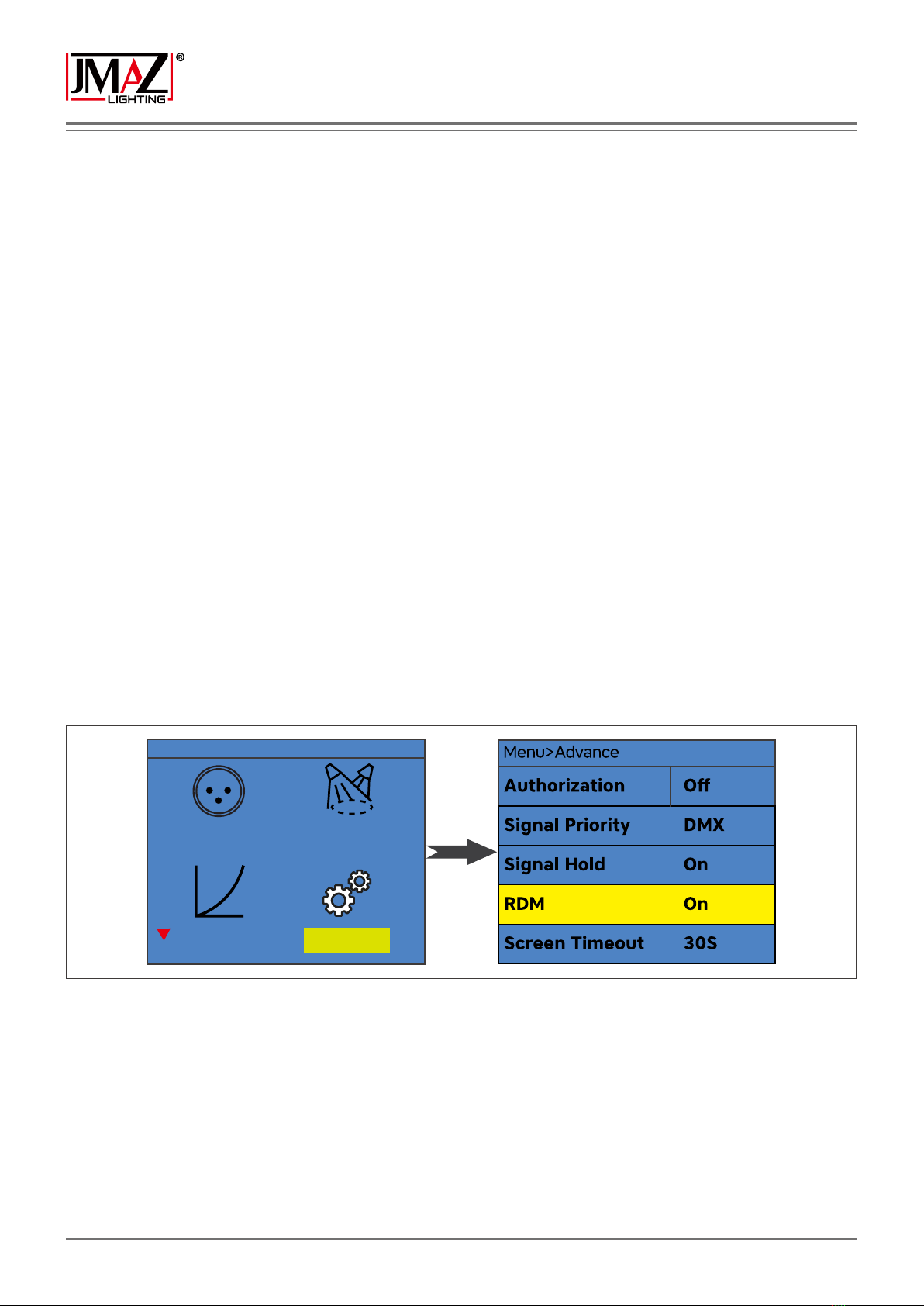

Advance
Authorization On/O󰀨
Advanced settings/calibration(Only
qualied technicians should perform
this function. Inqure your local
dealer for password.)
Signal Priority DMX Signal priority setting
Signal Hold On/O󰀨 Run if signal cut
RDM On/O󰀨 RDM function on/o󰀨
Screen Timeout 30S Display shut o󰀨 time
Never
Screen Brightness 25-100% Display brightness
Reset Yes/No System reset
Reverse Yes/No Display reverse 180 degree
Control menu
The information menu will appear after the xture is switched on. In this menu, the following status is dis-
played:

9
VISION PROFILE 250Z RGBW Product Datasheet
9Ver 2.0jmazlighting.com
Main Menu
Press the button to enter the Main Menu interface.
Menu
DMX
Advance
Mode
Dimmer
Addressing
All xtures should be given a DMX starting address when using a DMX signal, so that the correct xture
responds to the correct control signals. This digital starting address is the channel number from which
the xture starts to listen to the digital control information sent out from the DMX controller. The allocation
of this starting address is achieved by setting the correct number on the display located on the base of
the device.
You can set the same starting address for all xtures or a group of xtures, or make di󰀨erent address for
each xture individually.
If you set the same address, all the units will start to listen to the same control signal from the same
channel number. In other words, changing the settings of one channel will a󰀨ect all the xtures simulta-
neously.
If you set a di󰀨erent address, each unit will start to listen to the channel number you have set, based on
the quantity of control channels of the unit. That means changing the settings of one channel will a󰀨ect
only the selected xture.
In the case of the VISION PROFILE 250Z RGBW zoom, which is 1/2/3 channels xture. If you set, for
example, the address in the 1 channel mode to channel 2, the device will use the channel 2 for control.

10
VISION PROFILE 250Z RGBW Product Datasheet
10 Ver 2.0jmazlighting.com
After switching on, the device will automatically detect whether DMX 512 data is received or not. If
there is data received at the DMX input, you will see the DMX indicator light in green.
Universal DMX Control
This function allows you to use a universal DMX-512 controller to control the dimmer and strobe. A DMX
controller allows you to create unique programs tailored to your individual needs.
RDM control
The VISION PROFILE 250Z RGBW can communicate using RDM (Remote Device Management) in ac-
cordance with ESTA’s American National Standard E1.20-2006: Entertainment Technology RDM Remote
Device Management Over DMX512 Networks.
RDM is a bi-directional communications protocol for use in DMX512 control systems, it is the open stan-
dard for DMX512 device conguration and status monitoring.
The RDM protocol allows data packets to be inserted into a DMX512 data stream without a󰀨ecting ex-
isting non-RDM equipment. It allows a console or dedicated RDM controller to send commands to and
receive messages from specic xtures.
With RDM function, you can set the DMX address of your fixtures remotely. This is especially useful
when the device is installed in a remote area.
Each VISION PROFILE 250Z RGBW has a factory set RDM UID (unique identication number).
Before operation, enable RDM function in Advanced settings.
Menu
DMX Mode
Dimmer Advance
Rotary Knob function
The knob in the rear panel of the VISION PROFILE 250Z RGBW act as multi function. Including rotary
control of dimmer, up/down/enter function function.
Dimmer & strobe function:
1. Press the button to enter the main menu.
2. Press the or button to select menu and press .
3. Press menu and select sub menu.
4. Press and select or in third menu.

11
VISION PROFILE 250Z RGBW Product Datasheet
11 Ver 2.0jmazlighting.com
5. Rotate the rotary knob to control the dimmer(right stop = maximum output, left stop = zero output), or
strobe(right stop = maximum strobe, left stop = no strobe).
Note: Rotary dimmer or strobe function works in and menu.
Up, Down, Enter function:
The knob can also act as up, down and enter function.
1. Press the button to enter the main menu interface.
2. Right rotation = , left rotation = , press = function.
Set dimmer curves
This function allows you to select preset dimmer curves as well as custom dimmer curves.
Menu
DMX Mode
AdvanceDimmer
Menu>Dimmer
Curve
1.0
Mode
Standard
Stage
TV
Architecture
Theatre
To set preset dimmer curves:
1. Press the button to enter the main menu.
2. Press the or button to select menu and press .
3. Press menu and select sub menu.
4. Select disired dimmer mode.
Custom dimmer curves:

12
VISION PROFILE 250Z RGBW Product Datasheet
12 Ver 2.0jmazlighting.com
1. Press the button to enter the main menu.
2. Press the or button to select menu and press .
3. Press menu and select sub menu.
4. Press the or button to select menu and press .
5. Adjust fade in and fade out time to customize yout dimmer curves. Time vary from 150 ms to 2230
ms.
Zoom
This function allows you to adjust the beam width of the xture.
Step 1: Loosen the zoom buttons on the side of the device.
Step 2: Adjust the zoom by sliding the back lenshousing forward or backward.
Step 3: Tighten the zoom buttons.

13
VISION PROFILE 250Z RGBW Product Datasheet
13 Ver 2.0jmazlighting.com
DMX Protocol
CH1 Dimmer 000-255: 0-100% dimmer
CH1 Red 000-255: Red dimmer 0-100%
CH2 Green 000-255: Green dimmer 0-100%
CH3 Blue 000-255: Blue dimmer 0-100%
CH4 White 000-255: White dimmer 0-100%
CH1 Dimmer 000-255: 0-100% dimmer
CH2 Strobe 000-004: No function
005-255: Strobe with speed increasing
CH3 Red 000-255: Red dimmer 0-100%
CH4 Green 000-255: Green dimmer 0-100%
CH5 Blue 000-255: Blue dimmer 0-100%
CH6 White 000-255: White dimmer 0-100%
CH1 Dimmer 000-255: 0-100% dimmer
CH2 Strobe 000-004: No function
005-255: Strobe with speed increasing
CH3 Red 000-255: Red dimmer 0-100%
CH4 Green 000-255: Green dimmer 0-100%
CH5 Blue 000-255: Blue dimmer 0-100%
CH6 White 000-255: White dimmer 0-100%
CH7
Color temperature
000-004: No function
005-040: 2800K
041-076: 3089K
077-112 3200K
113-148 4200K
149-184 5600K
185-220 7600K
221-255 8000K

14
VISION PROFILE 250Z RGBW Product Datasheet
14 Ver 2.0jmazlighting.com
CH8 Color fading 000-004: No function
005-255: Color fading
CH9 Color marco
000-004: No function
005-130: Color jump, speed increasing
131-255: Color fading, speed increasing
CH10 Dimmer mode
005-005: No function
006-047: Dimmer mode, Standard
048-089: Dimmer mode, Stage
090-131: Dimmer mode, TV
132-173: Dimmer mode, Architecture
174-215: Dimmer mode, Theatre
216-255: Custom dimmer curve
Fixture Cleaning
Due to fog residue, smoke, and dust cleaning the internal and external optical lenses and mirror should
be carried out periodically to optimize light output. Cleaning frequency depends on the environment in
which the xture operates (I.e. smoke, fog residue, dust, dew). In heavy club use we recommend clean-
ing on a monthly basis. Periodic cleaning will ensure longevity, and crisp output.
To clean the xture:
1. Disconnect the xture from power and allow it to cool for at least 10 minutes.
2. Vacuum or gently blow away dust and loose particles from the outside of the xture with low-pressure
compressed air.
3. Clean the surfaces by wiping gently with a soft, clean lint-free cloth moistened with a weak detergent
solution. Do not rub glass surfaces hard: lift particles o󰀨 with a soft repeated press. Dry with a soft,
clean, lint-free cloth or low-pressure compressed air. Remove stuck particles with an unscented tis-
sue or cotton swab moistened with glass cleaner or distilled water.
4. Check that the xture is dry before reapplying power.
Fuse Replacement
This fuse is located in a fuseholder next to the MAINS OUT socket on the connections panel.
To replace a fuse:
1. Disconnect the xture from power and allow it to cool for at least 10 minutes.
2. Unscrew the cap of the fuseholder and remove the fuse. Replace with a fuse of the same size and
rating only.
3. Reinstall the fuseholder cap before reapplying power.
Troubleshooting
Listed below are a few common problems that you may encounter, with solutions.

15
VISION PROFILE 250Z RGBW Product Datasheet
15 Ver 2.0jmazlighting.com
The xture does not work, no light
• Check the connection of power and main fuse. Be sure the external fuse has not blown.
• Measure the mains voltage on the main connector.
Technical specications
Model: VISION PROFILE 250Z RGBW
Power supply: AC100-240V, 50/60Hz
Light source: 250W LED
Color temperature: 2800K ~ 8000K
LED color: RGBW
Zoom scale: 18°-38° manually
Power connection: PowerCON in & out
Fuse: F5A, 250V
Maximum power linking: 6 units
Signal connection: 3-pin XLR in&out (5-pin optional)
DMX channels: 1/4/6/10
Control mode: RDM, DMX, Rotary
Housing: Colour black, ABS+PC
Size: 745 x 294 x 294mm(29.3 x 11.6 x 11.6in)
Package(carton): 790 x 350 x 360mm(31.1 x 13.8 x 14.2in)
N.W.: 8.7kg(19.2lb)
G.W.: 11.5kg(25.4lb)
Enviroment: IP20
