JMC RTP1000 User manual

Service Manual
for
RTP-1000
Japan Marina Co., Ltd.

UT606BH Operation Specification -1-
Revision History
No. DATE Contents Version Author
1 04/10/14 1.00 T.KOGURE
2 04/10/26 2nd Releace 1.01 T.KOGURE
3 04/12/27 3rd Releace 1.02 T.KOGURE
4 05/01/11 4th Releace 1.03 T.KOGURE

UT606BH Operation Specification -2-
Table Contents
Revision History..............................................................................................................1
Table Contents..........................................................................................................2
1. Preface....................................................................................................................... 3
2. Features.....................................................................................................................3
3. Layout.........................................................................................................................4
4. Controls...................................................................................................................... 5
5. Display........................................................................................................................ 6
6. Tones .........................................................................................................................7
6.1. THE KIND OF TONES........................................................................................7
6.2. TIMING DETAILS ............................................................................................... 7
7. Operations.................................................................................................................. 8
7.1. COMMON NOTES..............................................................................................8
7.2. POWER SUPPLY ON/OFF ................................................................................ 8
7.3. CHANNEL SELECT............................................................................................ 9
7.4. TX POWER 1W/5W SELECT............................................................................9
7.5. TRANSMITTING................................................................................................. 10
7.6. KEY LOCK ON/OFF ...........................................................................................11
7.7. BATTERY SAVE................................................................................................. 11
7.8. BATTERY LEVEL DISPLAY...............................................................................11

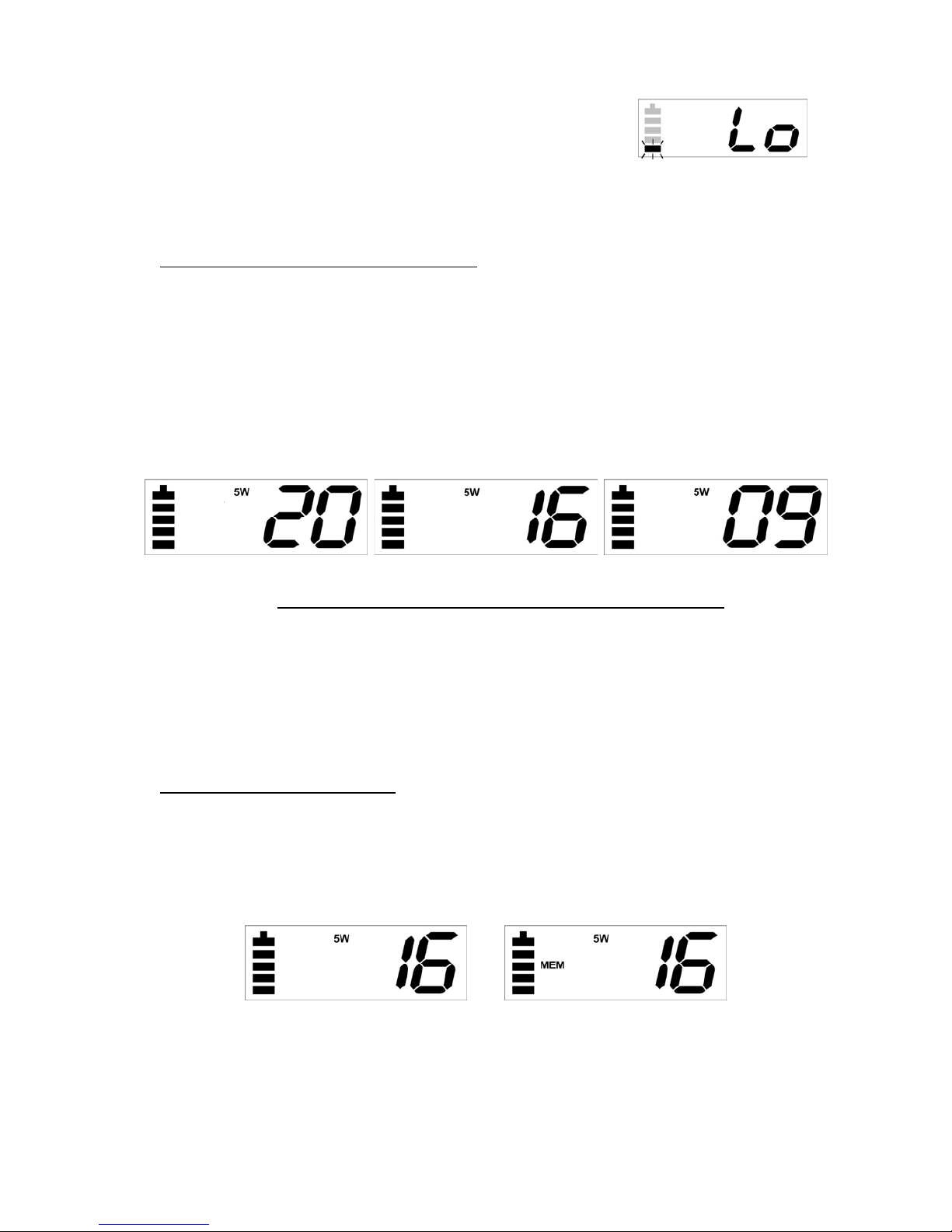

7.9. EMERGENCY (EMG) 16CH/09CH MODE ........................................................ 12
7.10. MEMORY CH SET/CANCEL............................................................................12
7.11. TRIPLE WATCH............................................................................................... 13
7.12. SCAN MODE ON/OFF ..................................................................................... 14
7.13 STEP Function................................................................................................... 15
7.14 KEY BEEP ON/OFF feature.............................................................................. 15
7.15 UIC Change feature active ON/OFF (Hidden feature)......................................15
7.16 Free CH active ON/OFF (Hidden feature).........................................................16
8. Others.........................................................................................................................17
8.1. TIMING / SPECIFIC QUALITY...........................................................................17
8.2. FREQUENCY LIST............................................................................................. 18
8.3. APPENDIX.......................................................................................................... 19
9. Revision...................................................................................................................... 20

UT606BH Operation Specification -3-
1. Preface
This document is the Operation Specification of Portable transceiver for ATLANTIS 250/CE
2. Features
࡮ MRN Channels: International
࡮ EMG 16CH / 09CH mode
࡮ Battery Level Display
࡮ Programmable Scan
࡮ Triple Watch
࡮ TX Power Select (1W/5W)
࡮ Channel Select (UP(䂥) / DOWN(䂯) sw)
࡮ Key Lock On/Off
࡮ Battery Save
࡮ MRN Channels: All USA and Canadian (Hidden feauture)
࡮ Free CH Active/Inactive SELECT
࡮ This feature will allow the radio will step to the next channel that has been memorized
for scan channel.

UT606BH Operation Specification -4-
3. Layout
*The dimension of this layout is different from the actual design and is intended for reference
only.

UT606BH Operation Specification -5-
4. Controls
a) Push Type SW
Table 4-1. Push Switches
䂥Channel Up & Auto Repeat
䂯Channel Down & Auto Repeat
LOCK This key will press and hold, it is possible to set Key Lock
On/Off.
TRI This key will press the unit will be Triple Watch mode.
MEM This key will press, the radio will step to the next channel
that has been memorized for scan channel.
This key will press and hold, the current channel will
register as memory channel.
SCAN This key will press, it is possible to set Scan mode On / Off.
This key will press and hold, it is possible to select USA /
International / Canadian mode. (Hidden feature)
1/5W TX Power 1W / 5W select.
16/9 This key will press, it is possible to access channel
emergency 16 or 09 quickly.
PTT Push-to-talk
b) Rotary Knob
Volume Volume adjustment & Power supply On/Off
Squelch Squelch adjustment
c) Other Type SW
Nothing.

UT606BH Operation Specification -6-
5. Display
*The design is different from the actual design and is intended for reference only.
Fig5- 1. LCD Displays
TX (Transmit) - This indicator will appear only when the [PTT] sw is pressed and the
radio is sending a transmission.
1W / 5W - This indicator will indicate whether the transmitting power is 1W or 5W.
US / INT / CAN – This indicator will show the mode that the channel is in.
(Hidden feauture)
MEM - This indicator will be displayed if the displayed channel is programmed into the
memory for scanning.
SCAN - This indicator will be displayed while in scan mode.
TRIPLE - This indicator will be displayed when Triple Watch is On.
LOCK - This indicator will appear only when Key Lock Function is On.
WX – Not indicate.
ALERT - Not indicate.
Battery Level Meter (leftmost meter) - When the battery is fully charged the display
would look as the sample display. Battery levels are 7 levels of 0 to 5 and empty, which
consist of five indicators.
CH Indicators (rightmost two 7seg. indicators) - These indicators will show the
present channel number.

UT606BH Operation Specification -7-
6. Tones
6.1. THE KIND OF TONES
䍃Power On Tone This sounds when Radio's power is turned on.
䍃Key Touch Tone (single tone) This sounds when a switch is pressed.
䍃Key Touch Tone (double tone) This sounds when a switch is pressed and hold for 2 seconds.
䍃Error Tone This sounds when pressed switch is invalid.
䍃PTT Error Tone This sounds when pressed [PTT] sw is invalid.
䍃TX Time Out Tone This sounds when a transmitting time exceeds 5 minutes.
6.2. TIMING DETAILS
Power On Tone 50ms
800Hz
50ms
1000Hz
50ms
1200Hz
Key Touch Tone (single tone) 40ms
1500Hz
Key Touch Tone (double tone) 40ms
1500Hz
40ms
30ms
1500Hz
Error Tone 40ms
750Hz
PTT Eror Tone while [PTT] sw is pressed
750Hz
(TX Time Out Tone)

UT606BH Operation Specification -8-
7. Operations
7.1. COMMON NOTES
1. When all keys except [PTT] sw is pressed, back light lights up for 5 seconds.
But TX Power Select temporary by [1/5W] sw is pressed while transmitting is an exception.
7.2. POWER SUPPLY ON/OFF
1. If [Volume] knob turned clockwise in the state of a
power supply is Off.
㸢The power of radio will be turned On, Power On
Tone will sound and the channel display will previous
CH.
2. If [Volume] knob turned counterclockwise to an end, in the state of a power supply is On.
㸢The power of radio will be turned Off.
Factory default setting The initial setting right after Power supply On
MRN CH = 16CH MRN CH = previous setting(U/I/C each mode)
EMG 16 CH / 09CH mode = Off EMG 16 CH / 09CH mode = Off
Triple Watch = Off Triple Watch = Off
SCAN mode = Off SCAN mode = Off
MEMORY CH = all CH MEMORY Off MEMORY CH = previous setting
KEY LOCK = Off KEY LOCK = Off
TX Power = 5W TX Power = previous setting
KEY TOUCH TONE = ON KEY TOUCH TONE = previous setting
* Following, Hidden feature setting
UIC Change feature = OFF UIC Change feature = previous setting
CH mode = INT CH mode = previous setting
Free CH Mode = Invalid Free CH Mode = previous setting
*When power supply On, a back light lights up for 5 seconds.
*When [PTT] sw is pressed continuously at the time of power supply On, it cannot transmit.
PTT Error Tone sounds and "TX" icon and CH indicators blink as long as [PTT] sw is pressed.

UT606BH Operation Specification -9-
7.3. CHANNEL SELECT
1. Press [䂥] sw to increment the Channel number.
01 㸢02 㸢03 㸢04 㸢05 㸢06 㸢07 㵺㵺㵺 88
㸡㸣
2. Press [䂯] sw to decrement the Channel number.
01 㸠02 㸠03 㸠04 㸠05 㸠06 㸠07 㵺㵺㵺 88
㸣㸡
*Continuous pressing of [䂥]/[䂯] sw for 0.5 seconds will activate the Auto Repeat function
causing the channel to change at 100ms interval.
*While scanning, this function is invalid. When staying the channel, although [䂯] sw is invalid,
[䂥] sw resumes SCAN from the next channel.
*In state of Triple Watch is On, CHANNEL SELECT is effective.
*In the case of EMG 16CH or 09CH mode, Emergency mode is canceled.
* TX Power is set to 5W when it changes into 16CH (it contains EMG16CH). (Backup is not
carried out)
7.4. TX POWER 1W/5W SELECT
1. Press [1/5W] sw in the state of a TX POWER 5W.
㸢It is set to TX POWER 1W, and "1W" icon appears.
2. Press [1/5W] sw in the state of a TX POWER 1W.
㸢It is set to TX POWER 5W, and "5W" icon appears.
*In channels to which transmission was forbidden in MRN mode,
[1/5W] sw is invalid and "1W/5W" icon is not displayed.
*[1/5W] sw is invalid at the CH of TX POWER 1W only. At this
CH, the "1W" icon is displayed even if TX POWER is
beforehand set as TX POWER 5W.
Tx Power 1W
Tx Power 5W
