jobmate 060-3053-2 User manual

9" (23 cm) Single Line Bump Feed Electric Grass Trimmer
060-3053-2
Instruction Manual
Read all safety rules and instructions carefully before operating this tool.
3084514
Conforms to UL STD 82
Certified to CAN/CSA STD.
C22.2 No. 147-M90

2
Contents.......................................................................................................................................2
Product Specifications.. ..........................................................................................................2
General Safety Rules................................................................................................................3
Electrical Information........................................................................................................6
Symbols...................................................................................................................................9
Know Your Grass trimmer..............................................................................................10
Assembly ................................................................................................................................11
Operation.................................................................................................................................12
Troubleshooting..........................................................................................................................16
Exploded View.......................................................................................................................17
Parts List .................................................................................................................................. 18
Warranty.....................................................................................................................................19
Notes...........................................................................................................................................20
CONTENTS
PRODUCT SPECIFICATIONS
9” (23 cm) GRASS TRIMMER
No-load Speed.....................................................................................................12000 RPM
Amp.........................................................................................................................
2.5 A
Voltage
.........................................................................................................
120 V ~ 60 Hz
Cutting Swath............................................................................................................9" (23 cm)
Feed Type - Bump Line.................................................................Single Line 0.065" (1.65 mm)
Weight .........................................................................................................3 lb 5 oz (1.5 kg)

3
GENERAL SAFETY RULES
When using the machine the safety rules must be followed.For your own safety and that of bystanders
please read these instructions before operating the machine. Do not use the machine without reading the
instructionsheet. Save these instructions.
• This grass trimmer is designed for cutting grass and similar soft vegetation and for trimming grass
edges in private and hobby garden areas which are not accessible with a lawn mower.
• The device should not be used in public gardens, parks, sports centres or at roadsides as well as
in agriculture and forestry.
• This grass trimmer is not allowed to be used for cutting or chopping, otherwise, there is a risk of injury.
- Hedges, shrubs and bushes,
- Flowers,
- In terms of composting.
• This grass trimmer is not intended for use by persons with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the grass trimmer by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the grass trimmer.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
• Wear protective glasses or goggles.
• Never allow children or people unfamiliar with the instructions to use the grass trimmer.
• Stop using the grass trimmer while people, especially children, or pets are nearby.
• Only use the grass trimmer in daylight or good artificial light.
• Before using the grass trimmer and after any impact, check for signs of wear or damage and repair
as necessary.
• Never operate the grass trimmer with damaged guards or without the guards in place.
• Keep hands and feet away from the cutting line at all times and especially when switching on
the motor.
• Always return the machine to its normal operating position before switching on.
• Never fit metal cutting elements.
• Never use replacement parts or accessories not provided or recommended by the manufacturer
• Disconnect the grass trimmer from the electrical supply before checking, cleaning or working on
the grass trimmer and when it is not in use.
• Always ensure that ventilation openings are kept clear of debris.
WARNING

GENERAL SAFETY RULES
• Do not wear loose clothing or jewelry. They can be caught in moving parts. Use of rubber gloves
and footwear is recommended when working outdoors.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
Use outdoor extension cords marked SW-A, SOW-A, STW-A, STOW-A, SJW-A, SJTA, SJTW-A, or
SJTOWA. These cords are rated for outdoor use and reduce the risk of electric shock.
WARNING
4
ADDITIONAL SAFETY INSTRUCTIONS FOR YOUR GRASS TRIMMER
• Do not expose to moisture.
• Use only on AC electrical supply voltage shown on the product rating label.
• Avoid operating your trimmer in wet grass, where feasible.
• Take care in wet grass or you may lose your footing.
• On slopes, be extra careful of your footing and wear nonslip footwear.
• Do not walk backwards when trimming or you could trip. Walk, never run.
• Switch off before pushing the trimmer over surfaces other than grass.
• Never pick up or carry a trimmer by the cord.
• Do not lean over the trimmer guard as objects may be thrown by the rotating TrimFast blades.
• Keep all nuts, bolts and screws tight to be sure the trimmer is in safe working condition.
• To avoid the risk of injury keep fingers and hands clear of the rotating blades on the
• Avoid Unintentional Starting – Don’t carry plugged-in appliance with finger on switch. Be sure
switch is off when plugging in.
• Don’t Overreach – Keep proper footing and balance at all times.
• Stay Alert – Watch what you are doing. Use common sense.
Do not operate appliance when you are tired.
leading edge of the guard.
MAINTENANCE
• After use, disconnect the grass trimmer from the power source and check for damage.
• When not in use store the grass trimmer out of the reach of children.
• Electrical powered trimmers should only be repaired by an authorised service agent.
• Use only manufacturers recommended replacement parts and accessories.
• Preparation for use, operation and maintenance of the grass trimmer:
- Read the instructions carefully.
- Be familiar with the controls and proper use of the grass trimmer.
- Before use check the supply and extension cord for signs of damage or aging,
- If the cord becomes damaged during use, disconnect the cord from the power supply immediately.

5
GENERAL SAFETY RULES
DO NOT TOUCH THE CORD BEFORE DISCONNECTING THE SUPPLY;
- Do not use the grass trimmer, if the cord is damaged or worn.
WARNING
- Cutting elements continue to rotate after the motor is switched off.
- Keep extension cords away from cutting elements.
- It is recommended that grass trimmers should be supplied via a residual current device (RCD) with
a tripping current of not more than 30 mA.

WARNING
WARNING
ELECTRICAL INFORMATION
DOUBLE INSULATED
This grass trimmer has a plug that looks like the one shown in Fig. 1.
The grass trimmer is double insulated to provide a double thickness of insulation between you and
the tool’s electrical system. All exposed metal parts are isolated from the internal metal motor
components with protective insulation.
USE ONLY IDENTICAL REPLACEMENT PARTS WHEN SERVICING THE GRASS TRIMMER,
TO AVOID INJURY.
Fig. 1
6
TO AVOID ELECTRICAL HAZARDS, FIRE HAZARDS, OR DAMAGE TO THE TOOL, USE PROPER
CIRCUIT PROTECTION. YOUR GRASS TRIMMER IS WIRED AT THE FACTORY FOR 120 V
OPERATION. CONNECT TO A 120 V, 15 A CIRCUIT, AND USE A 15 A TIME-DELAYED FUSE OR
CIRCUIT BREAKER. TO AVOID SHOCK OR FIRE, IF THE EXTENSION CORD IS WORN, CUT OR
DAMAGED IN ANY WAY, REPLACE IT IMMEDIATELY.
TO REDUCE THE RISK OF ELECTRIC SHOCK, THIS APPLIANCE HAS A POLARIZED PLUG
(ONE BLADE IS WIDER THAN THE OTHER) AND WILL REQUIRE THE USE OF A POLARIZED
EXTENSION CORD. THE APPLIANCE PLUG WILL FIT INTO A POLARIZED EXTENSION CORD
ONLY ONE WAY. IF THE PLUG DOES NOT FIT FULLY INTO THE EXTENSION CORD, REVERSE
THE PLUG. IF THE PLUG STILL DOES NOT FIT, OBTAIN A CORRECT POLARIZED EXTENSION
CORD. A POLARIZED EXTENSION CORD WILL REQUIRE THE USE OF A POLARIZED WALL
OUTLET. THIS PLUG WILL FIT INTO THE POLARIZED WALL OUTLET ONLY ONE WAY. IF THE
PLUG DOES NOT FIT FULLY INTO THE WALL OUTLET, REVERSE THE PLUG. IF THE PLUG
STILL DOES NOT FIT, CONTACT A QUALIFIED ELECTRICIAN TO INSTALL THE PROPER WALL
OUTLET. DO NOT CHANGE THE EQUIPMENT PLUG, EXTENSION CORD RECEPTACLE, OR
EXTENSION CORD PLUG IN ANY WAY.

WARNING
DOUBLE INSULATION DOES NOT TAKE THE PLACE OF NORMAL SAFETY PRECAUTIONS
WHEN OPERATING THIS GRASS TRIMMER.
WARNING
TO AVOID ELECTROCUTION:
1. Use only identical replacement parts when servicing a tool with double insulation.
Servicing should be performed by a qualified technician.
2. Do not use in wet or damp areas or expose to rain.
CAUTION
ALWAYS MAKE SURE THAT YOUR OUTLET IS PROPERLY GROUNDED. IF UNCERTAIN,
HAVE IT CHECKED BY A CERTIFIED ELECTRICIAN.
WARNING
THIS GRASS TRIMMER IS FOR OUTDOOR USE ONLY. DO NOT EXPOSE TO RAIN OR USE IN
DAMP LOCATIONS.
ELECTRICAL INFORMATION
GROUNDING INSTRUCTIONS
IN THE EVENT OF A MALFUNCTION OR BREAKDOWN, grounding provides the path of least
resistance for electric current, and reduces the risk of electric shock. This tool is equipped with
a POLARIZED plug. The plug MUST be plugged into a matching grounded extension cord in
accordance with all local codes and ordinances.
DO NOT MODIFY THE PLUG PROVIDED. If it will not fit the properly grounded extension cord,
have the proper outlet installed by a qualified electrician.
Ground Fault Circuit Interrupter (GFCI) protection should be provided on the circuit(s) or outlet(s)
to be used for the gardening appliance. Receptacles are available having built-in GFCI protection
and may be used for this measure of safety.
7

GUIDELINES FOR USING EXTENSION CORDS
USE THE PROPER EXTENSION CORD. Make sure your extension cord is in good condition.
When using an extension cord, be sure to use one heavy enough to carry the current your product
will draw. An undersized cord will cause overheating. The table below shows the correct size to use
depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge.
The smaller the gauge number, the heavier the cord.
Minimum Gauge for Extension Cords (AWG)
(when using 120 V only)
Ampere Rating
More Than
0
6
10
12
Not More Than
6
10
12
16
25’ (7.6 m)
18
18
16
14
50’ (15 m)
16
16
16
12
100’ (30.4 m)
16
14
14
Not Recommended
150’ (45.7 m)
14
12
12
Total Length of Cord in Feet (meters)
WARNING
ALTHOUGH THIS GRASS TRIMMER IS DOUBLE INSULATED, THE EXTENSION CORD AND
RECEPTACLE MUST STILL BE GROUNDED WHILE IN USE TO PROTECT THE OPERATOR
FROM ELECTRIC SHOCK.
ELECTRICAL INFORMATION
Make sure your extension cord is properly wired and in good electrical condition. Always replace a
damaged extension cord or have it repaired by a qualified person before use. Keep extension cords
away from sharp objects, excessive heat and damp or wet areas.
Use a separate electrical circuit for your tools. This circuit should comprise a wire of at least 12
gauge and should be protected with a 15 A time-delayed fuse. Before connecting the motor to the
power line, make sure the switch is in the OFF position and the electric current is identical to that
stamped on the motor nameplate. Running at a lower voltage will damage the motor.
8

SYMBOL NAME DESIGNATION/EXPLANATION
V Volts Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
WWatts Power
min Minutes Time
Alternating Current Type of current
Direct Current Type or a characteristic of current
Class II Construction Double-insulated construction
No Load Speed Rotation speed, at no load
/min
no
Per Minute Revolutions, strokes, surface speed, orbits etc.,
per minute
Wet Conditions Alert Do not expose to rain or use in damp locations
Read The Operator’s Manual To reduce the risk of injury user must read and
understand operator’s manual before using this
product.
Safety Alert Precautions that involve your safety.
Long Hair Failure to keep long hair away from the air inlet
could result in personal injury.
Some of the following symbols may be used on this product. Please study them and learn their
meaning. Proper interpretation of these symbols will allow you to operate the product better and safer.
SYMBOLS
9

10
KNOW YOUR GRASS TRIMMER
Know Your Grass Trimmer (Fig. 2)
The safe use of this product requires an understanding of the information on the product and in
this instruction manual as well as a knowledge of the project you are attempting. Before use of
this product, familiarize yourself with all operating features and safety rules.
Flower Guard
Motor Housing
Pommel handle
ON/OFF switch
Upper handle
Trimming Line
Safety Guard
Built-In Cord Retainer
Additional Spool Storage
(additional spool not included)
Fig. 2

11
ASSEMBLY
Functional description
This portable hand-held grass trimmer is powered by an electric motor.
This trimmer features a single-line bump feed head that is used for safe and efficient grass
cutting.
After the safety guard is installed it will protect the user during trimming operations.
The following describes the functions of the operating parts.
Package contents
Carefully unpack the trimmer and check that it is complete:
• Lawn trimmer (2 sections)
• Safety guard with 2 installation screws included
• Flower guard
WARNING
Always disconnect from power source before working on the trimmer. Wait until motor has completely
stopped before attempting any maintenance. There is danger of electric shock and the possibility
of injury by the rotating trimmer line unless motor has stopped rotating.
Assembly instructions
NOTE: Once the lower and upper sections of the trimmer have been assembled,
they cannot be separated.

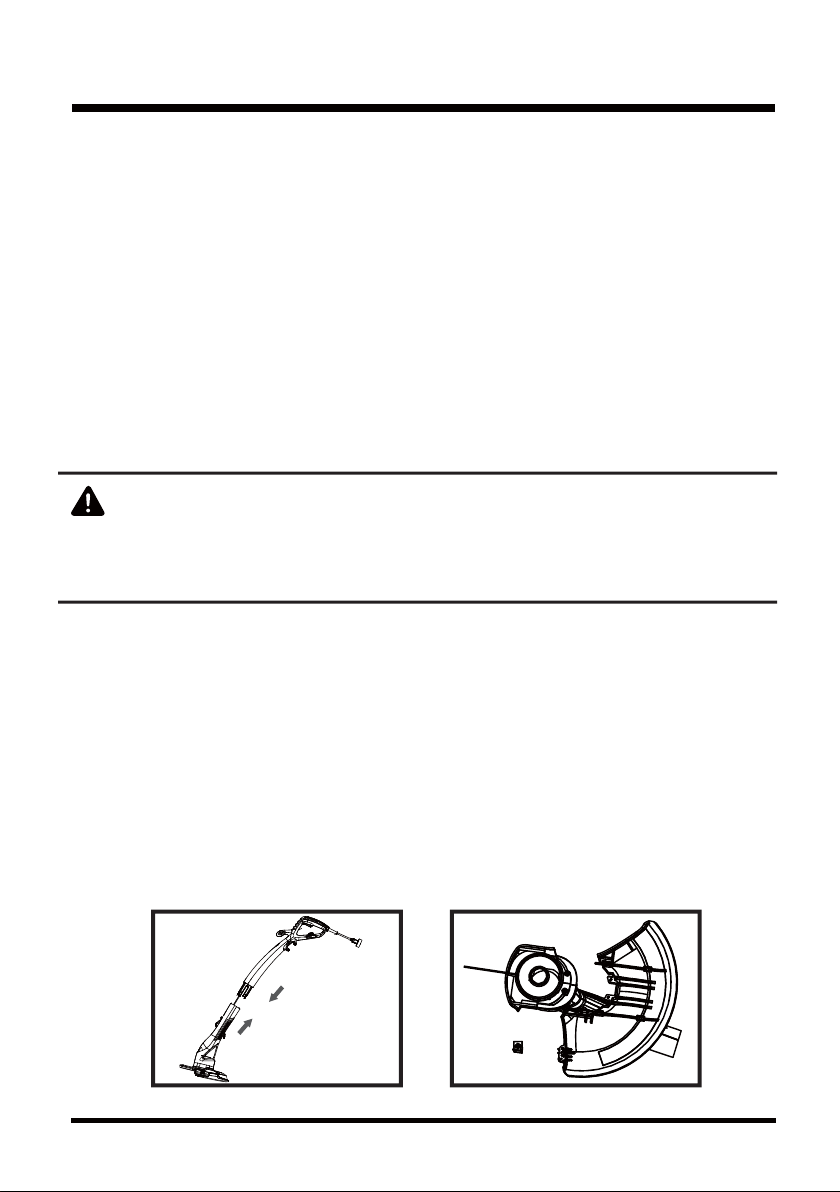

Assembling the guard (Fig. 3 & 4)
1. Align the safety guard with the holes on the underneath side of the motor housing and slide
into position.
2. Attach the guard with the two screws.
3. Connect the upper housing and the lower housing.
The safety guard and handle must be in the same direction. Be careful that the internal power
cord is not tight or twisted.
Fig. 3 Fig. 4

OPERATION
Switching ON and OFF ( Fig. 5 )
1. Form a loop in the end of the extension cable, conduct it through the opening in the upper
handle (2) and hang it onto the strain relief (3).
2. Connect the trimmer to the electrical socket.
3. Ensure a secure stance and hold on to the trimmer with two hands. Do not rest the cutting
head on the ground.
4. To switch on depress the ON/OFF switch (1). Release the switch to switch off.
WARNING Danger of injury!
12
Never use the trimmer without its safety guard. Always check the operability of the trimmer before it
is used. Check that the electrical voltage is the same as indicated on the rating plate. Always wear
goggles when working with the trimmer.
After the trimmer has been switched off the cutting head will continue to rotate for a few
seconds. Keep hands and feet well away.
The ON/OFF switch must not be locked in place. The trimmer must not be used if the
switch is damaged. There is the immediate danger of injury if the motor does not switch
off after the ON/OFF switch has been released.
NOTE: Always remove grass residue from cutter so that the cutting effect is not impaired.
Fig. 5
WARNING
WARNING
①
②
③

OPERATION

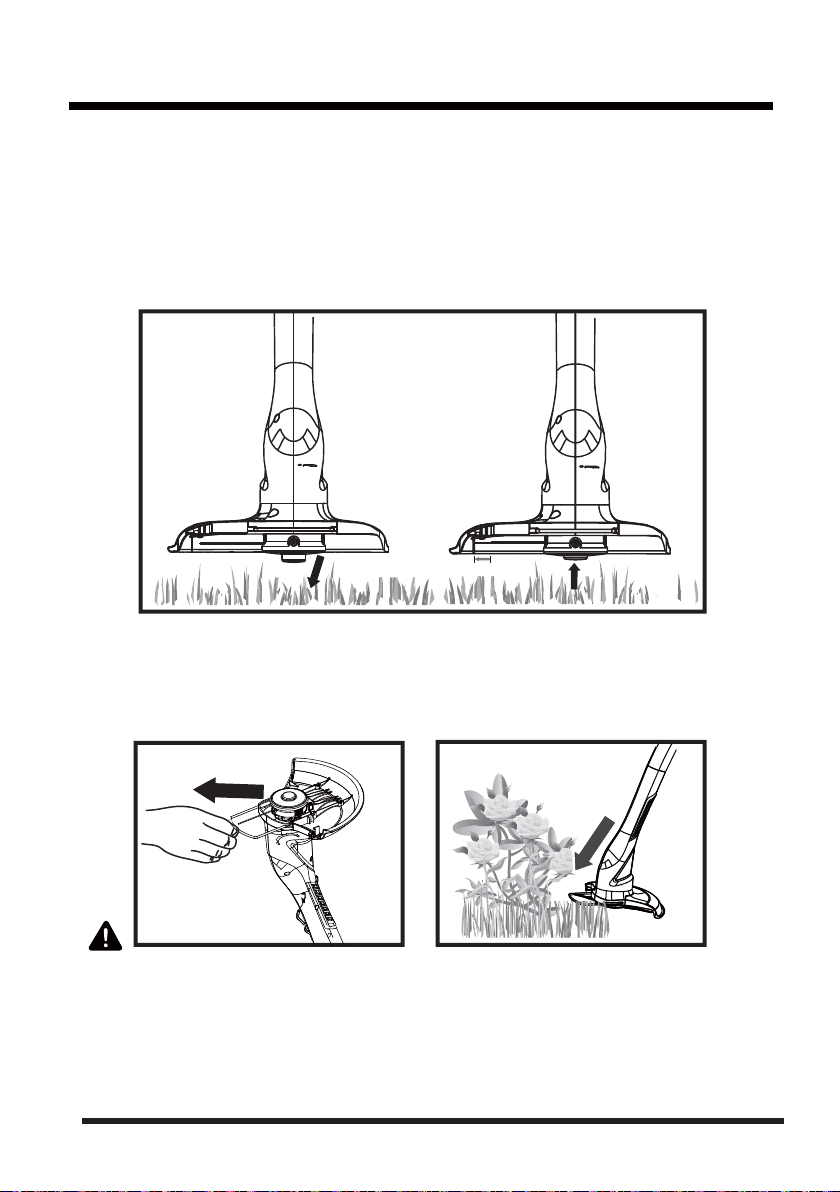

Cutting device —— advancing the trimmer line (Fig. 6)
In order to advance a length of trimmer line, firmly tap the bump cap on the lawn while the trimmer
is running. This will automatically advance a new length of trimmer line and trim the line to the
correct length. A firm but gentle motion should be used when tapping the bump cap on the lawn.
This advancing process may be repeated as often as necessary. Never try to advance the line on
a hard surface such as a sidewalk or driveway. If unit fails to advance, unplug power from trimmer
and clean the bump cap both inside and out.
Flower Guard
Pull the flower guard out of the trimmer head (Fig. 7). If the flower guard is no longer required, it can be
pushed in again (park position).
Using the flower guard
The grass trimmer is equipped with a flower guard that can be pulled outward to push flowers
away from the cutting line so they are protected (Fig. 8). The flower guard is an indicator of the
maximum cutting range of the line.
Fig. 7 Fig. 8
13
Fig. 6

14

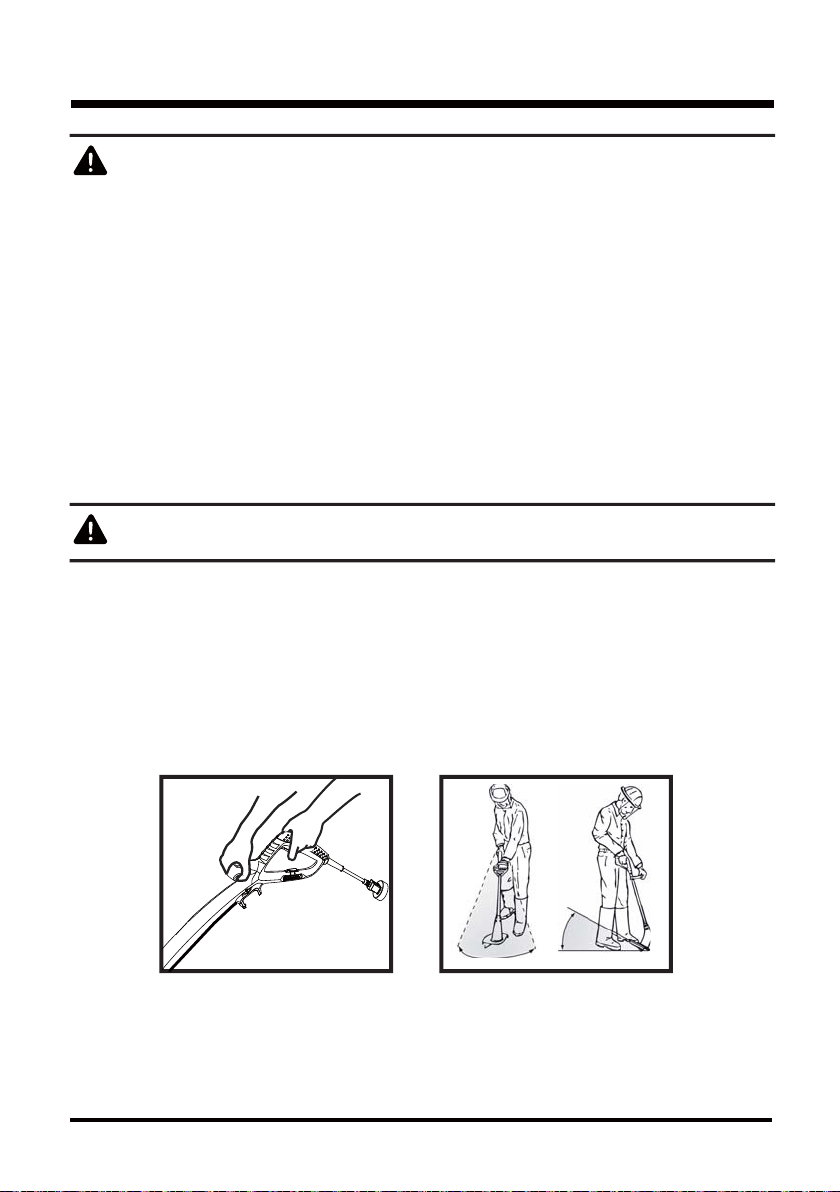

Trimming
1. Hold the tool as shown (Fig. 9)
2. Gently swing the trimmer from side to side (Fig. 10).
3. When cutting long grass, work in stages from the top. Take small cuts. Keep the tool away from
hard objects and delicate plants.
4. If the tool starts running slowly, reduce the load.
• Do not cut moist or wet grass.
• Before starting the trimmer check that the cutting head will not come into contact with stones,
rubble or other foreign bodies.
• Switch on the trimmer before you approach the grass that is to be cut.
• Always trail the extension cord behind you. Do not pass the operating trimmer over the extension
cord as the cord could be damaged.
• Do not overload the trimmer during operation.
• Avoid contact with obstacles (stones, walls, fences, etc.) as this will rapidly wear out the trimmer line.
• Do not hit the cutting head on the ground during operation.
• Ensure that the cutting head has stopped before you deposit the equipment on the ground. Cut
the grass by swaying the trimmer sideways to the right and left. Cut slowly, keeping the grass
trimmer inclined forward slightly when cutting. Cut tall grass by a series of level passes from top to
bottom.
OPERATION
Fig. 9 Fig. 10
WARNING Danger of injury!
WARNINGNever attempt to lock the trigger lever in the on position.

15
• Carefully clean the trimmer and its accessories after each use (see “Cleaning and maintenance”), thereby
avoiding mould formation.
• Store the trimmer in a dry place well out of reach of children.
• Do not expose the trimmer for extended periods to direct sunlight.
• Do not wrap plastic bags around the trimmer as this could result in the formation of moisture and mould.
• Do not stand the trimmer on its protective guard. Suspend it by its upper handle in such a manner that the
protective guard does not come into contact with other objects. This is because the protective guard could
become deformed, thereby changing its dimensions and its safety properties.
Any work that is not described in these instructions must be carried out by an
authorized service agency. Only use original parts and be very careful with the line
cutter during installation work. Danger of injury!
Disconnect the plug from the power source after every use and check the grass trimmer for damaged parts.
Cleaning and maintenance
Always disconnect the plug from the power source before working on the trimmer.
Storage
OPERATION
Cleaning
Do not jet water onto the trimmer and do not clean it under flowing water. This would
result in the danger of an electric shock and the trimmer could be damaged. Always
keep the trimmer clean. Do not use cleaning agents and solvents.
• After the work has been completed remove all grass and soil from the cutting device and the protective
guard.
• Ensure that the ventilation slots are always clean and free of grass.
• Clean the trimmer with a soft brush or a cloth.
WARNING
WARNING
WARNING
WARNING

16
NOTE: Dispose of the trimmer, its accessories and the packaging in an environmentally friendly manner.
Electrical grass trimmers must not be disposed of with domestic waste. Hand in a redundant trimmer to
a recycling centre. The plastic and metals can then be sorted out and graded for recycling.
Our Service Centre will be happy to answer any questions in this respect. Defective units returned to us will
be disposed of for free.
Disposal And Protection Of The Environment

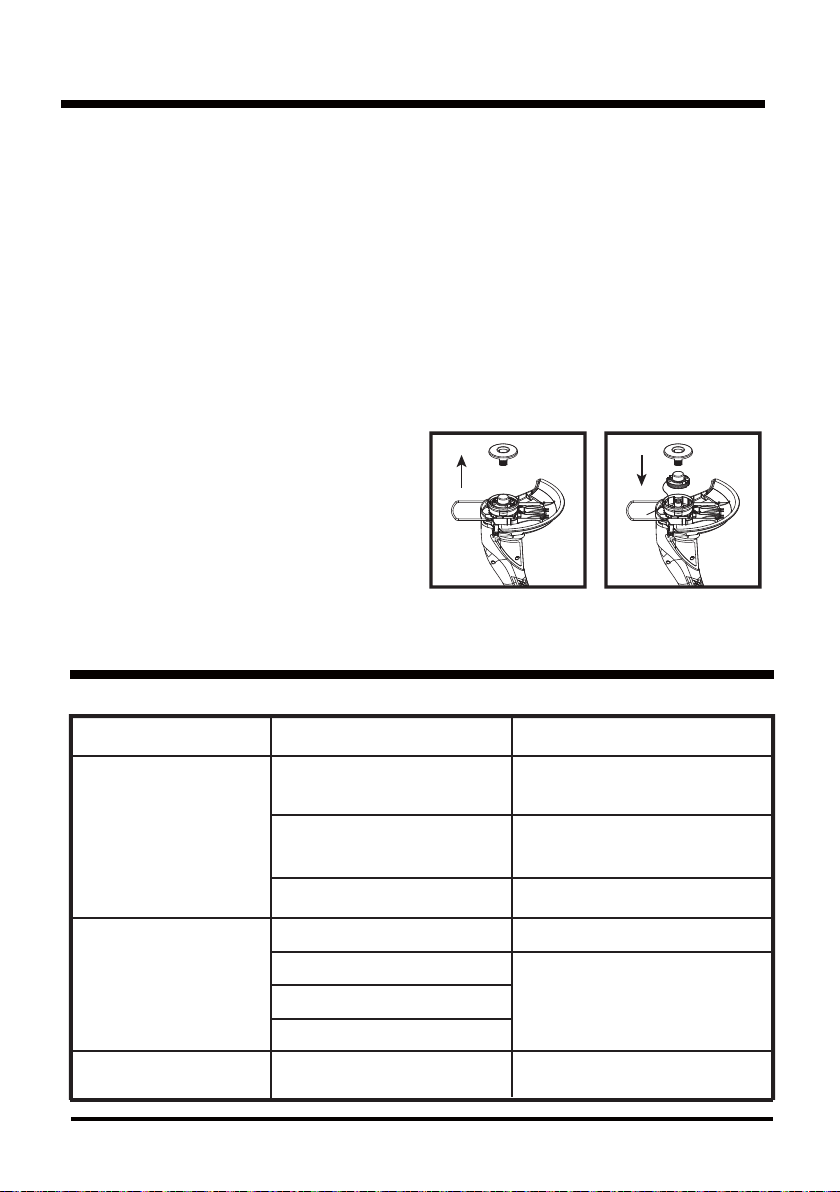

Replacing Trimmer Spool - part # 060-3054-0
To replace trimmer spool, using index finger and thumb firmly squeeze the two serrated tabs found on
trimmer spool head as shown. Enough pressure will release the spool cover exposing the trimmer spool.
Remove the spool cover and remove the empty spool.
At this time the spool can either be re-filled using 0.065” (1.65 mm) trimmer line or a replacement spool(part
#060-3054-0) can be installed. To install new spool,
simply place new spool in spool head knob side
facing up and feed the loose end of the trimmer line
through the round steel eyelet on spool head. The
line should be free. Align the spool cover and snap
into place. Follow the advancing line procedures in
earlier section of this manual.
OPERATION
TROUBLESHOOTING
Problem
Product does not reach
full power
Trimmer does not start
Unsatisfactory result
Air vents are blocked
No electrical power
Trimming line worn Advance additional line OR
Replace with new trimmer spool
On/Off switch defective
Worn carbon brushes
Motor line
Check power cord and plug
Repair by after-sales service
Use a proper extension cord
Connect to another power source
Clean the air vents
Extension cord not suitable
for operation with this product
Power source (e.g. generator)
has too low voltage
Possible Cause Remedy

17
EXPLODED VIEW

18
ITEM NO. PART NO. DESCRIPTION
PARTS LIST
QTY
1
2
3
4
5
6
7
8
8.1
8.2
9
10
11
Power Lead
Power Lead Retainer
On/off Button
Spool
Spring
Debris Guard w/ Screws
Flower Guard
Motor Assembly
Spool Head
Spool Cover
Spring
Lower Motor Housing
Upper Housing
TODXD1.43.UL.X1.01
TOQTGX.01.YX.X1.02
GT21FM.10.03.X0.01
GT27FM.30.00
TOTHYL.01.09
GT27FM.50.00
GT21FM.00.04.02
TM5863.00.00.X1.01
GT21FM.20.01.W2.00
GT21FM.00.03
TOTHYY.04.12
GT21FM.00.01.X0.01
GT22FM.10.01.X0.01
1
1
1
1
1
1
1
1
1
1
1
1
1

19
WARRANTY
This JobMate product is guaranteed for a period of 1 year from the date of original retail purchase
against defects in workmanship and materials.
Subject to the conditions and limitations described below, this product, if returned to us with proof of
purchase within the stated warranty period and if covered under this warranty, will be repaired or
replaced (with the same model, or one of equal value or specification), at our option. We will bear the
cost of any repair or replacement and any costs of labour relating thereto.
These warranties are subject to the following conditions and
limitations:
a) a bill of sale verifying the purchase and purchase date must be provided;
b) this warranty will not apply to any product or part thereof which is worn or broken or which has become
inoperative due to abuse, misuse, accidental damage, neglect or lack of proper installation, operation or
maintenance (as outlined in the applicable owner’s manual or operating instructions) or which is being used
for industrial, professional, commercial or rental purposes;
c) this warranty will not apply to normal wear and tear or to expendable parts or accessories that may be
supplied with the product that are expected to become inoperative or unusable after a reasonable period of
use;
d) this warranty will not apply to routine maintenance and consumable items such as, but not limited to,
fuel, lubricants, vacuum bags, blades, belts, sandpaper, bits, fluids, tune-ups or adjustments;
e) this warranty will not apply where damage is caused by repairs made or attempted by others (i.e.
persons not authorized by the manufacturer);
f) this warranty will not apply to any product that was sold to the original purchaser as a reconditioned or
refurbished product (unless otherwise specified in writing);
g) this warranty will not apply to any product or part thereof if any part from another manufacturer is
installed therein or any repairs or alterations have been made or attempted by unauthorized persons;
h) this warranty will not apply to normal deterioration of the exterior finish, such as, but not limited to,
scratches, dents, paint chips, or to any corrosion or discolouring by heat, abrasive and chemical cleaners;
i) this warranty will not apply to component parts sold by and identified as the product of another
company, which shall be covered under the product manufacturer’s warranty, if any.
Additional Limitations
This warranty applies only to the original purchaser and may not be transferred. Neither the retailer nor
the manufacturer shall be liable for any other expense, loss or damage, including, without limitation, any
indirect, incidental, consequential or exemplary damages arising in connection with the sale, use or
inability to use this product.
Notice to Consumer
This warranty gives you specific legal rights, and you may have other rights, which may vary from
province to province.
The provisions contained in this warranty are not intended to limit, modify, take away from, disclaim
or exclude any statutory warranties set forth in any applicable provincial or federal legislation.

NOTES
MADE IN CHINA
IMPORTED BY
TRILEAF DISTRIBUTION TRIFEUIL
TORONOTO, CANADA M4S 2B8
