jobmate YT9231 User manual

3
Know Your Product................................................................................................. 4
Technical Specications......................................................................................... 5
Description of Symbols...........................................................................................6
Contents of Petrol Line Trimmer............................................................................. 7
General Safety Instructions.................................................................................... 8
Additional Safety Instructions................................................................................. 10
Assembly Instructions............................................................................................ 11
Operation............................................................................................................... 13
Starting With A Cold Motor................................................................................ 13
Starting With A Warm Motor .............................................................................13
Switching the Motor Off.................................................................................... 13
Tips for Using Your Petrol Line Trimmer .......................................................... 14
Maintenance........................................................................................................... 15
Warranty ................................................................................................................ 18
CONTENTS

4

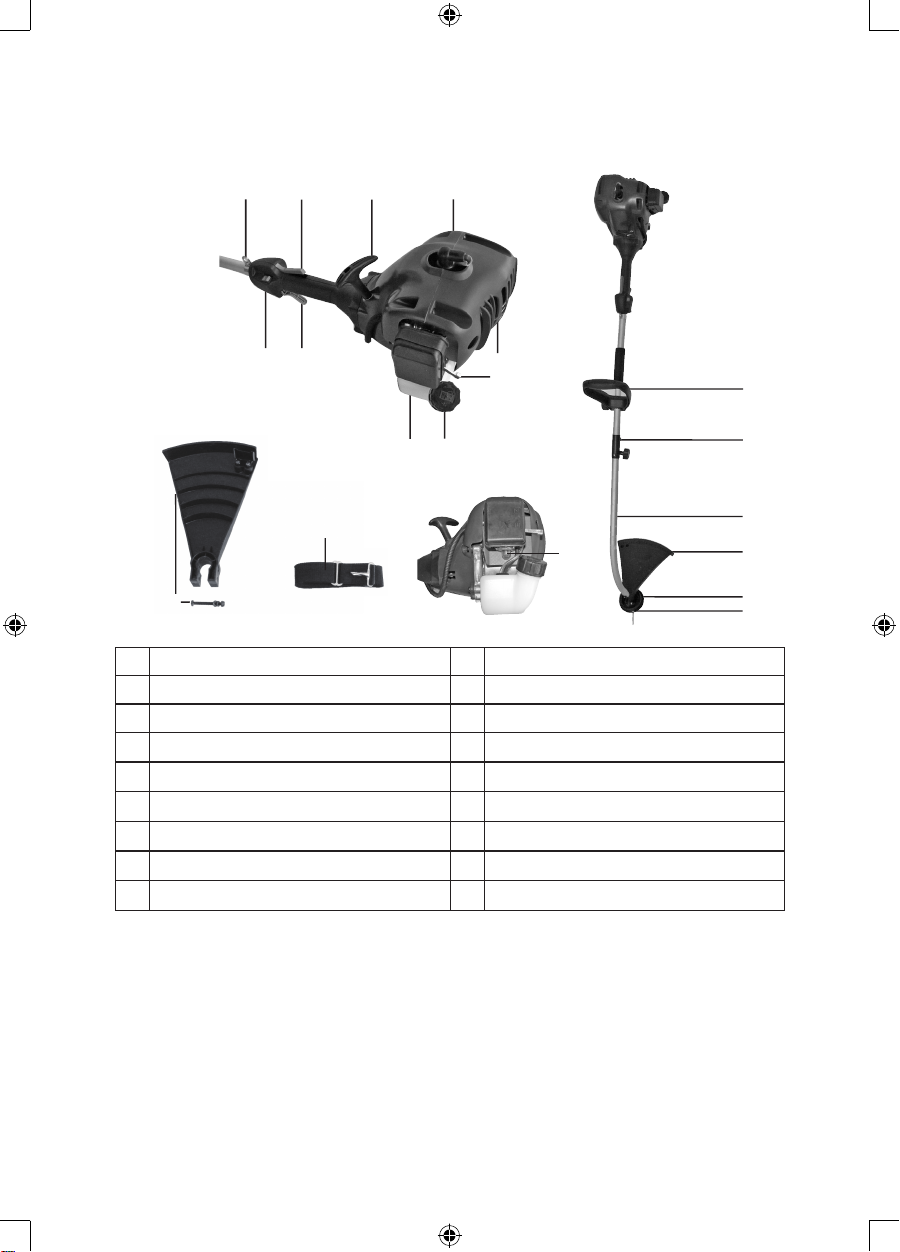

1 Trimming head 2 Cutting line
3Protective cover with screw insert 4Guide shaft with drive shaft
5Additional handle 6 On/Off switch
7Throttle trigger lock 8Throttle trigger
9Fastening eye for carry strap 10 Choke lever
11 Starter cord 12 Spark plug connector
13 Air lter cover 14 Petrol tank
15 Housing for motor cooling and starter 16 Fuel pump / primer
17 Carry belt 18 Guide shaft connection piece
KNOW YOUR PRODUCT
15
6
7
8
9
10
11 12
13 14
1
3
4
5
18
2
17
3
16
17

5
TECHNICAL SPECIFICATIONS
Motor power 750W
Motor type 2-stroke, air-cooled
Displacement 25CC
No-load speed 7500/min
Fuel Petrol/oil mix 40:1
Cutting width 38cm

6
The rating plate on your tool may show symbols. These represent important
information about the product instruction on its use.
Conforms to all relevant European Directives.
Double insulated for additional protection.
DESCRIPTION OF SYMBOLS
Use eye protection.
Use ear protection.
Wear respiratory protection.
Wear sturdy, non-slip footwear.
Read the user manual.
Do not expose to rain.
Do not use the metal saw blades.
Use protective gloves.
Denotes risk of personal injury, loss of life, or damage to the tool in case
of nonobservance.

7
1* Unit
1* Guide shaft
1* Additional handle
1* Protective cover
1* Wrench
1* Ratio tank
1* Instruction manual
DESCRIPTION OF SYMBOLS (CONT.)
CONTENTS OF PETROL GRASS TRIMMER

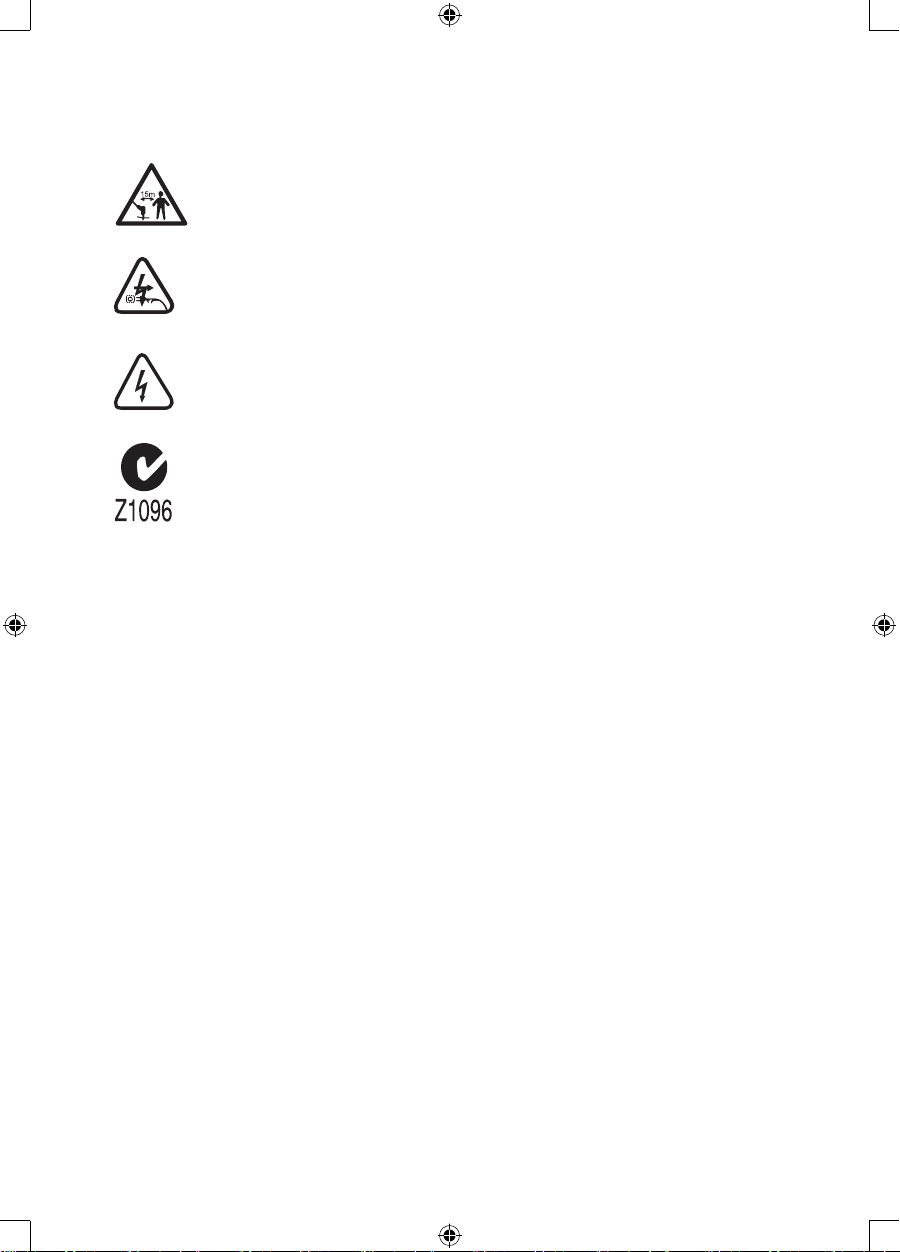

Denotes risk of electric shock.
Conforms to relevant standards for electromagnetic compatibility.
Disconnect from mains power immediately if the power cord becomes
damaged.
Keep children at a distance of no less than 15m from the work area.

8
WARNING! Read all safety instructions and operating instructions. Failure
to comply with the operating instructions or safety instructions can lead to electric
shocks, burns and/or serious injuries. Keep the safety instructions and operating
instructions safely for future use.
Safety equipment
When working with the device, the corresponding plastic protective cover for the
ejected at high speed. The blade integrated into the protective cover for the trimming
line cuts the line automatically to the optimum length.
1. Read the operating instructions carefully. Familiarise yourself with the settings
and the correct use of the machine.
2. Never allow children or other persons who are not familiar with the operating
instructions to use the machine. Local regulations may stipulate a minimum age
for operators.
3. Never mow whilst other persons, in particular children or animals, are nearby.
Warning: Observe a safety distance of 15m. If approached, switch the
machine off immediately. Bear in mind that the operator or user of the machine is
responsible for accidents involving other people or their property.
Preparatory measures
1. Sturdy footwear and long trousers should always be worn whilst mowing. Do not
mow barefoot or whilst wearing light sandals.
2. Check the area where the machine is to be used and remove any objects that
could be caught up and thrown.
• Store petrol exclusively in containers intended for this purpose.
whilst the motor is running or whilst the machine is still hot.
be removed from the area where the petrol has been spilled. Do not attempt to
start the machine until the petrol vapour has dissipated completely.
• For safety reasons petrol tanks and other tank connections must be replaced if
they are damaged.
4. Replace faulty silencers.
5. Before using carry out a visual check to ensure that the cutting tools, fastening
bolts and the complete cutting unit are not worn out or damaged. In order to avoid
an imbalance worn out or damaged cutting tools and fastening bolts should be
replaced in complete sets.
GENERAL SAFETY INSTRUCTIONS

9
GENERAL SAFETY INSTRUCTIONS (Cont.)

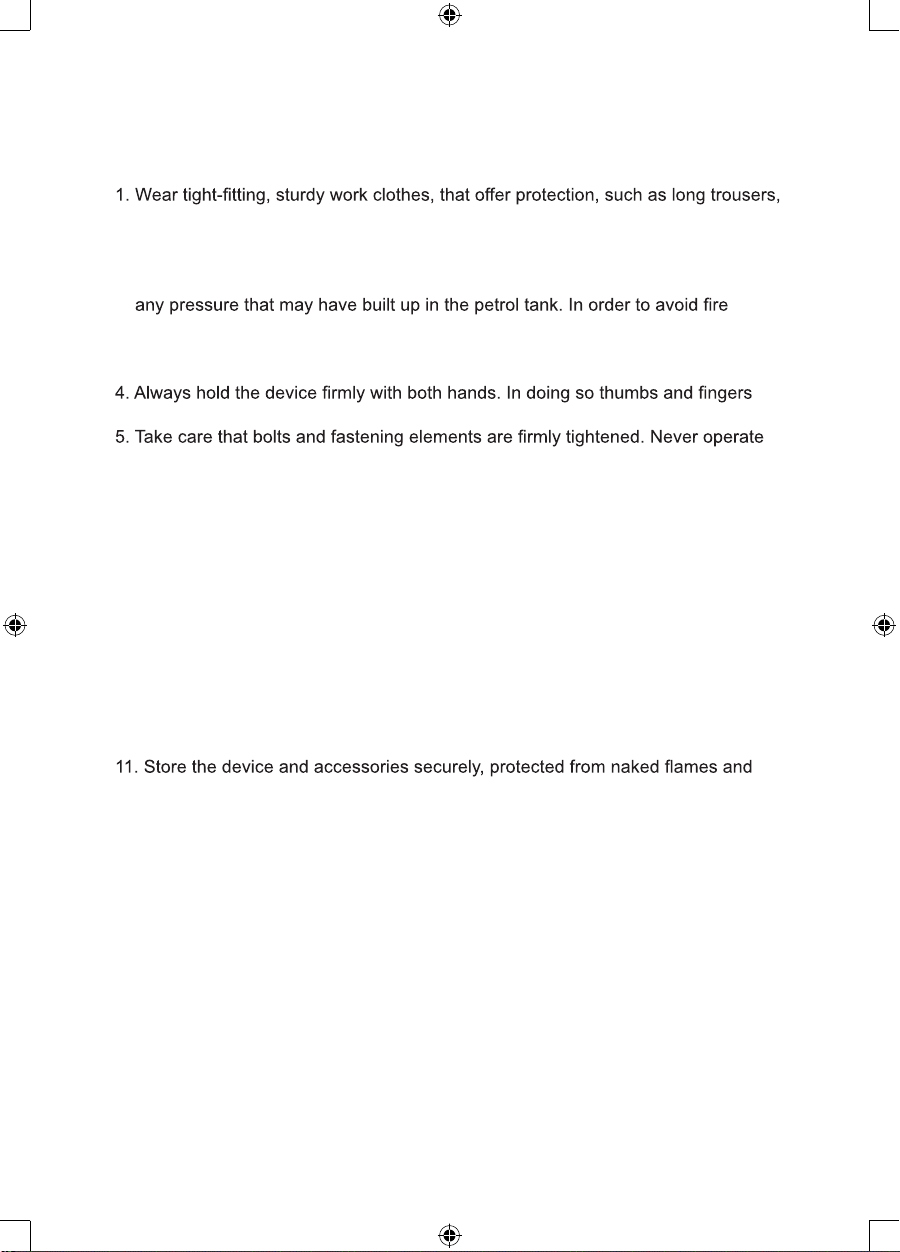

Handling
sturdy work shoes, tough work gloves, a protective helmet, a protective mask
for the face or protective goggles to protect the eyes and good earplugs or other
hearing protection to protect against the noise.
2. Store the device in a safe place. Open the petrol cap slowly in order to release
hazards, make sure that you are at least 3 metres from the refuelling area before
starting the device.
3. Switch the device off, before setting it down.
should wrap completely around the handle.
the device if it has not been correctly set up or is not complete or securely
assembled.
6. Take care that the handles are dry and clean and that there is no petrol mix on
them.
7. Guide the trimming head at the desired height. Avoid touching small objects (e.g.
stones) with the trimming head. When mowing on a slope always
stay downhill of the cutting device. Never cut or trim on a slick or slippery hill or
slope.
8. Check the area to be mowed, solid objects such as stones, metal parts etc. can
be picked up and ejected at high speed. Danger of injury!
9. Keep all parts of the body and all of your clothing far from the trimming head,
when starting or running the motor. Before starting the motor do not forget that
the trimming head must not come into contact with any obstacle.
10. Always turn off the motor before working on the cutting device.
sources or heat/sparks such as gas water heaters, clothes driers, oil stoves or
portable radiators etc.
12. Always keep the protective cover, trimming head and the motor free of mowing
residue.
13. Only appropriately trained adults are permitted to operate, adjust and service
the device.
14. If you are not familiar with the trimmer, practice handling with the motor
turned off (ON/OFF).
15. Always check the area to be mowed, solid objects such as metal parts,
bottles, stones etc. can be caught up and ejected at high speed and can cause
serious injuries to the operator and can damage the device permanently. If you
should inadvertently touch a solid object with the trimmer then turn the motor
off immediately and check the device for damage. Never use the device when it
is damaged or appears to be faulty.
16. Always trim and cut in the upper speed range. Do not let the motor run at a low
speed at the start of mowing or during trimming.

10
GENERAL SAFETY INSTRUCTIONS (Cont.)
ADDITIONAL SAFETY INSTRUCTIONS
17. Use the device exclusively for its intended purpose, such as trimming and
mowing weeds.
18. Never hold the trimming head above knee height when in operation.
19. Do not use the device if bystanders or animals are in the immediate vicinity.
Maintain a minimum distance of 15m between the operator and other persons
or animals when mowing. When mowing down to ground level please maintain a
minimum distance of 30m.
20. When mowing on a slope always stay downhill of the cutting device. Only work
1. DO NOT USE ANY FUEL other than that recommended in the operating
instructions. Always observe the instructions in the “Fuel and oil“ section of these
operating instructions. Do not use petrol that has not been correctly mixed with
2-stroke engine oil. Otherwise, there is a risk of permanent damage to the motor,
whereby the manufacturer‘s guarantee will be void.
3. DO NOT USE THE DEVICE WITHOUT ITS EXHAUST and correctly installed
exhaust guard.
4. DO NOT TOUCH THE EXHAUST, either with hands or your body. Hold the device
5. DO NOT USE THE DEVICE IN AN UNCOMFORTABLE POSITION, do not use
when off balance, with outstretched arms or with one hand. Always use both
handles.
6. Always keep the trimming head on the ground when the device is in operation.
7. Use the grass trimmer/motor scythe exclusively for its intended purpose, i.e.
trimming grass and mowing.
8. Do not use the device for extended periods of time, take regular breaks.
9. DO NOT USE THE DEVICE WHILST UNDER THE INFLUENCE OF ALCOHOL
OR DRUGS.
10. ONLY USE THE DEVICE IF THE PROTECTIVE COVER AND/OR EQUIPMENT
IS INSTALLED AND IN GOOD CONDITION.
11. Any changes, additions or removals carried out on the product can endanger
personal safety and voids the manufacturer’s guarantee.
12. Never use the device near easily combustible liquids or gases, either in
13. DO NOT USE ANY OTHER CUTTING TOOLS. For your own safety use only
accessories and ancillary equipment that are listed in the operating instructions
or that are recommended or listed by the manufacturer. The use of tools or
accessories other than those recommended in the operating instructions or in the
catalogue can present a risk of personal injury for you.

11

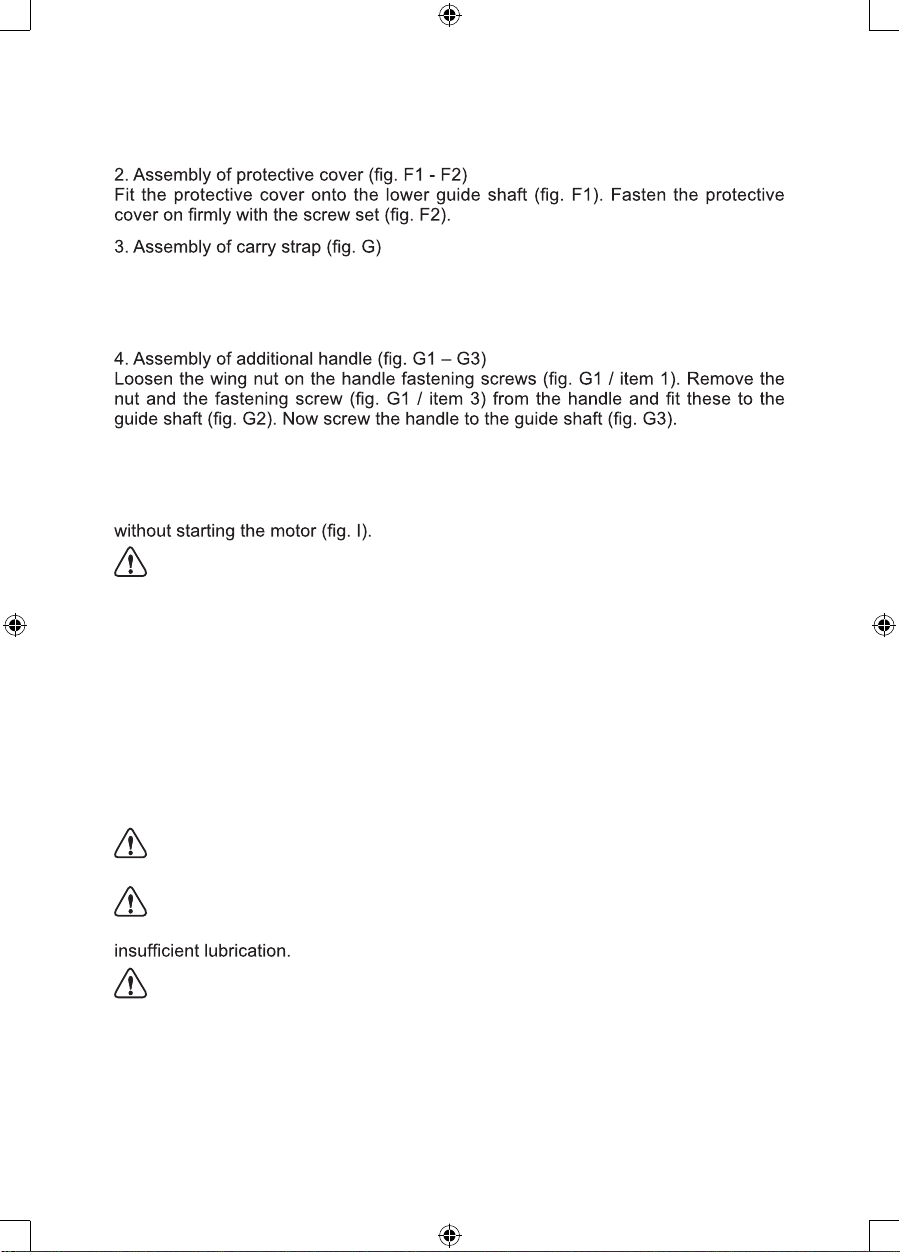

ASSEMBLY INSTRUCTIONS
1. Assembly of guide shaft (g. D - E)
Loosen the handle screw (A) on the coupling sleeve (B), pull the knob (D), feed
the drive axle (C) in and let it latch into place. In doing so ensure that the drive
shafts inside the guide shaft mesh together properly (turn the reel head a little
if necessary). Now tighten the handle screw (A) as shown in g. 4b. After being
assembled for the rst time the handle screw need only be loosened a little and the
lever actuated in order to dismantle the guide shaft.
B17
3
C
19
AB
CD
D
A
EF1
3
F2 3
G
17
9
G1
3
1
G2
G3
16
HI

12
ASSEMBLY INSTRUCTIONS (Cont.)
The carry strap enables ergonomic and safe operation of the motor brush cutter.
Hook the carry strap into the fastening eye (fig.G / item 9). Check the ease of
movement of all moving parts before commissioning. Check all screws are firmly
seated and check all protective devices.
5. Assembly the shoulder strap
shoulder strap such that the cutting line head runs parallel to the ground. Then to
determine the optimum shoulder strap length, carry out a few swinging movements
Attention! Always use the shoulder strap when working with the device. Attach
the strap as soon as you have started the motor and it is running at idle. Switch the
motor off before you take off the shoulder strap.
Before each time you start the device check:
•The fuel system is not leaking.
•The safety equipment and protective equipment are complete and in good working
order.
6. Fuel and oil
Recommended fuels
Use only a mix of lead-free petrol and special 2-stroke engine oil. Mix the fuel
mixture in accordance with the fuel mixing table.
Attention: Do not use any fuel mixture that has been stored for more than 90
days.
Attention: Do not use any 2-stroke oil that recommends a mix ratio of 100:1.
The manufacturer‘s guarantee is void in the case of engine damage caused by
Attention: Only containers that are intended for and approved for transporting
and storing fuel should be used for these purposes. Always put the correct quantities
of petrol and 2-stroke oil in the mixing bottle provided (see scale printed on the
side). Then shake the container well.
Sling the shoulder strap (fig. B / item 17) over the left shoulder. Adjusted the length of the
• All screwed connections are firmly sealed.

13
OPERATION (Cont.)
Operating Instructions
Please observe the legal regulations for noise protection
- these can vary from region to region.

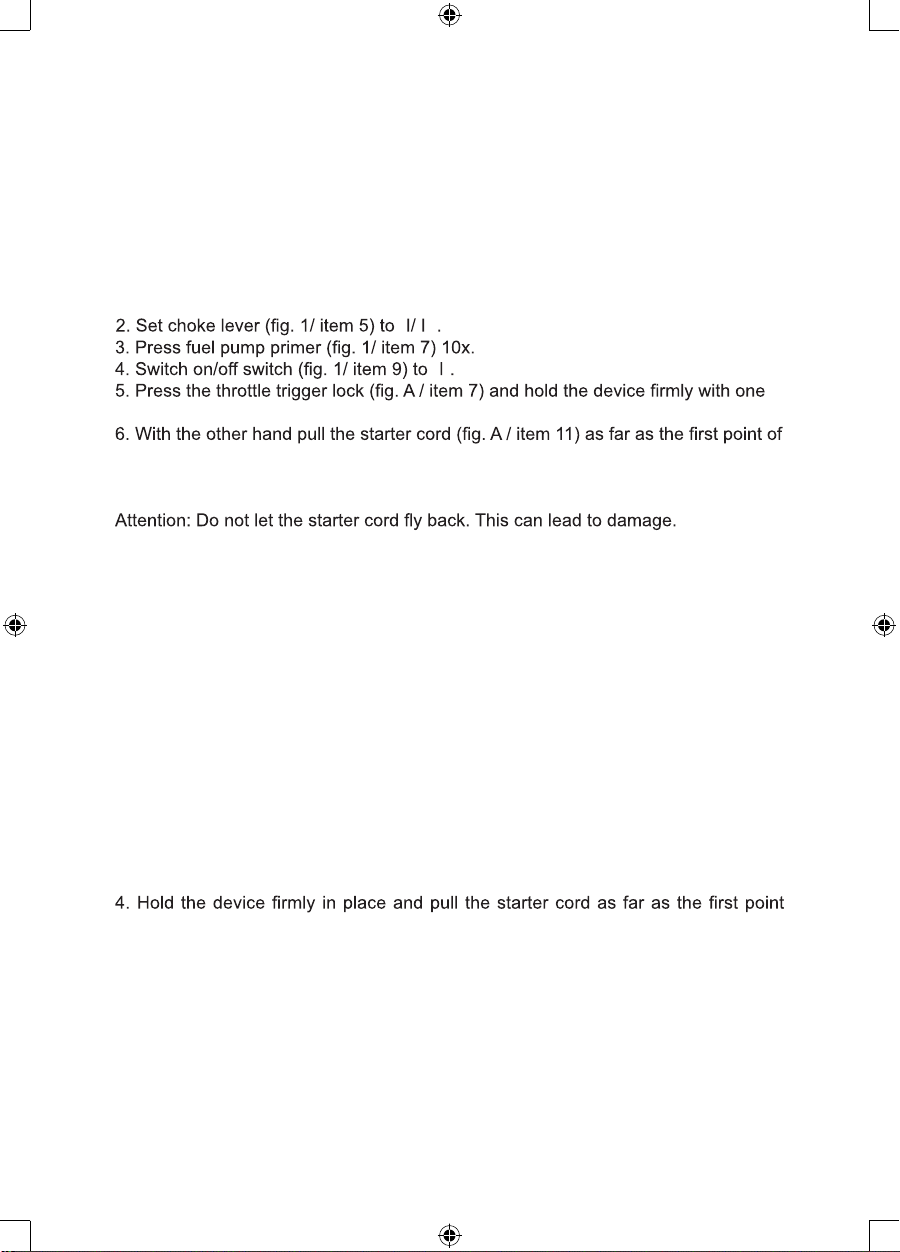

Starting with a cold motor
Fill the tank with a reasonable quantity of petrol/oil mix. See fuel and oil.
1. Set the device down on a hard, level surface.
hand whilst the throttle trigger is fully depressed.
resistance.
Now pull the starter cord quickly 8x.
Attention: The cutting tool begins to turn as soon as the motor starts.
7. If the motor has started then let it warm up for at least 3 seconds and then slide the
choke lever to run “I I I”. If the motor does not start then repeat steps 1-7.
Note: Always pull the starter cord straight out. If it is pulled at an angle then this
causes friction at the eye. This friction frays the cord and it wears out faster. Always
hold on to the starter handle when the cord is winding back in. Never let the cord
spring back from its extended condition.
Starting with a warm motor
(The device has been switched off for less than 15-20 minutes)
1. Set the device down on a hard, level surface.
2. Set on/off switch to “I”.
3. Press the throttle trigger fully.
of resistance. Now pull the starter cord quickly. The device should start after 1-2
pulls. If the machine has still not started after 6 pulls then repeat steps 1-7 from the
section on starting a cold motor.
Switching the motor off
Emergency stop procedure:
If it should be necessary to stop the machine immediately then move the on/off
switch to “Stop” or “0” .
“ ”
“ ”

14
OPERATION (Cont.)
Normal procedure:
Release the throttle trigger and wait until the motor has run down to idle speed. The
set the on/off switch to “Stop” or “0”.
Tips for using your petrol line trimmer
Lengthening the cutting line
Warning! Do not use any type of metal wire or plastic sheathed metal wire in the
cutting line spool. This can lead to serious injuries to the operator.

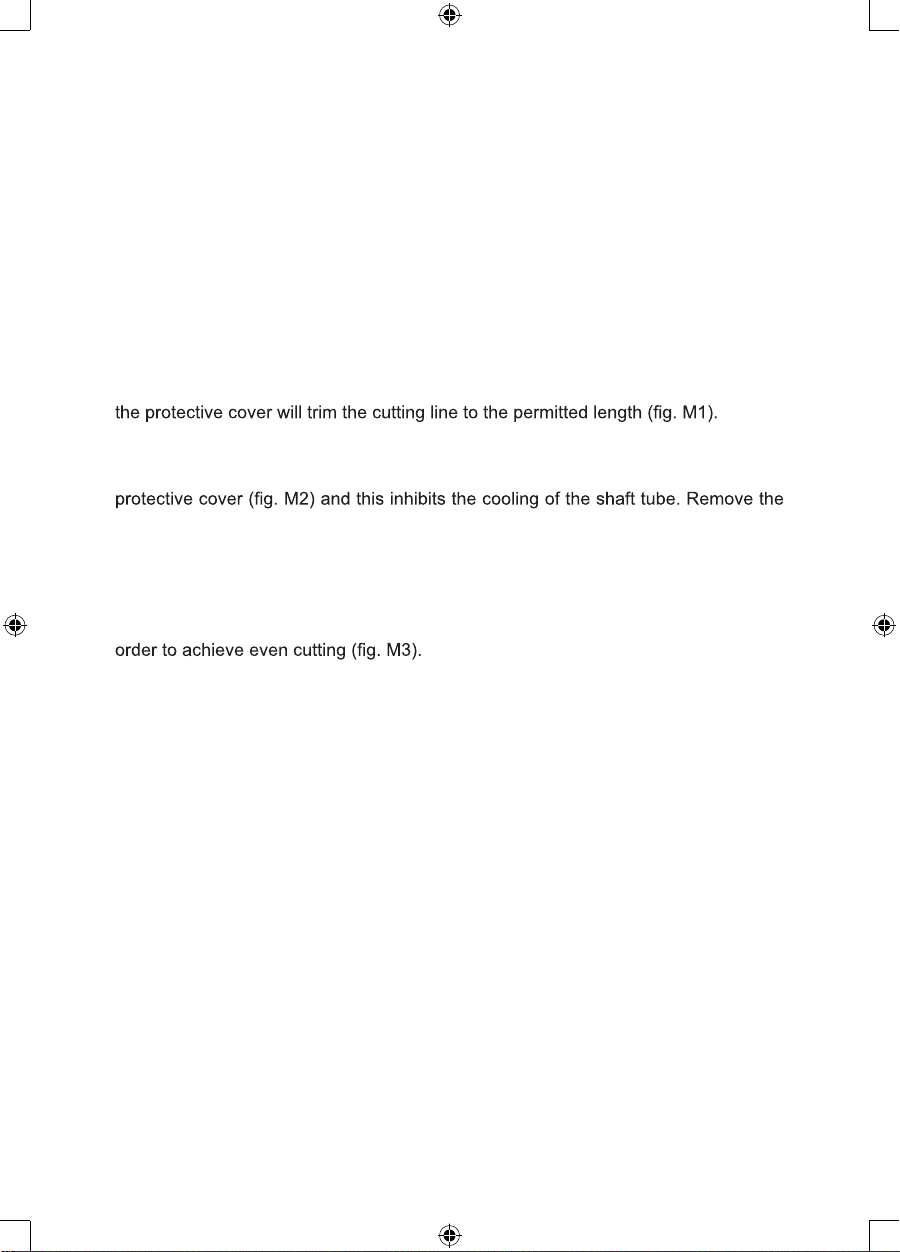

To lengthen the cutting line, let the motor run at full throttle and tap the cutting line
spool on the ground. The cutting line will be automatically lengthened. The blade on
Caution: Remove all grass and weed residue regularly in order to avoid the shaft
tube overheating. Lawn/ grass/weed residue can become entangled underneath the
residue carefully with a screwdriver or similar.
Trimming
Swing the trimmer from side to side like a scythe. Always keep the trimming line
spool parallel to the ground. Check the area to be mowed and determined the
desired cutting height. Guide and hold the cutting line spool at the desired height in
Low trimming
Hold the trimmer at a slight angle right in front of you so that the underside of the
cutting line spool is above the ground and the cutting line strikes the correct cutting
point. Always cut away from yourself. Do not pull the trimmer towards yourself.
Cutting up to fences / foundations
When cutting approach chain-link fences, lattice fences, stone walls and foundations
slowly in order to cut close to them but without the cutting line striking the obstacle.
If the cutting line comes into contact with stones, stone walls or foundations for
example, it will be worn out or become frayed. If the cutting line strikes the mesh of
a fence it will break.
Trimming around trees
When trimming around tree trunks approach the tree slowly to avoid the cutting
line touching the bark. Walk around the tree cutting from left to right as you do so.
Approach the grass or weeds with the tip of the cutting line and tilt the cutting line
spool slightly forwards. Warning: Be very careful when carrying out mowing work.
Make sure that bystanders and animals remain at least 30m away from you when
carrying out such work.

15
MAINTENANCE
J1 J2 K1
K2
N1
N2 N3
K
J
K
H
I
N4
N5 N6
L
L
N7
O1
M
N
O2
PO Q
G2 G3
G
17
9
G1
3
1

16
Always switch the device off before maintenance work and remove the connector
from the spark plug.

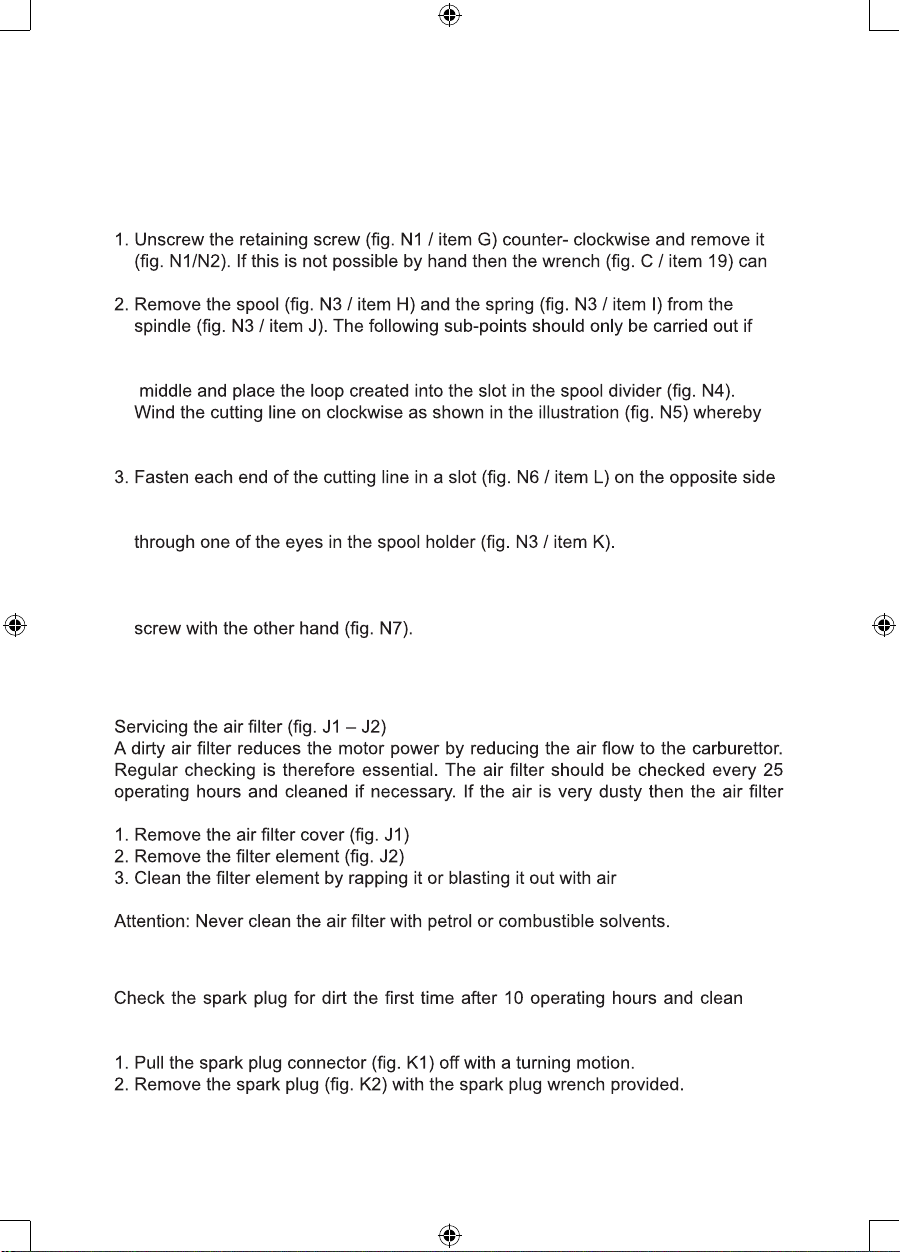

Replacing cutting line/cutting line spool
be used to help.
only the cutting line and not the complete spindle are to be replaced:
Remove any cutting line remains from the spool. Fold new cutting line in the
the two halves of the spool divider are separated. Wind on all but the last 15cm
of the cutting line.
of the spool to one another.
4. Insert the spring into the interior of the spool and feed each end of the cutting line
5. Fit the spool into the spool holder. Take care that the spring slides over the
spindle and does not become jammed.
6. Press the spool into the spool holder with one hand and tighten the retaining
7. Tug on each end of the cutting line to loosen the cutting line from the slots.
8. Trim the excess cutting line to back to at least 13cm. This reduces the load on the
motor during the start and warm up.
should be checked more frequently.
.
4. Reassembly is carried out in reverse order.
Servicing the spark plug
Spark plug sparking gap = 0.6mm. Tighten the spark plug to a torque of 12 to 15 Nm.
with a copper wire brush if necessary. Then clean the spark plug every 50 operating
hours.
3. Reassembly is carried out in reverse order.
MAINTENANCE (Cont.)
.
.

17
MAINTENANCE (Cont.)
Sharpening the cutting line cutter
The cutting line cutter can become blunt over time. If this should occur then loosen
the 2 screws that fasten the cutter to the protective cover. Fasten the cutter in a
cutting edge. File in only one direction.
Adjusting the carburettor
Attention! Adjustments to the carburettor should only be carried out by authorised
J2 before any work is done on the carburettor.
Adjusting the throttle cable:
If it is no longer possible to reach the maximum motor speed with the device,
it may be necessary to adjust the throttle cable.
Firstly, check if the carburettor opens fully when the throttle trigger is pressed fully.
the correct setting. If the carburettor throttle plate does not touch the stop then
readjustment is necessary.
The following steps are required to readjust the throttle cable:
fully depressed.
•Tighten the counter nut once again.
Adjusting the idle speed:
Attention! Adjust the idle speed when the device is warmed up and in operational
condition. If the device stalls when the throttle trigger is released then readjustment
of the idle speed may be necessary. To do so turn the idle speed screw (fig. O2 / item 5)
clockwise until the device runs smoothly at idle. If the idle speed is set so high that
the cutting tool also turns, then the idle speed must be reduced by turning the idle
screw counter clockwise until the cutting tool no longer turns along with the motor.

18
WARRANTY POLICY
Congratulations on your purchase of Petrol Line Trimmer. In order to get maximum
benefit from your new purchase, please be aware of the warranty provisions
outlined in this document.
2 YEAR [REPLACEMENT/REPAIR] WARRANTY
Your Petrol Line Trimmer is guaranteed for a period of 24 months from the original
date of purchase. As the product is intended exclusively for home DIY (Do It
Yourself) use, thus use of this product for professional, industrial or high frequency
use will VOID this warranty. If your product is defective, it will be repaired or
replaced in accordance with the terms of this warranty.
The warranty is provided by Mitre 10 (New Zealand) Limited (“known as Mitre 10”)
Rights & Remedies
We are dedicated to delivering a quality product to all our customers. All of our
products are warranted for two years from date of purchase against defects in
material and workmanship.
If we determine that the product has a manufacturing fault, we will repair or replace
it free of charge to you. The decision to repair or replace is solely at the discretion of
Mitre 10 (New Zealand) Limited.
What do we require?
It is our requirement that all warranty claims are accompanied by a proof of
purchase (sales receipt) to allow verication of the date of purchase. Where proof
of purchase is not provided, Mitre 10 (New Zealand) Limited reserves the right to
charge a service fee and/or charge for parts replaced/repaired. A return freight
charge may apply.
The warranty is ‘return to base’ and not a free in-home service. This means the
customer is responsible for any inwards freight charge to return the product to the

19
Mitre 10 or Mitre 10 MEGA store where the product was purchased from, for the
warranty to be applicable.
Please retain your Proof of Purchase.
Only the original owner is covered by the manufacturer’s warranty and must have
purchased the product from a Mitre 10 or Mitre 10 MEGA store in New Zealand.
What is not covered under warranty?
• Professional, Industrial or high frequency use if the purpose of the tool is stated
as DIY (Do It Yourself) in the instruction manual.
•
If the tool has been operated on a supply voltage other than th
• If the tool has been operated with incorrect oil, fuel or fuel mix.
• If the tool shows signs of damage or defects caused by or resulting from abuse,
accidents or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.
• General wear and tear.
• Servicing by an unauthorized service agent.
• Any consumable parts.
Exclusions
• Any consequential loss or damage to any person or property directly or indirectly
as a result of using product.
outside of the country of purchase you will be charged fees by the local provider.
