jobmate YT7403 User manual

2 3
1 Middle grip 2 Telescoping handle / Edge adjustment
3 Cord cutter 4 Plan hoop guard
5 Release button 6 On-/off- switch
7 Battery 8 Middle grip adjustment
9 Handle angle adjustment 10 Cord spool
11 Guard
Know Your Product.................................................................................................3
Technical Specications......................................................................................... 3
Description of Symbols...........................................................................................4
Contents of Li-ion Line Trimmer..............................................................................5
General Safety Instructions.................................................................................... 6
Additional Safety Instructions for Li-ion Line Trimmer.............................................8
Assembly Instructions............................................................................................ 9
Operation............................................................................................................... 9
Charging........................................................................................................... 9
Free-cutting...................................................................................................... 11
Edge-Cutting.................................................................................................... 11
Starting.............................................................................................................11
Turing off.......................................................................................................... 11
Tips for Using Your Li-ion Line Trimmer........................................................... 12
Maintenance.......................................................................................................... 13
Warranty ................................................................................................................14
Battery: 18V Li-ion, 1500mAh
No load speed: 8000 /min
Cutting capacity: 300 mm
Line diameter: 1,2 mm
CONTENTS KNOW YOUR PRODUCT
TECHNICAL SPECIFICATIONS

4 5
The rating plate on your tool may show symbols. These represent important
information about the product instruction on its use.
This symbol is known as the ’Crossed-out Wheelie Bin Symbol’. When
this symbol is marked on a product or battery, it means that it should not
be disposed of with your general household waste. Some chemicals
contained within electrical/electronic products or batteries can be
harmful to health and the environment. Only dispose of electrical/
electronic/battery items in separate collection schemes, which cater
for the recovery and recycling of materials contained within. Your co-
operation is vital to ensure the success of these schemes and for the
protection of the environment.
1* Unit
1* Protective guard
4* Screws
1* Instruction manual
1*Battery and Charger
1* Middle grip
Conforms to all relevant European Directives.
Conforms to relevant standards for electromagnetic compatibility.
Keep bystanders away. Do not touch the line until it stops completely
when replacing a new line.
DESCRIPTION OF SYMBOLS DESCRIPTION OF SYMBOLS (CONT.)
CONTENTS OF LI-ION LINE TRIMMER
Disconnect from mains power immediately if the power cord becomes
damaged.
Use eye protection.
Keep children at a distance of no less than 5m from the work area.
Use ear protection.
Wear sturdy, non-slip footwear.
Read the user manual.
Do not expose to rain.
Use protective gloves.
Denotes risk of personal injury, loss of life, or damage to the tool in case
of nonobservance.
Disconnect from power supply when for repair.

6 7
WARNING! Read all instructions. Failure to follow all the instructions listed
in all of the warnings listed below refers to your mains operated (corded) power tool
or battery operated (cordless) power tool.
SAVE THESE INSTRUCTIONS
1) Work area
• Keep work area clean and well lit. Cluttered or dark areas can lead to accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of
dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can
cause a loss of control.
2) Electrical safety
• Power tool plugs must match the outlet. Never modify the plug in any way. Do not
matching outlets will reduce risk of electric shock.
• Avoid body contact with earthed or grounded surfaces such as pipes, radiators,
ranges and refrigerators. There is an increased risk of electric shock if your body
is earthed or grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power tool
will increase the risk of electric shock.
• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the
power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged
or entangled cords increase the risk of electric shock.
• Replacement of the supply cord. If the supply cord is damaged, it must be replaced by
an electrician or a power tool repairer.
• When operating a power tool outdoors, use an extension cord suitable for outdoor
use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
• If operating a power tool in a damp location is unavoidable, use a residual current
device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
• Have your tool repaired by an electrician or a power tool repairer. This power tool
complies with relevant safety requirements. To avoid danger, electrical appliances
this may result in considerable damage to the user.
3)Personal safety
• Stay alert, watch what you are doing and use common sense when operating a
drugs, alcohol or medication. A moment of inattention while operating power tools
may result in serious personal injury.
• Use safety equipment. Always wear eye protection. Safety equipment such as a
dust mask, non-skid safety shoes, hard hat, or hearing protection used whenever
conditions require will reduce personal injuries.
• Avoid accidental starting. Ensure the switch is in the ‘off’ position before plugging
GENERAL SAFETY INSTRUCTIONS GENERAL SAFETY INSTRUCTIONS (Cont.)
that have the switch on may cause an accident.
• Remove any adjusting key or wrench before turning the power tool on. A wrench
or key left attached to a rotating part of the power tool may result in personal
injury.
• Do not overreach. Keep proper footing and balance at all times. This enables
better control of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing
and gloves away from moving parts. Loose clothes, jewellery or long hair can be
caught in moving parts.
• If devices are provided for the connection of dust extraction and collection
facilities, ensure these are connected and properly used. Use of these devices
can reduce dust related hazards.
4)Power Tool Use and Care
• Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for which it was
designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool
that cannot be controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source before making any adjustments,
changing accessories, or storing power tools. Such preventive safety measures
reduce the risk of starting the power tool accidentally.
• Store idle power tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
• Maintain power tools. Check for misalignment or sticking of moving parts,
breakage of parts and any other condition that may affect the power tool’s
operation. If damaged, have the power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp
cutting edges are less likely to stick and are easier to control.
• Use the power tool, accessories and tool bits etc. in accordance with these
instructions, and in the manner intended for the particular type of power tool,
taking into account the working conditions the work to be performed. Use of the
power tool for operations different from intended use could lead to a hazardous
situation.
5)Service
replacement parts. This will ensure that the safety of the power tool is maintained.

8 9
ASSEMBLY INSTRUCTIONS
OPERATION
Attaching the guard Assemble the guard
by sliding it over the head of the motor
housing and rotating it counter clockwise.
Using a proper screwdriver, secure the four screws
WARNING! During the use of tools supplied with batteries, the basic safety
personal injury, including the following precautions:
Ensure that the battery block is suitable for the tool.
Ensure that outside surface of the battery block is clean and dry before connecting it
to the charger.
Ensure that the batteries are charged using the correct charger recommended by
the manufacturer. Incorrect use can create a risk of electric shock, overheating or
the leaking of corrosive liquid from the battery.
If there is an electrolyte leak, avoid any contact with the skin. In the event of a leak,
wipe with a rag. If the liquid comes into contact with the skin, rinse abundantly with
water. In the event of a reaction or contact with the eyes or mucous membranes,
consult a doctor.
Ensure that the appliance is properly switched off before inserting the battery into
the appliance. Inserting a battery into a appliance while it is switched on can cause
accidents.
Use the appliance only with the type of battery indicated in the instructions. Using
Dispose of batteries: Ensure that the battery is properly disposed of:
1-Do not throw it away.
2-Do not to burn it.
3-Dispose of it in the designated collection containers (ask your retailer).
•Always remove the battery whenever the following conditions apply:
- Whenever leaving the tool unattended.
- Before clearing a blockage.
- Before checking, cleaning or working on the unit.
- After striking a foreign object.
- Whenever the tool starts vibrating abnormally.
Additional Safety Instructions for Li-ion Line
Trimmer
Operating times
Please check noise abatement regulations prevailing in your country.
Charging A B C
Attention! Only use battery charger in dry places.
about 1-2 hours.
Use only the original charger.
1. Remove the battery from the device A.
2. Insert the battery into the charger B1 .
3. Connect the charger to the mains voltage B 2
(LED
alights up red).
Notes on charger B
• LED blights up red: Battery is charging.
• LED blights up green: Charging completed.
• LED bblinks red: Fault (e.g. battery is too hot).
Self-discharge of batteries! Remove the battery from
the charger once it is fully charged.
General instructions regarding the battery: In order
to maintain the long service life of the battery, always

10 11
OPERATION (Cont.) OPERATION (Cont.)
Working positions
Free-cutting L
1. Hold the device at the upper and middle grips .
2. Swing the device in semicircles in front of the
body (without touching the ground).
Note: The optimal working angle for cutting is 30°.
Plant protector J
The plant protector protects shrubs trees and
bedding plants.
Fold the plant protector downwards if necessary.
Edge-cutting H L
The edge-cutting function allows for precise trimming
along the lawn edge.
1. Pull the sleeves upwards H .
2. Turn the handle 180° until it clicks into place H .
3. Hold the device at the upper and middle grips L .
4. Run the device along the lawn edge (without
touching the ground).
Start K
Turning on
1. Press and hold the unlock button .
2. Press the power ON/OFF button .
3. Release the unlock button .
Before switching on: Hold trimmer parallel to the
ground; otherwise, there is danger of injury.
Tips on trimming
• Cut high grass slowly, step by step.
• You can prolong the life of your trimmer by
removing grass from the ventilation slots and the
bottom of the trimmer before or after each use.
• In order to take full advantage of the battery
capacity, you should not switch the trimmer on and
off unnecessarily.
Turning off
Attention! Rotating string! Tool is still running!
Release the ON/OFF button .
Follow the instructions below:
• The lawn trimmer is automatically switched off when the battery voltage is low.
The battery must then be recharged before the trimmers can be used again.
• Always recharge the lithium-ion battery prior to any prolonged period of non-use,
i.e. before storing the trimmers away in autumn.
• The charging time is 1 - 2 hours for a battery that is completely empty.
• The lithium-ion rechargeable battery can be charged at any charge level and
charging can be interrupted at any time without damaging the battery (no memory
effect).
Working angle D
The trimmer has 3-adjustable working angles.
This allows you to easily reach hard to reach
areas in your garden.
1. Press the lock button .
2. Adjust to the desired working angle
(the head noticeably snaps into place).
While working, the cutting head should be
tilted forwards slightly.
Adjusting the middle grip E F
Adjust the height and angle of the middle grip
Adjusting the grip height G
1. Unscrew the threaded sleeve .
2. Pull apart the telescope handle until the ideal
grip height is reached .
3. Tighten the threaded sleeved .
1
1
a
1
1
1
2
2
2
b
2
3
2
i
as desired according to the figures.

12 13
MAINTENANCE
Tips for Using Your Li-ion Line Trimmer
a) Wear protective glasses or goggles.
b) Never allow children or people unfamiliar with the instructions to use the
machine.
c) Stop using the machine while people, especially children, or pets are nearby.
e) Before using the machine and after any impact, check for signs of wear or
damage and repair as necessary.
f) Never operate the machine with damaged guards or without the guards in place.
g) Keep hands and feet away from the cutting means at all times and especially
when switching on the motor.
length. After extending new cutter line always return the machine to its normal
operating position before switching on.
j) Never use replacement parts or accessories not provided or recommended by
the manufacturer.
k) Remove the battery from the tool before checking, cleaning or working on the
machine.
l) Always ensure that ventilation openings are kept clear of debris.
m) When not in use store the machine out of the reach of children.
n) Use only manufacturers recommended replacement parts and accessories.
o) The line will be automatically extended out from the spool to reach the edge of
blade on the guard when the machine gets started to work. Meanwhile, the cut-off
blade prevents the trimmer line from extending too far.
p) Avoid using the machine in bad weather conditions especially when there is a
risk of lightning.
q) This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instructions concerning
use of the appliance by a person responsible for their safety.
r) Children should be supervised to ensure that they do not play with the appliance.

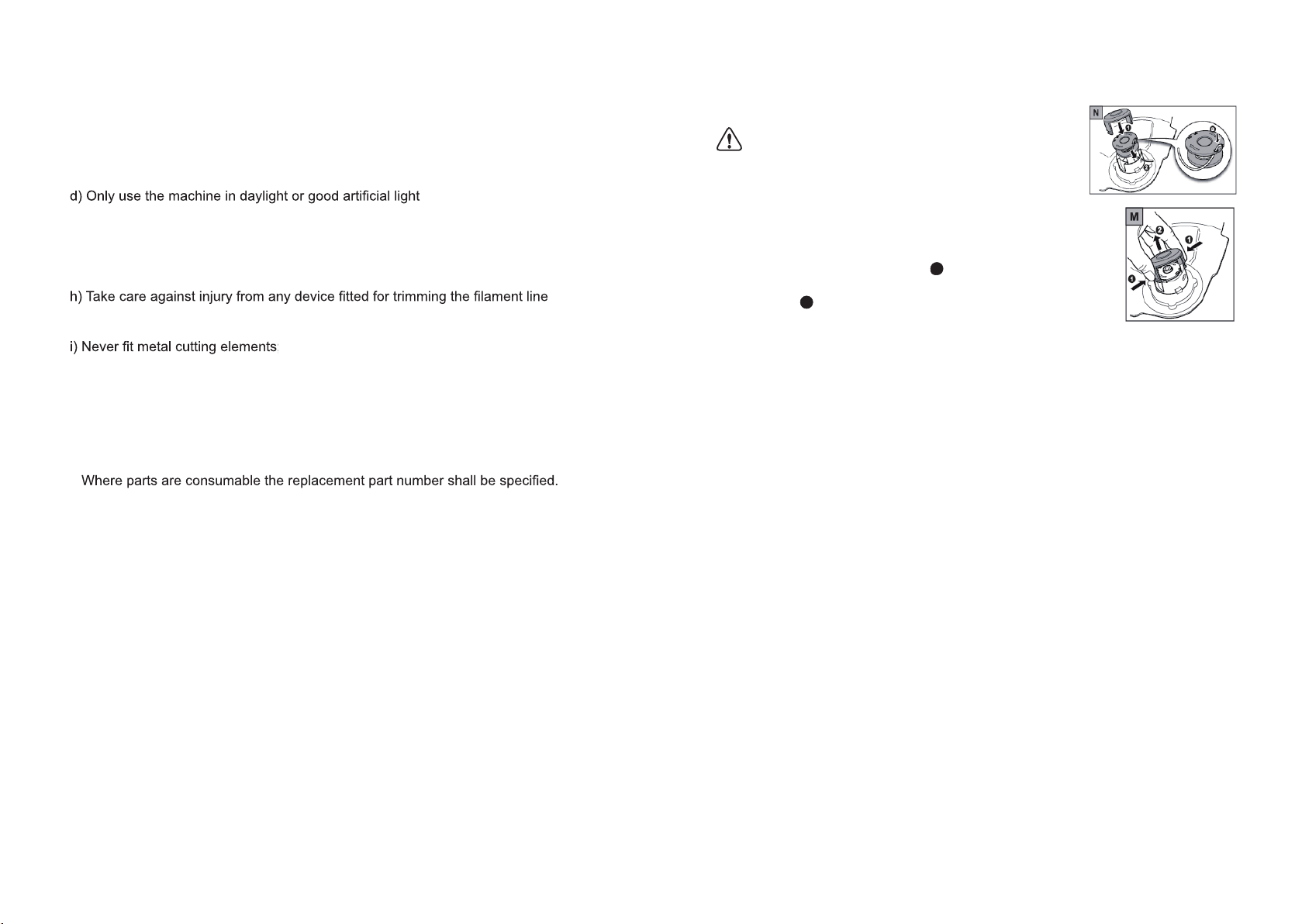

Replacing the cord spool M N
Attention! Rotating string! Tool is still running!
Always remove battery before performing any work on
the trimmer!
1. Press both locking tabs of spool cover
simultaneously and remove M.
2. Remove cord spool.
3. Clean, if necessary.
4. Insert cord spool into housing N .
5. Thread the end of the wire through the eye of the
wire box N .
To avoid inadvertent unwinding, do not take wire on
the new spool out through the support holes before
inserting.
6. Place the spool cover on the cord spool holder so
that the two locking tabs lock into place.
OPERATION (Cont.)
1
2
.
.

14 15
WARRANTY POLICY
Congratulations on your purchase of Li-ion Line Trimmer. In order to get maximum
benefit from your new purchase, please be aware of the warranty provisions
outlined in this document.
2 YEAR [REPLACEMENT/REPAIR] WARRANTY
Your Li-ion Line Trimmer is guaranteed for a period of 24 months from the original
date of purchase. As the product is intended exclusively for home DIY (Do It
Yourself) use, thus use of this product for professional, industrial or high frequency
use will VOIDthis warranty. If your product is defective, it will be repaired or
replaced in accordance with the terms of this warranty.
The warranty is provided by Mitre 10 (New Zealand) Limited (“known as Mitre 10”)
Rights & Remedies
We are dedicated to delivering a quality product to all our customers. All of our
products are warranted for two years from date of purchase against defects in
material and workmanship.
If we determine that the product has a manufacturing fault, we will repair or replace
it free of charge to you. The decision to repair or replace is solely at the discretion of
Mitre 10 (New Zealand) Limited.
What do we require?
It is our requirement that all warranty claims are accompanied by a proof of
of purchase is not provided, Mitre 10 (New Zealand) Limited reserves the right to
charge a service fee and/or charge for parts replaced/repaired. A return freight
charge may apply.
The warranty is ‘return to base’ and not a free in-home service. This means the
customer is responsible for any inwards freight charge to return the product to the
Mitre 10 or Mitre 10 MEGA store where the product was purchased from, for the
warranty to be applicable.
Please retain your Proof of Purchase.
Only the original owner is covered by the manufacturer’s warranty and must have
purchased the product from a Mitre 10 or Mitre 10 MEGA store in New Zealand.
What is not covered under warranty?
• Professional, Industrial or high frequency use if the purpose of the tool is stated
as DIY (Do It Yourself) in the instruction manual.
•
If the tool has been operated on a supply voltage other than th
• If the tool has been operated with incorrect oil, fuel or fuel mix.
• If the tool shows signs of damage or defects caused by or resulting from abuse,
accidents or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.
• General wear and tear.
• Servicing by an unauthorized service agent.
• Any consumable parts.
Exclusions
• Any consequential loss or damage to any person or property directly or indirectly
as a result of using product.
outside of the country of purchase you will be charged fees by the local provider.
