John Bunn Neb-u-Tyke RR JB0112-064 User manual

USER’S MANUAL
Read this manual before operating the nebulizer
Save these instructions for future reference
Caution:
Federal law restricts this device to sale by or on order of a physician, or any other
practitioner licensed by the law of the State in which he practices to use or order
the use of this device.
MODEL: JB0112-064
JB0112-064-INS-LABRevB06
Neb-u-Tyke RR
COMPRESSOR NEBULIZER

2
Symbols key
ON........................................................
Off / Customize nebulizing................
DC.......................................................
Class II..........................
Type B...........................
Read the instructions....
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Important Safeguards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
UnitAssembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Cleaning and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Spare Parts Provided . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Trouble Shooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

3
Introduction
Congratulations on your purchase of the John Bunn Piston Compressor Nebulizer.
Thanks for trusting us.
Graham Field guarantees that this product has been manufactured with high quality
materials and fulfills all the standing safety standards, both national and international.
Please read the instructions very carefully before using it and use the machine as
described here.
Important Safeguards
1. Read the instruction manual carefully before using the unit and keep it for future
consultation.
2. This nebulizer must be used only for the specific cause it was created for: the
aerosol therapy. Any other use will be considered unsuitable and thus dangerous.
The manufacturer can not be considered responsible of the damages caused by
unsuitable, incorrect or irrational use if the unit has been used in electrical
installations not in accordance with the standing safety standards.
3. The following precautions are especially important:
• The unit is not protected from liquid penetration.
• The nebulizer must not be touched with wet hands.
• Do not use in extreme weather conditions.
• Do not use the device in presence of inflammable anesthetic mix in contact with
the air, oxygen or nitrogen protoxide.
4. Unplug the unit before cleaning or maintaining it. Disconnect the nebulizer when not
in use.
5. Do not untwist the jet nebulizer when the unit is operating.
6. Do not leave medication inside the jet nebulizer when not in use.
7. Do not pour more than 10 ml in the jet nebulizer.

4
8. Use the unit on stable surfaces. Never use while sleeping or drowsy.
9. Do not submerge the nebulizer in water.
10. Use the unit intermittently. Maximum operating period: 30 minutes. It must stand
unused for 30 minutes between uses.
11. The mask and the mouth nozzle are for personal use, and they must not be shared
in order to avoid any infection or contagion.
12. Children should use this unit only under adult supervision.
13. This unit must be repaired only by authorized personal.
NOTE: This unit employs a thermal limiter that will shut off the entire product should the
motor overheat.

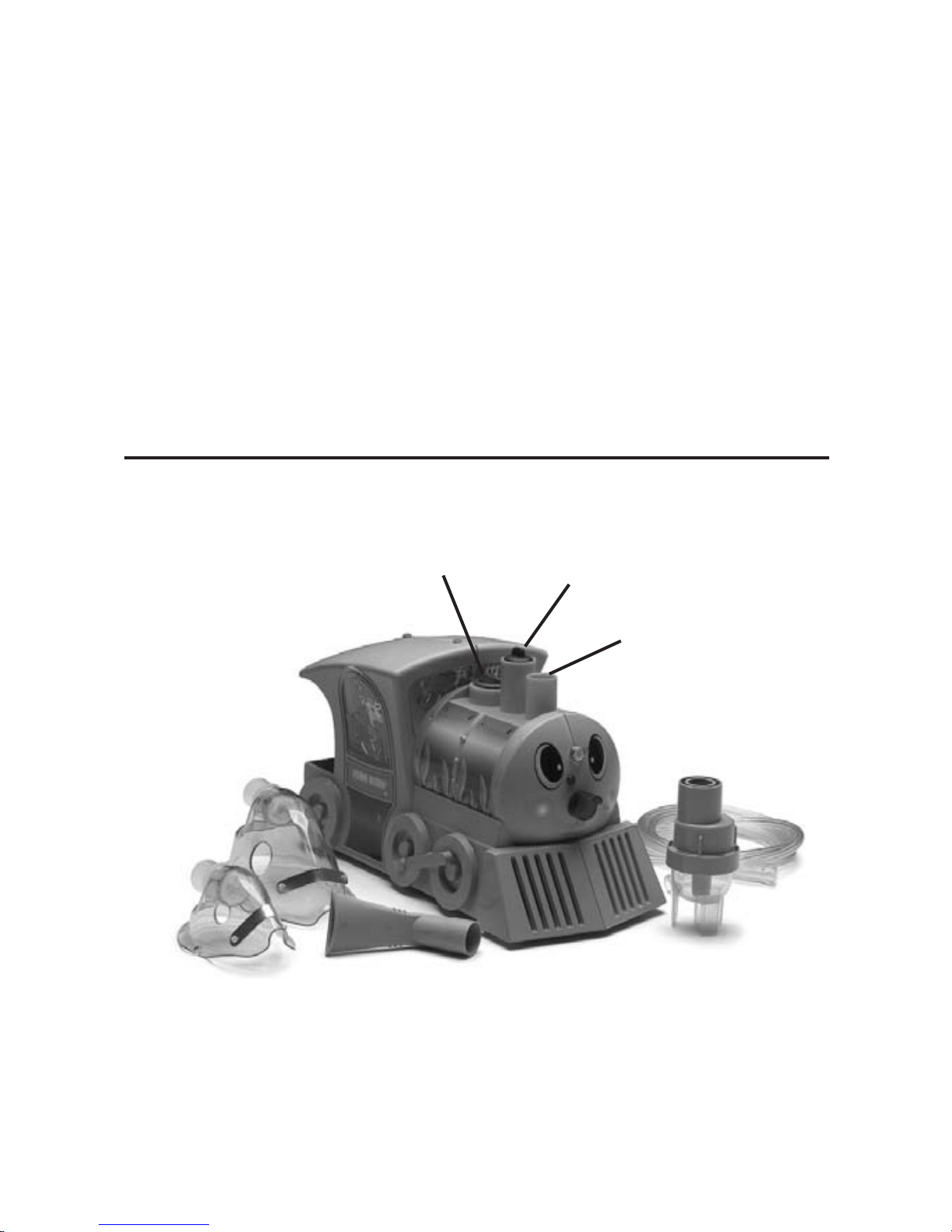

Jet nebulizer
PVC tubing
Filter Chamber
ON/OFF Switch
Air outlet
Adult
mask
Pediatric
mask Mouth Piece
Features

5

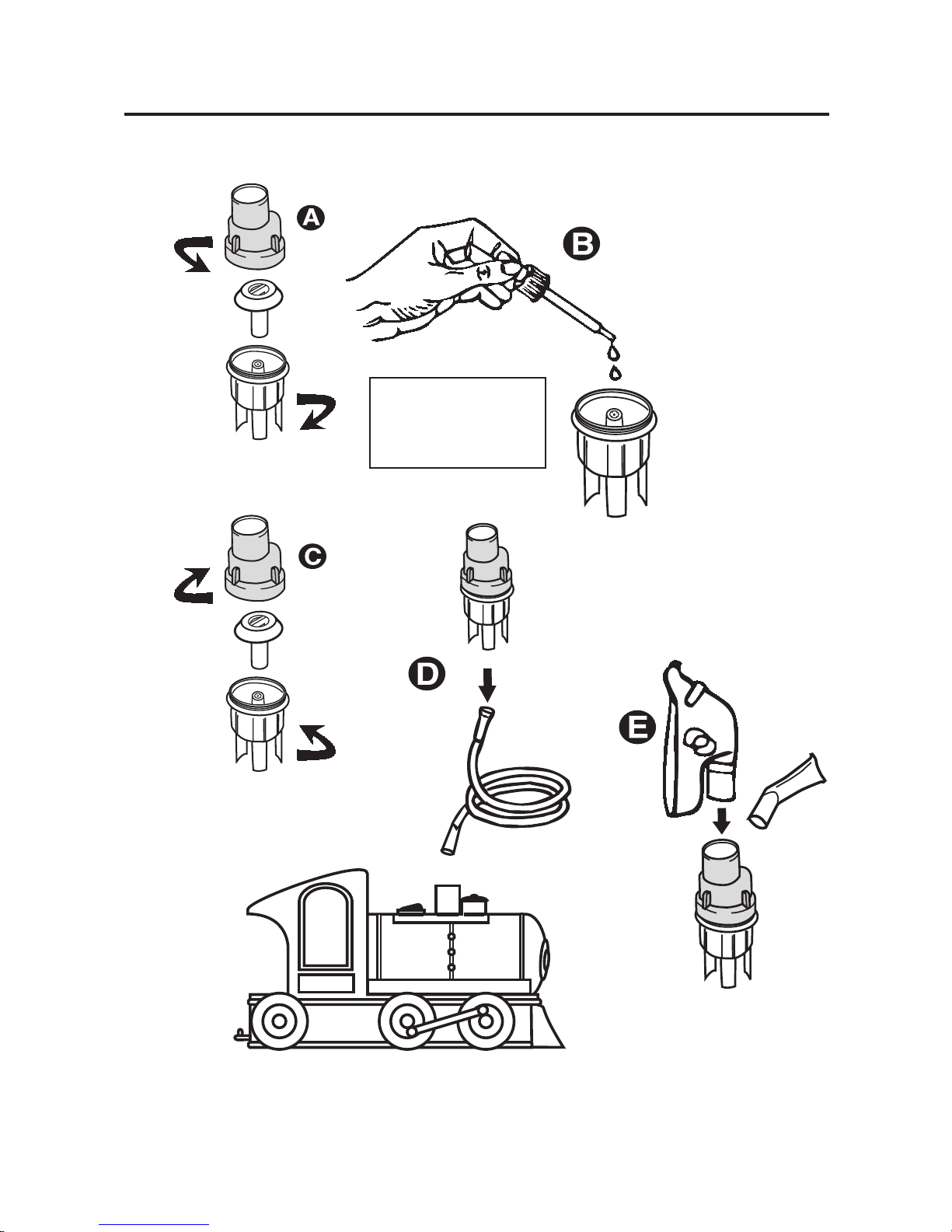

Unit Assembly
IMPORTANT:
Do not pour more
than 10 ml.

6
Operating Instructions
1. Take the unit out of the box.
2. Press the red button and slide the cover backwards, then remove accessories.
3. Open the jet nebulizer (Fig.A) and pour the medication to nebulize into it. Do not
pour more than 10 ml. (Fig. B), then twist both parts and close again. (Fig. C).
4. Connect the tubing to the jet nebulizer and the other end to the nebulizer outlet.
(Fig. D).
5. Put the mask or the mouth piece to be used into the jet nebulizer (Fig. E).
6. Connect the unit to a suitable power receptacle.
7. Turn the unit on pressing the ON/OFF switch to start the treatment.
8. Turn the unit off and unplug it once the treatment has finished.
9. Clean the jet nebulizer and the devices as indicated in “Cleaning” section.
10. Store the jet nebulizer and the devices in the unit’s storage compartment.
Filter change
1. Filter should be changed every 6 months or sooner if the filter turns completely gray
in color.
2. Remove filter cap by grasping it firmly and pulling out the unit.
3. Change the dirty filter of the cap with small, pointed object.
4. Insert a clean John Bunn filter. Extra filters are available.
5. Push filter cap with new filter into position.
Caution:
Do not use cotton or any other material. Do not wash or clean the filter. Use only John
Bunn filters. Do not operate without a filter.

7
Cleaning and Maintenance
Important:
Before using the nebulizer for the first time or after each use, the accessories must be
cleaned as follows: clean all the accessories, except the tubing, with a warm water and
mild detergent solution. Rinse with warm tap water for 30 seconds to remove detergent.
Soak all the parts in a mixture of three parts water to one part white vinegar for 30
minutes in a container, or use a bacterial germicide disinfectant, which can be obtained
in drugstores.
Clean your hands properly and take the accessories out of the disinfectant solution.
Rinse them with warm tap water and let air dry on clean paper towels. Put them into a
sealed bag. Do not dry the nebulizer parts with a towel because this could contaminate
them.
NOTICE: It is recommended to clean all accessories after each use to avoid possible
infection risk due to contaminated medication. Nebulize only medications prescribed by
the physician and follow the physician’s indications. Do not use balsam or aromatic
substances.
Use a dry cloth to clean the out part of the unit.
The jet nebulizer and the accessories must NOT be boiled.
The jet nebulizer has to be replaced if it becomes stuck by medication or other
substances.
Under no circumstances should the compressor be opened. There is not any part inside
it that could be repaired by non-qualified workmanship. The compressor does not
require either lubrication or maintenance.
Spare parts provided
1 Jet nebulizer 1 Pediatric mask
1 PVC tubing 1Adult mask
1 Mouth piece 1 Instructions Manual
1Air Filter (3) and Warranty

8
Technical Specifications
Method of nebulization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Dry piston compressor
Operation voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110-120V ~ 60Hz
Class . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . II
Power consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.10- 1.2A
Jet nebulizer maximum capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 ml.
Mean MassAerodynamic Diameter (microns) . . . . . . . . . . . . . . . . . . less than 5 microns
Medication outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.33 ml/min or greater
Liter flow range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8 l/min
Approximate maximum pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32.5 psi
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.75 lbs.
Unit dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.7" x 5.5" x 4"
Operation Humidity and Temperature . . . . . . . . . . . . . . . . 41º to 104º F, 30% to 95% RH
Storage Humidity and Temperature . . . . . . . . . . . . . . . . . 14º to 104º F, 10% to 95% RH
Atmospheric pressure range for carriage and storage . . . . . . . . . . . . . . . . . 500-1060 mb
*The specifications are subject to change without previous notice.

9
Trouble Shooting Guide
If something out of the normal happens during operation, please check and correct the
following points:
Symptom Possible cause Suggested solutions
Although the
device is on, it
does not work
1-Incorrectly connected to
power source
2-No power
3-TheACAdapter is not connected
1-Check the plug is
properly connected
2-Check that power is on
3-Check theACAdapter is
properly connected
The mist does
not come out
1-Not enough medication in jet
nebulizer.
2-Too much medication.
3-PVC tubing disconnected.
1-Add medication,
maximum 10 ml.
2-Remove excess
medication from cup.
3-Connect the PVC tubing.
Aerosol output
reduced (low)
1-Air filter is clogged.
2-The jet nebulizer is
dirty.
1-Replace for a clean air
filter.
2-Replace for new one.

10
5 Year Limited Warranty
Graham-Fieldwarrantstotheoriginalretailpurchaserthatthisproductisfreefromdefects
in material and workmanship for a period of 5 years from the date of purchase. This
warranty does not cover failures resulting from misuse, abuse, alteration of the John Bunn
Nebulizer System, use of improper components or failure to comply with the operating
instructions. This warranty does not include the Nebulizer System tubing or accessories.
All requests for warranty service should include the model number of your John Bunn
NebulizerSystem,proofofpurchase(includingdateofpurchase),yourphonenumberand
the nature of your service request. Graham-Field will either repair or at its option replace
free of charge any parts necessary to correct defects in material or workmanship covered
by this limited warranty.
THISLIMITEDWARRANTYISINLIEUOFALLOTHERWARRANTIES,WHETHERORAL,
WRITTEN, EXPRESS OR IMPLIED. THERE ARE NO WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, EXCEPT FOR
THOSE IMPLIED WARRANTIES ARISING BY OPERATION OF LAW WHICH ARE
LIMITEDIN DURATIONTOTHE1YEARTERM OFTHIS WARRANTY.GRAHAM-FIELD’S
LIABILITY, WHETHER BASED ON CONTRACT, TORT, WARRANTY, STRICT LIABILITY,
ORANYOTHERTHEORY,SHALLNOTEXCEEDTHEPRICEOFTHEINDIVIDUALJOHN
BUNN NEBULIZER SYSTEM WHICH IS THE BASIS OF THE CLAIM. IN NO EVENT
SHALL GRAHAM-FIELD BE LIABLE FOR ANY LOSS OF PROFITS, FACILITIES,
EQUIPMENT OR OTHER INCIDENTAL, CONSEQUENTIALOR SPECIAL DAMAGES.
Some states do not allow limitations on how long an implied warranty lasts, or allow the
exclusion or limitation of incidental, consequential, or special damages, so the above
limitations or exclusions may not apply to you. This warranty gives you specific legal
rights. You may also have other rights which vary from state to state

U.S.A., Corporate Headquarters:
Graham-Field Health Products
2935 Northeast Parkway
Atlanta, Georgia 30360
telephone: [phone]
fax: [phone]
http://www.grahamfield.com
JB0112-064-INS-LABRevB06
NFIL/31026
