Johnson Controls FREE MATCH EK Series User manual

This service information is designed for experienced repair technicians only and is not designed for use by the general public.
It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or
repair the product or products dealt with in this service information by anyone else could result in serious injury or death
EK
YSCC18FSAADG

Table of Contents
1. Features..................................................................................................... 1
2. Introduction ............................................................................................... 2
3. Specifications ............................................................................................ 7

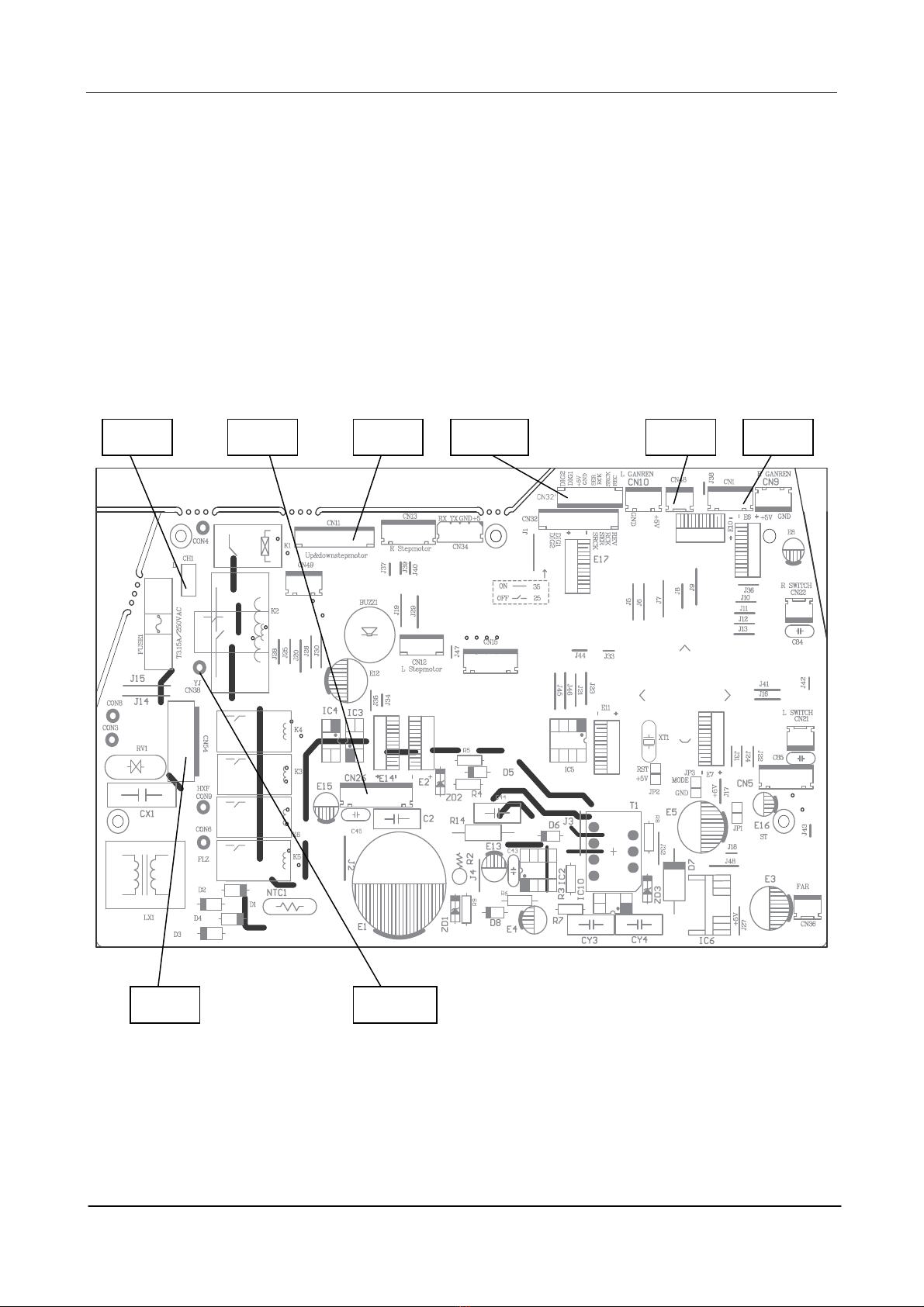

4. Printed circuit board connector wiring diagram .................................... 9
5. Functions and control ............................................................................. 10

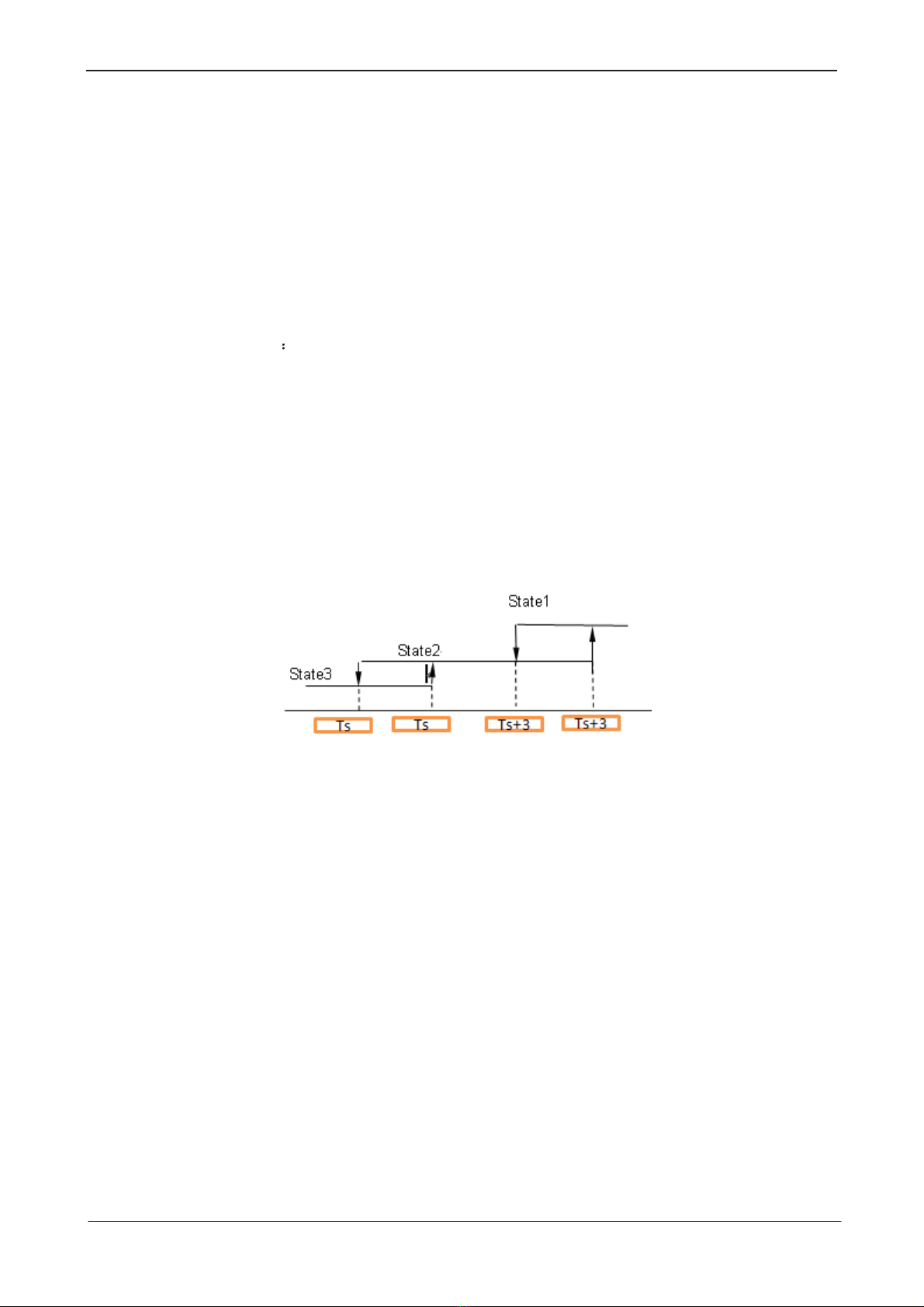

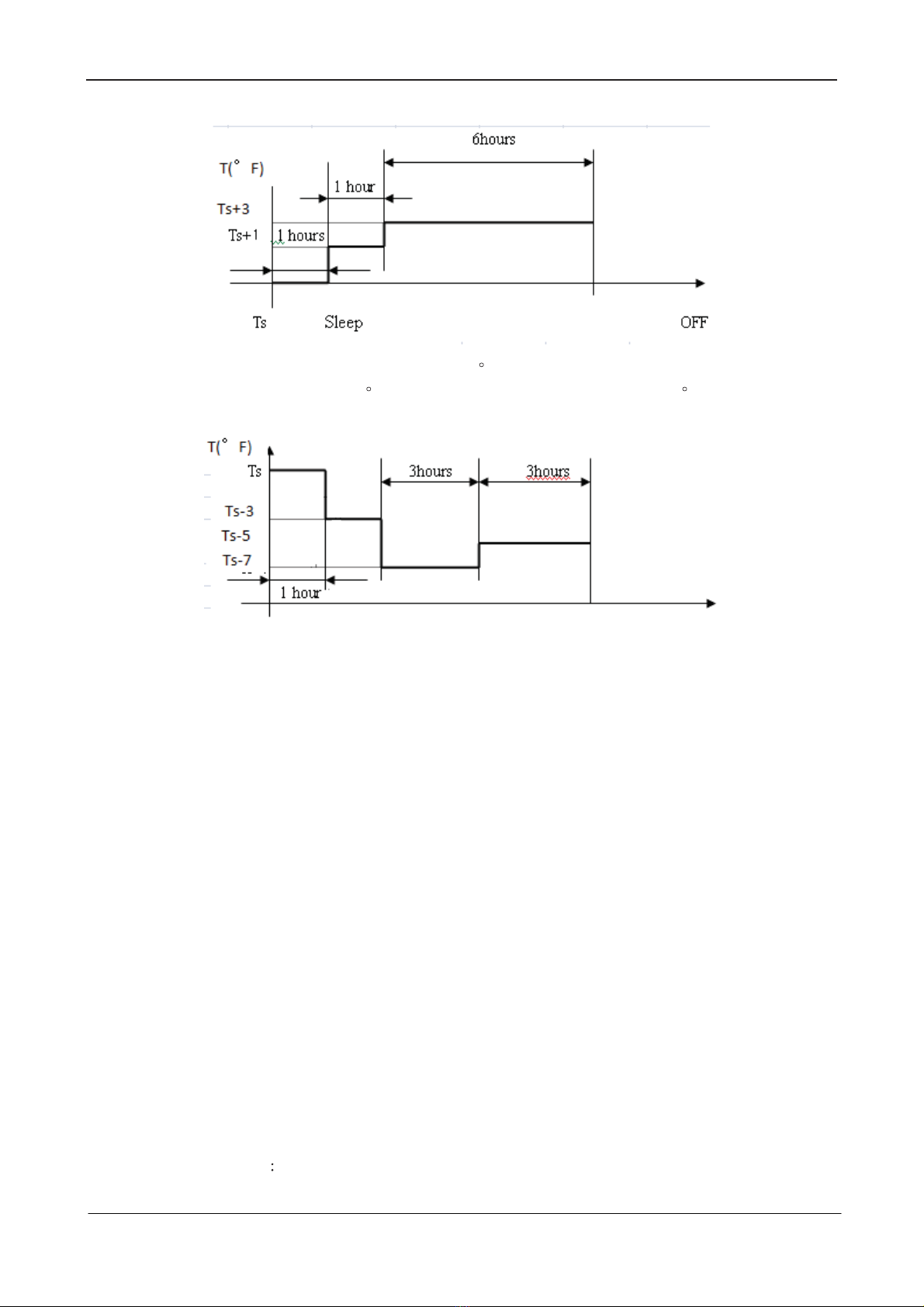

5.1 Main functions and control specification .................................................. 10
5.2 Value of thermistor ................................................................................... 13
6. System configuration ............................................................................... 21
6.1 System configuration ................................................................................ 21
6.2 Instruction ................................................................................................. 22
7. Service diagnosis .................................................................................... 29
7.1 Problem symptoms and measures
.......................................................... 29
7.2 Error codes and description indoor display .............................................. 29
8. Capacity diagrams and curves diagrams ............................................... 32
9. Installations ............................................................................................... 34
10.Wiring Diagrams ....................................................................................... 38
11. Description of coding rules of unit model ............................................. 45
YSCC18FSAADG
Domestic Air Conditioner

Table of Contents
YSCC18FSAADG
1Domestic Air Conditioner

Domestic Air Conditioner
2. Introduction
2.1 Safety Cautions
Be sure to read the following safety cautions before conducting repair work.
The caution items are classified into “Warning” and “Caution”. The “Warning” items are especially important
since they can lead to death or serious injury if they are not followed closely. The “Caution” items can also lead
to serious accidents under some conditions if they are not followed. Therefore, be sure to observe all the safety
caution items described below.
About the pictograms
This symbol indicates an item for which caution must be exercised.
The pictogram shows the item to which attention must be paid.
This symbol indicates a prohibited action.
The prohibited item or action is shown inside or near the symbol.
This symbol indicates an action that must be taken, or an instruction.
The instruction is shown inside or near the symbol.
After the repair work is complete, be sure to conduct a test operation to ensure that the equipment operates
normally, and explain the cautions for operating the product to the customer.
2.1.1 Caution in Repair
Warning
Be sure to disconnect the power cable plug from the plug socket before disassembling the equipment for
arepair.
Working on the equipment that is connected to a power supply can cause an electrical shook.
If it is necessary to supply power to the equipment to conduct the repair or inspecting the circuits, do not
touch any electrically charged sections of the equipment.
If the refrigerant gas discharges during the repair work, do not touch the discharging refrigerant gas.The
refrigerant gas can cause frostbite.
When disconnecting the suction or discharge pipe of the compressor at the welded section, release the
refrigerant gas completely at a well-ventilated place first.
If there is a gas remaining inside the compressor, the refrigerant gas or refrigerating machine oil
discharges when the pipe is disconnected, and it can cause injury.
If the refrigerant gas leaks during the repair work, ventilate the area. The refrigerant gas can generate
toxic gases when it contacts flames.
The step-up capacitor supplies high-voltage electricity to the electrical components of the outdoor unit.
Be sure to discharge the capacitor completely before conducting repair work.A charged capacitor can
cause an electrical shock.
Do not start or stop the air conditioner operation by plugging or unplugging the power cable plug.
Plugging or unplugging the power cable plug to operate the equipment can cause an electrical shock or
fire.
2
Table of Contents
YSCC18FSAADG

Introduction
Domestic Air Conditioner
Warning
Do not repair the electrical components with wet hands. Working on the equipment with wet hands can
cause an electrical shock.
Do not clean the air conditioner by splashing water. Washing the unit with water can cause an electrical
shock.
Be sure to provide the grounding when repairing the equipment in a humid or wet place, to avoid electrical
shocks.
Be sure to turn off the power switch and unplug the power cable when cleaning the equipment. The
internal fan rotates at a high speed, and cause injury.
Do not tilt the unit when removing it. The water inside the unit can spill and wet the furniture and floor.
Be sure to check that the refrigerating cycle section has cooled down sufficiently before conducting repair
work. Working on the unit when the refrigerating cycle section is hot can cause burns.
Use the welder in a well-ventilated place. Using the welder in an enclosed room can cause oxygen
deficiency.
2.1.2 Cautions Regarding Products after Repair
Warning
Be sure to use parts listed in the service parts list of the applicable model and appropriate tools to
conduct repair work. Never attempt to modify the equipment. The use of inappropriate parts or tools can
cause an electrical shock, excessive heat generation or fire.
When relocating the equipment, make sure that the new installation site has sufficient strength to
withstand the weight of the equipment.
If the installation site does not have sufficient strength and if the installation work is not conducted
securely, the equipment can fall and cause injury.
Be sure to install the product correctly by using the provided standard installation frame.
Incorrect use of the installation frame and improper installation can cause the equipment to fall, resulting
in injury.
For
integral
units only
Be sure to install the product securely in the installation frame mounted on a window frame.
If the unit is not securely mounted, it can fall and cause injury.
For
integral
units only
3
YSCC18FSAADG

Introduction
Domestic Air Conditioner
Warning
Be sure to use an exclusive power circuit for the equipment, and follow the technical standards related to
the electrical equipment, the internal wiring regulations and the instruction manual for installation when
conducting electrical work.
Insufficient power circuit capacity and improper electrical work can cause an electrical shock or fire.
Be sure to use the specified cable to connect between the indoor and outdoor units. Make the
connections securely and route the cable properly so that there is no force pulling the cable at the
connection terminals.
Improper connections can cause excessive heat generation or fire.
When connecting the cable between the indoor and outdoor units, make sure that the terminal cover does
not lift off or dismount because of the cable.
If the cover is not mounted properly, the terminal connection section can cause an electrical shock,
excessive heat generation or fire.
Do not damage or modify the power cable.
Damaged or modified power cable can cause an electrical shock or fire. Placing heavy items on the
power cable, and heating or pulling the power cable can damage the cable.
Do not mix air or gas other than the specified refrigerant (R-410A / R22) in the refrigerant system.
If air enters the refrigerating system, an excessively high pressure results, causing equipment damage
and injury.
If the refrigerant gas leaks, be sure to locate the leak and repair it before charging the refrigerant. After
charging refrigerant, make sure that there is no refrigerant leak.
If the leak cannot be located and the repair work must be stopped, be sure to perform pump-down and
close the service valve, to prevent the refrigerant gas from leaking into the room. The refrigerant gas itself
is harmless, but it can generate toxic gases when it contacts flames, such as fan and other heaters,
stoves and ranges.
When replacing the coin battery in the remote controller, be sure to disposed of the old battery to prevent
children from swallowing it.
If a child swallows the coin battery, see a doctor immediately.
Caution
Installation of a leakage breaker is necessary in some cases depending on the conditions of the
installation site, to prevent electrical shocks.
Do not install the equipment in a place where there is a possibility of combustible gas leaks.
If a combustible gas leaks and remains around the unit, it can cause a fire.
Be sure to install the packing and seal on the installation frame properly. If the packing and seal are not
installed properly, water can enter the room and wet the furniture and floor.
For
integral
units only
4
YSCC18FSAADG

Introduction
2.1.3 Inspection after Repair
Warning
Check to make sure that the power cable plug is not dirty or loose, then insert the plug into a power outlet
all the way.
If the plug has dust or loose connection, it can cause an electrical shock or fire.
If the power cable and lead wires have scratches or deteriorated, be sure to replace them.
Damaged cable and wires can cause an electrical shock, excessive heat generation or fire.
Warning
Do not use a joined power cable or extension cable, or share the same power outlet with other electrical
appliances, since it can cause an electrical shock, excessive heat generation or fire.
Caution
Check to see if the parts and wires are mounted and connected properly, and if the connections at the
soldered or crimped terminals are secure. Improper installation and connections can cause excessive
heat generation, fire or an electrical shock.
If the installation platform or frame has corroded, replace it. Corroded installation platform or frame can
cause the unit to fall, resulting in injury.
Check the grounding, and repair it if the equipment is not properly grounded. Improper grounding can
cause an electrical shock.
Be sure to measure the insulation resistance after the repair, and make sure that the resistance is 1 M
ohm or higher.
Faulty insulation can cause an electrical shock.
Be sure to check the drainage of the indoor unit after the repair.
Faulty drainage can cause the water to enter the room and wet the furniture and floor.
5
YSCC18FSAADG
Domestic Air Conditioner

Introduction
Domestic Air Conditioner
2.1.4 Using Icons
Icons are used to attract the attention of the reader to specific information. The meaning of each icon is described in
the table below:
2.1.5 Using Icons List
Icon Type of Information Description
Note: Note
A “note” provides information that is not indispensable, but may
nevertheless be valuable to the reader, such as tips and tricks.
Caution Caution
A “caution” is used when there is danger that the reader, through
incorrect manipulation, may damage equipment, loose data, get an
unexpected result or has to restart (part of) a procedure.
Warning Warning A “warning” is used when there is danger of personal injury.
Reference
A “reference” guides the reader to other places in this binder or in
this manual, where he/she will find additional information on a
specific topic.
6
YSCC18FSAADG

HSU18VCK
5.27/5.12
Capacity Rated
Model
KW
Btu/h
kcl/h
18000/17500
4532/4408
VM
1PH
HZ
POWER SUPP LY
Frequency
PhaseNOMINAL
DISTRIBUTION
SYSTEM
VO LTAGE
mm
V
Cooling
Running Current(Rated)
Moisture Removal
Voltage
A
EER Rated
Power Consumption Rated
W/W
W
L/h
Piping Connections
(external diameter)
Drain
Gas
Liquid mm
mm
Heat Insulation
Max.Piping Length
Max.Level Di fference m
m
m
g/m
Both liquid and Gas Pipes
Chargeless
Amount of Additional Charge of Refrigerant
Front Panel Color
Indoor Unit
H
Mat Crystal Silver
M
L
m³/ min(cfm)
Air Flow Rate
Motor Output
Fan W
Speed Steps
Cross Flow Fan
Air Direction Control
4 Steps,Auto
Right,Left,Horizontal,Downward
Removable/ Washable/Mildew Proof
Air Filter
A
kg
W
mm
mm
kg
dBA
dBA
Microcomputer Control
Run current(rated)
Power consumption
Temperature Control
Dimensions(WxDxH)
Packaged Dimensions(WxDxH)
Weight
Gross Weight
Operation Sound
Sound Power
H/M/L
H(cooling/heating) 59
60
230/208V
4.0
7.2/7.6
1600/1550
3.3
9.52
6.35
16
10
5
5
20
14.5(511.9)
13.3(469.2)
12.08(426.5)
Type
1046X299X234
1126X388X344
13
16.5
49/46.5/43.5
0.1
25
YSCC18FSAADG Specifications
7Domestic Air Conditioner

Outdoor Unit
Casing Color
Type
Model
Compressor Motor Output W1805
Hermetic motor compressor
lvory white
0.56
NMOC Ze-Gles RB68EP or equivalent
Oil Charge
kg
L
Oil Type
1.3
R410A
50
Charge
Model
m³/min
1765
Axial fan
27
7.2/7.6
1600/1550
Refrigerant
Air Flow Rate
(H/L)
Fan
cfm
Motor Output
Type
W
W
A
mm
mm
kg
kg
dBA
dBA
Runing current(rated)
Power Consumption(rated)
Dimensions(WxDxH)(stop valve,
and bottom support is not included)
Packaged Dimensions(WxDxH)
Weight
Gross Weight
Operation Sound H
Sound Power H(cooling/heating)
60
70
50.5
46.5
995X420X815
860X308X730
HSU18VCK
50A452P
YSCC18FSAADG Specifications
8Domestic Air Conditioner

Connector Wiring Diagram
DomesticAirConditioner
9
4. Printed Circuit Board Connector Wiring Diagram
4.1 Indoor unit
Connectors Indoor PCB
1) CH1 connector for power line L.
2) CN26 connector for DC fan motor.
3) CN11 connector for step motor.
4) CN32’ connector for receiver display.
5) CN48 connector for Emergency switch.
6) CN1 connector for ambient temp. sensor and piping temp.sensor.
7) CN54 connector for power line N.
8) CON38 connector for compressor control.
CN48CN26CH1
CN54 CON38
CN11 CN1CN32’
YSCC18FSAADG

FunctionsandControl
DomesticAirConditioner
10
5Functions and control
5.1 main functions and control specifications
Including brief introduction to air conditioners of series models and electric control function.
5.1.1 Automatic running
(1) Single cold automatic run mode:
After entering into this mode, the main control “MCU” determines the corresponding work pattern according
to the indoor temperature so as to maintain the preset temperature (the preset temperature is 78° F). When
the indoor temperature is below 78° F, outlet air from compressor is off, the automatic wind from fan motor
is low, and wind can be set to high, medium or low by hand. When the indoor temperature is or above 78° F,
the unit enters the cooling mode and conducts the cooling programme (the preset temperature is 78° F),
outlet air from compressor is on and indoor fan motor run in fixed wind speed
5.1.2 Indoor temperature control
Temperature control range : 60°F ---86°F
Temperature control precision: ±2°F
Compressor can’t be controlled by temperature sensor within 2 minutes after it starts
Cooling mode:
When Tr> Ts, outdoor fan motor and compressor on, and indoor fan motor run at fixed wind speed. When Tr
< Ts, outdoor fan motor and compressor off, and when Tr > Ts, outdoor fan motor and compressor are working
again .If Tr=Ts, the indoor fan motor , outdoor fan motor and the compressor’s state will not change.
5.1.3 Cooling run mode:
emperature control range : 60°F ---86°F
temperature control precision:±2°F
compressor can’t be controlled by temperature sensor within 2 minutes after it starts.
control character: when TrTs, outlet air from compressor is on and indoor fan motor run at fixed wind
speed. When Tr< Ts, outlet air from compressor is off , and when Tr>Ts, outlet air from compressor is on.
wind speed control: (the temperature difference is 1?)
auto: When Tr>=Ts+5°F , the wind speed is high;
When Ts+1°F Tr<Ts+5°F , the wind speed is medium.
When Tr<Ts+1°F , the wind speed is low.
When temperature sensor is off, the fan motor runs at low speed.
when the wind speed changes from low to high, there is no delay, and when it changes from high
to low, there is a 3-minutes delay before conversion.
Manual operation:When unit is on the wind speed can be set to high, medium, low or automatic as
required(execute instruction 2 seconds later after receiving remote signal)
Compressor control The compressor can’t be controlled by temperature sensor within 2 minutes after
start up and can be only restarted at least 3 minutes later after shutdown. There is no 3-minute protection
withpower on for the first time (over 3 minutes with power off). The compressor must stands by for 3
minutesbefore it is restarted after shut down.
There is no 2-minute limit when changing the temperature setting or shutting down the machine through
the remote controller, and the machine can be shut down immediately.
Avoiding electrical shock: outlet air is available 2 seconds later after startup.
High temperature expiration protection:
YSCC18FSAADG

Functions and Control
DomesticAirConditioner
11
(1)High temperature expiration prevention:When the temp.of coil pipe is above 161°F,compressor
and outlet air stop running 10 seconds later, and inlet air runs as the temp. sensor is off. When comp-
ressor stands by for 3 minute and the temp. of coil pipe is below 149°F, the unit can be started again.
Protection of frost is available (disable in test run or heating mode): In order to prevent the indoor
heat exchanger from freezing (in refrigation or dehumidifying mode), the compressor will be shut off
when the temperature of the indoor coil pipe is or below 30°F and the compressor runs for over 5 mi-
nutes.when the temperature of the indoor coil pipe ascends to over 44°F, the compressor is restarted
(must meet a 3-minutes delay)
Timer on, Timer off and sleep control are available.
5.1.4 Dehumidifying mode
Temperature control range :60°F ---86°F
Control character:
When Tr (indoor temperature)> Ts (temperature setting) +3°F, compressor and outdoor fan motor
run continuosly with indoor fan motor runnig in accordance with the wind speed setting(State 1).
When TsTr Ts +3° F, outlet air from compressor is on for 10 minutes and off for 6 minutes, the
indoor fan motor is off in 3 minutes after shut down of compressor and gives breeze in other time(State 2).
When Tr < Ts, outlet air from compressor is unavailable, and the indoor fan motor enter breeze
mode 3 minutes later after after shut down of compressor(State 3).
When all the ranges alternate, there is±1°F difference..
5.1.5 Timer function:
You can set 24-hour timer on or timer off as required, and the minum time unit is 1 minute. After
setting, the indicator of indoor unit is on , and it is off when timer setting is completed. There are several
timer mode as follows.
5.1.5.1 Timer on: The LED of “timer on” lights up, and unit behaves with halt status. Timer on is
completed, and then unit starts running with the LED of “timer on” off. The unit starts with the the last
setting receiving timer signals, and sleep setting is not allowed.
5.1.5.2 Timer off: Unit starts, timer indicator lights up; When reaching time setting, the indicator
goes out, unit enters shut down mode, and sleep function can be set. If timer off and sleep are set
synchronously, the one which time is short run first. Executing shutdown instruction clear timer and sleep
function.
5.1.5.3 Timer on and timer off can be set synchronously.
5.1.6 Sleep function: the timer indicator lights up.
5.1.6.1 In cooling/defrosting mode, the temp. setting increases 1° F one hour later after start up.
After another hour the temp. setting increase by more 1° F and then run continuously for another 6
YSCC18FSAADG

Functions and Control
DomesticAirConditioner
12
hours and then close.
5.1.6.2 In heating mode, the temp. setting decrease 3 F one hour after start up. After another hour the
temp. setting decrease by more 3 F. After 3 hours the temp. setting rise by 1 F and then run
continuously for another 3 hours and then close
5.1.6.3 If the wind speed is set to high before going to bed, the wind speed become medium after
start up; If the wind speed is set to medium before going to bed, the wind speed become low after start
up; If the wind speed is set to low before going to bed, the wind speed keep unchanged.
5.1.7 Emergency switch imput:
5.1.7.1 Press the switch of emergency operation, then buzzer rings once and unit enters the
automatic operation mode. (emergency operation)
5.1.7.2 If the switch is kept pressed for 5 seconds, buzzer ring two times and unit enter enter test
run mode.
5.1.7.3 Press the switch again, and then closes.
5.1.7.4 Enter emergency operation from timer mode, then timer is cancelled.
5.1.8 Test run:
5.1.8.1 The temperature sensor of inlet air doesn’t work, and compressor starts (but subject to the
limit of -minute delay excluding the first time), and high wind, cooling, and air door is open.The indoor fan
motor runs, running indicator lights up, compressor relay and the one of outdoor fan motor is closed
5.1.8.2 During test run:
The prevention of freezing of evaporator doesn’t work.
Current cross control doesn’t work.
The control of current cross peak expiration doesn’t work.
Temperature control doesn’t work.
Temperature expiration control doesn’t work.
5.1.9 memory function The memory function of power down is available, and the auto recovery
YSCC18FSAADG

Functions and Control
DomesticAirConditioner
13
function of power on is optional. (In auto, heating, cooling, or defrosting status, press the “ ” button
to enter additional options when cycle dispay to will flash and then press quickly
press and then press rapidly 10 times within 6 seconds, and the auto recovery function
of power on can be set on/off. If the buzzer rings 4 times, the the auto recovery function of power on is
available; If the buzzer rings 2 times, the the auto recovery function of power on is unavailable.)
If there is no EEPROM, the unit is taken off the ‘off’ function of the memory function of power down. But
the memory function of power down can also be set on/off, and the data is the default value of chip
5.2 Value of Thermistor
5.2.1 Indoor unit
Room sensor
R25 =23Kȍ±3.5%
B25 /50 =4200K±3%
Temp.( ) Max.(Kȍ) Normal(Kȍ 0LQ.ȍ Tolerance( )
-30 568.8372 501.0746 440.8435 -1.97 1.75
-29 530.9600 468.6491 413.1441 -1.95 1.74
-28 495.8488 438.5314 387.3645 -1.93 1.72
-27 463.2850 410.5433 363.3602 -1.91 1.71
-26 433.0683 384.5212 340.9980 -1.90 1.70
-25 405.0156 360.3153 320.1558 -1.88 1.69
-24 378.9588 337.7879 300.7211 -1.86 1.67
-23 354.7440 316.8126 282.5905 -1.84 1.66
-22 332.2300 297.2732 265.6686 -1.82 1.64
-21 311.2873 279.0627 249.8676 -1.80 1.63
-20 291.7969 262.0831 235.1067 -1.78 1.62
-19 273.6494 246.2437 221.3111 -1.76 1.60
-18 256.7445 231.4612 208.4122 -1.74 1.59
-17 240.9897 217.6590 196.3462 -1.72 1.57
-16 226.3000 204.7662 185.0545 -1.70 1.56
-15 212.5973 192.7176 174.4829 -1.68 1.54
-14 199.8093 181.4531 164.5813 -1.66 1.53
-13 187.8698 170.9169 155.3033 -1.64 1.51
-12 176.7176 161.0578 146.6059 -1.62 1.49
-11 166.2961 151.8284 138.4495 -1.60 1.48
-10 156.5532 143.1847 130.7973 -1.58 1.46
-9 147.4409 135.0863 123.6153 -1.56 1.44
-8 138.9148 127.4956 116.8717 -1.53 1.43
-7 130.9337 120.3778 110.5374 -1.51 1.41
-6 123.4597 113.7009 104.5852 -1.49 1.39
-5 116.4577 107.4349 98.9897 -1.47 1.38
YSCC18FSAADG

DomesticAirConditioner
14
-4 109.8953 101.5523 93.7278 -1.45 1.36
-3 103.7422 96.0274 88.7774 -1.43 1.34
-2 97.9708 90.8365 84.1185 -1.40 1.32
-1 92.5551 85.9574 79.7322 -1.38 1.30
0 87.4712 81.3697 75.6011 -1.36 1.29
1 82.6970 77.0544 71.7088 -1.34 1.27
2 78.2118 72.9937 68.0402 -1.31 1.25
3 73.9966 69.1712 64.5813 -1.29 1.23
4 70.0335 65.5716 61.3188 -1.27 1.21
5 66.3062 62.1807 58.2405 -1.24 1.19
6 62.7992 58.9853 55.3351 -1.22 1.17
7 59.4984 55.9729 52.5917 -1.20 1.15
8 56.3905 53.1320 50.0006 -1.17 1.13
9 53.4631 50.4521 47.5523 -1.15 1.11
10 50.7048 47.9230 45.2384 -1.13 1.09
11 48.1049 45.5355 43.0505 -1.10 1.07
12 45.6534 43.2808 40.9813 -1.08 1.04
13 43.3410 41.1509 39.0236 -1.05 1.02
14 41.1592 39.1381 37.1708 -1.03 1.00
15 39.0998 37.2355 35.4167 -1.00 0.98
16 37.1553 35.4363 33.7555 -0.98 0.96
17 35.3186 33.7344 32.1818 -0.95 0.94
18 33.5833 32.1240 30.6905 -0.93 0.91
19 31.9432 30.5997 29.2769 -0.90 0.89
20 30.3925 29.1565 27.9365 -0.88 0.87
21 28.9259 27.7895 26.6651 -0.85 0.84
22 27.5383 26.4944 25.4589 -0.83 0.82
23 26.2252 25.2670 24.3140 -0.80 0.80
24 24.9822 24.1034 23.2271 -0.78 0.77
25 23.8050 23.0000 22.1950 -0.78 0.77
26 22.7500 21.9499 21.1520 -0.78 0.78
27 21.7477 20.9536 20.1638 -0.82 0.81
28 20.7951 20.0081 19.2272 -0.86 0.85
29 19.8895 19.1104 18.3394 -0.89 0.88
30 19.0285 18.2581 17.4974 -0.93 0.92
31 18.2094 17.4484 16.6988 -0.97 0.95
32 17.4302 16.6792 15.9410 -1.00 0.99
33 16.6885 15.9480 15.2217 -1.04 1.02
34 15.9825 15.2530 14.5389 -1.08 1.06
35 15.3103 14.5920 13.8903 -1.12 1.09
36 14.6700 13.9632 13.2743 -1.16 1.13
37 14.0599 13.3650 12.6889 -1.20 1.16
38 13.4786 12.7957 12.1325 -1.23 1.20
YSCC18FSAADG Functions and Control

Functions and Control
DomesticAirConditioner
15
39 12.9244 12.2537 11.6035 -1.27 1.24
40 12.3960 11.7375 11.1004 -1.31 1.27
41 11.8921 11.2459 10.6218 -1.35 1.31
42 11.4113 10.7775 10.1665 -1.39 1.34
43 10.9526 10.3311 9.7330 -1.43 1.38
44 10.5147 9.9056 9.3204 -1.48 1.42
45 10.0967 9.4999 8.9275 -1.52 1.45
46 9.6976 9.1130 8.5532 -1.56 1.49
47 9.3163 8.7439 8.1965 -1.60 1.53
48 8.9521 8.3916 7.8566 -1.64 1.57
49 8.6040 8.0554 7.5327 -1.68 1.60
50 8.2713 7.7345 7.2237 -1.73 1.64
51 7.9531 7.4280 6.9291 -1.77 1.68
52 7.6489 7.1353 6.6480 -1.81 1.72
53 7.3580 6.8556 6.3797 -1.85 1.76
54 7.0796 6.5884 6.1237 -1.90 1.79
55 6.8131 6.3329 5.8793 -1.94 1.83
56 6.5581 6.0887 5.6459 -1.99 1.87
57 6.3140 5.8552 5.4230 -2.03 1.91
58 6.0802 5.6318 5.2100 -2.07 1.95
59 5.8563 5.4181 5.0065 -2.12 1.99
60 5.6417 5.2136 4.8120 -2.16 2.03
61 5.4361 5.0178 4.6260 -2.21 2.07
62 5.2391 4.8304 4.4481 -2.25 2.11
63 5.0502 4.6510 4.2780 -2.30 2.15
64 4.8691 4.4791 4.1153 -2.35 2.19
65 4.6954 4.3145 3.9596 -2.39 2.23
66 4.5287 4.1567 3.8105 -2.44 2.27
67 4.3689 4.0055 3.6678 -2.49 2.31
68 4.2154 3.8605 3.5312 -2.53 2.35
69 4.0682 3.7216 3.4004 -2.58 2.39
70 3.9268 3.5883 3.2750 -2.63 2.43
71 3.7910 3.4605 3.1549 -2.68 2.48
72 3.6606 3.3378 3.0398 -2.73 2.52
73 3.5353 3.2201 2.9294 -2.77 2.56
74 3.4150 3.1072 2.8237 -2.82 2.60
75 3.2993 2.9987 2.7222 -2.87 2.64
76 3.1881 2.8946 2.6249 -2.92 2.68
77 3.0812 2.7946 2.5316 -2.97 2.73
78 2.9785 2.6986 2.4420 -3.02 2.77
79 2.8796 2.6063 2.3560 -3.07 2.81
80 2.7845 2.5176 2.2735 -3.12 2.86
81 2.6931 2.4324 2.1943 -3.17 2.90
YSCC18FSAADG

Functions and Control
DomesticAirConditioner
16
82 2.6050 2.3505 2.1182 -3.22 2.94
83 2.5203 2.2717 2.0451 -3.28 2.99
84 2.4388 2.1960 1.9749 -3.33 3.03
85 2.3602 2.1231 1.9075 -3.38 3.07
86 2.2846 2.0530 1.8426 -3.43 3.12
87 2.2118 1.9856 1.7803 -3.48 3.16
88 2.1416 1.9207 1.7204 -3.54 3.20
89 2.0740 1.8582 1.6628 -3.59 3.25
90 2.0089 1.7981 1.6074 -3.64 3.29
91 1.9461 1.7402 1.5541 -3.70 3.34
92 1.8856 1.6844 1.5028 -3.75 3.38
93 1.8272 1.6307 1.4535 -3.80 3.43
94 1.7709 1.5789 1.4060 -3.86 3.47
95 1.7166 1.5291 1.3603 -3.91 3.52
96 1.6643 1.4810 1.3163 -3.97 3.56
97 1.6138 1.4347 1.2739 -4.02 3.61
98 1.5650 1.3900 1.2331 -4.08 3.66
99 1.5180 1.3470 1.1937 -4.13 3.70
100 1.4726 1.3054 1.1559 -4.19 3.75
101 1.4287 1.2654 1.1194 -4.24 3.80
102 1.3864 1.2268 1.0842 -4.30 3.84
103 1.3455 1.1895 1.0503 -4.36 3.89
104 1.3060 1.1535 1.0176 -4.42 3.94
105 1.2679 1.1188 0.9860 -4.47 3.98
106 1.2310 1.0853 0.9556 -4.53 4.03
107 1.1954 1.0529 0.9263 -4.59 4.08
108 1.1610 1.0217 0.8980 -4.65 4.13
109 1.1277 0.9915 0.8707 -4.70 4.17
110 1.0955 0.9624 0.8443 -4.76 4.22
111 1.0644 0.9342 0.8189 -4.82 4.27
112 1.0344 0.9070 0.7943 -4.88 4.32
113 1.0053 0.8807 0.7706 -4.94 4.37
114 0.9771 0.8553 0.7478 -5.00 4.41
115 0.9499 0.8307 0.7256 -5.06 4.46
116 0.9235 0.8070 0.7043 -5.12 4.51
117 0.8980 0.7840 0.6837 -5.18 4.56
118 0.8734 0.7618 0.6637 -5.24 4.61
119 0.8495 0.7404 0.6445 -5.30 4.66
120 0.8263 0.7196 0.6258 -5.36 4.71
YSCC18FSAADG

Functions and Control
DomesticAirConditioner
17
Pipe Sensor
R25 =10Kȍ±3%
B25 /50 =3700K±3%
Temp.(( )) Max.(Kȍ) Normal(Kȍ 0LQ.ȍ Tolerance( )
-30 165.2170 147.9497 132.3678 -1.94 1.75
-29 155.5754 139.5600 125.0806 -1.93 1.74
-28 146.5609 131.7022 118.2434 -1.91 1.73
-27 138.1285 124.3392 111.8256 -1.89 1.71
-26 130.2371 117.4366 105.7989 -1.87 1.70
-25 122.8484 110.9627 100.1367 -1.85 1.69
-24 115.9272 104.8882 94.8149 -1.83 1.67
-23 109.4410 99.1858 89.8106 -1.81 1.66
-22 103.3598 93.8305 85.1031 -1.80 1.64
-21 97.6556 88.7989 80.6728 -1.78 1.63
-20 92.3028 84.0695 76.5017 -1.76 1.62
-19 87.2775 79.6222 72.5729 -1.74 1.60
-18 82.5577 75.4384 68.8710 -1.72 1.59
-17 78.1230 71.5010 65.3815 -1.70 1.57
-16 73.9543 67.7939 62.0907 -1.68 1.55
-15 70.0342 64.3023 58.9863 -1.66 1.54
-14 66.3463 61.0123 56.0565 -1.64 1.52
-13 62.8755 57.9110 53.2905 -1.62 1.51
-12 59.6076 54.9866 50.6781 -1.60 1.49
-11 56.5296 52.2278 48.2099 -1.58 1.47
-10 53.6294 49.6244 45.8771 -1.56 1.46
-9 50.8956 47.1666 43.6714 -1.54 1.44
-8 48.3178 44.8454 41.5851 -1.51 1.42
-7 45.8860 42.6525 39.6112 -1.49 1.40
-6 43.5912 40.5800 37.7429 -1.47 1.39
-5 41.4249 38.6207 35.9739 -1.45 1.37
-4 39.3792 36.7676 34.2983 -1.43 1.35
-3 37.4465 35.0144 32.7108 -1.41 1.33
-2 35.6202 33.3552 31.2062 -1.38 1.31
-1 33.8936 31.7844 29.7796 -1.36 1.29
0 32.2608 30.2968 28.4267 -1.34 1.28
1 30.7162 28.8875 27.1431 -1.32 1.26
2 29.2545 27.5519 25.9250 -1.29 1.24
3 27.8708 26.2858 24.7686 -1.27 1.22
4 26.5605 25.0851 23.6704 -1.25 1.20
5 25.3193 23.9462 22.6273 -1.23 1.18
6 24.1432 22.8656 21.6361 -1.20 1.16
7 23.0284 21.8398 20.6939 -1.18 1.14
YSCC18FSAADG

Functions and Control
DomesticAirConditioner
18
8 21.9714 20.8659 19.7982 -1.15 1.12
9 20.9688 19.9409 18.9463 -1.13 1.09
10 20.0176 19.0621 18.1358 -1.11 1.07
11 19.1149 18.2270 17.3646 -1.08 1.05
12 18.2580 17.4331 16.6305 -1.06 1.03
13 17.4442 16.6782 15.9315 -1.03 1.01
14 16.6711 15.9601 15.2657 -1.01 0.99
15 15.9366 15.2770 14.6315 -0.98 0.96
16 15.2385 14.6268 14.0271 -0.96 0.94
17 14.5748 14.0079 13.4510 -0.93 0.92
18 13.9436 13.4185 12.9017 -0.91 0.90
19 13.3431 12.8572 12.3778 -0.88 0.87
20 12.7718 12.3223 11.8780 -0.86 0.85
21 12.2280 11.8126 11.4011 -0.83 0.83
22 11.7102 11.3267 10.9459 -0.81 0.80
23 11.2172 10.8634 10.5114 -0.78 0.78
24 10.7475 10.4216 10.0964 -0.75 0.75
25 10.3000 10.0000 9.7000 -0.75 0.75
26 9.8975 9.5974 9.2980 -0.76 0.76
27 9.5129 9.2132 8.9148 -0.80 0.80
28 9.1454 8.8465 8.5496 -0.84 0.83
29 8.7942 8.4964 8.2013 -0.87 0.86
30 8.4583 8.1621 7.8691 -0.91 0.90
31 8.1371 7.8428 7.5522 -0.95 0.93
32 7.8299 7.5377 7.2498 -0.98 0.97
33 7.5359 7.2461 6.9611 -1.02 1.00
34 7.2546 6.9673 6.6854 -1.06 1.04
35 6.9852 6.7008 6.4222 -1.10 1.07
36 6.7273 6.4459 6.1707 -1.13 1.11
37 6.4803 6.2021 5.9304 -1.17 1.14
38 6.2437 5.9687 5.7007 -1.21 1.18
39 6.0170 5.7454 5.4812 -1.25 1.22
40 5.7997 5.5316 5.2712 -1.29 1.25
41 5.5914 5.3269 5.0704 -1.33 1.29
42 5.3916 5.1308 4.8783 -1.37 1.33
43 5.2001 4.9430 4.6944 -1.41 1.36
44 5.0163 4.7630 4.5185 -1.45 1.40
45 4.8400 4.5905 4.3500 -1.49 1.44
46 4.6708 4.4252 4.1887 -1.53 1.47
47 4.5083 4.2666 4.0342 -1.57 1.51
48 4.3524 4.1145 3.8862 -1.61 1.55
49 4.2026 3.9686 3.7443 -1.65 1.59
50 4.0588 3.8287 3.6084 -1.70 1.62
YSCC18FSAADG
