INSTALLATION MANUAL
High Wall Fixed
R-410A 60Hz
YH9FZH12/18/24BAH-AFX
Read this manual before installation and operation
Make sure that it is well kept for later reference

F
A
C
E
D
Drawing for the installation of indoor and outdoor units
Optional parts for piping
Non-adhesive tape
Adhesive tape
Saddle(L.S)withscrews
Connecting electric cable
for indoor and outdoor
Drain hose
Heating insulating material
Piping hole cover
The marks from to
in the ¿gure are the
parts numbers.
The distance between
theindoorunitandthe
Àoorshouldbemore
than 2m.
ThemodelsadoptHFCfreerefrigerantR410A
more than
10cm
more than 15cm
more than 10cm
more than 30cm more than10cm
more than 50cm
more than 200cm
A
G
ƽ
ƽ
Necessary Tools for Installation
DriverƽTorque wrench
ƽ
(17mm,22mm,26mm)
Nipperƽ
Reamerƽ
HacksawƽPipe cutterƽ
Gas leakage detector orƽ
soap-and-water solution
Hole core drillƽFlaring toolƽ
Spanner(17,19 and 26mm)ƽKnifeƽ
Measuring tapeƽ
Indoor Unit
Place, robust not causing vibration, where the body can be supported suf¿ciently.ƽ
Place, not affected by heat or steam generated in the vicinity, where inlet and outlet of the
unit are not disturbed.
ƽ
Place,possibletodraineasily,wherepipingcanbeconnectedwiththeoutdoorunit.ƽ
Place,wherecoldaircanbespreadinaroomentirely.ƽ
Place, nearby a power receptacle, with enough space around. (Refer to drawings).ƽ
Place where the distance of more than lm from televisions, radios, wireless apparatuses
and Àuorescent lamps can be left.
ƽ
In the case of ¿xing the remote controller on a wall, place where the indoor unit can
receivesignalswhentheÀuorescent
ƽ
lampsintheroomarelightened.
Outdoor Unit
Place, which is less affected by rain or direct sunlight and is suf¿ciently ventilated.ƽ
Place, possible to bear the unit, where vibration and noise are not increased.ƽ
Place, where discharged wind and noise do not cause a nuisance to the neighbors.ƽ
Place, where a distance markedƽQisavailableasillustratedintheabove¿gure.
Before inserting power plug into receptacle, check the voltage without fail.
The power sourceisthesameasthe
ƽ
correspondingnameplate.
Install an exclusive branch circuit of the power.
ƽ
Areceptacleshallbesetupinadistancewherethepowercablecanbe
reached.Donotextendthecablebycuttingit.
ƽ
Selection of Installation Place
Power Source
A
F
C
E
D
G
B
Arrangement of piping
directions
Rear left
Left Rear
right
Right
Below
G
Preparation
Please be subject to the actual product purchased , the above picture is just for your reference.
Attention must be paid to
the rising up of drain hose
Read this manual before installation
Explain suf ciently the operating means to the user according to this manual
0010
Installation Manual of Room Air Conditioner
No. Accessory parts
Remote controller
R-03 dry battery
Mounting plate
Drain hose
Steel nail, cement
Screw Plastic cap
Drain-elbow
Cover
Cushion
1
1
2
3
4
5
6
7
8
9
10
2
1
1
6
4
1
1
4
1
Number
of
articles
Accessory parts
4X50
4X25
Pipe supporting plate
11 Connecting cable 1
Note:Cooling only units don't have
Drain-elbow
Appliance accessible to the general public.

Indoor unit
Fix to side bar and lintel a mounting bar, Which is separately sold, and then
fasten the plate to the xedmountingbar.
Refer to the previous article, “ When the mounting plate is
position of wall hole.
M
Wall hole
ake a hole of 60 mm in diameter, slightly descending to outside the wall.
Install piping hole cover and seal it off with putty after installation
When the mounting plate is rst xed
1. Carry out, based on the neighboring pillars or lintels, a
to be xed against the wall, then temporarily fasten the plate with one steel nail.
2. Make sure once more the proper level of the plate, by hanging a thread with a
weight from the central top of the plate, then fasten securely the plate with the
attachment steel nail.
3.FindthewallholelocationAusingameasuringtape
Whenthemountingplateis xed side bar and lintel
Indoor side Outdoor side
1Fitting of the Mounting Plate and Positioning of the wall Hole
(Section of wall hole)
Piping hole pipe
Lid for right
piping
Lid for under piping pipe
Fix with adhesive tape
Lid for left piping
Heat insulation
material
Drain hose
Piping
Pipe supporting
plate
Indoor/outdoor electric cable
Indoor/outdoor electric cable and drain hose must be bound with refrigerant
pipingbyprotectingtape.
[ Other direction piping ]
Cut away, with a nipper, the lid for piping according to the piping direction and
then bend the pipe according to theposition of wall hole. When bending, be
careful not to crash pipes.
Connect beforehand the indoor/outdoor electric cable, andthenpulloutthe
connected to the heat insulation of connecting part specially.
proper leveling for the plate
rst xed “, for the
2Making a Hole on the Wall and Fitting the Piping Hole Cover
G
Drawing of pipe
3Installation of the Indoor Unit
[ Rear piping ]
Draw pipes and the drain hose, then fasten them with the adhesive tape
[Left
·
Left-rear piping ]
In case of left side piping, cut away, with a nipper, the lid for left piping.
In case of left-rear piping, bend the pipes according to the piping direction to
themarkofholeforleft-rearpipingwhichismarkedonheatinsulationmaterials.
1. Insert the drain hose into the dent of heat insulation materials of indoor unit.
2. Insert the indoor/outdoor electric cable from backside of indoor unit, and pull it
outonthefrontside,thenconnect them.
3. Coat the aring seal face with refrigerant oil and connect pipes.
Cover the connection part with heat insulation materials closely, and make sure
xing with adhesive tape
Fixing the indoor unit body
Hang surely the unit body onto the upper notches of the
mountingplate.Movethebodyfromsidetosidetoverifyits
secure xing.
In order to xthebodyontothemountingplate,holdup
thebodyaslantfromtheundersideandthenputitdown
perpendicularly.
4Connecting the indoor/outdoor Electric Cable
Remove terminal cover at right bottom corner of indoor unit, then takeoff wiring
cover by removing its screws.
Insert from outside the room cable into left side of the wall
pipe has already existed.
Pull out the cable on the front side, and connect the cable making a loop.
Note When connecting the cable, con rm the terminal number of indoor and
outdoor units carefully. If wiring is not correct, proper operation can not
becarriedoutandwillcausedefect.
Insert the cable from the back side of the unit, then pull it out on the front side.
Loosen the screws and insert the cable ends fully into terminal block, then
tighten the screws.
Pull the cable slightly to make sure the cables have been properly inserted and
tightened.
After the cable connection, neverfailtofastentheconnectedcablewiththe
wiring cover.
mounting plate
When you unload the indoor unit,please use
then lift the bottom of the body outward
slightly and lift the unit aslant until it
leaves the mounting plate.
agraffe mounting plate
Unloading of indoor unit body
your hand to arise the body to leave agraffe,
NOTE Thethicknessofthepipemustbe0.8mmatleast.

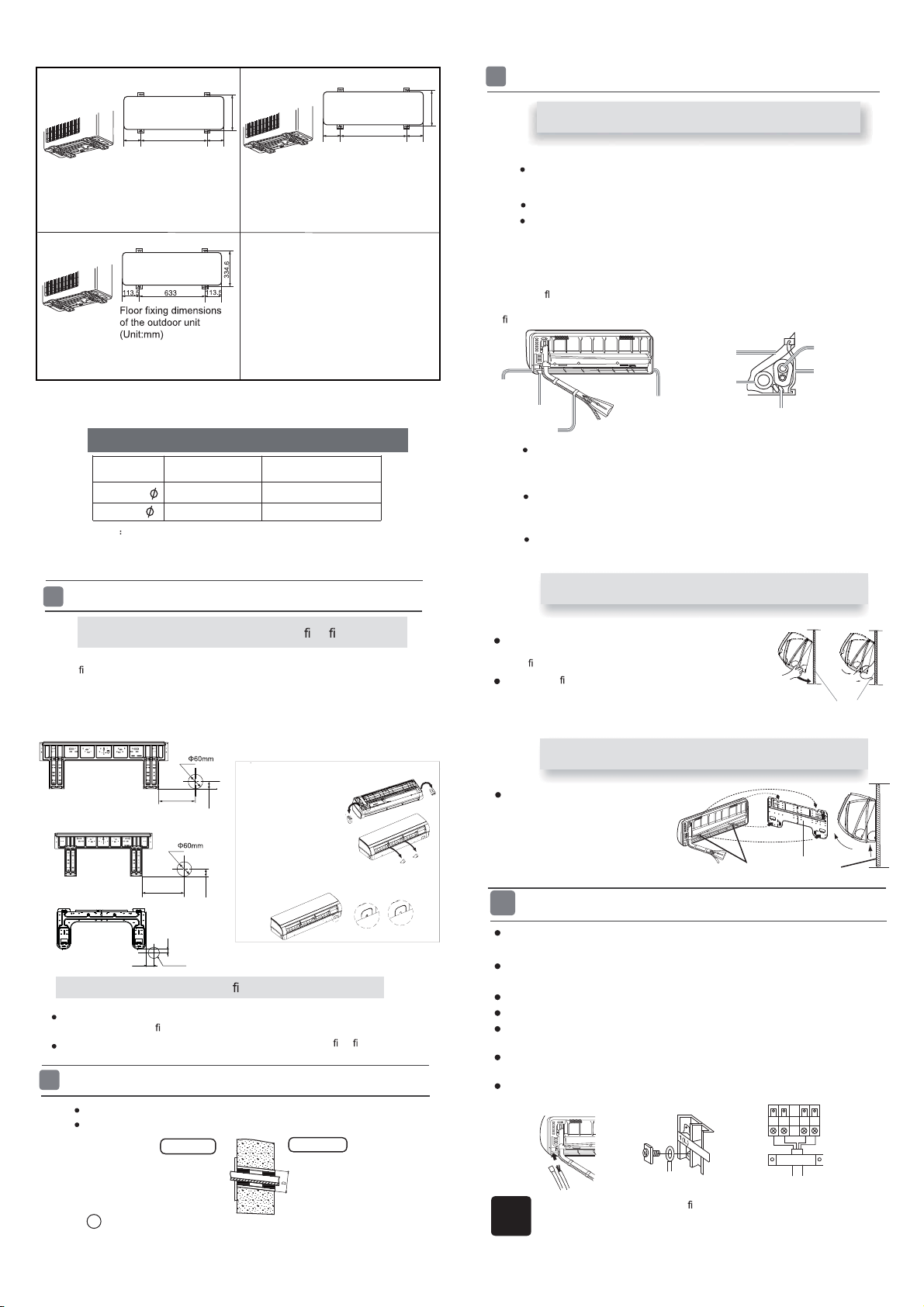

Selection of pipe
2
Liquid pipe ( )
Gas pipe ( )
For 12/18K For 24K
12.7mm(1/2")
6.35mm(1/4")
15.88mm(5/8")
9.52mm(3/8")
hole, in which the
A=113mm
B=
30mm
Pay attention to the following points before installation
of machine:
1.Take out cushion blocks on
the left and right angle beads
as shown in the following
Figure.
2. Remove 2 gaskets under the
cross-flow fan.
3. Clean the burr on the surface of fracture to avoid the power
wire from being scratched after removing the virtual opening
of the outgoing line slot on the case by hands in indoor
power-on process.
Floor fixing dimensions
of the outdoor unit
(Unit:mm)
140
500
140
062
<+)<+%$+$;
24K
18K
12K
<+)<+%$+$;
<+)<+%$+$;
Floor fixing dimensions
of the outdoor unit
(Unit:mm)
184.3
580
184.3
083
A=120mm
B=
30mm
A=41mm
20mm
% ĭPP

1.Ifthesupplycordisdamaged,itmustbereplacedbythemanufacturerorits
service agent or a similar quali ed person. The type of connecting wire is
H05RN-F or H07RN-F.
2. If the fuse on PC board is broken please change it with the type of
T. 3.15A/250V.
3. The wiring method should be in line with the local wiring standard.
4. After installation, the power plug should be easily reached.
5. A breaker should be incorporated into xed wiring. The breaker should be
all-pole switch and the distance between its two contacts should be not less
than 3mm.
3
Outdoor unit
Indoor unit
A
B
Outdoor unit
Indoor unit
A
B
A
B
Outdoor unit
Indoor unit
Oil trap
Outdoor unit
Install according to Drawing for the installation of indoor and outdoor units
To bend a pipe, give the roundness as large as possible not to crush the pipe ,
and the bending radius should be 30 to 40 mm or longer.
Connecting the pipe of gas side rst makes working easier.
The connection pipe is specialized for R410A.
Use the same method on indoor unit. Loosen the screws on terminal block and
insert the plugs fully into terminal block, then tighten the screws.
Insert the cable according to terminal number in the same manner as the indoor
unit.
If wiring is not correct, proper operation can not be carried out and controller
may be damaged.
Fix the cable with a clamp.
Installation of Outdoor Unit
Half union Flare nut
Torque wrench
CAUTION
Becarefulthatmatters,suchaswastesofsands,etc.shallnotenterthepipe.
The standard pipe length is 5m. If it is over 7m, the function of the unit will be
affected. If the pipe has to be lengthened, the refrigerant should be charged,
according to 20 g/m. But the charge of refrigerant must be conducted by profes-
sional air conditioner engineer. Before adding additional refrigerant, perform air
purging from the refrigerant pipes and indoor unit using a vacuum pump,then
Spanner
Forced fastening without careful centering may
damage the threads and cause a leakage of gas.
Pipe Diameter( ) Fastening torque
Liquid side6.35mm(1/4") 18N.m
Liquid/Gas side9.52mm(3/8") 42 N.m
Gas side 12.7mm(1/2") 55N.m
Gas side 15.88mm(5/8") 60 N.m
Max.Elevation:
In case the elevation A is more
than 5m, oil trap shoud be
installed every 5~7m
Max. Length:
In case the pipe length B is
m
diameter is 6.35mm the refrigerant
should be charged, according to 20g/m
;if the liquid diameter is 6.35mm the
refrigerant should be charged,
according to 50g/m
ore than 7m, if the liquid pipe
1
Connection of pipes
2
charge additional refrigerant.
Connection
3
If the drain-elbow is used,
please attach it as gure. (Note:
Only for heat pump unit.)
Detach the service port’s cap of
1. 3-way valve, the valve rod’s cap for 2-way valve
and3-way’s,connecttheserviceportintotheprojection of charge hose (Iow)
for gaugemanifold. Then connect the projection of charge hose (center) for gau-
gemanifold into vacuum pump.
Open the handle at Iow in
2. gaugemanifold, operate vacuum pump. If the scale-
moves of gause (Iow) reach vacuum condition in a moment, check 1. again.
Vacuumize for over 15min.And check the level gauge which should read -0.1MPa
3. (76 cm Hg) at Iow pressure side. After the completion of vacuumizing, close the
handle ‘Lo’ in gaugemanifold and stop the operation of the vacuum pump. Check
condition of the scale and hold it for 1-2min. If the scale-moves back in spite of
tightening, make aring work again, the return to the beginning of 3 .
Attaching Drain-Elbow
4
Purging Method:To use vacuum pump
5
Openthevalverodforthe2-wayvalvetoanangleof4. anticlockwise 90 degrees.
After 6 seconds, close the 2-way valve and make the inspection of gas leakage.
Amax=15m
Bmax=25m
Indoor unit Outdoor unit
2
3G2.5mm
-mod 18: 2
1/

POWER
SUPPLY
BL
BR
Y/G
Indoor unit
Outdoor unit
6G0.75mm
Power cable:
3G2.5mm
<+)<+%$+$;
<+)<+%$+$;
<+)<+%$+$;
Power cable:
3G2.5mm

Open
No gas leakage?5.
Detach the charge hose6. from the service port, open2-wayvalveand3-way.Turn
the valve rod anticlockwiseuntil hitting lightly.
In case of gas leakage, tighten parts of pipe connection. If
leakagestops,thenproceed6.steps
If it does not stop gas leakage, discharge whole refrigerants from the service
port. After Àaring work again and vacuumize, ¿ll up prescribed
refrigerantfromthegascylinder.
Anti countercurrent joint
Gaugemanifold(for R410A)
2-way valve Liquid Side
3-wayvalveGasSide
Vacuum pump(for R410A)
Tube(for R410A)
Close
2-way valve
3-way valve
Open 90O
2-way valve
3-way valve
2-way valve
3-way valve
Valve rod cap
Valve rod cap
Serviceportcap
To prevent the gas leakage, turn the service port’scap,thevalve rod’scapfor2-way
valve and 3-way’s a little more than the point where the torque increases suddenly.
After attaching the each caps, check the gas leakage around the caps.
7.
8.
Step 1. Step 2.
Step 3.
Step 7.
Step 6.
Step 4.
The power source must be exclusively used for air
ƽconditioner. (Over I0A)
In the case of installing an air conditioner in a moist place,
ƽplease install an ea-
For installation in other places, use a circuit breaker as far
ƽas possible.
Pipecuttingiscarriedoutwithapipecutterandbursmust
ƽbe removed.
After inserting the Àare nut, Àaring work is carried out.
ƽ
Iftherefrigerantoftheairconditionerleaks,itisnecessarytodischargeallthe
ƽ
refrigerant. Vacuumize ¿rst, then
c
harge the liquidrefrigerantintoairconditio-
neraccordingtotheamountmarkedonthenameplate.
Please do not let other cooling medium, except speci¿ed one (R410A), or air
ƽ
enterintothecoolingcirculationsystem.Otherwise,therewillbeabnormal
highpressureinthesystemtomakeitcrackandleadtopersonalinjuries.
1PowerSourceInstallation
2Cutting and Flaring Work of Piping
Flare tooling die 1.Cut pipe 2.Remove burs
3.Insert the Àare nut
CAUTION
FlaretoolforR410A ConventionalÀare tool
Clutch-type clutch-type(Rigid-type) Wing-nut type (Imperial-type)
A 0~0.5mm 1.0~1.5mm 1.5~2.0mm
rth leakage breaker.
4.Flare pipe
Lean Damage of Àare Crack Partial Too outside
Correct Incorrect
3On Drainage
It becomes
high midway.
The gap with the
ground is too smal
Thereisthebad
smell from a ditch
It waves.
The end is imm-
ersed in water.
Pleaseinstallthedrainhosesoastobedownwardslopewithoutfail.
Please don’t do the drainage as shown below.
ƽ
ƽ
Pleasepourwaterinthedrainpanoftheindoorunit,and
ƽ
is carried out surely to outdoor.
In case that the attached drain hose is in a room, please
ƽapplyheatinsulationto
Less than
5cm
con¿rm that drainage
it without fail.
4
Check Items for Test Run
Put check mark in boxes
Gasleakfrompipeconnecting?
Heat insulation of pipe connecting?
Are the connecting wirings of indoor and outdoor ¿rmly
Is the connecting wiring of indoor and outdoor ¿rmly ¿xed?
Is drainage securely carried out?
Is the earth line securely connected?
Istheindoorunitsecurely¿xed?
Is power source voltage abided by the code?
Is there any noise?
Is the lamp normally lighting?
Arecoolingandheating(wheninheatpump)performednormally?
Is the operation of room temperature regulator normal?
Please kindly explain to our customers how to operate
through the instruction manual.
Check for Installation and Test Run
Ƶ
inserted to the terminal block?
Ƶ
1
1+2= kg
R410A
2kg
2=
1=
B
C
D
FE
kg
A
This product contains fluorinated greenhouse gases covered by
the Kyoto Protocol. Do not vent into the atmosphere.
Refrigerant type:R410A
GWP* value:1975
GWP=global warming potential
Please fill in with indelible ink,
WKHIDFWRU\UHIULJHUDQWFKDUJHRIWKHSURGXFW
WKHDGGLWLRQDOUHIULJHUDQWDPRXQWFKDUJHGLQWKHILHOGDQG
WKHWRWDOUHIULJHUDQWFKDUJH
on the refrigerant charge label supplied with the product.
The filled out label must be adhered in the proximity of the product
charging port (e.g. onto the inside of the stop value cover).
A contains fluorinated greenhouse gases covered by the Kyoto
Protocol
B factory refrigerant charge of the product: see unit name plate
C additional refrigerant amount charged in the field
D total refrigerant charge
E outdoor unit
F refrigerant cylinder and manifold for charging
Contains fluorinated greenhouse gases
covered by the Kyoto Protocol
Refrigerant charge labelƵ
2-way valve
3-way valve

2015 Johnson Controls, Inc. www.johnsoncontrols.com Doc. No.: AH9FZHAH--151103
