Johnson 40-6060 User manual

©2014 Johnson Level & Tool - Rev. 3 1
Magnetic Digital Level
Model No. 40-6060
Instruction Manual
Congratulations on your choice of this Magnetic Digital Level. We
suggest you read this instruction manual thoroughly before using the
instrument. Save this instruction manual for future use.
8305H-All_Manuals 8/18/14 8:02 AM Page 1

2©2014 Johnson Level & Tool - Rev. 3
Table of Contents
1. Kit Contents
2. Features and Functions
3. Location of Parts/Components
4. Operating nstructions
5. Using the Product
6. Self-Check & Fine Calibration
7. Technical Specifications
8. Care and Handling
9. Product Warranty
10. Trouble Shooting
1. Kit Contents
Description for Model 40-6060 Qty.
Magnetic Digital Level 1
“AAA” Alkaline Batteries 3
Soft-Sided Pouch 1
nstruction Manual 1
2. Features and Functions
• Angle inclination in 5 construction languages - units of measure
(degrees, percent, mm/m, in/ft in decimal, in/ft in fractional)
• Working range of angle measurement 0º to 90º
• 0º and 90º - position of inclination is confirmed by a signal tone
• Automatic digit inversion for overhead measurements
• Hold-function to freeze measurement
• Magnetic base
• 1/4” - 20 thread for connection to tripod
8305H-All_Manuals 8/18/14 8:02 AM Page 2

©2014 Johnson Level & Tool - Rev. 3 3
3. Location of Part/Components
LCD D splay
Battery Compartment
8305H-All_Manuals 8/18/14 8:02 AM Page 3

4©2014 Johnson Level & Tool - Rev. 3
4. perating Instructions
Battery Installation
1. Make sure the digital level is
turned off.
2. Turn the battery compartment
cover screw counter-
clockwise to remove the cover.
Remove the old batteries, and
install the new batteries.
Note:
1. Be sure to match up polarities
when replacing the batteries.
2. Always remove the batteries before storing the instrument.
Display after Installing Batteries:
1. After installing new batteries, the LCD will display “good” and
then show “-0-”.
2. Calibrate the instrument as described in self-check & fine
calibration.
IMP RTANT: t is the responsibility of the user to verify the
calibration of the instrument before each use.
8305H-All_Manuals 8/18/14 8:02 AM Page 4

©2014 Johnson Level & Tool - Rev. 3 5
5. Using the Product

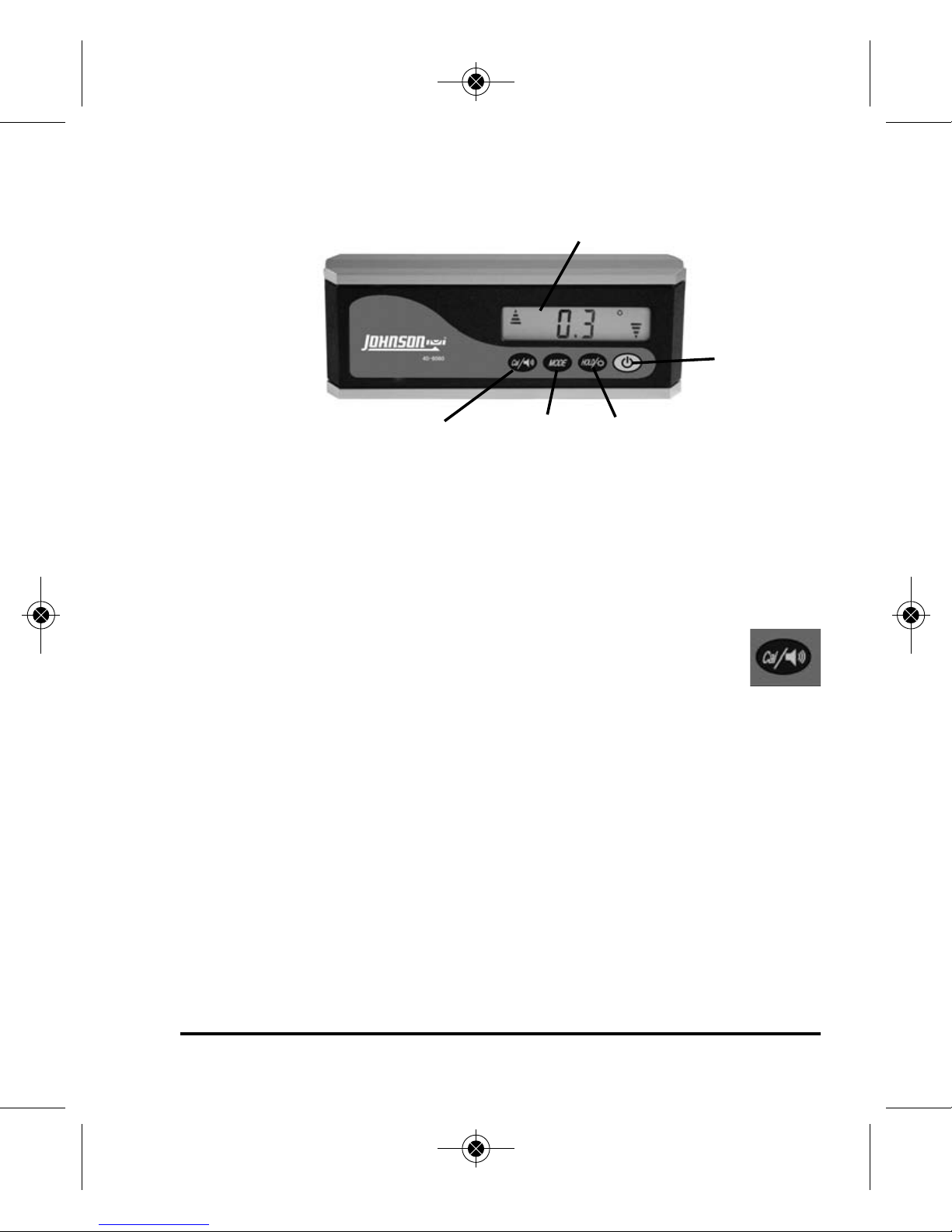

Key Guide
There are four key pads on this instrument, they are (from left
to right): calibration/sound key, mode key, hold/backlight key and the
power on/off key.
Calibration/Sound Key
A short press will activate the sound function. A long press
(more than 2 seconds) will activate the calibration function.
Periodic checking should be conducted to this instrument. f it is out
of alignment, recalibration will be necessary. This key pad is used for
horizontal and vertical calibration of the instrument. See the
“Self-Check and Calibration” in section 6.
Push the Cal/Sound a short press to turn on the horn (symbol
will be displayed). Push again to turn off. Horn will start a slow beep
at 10º and 80º and beep faster the closer you get to 0º or 90º. Once
the instrument hits 0º or 90º, you will get a steady tone.
Power
On/Off
Display
Calibration/Sound Key Mode Key Hold/Backlight Key
8305H-All_Manuals 8/18/14 8:02 AM Page 5

6©2014 Johnson Level & Tool - Rev. 3
Automatic Shut-off
This instrument will shut-off automatically if no operation is received
within 20 minutes.
Hold/Backlight Key
Set the level in place and press this key a short press to enter
into the hold status, record the current angle of the flashing
display, the displayed value will not change. Press this key again to
release the hold and the data will vary according to slope. A long
press (more than 2 seconds) will turn on the LCD backlight.
Power n/ ff Key
Power on and off the instrument by pressing this key.
Mode Key
Push the MODE key to switch from one construction language
to another. This controls which construction language your
electronic module will measure in. Your level has the capability to
measure in Degrees, Percentage of slope, Millimeters per Meter, nches
per Foot (Slope/Pitch) in decimal form and nches per Foot in fractions
of an inch. A symbol on the upper right of the screen will display
which MODE you are currently in.
8305H-All_Manuals 8/18/14 8:02 AM Page 6

©2014 Johnson Level & Tool - Rev. 3 7
Low-power Indication
When voltage is low, battery symbol will flash in the left LCD as shown
below. When this is flashing, batteries need to be replaced.
The figure below shows the left side of the digital level needs to be
moved up to achieve level.
Shows that the digital level is level.
Shows the measurement of the slope.
8305H-All_Manuals 8/18/14 8:02 AM Page 7

8©2014 Johnson Level & Tool - Rev. 3
6. Self-Check & Fine Calibration

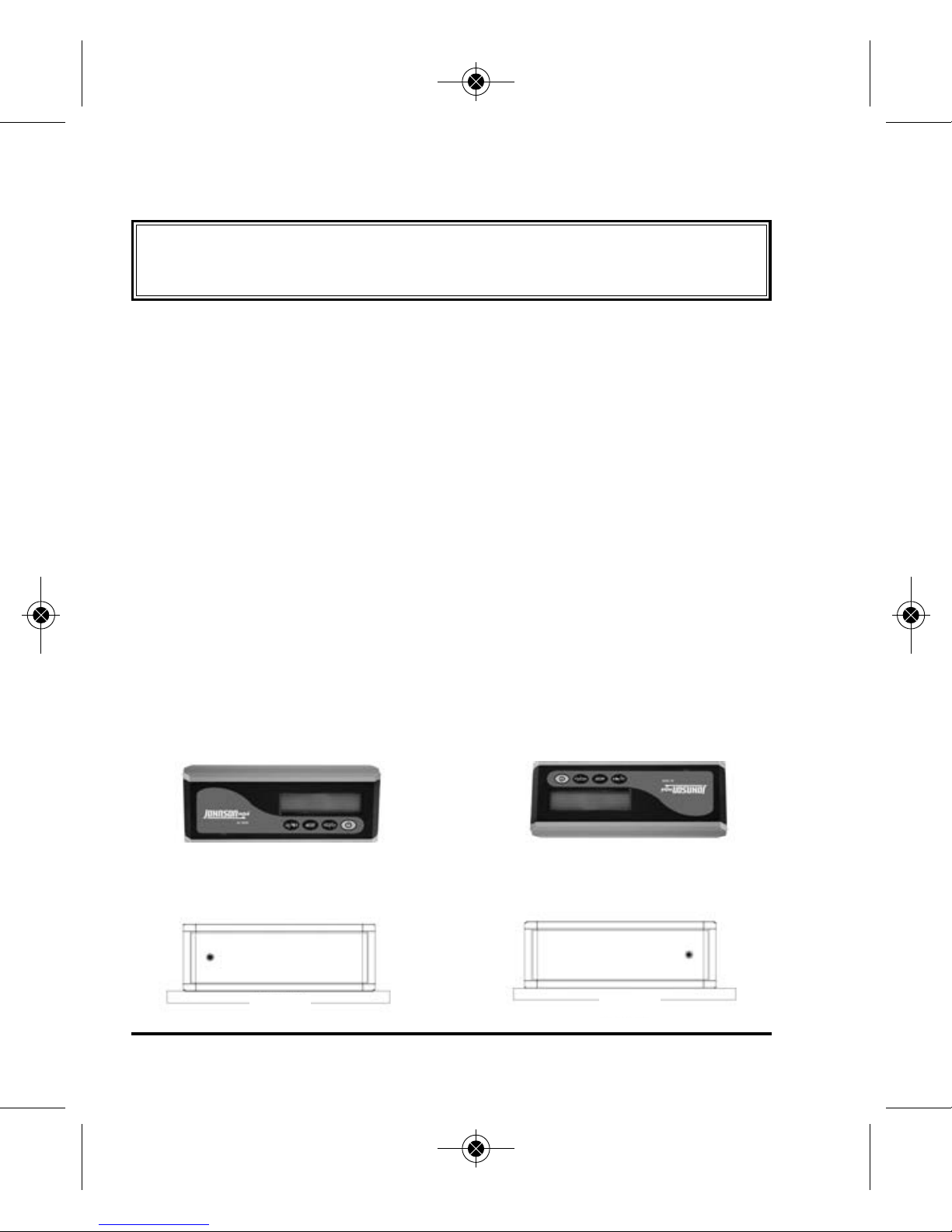

Horizontal Accuracy Check
1. Turn on the digital level and put it on a smooth and level
surface as shown in figure 1. Wait 10 seconds until the display
digits are stable and record the degree reading.
2. Rotate the digital level 180º in the same plane, see figure 2,
wait 10 seconds until the display data is stable then record
the second degree reading.
3. Turn over the digital level in the same plane, figure 3, wait 10
seconds and record the third degree reading when it is stable.
4. Rotate the digital level 180º in the same plane, figure 4, wait
10 seconds and write down the fourth degree reading when
stable.
5. Of the four degree readings, if any two of the values have a
difference over 0.2º, the unit must be recalibrated.
F gure 1 F gure 3
F gure 2 F gure 4
IMP RTANT: t is the responsibility of the user to verify the
calibration of the instrument before each use.
8305H-All_Manuals 8/18/14 8:02 AM Page 8

©2014 Johnson Level & Tool - Rev. 3 9
Vertical Accuracy Check
1. Turn on the digital level and put it on a smooth and vertical
plane as shown in figure 5. Wait 10 seconds until the data
reading is stable and then record the angle degree.
2. Rotate the digital level 180º on the same plane, see figure 6,
wait 10 seconds until the display data is stable then record
the second degree value.
3. Turn over the digital level in the same plane, figure 7, wait 10
seconds and record the third degree value when it is stable.
4. Rotate the digital level 180º in the same plane, figure 8, wait
10 seconds and write down the fourth degree value when
stable.
5. Of the four degree readings, if any two of the values have a
difference over 0.2º, the unit must be recalibrated.
Horizontal Calibration
1. Turn on the instrument and put it on a smooth and horizontal
surface, figure 9. Press and hold in for 2 seconds the Calibration
key, -0- will show on LCD display. Wait 10 seconds then press the
Calibration key again, the LCD will show -1-.
2. Rotate the digital level 180º on the same plane, figure 10, wait 10
seconds and press the Cal key until the LCD displays -2-.
F gure 5 F gure 6 F gure 7 F gure 8
8305H-All_Manuals 8/18/14 8:02 AM Page 9

10 ©2014 Johnson Level & Tool - Rev. 3
3. The horizontal calibration is complete.
F gure 9 F gure 10
7. Technical Specifications
Accuracy ±0.1º for 0º and 90º,
and ±0.2º for 1º to 89º
Working Range 0º to 90º
Resolution ±0.1º, 0.1%, 1/8", 0.02", 1.7mm
Power Supply 3 “AAA” alkaline batteries
Battery Life Approx. battery life 100 hours
continuous use
Dimensions 6.45" x 2.3" x 1.25"
(164 x 60 x 32mm)
Weight 0.66 lbs. (0.3 Kg)
Working Temperature 14°F to 113°F (-10°C to +45°C)
Center Screw Thread 1/4" – 20
8305H-All_Manuals 8/18/14 8:02 AM Page 10

©2014 Johnson Level & Tool - Rev. 3 11
8. Care and Handling
• Avoid exposing unit to shock vibrations and extreme
temperatures.
• Before moving or transporting the unit, make sure that the unit
is turned off.
• Remove the batteries when storing the unit for an extended
time (more than three months) to avoid damage to the unit
should the batteries deteriorate.
• Always store the unit in its case when not in use.
• Avoid getting the unit wet.
• Keep the level dry and clean. Remove any moisture or dirt with
a soft, dry cloth.
• Do not use harsh chemicals, strong detergents or cleaning
solvents to clean the level.
8305H-All_Manuals 8/18/14 8:02 AM Page 11

12 ©2014 Johnson Level & Tool - Rev. 3
9. Product Warranty
Johnson Level & Tool offers a three year limited warranty on each of
its products. You can obtain a copy of the limited warranty for a
Johnson Level & Tool product by contacting Johnson Level & Tool's
Customer Service Department, as provided below, or by visiting our
web site at www.johnsonlevel.com. The limited warranty for each
product contains various limitations and exclusions.
Do not return this product to the store/retailer or place of purchase.
Non-warranty repairs and course calibration must be done by an
authorized Johnson®service center or Johnson Level & Tool's limited
warranty, if applicable, will be void and there will be NO WARRANTY.
Contact one of our service centers for all non-warranty repairs.
A list of service centers can be found on our web site at
www.johnsonlevel.com or by calling our Customer Service
Department. Contact our Customer Service Department for Return
Material Authorization (RMA) for warranty repairs (manufacturing
defects only). Proof of purchase is required.
N TE: The user is responsible for the proper use and care of the
product. t is the responsibility of the user to verify the calibration of
the instrument before each use.
For further assistance, or if you experience problems with this
product that are not addressed in this instruction manual, please
contact our Customer Service Dept.
n the U.S., contact Johnson Level & Tool’s Customer Service
Department at 888-9-LEVELS.
n Canada, contact Johnson Level & Tool’s Customer Service
Department at 800-346-6682.
8305H-All_Manuals 8/18/14 8:02 AM Page 12

©2014 Johnson Level & Tool - Rev. 3 13
10. Trouble Shooting
• f the unit does not turn on, clean the battery terminals, check the
battery polarity or install new alkaline batteries.
• f the unit will not turn off, hold the power button in for several
seconds until the unit turns off.
• f the unit is out of calibration or the numbers are inverted, confirm
that the unit is not in “hold” mode when the arrows are blinking on
each side of the digital readout. Push the“hold” button to disengage
the “hold” function before attempting calibration. Follow the
calibration procedure in the user manual (section 6).
• f the unit will not calibrate, contact our Customer Service
Department.
• f the unit turns off after a short time, install new alkaline batteries
and clean the battery terminals.
8305H-All_Manuals 8/18/14 8:02 AM Page 13

14 ©2014 Johnson Level & Tool - Rev. 3
8305H-All_Manuals 8/18/14 8:02 AM Page 14

©2014 Johnson Level & Tool - Rev. 3 15
Nivel Digital Magnético
Modelo N.º 40-6060
Manual de instrucciones
Felicitaciones por la compra de este Nivel Digital Magnético. Le
sugerimos leer detenidamente y en su totalidad el manual de
operación antes de utili ar el instrumento. Guarde este manual de
operación para consultarlo en el futuro.
8305H-All_Manuals 8/18/14 8:02 AM Page 15

16 ©2014 Johnson Level & Tool - Rev. 3
Tabla de contenido
1. Contenido del kit
2. Características y funciones
3. Ubicación de partes/
componentes
4. nstrucciones de operación
5. Utilización del producto
6. Auto-Chequeo y Calibración
7. Especificaciones técnicas
8. Cuidado y manejo
9. Garantía del producto
10. Resolución de problemas
1. Contenido del Kit
Descripción del Modelo 40-6060 Cantidad
Nivel Digital Magnético 1
Baterías Alcalinas “AAA” 3
Bolso con interiores suaves 1
Manual de instrucciones 1
2. Características y funciones
• nclinación del ángulo en 5 lenguajes de construcción
– unidades de medida (grados, porcentajes, mm/m,
pulgadas/pies en decimales, pulgadas/pies en fracciones)
• Rango de trabajo angular de 0º a 90º
•
0º y 90º - la posición de inclinación se confirma por un señal auditiva
• nversión automática de dígitos para mediciones elevadas
• Función de suspensión para congelar la medición
• Base magnética
• Tornillo de 1/4”– 20 para conectarlo al trípode
8305H-All_Manuals 8/18/14 8:02 AM Page 16

©2014 Johnson Level & Tool - Rev. 3 17
3. Ubicación de partes/componentes
Pantalla LCD
Compart m ento de baterías
8305H-All_Manuals 8/18/14 8:02 AM Page 17

18 ©2014 Johnson Level & Tool - Rev. 3
4. Instrucciones de operación
Instalación de Baterías
1. Asegúrese de que el instrumento
esté apagado.
2. Para retirar la cubierta del com-
partimiento de baterías, gire el
tornillo de la cubierta en dirección
contraria a las manecillas del
reloj. Retire las baterías usadas e
instale las baterías nuevas.
Nota:
1. Cuando reemplace las baterías, asegúrese de instalarlas en la
polaridad correspondiente.
2. Retire siempre las baterías antes de guardar el instrumento.
Indicación de pantalla después de instalar las baterías:
1. Después de instalar baterías nuevas, la pantalla LCD mostrará
“good” (“buenas”) y después “-0-“.
2. Calibre el instrumento como se describe en
la sección Auto-Chequeo y Calibración.
IMP RTANTE: Es responsabilidad del usuario verificar la
calibración del instrumento antes de cada uso.
8305H-All_Manuals 8/18/14 8:02 AM Page 18

©2014 Johnson Level & Tool - Rev. 3 19
5. Utilización del producto
Guía de Botones
En este instrumento hay 4 botones. De izquierda a derecha:
CAL/SON DO, MODE, HOLD/ LUM NAC ÓN POSTER OR y
ENCEND DO/APAGADO.
Botón CAL/S NID (para Calibración / Sonido)
Presione el botón brevemente para activar la función de
sonido. Presione el botón por más de 2 segundos para activar la
función de calibración. Verifique la precisión del instrumento
periódicamente. Este botón se utiliza para la calibración horizontal y
vertical del instrumento. Si está desalineado, será necesario
recalibrarlo. Lea “Auto-Chequeo y Calibración” en la sección 6.
Presione el botón CAL/SON DO brevemente para activar el sonido (el
símbolo del pito deberá aparecer en la pantalla). Presione de nuevo
para apagar. Un pitido lento empezará a sonar a 10º y 80º y sonará
más rápidamente entre más se acerque a 0º o 90º. Cuando el instru-
mento alcanza 0º o 90º, el tono se vuelve constante.
Botón de
Encendido /
Apagado
Pantalla
Botón CAL/SON DO Botón MODE
(indica el lenguaje de
construcción)
Botón HOLD/ LUM NAC ÓN
POSTER OR
(para bloqueo de ángulos e
iluminación posterior)
8305H-All_Manuals 8/18/14 8:02 AM Page 19

20 ©2014 Johnson Level & Tool - Rev. 3
Apagado Automático
Este instrumento se apagará automáticamente si no se ha utilizado
por 20 minutos.
Botón H LD/ILUMINACIÓN P STERI R
(para bloqueo de ángulos e iluminación posterior)
Coloque el nivel en su sitio y presione este botón por brevemente para
activar la función de bloqueo, que bloqueará el ángulo medido, indicado
por una señal intermitente. El valor que aparece en la pantalla no cam-
biará. Presione este botón de nuevo para desactivar la función de bloqueo
y la información variará según la inclinación. Presione el botón por más de
2 segundos para encender la luz LCD para iluminación posterior.
Botón N/ FF (para encendido y apagado)
Presione este botón para encender y apagar el instrumento.
Botón M DE (indica el sistema de medición)
La función MODE controla en qué lenguaje de construcción el
instrumento efectuará la medición. Presione el botón MODE para
cambiar de un lenguaje a otro. Este instrumento efectúa mediciones en
grados, porcentaje de inclinación, milímetros por metro, pulgadas por pie
(inclinación/pendiente), décimos de pulgada, y pulgadas por pie en
fracciones de pulgada. Un símbolo al lado superior derecho de la pantalla
mostrará en qué sistema se está efectuando la medición.
8305H-All_Manuals 8/18/14 8:02 AM Page 20
