Johnson 40-6636 User manual

©2012 Johnson Level & Tool 1
Model No. 40-6636 Sel -Leveling
360º Line Laser
Model No. 40-6637 Sel -Leveling
360º Line Laser w/4 Horizontal Dots
Model No. 40-6638 Sel -Leveling
360º Line Laser with Detector
Model No. 40-6639 Sel -Leveling 360º Line
Laser w/4 Horizontal Dots and Detector
Instruction Manual
Congratulations on your choice of this Self-Le eling 360º Line Laser. We suggest
you read this instruction manual thoroughly before using the instrument. Sa e this
instruction manual for future use.
These lasers emit one 360º horizontal laser beam or one 360º horizontal laser beam
with four dots that are 90º to each other. The laser features visual and audible out of
range indication and a pendulum-locking design. Beam visibility depends upon
lighting conditions in the work area.
This is a Class IIIa laser tool and
is manufactured to comply with
C R 21, parts 1040.10 and
1040.11 as well as international
safety rule IEC 285.
!
6249H-All_Manuals 10/22/12 7:58 AM Page 1

2©2012 Johnson Level & Tool
Table of Contents
1. Kit Contents
2. eatures and unctions
3. Safety Instructions
4. Location/Content
of Warning Labels
5. Location of Parts/Components
6. Operating Instructions
7. Using the Product
8. Self-Check & ine Calibration
9. Technical Specifications
10. Application Demonstrations
11. Care and Handling
12. Product Warranty
13. Warranty Registration
14. Accessories
1. Kit Contents
Description odel No’s 40-6636 & 40-6637 Qty.
Self-Leveling 360º Line Laser 1
Wall Mount Bracket 1
“AA” Alkaline Batteries 4
Instruction Manual with Warranty Card 1
Soft-Sided Carrying Case 1
Description odel No’s 40-6638 & 40-6639 Qty.
Self-Leveling 360º Line Laser 1
Wall Mount Bracket 1
“AA” Alkaline Batteries 4
Detector with Bracket and 9V Battery 1
Instruction Manual with Warranty Card 1
Soft-Sided Carrying Case 1
2. Features and Functions
• Indoor and outdoor use (for outdoor use, must use 40-6780
detector included in 40-6638 and 40-6639).
• 40-6636 and 40-6638 emit a self-leveling 360º horizontal line
and the 40-6637 and 40-6639 emit a self-leveling 360º
horizontal line and 4 dots that are 90º to each other.
6249H-All_Manuals 10/22/12 7:58 AM Page 2

©2012 Johnson Level & Tool 3
3. Safety Instructions
Please read and understand all of the following instructions, prior
to using this tool. ailure to do so, may void the warranty.
DANGER!
Class IIIa Laser Product
Max. Power Output: ≤5mW
Wavelength: 625-645nm
THIS TOOL E ITS LASER RADIATION.
DO NOT STARE INTO BEA .
AVOID DIRECT EYE EXPOSURE.
ATTENTION IMPORTANT
• Read all instructions prior to operating this laser tool. Do not remove any labels from tool.
• Do not stare directly at the laser beam.
• Do not project the laser beam directly into the eyes of others.
• Do not set up laser tool at eye level or operate the tool near a reflective surface as
the laser beam could be projected into your eyes or into the eyes of others.
• Do not place the laser tool in a manner that may cause someone to unintentionally
look into the laser beam. Serious eye injury may result.
• Do not operate the tool in explosive environments, i.e. in the presence of gases or
flammable liquids.
• Keep the laser tool out of the reach of children and other untrained persons.
• Do not attempt to view the laser beam through optical tools such as telescopes as
serious eye injury may result.
• Always turn the laser tool off when not in use or left unattended for a period of time.
• Remove the batteries when storing the tool for an extended time (more than 3 months)
to avoid damage to the tool should the batteries deteriorate.
• Do not attempt to repair or disassemble the laser tool. If unqualified persons attempt
to repair this tool, warranty will be void.
• Use only original Johnson®parts and accessories purchased from your Johnson®
authorized dealer. Use of non-Johnson®parts and accessories will void warranty.
6249H-All_Manuals 10/22/12 7:58 AM Page 3

4©2012 Johnson Level & Tool
4. Location/Content of Warning Labels
6249H-All_Manuals 10/22/12 7:58 AM Page 4

©2012 Johnson Level & Tool 5
5. Location of Part/Components
Keypad
5/8” Screw
Thread
1/4" Screw
Thread
Battery Compartment
Screw
Transportation Lock
ON/O
Self-
Calibration
Aperture
Laser Output Windows
6249H-All_Manuals 10/22/12 7:58 AM Page 5

6©2012 Johnson Level & Tool
6. Operating Instructions
I PORTANT: It is the responsibility of the user to verify the
calibration of the instrument before each use.
Battery Installation
Note: Always check to be sure that the on/off switch is in the off
position before removing and replacing batteries.
Loosen the battery compartment screw, put 4 x AA alkaline batteries
into the battery compartment according to the polarity indication
shown in the battery compartment. Then put the battery
compartment back on and tighten the battery door screw.
Note:
• When power indication LED is flashing, alkaline batteries should
be replaced soon.
• Pay attention to the polarity of the batteries.
• Used (discharged) batteries are hazardous waste and should be
disposed of properly.
Battery
Compartment
Screws
Polarity Indication of Battery
6249H-All_Manuals 10/22/12 7:58 AM Page 6

©2012 Johnson Level & Tool 7
7. Using the Product
Place the laser onto any flat surface.
Connect the laser to the bracket with the 5/8” screw on the bottom of
the bracket, attach the bracket to any metal surface or strap it to a
column, or hang it on a wall.
The laser can also be placed on a 5/8” or 1/4” tripod.
Placement Strap
Magnet
Screw holes
for hanging
on a wall
6249H-All_Manuals 10/22/12 7:58 AM Page 7

8©2012 Johnson Level & Tool
Keypad Operations
Power LED:
Light On: Power on
Light Off: Power off
Light lashing: Low Battery
anual ode LED:
Light lashing: Manual mode is on and laser is on with
compensator locked
Light Off: Manual mode is off
Pulse ode LED:
Light On: Pulse mode is on and the laser can be used with the
40-6780 detector (included with 40-6638 & 40-6639)
Light Off: Pulse mode is off
Note: When manual mode is on, the laser does not self-level and
no out-of-level alarm is indicated.
Pulse Mode LED
Combination Button of Manual Mode and Pulse Mode
Manual Mode LED
Power LED
6249H-All_Manuals 10/22/12 7:58 AM Page 8

Output of the Laser:
Combination anual ode Button/Pulse ode Button:
When the laser is locked, press this button to enter into Manual
Mode, the Power LED is on, the Manual Mode LED flashes and the
laser line is on.
Press this button a second time, the Pulse Mode LED is on, the laser
line gets less bright and can be used with the detector.
Press this button a third time, Manual Mode LED, Power LED and
Pulse Mode LED are off.
When the laser is unlocked, the laser line will be on, press this button
to enter into Pulse Mode. The Pulse Mode LED is on and the laser
line will get less bright. Press this button again, and the laser will
exit the Pulse Mode and the Pulse Mode LED will turn off. When the
laser is locked, the laser line and LED will be off.
Notes:
1. The Manual Mode function is for out-of-level lines.
©2012 Johnson Level & Tool 9
Laser Line
Output of 40-6636 & 40-6638 Output of 40-6637 & 40-6639
Laser Dot
Laser Line
6249H-All_Manuals 10/22/12 7:58 AM Page 9

10 ©2012 Johnson Level & Tool
2. While the laser is in the unlocked position, the laser can not enter
into Manual Mode and will enter into self-leveling.
Power On/Off:
Turn the laser on by turning the compensator transportation lock dial
clockwise from the locked position to the unlocked position. The
power LED is on and the laser beam is on. To turn the laser off, turn
the compensator transportation lock dial counter-clockwise from the
unlocked position to the locked position. The power LED and laser
beam will turn off.
6249H-All_Manuals 10/22/12 7:58 AM Page 10

©2012 Johnson Level & Tool 11
Detector Usage (included in odel Nos. 40-6638 & 40-6639)
1. Technical Specifications
Detecting Accuracy: 0.019” ≤50 ft. (0.5mm ≤ 15m)
0.039” ≤100 ft. (1mm ≤35m)
0.059” ≥100 ft. (1.5mm ≥35m)
Automatic Shut-off: 6 minutes
Power Supply: 9V battery
Sound Indicator: fast tone, double tone and solid tone
LCD: Up arrow, Down arrow, Center sign
LED Indication: Up, Middle, Down
Dimensions: 5.905" x 2.992" x 1.142" (150 x 76 x 29mm)
Weight: 0.386 lb. (0.175kg)
Others: Rain and dust resistant
2. Components
With this laser detector, a line generated pulsed Johnson®laser can
be used both indoors with bright light and/or outdoors in the
sunlight where the beams are not visible.
6249H-All_Manuals 10/22/12 7:58 AM Page 11

12 ©2012 Johnson Level & Tool
1. Horizontal Vial
2. Reception Window
3. Sound On/Off Key
4. Power On/Off Key
5. Vertical Vial
6. Display Window
7. ront On Grade Mark
8. Beeper
9. Top Indicator Light
10. Middle Indicator Light
11. Bottom Indicator Light
12. Rear On Grade Mark
13. Rod Bracket Thread
14. Battery Door
Display Window Symbols
1. Power On
2. Low Voltage
3. Coarse/ ine
4. Sound On
5. Position Indication Arrows
6249H-All_Manuals 10/22/12 7:58 AM Page 12

©2012 Johnson Level & Tool 13
1. Battery Installation
Open the battery door, and put in one 9V battery according to the
polarity shown inside. Then snap the battery door
back.
Note:
• Remove the battery when the unit is being
stored for a long time.
• Replace the battery when the low voltage
indicator shows a low battery.
2. Operating Instructions
I PORTANT: This detector will only work when the laser is in
the pulse mode.
A. Press the Power on/off key: The detector
will beep twice and all the symbols will be
displayed on the display window. After
0.5 seconds the detector will enter its
detecting mode.
B. Detecting the horizontal laser signal: Put
the detector in a vertical position and center
the bubble in the horizontal vial with the
reception window facing the laser. A down
arrow shown on the display window and a lit
red light indicates the laser signal is below the detectors on grade
3. Operation Instructions
6249H-All_Manuals 10/22/12 7:58 AM Page 13

14 ©2012 Johnson Level & Tool
mark. An up arrow plus a yellow lit light indicates the laser signal is
above the detectors on grade mark. A middle sign plus a lit green light
indicates the laser signal is on grade.

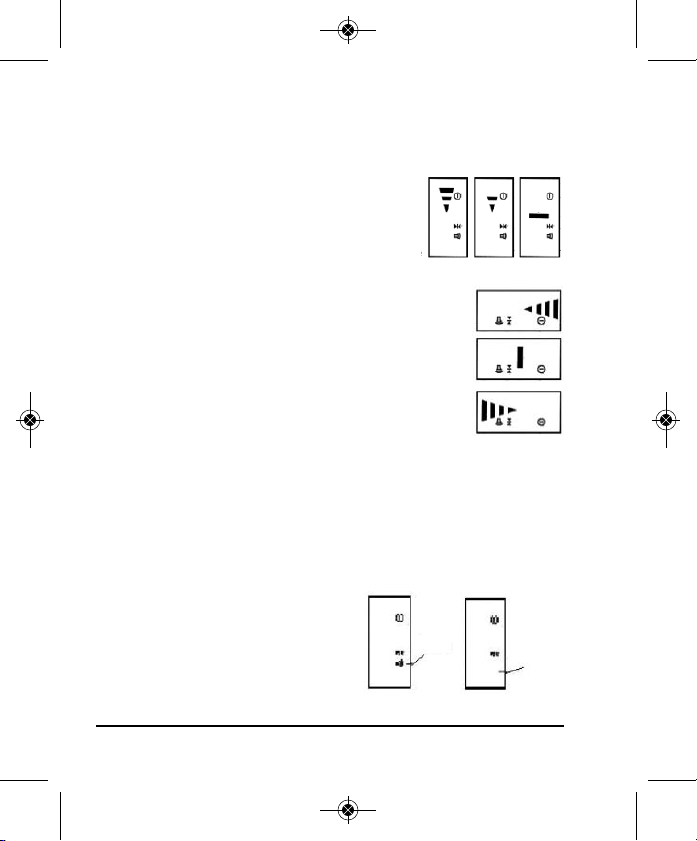

Note: When the laser signal moves towards the
center position, the displayed up or down
arrows will decrease in size, until the center
single line appears.
C. Detecting the vertical laser signal: Put the
detector in a horizontal position (center the bubble
in the horizontal vial) with the reception window
and indicator lights facing up. Have the reception
window face the unit to receive the vertical laser
signal. Left arrow shown on LCD plus a lit red light
indicates the laser signal is on the left side of center.
A middle sign with a lit green light indicates the
laser signal is on the middle position. A right arrow plus a lit
yellow light indicates the laser signal is on the right side of center.
D. Press the Power on/off key to power off the detector. The
detector will beep twice for off.
3. Sound Func ion
Pressing the sound key when the unit
is powered-on. This will switch the
unit between sound on and sound off,
note the sound sign indication on LCD.
Sound
On Sound
Off
6249H-All_Manuals 10/22/12 7:58 AM Page 14

©2012 Johnson Level & Tool 15
Sound func ion on:
• If the laser signal is on the top (left) side, then the detector will
give a fast tone.
• If the laser signal is on the bottom (right) side, then the detector
will give a double tone.
• If the laser signal is on the middle, then the detector will have a
solid tone.
4. Au oma ic Shu -Off Func ion
When not receiving a laser signal and with no operation of the keys
for six continuous minutes, the unit will power off automatically to
preserve battery life.
5. Low Ba ery Indica or Func ion
• When the power indicator sign is blinking, it
indicates that the battery is low and should
be replaced.
• A very low battery will result in an automatic
power-off, which requires the user to
replace before continued operation.
Blink
6249H-All_Manuals 10/22/12 7:58 AM Page 15

16 ©2012 Johnson Level & Tool
8. Self-Check & Fine Calibration
I PORTANT: It is the responsibility of the user to verify the
calibration of the instrument before each use.
Accuracy Check
1. Set the device on a platform, a minimum of 5 meters away from
an indoor wall, with laser squarely facing wall.
2. Turn the device on, and after it self-levels, make a mark on the
wall (Label this mark ‘A’), then draw a vertical line through ‘A’.
3. Turn the device 90°, and after it self-levels, make a mark at the
intersection of the laser line/vertical line. (Label this mark as ‘B’).
Do the same two more times, labeling the marks as ‘C’ and ‘D’.
4. Measure the distance between the two points with the greatest
distance among A, B, C, D. This will be measurement ‘h’. If
‘h’=2mm, the accuracy of the instrument is within spec.
If ‘h’> 2mm, the accuracy of the instrument is out of tolerance,
and adjustment is necessary.
Adjustment of Self-Calibration
According to the results of #4 above, mark ‘O’ at ‘h’/2. ‘h’/2 is the
center of the highest and lowest points among A, B, C, D.
1. Aim the self-calibration aperture 1 of instrument to the
wall, and adjust to make the laser line meet ‘O’.
2. Aim the self-calibration aperture 2 of instrument to the
wall, and adjust to make the laser line meet ‘O’.
6249H-All_Manuals 10/22/12 7:58 AM Page 16

©2012 Johnson Level & Tool 17
When adjusting, note:
a. Use a 2.5mm hex-head tool (allen wrench).
b. The adjustment of each aperture may influence each other.
This means that adjusting Aperture 1 may cause
Aperture 2 to change, so a re-check of the previous
Aperture adjustment may be required.
c. The adjustment of the self-calibration screw should not
exceed 4 complete rotations (clockwise or counter-
clockwise direction).
d. If the instrument cannot be calibrated via the Apertures
(device is too far out of spec), then please contact a
distributor, repair facility, or Johnson Level & Tool
Customer Service.
6249H-All_Manuals 10/22/12 7:58 AM Page 17

18 ©2012 Johnson Level & Tool
9. Technical Specifications
Laser Wavelength 635nm±10nm
Laser Classification Class IIIa
Maximum Power Output ≤5mW
Accuracy ±1/8"/50 ft. (±1mm/10m)
Interior Range Up to 200 ft. (60m) depending upon light
conditions
Exterior Range Up to 300 ft. (90m) with detector
(included in 40-6638 & 40-6639)
Self-leveling Range ±5°
Power Supply 4 “AA” alkaline batteries
Battery Life Approx. battery life 10 hours continuous use
Dimensions 3.74" x 5.11" (95 x 130mm)
Weight 1.869 lbs (0.7 Kg)
Working Temperature 14° to 113° (-10°C to +45°C)
Center Screw Thread 5/8" – 11
IP Protection 54
6249H-All_Manuals 10/22/12 7:58 AM Page 18

©2012 Johnson Level & Tool 19
10. Application Demonstrations
Installing baseboards
Installing tile Aligning doors and windows
Installing partitions
6249H-All_Manuals 10/22/12 7:58 AM Page 19

20 ©2012 Johnson Level & Tool
11. Care and Handling
•This laser unit is a precision tool that must be handled with care.
•Avoid exposing unit to shock vibrations and extreme temperatures.
•Before moving or transporting the unit, make sure that the unit is turned off.
•Remove the batteries when storing the unit for an extended time (more than
three months) to avoid damage to the unit should the batteries deteriorate.
•Always store the unit in its case when not in use.
•Avoid getting the unit wet.
•Keep the laser unit dry and clean, especially the laser output window.
Remove any moisture or dirt with a soft, dry cloth.
•Do not use harsh chemicals, strong detergents or cleaning solvents to clean
the laser unit.
12. Product Warranty
Johnson Level & Tool offers a three year limited warranty on each of its products.
You can obtain a copy of the limited warranty for a Johnson Level & Tool
product by contacting Johnson Level & Tool's Customer Service Department,
as provided below, or by visiting our web site at www.johnsonlevel.com. The
limited warranty for each product contains various limitations and exclusions.
Do not return this product to the store/retailer or place of purchase.
Non-warranty repairs and course calibration must be done by an authorized
Johnson®service center or Johnson Level & Tool's limited warranty, if
applicable, will be void and there will be NO WARRANTY. Contact one of our
service centers for all non-warranty repairs. A list of service centers can be
found on our web site at www.johnsonlevel.com or by calling our Customer
Service Department. Contact our Customer Service Department for Return
Material Authorization (RMA) for warranty repairs (manufacturing defects
only). Proof of purchase is required.
6249H-All_Manuals 10/22/12 7:58 AM Page 20
