Johnson 40-6936 User manual

©2015 Johnson Level & Tool - Rev. 1 1
Electronic Digital Theodolite
with Laser
Model No. 40-6936
Instruction
Manual
Congratulations on your choice of this Electronic Digital Theodolite with
laser. We suggest you read this instruction manual thoroughly before
using the instrument. Save this instruction manual for future use.
This is a Class IIIa laser
tool and is manufactured
to comply with CFR 21,
parts 1040.10 and
1040.11 as well as
international safety rule
IEC 285.
!
8863H-English_Manuals 3/14/15 12:58 PM Page 1

2©2015 Johnson Level & Tool - Rev. 1
Table of Contents
1. Kit Contents
2. Features and Functions
3. Safety Instructions
4. Location/Content of
Warning Labels
5. Location of Parts/Components
6. Operating Instructions
7. Using the Product
8. Self-Check & Fine Calibration
9. Technical Specifications
10. Care and andling
11. Product Warranty
12. Warranty Registration
13. Accessories
14. Trouble Shooting
1. Kit Contents
Description for Model 40-6936 Qty.
Electronic Digital Theodolite with Laser 1
Alkaline Battery Compartment (batteries not included) 1
NiM Rechargeable Battery Pack 1
3-7.5V Battery Adapter 1
Rain ood 1
Adjustment Tools 1
Instruction Manual with Warranty Card 1
ard-Shell Carrying Case 1
8863H-English_Manuals 3/14/15 12:58 PM Page 2

©2015 Johnson Level & Tool - Rev. 1 3
2. Features and Functions
• Electronic Thoedolite with dual-axis compensator and laser beam
integrated in the telescope. Beam is focussable.
• 5” angular accuracy - accurate enough for any construction job
• Vertical axis compensation - tilt sensor provides the highest level
of accuracy and can be turned on or off depending on job
requirements
• Dual LCD with large characters - easy to see angle readings
eliminate errors and reduces eye fatigue
• Backlit LCD screen and telescope reticle - allows work in low light
conditions including indoors and extended hours near dawn
and dusk
• Simple six button keypad - quick setups and simple operation with
low operator learning curve
• Large suite of programmable settings - provide multiple options for
various users and job requirements including zero position of
vertical angle
• Measurement units in degrees, gon, or mils
• 90 degree angle audible notification - for quick turning and set out
of right angles
• Instant conversion of vertical angles to percent of grade -
convenient for slope work
• Ni-M rechargeable battery pack and charger - lower operating cost
with reusable batteries
• Alkaline battery pack standard - provides backup and eliminates
downtime if the charge is lost in the middle of a job
• Battery status indicator - no power surprises and allows for better
planning
• Automatic shutoff - conserves battery life when not in use - can be
disabled if desired
• Laser Plummet
8863H-English_Manuals 3/14/15 12:58 PM Page 3

4©2015 Johnson Level & Tool - Rev. 1
3. Safety Instructions
Please read and understand all of the following instructions, prior
to using this tool. Failure to do so, may void the warranty.
DANGER!
Class IIIa Laser Product
Max. Power Output: ≤5mW
Wavelength: 625-645nm
THIS TOOL EMITS LASER RADIATIO .
DO OT STARE I TO BEAM.
AVOID DIRECT EYE EXPOSURE.
ATTENTION IMPORTANT
• Read all instructions prior to operating this laser tool. Do not remove any labels from tool.
• Do not stare directly at the laser beam.
• Do not project the laser beam directly into the eyes of others.
• Do not set up laser tool at eye level or operate the tool near a reflective surface as
the laser beam could be projected into your eyes or into the eyes of others.
• Do not place the laser tool in a manner that may cause someone to unintentionally
look into the laser beam. Serious eye injury may result.
• Do not operate the tool in explosive environments, i.e. in the presence of gases or
flammable liquids.
• Keep the laser tool out of the reach of children and other untrained persons.
• Do not attempt to view the laser beam through optical tools such as telescopes as
serious eye injury may result.
• Always turn the laser tool off when not in use or left unattended for a period of time.
• Remove the batteries when storing the tool for an extended time (more than 3 months)
to avoid damage to the tool should the batteries deteriorate.
• Do not attempt to repair or disassemble the laser tool. If unqualified persons attempt
to repair this tool, warranty will be void.
• Use only original Johnson®parts and accessories purchased from your Johnson®
authorized dealer. Use of non-Johnson®parts and accessories will void warranty.
8863H-English_Manuals 3/14/15 12:58 PM Page 4

©2015 Johnson Level & Tool - Rev. 1 5

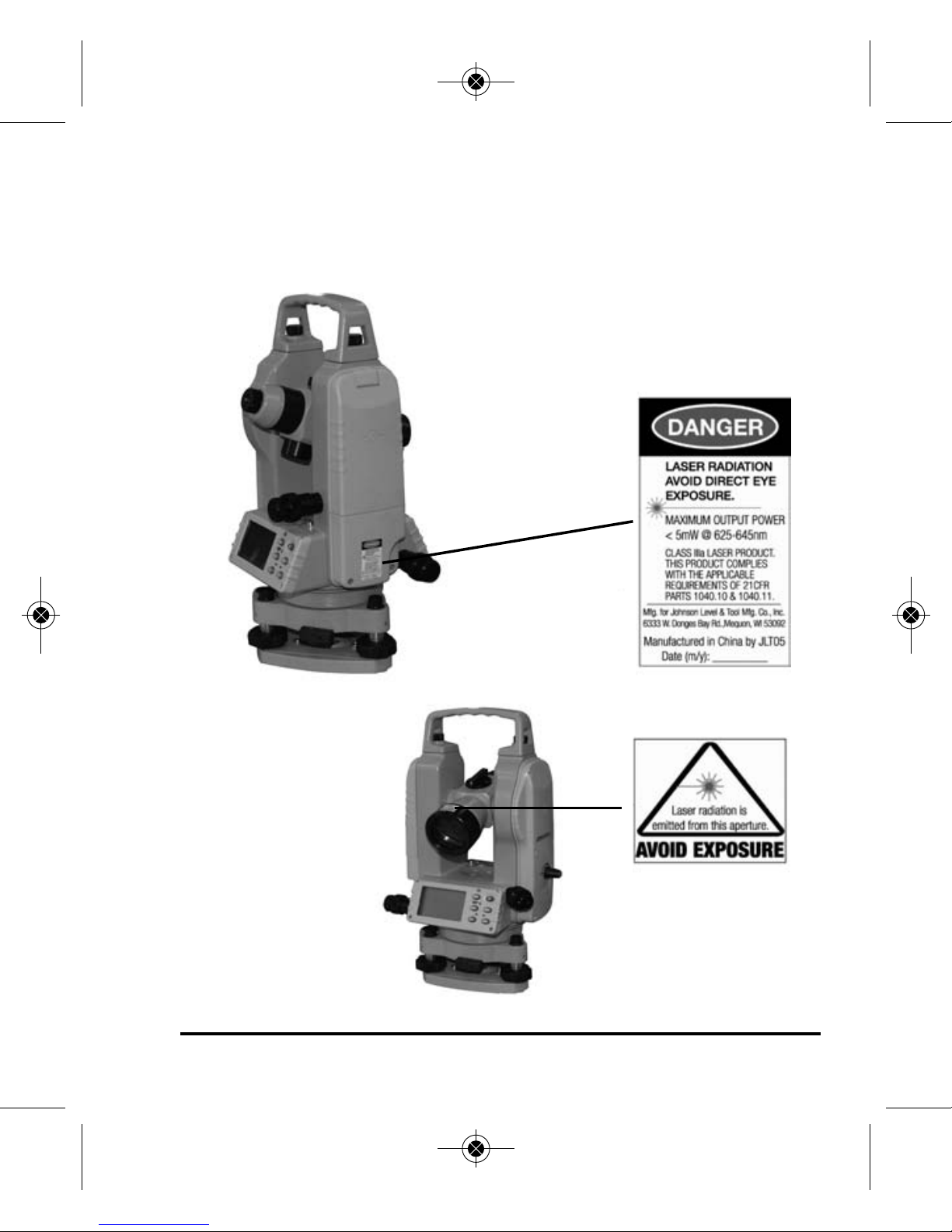

4. Location/Content of Warning Labels
8863H-English_Manuals 3/14/15 12:58 PM Page 5

6©2015 Johnson Level & Tool - Rev. 1

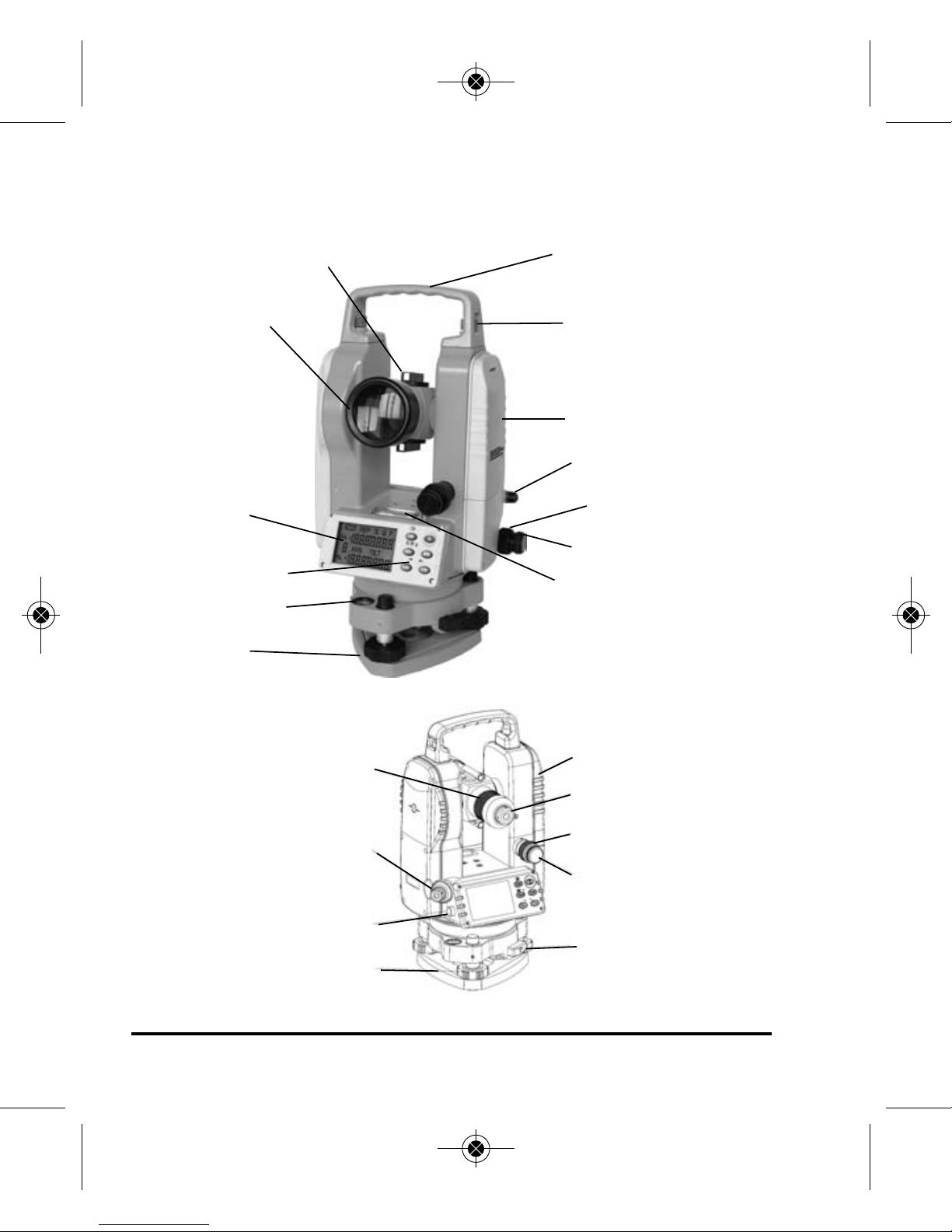

5. Location of Part/Components
andle
Targeting Sight
Objective Lens
orizontal Fine
Motion
orizontal Clamp
LCD Display
Operating Keys
Tripod Base
Plate
andle Screw
Center Mark &
Vertical Plate
Tubular Vial
Circular Vial
Battery Case
Eyepiece
Telescope Fine Motion
Telescope Clamp
Tribrach Locking
Lever
Focusing Ring
Laser Plummet
On/off Knob
Communication Port
Leveling Screw
Laser On/Off Knob
8863H-English_Manuals 3/14/15 12:58 PM Page 6

©2015 Johnson Level & Tool - Rev. 1 7
6. Operating Instructions

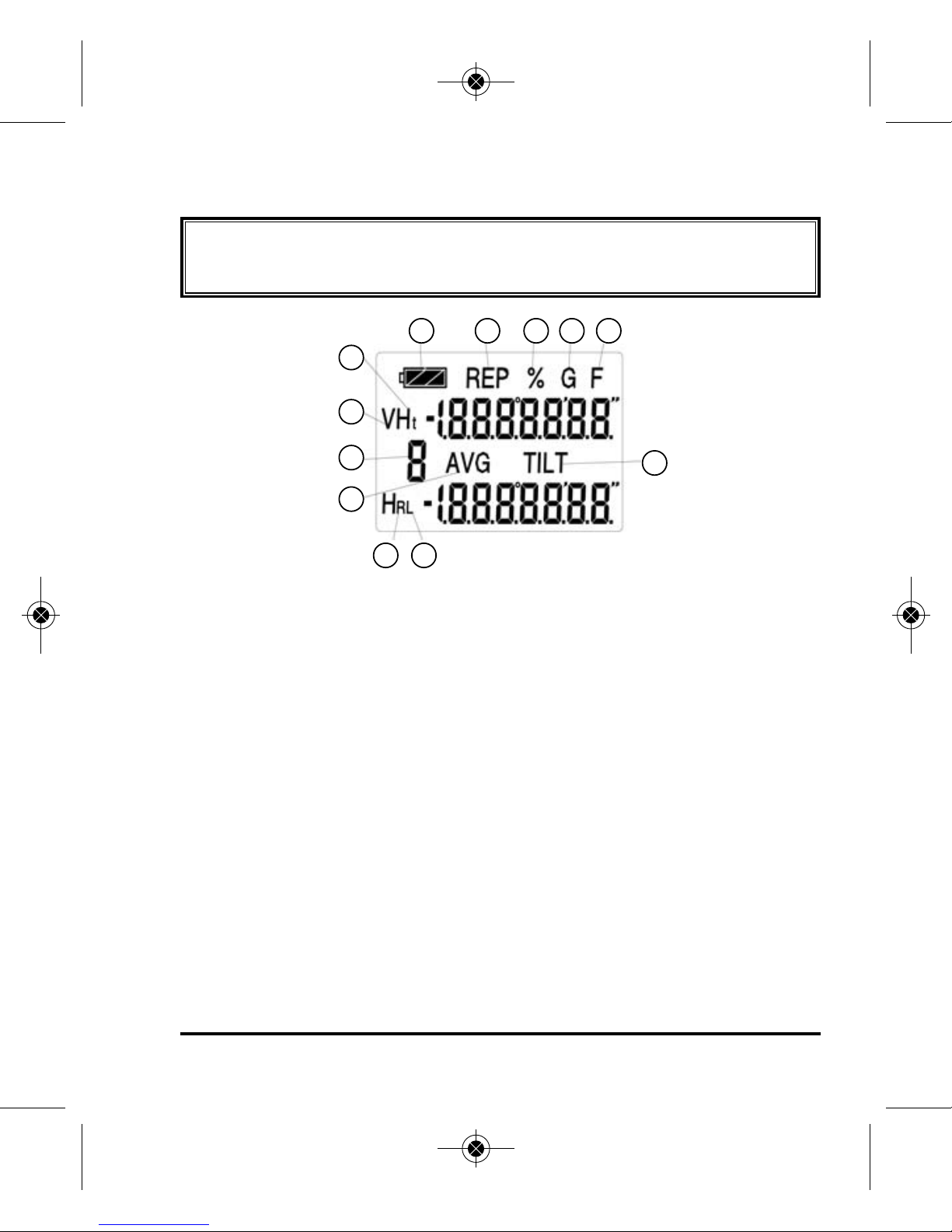

Display and Display Explanation
1. t - Total value of repeated angles measured
2. V - Vertical angle
3. Number of repeated measurements
4. AVG - Value of repeated angle measurements
5. R - Angle increases with clockwise turning
6. L - Angle increases with counterclockwise turning
7. TILT - Tilt sensor
8. F - Function mode
9. G - Angle unit GON
10. % - Vertical slope in percent
11. REP - Repeated angle measurement mode
12. Battery power indication
1
2
3
4
5 6
7
89
101112
IMPORTA T: It is the responsibility of the user to verify the
calibration of the instrument before each use.
8863H-English_Manuals 3/14/15 12:58 PM Page 7

8©2015 Johnson Level & Tool - Rev. 1
Change the number indicated by the cursor
Power key
Zero the horizontal angle reading
Change vertical angle to percent of grade
Repeated angle measurement
Function key selection
old horizontal angle reading
Set horizontal-angle rotation direction
Illuminating the display
Moving the cursor to the left
Moving the cursor to the right

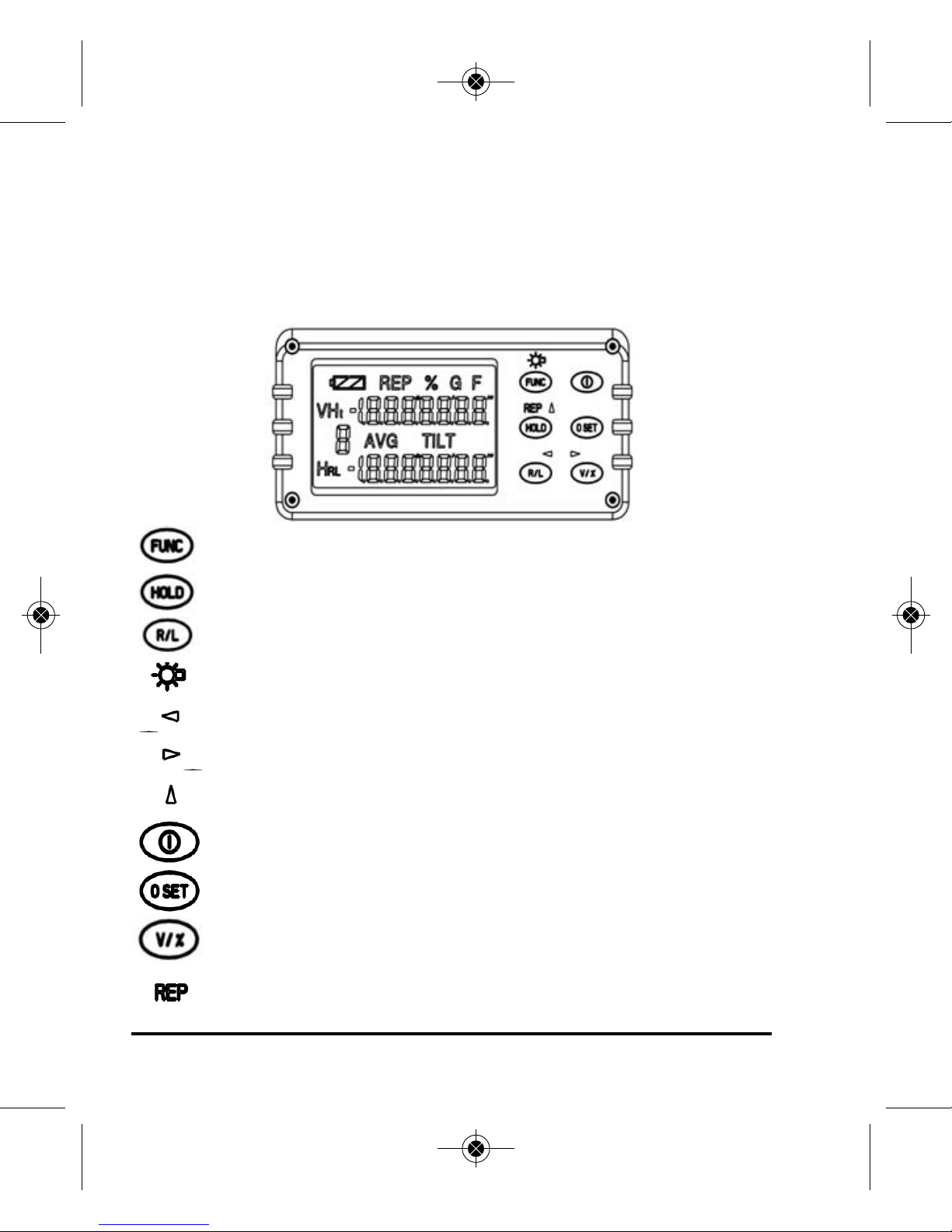

Operating Panel and Operating Keys
ote: If the display shows “b” after activating the tilt sensor, the
instrument exceeds its compensation range and the instrument
should be leveled.
8863H-English_Manuals 3/14/15 12:58 PM Page 8

©2015 Johnson Level & Tool - Rev. 1 9
Preparation Before Measurement
Centering and Leveling with Laser Plummet
• Level and center the instrument precisely to ensure its best
performance.
• Extend the tripod legs to a suitable working height with equal length
legs. Spread the tripod legs and make the tripod head as level as
possible while at the same time placing the center of the tripod head
directly over the ground point. Press the leg feet firmly into the
ground and make sure the tripod legs are locked.
• Set the instrument carefully on the center of the tripod head
orientating the leveling screws centered with each tripod leg. Attach
the instrument to the tripod. Make sure the center mark is visible on
all three leveling screws (this ensures a complete leveling range).
• With the instrument turned on, turn on the laser plummet by turning
the laser plummet on/off knob clockwise. Adjust the Laser Plummet
so the laser dot hits the ground clearly. If you cannot see the laser
dot hit the ground, carefully lift two of the tripod legs, then pivot on
the third leg, carefully moving the tripod until the ground point is
within one inch of the laser dot. Press the two tripod feet back into the
ground and recheck the laser plummet alignment. Repeat if
necessary until the ground point is being hit by the laser dot.
• Now center the instrument’s Circular Vial by carefully extending or
shortening the tripod leg closest to the bubble. Note: Use only two
legs. Repeat until alignment is within 6mm (1/4 inch) or less.
8863H-English_Manuals 3/14/15 12:59 PM Page 9

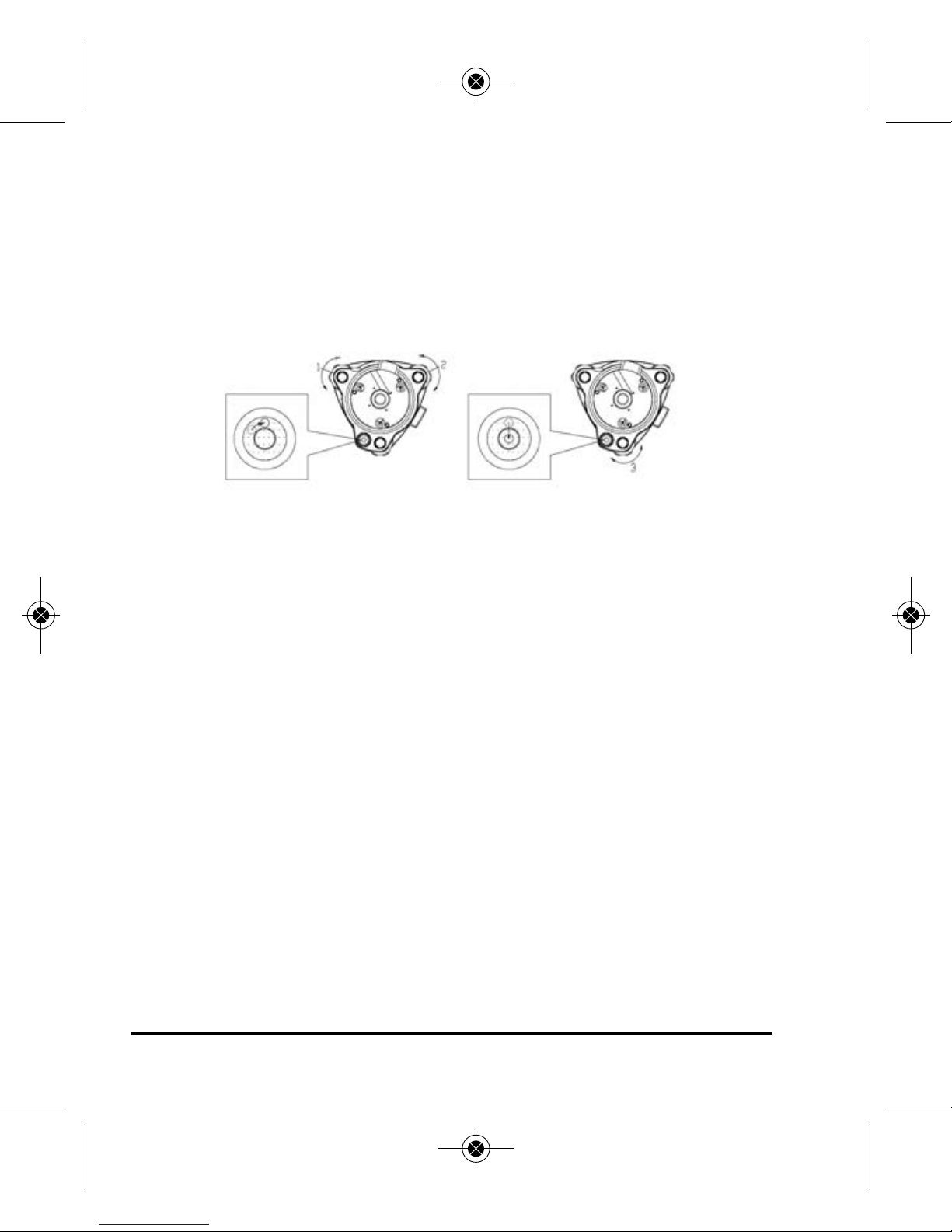

• Rotate the leveling screw 1, 2 to move the bubble to the center line
of circular level which is perpendicular to the connection line 1, 2.
• Rotate the leveling screw 3 to move the bubble to the center of the
circular level.

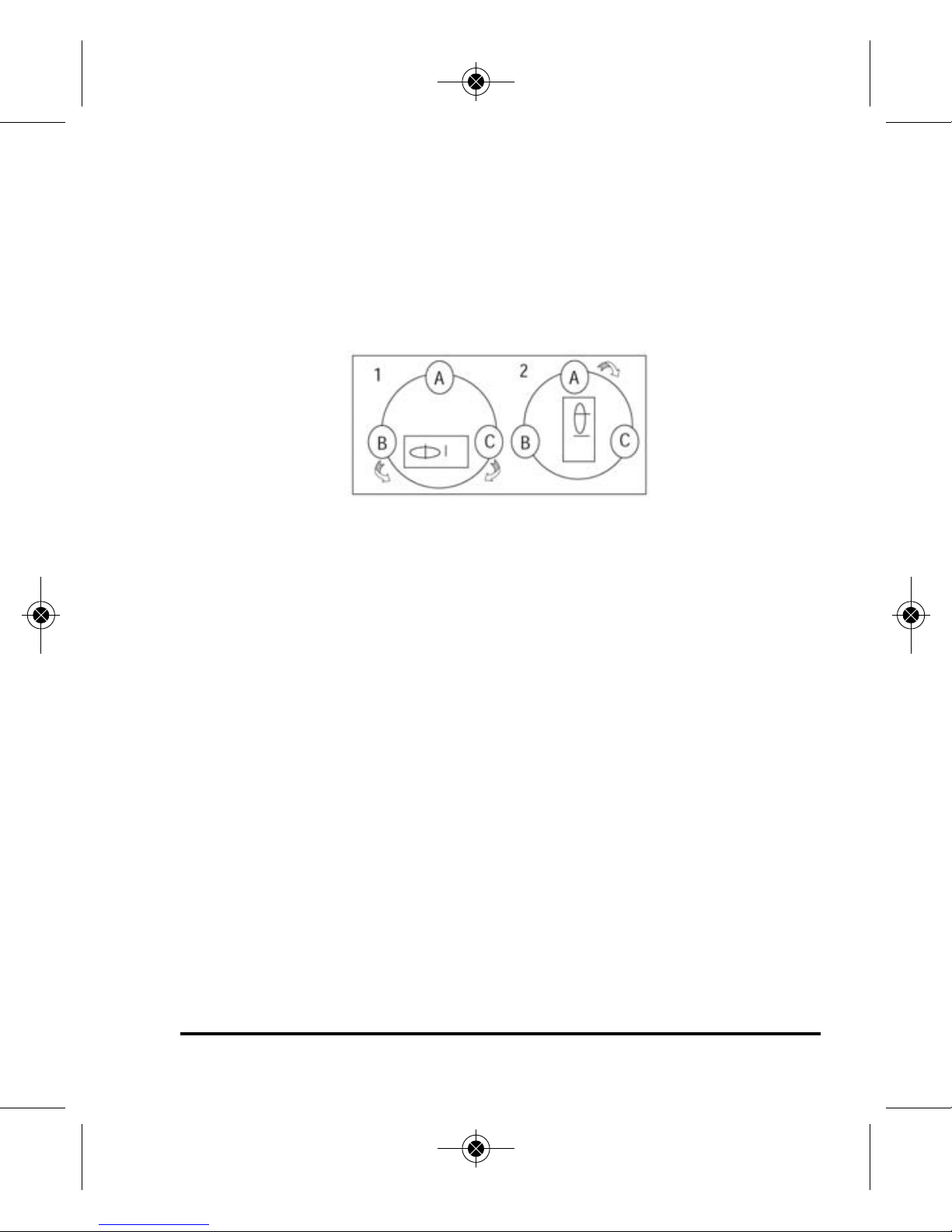

• Next use the Tubular Vial to accurately level the instrument. Unlock
and turn the instrument so that the tubular vial is parallel to BC, any
two leveling screws. Note the direction to turn the leveling screws in
the graphic. When turning the two screws, adjust them equally. The
bubble will move in the direction that your left thumb turns. To move
the bubble to the right, turn the B leveling screw in and
simultaneously turn the C leveling screw in. To move the bubble left,
move both screws out simultaneously. Once centered turn the
instrument 90º over A leveling screw and turn screw A in or out until
bubble is centered. Go back to the first position BC, and repeat until
the bubble is centered in both positions. Then from position BC turn
180º to check the adjustment. If the bubble stays centered or within
1/4 division, you are level.
10 ©2011 Johnson Level & Tool
8863H-English_Manuals 3/14/15 12:59 PM Page 10

©2011 Johnson Level & Tool 11
• Now check the ground point centering. If you are not directly on the
point, carefully loosen the tripod fastener and move the instrument on
the tripod head in an x - y direction. Do not rotate the instrument.
Recheck leveling and repeat until instrument is level and over the
ground point at the same time. With practice, this becomes easier.
8863H-English_Manuals 3/14/15 12:59 PM Page 11

12 ©2015 Johnson Level & Tool - Rev. 1
7. Using the Product
Turning on the Instrument
Press the power key on the instrument for 2 seconds
and all the symbols will be displayed on the LCD. The
buzzer will sound twice and the horizontal angle value
and “0-set” will be displayed. When “0-set” is
displayed none of the key pads operate except for the
power key. Rotate the telescope 360º to activate the vertical
measuring mode and to activate the keypad.
Battery Strength Indicator
The battery symbol on the LCD window displays the current
battery strength.
Full power
Effective battery
Effective battery
Weak voltage but still effective, suggest changing battery packs
Powers off automatically after symbol blinks. Replace the
battery pack or recharge it.
Battery Strength
8863H-English_Manuals 3/14/15 12:59 PM Page 12

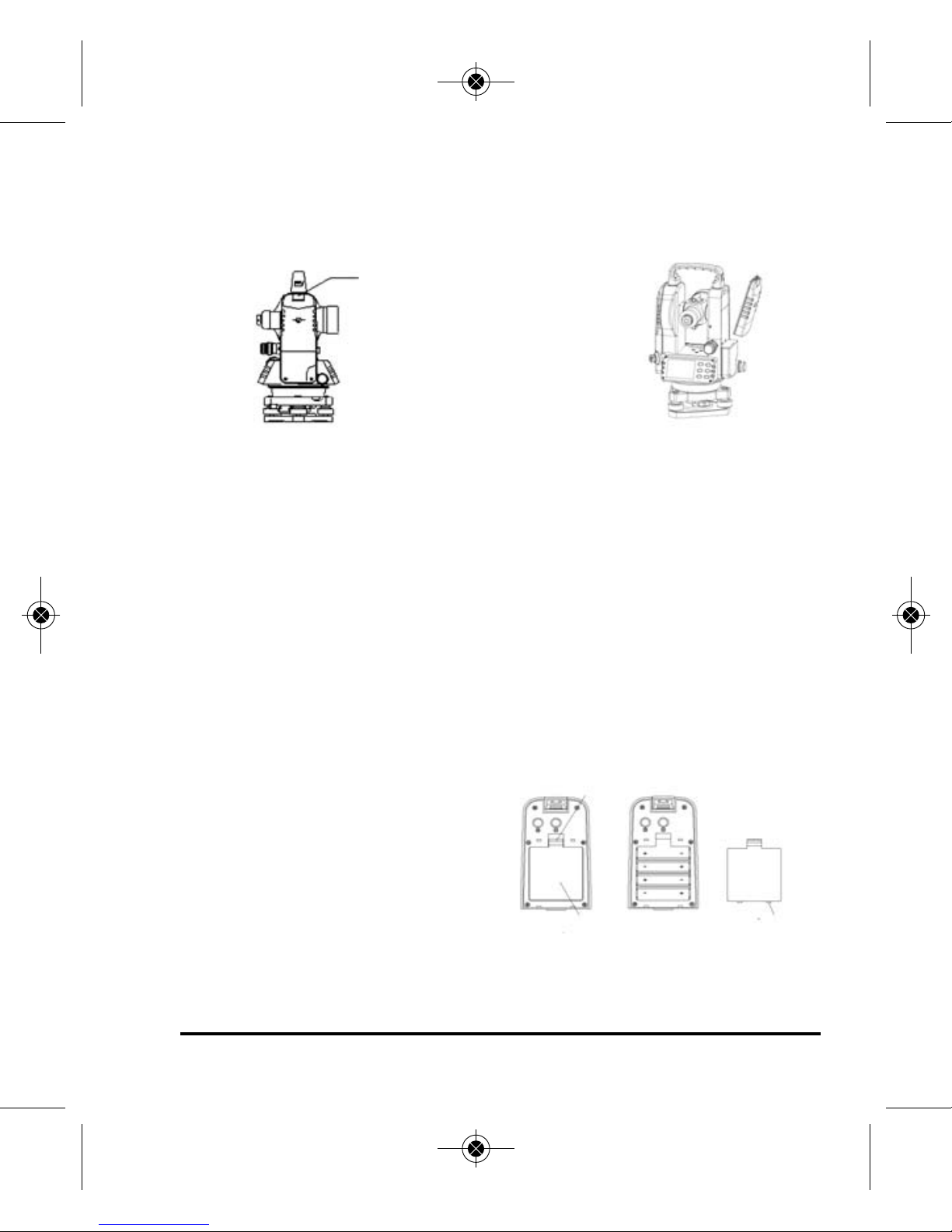

Battery Replacement
Remove Battery Box
Replace Alkaline Batteries
• Push down the battery cover tab and pull the battery cover away
from the battery box.
• Take the old batteries out and put the new batteries in paying
attention to the “+” and “-” pole.
• Snap the battery cover back into place.
Placing the Battery Box on the Instrument
Place the projection on the bottom
of the battery box into the slot on
the instrument. Push the top of
the battery box until it clicks into
place.
©2015 Johnson Level & Tool - Rev. 1 13
Battery Box Button
Push down to remove the
battery box
ook
Battery Cover Battery Cover
8863H-English_Manuals 3/14/15 12:59 PM Page 13

14 ©2015 Johnson Level & Tool - Rev. 1
Rechargeable Batteries
• Connect the charger to the AC outlet. Remove the battery box from
the instrument and insert plug of charger into the recharge socket
of battery box. A red indicator light on the charger means the
instrument is recharging. A green light means the instrument is
fully recharged.
• The plug should be pulled out from the rechargeable battery box
after the unit is recharged, the charger is equipped with an
over-charge protective circuit.
Before Using Your Laser
When you charge the new battery or one which has not been used
for long periods of time, it may not reach full charge until after you
have discharged it fully in use and recharge it several times.
Measurement of Angle
Observing in the “Normal” and “Reverse” positions of the telescope.
The normal, or direct, position of the telescope refers to observation
with the vertical circle opposite the battery door being on the left.
The reverse position refers to observation with the vertical circle
being on the right. The mechanical errors can be offset by averaging
the values measured in the normal and reverse positions.
8863H-English_Manuals 3/14/15 12:59 PM Page 14

©2015 Johnson Level & Tool - Rev. 1 15
Using the Telescope
• Point the telescope at the target and focus the eyepiece until the
crosshair can be seen clearly.
• Aim the telescope coarsely using the targeting sight. Keep a slight
distance between the targeting sight and your eye when aiming
coarsely.
• Focus the telescope by turning the focusing knob on the telescope.

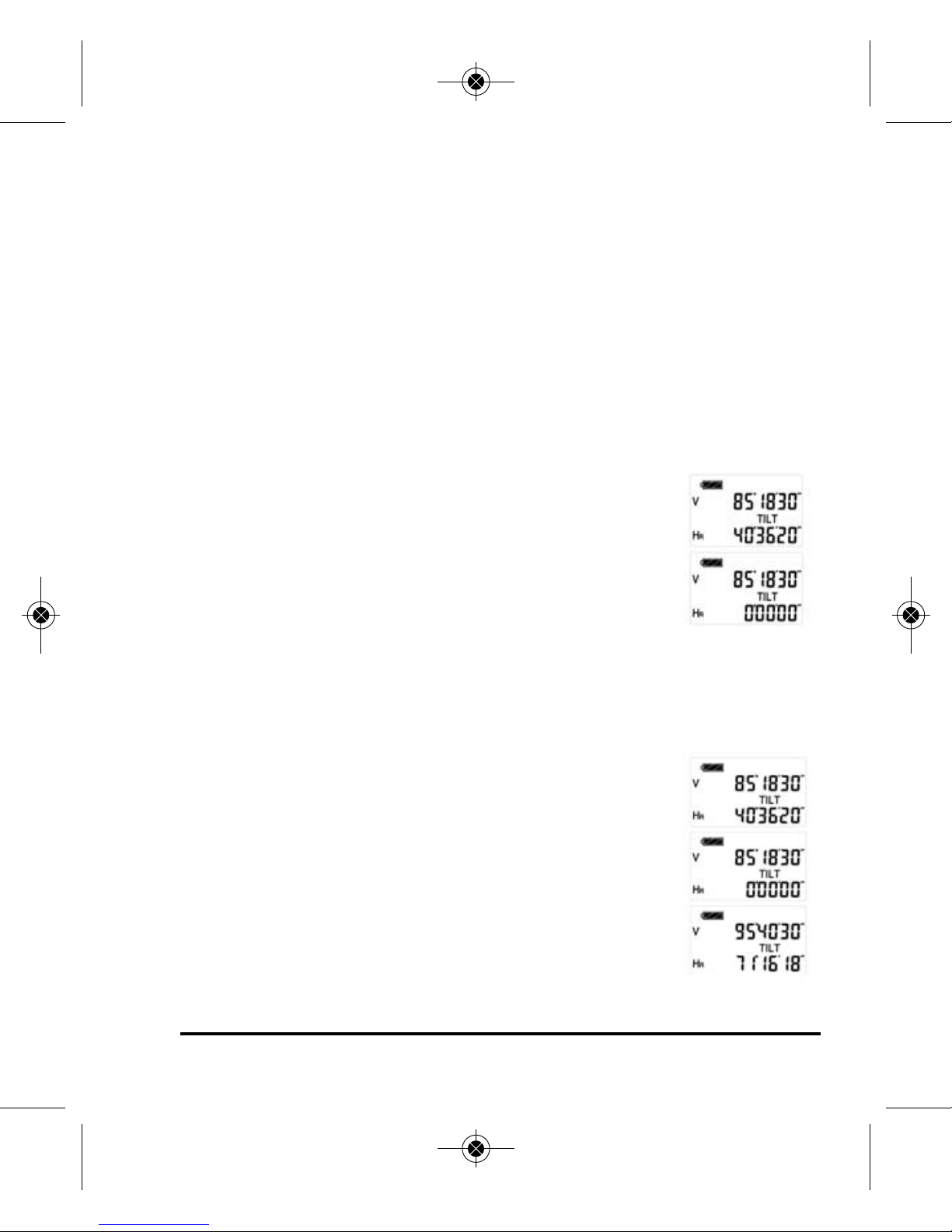

Horizontal Angle “0-set”
1. Aim at target “A” using crosshair in the telescope.
2. Press 0-Set key once to set reading of horizontal
angle 0º00’00”.
• 0-set key is only available for the horizontal angle.
• orizontal angle can be set to “0” at any time
except when the horizontal angle is in the hold status.
Measuring Horizontal and Vertical Angle (HR, V or HL, V)
orizontal angle right rotation increment and Vertical
angle measurement ( R, V)
1. Aim at the first “A” using the center crosshair.
2. Press 0-set key once to set the reading of
horizontal angle of target “A” at 0º00’00”.
3. Rotate the instrument clockwise and aim at the
second target “B” to get the horizontal and vertical
angle of target “B”.
8863H-English_Manuals 3/14/15 12:59 PM Page 15

16 ©2015 Johnson Level & Tool - Rev. 1
Conversion between horizontal angle right (HR)
and left (HL) rotation
1. Aim at a target “A” using the center of crosshair
in the telescope.
2. Press the R/L key to change horizontal angle mode
from R to mode L.
3. Measure in mode L.
• The R/L button has no effect to the vertical angle.
• Press the R/L button again, and the horizontal angle is transformed
back from L to R again.
Holding the Horizontal Angle
Press the OLD button to hold the horizontal angle. The reading will
blink while being held. The reading of the horizontal angle will
remain unchanged even if the direction of telescope is changed.
Press OLD button again, the hold of horizontal angle is released.
1. Rotate the instrument to the target.
2. Press the OLD key once to lock the value of the
horizontal angle, the reading will flash.
3. Press the OLD key again to unlock the reading.
• The OLD key has no effect to the vertical angle.
8863H-English_Manuals 3/14/15 12:59 PM Page 16

©2015 Johnson Level & Tool - Rev. 1 17

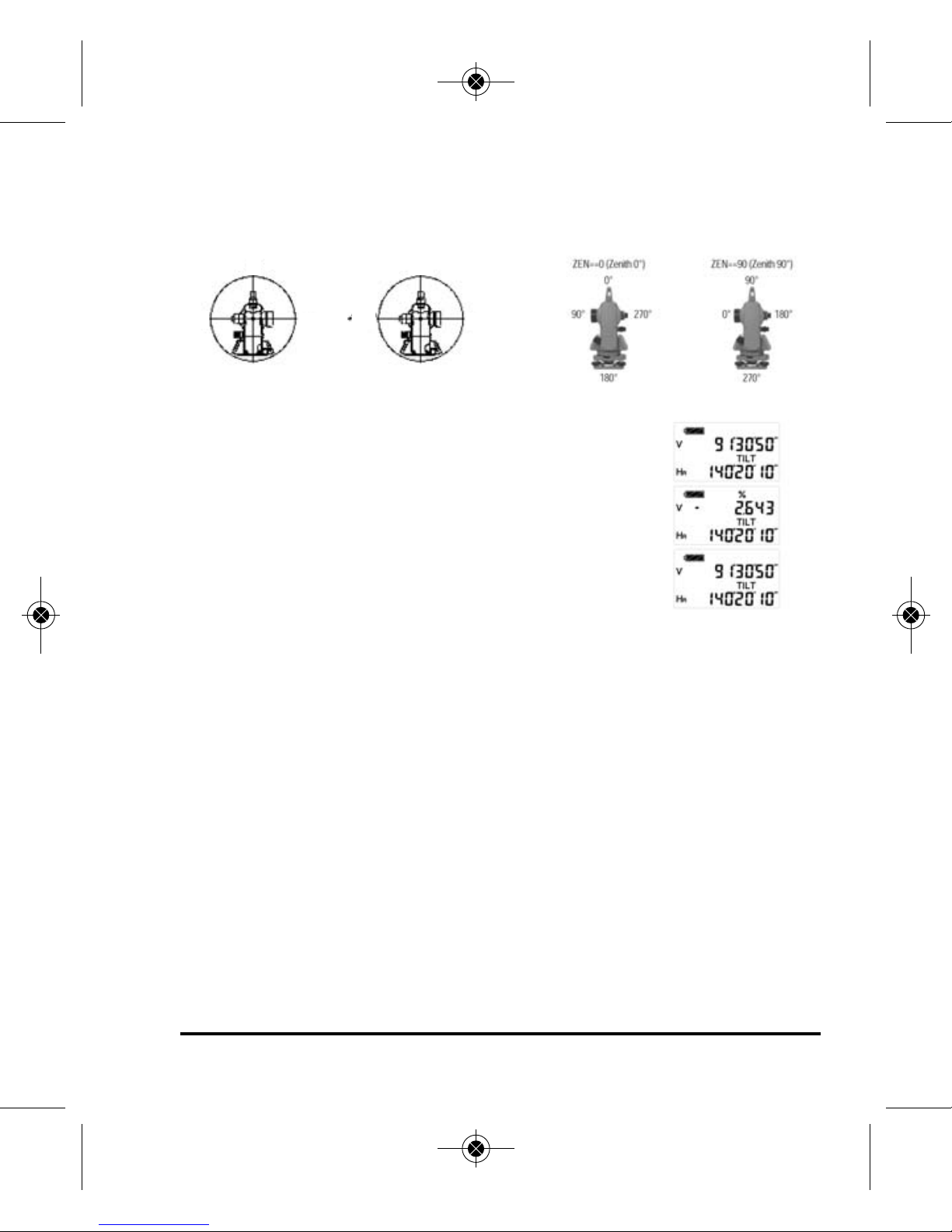

Measurement of Vertical Angle
The angle position can be set as required in the initial setting.
Display of Slope
1. Press the V/% key to switch the vertical
measurement shown from degrees to percent
of grade.
2. Press the V/% key again to switch from grade
percent back to the vertical measurement
shown in degrees.
ote: When vertical angle is converted to slope, the precision of the
slope reading is two digits after the decimal. The value of slope is
displayed only within a 45º (100%). When measure angle exceeds
100%, the percent will be shown as “----”.
0º
90º
180º
270º
90º
0º
270º
180º
8863H-English_Manuals 3/14/15 12:59 PM Page 17

18 ©2015 Johnson Level & Tool - Rev. 1
Repeat Angle Measurement
1. Press the FUNC key.
2. Press the REP key to put the instrument in
repeat mode.
3. Aim at the first target “A” and press the 0-set
key once to set the first target reading 0º00’00”.
4. Rotate the instrument and aim at the second
target “B”.
5. Press the OLD key to hold the horizontal
angle and store it in the instrument.
6. Rotate the instrument to aim at the target “A”
again. Press R/L key to release the angle
hold status.
7. Rotate the instrument to aim at the target
“B” again.
8. Press the OLD key to hold the horizontal
angle and store it in the instrument. Double
and average angle-value will be shown on
the display.
9. Repeat the last three steps according to
measuring requirements.
10. If needed return back to normal angle measurement, press FUNC
key, and then press the OLD key.
8863H-English_Manuals 3/14/15 12:59 PM Page 18

©2015 Johnson Level & Tool - Rev. 1 19
• The reading of horizontal angle can accumulate to reach
+1999º59’59” when in repeat angle measurement mode.
• Repeat measurement does not function if the angle between two
targets is less than 30”.
• The repeat measurement should be limited to 15 times when the
instrument is in the repeat measuring mode, otherwise the error
Err-04 will be shown. Start again from step 1.
• Err-04 will show on the display when measuring >+30" during the
repeat measurement, then go back to step 1.
• Press the FUNC key, and then press the OLD key to withdraw
from repeat measurement and back to the original status.
Switching Between Measuring Units
This instrument has three types of angle measurement units to
choose from: DEG, GON and MIL and can be chosen in the
preliminary setting, or by following this procedure. Simultaneously
press R/L and V/%, the angle measurement units will switch between
DEG, GON and MIL.
8863H-English_Manuals 3/14/15 12:59 PM Page 19

20 ©2015 Johnson Level & Tool - Rev. 1
Other Functions
Measuring Distance Using the Stadia Method
Read the leveling rod using the stadia hair on the reticule of the
telescope. Multiply the reading by 100 to obtain the actual distance
L from the target to the measured point. (100 is the multiplication
constant error of the instrument, i.e. 1 = 1 x 100)
Tilt Sensor
This theodolite is equipped with a tilt sensor. The inclined angle of the
instrument will be compensated automatically by the tilt sensor. If the
instrument is inclined too much, a symbol “b” will be shown on the
display , this means the instrument exceeds the compensated range.
Level the instrument by hand.
To turn on the tilt sensor and hold the R/L button in for 3 seconds
after moving the telescope to get into vertical measuring mode. The
word “Tilt” will appear on the display. If the instrument is inclined
within +3º the tilt sensor can compensate the vertical angle. If the
inclination is greater than + 3º the instrument will display “b”.
Stadia air
8863H-English_Manuals 3/14/15 12:59 PM Page 20
