SCREEN INSTALLATION GUIDE
marbletrend
inders neo
shower screen
• Immediately on receipt inspect the product for transit damage, missing packs/parts or manufacturing faults.
• Damage reported later cannot be accepted.
• Please handle the product with care avoiding knocks and shock loading to all sides and edges of glass.
• Damaged glass or missing parts will not be replaced under warranty if the installation process has begun.
• SAFETY GLASS CANNOT BEWW REWORKED, IF BROKEN IT HAS TO BE REPLACED
• Please read these instructions carefully before you start installation. Special care should be taken when drilling walls
to avoid hidden pipes or electrical cables.
• Securing into a stud or timber brace is highly recommended, if unable to do so, other secure means of xing must
then be considered.
This product is heavy and awkward
to handle.
Two-person installation is recom-
mended.
TOOLS REQUIRED
Model Door and return panel Set
Code
Flinders Neo KSSFL69CHCLP
These installation guidelines relate to the following shower screen:
IMPORTANT PRE-INSTALLATION NOTE:
1
Base compatibility:
• Marbletrend Flinders Neo Polymarble - 914x914
• Marbletrend Flinders Corner SMC - 900x900
• Evo Corner Polymarble - 914x914

SCREEN INSTALLATION GUIDE
marbletrend
inders neo
shower screen
1. Wall jambs
2. Side return panels
3. Door panel assembly
4. Handle set
5. Return panel screws - 8mm(x19)
6. Return panel screw caps(x19)
7. Wall jamb xing screws - 35mm(x8)
8. Wall jamb wall plugs(x8)
ASSEMBLY COMPONENTS
1
32
4
68 7
2
5
1
2

SCREEN INSTALLATION GUIDE
marbletrend
inders neo
shower screen
835-895
835-895
375
400
-
375
400
-
650-700
B
Locate the jambs on the wall, ensure they are plumb and mark
the outside edge of the jambs.
Mark the position of the pre-drilled screw holes - these are on
the inside of the return panel jamb and on the tab of the door
jamb.
Note that the door jamb tab must be on the inside of the show-
er.
C
Remove jambs and drill 6mm holes
and insert the wall plugs.
Note: Use the most suitable xings
for the surface you are screwing
into to ensure the jamb is securely
xed to the wall.
D
Fix the jamb to the wall
using the screws pro-
vided.
Conrm that the jambs
are plumb.
A
Measure the shower area/shower base The mea-
surement to the outside edge of the wall jambs must
be within the minimum and maximum dimension of
the panel assembly (see tables above)
Note: If using the maximum size ensure ensure you
allow for walls that may be out of plumb. If walls are
10mm out of plumb reduce your screen size by this
amount.
3
ASSEMBLY PROCEDURE
3.5 x 35mm

SCREEN INSTALLATION GUIDE
marbletrend
inders neo
shower screen
E
Slide return panels(2) assembly into wall
jambs(1).
Hint: Insert top or bottom corner rst then the rest
of the panel will slide in easily.
F
Slide front of return panel(2) into oating jamb of
door panel assembly(3).
Drill 4 equally spaced 3.2mm holes on the inside
of the panel extrusion (see diagram below).
Fix the two panels together using 8mm panel
screws. A󰀩x the screw caps to the screw heads.
Slide the door front assembly apart so it meets
the other return panel then repeat the screw xing
steps for this side.
4
Drill
and fix
here
Drill
and fix
here
2
1
1
2
23

SCREEN INSTALLATION GUIDE
marbletrend
inders neo
shower screen
G
Adjust the door and return panels so A=B=C.
This is done by sliding the xed panel in or out of
the wall jamb.
For the oating(front) jambs the top and bottom
rails of the door panel assembly slide apart for
adjustment.
Fix the bottom rail at the location shown on the
inside of the panel.
Use a level to ensure the door and return panels
are plumb. Drill 3.2mm holes as shown in the top
rail of the door assembly and x with screws
H
On the INSIDE of the screen drill 4 equally
spaced 3.2mm holes. Ensure the holes are drilled
>20mmm from the glass edge to clear the glass
panel (see diagram below). The holes must pen-
etrate the aluminium of the return panel and the
door panel assemblies.
Fix wall jambs to panels using xed panel screws
and t with screw caps.
INSIDE SHOWER VIEW
Only one hole in bottom rail
FRONT SHOWER VIEW
Drill 3.2mm holes between the end of
the xed glass and the end of the door
INSIDE
OUTSIDE
5
A
B
C
11
2 2

SCREEN INSTALLATION GUIDE
marbletrend
inders neo
shower screen

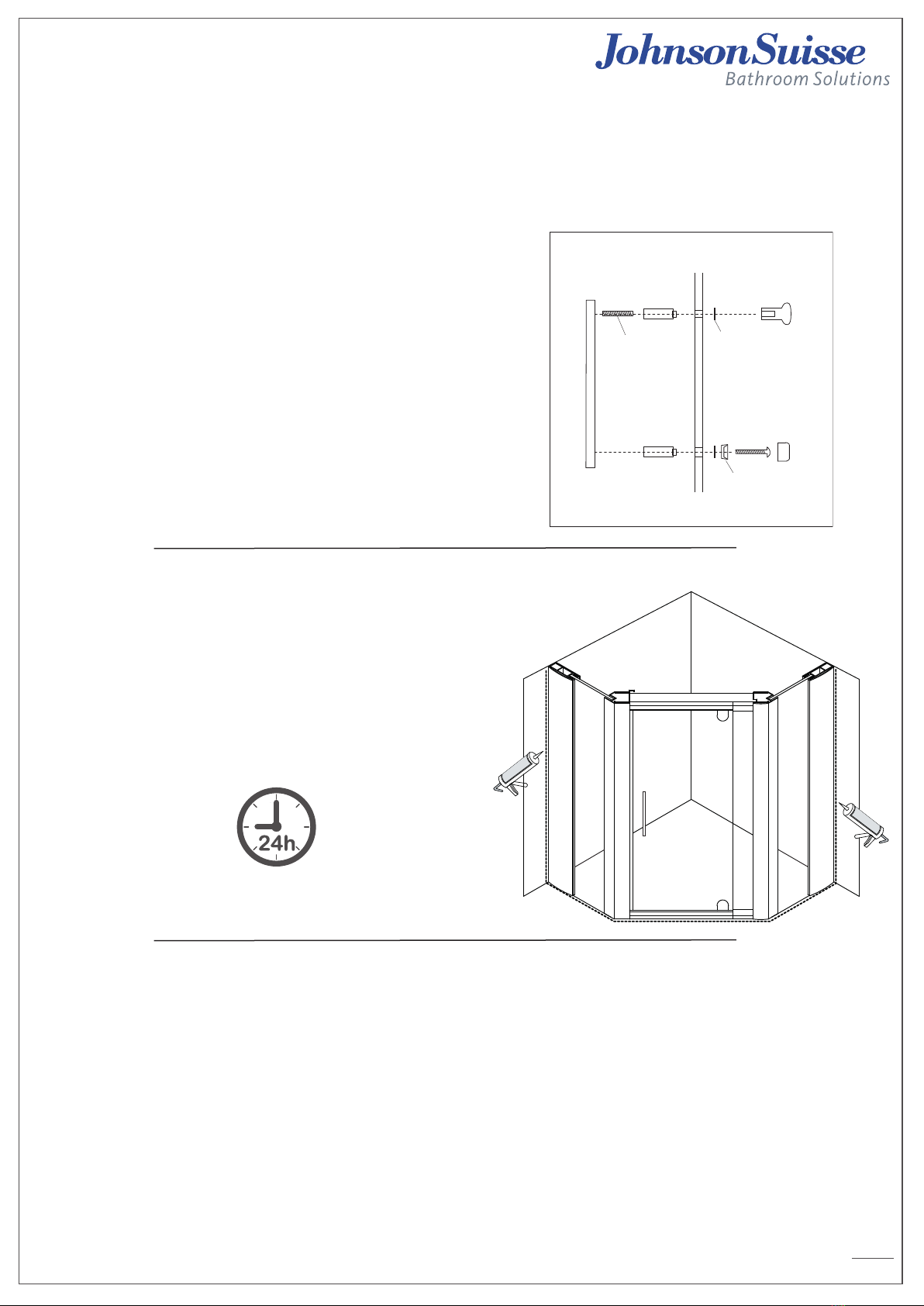

I
Attach the handle to the door as shown:
1. Screw the threaded rod into the handle
2. Slide top and bottom post onto the threaded
rod making sure that the post is facing the
right way.
3. Locate the top and bottom posts into the holes
in the glass and x the knob onto the threaded
rod. Make sure that the washer is between
the glass and the knob.
J
Apply bathroom quality silicone sealant along all external
joints of the shower screen.
Sealant is not used on the inside of the screen as in time
water may build up within the wall jamb and then leak
out of the shower area. The screen is designed to allow
water to drain within the shower area.
ALLOW 24 HOURS BEFORE USING THE SHOWER
Post
Washer
Handle
Threaded
rod
Knob
Cap
Cap base
Glass
panel
Bathroom Products Australia Pty Ltd
PO Box 728 Botany NSW 1455
Tel: [phone]
Fax: [phone]
www.johnsonsuisse.com.au
CARE INSTRUCTIONS
This shower screen has been treated with EnduroShield® easy-to-clean glass surface treatment. Please follow
the care instructions a󰀩xed to the door panel to ensure that your treatment is long-lasting.
After use, your shower should be cleaned with mild detergent and water. This is particularly important in hard
water areas where insoluble lime salts may be deposited and allowed to build up.
Cleaners of a abrasive/gritty nature should not be used. Care should be taken to avoid contact with strong
chemicals such as organic solvents and strippers. Glass cleaners can be used but with caution. If in doubt please
contact the manufacturer of the cleaner in question.
Please keep these instructions for aftercare and customer service details.
