Da-Lite ExecutiveElectrol User manual

INSTRUCTION BOOK FOR
Executive®Electrol®

2
Pre-Installation
Installation
Important Safety Instructions
When using your video equipment, basic safety precautions should always be followed, including the following:
1. Read and understand all instructions before using.
2. Position the cord so that it will not be tripped over, pulled, or
contact hot surfaces.
3. If an extension cord is necessary, a cord with a current rating
at least equal to that of the appliance should be used. Cords
rated for less amperage than the appliance may overheat.
4. To reduce the risk of electric shock, do not disassemble this
appliance. Contact an authorized service dealer when repair
work is required. Incorrect reassembly can cause electric
shock when the appliance is used subsequently.
5. The use of an accessory attachment not recommended by
the manufacturer may cause a risk of ire, electric shock, or
injury to persons.
1. Carefully unpack screen and remove outer wrapping
from case.
2. Remove fabric and cardboard strips from access door.
3. Remove access door by gently prying from middle section.
4. FOR TYPE 3 INSTALLATION ONLY, remove wood strips along
bottom edge of screen case.
5. Remove instruction cover (Fig. 1). Remove, reverse, and
remount Center Support Brackets.
6. Do not remove metal shipping brace (secures roller),
wrapping paper or tape until screen is installed.
NOTE: Screen is not centered in box. Screen is set
22" from motor end.
7. Make sure to recheck measurement of screen location
before installation.
1. Install screen by raising unit into position between joists
at one end only. Install one lag screw in each mounting
bracket. Secure opposite end. Support center of the screw
using the brackets.
2. Level unit lengthwise with a carpenter’s level and
a plum level.
CAUTION! Do not secure access door or seal in unit
until screen has been secured in position and properly
tested for satisfactory operation. Do not it unit so tightly
that the screen surface drop door binds. Door drops by
gravity only.
3. If you are going to cover screen door with paneling or other
materials, allow access (suitable holes or a plug) to screws
when servicing.
4. Remove shipping brace by removing 3 hex head
screws (Fig. 2).
CAUTION! Do not cut wrapping paper or tape
with knife or any sharp tool. Remove by hand.

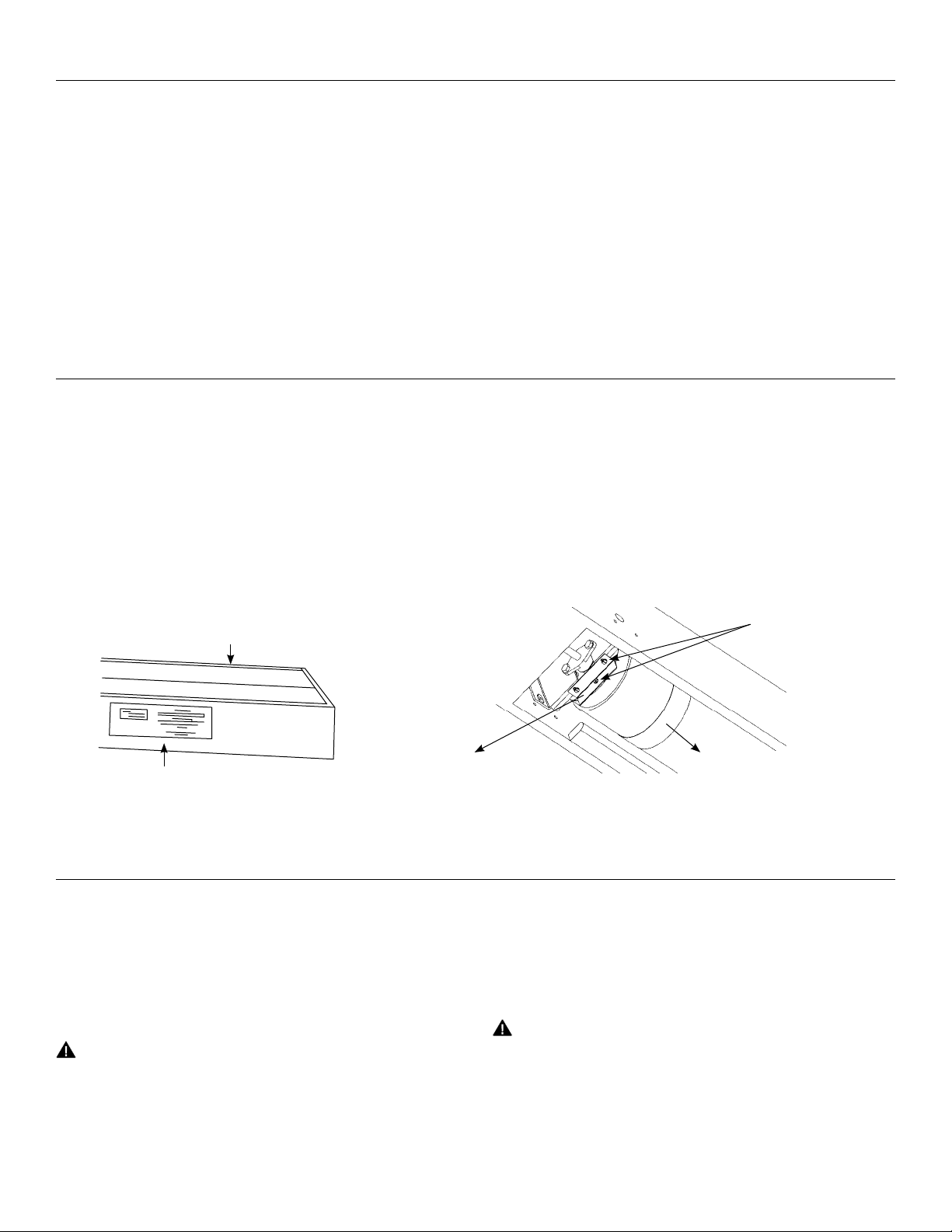

5. Remove tape strips and release fabric (Fig. 2). Picture surface
should hang freely (Fig. 3). Remove any tape left hanging on
back of fabric. Bottom edge should be positioned between
bottom edge of case and center of roller.
Case
Instruction Cover
Fabric Door
Access Door
Figure 1 Figure 2
Shipping Brace
(Not On 3" Roller)
Hex Head
Screws
Tape Strip

3
6. Install electrical hook up that applies to your unit. Unit
should be installed by a qualiied electrician.
NOTE: Must be installed in accordance with the
requirements of the Local Building Codes, the Canadian
Electrical Code (CEC), CAN/CSA C22.1 and the National
Electric Code (NEC), NFPA 70.
7. Test installation by carefully running picture surface “up”
and “down” several times. Be prepared to stop screen.
8. Make sure picture surface, when rolled down, has a full
wrap around roller. No part of roller should be exposed.
Fabric door and picture surface will drop simultaneously
when switch is pressed “down”. Door will close
simultaneously with picture surface as picture
surface rolls into case.

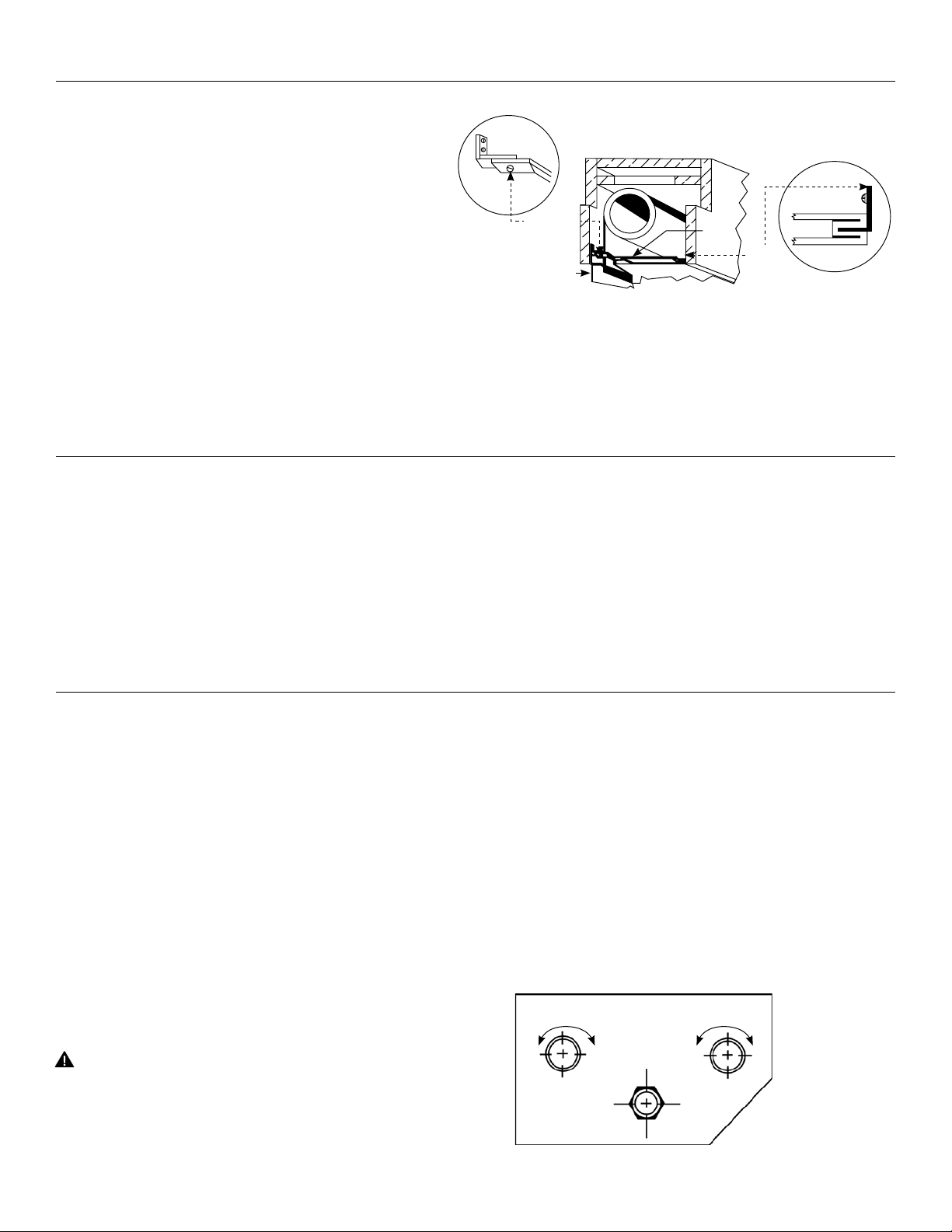

1. Press switch “down” so that fabric door opens (Fig. 3).
2. Remove screws (2) located on each bumper bracket.
NOTE: The access door is slotted on one edge, permitting the
grooved section to it over the support clips on inside of case.
3. Place access panel so groove can be pushed over clips.
Holes in access panel brackets should align with bumper
bracket holes.
4. Replace screws.
5. Make sure there is approximately 3⁄16" clearance around
access door. Keep paint, plaster, tile or mastic out of hinge.
Fit access panel so it can be removed for maintenance.
The picture surface drop, and the opening and closing of the fabric door, are controlled automatically by limit switches which have been preset
at Da-Lite. When the picture surface is moving upward, it is controlled by a limit switch that shuts of when the door closes. To adjust for more or
less picture drop (viewing area), proceed in the following manner:
Screen Unrolled in "Down" or "Bottom" Position.
NOTE: Limit switch knob labeled DOWN controls point of picture
surface in bottom position. Limit switch knob labeled DOOR controls
the synchronization of the door opening or closing. Do not adjust!
More screen drop
1. Place operating switch in “down” position.
2. When the screen stops, turn the “down” limit knob one turn at
a time clockwise, until the desired picture surface position is
attained. Test by raising picture surface approximately two
feet, then lower again. Repeat until desired picture surface
position is attained.
CAUTION! When picture surface is in "Bottom" position,
do not adjust for more than 3" of additional drop. Do not
allow any part of the roller to become exposed.
Less screen drop
1. Raise picture surface approximately two feet
above desired level.
2. Place operating switch in “of” position.
3. Turn the “down” limit knob one turn at a time
counter-clockwise.
4. Place operating switch in “down” position. Repeat
steps 2 and 3 until desired position is attained.
Installation (Continued)
Access Door Installation
Screen Adjustment
Figure 3
Cross Section
NOTE: If picture surface is hanging out of case approximately
12”, a wrap of the picture surface has been lost from around
the roller; see, “Restoring Roller Wrap”.
Access Panel
Screw (Painted)
Access Panel
Surface
Access
Panel Clip
Fabric Door
Down Door
Raise RaiseLower Lower
False Top

4
Restoring Roller Wrap
Executive Electrol®Installation
CAUTION! Do not attempt to restore a lost wrap
by adjusting limit switches!
1. Run fabric all the way down.
2. Run fabric up and stop just before door closes.
3. Remove the access panel (2 screws, Fig. 3).
4. Two people with clean hands must carefully grasp the slat
pocket at each end.
5. Gently lift fabric up and ease it over the top of the roller.
CAUTION! Be careful not to crease or damage fabric.
6. Additional wraps must be restored if screen surface continues
to hang beyond bottom of case.
7. Test screen by running fabric up and down several times.
8. Replace access panel.
3 ½"
9 ½"
2 ⁄"
4 ½"
False Top
Mounting
Brackets
⁄" Thick
“L” Bracket
Electrical Outlet
Fabric
Height x Width
As Ordered, Up
To 16' x 16'
Suggested Methods of Installation
TYPE 1 & 2
Ofset mounting,recessed above
ceiling, for plaster, dry wall or paneling.
Door painted same inish as ceiling.
TYPE 1 & 2
Allow ⅛" min. clearance all around surface door.
Flush mounting, recessed above ceiling. For use
with ¼" max. paneling or installation in existing
ceiling using molding around door.
TYPE 3
Allow ¼" min. clearance all around
surface door.
Extended mounting,recessed above
ceiling. For use with acoustical or other
ceiling tile ¾" thick laid over door.
NOTE: Paint the same as
doors and ceiling or remove
and replace with ceiling tile.
Including Mounting Brackets
Ceiling Tile
¾"
⅜" Approx.
Filler Block
¾"
False Top
¼ " Max.
⅛ "
2 ½"
¼"
Surface
Mounting
Brackets
False Top
Surface Door
Access Door
¾"
¼" x 1" Screw
& Nut Insert
Drywall Screw
“L” Bracket
¼" x 2"
Lag Screw
False Top
SHIM
3"
9 ⅞"
9 ½"
8"
12 ⁄"
Length of Fabric Width
+ 26 ½", All Sizes
22"
12 ⁄"
11 ⁄ "
4 ¾"
12 ⁄ "

5
Executive Electrol®Installation
Black
Red (Up)
Blue
Black
White
White
Red
Up Limit Switch
(Operated By Door)
Capacitor
Black
(Down)
Down Limit Switch
Solenoid Switch
White (Common)
Motor: 120V.60 Cycles 1/10 HP Intermittent
Duty With Auto-Reset Thermal Protector
Internal
Wiring
External Wiring
to Be Completed
By Installer
Junction Box Mounted In
Screen Case, In Which Internal
Wiring Terminates In
White, Black And Red Leads
White
Down
Adj.
Black (Down)
Red (Up)
In Multiple Control Installations This Switch
Is Replaced By The Low Voltage Control,
Operated From Push-Button Stations.
Black With Yellow
Up
Down
Of AC Hot
AC Common
120V.Ac 60Hz.
1 Amp. Max
Side View Of
Switch & Box
Green
(Ground)
Black
Black
Blue
Red
Operating Switch,
Switch Box, And
Plate Furnished
With Screen. (SPDT)
With Center Of
This Switch Cannot Be Used With L.V.C.
Solenoid
120V Wiring Diagram
240 Volt Wiring Diagram
For Standard Wall Switch:
Da-Lite ofers two styles of 240 volt wall
switches for standard operation. Please see
wiring diagram included in wall switch box
included with screen.

6
Symptom Cause Solution
Screen will not operate or will
not go “down”.
Motor does not hum.
Blown fuse. Replace fuse.
Tripped circuit breaker. Reset circuit breaker.
Improper wiring to operating switch.
Tighten all loose wire connections. Correct any improper
connections. Check for power.
“Down” Position
Check for power across black and white leads.
“Up” Position
Check for power across red and white leads.
Improper wiring to junction box in screen.
NOTE: Use low voltage control (LVC) electrical
checklist for 3-button control.
Defective wall switch.
Defective LVC unit.
“Down” Position
Check for power at black and white leads.
“Up” Position
Check for power at red and white leads.
Shut power “o” at breaker. Remove wall switch and
check for broken or loose connection. Replace if
defective.
Check LVC electrical checklist.
Thermal overload tripped (excessive
overheating). Let motor cool down for 15 minutes. Try again.
Burned out motor winding.
Disconnect motor leads and check for continuity
between black and white wires for “down” position.
Check for continuity between red and white wires for
“up” position. Replace gear motor if either combination
shows an open circuit.
Defective limit switch.
Disconnect “down” limit switch from circuit. Check for
continuity. Switches are normally closed and open on
contact. Replace if defective.
Motor hums.
Temporary fabric binding. With power “o,” turn roller by hand to free binding.
Shipping bracket not removed. Remove shipping bracket and wooden wedge.
Defective capacitor. Replace capacitor.
Troubleshooting

7
Symptom Cause Solution
Screen will not move “up.”
Motor does not hum.
Motor hums.
No power between red and white leads in
junction box.
Check LVC. See above.
Check fuse. Reset circuit breaker. Correct
improper wiring.
Thermal overload tripped (acts as a breaker). Let motor cool for 15 minutes. Try again.
Burned out motor winding. Check for power between red and white motor leads.
Replace motor if there is power.
Temporary fabric binding. With power “o,” turn roller by hand to free binding.
Burned out capacitor. Replace capacitor.
Broken wire or loose connection in “up”
position (red and white leads). Secure connection or replace wire.
Screen starts upward and door closes
immediately shutting o motor.
Defective solenoid limit switch.
Solenoid pin not retracting. Manually retract pin a few times..
Defective solenoid.
Check for power to the solenoid terminals. If there is
power, replace solenoid.
Check blue wire between solenoid switch and solenoid.
It is either crimped or broken. Repair or replace.
Fabric door does not fully open.
Screen runs.
NOTE: Remember, door must
open by gravity.
Door binding. Plaster, paint or adhesive can
cause the hinge to stick. Clean hinge and apply oil.
Case may be put into a bind during installation. Tighten or loosen lag screws located on back of case.
Inadequate clearance around the fabric door
on new installations. Provide adequate clearance.
Clicking noise in each downward
revolution.
Non-energized solenoid.
NOTE: There should be three clicks.
Check for power to solenoid.
Replace solenoid.
Loud buzzing noise. Solenoid not fully retracting.
Check for foreign object caught in solenoid. Remove
object. Tighten 4 mounting screws.
Check for pin binding.
Door closes on fabric, leaving 15" to
20" left hanging out. Lost roller wrap. See installation instructions.
Troubleshooting

8
Symptom Cause Solution
Screen jammed. Will not operate,
motor hums, door open, closing
mechanism detached from door.
Closing mechanism detached from door,
allowing it to jam into box.
After securing fabric to roller, loosen set screws on
motor gear and manually rotate solenoid assembly back
over top of roller into position, then reattach door. Match
lats on motor drive shaft to gear set screws
and tighten.
Scraping or grinding noise.
If metal shipping bracket is left attached
to screen, it may be rubbing on motor
end of roller.
Remove shipping brace.
Gear noise. Gear may need light weight grease. Apply light weight grease.
Incorrect down limit switch setting.
Lost roller wrap. See installation instructions.
Limit switch out of adjustment. See door closure and timing instructions.
Door closes and screen
continues to run upward.
Door limit out of adjustment. Loosen nut holding limit switch. Rotate adjusting
position, then secure.
Door limit switch is shorted. Repair short or replace limit switch.
Troubleshooting

9

10

11

LIMITED ONE YEAR WARRANTY ON DALITE PRESENTATION PRODUCTS
Milestone AV Technologies LLC warrants certain Da-Lite branded products to the original purchaser only, to be free from defects in
materials and workmanship for a period of one (1) year from the date of purchase by the original purchaser; provided they are properly
operated according to Da-Lite's instructions and are not damaged due to improper handling or treatment after shipment from the
factory.
This warranty does not apply to equipment showing evidence of misuse, abuse or accidental damage, or which has been tampered
with or repaired by a person other than authorized Da-Lite personnel.
Da-Lite’s sole obligation under this warranty shall be to repair or to replace (at Da-Lite’s option) the defective part of the merchandise.
Returns for service should be made to your Da-Lite dealer. If it is necessary for the dealer to return the screen or part to Da-Lite,
transportation expenses to and from Da-Lite are payable by the purchaser and Da-Lite is not responsible for damage in shipment.
To protect yourself against damage or loss in transit, insure the product and prepay all transportation expenses.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS
OR IMPLIED, INCLUDING WARRANTIES AS TO FITNESS FOR USE AND MERCHANTABILITY. Any implied warranties of itness for use,
or merchantability, that may be mandated by statute or rule of law are limited to the one (1) year warranty period. This warranty gives
you speciic legal rights, and you may also have other rights, which vary from state-to-state. TO THE MAXIMUM EXTENT PERMITTED
BY APPLICABLE LAW, NO LIABILITY IS ASSUMED FOR EXPENSES OR DAMAGES RESULTING FROM INTERRUPTION IN OPERATION
OF EQUIPMENT, OR FOR INCIDENTAL, DIRECT, OR CONSEQUENTIAL DAMAGES OF ANY NATURE.
In the event that there is a defect in materials or workmanship of a Da-Lite product, you may contact our Sales Partners at PO Box 137,
Warsaw, IN 465810137, (574) 2678101, (800) 6223737.
IMPORTANT: THIS WARRANTY SHALL NOT BE VALID AND DALITE BRANDED PRODUCTS SHALL NOT BE BOUND BY THIS
WARRANTY IF THE PRODUCT IS NOT OPERATED IN ACCORDANCE WITH THE DALITE WRITTEN INSTRUCTIONS.
Keep your sales receipt to prove the date of purchase and your original ownership.
48707
A Milestone AV Technologies Brand
3100 North Detroit Street
Warsaw, Indiana 46582
P: 574.267.8101 or 800.622.3737
F: 574.267.7804 or 877.325.4832
E: [e-mail]
www.da-lite.com
DL–0258 12.13
© 2013 Milestone AV Technologies LLC. Printed in U.S.A.
