Jon Buoy Inflatable Horseshoe User manual

j) Ensure the green cap in the end
of the capsule is clear of any
obstructions.
The pouch is now ready to
be stowed in the tube.
Close the pouch using the velcro.
INFLATABLE HORSESHOE
4. Installation
Install vertically or horizontally
(at least 25mm off the ground).
Servicing: It is recommended that the
Horseshoe is serviced annually at a
Jon Buoy approved service station.
k) Locate the sealing cap(s)
One on single tube
Two on double tube
RE-ARM & RE-PACK
INSTRUCTIONS
b
a1. Preparation
a) Separate the inflated Horseshoe, the Drogue and
the pouch by undoing the bowline knots (at the
handle).
b) Dry the drogue, pouch and the inflated Horseshoe
naturally in the air.
c) If the Horseshoe has been deflated, re-inflate
carefully using the oral valve.
WARNING: Do not use a high pressure air source to
re-inflate as this will damage the valve.
d) Check all of the component parts for damage.
WWW.JONBUOY.COM
T: [phone]
F: [phone]
MAIL@ JONBUOY.CO M
Light (if tted)
Light switch
(if tted)
Capsule
Gas cylinder
Drogue
Oral valve
(underneath)
Drogue line
Single
container
Sealing cap
l) Ensure that
capsule protudes
20mm.
Capsule
m) Attach the sealing cap
over the operating
mechanism capsule.
Pouch retaining line
n) Push the pouch into the tube so that it is just below
the lip and ensure that the pouch handle is stowed on
top. Fit the cap in place.
Double
container

Top end of cylinder
Automatic Capsule underneath
Drogue
Pouch Horseshoe

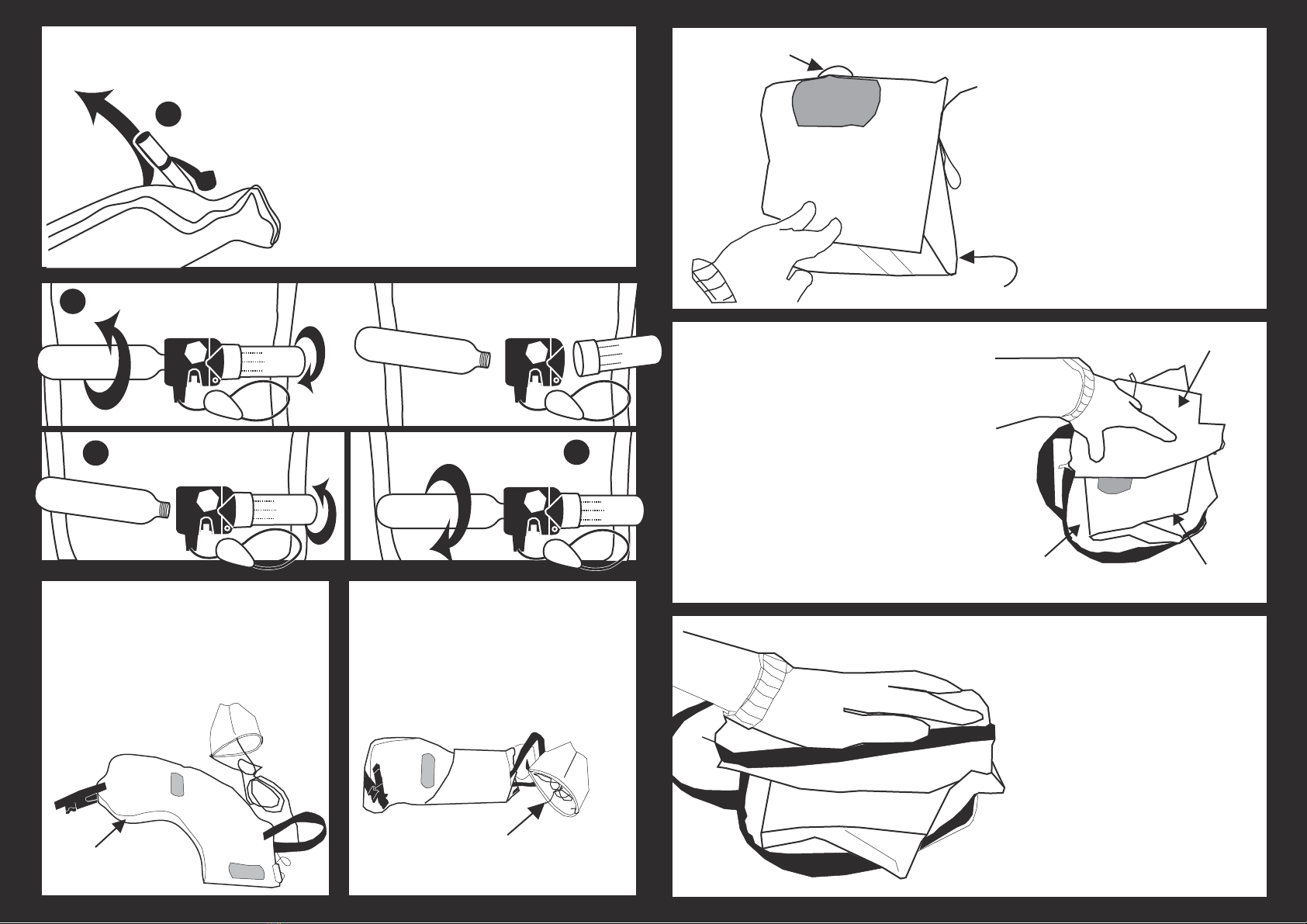

2. Re-Arm
3. Re-Pack
b
c
d
a) Deflate the Horseshoe fully through the oral
valve.
WARNING: Do not use a high pressure vacuum
to deflate as this will damage the valve.
b) Unscrew the old Cylinder.
c) Re-arm the Operating Head and replace the
Automatic Capsule.
d) Fit the new Cylinder (38gram only).
e) The Horseshoe is now ready to pack into it’s
pouch
a) With the Automatic Inflation
system on the table, fold the
Horseshoe in half with the Oral
Inflation tube inside.
Oral Inflation
tube inside.
b) Fold the inner side of the
Horseshoe over on top to align
with the outer periphery.
c) Stow the Drogue Line inside the
Drogue
Stow the Drogue Line inside
the Drogue
d) Fold the bottom of the
Horseshoe up 20mm above the
end of the Automatic Capsule.
e) Fold the top of the Horseshoe
over twice so that it aligns with
the lower fold and the top end of
the cylinder.
f) Place the folded Horseshoe on top of the
pouch.The Inflation System is to be central
and the Automatic Capsule at the opposite
end to the handle.The Capsule is to be free
of obstructions and must protrude from the
pouch.
g) Fold the Drogue and place on top of the
folded Horseshoe
h) Attach the pouch retaining line
to the pouch handle using a
Bowline Knot. Stow any excess line
inside the pouch.
i) Bring both sides of the pouch
around the Horseshoe, Drogue
and attach the Velcro.
a
