Sealite SL-B1250 Supplement
SL-B1250
1250mm Diameter Navigation Buoy
V2-2
INSTALLATION & SERVICE MANUAL
2

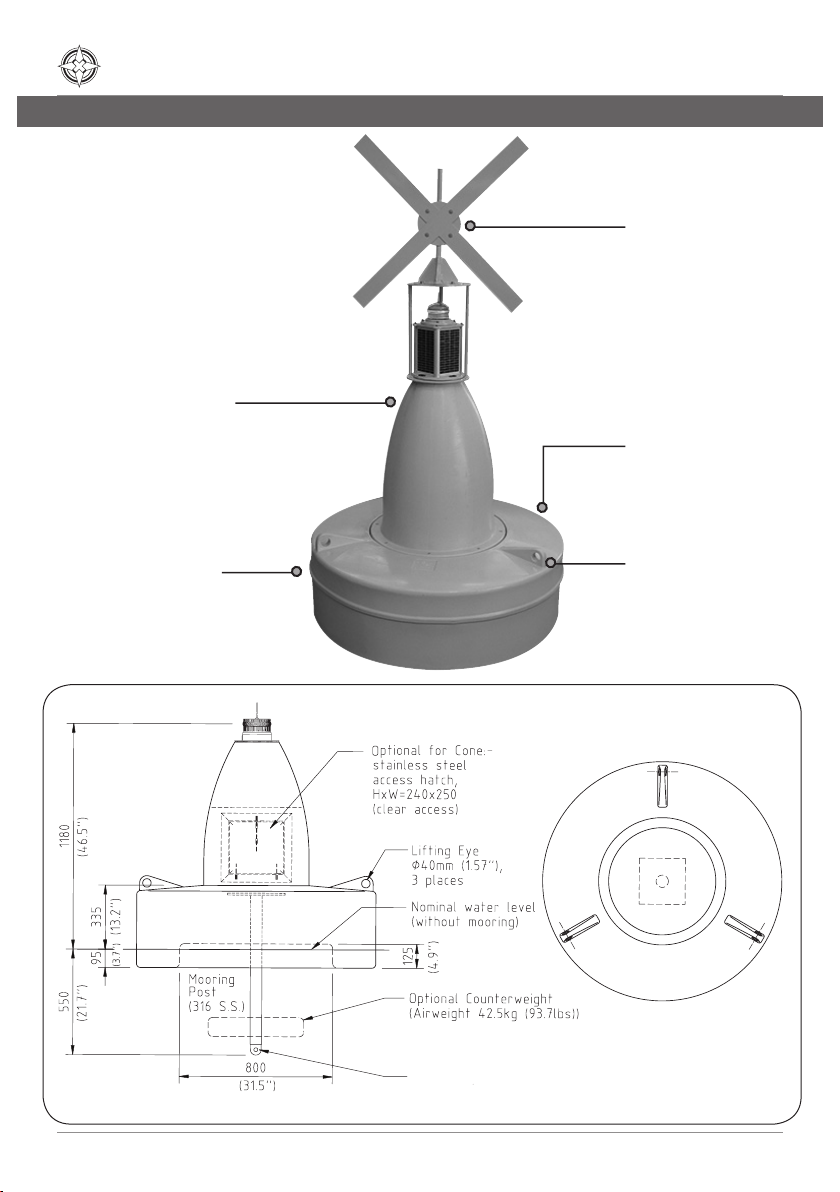

Made from strong,
durable UV-stabilised
virgin polyethylene
Rotationally-moulded to
lights available
polyurethane
316 grade stainless-
steel mooring post with
18mm lifting eye
Mooring Eye,
Diameter 20mm (0.79”)
Width 26mm (1.02”)
slb1250_art_rev2.eps
SL-B1250
1250mm Diameter Navigation Buoy
Latest products and information available at www.sealite.com 3
..........................................................................................Page 4
..........................................................................Page 4
...................................................Page 4
..............................................Page 4
.................................................................Page 5
Product Components...................................................................Page 6
Assembly Instructions .................................................................Page 7
Mooring Instructions....................................................................Page 8
................................................................Page 10
......................................................................Page 11
Approved
1.0 Manual Launch July 2010 M. Henry
2.0 Update: Quality Logo July 2011 J. Dore
2.1 Update: Spec table May 2012 J. Dore
2.2 Adjustment to mooring instruction August 2019 M. Nicholson
As a service to valued customers, Sealite
has developed an advanced mooring
calculator based in IALA guidelines and
experience from major users.
The system simulates site mooring based
on local conditions.
Contact Sealite today for a FREE copy.
4
Sealite Pty Ltd has been manufacturing buoys for over 25 years, and particular care has been taken to
ensure your buoy gives years of service.
As a commitment to producing the highest quality products for our customers, Sealite has been
independently certied as complying with the requirements of ISO9001:2015 quality management
system.
By taking a few moments to browse through this booklet, you will become familiar with the versatility of
your buoy, and be able to maximise its operating function.
Sealite marine buoys are manufactured on-site from rotationally-moulded UV-stabilised polyethylene,
and are designed to oer a low-maintenance, high visibility solution to marine navigation.
The Sealite buoy division provides turn-key production of navigation buoys. From tooling development,
raw materials selection, and production, to nal testing and inspection, Sealite guarantees superior
quality and fast turn-around times.
Sealite’s buoy products are available in a wide range of congurations and sizes, and can be
economically shipped worldwide.
• No painting
• Inhibits growth
• Increased interval between servicing
• Routine maintenance on location
• Easily repaired in the unlikely event of damage
• Lightweight for ease of deployment and maintenance
• Environmentally friendly – no use of toxic antifouling paint
Please contact your local authority for any specic requirements regarding the deployment of buoys.
IALA also has guidelines and recommendations that should be followed.
All information given in this manual is advisory only. Please consult with your local authority before
deploying your buoy products.
Local conditions that need to be considered include:-
• Water depth
• Maximum currents
• Maximum wind speeds
• Sinker size and weight
SL-B1250
1250mm Diameter Navigation Buoy
Latest products and information available at www.sealite.com 5
•
Specifications subject to change or variation without notice
*Subject to standard terms and conditions
SPECIFICATIONS •
General Characteristics
Available Colours Red, Green, White, Yellow as per IALA Recommendations
Focal Plane Height (mm/inches) 1180 / 461/2
Total Float Volume (ltrs/US gallon) 610 / 161
Nominal Freeboard (mm/inches) 335 / 131/8
Nominal Dra (mm/inches) 550 / 212/3
Reserve Buoyancy (kgs/lbs) 155 / 342
Maximum Mooring Load (kgs/lbs) 155 / 342
Dra, Maximum (mm/inches) 675 / 262/3
Freeboard, Minimum (mm/inches) 210 / 81/3
Submergence (kg/cm, lb/inches) 12.5 / 70
Visual Area (m2/2) 0.8 / 8.6
Physical Characteristics
Material Rotationally-moulded UV-stabilised virgin polyethylene,
316-grade stainless steel mooring pole
Wall Thickness (mm/inches) 9 / 3/8 (float section). 7 / 1/4(top section)
Ballast (kg/lbs) 30 / 66 external counter-weight (optional)
Filling Closed-cell polyurethane foam (float section)
Height (mm/inches) 1180 / 461/2
Width (mm/inches) 1250 / 491/4
Mass (kg/lbs) 70 / 154
Product Life Expectancy Up to 12 years
Certifications
Quality Assurance ISO9001:2015
Intellectual Property
Trademarks SEALITE®is a registered trademark of Sealite Pty Ltd
Warranty * 1 year
Lantern Options Sealite SL15, SL60, SL70 or SLC310 lantern
Options Available • Mould-in graphics
• Sealite IALA recommended top marks
• External ballast
• Radar reflector
6

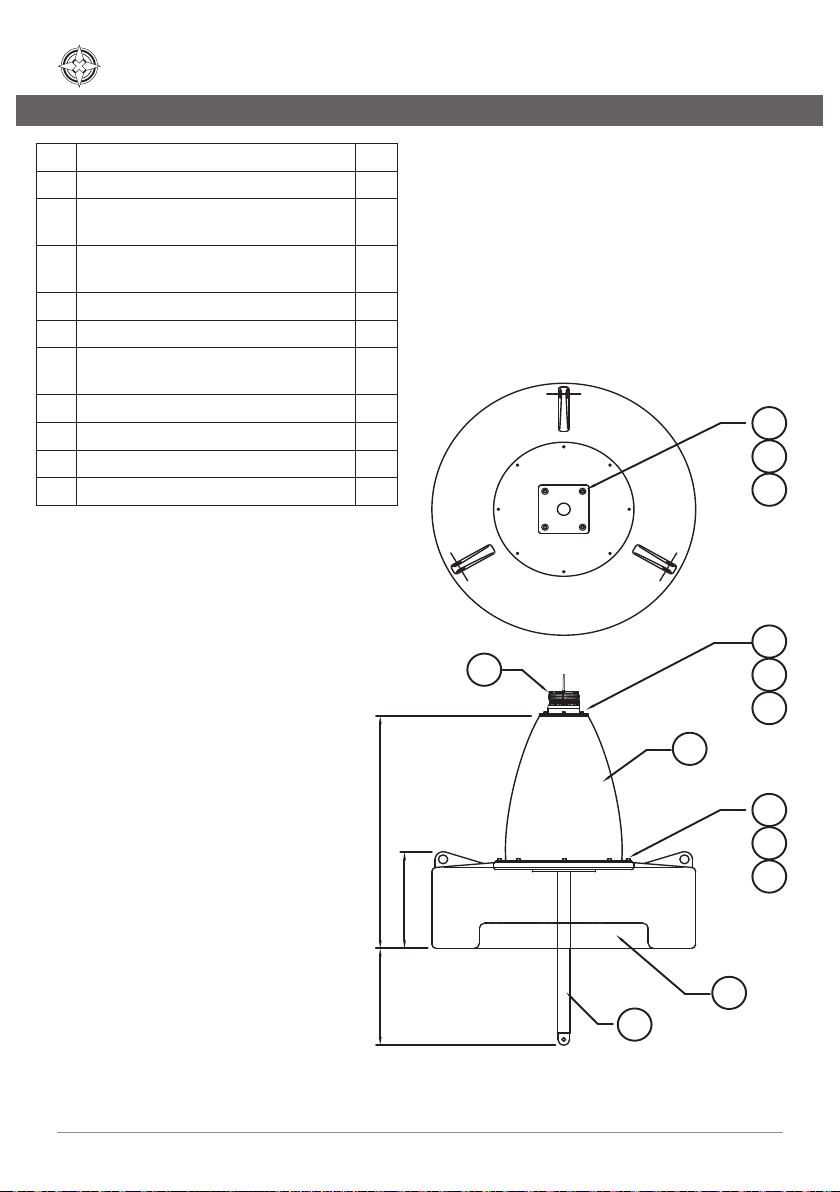

Qty
1SL-B1250 Float (with internal ll) 1
SL-B1250 Mooring Post
(standard length shown)
1
3S/S Socket Head Cap Screw,
Ø8 x 20 (min Grade 70)
7
4S/S Spring Washer, Ø8 7
S/S Washer, Ø8 x 31 OD 7
6SL-B1250 Cone or SL-B1250 Can
(without internal brace)
1
7S/S Bolt, Ø10 x 45 (min Grade 70) 8
8S/S Spring Washer, Ø10 8
9S/S Penny Washer, Ø10 x 31 OD 8
Lantern (SL60 shown) 1
Can/
Cone 8
1
3
5
4
4
2
6
7
8
9
10 4
5
3
480
1150
480
3
SL-B1250
1250mm Diameter Navigation Buoy
Latest products and information available at www.sealite.com 7
Can/
Cone
1
3
5
4
4
2
6
22
13
5 x2
4
3
21
8
7
8
9
13
4
12
5
4
480
19
20 x2
16
4
15
16
14
17
10
480
1150 806
18
11
1006
1
• Unload all components from crate or container.
• Check all components are complete and correct. Use assembly diagram on following page for full
list of components.
Assembly
• Fit the mooring post through the oat section and secure into place using 4 x M8 x 20 socket head
cap screws, spring washers and at washers.
• Fit the top section to the oat section using 8x M10 x 45mm stainless steel bolts, M10 x 31 at
washers and M10 spring washers.
• Fit the top mark assembly and lantern to the top section using M8 x 65 (pre-assembled), M8 x 31
OD at washer, M8 spring washer and M8 nuts.
• Check the light operation. Cover light with a dark jacket or towel and allow 60 seconds for the light
to activate.
• Fit the D shackle to the mooring point.
Qty
1SL-B1250 Float (with internal ll) 1
SL-B1250 Mooring Post
(standard length shown)
1
3S/S Socket Head Cap Screw,
Ø8 x 20 (min Grade 70)
4
4S/S Spring Washer, Ø8 11
S/S Penny Washer, Ø8 x 31 OD 14
6SL-B1250 Cone or Can
(with internal brace)
1
7S/S Bolt, Ø10 x 45 (min Grade 70) 8
8S/S Spring Washer, Ø10 8
9S/S Penny Washer, Ø10 x 31 OD 8
IALA Top Mark - St Andrew’s Cross
(post)
1
11 IALA Top Mark - Wreck (post) 1
S/S Bolt, Ø10 x 65 (min Grade 70)
pre installed
4
13 S/S Plain Nut, Ø8 (min Grade 70) 7
14 SL-B1250 Top Mark lantern Mount 1
S/S Bolt, Ø6 x 40 (min Grade 70) 1
16 S/S Self Locking Nut, Ø6 5
17 IALA Top Mark - St Andrew’s Cross 1
18 IALA Top Mark - Wreck 1
19 S/S Bolt, Ø6 x 16 (min Grade 70) 4
S/S Flat Washer, Ø6 8
Lantern (SL60 Shown) 1
S/S Socket Head Cap Screw,
Ø8 x 25 (min Grade 70)
3
8
• Unpack all Mooring and check all components are complete and correct.
• Fit and secure 1 x Ø16mm Shackle and 1 x Ø16mm Swivel Eye to the base of the bridle.
Note: All Shackles must be positively locked. For example use 3mm Stainless Steel wire to lock
the pin eye, or use a use a shackle pin with nut and split pin.
Note: When using synthetic mooring or in shallow waters (<4 metres), optional external ballast/
counterweights should be used. Refer drawing on page 9 of this manual.
• Fit and secure a length of chain to the Swivel Eye using 1 x Ø16mm Shackle.
Note: Please use the guides below to determine the correct chain size and length.
• Fit and secure the Chain to the Mooring Block.
• The Buoy is now ready for deployment.

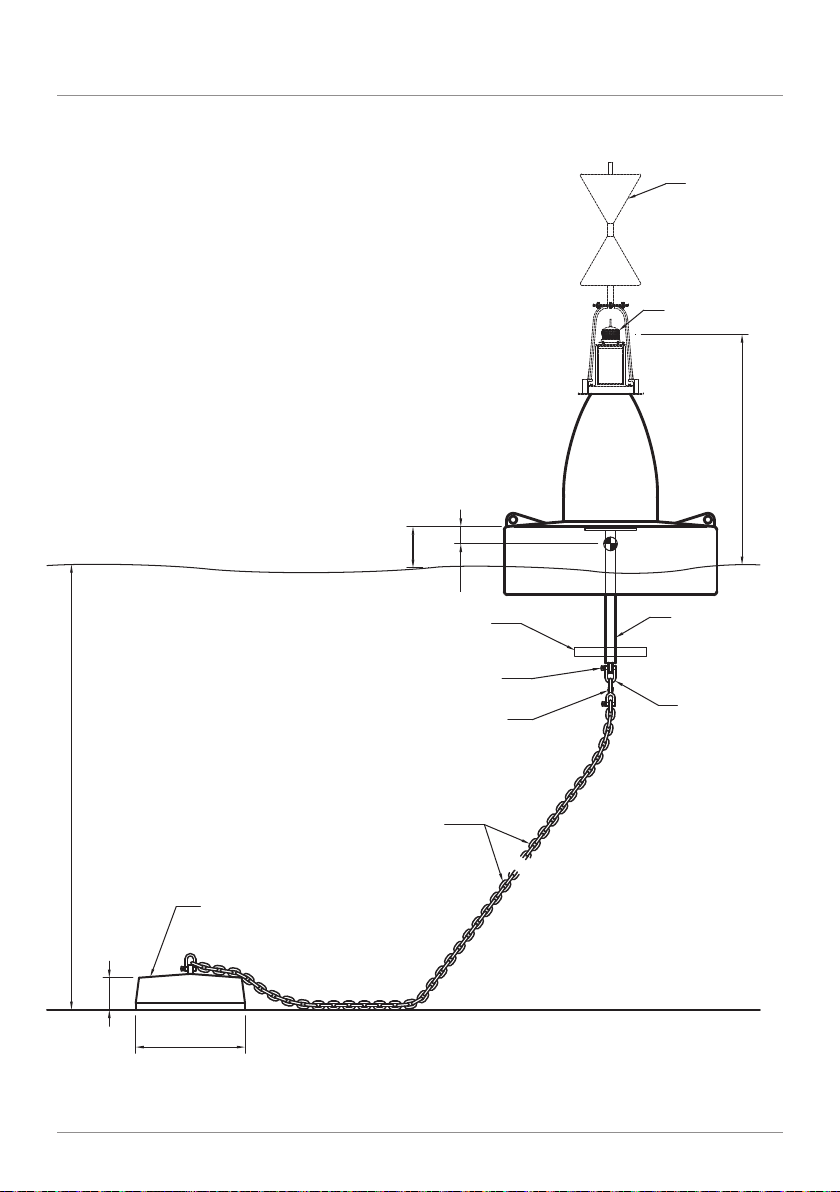

Best Practice 3 x Water Depth 17.5m
For Reduced Water Circle
(use only where current <2kts)
Not less thank
2 x Water Depth 25m
Recommendations given herein are advisory only. As each buoy installation varies, the buoy operator
should establish tness for purpose prior to installation
SL-B1250
1250mm Diameter Navigation Buoy
Latest products and information available at www.sealite.com 9
Mooring Pole,
OD 60mm
Grade 316 S.S.
IALA Top Mark
Optional Counterweight for
shallow water (under 4m)
Sealite LED Lantern
16mm Stainless Steel
Swivel (Jaw & Eye)
16mm Stainless Steel
Chain (see table)
16mm Stainless Steel
Shackle, Typical
Shackle pins to be locked
using 2mm S.S. wire
Bed
170
500
Minimum
Freeboard 100
110
Float
Body
Maximum Water Depth
(Highest tide plus half
the maximum wave height)
Typically
1350
Mooring Block, 100kg Airweight.
Approximate sizes shown for a
square concrete block.
NOTES:-
1/ Shackles, swivel and chain are non-rated commercial products.
2/ The bare buoy assembly consists of the Float, Body and Mooring
Pole, total weight approximately 70kg. Centre of Gravity as shown.
3/ Total weight of buoy equipment plus wet weight of the
mooring line should not exceed 230kg.
10
Sealite Marine Buoys are designed to require very little maintenance. We recommend the buoy be
inspected annually. Inspection may need to increase depending on the local conditions and the
position of the buoy.
IALA Recommendation AISM E-107 suggests moorings are inspected annually.
• Visually inspect buoy for damage.
• Inspect the top mark for any damage. Repair any broken or damaged section.
• Clean buoy of animal debris.
• Check and clear the tail and ride chains from shells and algae.
• Check for wear on any shackle axis and check the tapered pins. Any worn shackles must be
replaced.
• Check the free movement of each swivel around its head. If any swivel head sticks it must be
replaced.
• Check every link of the thrash length of the chain. Check the diameter of the nips and sides and
also inspect the welds on every link.
• If depth allows, a worn riding chain may be reversed.
• Change a chain when any link shows excessive wear.
• Chain must be replaced if any link wears to less than 3/5 of the original diameter.
• Inspect the ground chain and sinker.
• Please refer to the Installation Manual for the specic marine lantern tted to the buoy.
SL-B1250
1250mm Diameter Navigation Buoy
Latest products and information available at www.sealite.com 11
Refer to Sealite website: www.sealite.com
12
Sealite Pty Ltd
Australia
+61 (0)3 5977 6128
Sealite Asia Pte Ltd
Singapore
+65 6908 2917
Sealite United Kingdom Ltd
UK
+44 (0) 1502 588026
Sealite USA LLC
USA
+1 (603) 737 1311
We believe technology improves navigationTM
