Jon-Don Prospector PE5003 User manual
Prospector PE5003
INFORMATION
&
OPERATING
INSTRUCTIONS
READ AND UNDERSTAND THESE INSTRUCTIONS
BEFORE OPERATING THE MACHINE
Priority
Manufacturing
Prospector 5003 120V
Pump 50 -500 psi, piston pump with pressure unloader
Vacuum Dual 3 stage 180” lift 107 CFM
Heater 1750 watt
Solution Tank Capacity 15 Gal
Recovery Tank Capacity 15 Gal
Vacuum Shut-off Ball Float
Dimensions 36-3/4” H
23-1/2” W
32” L
Weight 103 lbs
Warranty See Below
Contents:
Machine Specifications 2 Care & Maintenance 4
Record Important Information 2 Views of Machine 5
Safety Information & Cautions 3 Set Up & Operating Instructions 6
Your New Machine 4 Warranty 7
System Features 4
Troubleshooting 8
Chemicals 4
Parts List 9

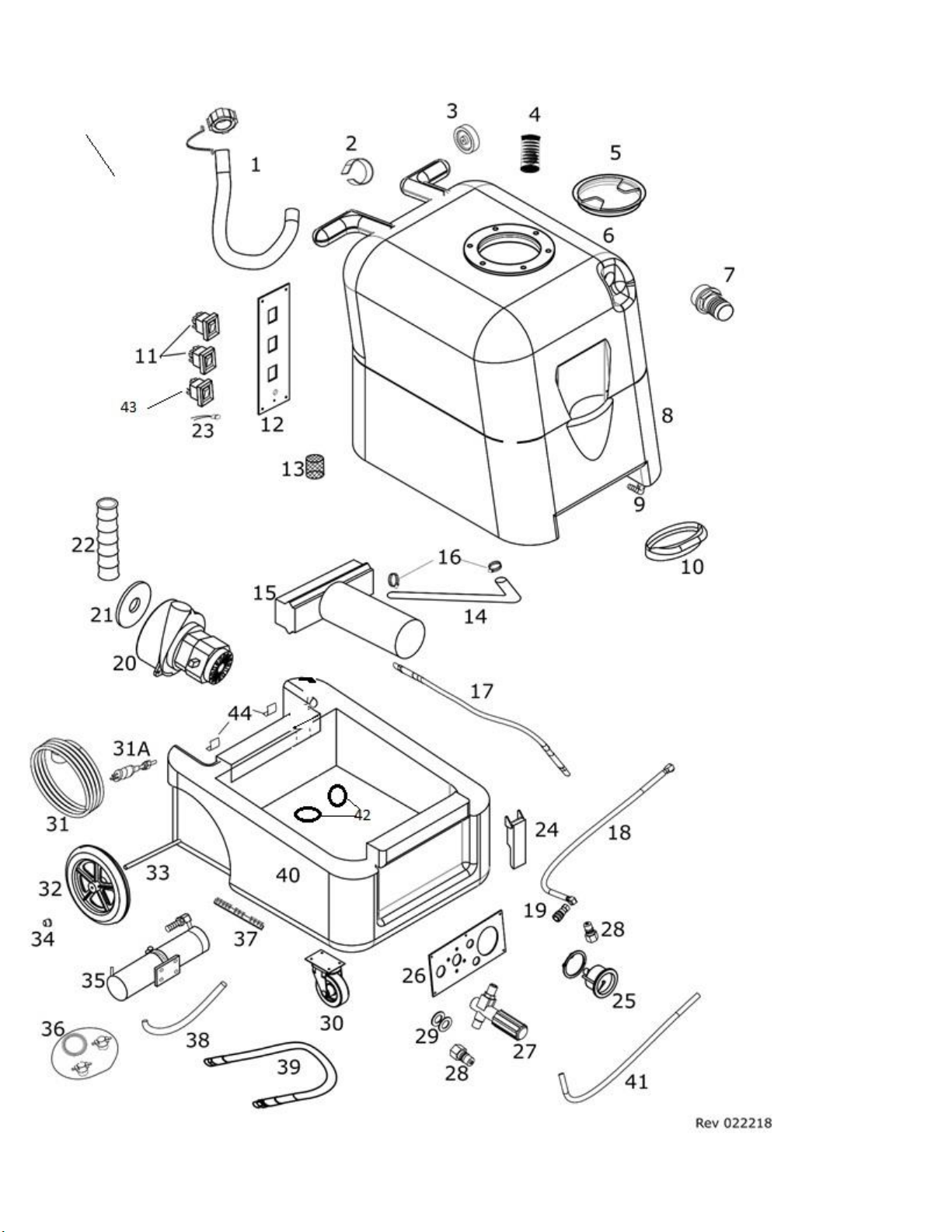

Tools & Accessories 4 Exploded View 10
Machine Specifications:
Machine and Purchase Specifications:
RECORD AND RETAIN THIS IMPORTANT INFORMATION
Prospector PE5003
Serial Number:_____________________________
Purchase Date: _____________________________
Write purchase location and phone number below
_____________________________________________________________________________
___________________________________________________________
And don’t forget to register your purchase to activate your warranty
1
CRITICAL SAFETY INFORMATION & CAUTIONS
The acceptable use of this machine is for
commercial/professional cleaning, for example, in
hotels, schools, hospitals, and offices, rather than
for personal housekeeping.
NOTE: Read all instructions before using this
machine. Improper use or misuse of the machine
can result in personal injury or property damage.
To reduce the risk of personal injury or property
damage, follow these procedures:
•Connect to a properly grounded outlet only.
•Do not operate the machine in an explosive
environment.
•Do NOT use Solvents.
•Never add water over 120F/ 49C to the
solution tank.
•Do not pick up anything that is burning or
smoking, such as cigarette, matches or hot ashes,
or any health endangering dusts. Do not use to
pick up flammable or combustible liquids such as
gasoline or use in areas where they may be
present.
READ AND SAVE THESE INSTRUCTIONS
•To avoid electric shock, do not expose to rain or
snow and keep from extremes in temperature.
Store in a heated location. Use the machine
indoors. Do not use outdoors.
•Do not use this machine to dry vacuum before
wet cleaning.
•Do not use with damaged cord or plug. If the
machine is not working as it should, has been
dropped, damaged, left outdoors or flooded with
water, return it to a service center.
•Do not leave the machine unattended when it is
plugged in. Unplug the unit from the outlet when
not in use and before servicing.
•Use only as described in this manual. Use only
the manufacturers recommended attachments.
•Do not handle the plug, the cord, or the machine
with wet hands.
•Extension cords must be 12/3 and no longer than
50 feet. Replace the cord or plug immediately if
the ground prong becomes damaged.
•Do not put any object into opening. Do no use
with any opening blocked; keep free of dust, lint,
hair, and anything that may reduce air flow.
•Keep loose clothing, hair, fingers and all parts of
body away from openings and moving parts.
•Liquid ejected at the spray nozzle could be
dangerous as a result of its temperature,
pressure, or chemical content.
2
YOUR NEW MACHINE:
When you receive your new machine, examine
the packaging for signs of shipping damage.
Carefully unpack the machine and inspect it. If
you see evidence of damage to the container or
the contents, contact the freight carrier
immediately.
Additionally, ensure all parts and accessories are
present; if you notice anything missing, contact
your distributor without delay.
SYSTEM FEATURES:
HEAT: The Prospector PE5003 has a built-in
heater for the solution. An ON/Off switch
activates the heater. If you prefer to clean
without the added effectiveness of heat, simply
do not turn on the heat switch.
VACUUM: The vacuum motors provides an
excellent ratio of water lift to air movement (see
specs, page2). Carpets should dry quickly if not
over-wetting while cleaning.
PUMP: The pump is a piston style, positive
displacement pump. It runs continuously when
turned on, but the use of the unloader valve
enables the operator to set the pressure to the
desired PSI, between 50 and 500.
CHEMICALS:
The use of powder chemicals is discouraged;
unless they are mixed very thoroughly and rinsed
out completely at the end of the job, powdered
cleaners could cause a build-up in the pump,
lines, heater and/or quick disconnect. Any
problem caused by a chemical build-up is not
covered by warranty.
If foaming occurs as you clean, use a defoamer,
either in the recovery tank or on the area being
cleaned, to prevent overflow which can cause
water damage to machine components.
The use of clear water in the machine is
recommended, within the application of
properly diluted cleaner as a pre-spray on the
area to be cleaned; however, you may mix
water and cleaning chemicals in a bucket --
according to directions on the chemical label --
and then pour into the solution tank. If you
chose to use chemicals in the machine, always
use a cleaner with a pH as close to neutral as
possible to avoid premature wear of the pump,
seals, and/or other components. Damage
caused by the use of strong chemicals is not
covered by the warranty.
TOOLS & ACCESSORIES:
Use only manufacturer’s recommended tools and
accessories. If the spray valve on your cleaning
tool begins to leak or if the spray tips get worn
and are no longer providing a nice even spray
pattern, order replacements from your
distributor.
CARE AND MAINTENANCE:
For continual peak operation, clean the internal
plumbing by rinsing with clear water at the end
of each job. About once a month, rinse the
machine with a commercial flushing compound
to break-up any mineral or chemical
accumulation that may have formed from the use
of hard water or chemicals.
The vacuum motors and the pump do not require
any scheduled maintenance; however, the
vacuum motor may require replacement brushes
after 750-1000 hours.
To help maintain a professional image; clean the
exterior of the machine with an all purpose
detergent, and protect it with automobile interior
polish. Lubricate the wheels, castors, and quick
disconnects with an all purpose, silicone spray.
3
Recovery
Tank Access
Recovery
Tank Drain
Hose
Recovery
Hose
connects
here
Solution
Tank
Fill Hole
VIEWS OF THE MACHINE:
FRONT VIEW
Connect
Solution Hose
Here
Pump/Heat
Switch
Vacuum 2
Switch
Vacuum 1
Switch
4
REAR VIEW
Latches
Power
Cord
Pigtails
Switches
Wand
Holder
Loading
Wheels
Pressure
Gauge Reads
Spraying
Pressure
Pressure
Adjustment
Knob
