Joneca ReadyHot User manual

Faucet Installation
®
You will need to use or drill a 1 ⁄” (35mm) diameter hole
in the counter-top or sink where you would like to place
the faucet.
DRILL 1⁄” (35MM )HOLE FOR FAUCET
Fold base clamping plate to allow it to pass through the 1⁄”
(35mm) diameter hole and locate the O-ring seal under the
base assembly.
Insert base clamp assembly thought the 1⁄” (35mm)
diameter hole, and pull up on“tabs” to draw the clamping
plate into position under the bench.
Rotate the base assembly to the correct orientation as
illustrated so that the dispenser’s faucet handle will face the
correct way once installed.
Base clamp
Draw tabs
INSTALLING FAUCET BASE ASSEMBLY
Set screw andAllen key
Faucet base O-ring
Base assembly clamping screws
Faucet base and clamp assembly
FAUCET FITTING KIT FOR DISPENSER
IMPORTANT
IMPORTANT

Position tank vertically beneath faucet so that the
exible tube from the faucet reaches the center
faucet supply tube on the tank. Keep the tank
.39"(10mm) away from the wall.
NOTE: The tank must be positioned so the hose to
the faucet does not twist or kink.
MOUNTING TANK

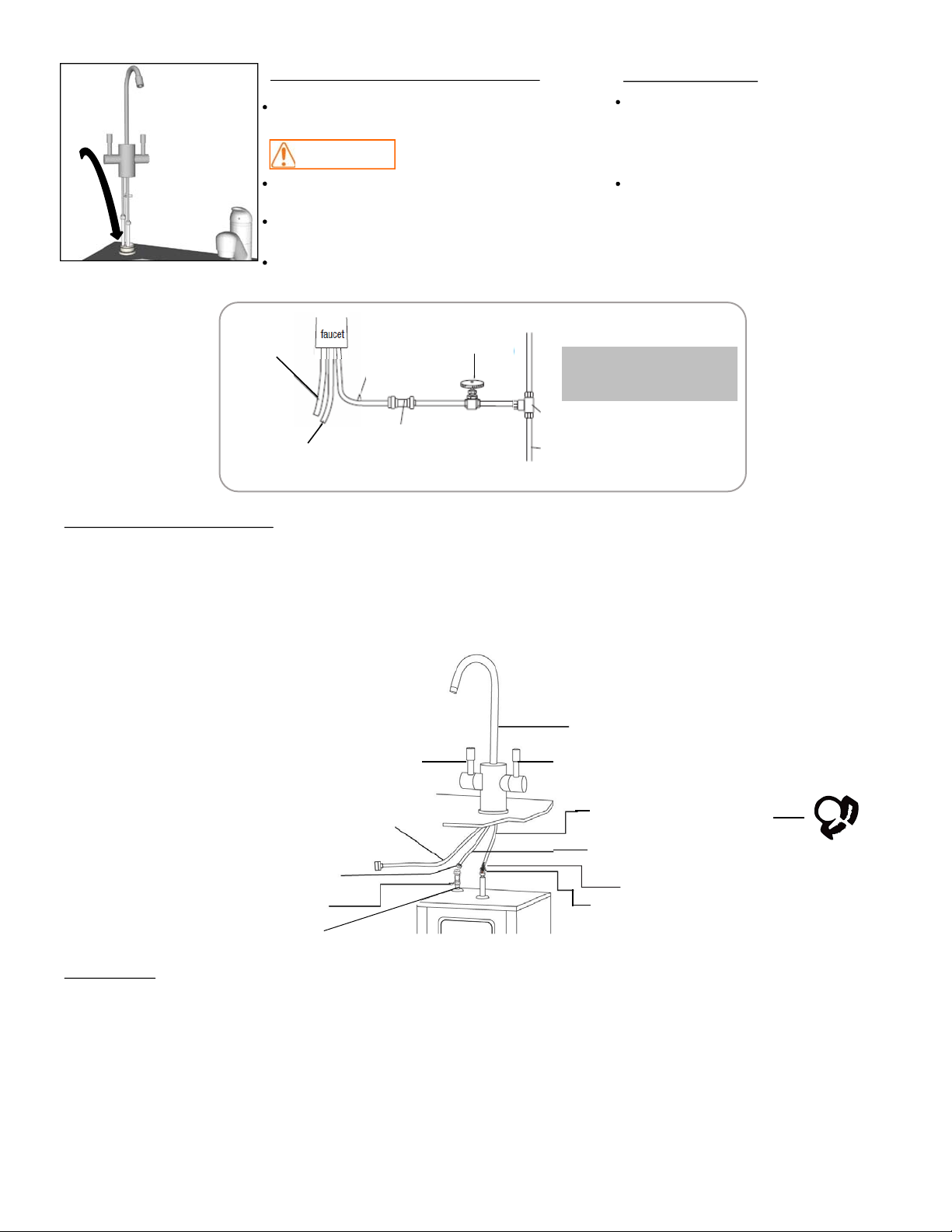

INSTALLING FAUCET TO DISPENSER
Connect ¼” (6.4mm) faucet inlet line to the rear tube at the top corner of the tank with the quick-connect tting supplied with the appliance.
Push line straight into quick-connect tting as far as possible for both connections. Connect silicone tube to the center outlet tube on top of
tank. Use cable ties to x the connection tightly. It will create a secure connection when properly installed.
Be sure the hose is not twisted or kinked. Hose may be shortened if necessary.
NOTE: DO NOT lengthen the hose - dispenser performance will be impaired and warranty will be void.
Single Faucet (Hot Only)
First depress lever by pushing down, then rotate lever forward to dispense hot water. While depressed and in the down position, hot water will
dispense from the faucet. Return lever to upright “o” position to discontinue dispensing of water.
Dual Faucet (Cold and Hot)
Cold (blue dot on lever) – Rotate lever forward to dispense cold water. Return lever to upright “o”position to discontinue dispensing of water.
Hot (red dot on lever) – First depress lever by pushing down, then rotate lever forward to dispense hot water. While depressed and in the
down position, hot water will dispense from the faucet. Note: As a safety precaution the hot lever will not work unless depressed. If user tries to
move the lever back and forth without depressing the lever, the lever will remain stationary and will not dispense hot water. To discontinue
dispensing of hot water, return lever to upright“o’ position.
Take care before operating that no part of your body is in-line with the hot water stream to avoid injury.
CONNECT FAUCET TO TANK
OPERATION REFER TO PAGES 5-7 IN THE MANUAL FOR ADDITIONAL INFORMATION
Insert tubing through the base assembly as illustrated,
and lower the faucet base into position.
Insert and tighten set screw on faucet base using
supplied Allen wrench.
JONECA CORPORATION & ANAHEIM MARKETING INTERNATIONAL- ANAHEIM, CA. IM-RHFCT-EN-171
Faucet Image Representational
Take care not to damage or kink the tubing as it passes
through the base assembly.
Do not pull on the tubing in an eort to locate the
dispenser faucet onto the base assembly.
Center outlet
Connect faucet inlet line to the
rear tube at the top corner of the tank
with the quick-connect fitting
Faucet line connects to the cold
water supply with quick-connect
fitting or compression fitting
(not supplied)
Connect ⁄”silicone hose to the center
outlet tube on top of tank. Tighten
the connection with hose clamp
Supplied quick-connect fitting
Dual Handle Faucet (Single Handle Faucet not shown)
Faucet line connects to filtered cold
water supply for dual handle faucets
1/4” (6.35mm) white tubing to supply inlet
Faucet Image Representational
Connector/Reducer Adapter
Water inlet tube
Cold water leverHot water lever
PUSH DOWN THEN ROTATE DOWNWARD TO OPERATE
"T" connection with
Shut -off valve
T connector
Cold water supply
Shut-off valve
Faucet line
to cold
water
supply
to tank
Silicone hose to
tank
Faucet line
Quick-connect or
Compression fitting (not
supplied-size may vary)
IMPORTANT
