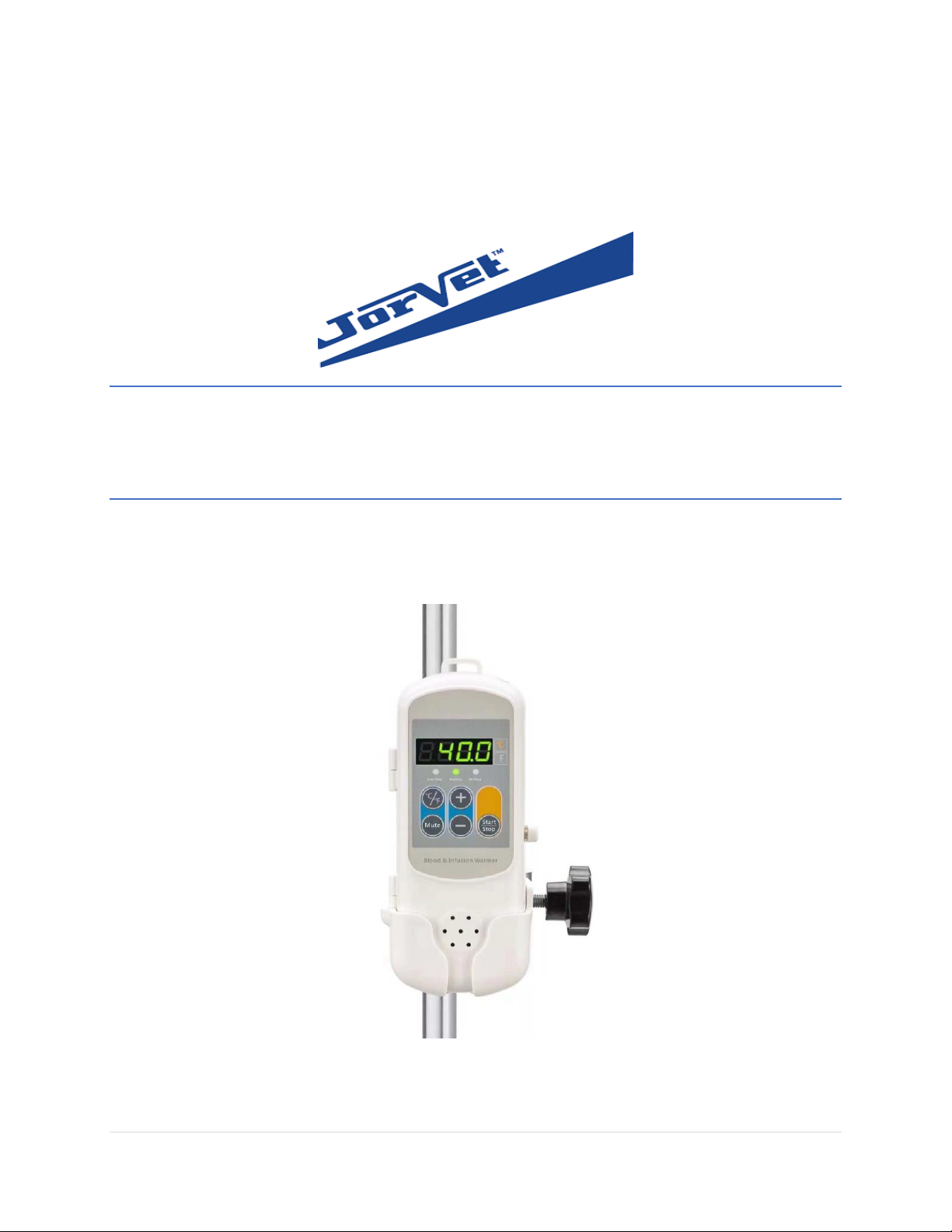

IV Fluid and Blood Transfusion Warmer
▪Portable and light weight
▪Warms IV fluid and Blood transfusion fluids
▪Convenient strap to hang on an IV pole with an IV pole mount
▪Temperature displayed appears either in Fahrenheit or Celsius
▪Overheating Temperature protection
Table of Contents
General Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Warnings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Working Principle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Components and Function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Safety Compliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Physical Specification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Main Technical Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-5
Outer Structure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-9
Alarm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-11
Daily check and Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . .11-12
Appendix. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

2 | P a g e
General Information
The Jorvet IV Fluid and Blood Transfusion Warmer is a dry- heat device. This unit is
designed to warm IV fluids safely through the heating plate. The Warmer does not
control the fluid flow rate. Fluids can be warmed to temperatures between 95º-107.6º F
(35ºC-42ºC) at flow rates 25ml/hr to 1000ml/hr.
PrecautionsSave this Manual for Future Reference
▪IMPORTANT: Before using the Jorvet IV Fluid and Blood Transfusion Warmer,
please read and understand this User’s Guide and the SAFETY PRECAUTIONS
prior to use. If you have any questions, please contact Jorgensen Laboratories at 1-
800-525-5614.
▪Carry out the inspections and maintenance periodically according to the manual to
avoid patient or user injury,
▪This operation manual is only used by professional trained Veterinary Personnel.
Warnings
(1) This device is used for heating the infusion, blood transfusion and can be used
only by the professional trained Veterinary Personnel.
(2) Securely attach the Warmer to an IV Stand to prevent damage to the unit by
sliding down or dropping to the floor.
(3) The unit should only be used with the power cord that came with the unit and is
not shared during the use of the Warmer.
(4) It is not allowed to use voltage other than that specified on the product label, or it
could cause damage or a fire.
(5) Inspect the Warmer and all accessories completely before use to verify it is
working in a safe manner.
(6) Do Not only rely on the Warmer’s Alarm to notify of a problem, the Warmer
should be monitored throughout the infusion.
(7) Stop the use of the Warmer during an alarm
(8) Do Not connect other brand heating devices or other brand heating accessories to
this Warmer as it could lead to wrong heating temperature or dangerous infusion.
(9) Keep the infusion line straight and unfolded to prevent a long-term occlusion and
heating to fluids/blood for long period of time.
(10) Do Not use the Warmer where there is strong sunlight, cold & hot, wind or a
dusty environment.
(11) Microwave will influence the function of the Warmer. All other devices next to
the Warmer must meet the EMC standard. Mobile phone, X-Ray or MRI will be
the cause of a malfunction due to its high frequency radiation.

3 | P a g e
(12) It is not allowed to dismantle or modify the Warmer. Opening the shell may cause
electrocution. Maintenance or upgrade to the Warmer must be done by authorized
staff from Manufacturer.
(13) Check the Warmer daily and check all the functions to determine it is in good
condition if it is not used for a long period.
(14) Turn off the Warmer and contact Jorgensen Laboratories 800-525-5614 when
a malfunction has occured.
Introduction
The use of room temperature (70ºF/21ºC) IV fluids in a patient suffering from shock,
or susceptibility to hypothermia should be avoided. Ideally fluids should be
administered as close to body temperature as possible for better therapeutic results.
Blood products are refrigerated or frozen prior to administration.
Application
It is intended to provide continuous heating during the infusion and blood transfusion.
Working Principle
The Jorvet IV Fluid and Blood Transfusion Warmer is an indirect heating device (dry
warmer). The IV fluids are heated as the fluids pass through the channel of the
warmer. The temperature can be set between 32⁰C ~ 42⁰C (89.6⁰F ~ 107.6⁰F. The
heating control board will work upon the set temperature.
Components and Function
The Jorvet IV Fluid and Blood Transfusion Warmer is made up of the following
parts:
▪Main control system: This system controls the whole unit by managing and
processing the system
▪Heating device: The heating device is made up of a heating sheet and heating
exchanger; this allow the heat to move through the exchanger to heat the fluid
▪Detection sensor: This includes a temperature detection sensor
▪Alarm System: The alarm includes an audio and visual alarm
▪Input and Display: This allows for the input of the heating parameter,
temperature, alarm message and other parameters.

4 | P a g e
Safety Compliance
Protection against electric shocks, this includes the internal power supply
Protection against leakage current
Protection against splashing of fluid
Working Mode: Continuous working mode
Input Voltage: 100-240V
Power: 85VA
Physical Specification
Device Dimension: 180mm x 70mm x 35mm
Weight: ~ 0.2KG (without knob); 0.4KG (with knob)
Display Type: LED
Main Technical Specifications
Environment
The Warmer must have a 5cm circumference around the unit to allow the Warmer to
have heat loss and provide air recycle.
If the Warmer is being moved to another location with temperature changes and has
condensation do not use until the condensation is subsided.
Environmental Conditions of Transportation and Storage
Temperature: -20⁰C-55⁰C
Relative Humidity: 10%~93%
Do not store in the following conditions:
•Direct Sunlight or strong light
•Near heating installation, furnace and or humidifier
•Chemicals, dust, humidity, water, or shaking or unflat floor

5 | P a g e
Temperature Controlling:
Applicable IV set: Exclusive IV Set or standard single PVC IV Set (20 and 60 d/ml,
with an outer diameter of 3.4 ~ 4.5mm)
Temperature Range: 95º-107.6º F (35ºC-42ºC)
Temperature Accuracy: ±1⁰C or ±1.8⁰F
Warming up time: ≤ 2 minutes
Overheat Protection: 48ºC
Alarm: Overheat, low temperature, system error, door open and heating alarm

6 | P a g e
Outer Structure
Button and Function:
1. Lanyard- To hang the Jorvet IV Fluid and Blood Transfusion Warmer
2. Lanyard hole- To hang the lanyard
3. Display- To display the temperature and the alarm message
4. Running Light- Keep flashing during temperature rising and keep it on after
reaching the set temperature
5. Low Temperature- Alarm light- flashes during low temperature alarm
6. Temperature Unit convert- (⁰C) and (⁰F) convert
7. Mute Button- Silence for 2 minutes by pressing the mute button after alarm
8. Minus Button- Decrease the temperature in increments of 0.1⁰C
9. Knob- To attach the Warmer to an IV stand
10. Stop/Start Button- Start or stop the Warmer
11. Plus Button- Increase the temperature in increments of 0.1⁰C
12. Overheat alarm light (High Temperature Alarm) Flashing when high Temperature
alarms.
13. ⁰F Temperature- Select ⁰F temperature unit when the light is on
14. ⁰C Temperature- Select ⁰C temperature unit when the light is on

7 | P a g e
User’s Operation
Operation Steps:
1. Hang the warmer on the IV pole, adjust the strap to the appropriate length
Note: If the infusion pump is being used, the IV Warmer should be placed
slightly under the IV line’s exit from the infusion pump.
2. Use the knob to tighten to the IV Stand
3. Prime the IV set line removing all air bubbles
4. Open the door of the warmer

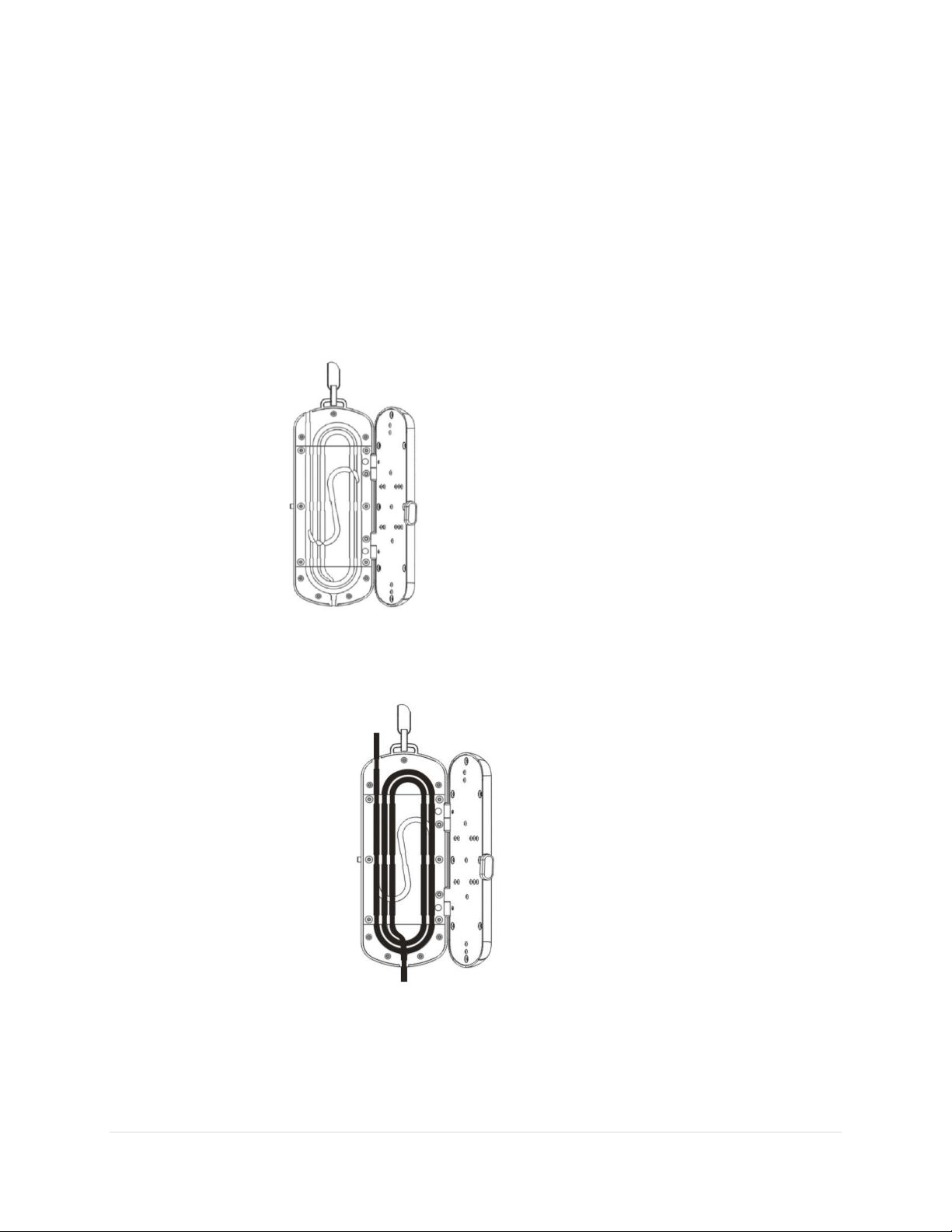

5. Install the IV Set end from the top to down inside the heating path and select the
path based on the IV set length and heating requirement
•Long Heating Path, heating length approximately 52cm

8 | P a g e

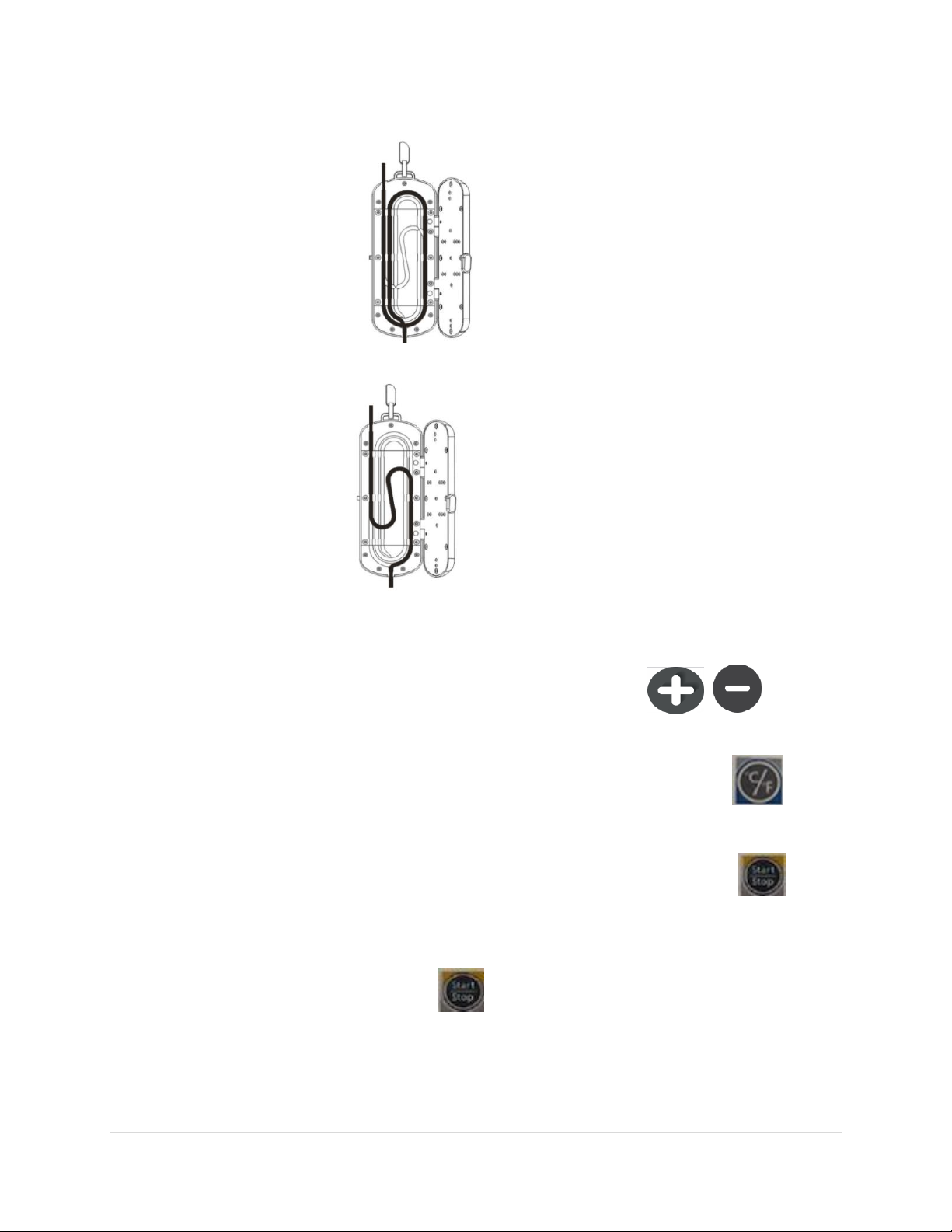

•Middle Heating path, heating length approximately 31cm
•Short Heating Path, heating length approximately 25cm
6. Connect the power cord to the Warmer, the Warmer will automatically start once
the power cord is connected to the warmer. Once the power cord is disconnected
the Warmer will automatically turn off.
7. Adjusting the Temperature: In the standby mode, press , to set the
temperature in increments of 0.1⁰C
9. Adjusting the Temperature unit setting: In the standby mode, press to set
C or F unit. It will display once the unit is selected.
10. Start the warmer after confirming the settings by pressing Start/Stop to
start the warmer. It will start warming based on the temperature that has been set.
The temperature will light up with the LED on the display. If the temperature
needs to be readjusted press Start/Stop again to the standby mode and reset
the temperature.

9 | P a g e
11. Stopping the Warmer when finished: Press Start/Stop to the standby mode
and take out the IV tubing from the warmer. Disconnect the power supply.
Alarm Types:
Overheat Alarm
When the temperature increases 2⁰C above the set temperature, the heating board
will cause an alarm to sound intermittently and the overheat alarm light will keep
flashing. Press stop the warmer and restart it. If this issue continues contact
Jorgensen Laboratories 800-525-5614.
Low Temperature Alarm
When the temperature decreases 2⁰C below the set temperature, the heating board
will cause an alarm to sound intermittently and the overheat alarm light will keep
flashing. Press stop the warmer and restart it. If this issue continues contact
Jorgensen Laboratories.
System Error Alarm
When E001 is displayed on the LED, this indicates if the Warmer was operated by
mistake, or a fault with the unit. Restart the unit. If the alarm continues contact
Jorgensen Laboratories.
Warming up Alarm
The running light will flash continuously as the Warmer reaches the desired
temperature. Once the desired temperature is reached the light will stop flashing
Door Open Alarm
The display will show E002 on the LED if the door is open if the Warmer is
running. Once the door is closed the alarm will be clear and show the temperature
that is set.
Alarm Level
High level alarm includes: System Error, Overheat and Low Temperature.
Low Level alarm are all other alarms.

10 | P a g e
Alarm System Setting
Press mute button to silence the alarm for 2 minutes, but it will not stop clear
the alarm.
Alarm Signal
The red flashing light is the alarm and can be seen up to 13 feet of the Warmer.
The audible alarm has an intensity of 45 decibels from 3 feet from the warmer.
Action for the Alarm
When the alarm sounds, do the following steps:
1. Check the patient
2. Confirm the cause of the alarm
3. Turn off the unit
4. Try again
Alarm and Error
Alarm
Possible Cause
Solution
Displays the room
temperature after switching
on the warmer
Door not closed
Close the door
Did not press Start/Stop Button
Press Star/Stop Button to Start
Detection sensor or heating
system error
Call Support if the problem
does not resolve
Overheat Alarm
Direct Sunlight or infrared light
leads to overheat temperature
Avoid the sunlight or infrared
environment
Electromagnetic interference
Avoid Electromagnetic
interference environment

11 | P a g e
Detection sensor or heating
System error
Contact Support if problem
does not resolve
System Error Alarm
Hardware System Error
Contact Support if problem
does not resolve
Daily Check
Test the unit completely before the first-time use, or 6-12 months continuous
operation, or maintenance or upgrading to make sure the device is working
appropriately.
Check the following:
▪Environment and power standard
▪AC Power cord is intact and functional
▪Unit and accessory mechanically functionable
▪Alarms are functioning appropriately
▪Accuracy with the Temperature in the standard range
Please contact Jorgensen Laboratories if any are abnormal
Clean and Sterilize
•Use a low concentrated detergent or disinfectant
•Use a soft cloth to wipe clean
•Do not soak unit in fluid/water
•Do not pour cleaning solution onto the unit
•Avoid using Abrasive material to clean or dimethyl benzene, acetone
detergent as it will cause damage to the shell
Prior to cleaning please unplug the AC power from the socket.
Clean the device regularly
List of optional detergent and disinfectants:
•Warm water
•Diluted soapy water
•Diluted ammonia water
•Sodium hypochlorite (clean bleaching powder)

12 | P a g e
•H2O2 (3%)
•Ethanol (70%)
•Isopropyl Alcohol (70%)
•Do not Sterilize with ETO or Formaldehyde
Maintenance Regularly
Routine Maintenance
Interval Period
Step
As Hospital Cleaning
Rules
Clean the surface completely before or after long
time storage
Check at least one time
per year
1. Test the Ac Power socket and cable
2. Test the temperature accuracy before use
Appendix
Note:
•If adding other accessories, sensors or cable can increase the electromagnetic
emission and lower the anti-electromagnetic interference.
•Do not place other equipment next to the Warmer or overlap equipment with
the warmer. If it is required to do so, monitor the Warmer to ensure that it is
working properly.
•The Warmer must be maintained and installed in the environment complied
with the EMS Standard
•Avoid operating the Warmer during the operation of a MRI or similar
devices, it will cause the unit to breakdown from the electromagnetic
interference.
•CISPR Emission Standard equipment may also interface the Warmer
•The Temperature will become inaccurate if the input signal range is lower
than the specified lowest range.
•Interference of RF communication Equipment may interfere with the
performance of the warmer.
