Joyzze Hornet Mini JZM-1 User manual

JOYZZE USA, INC.
P.O. Box 440098 Kennesaw, GA 30160 USA
877.456.9993 ( 877.4JO.YZZE )
JOYZZE.com
TM
For manual in other languages,
please visit Joyzze.com
Ver 1.0 EN
Hornet Mini
Cordless Clipper
User Manual
Model: JZM-1
MANUFACTURER’S 12 MONTH LIMITED WARRANTY
Your Joyzze product is warranted against manufacturer’s defects for one year
from the date of purchase. If your Joyzze clipper is determined to be defective
in material or workmanship during the warranty period, Joyzze will repair or
replace the product. Customer only pays shipping. Return the defective
product along with proof of purchase, enclose a return fee of $15.00 USD,
and a note explaining the problem to:
Joyzze Service, P.O. Box 440098, Kennesaw, GA 30160.
Modifications or repairs not made by Joyzze™: accidental damage, misuse,
neglect, use of unauthorized attachments or parts are not covered by this
warranty.
For customer service please e-mail to [e-mail],
or call toll free 877.456.9993 ( U.S. and Canada)
For outside U.S. and Canada, please dial +1 877.456.9993

CLIPPER SPECIFICATIONS
Lubricant Oil
Accessories:
USB Type-C Cable Charging BaseCleaning Brush
Package Includes
Charge Time 90 minutes
Run Time 200 minutes
Speed (2-Speed) 4500 - 5500 SPM
Noise ≤ 60 dB
Model JZM-1
Lithium Battery 3.7V 800mAh
Power 7W Max
Input 5V 1A 5W
Clipper
Magnetic Horizontal Charging Base
USB Type-C Cable - 2.4m / 7.9ft.
Cleaning Brush
Lubricant oil - 8ml / 0.28oz
Manual
ON/OFF Power Button /
Speed Adjustment Switch
Press and hold the power
button for 0.6sec to switch
the clipper ON/OFF
Short press the power
button again to adjust the
Speed.
Clipper Blade
USB-C Power Connection
LED Power Display

USB Cable
USB-C
USAGE
USB-C
USB-C
Advanced Magnetic
Charging Point

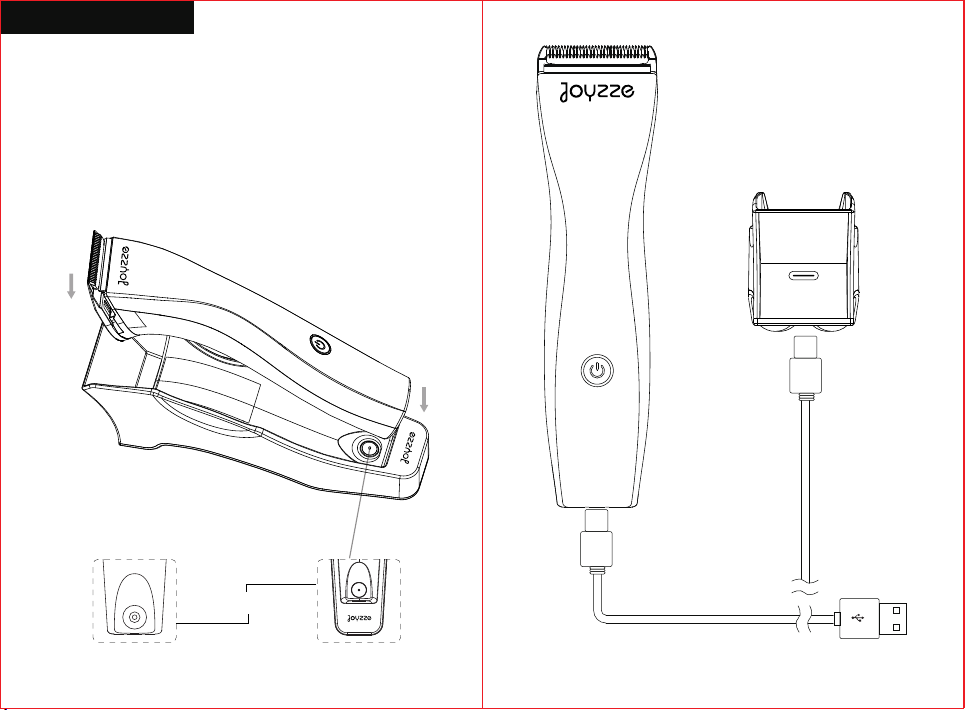

CHARGING OPERATION
As shown in the picture connect the clipper to USB-C power supply for charging.
The clipper can be charged on the charging base or by plugging the cord directly
into the back of the clipper.
The clipper can also be used while the cord is attached directly to the clipper.
Please note that the charging time will be longer if the clipper is put in use.

CHARGING INSTRUCTION
POWER DISPLAY WHILE CHARGING
Power 30% - 100%:
Flashing white light on upper part of the button
Power 10% - 30%:
Flashing red light on upper part of the button
Power ≤ 10%:
Constant red light on upper part of the button
LED Power Display
Press and hold the power button for 0.6 sec to switch the clipper ON/OFF
Short press the power button again to adjust the speed
ON/OFF Power Button / Speed Adjustment Switch

POWER DISPLAY ON CORDLESS MODE
Low Speed Mode
Power 100% - 30%:
- Flashing white light
Power 30% - 10%:
- Flashing red light
Power ≤ 10%:
- Flashing red light for 5 times with no motor movements
POWER DISPLAY
High Speed Mode
Power 100% - 30%:
- Constant white light - battery level high
Power 30% - 10%:
- Constant red light - battery level low
Power ≤ 10%:
- Flashing red light for 5 times with no motor movements
POWER DISPLAY ON CORDED MODE
Low Speed Mode
Power 100% - 30%:
- Flashing white light - battery level high
Power 30% - 0%:
- Flashing red light - battery level low
High Speed Mode
Power 100% - 30%:
- Constant white light on top,
- flashing white light below - battery level high
Power 30% - 0%:
- Constant red light on top,
- flashing red light below - battery level low

CAUTION: Turn OFF the clipper and disconnect from
outlet before performing maintenance.
BLADE REMOVAL, MAINTENANCE AND INSTALLATION
MAINTAINING BLADESBATTERY MAINTENANCE/ DISPOSAL
Hold the clipper face up with one hand and press the blade down
with thumb, then remove the blade into the other hand to avoid
dropping the blade.
BLADE REMOVAL
1. Blade cleaning: Press and hold the top of the shear blade.
Use the cleaning brush to clean hair between the shear blade and
the fixed blade.
BLADE MAINTENANCE
FAILURE TO CHARGE
Make sure the outlet is working and plugs are well seated in the clipper and outlet.
If clipper still fails to charge return for maintenance
(see Manufacturer’s 12 Month Limited Warranty).
LITHIUM-ION BATTERY USE, STORAGE, AND DISPOSAL
CLIPPER REPAIR SERVICE
1. The Joyzze Clipper comes installed with a rechargeable lithium-ion battery.
The battery does not develop a memory effect and can be recharged at any
time.
2. If the clipper will be in storage from several months or longer, store with a
partial battery charge of about 40%.
3. Store clipper in temperatures between 50°F/10°C and 104°F/40°C. Do not
store in damp conditions.
4. Do not place the clipper near heat vents, radiators, or in direct sunlight.
Optimal charging requires stable temperature conditions while sudden
increases in temperature will reduce battery charge capacity.
5. Initially, new lithium-ion batteries may not fully charge, but will after several
recharge cycles.
6. When not in use for extended periods, disconnect the adapter cord from the
AC outlet.
7. Check with your municipal solid waste organizations for details on
Please call Joyzze Customer Service at 877.456.9993 or email us at
[email protected] for assistance resolving any issues you’re experiencing with
your Joyzze Clipper. If your issues cannot be resolved over the phone or via
Email we will assist you with the return for repair service process. If you wish
your clipper to be serviced as well it should be carefully packed
and mailed either Parcel Post Insured or U.P.S. to:
Joyzze P.O. Box 440098, Kennesaw, GA 30160.
See Manufacturer’s 12 Month Limited Warranty, Warranty Card, and Repair
Service Instructions.

2. Blade oiling: Use 1-2 drops of lubricating oil on the 5 points
shown below.
Do not detach the blade spring while maintaining to avoid
malfunction.
MAINTAINING BLADES WARRANTY REGISTRATION
Hold the clipper face down with one hand and place the
bottom of the blade aligning the middle of the blade with
the clipper. Push the front of the blade down until it snaps
into place.
BLADE INSTALLATION
Register your product within 30 days of purchase to activate
its 12-month warranty. Warranty is valid only when this card is
completed and returned within 30 days of purchase. Online
registration and mail registration are both available.
REGISTER ONLINE AT JOYZZE.COM
REGISTERED BY MAIL  PLEASE PREPARE:
1. Complete warranty card.
2. Proof of purchase. Cut out UPC from product package.
3. Copy of receipt.
Mail to Joyzze, P.O. Box 440098, Kennesaw, GA 30160
IF RETURNING FOR REPAIR SERVICE:
1. Submit the Required with Registration information if not
already registered.
2. Pack clipper in bubble wrap to protect during shipping.
3. Enclose a return fee of $15.00 USD.

SAFETY INFORMATION
Salon / Customer’s Name: Address: Telephone:
E-mail:
Date of Purchase (MM/DD/YY): Serial Number:
Store / Distributor’s Name: City: State:
IMPORTANT SAFETY INFORMATION
When using an electrical appliance, basic precautions should always be
followed, including the following:
Read all instructions before using your Joyzze product.
DANGER: To reduce the risk of electric shock:
1. Avoid placing or storing clipper near water or other liquids.
2. Do not use if clipper, plug, or charging base has been immersed in
water or other liquid.
3. Unplug immediately if clipper falls into water or another emergency
occurs.
4. Unplug cord from outlet and clipper except when charging.
5. Turn clipper off and unplug cord from outlet before cleaning or
changing parts.
WARNING: To reduce the risk of re, electric shock, or personal injury:
1. Clipper should never be left unattended when plugged in.
2. Supervision is necessary when used by, on, or near children or
individuals with certain disabilities.
3. Use this clipper only for its intended use. Do not use attachments not
recommended by Joyzze.
4. Do not use this clipper if cord or plug is damaged, if it is not working
properly, if it has been dropped, or immersed in any liquid, return to
Joyzze for repair.
5. Do not use an extension cord with this clipper.
6. Keep the cord away from heated surfaces.
7. For indoor use only. Do not use around aerosol products or where
flammable gases, such as oxygen, are in use.
8. To avoid injury: never use this clipper with a damaged or broken
blade or comb.
9. To disconnect: turn control to OFF then remove plug from outlet.
10. Use only the charging base supplied by Joyzze to recharge.
11. This clipper is not intended for use by children or persons with
reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning the use of the clipper by a person
responsible for their safety.
12. KEEP OUT OF REACH OF CHILDREN.
13. Remove battery before disposing of product.
14. Dispose of battery properly and safely.
WARRANTY CARD:
