JR ProPo Ergo User manual

.60 ASSEMBLY INSTRUCTIONS
Heli Division
ERGO SPECIFICATIONS
Overall Length 55.85"
Overall Height 18.92"
Main Rotor Diameter 60.45"
Tail Rotor Diameter 10.34"
Gear Ratio 9.78:1:5.18
Gross Weight 10.58 lbs.

INTRODUCTION
Congratulations on your purchase of the JR Ergo helicopter kit.
This kit has been both engineered and manufactured by JR with help from some
of Japan’s top R/C helicopter engineers (now employed by JR).
As you may well know, the name JR has for years been synonymous with state-
of-the-art, high quality radio control systems known the world over for their
exceptional reliability and engineering.
JR now brings this reputation and knowledge into the helicopter market with the
development of the Ergo and the organization of the JR heli division.Years in the
making, the Ergo’s superior quality and exceptional parts fit and finish create a
new standard of quality that was previously unavailable.
Before you begin the assembly of your Ergo, we suggest that you first review the
entire instruction manual to become familiar with the assembly sequences and
parts layout.
WARNING
The radio controlled model helicopter contained in this kit is not a toy, but a
sophisticated piece of equipment. This product is not recommended for use by
children. Radio controlled models such as this are capable of causing both
property damage and/or bodily harm to both the operator/assembler and/or
spectator if not properly assembled and operated. Horizon Hobby Distributors
assumes no liability for damage that could occur from the assembly and/or
use/misuse of this product.
AMA INFORMATION
We strongly encourage all prospective and current R/C aircraft pilots to join the
Academy of Model Aeronautics. The AMA is a non-profit organization which
provides services to model aircraft pilots.As an AMA member, you will receive a
monthly magazine entitled Model Aviation, as well as a liability insurance plan to
cover against possible accident or injury. All AMA charter aircraft clubs require
individuals to hold a currentAMA sporting license prior to operation of their
models. For further information, you can contact theAMA at:
Academy of Model Aeronautics
5151 East Memorial Drive
Muncie, IN 47302
[phone]
PRE-ASSEMBLY INFORMATION
When first opening your Ergo kit, you will notice that all of the parts are
packaged and numbered to coordinate with the assembly step numbers of this
instruction manual.
All small hardware (nuts, bolts, washers, etc.) for each step are separated and
packaged separately within the main parts bags. When beginning a section, you
will need to open only the bag with the corresponding number to the section you
are going to start. It is suggested that you place all of the hardware in an open
container (e.g., coffee can) during assembly so as not to lose any of the small
parts. It may also be helpful to familiarize yourself with the various sizes of
screws, bolts, nuts, etc., as illustrated in the appropriate assembly section before
you begin assembly. At the end of each assembly, in most cases, there should be
no parts remaining.
Great care has been taken in filling the bags with the correct quantity of parts and
hardware for each section. However, occasionally mistakes do happen. In the
event that you find a parts shortage or are in need of technical assistance, please
contact your local JR heli division parts dealer, or contact the Horizon Service
Center directly.
Horizon Service Center
4105 Fieldstone Road
Champaign, IL 61821
[phone] (9am to 5pm CST)
2

3
Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Hardware Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
1-1 Clutch Bell/Start Shaft Assembly . . . . . . . . . . . . . . . . . . . .8
1-2 Tail Drive Pinion/Bearing Block Assembly . . . . . . . . . . . .8
1-3 Control Ball Installation . . . . . . . . . . . . . . . . . . . . . . . . . . .9
1-4 Servo Mixing Lever Unit Assembly . . . . . . . . . . . . . . . . .9
1-5 Elevator Arm Assembly . . . . . . . . . . . . . . . . . . . . . . . . . .10
1-6 Fuel TankAssembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
2-1 Upper Main Frame Section Assembly . . . . . . . . . . . . . . .12
2-2 Upper Main Frame Control Lever Installation . . . . . . . . .13
2-3 Lower Main Frame Assembly . . . . . . . . . . . . . . . . . . . . .14
2-4 Fuel Tank Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
2-5 Front Radio Bed/Gyro Mounting Plate Installation . . . . .15
2-6 Cooling Fan Shroud Installlation . . . . . . . . . . . . . . . . . . .15
2-7 Upper/Lower Main Frame Assembly Attachment . . . . . .16
3-1 Main Drive Gear/AutorotationAssembly . . . . . . . . . . . . .17
3-2 Main Drive Gear/AutorotationAssembly Installation . . .17
3-3 Landing Gear Assembly Installation . . . . . . . . . . . . . . . .18
3-4 Cooling Fan/Hub Installation . . . . . . . . . . . . . . . . . . . . . .18
3-5 Engine Mount Attachment . . . . . . . . . . . . . . . . . . . . . . . .19
3-6 Clutch Assembly Attachment (ALL) . . . . . . . . . . . . . . . .19
3-7 Engine Installation (ALL) . . . . . . . . . . . . . . . . . . . . . . . . .20
3-8 Installation of the Muffler . . . . . . . . . . . . . . . . . . . . . . . . .20
4-1 Rotor Head Hub Assembly . . . . . . . . . . . . . . . . . . . . . . . .21
4-2 Main Blade Holder Assembly . . . . . . . . . . . . . . . . . . . . . .21
4-3 Main Blade Holder/SeesawAttachment . . . . . . . . . . . . . .22
4-4 Seesaw MixingArm Installation . . . . . . . . . . . . . . . . . . .22
4-5 Washout Unit Assembly . . . . . . . . . . . . . . . . . . . . . . . . . .23
4-6 Tail Pitch Slide Ring Assembly . . . . . . . . . . . . . . . . . . . .23
4-7 Swashplate/Washout Assembly Installation . . . . . . . . . . .24
4-8 Rotor head Installation . . . . . . . . . . . . . . . . . . . . . . . . . . .25
4-9 Flybar Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
4-10 Flybar PaddleAttachment . . . . . . . . . . . . . . . . . . . . . . . . .26
4-11 Rotor Head/Swashplate Control Rod . . . . . . . . . . . . . . . .27
5-1 Tail Output Shaft/Pulley Assembly . . . . . . . . . . . . . . . . . .28
5-2 Tail Gear Case Assembly . . . . . . . . . . . . . . . . . . . . . . . . .28
5-3 Tail Center Hub Assembly . . . . . . . . . . . . . . . . . . . . . . . .29
5-4 Tail Blade Holder Assembly . . . . . . . . . . . . . . . . . . . . . . .29
5-5 Tail Pitch Control Lever Installation . . . . . . . . . . . . . . . . .30
5-6 Tail Boom Carrier Installation . . . . . . . . . . . . . . . . . . . . .30
5-7 Tail Boom Assembly Installation . . . . . . . . . . . . . . . . . . .31
5-8 Vertical Fin Attachment . . . . . . . . . . . . . . . . . . . . . . . . . .31
5-9 Tail Boom Assembly Installation . . . . . . . . . . . . . . . . . . .32
5-10 Tail Boom/Horizontal Fin Installation . . . . . . . . . . . . . . .32
6-1 Upper Servo Tray Installation . . . . . . . . . . . . . . . . . . . . . .33
6-2 Servo/Switch Harness Installation . . . . . . . . . . . . . . . . . .34
6-3 Tail Control Rod Assembly . . . . . . . . . . . . . . . . . . . . . . .35
6-4 Tail Control Rod Installation . . . . . . . . . . . . . . . . . . . . . .35
6-5 Gyro/Receiver/Battery Installation . . . . . . . . . . . . . . . . . .36
Radio System Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
7-1 Aileron Linkages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
7-2 Elevator Linkage Installation . . . . . . . . . . . . . . . . . . . . . .38
7-3 Collective Pitch Linkages . . . . . . . . . . . . . . . . . . . . . . . . .39
7-4 Tail Control Rod Servo Connection . . . . . . . . . . . . . . . . .39
7-5 Throttle Linkage Installation (ALL) . . . . . . . . . . . . . . . . .40
7-6 Control Lever/LinkageAdjustment . . . . . . . . . . . . . . . . .41
8-1 Body Assembly/CanopyAttachment . . . . . . . . . . . . . . . .42
8-2 Body Attachment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Decal Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
8-3 Main Rotor Blade Assembly . . . . . . . . . . . . . . . . . . . . . . .44
8-4 Main Rotor Blade Final Balancing . . . . . . . . . . . . . . . . . .45
8-5 Main Rotor Blade Final Attachment . . . . . . . . . . . . . . . . .45
ServoAdjustment and Radio Set Up . . . . . . . . . . . . . . . . . . . . . . .46-47
Data Sheets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48-51
Final Pre-Flight Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
General Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Rotor Head/Swashplate/Washout Assembly Parts List . . . . . . . . .54-55
Cyclic Mixing Arms/Elevator/Aileron Control Arms Parts List . .56-57
Start Shaft/Clutch/Engine Assembly Parts List . . . . . . . . . . . . . . .58-59
Upper Main Frame/Radio Tray/Body Set Parts List . . . . . . . . . . .60-61
Lower Main Frame/Landing Gear/Fuel Tank Parts List . . . . . . . .62-63
Tail Boom/Tail Brace/Tail Boom Carrier Parts List . . . . . . . . . . .64-65
Tail Case/Tail Blade Holders/Tail Pitch Plate Parts List . . . . . . . .66-67
INDEX
Section Description Page Section Description Page

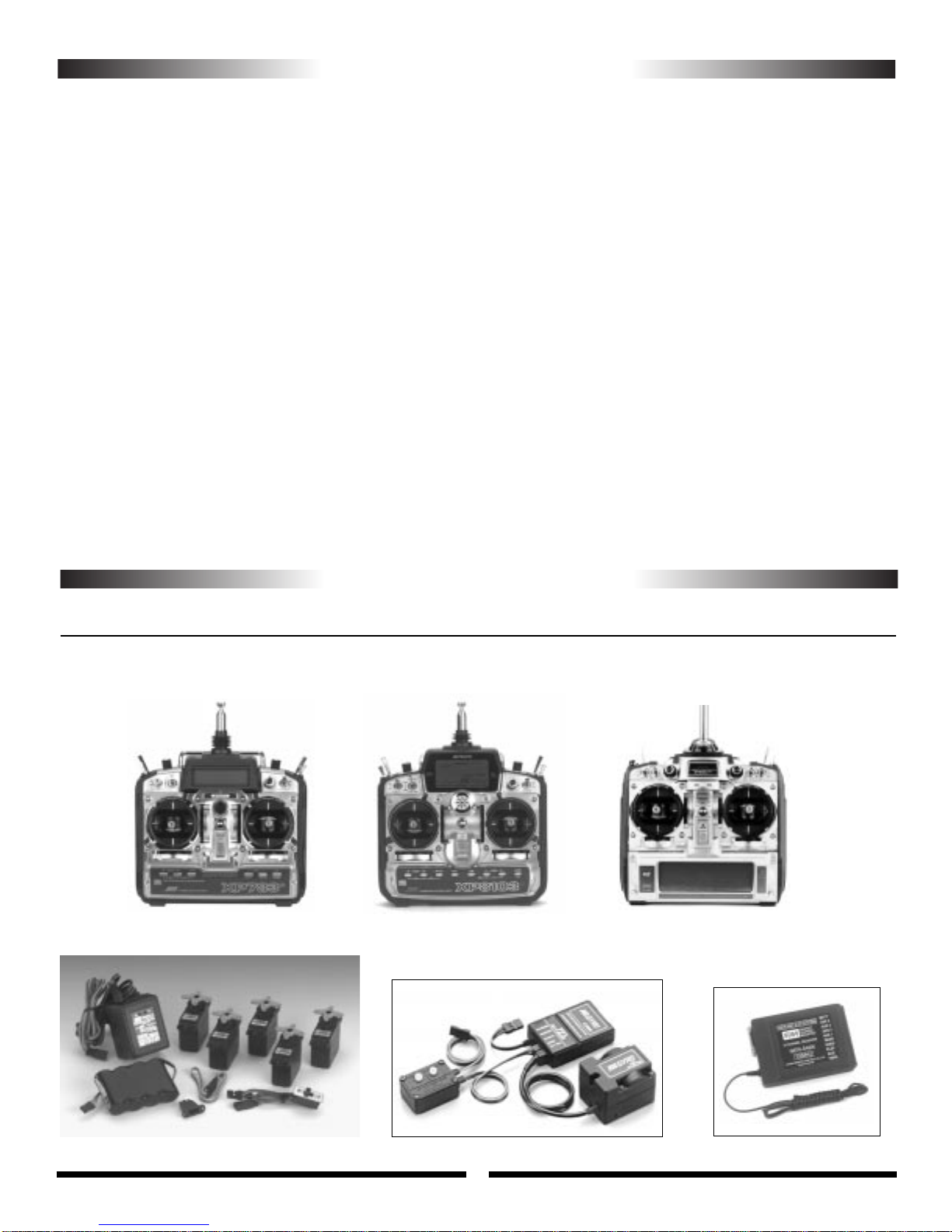

ITEMS REQUIRED TO COMPLETE THE JR ERGO
1. RADIO SYSTEM REQUIREMENTS (NOT INCLUDED):
6-channel or greater R/C helicopter system with 5 servos, 1000 mAh receiver battery and gyro.
(not supplied in kit)
ERGO .60 FEATURES
Heavy-DutyAluminum Quad Frame System
Provides excellent rigidity and vibration absorption.
One-Way Hex Start Shaft System
Provides positive starting. Starter shaft utilizes a one-way bearing
that allows the shaft to stop after the engine is started.
Wide Spread Tail Output Shaft Bearings
Reduces vibration and improves control response.
Belt-Driven Tail Rotor Design
Provides easy adjustment and low maintenance.Also eliminates
the need for optional/expensive tube drive shafts.
Precision Ball Bearings atAll Critical Locations
Provide low wear, high precision and reduced maintenance.
Unique Cyclic Mixing Control System
Offers easy adjustment and precise control.
Self-Aligning One-Piece Steel Clutch System
Offers easy installation and adjustment with exceptional reliability.
Straight Blade Axle Rotor Head Design
Provides high responsiveness and solid blade tracking.
Low Drag Flybar Paddles
Provide quick yet smooth cyclic response at all flight speeds.
Heavy-Duty Main Blade Grips with 4mm Blade Bolts
Provide a solid and secure mounting surface to easily handle
the stresses of radical flight.
Rearward Facing Engine Design
Provides easy access to the glow plug for starting. Engine slips
easily through the main frame for trouble-free engine maintenance.
Heavy-Duty Tail Boom Carrier
Provides increased structural rigidity and improved tail rotor precision.
Superior Parts Fit and Finish
Make assembly trouble free and enjoyable.
4
JRXP783 JRXP8103 JRPCM10SX
Flight Pack Gyro Receiver

5
Double Sided Servo
Mounting Tape
Nylon Wire Ties (to
secure radio wires) 5 Minute Epoxy or Rotor Blade
CA Adhesive
Silicone Fuel Tubing Whip Antenna
Fuel Filter
Glow Plugs
2. ENGINE REQUIREMENTS (NOT INCLUDED):
3. BUILDING SUPPLIES (NOT INCLUDED):
The following items are needed to complete the assembly of the JR Ergo:
A .60-.61 R/C Helicopter Engine is required. A special helicopter type muffler is also required
(Webra .61 Heli Engine Shown) (Thunder Tiger Pro .61 Heli Engine Shown)
WEBE675 TTR9695
KSJ355 O.S. Thunder Tiger/Webra Engines
KSJ385 Y.S. Thunder Tiger/Webra Engines

6
Needle Nose Pliers
Drill and Drill Bits
Allen Wrenches: 1.5, 2.0, 2.5, 3.0, 4.0mm
Sandpaper (80-100 Grit) Blade Balancer Adjustable Pliers
Small Hammer Hobby Knife Metric Ruler
Scissors
12 Volt Electric Starter 12 Volt Starting Battery
HAN109HAN110
HAN118
RVO1002
HAN3020 JRP960090
1.5 Volt Glow Plug Battery Remote Glow Plug Adaptor
(For Power Panel Use Only)
Helicopter Fuel 15% - 30%
Pitch Gauge
Fuel Pump
Ball Link Pliers Training Gear (Beginners Only)
Glow Plugs Hex Starting Shaft
Phillips Screwdriver Nut Drivers: 5mm, 7mm
4. TOOLS NEEDED TO ASSEMBLE THE JR ERGO .60 (NOT INCLUDED):
5. FIELD EQUIPMENT REQUIRED (NOT INCLUDED):

7
Socket Head Bolt Self Tapping Screw Flat Washer
.05mm
Flat Head Screw Lock Nut
There are a variety of sizes and shapes of hardware included in this kit.
Prior to assembly, please be careful to identify each screw by matching it to the
full size screw outlines included in each step.
All of the hardware, screws, nuts, etc., contained in the Ergo kit are described in
the following A, B, C manner:
CC
C
A
A
B
A
A
B
B
BC
AB
3x8mm Socket Head Bolt
Set Screw
C
A
B
C
C
A
A
A
A
B
2x8mm Flat Head Screw
2.6x10mm Self Tapping Screw AB
B
3mm Flat Washer
AB
B
3mm Lock Nut
Star Washer
AB
B
3mm Star Washer
A
B
Flat Head Cap Screw
AC
B
C
3x8mm Flat Head Cap Screw
A
Hex Nut
AB
B
2mm Hex Nut
C
AB
4x4mm Set Screw
HARDWARE IDENTIFICATION

8
1-1
4x4mm Set Screw
Use Threadlock
..........1 pc
3x6mm Socket Head Bolt
...1 pc
3mm Flat Washer
.........1 pc
CLUTCH BELL/START SHAFT ASSEMBLY
1-2 TAIL DRIVE PINION/BEARING BLOCK ASSEMBLY
Install the Lower Bearing Block so the
bearing face is toward the top
Install the Upper Bearing Block so the
bearing is toward the bottom
Tail Drive Pinion
Bearing Blocks
Tail Drive Pinion
with Shaft
Front Tail Belt Pulley
(Install Flat Side Up)
3mm Flat Washer
3x6mm Socket Head Bolt (Use Threadlock)
Complete Assembly
4x4mm Set Screw (Use Threadlock)
Starter Hex Adaptor
Start Shaft Bearing Block
Start Shaft
Clutch Bell Assembly
Be sure that the Bearing with
the 5mm ID faces upward
Pinion Gear
(Use Threadlock when
assembling)
Complete Assembly
Note: It will be necessary to
press the two Bearings
into the Bearing Blocks.
Press the Bearings in
evenly by hand. Do not
use a vise or pliers for
this procedure as
damage could result.
Use Threadlock
UP
UP
Bearing
Bearing

1-3 CONTROL BALL INSTALLATION
1-4 SERVO MIXING LEVER UNIT ASSEMBLY
2x8mm Flat Head Screw
2x10mm Flat Head Screw
........1 pc
........8 pc
Steel Joint Ball........9 pc
2mm Nut ........3 pc
3x8mm Flat Head Screw
3x8mm Socket Head Bolt
........2 pc
Mixing Lever Bushing ......1 pc
....1 pc
........1 pc
Nylon Washers ........5 pc
....1 pc
Steel Joint Ball
Steel Joint Ball
Steel Joint Ball
Roll Bell Crank
2x10mm Flat
Head Screw
2x10mm Flat
Head Screw
Mixing Base Arm
(Collective)
2mm Nut
2x8mm Flat Head Screw
(Use Threadlock) Mixing Lever (3 pc)
(Prepare 3 Sets)
2mm Nut
3x28mm Socket Head Bolt
Mixing Lever Spacer ........1 pc
Mixing Lever Bushing A ........1 pc
3mm Flat Washer ........1 pc
After assembly, any additional play or
movement in the Mixing Lever Unit can
be reduced by adding additional Nylon
Washers as needed.
Nylon
Washer
3mm Flat
Washer
3x28mm Socket Head Bolt
(Use Threadlock)
Nylon Washers
Mixing Lever Bushing B
Mixing Lever Bushing A
3x8mm Flat Head Screw
Mixing Base Arm (Roll)
Mixing Base Cross Member
3x8mm Flat Head Screw
(Use Threadlock)
Complete Assembly
Nylon Washers
3x8mm Socket
Head Bolt
Mixing Base Cross Member
Mixing
Lever
Spacer
9
Use Threadlock
Use Threadlock

1-5 ELEVATOR ARM ASSEMBLY
10
2x8mm Flat Head Screw
Steel Joint Ball .........2 pc
Elevator Arm Pin .......2 pc
..........2 pc
2x8mm Flat Head Screw
Steel Joint Ball
Elevator Arm Front
Elevator Arm Pins
Steel Joint Ball
Swashplate A Arm
Swashplate A
Arms
Edge of Work Bench
Elevator Arm
Tap in gently with
a small hammer.
Elevator Arm Rear
2x8mm Flat
Head Screw
Caution: Be sure to note the correct installation direction of the Swashplate A Arm.
Elevator Arm (Front) Elevator Arm (Rear)
Marked Side Out
Swashplate A
Arm Swashplate A
Arm
Marked Side In

1-6 FUEL TANK ASSEMBLY
11
1. Cut the small Silicone Fuel Tubing
(included) to a length of 77mm. Next,
connect the Fuel Tank Clunk, Nipple, and
medium Silicone Fuel Tubing (not
included) as shown below.
2. Insert the assembly above (Fuel Tank
Clunk first) into the Fuel Tank opening so
that the Nipple is inside the tank. Next,
slide the Fuel tank Grommet over the
medium Fuel Tubing.
3. Insert the Fuel Tank Grommet into the
Fuel Tank opening, making sure that it is
fully seated. Make sure Grommet is
fully seated. 6. Completed Assembly
4. Pull the medium Fuel Tubing out of the
Fuel Tank until the threads of the Fuel
Tank Nipple are exposed.
5. Remove the medium Silicone Fuel Tubing
from the Nipple and secure the Nipple to
the Fuel Tank using the 7x12x1mm Washer
and 7mm Nut supplied. Be sure to
secure this assembly firmly to avoid leakage.
Silicone Fuel Tubing (not included)
Connects to Muffler Pressure Tap
Medium Silcone Fuel Tubing (not included)
Connects to Engine Carburetor
Nipple
Fuel Tank Grommet Pull out until
Nipple threads
are exposed
7x12x1 Washer
7mm Nut
Use two Wrenches
if necessary to
secure Tank Nipple.
Silicone Tube
(Small)
Fuel Tank
Clunk
77mm

12
Note: Be sure to use the two
shorter Body Mount
Standoff for this installation.
*Both the Clutch Bell/Start Shaft Assembly
(Step 1-1) and the Tail Drive Pinion/
Bearing Block Assembly (Step 1-2) are
temporarily installed at this time. These
assemblies will be adjusted and secured
in Step 3-2. Be sure to use Threadlock
when permanently securing. *
*
**
*
*
*
*
*
*
*
3x8mm Socket Head Bolt ..........21 pc
Body Mounting Standoff .......2 pc
3mm Flat Washer
..........11 pc
2.6x8mm Self Tapping Screw ..........4 pc
3x10mm Socket Head Bolt
..........1 pc Tail Control Rod Guide
3x10mm Socket Head Bolt
Body Mounting Standoff: Short
Bearing side must face upward
3mm Flat Washer
(11 pc)
Bearing side must
face downward
Servo Mounting Plates
Upper Main Frame
2.6x8mm Self Tapping
Screws
2-1 UPPER MAIN FRAME SECTION ASSEMBLY
Upper Main Shaft Bearing Block
When installing the Main Rotor Shaft Bearing Blocks, it is important to note the correct direction in which they need to be installed.
Please refer to the diagram below for clarification.
Position so the side of
the bearing block that
has the bearing flush
with the flange is upward.
UP
Lower Main Shaft Bearing Block
Position so side of the
bearing block that has the
bearing flush with the
flange is downward.
UP
Bearing Flush
with Flange
Bearing Bearing
Bearing Flush
with Flange
Use Threadlock
3x8mm Socket Head Bolt
(21 pc)

13
2-2 UPPER MAIN FRAME CONTROL LEVER INSTALLATION
Note: Be sure to install the Elevator
Arm Units in their proper
location as there is a “Front”
and a “Rear” Unit (Step 1-5).
Nylon Washer
Elevator Arm Bushing
3x6mm Socket Head Bolt
Elevator Arm Bushing
Nylon Washer
Nylon Washer
3x8mm Socket
Head Bolt
(Use Threadlock)
3mm Lock Nut
3x8mm Socket Head Bolt
........2 pc
........4 pc
........1 pc
Nylon Washers ........6 pc
......1 pc
3x22mm Socket Head Bolt
........1 pc
Elevator Arm Bushing ........2 pc
Mixing Base Nut ........2 pc
........1 pc
3x6mm Socket
Head Bolt
(Use Threadlock)
Mixing Base Nut (2 pc)
Washout Arm Bushing
3mm Flat Washer
3x6mm Socket Head Bolt
Roll Bell Crank Spacer ........1 pc
3mm Lock Nut
Use Threadlock
Assemble and attach the Control Rods to the
Mixing Levers/Control Arms as shown:
A
B
C
Rod Length Adjust Length To
120mm 104mm
55mm 36mm
90mm 72mm
A
B
C
Adjustment Length
Nylon Washer
Roll Bellcrank
Spacer
Washout Arm
Bushing 3mm Flat Washer
3x22mm Socket
Head Bolt
3x8mm Socket
Head Bolt

2-4 FUEL TANK INSTALLATION
Note: In some kits, the correct
42mm body mounting
standoffs may be located
in a separate package.
2.6x8mm Self Tapping Screw
3mm Lock Nut
(8 pc)
2.6x8mm Self Tapping Screw
Servo Installation Plate
3x8mm Socket Head Bolt
(Use Threadlock)
3x8mm Socket Head Bolt (10 pc)
Lower Frame Angle (2 pc)
Main Frame Standoff (3 pc)
Fuel Tank
3x8mm Socket Head Bolt Tank Mounting Rubber
(2 pc)
3x10mm Socket Head Bolt
(4 pc)
3x8mm Socket Head Bolt
Lower Main Frame
(2 pc)
Body Mounting Standoff (42mm)
(2 pc)
14
......8 pc
2.6x8mm Self Tapping Screw
......4 pc
....10 pc
3x8mm Socket Head Bolt
3mm Lock Nut
Body Mounting Standoff Long (42mm)
...3 pc
......2 pc
3x8mm Socket Head Bolt
Main Frame Standoff, 64mm
2-3 LOWER MAIN FRAME ASSEMBLY
3x10mm Socket Head Bolt
Use Threadlock
Use Threadlock on all
screws in this assembly.
......2 pc
Note: Install the Fuel Tank and Tank
Mounting Rubber into the lower
frame halves before attaching the
Main Frame Standoffs.
When securing Standoffs to Frame,
position the bottom of the frame on a
level surface to prevent twisting
during tightening.
Also be sure to use the correct length
bolt in the correct location when
assembling.
......4 pc

2-5 FRONT RADIO BED/GYRO MOUNTING PLATE INSTALLATION
2-6 COOLING FAN SHROUD INSTALLATION
15
Front Radio Bed
3x10mm Socket Head Bolt (4 pc)
Cooling Fan Shroud
3x8mm Self Tapping Screw
3x8mm Self Tapping Screw
......4 pc
3x8mm Self Tapping Screw
.....4 pc
3x10mm Socket Head Bolt

2-7 UPPER/LOWER MAIN FRAME ASSEMBLY ATTACHMENT
16
Mainframe Standoff, 32mm (7 pc) Mainframe Spacer, 14mm (14 pc)
Note: Use Threadlock on all
screws in this assembly
3x25mm Socket Head Bolt (14 pc)
......14 pc
3x25mm Socket Head Bolt
.....7 pc
Main Frame Standoff, 32mm
......14 pc
Main Frame Spacer, 14mm
Use Threadlock on all
screws in this assembly.

3-1 MAIN DRIVE GEAR/AUTOROTATION ASSEMBLY
3-2 MAIN DRIVE GEAR/AUTOROTATION ASSEMBLY INSTALLATION
17
3x6mm Socket Head Bolt (4 pc)
Tighten equally to prevent
warping of Main Drive Gear)
Main Drive Gear
Autorotation Assembly
4x4mm Set Screw (4 pc)
Main Shaft Collar
Main Rotor Shaft
14mm
3mm
3mm Lock Nut
3x22mm Socket Head Bolt
1. Secure the Autorotation Hub to the Main Rotor Shaft
using the 3x22mmSocket Head Bolt. Next, slide the
Main Shaft Collar onto the Main Rotor Shaft. While
pulling upward on the Main Rotor Shaft, secure the
Main Shaft Collar to the Main Rotor Shaft using the
four 4x4mm Set Screws. 2. Once the Main Shaft Assembly is in place, adjust the gear mesh of the Clutch Bell
and Tail Belt Pinion Gears, and secure the bolts left loose from Step 2-1.
3x6mm Socket Head Bolt
.......4 pc
3mm Lock Nut ........1 pc
4x4mm Set Screw ........4 pc
......1 pc
3x22mm Socket Head Bolt
Note: In some kits, the 3x22mm Long
Shank Socket Head Bolts are located
in a separate bag.
Use Threadlock
Use Threadlock

3-3 LANDING GEAR ASSEMBLY INSTALLATION
3-4 INSTALLATION OF COOLING FAN
18
3x12mm Socket Head Bolt ......4 pc
4x4mm Set Screw ......4 pc
3mm Washer ......4 pc
......4 pc
3x8mm Socket Head Bolt
3x8mm Socket Head Bolt
(4 pc)
Landing Gear Dampers (4 pc)
4x4mm Set Screws
(4 pc)
3x12mm Socket
Head Bolt (4 pc)
3mm Washer
(4 pc)
Landing Skid
*Landing Skid Cap
* Use CA Adhesive to attach
Landing Skid Caps to Skid Tubes
3x6mm Socket Head Bolt
......4 pc
Nut Supplied with Engine
Taper Collet, Upper (#3 or #4)
3x6mm Socket Head Bolt (4 pc)
(Use Threadlock)
Cooling Fan
Taper Collet, Lower
(#1 or #2 )
Cooling Fan Hub
Revolution 1003 Piston Locking Tool
Webra .61H
Engine Shown
Note: Be sure to apply Threadlock to the threads of
the Engine Crankshaft after the Engine
Nut/Fan Assembly has been completly tightened.
Use the chart below to select the proper
Lower and Upper Taper Collets for your
particular engine.
* It is recommended that a Piston
Locking Tool be used to properly secure
the Fan Assembly to the engine.
OS .61SFH - .61SXH
YS .61, ENYA .60
WEBRA .60 - .70
OS .61SFH
WEBRA .60 - .70
OS .61SXH, YS. 61
ENYA .60
Taper Collet #1
Taper Collet #2
Taper Collet #3
Taper Collet #4
Lower Collets (Large w/Split)
Upper Collets (without Split)
Use Threadlock
Use Threadlock

3-5 ENGINE MOUNT ATTACHMENT
3-6 CLUTCH ASSEMBLY ATTACHMENT
19
TOP
BOTTOM
Single Holes Up
Double Holes
Up
OS Enya Engines Webra/YS Engines
It is important to note the proper direction the Motor
Mount is installed to achieve the correct alignment
for the specific engine to be used. 4x15mm Socket
Head Bolt (4 pc)
4mm Washers (4 pc)
Engine Mount
Clutch Assembly
Apply a light coating of oil
or grease to the Bearing
before installation.
2mm Hex Nut
2x8mm Flat Head Screw
(Use Threadlock)
Steel Joint Ball
Prepare the
Carburator Throttle
Arm as shown.
4x6mm Socket
Head Bolt (2 pc)
(Use Threadlock)
4x15mm Socket Head Bolt ......4 pc
4mm Washer ......4 pc
Use Threadlock
Use Threadlock
2x8mm Flat Head Screw ......1 pc
4x6mm Socket Head Bolt ......2 pc
2mm Hex Nut ......1 pc
Steel Joint Ball ......1 pc

3-7 ENGINE INSTALLATION
20
3-8 INSTALLATION OF THE MUFFLER
4mm Washer (6 pc)
4x12mm Socket Head Bolt (6 pc)
*
*
INCORRECT INCORRECT CORRECT
Pressure Fuel Line Attachment
Fuel Line Connection
Main Fuel Line
(Connect to Carburetor)
Note: Installation of various Engine/Muffler Combinations
may vary. Please refer to your Engine/Muffler
instructions for proper installation.
* Inserted in previous step (3-7)
4x12mm Socket Head Bolt
......6 pc
4mm Washer
......6 pc
Use Threadlock
Use Threadlock
@@@@@@@@e?
@@@@@@@@e?
@@h?
@@h?
@@h?
@@h?
@@h?
@@h?
@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?
@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?
@@@@@@@@
@@@@@@@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
?@@
?@@
?@@
?@@
?@@
?@@
?@@@@@@@@
?@@@@@@@@
?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@
?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@
@@g
@@g
@@g
@@g
@@g
@@g
@@@@@@@@
@@@@@@@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@@@@@@@e?
@@@@@@@@e?
@@h?
@@h?
@@h?
@@h?
@@h?
@@h?
@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?
@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?
@@@@@@@@
@@@@@@@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
?@@
?@@
?@@
?@@
?@@
?@@
?@@@@@@@@
?@@@@@@@@
?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@
?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@
@@g
@@g
@@g
@@g
@@g
@@g
@@@@@@@@
@@@@@@@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@@@@@@@e?
@@@@@@@@e?
@@h?
@@h?
@@h?
@@h?
@@h?
@@h?
@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e
@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e
@@@@@@@@
@@@@@@@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
?@@
?@@
?@@
?@@
?@@
?@@
?@@@@@@@@
?@@@@@@@@
?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@
?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@
@@g
@@g
@@g
@@g
@@g
@@g
@@@@@@@@
@@@@@@@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
*
*
* It is highly recommended that you insert
the Muffler Bolts into the Engine Case
prior to installing the engine in the frame.
Adjust the height and position of the Engine as shown so the
bottom of the Clutch Assembly is flush with the bottom of
the Clutch Bell. Also check to insure that the Engine and
Clutch Bell are parallel.
