JRC JMA-3300 Series User manual

2010.12 2010.12 PrintedinJapan
CAT.No.Y9-172（No.692-1-3）D
Display unit
NCD-2182 Mass Approx. 5 kg
Scanner unit
4kW NKE-2042 Mass Approx. 10.5 kg
10kW NKE-2103-4/2103-4HS NKE-2103-6/2103-6HS Mass 4ft = Approx. 34 kg/ 6ft = Approx. 36 kg
6kW NKE-2062/2062HS Mass Approx. 24 kg
（）
（）

（）

（）
（）

φ
（)OXVKPRXQWLQJKROH）


&RYHU
%UDFNHW
250
4-M8
25mm DEEP
CABLE INLET 25
250
80
637
5
25
320
400
45
FORWARD
1190（SWING CIRCLE φ1220）
432
290
344
14
（525）
（317.5）（192）
438
（552.2）
（337）206
461
（58.7）457.4
290
348
（14）
6FT:1880（SWING CIRCLE φ1910）
4FT:1285（SWING CIRCLE φ1320）
268±1
261±1
267±0.5
274±0.5
4-R10
4-M5
Flush mounting hole
JMA-3300
Radar
10.4-inch ultra bright LCD
New System-on-Chip technology
Semi-Constaview™ digital signal processing
AIS and MARPA+™ as standard
High speed version available
– JRC’s new radar incorporates the latest leading technologies
JMA-3300 series
– dimensions
JMA-3300 series
– specifications
Name Marine Rader
Model JMA-3314 JMA-3316 JMA-3316HS JMA-3340-4 JMA-3340-4HS JMA-3340-6 JMA-3340-6HS
Display color raster scan PPI
Scanners
Model NKE-2042 NKE-2062 NKE-2062HS NKE-2103-4 NKE-2103-4HS NKE-2103-6 NKE-2103-6HS
Transmitting frequency X-band (9410MHz ±30MHz)
Transmitting power 4kW 6kW 10kW
Scanner type radome open
Antenna length 2ft 3.9ft 4ft 6ft
Rotation speed 27rpm 16-27rpm 27-48rpm 16-27rpm 27-48rpm 16-27rpm 27-48rpm
Beam width 3dB H: 4°, V: 25° H: 2°, V: 30° H: 1.8°, V: 20° H: 1.2°, V: 20°
Pulse width/repetition freq.
0.08us/2250Hz
0.25us/1700Hz
0.5us/1200Hz
1.0us/650Hz
0.08us/2250Hz
0.25us/1700Hz
0.5us/1200Hz
0.8us/750Hz
1.0us/650Hz
Maximum range 48NM 72NM
Range scale
0.125, 0.25, 0.5,
0.75, 1.5, 3, 6, 12,
24, 48 NM
0.125, 0.25, 0.5, 0.75, 1.5, 3, 6, 12, 24, 48 and 72 NM
Display unit
Model NCD-2182
Axial resolution less than 30m
Minimum detection range less than 40m
Azimuth resolution less than ±1°
Display Glass bonded 10.4-inch LCD display (640 by 480 pixels) 1000cd/m2by white LED backlit
Eective diamater more than 150mm
Presentation mode RM: North / Head / Course-up
TM: North / Course-up
Gain Auto / manual
Sea / rain Auto / manual
Trail indication 4 stages (example 1 minute to 1 hour or continuous)
O center within 66% of PPI radius
Barge icon Avairable
MARPA+™ acquisition mode Auto / manual
MARPA+™ targets 10 targets
MARPA+™ tracking 20NM
MARPA+™ info To be selected from true heading, distance, COG, SOG, CPA, TCPA
Vector mode and length True/relative vector, adjustable from 1 to 60 minutes
Guard zone 2 zone
Alarms CPA/TCPA, new target, lost, system error
AIS targets (built-in) 50 targets
AIS info To be selected from MMSI, call sign, ship’s name, COG, SOG, CPA, TCPA, heading, distance, longitude/latitude, status etc
Input (navaid) GGA, GNS, GLL, RMC, VTG, VBW, VHW, THS, HDT, HDG, HDM, DPT, DBT, MTW, ROT, RSA, VDM, VDO, ALR, VWT, VWR
Input (heading)
IEC61162 (4800/38400bps - THS, HDT, HDG, HDM)
JRC-NSK format (JLR-20/30)
Gyro-sync/step (360x, 180x, 90x, 36x)＊1
Input (speed)
IEC61162 (4800bps - VBW, VHW)
Log-sync (360x, 180x, 90x, 30x)＊1
Log-pulse (800, 400, 200, 100)＊1
Output RSD, OSD, TTM, TLL, TTD, GGA, RMC, GNS, GLL, VTG, THS, HDT
Contact out 1 for external buzzer
Power supply DC12/24V −10/+30%＊2DC24V −10/+30%
Power consumption Approx60W typ.
：
Approx85W
maximum wind
：
Approx230W
typ.
：
Approx100W
maximum wind
：
Approx360W
Ambient conditions
Temperature: −25° to 55°C (scanner) / −15° to 55°C (display unit)
Relative humidity 0% to 93% non-condensing
IP code: IP26 (scanner) / IP55 (display front panel)
Option
Installation cable(scanner to display
unit)
CFQ-6912-xx
(xx: 5/10/15/20/30 m)＊2
Gyro interface unit NCT-4106A
Display cover MTV304869
Connection cable for JLR-20 (10m) CFQ-5469
＊1Optional Gyro interface unit NCT-4106A required. ＊2Maximum cable length as 20m at DC12V operated
JMA-3300_E_101208.indd 1 10.12.8 5:57:08 PM

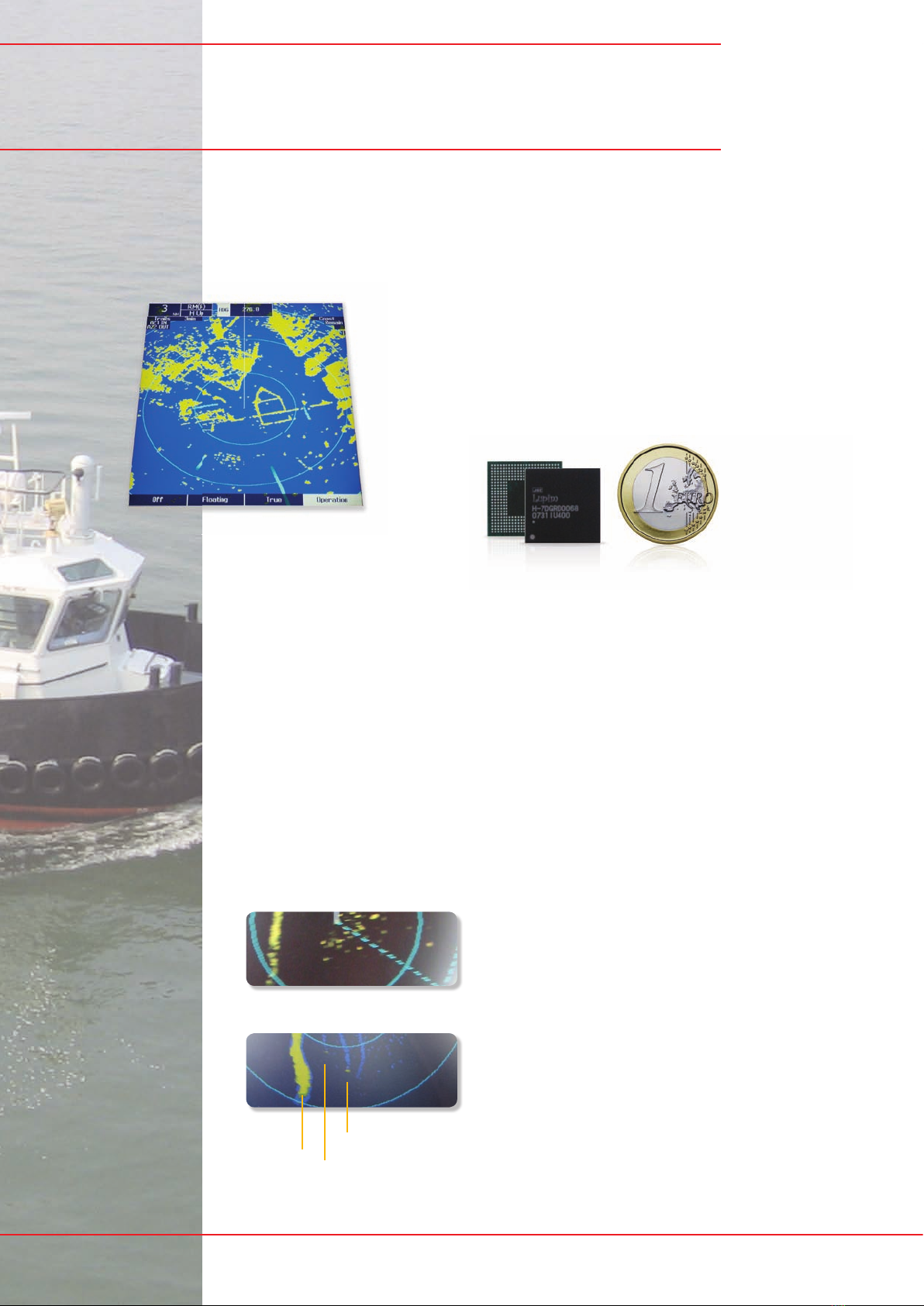

JMA-3300 Radar – with our new System-on- Chip technology
Without SoC processing
With SoC processing
Clear land
echo
Jet ski
Small boat
Range up and down
One-touch access to GAIN, SEA and RAIN
USB memory
4 soft-keys “shortcuts”
Cursors keys
Jog dial
1 min 4 min3 min2 min
1 min
3 min
2 min
4 min
* &*')（(+$'&）
＊
（）
（）
.+ )&% 
0（ $&" +）
'- ),((%/（）
＊$*(%/,&$+
：

!')#)+(%'++ )
'&++*$"&%',+(,+!')
.+ )&%8,<< )
*&& )：
5（97）
522（297）
52（97）
52（97）
8% +/(
：
462311:＊
＊97297:' %;$%8% +'8 ,* 11:+('- )$&(,+
＊：297：2979797
＊;$%8% $) +'&& +$'&-$+#'(+$'&%* &* )*
JMA-3300 series
– features
The JMA-3300 series is JRC’s newest radar, featuring a
10.4-inch ultra bright LCD, and incorporates the latest
digital signal processing for excellent target identification
and detection in a compact design.
Features
The tough glass bonded LCD is backlit by
white LED’s giving 1000cd/m2of brightness,
making the radar image amazingly sharp. A
feature not previously found on this class of
radar.
JRC engineers custom designed the System-on-Chip (SoC) inside the new JMA-3300 series
to be an extremely powerful tool. With such a small chip, weighing less than a sugar cube,
performance remains at our high standards. At the same time, the SoC technology makes
the compact radar very power efficient.
Based on JRC’s patented technology found in the bigger
radars, the new JMA-3300 integrates semi-Constaview™.
This allows fast processing of targets, showing true trails
in Head-Up mode, without interference of fixed targets,
such as land or mass.
Display
System–on–Chip
Semi-Constaview™
With Mount Fuji in the background, JRC engineers
successfully tested the new JMA-3300 radar in Suruga
Bay. See on the left side actual photos results of our SoC
technology. Land echoes are clearly visible and smaller
echoes are far more enlarged than bigger echoes, giving
a better on-screen separation and identification.
Sea trials
The new radar has the ability to display 50 AIS symbols, and 10 MARPA+™ tracking targets as
standard. The high quality of the display provides outstanding target definition and discrimination.
The (second generation) MARPA+™ continues JRC’s successful MARPA+™ technology first found in
the previous JMA-2300 radar series. Our engineers continued developing and improving the
technology, until now, with MARPA+™, manual or automatic target tracking is even more reliable.
AIS and MARPA+™
JMA-3300 series
– easy user interface
The JMA-3300 series allows you to switch between English, Japanese, French, German, Spanish, Italian,
Portuguese and Norwegian.
Languages
Smooth and comfortable operation is guaranteed with the solid and responsive feel of the keys. A dedicated
jog-dial is conveniently integrated as well as the function keys for one-touch access to GAIN, SEA and RAIN.
The JMA-3300 also incorporates 4 soft-key switches just below the display that can be assigned by the user.
Here you can specify commonly used functions, making it even simpler to navigate.
Other ship’s movement and speed can be monitored from length and direction of their trails, primarily serving
for collision avoidance. It integrates four different trail length modes, which will show a ship’s course instantly,
a unique operational feature that allows for more flexibility.
Simple operation
Trails
Transparent menus
With the transparent (pop-up) windows, you can navigate
through menus or view required data, such as own ship data
or cursor data, without losing the complete radar image.
JMA-3300 series
– configration
What’s in the box
∙ Display
∙ Scanner
∙ Cables
∙ Spare parts
∙ Operation guide/manual
∙ Installation manual
Which cables
∙ Display to scanner25/10/15/20/30 m
Options
∙ Display cover
Updating your radar with the latest software is made easy
with a conveniently integrated USB port on the front side
of the display.
USB
System diagram
JMA-3300_E_101208.indd 2 10.12.8 5:57:36 PM
