JRC JFS-280 User manual

INSTRUCTION MANUALINSTRUCTION MANUAL
FOR ADDED FEATURESFOR ADDED FEATURES
INDICATOR V00.42INDICATOR V00.42
SERIAL I/F V00.22SERIAL I/F V00.22
Version supported as of 2018/09/05Version supported as of 2018/09/05
JFSJFS-280280
SCANNING SONARSCANNING SONAR
ISO 9001, ISO 14001 Certified
OCT. 2018 Edition 1CODE No.7ZPNA2431
Not use the asbestos
For further information,contact:
URL Head office : http://www.jrc.co.jp/eng/
Marine Service Department
1-7-32 Tatsumi, Koto-ku, Tokyo 135-0053, Japan
: [email protected]
:
[phone]
e-mail
One-call

Contents
1Added Features ............................................................................................................................... 1-1
1.1 Menus Displayed in Spanish .................................................................................................... 1-3
1.2 Menus Displayed in Thai .......................................................................................................... 1-4
1.3 Use of Icons for Enlarged Text ................................................................................................. 1-5
2Changes to Default Sonar Setting Values ....................................................................................... 2-1
2.1 Changes to Default Fish Image Setting Values ....................................................................... 2-3
2.2 Changes to Default Colors of Sonar Display ........................................................................... 2-5
3Corrections to Problems .................................................................................................................. 3-1
3.1 Draft Settings ........................................................................................................................... 3-3
3.2 Settings for RX Clutter ............................................................................................................. 3-5
3.3 RX WIDTH Setting ................................................................................................................... 3-6
3.4 Writing Setting Values to Setting Cards ................................................................................... 3-7
7ZPNA2431

.
1
.
2
.
3
1 Added Features
2 Changes to Default Sonar Setting
Values
3 Corrections to Problems

1-1 1 Added Features
1 Added Features
Contents
1Added Features ...............................................................................................................................1-1
1.1 Menus Displayed in Spanish....................................................................................................1-3
1.2 Menus Displayed in Thai..........................................................................................................1-4
1.3 Use of Icons for Enlarged Text.................................................................................................1-5

1-3 1 Added Features
.
1
1.1 Menus Displayed in Spanish
Menus displayed using "Spanish" is now supported.
Operating Procedure
"Press the keys "9 → 6" to go to LANGUAGE SET"
Press the [MENU] key to open the menu.
Turn the [MULTI] knob to move to "9. OTHER". Press
the [MULTI] knob to open the submenu.
Turn the [MULTI] knob to move to "6. LANGUAGE
SET".
Pressing the [MULTI] knob displays the pulldown
menu. The "1. ENGLISH" or "2. SPANISH, 3. , 4. , 5. ,
6. , 7. , 8. NEXT" menus appear.
Selecting "2. SPANISH" displays the menus in Spanish.
Added Feature

1 Added Features 1-4
1
.
1.2 Menus Displayed in Thai
Menus displayed using "Thai" is now supported.
Operating Procedure
"Press the keys "9 → 6" to go to LANGUAGE SET"
Press the [MENU] key to open the menu.
Turn the [MULTI] knob to move to "9. OTHER". Press
the [MULTI] knob to open the submenu.
Turn the [MULTI] knob to move to "6. LANGUAGE
SET".
Pressing the [MULTI] knob displays the pulldown
menu. The "1. ENGLISH" or "2. SPANISH, 3. , 4. , 5. ,
6. , 7. , 8. NEXT" menus appear.
Turn the [MULTI] knob to move to "8. NEXT" and press the [MULTI] knob to display another
pulldown menu. The "1. JAPANESE, 2. , 3. THAI, 4. , 5. ADDITIONAL, 6. BACK" menus
appear.
Selecting "3. THAI" displays the menus in Thai.
Added Feature

1-5 1 Added Features
.
1
1.3 Use of Icons for Enlarged Text
When "THAI" or "SPANISH" is set, the enlarged texts for
[DOWN], [UP], and [HOIST ERROR] have been changed to
icons.
When the set language is "JAPANESE" or "ENGLISH", the
enlarged text is displayed.
Added Feature
CAUTION
DOWN UP HOIST ERROR

2-1 2 Changes to Default Sonar Setting Values
2 Changes to Default Sonar Setting
Values
Contents
2Changes to Default Sonar Setting Values.......................................................................................2-1
2.1 Changes to Default Fish Image Setting Values .......................................................................2-3
2.2 Changes to Default Colors of Sonar Display ...........................................................................2-5

2-3 2 Changes to Default Sonar Setting Values
.
2
2.1 Changes to Default Fish Image Setting
Values
The default values for the fish image settings were
changed.
Refer to the following table.
SW
Assumed use
STC
LEVEL
(Assumed
range of
use)
PLUSE
LENGTH
(Long/short)
CLUTTER
(Strong/me
dium/weak)
INTEFERE
NCE
(Strong/me
dium/weak)
AGC
MODE
TVG
(MID)
(FAR)
A50
Standard/normal
search
7.0
(700 to
300)
20
(Long)
3
(Medium)
2
(Weak) RCG 20/30
B50
Strong echoes
indicate schools of
anchovy or mackerel
9.0
(1000 to
500)
20
(Long)
4
(Strong)
2
(Weak) RCG 30/30
C50
Wide, weak echoes
indicate squid or saury
3.0
(400 to
200)
20
(Long)
2
(Medium)
2
(Weak) RCG 20/30
D50
Echoes of bottom fish
that you want to
differentiate from the
sea floor
7.0
(600 to
300)
3
(Short)
3
(Medium)
2
(Weak) RCG 20/30
E50
Fast moving echoes
indicate bonito or tuna
7.0
(600 to
300)
20
(Long)
3
(Medium)
4
(Medium) RCG 20/30
A50: Standard setting value for finding fish.
B50: Setting for searching long distances for large schools of fish.
C50: Setting for enhancing objects repeatedly captured from amongst weak echoes.
D50: Setting for raising resolution for directional distance.
E50: Setting for searching medium distances at low ship speeds.
The following pages show the menus for V00.42.
Description of Change

2 Changes to Default Sonar Setting Values 2-4
2
.
The default values for the 5 types of fish image settings values, "A" to "E", were changed. (Highlighted
areas)
MENU
SUB MENU LIST
MENU ITEM
FISH IMAGE-SW STANDARD SET VALUE
No.
1
2
3
4
A
B
C
D
E
7
FISH IMAGE
1
RECEIVE
1
CLUTTER
3
4
2
3
3
2
STC LEVEL
7
9
3
7
7
3
H BEAM
5
5
5
5
5
4
V BEAM
0
1
0
0
0
2
TX
1
TX POWER
10
10
10
10
10
2
PLUSE LENGTH
20
20
20
3
20
3
TX MODE
OMNI
OMNI
OMNI
OMNI
OMNI
4
V BEAM
0
0
0
0
0
5
SHADING
0
0
0
0
0
6
TX PRR
0
0
0
0
0
3
SIG PROCESS
1
INTEFERENCE
2
2
2
2
4
2
SIG PROCESS P
5
5
5
5
5
3
SIG PROCESS R
5
20
5
5
5
4
SIG PROCESS D
5
5
5
5
5
5
SIG PROCESS C
0
0
0
0
0
4
TECHNOLOG SET
1
TVG
1
MIN VR
128
128
128
128
128
2
GOS
1
5
0
1
1
3
ABFG
8
9
8
8
8
4
MAX GAIN
255
255
255
255
255
5
RX VR
255
255
255
255
255
6
TVG (MID)
20
30
20
20
20
7
TVG (FAR)
30
30
30
30
30
2
AGC
1
AGC MODE
RCG
RCG
RCG
RCG
RCG
2
RCG LEVEL
128
100
128
128
128
3
SCAN AGC LEVEL
64
64
64
64
64
4
SLOW AGC ON/OFF
ON
ON
ON
ON
ON
5
FAST AGC ON/OFF
OFF
OFF
OFF
OFF
OFF
6
SLOW AGC LEVEL
64
45
64
64
64
7
FAST AGC LEVEL
64
64
64
64
64
3
RX
1
RX CLUTTER
0
0
0
0
0
2
RX WIDTH
0
0
0
0
0
3
STC RANGE
160
160
160
160
160
4
TVG RANGE
320
320
320
320
320
4
TX/RX CALIB
1
STABILIZE
ON
ON
ON
ON
ON
2
ABS ATT
8
8
8
8
8
3
GAIN MODE SW
HIGH
HIGH
HIGH
HIGH
HIGH
4
GAIN RANGE SW
0
0
0
0
0
5
FILTER SHIFT
OFF
OFF
OFF
OFF
OFF
6
FREQ SHIFT
OFF
OFF
OFF
OFF
OFF
7
FILTER BAND
0
0
0
0
0
5
ADC
7
5
3
7
3

2-5 2 Changes to Default Sonar Setting Values
.
2
2.2 Changes to Default Colors of Sonar
Display
The default values for colors of the sonar display were
changed.
①The default values, "M0" to "M3" and "U1" to "U4", for sonar image colors, were changed.
②Background color (black) was added to standard color pattern.
③A color pattern similar to another manufacturer (F Inc.) was added.
Value Change Note (background color)
M0 - Standard color pattern (blue)
M1 Changed Standard color pattern (black)
M2 Changed Color pattern similar to F Inc. (blue)
M3 Changed Color pattern similar to F Inc. (black)
U1 - Weak echoes shown as light blue (black)
U2 Changed Weak echoes shown as green and light blue (black)
U3 Changed Weak echoes shown as green (black)
U4 - 16-color display (black)

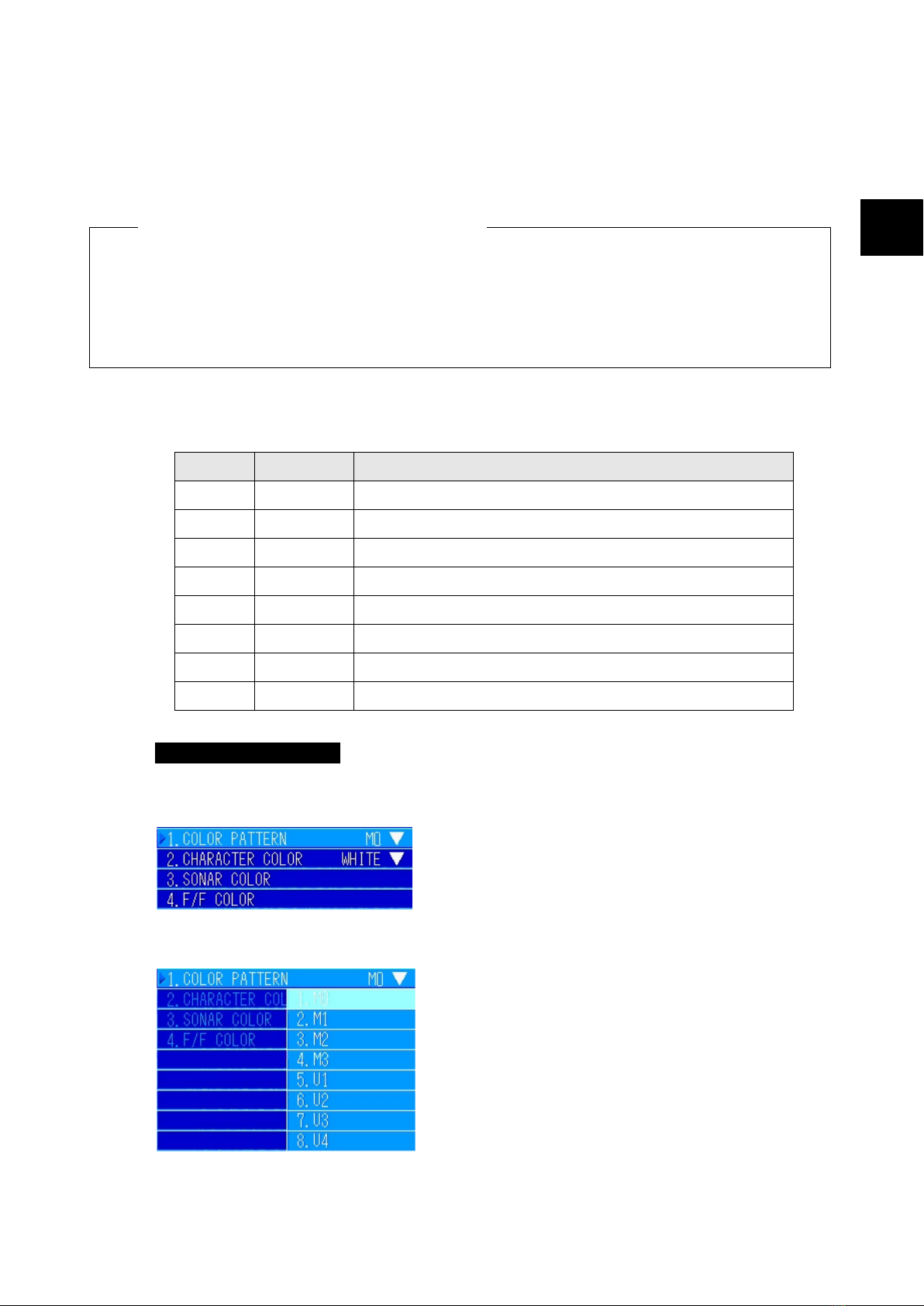

Operating Procedure
"Press the keys "8 → 6 → 3 → 1" to go to COLOR PATTERN settings"
Turn the [MULTI] knob to select "1. COLOR
PATTERN". Press the [MULTI] knob to display the
pulldown menu.
Select items "1. M0 through 8. U4" from the pulldown
menu. Turn the [MULTI] knob to select the item you
chose. Press the [MULTI] knob to set it.
The initial setting is set to "1. M0".
On the following pages, the "1. M0 to 8. U4" color pattern settings are noted as: Day 1, Day 2, Night 1,
and Night 2.
Description of Change

2 Changes to Default Sonar Setting Values 2-6
2
.
In Day 1 mode
Menu "8" → "6" → "3" → "3" SONAR COLOR
M0 M1 M2 M3
Level Color Saturation Brightness Color Saturation Brightness Color Saturation Brightness Color Saturation Brightness
1 240 255 180 180 255 024 240 255 180 180 255 024
2 180 255 040 180 255 040 240 255 180 180 255 024
3 180 255 060 180 255 060 240 255 180 180 255 024
4 180 255 080 180 255 080 240 255 180 180 255 024
5 180 255 088 180 255 088 240 255 180 180 255 024
6 180 255 096 180 255 096 240 255 180 180 255 024
7 180 255 128 180 255 128 240 255 180 180 255 024
8 180 255 160 180 255 160 240 255 180 180 255 024
9 174 255 160 174 255 160 240 255 180 180 255 024
10 168 255 160 168 255 160 240 255 180 180 255 024
11 149 255 200 149 255 200 240 255 180 180 255 024
12 135 255 252 135 255 252 240 255 180 180 255 024
13 129 255 224 129 255 224 240 255 180 180 255 024
14 120 255 192 120 255 192 120 255 192 120 255 192
15 120 255 176 120 255 176 049 255 252 049 255 252
16 120 255 160 120 255 160 049 255 252 049 255 252
17 120 255 144 120 255 144 049 255 252 049 255 252
18 120 255 128 120 255 128 049 255 252 049 255 252
19 082 255 188 082 255 188 049 255 252 049 255 252
20 060 255 252 060 255 252 049 255 252 049 255 252
21 048 255 252 048 255 252 027 255 252 027 255 252
22 038 255 252 038 255 252 000 255 252 000 255 252
23 032 255 252 032 255 252 000 255 252 000 255 252
24 027 255 252 027 255 252 000 255 252 000 255 252
25 011 255 252 011 255 252 000 255 252 000 255 252
26 000 255 252 000 255 252 000 255 252 000 255 252
27 000 255 188 000 255 188 000 255 252 000 255 252
28 000 255 128 000 255 128 000 255 252 000 255 252
29 000 255 120 000 255 120 000 255 252 000 255 252
30 020 219 112 020 219 112 000 215 180 000 215 180
31 022 216 104 022 216 104 000 215 180 000 215 180
32 024 213 096 024 213 096 000 215 180 000 215 180

2-7 2 Changes to Default Sonar Setting Values
.
2
In Day 1 mode
Menu "8" → "6" → "3" → "3" SONAR COLOR
U1 U2 U3 U4
Level Color Saturation Brightness Color Saturation Brightness Color Saturation Brightness Color Saturation Brightness
1 210 255 032 180 255 024 135 255 016 180 255 024
2 208 255 060 180 255 044 135 255 032 180 255 056
3 205 255 116 180 255 084 134 255 068 180 255 056
4 212 255 160 180 255 092 133 255 076 180 255 084
5 215 255 200 180 255 100 131 255 084 180 255 084
6 212 255 228 189 255 136 125 255 100 180 255 100
7 208 255 252 191 255 168 120 255 116 180 255 100
8 202 255 252 191 255 176 120 255 136 180 255 168
9 196 255 252 190 255 184 120 255 152 180 255 168
10 192 255 252 156 255 152 120 255 168 169 255 168
11 188 255 252 120 255 152 120 255 184 169 255 168
12 176 255 236 120 255 168 102 255 200 120 255 200
13 164 255 252 120 255 184 088 255 220 120 255 200
14 123 170 252 102 255 200 083 255 236 120 255 168
15 080 255 252 088 255 220 080 255 252 120 255 168
16 073 255 252 077 255 228 073 255 252 120 255 136
17 067 255 252 068 255 240 067 255 252 120 255 136
18 060 255 252 060 255 252 060 255 252 083 255 220
19 054 255 252 054 255 252 054 255 252 083 255 220
20 048 255 252 048 255 252 048 255 252 076 255 252
21 042 255 252 042 255 252 042 255 252 076 255 252
22 036 255 252 036 255 252 036 255 252 060 255 252
23 031 243 252 031 243 252 031 243 252 060 255 252
24 024 231 252 024 231 252 024 231 252 040 255 252
25 019 223 252 019 223 252 019 223 252 040 255 252
26 002 210 252 002 210 252 002 210 252 000 255 252
27 348 255 252 348 255 252 348 255 252 000 255 252
28 348 246 220 348 246 220 348 246 220 014 255 220
29 347 233 184 347 233 184 347 233 184 014 255 220
30 349 231 168 349 231 168 349 231 168 012 231 128
31 349 228 152 349 228 152 349 228 152 012 231 128
32 352 225 136 352 225 136 352 225 136 012 231 128

2 Changes to Default Sonar Setting Values 2-8
2
.
In Day 2 mode
Menu "8" → "6" → "3" → "3" SONAR COLOR
M0 M1 M2 M3
Level Color Saturation Brightness Color Saturation Brightness Color Saturation Brightness Color Saturation Brightness
1 240 255 180 180 255 024 240 255 180 180 255 024
2 180 255 040 180 255 040 240 255 180 180 255 024
3 180 255 060 180 255 060 240 255 180 180 255 024
4 180 255 080 180 255 080 240 255 180 180 255 024
5 180 255 088 180 255 088 240 255 180 180 255 024
6 180 255 096 180 255 096 240 255 180 180 255 024
7 180 255 128 180 255 128 240 255 180 180 255 024
8 180 255 160 180 255 160 240 255 180 180 255 024
9 174 255 160 174 255 160 240 255 180 180 255 024
10 168 255 160 168 255 160 240 255 180 180 255 024
11 149 255 200 149 255 200 240 255 180 180 255 024
12 135 255 252 135 255 252 240 255 180 180 255 024
13 129 255 224 129 255 224 240 255 180 180 255 024
14 120 255 192 120 255 192 120 255 192 120 255 192
15 120 255 176 120 255 176 049 255 252 049 255 252
16 120 255 160 120 255 160 049 255 252 049 255 252
17 120 255 144 120 255 144 049 255 252 049 255 252
18 120 255 128 120 255 128 049 255 252 049 255 252
19 082 255 188 082 255 188 049 255 252 049 255 252
20 060 255 252 060 255 252 049 255 252 049 255 252
21 048 255 252 048 255 252 027 255 252 027 255 252
22 038 255 252 038 255 252 000 255 252 000 255 252
23 032 255 252 032 255 252 000 255 252 000 255 252
24 027 255 252 027 255 252 000 255 252 000 255 252
25 011 255 252 011 255 252 000 255 252 000 255 252
26 000 255 252 000 255 252 000 255 252 000 255 252
27 000 255 188 000 255 188 000 255 252 000 255 252
28 000 255 128 000 255 128 000 255 252 000 255 252
29 000 255 120 000 255 120 000 255 252 000 255 252
30 020 219 112 020 219 112 000 215 180 000 215 180
31 022 216 104 022 216 104 000 215 180 000 215 180
32 024 213 096 024 213 096 000 215 180 000 215 180
