JRC JFP-180BB User manual

JFP-180BB Searchlight sonar
– specications
JFP-180BB Searchlight sonar
– dimensions and weights JFP-180BB
Searchlight sonar
10.4” or 15” high visibility LCD screen (option)
Continues searching when adjusting tilt angle
Intuitive menu structure
Multiple display modes available
Flexible black box configuration
Model JFP-180
General
Sonar type searchlight sonar
Frequency 180 kHz
Range 20 to 2000 m (8 selectable ranges: 12 to 1600 br/fm and 80 to 6000 ft)
Sonar mode (angle) 5˚, 25˚, 45˚, 85˚, 125˚, 165˚, 205˚, 360˚ (5˚ step)
10˚, 30˚, 50˚, 90˚, 130˚, 170˚, 210˚, 360˚ (10˚ step)
Bottom-scan mode (angle) 3˚, 27˚, 45˚, 63˚, 93˚, 117˚, 147˚, 177˚ (3˚ step)
5˚, 25˚, 45˚, 65˚, 95˚, 115˚, 145˚, 175˚ (5˚ step)
Bearing center 5˚ step
Tilt angle -90˚ to +5˚ (1˚ step)
Display modes sonar mode, o-center mode, bottom-scan mode, sounder mode
Data display range, range scale, tilt angle, tilt angle diagram
sector angle display, bearing angle, interference reduction
ring marker (historical distance, slant distance, depth)
cross cursor (bearing, historical distance, slant distance, depth)
1) compass display, 1) wake display, 1) ship’s speed, latitude/longitude
gain up, TVG graph, colour scale, temperature, scan display (2 types)
own ship’s position, VRM, depth (on detecting just below the vessel)
Other functions operation modes (3 types), o-center, mark, train correct
target lock (in searchlight mode), temperature adjustment
pulse width, colour palette, gain control, TVG control, dynamic range
threshold control, output power reduction, external trigger synchronisation
trigger signal output, hoist sensor lamp, hoist auto up, audio output
gain, far gain, panel brightness control, day/night
1) Inputs NMEA0183 (GLL, GGA, VTG), trigger signal, remote controller
1) Outputs latitude/longitude for target, VGA, trigger signal, audio
Power supply DC 20-30V, 24W
Hull unit
Frequency 180 kHz
Hoist stroke 200 to 400 mm
Hoist time 10 sec (400 mm stroke, 24V power supply)
External output signal trigger
Power supply DC 10.5-30V, 110W
Optional items
10.4” display (LCD) NWZ-146
15” display (LCD) NWZ-164
Trunk pipe (PVC) BRBX05030
Trunk pipe (FRP) BRBX05037
External speaker (4Ω) 6USFD00010
Remote controller (with cable) NCH-606
Remote controller terminal CQD-2145 (built in NJC-29E, package order with NCH-606)
NAV-IN terminal CQD-2144
Trigger input terminal CQD-2143 (built in NJC-29E, synchronised TB for sh nder)
NMEA output terminal CQD-2142
Protective cover for processor (IPX2) BRBX05381 (desk of oor mount)
– a new 180 kHz searchlight sonar that illuminates the underwater scene with highly reliable scans

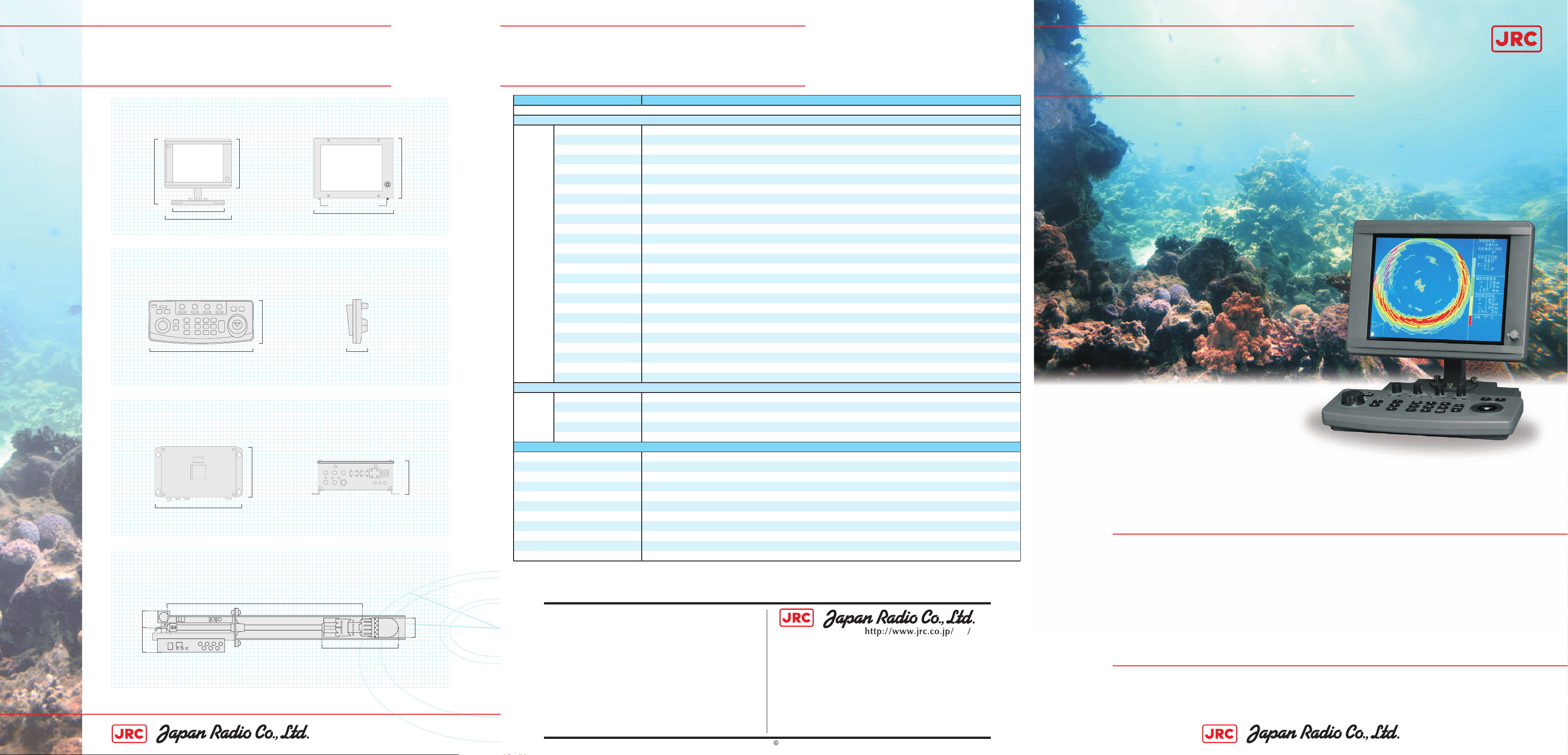

Dimension drawings - Displays1
NWZ-146 MASS 2,8 kg
1displays optional in black box conguration
Dimension drawings - Keyboard
NCH-607E MASS 1 kg
Dimension drawings - Processor
NJC-29E MASS 3,4 kg
Dimension drawings - Hull unit
NKF-900-002MASS 44 kg
NWZ-164 MASS 3,7 kg
395 mm
298 mm
215 mm
230 mm
290 mm
250 mm
290 mm 61 mm
123 mm
346 mm
203 mm 135 mm
551 mm
142 mm
1411 mm (min 851 mm)
124 mm
185 mm
1)Optional interface may be required
2trunk pipe is optional
For further information, contact:
Since 1915
Main Office: Nittochi Nishi-Shinjuku bldg.
10-1, Nishi-Shinjuku 6-chome
Shinjuku-ku, Tokyo 160-8328, Japan
Telephone: [phone]
Facsimile: [phone]
Overseas Branches : Seattle, Amsterdam, Athens
Liaison Offices : Taipei, Manila, Jakarta, Singapore,
Hanoi, Shanghai, Hamburg, New York
27EM
ISO9001
，
ISO14001 Certified
●Specifications may be subject to change without notice.
URL eng
PrintedinJapan2008.2 CAT.No.X00-000（No.000-0-0）X
2008.2

JFP-180BB Searchlight sonar – shows fish and bottom structure clearly on-screen
JFP-180BB Searchlight sonar
– developed for maximum ease of use
JFP-180BB Searchlight sonar
– performance features
JFP-180BB Searchlight sonar
– system exibility
Honolulu
San Diego
Los Angeles
Houston
Chicago
Toronto
New York
Miami
St. John’s
Havana
Panama
Lima
Guayaquil
Talchuano
Buenos Aires
Reykjavik Torshavn
Belfast
London
Le Havre
Lisbon
Las Palmas
Dakar
Abidjan
Cape Town Durban
Richards Bay
Madrid
Rome
Tunis Athens
Istanbul
Limassol
Alexandria
Haifa
Dubai
Mumbai
Columbo
Vladivostok
Tokyo
Pusan
Shanghai
Taipei
Manila
Hanoi
Hong Kong
Bangkok
Kuala Lumpur
Singapore
Jakarta
Suva
Brisbane
Sydney
Melbourne Auckland
Egersund Lund Tallinn
Helsinki
Amsterdam
Rotterdam
Antwerp
Rio de Janeiro
San Francisco
Seattle
Vancouver
The JFP-180BB new and compactly designed searchlight
sonar integrates multiple display modes, which will allow you
to control your presentation at your own convenience.
Unique features
The sonar integrates multiple display modes, facilitating a valuable working environment.
The new JRC searchlight sonar illuminates the underwater scene with a beam of sonic
energy, rotating through 360 degrees.
Multiple display modes
JRC’s new JFP-180BB searchlight sonar is black box congured as standard, allowing you to
select a preferred display size suiting your vessel. JRC’s displays uniformly incorporate a high
brightness LCD display, available in 10.4- or 15-inch, ideal for installations on (relative) small
commercial shing vessels.
It also integrates a dedicated one-touch day/night key, which provides suitable brightness
to the display images, supporting particular time and scene operations.
Suiting your moment in time
JRC has been providing sales and support of products since 1915. Today, JRC oers comprehensive assistance
through its organisation, in partnership with a worldwide StarNetwork™ of over 270 fully trained and qualied
partners and agents, assisting you 24 hours a day, 7 days a week and 365 days a year.
JRC StarNetwork™
The new searchlight sonar allows you to carry out all operations simply by using the keyboard.
The layout has a full
complement of keys,
including direct tilting,
hoist control, and special
one-touch menu keys
to access dierent
scanning modes on
screen. This makes it
easy to navigate through
all common used tasks.
The logic of the controls and excellent on-screen menus will greatly shorten most users’
learning period.
Simple and precise operation Continues searching when adjusting tilt angle
The newly developed JFP-180BB give the user a feature not previously found on this class of sonar.
The searchlight sonar will not stop searching when adjusting the tilt angle. This is a very useful
tool for enhancing your eciency of shing operations and safety of navigation.
What’s standard in the box?
1. Display (excl. in BB cong)
2. Processor
3. Keyboard
4. Hull unit
5. Soundome unit
6. Joint pipe
7. Spare parts
8. Cables
9. Manuals (English)
Which cables?
Display to processor (excl. in BB cong)
Display to power supply (excl. in BB cong)
Processor to power supply
Keyboard to processor
Hull unit to processor (signal)
Hull unit to processor (hoist)
Hull unit to power supply
5 m
5 m
3 m
5 m
15 m
15 m
5 m
Sonar mode
O-center mode
Bottom-scan mode
Sounder mode
Range setting menu
Function setting menu
Fish and underwater targets are displayed in eight colours, including white, on a high
brightness LCD display. The searchlight sonar integrates a colour palette, allowing you
to change the ratio of red, green and blue by choosing a dierent tone. The strength
of the colours can be freely set in 15 steps. You can also set the tones according
to the target sh species, generating the most optimised on-screen view at your
convenience.
Colour ‘enrichment’ palette
menu 2
menu 1
1
234
The JFP-180BB provides a range of display modes to suit the search task. You can select a
detailed display image at your convenience.
Flexible black box configuration
The searchlight sonar consists of a compact processor, dedicated keyboard and high
performance transducer, allowing for a exible installation approach in conned spaces. JRC
also provides an optional 10.4- and 15-inch high brightness
monitor, and for those who prefer to specify their own
display, the JFP-180BB allows you to choose what type
and size of display to connect to the unit. You can choose
between CRT and LCD display, as long as it supports VGA.
Interfacing
The new JFP-180BB incorporates a highly reliable industry standard interfacing eld. Connect
additional navigation equipment, such as GPS, which provides on-screen the exact location of this
vessel. It also shows the track line of the vessels’bow wake (wave that relatively spreads out in the
rear of the vessel), initially saved every 2 seconds.
Optimum tilting
The centre of the beam can be set in 1 degree increments
from 5 degrees from the horizontal, to 90 degrees from
the sea surface. The transducers ultra sonic beam sweeps a
specic sector and bearing. When pointing straight down,
the beam will give a high denition picture of the sea oor.
As the beam moves from the perpendicular to the horizontal,
bottom denition reduces and sh detection improves.
Searching all around
The horizontal scan (sonar mode) can search through
a full 360 degree or search a selection of up to 16
dierent sectors using a 5- or 10-degree beam width.
sector angle: 360º
ultra sonic
sound beam
1234
5
tilt angle
-90º sea bottom
5º
0º
JRC one-call™
One number to call
With JRC you can go anywhere and
if you need our support, simply call us
at [phone], anytime.
