JSP EVO 6151 User manual

EVO 6151/6161
REPLACEMENT HARNESS
HELMET COMPLETE WITH NEW HARNESS
EVO 6151/6161 REPLACEMENT HARNESS
FITTING INSTRUCTIONS
JSP Ltd, Worsham Mill, Minster Lovell Oxfordshire, OX29 0TA
TECHNICAL HELPLINE:[phone]
Email: [email protected] RFAZ-008-200 RFAZ-008-200
Warning: Failure To Replace The Harness Correctly Will Compromise The Performance Of The Helmet

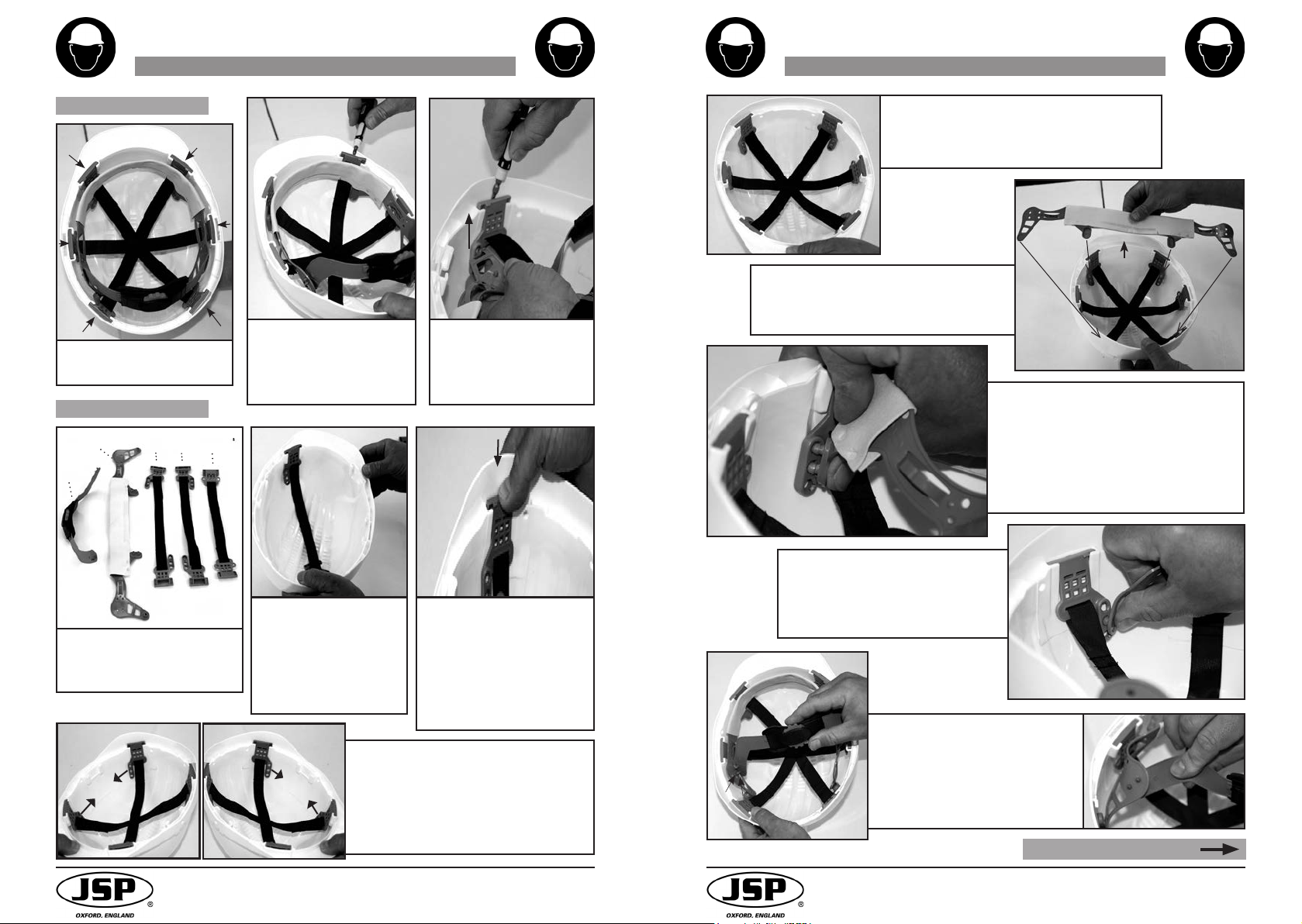

REMOVING THE HARNESS
STEP 1: Locate the 6 connections
points around the helmet.
FITTING A NEW HARNESS
STEP 3: Place the other end
of the strap in the opposite
connection slot at the rear on the
right hand side with the helmet
facing forward. Push the clip
downwards until you hear a click,
making sure the tail is facing
towards the front of the helmet.
STEP 4: Take strap 2 and place it in the
front right connection slot making sure the tail
is facing away from the peak. Place the other
end in the rear left and push down both clips
until you hear them click. The tails of both
straps should now be facing each other. (As
shown in the adjacent photo)
STEP 7: Place the left centre leg of the head
piece into the front left tail of the clip by pushing
the points through the holes. (As shown in the
photos adjacent) You can choose which two
holes you want for maximum comfort and secure
fit. Then repeat with the right centre leg into the
front right tail, making sure you use the same
two holes as on the left side.
STEP 8: Connect the outer legs of the
head piece into the connection tails of the
rear clips. Again there is a choice of 3 holes
to maximise comfort and obtain a secure fit
to your head.
STEP 9: Pick up the wheel ratchet
labelled 5 in step 1. Locate the two holes
at the rear of the head piece and push the
two pins on the wheel ratchet through
the holes. Repeat on the other side to
attach the wheel ratchet and complete
the harness.
STEP 5: Take strap number 3 and place the clips in
the side connection points and push them downwards
until you hear them click. All the straps should now be
connected to the helmet like in the photo to the left.
COMPLETED HARNESS ON REAR
STEP 6: Pick up the front head piece labelled
number 4 in step 1. Make sure it is inserted into
the helmet the correct way as shown opposite with
the legs of the head piece pointing downward.
STEP 2: Take strap 1 and
place it in the front left clip
slot. Make sure the tail is facing
away from the peak towards
the back of the helmet. Push
downwards firmly until you
hear a click.
Front
STEP 2: Use a blunt tool such
as a screw driver to slide down
the back of each clip to act as a
lever to push the clip upwards.
Repeat for front 4 clips.
STEP 1: Make sure you have all
the components of the new harness
as shown above.
EVO 6151/6161 REPLACEMENT HARNESS
FITTING INSTRUCTIONS
EVO 6151/6161 REPLACEMENT HARNESS
FITTING INSTRUCTIONS
STEP 3: On the rear clips,
place hand under clip and push
upwards at the same time
as levering the clip with the
screw driver.
1
432
5
