JUKI MCS-1800 User manual

INSTRUCTION MANUAL
IMPORTANT:
Read all safety regulations carefully and under-
stand them before using your sewing machine.
Retain this instruction manual for future reference.
EN
3-Needle, 2/3/4-Thread Cover Stitch Sewing Machine
MCS-1800

“IMPORTANT SAFETY INSTRUCTIONS”
When using an electrical appliance, basic safety precautions should always be followed, including
the following: Read all instructions before using this sewing machine.
“DANGER ____ To reduce the risk of electric shock:”
1. The appliance should never be left unattended when plugged in.
2.
Always unplug this appliance from the electric outlet immediately after using and before cleaning.
“WARNING ____ To reduce the risk of burns, re, electric shock, or injury to persons:”
1. Do not use the appliance as a toy. Caution is advised when the appliance is used by children, or
near children. This sewing machine can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of experience and knowl-
edge if they have been given supervision or instruction concerning use of the sewing machine
in a safe way and understand the hazards involved. Children shall not play with the sewing ma-
chine. Cleaning and user maintenance shall not be made by children without supervision.
2. Use this appliance only for its intended use as described in this manual. Use only attachments
recommended by the manufacturer as contained in this manual.
3. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it
has been dropped or damaged, or dropped into water. Return the appliance to the nearest au-
thorized dealer or service center for examination, repair, electrical or mechanical adjustment.
4. Never operate the appliance with any air openings blocked. Keep ventilation openings of the
sewing machine and foot control free from the accumulation of lint, dust, and loose cloth.
5.
Keep ngers away from all moving parts. Special care is required around the sewing machine needle.
6. Always use the proper stitch plate. The wrong plate can cause the needle to break.
7. Do not use bent needles.
8. Do not pull or push fabric while stitching. It may deect the needle causing it to break.
9. Do not carry out sewing with a marking pin stuck in the material since doing so can cause knife/
needle breakage. In addition, do not attempt to cut anything other than fabric and thread with
the upper/lower knives.
10. Switch the sewing machine off “O” when making any adjustments in the needle area, such as
threading needle, changing needle, threading looper, or changing presser foot and the like.
11. Always unplug the machine from the electrical outlet when removing covers, when covers are
opened to thread the loopers, when lubricating or when making any other user servicing adjust-
ments mentioned in the instruction manual.
12. Never drop or insert any object into any opening.
13. Do not use outdoors.
14.
Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
15. To disconnect, turn all controls to the off “O” position, then remove plug from outlet.
16. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
17. Basically, the machine should be disconnected from the electricity supply when not in use.
18. If the power cord of this appliance is damaged, it must be replaced with a special cord by your
nearest authorized dealer or service center.
19. (Except USA/Canada) This machine is provided with double insulation.
Use only identical replacement parts. See instructions for servicing Double-Insulated machine.
“SERVICING DOUBLE-INSULATED PRODUCTS
(Except USA / Canada)”
In a double-insulated product, two systems of insulation are provided instead of grounding. No
grounding means is provided on a double-insulated product nor should a means for grounding be
added to the product. Servicing a double-insulated product requires extreme care and knowledge
of the system and should only be done by qualied service personnel. Replacement parts for a
double-insulated product must be identical to those parts in the product. A double-insulated product
is marked with the words DOUBLE INSULATION or DOUBLE INSULATED.
The symbol may also be marked on the product.
“SAVE THESE INSTRUCTIONS”
“This overlock sewing machine is intended for household use only.”
1

Danger warn-
ing which is
not specied
There is a
risk of elec-
trical shock
There is a
risk of re
There is a
risk of injury
to hands, etc.
Prohibited
matter which
is not speci-
ed
Disassem-
bly/alteration
is prohibited
Do not
place n-
gers under
the needle
Do not pour
oil, etc.
Generally re-
quired behav-
ior
Disconnect
the power
plug
Congratulations on your purchase of a JUKI sewing machine.
Please be sure to read safety precautions in “To use the sewing machine safely” in the Instruction
Manual before use to fully understand the functions and operating procedures of the sewing
machine so as to use the sewing machine for a long time.
After you have read the Instruction Manual, please be sure to keep it together with the warranty so
that you can read it whenever necessary.
To use the sewing machine safely

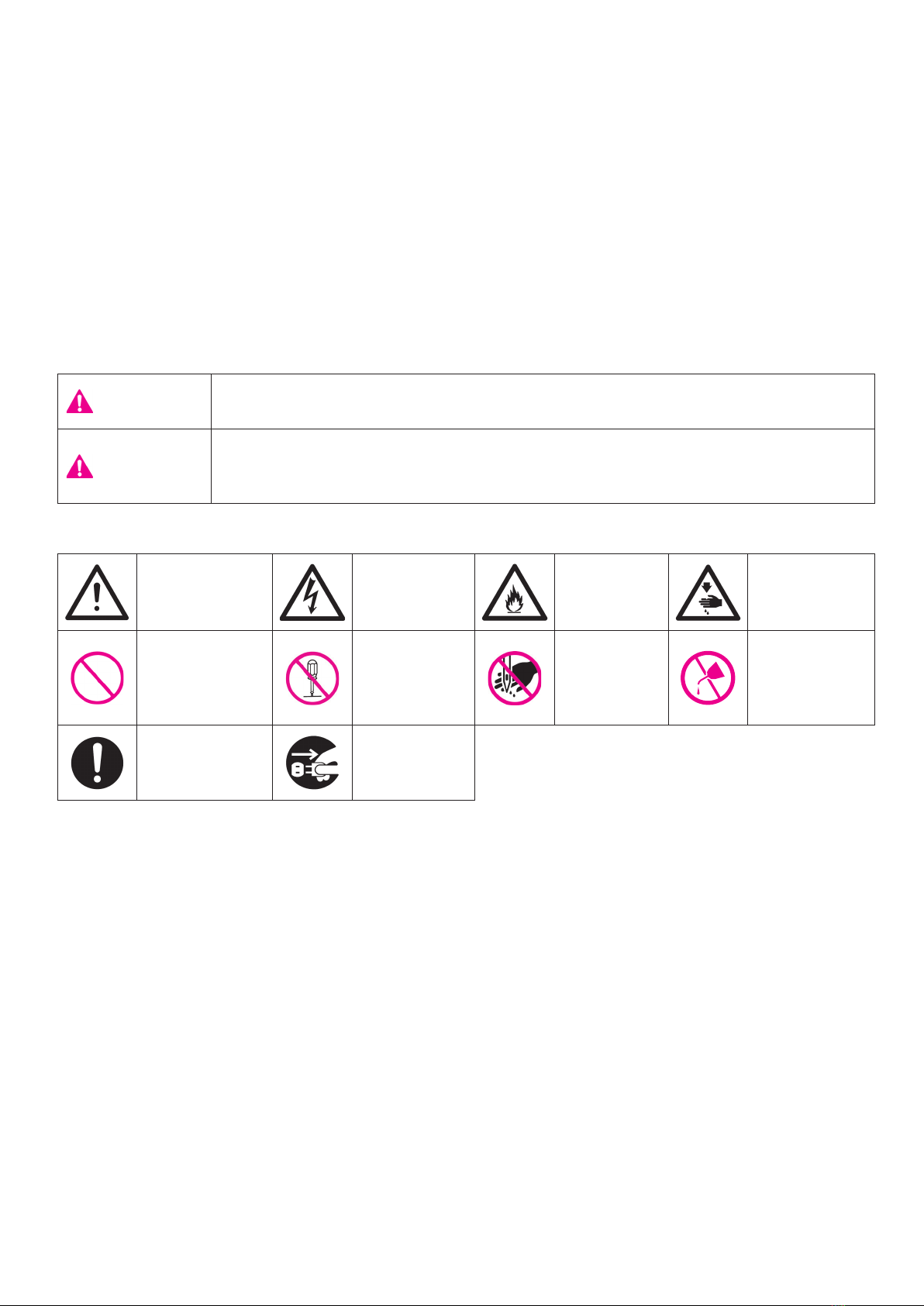

Marks and pictographs included in the Instruction Manual and shown on the sewing machine are
used so as to ensure safe operation of the sewing machine and to prevent possible risk of injury to
the user and other people.
Warning marks are used for different purposes as described below.
WARNING Indicates that there is a possible risk of death or serious injury if this mark is
ignored and the sewing machine is used in a wrong manner.
CAUTION
Indicates the operation, etc. which can cause a possible risk of personal injury
and/or physical damage if this mark is ignored and the sewing machine is used in
a wrong manner.
Pictographs mean the following:
2

●Donotwipethesewingmachinewithsolvent
suchasthinner.
 Whenthesewing
machineissoiled,puta
smallquantityofneutral
detergentonapieceof
softclothandcarefully
wipeoffthesewing
machinewithit.
●Besuretousethesewingmachineinthe
temperaturerangefrom5ºCto40ºC.
 Ifthetemperatureisexcessivelylow,the
machinecanfailtooperatenormally.
WARNING
Forthecombinationofthematerialandthethreadandneedle,inparticular,refertotheexplanation
tablein“Replacementoftheneedle”.
Iftheneedleorthreaddoesnotmatchthematerialusedsuchasinthecasethatanextraheavy-
weightmaterial(e.g.,denim)issewnwithathinneedle(#11orhigher),theneedlecanbreakresult-
inginanunexpectedpersonalinjury.
Other precautions
●Donotputthesewingmachineunderthe
directsunlightorinahumidplace.
Beawarethatthefollowingstatecantakeplacesincethesewingmachineincorporatessemi-con-
ductorelectronicpartsandpreciseelectroniccircuits.
*Theoperatingtemperatureofthesewingmachineisbetween5ºCand40ºC.Donotusethe
sewingmachineunderthedirectsunlight,neartheburningthingssuchasastoveandcandle,or
inahumidplace.Bysodoing,thetemperatureintheinteriorportionofthesewingmachinecan
riseorthecoatingofthepowercordcanmelt,causingreorelectricalshock.
LEDlight
・
RatedVoltage:9V
・
Maximumpowerconsumption:1.3W
3

Safety instructions ·································· 1-3
Contents··················································4
Details of the machine···························· 5, 6
• Accessories···········································6
Preparing the machine
• Thread guide ·········································7
• Attaching the spool holders·······················7
• Thread, cones, spools ·····························7
• Large spools··········································7
• Household spools ···································7
• Thread net ············································7
• Attaching the foot control··························8
Using the machine
• Power/light switch···································8
• Two-step presser foot lifter ·······················9
• Changing the presser foot ························9
• Looper cover ······································· 10
• Cloth plate ·········································· 10
• Handwheel·········································· 10
• Inserting needles ·································· 11
• Needle system ····································· 11
Threading
• Threading preparation / Tips ··················· 12
• Thread guide bar ·································· 12
• Thread tension····································· 12
Threading cover stitch
• Threading 4 thread cover stitch ···········13-16
Threading cover stitch looper················ 13
Threading right cover stitch needle ········ 14
Threading center cover stitch needle······ 15
Threading left cover stitch needle ·········· 16
• Threading 3 thread cover stitch (wide) ······ 17
• Threading 3 thread cover stitch (narrow) ··· 18
Threading chain stitch
• Threading chain stitch ··························· 19
Contents
Trial sewing, Thread tension
• Sewing test ········································· 20
• Tension adjustments ····························· 21
• Thread tension····································· 21
Adjustments and settings
• Stitch length ········································ 22
• Presser foot pressure ···························· 22
• Differential feed···································· 23
• Adjusting the differential feed ·················· 24
Stitch chart············································· 25
Practical sewing cover stitch
• Securing the seam end ·························· 26
• Unpicking seams ·································· 26
• Extension plate with seam guide lines······· 26
• Simple hem ········································· 27
• Flat joining seam ·································· 27
• Edges with elastic································· 28
• Binding··············································· 28
• Top stitching seams / ribbing / yokes········· 29
• Decorative stitching······························· 29
Practical sewing chainstitch
• Securing the seam end ·························· 30
• Unpicking seams ·································· 30
• Extension plate with seam guide lines······· 30
• Gathering with chainstitch ······················ 31
• Binding··············································· 31
Maintenance
• Cleaning ············································· 31
Trouble shooting guide ····························· 32
Technical data ········································ 33
Hemmer Guide for Coverstitch ··················· 34
4

Details of the machine
View with cloth plate open
1. Looper auto-threader
2. Looper thread tension dial
3. Threading diagram for looper thread
4. Thread cutter
4
3
2
1
11
12
6
7
18 16
15
8
14
27 925
13
19
20
21
22
17
10
5
4
3
21
23
26
24
Details of the machine
1. Looper cover
2. Extension plate
3. Cloth plate
4. Sewing plate
5. Presser foot
6. LED light
7. Thread take-up cover
8. Left needle thread tension dial
9. Center needle thread tension dial
10. Right needle thread tension dial
11. Retractable support rod
12. Thread guide
13. Open thread guide
14. Spool holder pin
15. Anti-vibration cone
16. Foam pad
17. Spool holders
18. Stitch length dial
19. Differential feed dial
20. Handwheel
21. Machine socket
22. Power/Light switch
23. Presser foot lifter
24. Needle clamp
25. Carrying handle
26. Threading diagram
27. Presser foot pressure adjusting screw
5

1
7
8
2
3
9
4
5
6
11
10
Details of the machine
Accessories
1. Electronic foot control
2. Needle set 130/705H
3. Spool caps
4. Tweezers
5. Brush/needle inserter
6. Net
7. Hexagonal screwdriver
8. Accessory bag
9. Dust cover
10. Hemmer Guide for Coverstitch
11. Chainstitch presser foot (Optional Accessory)
6

Preparing the machine
Thread guide

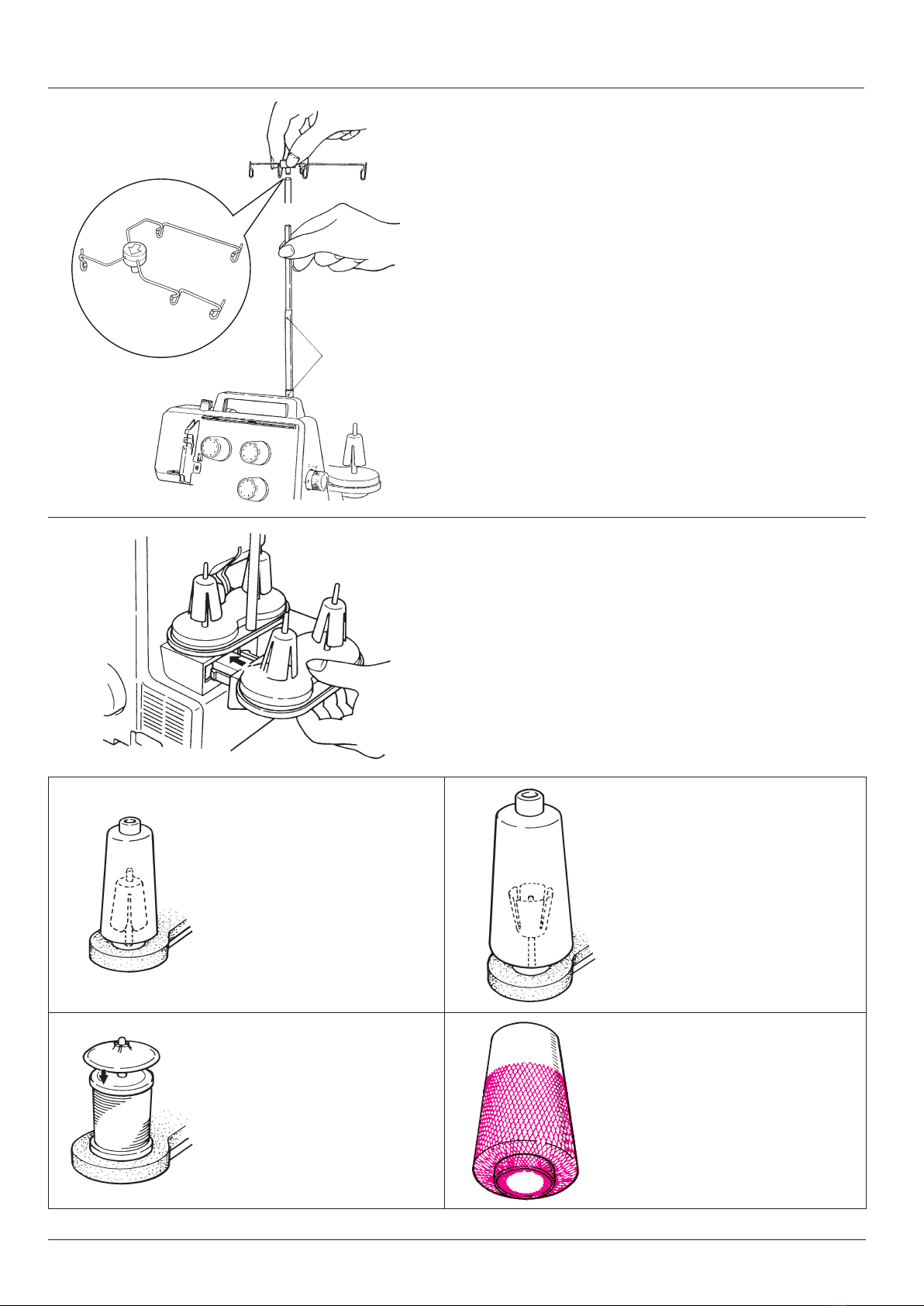

Raise the support rod fully, turning slightly until the positioning
catches engage (A). Position the thread guide on the thread
stand so that the arrow is to the front (B).
Attaching the spool holders
Attach the separately packed spool holder (equipped with two
spool holders pins) to the xed spool holder, by pushing until it
snaps in place.
A
B
Thread / cones / spools
The anti-vibration cone should
be used with the wider edge at
the bottom on the spool holder
pin when sewing with cones.
Large spools
If large industrial spools are used,
position the anti-vibration cone up-
side down on the spool holder pin,
i.e. with the wider edge at the top.
Household spools
Remove the anti-vibration
cones. Place spools on spool
holder pins and push the spool
caps on with the rounded side
downwards.
Thread nets
If the threads slip and gets twist-
ed, cover the spools of upper and
lower looper with the nets supplied
in the accessory bag.
7

Preparing the machine
A
B
Power/light switch
The power/light switch is on the handwheel side of the machine
in front of the plug socket.
0 = off
I = power and light on
CAUTION:
Perform these following steps when you are not using your
sewing machine.
1. Be sure to turn OFF the power switch.
2. Be sure to remove the power plug from the wall outlet.
3. Do not place a thing on the foot controller.

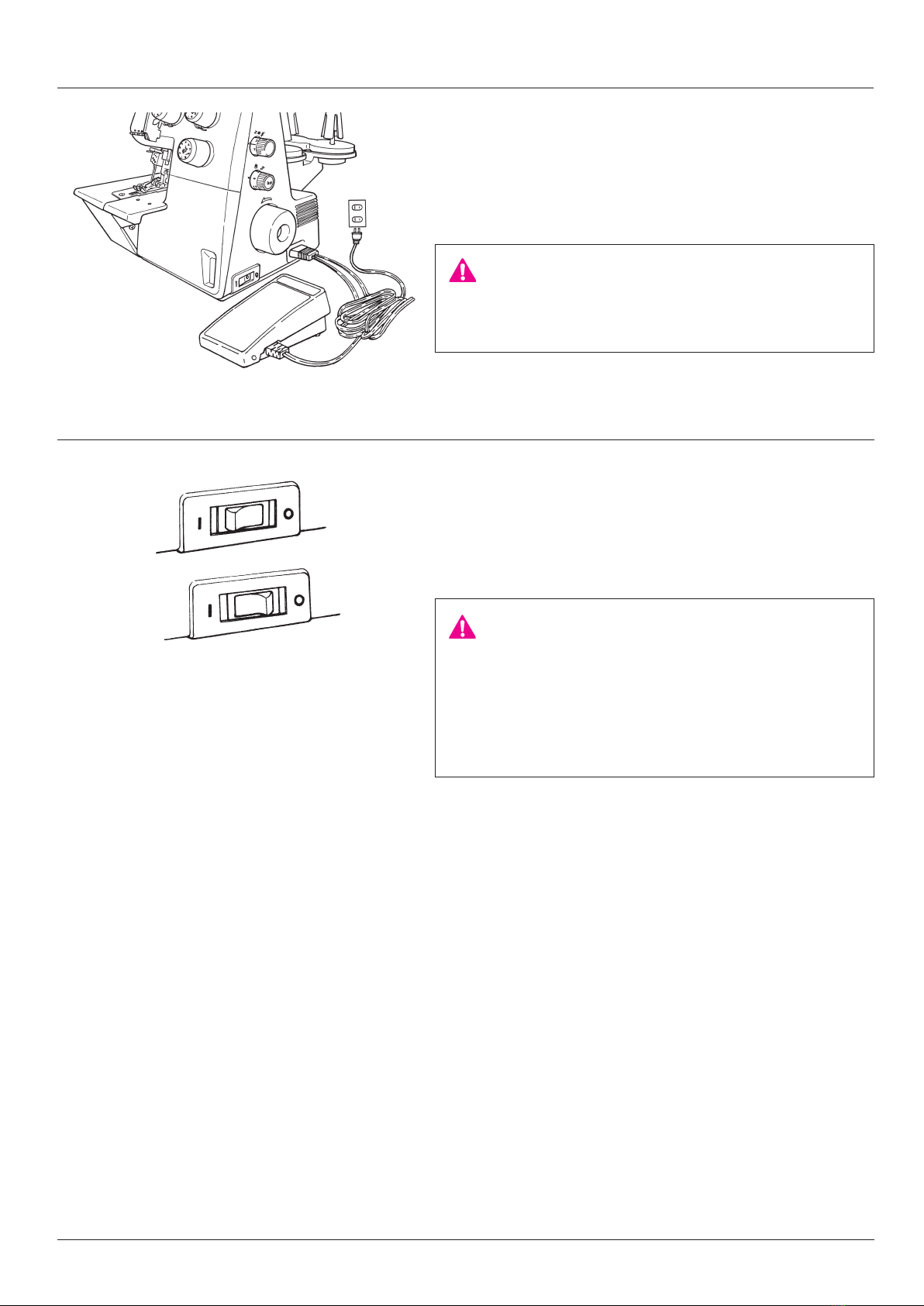

Attaching the foot control
Plug foot control into the machine socket (A) and then into the
main socket (B). The foot control regulates the sewing speed.
The sewing speed can be adjusted by increasing or decreasing
the pressure on the foot control.
CAUTION:
Be sure to turn OFF the power switch before plugging/un-
plugging the controller.
8

Using the machine
Two-step presser foot lifter
To raise the presser foot push the presser foot lifter up until it en-
gages (A).
It can be raised again to maximum height and held in this position to
provide more space between presser foot and stitch plate for bulky
items (B). To lower the presser foot press the lifter down (C).
“WARNING”
When using the extra lift (B), do not run the machine or turn the
handwheel.
Changing the presser foot
・Switch the machine off (power switch "0").
・
Turn the handwheel to raise the needles.
・
Raise the presser foot.
・
To release the presser foot, press the catch (D).
・
Raise the presser foot shaft to its highest position (B) and remove
the presser foot to the left.
・
To attach the foot, place it under the shank, so that the groove in
the shank lines up exactly with the presser foot pin (E).
・
Lower the shank and the presser foot will engage automatically.
*Lower the presser foot lifting lever and check that the groove in
the shank should line up exactly with the presser foot pin (E). If it
is not lined up, press the catch (D) to line up.
- Cover stitch presser foot (F)
- Chain stitch presser foot (G) (Optional Accessory)
B
A
C
D
E
F G
(Optional Accessory)
1009
9

Using the machine
Looper cover
Caution, moving parts, switch the machine off (power
switch "0").

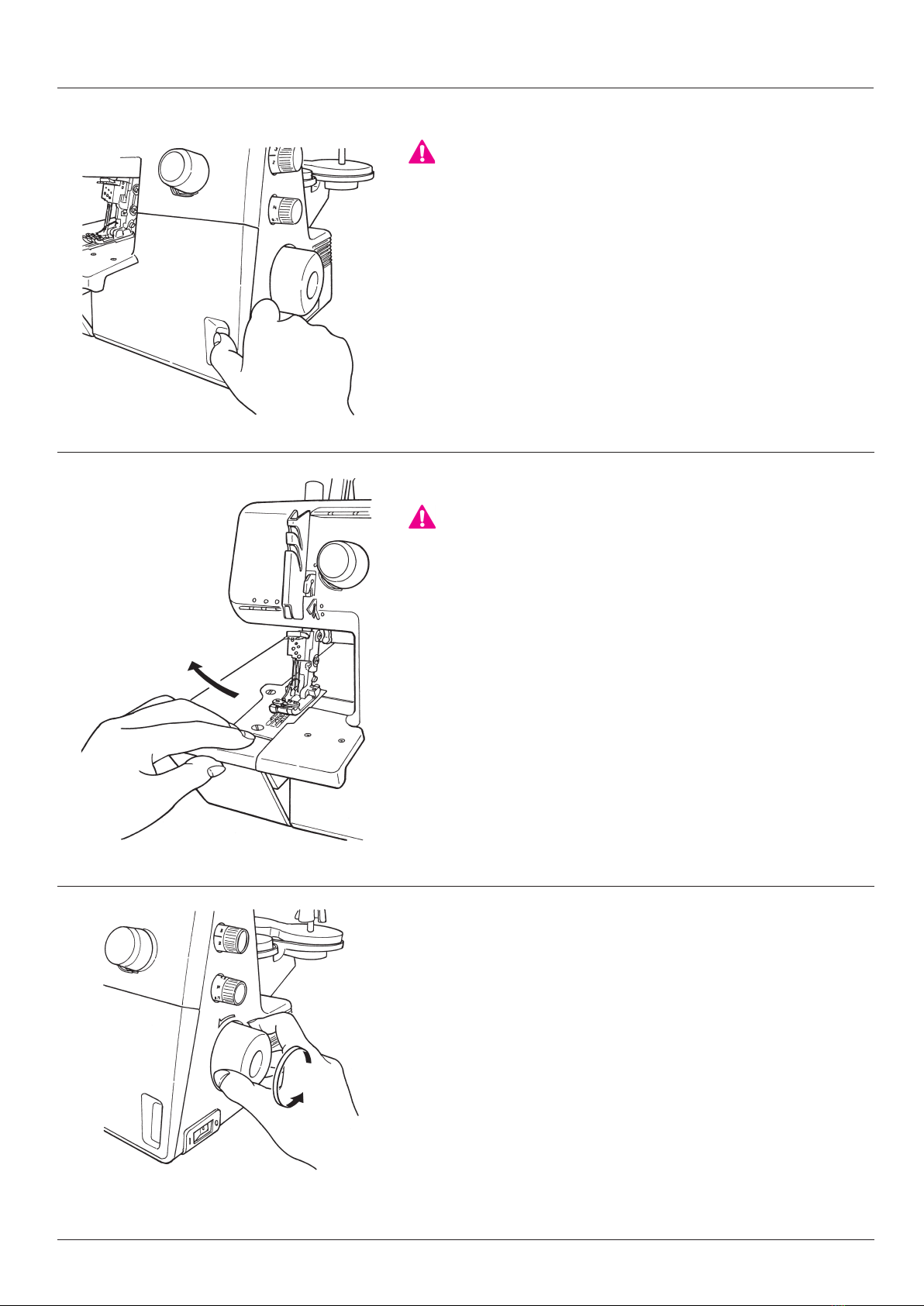

To open, push to the right and tilt the cover towards you.
To close, push it up.
Cloth plate
Caution, moving parts, switch the machine off (power
switch "0").
To open, push the cloth plate to the left.
To close, push it towards the machine and press gently until it en-
gages.
Handwheel
The handwheel turns forward (counterclockwise) when sewing.
10

Using the machine
Inserting needles
・Switch the machine off (power switch "0").
・
Raise the needles fully by turning the handwheel.
・
Lower the presser foot.
・
To remove the needles loosen the needle set screws (A).
・
Place a needle, at side towards the back into the hole of the nee-
dle inserter (B).
・
Insert the needle into the needle clamp (C).
・
Tighten the needle set screws.
Needle system
・
130/705H (Household needles)
・
Use needles size No.70-90 (11-14).
A
B
C
11

Threading
Threading preparation / TIPS
・Switch the machine off (power switch "0").
・
Fully raise support rod with thread guide.
・
Open the looper cover and cloth plate.
・
Turn handwheel until the looper is at its leftmost position.
・
Raise the presser foot to release the tensions.
・
Thread the looper rst and then the needle(s).
Thread guide bar
Slide thread into the two slits to form an S-loop.
Thread tension
The thread must lie correctly between the tension discs
for perfect stitch formation. When a slight resistance is
felt on the thread, it is lying correctly between the tension
discs.
12

Threading 4 thread cover stitch

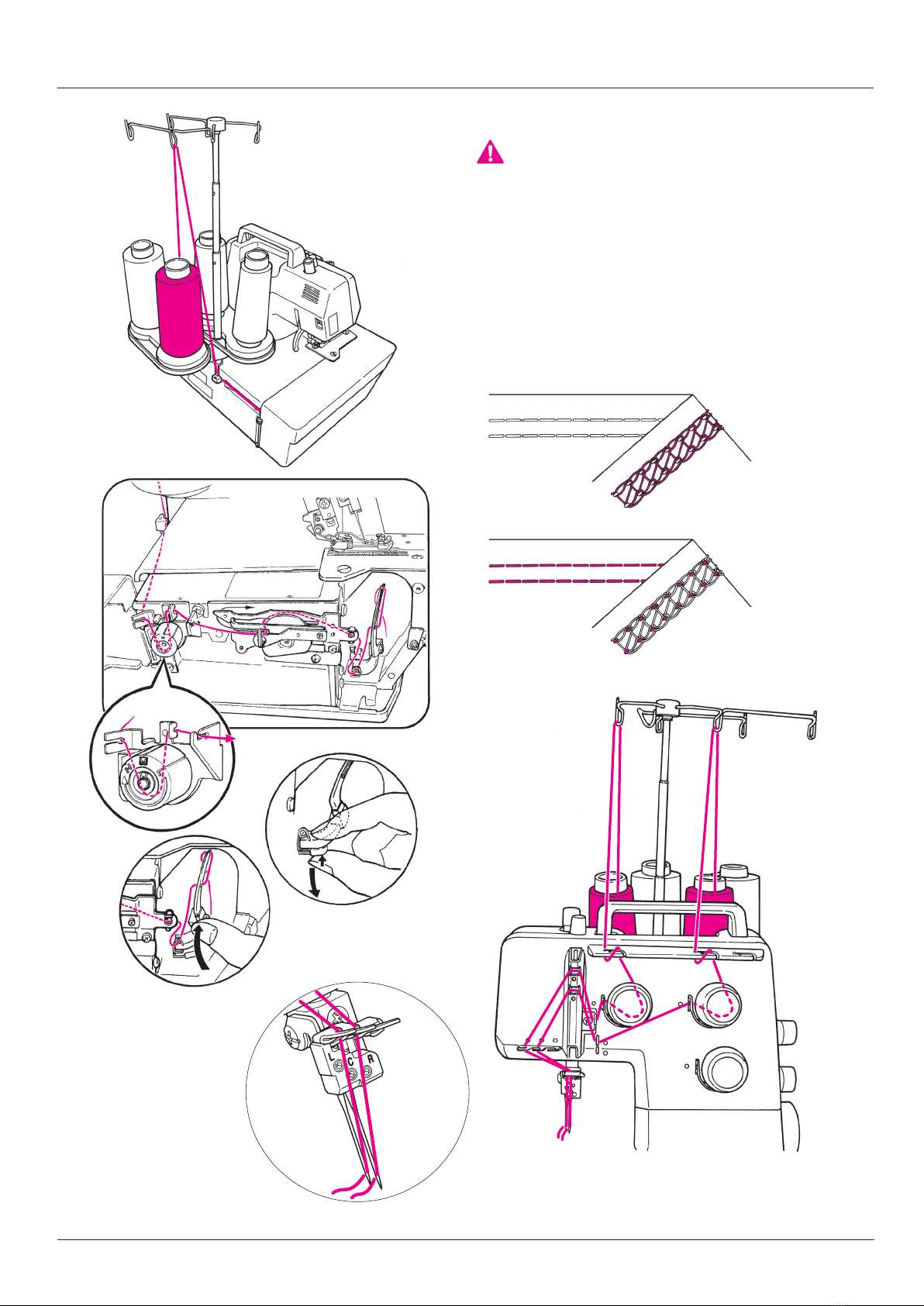

1. Threading cover stitch looper (purple)
• Switch the machine off (Power switch to “0”).
Place the spool on the spool holder pin as illustrated.
(1) Bring the thread up from the spool and lay it from the
back to the front into the guides.
(2, 3) Thread the guides.
(4) Thread the tension dial.
(5, 6, 7) Thread the guides.
(8) Place the thread horizontally in the guide.
(9) Thread the guide.
Bring the needle into the lowest position. Turn handwheel.
(10) Thread the guide.
(11) Push the looper auto-threader (white) up towards the
chainlooper and press them down together.
(12) Thread the rst looper eye back to front.
(13) Thread the looper eye front to back and cut thread to
about 10cm (4”).
(14) Push the looper auto-threader back up to sewing
position.
Raise the needle to highest position (turn handwheel)
Note:
If the looper thread has to be re-threaded, cut the needle
threads above the needle eye and remove. Thread the
looper rst and then the needles.
1
2
3
3
4
56
11
14
12
13
2
3
5
67
8
4
10
912
13
13

Threading 4 thread cover stitch
1009

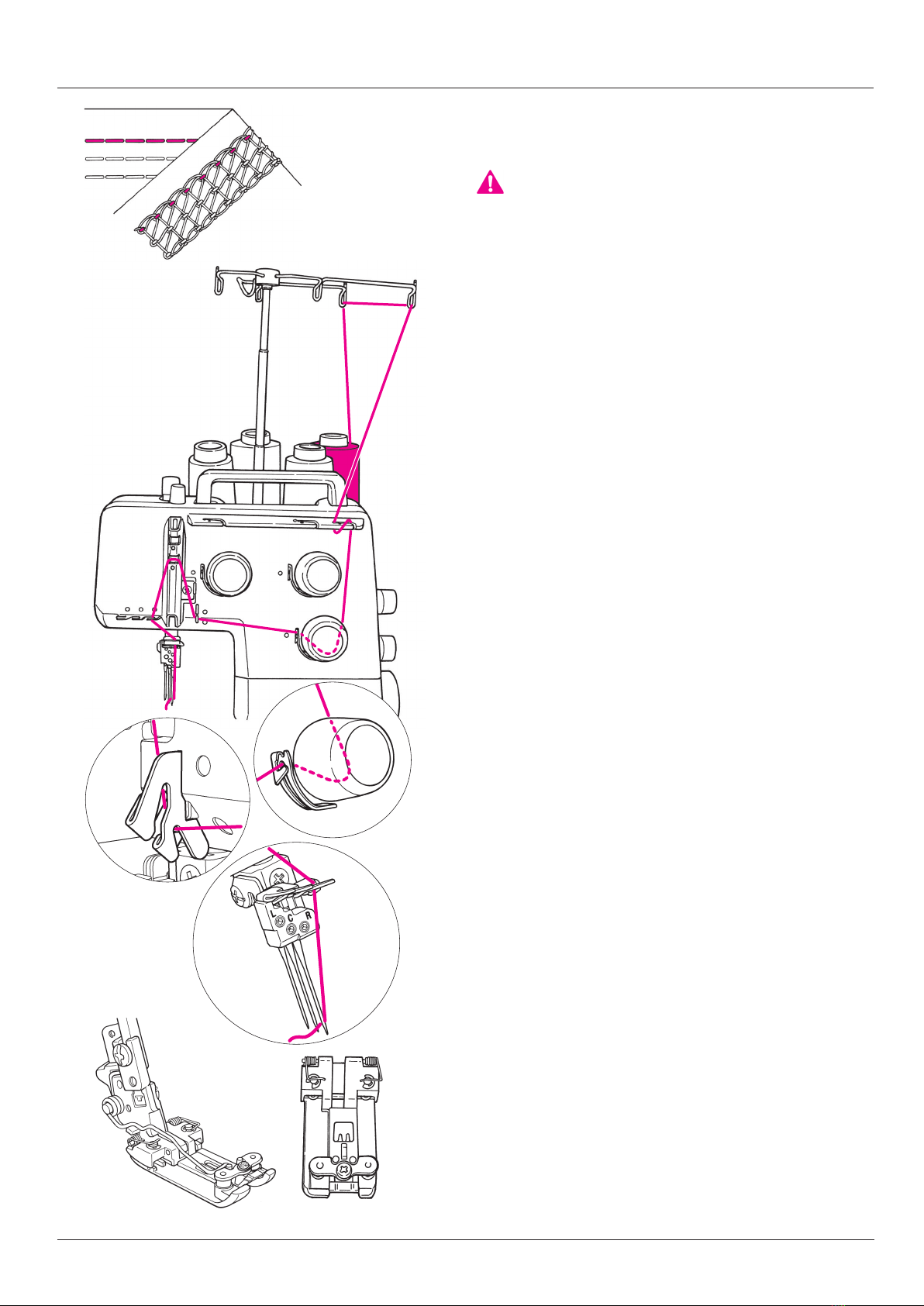

2. Threading right cover stitch needle
(blue)
• Switch the machine off (Power switch to “0”).
Place the spool on the spool holder pin as illustrated.
(1) Bring the thread up from the spool and lay it from the
back to the front into the guides.
(2, 3) Make an S-loop around thread guide bar.
(4) Thread the tension dial.
(5, 6) Thread the guides.
(7) Thread the take up.
(8) Thread the guide.
(9) Thread the needle clamp guide.
(10) Thread the right needle eye from front to back and
lay the thread over the presser foot to the left. Cut the
thread to about 7 cm (3”).
(11) Check that the cover stitch presser foot is attached
for cover stitch sewing.
Note:
If the looper thread has to be re-threaded, cut the needle
threads above the needle eye and remove. Thread the
looper rst and then the needles.
1
3
2
4
5
6
7
8
9
10 4
5
10
9
6
14

Threading 4 thread cover stitch
1
3
2
4
5
6
7
8
9
10
10
9
4
5
6

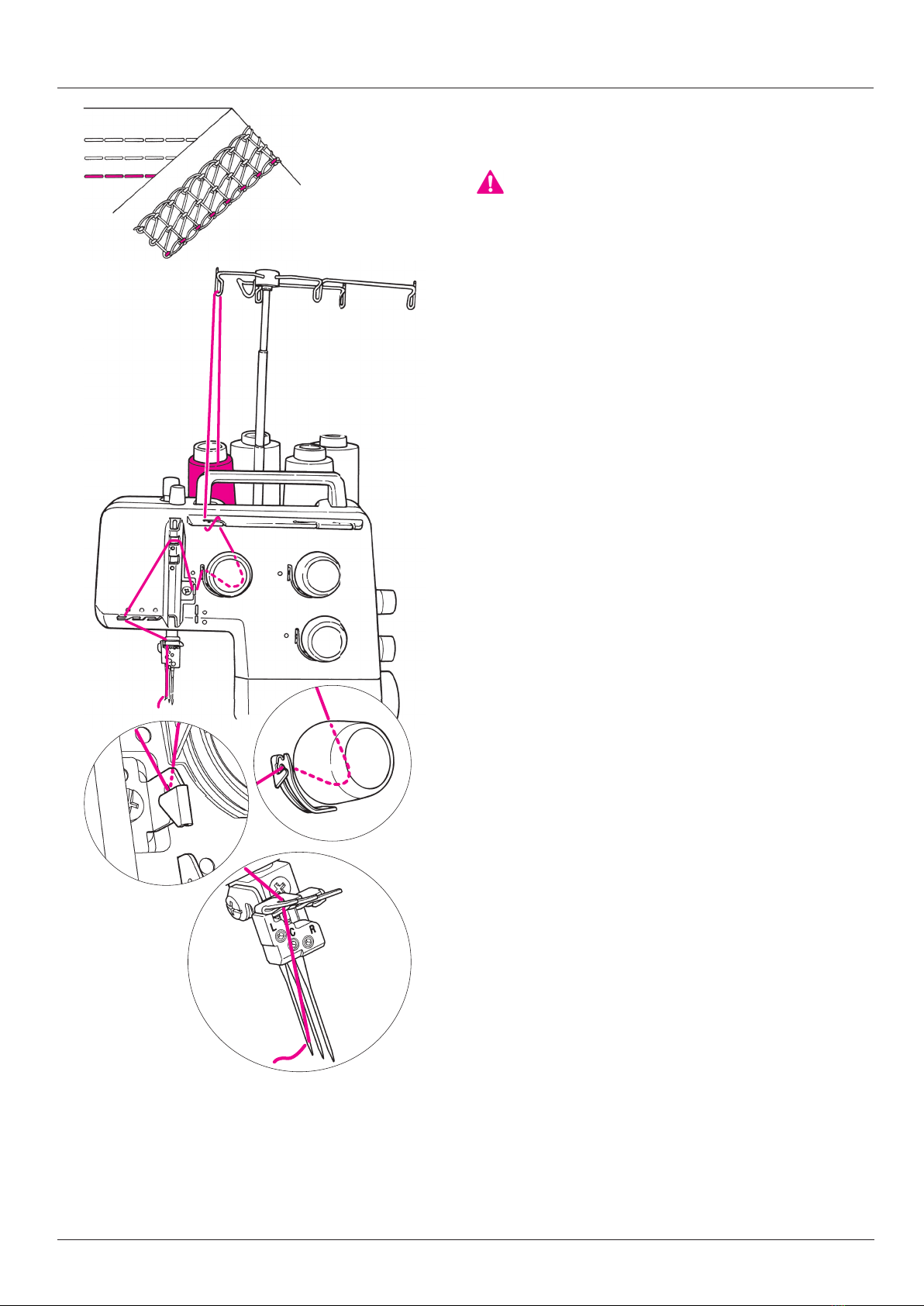

3. Threading center cover stitch needle
(green)
• Switch the machine off (Power switch to “0”).
Place the spool on the spool holder pin as illustrated.
(1) Bring the thread up and take it from back to front
through the guide.
(2, 3) Make an S-loop around thread guide bar.
(4) Thread the tension dial.
(5, 6) Thread the guides.
(7) Thread the take up.
(8) Thread the guide.
(9) Thread the needle clamp guide.
(10) Thread the center needle eye from front to back and
lay the thread over the presser foot to the left. Cut the
thread to about 7 cm (3”).
Note:
If the looper thread has to be re-threaded, cut the needle
threads above the needle eye and remove. Thread the
looper rst and then the needles.
15

Threading 4 thread cover stitch
4. Threading left cover stitch needle
(yellow)
• Switch the machine off (Power switch to “0”).
Place the spool on the spool holder pin as illustrated.
(1) Bring the thread up and take it from back to front
through the guide.
(2, 3) Make an S-loop around thread guide bar.
(4) Thread the tension dial.
(5, 6) Thread the guides.
(7) Thread the take up.
(8) Thread the guide.
(9) Thread the needle clamp guide.
(10) Thread the left needle eye from front to back and lay
the thread over the presser foot to the left. Cut the
thread to about 7 cm (3”).
Note:
If the looper thread has to be re-threaded, cut the needle
threads above the needle eye and remove. Thread the
looper rst and then the needles.
1
3
2
4
5
6
7
8
9
10
10
9
4
5
6
16

Threading 3 thread cover stitch (wide)
2
3
3
4
5
67
8
4
56
10
9
11
12
13
14
12
13
1
2
3
1
3
2
4
5
6
7
8
9
10
5
4
3
2
1
10
9
Preparation 3 thread cover stitch (wide)
• Switch the machine off (Power switch to “0”).
Right cover stitch needle (blue)
Left cover stitch needle (yellow)
17

Threading 3 thread cover stitch (narrow)
2
3
3
4
5
67
8
4
56
10
9
11
12
13
14
12
13
1
2
3
1
3
2
4
5
6
7
8
9
10
5
4
3
2
1
10
9
Preparation 3 thread cover stitch (narrow)
• Switch the machine off (Power switch to “0”).
Left cover stitch needle (yellow)
Center cover stitch needle (green)
18

Threading chain stitch
2
3
3
4
5
67
8
4
56
10
9
11
12
13
14
12
13
1
2
3
1
3
2
4
5
6
7
8
9
10
Preparation chain stitch
• Switch the machine off (Power switch to “0”).
Left chainstitch needle (yellow)
10
9
19
