Juntek PSG9080 User manual

I

Hangzhou Junce Instruments Co., Ltd.
PSG9080 dual channel
function/arbitrary
waveform signal generator
User Manual
Rev1.0 June 2020

Hangzhou Junce Instruments Co., Ltd.
I
Guaranty and Declaration
Copyright
Hangzhou Junce Instruments Co., Ltd. all right reserved.
Trademark Information
JUNTEK is a registered trademark of Hangzhou Junce Instruments Co., Ltd.
Notices
JUNTEK products are covered by P.R.C. patents, issued and pending.
This document replaces all previously published documentation.
Contact Us
If you have any problem or requirement when using our products or this
manual, please contact JUNTEK.
E-mail: [email protected]
Website: www.junteks.com

Hangzhou Junce Instruments Co., Ltd.
II
Safety Requirement
General Safety Summary
Please review the following safety precautions carefully before putting the
instrument into operation so as to avoid any personal injury or damage to the
instrument and any product connected to it. To prevent potential hazards,
please follow the instructions specified in this manual to use the instrument
properly.
Use Proper Power Cord
Only the exclusive power cord designed for the instrument and authorized for
use within the local country could be used.
Connect the Probe Correctly
If a probe is used, do not connect the ground lead to high voltage since it has
isobaric potential as the ground.
Observe All Terminal Ratings
To avoid fire or shock hazard, observe all ratings and markers on the
instrument and check your manual for more information about ratings before
connecting the instrument.
Use Proper Over-voltage Protection
Ensure that no over-voltage (such as that caused by a bolt of lightning) can
reach the product. Otherwise, the operator might be exposed to the danger of
an electric shock.
Do Not Operate Without Covers
Do not operate the instrument with covers or panels removed.
Do Not Insert Anything Into the Air Outlet
Do not insert anything into the air outlet to avoid damage to the instrument.
Avoid Circuit or Wire Exposure
Do not touch exposed junctions and components when the unit is powered on.
Do Not Operate With Suspected Failures
If you suspect that any damage may occur to the instrument, have it inspected
by JUNTEK authorized personnel before further operations. Any maintenance,
adjustment or replacement especially to circuits or accessories must be
performed by JUNTEK authorized personnel.

Hangzhou Junce Instruments Co., Ltd.
III
Provide Adequate Ventilation
Inadequate ventilation may cause an increase of temperature in the instrument,
which would cause damage to the instrument. So please keep the instrument
well ventilated and inspect the air outlet and the fan regularly.
Do Not Operate in Wet Conditions
To avoid short circuit inside the instrument or electric shock, never operate the
instrument in a humid environment.
Do Not Operate in an Explosive Atmosphere
To avoid personal injuries or damage to the instrument, never operate the
instrument in an explosive atmosphere.
Keep Instrument Surfaces Clean and Dry
To avoid dust or moisture from affecting the performance of the instrument,
keep the surfaces of the instrument clean and dry.
Prevent Electrostatic Impact
Operate the instrument in an electrostatic discharge protective environment to
avoid damage induced by static discharges. Always ground both the internal
and external conductors of cables to release static before making connections.
Handle with Caution
Please handle with care during transportation to avoid damage to keys, knobs,
interfaces, and other parts on the panels.
Notices
1.Make sure that the input power is correct.
2.The shell of the instrument is fragile and easy to corrode. Please don't hit or
close to chemicals to avoid corrosion.
3.Working temperature: 10~ 50℃, storage temperature : 20 ~70℃, and keep
the instrument in a dry environment.
4.Do not attempt to disassemble the instrument， it will void the warranty. There
are no user-serviceable parts inside the instrument. Repairs can only be made
through designated repair outlets or sent back to the factory.
5.Please avoid placing unsafe items such as lighted candles, cups with water,
and corrosive chemicals on the surface of the instrument to avoid damage to
the instrument.
6.The display screen is a fragile device, please do not touch or bump it .
Please avoid children playing with the instrument. When there is dirt on the
LCD surface, wipe it carefully with a soft cloth.
7.Please do not move the instrument violently to avoid causing irreparable
damage to the internal circuit. If the instrument does not work properly, please
contact the supplier!

Hangzhou Junce Instruments Co., Ltd.
IV
Contents
Guaranty and Declaration........................................................................................... I
Safety Requirement.................................................................................................... II
General Safety Summary...................................................................................II
Notices................................................................................................................. III
Contents...................................................................................................................... IV
Inspection..................................................................................................................... 4
ChapterⅠPSG9080 Overview.................................................................................. 2
1.The Instrument Introduction........................................................................... 2
2.Dimension......................................................................................................... 2
3.Specifications....................................................................................................3
ChapterⅡInstrument Introduction.......................................................................... 10

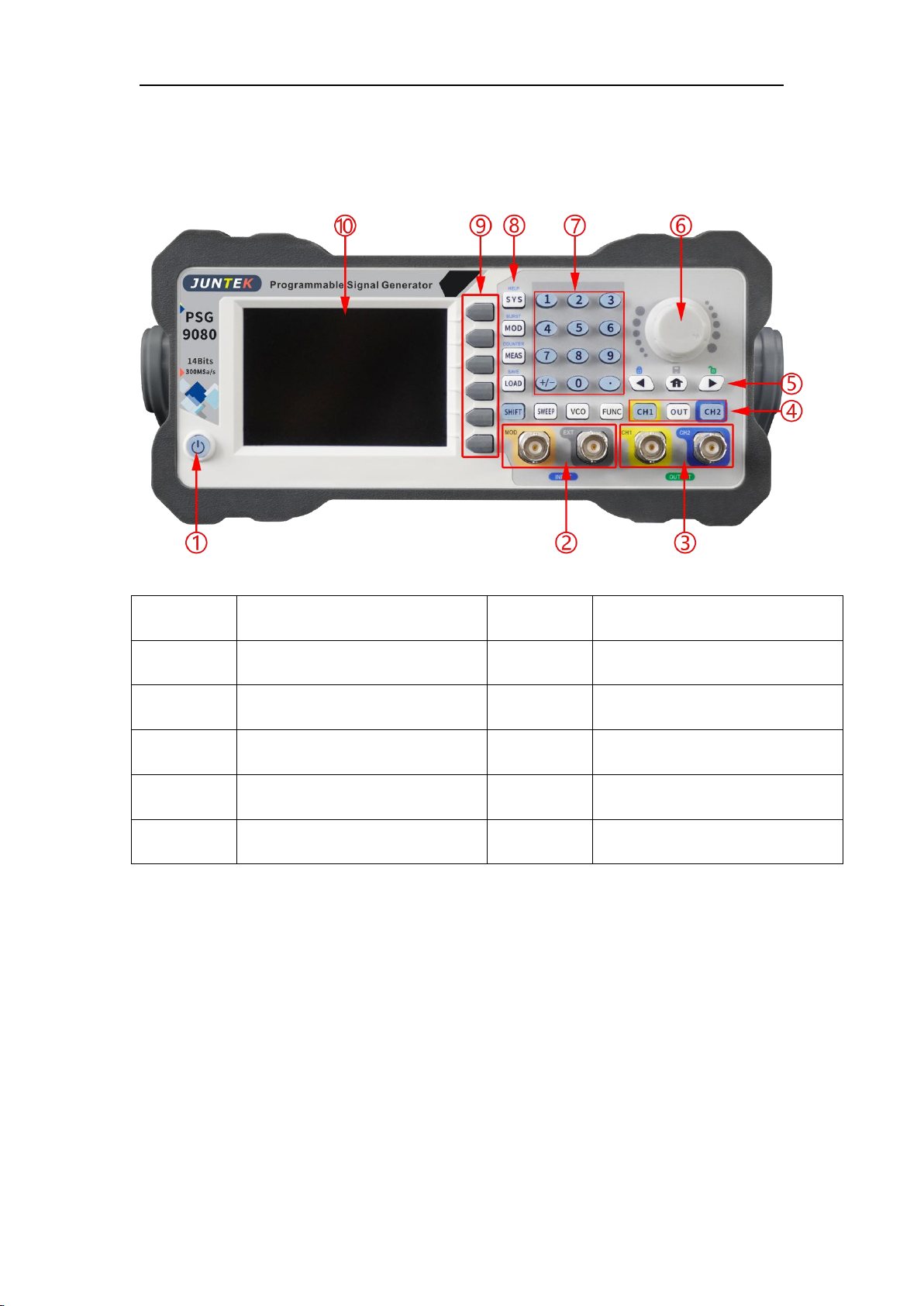

1.Front Panel Overview....................................................................................10
2.Rear Panel Overview.................................................................................... 13
3.Display Interface............................................................................................ 15
ChapterⅢBasic Operations Of the Instrument.....................................................17
1.Power On and Inspection............................................................................. 17
2.To Output Basic Waveform...........................................................................17
3.Modulation Mode Interface and Parameter Settings................................19
4.Parameters Setting of Measurement Mode Interface.............................. 28
5.Parameters Setting of Frequency Sweep Mode Interface...................... 30
6.Parameters Setting of Voltage Control Mode Interface........................... 31
7.Parameters Setting of Programming Mode Interface...............................33
8.System Settings............................................................................................. 35
9.PC Software Control Output.........................................................................37
Troubleshooting......................................................................................................... 40
For More Product Information................................................................................. 41
Warranty..................................................................................................................... 41

Hangzhou Junce Instruments Co., Ltd.
1
Inspection
When you get a new PSG9080 programmable signal generator, it is
recommended that you inspect the instrument according to the following steps.
Inspect the Packaging
If the packaging has been damaged, do not dispose the damaged
packaging or cushioning materials until the shipment has been checked for
completeness and has passed both electrical and mechanical tests. The
consigner or carrier shall be liable for the damage to the instrument resulting
from shipment. We would not be responsible for free maintenance/rework or
replacement of the instrument.
Check the Contents
Please check the contents according to the packing lists. If the
instruments are damaged or incomplete, please contact your JUNTEK sales
representative.
Host
PSG9080 programmable function/arbitrary
waveform signal generator
1pc
Accessory
Power cable
1pc
USB cable
1pc
BNC to alligator clips test lead
1pc
BNC male plug test lead
1pc
Certificate of conformity
1pc
Quick guide
1pc
Inspect the Instrument
In case of any mechanical damage, missing parts, or failure in passing the
electrical and mechanical tests, contact your JUNTEK sales representative.

Hangzhou Junce Instruments Co., Ltd.
2
ChapterⅠPSG9080 Overview
1.The Instrument Introduction
PSG9080 programmable dual channel function/arbitrary waveform signal
generator can generate various waveforms such as sine wave, square wave,
triangle wave, pulse wave, and arbitrary wave. The frequency range of the
instrument is from 1nHz to 80MHz, and it has the functions of modulation,
frequency sweep, measurement signal frequency and programming, etc. It can
display the output signal, amplitude, phase, duty and frequency at the same
time. The instrument has excellent amplitude-frequency characteristics,
multi-functions, high performance, high cost performance, portable and other
characteristics providing a new choice for education, research and
development, production, testing and other industries.
The appearance of this instrument is exquisite and beautiful, and it is
equipped with a 3.5-inch high-resolution color LCD screen to bring you a brand
new visual experience.
2.Dimension
Front view Unit:mm

Hangzhou Junce Instruments Co., Ltd.
3

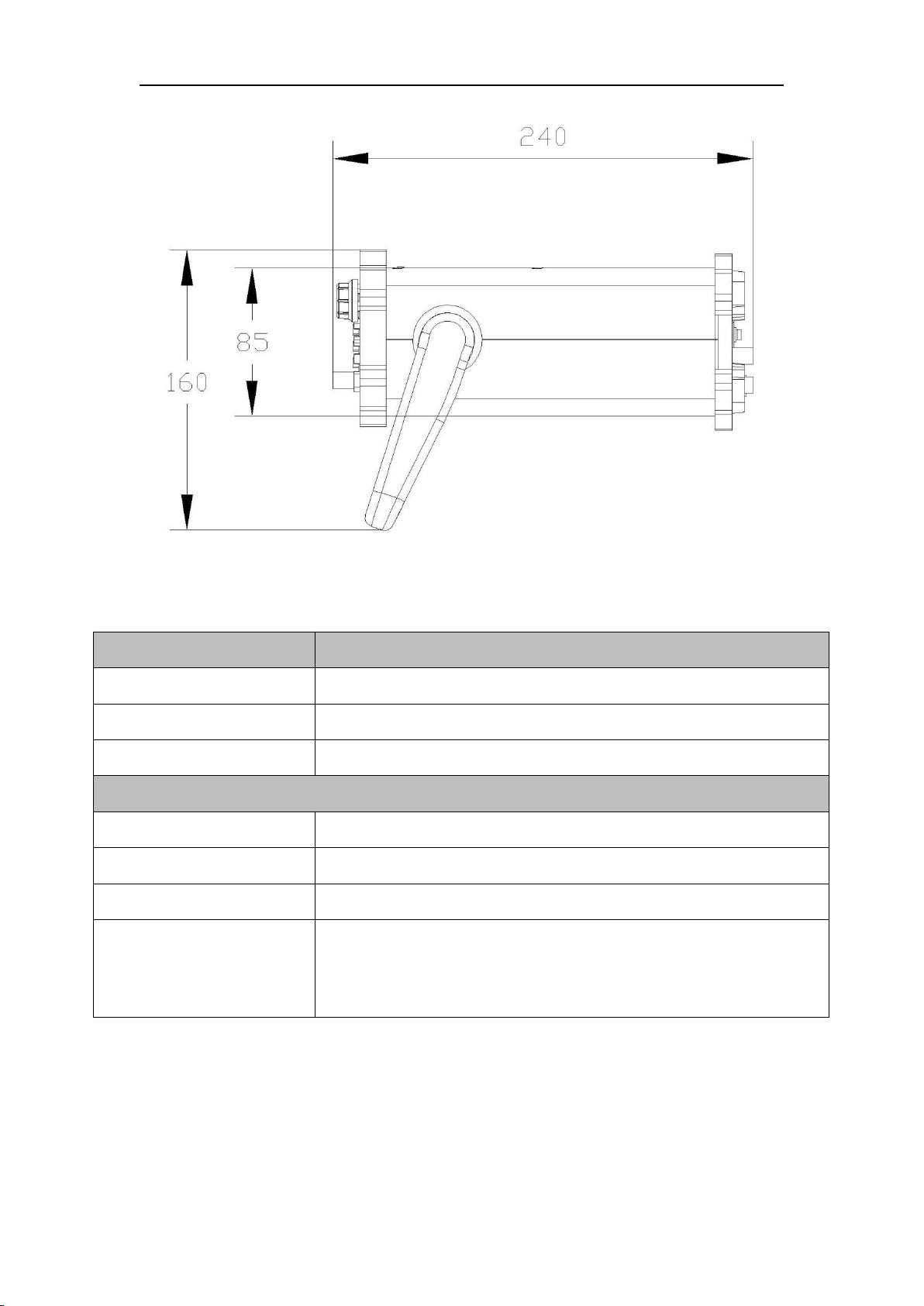

Side view Unit:mm
3.Specifications
Model
PSG9080
Channel
2
Sine wave frequency range
1nHz-80MHz
Sampling Rate
300MSa/S
Waveform characteristics
Wave length
8192 points/channel
Waveform vertical resolution
14 bits
Basic waveform
Sine,square,pulse,ramp,CMOS,DC,partial sine and noise wave
Built-in waveform
Sine,square,pulse,triangle,ramp,CMOS,DC level,partial sine,half,full,
positive step wave, inverse step wave, noise,exponential rise,
exponential fall,logarithm ascending,logarithmic descending, sinker
pulse, multi-tone ,lorenz

Hangzhou Junce Instruments Co., Ltd.
4
Frequency characteristics
Sine wave frequency range
1nHz-80MHz
Square wave frequency range
1nHz-30MHz
Triangle wave frequency range
1nHz-50MHz
Pulse wave frequency range
1nHz-30MHz
TTL digital wave frequency range
1nHz-20MHz
Arbitrary wave frequency range
1nHz-50MHz
Pulse width adjustment range
5nS~4S
Pulse period adjustment range
10nS~40S
Frequency minimum resolution
1nHz
Frequency accuracy
±5ppm 0 to 50℃
Frequency stability
±3ppm per 1 year
Sine wave spectrum purity
Total harmonic distortion
≤0.5%（@1kHz,5Vpp）
Signal characteristics
Square wave
Rise/Fall Time
≤10nS
Overshoot
≤10%
Non-symmetry
≤0.1%
Ramp and triangle wave
Non-linearity
≤1%(Less than 1MHz)
Non-symmetry
≤1%(Less than 1MHz)
Pulse wave
Pulse Width
5nS~4S
Pulse period
10nS~40S
Duty cycle
0.01%-99.99%
Leading/Trailing Edge Time
≤10nS
Overshoot
≤10%
Arbitrary wave

Hangzhou Junce Instruments Co., Ltd.
5
Wave length
8192 points (8K points)
Vertical resolution
14 bits
Minimum rise/fall time
≤10nS
Overshoot
≤10%
Arbitrary waveform non-volatile storage number
99
Output characteristics
Amplitude
Amplitude range
Frequency≤1MHz; 2mVpp~25Vpp
1MHz≤Frequency＜11MHz; 2mVpp~10Vpp
11MHz≤Frequency＜60MHz; 2mVpp~5Vpp
60MHz≤Frequency＜80MHz; 2mVpp~3.6Vpp
Amplitude resolution
1mVpp
Amplitude stability
± 1% ±1 mVpp (@ 1 kHz,>10 mVpp)
Amplitude flatness
±1%(0.1dB)<10MHz ; ±2%(0.2dB)<10MHz~50MHz
±10%(0.9dB)<50MHz~70MHz; ±20%(1.9dB)<70MHz~80MHz
DC Offset
Range
-9.99V-12.00V
Resolution
0.01V
Phase characteristics
Adjustment range
0°-359.99°
Resolution
0.01
Waveform output
Impedance
50Ω (typical)
Protection
Short-circuit protection
Modulation characteristics
Modulation type
AM、FM、PM、ASK、FSK、PSK、PWM、BURST
AM
Carrier waveform
Sine, square, ramp, arbitrary (except DC)
Source
Internal/External

Hangzhou Junce Instruments Co., Ltd.
6
Modulating waveform
Sine, square, ramp, noise, arbitrary
Depth
0% to 200%
Modulating frequency
1mHz to 1MHz
FM
Carrier waveform
Sine, square, ramp, arbitrary (except DC)
Source
Internal/External
Modulating waveform
Sine wave, square wave, ramp wave, noise wave, arbitrary wave
Modulating frequency
1mHz to 1MHz
Frequency deviation
0.1Hz to 10kHz
PM
Carrier waveform
Sine, square, ramp, arbitrary (except DC)
Source
Internal/External
Modulating waveform
Sine, square, ramp, arbitrary (except DC)
Phase deviation
0° to 360°
Modulating frequency
1mHz to 1MHz
ASK
Carrier waveform
Sine, square, ramp, arbitrary (except DC)
Source
Internal/External
Polarity
Positive and negative
Rate
1mHz to 1MHz
ASK amplitude
0% to 200%
FSK
Carrier waveform
Sine, square, ramp, arbitrary (except DC)
Source
Internal/External
Modulating waveform
Pluse wave with 50% duty cycle
Polarity
Positive and negative
Rate
1mHz to 1MHz
Frequency hopping
0.1Hz to 80MHz
PSK
Carrier waveform
Sine, square, ramp, arbitrary (except DC)

Hangzhou Junce Instruments Co., Ltd.
7
Modulating waveform
Internal/External
Polarity
Positive and negative
Rate
1mHz to 1MHz
PSK phase
0° to 360°
PWM
Carrier waveform
Pulse
Wave inversion
Regular and reverse
Pulse period
0.01uS to 40S
Pulse Width
0.001uS to 4S
Burst
Idle
Zero position, positive maximum, negative maximum
Mode
Single, automatic
Trigger source
Manual t, CH2 burst, external (AC), external (DC)
Pulse number
1-1000000000
Measurement and counter function
Measurement mode
Measurement function
Frequency, positive/negative pulse width, period, duty cycle
Coupling method
DC, AC
Gate time
0.001S-10.000S
Measurement mode
Low frequency, high frequency
Frequency measurement range
1Hz~100MHz
Input signal amplitude range
2Vpp~20Vpp
Period measurement
10nS~4S
Pulse Width
4S
Duty cycle measurement range
0.01%~99.99%
Counter mode
Range
0-4294967295

Hangzhou Junce Instruments Co., Ltd.
8
Coupling method
DC and AC
Counting method
Manual
External modulation input characteristics
Input signal amplitude range
0~3Vpp
Input signal frequency range
DC~20kHz
Sweep characteristics
Sweep channel
CH1 or CH2
Carrier waveform
Sine, square, ramp, arbitrary (except DC)
Sweep function
Sweep frequency, sweep amplitude, sweep duty
Sweep mode
Linear, logarithmic
Sweep direction
Increment, decrement, round trip
Start/end frequency
Consistent with the upper and lower limits of the corresponding
carrier frequency
Start/end amplitude
Consistent with the upper and lower limits of the corresponding
carrier amplitude
Start/end duty cycle
Consistent with the upper and lower limits of the corresponding
carrier duty cycle
Sweep time
0.01S-640S
Voltage control characteristics
Voltage control channel
CH1 or CH2
Carrier wave
Sine wave, square wave, ramp wave, arbitrary wave (except DC)
Voltage control function
Frequency control, amplitude control, and duty cycle control
Sweep mode
Linear, logarithmic
Start/end frequency
Consistent with the upper and lower limits of the corresponding
carrier frequency
Start/end amplitude
Consistent with the upper and lower limits of the corresponding
carrier amplitude
Start/end duty cycle
Consistent with the upper and lower limits of the corresponding
carrier duty cycle
Voltage control voltage range
0V-5V, starting point and end point can be set arbitrarily

Hangzhou Junce Instruments Co., Ltd.
9
Programming features
Running mode
Debugging、normal
Storage
P00-P19
Programming number
00-99
Programming time
Single serial number programming time 0-99S
General parameters
Display
Screen
3.5 inch TFT color LCD screen
Resolution
320*480
Color
64K true color
Store and load
Quantity
100 groups
Location
00 to 99 (The data of 00 storage location is loaded by default)
Interface
Interface method
USB to serial interface
Extension interface
Serial port with TTL level, convenient for secondary development
Communication rate
Standard 115200BPS
Protocol
Using the command line, the protocol is open.
Power
AC power
Supply voltage
85V-264V，47-63Hz
Power consumption
Less than 30W
Fuse
250VAC,T3.15A
DC power
Voltage/current
DC5V±0.5V 3A
Environment
Temperature
0~40℃
Humidity
Humidity:<80%

Hangzhou Junce Instruments Co., Ltd.
10
ChapterⅡInstrument Introduction
1.Front Panel Overview
Figure 2-1-1 PSG9080 front panel
Table 2-1-1 PSG9080 front panel diagram instructions
Label
Introduction
Label
Introduction
①
Power key
⑥
Knob
②
Signal input connectors
⑦
Numeric keyboards
③
Signal output connectors
⑧
Function keys
④
Channel control area
⑨
Menu softkeys
⑤
Direction keys
⑩
LCD
①Power Key
The power key is used to turn the generator on or off.
②Signal Input Connectors
EXT.IN signal input connector
Input signal voltage range 2Vpp~20Vpp.
MOD.IN modulation input connector
Input signal voltage range 0Vpp~3Vpp.
③Signal Output Connectors
CH1 output connector
BNC connector with 50Ω±10% nominal output impedance.

Hangzhou Junce Instruments Co., Ltd.
11
When CH1 is enabled (the backlight turns on), this connector outputs
waveform according to the current configuration of CH1.
CH2 output connector
BNC connector with 50Ω±10% nominal output impedance.
When CH2 is enabled (the backlight turns on), this connector outputs
waveform according to the current configuration of CH2.
④Channel Control Area
CH1 key
It is used to control the output of CH1.
Press this key to open the output of CH1, the backlight turns on and the
CH1 connector outputs the waveform according to the current configuration of
CH1.
Press this key again to close the output of CH1 and the backlight turns off.
CH2 key
It is used to control the output of CH2.
Press this key to open the output of CH2, the backlight turns on and the
CH2 connector outputs the waveform according to the current configuration of
CH2.
Press this key again to close the output of CH2 and the backlight turns off.
OUT key
It is used to control the output switches of CH1 and CH2.
⑤Direction Keys
Used to move the cursor to select the digit to be edited when setting
parameter.
Used to delete the number at the left of the cursor when inputting
parameter using numeric keyboard.
⑥Knob
Used to increase (clockwise) or decrease (counterclockwise) the value
marked by the cursor when setting parameter using knob.
Used to quickly switch waveforms when the waveform bar is activated.
⑦Numeric Keyboard
It consists of numeric keys (0 to 9), decimal point (.) and sign key (+/-) to
set parameters.
⑧Function Keys
SYS Key
Used to quickly switch between system setting interface and main
interface.
Press the 【SYS】key to enter the system setting interface, press the
【PgDn】soft key to enter the next page of the system setting interface, and

Hangzhou Junce Instruments Co., Ltd.
12
press the ▲ ▼soft keys to select clear storage, sound, brightness, language,
built-in wave number, arbitrary wave number, waveform loading method,
synchronization, factory reset, system color and other items.
Press【SHIFT】+【SYS】keys to quickly enter the system help function.
MOD Key
Used to quickly switch between the modulation mode interface and the
main interface.
Press the【MOD】key to enter the modulation mode. In the modulation
mode interface, press the 【Type 】soft key to switch between amplitude
modulation, frequency hopping, phase modulation, key amplitude, key
frequency, key phase, pulse, and burst functions.
Press【SHIFT】+【MOD】keys to enter burst function quickly.
MEAS Key
Used to quickly switch between the measurement mode interface and the
main interface.
Press the
【MEAS】
key and press the 【CNTR.】 and 【MEAS.】 soft keys
in the measurement mode interface to switch between the measurement
function and the counting function.
Press the【SHIFT】+【MEAS】keys to quickly enter the counting mode.
LOAD Key
Used to quickly load the parameters of the storage location.
Press the numeric keys to enter the position to be loaded, and then press
the【LOAD】key to quickly load the parameters of that stored position.
Press【SHIFT】+【LOAD】keys to save parameters quickly.
SHIFT Key
Accessibility key.
Press【SHIFT】+【SYS】keys to quickly enter the system help function.
Press【SHIFT】+【MOD】keys to quickly enter burst function .
Press【SHIFT】+【MEAS】keys to quickly enter counting mode.
Press the numeric keys +【SHIFT】+【LOAD】keys to quickly save the
parameters to the corresponding storage location.
SWEEP Key
Used to quickly switch between the sweep mode interface and the main
interface.
Press the 【SWEEP 】key to enter the sweep frequency interface, and
press the 【FUNC 】soft key to switch between sweep frequency, sweep
amplitude and sweep duty functions.

Hangzhou Junce Instruments Co., Ltd.
13
VOC Key
Used to quickly switch between the voltage control mode interface and the
main interface.
Press the【VOC】key to enter the voltage control frequency interface, and
press the【FUNC】soft key to switch between the frequency control, amplitude
control, and duty control functions.
FUNC Key
Used to quickly switch between the programming mode interface and the
main interface.
Press the 【FUNC 】key to enter the programming mode interface, and
press the 【FUNC 】soft key to switch between the normal mode and the
modulation mode.
【 】Key
Press the【 】key to restore the default interface.
Press the 【 】 key and hold it to save the data to the M00 position
quickly.
⑨Function Softkey
Corresponding to the menu on the left, press softkeys to activate the
corresponding menu.
⑩LCD
3.5 inches TFT (480×320) color LCD display. The current function menu,
parameter settings and etc. can be clearly displayed.
2.Rear Panel Overview
Figure 2-2-1 PSG9080 rear panel

Hangzhou Junce Instruments Co., Ltd.
14
Figure 2-2-1 PSG9080 rear panel diagram instructions
Label
Instructions
Label
Instructions
1
Sync ports
⑤
AC power socket
2
Extension port
⑥
Switch
3
USB interface
⑦
Cooling holes
4
DC power socket
⑧
Chassis Ground
①Sync Ports
Through this ports, the phases of the output signals of different signal
generators can be synchronized.
②Communication Extension Port: TTL Digital Signal Output and
Measurement Interface
The serial port with TTL level mode is convenient for users' secondary
development.
③USB Interface
Used to connect the generator to a computer which can control the
generator remotely using PC software or by programming.
④DC Power Socket
Voltage and current specifications DC5V±0.5V 3A
⑤AC Power Socket
The AC power supply specification of this signal generator is 85-264V,
47-63Hz. The maximum input power of the instrument cannot exceed 30W.
The specification of the fuse is 250V, T3.15A.
⑥Switch
Used to turn the signal generator on or off.
⑦Cooling Holes
Used to dissipate the heat generated inside the instrument.
1
GPI
Digital signal input interface
3
GPO1
Digital signal output interface 1
5
GPO2
Digital signal output interface 2
7
RXD
Serial communication RXD receive data
9
TXD
Serial communication TXD send data
2、4
+5V
VCC
6、8、10
GND
GND
