Justsmart Gs1 lite User manual

JustSmart

Indoor Garden

INSTRUCTION MANUAL

 GS1 Lite

 GS1 Basic

 GS1 Plus

 GS1 Max

Thank you for purchasing JustSmart Hydroponics Growing

System Before operating this unit, please read these

instructions completely and keep the manual ready for

further reference

Content

Packing List----------------------

Important Safety Instructions

When using this machine, you should always follow basic precautions as follows:

• Children must be accompanied by an adult when using the machine.

• Keep children away from plants to avoid accidental ingestion.

• Turn off the power to prevent electric shock if you need to clean the machine.

• Do not use accessories not recommended by the manufacturer.

• Separate the wet and dry parts of the machine and be careful not to spill the water on the socket when adding water.

• Cut off the power immediately if there is a possibility of electric shock.

• Do not operate the machine if the power cord or plug is damaged, not working properly or dropped in water. If any of the above situations occur,

please contact us.

• This machine is not intended for use by people (including children) with physical, sensory or mental impairments or lack of experience and

knowledge, unless they are supervised or trained to use this machine by someone responsible for their safety.

• Do not use outdoors.

• This product is intended for home and residential use only.

•This product is not approved for commercial use.

Note:

• When the AC adapter connects the DC power supply to the device, touch the POWER button once and the device starts to work.

• After a few days of normal operation, the water level in the tank will drop. When the water in the water tank is not enough for your plants to grow, the screen

will alarm when the water level is low and the plant light will turn off temporarily and go into standby mode. At this time, an appropriate amount of water and the

appropriate proportion of ingredients must be added to the water tank as soon as possible to ensure the needs of plant growth. When the water level rises

above the warning requirement, the plant light will resume its work.

• The water tank cannot be cleaned in the dishwasher. When cleaning, first disconnect the power supply and protect the power interface and control box from

water.

Packing List

Product Parameters:

Brand

JustSmart

Model

GS1 Lite

GS1 Basic

GS1 Plus

GS1 Max

Planting Number

Planting Height

30 inch

LED Performance

30W

36W

48W

Timer

4/8/12/16H

Free setting from the APP

4/8/12/16H

Free setting from the APP

4/8/12/16H

Free setting from the APP

Light Mode

Vegetable Mode

Herbs Mode

Flower and Fruit Mode

Vegetable Mode

Herbs Mode

Flower and Fruit Mode

Vegetable Mode

Herbs Mode

Flower and Fruit Mode

Vegetable Mode

Herbs Mode

Flower and Fruit Mode

Operation Method

Button

Button/APP

Screen Zize

3.5 inches

Water Cycle System

Ultra-Quiet Water Pump

Water Level Detection

Sensor

Automatic Fertilization

√

Automatic Watering

√

Ventilation

√

Automatic Keep Warm

√

Product Size

17.52x11.22x7.6 inch

Product Weight

6.61 pounds

Power Input

100V-240V 50Hz/60Hz

Power Output

DC 24V 1.5A

DC 24V 2A

DC 24V 3A

Important:

* The product number is written on the name plate at the bottom. After checking, please use it correctly and safely.

* Do not mix the included AC adapter.

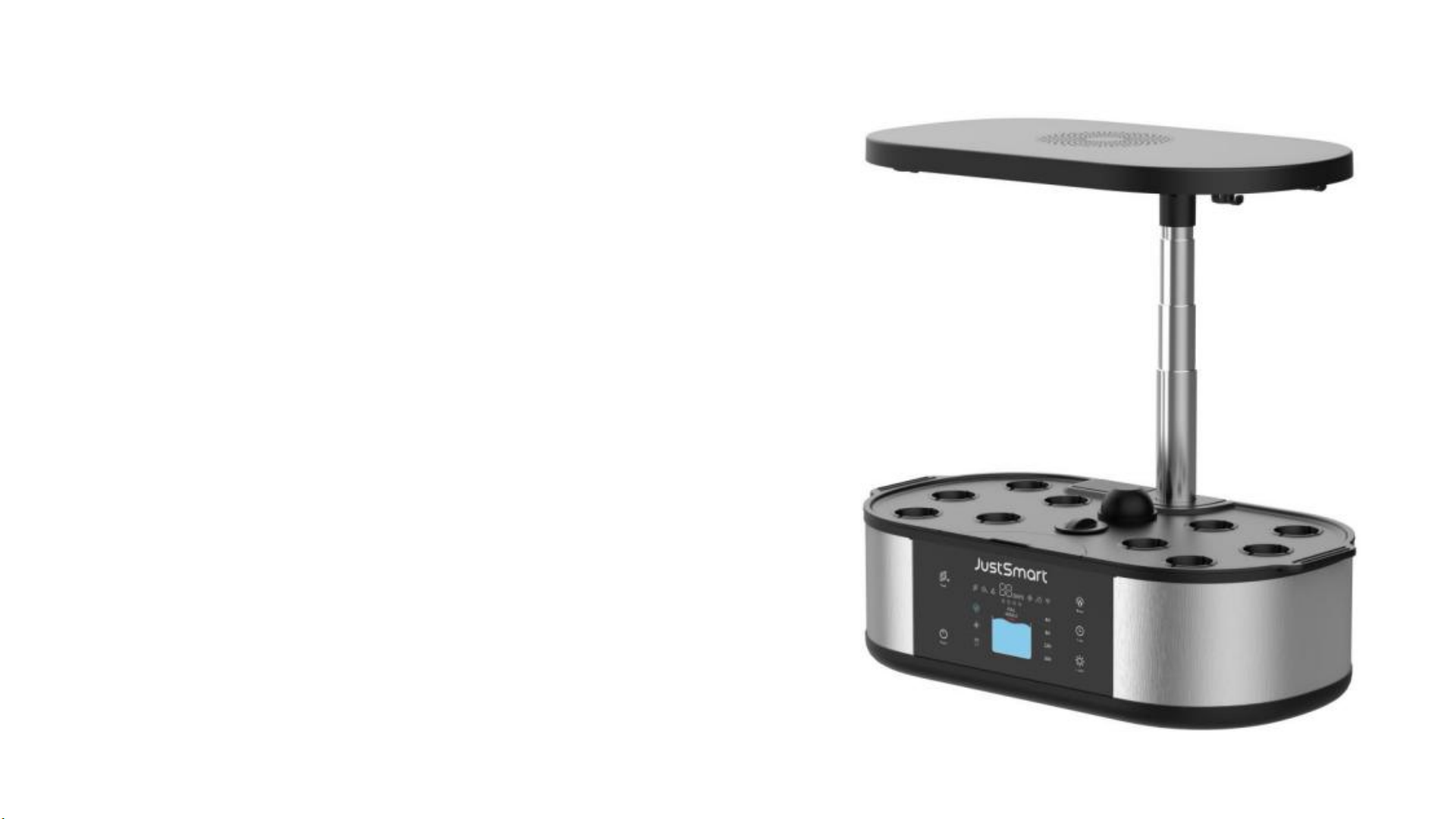

Product Structure

1. Insert the large end of the

rod into the machine.

When inserting, make sure

the rod is facing the right

direction and is fully inserted.

Easy Installation

2. Insert the grow lamp on

top of the rod. When

inserting, make sure that the

interfaces line up correctly

and press down gently until

fully inserted.

4. Connect the power cord to

the outlet of your choosing,

then connect the other end

to the power inlet on the

machine.

3. Release the water level

sensor to ensure that the

water level sensor can move

freely.

1.Open the water-filling cap and

add water to the indicated "FULL"

mark.Then add the water-soluble

fertilizer to the water tank in

proportion to your fertilizer

instructions.

Easy Planting

2.Soak the seeds and plant

sponge in advance.

Put the seeds (2-3pcs) into the

planting sponge, then put the

planting sponge into the

planting basket. Finally, install

the planting basket into the

holes on the water tank.

3.Put the germination cover on top of

the planting basket to improve the

germination rate of the seeds. Remove

the germination cover when the seeds

have sprouted to a specific height

(around 1.2 inches).

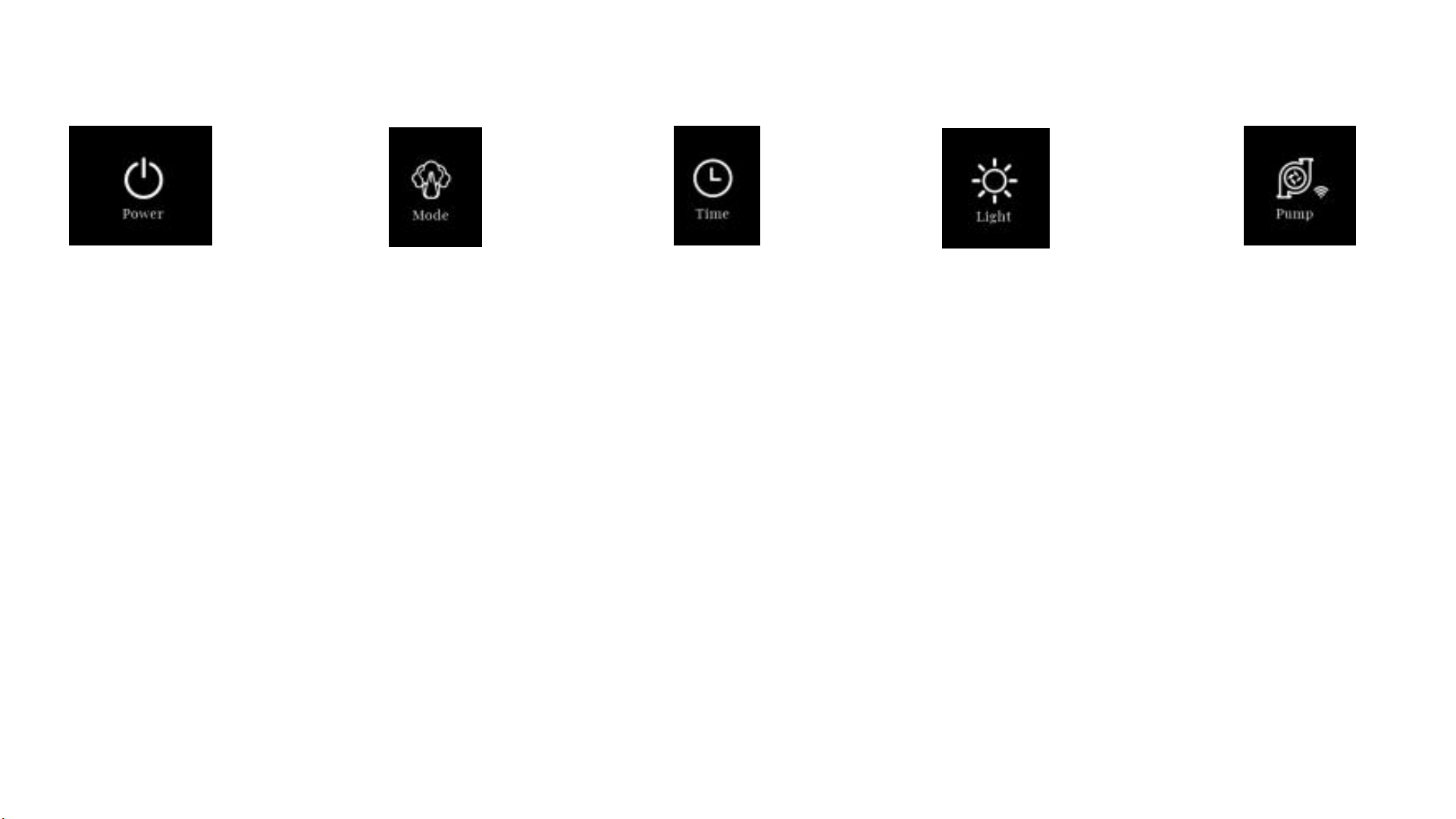

When the power button is

touched once, the screen

turns on and displays

information such as

equipment running time,

real-time water level, water

pump status, light mode

and timing settings.

Easy to use

When the system is turned

on, it will automatically

turn on the light for 4

hours by default and

display the 4H icon on the

screen.

Each press will increase the

lighting time by 4 hours,

the maximum lighting time

is 16 hours. The screen will

display the corresponding

setting time.

When first turned on, the

light mode is in vegetable

mode, the screen will

display a vegetable icon.

Touch the screen again to

change the light mode to

herbs mode, the screen

will display a herb icon.

When touched again, the

light mode will change to

flower and fruit mode, and

the screen will display the

flower and fruit icon.

When the system is turned on,

the water pump icon will always

on.

The water pump will keep running

in a cycle of 30 minutes on and 30

minutes off while the grow light is

on.

Press once to enter standby mode

and the water pump will not run

again for 12 hours. The water

pump icon will begin to flash.

Press again to enter shutdown

mode and the water pump will

not run again. Please note:

turning off the water pump may

cause your plant to die.

When the system is turned

on, the default brightness

of the system is 100%, and

the screen will display 4

sun icons.

Each press will decrease

the brightness by 25% and

1 sun icon will disappear

on the screen. When all the

sun icons disappear, the

grow light will turn off.

GS1 Plus&Max Only：

Press the light mode for 3

seconds to turn on the

automatic watering function

and the automatic watering

icon will display.

Press the light mode for 3

seconds again to turn off the

automatic watering function

and the automatic watering

icon will not display.

GS1 Max Only：

Press the time mode for 3

seconds to turn on the

automatic keep warm function,

and the auto keep warm icon

will display.

Press the time mode for 3

seconds again to turn off the

automatic keep warm function,

and the icon of automatic

keep warm will not be display.

GS1 Plus&Max Only：

Press the brightness mode for

3 seconds to turn on the

automatic fertilization function,

and the automatic fertilization

icon will display.

Press the brightness mode for

3 seconds again to turn off the

automatic fertilization function,

and the automatic fertilization

icon will not be display.

The frequency of the water

pump running can be adjusted

in the setting menu of the app.

With a cycle of 1 hour (if the

time is set for 20min) the water

pump will run for 20min and

turn off for 40min. Then, it will

repeat the cycle.

Display Settings（GS1 Lite & Basic）

Wi-Fi Status

Flash = Pairing

Always on = Connecting

No display = not connected

Except GS1 Lite

Timer

Vegetable Mode

Herbs Mode

Flower and Fruit

Mode

Pump Status

Always on = Running

Flash = Standby

No display = Off

Water Level Status

All functions will be temporarily turned

off when the water level is low.

Running Time

Recount from 00 when 99 is reached Brightness

OFF/25%/50%/75%/100%

Display Settings（GS1 Plus&Max）

Automatic Ventilation

Always on = Running

No display = Off

*GS1 Max only

Automatic Watering

Always on = Running

No display = Off

*Note: Before turning on this funtion,

please connect the water source

first.

Automatic Fertilization

Always on = Running

No display = Off

Can be set in the APP

settings menu:

Intervalo de fertilización

Tasa de fertilización

*Note: Before turning on this

function, please add the

nutrient solution to the

fertilization tank first.

Automatic Keep Warm

Always on = Running

No display = Off

APP settings can be made in

the settings menu:

Min temperature

Max temperature

*GS1 Max only

Wi-Fi Pairing（Except GS1 Lite）

1. Download and open the APP

2. Turn on the mobile phone Wifi, Bluetooth, and Location. (Wifi needs to be connected to 2.4G network)

3. After connecting the power supply, press the Power button to turn on the device.

4. Press the water pump button for 3S to enter the Wifi pairing mode. (The Wifi icon flash)

5. Enter the automatic device search page, search and add devices

Add Device

Search device Fill in Wifi password Connecting Device naming

IOS Android

APP Panel Settings（Except GS1 Lite）

GS1 Basic GS1 Plus GS1 Max

Device Panel Setting Device Panel Setting Device Panel Setting

FAQ

Why do just a few plants grow, and when they do, they wither quickly?

1) It has to do with the seeds you purchased. For best results, please buy seeds from a reliable manufacturer and avoid buying seeds that are not suitable

for hydroponic equipment.

2) Make sure to use the correct ratio of plant nutrient solution to water and check that the lighting is at the correct distance from the plants and the correct

temperature as described in the user guide.

Can the sponge be reused?

The sponge can be reused if you pull out the stem of the plant, however, we do not recommend this as it may have adverse effects.

Can planted plants be transplanted into the garden?

Yes. Remove the plant and the sponge from the planting basket, then transplant them into the garden. Please take care to protect the plant roots.

What light mode should be used to grow plants?

If you want the plant to bloom and bear fruit, you should use the flower and fruit mode. It will result in higher flower and fruit yields.

If you want the plant's leaves and stems to grow, you should use the vegetable mode. It will help the plant produce more quickly.

Which is the proper lighting time for my plant?

For germination and short daylight plants, 4H timed lighting is recommended.

For normal daylight plants, 8H lighting is recommended.

For long daylight plants, 12H/16H lighting is recommended.
