Juzisound Total SOLO Sampler 2 User manual

Page 1 of 8

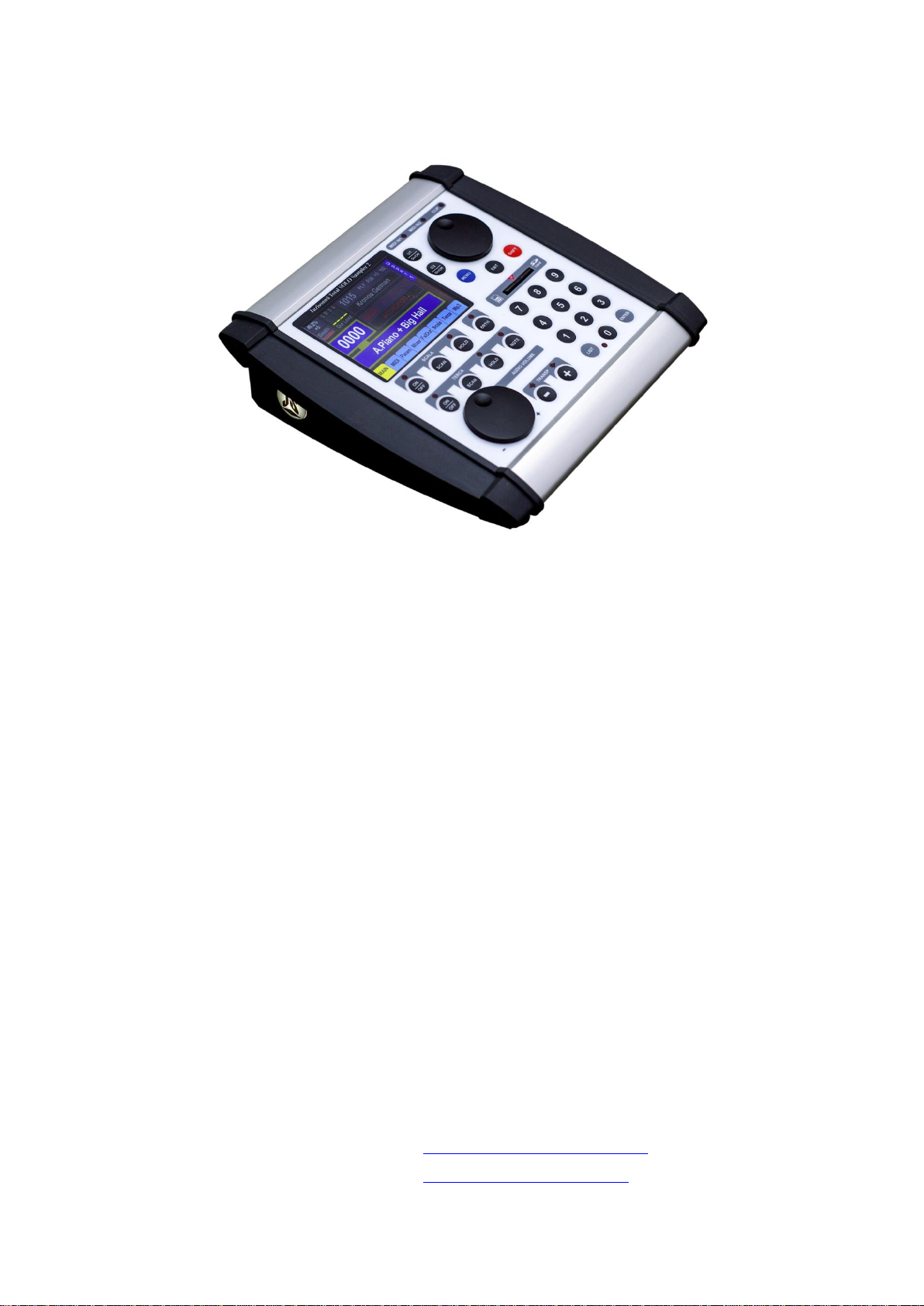

Juzisound
Total SOLO Sampler 2
Quick Start Guide
Version: 1.1
Juzisound Ltd
Address:
76 Bozhin Chulev str., 5897 Zgalevo, BULGARIA
Phone:
+359 887/69-47-09
Phone:
+359 887/69-47-10
E-mail:
juzisound[email protected]
Internet site:
www.juzisound.com

Page 2 of 8
Important Safety Instructions
WARNING
The lightning flash with arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of sufficient magnitude to consti-
tute a risk of electric shock to people.
CAUTION
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing) in-
structions in the literature accompanying the product.
WARNING
When using electric products, basic safety precautions should always be taken, including the
following:
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with a dry cloth.
Install in accordance with the manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
Only use attachments/accessories specified by the manufacturer.
Unplug this apparatus during lightning storms or when unused for long periods of time.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen over the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
Always ensure adequate space for ventilation around the device.
Do not cover the apparatus with newspapers, tablecloths, curtains, etc., as these will impair
ventilation and cause overheating.
Do not keep near the device open flame sources such as candles.
This unit contains a battery which should not be exposed to excessive heat sources such as
sunlight, fire, etc.
INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS. SAVE THESE INSTRUCTIONS

Page 3 of 8
Power Supply
Do not connect this unit to the same electrical outlet that is being used by an electrical appli-
ance that is controlled by an inverter or a motor (such as a refrigerator, washing machine, mi-
crowave oven, or air conditioner). Depending on the way the electrical appliance is being
used, power supply noise may cause this unit to malfunction or may produce audible noise. If
it is not practical to use a separate electrical outlet, connect a power supply noise filter be-
tween this unit and the electrical outlet.
To prevent malfunction and equipment failure, always make sure to turn off the power on all
your equipment before you make any connections.
Although the LCD and LEDs are switched off when the unit is turned off, this does not mean
that the unit has been completely disconnected from the source of power. If you need to turn
off the power completely, first turn off the unit’s switch, then unplug the power cord from the
power outlet. For this reason, the outlet you choose to connect the power cord’s plug to
should be one that is within easy reach and easily accessible.
Power Switch is only for functional switching of the device. It does not disconnect the device
from the mains.
Due to risk of electric shock, replacement of fuse and battery are performed only from an au-
thorized dealer of the manufacturer or a person with similar qualifications.
Placement
Using the unit near power amplifiers (or other equipment containing large power transform-
ers) may induce hum. To alleviate the problem, change the orientation of this unit; or move it
further away from the source of interference.
This device may interfere with radio and television reception. Do not use this device in the vi-
cinity of such receivers.
Noise may be produced if wireless communication devices, such as cell phones, are operated
in the vicinity of this unit. Such noise could occur when receiving or initiating a call, or while
conversing. Should you experience such problems, you should relocate such wireless devices
so they are at a greater distance from this unit, or switch them off.
When moved from one location to another where the temperature and/or humidity is very dif-
ferent, water droplets (condensation) may form inside the unit. Damage or malfunction may
result if you attempt to use the unit in this condition. Therefore, before using the unit, you
must allow it to stand for several hours, until the condensation has completely evaporated.
Do not put anything that contains water over this unit.
Also, avoid the use of insecticides, perfumes, alcohol, nail polish, spray cans, etc., near the
unit. Swiftly wipe down any liquid that spills on the unit using a dry, soft cloth.
CAUTION
Risk of electric shock. DO NOT OPEN!
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.

Page 4 of 8
Additional Precautions
Please beware that the content of SD card can be irretrievably lost as a result of a malfunction,
or the improper operation of the unit. To protect yourself against the risk of losing important
data, we recommend that you periodically save a backup copy of SD card.
Use a reasonable amount of care when using the unit’s buttons, sliders, or other controls; and
when using its jacks and connectors. Rough handling can lead to malfunctions.
Never strike or apply strong pressure to the display.
When disconnecting all cables, grasp the connector itself—never pull on the cable. This way
you will avoid causing shorts, or damage to the cable’s internal elements.
A small amount of heat will radiate from the unit during normal operation.
To avoid disturbing others nearby, try to keep the unit’s volume at reasonable levels. You
may prefer to use headphones, so you do not have to be concerned about those around you.
When you need to transport the unit, pack it in the box (including padding) that it came in, if
possible. Otherwise, you will need to use equivalent packaging materials.
Maintenance
For everyday cleaning wipe the unit with a soft, dry cloth or one that has been slightly damp-
ened with water. To remove stubborn dirt, use a cloth impregnated with a mild, nonabrasive
detergent. Afterwards, be sure to wipe the unit thoroughly with a soft, dry cloth.
Never use benzine, thinners, alcohol or solvents of any kind, to avoid the possibility of dis-
coloration and/or deformation.

Information for Users on Collection and Disposal of Old
Equipment
This symbol on the products, packaging, and/or accompanying documents means
that used electrical and electronic products should not be mixed with general
household waste.
For proper treatment, recovery and recycling of old products, please take them to
applicable collection points, in accordance with your national legislation and the
Directives 2002/96/EC.
By disposing of these products correctly, you will help to save valuable resources
and prevent any potential negative effects on human health and the environment
which could otherwise arise from inappropriate waste handling.
For more information about collection and recycling of old products, please contact your local mu-
nicipality, your waste disposal service or the point of sale where you purchased the items.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for
further information.
Information on Disposal in other Countries outside the European Union
This symbol is only valid in the European Union. If you wish to discard these items, please contact
your local authorities or dealer and ask for the correct method of disposal.

Page 5 of 8

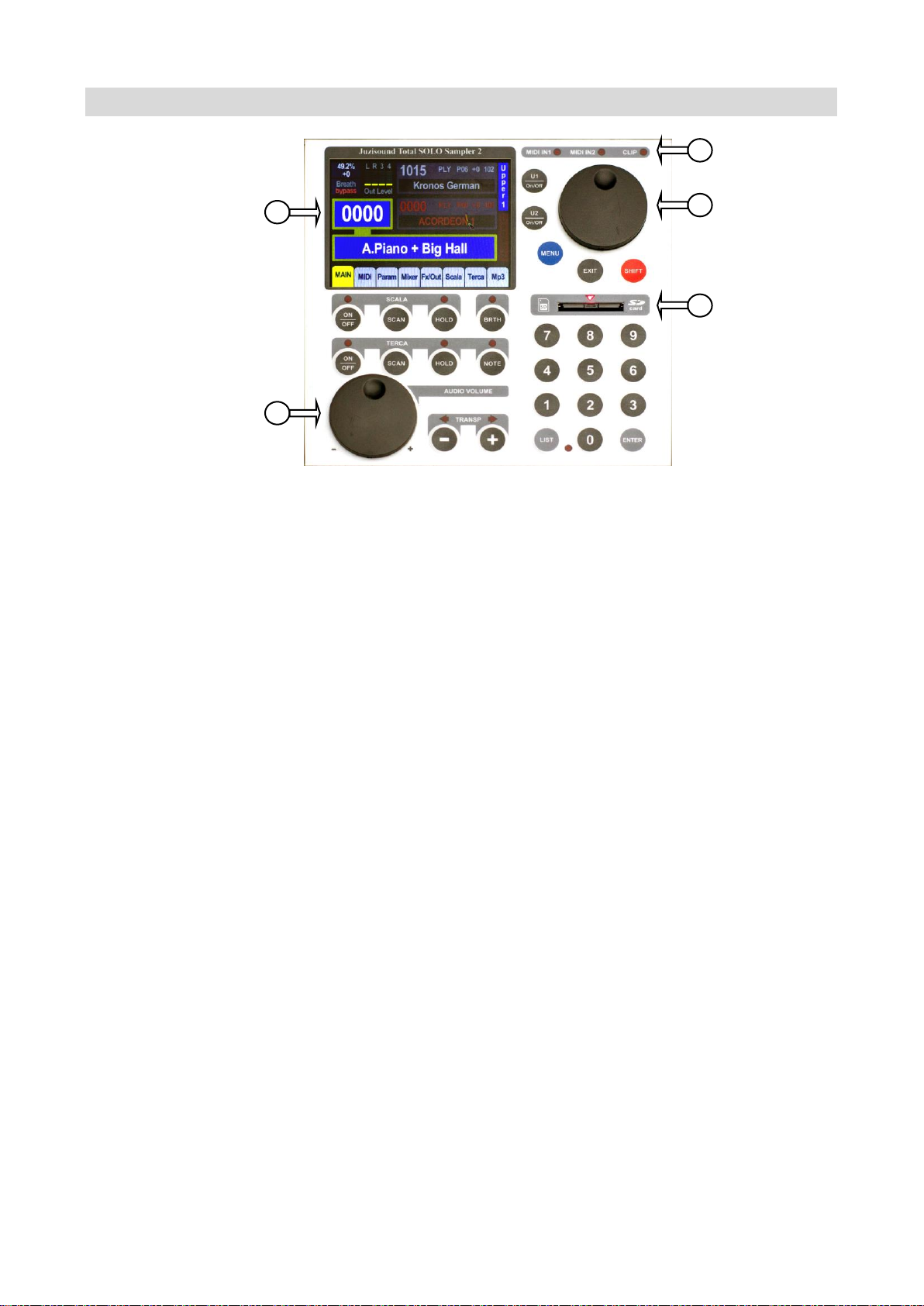

Basic controls and indicators of the sampler
Front panel
1. TFT display with touch screen.
2. Potentiometer for adjusting the volume of the headphones and the main outputs.
3. MIDI IN and AUDIO CLIP indicators.
4. Rotary encoder for adjusting parameters.
5. SD card slot.
BUTTONS
SCALA
ON/OFF –Switch scala ON or OFF
SCAN –Press and hold for scala scanning
HOLD –If ON changing the PRESET do not change the scala
BRTH –Breath controller ON or OFF
TERCA
ON/OFF –Switch terca ON or OFF
SCAN –Press and release for terca scanning
HOLD –If ON changing the PRESET do not change the terca
NOTE –Turn terca’s special note ON or OFF
TRANSP –When PRESET is selected acts as master transpose. When UPPER is select-
ed transposes current UPPER octave UP/DOWN
U1/On Off –Turn UPPER1 ON or OFF
U2/On Off –Turn UPPER2 ON or OFF
MENU –Entering MENU
EXIT –exit from menu
SHIFT –Additional functions for other buttons (for details please check Juzisound web
site)
Numeric buttons 0-9 –For entering PRESET number
LIST –Show and Hide PRESET listing
2
1
5
4
3

Page 6 of 8
Rear panel
1. Power switch.
2. Power IN (Use only 24v/DC adaptor provided by Juzisound)
3. MIDI connectors (IN2/OUT can be MIDI Input 2 or MIDI Out for Breath controller).
4. USB Host connector, for connecting USB MIDI keyboard or USB Mass Storage.
5. AUDIO OUTS –6.3mm mono audio jack. (L/R Phones is STEREO)
6. Breath controller IN.
Using a SD card
Carefully insert the SD card all the way in—until it is firmly in place.
Never touch the terminals of the USB flash drives. Also, avoid getting the terminals dirty.
SD cards are constructed using precision components; handle the SD cards carefully, paying
particular note to the following.
To prevent damage to the cards from static electricity, be sure to discharge any static elec-
tricity from your own body before handling the SD cards.
Do not touch or allow metal to come into contact with the contact portion of the SD cards.
Do not bend, drop, or subject SD cards to strong shock or vibration.
Do not keep SD cards in direct sunlight, in closed vehicles, or other such locations.
Do not allow SD cards to become wet.
1
2
3
4
5
6

Page 7 of 8
MIDI and AUDIO connections
MIDI connections
Connect MIDI IN of the sampler to MIDI OUT of the synthesizer or MIDI keyboard, which is
master to the sampler. You can do this connection by MIDI cable (included).
The MIDI OUT of the sampler can be configured from MENU.
AUDIO connections
Always connect the audio output of the sampler DIRECTLY to a mixing console, not through the
audio input of the synthesizer.

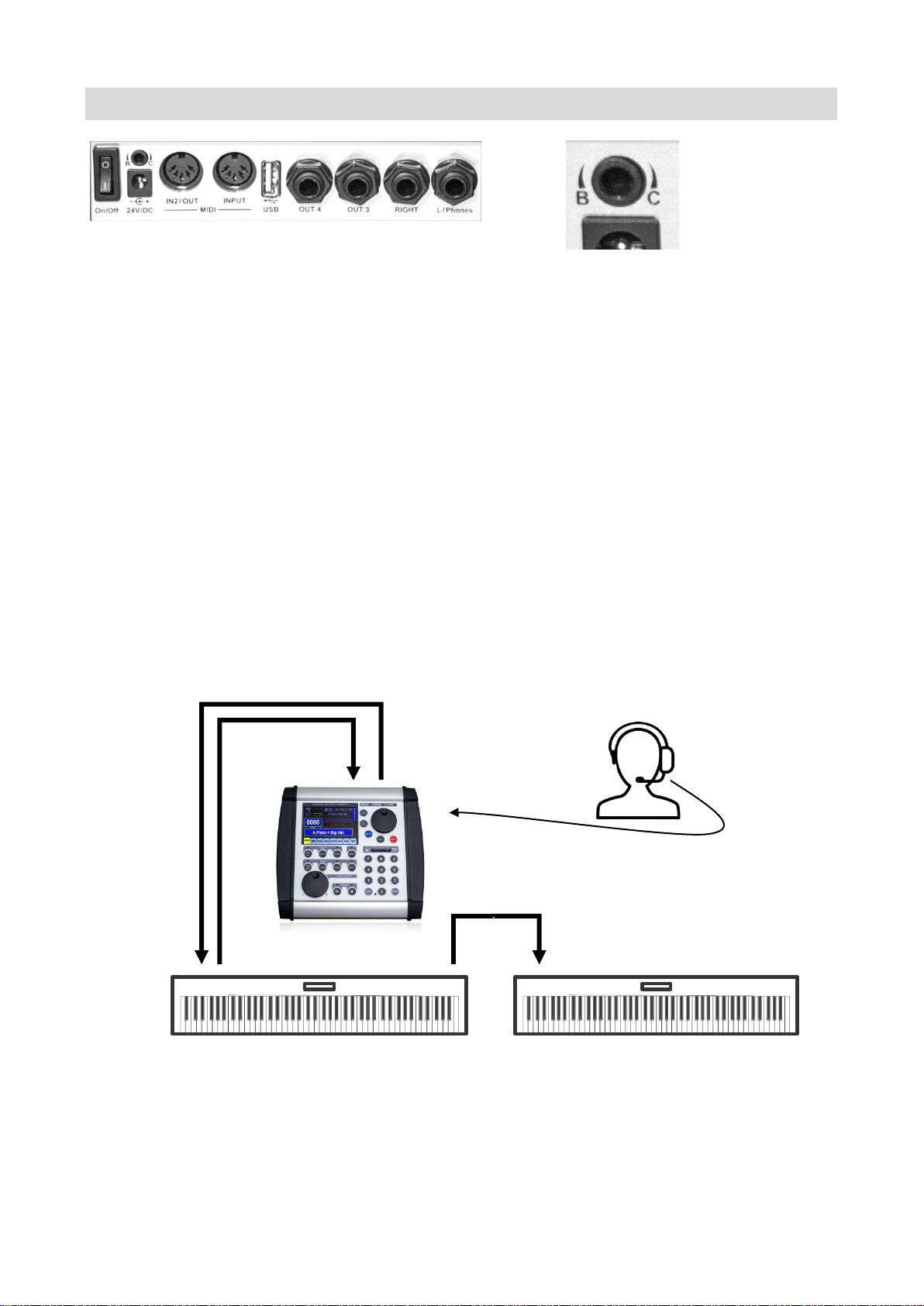

Shown in Picture 2 audio connections are INCORRECT and leads to a DRASTIC reduction in
sound quality. The correct way is shown in picture 1.
Audio Output Settings
Volume potentiometer is located on the front panel and controls the level of both the headphones
and the main audio outputs located on the rear panel. Headphone is designed to work with low-
impedance headphones.
CAUTION!
Excessive sound pressure from earphones and headphones can cause hearing
loss.
MIDI OUT
Audio OUT
MIDI IN
Audio OUT
Picture 1
MIDI OUT
Audio OUT
MIDI IN
Audio OUT
Audio IN
Picture 2

Page 8 of 8
Breath controller
[Breath IN] connector on the rear panel of the sampler is used to connect an analog control-
ler. Analog controller means the following: controller, pedal, potentiometer or any other type of
device that produces an analog signal. This connector provides +5 volts direct current (DC) and the
input signal must also be in a range from 0 to +5 volts. In this input most often are plugged breath
controllers from Juzisound or Yamaha model BC-3.
As a result of the input analog value, the sampler can generate simultaneously up to 4 differ-
ent types of MIDI messages. They can be targeted both internally (to the engine of the sampler) and
externally (via MIDI output of the sampler). When messages are sent out, they can be simultaneous-
ly sent in 3 different MIDI channels to be used to control other external MIDI device. An example
for this is a breath controller, which controls simultaneously the sampler and the keyboard that con-
trols the sampler. MIDI output of the sampler along with the analog input can be considered as sep-
arate and independent from the sampler devices for converting analog to MIDI signal. To use the
built-in analog converter to drive an external device, you should use another MIDI cable that is
connected from MIDI OUT of the sampler to MIDI IN of the synthesizer you want to control. If
you want to control more than one external MIDI synthesizer, then you need to connect MIDI
THRU of the first controlled MIDI synthesizer with MIDI IN on the second. If the external synthe-
sizers are more than two, then you need to connect MIDI OUT of the second to MIDI IN of the
third and so to the end of the chain.
MIDI OUT
MIDI OUT
MIDI IN
Breath IN
MIDI THRU
MIDI IN
MIDI IN
