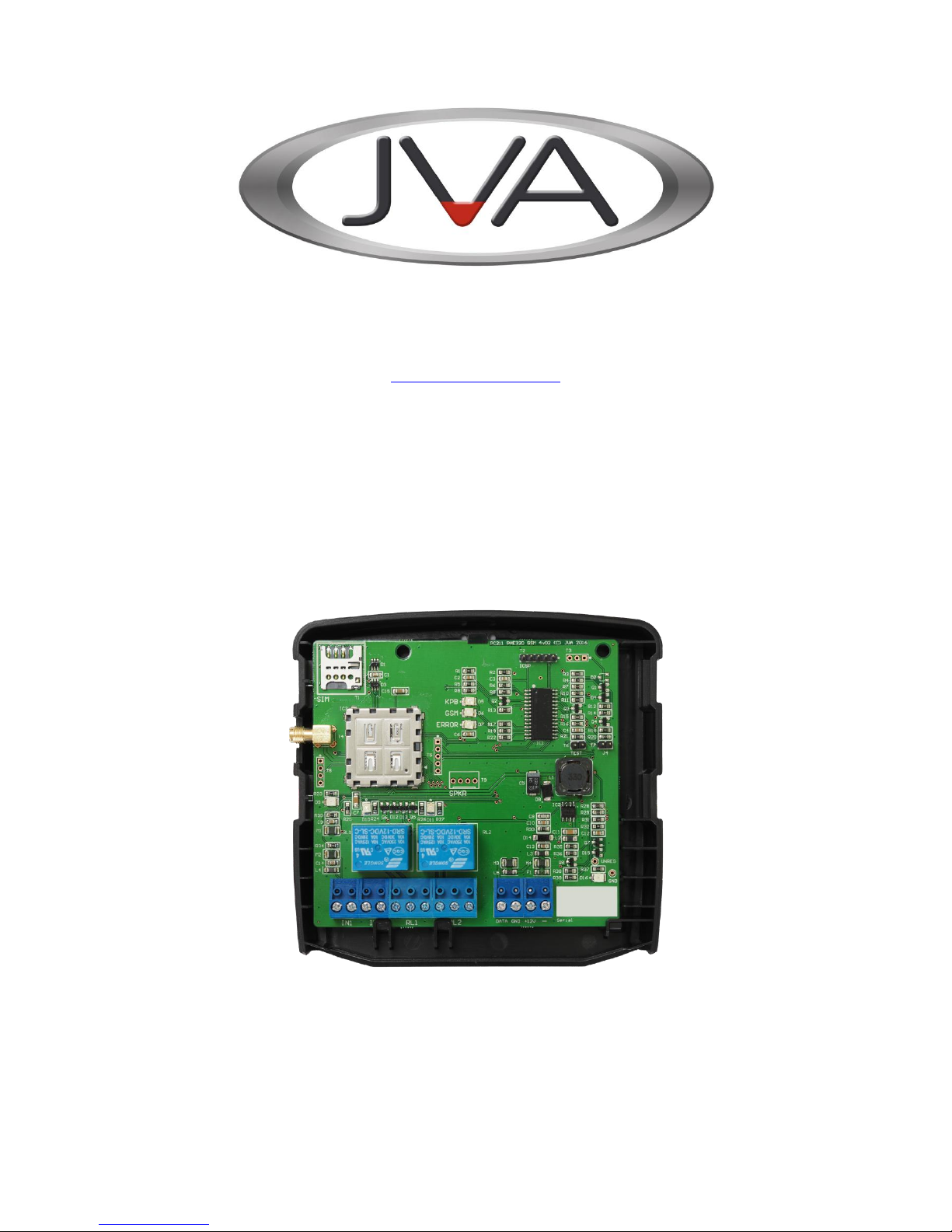

JVA PTE0319 User manual

www.jva-fence.com.au
JVA SMS Gateway
User Manual
PTE0319

JVA SMS Gateway User Manual
1
Introduction
The PTE0319 JVA SMS Gateway enables a group of JVA Z Series energisers to be controlled and
monitored by SMS from anywhere in the world.
With a short SMS, users can obtain an up-to-date status report of all their energisers, turn on (arm) or
off (disarm) all the energisers at once, as well as switch convenient output relays for custom
applications.
If an energiser goes into alarm, or one of two inputs are triggered, an SMS will be automatically
generated and sent to up to 10 stored numbers.
Designed with ease of use in mind, all configuration is via SMS to the unit. Commands are secured
with a user definable PIN.
The JVA SMS Gateway communicates on the widely supported and robust GSM or 3G mobile phone
networks, and will work in any country. Simply insert a valid topped-up SIM card from your preferred
carrier and you are ready to remotely control and monitor your energisers from anywhere in the
world.
Features
Works with entire JVA Z range of energisers and monitors, including the ZM1, ZM20, ZM50 and
ZLM4
Can monitor and control up to 15 devices (linked via Keypad bus) , as well as two dry contact
inputs and two 30Vdc 8A relays
Produces an up-to-date status report including arm state, alarms and primary voltages of each
device, and input and output states
Responds to status request by SMS
Can store up to 10 phone numbers to be notified if a device goes into alarm, or one of two
inputs are triggered
All commands secured by user configurable PIN
Easily configurable by SMS
Compatible with the all types of JVA Keypad
Works in conjunction with Perimeter Patrol
Specifications
Power supply
12 V DC 1A
Inputs
Dry contact or active pull-down
Outputs
30Vdc 8A SPDT
SIM
Micro
Antenna connector
Female SMA

JVA SMS Gateway User Manual
2
Contents
Introduction............................................................................................................................................................ 1
Features................................................................................................................................................................... 1
Specifications.......................................................................................................................................................... 1
Contents.................................................................................................................................................................. 2
Overview ................................................................................................................................................................. 3
LED Indicators..................................................................................................................................................... 3
Inputs................................................................................................................................................................... 3
Outputs................................................................................................................................................................ 3
Antenna ............................................................................................................................................................... 4
Power and Keypad Bus ..................................................................................................................................... 4
SIM card............................................................................................................................................................... 4
Installation .............................................................................................................................................................. 5
Energiser Configuration .................................................................................................................................... 5
Operation................................................................................................................................................................ 6
SMS Commands ................................................................................................................................................. 6
PIN........................................................................................................................................................................ 6
Querying the Status........................................................................................................................................... 6
Querying the GSM signal .................................................................................................................................. 7
Report List........................................................................................................................................................... 7
Controlling Energisers and Outputs................................................................................................................ 7
Alerting users...................................................................................................................................................... 7
Basic Commands ................................................................................................................................................... 8
Command Summary ............................................................................................................................................. 9
Troubleshooting................................................................................................................................................... 10
Support.................................................................................................................................................................. 11
Factory Reset .................................................................................................................................................... 11
JVA Distributors ................................................................................................................................................ 11

JVA SMS Gateway User Manual
3
Overview
LED Indicators
KPB
Blink when the unit is communicating with Z series devices
GSM
Blinks when the processor is communicating with the GSM module
ERROR
Flashes when there is a problem with the SIM (faulty or PIN locked)
Inputs
Two dry contact inputs are provided. If the unit sees a short circuit between the input terminals it will
register the input as being ‘On’.
Just like the inputs on all JVA Z series devices, the input can also be triggered by PLC or alarm panels
by connecting the right-hand terminal to 0V.
Outputs
Two SPDT relays are available as general purpose outputs. These relays can switch DC voltage up to
30V and 8A. The outputs can be switched on or off by SMS, and are ideal for connection to external
lights, pumps, electric motors, gate openers, or interfacing to an existing alarm or control system.

JVA SMS Gateway User Manual
4
Antenna
A GSM antenna is supplied and must be connected to the unit for it to communicate on the mobile
network. If mobile reception in the area is particularly weak, the antenna can be substituted for a
more powerful one provided it has a compatible SMA connector.
Ensure the antenna is mounted away from any high voltage cables or AC power cables which could
cause interference. If the unit is mounted inside a metal enclosure, the antenna should be mounted
externally and the cable entry hole be sealed against water ingress.
Power and Keypad Bus
The keypad bus enables digital communication between the SMS Gateway and connected devices.
Connect the DATA and GND terminals to the respective terminals of all connected devices.
The SMS Gateway requires 12V dc to operate. This power may be supplied from the keypad bus of a
connected energiser, or for best results a separate 12V 1A power supply may be used. Do not
connect the unit to a separate power supply and keypad bus +12V of an energiser at the same time.
The SMS Gateway operates as a keypad with keypad ID 6. Keypad ID 3 is reserved. If other keypads
or keypad devices are to be used with the group, they should be set to a keypad ID other than 3 or 6.
SIM card
The unit does not use data or voice calls, only SMS. A suitable pre-paid or post-paid plan should be
chosen that offers cheap or unlimited SMS messages for sites requiring frequent status updates, or
long credit expiry time for sites requiring infrequent updates.

JVA SMS Gateway User Manual
5
Installation
Detach the front of the case by gently lifting the side clips. Unclip the top of the circuit board to
remove from the case back. Mount the case back using suitable screws. Be sure the screw head will
not contact the PCB when it is re-installed. The unit must be mounted indoors or in a suitable
enclosure to protect it from moisture. It is NOT water proof and damage due to moisture is not
covered by the warranty.
The SMS Gateway requires a micro SIM card. Activate it according to the
instructions, either via the internet or by phone, and make sure it has credit
available. The SIM card should first be tested in a phone to ensure it can
send and receive text messages.
Insert the SIM card into the unit, contact side down with the notched corner
to the lower right. Clip the circuit board into the case back.
Connect the antenna. Mount the antenna away from high voltage and mains power cables, vertically
if possible. If the unit is housed in a metal enclosure, the antenna should be mounted outside the
enclosure and the enclosure earthed.
Connect 12V plus and minus to an external power supply. Connect Data and Ground wires from the
unit to a JVA energiser. Power on the unit first, then the energiser(s).
Confirm the KPB and GSM lights are flashing, and ERROR light is not flashing. Clip the case front back
on. Your JVA SMS Gateway is ready to use.
Energiser Configuration
If the SMS Gateway is being used with a stand-alone energiser, the energiser may need to be
reconfigured to operate correctly. If the energiser has firmware earlier than 8v20, it must be
programmed to ID 1. This will require the use of a keypad. Refer to the energiser manual for more
information.

JVA SMS Gateway User Manual
6
Operation
SMS Commands
The unit is controlled and configured by SMS. All commands are of the format
PIN command parameter
with spaces separating each part. The commands and parameters are not case sensitive. Many
commands may be replaced with only their first letter.
A help message can be requested by issuing the help command. The unit will reply with a
summarised list of available commands.
PIN
All commands are prefixed by a PIN number, to secure the unit against unauthorised changes. The
PIN must be between 4 and 12 digits long. The default PIN is 1234.The PIN can be changed by
issuing a changepin command, with the new PIN as the parameter. If successful the unit will reply
and inform everyone on the report list of the new PIN.
If you forget the PIN, a factory reset must be performed. See the section ‘Factory Reset’ for more
information.
Querying the Status
The SMS Gateway can be queried to return the status of the inputs, outputs and all Z series devices
connected to it via the Keypad Bus by issuing a status command. The response will take the following
format:
Model(ID) <On (V1, V2, …) or Off> <Alarms>
Model(ID) <On (V1, V2, …) or Off> <Alarms>
…
In1 <on|off> In2 <on|off> Out1 <on|off> Out2 <on|off>
Model
Energiser model eg Z14, ZM20
ID
Keypad bus device ID (1-15)
V1, V2, …
Primary voltages, usually feed and return, in
kV, V or A. Device dependent.
ZM1: Feed, Return, Ground, Current
ZM20: Feed, Ground, Current 1, Current 2
ZLM4: Zone Voltages 1-4
Z1x: Return, Feed
Z2x: Return 1, Return 2
Alarms
CommsFail OR
FenceAlarm1 FenceAlarm2 AcFail LowBatt
BadBatt Tamper Fault GateAlarm OR
No Alarms

JVA SMS Gateway User Manual
7
Querying the GSM signal
The GSM status of the unit can be requested by issuing a gsm command. The unit will reply with
signal strength from 1 to 30, and the firmware version.
Report List
The unit can store up to 10 phone numbers which it will SMS if a device goes into alarm or an input
changes. This list is configured and maintained using the add and remove commands. You can
retrieve the current list of numbers using the numbers command.
Issuing an add command with no further parameters will add the sending number to the report list.
Issuing an add command, followed by a valid number, will add the supplied number to the report list.
Numbers can be in either the national format, eg 0412 345 6789, or international dialling format, eg
[phone]. International format is recommended, as this reduces the chance of adding
duplicate numbers to the list. If this were to happen, that number would receive two messages each
time an SMS is broadcast. After successfully adding a number the unit will reply with a confirmation
message.
Numbers can be removed by issuing the remove command. If no parameter is supplied, the sending
number is removed. If the parameter is supplied it can be either the number you wish to remove, or
the position of the number in the report list. If entering a number, it must be in the same format as it
is stored in the list. After successfully removing a number the unit will issue a confirmation message.
Controlling Energisers and Outputs
The unit can turn all energisers on (arm) or off (disarm) by issuing the on or off commands. When
arming, the unit will arm in high power only, and arm both channels of any dual channel energisers.
When the unit has confirmed the new arm state it will reply to the sender with a confirmation
message, or a message indicating it was unable to control all devices (in the case of a device being
offline).
The unit has two relays than can be turned on or off. Issue an output1 or output2 command with
the parameter on or off. Note there is no space between “output” and the number “1” or “2”. The
unit will reply with a confirmation message.
Alerting users
The unit monitors the connected energisers and will send a SMS to everyone on the report list if the
following things occur:
A fence alarm occurs, usually due to a short on the fence
An energiser stops communicating
An input changes
If multiple energisers report changes at the same time, the unit will send one SMS for each change.

JVA SMS Gateway User Manual
8
Basic Commands
The following is the minimum commands you will need to know to get your JVA SMS Gateway working.
It assumes the PIN is still set to the default of 1234.
When you have installed and powered on your unit for the first time, the connected energiser(s) are
powered on, and the GSM light is flashing once every 2 seconds, issue a status command
1234 s
The unit will reply with a summary of all connected energisers.
Next, add your number to the report list. Send
1234 a
The unit will reply with “<your number> has been added to the report list”
Now try arming you energiser(s) by sending
1234 on
You should see the energiser(s) arm, and receive an sms saying “Energiser(s) are on”. Now disarm the
energiser(s) by sending
1234 off
You will see the energiser(s) disarm and receive another confirmation message. For a complete list of
commands, refer to the section “Command Summary”.

JVA SMS Gateway User Manual
9
Command Summary
The table below summarises all available SMS commands. The default PIN is used in examples but
you should replace this with your own PIN if it has been changed.
Command
Description
Example
Response
changepin <PIN>
or c <PIN>
Changes the PIN
1234 changepin 4321
PIN is now 4321
4321 c 1234
PIN is now 1234
1234 c 123
Invalid PIN
add
or a
or add <number>
or a <number>
Adds your number, or
the specified number,
to the report list
1234 a
[phone] has been
added to the report list
1234 a [phone]
1234 a 555JVAROCKS
Invalid phone number
numbers
or n
Requests the report list
1234 numbers
1234 n
1.+61412345678
remove
or remove <index>
or r <index>
or remove <number>
or r <number>
Removes your number,
the number at the
given index, or the
specified number from
the report list
1234 r
1234 remove 1
1234 r [phone]
[phone] has been
removed from the report
list
1234 r 2
1234 remove 041 234
5678
Number not found in
report list
gsm
or g
Requests GSM status
1234 gsm
Signal: 25 Fw: 2v00
status
or s
or ?
Requests
energiser/monitor
primary voltages, arm
and alarm state, and
unit input and output
state
1234 status
1234 s
1234 ?
Z14(1) On (6.8kV, 6.4kV)
No alarms
ZM20(2) Off LowBatt
In1 Off In2 Off Out1 On
Out2 Off
help
or h
Requests a command
summary
1234 help
1234 h
1234
This table, summarised
on
or arm
Arms all devices
1234 on
Energiser(s) are on
off
or disarm
Disarms all devices
1234 off
Energiser(s) are off
output1 <on|off>
or out1 <on|off>
or 1 <on|off>
or aux <on|off>
output2<on|off>
or out2 <on|off>
or 2 <on|off>
or gate <on|off>
Controls relay 1 or 2
1234 output1 on
Output 1 is now on
1234 1 off
Output 1 is now off
1234 out2 on
Output 2 is now on
1234 gate off
Output 2 is now off

JVA SMS Gateway User Manual
10
Troubleshooting
The JVA SMS Gateway is designed to work straight out of the box with little set up or configuration.
The only crucial step is to ensure the unit has good mobile reception and an activated SIM card with
credit. Refer to the troubleshooting table below for more information.
Fault
Likely Cause
Remedy
No lights are on
Power is not connected
Power wires are reversed
Check power connections
Check voltage at power
connections with a multimeter
KPB light not flashing
Keypad bus is not
connected
Check the keypad bus DATA and
GND connections
Error light flashing
SIM card not inserted, not
activated, or PIN locked
Confirm SIM is activated by
inserting into a mobile phone and
sending and receiving texts
Unit does not respond to
SMS
Poor signal strength
Check antenna connection
Move antenna mounting place
Unit responds to SMS
commands but does not
reply
Insufficient or expired
credit
Check the SIM card has credit
available
Unit does not control
energisers
Another keypad or keypad
device is connected with
keypad ID 6
Disconnect the other keypad, or
change its ID to something other
than 3 or 6
Master energiser did not
see device at start-up
Reset the master energiser
Energiser malfunction
Confirm a JVA keypad can control
the energiser using the same
connections
Group configured
incorrectly
If there is more than one
energiser, ensure one is
configured as master (device ID 1)
and the others have unique device
IDs of 2 or more
If the unit is still not working correctly, contact your nearest JVA distributor for technical support.

JVA SMS Gateway User Manual
11
Support
Factory Reset
If the PIN has been changed from its default setting and has been forgotten, the unit will need to be
factory reset. A factory reset will also clear the memory of seen devices, necessary if devices have
been added or removed.
To reset, remove power from the unit. Remove J4. Apply power to the unit, wait 5 seconds, then re-
apply J4. This will reset the PIN to default, clear the report list, and clear the memory of seen devices.
JVA Distributors
If you have any questions or need further assistance, please email us at
[email protected]om.au
or call
Region
Number
Australia
07 3103 0582
South Africa
0861 782 349
World Wide
[phone]
For more information on our complete range of electric fencing products please see the JVA website
www.jva-fence.com.au
© JVA 2016. Manufactured for JVA by Pakton Technologies
The JVA logo is a trademark of JVA Technologies Pty Ltd
ST087 1v04
