SERVICE MANUAL
COPYRIGHT © 2003 VICTOR COMPANY OF JAPAN, LTD. No.86732
2003/04
DIGITAL VIDEO CAMERA
86732200304 GR-D60EK,GR-D60EX,GR-D60EY
SPECIFICATION
Camcorder
General
Digital Video Camera
Digital Still Camera Function
Connectors
AC Adapter
Regarding service information other than these sections, refer to the service manual No. 86733 (GR-D70EX).
A

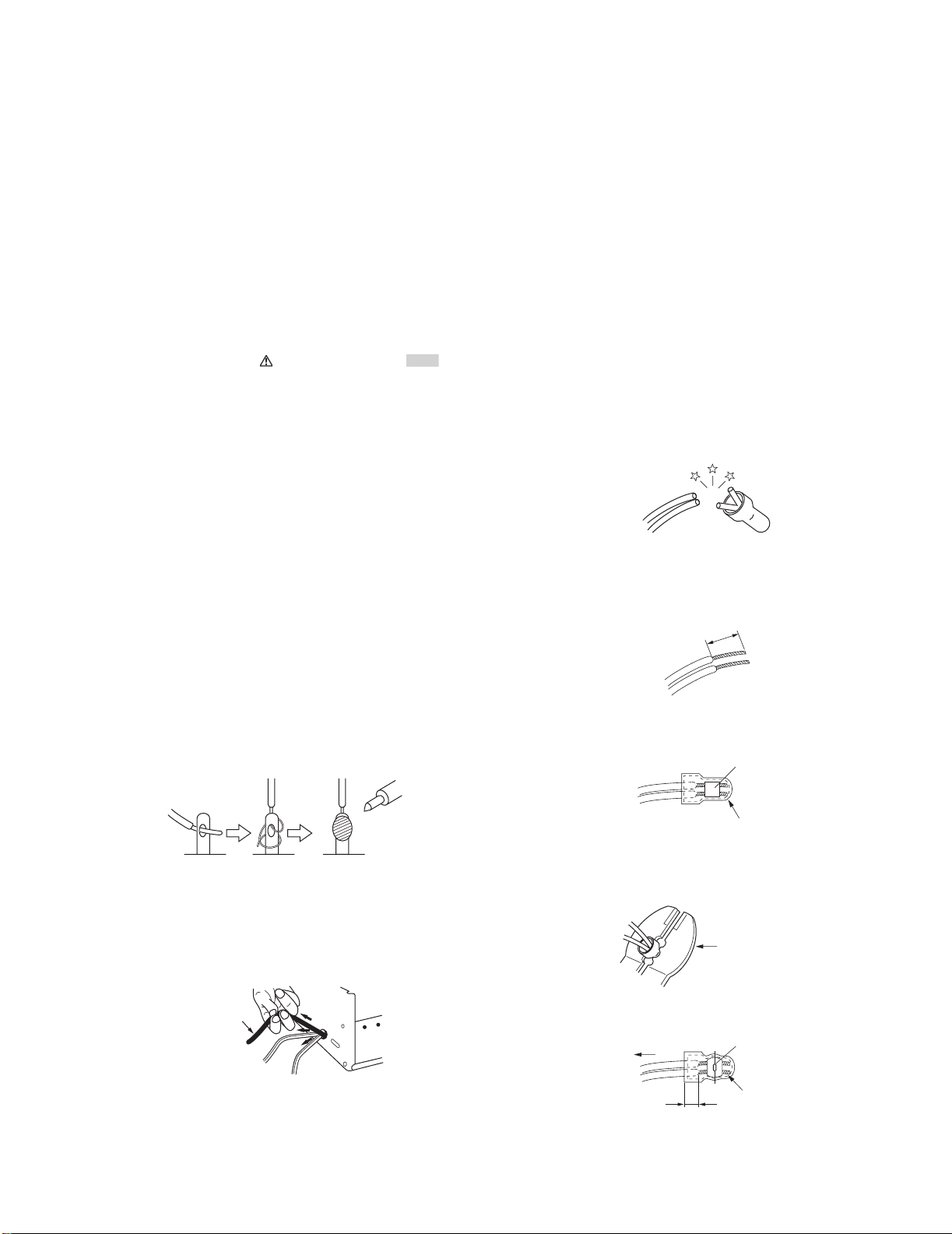

lso, be sure to note important safety precautions provided in the service manual.
For disassembling and assembling of MECHANISM ASSEMBLY, refer to the SERVICE MANUAL No.86700 (MECHANISM ASSEMBLY).
PAL
Power supply : DC 11.0 V (Using AC Adapter)
DC 7.2 V (Using battery pack)
Power consumption
LCD monitor off,
viewfinder on : Approx. 3.4 W
LCD monitor on,
viewfinder off : Approx. 4.7 W
Dimensions
(W x H x D) : 69 mm x 94 mm x 143 mm
(with the LCD monitor closed and the viewfinder pushed
back in)
Weight : Approx. 525 g
Operating temperature : 0°C to 40°C
Operating humidity : 35% to 80%
Storage temperature : -20°C to 50°C
Pickup : 1/6" CCD
Lens : F 1.6, f = 2.7 mm to 43.2 mm, 16:1 power zoom lens
Filter diameter : Ø37 mm
LCD monitor : 2.5" diagonally measured, LCD panel/TFT active
matrix system
Viewfinder : Electronic viewfinder with 0.24" black/white LCD
Speaker : Monaural
Format : DV format (SD mode)
Signal format : PAL standard
Recording/Playback format : Video: Digital component recording
: Audio: PCM digital recording,
32 kHz 4-channel (12-bit),
48 kHz 2-channel (16-bit)
Cassette : Mini DV cassette
Tape speed : SP : 18.8 mm/s
LP : 12.5 mm/s
Maximum recording time : SP : 80 min.
(using 80 min. cassette) LP : 120 min.
Storage media : SD Memory Card/MultiMediaCard
Compression system : JPEG (compatible)
File size : 2 modes (1024 x 768 pixels, 640 x 480 pixels)
Picture quality : 2 modes (FINE/STANDARD)
Approximate number of
storable images : pg. 18.
S-Video
Output : Y : 1 V (p-p), 75 Ω, analogue
C : 0.29 V (p-p), 75 Ω, analogue
Input* : Y : 0.8 V (p-p) -1.2 V (p-p), 75 Ω, analogue
C : 0.2 V (p-p) -0.4 V (p-p), 75 Ω, analogue
AV
Video output : 1 V (p-p), 75 Ω, analogue
Video input* : 0.8 V (p-p) -1.2 V (p-p), 75 Ω, analogue
Audio output : 300 mV (rms), 1 kΩ, analogue, stereo
Audio input* : 300 mV (rms), 50 kΩ, analogue, stereo
DV
Output : 4-pin, IEEE 1394 compliant
Input : 4-pin, IEEE 1394 compliant
USB* :5-pin
EDIT : Ø3.5 mm, 2-pole
* GR-D70 only
Power requirement : AC 110 V to 240 V ~, 50 Hz/60 Hz
Output : DC 11 V , 1 A
Specifications shown are for SP mode unless otherwise indicated. E & O.E. Design and specifications subject
to change without notice.
GR-D60EK,GR-D60EX,GR-D60EY M3D126

1-2 (No.86732)
DIFFERENCE LIST
DIFFERENT TABLE OF FEATURE
The following table indicate main different points between models GR-D70EX, GR-D60EK, GR-D60EX and GR-D60EY.
DIFFERENT TABLE OF PARTS LIST
The following table indicate different parts number between models GR-D70EX, GR-D60EK, GR-D60EX and GR-D60EY.
PACKING AND ACCESSORY ASSEMBLY <M1>
FINAL ASSEMBLY <M2>
MAIN BOARD ASSEMBLY <01>
Note:
Mark ←is same as left.
Mark --- is not used.
ITEM GR-D70EX GR-D60EK GR-D60EX GR-D60EY
DV TERMINAL IN/OUT OUT ONLY ←←
ANALOG INPUT YES NO ←←
POWER CORD CEE TYPE BS TYPE CEE TYPE ←
REF
NO. ITEM GR-D70EX GR-D60EK GR-D60EX GR-D60EY
2 CUSHION LY33065-001C LY33065-001B ←LY33065-001C
4 POLY BAG QPA02003506 YQM30061-3 QPA02003506 ←
5 INST BOOK(ENGLISH) --- LYT1145-001A --- ---
5 INST BOOK(GERMAN) LYT1145-002A --- LYT1145-002A ←
5 INST BOOK(FRENCH) LYT1145-003A --- LYT1145-003A ---
5 INST BOOK(DUTCH) LYT1145-004A --- LYT1145-004A ---
5 INST BOOK(SPANISH) LYT1145-005A --- LYT1145-005A ---
5 INST BOOK(ITALIAN) LYT1145-006A --- LYT1145-006A ---
5 INST BOOK(DANISH) --- --- --- LYT1145-007A
5 INST BOOK(FINNISH) --- --- --- LYT1145-008A
5 INST BOOK(SWEDISH) --- --- --- LYT1145-009A
5 INST BOOK(NORWEGIAN) --- --- --- LYT1145-010A
6 INST BOOK(SOFT.ENGLISH) --- LYT1085-001A --- ---
6 INST BOOK(SOFT.GERMAN) LYT1085-002A --- LYT1085-002A ←
6 INST BOOK(SOFT.FRENCH) LYT1085-003A --- LYT1085-003A ---
6 INST BOOK(SOFT.DUTCH) LYT1085-004A --- LYT1085-004A ---
6 INST BOOK(SOFT.SPANISH) LYT1085-005A --- LYT1085-005A ---
6 INST BOOK(SOFT.ITALIAN) LYT1085-006A --- LYT1085-006A ---
6 INST BOOK(SOFT.DANISH) --- --- --- LYT1085-007A
6 INST BOOK(SOFT.FINNISH) --- --- --- LYT1085-008A
6 INST BOOK(SOFT.SWEDISH) --- --- --- LYT1085-009A
6
INST BOOK(SOFT.NORWEGIAN) --- --- --- LYT1085-010A
7 WARRANTY CARD BT-54013-5 BT-54008-4 BT-54013-5 ←
8 RESIST.CARD --- YU30878 --- ---
9 Q.CARD(JUK) --- LYT0194-001B --- ---
29 POWER CORD QMPL120-190-JR QMPP110-190-JR QMPL120-190-JR ←
REF
NO. ITEM GR-D70EX GR-D60EK GR-D60EX GR-D60EY
123 STICKER(2) LY44187-003A LY44187-004A ←←
126 SPACER(A) LY30030-0E3B LY30030-0E3A ←LY30030-0E3B
135 F.COVER ASSY LY20943-002E LY20943-002D ←LY20943-002E
136 MIC LY20944-001B LY20944-001A ←LY20944-001B
251 OP BLOCK ASSY LY33085-001E ←LY33085-001B LY33085-001E
256 SPECIAL SCREWX2 LY30018-0E7A LY30018-011A ←LY30018-0E7A
259 SPACER(A) LY30029-0Q7A --- --- LY30029-0Q7A
REF
NO. ITEM GR-D70EX GR-D60EK GR-D60EX GR-D60EY
PW1 MAIN BOARD ASSY YB10404I-03 YB10404L-02 ←YB10404L-03

(No.86732)
AV & MULTIMEDIA COMPANY CAMCORDER CATEGORY 12, 3-chome, Moriya-cho, kanagawa-ku, Yokohama, kanagawa-prefecture, 221-8528, Japan
VICTOR COMPANY OF JAPAN, LIMITED
200304WPC
Printed in Japan

(No.86732)3-1
PARTS LIST
2. PARTS LIST
MAIN BOARD ASSEMBLY <01>
 Symbol No. Part No. Part Name Description Local
PW1 YB10404L-03 MAIN BOARD ASSY
IC1001 MN103S33NJD IC(MICRO C ROM)
IC1001 or MN103SF33NY4JD IC(MICRO C ROM)
IC1002 MB90097PFV149-X IC(MICRO C ROM)
IC1003 SN74AHC1G00K-X IC
IC1003 or SN74AHC1G00DC-X IC
IC1004 S-89220ACNC-W IC
IC1005 X25330S8I-2.5-X IC
IC1005 or AT25320N-10SI-X IC
IC1005 or M95320-WMN6-X IC
IC1005 or 25LC320-I/SN-X IC
IC1005 or CAT25C32SI-X IC
IC1006 RS5C314-X IC
IC1007 IC-PST3423U-X IC
IC1007 or S-80823CNNB-X IC
IC2101 AK5355VT-X IC
IC2201 AK4564VQ IC
IC3001 JCY0152 IC
IC3002 BU2501FV-X IC
IC3005 JCY0136-X IC
IC3701 BA7665FS-X IC
IC3851 JCP8055FP IC
IC4201 HD49340NP-X IC
IC4202 MM1613AN-X IC
IC4301 JCY0200 IC
IC4302 R1160N151B-X IC
IC4802 BA10358FVM-W IC
IC4803 BA10358FVM-W IC
IC4804 UPC358G2/5/-W IC
IC4807 SN74AHC2G66U-X IC
IC4851 UPD16879GS-X IC
IC5501 JCY0185 IC
IC6001 FA3698F IC
IC6801 R1224N102G-X IC
IC8001 TMS320DSC24GHKL IC
IC8002 K4S643232F-TC60 IC
IC8002 or HY57643220CT55 IC
IC8002 or HY57643220CT7 IC
IC8003 MBV160TE90PTA48 IC(MICRO C ROM)
IC8003 or MBV160T90PTA48 IC(MICRO C ROM)
IC8004 S-80842CNNB-W IC
IC8006 BU2288FV-X IC
IC8301 ISP1181ADGG-X IC
Q1001 DTA114EE-X DIGI TRANSISTOR
Q1001 or PDTA114EE-X DIGI TRANSISTOR
Q1001 or RN2102-X DIGI TRANSISTOR
Q1001 or BCR183T-X DIGI TRANSISTOR
Q1002 UMC3N-W DIGI TRANSISTOR
Q1003 UMC3N-W DIGI TRANSISTOR
Q1004 UMC3N-W DIGI TRANSISTOR
Q1005 DTC143XE-X DIGI TRANSISTOR
Q1006 UMC3N-W DIGI TRANSISTOR
Q1007 2SC4617/QR/-X TRANSISTOR
Q1007 or BC847BT-X TRANSISTOR
Q1008 DTC124EE-X DIGI TRANSISTOR
Q1008 or PDTC124EE-X DIGI TRANSISTOR
Q1008 or BCR141T-X DIGI TRANSISTOR
Q1009 2SJ347-X MOS FET
Q2001 UMX1N-W PAIR TRANSISTOR
Q2001 or BC847S-X PAIR TRANSISTOR
Q2002 UMX1N-W PAIR TRANSISTOR
Q2002 or BC847S-X PAIR TRANSISTOR
Q2003 UMX1N-W PAIR TRANSISTOR
Q2003 or BC847S-X PAIR TRANSISTOR
Q2004 UMX1N-W PAIR TRANSISTOR
Q2004 or BC847S-X PAIR TRANSISTOR
Q2005 UMX1N-W PAIR TRANSISTOR
Q2005 or BC847S-X PAIR TRANSISTOR
Q2006 UMX1N-W PAIR TRANSISTOR
Q2006 or BC847S-X PAIR TRANSISTOR
Q2202 UMX1N-W PAIR TRANSISTOR
Q2202 or BC847S-X PAIR TRANSISTOR
Q2401 2SC4617/QR/-X TRANSISTOR
Q2401 or BC847BT-X TRANSISTOR
Q2403 2SC4617/QR/-X TRANSISTOR
Q2403 or BC847BT-X TRANSISTOR
Q3001 2SC4617/RS/-X TRANSISTOR
Q3001 or BC847BT-X TRANSISTOR
Q3002 2SC4617/RS/-X TRANSISTOR
Q3002 or BC847BT-X TRANSISTOR
Q3701 UMT1N-W PAIR TRANSISTOR
Q3701 or XP4401-W TRANSISTOR
Q3701 or BC856S-X PAIR TRANSISTOR
Q3702 UMZ1N-W PAIR TRANSISTOR
Q3702 or XP4601-W TRANSISTOR
Q3704 2SA1774/RS/-X TRANSISTOR
Q3704 or BC857BT-X TRANSISTOR
Q3705 UMT1N-W PAIR TRANSISTOR
Q3705 or XP4401-W TRANSISTOR
Q3705 or BC856S-X PAIR TRANSISTOR
Q4801 2SC4655/BC/-X TRANSISTOR
Q4802 2SC4617/RS/-X TRANSISTOR
Q4802 or BC847BT-X TRANSISTOR
Q4803 DTC144EE-X DIGI TRANSISTOR
Q4803 or BCR148T-X DIGI TRANSISTOR
Q4804 DTA144EE-X DIGI TRANSISTOR
Q4804 or BCR198T-X DIGI TRANSISTOR
Q4805 DTA143EE-X DIGI TRANSISTOR
Q4805 or BCR162T-X DIGI TRANSISTOR
Q4806 2SC4617/QR/-X TRANSISTOR
Q4806 or BC847BT-X TRANSISTOR
Q4851 2SC4617/RS/-X TRANSISTOR
Q4851 or BC847BT-X TRANSISTOR
Q6101 SSM5G01TU-X MOS FET
Q6102 2SA1577/QR/-X TRANSISTOR
Q6102 or BC807-25W-X TRANSISTOR
Q6201 SSM5G01TU-X MOS FET
Q6301 SSM5G01TU-X MOS FET
Q6302 2SA1577/QR/-X TRANSISTOR
Q6302 or BC807-25W-X TRANSISTOR
Q6303 2SC4617/QR/-X TRANSISTOR
Q6303 or BC847BT-X TRANSISTOR
Q6401 SSM5G01TU-X MOS FET
Q6501 SSM5G01TU-X MOS FET
Q6601 CPH3314-X MOS FET
Q6602 UMX1N-W PAIR TRANSISTOR
Q6602 or HN1C01FU/G/-X PAIR TRANSISTOR
Q6602 or BC847S-X PAIR TRANSISTOR
Q6603 2SA1577/QR/-X TRANSISTOR
Q6603 or BC807-25W-X TRANSISTOR
Q6604 DTC144EE-X DIGI TRANSISTOR
Q6604 or BCR148T-X DIGI TRANSISTOR
Q6605 UMT1N-W PAIR TRANSISTOR
Q6605 or HN1A01FU/G/-X PAIR TRANSISTOR
Q6605 or BC856S-X PAIR TRANSISTOR
Q6606 2SC4617/QR/-X TRANSISTOR
Q6606 or BC847BT-X TRANSISTOR
Q6701 CPH3314-X MOS FET
Q6801 FML9-W TRANSISTOR
Q8002 2SA1774/QR/-X TRANSISTOR
Q8002 or BC857BT-X TRANSISTOR
D1001 DA221-X DIODE ARRAY
D3001 EC2C01C-X VARI CAP DIODE
D3002 EC2C01C-X VARI CAP DIODE
D3003 EC2C01C-X VARI CAP DIODE
D3004 MA2Z720-X SB DIODE
D5501 1SS355-X SI DIODE
D6601 RB481K-X SB DIODE
D6602 RB480Y-W SB DIODE
D6701 RB160M-30-X SB DIODE
D6702 RB160M-30-X SB DIODE
 D6801 RB715F-X SB DIODE
D8001 RB751V-40-X SB DIODE
 Symbol No. Part No. Part Name Description Local
MODEL MARK
GR-D60EK A
GR-D60EX B
GR-D60EY C

3-2(No.86732)
C1001 NDCA1HJ-8R0W C CAPACITOR 8pF 50V J
C1002 NDCA1HJ-100W C CAPACITOR 10pF 50V J
C1004 NCFA1AZ-104W C CAPACITOR 0.1uF 10V Z
C1005 NCFA1AZ-104W C CAPACITOR 0.1uF 10V Z
C1007 NCFA1AZ-104W C CAPACITOR 0.1uF 10V Z
C1008 NCFA1AZ-104W C CAPACITOR 0.1uF 10V Z
C1009 NCFA1AZ-104W C CAPACITOR 0.1uF 10V Z
C1010 NCFA1AZ-104W C CAPACITOR 0.1uF 10V Z
C1011 NCFA1AZ-104W C CAPACITOR 0.1uF 10V Z
C1012 NCFA1AZ-104W C CAPACITOR 0.1uF 10V Z
C1013 NCFA1AZ-104W C CAPACITOR 0.1uF 10V Z
C1014 NCFA1AZ-104W C CAPACITOR 0.1uF 10V Z
C1015 NCFA1AZ-104W C CAPACITOR 0.1uF 10V Z
C1019 NCFA1HZ-103W C CAPACITOR 0.01uF 50V Z
C1020 NCBA1EK-682W C CAPACITOR 6800pF 25V K
C1021 NCBA1EK-682W C CAPACITOR 6800pF 25V K
C1022 NCFA1HZ-103W C CAPACITOR 0.01uF 50V Z
C1024 NCFA1HZ-103W C CAPACITOR 0.01uF 50V Z
C1025 NCFA1HZ-103W C CAPACITOR 0.01uF 50V Z
C1029 NCFA1HZ-103W C CAPACITOR 0.01uF 50V Z
C1030 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C1032 NCFA1HZ-103W C CAPACITOR 0.01uF 50V Z
C1035 NCFA1HZ-103W C CAPACITOR 0.01uF 50V Z
C1036 NCFA1AZ-104W C CAPACITOR 0.1uF 10V Z
C1037 NCFA1HZ-103W C CAPACITOR 0.01uF 50V Z
C1038 NCFA1HZ-103W C CAPACITOR 0.01uF 50V Z
C1039 NCFA1HZ-103W C CAPACITOR 0.01uF 50V Z
C1040 NDCA1HJ-100W C CAPACITOR 10pF 50V J
C1041 NCFA1AZ-104W C CAPACITOR 0.1uF 10V Z
C1042 NCFA1AZ-104W C CAPACITOR 0.1uF 10V Z
C1043 NCFA1AZ-104W C CAPACITOR 0.1uF 10V Z
C1044 NDCA1HJ-470W C CAPACITOR 47pF 50V J
C1045 NDCA1HJ-470W C CAPACITOR 47pF 50V J
C1046 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C1047 NCFA1HZ-103W C CAPACITOR 0.01uF 50V Z
C1048 NCFA1HZ-103W C CAPACITOR 0.01uF 50V Z
C1049 NCFA1HZ-103W C CAPACITOR 0.01uF 50V Z
C1050 NCFA1HZ-103W C CAPACITOR 0.01uF 50V Z
C1051 NCB31CK-223X C CAPACITOR 0.022uF 16V K
C1052 NCB31CK-223X C CAPACITOR 0.022uF 16V K
C1053 NCB31CK-223X C CAPACITOR 0.022uF 16V K
C1054 NCB31CK-223X C CAPACITOR 0.022uF 16V K
C1055 NCFA1AZ-104W C CAPACITOR 0.1uF 10V Z
C1064 NBE20JM-226X TA E CAPACITOR 22uF 6.3V M
C2105 NCBA1HK-222W C CAPACITOR 2200pF 50V K
C2106 NCBA1HK-222W C CAPACITOR 2200pF 50V K
C2107 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C2108 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C2109 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C2110 NBE20JM-475X TA E CAPACITOR 4.7uF 6.3V M
C2201 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C2202 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C2203 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C2204 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C2205 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C2209 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C2210 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C2211 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C2212 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C2213 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C2214 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C2215 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C2216 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C2217 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C2218 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C2223 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C2224 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C2401 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C2402 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C2403 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C2404 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C2405 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C2406 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C2603 NCBA1CK-153W C CAPACITOR 0.015uF 16V K
C2604 NCBA1CK-153W C CAPACITOR 0.015uF 16V K
C2605 NCBA1EK-472W C CAPACITOR 4700pF 25V K
C2606 NCBA1EK-472W C CAPACITOR 4700pF 25V K
 Symbol No. Part No. Part Name Description Local
C2607 NCBA1HK-102W C CAPACITOR 1000pF 50V K
C2608 NCBA1HK-102W C CAPACITOR 1000pF 50V K
C2611 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C2612 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C2613 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C2614 NDCA1HJ-101W C CAPACITOR 100pF 50V J
C2615 NDCA1HJ-101W C CAPACITOR 100pF 50V J
C3001 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C3003 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C3005 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C3006 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C3007 NCB10JK-106X C CAPACITOR 10uF 6.3V K
C3008 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C3009 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C3011 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C3012 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C3013 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C3015 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C3016 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C3017 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C3020 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C3021 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C3022 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C3023 NDCA1HJ-330W C CAPACITOR 33pF 50V J
C3024 NCBA1HK-102W C CAPACITOR 1000pF 50V K
C3025 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C3026 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C3027 NCBA1EK-472W C CAPACITOR 4700pF 25V K
C3028 NDCA1EJ-271W C CAPACITOR 270pF 25V J
C3029 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C3030 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C3031 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C3032 NCBA1HK-102W C CAPACITOR 1000pF 50V K
C3033 NDCA1HJ-220W C CAPACITOR 22pF 50V J
C3036 NDCA1HJ-8R0W C CAPACITOR 8pF 50V J
C3037 NDCA1HJ-8R0W C CAPACITOR 8pF 50V J
C3038 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C3039 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C3042 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C3043 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C3044 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C3045 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C3046 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C3047 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C3048 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C3049 NCBA1HK-222W C CAPACITOR 2200pF 50V K
C3050 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C3055 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C3059 NBE20GM-226X TA E CAPACITOR 22uF 4V M
C3060 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C3064 NCBA1HK-102W C CAPACITOR 1000pF 50V K
C3066 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C3067 NCBA1HK-102W C CAPACITOR 1000pF 50V K
C3069 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C3701 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C3702 NDCA1HJ-560W C CAPACITOR 56pF 50V J
C3703 NDCA1HJ-270W C CAPACITOR 27pF 50V J
C3704 NDCA1HJ-680W C CAPACITOR 68pF 50V J
C3705 NDCA1HJ-270W C CAPACITOR 27pF 50V J
C3706 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C3707 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C3708 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C3709 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C3712 NEA70GM-337X E CAPACITOR 330uF 4V M
C3713 NEA70GM-337X E CAPACITOR 330uF 4V M
C3715 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C3801 NCB21AK-105X C CAPACITOR 1uF 10V K
C3802 NCB21AK-105X C CAPACITOR 1uF 10V K
C3803 NBE20GM-476X TA E CAPACITOR 47uF 4V M
C3804 NBE20GM-476X TA E CAPACITOR 47uF 4V M
C3851 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C3852 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C3853 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C3854 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C3855 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C3856 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C3857 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C3858 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
 Symbol No. Part No. Part Name Description Local
MODEL MARK
GR-D60EK A
GR-D60EX B
GR-D60EY C

(No.86732)3-3
C3859 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C3860 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C3861 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C4201 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C4202 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4203 NCB21AK-105X C CAPACITOR 1uF 10V K
C4204 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4205 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4206 NCB21CK-105X C CAPACITOR 1uF 16V K
C4207 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4208 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C4209 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4210 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4211 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4212 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4213 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4214 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4216 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4301 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4302 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4303 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4304 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4305 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4306 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4307 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4308 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4309 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4310 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4311 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4312 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4313 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C4314 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4315 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4316 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C4317 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4803 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C4804 NCFA1AZ-104W C CAPACITOR 0.1uF 10V Z
C4806 NCFA1AZ-104W C CAPACITOR 0.1uF 10V Z
C4808 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C4809 NCFA1AZ-104W C CAPACITOR 0.1uF 10V Z
C4810 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C4811 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C4812 NCFA1AZ-104W C CAPACITOR 0.1uF 10V Z
C4813 NCFA1AZ-104W C CAPACITOR 0.1uF 10V Z
C4814 NCFA1AZ-104W C CAPACITOR 0.1uF 10V Z
C4815 NCB31HK-152X C CAPACITOR 1500pF 50V K
C4819 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C4851 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C4852 NCFA1AZ-104W C CAPACITOR 0.1uF 10V Z
C4853 NBE21AM-335X TA E CAPACITOR 3.3uF 10V M
C4854 NBE21AM-106X TA E CAPACITOR 10uF 10V M
C4855 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C4858 NDCA1HJ-330W C CAPACITOR 33pF 50V J
C4859 NCBA1CK-223W C CAPACITOR 0.022uF 16V K
C4860 NCBA1CK-223W C CAPACITOR 0.022uF 16V K
C4861 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C4862 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C4864 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C4865 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C5501 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C5503 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C5504 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C5506 NBE40GM-476X TA E CAPACITOR 47uF 4V M
C5507 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C5508 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C5509 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C5510 NBP21VM-105X TA E CAPACITOR 1uF 35V M
C5511 NBZ0003-475X TA E CAPACITOR 4.7uF 20V M
C5512 NBE21AM-106X TA E CAPACITOR 10uF 10V M
C5513 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C5514 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C5515 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C5516 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C5517 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C5518 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C5519 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C6002 NCB21CK-105X C CAPACITOR 1uF 16V K
C6003 NEA71CM-106X E CAPACITOR 10uF 16V M
 Symbol No. Part No. Part Name Description Local
C6004 NCB21CK-105X C CAPACITOR 1uF 16V K
C6021 NCB21CK-104X C CAPACITOR 0.1uF 16V K
C6022 NCB21CK-104X C CAPACITOR 0.1uF 16V K
C6023 NCB21CK-105X C CAPACITOR 1uF 16V K
C6024 NCB21CK-105X C CAPACITOR 1uF 16V K
C6025 NCB21CK-105X C CAPACITOR 1uF 16V K
C6026 NCB21CK-105X C CAPACITOR 1uF 16V K
C6027 NCBA1EK-472W C CAPACITOR 4700pF 25V K
C6029 NCBA1HK-102W C CAPACITOR 1000pF 50V K
C6030 NCBA1HK-102W C CAPACITOR 1000pF 50V K
C6031 NCBA1HK-102W C CAPACITOR 1000pF 50V K
C6032 NCBA1HK-102W C CAPACITOR 1000pF 50V K
C6033 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C6034 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C6035 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C6036 NDCA1HJ-101W C CAPACITOR 100pF 50V J
C6037 NCB21CK-473X C CAPACITOR 0.047uF 16V K
C6038 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C6039 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C6040 NCB31CK-473X C CAPACITOR 0.047uF 16V K
C6041 NCB31EK-103X C CAPACITOR 0.01uF 25V K
C6042 NCB31EK-103X C CAPACITOR 0.01uF 25V K
C6043 NCB31CK-223X C CAPACITOR 0.022uF 16V K
C6044 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C6045 NCB21CK-105X C CAPACITOR 1uF 16V K
C6101 NCB21CK-105X C CAPACITOR 1uF 16V K
C6103 NCB10JK-106X C CAPACITOR 10uF 6.3V K
C6104 NCBA1HK-102W C CAPACITOR 1000pF 50V K
C6105 NCBA1HK-561W C CAPACITOR 560pF 50V K
C6106 NCB21CK-105X C CAPACITOR 1uF 16V K
C6201 NCB21CK-105X C CAPACITOR 1uF 16V K
C6203 NCB10JK-106X C CAPACITOR 10uF 6.3V K
C6204 NCBA1EK-472W C CAPACITOR 4700pF 25V K
C6301 NCB21CK-105X C CAPACITOR 1uF 16V K
C6303 NCB10JK-106X C CAPACITOR 10uF 6.3V K
C6304 NCBA1HK-102W C CAPACITOR 1000pF 50V K
C6401 NCB21CK-105X C CAPACITOR 1uF 16V K
C6403 NCB21CK-105X C CAPACITOR 1uF 16V K
C6405 NCB31CK-683X C CAPACITOR 0.068uF 16V K
C6501 NCB21CK-105X C CAPACITOR 1uF 16V K
C6503 NCB21CK-105X C CAPACITOR 1uF 16V K
C6505 NCB21CK-105X C CAPACITOR 1uF 16V K
C6601 NCB21CK-105X C CAPACITOR 1uF 16V K
C6602 NCB21CK-105X C CAPACITOR 1uF 16V K
C6603 NCB11EK-105X C CAPACITOR 1uF 25V K
C6605 NCB21CK-105X C CAPACITOR 1uF 16V K
C6606 NCB21CK-105X C CAPACITOR 1uF 16V K
C6607 NCB11EK-105X C CAPACITOR 1uF 25V K
C6608 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C6609 NCB21CK-105X C CAPACITOR 1uF 16V K
C6701 NCB21CK-105X C CAPACITOR 1uF 16V K
C6703 NCB21CK-105X C CAPACITOR 1uF 16V K
C6801 NCB21CK-105X C CAPACITOR 1uF 16V K
C6802 NBE40JM-476X TA E CAPACITOR 47uF 6.3V M
C6804 NCB21CK-105X C CAPACITOR 1uF 16V K
C6807 NCB10JK-106X C CAPACITOR 10uF 6.3V K
C6809 NDCA1HJ-151W C CAPACITOR 150pF 50V J
C8001 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C8002 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C8003 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C8004 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C8005 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C8006 NBE20JM-476X TA E CAPACITOR 47uF 6.3V M
C8007 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C8008 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C8010 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C8011 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C8014 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C8015 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C8016 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C8017 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C8018 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C8019 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C8020 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C8021 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C8022 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C8023 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C8024 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
 Symbol No. Part No. Part Name Description Local
MODEL MARK
GR-D60EK A
GR-D60EX B
GR-D60EY C

3-4(No.86732)
C8025 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C8026 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C8030 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C8301 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C8305 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C8306 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C8307 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C8310 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C8311 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
R1001 NRSA6AJ-105W MG RESISTOR 1M Ω 1/16W J
R1002 NRSA6AJ-104W MG RESISTOR 100k Ω 1/16W J
R1003 NRSA6AJ-104W MG RESISTOR 100k Ω 1/16W J
R1006 NRSA6AJ-102W MG RESISTOR 1k Ω 1/16W J
R1007 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R1008 NRSA6AJ-103W MG RESISTOR 10k Ω 1/16W J
R1009 NRSA6AJ-103W MG RESISTOR 10k Ω 1/16W J
R1010 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R1011 NRSA6AJ-104W MG RESISTOR 100k Ω 1/16W J
R1012 NRSA6AJ-102W MG RESISTOR 1k Ω 1/16W J
R1013 NRSA6AJ-102W MG RESISTOR 1k
Ω 1/16W J
R1014 NRSA6AJ-102W MG RESISTOR 1k
Ω 1/16W J
R1015 NRSA6AJ-102W MG RESISTOR 1k Ω 1/16W J
R1016 NRSA6AJ-103W MG RESISTOR 10k Ω 1/16W J
R1017 NRSA6AJ-474W MG RESISTOR 470k Ω 1/16W J
R1018 NRSA6AJ-474W MG RESISTOR 470k Ω 1/16W J
R1019 NRSA6AJ-102W MG RESISTOR 1k Ω 1/16W J
R1020 NRSA6AJ-104W MG RESISTOR 100k Ω 1/16W J
R1021 NRSA6AJ-104W MG RESISTOR 100k Ω 1/16W J
R1022 NRSA6AJ-102W MG RESISTOR 1k Ω 1/16W J
R1023 NRSA6AJ-102W MG RESISTOR 1k Ω 1/16W J
R1024 NRSA6AJ-104W MG RESISTOR 100k Ω 1/16W J
R1025 NRSA6AJ-104W MG RESISTOR 100k Ω 1/16W J
R1027 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R1030 NRSA6AJ-753W MG RESISTOR 75k Ω 1/16W J
R1031 NRSA6AJ-334W MG RESISTOR 330k Ω 1/16W J
R1032 NRSA6AJ-332W MG RESISTOR 3.3k Ω 1/16W J
R1033 NRSA6AJ-332W MG RESISTOR 3.3k Ω 1/16W J
R1034 NRSA6AJ-332W MG RESISTOR 3.3k Ω 1/16W J
R1035 NRSA6AJ-102W MG RESISTOR 1k Ω 1/16W J
R1037 NRSA6AJ-561W MG RESISTOR 560 Ω 1/16W J
R1038 NRSA6AJ-104W MG RESISTOR 100k Ω 1/16W J
R1039 NRSA6AJ-152W MG RESISTOR 1.5k Ω 1/16W J
R1040 NRSA6AJ-104W MG RESISTOR 100k Ω 1/16W J
R1041 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R1042 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R1043 NRSA6AJ-102W MG RESISTOR 1k Ω 1/16W J
R1044 NRSA6AJ-104W MG RESISTOR 100k Ω 1/16W J
R1045 NRSA6AJ-105W MG RESISTOR 1M Ω 1/16W J
R1046 NRSA6AJ-104W MG RESISTOR 100k
Ω 1/16W J
R1047 NRSA6AJ-104W MG RESISTOR 100k Ω 1/16W J
R1048 NRSA6AJ-103W MG RESISTOR 10k
Ω 1/16W J
R1049 NRSA6AJ-623W MG RESISTOR 62k
Ω 1/16W J
R1050 NRSA6AJ-823W MG RESISTOR 82k Ω 1/16W J
R1051 NRSA6AJ-473W MG RESISTOR 47k
Ω 1/16W J
R1052 NRSA6AJ-104W MG RESISTOR 100k
Ω 1/16W J
R1053 NRSA6AJ-222W MG RESISTOR 2.2k Ω 1/16W J
R1054 NRSA6AJ-104W MG RESISTOR 100k
Ω 1/16W J
R1055 NRSA6AJ-334W MG RESISTOR 330k Ω 1/16W J
R1056 NRSA6AJ-334W MG RESISTOR 330k
Ω 1/16W J
R1057 NRSA6AJ-102W MG RESISTOR 1k
Ω 1/16W J
R1058 NRSA6AJ-102W MG RESISTOR 1k Ω 1/16W J
R1059 NRSA6AJ-102W MG RESISTOR 1k
Ω 1/16W J
R1060 NRSA6AJ-103W MG RESISTOR 10k
Ω 1/16W J
R1061 NRSA6AJ-561W MG RESISTOR 560 Ω 1/16W J
R1062 NRSA6AJ-224W MG RESISTOR 220k
Ω 1/16W J
R1063 NRSA6AJ-472W MG RESISTOR 4.7k
Ω 1/16W J
R1064 NRSA6AJ-103W MG RESISTOR 10k
Ω 1/16W J
R1065 NRSA6AJ-153W MG RESISTOR 15k
Ω 1/16W J
R1066 NRSA6AJ-103W MG RESISTOR 10k Ω 1/16W J
R1067 NRSA6AJ-334W MG RESISTOR 330k
Ω 1/16W J
R1068 NRSA6AJ-102W MG RESISTOR 1k
Ω 1/16W J
R1069 NRSA6AJ-104W MG RESISTOR 100k Ω 1/16W J
R1070 NRSA6AJ-154W MG RESISTOR 150k
Ω 1/16W J
R1071 NRSA6AJ-272W MG RESISTOR 2.7k
Ω 1/16W J
R1072 NRSA6AJ-183W MG RESISTOR 18k Ω 1/16W J
R1073 NRSA6AJ-103W MG RESISTOR 10k
Ω 1/16W J
R1074 NRSA6AJ-472W MG RESISTOR 4.7k
Ω 1/16W J
 Symbol No. Part No. Part Name Description Local
R1075 NRSA6AJ-473W MG RESISTOR 47k Ω 1/16W J
R1076 NRSA6AJ-473W MG RESISTOR 47k Ω 1/16W J
R1077 NRSA6AJ-104W MG RESISTOR 100k Ω 1/16W J
R1078 NRSA6AJ-393W MG RESISTOR 39k Ω 1/16W J
R1079 NRSA6AJ-223W MG RESISTOR 22k Ω 1/16W J
R1080 NRSA6AJ-822W MG RESISTOR 8.2k
Ω 1/16W J
R1081 NRSA6AJ-103W MG RESISTOR 10k
Ω 1/16W J
R1082 NRSA6AJ-123W MG RESISTOR 12k Ω 1/16W J
R1083 NRSA6AJ-102W MG RESISTOR 1k Ω 1/16W J
R1084 NRSA6AJ-102W MG RESISTOR 1k Ω 1/16W J
R1085 NRSA6AJ-102W MG RESISTOR 1k Ω 1/16W J
R1086 NRSA6AJ-332W MG RESISTOR 3.3k Ω 1/16W J
R1087 NRSA6AJ-332W MG RESISTOR 3.3k Ω 1/16W J
R1088 NRSA6AJ-332W MG RESISTOR 3.3k Ω 1/16W J
R1089 NRSA6AJ-332W MG RESISTOR 3.3k Ω 1/16W J
R1091 NRSA6AJ-103W MG RESISTOR 10k Ω 1/16W J
R1092 NRSA6AJ-103W MG RESISTOR 10k Ω 1/16W J
R1093 NRSA6AJ-103W MG RESISTOR 10k Ω 1/16W J
R1094 NRSA6AJ-103W MG RESISTOR 10k Ω 1/16W J
R1095 NRSA6AJ-102W MG RESISTOR 1k Ω 1/16W J
R1096 NRSA6AJ-104W MG RESISTOR 100k
Ω 1/16W J
R1097 NRSA6AJ-104W MG RESISTOR 100k
Ω 1/16W J
R1099 NRSA6AJ-104W MG RESISTOR 100k Ω 1/16W J
R2001 NRSA6AJ-474W MG RESISTOR 470k Ω 1/16W J
R2002 NRSA6AJ-474W MG RESISTOR 470k Ω 1/16W J
R2003 NRSA6AJ-474W MG RESISTOR 470k Ω 1/16W J
R2004 NRSA6AJ-474W MG RESISTOR 470k Ω 1/16W J
R2005 NRSA6AJ-474W MG RESISTOR 470k Ω 1/16W J
R2006 NRSA6AJ-474W MG RESISTOR 470k Ω 1/16W J
R2007 NRSA6AJ-474W MG RESISTOR 470k Ω 1/16W J
R2008 NRSA6AJ-474W MG RESISTOR 470k Ω 1/16W J
R2009 NRSA6AJ-474W MG RESISTOR 470k Ω 1/16W J
R2010 NRSA6AJ-474W MG RESISTOR 470k Ω 1/16W J
R2011 NRSA6AJ-474W MG RESISTOR 470k Ω 1/16W J
R2012 NRSA6AJ-474W MG RESISTOR 470k Ω 1/16W J
R2101 NRSA6AJ-471W MG RESISTOR 470 Ω 1/16W J
R2102 NRSA6AJ-471W MG RESISTOR 470 Ω 1/16W J
R2105 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R2111 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R2112 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R2113 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R2114 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R2201 NRSA6AJ-684W MG RESISTOR 680k Ω 1/16W J
R2202 NRSA6AJ-564W MG RESISTOR 560k Ω 1/16W J
R2203 NRSA6AJ-393W MG RESISTOR 39k Ω 1/16W J
R2204 NRSA6AJ-154W MG RESISTOR 150k Ω 1/16W J
R2206 NRSA6AJ-333W MG RESISTOR 33k Ω 1/16W J
R2207 NRSA6AJ-333W MG RESISTOR 33k Ω 1/16W J
R2208 NRSA6AJ-223W MG RESISTOR 22k Ω 1/16W J
R2209 NRSA6AJ-223W MG RESISTOR 22k
Ω 1/16W J
R2210 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R2211 NRSA6AJ-0R0W MG RESISTOR 0
Ω 1/16W J
R2212 NRSA6AJ-2R7W MG RESISTOR 2.7
Ω 1/16W J
R2213 NRSA6AJ-2R7W MG RESISTOR 2.7 Ω 1/16W J
R2217 NRSA6AJ-100W MG RESISTOR 10
Ω 1/16W J
R2218 NRSA6AJ-100W MG RESISTOR 10
Ω 1/16W J
R2219 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R2220 NRSA6AJ-0R0W MG RESISTOR 0
Ω 1/16W J
R2221 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R2222 NRSA6AJ-100W MG RESISTOR 10
Ω 1/16W J
R2223 NRSA6AJ-100W MG RESISTOR 10
Ω 1/16W J
R2224 NRSA6AJ-100W MG RESISTOR 10 Ω 1/16W J
R2225 NRSA6AJ-0R0W MG RESISTOR 0
Ω 1/16W J
R2226 NRSA6AJ-0R0W MG RESISTOR 0
Ω 1/16W J
R2229 NRSA6AJ-564W MG RESISTOR 560k Ω 1/16W J
R2230 NRSA6AJ-564W MG RESISTOR 560k
Ω 1/16W J
R2231 NRSA6AJ-332W MG RESISTOR 3.3k
Ω 1/16W J
R2401 NRSA6AJ-472W MG RESISTOR 4.7k
Ω 1/16W J
R2402 NRSA6AJ-472W MG RESISTOR 4.7k
Ω 1/16W J
R2403 NRSA6AJ-183W MG RESISTOR 18k Ω 1/16W J
R2406 NRSA6AJ-0R0W MG RESISTOR 0
Ω 1/16W J
R2407 NRSA6AJ-100W MG RESISTOR 10
Ω 1/16W J
R2601 NRSA6AJ-182W MG RESISTOR 1.8k Ω 1/16W J
R2602 NRSA6AJ-182W MG RESISTOR 1.8k
Ω 1/16W J
R2607 NRSA6AJ-222W MG RESISTOR 2.2k
Ω 1/16W J
R2608 NRSA6AJ-222W MG RESISTOR 2.2k Ω 1/16W J
R2609 NRSA6AJ-223W MG RESISTOR 22k
Ω 1/16W J
R2610 NRSA6AJ-223W MG RESISTOR 22k
Ω 1/16W J
 Symbol No. Part No. Part Name Description Local
MODEL MARK
GR-D60EK A
GR-D60EX B
GR-D60EY C

(No.86732)3-5
R3002 NRSA6AJ-103W MG RESISTOR 10k Ω 1/16W J
R3004 NRSA6AJ-103W MG RESISTOR 10k Ω 1/16W J
R3005 NRSA6AJ-100W MG RESISTOR 10 Ω 1/16W J
R3006 NRSA6AJ-100W MG RESISTOR 10 Ω 1/16W J
R3007 NRSA6AJ-562W MG RESISTOR 5.6k Ω 1/16W J
R3008 NRSA6AJ-222W MG RESISTOR 2.2k
Ω 1/16W J
R3009 NRSA6AJ-103W MG RESISTOR 10k
Ω 1/16W J
R3010 NRSA6AJ-103W MG RESISTOR 10k Ω 1/16W J
R3011 NRSA6AJ-224W MG RESISTOR 220k Ω 1/16W J
R3013 NRSA6AJ-242W MG RESISTOR 2.4k Ω 1/16W J
R3014 NRSA6AJ-392W MG RESISTOR 3.9k Ω 1/16W J
R3015 NRSA6AJ-392W MG RESISTOR 3.9k Ω 1/16W J
R3016 NRVA6AD-560W CMF RESISTOR 56 Ω 1/16W D
R3017 NRVA6AD-560W CMF RESISTOR 56 Ω 1/16W D
R3018 NRVA6AD-560W CMF RESISTOR 56 Ω 1/16W D
R3019 NRVA6AD-560W CMF RESISTOR 56 Ω 1/16W D
R3020 NRVA6AD-512W CMF RESISTOR 5.1k Ω 1/16W D
R3021 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R3025 NRSA6AJ-102W MG RESISTOR 1k Ω 1/16W J
R3027 NRSA6AJ-103W MG RESISTOR 10k Ω 1/16W J
R3029 NRSA6AJ-822W MG RESISTOR 8.2k
Ω 1/16W J
R3030 NRSA6AJ-224W MG RESISTOR 220k
Ω 1/16W J
R3031 NRSA6AJ-224W MG RESISTOR 220k Ω 1/16W J
R3032 NRSA6AJ-105W MG RESISTOR 1M Ω 1/16W J
R3034 NRSA6AJ-222W MG RESISTOR 2.2k Ω 1/16W J
R3036 NRSA6AJ-103W MG RESISTOR 10k Ω 1/16W J
R3037 NRSA6AJ-681W MG RESISTOR 680 Ω 1/16W J
R3057 NRSA6AJ-151W MG RESISTOR 150 Ω 1/16W J
R3066 NRSA6AJ-561W MG RESISTOR 560 Ω 1/16W J
R3067 NRSA6AJ-561W MG RESISTOR 560 Ω 1/16W J
R3068 NRSA6AJ-181W MG RESISTOR 180 Ω 1/16W J
R3069 NRSA6AJ-472W MG RESISTOR 4.7k Ω 1/16W J
R3071 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R3074 NRSA6AJ-103W MG RESISTOR 10k Ω 1/16W J
R3082 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R3701 NRSA6AD-271W MG RESISTOR 270 Ω 1/16W D
R3702 NRSA6AD-271W MG RESISTOR 270 Ω 1/16W D
R3703 NRSA6AJ-332W MG RESISTOR 3.3k Ω 1/16W J
R3704 NRSA6AD-301W MG RESISTOR 300 Ω 1/16W D
R3705 NRSA6AD-301W MG RESISTOR 300 Ω 1/16W D
R3706 NRSA6AJ-332W MG RESISTOR 3.3k Ω 1/16W J
R3707 NRSA6AD-680W MG RESISTOR 68 Ω 1/16W D
R3708 NRSA6AD-680W MG RESISTOR 68 Ω 1/16W D
R3709 NRSA6AD-680W MG RESISTOR 68 Ω 1/16W D
R3710 NRSA6AJ-104W MG RESISTOR 100k Ω 1/16W J
R3711 NRSA6AJ-104W MG RESISTOR 100k Ω 1/16W J
R3712 NRSA6AJ-105W MG RESISTOR 1M Ω 1/16W J
R3713 NRSA6AJ-104W MG RESISTOR 100k Ω 1/16W J
R3714 NRSA6AJ-823W MG RESISTOR 82k Ω 1/16W J
R3715 NRSA6AJ-103W MG RESISTOR 10k
Ω 1/16W J
R3722 NRSA6AD-131W MG RESISTOR 130 Ω 1/16W D
R3724 NRSA6AJ-472W MG RESISTOR 4.7k
Ω 1/16W J
R3725 NRSA6AD-131W MG RESISTOR 130
Ω 1/16W D
R3726 NRSA6AJ-472W MG RESISTOR 4.7k Ω 1/16W J
R3727 NRSA6AJ-472W MG RESISTOR 4.7k
Ω 1/16W J
R3728 NRSA6AD-131W MG RESISTOR 130
Ω 1/16W D
R3730 NRSA6AJ-472W MG RESISTOR 4.7k Ω 1/16W J
R3807 NRSA6AJ-220W MG RESISTOR 22
Ω 1/16W J
R3851 NRSA6AJ-101W MG RESISTOR 100 Ω 1/16W J
R3852 NRSA6AD-821W MG RESISTOR 820
Ω 1/16W D
R3853 NRSA6AD-273W MG RESISTOR 27k
Ω 1/16W D
R3854 NRSA6AD-153W MG RESISTOR 15k Ω 1/16W D
R3855 NRSA6AD-821W MG RESISTOR 820
Ω 1/16W D
R4201 NRSA6AJ-333W MG RESISTOR 33k
Ω 1/16W J
R4202 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4203 NRSA6AJ-0R0W MG RESISTOR 0
Ω 1/16W J
R4204 NRSA6AJ-220W MG RESISTOR 22
Ω 1/16W J
R4205 NRSA6AJ-220W MG RESISTOR 22
Ω 1/16W J
R4301 NRSA6AJ-220W MG RESISTOR 22
Ω 1/16W J
R4303 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4304 NRSA6AJ-0R0W MG RESISTOR 0
Ω 1/16W J
R4306 NRSA6AJ-0R0W MG RESISTOR 0
Ω 1/16W J
R4307 NRSA6AJ-470W MG RESISTOR 47 Ω 1/16W J
R4308 NRSA6AJ-470W MG RESISTOR 47
Ω 1/16W J
R4309 NRSA6AJ-0R0W MG RESISTOR 0
Ω 1/16W J
R4310 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4315 NRSA6AJ-0R0W MG RESISTOR 0
Ω 1/16W J
R4317 NRSA6AJ-0R0W MG RESISTOR 0
Ω 1/16W J
 Symbol No. Part No. Part Name Description Local
R4319 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4321 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4326 NRSA6AJ-470W MG RESISTOR 47 Ω 1/16W J
R4327 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4328 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4329 NRSA6AJ-0R0W MG RESISTOR 0
Ω 1/16W J
R4330 NRSA6AJ-0R0W MG RESISTOR 0
Ω 1/16W J
R4331 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4332 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4333 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4334 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4335 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4336 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4337 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4338 NRSA6AJ-220W MG RESISTOR 22 Ω 1/16W J
R4339 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4341 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4342 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4343 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4344 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4345 NRSA6AJ-220W MG RESISTOR 22
Ω 1/16W J
R4346 NRSA6AJ-220W MG RESISTOR 22
Ω 1/16W J
R4348 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4349 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4350 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4351 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4352 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4353 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4354 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4355 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4356 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4804 NRSA6AJ-102W MG RESISTOR 1k Ω 1/16W J
R4805 NRSA6AJ-103W MG RESISTOR 10k Ω 1/16W J
R4806 NRSA6AJ-683W MG RESISTOR 68k Ω 1/16W J
R4807 NRSA6AJ-823W MG RESISTOR 82k Ω 1/16W J
R4808 NRSA6AJ-243W MG RESISTOR 24k Ω 1/16W J
R4809 NRSA6AJ-681W MG RESISTOR 680 Ω 1/16W J
R4810 NRSA6AJ-103W MG RESISTOR 10k Ω 1/16W J
R4811 NRSA6AJ-824W MG RESISTOR 820k Ω 1/16W J
R4812 NRSA6AJ-153W MG RESISTOR 15k Ω 1/16W J
R4814 NRSA6AJ-105W MG RESISTOR 1M Ω 1/16W J
R4815 NRSA6AJ-472W MG RESISTOR 4.7k Ω 1/16W J
R4816 NRSA6AJ-105W MG RESISTOR 1M Ω 1/16W J
R4817 NRSA6AJ-334W MG RESISTOR 330k Ω 1/16W J
R4818 NRSA6AJ-154W MG RESISTOR 150k Ω 1/16W J
R4819 NRSA6AJ-103W MG RESISTOR 10k Ω 1/16W J
R4820 NRSA6AJ-104W MG RESISTOR 100k Ω 1/16W J
R4821 NRSA6AJ-104W MG RESISTOR 100k Ω 1/16W J
R4822 NRSA6AJ-333W MG RESISTOR 33k Ω 1/16W J
R4823 NRSA6AJ-102W MG RESISTOR 1k
Ω 1/16W J
R4824 NRSA6AJ-472W MG RESISTOR 4.7k Ω 1/16W J
R4825 NRSA6AJ-222W MG RESISTOR 2.2k
Ω 1/16W J
R4826 NRSA6AJ-473W MG RESISTOR 47k
Ω 1/16W J
R4827 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4828 NRSA6AJ-0R0W MG RESISTOR 0
Ω 1/16W J
R4833 NRSA6AJ-104W MG RESISTOR 100k
Ω 1/16W J
R4836 NRSA6AJ-102W MG RESISTOR 1k Ω 1/16W J
R4837 NRSA6AJ-0R0W MG RESISTOR 0
Ω 1/16W J
R4839 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4840 NRSA6AJ-0R0W MG RESISTOR 0
Ω 1/16W J
R4843 NRSA6AJ-0R0W MG RESISTOR 0
Ω 1/16W J
R4844 NRSA6AJ-151W MG RESISTOR 150 Ω 1/16W J
R4846 NRSA6AJ-0R0W MG RESISTOR 0
Ω 1/16W J
R4849 NRSA6AJ-0R0W MG RESISTOR 0
Ω 1/16W J
R4854 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4856 NRSA6AJ-6R8W MG RESISTOR 6.8
Ω 1/16W J
R4857 NRSA6AJ-6R8W MG RESISTOR 6.8
Ω 1/16W J
R4858 NRSA6AJ-333W MG RESISTOR 33k
Ω 1/16W J
R4859 NRSA6AJ-0R0W MG RESISTOR 0
Ω 1/16W J
R4860 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4862 NRSA6AJ-6R8W MG RESISTOR 6.8
Ω 1/16W J
R4863 NRSA6AJ-6R8W MG RESISTOR 6.8
Ω 1/16W J
R4864 NRSA6AJ-102W MG RESISTOR 1k Ω 1/16W J
R4865 NRSA6AJ-102W MG RESISTOR 1k
Ω 1/16W J
R4866 NRSA6AJ-102W MG RESISTOR 1k
Ω 1/16W J
R4867 NRSA6AJ-102W MG RESISTOR 1k Ω 1/16W J
R4868 NRSA6AJ-0R0W MG RESISTOR 0
Ω 1/16W J
R4870 NRSA6AJ-271W MG RESISTOR 270
Ω 1/16W J
 Symbol No. Part No. Part Name Description Local
MODEL MARK
GR-D60EK A
GR-D60EX B
GR-D60EY C

3-6(No.86732)
R4871 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4874 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4875 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R5501 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R5503 NRSA6AJ-220W MG RESISTOR 22 Ω 1/16W J
R5504 NRSA6AJ-220W MG RESISTOR 22
Ω 1/16W J
R5505 NRSA6AJ-220W MG RESISTOR 22
Ω 1/16W J
R5506 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R5507 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R5509 NRSA6AJ-470W MG RESISTOR 47 Ω 1/16W J
R5511 NRSA6AJ-470W MG RESISTOR 47 Ω 1/16W J
R5512 NRSA6AJ-102W MG RESISTOR 1k Ω 1/16W J
R5513 NRSA6AJ-102W MG RESISTOR 1k Ω 1/16W J
R5514 NRSA6AJ-102W MG RESISTOR 1k Ω 1/16W J
R6021 NRSA6AJ-102W MG RESISTOR 1k Ω 1/16W J
R6022 NRSA6AJ-102W MG RESISTOR 1k Ω 1/16W J
R6023 NRSA6AJ-102W MG RESISTOR 1k Ω 1/16W J
R6024 NRSA6AJ-102W MG RESISTOR 1k Ω 1/16W J
R6025 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R6026 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R6027 NRSA6AD-103W MG RESISTOR 10k
Ω 1/16W D
R6028 NRSA6AD-751W MG RESISTOR 750
Ω 1/16W D
R6029 NRSA6AD-103W MG RESISTOR 10k Ω 1/16W D
R6030 NRSA6AJ-333W MG RESISTOR 33k Ω 1/16W J
R6031 NRSA6AJ-472W MG RESISTOR 4.7k Ω 1/16W J
R6033 NRSA6AJ-562W MG RESISTOR 5.6k Ω 1/16W J
R6034 NRSA6AJ-153W MG RESISTOR 15k Ω 1/16W J
R6035 NRSA6AJ-104W MG RESISTOR 100k Ω 1/16W J
R6036 NRSA6AJ-104W MG RESISTOR 100k Ω 1/16W J
R6037 NRSA6AD-153W MG RESISTOR 15k Ω 1/16W D
R6038 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R6039 NRSA6AJ-104W MG RESISTOR 100k Ω 1/16W J
R6040 NRSA6AJ-103W MG RESISTOR 10k Ω 1/16W J
R6042 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R6044 NRSA6AJ-224W MG RESISTOR 220k Ω 1/16W J
R6102 NRVA6AD-223W CMF RESISTOR 22k Ω 1/16W D
R6103 NRVA6AD-103W CMF RESISTOR 10k Ω 1/16W D
R6104 NRSA6AJ-474W MG RESISTOR 470k Ω 1/16W J
R6105 NRSA6AJ-104W MG RESISTOR 100k Ω 1/16W J
R6106 NRSA6AJ-332W MG RESISTOR 3.3k Ω 1/16W J
R6107 NRSA6AD-183W MG RESISTOR 18k Ω 1/16W D
R6108 NRSA6AD-123W MG RESISTOR 12k Ω 1/16W D
R6109 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R6202 NRSA6AD-123W MG RESISTOR 12k Ω 1/16W D
R6203 NRSA6AD-153W MG RESISTOR 15k Ω 1/16W D
R6302 NRSA6AD-183W MG RESISTOR 18k Ω 1/16W D
R6303 NRSA6AD-472W MG RESISTOR 4.7k Ω 1/16W D
R6305 NRSA6AJ-104W MG RESISTOR 100k Ω 1/16W J
R6306 NRSA6AJ-123W MG RESISTOR 12k Ω 1/16W J
R6308 NRSA6AJ-473W MG RESISTOR 47k
Ω 1/16W J
R6309 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R6402 NRSA6AD-243W MG RESISTOR 24k
Ω 1/16W D
R6403 NRSA6AD-302W MG RESISTOR 3k
Ω 1/16W D
R6405 NRSA6AJ-123W MG RESISTOR 12k Ω 1/16W J
R6406 NRSA6AJ-103W MG RESISTOR 10k
Ω 1/16W J
R6407 NRSA6AJ-104W MG RESISTOR 100k
Ω 1/16W J
R6502 NRSA6AD-473W MG RESISTOR 47k Ω 1/16W D
R6503 NRSA6AD-562W MG RESISTOR 5.6k
Ω 1/16W D
R6505 NRSA6AJ-473W MG RESISTOR 47k Ω 1/16W J
R6506 NRSA6AJ-273W MG RESISTOR 27k
Ω 1/16W J
R6602 NRSA6AD-114W MG RESISTOR 110k
Ω 1/16W D
R6603 NRSA6AD-392W MG RESISTOR 3.9k Ω 1/16W D
R6604 NRSA6AD-114W MG RESISTOR 110k
Ω 1/16W D
R6605 NRSA6AJ-222W MG RESISTOR 2.2k
Ω 1/16W J
R6606 NRSA6AD-104W MG RESISTOR 100k Ω 1/16W D
R6607 NRSA6AD-473W MG RESISTOR 47k
Ω 1/16W D
R6608 NRSA6AJ-273W MG RESISTOR 27k
Ω 1/16W J
R6609 NRSA6AJ-822W MG RESISTOR 8.2k
Ω 1/16W J
R6610 NRSA6AD-473W MG RESISTOR 47k
Ω 1/16W D
R6611 NRSA6AD-683W MG RESISTOR 68k Ω 1/16W D
R6612 NRSA6AJ-104W MG RESISTOR 100k
Ω 1/16W J
R6613 NRSA6AJ-823W MG RESISTOR 82k
Ω 1/16W J
R6614 NRSA6AD-104W MG RESISTOR 100k Ω 1/16W D
R6615 NRSA6AD-104W MG RESISTOR 100k
Ω 1/16W D
R6616 NRSA6AJ-103W MG RESISTOR 10k
Ω 1/16W J
R6617 NRSA6AJ-333W MG RESISTOR 33k Ω 1/16W J
R6618 NRSA6AJ-0R0W MG RESISTOR 0
Ω 1/16W J
R6619 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
 Symbol No. Part No. Part Name Description Local
R6701 NRZ0058-R20X MG RESISTOR 0.2 Ω 1/2W J
R6702 NRSA6AD-114W MG RESISTOR 110k Ω 1/16W D
R6703 NRSA6AD-153W MG RESISTOR 15k Ω 1/16W D
R6704 NRSA6AJ-224W MG RESISTOR 220k Ω 1/16W J
R6706 NRSA6AD-823W MG RESISTOR 82k Ω 1/16W D
R6707 NRSA6AD-333W MG RESISTOR 33k
Ω 1/16W D
R6801 NRSA6AJ-0R0W MG RESISTOR 0
Ω 1/16W J
R6803 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R6804 NRVA6AD-563W CMF RESISTOR 56k Ω 1/16W D
 R6805 NRSA6AJ-102W MG RESISTOR 1k Ω 1/16W J
R6813 NRVA6AD-273W CMF RESISTOR 27k Ω 1/16W D
R6815 NRSA6AJ-681W MG RESISTOR 680 Ω 1/16W J
R8001 NRSA6AJ-103W MG RESISTOR 10k Ω 1/16W J
R8002 NRSA6AJ-103W MG RESISTOR 10k Ω 1/16W J
R8003 NRSA6AJ-103W MG RESISTOR 10k Ω 1/16W J
R8004 NQL402M-100X COIL 10uH M
R8005 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R8006 NRSA6AJ-153W MG RESISTOR 15k Ω 1/16W J
R8007 NRSA6AJ-472W MG RESISTOR 4.7k Ω 1/16W J
R8009 NRSA6AJ-472W MG RESISTOR 4.7k Ω 1/16W J
R8016 NRSA6AJ-103W MG RESISTOR 10k
Ω 1/16W J
R8017 NRSA6AJ-103W MG RESISTOR 10k
Ω 1/16W J
R8022 NRSA6AJ-105W MG RESISTOR 1M Ω 1/16W J
R8025 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R8026 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R8030 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R8031 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R8032 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R8037 NRSA6AJ-103W MG RESISTOR 10k Ω 1/16W J
R8038 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R8043 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R8046 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R8051 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R8054 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R8055 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R8056 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R8058 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R8059 NRSA6AJ-473W MG RESISTOR 47k Ω 1/16W J
R8063 NRSA6AJ-220W MG RESISTOR 22 Ω 1/16W J
R8065 NRSA6AJ-101W MG RESISTOR 100 Ω 1/16W J
R8066 NRSA6AJ-473W MG RESISTOR 47k Ω 1/16W J
R8067 NDCA1HJ-100W C CAPACITOR 10pF 50V J
R8068 NRSA6AJ-561W MG RESISTOR 560 Ω 1/16W J
R8070 NRSA6AJ-220W MG RESISTOR 22 Ω 1/16W J
R8074 NRSA6AJ-473W MG RESISTOR 47k Ω 1/16W J
R8075 NRSA6AJ-102W MG RESISTOR 1k Ω 1/16W J
R8302 NRS181J-220X MG RESISTOR 22 Ω 1/8W J
R8303 NRS181J-220X MG RESISTOR 22 Ω 1/8W J
R8305 NRSA6AJ-105W MG RESISTOR 1M Ω 1/16W J
R8306 NRSA6AJ-103W MG RESISTOR 10k
Ω 1/16W J
R8307 NRSA6AJ-103W MG RESISTOR 10k Ω 1/16W J
R8308 NRSA6AJ-103W MG RESISTOR 10k
Ω 1/16W J
R8309 NRSA6AJ-103W MG RESISTOR 10k
Ω 1/16W J
R8311 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R8312 NRSA6AJ-0R0W MG RESISTOR 0
Ω 1/16W J
R8716 NRSA6AJ-0R0W MG RESISTOR 0
Ω 1/16W J
R8717 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
RA1001 NRZ0034-473W NET RESISTOR 47k
Ω 1/32W J
RA1002 NRZ0034-104W NET RESISTOR 100k Ω 1/32W J
RA1004 NRZ0034-104W NET RESISTOR 100k
Ω 1/32W J
RA1005 NRZ0034-103W NET RESISTOR 10k
Ω 1/32W J
RA1006 NRZ0034-102W NET RESISTOR 1k Ω 1/32W J
RA1007 NRZ0034-102W NET RESISTOR 1k
Ω 1/32W J
RA1008 NRZ0034-104W NET RESISTOR 100k
Ω 1/32W J
RA3001 NRZ0034-560W NET RESISTOR 56 Ω 1/32W J
RA3002 NRZ0034-560W NET RESISTOR 56
Ω 1/32W J
RA3003 NRZ0034-100W NET RESISTOR 10
Ω 1/32W J
RA3004 NRZ0034-103W NET RESISTOR 10k
Ω 1/32W J
RA3005 NRZ0040-0R0X NET RESISTOR 0
Ω 1/16W J x4
RA8001 NRZ0034-101W NET RESISTOR 100 Ω 1/32W J
RA8002 NRZ0034-101W NET RESISTOR 100
Ω 1/32W J
RA8003 NRZ0034-101W NET RESISTOR 100
Ω 1/32W J
RA8004 NRZ0034-101W NET RESISTOR 100 Ω 1/32W J
L1001 NQL402M-100X COIL 10uH M
L1002 NQL402M-100X COIL 10uH M
L2101 NQL315K-100X COIL 10uH K
L2401 NQL402M-100X COIL 10uH M
 Symbol No. Part No. Part Name Description Local
MODEL MARK
GR-D60EK A
GR-D60EX B
GR-D60EY C

(No.86732)3-7
L2402 NQL402M-100X COIL 10uH M
L2604 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
L3001 NQR0129-002X FERRITE BEADS
L3002 NQR0129-002X FERRITE BEADS
L3004 NQR0006-001X FERRITE BEADS
L3005 NQR0006-001X FERRITE BEADS
L3007 NQL085J-2R2X COIL 2.2uH J
L3008 NQL085J-120X COIL 12uH J
L3012 NQR0129-002X FERRITE BEADS
L3014 NQL38DK-100X P COIL 10uH K
L3015 NQR0006-001X FERRITE BEADS
L3701 NQL38DK-100X P COIL 10uH K
L3801 NQR0129-002X FERRITE BEADS
L3802 NQR0129-002X FERRITE BEADS
L3803 NQR0006-001X FERRITE BEADS
L3804 NQL38DK-100X P COIL 10uH K
L4201 NQR0129-002X FERRITE BEADS
L4301 NQR0129-002X FERRITE BEADS
L4302 NQR0129-002X FERRITE BEADS
L4802 NQL302N-100X COIL 10uH N
L4851 NQR0129-002X FERRITE BEADS
L4852 NQL315K-100X COIL 10uH K
L4853 NQL315K-100X COIL 10uH K
L5501 NQL315K-100X COIL 10uH K
L5502 NQR0129-002X FERRITE BEADS
L5503 NQR0129-002X FERRITE BEADS
L5504 NQR0129-002X FERRITE BEADS
L5505 NQL315K-100X COIL 10uH K
L5506 NQL315K-100X COIL 10uH K
L6001 NQLZ011-4R7X COIL 4.7uH N
L6002 NQLZ011-4R7X COIL 4.7uH N
L6101 NQL52EM-390X COIL 39uH M
L6201 NQL52EM-390X COIL 39uH M
L6301 NQL52EM-390X COIL 39uH M
L6302 NQL144K-220X P COIL 22uH K
L6401 NQL52EM-470X COIL 47uH M
L6501 NQL52EM-470X COIL 47uH M
L6601 NQL52EM-221X COIL 220uH M
L6701 NQL73EM-100X COIL 10uH M
L6801 NQL034K-470X P COIL 47uH K
L8001 NQR0129-002X FERRITE BEADS
L8002 NQR0129-002X FERRITE BEADS
L8003 NQR0129-002X FERRITE BEADS
L8004 NQR0129-002X FERRITE BEADS
L8005 NQR0129-002X FERRITE BEADS
L8006 NQR0129-002X FERRITE BEADS
L8301 NQR0129-002X FERRITE BEADS
CN101 QGF0528F1-40X CONNECTOR FFC/FPC (1-40)
CN102 QGF0505F1-22X CONNECTOR FFC/FPC (1-22)
CN103 QGF0507F3-10X CONNECTOR FFC/FPC (1-10)
CN104 QGA1002C1-11X CONNECTOR W-B (1-11)
CN105 QGB0509M1-30X CONNECTOR B-B (1-30)
CN106 QGA1201C2-05X CONNECTOR W-B (1-5)
CN107 QGF0503C1-20X CONNECTOR FFC/FPC (1-20)
CN108 QGF0503C1-24V CONNECTOR FFC/FPC (1-24)
CN109 QGF0503F1-16X CONNECTOR FFC/FPC (1-16)
CN110 QGF0528F1-40X CONNECTOR FFC/FPC (1-40)
CN111 QGF0528F1-40X CONNECTOR FFC/FPC (1-40)
 F6001 NMFZ007-2R0X-K FUSE 2A 32V
 F6301 NMFZ007-1R25X-K FUSE 1.25A 32V
 F6701 NMFZ007-1R25X-K FUSE 1.25A 32V
 F6801 NMFZ007-R50X-K FUSE 0.5A 50V
J501 NNZ0041-001X D CONNECTOR IEEE1394(4pin)
J502 QNZ0616-001 USB CONNECTOR
X1001 NAX0578-001X CRYSTAL
X1002 NAX0564-001X CRYSTAL
X3002 NAX0480-001X CRYSTAL 24.576MHz
X5501 NAX0587-001X CXO
X8301 NAX0522-001X C RESONATOR 6.000MHz
OT1 LY30030-071A SPACER(A)
OT2 LY44158-001A SHEET(SHIELD)
WR1 QAL0474-001 FPC
MAIN-PREMDA(x2)
 Symbol No. Part No. Part Name Description Local
MODEL MARK
GR-D60EK A
GR-D60EX B
GR-D60EY C
(WPC)-200304
E. & O.E. No.86732 (WPC)-M3D126 GR-D60EK,GR-D60EX,GR-D60EY

SERVICE MANUAL
COPYRIGHT © 2003 VICTOR COMPANY OF JAPAN, LTD. No.86733
2003/04
DIGITAL VIDEO CAMERA
86733200304
GR-D70EK,GR-D70EX,
GR-D70EY,GR-D70EZ
SPECIFICATION
Camcorder
General
Digital Video Camera
Digital Still Camera Function
Connectors
AC Adapter
For disassembling and assembling of MECHANISM ASSEMBLY, refer to the SERVICE MANUAL No.86700 (MECHANISM ASSEMBLY).
PAL
Power supply : DC 11.0 V (Using AC Adapter)
DC 7.2 V (Using battery pack)
Power consumption
LCD monitor off,
viewfinder on : Approx. 3.4 W
LCD monitor on,
viewfinder off : Approx. 4.7 W
Dimensions
(W x H x D) : 69 mm x 94 mm x 143 mm
(with the LCD monitor closed and the viewfinder
pushed back in)
Weight : Approx. 525 g
Operating temperature : 0°C to 40°C
Operating humidity : 35% to 80%
Storage temperature : -20°C to 50°C
Pickup : 1/6" CCD
Lens : F 1.6, f = 2.7 mm to 43.2 mm, 16:1 power zoom lens
Filter diameter : Ø37 mm
LCD monitor : 2.5" diagonally measured, LCD panel/TFT active
matrix system
Viewfinder : Electronic viewfinder with 0.24" black/white LCD
Speaker : Monaural
Format : DV format (SD mode)
Signal format : PAL standard
Recording/Playback format : Video: Digital component recording
: Audio: PCM digital recording,
32 kHz 4-channel (12-bit),
48 kHz 2-channel (16-bit)
Cassette : Mini DV cassette
Tape speed : SP : 18.8 mm/s
LP : 12.5 mm/s
Maximum recording time : SP : 80 min.
(using 80 min. cassette) LP : 120 min.
Storage media : SD Memory Card/MultiMediaCard
Compression system : JPEG (compatible)
File size : 2 modes (1024 x 768 pixels, 640 x 480 pixels)
Picture quality : 2 modes (FINE/STANDARD)
Approximate number of
storable images : pg. 18.
S-Video
Output : Y : 1 V (p-p), 75 Ω, analogue
C : 0.29 V (p-p), 75 Ω, analogue
Input* : Y : 0.8 V (p-p) -1.2 V (p-p), 75 Ω, analogue
C : 0.2 V (p-p) -0.4 V (p-p), 75 Ω, analogue
AV
Video output : 1 V (p-p), 75 Ω, analogue
Video input* : 0.8 V (p-p) -1.2 V (p-p), 75 Ω, analogue
Audio output : 300 mV (rms), 1 kΩ, analogue, stereo
Audio input* : 300 mV (rms), 50 kΩ, analogue, stereo
DV
Output : 4-pin, IEEE 1394 compliant
Input : 4-pin, IEEE 1394 compliant
USB* :5-pin
EDIT : Ø3.5 mm, 2-pole
* GR-D70 only
Power requirement : AC 110 V to 240 V ~, 50 Hz/60 Hz
Output : DC 11 V , 1 A
Specifications shown are for SP mode unless otherwise indicated. E & O.E. Design and specifications subject
to change without notice.
GR-D70EK,GR-D70EX,GR-D70EY,GR-D70EZ M3D127

1-2 (No.86733)
TABLE OF CONTENTS
1 PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3
1.1 SAFTY PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3
2 SPECIFIC SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5
2.1 BEFORE ASSEMBLY AND DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5
2.2 ASSEMBLY AND DISASSEMBLY OF CABINET PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6
2.3 ASSEMBLY AND DISASSEMBLY OF CAMERA SECTION AND BOARD ASSEMBLY . . . . . . . . . .1-10
2.4 ASSEMBLY AND DISASSEMBLY OF [8]VF ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-12
2.5 ASSEMBLY AND DISASSEMBLY OF [10]MONITOR ASSEMBLY (CABINET PARTS) . . . . . . . . . .1-13
2.6 ASSEMBLY AND DISASSEMBLY OF [2]OP BLOCK ASSEMBLY
/ CCD BOARD ASSEMBLY (CAMERA SECTION AND BOARD ASSEMBLY) . . . . . . . . . . . . . . . . .1-15
2.7 SERVICE NOTE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-16
2.8 TAKE OUT CASSETTE TAPE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-17
2.9 EMERGENCY DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-18
3 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-19
3.1 PREPARATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-19
3.2 TOOLS REQUIRED FOR ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-19
3.3 JIG CONNECTOR CABLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-21
3.4 MECHANISM ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-22
3.5 ELECTRICAL ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-23
MODEL NUMBER GR-D70EK GR-D70EX GR-D70EY GR-D70EZ
POWER CORD BS TYPE CEE TYPE CEE TYPE CEE TYPE
CHARTS AND DIAGRAMS
BOARD INTERCONNECTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3
MAIN IF SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-5
CPU SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-7
AUDIO_AD SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-9
AUDIO SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-11
DV_MAIN SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-13
VIDEO I/O SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15
CAMERA DSP SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17
OP DRIVER SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-19
TG SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-21
USB SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-22
REG SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-23
DSC SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-25
MONI-BW SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-27
BL-2.5/BL-3.5 SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-29
CCD SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-30
MDA SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-31
PRE/REC SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-33
PREMDA IF SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-35
JACK SCHEMATIC DIAGRAM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-36
B/W-VF SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-37
ZOOM UNIT SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-38
MAIN CIRCUIT BOARD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-39
COMPONENT PARTS LOCATION GUIDE <MAIN> . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-43
COMPONENT PARTS LOCATION GUIDE <PREMDA> . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-44
PREMDA CIRCUIT BOARD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-45
MONI-BW CIRCUIT BOARD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-49
BL-2.5 CIRCUIT BOARD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-50
JACK CIRCUIT BOARD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-51
CCD CIRCUIT BOARD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-52
B/W-VF CIRCUIT BOARD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-52
VIDEO BLOCK DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-54
POWER SYSTEM BLOCK DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-57
VOLTAGE CHARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-59
PARTS LIST
1. EXPLODED VIEW. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1
1.1 PACKING AND ACCESSORY ASSEMBLY <M1> . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1
1.2 FINAL ASSEMBLY <M2> . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-2
1.3 MECHANISM ASSEMBLY <M3> . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
1.4 ELECTRONIC VIEWFINDER ASSEMBLY <M4> . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-5
1.5 MONITOR ASSEMBLY (2.5 INCH) <M5>. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-6
1.6 MONITOR ASSEMBLY (3.5 INCH) <M5>. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-7

(No.86733)1-3
SECTION 1
PRECAUTIONS
1.1 SAFTY PRECAUTIONS
Prior to shipment from the factory, JVC products are strictly in-
spected to conform with the recognized product safety and elec-
trical codes of the countries in which they are to be
sold.However,in order to maintain such compliance, it is equally
important to implement the following precautions when a set is
being serviced.
1.1.1 Precautions during Servicing
(1) Locations requiring special caution are denoted by labels
and inscriptions on the cabinet, chassis and certain parts of
the product.When performing service, be sure to read and
comply with these and other cautionary notices appearing in
the operation and service manuals.
(2) Parts identified by the symbol and shaded ( ) parts
are critical for safety.
Replace only with specified part numbers.
NOTE :
Parts in this category also include those specified to
comply with X-ray emission standards for products
using cathode ray tubes and those specified for com-
pliance with various regulations regarding spurious
radiation emission.
(3) Fuse replacement caution notice.
Caution for continued protection against fire hazard.
Replace only with same type and rated fuse(s) as specified.
(4) Use specified internal wiring. Note especially:
• Wires covered with PVC tubing
• Double insulated wires
• High voltage leads
(5) Use specified insulating materials for hazardous live parts.
Note especially:
• Insulation Tape
• PVC tubing
•Spacers
• Insulation sheets for transistors
• Barrier
(6) When replacing AC primary side components (transformers,
power cords, noise blocking capacitors, etc.) wrap ends of
wires securely about the terminals before soldering.
Fig.1-1-1
(7) Observe that wires do not contact heat producing parts
(heatsinks, oxide metal film resistors, fusible resistors, etc.)
(8) Check that replaced wires do not contact sharp edged or
pointed parts.
(9) When a power cord has been replaced, check that 10-15 kg
of force in any direction will not loosen it.
Fig.1-1-2
(10) Also check areas surrounding repaired locations.
(11) Products using cathode ray tubes (CRTs)In regard to such
products, the cathode ray tubes themselves, the high volt-
age circuits, and related circuits are specified for compliance
with recognized codes pertaining to X-ray emission. Conse-
quently, when servicing these products, replace the cathode
ray tubes and other parts with only the specified parts. Under
no circumstances attempt to modify these circuits.Unautho-
rized modification can increase the high voltage value and
cause X-ray emission from the cathode ray tube.
(12) Crimp type wire connector
In such cases as when replacing the power transformer in
sets where the connections between the power cord and
power trans former primary lead wires are performed using
crimp type connectors, if replacing the connectors is un-
avoidable, in order to prevent safety hazards, perform care-
fully and precisely according to the following steps.
•Connector part number :E03830-001
•Required tool : Connector crimping tool of the proper
type which will not damage insulated parts.
•Replacement procedure
a) Remove the old connector by cutting the wires at a
point close to the connector.
Important : Do not reuse a connector (discard it).
Fig.1-1-3
b) Strip about 15 mm of the insulation from the ends of
the wires. If the wires are stranded, twist the strands
to avoid frayed conductors.
Fig.1-1-4
c) Align the lengths of the wires to be connected. Insert
the wires fully into the connector.
Fig.1-1-5
d) As shown in Fig.1-1-6, use the crimping tool to crimp
the metal sleeve at the center position. Be sure to
crimp fully to the complete closure of the tool.
Fig.1-1-6
e) Check the four points noted in Fig.1-1-7.
Fig.1-1-7
Power cord
cut close to connector
15 mm
Connector
Metal sleeve
1.25
2.0
5.5
Crimping tool
Not easily pulled free Crimped at approx. cente
r
of metal sleev
e
Conductors extended
Wire insulation recessed
more than 4 mm

1-4 (No.86733)
1.1.2 Safety Check after Servicing
Examine the area surrounding the repaired location for damage
or deterioration. Observe that screws, parts and wires have been
returned to original positions, Afterwards, perform the following
tests and confirm the specified values in order to verify compli-
ance with safety standards.
(1) Insulation resistance test
Confirm the specified insulation resistance or greater be-
tween power cord plug prongs and externally exposed
parts of the set (RF terminals, antenna terminals, video and
audio input and output terminals, microphone jacks, ear-
phone jacks, etc.).
See table 1 below.
(2) Dielectric strength test
Confirm specified dielectric strength or greater between
power cord plug prongs and exposed accessible parts of
the set (RF terminals, antenna terminals, video and audio
input and output terminals, microphone jacks, earphone
jacks, etc.). See Fig.1-1-11 below.
(3) Clearance distance
When replacing primary circuit components, confirm spec-
ified clearance distance (d), (d') between soldered termi-
nals, and between terminals and surrounding metallic
parts. See Fig.1-1-11 below.
Fig.1-1-8
(4) Leakage current test
Confirm specified or lower leakage current between earth
ground/power cord plug prongs and externally exposed ac-
cessible parts (RF terminals, antenna terminals, video and
audio input and output terminals, microphone jacks, ear-
phone jacks, etc.).
Measuring Method : (Power ON)
Insert load Z between earth ground/power cord plug
prongs and externally exposed accessible parts. Use an
AC voltmeter to measure across both terminals of load Z.
See Fig.1-1-9 and following Fig.1-1-12.
Fig.1-1-9
(5) Grounding (Class 1 model only)
Confirm specified or lower grounding impedance between
earth pin in AC inlet and externally exposed accessible
parts (Video in, Video out, Audio in, Audio out or Fixing
screw etc.).
Measuring Method:
Connect milli ohm meter between earth pin in AC inlet and
exposed accessible parts. See Fig.1-1-10 and grounding
specifications.
Fig.1-1-10
Fig.1-1-11
Fig.1-1-12
NOTE :
These tables are unofficial and for reference only. Be sure to confirm the precise values for your particular country and locality.
ab
c
V
A
Externally
exposed
accessible part
Z

(No.86733)1-5
SECTION 2
SPECIFIC SERVICE INSTRUCTIONS
2.1 BEFORE ASSEMBLY AND DISASSEMBLY
2.1.1 Precautions
1. Be sure to disconnect the power supply unit prior to mount-
ing and soldering of parts.
2. Prior to removing a component part that needs to disconnect
its connector(s) and its screw(s), first disconnect the wire(s)
from the connector(s), and then remove the screw(s).
3. When connecting/disconnecting wires, pay enough atten-
tion not to damage the connectors.
4. Be careful in removing or handling the part to which some
spacer or shield is attached for reinforcement or insulation.
5. When replacing chip parts (especially IC parts), first remove
the solder completely to prevent peeling of the pattern.
6. Tighten screws properly during the procedures. Unless
specified otherwise, tighten screws at a torque of
0.088N•m (0.9kgf•cm).
2.1.2 Assembly and disassembly
(1) Order of steps in Procedure
When reassembling, preform the step(s) in the reverse
order. These numbers are also used as the identification
(location) No. of parts Figures.
(2) Part to be removed or installed.
(3) Fig. No. showing Procedure or Part Location.
(4) Identification of part to be removed, unhooked, unlocked,
released, unplugged, unclamped or unsoldered.
(5) Adjustment information for installation.
2.1.3 Destination of connectors
2.1.4 Disconnection of connectors (Wires)
Pull both ends of the connector in the arrow direction, remove the
lock and disconnect the flat wire.
Fig.2-1-1
Extend the locks in the direction of the arrow for unlocking and
then pull out the wire. After removing the wire, immediately re-
store the locks to their original positions because the locks are
apt to come off the connector.
Fig.2-1-2
2.1.5 Tools required for disassembly and assembly
Fig.2-1-3
C = CABINET
D = CAMERA AND BOARD ASSEMBLY
P=Spring
W=Washer
S=Screw
* = Unhook, unlock, release, unplug or unsolder.
2(S3) = 2 Screws (S3)
CN = Connector
(4) (5)(2) (3)(1)
[Example]
TOP COVER ASSEMBLY
UPPER ASSEMBLY
(Inc. VF ASSEMBLY,
SPEAKER/MONITOR)
VF ASSEMBLY
Fig.C1
Fig.C2-1
Fig.C2-2
S1,2(L1)
S2a,2(S2b),3(S2c)
2(S2d),S2e,S2c
L2,CN2a,b
2(S8),L8,CN8a
-
-
NOTE 8a
NOTE 8b
[1]
[2]
[8]
STEP
No. PART NOTE
Fig.
No. POINT
CN2a
CN2b
MAIN CN101
MAIN CN103
40
10
CONN.
No. Pin No.
CONNECTOR
Remove the parts marked in .
[Example]
Two kinds of double-arrows in connection tables respectively
show kinds of connector/wires.
: Flat wire
: Wire
MONIBW CN761
MINIBW CN762
Connector
Flat wire
Connector
Flat wire
Torque driver
YTU94088
12
34
Bit
YTU94088-003
Tweezers
P-895
Chip IC replacement jig
PTS40844-2
5
Cleaning cloth
KSMM-01

1-6 (No.86733)
1.Torque driver
Be sure to use to fastening the mechanism and exterior parts
because those parts must strictly be controlled for tightening
torque.
2.Bit
This bit is slightly longer than those set in conventional torque
drivers.
3.Tweezers
To be used for removing and installing parts and wires.
4.Chip IC replacement jig
To be used for replacement of IC.
5.Cleaning cloth
Recommended cleaning cloth to wipe down the video heads,
mechanism (tape transport system), optical lens surface.
2.2 ASSEMBLY AND DISASSEMBLY OF CABINET PARTS
2.2.1 Disassembly flow chart
This flowchart indicates the disassembly step for the cabinet
parts and board assembly in order to gain access to item(s) to be
serviced. When reassembling, perform the step(s) in reverse or-
der.
2.2.2 Disassembly method
NOTE 8a:
Take care not to cut the FPC wire when and after removing the
VF ASSEMBLY.
NOTE 8b:
As for disassembly/assembly of [8]VF ASSEMBLY, see 2.4
ASSEMBLY AND DISASSEMBLY OF [8] VF ASSEMBLY.
NOTE 10a:
Take care not to cut the FPC when and after removing the
MONITOR ASSEMBLY.
NOTE 10b:
As for disassembly/assembly of [10] MONITOR ASSEMBLY,
see 2.5 ASSEMBLY AND DISASSEMBLY OF [10] MONITOR
ASSEMBLY.
NOTE 11a:
Before removing the MONI-BW BOARD ASSEMBLY, check
whether MEMORY CARD is inserted or not. If MEMORY
CARD is inserted, pull out the MEMORY CARD before remov-
ing the MONI-BW BOARD ASSEMBLY.
NOTE 11b:
Since the SPEAKER is soldered to the MONI-BW BOARD AS-
SEMBLY, the SPEAKER should not be separated from the
MONI-BW BOARD ASSEMBLY except when replacing the
SPEAKER.
NOTE 11c:
Take care not to lose the KNOB(SLIDE). When attaching the
KNOB(SLIDE), attach the KNOB(SLIDE) in a proper position.
NOTE 3:
After removing the FRONT COVER ASSEMBLY, OP BLOCK
ASSEMBLY is not covered with anything. Take care not to
damage the OP BLOCK ASSEMBLY when and after removing
the FRONT COVER ASSEMBLY.
[1]
[2]
TOP COVER ASSEMBLY
UPPER ASSEMBLY
(Inc. VF ASSEMBLY,
SPEAKER/MONITOR)
[8] VF ASSEMBLY
[9] COVER(UPPER)
[10] MONITOR ASSEMBLY
[11] MONI-BW BOARD ASSEMBLY
[12] SPEAKER
[3] FRONT COVER ASSEMBLY
(Inc.MIC)
[4]
[5]
[6]
[7]
MIC
COVER(ZOOM)
REAR UNIT
LOWER ASSEMBLY
TOP COVER ASSEMBLY
UPPER ASSEMBLY
(Inc. VF ASSEMBLY,
SPEAKER/MONITOR)
VF ASSEMBLY
COVER(UPPER)
MONITOR ASSEMBLY
MONI-BW BOARD ASSEMBLY
SPEAKER
FRONT COVER ASSEMBLY
(Inc.MIC)
MIC
COVER(ZOOM)
REAR UNIT
LOWER ASSEMBLY
MAIN CN101
MAIN CN103
MONI-BW CN763
MONI-BW CN765
MAIN CN106
MAIN CN104
MAIN CN102
MAIN CN109
MONI-BW CN761
MONI-BW CN762
VF ASSEMBLY -
BL-2.5/3.5 -
MIC -
REAR UNIT -
JACK CN501
ZOOM UNIT -
Fig.C1
Fig.C2-1
Fig.C2-2
Fig.C2-3
Fig.C2-4
Fig.C3
Fig.C4
S1,2(L1)
S2a,2(S2b),3(S2c)
2(S2d),S2e,S2c
L2,CN2a,b
2(S8),L8,CN8a
2(S9),L9
2(S10a),CN10a,2(S10b),L10
2(S11a),2(S11b),4(S11c)
BKT(HINGE),KNOB(SLIDE)
COVER(JACK),S3,L3a,L3b
CN4
S4
S5a,3(S5b),2(L5)
CN6,S6
CN7a,b,S7a,3(S7b)
-
-
NOTE 8a
NOTE 8b
-
NOTE 10a
NOTE 10b
NOTE 11a
NOTE 11b
NOTE 11c
NOTE 3
-
[1]
[2]
[8]
[9]
/[10]
[11]
/[12]
[3]
/
[4]
[5]
/[6]
/[7]
CN2a
CN2b
CN8a
CN10a
CN4
CN6
CN7a
CN7b
40
10
20
32
5
11
22
16
STEP
No. PART
CONN.
No. Pin No.
CONNECTOR
NOTE
Fig.
No. POINT
Remove the parts marked in .

(No.86733)1-7
Fig.C1 Fig.C2-2
Fig.C2-1
L1
(S1)
1
[1]
c
NOTE 8a
NOTE 8b
13
(S8)
12
(S8)
[8]
c
L8
CN8a
a
b
b
a
7
[2]
([8]-[12])
(S2c)
2
(S2a)
3
(S2b)
8
(S2d)
10
(S2e)
11
(S2c)
9
(S2d)
4
(S2b)
5
(S2c)
6
(S2c)
CN2a
CN2b
L2
TOP SIDE
REAR SIDE
BOTTOM SIDE
c

1-8 (No.86733)
Fig.C2-3 Fig.C3
Fig.C2-4
16
(S10a)
NOTE 10a
d
d
17
(S10a)
14
(S9)
15
(S9)
0.147N.m(1.5kgf.cm)
L10
[10]
[9]
L9
CN10a
18
(S10b)
19
(S10b)
NOTE 10b
L.CASE SIDE
28
(S3)
CN4
L3a
OP BLOCK ASSEMBLY
NOTE 3
L3b
[4]
[3]([4])
29
(S4)
28
(S3)
COVER
(JACK)
e
e
20
(S11a)
22
(S11b)
21
(S11a)
23
(S11b)
[12]
NOTE11b
BKT(HINGE)
[11]
NOTE11c
KNOB(SLIDE)
24
(S11c)
25
(S11c)
27
(S11c)
26(S11c)
NOTE 11a

(No.86733)1-9
Fig.C4
[6]
34
(S6)
h
g
h
g
35
(S7a)
38
(S7b)
32
(S5b)
31
(S5b)
33
(S5b)
37
(S7b)
36
(S7b)
30
(S5a)
CN7a
CN7b
CN6
[5]
[7] L5 f
f
