JVC KY-F58 User manual

KY-F58
COLOR VIDEO CAMERA
INSTRUCTIONS
For Customer Use:
Enter below the Serial No. which
are located on the bodys.
Retain this information for future
reference.
Model No. KY-F58
Serial No.
FREEZE
Digital
Memory
CAUTION
This section of instruction manual is specially edited for serv-
ice manual with modified contents.
It is not recommended to use this section for the substitution
of the original instructions included in the merchandise.

2 Revised in August 1998
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION:
To prevent electric shocks and fire hazards, do NOT use
other than specified power source.
Information for USA
This device complies with Part 15 of the FCC Rules.
Changes or modifications not approved by JVC could void
the user's authority to operate the equipment.
INFORMATION (FOR CANNADA)
RENSEIGNEMENT (POUR CANADA)
• This Class B digital apparatus complies with Canadian
ICES-003.
• Cet appareil numérique de la classe B est conforme à la
norme NMB-003 du Canada.
The lightning flash with arrowhead symbol,
within an equilateral triangle is intended to alert
the user to the presence of uninsulated “dan-
gerous voltage” within the product's enclosure
that may be of sufficient magnitude to consti-
tute a risk of electric shock to persons.
The exclamation point within an equilateral tri-
angle is intended to alert the user to the pres-
ence of important operating and maintenance
(servicing) instructions in the literature accom-
panying the appliance.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO
NOT EXPOSE THIS UNIT TO RAIN OR MOIS-
TURE.
Due to design modifications, data given in this
instruction book are subject to possible
change without prior notice.
Changes or modifications not approved by JVC could void
the user's authority to operate the equipment.
This unit is designed for professional use only.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO
NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.
Changes or modifications not approved by JVC could void
the user's authority to operate the equipment.
This unit is designed for professional use only.
IMPORTANT
The wires in this mains lead are coloured in accordance
with the following code:
GREEN-AND-YELLOW:
BLUE:
BROWN:
As the colours of the wires in the mains lead of this appara-
tus may not correspond with the coloured markings identi-
fying the terminals in your plug, proceed as follows.
The wire which is coloured GREEN-AND-YELLOW must
be connected to the terminal in the plug which is marked
with the letter E or by the safety earth symbol or col-
oured GREEN or GREEN-AND-YELLOW. The wire which
is coloured BLUE must be connected to the terminal which
is marked with the letter N or which is coloured BLACK.
The wire which is coloured BROWN must be connected
to the terminal which is marked with the letter L or coloured
RED.
EARTH
NEUTRAL
LIVE
WARNING — THIS APPARATUS
MUST BE EARTHED.
[E Ver.]
[U Ver.]

3
Thank you for purchasing the JVC KY-F58 Color Video
Camera.
FEATURES .............................................................................. 3
BASIC CONFIGURATION ........................................................ 3
1. INTRODUCTION
PRECAUTIONS ON PROPER USE ........................................ 4
2. CONTROLS, INDICATIONS AND CONNECTORS
CAMERA CONTROL UNIT [Panel side] .................................. 5

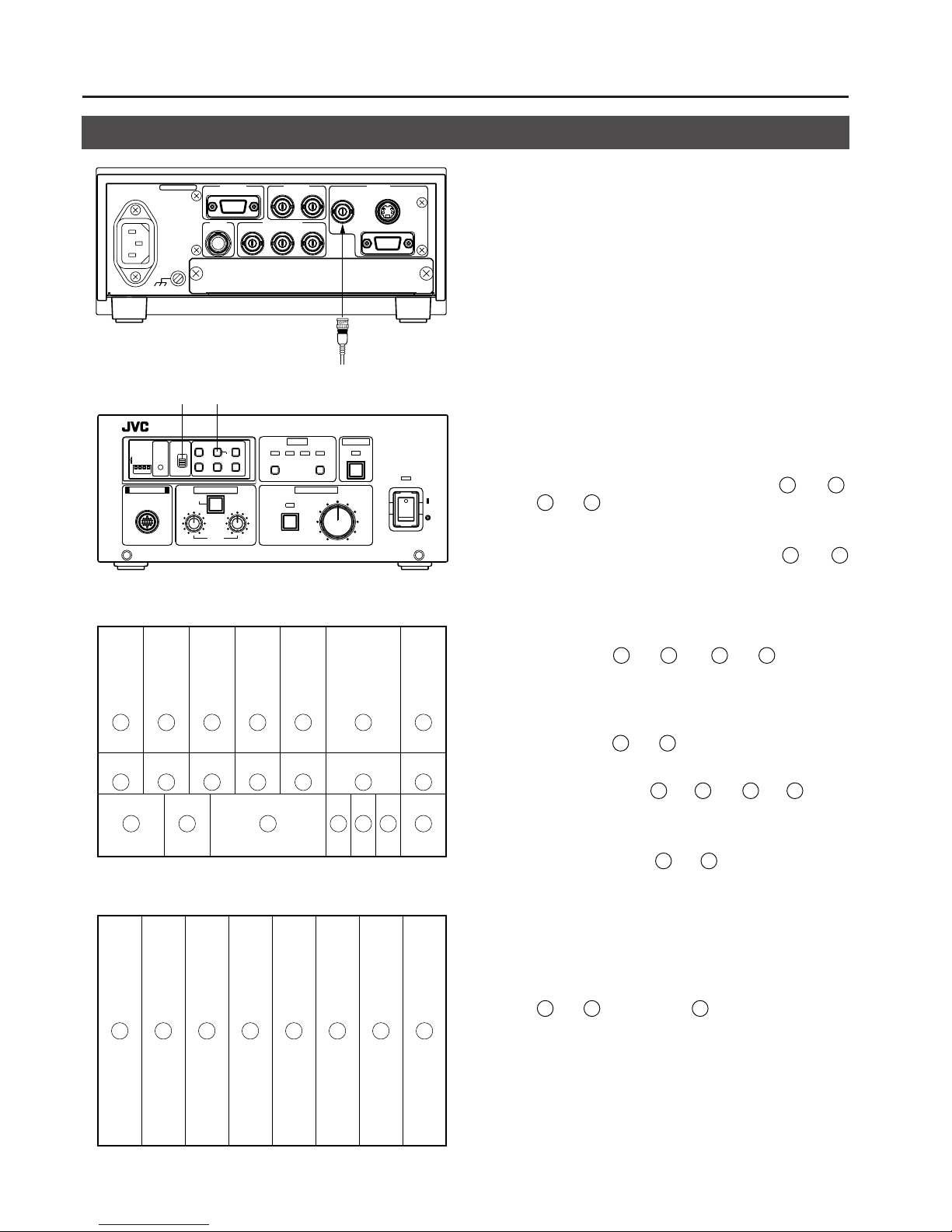

CAMERA CONTROL UNIT [Rear side] .................................... 7
CAMERA HEAD ....................................................................... 8

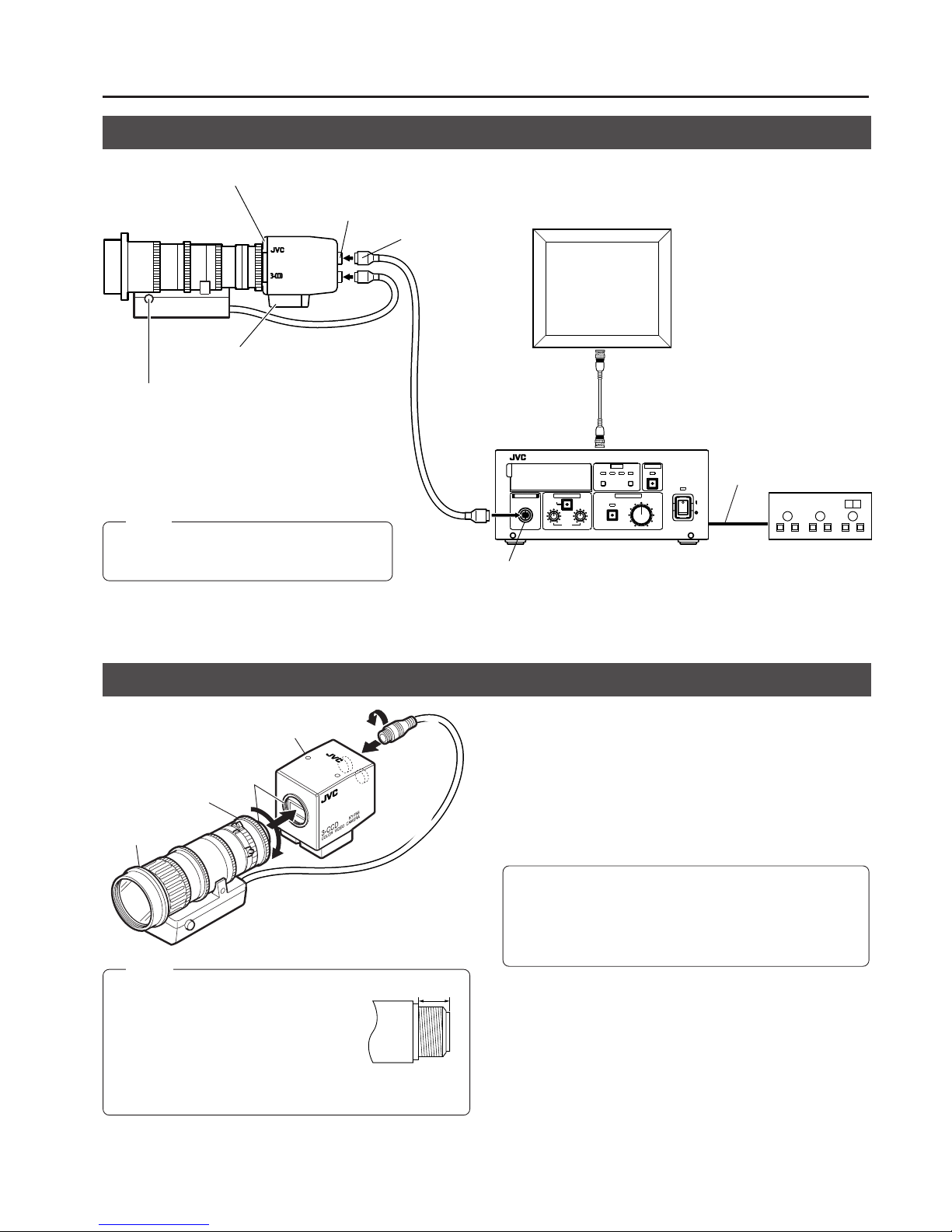

3. CONNECTIONS
BASIC SYSTEMS .................................................................... 9
MOUNTING THE OPTIONAL LENS (T14 x 5.5MD) TO THE
CAMERA HEAD ....................................................................... 9
HOW TO MOUNT THE CAMERA HEAD ............................... 10
CONNECTING THE CAMERA HEAD
AND CCU (CAMERA CONTROL UNIT )................................ 10

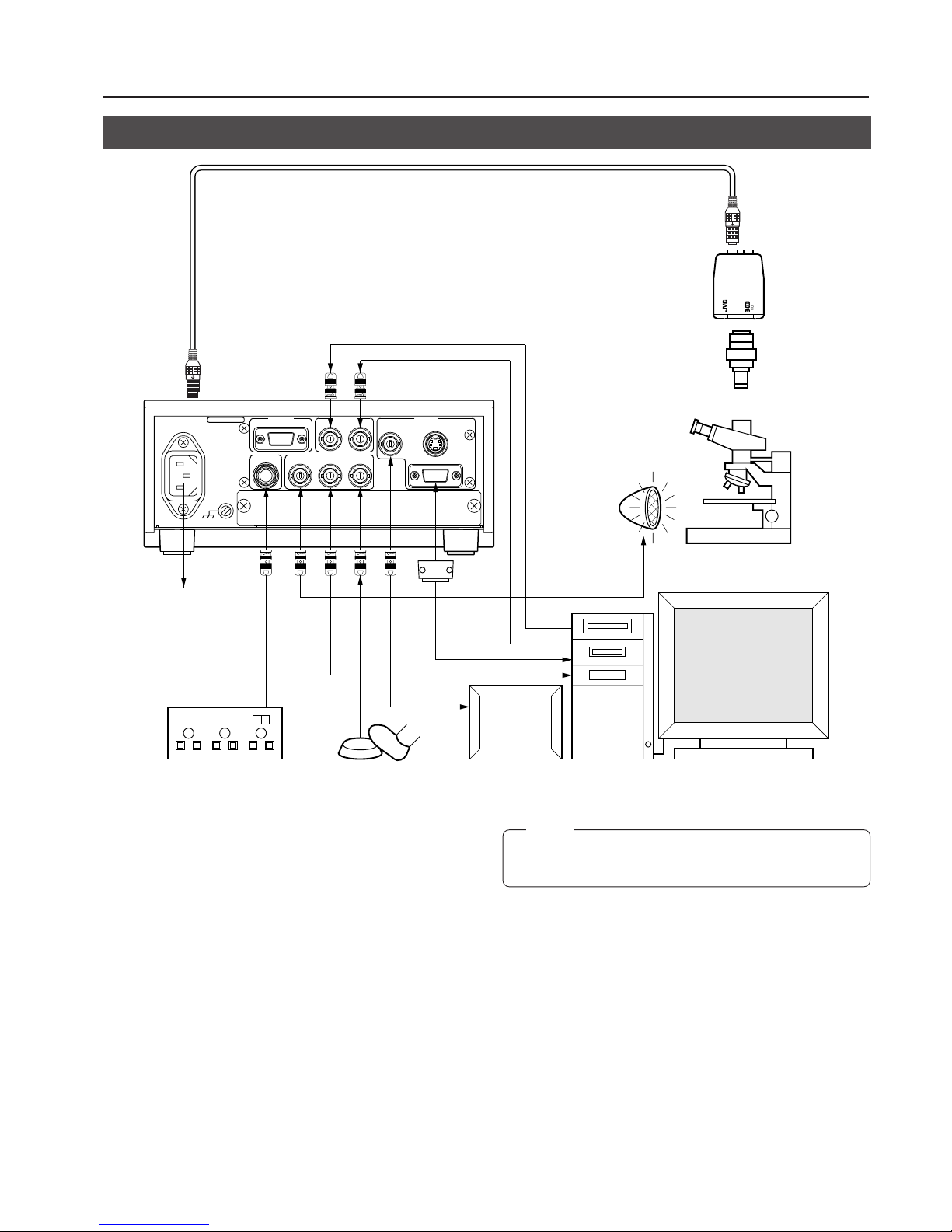

SYSTEM APPLICATION ........................................................ 11
4. BASIC ADJUSTMENTS BEFORE USE (Be sure)

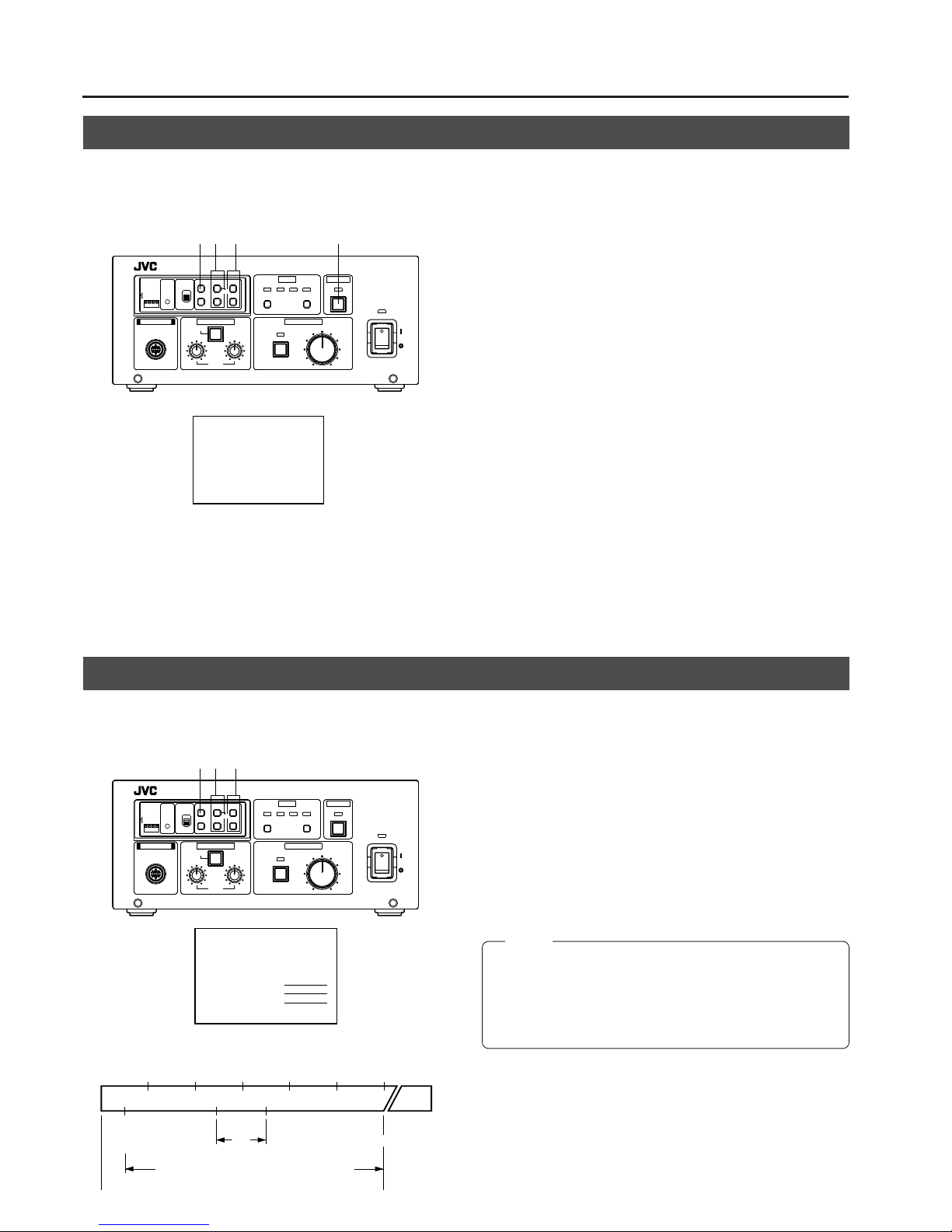

MONITOR ADJUSTMENT ..................................................... 12
WHITE BALANCE ADJUSTMENT ......................................... 13
WHITE SHADING ADJUSTMENT ......................................... 14
FULL TIME AUTO-WHITE FUNCTION .................................. 14
5. OPERATION
FILE SETTING ....................................................................... 15

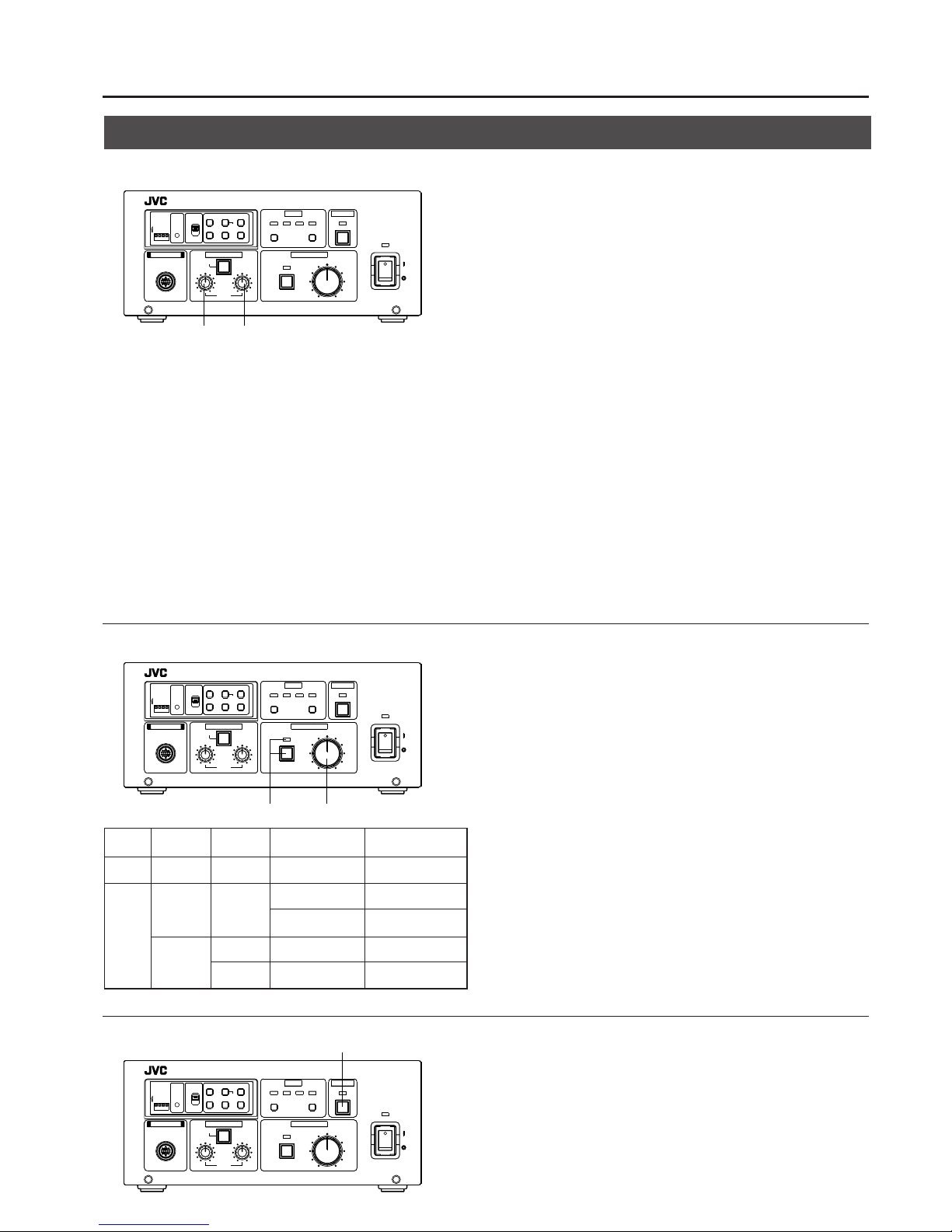

MANUAL OPERATION .......................................................... 17
6. SETTING ON THE MENU SCREEN
MENU OPERATION ............................................................... 18

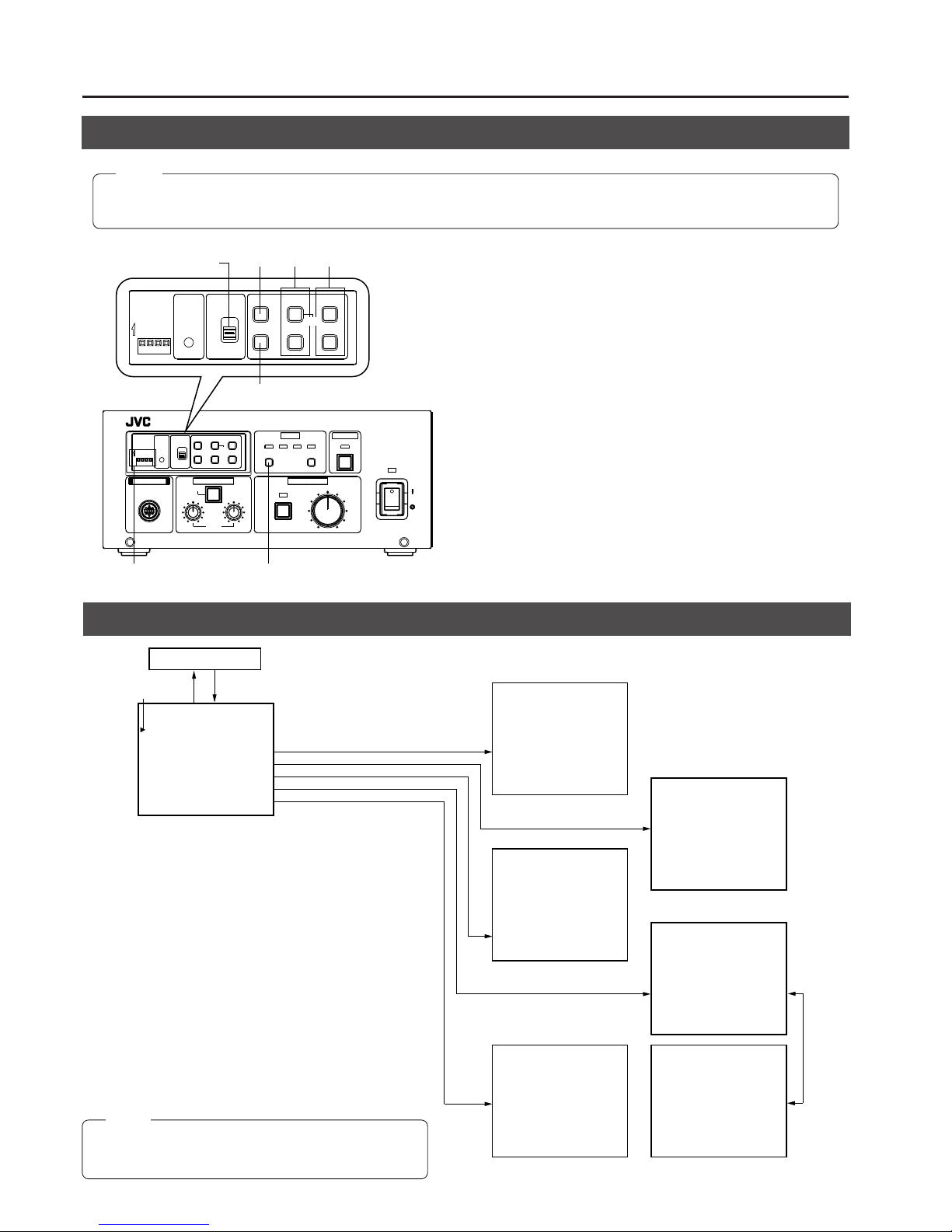

MENU SCREEN FLOW ......................................................... 18
VIDEO LEVEL SCREEN ........................................................ 19
WHITE BALANCE SCREEN .................................................. 20
FREEZE SCREEN ................................................................. 21
PROCESS SCREEN .............................................................. 23
TOTAL SETTING SCREEN.................................................... 25
7. OTHERS
TECHNICAL INFORMATION ................................................. 26
SPECIFICATIONS .................................................................. 29
CONTENTS
FEATURES
• High quality 1/3” and 3CCD format camera
• The camera head can be dismantled to produce a compact
component.
• A built-in Frame Memory function enables a STROBE SYNC
and RANDOM TRIGGER to operate the camera without add-
ing any further equipment.
• Quick set-up can be achieved with a “Scene File”.
• Direct connection to various units is available with various out-
put signals such as RGB, VBS, Y/C and a color difference
component.
• RS-232C can be interface.
BASIC CONFIGURATION
CAMERA HEAD
CAMERA MOUNTING
BRACKET
(With two screws)
CAMERA
CONTROL
UNIT
CAMERA CABLE
(5m)
AC CABLE
(2m)
LABEL
(where you can write the
file name and stick to the
panel for convenience)
FREEZE
PRECAUTION
The camera head and camera control unit must have the
same serial number.
Each set of units has the same serial number when it is
shipped out from the factory in order to guarantee its best
performance.
see subsection 1.8 of this service maual

4
1. INTRODUCTION
PRECAUTIONS ON PROPER USE
• When recording an important event, be sure to try the
camera first before using it in order to check that the cam-
era operates properly.
• JVC does not guarantee the contents of a recording if the
color video camera, VCR or video cassette malfunctions
during recording.

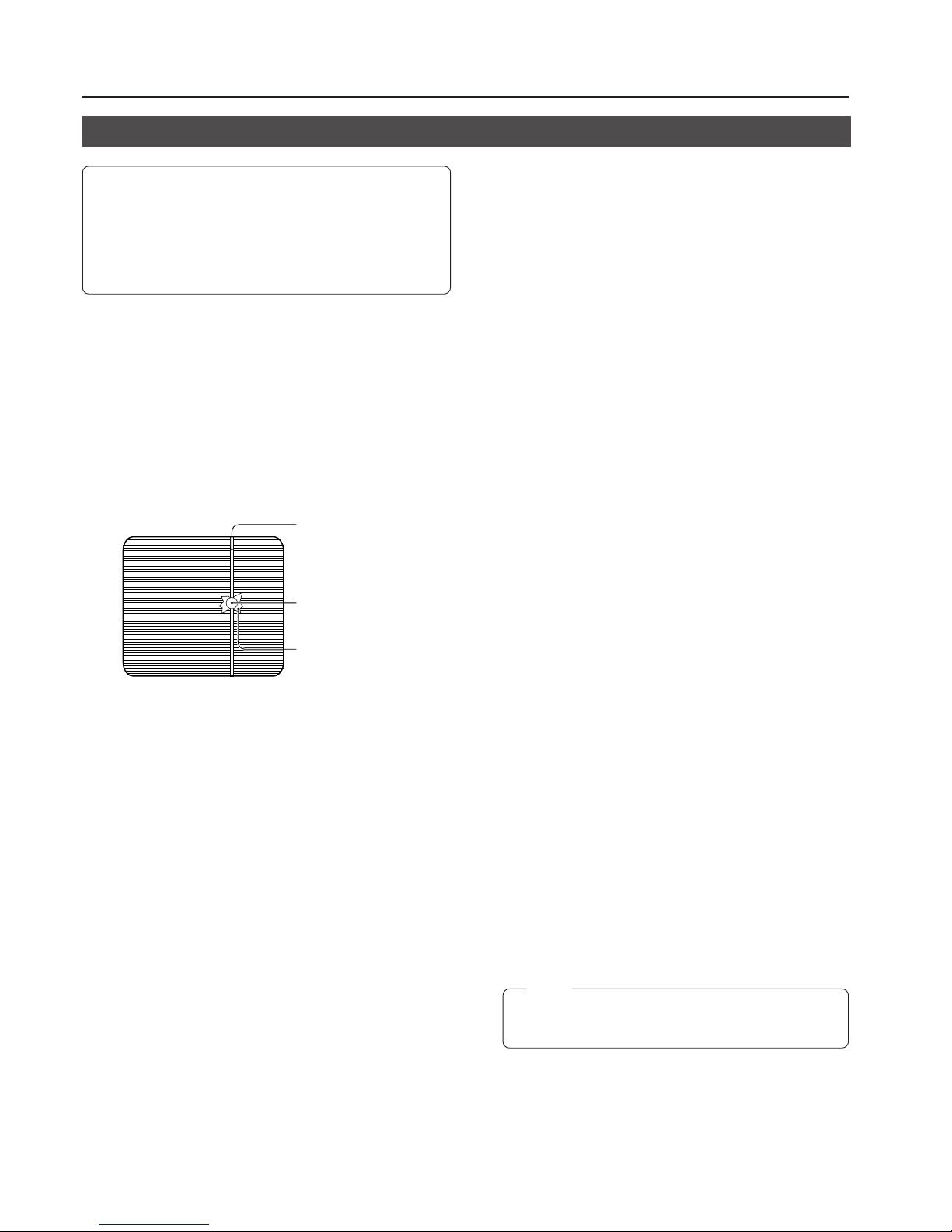

䡵Unique phenomenon of CCD
䢇SMEAR AND BLOOMING
Due to the physical structure of the CCDs in this camera it is
possible to induce vertical streaking which is called smear
when shooting a light source with high luminance.
Another effect is the spreading of light around a bright light
or object called Blooming.
To protect your image against lens flare (internal lens reflec-
tions), JVC has adopted a CCD which has less of these phe-
nomenon, however, please be careful when shooting a light
source with high luminance.
䢇When stripe pattern or lines are shot, they may become jag-
ged.
䢇White dot
Whit dots may appear on a screen when operating at high
temperature.
䡵Please turn off the power switch when camera is
not in use.
䡵RS-232C INTERFACE
With regard to CONTROL COMMAND etc., please consult
with your local JVC authorized service dealer.
䡵HANDLING PRECAUTIONS
䢇Storage
Avoid using or placing the unit in places;
• subject to extreme heat or cold;
• with excessive dirt or dust;
• with high humidity or moisture;
• subject to strong vibrations or on an unstable surface
• subject to smoke or vapor such as near a cooking stove;
• also do not leave the unit for long hours in a parked car
under direct sunlight or near room heating equipment.
䢇Ambient Temperature
Ambient temperature influence to an image sensing device.
Make sure to operate the camera in the temperature range
of –5˚C to 45˚C.
䢇Ventilation holes
A malfunction may be caused if heat is not properly venti-
lated. Make sure that the cooling fan ventilation holes are not
blocked by an obstruction.
䢇Effects of strong electric waves and magnetism
To avoid picture interference and color variation, do not use
the camera near a radio, TV antenna, transformers or mo-
tors which generate strong magnetic field.
䢇COMPATIBLE LENSES
The lens mount for this camera, KY-F58 is a C-Mount, how-
ever, there remain some lenses adopting a C-Mount which
cannot be used because of camera limitations.
Refer to “MOUNTING THE OPTIONAL LENS (T14 x 5.5MD)
TO THE CAMERA HEAD” on page 9.
The KY-F58 is not equipped with a back focus adjustment
feature, therefore a lens with this feature should be mounted.
䢇EFFECT FROM A WIRELESS MICROPHONE
When using a wireless microphone or a receiver, noise inter-
ference might be pick-up during recording. Please check this
before using.
䢇CLEANING THE BODY
When cleaning the cabinet, wipe it with soft cloth.
Do not use benzene or thinner as these may deform or
discolor the cabinet surface.
To remove excessive dirt, clean the unit with a mild deter-
gent diluted with water, then wipe it with dry cloth.
SMEAR
Vertical streaks trailing
from a bright object.
Bright object
(i.e. light bulb, sun, etc.)
BLOOMING
Bright portion bleeds
MONITOR SCREEN
Note:
CAMERA MOUNTING
Make sure to mount the camera firmly.

5
2. CONTROLS, INDICATIONS AND CONNECTORS

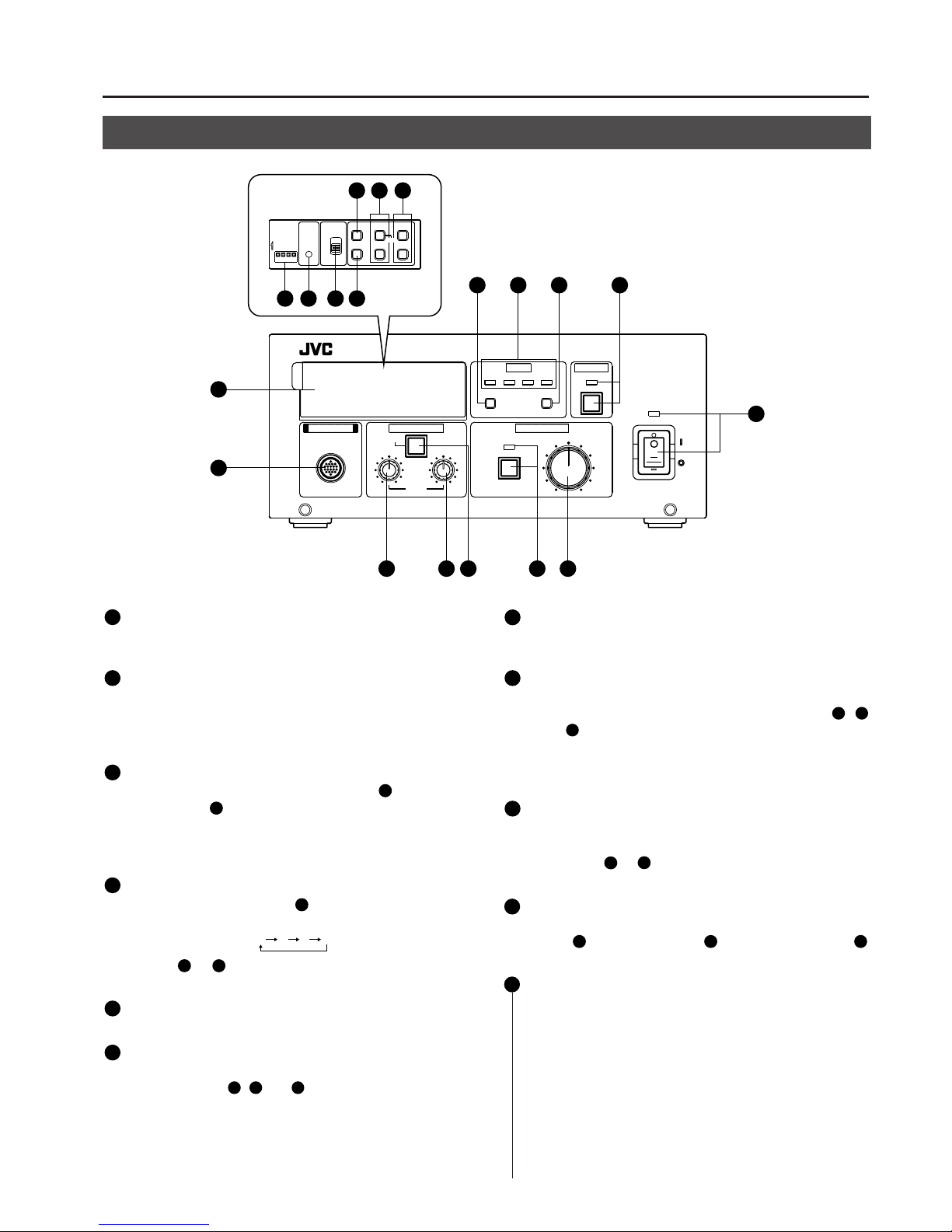

Camera Control [Panel side]
1
[POWER] power switch and its LED
This is the ON/OFF power switch. When power is supplied
the LED light.
2
[FREEZE] freeze button and its LED
The video signal can be frozens by this button.
When the freeze button is pressed, the LED light. When the
freeze is released, the LED turns off.
Refer to the “MANUAL OPERATION” on page 17.
3
[MEMORY] memory button
Select one of the FILES LEDs, No. 1 to 4
4
with the SE-
LECT button
5
. Then press and hold MEMORY button for
more than 2 seconds to register the value set at the MENU
screen to be the selected file.
Refer to the “FILE SETTING” on page 15.
4
[FILES] file selected LEDs
When the [SELECT] button
5
is pressed, the LED for the
selected file lights. Each time the SELECT button is pressed,
the file LED changes 1 2 3 4 in turn.
For the
5
to
10
, refer to the “6. SETTING ON THE MENU
SCREEN” on the page 18.
5
[SELECT] select button
Each time this button is pressed, the file changes.
6
[MENU] menu button
When this button is pressed, “on screen” signals are output
from connectors
20
,
21
and
22
to display the MENU screen.
When again pressing this button, the normal screen is re-
sumed.
ON
OFF
CAMERA CONTROL UNIT KY-F58
FREEZEFILES
WHITE PAINT
POWER
VIDEO LEVELTO CAMERA
4321
MEMORYSELECT
MENU
FULL AUTO
RB
LEVEL
PAINT
SET
PULL OPEN
1
13
14
15
34
16 1917 18
5 2
LOCK
SET ITEM-
ITEM+ DATA+
DATA-
RESET
ON
4321
ON
OFF
7 101112
6 8 9
BARS
MENU
7
[SET] set button.
To choose the item on the MENU screen, press this button
to display the sub-menu screen.
8
[ITEM+ (BARS), ITEM–] item buttons
• When ITEM+ button is pressed on the normal screen, the
color bar signal is output from output connectors
20
,
21
and
22
. When pressing this again, it returns to the normal
screen.
• When the menu screen is displayed ,the required item can
be selected.
9
[DATA+, DATA–] data buttons
When the menu screen is displayed, data of each item can
be changed.
For the step
5
to
9
, refer to “6. SETTING ON THE MENU
SCREEN” on the page 18.
10
[LOCK] lock switch
When the lock switch is “ON”, all functions except the Power
switch
1
, the Freeze button
2
, and the select button
5
cannot be operated.
11
[RESET] reset button
When this button is pressed, the set values for each FILE
are reset to the initial values set at factory.
Refer to “RESET” on the page 16.
see subsection 1.6.2 of this service maual

6
2. CONTROLS, INDICATIONS AND CONNECTORS (Cont’d)
12
Set up switch
This switch changes the FILE setting and the RANDOM
TRGGER setting. Change the setting according to the de-
sired use.
Camera Control [Panel side] (Cont’d)
Connector view from the main unit front
(20-pin connector, female)
Pin No. Signal Pin No. Signal
1
2
3
4
5
6
7
8
9
10
GND
WEN
B
CLK
DATA
CS HE
SHCT
IFHB
IFVS
G
11
12
13
14
15
16
17
18
19
20
CS LE
IRIS CTL/IRIS Y
–10V
–5V
R
VIDEO SHIELD
20V
15V
5.5V
LENS GND
1
20
2
16
5
19
6
11
10
15
15
[PAINT R] paint R adjust knob
This is the knob which adjusts the R(Red) level of the paint
and manual white balance.
Turning the knob to the right will increase red.
For the adjust knob
15
and
16
, refer to the “MANUAL OP-
ERATION” on page 17.
16
[PAINT B] paint B adjust knob
This is the knob which adjusts the B (Blue) level of the paint
and manual white balance.
Turning the knob to the right will increase blue .
17
[WHITE PAINT SET]
When this button is pressed, it becomes AUTO WHITE mode.
Refer to the “WHITE BALANCE ADJUSTMENT” on page 13.
13
COVER
To carry out the menu operation, pull the cover towards you
to open it.
14
[TO CAMERA] camera connector
Connect the camera head with the provided cable (5m).
1
ON
c
234
SW3 RANDOM TRIGGER setting
Refer to "Random Trigger Function" on page 28.
SW1, 2 FILE setting
Refer to "FILE SETTING" on page 15.
SW4 Not available
18
[VIDEO LEVEL FULL AUTO] full auto button and its LED
This adjusts the video level automatically by varying iris,
shutter speed and GAIN (electrical sensitization) automati-
cally according to the brightness of an object.
The LED light during Full/Auto mode. Each time the button is
pressed, the ON/OFF function operates in turn.
• Auto adjustment for iris can be performed only when an
auto iris lens is used and the LENS item is set to AUTO.
• Max. GAIN value for the ALC can be set at the MENU
screen.
For the
18
and
19
, refer to the “MANUAL OPERATION” on
page 17.
19
[LEVEL] video level adjust knob
This knob varies video level. Turning it to the right increases
the video level and turning it to the left reduces the video
level.

Revised in August 1998 7
Pin No. Signal Pin No. Signal
1
2
3
4
5
6
SERVO SELECT(F)
SERVO SELECT(Z)
GND
IRIS C/L
IRIS CTL
12V
7
8
9
10
11
12
COM
FOCUS CTL
ZOOM CTL
SERVO SELECT(I)
COM (+V)
COM (–V)
View from the rear of the KY-F58
(12-pin connector, female)
9
8
7
6
1
10
12 11
2
3
4
5
2. CONTROLS, INDICATIONS AND CONNECTORS (Cont’d)
CAMERA CONTROL [Rear side] (Cont’d)
25
[RS-232C] Communication port (D-Sub 9Pin)
Connect to an RS-232C interface in a personal computer
or other control unit.
Use a cross cable for connection.
26
[AC INPUT] AC Power connector
It connects with a provided AC cable to a standard AC120V
electric outlet.
[SIGNAL EARTH] signal ground terminal
This is not a ground for safety from electrical shock. It is a
GND for signals among units.
[LENS REMOTE] lens remote control connector
It connects to the lens remote control unit (optional).
Refer to the “SYSTEM APPLICATION” on page 11.
RGB/COMPONENT
Y/CVIDEO
HD/VBS
FREEZE
VD
WENFLASH
OUTPUTEXT REF
EXT TRIGGER
RS-232C
LENS
REMOTE
SEE INSTRUCTION MANUAL
AC- INPUT
28 29 30 312726
25 24 23 22 2021
SIGNAL
EARTH
Pin No. Detail Pin No. Detail
1
2
3
4
5
NC
RxD
TxD
DTR
GND
6
7
8
9
DSR
RTS
CTS
NC
1
6
5
9
View from the rear of the KY-F58
(9-pin connector, male)
20
[Y/C] Y/C output signal connector (4 Pin)
This connector outputs Y/C separated video signal.
21
[RGB/COMPONENT] RGB/Component output connector
(9Pin)
This is the RGB/Component signal output connector.
To switch between the RGB and the COMPONENT on the
MENU screen.
Refer to the “TOTAL SETTING SCREEN” on page 25.
22
[VIDEO] Video output connector (BNC)
This is the composite video signal output connector.
23
[HD/VBS] HD/VBS sync signal input connector (BNC)
This connector inputs HD (Horizontal sync signal) or VBS
(Composite video signal) to synchronize the unit.
Refer to the “SYSTEM APPLICATION” on page 11.
24
[VD] VD sync signal input connector (BNC)
This connector inputs VD (vertical sync signal) to synchro-
nize the unit.,
Pin No.
1
2
3
4
4
2
3
1
GND (ground)
GND (ground)
Luminance (Y, 1 V(p-p), 75-ohm)
Chroma signal
(C, 0.286 V (p-p), 75-ohm) [U Ver.]
(C, 0.3 V (p-p), 75-ohm) [E Ver.]
Signal
View from the rear
of the KY-F58
(4-pin connector, female)
Pin No. Signal Pin No. Signal
1
2
3
4
5
GND
GND
R/R-Y
G/Y
B/B-Y
6
7
8
9
VBS
SYNC
GND
GND
5
9
1
6
View from the rear of the KY-F58
(9-pin connector, female)

8
2. PARTS NAMES AND FUNCTIONS (Cont’d)
CAMERA HEAD
3
4
2
1
TO CCU LENS
POWER
7
6
5
1
Lens mount
This is where the lens is to be mounted. It fits to the C mount
lens.
Refer to “MOUNTING THE LENS (T14X5.5MD) TO THE
CAMERA HEAD” on page 9.
2
Camera mounting bracket (Accessory)
The camera mounting bracket is not installed on the cam-
era when it is shipped from the factory.
Install it on the top or bottom of the camera according to
your requirements using the two provided camera mount-
ing bracket fixing screws
4
.
Refer to the “HOW TO MOUNT THE CAMERA HEAD” on
page 10.
3
1/4 inch screw hole for camera mounting to a tripod
These are for mounting the camera to a fixed or rotating
table, etc.
4
The provided fixing screws for camera mounting bracket
(two of M2.6 x 6 mm)
Caution:
Make sure to use the provided screws.
Do not use a screw longer than 6 mm because it may cause
a malfunction.
5
[POWER] power supply LED
When the power is supplied to a camera head, this LED
lights.
6
[TO CCU] CCU connector
This is to connect a camera control unit (CCU) with a pro-
vided cable (5 m).
Refer to the “CONNECTING THE CAMERA HEAD AND
CCU” on page 10.
7
[LENS] lens connector
This is to connect the lens to be used.
Refer to the “MOUNTING THE OPTIONAL LENS (T14 X
5.5MD) TO THE CAMERA HEAD” on page 9.
View from the rear of the camera head
(20-pin connector, male)
For the signal names, refer to the “
[TO CAMERA]” on page 6.
1
20
5
19
2
16
10
15
6
11
14
View from the rear of the camera head
(8-pin connector, female)
7
1
68
42
35
Signal
LENS SEL
GND
IRIS CTL/IRIS Y
15V
Pin No.
1
2
3
4
Signal
SERVO SEL
ZOOM CTL
FOCUS CTL
IRIS CTL/IRIS Y
Pin No.
5
6
7
8
29
[FLASH] Flash signal output connector (BNC)
When the FREEZE item is set to the FLASH, a flash signal
is output from this connector according to FREEZE input.
It is recommended to be used when the unit is operated
with a flash.
Refer to the “SYSTEM APPLICATION” on page 11.
Refer to the “FLASH Function” on page 28.
30
[WEN] write enable signal output connector (BNC)
It outputs the write enable signal.
Connect to the image processing unit, etc. .
Refer to the “SLOW SHUT FUNCTION” on page 27.
Refer to the “Random Trigger Function” on page 28
31
[FREEZE] freeze input connector
This is a trigger input signal connector from an external source.
It connects with an external trigger unit such as foot switch, etc.
A negative electrode signal with a pulse width of 20µsec. to
50µsec. and a pulse interval of 40 msec. or more should be
input for the trigger signal.
Refer to the “FREEZE SCREEN” on page 21.
CAMERA CONTROL [Rear side] (Cont’d)

9
3. CONNECTIONS
BASIC SYSTEMS
CAMERA CONTROL UNIT KY-F58
FREEZEFILES
WHITE PAINT
POWER
VIDEO LEVELTO CAMERA
4321
MEMORYSELECT
MENU
FULL AUTO
RB
LEVEL ON
OFF
PAINT
SET
PULL OPEN
COLOR VIDEO CAMERA
KY-F58
Lens
(T14 x 5.5 MD)
[LENS REMOTE]
Camera head
How to mount the camera head
(See page 10.)
Mounting the optional lens (T14 X 5.5MD) to the camera head
(See page 9.)
Connecting the camera
head and CCU
(See page 10.)
Provided cable
(5m)
Monitor
CCU (Camera Control Unit)
OUTPUT
To CAMERA
To CCU
male
male
To LENS
LENS remote control
LENS REMOTE terminal
on the rear panel
female
female • The LENS remote controller
should be connected to the
REMOTE terminal on the rear
panel of the CCU or to LENS
REMOTE on the lens.
MOUNTING THE OPTIONAL LENS (T14 X 5.5MD) TO THE CAMERA HEAD
1. Remove the lens mount cap for the camera.
Be careful no dust gets into the mounting hole when you
remove it.
2. Attach the screw of the camera head mount section to that
of the lens mount section. Turn the mount fastening ring
slowly clockwise and fix the lens to the camera head by
screwing it firmly.
To change the attitude angle of the lens rotating direction.
1Turn the mount fastening ring counter-clockwise from the
lens side.
2Turn the lens slowly to adjust the attitude angle, and fas-
ten it again firmly with the mount fastening ring.
3. Plug in the lens cable to the LENS connector of the camera
head and fasten it firmly.
For more details, refer to the Instructions for the Lens.
Note:
The KY-F58 is not equipped with a lens.
When a lens other than the T14x5.5MD
of the 3-CCD C-mount lens is used, it may
cause the KY-F58 to malfunction. When
such a lens is used, the lens' height
should not be more than 4 mm above the
lens mount surface.
4mm or less
Lens
2.
3.
Camera head
Mount fastening ring
Screws
Lens
䢇Recommended Remote Controllers
• TCR-201F (CANON) for positioning control
Note:
When using an extension cable, the screen
flickers slightly during the focusing operation..
• RMD-10 (FUJINON) for speed control

10
3. CONNECTIONS (Cont’d)
HOW TO MOUNT THE CAMERA HEAD
䡵HowTo MountThe Camera
When this unit is mounted to a
fixed or a rotating table, fix it to
the camera mounting screw
hole located on the camera
mounting bracket.
• To prevent dropping, when
this unit is mounted to a fixer
or a rotating table, fix it firmly
by using the rotation preven-
tion hole.
CONNECTING THE CAMERA HEAD AND CCU (CAMERA CONTROL UNIT)
Camera head
CCU
Camera cable for extension
Provided camera cable
arrow
mark
arrow
mark
arrow
mark
female male
male
male
male
male
female
female
female
female
Tight until there is no gap between two cables.
●When connecting a cable to the camera head and CCU, place the arrow mark on the connector on top. Then insert it firmly
until there is no gap with the terminal by tightening it.
●For extending cable, use the optional camera cables.
5 m camera cable: VC-P805
10 m camera cable: VC-P810
The maximum cable length is up to 25 m.
Note:
When the cable is extended to 25 m, JVC guarantees only the operation and not the performance.
●When connecting cables, match the arrow marks on each cables. Also, make sure to connect a male connector and a
female connector.
Rotation prevention hole
Camera mounting bracket
Camera mounting
screw hole (1/4 inch)
䡵Drop prevention
• When this unit is installed on a ceiling or a wall, special care is required. Do
not try to install it by yourself. Leave this to a specialist. If the unit drops
from the ceiling or the wall, it may injure people or cause an accident.
• To prevent the unit from dropping, install it securely to the place, and attach
it with a wire, etc. For the installation, use the bracket fixing screw hole
located on the side where there is no camera mounting bracket
attached.(M2.6 x 6 mm)
Give thought to the length of the drop prevention wire.
M2.6 X 6mm
6mm
Drop prevention
wire
Camera head
䡵How To Mount The Bracket
The camera mounting bracket is not
installed on the camera when it is
shipped from the factory.
Install it on the top or bottom of the
camera according to your require-
ments using the two provided cam-
era mounting bracket fixing screws.
Note:
Be sure to use the provided bracket
fixing screws when installing the
camera. Screws longer than 6 mm
may cause a malfunction.



see service manual
(No. 60116)
Note:
Make sure to loosen the connector ring completely before
unplugging the cable, otherwise the connector may be dam-
aged.

11
To 120V AC
Monitor
Flash light
Foot switch, etc.Lens remote control Image processing unit
(Front panel)
VD
LENS
REMOTE
FLASH WEN FREEZE VIDEO
VD
HD/VBS
RGB
WEN
VIDEO IN
HD/VBS
Camera head
Microscope adapter
HZ-M161/M162/M163
Microscope
;
;
COLOR VIDEO CAMERA
KY-F58
RGB/COMPONENT
Y/CVIDEO
HD/VBS
FREEZE
VD
WENFLASH
OUTPUTEXT REF
EXT TRIGGER
RS-232C
LENS
REMOTE
SEE INSTRUCTION MANUAL
AC- INPUT
3. CONNECTIONS (Cont’d)
SYSTEM APPLICATION
䡵To start a flash light with a foot switch
• Connect an external trigger such as a foot switch to the
FREEZE connector.
• Connect a flash light to the FLASH connector.
• Set the FREEZE MENU to “FLASH”.
䡵To output an image from the KY-F58 under the tim-
ing of the image processing unit
• Connect an external sync signal of the image processing
unit to the VD and HD/VBS connector of this unit.
• Connect the image output connector to the image input
connector of the image processing unit.
䡵To output an image to the image processing unit
under the timing of the KY-F58
• Connect the WEN (Write Enable) connector of the KY-F58
to the image processing unit.
• Connect the image output connector to the image input
connector of the image processing unit.
Note:
Before starting the connection, please thoroughly read the
Technical Information on page 26 and following.

12 Revised in August 1998
4. BASIC ADJUSTMENTS BEFORE USE (Be sure)
MONITOR ADJUSTMENT
Perform the adjustments for color, contrast and luminance by
displaying the color bar signal built into the KY-F58 on the moni-
tor.
1. Connect a color video monitor to the VIDEO OUPUT termi-
nal of the KY-F58.
2. Open the cover and switch the Lock switch to OFF.
3. Press the “ITEM+” button to output the color bar signal (the
color bar conforms to the SMPTE [U Ver.] or EBU [E Ver.] )
4. While displaying the color bar, set the BLUE CHECK of the
monitor to “ON”.
The screen becomes blue only mode and color bar becomes
blue stripe pattern.
5. [U Ver.]
Turn the CHROMA adjustment volume on the monitor to
adjust the color bar so that the brightness of 1and 8,
and 7and
14
become the same.
[E Ver.]
Turn the CHROMA adjustment volume on the monitor to
adjust the color bar so that the brightness of
1
and
7
become the same.
6. [U Ver.]
While the BLUE CHECK is ON, turn the PHASE adjust-
ment volume of the monitor to adjust the color bar, so that
the brightness of 3and
10
, and 5and
12
become the
same.
[E Ver.]
While the BLUE CHECK is ON, turn the PHASE adjust-
ment volume of the monitor to adjust the color bar, so that
the brightness of
3
and
5
become the same.
7. [U Ver.]
In case the brightness of 1and 8, and 7and
14
change
when carrying out the PHASE adjustment, start the proce-
dure again from step
4 .
[E Ver.]
In case the brightness of
1
and
7
change when carrying
out the PHASE adjustment, start the procedure again from
step 4 .
8. Set the BLUE CHECK of the monitor to OFF to return to the
normal screen (to display all colors, R, G and B).
9. [U Ver.] only
Adjust the BRIGHT adjustment volume of the monitor, so
that
18
and
19
disappear and
20
becomes visible.
10 . When the adjustment is completed, press the “ITEM+” but-
ton again to return to the normal screen.
To Monitor
White Yellow Green Red Blue
12
345 6 7
Blue Black Magenta Black Cyan Black White
8
Blue
9 10 11 12 13 14
15 16 17
White Black
19 2018 21
1.
2.
SMPTE type color bars [U Ver.]
3.
Cyan Magenta
White Yellow Green Red Blue Black
1 2 3 4 5 6 7 8
EBU type color bars [E Ver.]
Cyan Magenta
RGB/COMPONENT
Y/C
MONITOR
VIDEO
HD/VBS
FREEZE
VD
WENFLASH
OUTPUTEXT REF
EXT TRIGGER
RS-232C
LENS
REMOTE
SEE INSTRUCTION MANUAL
AC- INPUT
CAMERA CONTROL UNIT KY-F58
FREEZEFILES
WHITE PAINT
POWER
VIDEO LEVELTO CAMERA
4321
MEMORYSELECT
FULL AUTO
RB
LEVEL ON
OFF
PAINT
SET
LOCK MENU
SET ITEM-
ITEM+ DATA+
DATA-
RESET
BARS
ON
4321
ON
OFF

13
4. BASIC ADJUSTMENTS BEFORE USE (Cont’d)
WHITE BALANCE ADJUSTMENT
The color of light (color temperature) is different according to the color source. When the main light source lighting an object is
changed, readjust the white balance as well.
< How To Set >
1. Open the cover and set the Lock Switch to OFF.
2. Select the “FILE” for the white balance to be adjusted by the
SELECT button. (The LED for the selected file lights.)
3. Press the MENU button to display the MENU screen.
4. Move a cursor to the “2. WHITE BALANCE” with the ITEM
button. Then press the SET button to display the “WHITE BAL-
ANCE” screen.
5. Select the COLOR TEMP item on the “WHITE BALANCE”
screen with the ITEM button. (Setting value starts blinking when
the required item is selected.)
The setting value suitable for usage condition can be selected
with the DATA button.
3200 K: For a low color temperature light source such as a
halogen lamp, etc. .
5200 K: For a high color temperature light source such as the
sun, etc. .
6. Select the “WHITE BAL” item on the “WHITE BALANCE” screen
with the ITEM button. Set the setting value to AUTO with the
DATA button.
7. Return to the normal screen by pressing the MENU button twice.
8. Place a white object under the same lighting condition as the
shooting object, and zoom in to fill the screen with white.
9. Press the WHITE PAINT SET button
●While AUTO WHITE is being operated, “OPERATION” sig-
nals are output from each OUTPUT connector.
●When the white balance is adjusted correctly, “OK” is displayed.
●Error display:
ERROR : OBJECT (object in an unfavorable condition)
When there is not enough white color in the object or the color
temperature is not suitable, this error message is displayed.
Change the object into a white object and readjust the white
balance.
ERROR : LOW LIGHT (shortage of light)
This message is displayed when the light is dark. Turn the
light up and readjust the white balance.
ERROR : OVER LIGHT (excess of light)
• This message is displayed when the light is too bright. Turn
the light down and readjust the white balance.
• If the color temperature of the object is changed when turn-
ing the light down, press the FULL AUTO button on the panel
side and readjust the white balance.
10. Press the MEMORY button to register the white balance in
the FILE for two seconds.
If color is added to the top or bottom of the screen after ad-
justing the white balance, carry out the white shading adjust-
ment explained in the next section.
1.
9.
4.
3.7.
2. 10.
4.5.6.
AUTO WHITE OPERATION
MENU SCREEN WHITE BALANCE SCREEN
Item
LIGHT
Setting value
AUTO WHITE OK
OBJECT IN AN UNFAVORABLE
CONDITION
SHORTAGE OF LIGHT
EXCESS OF LIGHT
5.6.
– – – WHITE BALANCE – – –– – – MENU – – –
1:VIDEO LEVEL..
2:WHITE BALANCE..
3:FREEZE..
4:PROCESS..
5:TOTAL SETTING..
COLOR TEMP
WHITE BAL
SHADING MODE
LEVEL<R>
LEVEL<G>
LEVEL<B>
: 3200K
: AUTO
: OFF
:
:
:
CAMERA CONTROL UNIT KY-F58
FREEZEFILES
WHITE PAINT
POWER
VIDEO LEVELTO CAMERA
4321
MEMORYSELECT
FULL AUTO
RB
LEVEL ON
OFF
PAINT
SET
LOCK MENU
SET ITEM-
ITEM+ DATA+
DATA-
RESET
ON
4321
ON
OFF
BARS
CURSOR
FULL AUTO button
OPER A T I ON
UATOWHITE
UATOWHITE
UATOWHITE UATOWHITE
OK
NG : OBJECT ERROR : LOW LIGHT
UATOWHITE
ERROR : OVER LIGHT

14
2500 K
2800K
Red-ish
Color temperature
White-ish Blue-ish
7000 K6000 K5000 K4000 K3000 K
Halogen
lamp
Incandescent
lamp
(Sun light)
Fluorescent
lamp
The range of FULL TIME AUTO WHITE function
Bright cloudy sky
– – – WHITE BALANCE – – –
COLOR TEMP
WHITE BAL
SHADING MODE
LEVEL<R>
LEVEL<G>
LEVEL<B>
: 3200K
: FAW
: OFF
:
:
:
8000 K 15000 K
WHITE BALANCE SCREEN
4. BASIC ADJUSTMENT BEFORE USE (Cont’d)
WHITE SHADING ADJUSTMENT
Green or magenta color appears on the top or bottom of the screen, this is because the white balance is adjusted at the center of the
screen but not at the top or bottom of the screen. This is caused by the characteristics of a lens and to compensate it is called white
shading compensation.
<How To Set >
After performing the WHITE BALANCE ADJUSTMENT proce-
dure
1. to 10. , carry out the following settings.
1. Display the MENU screen by pressing the MENU button.
2. Move a cursor to “2. WHITE BALANCE” with the ITEM but-
ton, then press the SET button to display the “WHITE BAL-
ANCE” screen.
3. Set the SHADING MODE item to the “MANUAL” by pressing
the DATA+ button or the DATA– button.
4. Change the items on the LEVEL<R>, LEVEL<G> and
LEVEL<B> with the DATA+ and DATA- button while watching
the monitor screen.
When the number increases, the color on the bottom of the
screen is suppressed and the color on the top is emphasized.
5. When the settings for all channels (R channel, G channel, B
channel) are completed, carry out the white balance adjust-
ment again.
6. To register the setting values of the white shading to the FILE,
return to the normal screen then press the MEMORY button
for 2 seconds or more.
– – – WHITE BALANCE – – –
COLOR TEMP
WHITE BAL
SHADING MODE
LEVEL<R>
LEVEL<G>
LEVEL<B>
: 3200K
: AUTO
: MANUAL
: NORMAL
: NORMAL
: NORMAL
CAMERA CONTROL UNIT KY-F58
FREEZEFILES
WHITE PAINT
POWER
VIDEO LEVELTO CAMERA
4321
MEMORYSELECT
FULL AUTO
RB
LEVEL ON
OFF
PAINT
SET
LOCK MENU
SET ITEM-
ITEM+ DATA+
DATA-
RESET
BARS
ON
4321
ON
OFF
WHITE BALANCE SCREEN
1. 6.2. 3.4.
FULL TIME AUTO-WHITE FUNCTION
With the FULL TIME AUTO-WHITE ADJUSTMENT function, even if the lighting condition is changed, this function will trail it automati-
cally in order to adjust the white balance to the optimum condition.
<How To Set >
1. Display the MENU screen by pressing the MENU button.
2. Move a cursor to “2. WHITE BALANCE” with the ITEM but-
ton, then press the SET button to display the “WHITE BAL-
ANCE” screen.
3. Set the item WHITE BAL to the FAW with the DATA+ and
DATA- button.
Note:
If the whole screen consists of one color, an object has many
colors or the color temperature of the light source varies, the
appropriate full time auto white balance may not be adjusted.
In this case, carry out the “WHITE BALANCE ADJUSTMENT”
on page 13.
CAMERA CONTROL UNIT KY-F58
FREEZEFILES
WHITE PAINT
POWER
VIDEO LEVELTO CAMERA
4321
MEMORYSELECT
FULL AUTO
RB
LEVEL ON
OFF
PAINT
SET
LOCK MENU
SET ITEM-
ITEM+ DATA+
DATA-
RESET
BARS
ON
4321
ON
OFF
1. 2. 3.

15
5. OPERATION
FILE SETTING
䡵Scene File Setting
Select the “Scene File” with the dip switch 1 and 2 according
to the purposes.
Note:
Switch off the power when switching the Scene File over. If
it is carried out while the power is ON, it will not be changed.
䡵FILE Setting
Each Scene File has four of sub files (FILE) to be set.
Each time the SELECT button is pressed, it is switched in the
order of
FILE1 FILE2 FILE3 FILE4
.
It takes 1 second to switch over the FILE. LED blinks rapidly
during the FILE switching operation.
Note:
Do not perform other operations during the LED blinking, it
may cause the KY-F58 to malfunction.
The FILE setting is completed when the LED stops blinking, and
lights.
CAMERA CONTROL UNIT KY-F58
SELECT buttonDIP switch
FREEZEFILES
WHITE PAINT
POWER
VIDEO LEVELTO CAMERA
4321
MEMORYSELECT
FULL AUTO
RB
LEVEL ON
OFF
PAINT
SET
LOCK MENU
SET ITEM-
ITEM+ DATA+
DATA-
RESET
BARS
ON
4321
ON
OFF
Scene File Dip switch setting
1. OFF
2. OFF
3, 4. Do not switch over
1. ON
2. OFF
3, 4. Do not switch over
1. OFF
2. ON
3, 4. Do not switch over
1. ON
2. ON
3, 4. Do not switch over
Example for use
Standard
setting
Slit
Inspection
Microscope
ON
4321
ON
4321
ON
4321
ON
4321
A
B
C
D
1
Microscope 2
CAMERA CONTROL UNIT KY-F58
FREEZEFILES
WHITE PAINT
POWER
VIDEO LEVELTO CAMERA
4321
MEMORYSELECT
FULL AUTO
RB
LEVEL ON
OFF
PAINT
SET
LOCK MENU
SET ITEM-
ITEM+ DATA+
DATA-
RESET
BARS
ON
4321
ON
OFF
Changing setting
values MEMORY button
䡵Changing setting values
The setting value is changed for each file.
Refer to the “6. SETTINGS ON THE MENU SCREEN” on
page 18.
䡵Registration to the FILE
Setting values can be registered to each FILE.
Press the MEMORY button for 2 sec. or more for registration.
The setting value is registered to the FILE which LED lights. It
takes approx. 2 sec. for registration. During the registration,
the LED blinks slowly.
The FILE registration is completed when the LED stops blink-
ing, and lights.
Note:
• To register a value which has been changed on the MENU
screen or with a volume level knob, make sure to register
any changes in the selected file. If the power is turned off
without registering the changes, they will be automatically
erased.
• Do not perform other operations during the LED blinking, it
may cause the KY-F58 to malfunction.
There are four scene files to be set by dip switch depending on the operating conditions.
Scene File A including four sub files are all set to the standard shipment setting values. Change the settings according to the requirements.
Scene File B, C and D should be set to required file settings before use such as Slit inspection, Microscope
1
, Microscope
2
, etc.
Note:
Before carry out operations below, make sure the LOCK switch is turned OFF.

16
5. OPERATION (Cont’d)
䡵RESET
It returns the values set on the MENU screen to the initial
values.
There are three different RESET items: Individual file reset,
All files reset, and Reset for the TOTAL SETTING only.
Note:
Do not perform any other operations during the resetting.
Otherwise, the values will not be initialized properly.
䢇Individual file reset
The current selected file setting values are reset to the initial
values.
1. Press the RESET button with something which has a pointed
tip.
2. When the reset starts, the LED for the selected file blinks
for approx. 3 sec.
Note:
The TOTAL SETTING screen will not be initialized.
䢇All files reset
The setting values for all of the 16 files are initialized.
1. Press the RESET button with something which has a pointed
tip while pressing the SET button simultaneously.
2. When resetting starts the LEDs for the FILES 1 - 4 are turned
off for 5 sec. Then the LED of the file selected before the
reset blinks for approx. 3 sec. The reset is completed when
the LED stops blinking, and lights.
Note:
The TOTAL SETTING screen will not be initialized.
FILE SETTING (Cont’d)
Item
Initial Values of Scene File A
Initial Values
LENS TYPE
IRIS CONTOROL
SHUTTER
AUTO
AUTO
NORMAL
- - - - - - - - - -
0 dB
- - - - - - - - - -
+18 dB
NORMAL
NORMAL
3200K
AUTO
OFF
- - - - - - - - - -
- - - - - - - - - -
- - - - - - - - - -
NORMAL
ALTERNATE
OFF
FRAME
- - - - - - - - - -
- - - - - - - - - -
NORMAL
NORMAL
OFF
OFF
100%
110%
ON
NORMAL
NORMAL
ADJUST
NORMAL
LEVEL
GAIN
LEVEL
ALC MAX
IRIS DETECT
DETECT AREA
COLOR TEMP
WHITE BAL
SHADING MODE
LEVEL <R>
LEVEL <G>
LEVEL <B>
FREEZE
FREEZE TRG
HI-RESO
CAPTURE
RANDOM SHUT
SLOW SHOT
DETAIL
MASTER BLACK
NEGA
AUTO KNEE
KNEE POINT
WHITE CLIP
GAMMA
FLARE <R>
FLARE <B>
ABL
ABL LEVEL
䢇Reset for the TOTAL SETTING only
The values of the TOTAL SETTING which are common for all
files are initialized.
1. Press the RESET button with something which has a pointed
tip while pressing the ITEM button simultaneously.
2. When the reset starts, the LED for the currently selected
FILE blinks for approx. 3 sec. The reset is completed when
the LED stops blinking, and lights.
Item
TOTAL SETTING Initial Values
Initial Values
LENS CONTROL
INDICATOR
CABLE LENGTH
H PHASE
SC COARSE
SC FINE
D-SUB OUT R/G/B
OFF
CONTROLLER
OFF
5M
0
0
0
ON SYNC

17
CAMERA CONTROL UNIT KY-F58
FREEZE
FREEZEFILES
WHITE PAINT
POWER
VIDEO LEVELTO CAMERA
4321
MEMORYSELECT
FULL AUTO
RB
LEVEL ON
OFF
PAINT
SET
LOCK MENU
SET ITEM-
ITEM+ DATA+
DATA-
RESET
BARS
ON
4321
ON
OFF
5. OPERATION (Cont’d)
MANUAL OPERATION
The red and blue colors of the video signal from each output can be
adjusted with the two adjust knobs PAINT(R) and PAINT (B).
The amount of variation possible with the volume controls may be
different in theWHITE PAINT mode and the MANUALWHITE mode.
䢇White Paint
When the item for the WHITE BAL on the WHITE BALANCE
screen is set to AUTO, the red and blue colors should also be
finely adjusted against the white balance which has been set in
accordance with the WHITE BALANCE ADJUSTMENT on page
13.
• Turning the PAINT (R) adjust knob to the right will slightly in-
crease the red and turning it to the left will slightly decrease it.
• Turning the PAINT (B) adjust knob to the right will slightly in-
crease the blue and turning it to the left will slightly decrease it.
䡵WHITE PAINT
䢇Manual White
When the item for the WHITE BAL on the WHITE BALANCE
screen is set to MANUAL, the red and blue color levels can be
adjusted.
• Turning the PAINT (R) adjust knob to the right will increase the
red and turning it to the left will decrease it.
Turning the PAINT (B) adjust knob to the right will increase the
blue and turning it to the left will decrease it.
<Variable Range>
• When the COLOR TEMP is set to 3200K, the color tempera-
ture can be changed from 2000K up to 5600K.
• When the COLOR TEMP is set to 5200K, the color tempera-
ture can be changed from 4500K up to 15000K.
䡵VIDEO LEVEL The video signal level at each OUTPUT can be varied with the
LEVEL adjust knob. With regard to the amount of the video level
variability available at the FULL AUTO button by using the LEVEL
adjust knob, refer to the chart on the left.
䢇Convergence Level Adjustment.
The convergence level which is a standard value for the Auto
Iris can be finely adjusted.
• Turning the LEVEL adjust knob to the right opens the lens
iris approximately three diaphragms at the maximum.
• Turning the LEVEL adjust knob to the left closes the lens iris
approximately three diaphragms at the maximum.
䢇Manual Iris Adjustment
The lens iris can be adjusted from OPEN to CLOSE.
• Turning the LEVEL adjust knob to the right opens the lens
iris to the IRIS OPEN.
• Turning the LEVEL adjust knob to the left closes the lens iris
to the IRIS CLOSE.
䢇Non Operational
The video level can not be varied by turning the LEVEL adjust
knob.
Full
Auto
Lens
Type
Iris
Control
Other
conditions
Volume
Operation
Convergence
Adjustment Level
Convergence
Adjustment Level
Not functional
Convergence
Adjustment Level
Manual Iris
Adjustment
–
ALC,ALC + EEI,EEI
Except for the
above
–
–
––
MANUAL –
AUTO
MANUAL
AUTO
ON
OFF
CAMERA CONTROL UNIT KY-F58
PAINT (R) PAINT (B)
FREEZEFILES
WHITE PAINT
POWER
VIDEO LEVELTO CAMERA
4321
MEMORYSELECT
FULL AUTO
RB
LEVEL ON
OFF
PAINT
SET
LOCK MENU
SET ITEM-
ITEM+ DATA+
DATA-
RESET
BARS
ON
4321
ON
OFF
CAMERA CONTROL UNIT KY-F58
FULL AUTO LEVEL
FREEZEFILES
WHITE PAINT
POWER
VIDEO LEVELTO CAMERA
4321
MEMORYSELECT
FULL AUTO
RB
LEVEL ON
OFF
PAINT
SET
LOCK MENU
SET ITEM-
ITEM+ DATA+
DATA-
RESET
BARS
ON
4321
ON
OFF
䡵FREEZE
When the FREEZE button is pressed, the display LED lights and
each output signal is frozen. The LED lights during FREEZE
mode.
Refer to the “FREEZE SCREEN” on page 21.
Refer to the “FLASH Function” on page 28.

18
6. SETTING ON THE MENU SCREEN
<How To Operate>
1. Set the LOCK switch to OFF.
2. Press the MENU button to display the MENU screen.
3. Move the cursor to the required item (SUB MENU) by press-
ing the ITEM+or ITEM– button.
4. Press the SET button to display the SUB MENU screen.
5. Select the required item in the SUB MENU by pressing the
ITEM+or ITME– button.
6. Change the setting value of the item by pressing the DATA+
or DATA– button.
7. When the change is completed, press the MENU button to
return to the normal screen. To prevent from the error op-
eration, set the LOCK switch to ON.
MENU OPERATION
MENU SCREEN FLOW
CAMERA CONTROL UNIT KY-F58
FREEZEFILES
WHITE PAINT
POWER
VIDEO LEVELTO CAMERA
4321
MEMORYSELECT
FULL AUTO
RB
LEVEL ON
OFF
PAINT
SET
LOCK MENU
SET ITEM-
ITEM+ DATA+
DATA-
RESET
BARS
ON
4321
ON
OFF
LOCK MENU
SET ITEM-
ITEM+ DATA+
DATA-
RESET
BARS
ON
4321
ON
OFF
1.7. 2.
4.7.
3.5. 6.
Set up switch SELECT button
– – – MENU – – –
1:VIDEO LEVEL..
2:WHITE BALANCE..
3:FREEZE..
4:PROCESS..
5:TOTAL SETTING..
Normal screen
MENUMENU
MAIN MENU screen
– – – SIGNAL LEVEL – – –
LENS TYPE
IRIS CONTROL
SHUTTER
LEVEL
LEVEL
GAIN
ALC MAX
IRIS DETECT
DETECT AREA
: AUTO
: AUTO
: NORMAL
: ----------
: 0dB
: ----------
: +18dB
: NORMAL
: NORMAL
Image setting menu screen
(SUB MENU SCREEN)
– – – MEMORY – – –
FREEZE
FREEZE TRG
HI-RESO
CAPTURE
SLOW SHUT
RANDOM SHUT
: NORMAL
: ALTERNATE
: OFF
: FRAME
: ----------
: ----------
Memory environment setting screen
ITEM+, –
button
– – – TOTAL SETTINGS – – –
D-SUB OUT
ON SYNC
LENS CONTROL
INDICATOR
SC CORASE
SC FINE
H PHASE
: R/G/B
: OFF
: CONTROLLER
: OFF
CABLE LENGTH : 5M
: 0
: 0
: 0
Total setting menu screen
– – – WHITE BALANCE – – –
COLOR TEMP
WHITE BAL
SHADING MODE
LEVEL<R>
LEVEL<G>
LEVEL<B>
: 3200K
: AUTO
: OFF
: ----------
: ----------
: ----------
White balance setting menu screen
– – – PROCESS(1/2) – – –
DETAIL
MASTER BLACK
NEGA
AUTO KNEE
KNEE POINT
WHITE CLIP
: NORMAL
: NORMAL
: OFF
: OFF
: 100%
: 110%
GAMMA : ON
FLARE<R> : NORMAL
FLARE<B> : NORMAL
– – – PROCESS(2/2) – – –
ABL
LEVEL
: ADJUST
: NORMAL
Process setting screen
Move the cursor with the ITEM+
or ITEM- button to select the SUB
MENU with the SET button.
(Press the MENU button to
return to the normal screen.)
CURSOR
Note:
To register the setting values which are changed on the MENU screen to the FILE, select the FILE with the set up SW and the
SELECT button before displaying the MENU screen. Also, make sure to turn off the power before switching the set up SW.
<Sub Menu screen>
VIDEO LEVEL
This sets video signals such as shutter, iris, sensitivity, etc.
WHITE BALANCE
This sets items for WHITE BALANCE and WHITE SHADING.
FREEZE
This sets items regarding the memory such as timing to input
images into the KY-F58 memory, slow shutter function, etc.
PROCESS
This sets fine settings for output signals such as contour com-
pensation, KNEE POINT, etc.
TOTAL SETTING
For setting the connection to units other than KY-F58 such as
D-SUB terminal, lens control terminal, external sync, etc.
Note:
The data set at the TOTAL SETTING is common to all
files.

Revised in August 1998 19
6. SETTING ON THE MENU SCREEN (Cont’d)
VIDEO LEVEL SCREEN
Item
LENS TYPE Switch over between AUTO and MANUAL according to the lens to be used.
AUTO
MANUAL
: Set it when an automatic iris lens is used.
: Set it when a manual iris lens is used or no lens is used.
Switch over between AUTO and MANUAL for iris setting when a automatic iris lens is used.
AUTO
MANUAL
: Iris can be adjusted automatically.
: Iris can be adjusted by manually.
AUTO
MANUAL
IRIS
CONTROL
AUTO
MANUAL
SHUTTER This is to change the shutter mode.
NORMAL
STEP
EEI
V.SCAN
: Fixed with 1/60 [U Ver.] or 1/50 [E Ver.].
: Shutter speed can be changed at the “LEVEL” item. (Fix value)
:
Shutter speed varies automatically depending on brightness of the object.
(Max. approx. 1/1920)
[U Ver.] , (Max·approx. 1/1600) [E Ver.]
: Adjust the shutter speed to the scanning speed of the computer's
monitor, so that the horizontal lines do not appear when taking a shot
of the computer monitor. The shutter speed can be varied finely at the
“LEVEL” item.
NORMAL
STEP
EEI
V.SCAN
LEVEL [U Ver.]
V.SCAN
1/60.6 - 1/9936.4
STEP
1/100,1/250,
1/500,1/1000,1/2000
[E Ver.]
V.SCAN
1/50.4 - 1/9900.0
STEP
1/120,1/250,
1/500,1/1000,1/2000
0 dB
ALC
STEP
V.GAIN
GAIN Sensitivity mode can be changed.
0 dB
ALC
STEP
V.GAIN
: Sensitivity does not increase.
: GAIN is varied automatically according to brightness.
(Max. GAIN can be set at the next item, ALC MAX.)
: Sensitivity can be changed at the “LEVEL” item. (Fix value)
: GAIN can be varied at the “LEVEL” item.
LEVEL The sensitivity can be varied when the GAIN is set to the V.GAIN or STEP.
Increase sensitivity: Press the DATA+ button.
Decrease sensitivity: Press the DATA- button.
V.GAIN
+0.2dB - +18.0dB
(0.2 dB step)
STEP
+6dB, +9dB, +12dB,
+18dB
ALC MAX Max. GAIN for the ALC which changes the sensitivity automatically according to
brightness.
+ 6 dB: Max. GAIN is 6 dB.
+ 12 dB: Max. GAIN is 12 dB.
+ 18 dB: Max. GAIN is 18 dB.
+ 6dB
+ 12dB
+ 18dB
IRIS DETECT The setting value of the detection level in the AUTO IRIS mode can be varied.
NORMAL
PEAK
AVG
: Normal position
: The max. value (peak level) of the brightness is detected to make the
highlight object more clearly.
: The average value of the brightness is detected to make the object
more clear.
NORMAL
PEAK
AVG
Functions and operation Variables values
Note:
When AUTO is set, make sure to set the FREEZE item of the FREEZE screen to the
NORMAL.
Note:
This item cannot be set only when the FREEZE item on the FREEZE screen is
set to NORMAL. (not available with RANDOM, TRG, FLASH, SLOW SHUT).
The shutter speed is set to that at the FREEZE screen .
Note:
ALC can not be set when the FREEZE item of the FREEZE screen is set to
RANDOM TRG, Flash or SLOW.
Note:
When the shutter speed is increased, the light volume may not be high
enough. Therefore an adjustment of the lens’ iris or sensitivity is necessary.
Also, attention is required to the picture quality because the GAIN is boosted,
the sensitivity increases and causes a rough appearance to the picture.
The shutter speed can be varied when the SHUTTER is set to the V.SCAN or the
STEP.
Increase shutter speed: Press the DATA+ button.
Decrease shutter speed: Press the DATA- button.
It is recommended to set the RANDOM SHUT to 1/100 [U Ver.] or 1/120 [E Ver.] in
the area with 50 Hz [U Ver.] or 60Hz [E Ver.] to decrease flickers when an object is
shot under a fluorescent lamp.

20

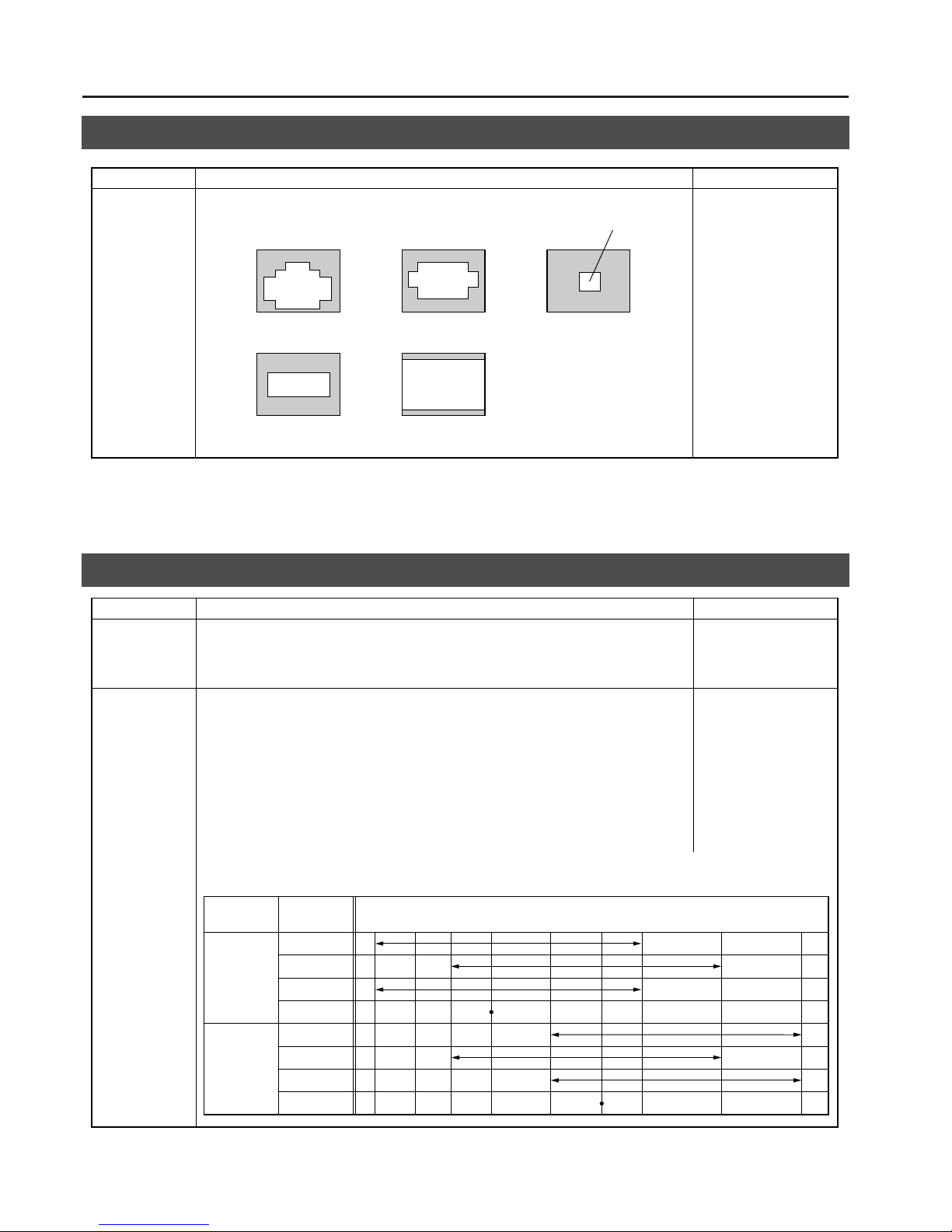

6. SETTING ON THE MENU SCREEN (Cont’d)
VIDEO LEVEL SCREEN (Cont’d)
Item
DETECT
AREA
It sets the detection area with the AUTO IRIS mode. Change this according to the
condition of use.
NORMAL
CIRCLE
SQUARE
RECTANGLE
FULL
Function and operation Variable values
NORMAL CIRCLE
RECTANGLE FULL
SQUARE
Detecting
area
Detecting
area
Detecting
area
Detecting
area
Detecting
area
WHITE BALANCE SCREEN
Item
COLOR TEMP The basic color temperature of the white balance can be set.
3200 K: For low color temperature light source such as a halogen lamp, etc.
5200 K: For a high color temperature light source such as the sun, etc.
WHITE
BALANCE
Different modes for the white balance can be set.
MANUAL
PRESET
AUTO
FAW
: White balance can be varied manually with the “PAINT R” adjust knob
or the “PAINT B” adjust knob.
: White balance is fixed to the setting value (3200 K or 5200 K) of the
“COLOR TEMP.” item.
: It is set to carry out the white balance adjustment.
Refer to the “WHITE BALANCE ADJUSTMENT” on page 13.
: The white balance trails automatically even when the lighting condition
is changed.
Refer to the “FULL TIME AUTO-WHITE FUNCTION” on page 14.
3200K
5200K
MANUAL
PRESET
AUTO
FAW
Function and operation Variable values
[Variable values of COLOR TEMP. and WHITE BALANCE]
COLOR
TEMP
WHITE
BALANCE
AUTO
FAW
MANUAL
PRESET
AUTO
FAW
MANUAL
PRESET
3200K
5200K
2000K 2500K 2800K 3200K 4500K 5200K 5600K 8000K 15000K
COLOR TEMPERATURE
