JVC KD-AR870J User manual
SERVICE MANUAL
COPYRIGHT © 2006 Victor Company of Japan, Limited No.MA249
2006/2
CD RECEIVER
MA24920062
KD-AR870J,KD-G820J,KD-G821E,
KD-G821EX,KD-G821EY,KD-G821EU,
KD-G824UI,KD-G825U,KD-G825UN,
KD-G825UH,KD-G825UT,KD-G827EE
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
TABLE OF CONTENTS
1 PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
2 SPECIFIC SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10
3 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11
4 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15
5 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-16
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
1-2 (No.MA249)
SPECIFICATION
KD-AR870/KD-G820
AUDIO AMPLIFIER SECTION
Power Output 20 W RMS ×4 Channels at 4 Ωand [< or =] 1% THD+N
Signal to Noise Ratio 80 dBA (reference: 1 W into 4 Ω)
Load Impedance 4 Ω(4 Ωto 8 Ωallowance)
Tone Control Range Low ±12 dB (60 Hz, 80 Hz, 100 Hz, 200 Hz)
Mid ±12 dB (500 Hz, 1 kHz, 1.5 kHz, 2.5 kHz)
High ±12 dB (10 kHz, 12.5 kHz, 15 kHz,17.5 kHz)
Frequency Response 40 Hz to 20 000 Hz
Line-In Level/Impedance KD-AR870 1.5V/20kΩload
Line-Out Level/Impedance KD-AR870 5.0 V/20 kΩload (full scale)
KD-G820 4.0 V/20 kΩload (full scale)
Output Impedance 1 kΩ
Subwoofer-Out Level/Impedance 2.0 V/20 kΩload (full scale)
Other Terminals CD changer, LINE IN (for KD-AR870)
TUNER SECTION
Frequency Range FM 87.5 MHz to 107.9 MHz (with channel interval set to 100 kHz or 200 kHz)
87.5 MHz to 108.0 MHz (with channel interval set to 50 kHz)
AM 530 kHz to 1 710 kHz (with channel interval set to 10 kHz)
531 kHz to 1 602 kHz (with channel interval set to 9 kHz)
FM Tuner Usable Sensitivity 11.3 dBf (1.0 µV/75 Ω)
50 dB Quieting Sensitivity 16.3 dBf (1.8 µV/75 Ω)
Alternate Channel Selectivity (400 kHz) 65 dB
Frequency Response 40 Hz to 15 000 Hz
Stereo Separation 35 dB
AM Tuner Sensitivity 20 µV
Selectivity 35 dB
CD PLAYER/USB MEMORY SECTION
Type Compact disc player
Signal Detection System Non-contact optical pickup (semiconductor laser)
Number of Channels 2 channels (stereo)
Frequency Response 5 Hz to 20 000 Hz
Dynamic Range 96 dB
Signal-to-Noise Ratio 98 dB
Wow and Flutter Less than measurable limit
MP3 Decoding Format MPEG1/2 Audio Layer 3
Max. Bit Rate : 320 kbps
WMA (Windows Media® Audio) Decoding Max. Bit Rate : 192 kbps
Playable USB memory Format FAT 12/16/32
Storage Less than 4 GB (1 partition type)
Playable Audio Format MP3/WMA
Max. Current Less than 500 mA
GENERAL
Power Requirement Operating Voltage DC 14.4 V (11 V to 16 V allowance)
Grounding System Negative ground
Allowable Operating Temperature 0°C to +40°C (32°F to 104°F)
Dimensions (W ×H ×D) Installation Size (approx.) 182 mm ×52 mm ×152 mm (7-3/16" ×2-1/16" ×6")
Panel Size (approx.) 188 mm ×58 mm ×11 mm (7-7/16" ×2-5/16" ×7/16")
Mass (approx.) 1.4 kg (3.1 lbs) (excluding accessories)
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
(No.MA249)1-3
KD-G821
AUDIO AMPLIFIER SECTION
Maximum Power Output Front 50 W per channel
Rear 50 W per channel
Continuous Power Output (RMS) Front 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total
harmonic distortion.
Rear 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total
harmonic distortion.
Load Impedance 4 Ω(4 Ωto 8 Ωallowance)
Tone Control Range Low ±12 dB (60 Hz, 80 Hz, 100 Hz, 200 Hz)
Mid ±12 dB (500 Hz, 1 kHz, 1.5 kHz, 2.5 kHz)
High ±12 dB (10 kHz, 12.5 kHz, 15 kHz, 17.5 kHz)
Frequency Response 40 Hz to 20 000 Hz
Signal-to-Noise Ratio 70 dB
Line-Out Level/Impedance 5.0 V/20 kΩload (full scale)
Output Impedance 1 kΩ
Subwoofer-Out Level/Impedance 2.0 V/20 kΩload (full scale)
Other Terminals CD changer, Steering wheel remote input
TUNER SECTION
Frequency Range FM 87.5 MHz to 108.0 MHz
AM (MW) 522 kHz to 1 620 kHz
(LW) 144 kHz to 279 kHz
FM Tuner Usable Sensitivity 11.3 dBf (1.0 µV/75 Ω)
50 dB Quieting Sensitivity 16.3 dBf (1.8 µV/75 Ω)
Alternate Channel Selectivity (400 kHz) 65 dB
Frequency Response 40 Hz to 15 000 Hz
Stereo Separation 30 dB
MW Tuner Sensitivity 20 µV
Selectivity 35 dB
LW Tuner Sensitivity 50 µV
CD PLAYER/USB MEMORY SECTION
Type Compact disc player
Signal Detection System Non-contact optical pickup (semiconductor laser)
Number of Channels 2 channels (stereo)
Frequency Response 5 Hz to 20 000 Hz
Dynamic Range 96 dB
Signal-to-Noise Ratio 98 dB
Wow and Flutter Less than measurable limit
MP3 Decoding Format MPEG1/2 Audio Layer 3
Max. Bit Rate : 320 kbps
WMA (Windows Media® Audio) Decoding Format Max. Bit Rate : 192 kbps
Playable USB memory Format FAT 12/16/32
Storage Less than 4 GB (1 partition type)
Playable Audio Format MP3/WMA
Max. Current Less than 500 mA
GENERAL
Power Requirement Operating Voltage DC 14.4 V (11 V to 16 V allowance)
Grounding System Negative ground
Allowable Operating Temperature 0°C to +40°C
Dimensions (W ×H ×D) Installation Size (approx.) 182 mm ×52 mm ×152 mm
Panel Size (approx.) 188 mm ×58 mm ×11 mm
Mass (approx.) 1.4 kg (excluding accessories)
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
1-4 (No.MA249)
KD-G824
AUDIO AMPLIFIER SECTION
Maximum Power Output Front 50 W per channel
Rear 50 W per channel
Continuous Power Output (RMS) Front 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total
harmonic distortion.
Rear 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total
harmonic distortion.
Load Impedance 4 Ω(4 Ωto 8 Ωallowance)
Tone Control Range Low ±12 dB (60 Hz, 80 Hz, 100 Hz, 200 Hz)
Mid ±12 dB (500 Hz, 1 kHz, 1.5 kHz, 2.5 kHz)
High ±12 dB (10 kHz, 12.5 kHz, 15 kHz, 17.5 kHz)
Frequency Response 40 Hz to 20 000 Hz
Signal-to-Noise Ratio 70 dB
Line-Out Level/Impedance 5.0 V/20 kΩload (full scale)
Output Impedance 1 kΩ
Subwoofer-Out Level/Impedance 2.0 V/20 kΩload (full scale)
Other Terminal CD changer
TUNER SECTION
Frequency Range FM 87.5 MHz to 108.0 MHz
AM 531 kHz to 1 602 kHz
FM Tuner Usable Sensitivity 11.3 dBf (1.0 µV/75 Ω)
50 dB Quieting Sensitivity 16.3 dBf (1.8 µV/75 Ω)
Alternate Channel Selectivity (400 kHz) 65 dB
Frequency Response 40 Hz to 15 000 Hz
Stereo Separation 30 dB
AM Tuner Sensitivity 20 µV
Selectivity 35 dB
CD PLAYER/USB MEMORY SECTION
Type Compact disc player
Signal Detection System Non-contact optical pickup (semiconductor laser)
Number of Channels 2 channels (stereo)
Frequency Response 5 Hz to 20 000 Hz
Dynamic Range 96 dB
Signal-to-Noise Ratio 98 dB
Wow and Flutter Less than measurable limit
MP3 Decoding Format MPEG1/2 Audio Layer 3
Max. Bit Rate : 320 kbps
WMA (Windows Media® Audio) Decoding Max. Bit Rate : 192 kbps
Playable USB memory Format FAT 12/16/32
Storage Less than 4 GB (1 partition type)
Playable Audio Format MP3/WMA
Max. Current Less than 500 mA
GENERAL
Power Requirement Operating Voltage DC 14.4 V (11 V to 16 V allowance)
Grounding System Negative ground
Allowable Operating Temperature 0°C to +40°C
Dimensions (W ×H ×D) Installation Size (approx.) 182 mm ×52 mm ×152 mm
Panel Size (approx.) 188 mm ×58 mm ×11 mm
Mass (approx.) 1.4 kg (excluding accessories)
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
(No.MA249)1-5
KD-G825
AUDIO AMPLIFIER SECTION
Maximum Power Output Front 50 W per channel
Rear 50 W per channel
Continuous Power Output (RMS) Front 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total
harmonic distortion.
Rear 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total
harmonic distortion.
Load Impedance 4 Ω(4 Ωto 8 Ωallowance)
Tone Control Range Low ±12 dB (60 Hz, 80 Hz, 100 Hz, 200 Hz)
Mid ±12 dB (500 Hz, 1 kHz, 1.5 kHz, 2.5 kHz)
High ±12 dB (10 kHz, 12.5 kHz, 15 kHz, 17.5 kHz)
Frequency Response 40 Hz to 20 000 Hz
Signal-to-Noise Ratio 70 dB
Line-Out Level/Impedance 5.0 V/20 kΩload (full scale)
Output Impedance 1 kΩ
Subwoofer-Out Level/Impedance 2.0 V/20 kΩload (full scale)
Other Terminal CD changer
TUNER SECTION
Frequency Range FM 87.5 MHz to 108.0 MHz
AM 531 kHz to 1 602 kHz
FM Tuner Usable Sensitivity 11.3 dBf (1.0 µV/75 Ω)
50 dB Quieting Sensitivity 16.3 dBf (1.8 µV/75 Ω)
Alternate Channel Selectivity (400 kHz) 65 dB
Frequency Response 40 Hz to 15 000 Hz
Stereo Separation 30 dB
AM Tuner Sensitivity 20 µV
Selectivity 35 dB
CD PLAYER/USB MEMORY SECTION
Type Compact disc player
Signal Detection System Non-contact optical pickup (semiconductor laser)
Number of Channels 2 channels (stereo)
Frequency Response 5 Hz to 20 000 Hz
Dynamic Range 96 dB
Signal-to-Noise Ratio 98 dB
Wow and Flutter Less than measurable limit
MP3 Decoding Format MPEG1/2 Audio Layer 3
Max. Bit Rate : 320 kbps
WMA (Windows Media® Audio) Decoding Max. Bit Rate : 192 kbps
Playable USB memory Format FAT 12/16/32
Storage Less than 4 GB (1 partition type)
Playable Audio Format MP3/WMA
Max. Current Less than 500 mA
GENERAL
Power Requirement Operating Voltage DC 14.4 V (11 V to 16 V allowance)
Grounding System Negative ground
Allowable Operating Temperature 0°C to +40°C
Dimensions (W ×H ×D) Installation Size (approx.) 182 mm ×52 mm ×152 mm
Panel Size (approx.) 188 mm ×58 mm ×11 mm
Mass (approx.) 1.4 kg (excluding accessories)
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
1-6 (No.MA249)
KD-G827
• Design and specifications are subject to change without notice.
• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/
or other countries.
• iPod is a trademark of Apple Computer, Inc., registered in the U.S. and other countries.
AUDIO AMPLIFIER SECTION
Maximum Power Output Front 50 W per channel
Rear 50 W per channel
Continuous Power Output (RMS) Front 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total
harmonic distortion.
Rear 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total
harmonic distortion.
Load Impedance 4 Ω(4 Ωto 8 Ωallowance)
Tone Control Range Low ±12 dB (60 Hz, 80 Hz, 100 Hz, 200 Hz)
Mid ±12 dB (500 Hz, 1 kHz, 1.5 kHz, 2.5 kHz)
High ±12 dB (10 kHz, 12.5 kHz, 15 kHz, 17.5 kHz)
Frequency Response 40 Hz to 20 000 Hz
Signal-to-Noise Ratio 70 dB
Line-Out Level/Impedance 5.0 V/20 kΩload (full scale)
Output Impedance 1 kΩ
Subwoofer-Out Level/Impedance 2.0 V/20 kΩload (full scale)
Other Terminal CD changer
TUNER SECTION
Frequency Range FM1/FM2 87.5 MHz to 108.0 MHz
FM3 65.00 MHz to 74.00 MHz
AM (MW) 522 kHz to 1 620 kHz
(LW) 144 kHz to 279 kHz
FM Tuner Usable Sensitivity 11.3 dBf (1.0 µV/75 Ω)
50 dB Quieting Sensitivity 16.3 dBf (1.8 µV/75 Ω)
Alternate Channel Selectivity (400 kHz) 65 dB
Frequency Response 40 Hz to 15 000 Hz
Stereo Separation 30 dB
MW Tuner Sensitivity 20 µV
Selectivity 35 dB
LW Tuner Sensitivity 50 µV
CD PLAYER/USB MEMORY SECTION
Type Compact disc player
Signal Detection System Non-contact optical pickup (semiconductor laser)
Number of Channels 2 channels (stereo)
Frequency Response 5 Hz to 20 000 Hz
Dynamic Range 96 dB
Signal-to-Noise Ratio 98 dB
Wow and Flutter Less than measurable limit
MP3 Decoding Format MPEG1/2 Audio Layer 3
Max. Bit Rate : 320 kbps
WMA (Windows Media® Audio) Decoding Format Max. Bit Rate : 192 kbps
Playable USB memory Format FAT 12/16/32
Storage Less than 4 GB (1 partition type)
Playable Audio Format MP3/WMA
Max. Current Less than 500 mA
GENERAL
Power Requirement Operating Voltage DC 14.4 V (11 V to 16 V allowance)
Grounding System Negative ground
Allowable Operating Temperature 0°C to +40°C
Dimensions (W ×H ×D) Installation Size (approx.) 182 mm ×52 mm ×152 mm
Panel Size (approx.) 188 mm ×58 mm ×11 mm
Mass (approx.) 1.4 kg (excluding accessories)
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
(No.MA249)1-7
SECTION 1
PRECAUTIONS
1.1 Safety Precautions
!Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.
!Please use enough caution not to see the beam directly or touch it in case of an
adjustment or operation check.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
1-8 (No.MA249)
1.2 Preventing static electricity
Electrostatic discharge (ESD), which occurs when static electricity stored in the body, fabric, etc. is discharged, can destroy the laser
diode in the traverse unit (optical pickup). Take care to prevent this when performing repairs.

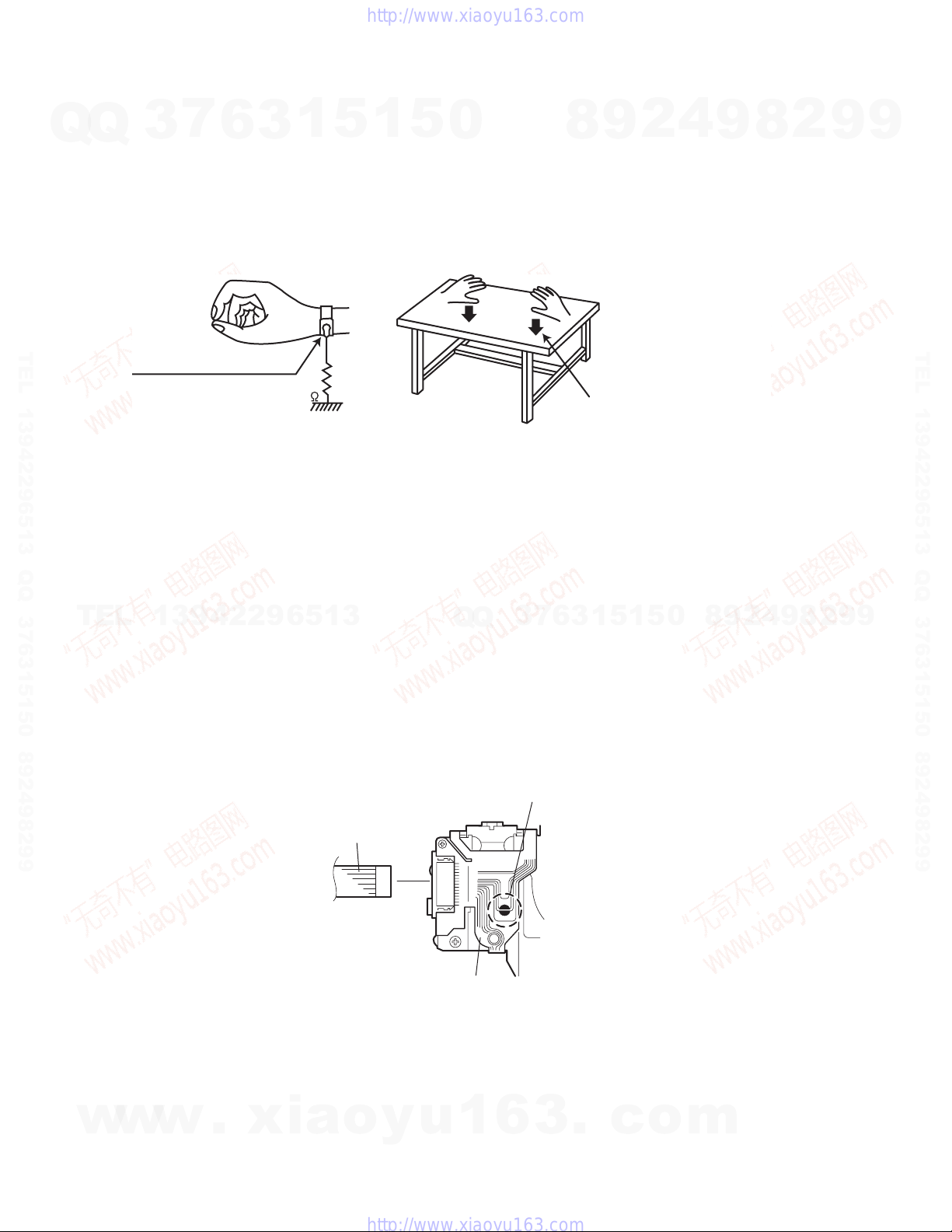

1.2.1 Grounding to prevent damage by static electricity
Static electricity in the work area can destroy the optical pickup (laser diode) in devices such as laser products.
Be careful to use proper grounding in the area where repairs are being performed.
(1) Ground the workbench
Ground the workbench by laying conductive material (such as a conductive sheet) or an iron plate over it before placing the
traverse unit (optical pickup) on it.
(2) Ground yourself
Use an anti-static wrist strap to release any static electricity built up in your body.
(3) Handling the optical pickup
• In order to maintain quality during transport and before installation, both sides of the laser diode on the replacement optical
pickup are shorted. After replacement, return the shorted parts to their original condition.
(Refer to the text.)
• Do not use a tester to check the condition of the laser diode in the optical pickup. The tester's internal power source can easily
destroy the laser diode.
1.3 Handling the traverse unit (optical pickup)
(1) Do not subject the traverse unit (optical pickup) to strong shocks, as it is a sensitive, complex unit.
(2) Cut off the shorted part of the flexible cable using nippers, etc. after replacing the optical pickup. For specific details, refer to the
replacement procedure in the text. Remove the anti-static pin when replacing the traverse unit. Be careful not to take too long a
time when attaching it to the connector.
(3) Handle the flexible cable carefully as it may break when subjected to strong force.
(4) It is not possible to adjust the semi-fixed resistor that adjusts the laser power. Do not turn it.
1.4 Attention when traverse unit is decomposed
*Please refer to "Disassembly method" in the text for the pickup unit.
• Apply solder to the short land before the flexible wire is disconnected from the connector on the pickup unit.
(If the flexible wire is disconnected without applying solder, the pickup may be destroyed by static electricity.)
• In the assembly, be sure to remove solder from the short land after connecting the flexible wire.
1M
(caption)
Anti-static wrist strap
Conductive material
(conductive sheet) or iron plate
Pickup
Short-circuit point
(Soldering)
Flexible wire
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
(No.MA249)1-9
1.5 Important for laser products
1.CLASS 1 LASER PRODUCT
2.DANGER : Invisible laser radiation when open and inter
lock failed or defeated. Avoid direct exposure to beam.
3.CAUTION : There are no serviceable parts inside the
Laser Unit. Do not disassemble the Laser Unit. Replace
the complete Laser Unit if it malfunctions.
4.CAUTION : The CD,MD and DVD player uses invisible
laser radiation and is equipped with safety switches which
prevent emission of radiation when the drawer is open and
the safety interlocks have failed or are defeated. It is
dangerous to defeat the safety switches.
5.CAUTION : If safety switches malfunction, the laser is able
to function.
6.CAUTION : Use of controls, adjustments or performance of
procedures other than those specified here in may result in
hazardous radiation exposure.
REPRODUCTION AND POSITION OF LABELS
!
Please use enough caution not to
see the beam directly or touch it
in case of an adjustment or operation
check.
WARNING LABEL
CAUTION : Visible and Invisible
laser radiation when open and
interlock failed or defeated.
AVOID DIRECT EXPOSURE TO
BEAM. (e)
VARNING : Synlig och
osynling laserstrålning när
den öppnas och spärren är
urkopplad. Betrakta ej
strålen. (s)
VARO : Avattaessa ja suojalukitus
ohitettuna tai viallisena olet alttiina
näkyvälle ja näkymättömälle
lasersäteilylle. Vältä säteen
kohdistumista suoraan itseesi. (f)
ADVARSEL : Synlig og usynlig
laserstråling når maskinen er
åben eller interlocken fejeler.
Undgå direkte eksponering til
stråling. (d)
CLASS 1
LASER PRODUCT
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
1-10 (No.MA249)
SECTION 2
SPECIFIC SERVICE INSTRUCTIONS
2.1 DIFFERENT POINT
KD-AR870 KD-G820 KD-G821 KD-G824 KD-G825 KD-G827
LINE IN YES NO NO NO NO NO
RDS NO NO YES NO NO NO
STEERING WHEEL REMOTE INPUT NO NO YES NO NO NO
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
(No.MA249)1-11
SECTION 3
DISASSEMBLY
3.1 Main body section

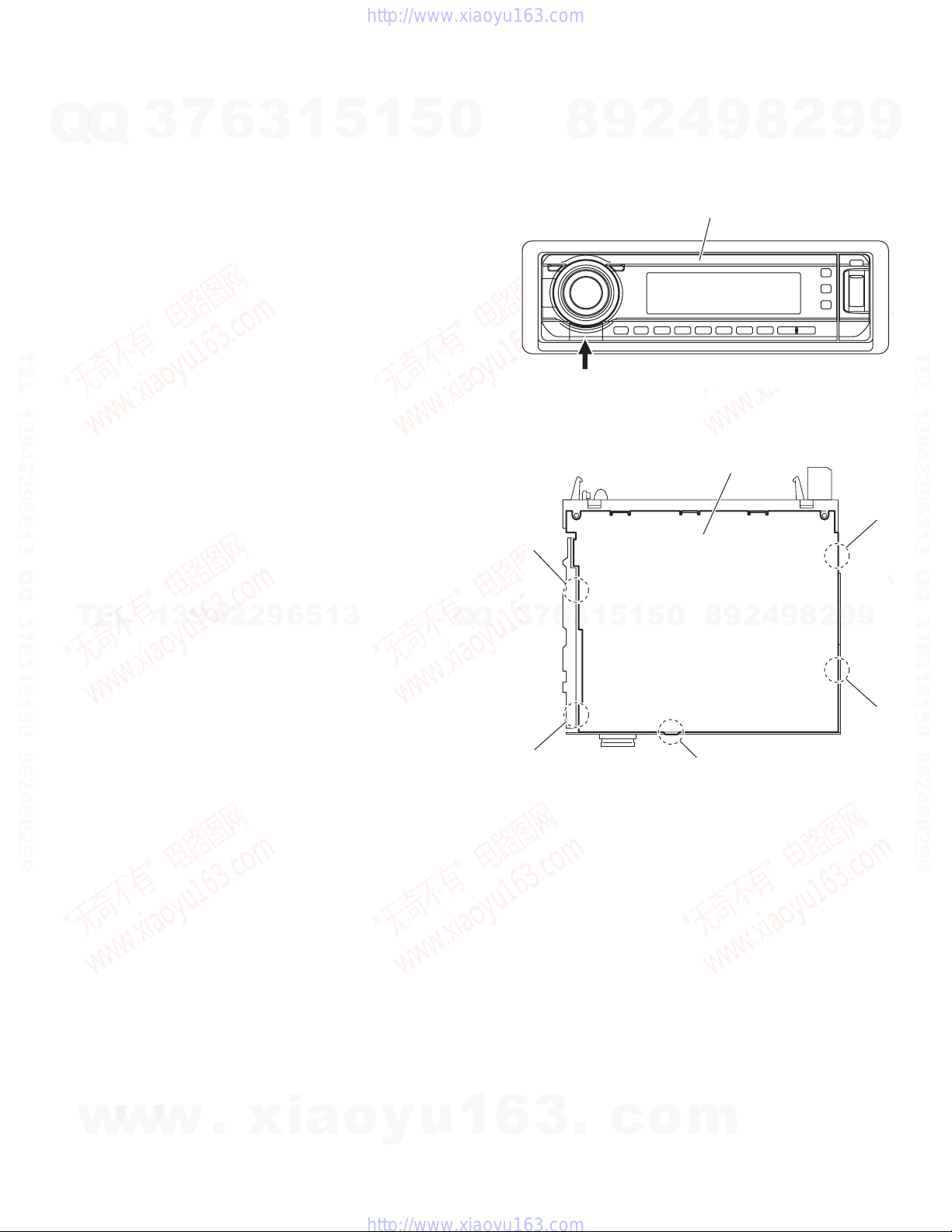

3.1.1 Removing the front panel assembly
(See Fig.1)
(1) Push the control panel release button in the lower left part
of the front panel assembly and remove the front panel as-
sembly.
(2) Take out the front panel assembly.
Fig.1
3.1.2 Removing the bottom cover
(See Fig.2)
(1) Turn the main body up side down.
(2) Insert a screwdriver under the joints to release the joints a
on the left side, joints bon the right side and joint con the
back side of the main body, then remove the bottom cover
from the main body.
Caution:
When releasing the joints using a screwdriver, do not damage
the main board.
Fig.2
Front panel assembly
Control panel release button
Bottom cover
a
b
a
b
c
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
1-12 (No.MA249)

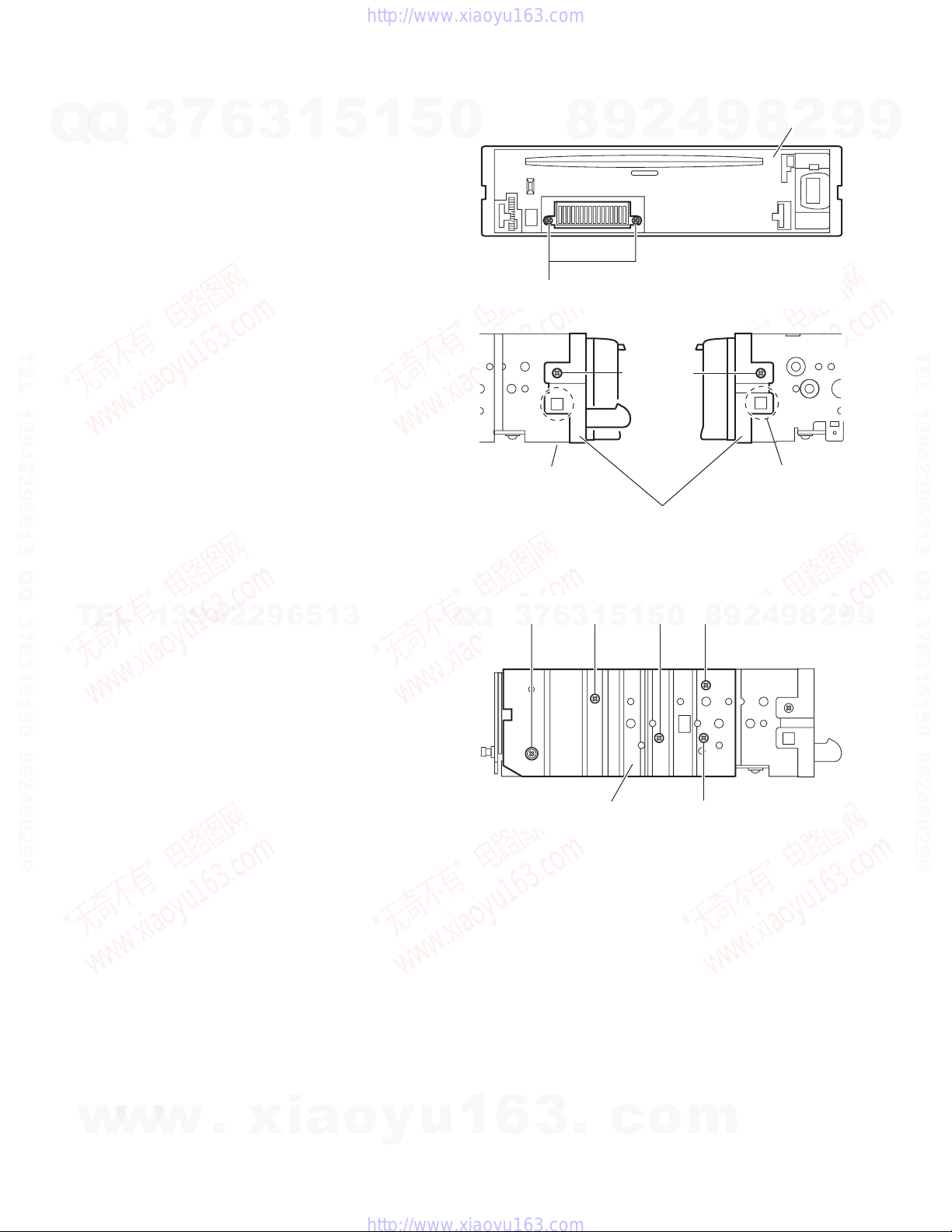

3.1.3 Removing the front chassis assembly
(See Figs.3 and 4)
• Remove the front panel assembly and bottom cover.
(1) Remove the two screws Aon the front side of the main
body. (See Fig.3)
(2) Remove the two screws Bon the both sides of the main
body. (See Fig.4)
(3) Release the joints dand joints eon the both sides of the
main body, and then remove the front chassis assembly to-
ward the front. (See Fig.4)
Fig.3
Fig.4
3.1.4 Removing the side panel
(See Fig.5)
Reference:
Remove the front panel assembly as required.
(1) Remove the two screws Cand three screws Dattaching
the side panel on the left side of the main body.
(2) Take out the side panel from the main body.
Fig.5
A
Front chassis assembly
d
Front chassis assembly
B
e
B
Side panel
C C
D
DD
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
(No.MA249)1-13
3.1.5 Removing the rear bracket
(See Fig.6) [For KD-AR870, KD-G820 and KD-G821]
• Remove the bottom cover.
(1) Remove the four screws E, two screws Fand two screws
Gattaching the rear bracket on the back side of the main
body.
(2) Take out the rear bracket.
3.1.6 Removing the rear bracket
(See Fig.6) [For KD-G824, KD-G825 and KD-G827]
• Remove the bottom cover.
(1) Remove the three screws E, three screws Fand two
screws Gattaching the rear bracket on the back side of the
main body.
(2) Take out the rear bracket.
3.1.7 Removing the main board
(See Figs.6 to 8)
• Remove the front panel assembly, bottom cover, front chassis
assembly and side panel.
(1) Remove the four screws Efor KD-AR870, KD-G820 and
KD-G821 or three screws Efor KD-G824, KD-G825 and
KD-G827 attaching the rear bracket on the back side of the
main body. (See Fig.6.)
(2) Remove the three screws Hattaching the main board. (See
Fig.7)
(3) Disconnect the connector CN501 and take out the main
board. (See Fig.7)
(4) Remove the one screw Jattaching the USB board. (See
Fig.8)
Reference:
Remove the rear bracket as required. Fig.6
Fig.7
Fig.8
F
E EE
Rear bracket FG
for KD-AR870, KD-G820, KD-G821
F
E E
Rear bracket FG
for KD-G824, KD-G825,KD-G827
Main board
H
H
H
CN501 Rear bracket
J
Main board
CD mechanism assembly
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
1-14 (No.MA249)

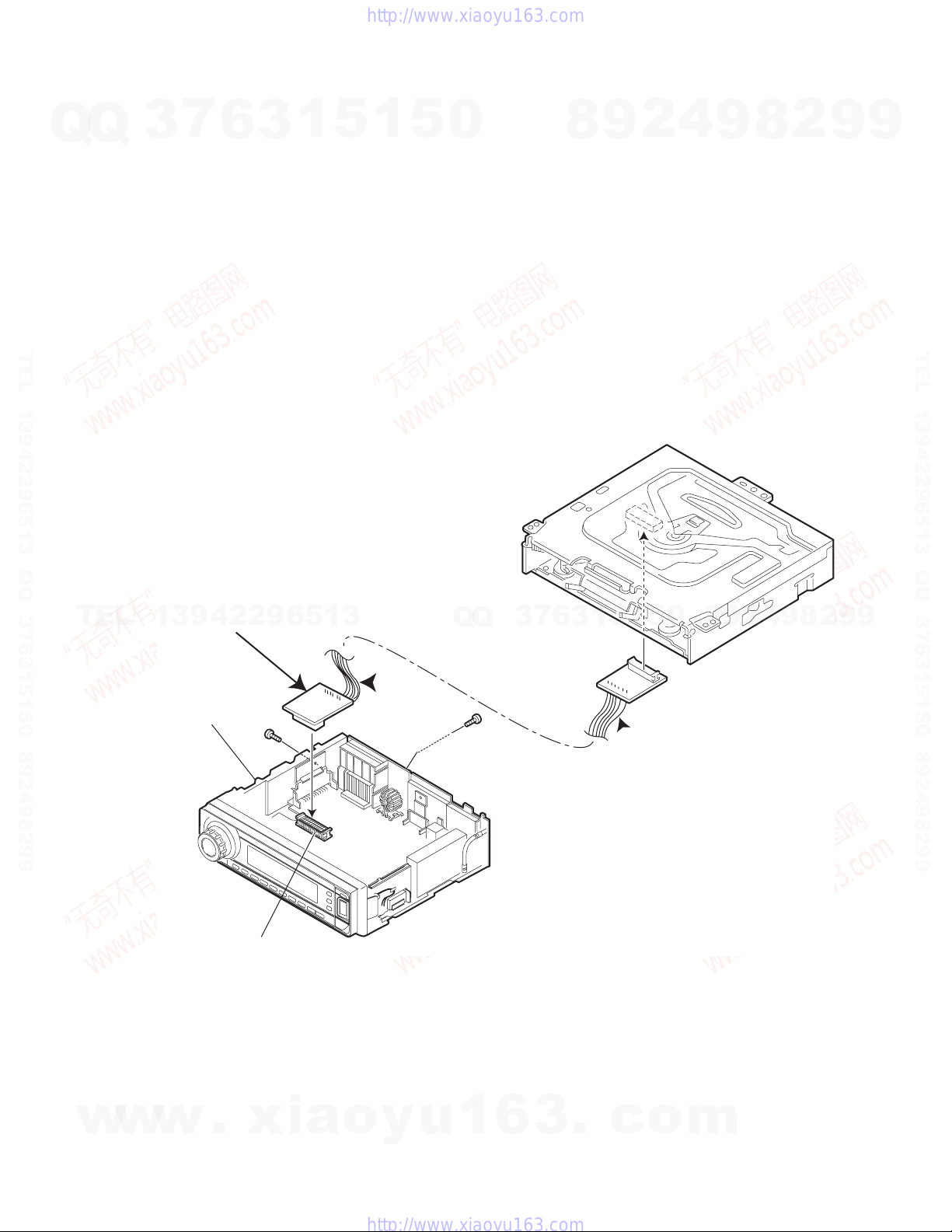

3.1.8 Removing the CD mechanism assembly
(See Fig.9)
• Remove the front panel assembly, bottom cover, front chassis
assembly, side panel, main board and CD mechanism control
board.
(1) Remove the three screws Kattaching the top chassis.
(2) Take out the CD mechanism assembly.
Fig.9

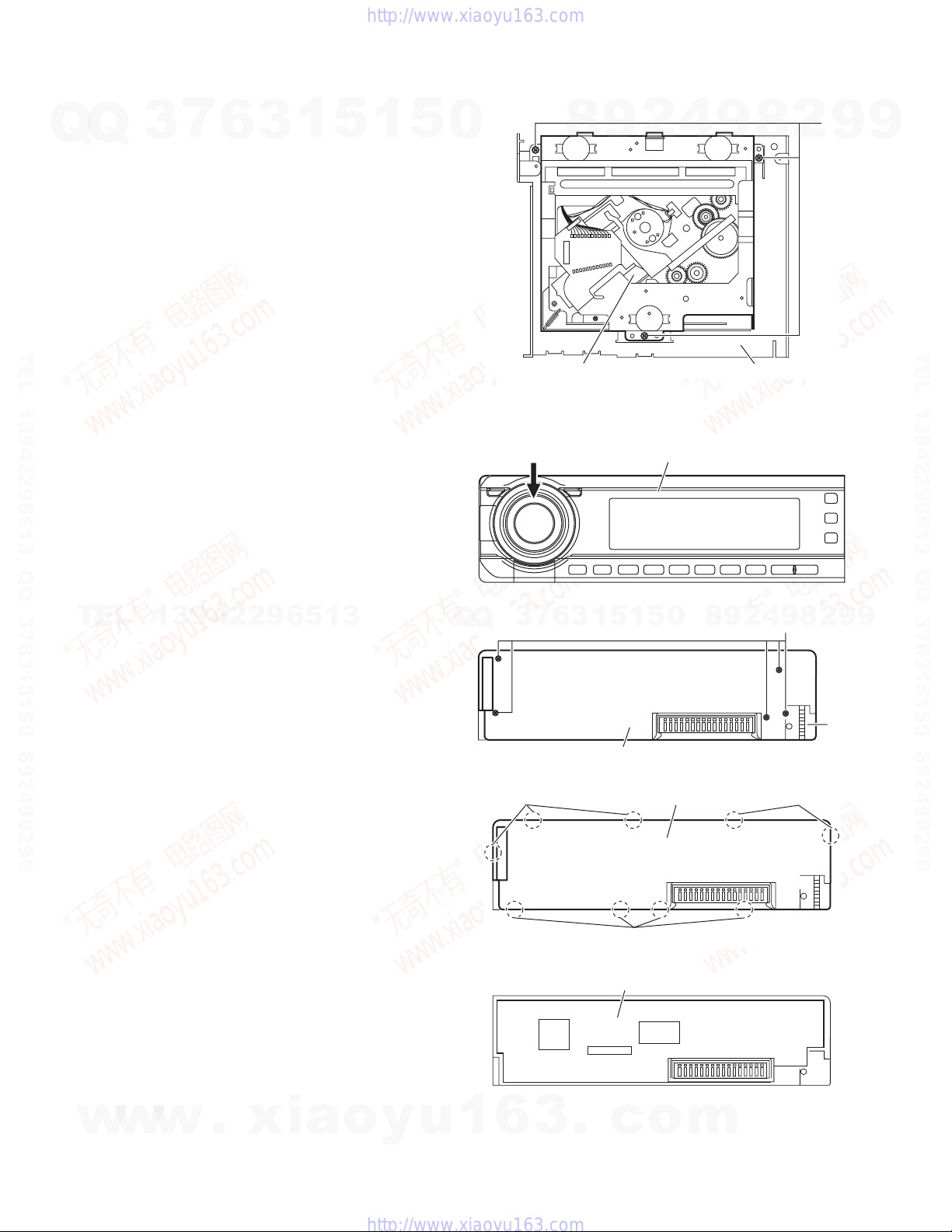

3.1.9 Removing the switch board
(See Figs.10 to 13)
• Remove the front panel assembly.
(1) Release the main volume knob from the front panel assem-
bly. (See Fig.10)
(2) Remove the five screws Land one screw Mattaching the
front panel assembly. (See Fig.11)
(3) Release the nine joints fand take out the rear cover. (See
Fig.12)
(4) Lift the switch board from the front panel assembly little by
little and take out the switch board. (See Fig.13) Fig.10
Fig.11
Fig.12
Fig.13
3.2 CD mechanism section
For the CD mechanism, please refer the mechanism manual TN2001-1118 (No.MY004).
K
CD mechanism assembly Top chassis
Front panel assembly
Volume knob
L
M
Rear cover
Rear cover f
f
f
Switch board
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
(No.MA249)1-15
SECTION 4
ADJUSTMENT
4.1 Adjustment method
Test instruments required for adjustment
(1) Digital oscilloscope (100MHz)
(2) Electric voltmeter
(3) Digital tester
(4) Tracking offset meter
(5) Test Disc JVC :CTS-1000
(6) Extension cable for check
EXTSH002-22P ×1
Standard volume position
Balance and Bass &Treble volume : lndication"0"
Loudness : OFF
Standard measuring conditions
Dummy load
Exclusive dummy load should be used for AM,and FM. For FM
dummy load,there is a loss of 6dB between SSG output and
antenna input.The loss of 6dB need not be considered since
direct reading of figures are applied in this working standard.
How to connect the extension cable for adjusting
Caution:
Be sure to attach the heat sink and rear bracket onto the power amplifier IC and regulator IC respectively, before supply the power.
If voltage is applied without attaching these parts, the power amplifier IC and regulator IC will be destroyed by heat.
Power supply voltage DC14.4V(11 to 16V)
Load impedance 20KΩ(2 Speakers connection)
Output Level KD-ARXXX Line out 4.0V (Vol. MAX)
KD-GXXX Line out 2.5V (Vol. MAX)
Side panel
EXTSH002-22P
Rear bracket
CN501
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
1-16 (No.MA249)
SECTION 5
TROUBLESHOOTING
5.1 Feed section
5.2 Focus section
Check the feed motor.
Is 4V present at both
sides of the feed motor?
YES
NO
Is the voltage output at
pin 4 and pin 5 of IC501?
Is the power supply
present at pin 3, pin 12
and pin 21 of IC501?
Check the connections
between the feed motor
and IC501.
YES
NO
Is the voltage input at pin
28 of IC501?
YES YES Check IC501.
NO
Check the connections
of CD8V power supply.
NO
Is the voltage output at
pin 12 of IC541?
Check the connections
between IC501 and
IC541.
YES
NO
Is the power supply
present at pins 8,16,25,
28,32,53,71 and pin 90
of IC541?
YES Check IC541.
NO
Check the connections
of CD8V power supply.
When the lens is
moving:
Does the S-search
waveform appear at
IC501 pins 8 and 9?
4V Check the pickup and
its connections.
Is the power supply
present at pins 8,16,25,
28,32,53,71 and pin 90
of IC541?
YES
NO
Is the voltage input at pin
15 of IC501?
YES
NO
Is the voltage output at
pin 9 of IC541?
NO
YES Check the connections
between IC501 and
IC541.
Is the power supply
present at pin 3, pin 12
and pin 21 of IC501?
YES Check IC501.
NO
Check the connections
of CD8V power supply.
YES Check IC541.
NO
Check the connections
of CD8V power supply.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
(No.MA249)1-17

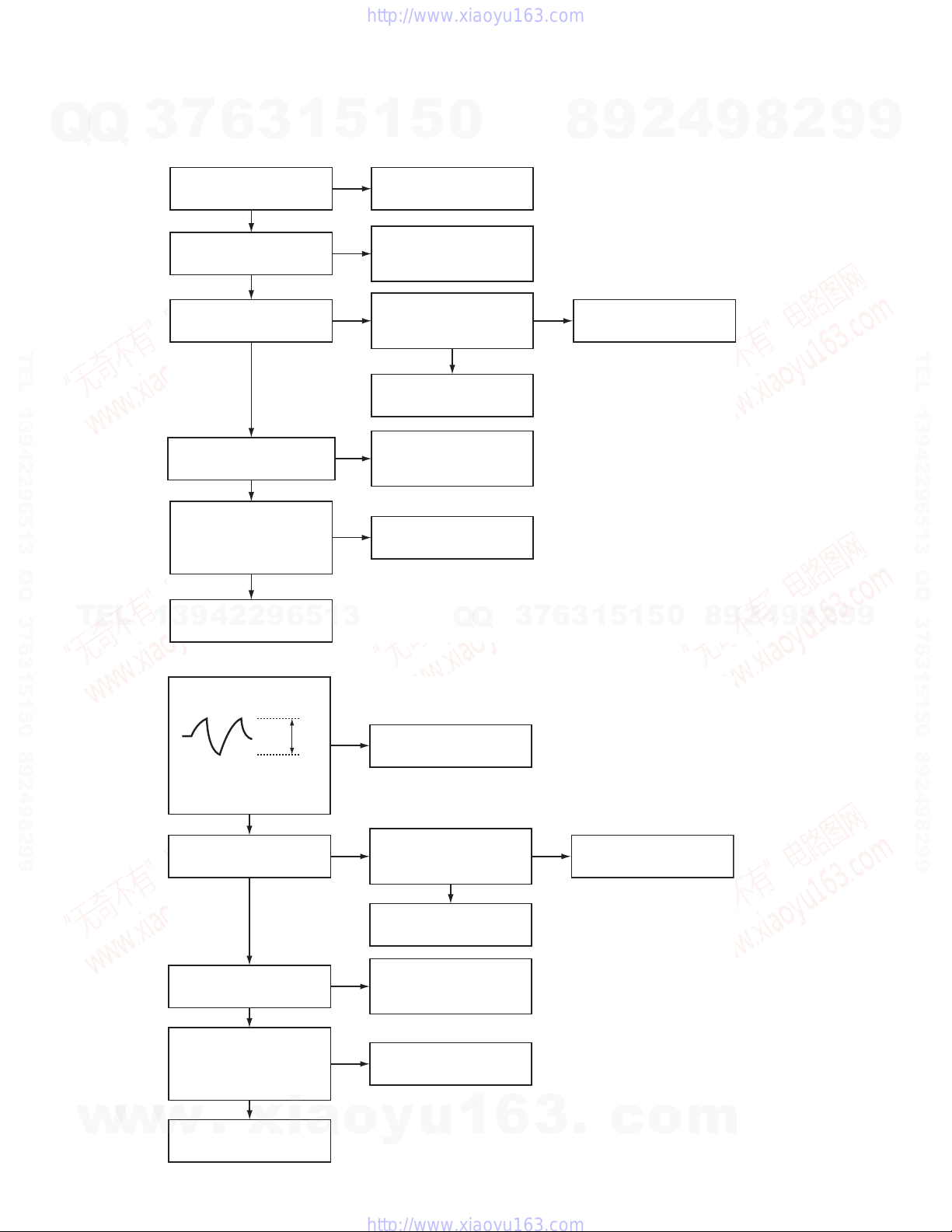

5.3 Spindle section
5.4 Tracking section
Is the disk rotated?
NO
YES
Is the voltage output at
pin 6 and pin 7 of IC501?
Does the RF signal appear
at pin 83 of IC541?
YES
Check the spindle motor
and its wiring.
Is the RF waveform at
pin 83 of IC541 distorted?
Proceed to the Tracking
section.
Check the circuits in
the vicinity of IC541
or the pickup.
YES
NONO
YES
NO
Is the voltage input at pin
17 of IC501?
YES
NO
Is the voltage output at
pin 13 of IC541?
Check the connections
between IC501 and
IC541.
YES
NO
Is the power supply
present at pin 3, pin 12
and pin 21 of IC501?
YES
Check IC501.
NO
Check the connections
of CD8V power supply.
YES Check IC541.
NO
Check the connections
of CD8V power supply.
Is the power supply
present at pins 8,16,25,
28,32,53,71 and pin 90
of IC541?
When the disc is rotated
at first:
Approx. 1.2V
Is the tracking error
signal output at pin 6
of IC541?
Replace IC541 or repair
the malfunction
connection point.
YES
NO
Check the pickup and
its connections.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
1-18 (No.MA249)
5.5 Signal processing section
5.6 Maintenance of laser pickup
(1) Cleaning the pick up lens
Before you replace the pick up, please try to clean the lens
with a alcohol soaked cotton swab.
(2) Life of the laser diode
When the life of the laser diode has expired, the following
symptoms will appear.
• The level of RF output (EFM output: amplitude of eye
pattern) will be low.
(3) Semi-fixed resistor on the APC PC board
The semi-fixed resistor on the APC printed circuit board
which is attached to the pickup is used to adjust the laser
power.Since this adjustment should be performed to match
the characteristics of the whole optical block, do not touch
the semi-fixed resistor.
If the laser power is lower than the specified value, the la-
ser diode is almost worn out, and the laser pickup should
be replaced. If the semi-fixed resistor is adjusted while the
pickup is functioning normally, the laser pickup may be
damaged due to excessive current.
5.7 Replacement of laser pickup
No sound from either
channel.
Is 9V present at pin 24
of IC161?
Compare the L-ch and
R-ch to locate the
defective point.
Is the sound output from
both channels (L, R)?
YES
NO Is the audio signal
(including sampling
output components)
output to pins 1 and 7 of
IC581 during playback?
Normal
YES
NO
YES
NO
Check IC581 and its
peripheral circuits.
NO
Is 9V present at pin 13
of IC901?
YES
Check the connections
between pin 24 of IC161
and pin 13 of IC901.
NO
Check IC901 and its
peripheral circuits.
Is the audio signal output
at pin 18 and pin 19 of
IC161 during playback?
YES
NO
Check IC161 and its
peripheral circuits.
YES
Check the power
amplifier IC301.
Is RF output
1.3 0.4Vp-p?
YES
NO
OK
Replace it.
Turn off the power switch and disconnect the
power cord.
Replace the pickup with a normal one. (Refer
to "Removing the pickup unit" on the previous page.)
Plug the power cord in and turn the power on.
At this time, check that the laser emits for about
seconds and the objective lens moves up and down.
Note: Do not observe the laser beam directly.
Play a disc.
Check the eye-pattern at
RF test point or
ARF test point.
Finish.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
(No.MA249)1-19

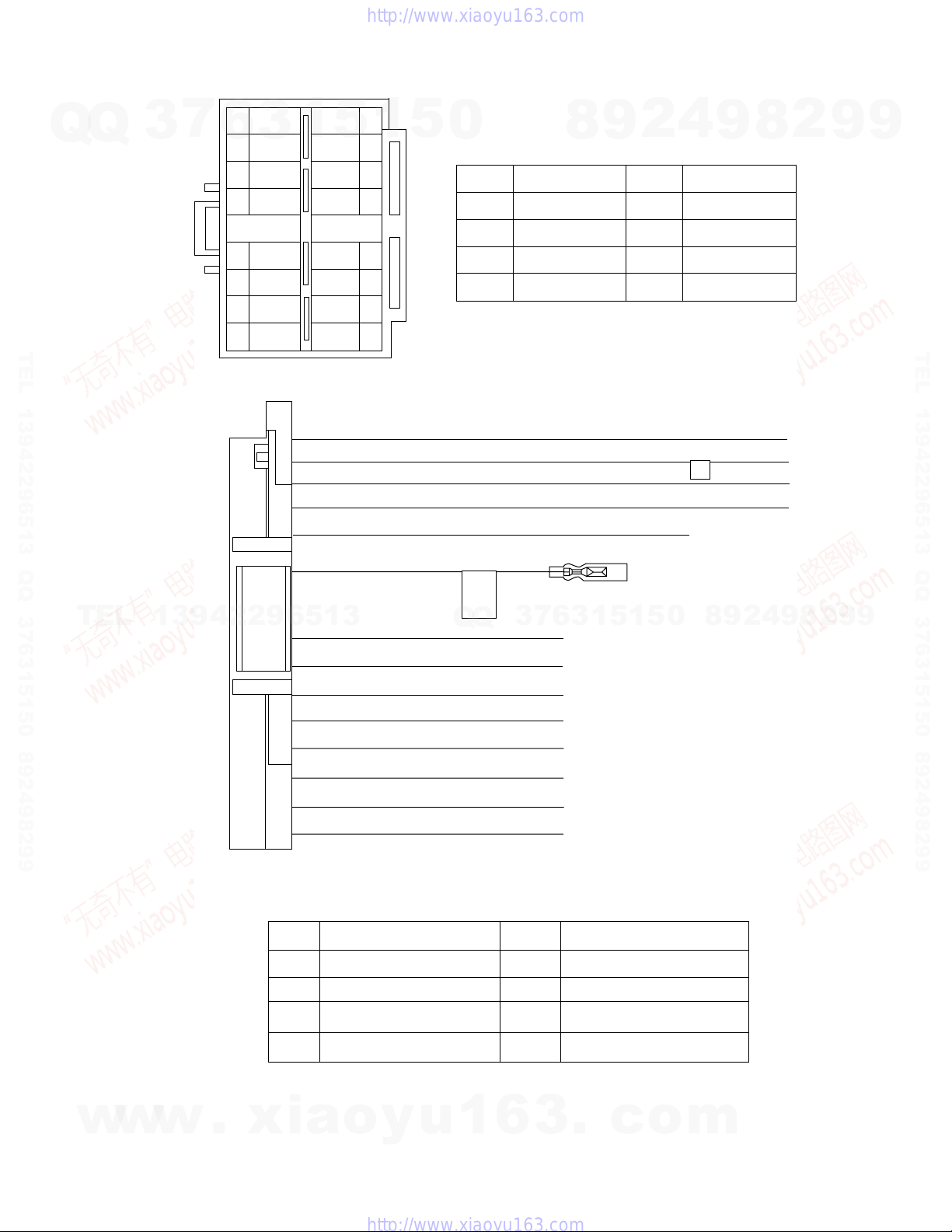

5.8 16P CORD DIAGRAM (for KD-AR870)
8
7
6
5
4
3
2
1
GY
VI
GN
WH
BL/WH
NC
RD
BK
16
15
14
13
12
11
10
9
YL
GY/BK
VI/BK
GN/BK
WH/BK
OR/WH
NC
BR
GND
CAUTION!
REMOTE
OUTPUT ONLY
GND
16 YL
8 BK
7 RD
15 OR/WH
3 GN
11 GN/BK
2 VI
10 VI/BK
4 WH
12 WH/BK
1 GY
9 GY/BK
5 BL/WH
MEMORY
GND
ACC
ILL
RL+
RL-
RR+
RR-
FL+
FL-
FR+
FR-
REMOTE
13 BR TEL
BK
RD
BL
WH
BR
Black
Red
Blue
White
Brown
GN
VI
GY
YL
OR
Green
Violet
Gray
Yellow
Orange
RR
FR
FL
RL
TEL
Rear Right
Front Right
Front Left
Rear Left
Telephone muting
REMOTE
ACC
MEMORY
ILL
Remote out
ACC Line
Memory Backup Battery +
Ground
Illuminations Control
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
1-20 (No.MA249)
5.9 16 PIN CORD DIAGRAM (for KD-G820)
8
7
6
5
4
3
2
1
GY
VI
GN
WH
BL/WH
NC
RD
BK
16
15
14
13
12
11
10
9
YL
GY/BK
VI/BK
GN/BK
WH/BK
OR/WH
NC
NC
Black
RD
BK
Red
BL
Blue
WH
White
GN Green
VI Violet
GY Gray
Yellow
RR
FR
FL
RL
REMOTE
ACC
GND
MEMORY
Rear Right
Front Right
Front Left
Rear Left
Remote out
ACC Line
Ground
Memory Backup Battery +
YL
OR
Orange
ILL
Illuminations Control
CAUTION!
REMOTE
OUTPUT ONLY
GND
16 YL
8 BK
7 RD
15 OR/WH
3 GN
11 GN/BK
2 VI
10 VI/BK
4 WH
12 WH/BK
1 GY
9 GY/BK
5 BL/WH
MEMORY
GND
ACC
ILL
RL+
RL-
RR+
RR-
FL+
FL-
FR+
FR-
REMOTE
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
Other manuals for KD-AR870J
3
This manual suits for next models
11
Table of contents
Other JVC Car Receiver manuals
Popular Car Receiver manuals by other brands
Alpine
Alpine TDA-7572R owner's manual
Aurora Design
Aurora Design AAC/MP3 User's operation manual
Blaupunkt
Blaupunkt Monte Carlo MP28 Operating and installation instructions
Clarion
Clarion VZ509 Owner's manual & installation manual
Kenwood
Kenwood KDC-BT530U instruction manual
Panasonic
Panasonic CQDVR592U - AUTO RADIO/CD/DVD PL operating instructions
