JVC KW-R710 User manual

Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
ENGLISH
ESPAÑOL
FRANÇAIS
GET0947-001A [J]
KW-R710
CD RECEIVER
INSTRUCTION MANUAL
RECEPTOR CON CD
MANUAL DE INSTRUCCIONES
RÉCEPTEUR CD
MANUEL D’INSTRUCTIONS
For customer Use:
Enter below the Model No. and Serial No. which are
located on the top or bottom of the cabinet. Retain this
information for future reference.
Model No.
Serial No.
Please read all instructions carefully before
operation to obtain the best possible performance
from the unit.
Por favor lea detenidamente este manual para
comprender a fondo todas las instrucciones y
obtener un máximo disfrute de esta unidad.
Veuillez lires les instructions attentivement avant
d’utiliser l’appareil afin d’obtenir les meilleures
performances possibles de l’appareil.
EN_KW-R710[J]1.indd 1EN_KW-R710[J]1.indd 1 10/31/2013 11:35:09 AM10/31/2013 11:35:09 AM

2
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
CONTENTS BEFORE USE
Warning
Do not operate any function that takes your attention away from safe driving.
Caution
Volume setting:
• Adjust the volume so that you can hear sounds outside the car to prevent accidents.
• Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of
the output level.
General:
• Avoid using the USB device or iPod/iPhone if it might hinder safe driving.
• Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded
data.
• Never put or leave any metallic objects (such as coins or metal tools) inside the unit, to prevent a short
circuit.
• If a disc error occurs due to condensation on the laser lens, eject the disc and wait for the moisture to
evaporate.
Remote control (RM-RK52):
• Do not leave the remote control in hot places such as on the dashboard.
• The Lithium battery is in danger of explosion if replaced incorrectly. Replace it only with the same or
equivalent type.
• The battery pack or batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
• Keep the battery out of reach of children and in its original packaging when not in used. Dispose of used
batteries promptly. If swallowed, contact a physician immediately.
BEFORE USE 2
BASICS 3
GETTING STARTED 4
CD / USB / iPod 5
RADIO 7
AUX 8
Pandora® 9
iHeartRadio® 10
AUDIO SETTINGS 11
DISPLAY SETTINGS 12
MORE INFORMATION 13
TROUBLESHOOTING 15
SPECIFICATIONS 17
INSTALLATION /
CONNECTION 18
How to read this manual
• Operations are explained mainly
using buttons on the faceplate.
•
[XX] indicates the selected items.
•
( XX) indicates references are
available on the stated page.
Maintenance
Cleaning the unit: Wipe off dirt on the faceplate with a dry silicone or soft cloth.
Handling discs:
• Do not touch the recording surface of the disc.
• Do not stick tape etc. on the disc, or use a disc with tape stuck on it.
• Do not use any accessories for the disc.
• Clean from the center of the disc and move outward.
• Clean the disc with a dry silicone or soft cloth. Do not use any solvents.
• When removing discs from this unit, pull them out horizontally.
• Remove burrs from the center hole and disc edge before inserting a disc.
EN_KW-R710[J]1.indd 2EN_KW-R710[J]1.indd 2 10/31/2013 11:35:13 AM10/31/2013 11:35:13 AM

3
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
To Do this (on the faceplate) Do this (on the remote control)
Turn on the power Press B/SOURCE.
• Press and hold to turn off the power. ( not available )
Adjust the volume Turn the volume knob. Press VOL + or VOL –.
Press the volume knob to mute the sound or pause playback.
• Press again to cancel. Press to mute the sound or pause playback.
• Press again to cancel.
Select a source • Press B/SOURCE repeatedly.
• Press B/SOURCE, then turn the volume knob within 2 seconds.
Press SOURCE repeatedly.
Change the display
information
Press DISP repeatedly.
( 15)
• Press and hold to scroll the current display information. ( not available )
Volume knob
(turn/press)
Loading slot Display window
BASICS
Faceplate Remote control (RM-RK52)
How to reset
Your preset adjustments
will also be erased.
Pull out the insulation sheet
when using for the first time.
How to replace the battery
Remote sensor
(Do not expose to bright sunlight.)
ENGLISH |
EN_KW-R710[J]1.indd 3EN_KW-R710[J]1.indd 3 10/31/2013 11:35:14 AM10/31/2013 11:35:14 AM

4
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
GETTING STARTED
Cancel the demonstration
1 Press and hold MENU.
2 Turn the volume knob to select [DEMO] , then press the knob.
3 Turn the volume knob to select [DEMO OFF] , then press the knob.
4 Press MENU to exit.
Set the clock
1 Press and hold MENU.
2 Turn the volume knob to select [CLOCK] , then press the knob.
3 Turn the volume knob to select [CLOCK SET] , then press the knob.
4 Turn the volume knob to make the settings, then press the knob.
Day Hour Minute
5 Turn the volume knob to select [24H/ 12H] , then press the knob.
6 Turn the volume knob to select [12 HOUR] or [24 HOUR] , then press the
knob.
7 Press MENU to exit.
1
2
Set the basic settings
1 Press and hold MENU.
2 Turn the volume knob to make a selection (see the following table),
then press the knob.
3 Press MENU to exit.
To return to the previous setting item or hierarchy, press GPTY.
Default: XX
CLOCK
CLOCK ADJ AUTO
:The clock time is automatically set using the Clock Time (CT) data in
FM Radio Broadcast Data System signal.;
OFF :Cancels.
CLOCK DISP ON :The clock time is shown on the display even when the unit is turned
off.;
OFF :Cancels.
SETTINGS
BEEP ON
:Activates the keypress tone.; OFF :Deactivates.
SRC SELECT
AM
* ON :Enables AM in source selection.; OFF :Disables.
PANDORA * ON :Enables PANDORA in source selection.; OFF :Disables.
IHEART * ON :Enables IHEARTRADIO in source selection.; OFF :Disables.
AUX * ON :Enables AUX in source selection.; OFF :Disables.; BT ADAPTER :Select
when the KS-BTA100 Bluetooth adapter is connected to the auxiliary input
jack
( 8) . The source name will change to BTAUDIO.
F/W UPDATE
SYSTEM
F/W xxxx YES
:Starts upgrading the firmware.; NO :Cancels (upgrading is not
activated).
For details on how to update the firmware, see:
<http://www.jvc.net/cs/car/>.
* Not displayed when the corresponding source is selected.
3
EN_KW-R710[J]1.indd 4EN_KW-R710[J]1.indd 4 10/31/2013 11:35:15 AM10/31/2013 11:35:15 AM

5
ENGLISH |
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
CD / USB / iPod
To Do this
Select a track/file Press S/T(or press H/Ion RM-RK52).
Select a folder *3Press J/K(or press J/Kon RM-RK52).
Reverse/
Fast-forward Press and hold S/T(or press and hold H/Ion RM-RK52).
Repeat play *4Press 3Brepeatedly to make a selection.
• Audio CD or JVC Playlist Creator (JPC) / JVC Music Control (JMC) file ( 14) :
TRACKRPT, RPT OFF
• MP3/WMA/WAV file: TRACKRPT, FOLDER RPT, RPT OFF
• iPod: ONE RPT, ALL RPT, RPT OFF
Random play *4Press 2Arepeatedly to make a selection.
• Audio CD: ALL RND, RND OFF
• MP3/WMA/WAV file or JPC / JMC file: FOLDERRND, ALL RND, RND OFF
• iPod: SONG RND, ALL RND, RND OFF
*1Do not leave the cable inside the car when not using.
*2You can still play/pause, file skip, fast-forward or reverse files from the unit.
*3Only for MP3/WMA/WAV files. This does not work for iPod.
*4For iPod: Applicable under
[HEAD MODE] only.
Start playback
The source changes automatically and
playback starts.
CD
USB
iPod/iPhone
• You can also change the source from the
other source to iPod by pressing iPod.
Press 5 iPod MODE repeatedly to select the
control mode (
[HEAD MODE] / [IPHONE MODE] ).
HEAD MODE : From the unit.
IPHONE MODE : From the iPod/iPhone.*2
Eject disc Label side
USB input terminal
(Accessory of the iPod/iPhone)
*1
USB input terminal
USB 2.0 cable
*1
(commercially available)
JS_JVC_KW_R710_J_f_EN.indd 5JS_JVC_KW_R710_J_f_EN.indd 5 12/16/2013 3:31:54 PM12/16/2013 3:31:54 PM

6
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
Select a track/file from a list
For iPod: Applicable only when [HEAD MODE] is selected. ( 5)
1 Press MENU.
2 Turn the volume knob to make a selection, then press the knob.
• MP3/WMA/WAV file: Select the desired folder, then a file.
• iPod or JPC / JMC file: Select the desired file from the list (PLAYLISTS,
ARTISTS, ALBUMS, SONGS, PODCASTS*, GENRES, COMPOSERS*,
AUDIOBOOKS*).
*
Only for iPod.
If you have many files....
You can search through them quickly (on step 2above) by turning the
volume knob quickly.
• Not applicable for iPod.
Select a song by name
While listening to the iPod and [HEAD MODE] is selected ( 5) ....
If you have many folders or tracks/files, you can search through them
quickly according to the first character (A to Z, 0 to 9 and OTHERS).
• “OTHERS” appear if the first character is other than Ato Z, 0 to 9.
1 Press MENU.
2 Turn the volume knob to select the desired list, then press the
knob.
3 Press J/Kor turn the volume knob quickly to select the desired
character.
4 Turn the volume knob to select the desired folder or track/file, then
press the knob.
Change the USB drive
When a smartphone (Mass Storage Class) is connected to the USB input
terminal, you can select its internal memory or external memory (such as an
SD card) to playback the stored songs.
You can also select the desired drive to playback when a multiple drives
device is connected.
Press number button 5 iPod MODE repeatedly to select the desired
drive.
(or)
1 Press and hold MENU.
2 Turn the volume knob to select [USB/IPOD] , then press the knob.
3 Turn the volume knob to select [USB] , then press the knob.
4 Press the volume knob to select [DRIVECHANGE] .
The next drive is selected automatically.
Repeat steps 1to 4to select the following drives.
Selectable items:
[DRIVE  1] to [DRIVE  5]
Change the playback speed of the Audiobook
While listening to the iPod and [HEAD MODE] is selected ( 5) ....
1 Press and hold MENU.
2 Turn the volume knob to select [USB/IPOD] , then press the knob.
3 Turn the volume knob to select [IPOD] , then press the knob.
4 Turn the volume knob to make a selection, then press the knob.
BOOK NORMAL / BOOK FASTER / BOOK SLOWER : Select the desired playback
speed of the Audiobooks sound file in your iPod/iPhone.
(Default: Depends on your iPod/iPhone setting.)
• To return to the previous setting item or hierarchy, press GPTY.
• To cancel, press MENU.
CD / USB / iPod
JS_JVC_KW_R710_J_05_EN.indd 6JS_JVC_KW_R710_J_05_EN.indd 6 12/4/2013 3:02:52 PM12/4/2013 3:02:52 PM

7
ENGLISH |
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
RADIO
“ST” lights up when receiving an FM stereo broadcast with sufficient
signal strength.
Search for a station
1 Press B/SOURCE to select FM or AM.
2 Press S/T(or press H/Ion RM-RK52) to search for a station
automatically.
(or)
Press and hold S/T(or press and hold H/Ion RM-RK52) until
“M” flashes, then press repeatedly to search for a station manually.
Store a station
You can store up to 18 stations for FM and 6 stations for AM.
While listening to a station....
Press and hold one of the number buttons (1to 6) to store.
(or)
1 Press and hold the volume knob until “PRESETMODE” flashes.
2 Turn the volume knob to select a preset number, then press the
knob.
The preset number flashes and “MEMORY” appears.
• To select a stored station: Press J/Kor one of the number buttons
(1to6).
(or)
Press MENU, then turn the volume knob to select a preset number and
press the knob to confirm.
Search for your favorite program (PTY Search)
Available only for FM source.
1 Press and hold GPTY.
2 Turn the volume knob to select a PTY code, then press the knob to
start searching.
If there is a station broadcasting a program of the same PTY code as
you have selected, that station is tuned in.
PTY code: NEWS , INFORM (information), SPORTS , TALK , ROCK , CLS ROCK (classic rock),
ADLT HIT (adult hits), SOFT RCK (softrock), TOP 40 , COUNTRY , OLDIES , SOFT , NOSTALGA
(nostalgia),
JAZZ , CLASSICL (classical), R & B (rhythm and blues), SOFT R&B (soft rhythm
and blues),
LANGUAGE , REL MUSC (religious music), REL TALK (religious talk), PERSNLTY
(personality),
PUBLIC , COLLEGE , HABL ESP (Spanish talk), MUSC ESP (Spanish music),
HIP HOP , WEATHER
Other settings
1 Press and hold MENU.
2 Turn the volume knob to select [TUNER] , then press the knob.
3 Turn the volume knob to make a selection ( 8) , then press the
knob.
4 Press MENU to exit.
To return to the previous setting item or hierarchy, press GPTY.
EN_KW-R710[J]2.indd 7EN_KW-R710[J]2.indd 7 11/15/2013 3:02:03 PM11/15/2013 3:02:03 PM

8
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
Default: XX
RADIO
TIMER
Turns on the radio at a specific time regardless of the current source.
1 ONCE / DAILY / WEEKLY / OFF :Select how often the timer will be turned on.
2 FM / AM :Select the FM or AM band.
3 01 to 18 (for FM)/ 01 to 06 (for AM):Select the preset station.
4 Set the activation day* and time.
• “
M ” lights up when complete.
* Selectable only when [ONCE] or [WEEKLY] is selected in step 1 .
Radio Timer will not activate for the following cases.
• The unit is turned off.
•
[OFF] is selected for [AM] in [SRC SELECT] after Radio Timer for AM is
selected.
( 4)
SSM SSM 01 – 06
/ SSM 07 – 12 / SSM 13 – 18 :Automatically presets up to 18
stations for FM. “SSM” stops flashing when the first 6 stations are stored. Select
SSM 07 – 12 / SSM 13 – 18 to store the following 12 stations.
IF BAND AUTO :Increases the tuner selectivity to reduce interference noises from
adjacent FM stations. (Stereo effect may be lost.);
WIDE :Subjects to
interference noises from adjacent FM stations, but sound quality will not be
degraded and the stereo effect will remain.
MONO Displayed only when the source is FM.
ON :Improves the FM reception, but the stereo effect will be lost.; OFF :Cancels.
AREA AREA US : For North/Central/South America, AM/FM intervals: 10kHz/200kHz.;
AREA EU :For any other areas, AM/FM intervals: 9kHz/50kHz.; AREA SA :For
some South American countries, AM/FM intervals: 10kHz/50kHz.
RADIO
Use a portable audio player
1 Connect a portable audio player (commercially available).
2 Select [ON] for [AUX] in [SRC SELECT] . ( 4)
3 Press B/SOURCE to select AUX.
4 Turn on the portable audio player and start playback.
Use a 3-core plug head stereo mini plug for optimum audio
output.
Use a Bluetooth® device
1 Connect the Bluetooth adapter, KS-BTA100 (separately purchased).
2 Register (pair) the Bluetooth device with KS-BTA100.
3 Select [BT ADAPTER] for [AUX] in [SRC SELECT] . ( 4)
4 Press B/SOURCE to select BT AUDIO.
5 Start using the Bluetooth device.
For details, refer to the instruction manual of KS-BTA100.
AUX
Auxiliary input jack
Blue/white Blue/white: Remote
Black Black: Ground
Brown Brown: Tel muting
Wiring harness of the unit
( 19)
3.5mm (1/8") stereo mini plug with “L” shaped connector
(commercially available)
Portable audio player
Auxiliary input jack
JS_JVC_KW_R710_J_05_EN.indd 8JS_JVC_KW_R710_J_05_EN.indd 8 12/4/2013 3:05:24 PM12/4/2013 3:05:24 PM

9
ENGLISH |
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
Pandora®
Preparation:
Install the latest version of the Pandora application onto your device
(iPhone/ iPod touch), then create an account and log in to Pandora.
• Select
[ON] for [PANDORA] in [SRC SELECT] . ( 4)
Start listening
1 Open the Pandora application on your device.
2 Connect your device to the USB input terminal.
The source changes to PANDORA and broadcast starts.
* Do not leave the cable inside the car when not using.
To Do this
Pause or resume
playback Press the volume knob (or press on RM-RK52).
Thumbs up or
thumbs down
PressJ/ K (or press J/Kon RM-RK52).
• If thumbs down is selected, the current track is
skipped.
Skip a track Press T(or press Ion RM-RK52).
Create a new station
1 Press MENU.
2 Turn the volume knob to select [NEW STATION] , then press the knob.
3 Turn the volume knob to select [FROM TRACK] or [FROM ARTIST] , then
press the knob.
A new station is created based on the current song or artist.
Search for a registered station
1 Press MENU.
2 Turn the volume knob to make a selection, then press the knob.
[BY DATE] : According to the registered date.
[A-Z] : Alphabetical order.
3 Turn the volume knob to the desired station, then press the knob.
Bookmark a song or artist information
1 Press and hold the volume knob.
2 Turn the volume knob to select [THIS TRACK] or [THIS ARTIST] , then
press the knob.
“BOOKMARKED” appears and the information is stored to your device.
The bookmark is available on your Pandora account but not on this
unit.
USB input terminal
(Accessory of the iPod/iPhone)
*
EN_KW-R710[J]1.indd 9EN_KW-R710[J]1.indd 9 10/31/2013 11:35:18 AM10/31/2013 11:35:18 AM

10
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
iHeartRadio®
Preparation:
Install the latest version of iHeart Link for JVC application onto your
device (iPhone/ iPod touch), then create an account and log in to
iHeartRadio.
• Select
[ON] for [IHEART] in [SRC SELECT] . ( 4)
Start listening
1 Open the iHeart Link application on your device.
2 Connect your device to the USB input terminal.
* Do not leave the cable inside the car when not using.
3 Press B/SOURCE to select IHEARTRADIO.
Broadcast starts automatically
To Do this
Pause or resume playback Press the volume knob (or press
on RM-RK52).
Thumbs up or thumbs down
for custom station
Press J/ K (or press J/Kon
RM-RK52).
• If thumbs down is selected, the
current track is skipped.
Skip a track for custom station Press T(or press Ion RM-RK52).
Create a new/custom station Press and hold the volume knob.
Add to favorite stations for
live station
Press and hold 3.
Scan for live station Press 3.
Search for a station
1 Press MENU.
2 Turn the volume knob to select a category, then press the knob.
3 Turn the volume knob to the desired station, then press the knob.
When a city list appears, you can skip cities in alphabetical order.
4 Press MENU to exit.
Skip cities by alphabetical order
While a city list appears during search...
1 Turn the volume knob quickly to enter character search.
You can search through the list quickly according to the first character
(A to Z).
2 Turn the volume knob or press J/ K to select the character to
be search for.
3 Press the volume knob to start searching.
USB input terminal
(Accessory of the iPod/iPhone)
*
JS_JVC_KW_R710_J_f_EN.indd 10JS_JVC_KW_R710_J_f_EN.indd 10 12/16/2013 3:33:42 PM12/16/2013 3:33:42 PM

11
ENGLISH |
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
AUDIO SETTINGS
To Do this
Select a preset
equalizer
Press EQ repeatedly.
(or)
Press EQ, then turn the volume knob within
2seconds.
FLAT (default), HARD ROCK, JAZZ, POP, R&B,
TALK, USER1, USER2, VOCAL BOOST, BASS BOOST,
CLASSICAL, DANCE
Store your
own sound
settings
Default:
00
1 Press and hold EQ.
2 Turn the volume knob to select [EASY EQ] , then press
the knob.
3 Turn the volume knob to select [USER1] or [USER2] ,
then press the knob.
4 Turn the volume knob to make a selection, then
press the knob.
SUB.W
*: –08 to +08
BASSLVL: –06 to +06
MIDLVL:–06to+06
TRELVL: –06 to +06
• To return to the previous setting item, press GPTY.
• To exit, press EQ.
* Displayed only when
[L/O  MODE] is set to [SUB.W] ( 12) and [SUB.W] is set
to
[ON] . ( 11)
Other settings
1 Press and hold MENU.
2 Turn the volume knob to make a selection (see the following table),
then press the knob.
Repeat step 2until the desired item is selected.
3 Press MENU to exit.
To return to the previous setting item or hierarchy, press GPTY.
Default: XX
EQ SETTING
EQ PRESET FLAT
/ HARD ROCK / JAZZ / POP / R&B / TALK / USER1 / USER2 /
VOCAL BOOST / BASS BOOST / CLASSICAL / DANCE :Selects a preset
equalizer.
EASY EQ
Default: 00
1 USER1 / USER2 :Select a preset name.
2 Adjust your own sound settings.
SUB.W
*1
: –08 to +08 / BASS  LVL : –06 to +06 /
MID  LVL: –06 to +06 / TRE  LVL : –06 to +06
PRO EQ
1 USER1 / USER2 :Select a preset name.
2 BASS / MIDDLE / TREBLE :Select a sound tone.
3 Adjust the sound elements of the selected sound tone.
BASS Frequency: 60 / 80 / 100 / 200 Hz Default: ( 80 Hz )
Level:
–06 to +06 ( 00 )
Q:
Q1.0 / Q1.25 / Q1.5 / Q2.0 ( Q1.0 )
MIDDLE Frequency: 0.5 / 1.0 / 1.5 / 2.5 kHz Default: ( 1.0 kHz )
Level:
–06 to +06 ( 00 )
Q:
Q0.75 / Q1.0 / Q1.25 ( Q1.25 )
TREBLE Frequency: 10.0 / 12.5 / 15.0 / 17.5 kHz Default: ( 10.0 kHz )
Level:
–06 to +06 ( 00 )
Q:
Q FIX ( Q FIX )
AUDIO
BASS BOOST +01
/ +02 : Selects your preferred bass boost level.; OFF :Cancels.
LOUD 01 / 02 :Boosts low or high frequencies to produce a well-balanced sound
at low volume.;
OFF :Cancels.
SUB.W LEVEL
*1
–08 — +08 ( 00 ):Adjusts the subwoofer output level.
SUB.W
*2
ON / OFF : Turns on or off the subwoofer output.
SUB.W  LPF
*1
THROUGH :All signals are sent to the subwoofer. ; LOW  55Hz /
MID  85Hz / HIGH 120Hz :Audio signals with frequencies lower than
55Hz/ 85Hz/ 120Hz are sent to the subwoofer.
JS_JVC_KW_R710_J_04_EN.indd 11JS_JVC_KW_R710_J_04_EN.indd 11 11/25/2013 2:56:55 PM11/25/2013 2:56:55 PM

12
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
FADER
*3
*4
R06 — F06 ( 00 ):Adjusts the front and rear speaker output balance.
BALANCE
*3
L06 — R06 ( 00 ):Adjusts the left and right speaker output balance.
VOL ADJUST –05 — +05 ( 00 ):Presets the volume adjustment level of each
source (compared to the FM volume level). Before adjustment,
select the source you want to adjust. (“VOLADJFIX” appears if FM is
selected.)
AMP GAIN LOW  POWER :Limits the maximum volume level to 30. (Select if
the maximum power of each speaker is less than 50W to prevent
damaging the speakers.);
HIGH POWER :The maximum volume
level is 50.
D.T.EXP
(Digital Track
Expander)
ON :Creates realistic sound by compensating the high-frequency
components and restoring the rise-time of the waveform that are lost
in audio data compression.;
OFF :Cancels.
TEL  MUTING
*5
ON :Mutes the sounds while using the cellular phone (not connected
through KS-BTA100).;
OFF :Cancels.
L/O MODE SUB.W / REAR :Selects whether rear speakers or a subwoofer are
connected to the REAR/SW line out terminals on the rear panel
(through an external amplifier).
*1Displayed only when
[L/O  MODE] is set to [SUB.W] and [SUB.W] is set
to
[ON] .
*2Displayed only when
[L/O MODE] is set to [SUB.W] .
*3This adjustment will not affect the subwoofer output.
*4If you are using a two-speaker system, set the fader level to
[00] .
*5Does not work if
[BT ADAPTER] is selected for [AUX] in [SRC SELECT] .
( 4)
AUDIO SETTINGS
1 Press and hold MENU.
2 Turn the volume knob to make a selection (see the following table),
then press the knob.
Repeat step
2until the desired item is selected.
3 Press MENU to exit.
To return to the previous setting item or hierarchy, press GPTY.
Default: XX
DISPLAY
DIMMER

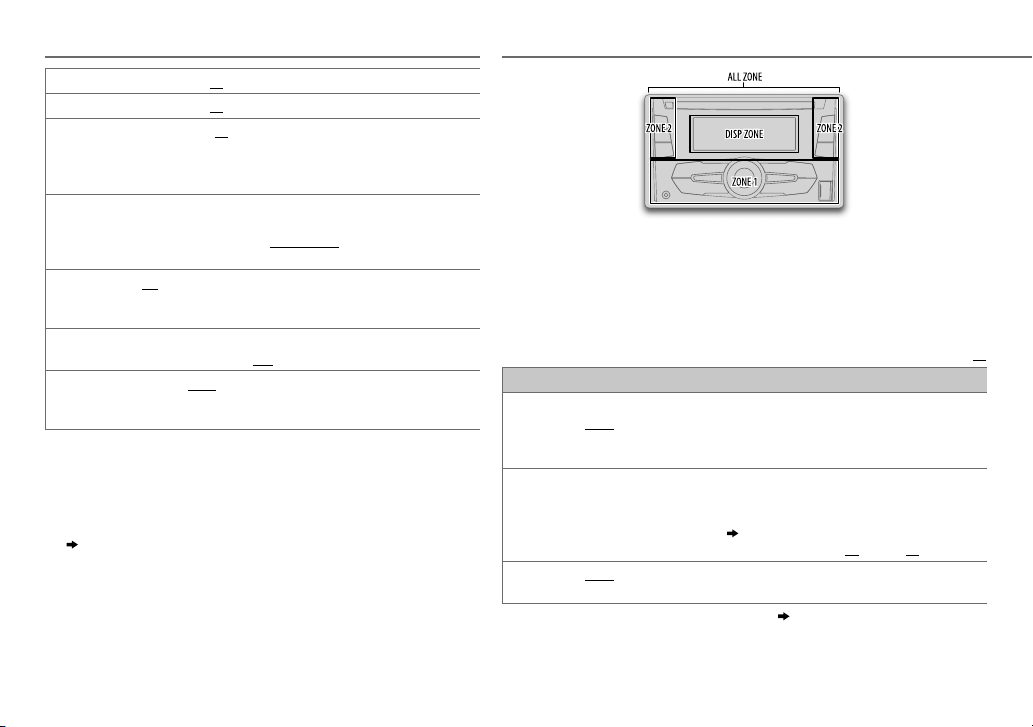

Selects the display and button illumination adjusted in the [BRIGHTNESS] setting.
AUTO :Changes between the day and night adjustments when you turn off or on
the car headlights.*
1
; ON :Selects the night adjustments.; OFF :Selects the day
adjustments.
BRIGHTNESS Sets the button, display and USB input terminal brightness for day and night
separately.
1 DAY / NIGHT :Select day or night.
2 Select a zone for setting. ( Illustration above)
3 Set the brightness level ( 00 to 31 ). (Default: DAY : 31 ; NIGHT : 15 )
SCROLL * 2 ONCE :Scrolls the display information once.; AUTO :Repeats scrolling at 5-second
intervals.;
OFF :Cancels.
*1
The illumination control wire connection is required. ( 19)
*2
Some characters or symbols will not be shown correctly (or will be blanked).
DISPLAY SETTINGS
JS_JVC_KW_R710_J_04_EN.indd 12JS_JVC_KW_R710_J_04_EN.indd 12 11/25/2013 2:56:56 PM11/25/2013 2:56:56 PM

13
ENGLISH |
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
Default: XX
COLOR
PRESET
You can select a color for [ ALL ZONE ], [ ZONE 1 ], [ DISP ZONE ], or
[
ZONE 2 ] separately. For [ ALL ZONE ], you can also select a color pattern.
Default color:
ALL ZONE : [ COLOR 06 ], ZONE 1 : [ COLOR 06 ],
DISP ZONE : [ COLOR 01 ], ZONE 2 : [ COLOR 27 ]
1 Select a zone for setting. ( 12)
2 Select a color for the selected zone.
•
COLOR 01 to COLOR 29
• USER : The color you have created for [ DAY COLOR ] or
[
NIGHT COLOR ] is shown.
•
COLOR FLOW 01 to COLOR FLOW 03 : Color changes at different
speeds.
•
SPECTRUM / GROOVE / TECHNO / EMOTION / RELAX /
NIGHT SWEEP : The selected color pattern is shown.* (Selectable
only when [
ALL ZONE ] is selected in step 1 .)
* If one of these color pattern is selected, the [
ZONE 1 ], [ DISP ZONE ],
[
ZONE 2 ] illumination color will change to the default color.
DAY COLOR Store your own day and night colors for different zone.
1 Select a zone for setting. ( 12)
2 RED / GREEN / BLUE :Select a primary color.
3 00 to 31 :Select the level.
Repeat steps
2 and 3 for all the primary colors.
• Your setting is stored to
[USER] in [PRESET] .
• If
[00] is selected for all primary colors for [DISP ZONE] , nothing
appears on the display.
NIGHT COLOR
COLOR GUIDE ON
:Changes the button, display and USB input terminal illumination
when settings are performed on menu and list search. Display zone will
automatically change depending on volume level.;
OFF :Cancels.
[NIGHT COLOR] or [DAY COLOR] is changed by turning on or off your car’s
headlight.
DISPLAY SETTINGS MORE INFORMATION

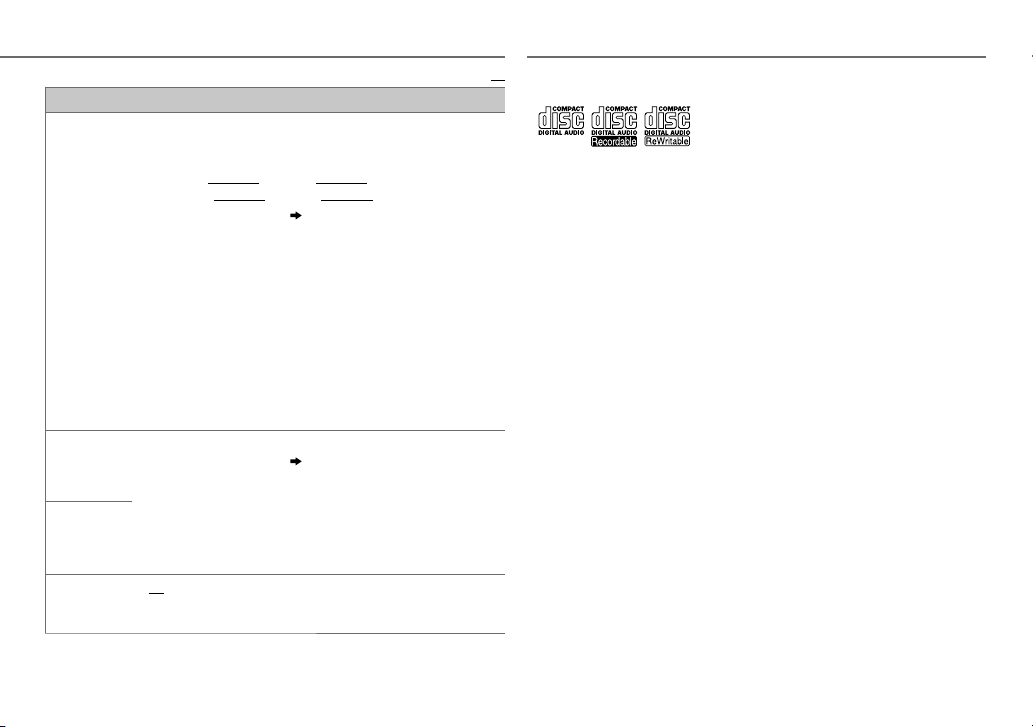

About discs and audio files
• This unit can only play the following CDs:
• This unit can play back multi-session discs; however, unclosed sessions will be skipped
during playback.
•
Unplayable discs:
- Discs that are not round.
- Discs with coloring on the recording surface or discs that are dirty.
- Recordable/ReWritable discs that have not been finalized.
- 8 cm CD. Attempting to insert using an adapter may cause malfunction.
•
DualDisc playback: The Non-DVD side of a “DualDisc” does not comply with the “Compact
Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product
cannot be recommended.
•
Playable files:
- File extensions: MP3(.mp3), WMA(.wma)
- Bit rate: MP3: 8kbps — 320kbps
WMA: 32kbps — 192kbps
- Sampling frequency:
MP3: 48kHz, 44.1kHz, 32kHz, 24kHz, 22.05kHz, 16kHz, 12kHz, 11.025kHz, 8kHz
WMA: 8kHz — 48kHz
- Variable bit rate (VBR) files.
•
Maximum number of characters for file/folder name:
It depends on the disc format used (includes 4 extension characters—<.mp3> or
<.wma>).
- ISO 9660 Level 1 and 2: 32 characters
- Romeo: 32 characters
- Joliet: 32 characters
- Windows long file name: 32 characters
JS_JVC_KW_R710_J_05_EN.indd 13JS_JVC_KW_R710_J_05_EN.indd 13 12/4/2013 3:05:44 PM12/4/2013 3:05:44 PM

14
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
About USB devices
• This unit can play MP3/WMA/WAV files stored on a USB mass storage class device.
• You cannot connect a USB device via a USB hub.
• Connecting a cable whose total length is longer than 5m may result in abnormal playback.
• The maximum number of characters for:
- Folder names: 64 characters
- File names: 64 characters
- MP3 Tag: 64 characters
- WMA Tag: 64 characters
- WAV Tag: 64 characters
• This unit can recognize a total of 20 480 files, 999 folders (999 files per folder including folder
without unsupported files), and of 8 hierarchies.
• This unit cannot recognize a USB device whose rating is other than 5V and exceeds 1A.
About iPod/iPhone
• Made for
- iPod touch (1st, 2nd, 3rd, 4th, and 5th generation)
- iPod classic
- iPod nano (3rd, 4th, 5th, 6th and 7th generation)
- iPhone, iPhone 3G, 3GS, 4, 4S, 5
• It is not possible to browse video files on the “Videos” menu in
[HEAD MODE] .
• The song order displayed on the selection menu of this unit may differ from that of the iPod/
iPhone.
• If some operations are not performed correctly or as intended, visit:
<http://www.jvc.net/cs/car/>.
About JVC Playlist Creator and JVC Music Control
• This unit supports the PC application JVC Playlist Creator and Android
TM
application JVC Music
Control.
• When you play audio file with song data added using the JVC Playlist Creator or JVC Music
Control, you can search for audio file by Genres, Artists, Albums, Playlists, and Songs.
• JVC Playlist Creator and JVC Music Control are available from the following web site:
<http://www.jvc.net/cs/car/>.
About Pandora
• Pandora is available only in the U.S., Australia and New Zealand.
• Because Pandora is a third-party service, the specifications are subject to change without
prior notice. Accordingly, compatibility may be impaired, or some or all of the services may
become unavailable.
• Some functions of Pandora cannot be operated from this unit.
• For issues using the application, please contact Pandora at [email protected].
About iHeartRadio
• iHeartRadio® is a third-party service, therefore the specifications are subject to change
without prior notice. Accordingly, compatibility may be impaired or some or all of the
services may become unavailable.
• Some iHeartRadio® functionality cannot be operated from this unit.
MORE INFORMATION
EN_KW-R710[J]1.indd 14EN_KW-R710[J]1.indd 14 11/14/2013 5:46:48 PM11/14/2013 5:46:48 PM

15
ENGLISH |
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
Change the display information
Press DISP repeatedly.
FM or AM Station name (PS)*
1
Frequency Program type (PTY)*
1
*
2
Title*
1
*
2
Day/Clock (back to the beginning)
*1
For FM Radio Broadcast Data System stations only.
*2
If unavailable, “NO PTY” / “NO TEXT” appears.
CD or USB Playing time Day/Clock Disc name*
3
Album title/Artist*
4
Track
title*
5
Folder/file name*
6
(back to the beginning)
*3
Only for CD-DA: If not recorded, “NO NAME” appears.
*4
Only for MP3/WMA files: If not recorded, “NO NAME” appears.
*5
If not recorded, “NO NAME” appears.
*6
Only for MP3/WMA files.
USB-IPOD Playing time Day/Clock Album title/Artist*
7
Track title*
7
(back to
the beginning)
*7
If not recorded, “NO NAME” appears.
PANDORA Station name Album title/Artist Track title Playing time Day/Clock
(back to the beginning)
IHEART Station name Track title*
8
Track Artist*
8
Day/Clock (back to the
beginning)
*8
If unavailable, station name appears.
AUX AUX Day/Clock
BT AUDIO BT AUDIO Day/Clock
TROUBLESHOOTING
Symptom Remedy
Sound cannot be heard. • Adjust the volume to the optimum level.
• Check the cords and connections.
“MISWIRING CHK WIRING
THEN RESET UNIT” /
“WARNING CHK WIRING THEN
RESET UNIT” appears and no
operations can be done.
Check to be sure the terminals of the speaker wires are
insulated properly, then reset the unit. If this does not
solve the problem, consult your nearest service center.
Source cannot be selected. Check the
[SRC SELECT] setting. ( 4)
Radio reception is poor. /
Static noise while listening to
the radio.
• Connect the antenna firmly.
• Pull the antenna out all the way.
Correct characters are not
displayed.
This unit can only display uppercase letters, numbers, and
a limited number of symbols.
“PLEASE” and “EJECT” appear
alternately.
Press , then insert the disc correctly.
“IN DISC” appears. Make sure nothing is blocking the loading slot when you
eject the disc.
Disc cannot be ejected. Press and hold to forcibly eject the disc. Be careful not
to drop the disc when it is ejected.
Playback order is not as
intended.
The playback order is determined by the file name (USB) or
the order in which files were recorded (disc).
Elapsed playing time is not
correct.
This depends on the recording process earlier.
“NOT SUPPORT” appears and
track skips.
Check whether the track is a playable format.
( 13)
MORE INFORMATION
EN_KW-R710[J]1.indd 15EN_KW-R710[J]1.indd 15 11/14/2013 5:46:49 PM11/14/2013 5:46:49 PM

16
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
Symptom Remedy
iHeartRadio
Station cannot be
selected.
If “Explicit Content” in [Account Settings] is checked in the web
version of iHeartRADIO, custom stations become unavailable.
“CREATE ERR” Custom station name creation is unsuccessful.
“SAVE ERROR” Addition to the favorite category failed.
“DISCONNCTED” Check the connection to the device.
“NOSKIPS” The skip limit has been reached. Retry later.
“NOSTATIONS” No stations are found.
“NOT CONNCTD” Link to the application is impossible.
“UPDATE APP” Make sure you have installed the latest version of the iHeart Link
for JVC application on your device.
“PLS LOGIN” You haven’t log in. Log in again.
“STATION NOT
AVAILABLE”
Broadcast from the station is over.
“STATION NOT
SELECTED”
No station is selected.
“STREAM ERR” Broadcast data is interrupted.
“THUMBS ERR” Registration of Thumbs Up/Down has failed.
“TIMED OUT” The request has resulted in time-out.
If you have any troubles, try the following:
1 Check TROUBLESHOOTING
2 Reset the unit ( 3)
3 Contact (USA only)
Call: 1-800-252-5722 ( or ) visit: http://www.jvc.com
TROUBLESHOOTING
Symptom Remedy
“CANNOT PLAY” flashes
and/or connected device
cannot be detected.
• Check whether the connected device is compatible with this
unit and ensure the files are in supported formats.
( 13)
• Reattach the device.
“READING” keeps flashing. • Do not use too many hierarchical levels and folders.
• Reload the disc or reattach the USB device.
The iPod/iPhone does not
turn on or does not work.
• Check the connection between this unit and iPod/iPhone.
• Detach and reset the iPod/iPhone using hard reset.
Pandora
“ADDERROR”
“SEARCHERR”
New station creation is unsuccessful.
“CHKDEVICE” Check the Pandora application on your device.
“NOSKIPS” The skip limit has been reached.
“NOSTATIONS” No stations are found.
“STATIONLIM” The number of registered stations has reached its limit. Retry
after deleting unnecessary stations from your device.
“UPGRADEAPP” Make sure you have installed the latest version of the Pandora
application on your device.
“CONNECT ERR” Communication is unstable.
“RATING ERR” Registration of thumbs up/thumbs down has failed.
“LICENSE ERR” You try to access from a country which Pandora is not
deliverable.
JS_JVC_KW_R710_J_04_EN.indd 16JS_JVC_KW_R710_J_04_EN.indd 16 11/25/2013 2:57:01 PM11/25/2013 2:57:01 PM

17
ENGLISH |
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
SPECIFICATIONS
USB
USB Standard USB1.1, USB2.0 (Full speed)
Compatible Devices Mass storage class
File System FAT12/16/32
Maximum Supply Current DC5V 1A
MP3 Decode Compliant with MPEG-1/2 Audio Layer-3
WMA Decode Compliant with Windows Media Audio
WAV Decode Linear-PCM
Auxiliary

Frequency Response (±3dB) 20Hz—20kHz
Input Maximum Voltage 1200mV
Input Impedance 30kΩ
Audio
Maximum Output Power 50W×4
Full Bandwidth Power
(at less than 1% THD)
22W×4
Speaker Impedance 4Ω—8Ω
Preout Level/Load (CD) 2500mV/10kΩ load
Preout Impedance ≤600Ω
General
Operating Voltage
(10.5V—16V allowable)
14.4V
Maximum Current Consumption 10A
Operating Temperature Range 0°C to +40°C
Installation Size (W×H×D) 180mm×100mm×158mm
(7-1/8"×4"×6-1/4")
Weight 1.25k
g (2.75lbs)
Subject to change without notice.
TUNER
FM Frequency Range 87.9MHz to 107.9MHz (200kHz step)
87.5MHz to 108.0MHz (50kHz step)
Channel Space Selection 50kHz/200kHz
Usable Sensitivity
(S/N=26dB)
8.2dBf (0.71μV/75Ω)
Quieting Sensitivity
(DINS/N=46dB)
17.2dBf (2.0μV/75Ω)
Frequency Response (±3dB) 30Hz to 15kHz
Signal-to-Noise Ratio (MONO) 64dB
Stereo Separation (1kHz) 40dB
AM Frequency Range 530kHz to 1700kHz (10kHz step)
531kHz to 1611kHz (9kHz step)
Channel Space Selection 9kHz/10kHz
Usable Sensitivity
(S/N=20dB)
29dBμ (28.2μV)
CD player
Laser Diode GaAIAs
Digital Filter (D/A) 8 times over sampling
Spindle Speed 500 rpm — 200 rpm (CLV)
Wow & Flutter Below measurable limit
Frequency Response (±1dB) 20 Hz — 20 kHz
Total Harmonic Distortion (1 kHz) 0.01 %
Signal-to-Noise Ratio (1 kHz) 105 dB
Dynamic Range 90 dB
Channel Separation 85 dB
MP3 Decode Compliant with MPEG-1/2 Audio Layer-3
WMA Decode Compliant with Windows Media Audio
EN_KW-R710[J]1.indd 17EN_KW-R710[J]1.indd 17 11/14/2013 5:46:56 PM11/14/2013 5:46:56 PM

18
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
INSTALLATION / CONNECTION
Warning
• The unit can only be used with a 12V DC power supply, negative ground.
• Disconnect the battery’s negative terminal before wiring and mounting.
• Do not connect Battery wire (yellow) and Ignition wire (red) to the car
chassis or Ground wire (black) to prevent a short circuit.
• Insulate unconnected wires with vinyl tape to prevent a short circuit.
• Be sure to ground this unit to the car’s chassis again after installation.
Caution
• For safety’s sake, leave wiring and mounting to professionals. Consult the
car audio dealer.
• Install this unit in the console of your vehicle. Do not touch the metal
parts of this unit during and shortly after use of the unit. Metal parts such
as the heat sink and enclosure become hot.
• Do not connect the wires of speakers to the car chassis or Ground wire
(black), or connect them in parallel.
• Connect speakers with a maximum power of more than 50W. If the
maximum power of the speakers is lower than 50W, change the
[AMP GAIN] setting to avoid damaging the speakers. (  12)
• Mount the unit at an angle of less than 30º.
• If your vehicle wiring harness does not have the ignition terminal,
connect Ignition wire (red) to the terminal on the vehicle’s fuse box
which provides 12 V DC power supply and is turned on and off by the
ignition key.
• After the unit is installed, check whether the brake lamps, blinkers,
wipers, etc. on the car are working properly.
• If the fuse blows, first make sure the wires are not touching car’s chassis,
then replace the old fuse with one that has the same rating.
Basic procedure
1 Remove the key from the ignition switch, then
disconnect the terminal of the car battery.
2 Connect the wires properly.
See Wiring connection.
(  19)
3 Install the unit to your car.
See Installing the unit (in-dash mounting).
4 Connect the terminal of the car battery.
5 Reset the unit. (  3)
Installing the unit (in-dash mounting)
Use only the specified screws. Using wrong screws might damage the unit.
Part list for installation
(A) Wiring harness (B) Flat head screw
M5 × 8mm (M5 × 3/8")
(C) Round head screw
M5 × 8mm (M5 × 3/8")
Mounting bracket
removed from the car
If there is an interfering tab
on the mounting bracket,
bend it flat.
* Screw removed from the car.
JS_JVC_KW_R710_J_05_EN.indd 18JS_JVC_KW_R710_J_05_EN.indd 18 12/3/2013 3:31:46 PM12/3/2013 3:31:46 PM

19
ENGLISH |
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
STEERING
WHEEL
REMOTE
Purple/black
Car fuse block
Ignition switch
Recommended
connection
Light blue/yellow
Vehicle-specific Wiring
Harness (separately
purchased)
For more information:
Metra Electronics:
www.metraonline.com
Scosche Industries:
www.scosche.com
Blue/white: To amplifier
Blue: To power antenna
Make this connection if your vehicle
factory wiring harness does not have
“12V ignition switch” wire.
Separate red wire
Wiring connection
Signal cord (not supplied)
Remote wire
(not supplied)
To the steering
wheel remote
control adapter
Fuse (10A)
Antenna terminal
Front output
Rear/subwoofer output
JVC Amplifier
Factory wiring
harness (vehicle)
Vehicle dashboard
Black: Ground
Yellow: Battery 12V
White: Front speaker (left)
White/black
Gray: Front speaker (right)
Gray/black
Green: Rear speaker (left)
Green/black
Purple: Rear speaker (right)
Join the same color wires together.
Red: Ignition 12V
Orange/white: Illumination
Brown: Tel muting
Blue/white: Remote (200mA max.)
EN_KW-R710[J]1.indd 19EN_KW-R710[J]1.indd 19 10/31/2013 11:35:22 AM10/31/2013 11:35:22 AM

2
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
CONTENIDO ANTES DEL USO
Advertencia
No utilice ninguna función que pueda desviar su atención mientras está conduciendo el vehículo.
Precaución
Ajuste del volumen:
• Ajuste el volumen a un nivel que le permita oír los ruidos del exterior para impedir accidentes.
• Antes de reproducir fuentes digitales, baje el volumen para evitar que el repentino aumento del nivel de salida cause daños a los
altavoces.
General:
• Evite el uso de dispositivos USB o iPod/iPhone cuando puedan afectar la seguridad de conducción.
• Asegúrese de tener una copia de respaldo de todos los datos importantes. No aceptamos responsabilidad alguna por la pérdida de
los datos grabados.
• Para evitar cortocircuitos, nunca coloque ni deje objetos metálicos (por ejemplo, monedas o herramientas metálicas) dentro de la
unidad.
• Si ocurre un error de disco debido a la condensación en el lente láser, extraiga el disco y espere hasta que se evapore la humedad.
Mando a distancia (RM-RK52):
• No deje el mando a distancia sobre superficies calientes, tales como el salpicadero.
• Si la batería de litio no se instala correctamente, existirá el peligro de una explosión. Sustituya la pila únicamente por otra del
mismo tipo o un tipo equivalente.
• El bloque de baterías no debe exponerse a una fuente de calor excesiva, como luz solar, fuego o similar.
• Mantenga la batería fuera del alcance de los niños y en su estuche original cuando no esté en uso. Deseche las baterías utilizadas
de forma rápida. En caso de tragarse, póngase con un médico inmediatamente.
ANTES DEL USO 2
PUNTOS BÁSICOS 3
PROCEDIMIENTOS INICIALES 4
CD / USB / iPod 5
RADIO 7
AUX 8
Pandora® 9
iHeartRadio® 10
AJUSTES DE AUDIO 11
AJUSTES DE VISUALIZACIÓN 12
MÁS INFORMACIÓN 13
LOCALIZACIÓN Y SOLUCIÓN
DE PROBLEMAS 15
ESPECIFICACIONES 17
INSTALACIÓN /
CONEXIÓN 18
Cómo leer este manual
• Las operaciones se explican utilizando
principalmente los botones de la placa
frontal.
•
[XX] indica los elementos seleccionados.
•
( XX) significa que hay información
disponible en la página indicada.
Mantenimiento
Limpieza de la unidad: Limpie la suciedad de la placa frontal con un paño suave o paño de silicona seco.
Cómo manipular los discos:
• No toque la superficie de grabación del disco.
• No pegue cinta etc. sobre el disco ni utilice un CD con cinta pegada sobre él.
• No utilice accesorios para el disco.
• Limpie desde el centro del disco hacia el exterior.
• Limpie el disco con un paño seco o de silicona. No utilice disolventes.
• Cuando extraiga los discos de esta unidad, tire de estos en sentido horizontal.
• Antes de insertar un disco, quite las rebabas de los bordes del orificio central y del borde exterior.
JS_JVC_KW_R710_J_SP_01.indd 2JS_JVC_KW_R710_J_SP_01.indd 2 6/12/2013 11:35:31 AM6/12/2013 11:35:31 AM
