CS-V6947
6” x 9” 4-Way Coaxial Speakers
CS-VS607
6-1/2” 2-Way Component Speakers
CS-V6937
6” x 9” 3-Way Coaxial Speakers
CS-V6837
6” x 8” 3-Way Coaxial Speakers
CS-V4627
4” x 6” 2-Way Coaxial Speakers
CS-V527
5-1/4” 2-Way Coaxial Speakers
CS-V627
6-1/2” 2-Way Coaxial Speakers
CS-V427
4” 2-Way Coaxial Speakers
CS-V617
6-1/2” Dual Cone Speakers
CS-V517
5-1/4” Dual Cone Speakers
CS-V417
4” Dual Cone Speakers
Aggressive looks and sound – the drvn Series speakers feature powerful sound created from thin and rigid diaphragm and Hybrid
Surround. Carbon Mica cone woofer and PEI midrange/tweeter deliver quick responding sound for a wide frequency-range.
Key Benefits
Aggressive
Design
Hybrid
Surround
Various
Sizes
Carbon
Mica Cone
300W Peak
60W RMS
230W Peak
40W RMS
200W Peak
27W RMS
160W Peak
20W RMS
170W Peak
30W RMS
150W Peak
25W RMS
120W Peak
20W RMS
350W Peak
60W RMS
310W Peak
60W RMS
250W Peak
30W RMS
140W Peak
20W RMS

drvn Series Speakers
NTK-0786-20-1
✹ PEI (Poly-Ether Image) Midrange/Tweeter
The high-response PEI midrange/tweeter provides efficient performance across
a wide frequency range.
Grille with Speaker
Box Effect
PEI Tweeter
Diaphragm
Voice Coil
(Tweeter)
Strontium Magnet
(Woofer)
Tweeter Ornament
with Diffuser
Carbon Mica Cone
Hybrid Surround
Neodymium Magnet
(Tweeter)
Voice Coil (Woofer)
Powerful, Spectacular, and High-Quality Sound
The drvn Series speakers radically changed the sound concept of JVC Mobile Entertainment – aiming for
powerful and spectacular sound, while maintaining high-quality audio performance, offering maximum
excitement on board.
✹ Carbon Mica Cone
To the rigid and light-weight aramid and carbon fiber
composite olefin cone base, mica is added to further
strengthen and reduce distortion. The resulting cone
has optimal weight, rigidity, and composition for
superior sound and durability, with improved SPL
response in the most audible range.
✹ Hybrid Surround
The hybrid surround features the combined benefits of
two materials. Light-weight cloth provides quick and
accurate response, while rubber ensures stability and
increased bass response as well as durability. Improved Sound Frequency Response
Conventional Models
drvn Series
More powerful sound achieved by increasing the sound pressure of
the most audible range
✹Cutaway View

2011 JVC Product Tech Guide
CS-VS607/V6947/V6937/V6837/V4627/V627/V527/V427/V617/V517/V417
C M Y K
SubwoofersAV Navigation AV Headunits Headunits Speakers
Sample Systems
SpecsAmplifiers
Speakers
drvn Series Speakers
drvn Series Speakers
Aggressive Looks with Quality Sound
CS-VS607
Separate Speaker for More Powerful Sound
✹ Midrange/Tweeter Material
The PEI composition midrange/tweeter features distortion-free, wide-range frequency reproduction, with reduced hisses and prolonged accents.
✹ Woofer Grille Design
The aggressive design of the woofer grille also has advantages in
audio performance. Calculated for effective in-car sound diffusion,
the woofer delivers warm, ambient sound, even with sub-optimal
locations of pre-installed speakers.
✹ Box-Type Network
The in-line box-type crossover network with LC
circuit of 5 kHz, 12 dB/oct crossover creates natural
transition between the woofer and the separate
tweeter, with extending high notes.
✹ 3-Way Mount Separate Tweeter
The PEI diaphragm tweeter can be mounted in three-ways –
surface, angled, or flush – with various adapters and
installation parts to best fit your listening position.
✹ High-Powered Woofer
The powerful magnetic circuit with a large 10 oz.
magnet and the deep diaphragm provides 60W
RMS high-power sound.
Grille with Speaker Box Effect
Up 2.5dB with Grille
without Grille
Better!

2011 JVC Product Tech Guide
C M Y K
CS-VS607/V6947/V6937/V6837/V4627/V627/V527/V427/V617/V517/V417
drvn Series Speakers
NTK-0786-20-2
Key Specifications
CS-VS607 CS-V6947 CS-V6937 CS-V6837 CS-V4627 CS-V627 CS-V527 CS-V427 CS-V617 CS-V517 CS-V417
Woofer
Type 2-Way Component 4-Way Coaxial 3-Way Coaxial 3-Way Coaxial 2-Way Coaxial 2-Way Coaxial 2-Way Coaxial 2-Way Coaxial Dual Cone Dual Cone Dual Cone
Size 6-1/2” (16 cm)
6” x 9” (15 x 23 cm) 6” x 9” (15 x 23 cm) 6” x 8” (15 x 20 cm) 4” x 6” (10 x 15 cm) 6 1/2” (16 cm) 5 1/4” (13 cm) 4” (10 cm) 6 1/2” (16 cm) 5 1/4” (13 cm) 4” (10 cm)
Woofer Cone Carbon Mica Cone Carbon Mica Cone Carbon Mica Cone Carbon Mica Cone Carbon Mica Cone Carbon Mica Cone Carbon Mica Cone Carbon Mica Cone Carbon Mica Cone Carbon Mica Cone Carbon Mica Cone
Hybrid Surround ✔✔✔✔✔✔✔✔✔✔✔
(Rubber & Cloth)
Magnet Strontium Ferrite Strontium Ferrite Strontium Ferrite Strontium Ferrite Strontium Ferrite Strontium Ferrite Strontium Ferrite Strontium Ferrite Strontium Ferrite Strontium Ferrite Strontium Ferrite
(10 oz) (15.7 oz) (10 oz) (8 oz) (5.4 oz) (6.4 oz) (5.4 oz) (4.5 oz) (5.4 oz) (4.5 oz) (3.6 oz)
Midrange
Size 2 5/8” (6.6 cm) 2 5/8” (6.6 cm) 1” (2.5 cm)
Poly-Ether Imide Cone ✔✔
Poly-Ether Imide Balanced ✔
Ferrite Magnet ✔✔✔
Tweeter
Separate ✔
Size 1” (2.5 cm) 1” (2.5 cm) 13/16” (2 cm) 1/2” (1.2 cm) 1” (2.5 cm) 1” (2.5 cm) 1” (2.5 cm) 1” (2.5 cm)
Poly-Ether Imide Balanced ✔✔✔✔✔✔
Poly-Ether Imide Dome ✔✔
Magnet Neodymium Neodymium Neodymium Neodymium Neodymium Neodymium
Super Tweeter
Size 2cm
Poly-Ether Imide Dome ✔
General
Frequency Response 45 - 28,000Hz 35 - 25,000Hz 35 - 22,000Hz 50 - 25,000Hz 55 - 25,000Hz 45 - 25,000Hz 50 - 25,000Hz 70 - 25,000Hz 45 - 20,000Hz 55 - 20,000Hz 70 - 20,000Hz
Crossover Frequency 5, 8, 12kHz 5, 8kHz 5, 8kHz 5kHz 5kHz 5kHz 5kHz
Power Handling Capacity (Peak) 300W 350W 310W 250W 140W 230W 200W 160W 170W 150W 120W
Power Handling Capacity (RMS) 60W 60W 60W 30W 20W 40W 27W 20W 30W 25W 20W
Impedance 4Ω4Ω4Ω4Ω4Ω4Ω4Ω4Ω4Ω4Ω4Ω
Sound Pressure Level 87dB/W.m 88dB/W.m 88dB/W.m 87dB/W.m 85dB/W.m 89dB/W.m 87dB/W.m 88dB/W.m 88dB/W.m 88dB/W.m 87dB/W.m
Mounting Depth 2 1/4” (56.5mm) 3 1/8” (78.5 mm) 3 1/8” (78.5 mm) 2 5/16” (58 mm) 1 25/32” (44.8 mm) 1 3/4” (43.5 mm) 1 3/4” (44 mm) 1 25/32” (45 mm) 1 3/4” (43.5 mm) 1 3/4” (44 mm) 1 25/32” (45 mm)
Weight (NET) 0.82kg (1.9lbs.) 1.47kg (3.3lbs.) 1.1kg (2.5lbs.) 0.79kg (1.8lbs.) 0.45kg (1.0lbs.) 0.65kg (1.5lbs.) 0.54kg (1.2lbs.) 0.43kg (0.95lbs.) 0.58kg (1.3lbs.) 0.47kg (1.1lbs.) 0.36kg (0.8lbs.)
6-5/16 inch
(159.8 mm)
6-7/32 inch
(158 mm)
5-19/32 inch
(142 mm)
3/16 inch (4.5 mm) x
4 HOLES
6-5/8 inch (168 mm)
5-19/32 inch (142 mm)
1-13/32 inch
(46 mm) 2-19/32 inch
(65.6 mm)
2 inch
(50.7 mm)
1-1/8 inch (28.5 mm)
3/8 inch
(9.2 mm)
2-1/4 inch
(56.5 mm)
6-11/16 inch (169.7 mm)
3-31/32 inch (100.4 mm)
4-13/32 inch (111.7 mm)
3-31/32 inch (100.4 mm)
4-27/32 inch (123 mm)
3-13/32 inch (86 mm)
1-27/32 inch
(46.8 mm)
3-1/16 inch (77 mm)
3-23/32 inch (94 mm)
4-13/32 inch (111.7 mm)
3-31/32 inch (100.4 mm)
27/32 inch (21.3 mm)
1-13/32 inch (35.6 mm)
21/32 inch (16.1 mm)
3/8 inch (8.8 mm)
3/8 inch (8.8 mm)
29/32 inch (23 mm)
1-25/32 inch
(45 mm)
3-31/32 inch (100.4 mm)
4-27/32 inch (123 mm)
4-29/32 inch (124 mm)
3-5/32 inch (80 mm)
3-13/32 inch
(86 mm)
3-3/8 inch
(85 mm)
CS-VS607
1/4 inch
(6 mm)
7/32 inch
(5.5 mm)
11/32 inch
(8.5 mm)
2-5/16 inch
(58 mm)
2-1/4 inch
(56.5 mm)
2-25/32 inch
(70 mm)
7-3/8 inch (187 mm)
8-1/32 inch (203.7 mm)
4-7/32 inch (106.7 mm)
11/32 inch
(8.7 mm)
1/4 inch
(6 mm)
5-23/32 inch (145 mm)
5-9/32 inch (133.5 mm)
4-5/8 inch (117.5 mm)
4-31/32 inch (126 mm)
5-3/32 inch (129 mm)
3-5/32 inch (80 mm)
CS-V6837
6-5/16 inch
(159.8 mm)
6-7/32 inch
(158 mm)
5-19/32 inch
(142 mm)
3/16 inch (4.5 mm) x
4 HOLES
6-5/8 inch (168 mm)
5-19/32 inch (142 mm)
6-11/16 inch (169.7 mm)
3-31/32 inch (100.4 mm)
4-13/32 inch (111.7 mm)
3-31/32 inch (100.4 mm)
4-27/32 inch (123 mm)
4-13/32 inch (111.7 mm)
3-31/32 inch (100.4 mm)
3-31/32 inch (100.4 mm)
4-27/32 inch (123 mm)
3-13/32 inch
(86 mm)
3-3/8 inch
(85 mm)
CS-V627
1-1/8 inch (28.5 mm)
3/8 inch
(9.2 mm)
1-23/32 inch
(43.5 mm)
4-29/32 inch (124 mm)
2-31/32 inch (75 mm)
1-1/8 inch (28.5 mm)
3/8 inch
(9.2 mm)
1-23/32 inch
(43.5 mm)
4-29/32 inch (124 mm)
2-25/32 inch (70 mm)
6-5/16 inch
(159.8 mm)
6-7/32 inch
(158 mm)
5-19/32 inch
(142 mm)
3/16 inch (4.5 mm) x
4 HOLES
6-5/8 inch (168 mm)
5-19/32 inch (142 mm)
6-11/16 inch (169.7 mm)
3-31/32 inch (100.4 mm)
4-13/32 inch (111.7 mm)
3-31/32 inch (100.4 mm)
4-27/32 inch (123 mm)
4-13/32 inch (111.7 mm) 3-31/32 inch (100.4 mm)
3-31/32 inch (100.4 mm)
4-27/32 inch (123 mm)
3-13/32 inch
(86 mm)
3-3/8 inch
(85 mm)
CS-V617
3/8 inch (9 mm)
1/4 inch (6 mm)
9/32 inch
(6.8 mm)
1-25/32 inch
(44.8 mm) 1-5/8 inch
(41.3 mm)
6-3/16 inch (157 mm)
5-9/32 inch (133.5 mm)
4-27/32 inch (123 mm)
13/32 inch (10 mm)
5-19/32 inch (141.5 mm)
2-7/8 inch
(73 mm)
4-1/32 inch (102 mm)
3 inch (76 mm)
3-5/16 inch (83.5 mm)
2-25/32 inch (70 mm)
11/32 inch (8 mm)
CS-V4627

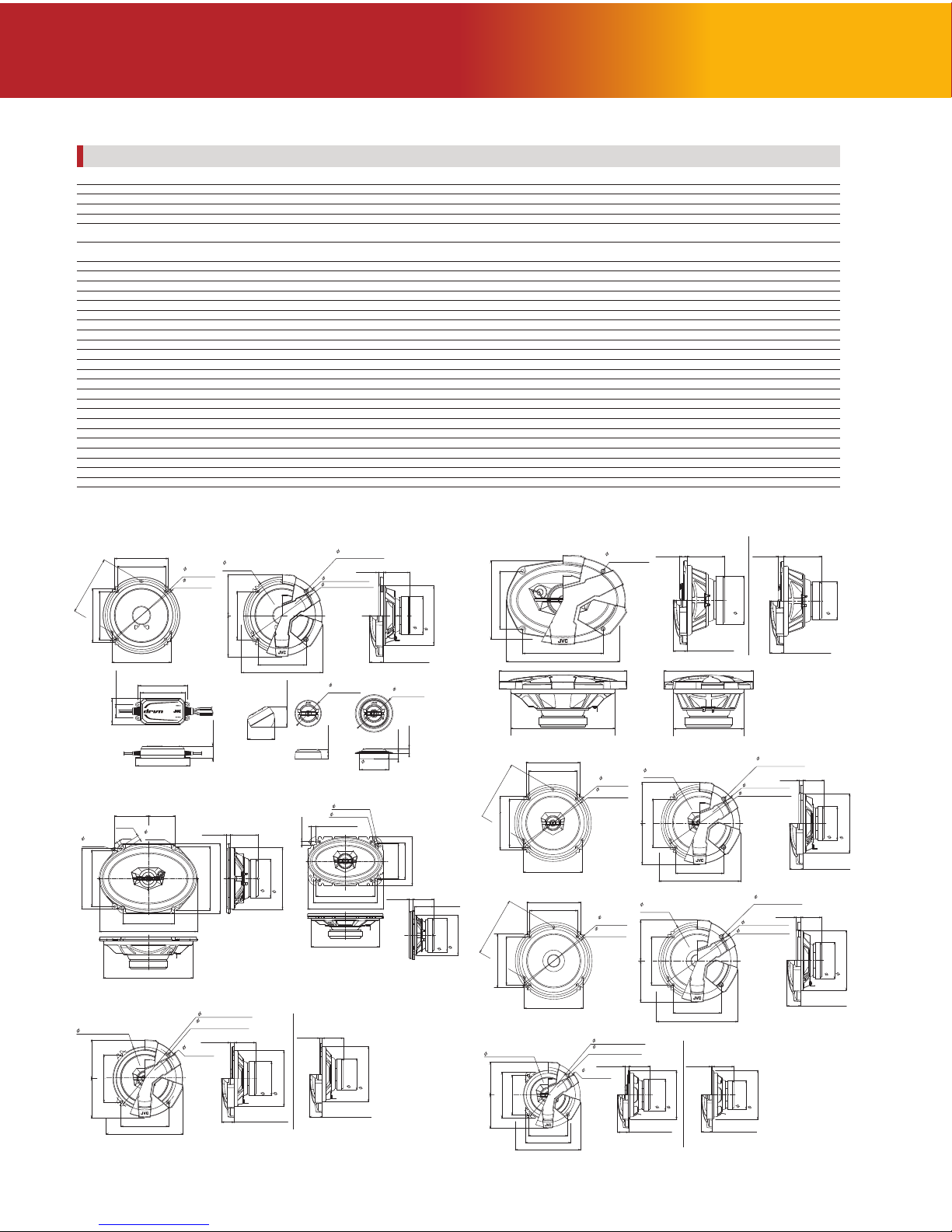

Dimensions
1-1/16 inch (26.5 mm)
7/32 inch
(5 mm)
1-3/4 inch
(44 mm)
4-17/32 inch (115 mm)
2-9/16 inch (65 mm)
CS-V527/V517 5-7/16 inch (138 mm)
5-1/8 inch (130 mm)
3/16 inch (4.5 mm) x
4 HOLES
6-5/32 inch
(156 mm)
1-1/16 inch (26.5 mm)
11/32 inch
(8.5 mm)
1-3/4 inch
(44 mm)
6-7/32 inch (157.9 mm)
3-27/32 inch (97.6 mm)
3-27/32 inch (97.6 mm)
4-17/32 inch (115 mm)
2-25/32 inch (70 mm)
3-5/32 inch
(80 mm)
3-1/8 inch
(79 mm)
CS-V517CS-V527
29/32 inch (23 mm)
3/32 inch
(2.2 mm)
1-25/32 inch
(45 mm)
4-1/32 inch (102 mm)
2-3/8 inch (60 mm)
4-19/32 inch (116 mm)
4-1/32 inch (102 mm)
3/16 inch (4.5 mm) x
4 HOLES
5-9/32 inch
(134 mm)
29/32 inch (23 mm)
11/32 inch
(8 mm)
1-25/32 inch
(45 mm)
5-3/8 inch (136.3 mm)
3-23/32 inch (94 mm)
3-1/4 inch (82 mm)
3-1/4 inch (82 mm)
3-23/32 inch (94 mm)
4-1/32 inch (102 mm)
2-9/16 inch (65 mm)
2-23/32 inch
(69 mm)
2-11/16 inch
(68 mm)
CS-V427/V417
CS-V417CS-V427
8-9/16 inch (217.4 mm) 5-3/4 inch (146 mm)
15/32 inch
(11.2 mm)
3-3/32 inch
(78.5 mm)
1-1/8 inch (28.6 mm)
3-5/32 inch (80 mm)
10-15/32 inch (265.5 mm)
9-1/4 inch (234.8 mm)
6-19/32 inch (167 mm)
7-11/32 inch (186.4 mm)
4-3/4 inch (120 mm)
6-7/16 inch (163 mm)
19/32 inch
(15 mm)
3-3/32 inch
(78.5 mm)
1-1/8 inch (28.6 mm)
3-15/16 inch (100 mm)
CS-V6947/V6937
3/16 inch (4.5 mm)
x 4 HOLES
CS-V6937CS-V6947
