JVC TH-U1 User manual

LVT1766-001A
[B]
DVD DIGITAL CINEMA SYSTEM
INSTRUCTIONS
TH-U1
Consists of XV-THU1, SP-THU1W, SP-THU1F and SP-THU1C
TH-U1[B]-01cov1.fm Page i Tuesday, July 3, 2007 6:21 PM

G-1
EN_Safety_
IMPORTANT for the U.K.
DO NOT cut off the mains plug from this equipment.
If the plug fitted is not suitable for the power points in
your home or the cable is too short to reach a power
point, then obtain an appropriate safety approved
extension lead or consult your dealer.
BE SURE to replace the fuse only with an identical
approved type, as originally fitted.
If nonetheless the mains plug is cut off ensure to
remove the fuse and dispose of the plug immediately,
to avoid a possible shock hazard by inadvertent
connection to the mains supply.
If this product is not supplied fitted with a mains plug
then follow the instructions given below:
IMPORTANT
DO NOT make any connection to the terminal which
is marked with the letter E or by the safety earth
symbol or coloured green or green-and-yellow.
The wires in the mains lead on this product are
coloured in accordance with the following code:
Blue: Neutral
Brown: Live
As these colours may not correspond with the coloured
markings identifying the terminals in your plug
proceed as follows:
The wire which is coloured blue must be connected to
the terminal which is marked with the letter N or
coloured black.
The wire which is coloured brown must be connected
to the terminal which is marked with the letter L or
coloured red.
IF IN DOUBT - CONSULT A COMPETENT
ELECTRICIAN.
IMPORTANT FOR LASER PRODUCTS
1. CLASS 1 LASER PRODUCT
2. CAUTION: Do not open the top cover or cabinet.
There are no user serviceable parts inside the unit;
leave all servicing to qualified service personnel.
3. CAUTION: Visible and/or invisible class 1M laser
radiation when open. Do not view directly with
optical instruments.
4. REPRODUCTION OF LABEL: CAUTION
LABEL, PLACED INSIDE THE UNIT.
CAUTION
To reduce the risk of electrical shocks, fire, etc.:
1. Do not remove screws, covers or cabinet.
2. Do not expose this appliance to rain or moisture.
CAUTION— button!
Disconnect the mains plug to shut the power off
completely (the STANDBY lamp goes off). When
installing the apparatus, ensure that the plug is easily
accessible.
The button in any position does not disconnect the
mains line.
• When the system is on standby, the STANDBY
lamp lights red.
• When the system is turned on, the STANDBY lamp
goes off.
The power can be remote controlled.
CAUTION
• Do not block the ventilation openings or holes.
(If the ventilation openings or holes are blocked by a
newspaper or cloth, etc., the heat may not be able to
get out.)
• Do not place any naked flame sources, such as
lighted candles, on the apparatus.
• When discarding batteries, environmental problems
must be considered and local rules or laws governing
the disposal of these batteries must be followed
strictly.
• Do not expose this apparatus to rain, moisture,
dripping or splashing and that no objects filled with
liquids, such as vases, shall be placed on the
apparatus.
CAUTION
• Excessive sound pressure from earphones or
headphones can cause hearing loss.
Warnings, Cautions and Others
TH-U1[B]-02warning.fm Page 1 Tuesday, July 3, 2007 6:21 PM

G-2

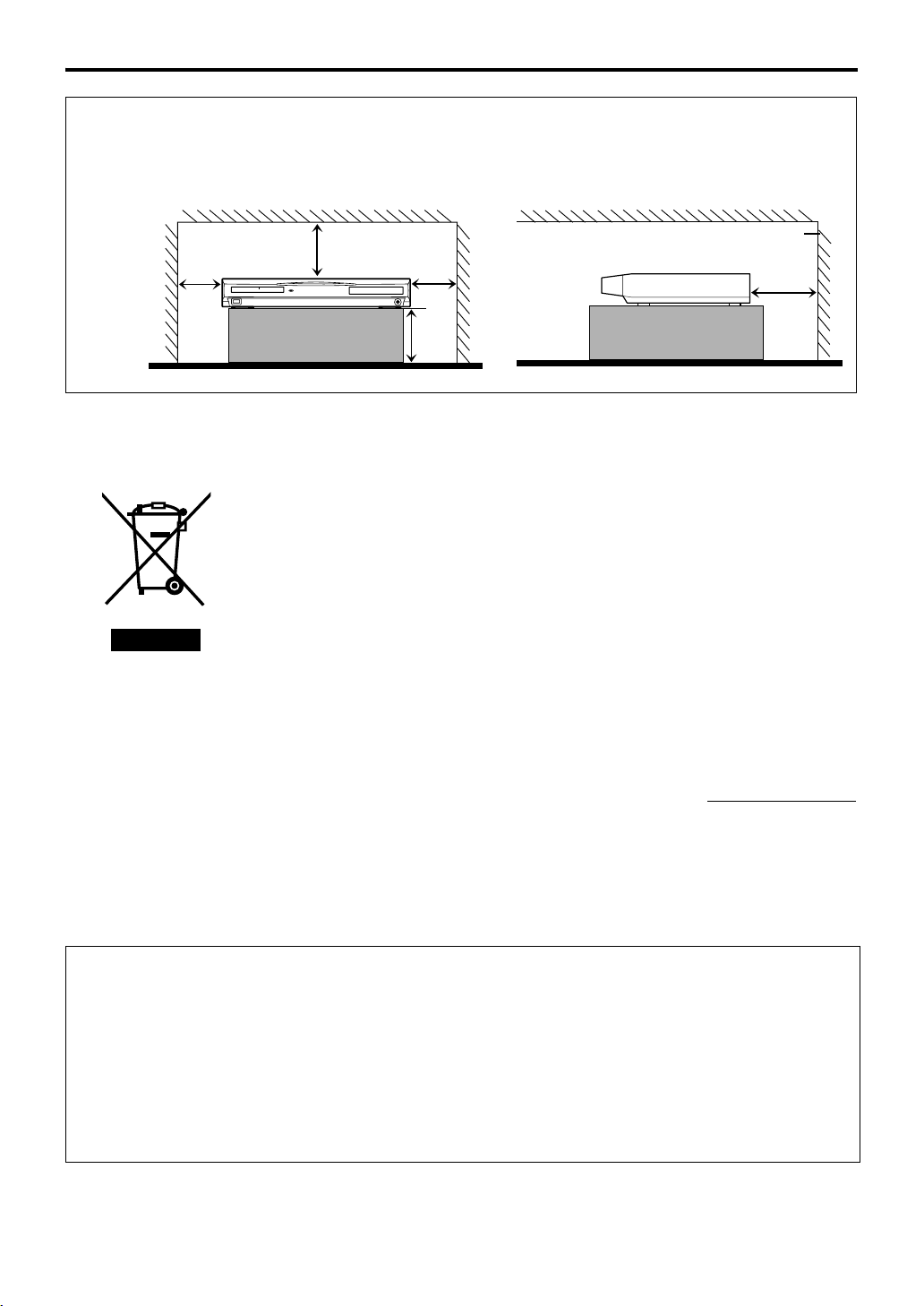

Caution: Proper Ventilation
To avoid risk of electric shock and fire and to protect from damage, place the apparatus on a level surface. The
minimal clearances are shown below:
15 cm
Wall or
obstructions XV-THU1
15 cm
15 cm
15 cm
15 cm
Front
No
obstructions
Wall or
obstructions
XV-THU1
Information for Users on Disposal of Old Equipment
[European Union]
Attention:
This symbol is only valid
in the European Union.
This symbol indicates that the electrical and electronic equipment should not be
disposed as general household waste at its end-of-life. Instead, the product should
be handed over to the applicable collection point for the recycling of electrical and
electronic equipment for proper treatment, recovery and recycling in accordance
with your national legislation.
By disposing of this product correctly, you will help to conserve natural resources
and will help prevent potential negative effects on the environment and human
health which could otherwise be caused by inappropriate waste handling of this
product. For more information about collection point and recycling of this product,
please contact your local municipal office, your household waste disposal service or
the shop where you purchased the product.
Penalties may be applicable for incorrect disposal of this waste, in accordance with
national legislation.
(Business users)
If you wish to dispose of this product, please visit our web page www.jvc-europe.com
to obtain information about the take-back of the product.
[Other Countries outside the European Union]
If you wish to dispose of this product, please do so in accordance with applicable
national legislation or other rules in your country for the treatment of old electrical
and electronic equipment.
Dear Customer,
This apparatus is in conformance with the valid European directives and standards regarding electromagnetic
compatibility and electrical safety.
European representative of Victor Company of Japan, Limited is:
JVC Technology Centre Europe GmbH
Postfach 10 05 52
61145 Friedberg
Germany
Front view Side view
TH-U1[B]-02warning.fm Page 2 Tuesday, July 3, 2007 6:21 PM

1
Introduction ...........................................2
Notes on handling ......................................................... 2
Supplied accessories ...................................................... 2
About discs .............................................3

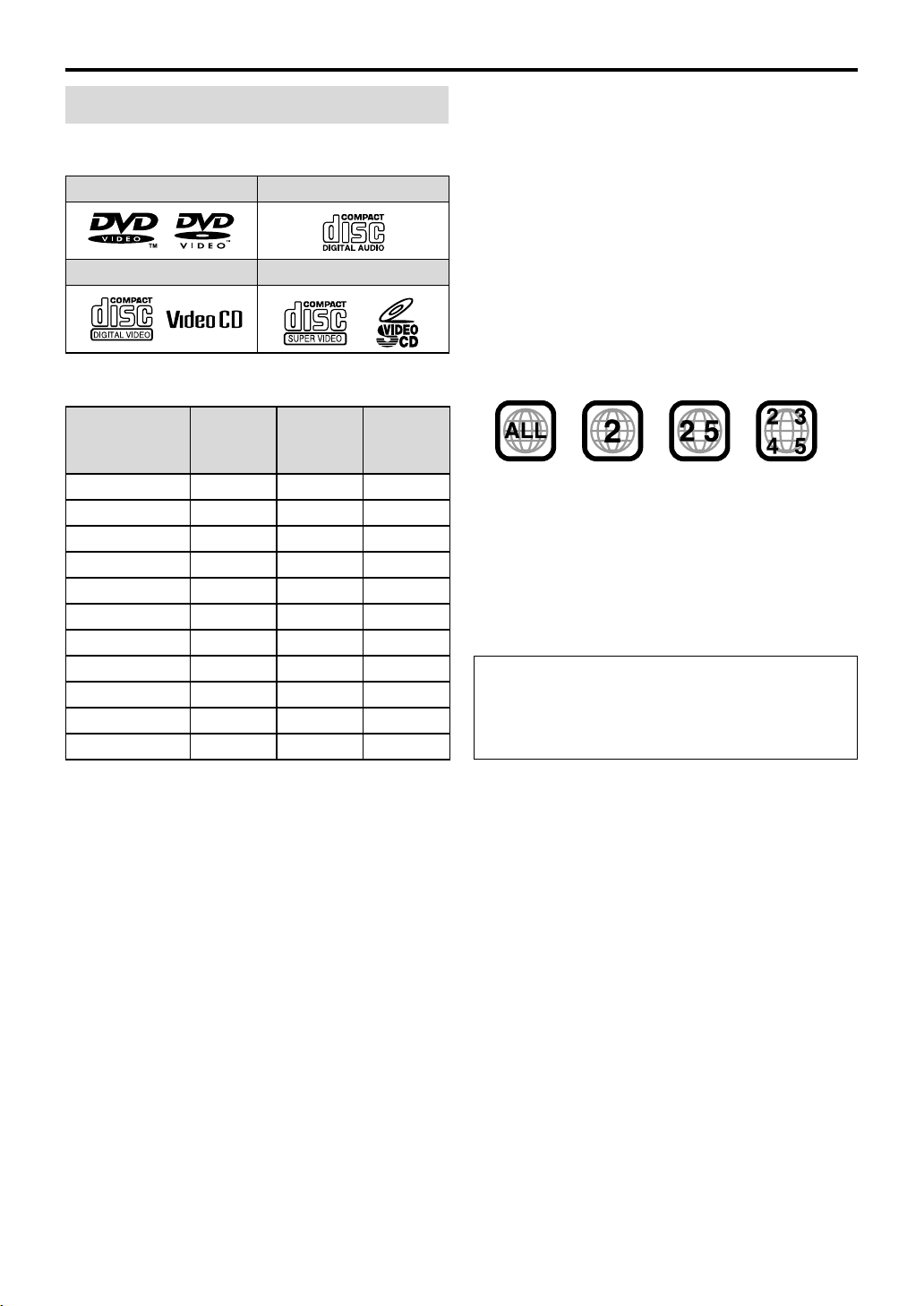

Playable disc types ......................................................... 3
Playable file types .......................................................... 4
Index of parts and controls ...................5
Connections ............................................7

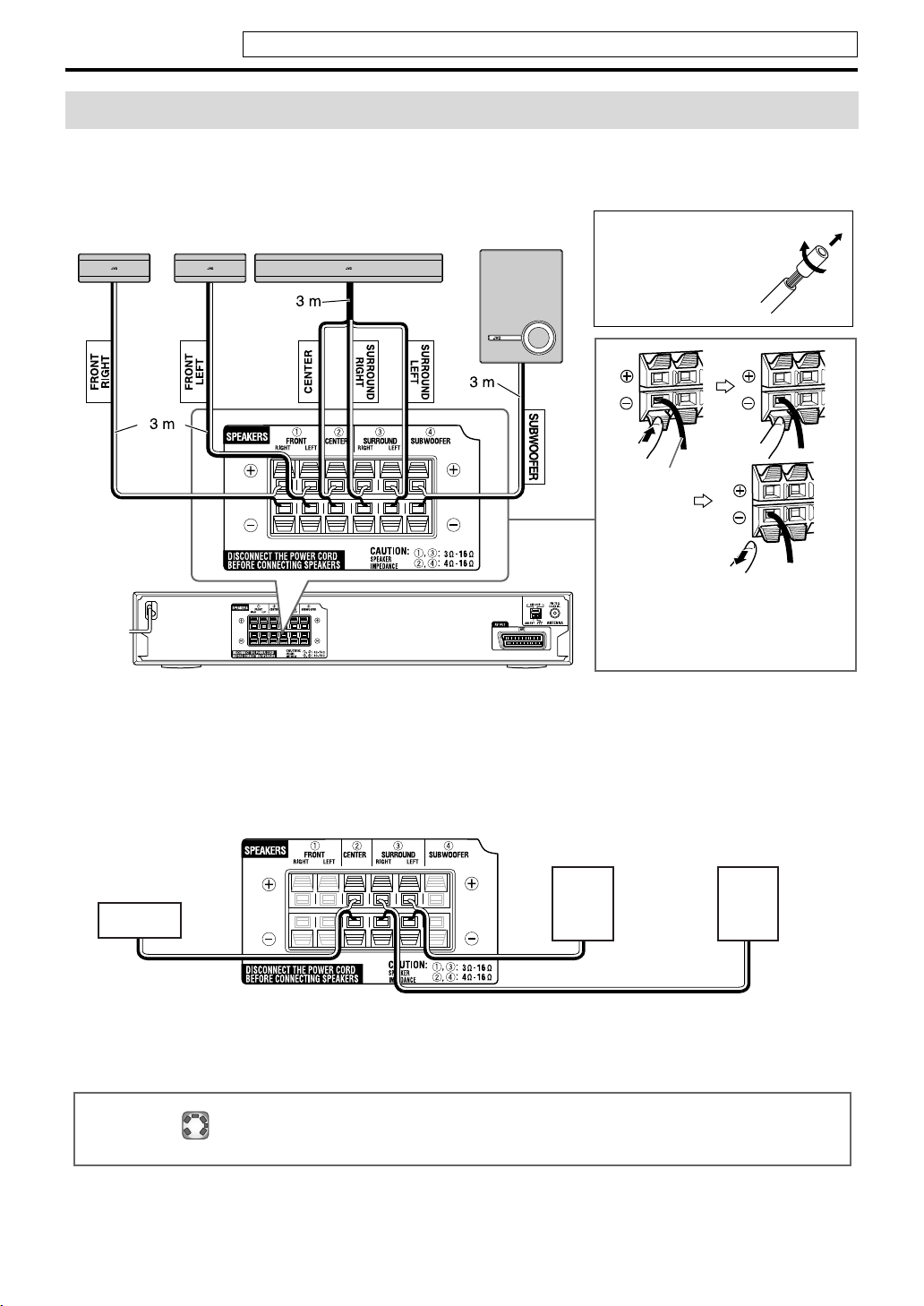

Connecting the speakers and the subwoofer ............. 7
Speaker layout ................................................................ 8

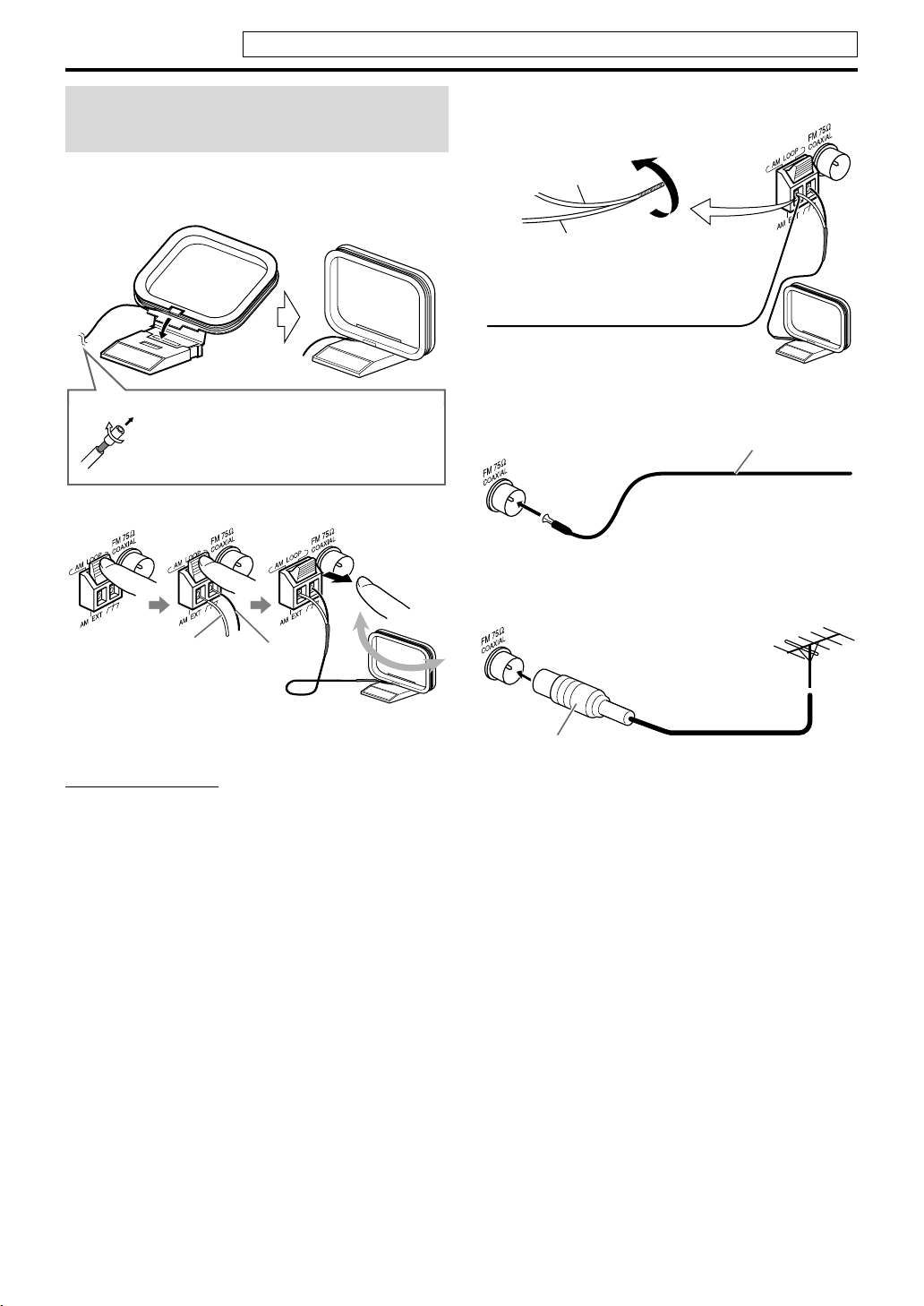

Connecting the FM and AM (MW) antennas .......... 9

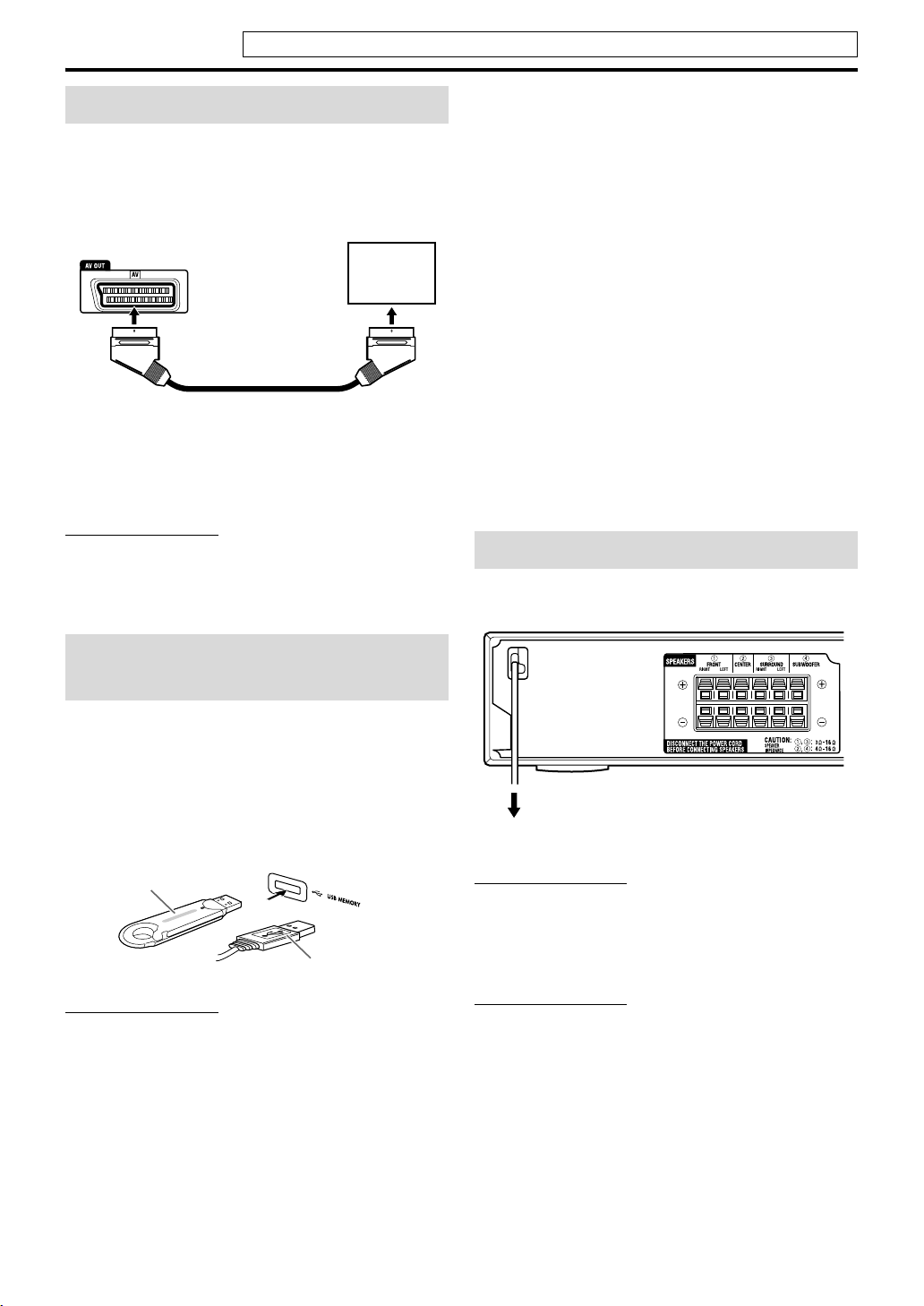

Connecting a TV ......................................................... 10
Connecting a USB mass storage class device .......... 10
Connecting the power cord ....................................... 10

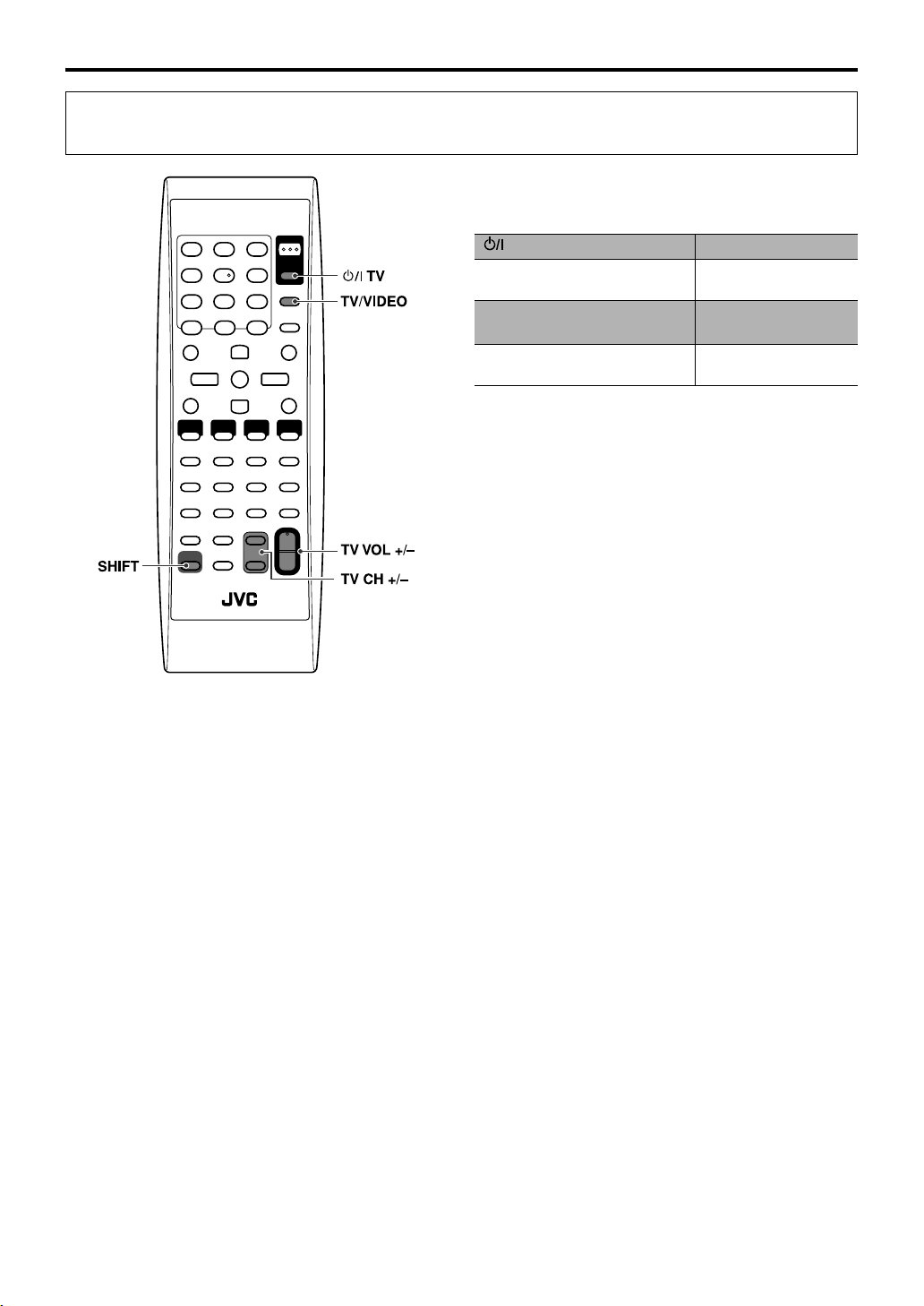

Operating the TV ..................................11
Basic operations ...................................12

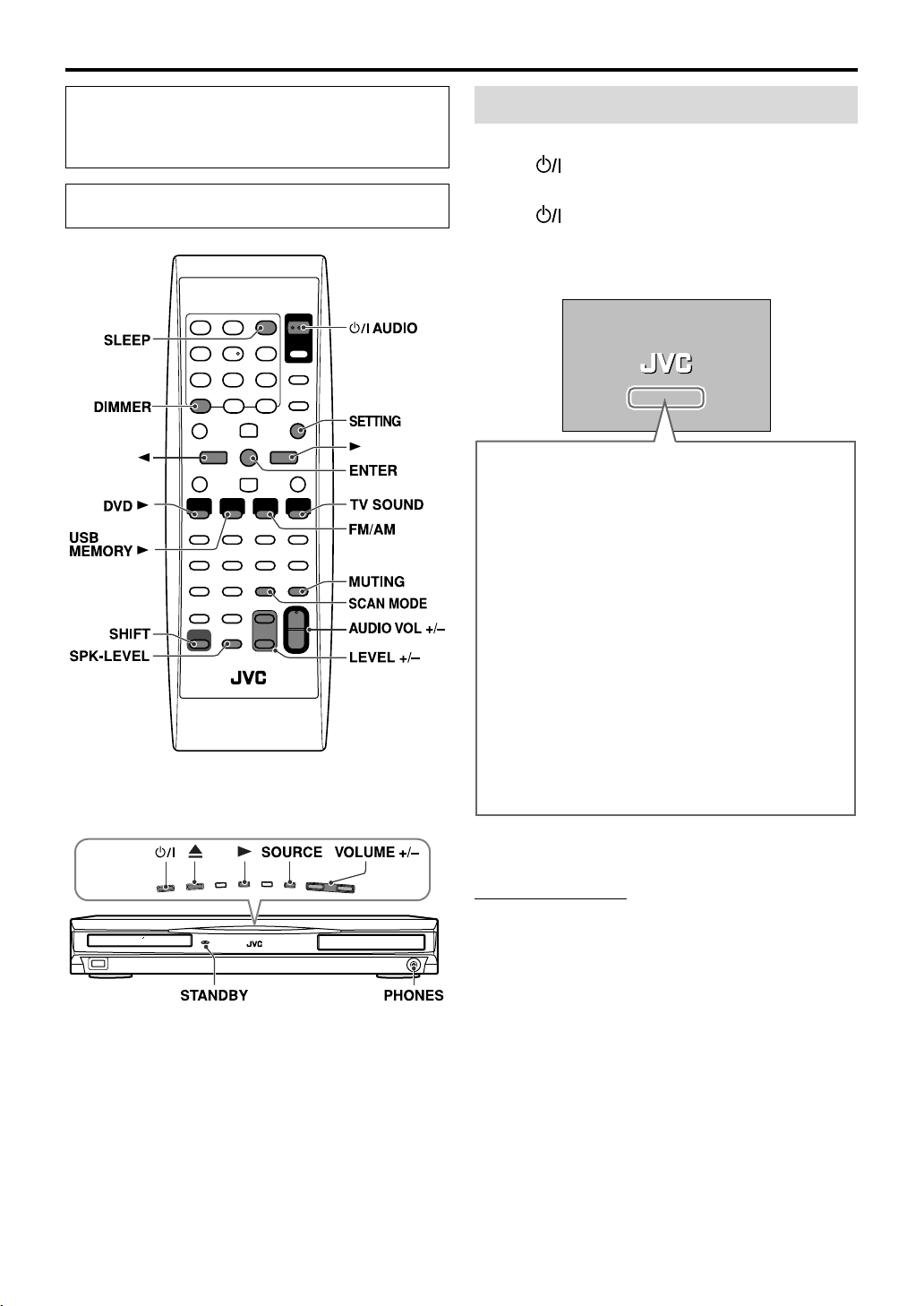

Turning the system on/off ......................................... 12
Selecting the source to play ........................................ 13
Adjusting the volume [VOLUME] ........................... 13
Listening with headphones (not supplied) .............. 13
Turning off the sound temporarily [MUTING] ..... 13
Adjusting the brightness of the indications
[DIMMER] ................................................................... 13
Sleep Timer [SLEEP] .................................................. 14
Changing video output mode .................................... 14
Switching the speaker position mode ....................... 15
Adjusting the output level of the speakers ............... 15

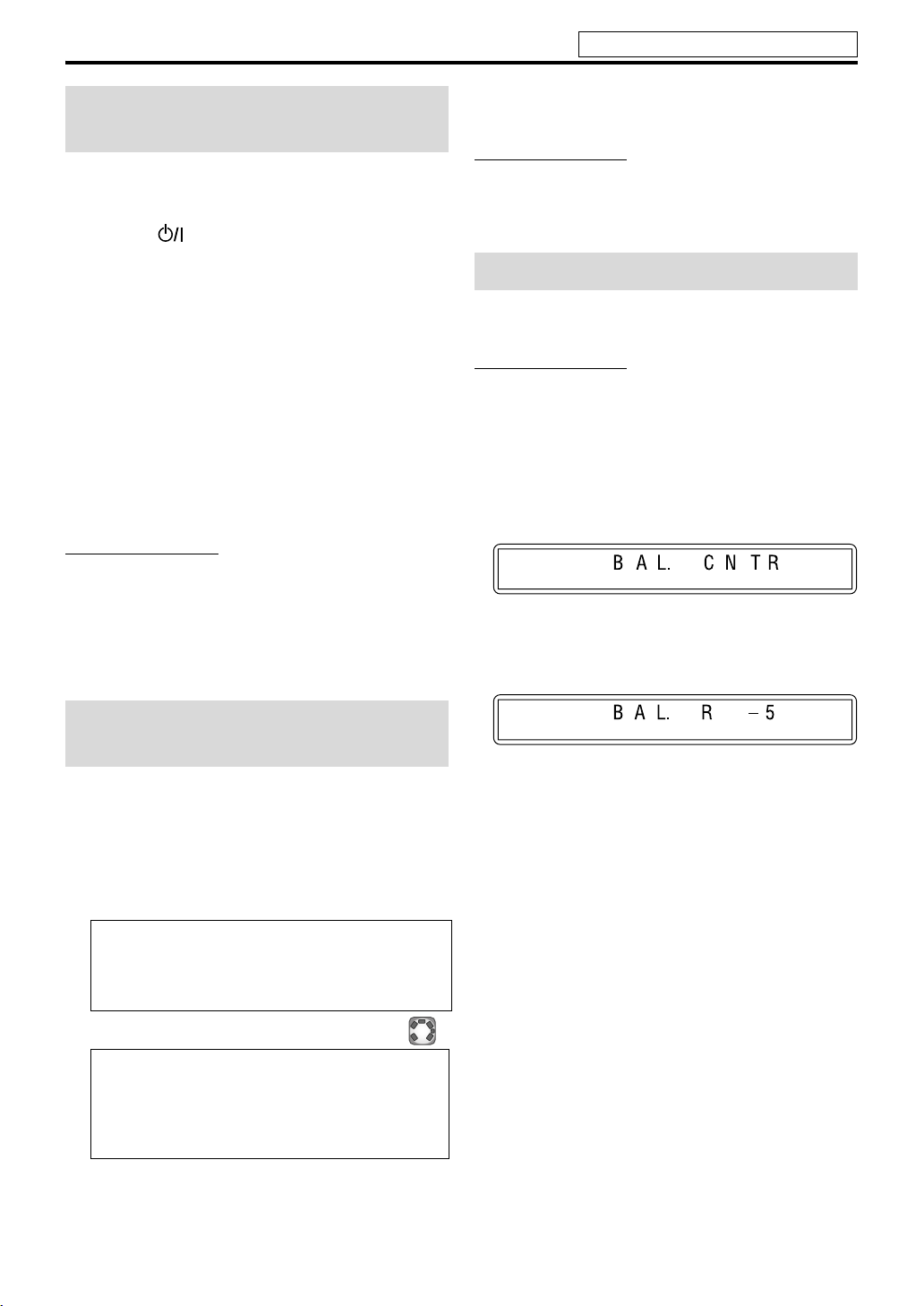

Balance Setting ............................................................ 15
Playback ...............................................16
Basic Playback ..............................................................16
One Touch Replay .......................................................18
Fast-forward/fast-reverse search ................................18
Skipping to the beginning of a desired selection .....18
Skipping by intervals of about 5-minutes..................19
Locating a desired title/group/program/playlist using the
number buttons ...................................................................
19
Selecting the desired program/playlist from the
control display ..............................................................19
Advanced operations ..........................20
Using the surround mode ...........................................20
Using the on-screen bar ..............................................21
Playing from a specified position on a disc ..............23
Using the file control display ......................................25
Resume Playback ..........................................................25
Selecting a view angle ..................................................26
Selecting the subtitle ....................................................26
Selecting the audio .......................................................27
Special picture playback ..............................................27
Program Playback ........................................................28
Random Playback ........................................................29
Repeat Playback ...........................................................29
Tray lock ........................................................................31
Setting DVD preferences .....................32
Using the setup menus ................................................32
Menu description .........................................................32
Tuner operations .................................35
Manual tuning ..............................................................35
Preset tuning .................................................................35
Selecting the FM reception mode ..............................36
Using the Radio Data System when receiving FM
stations ...........................................................................36
References ............................................39
Maintenance .................................................................39
Troubleshooting ...........................................................39
Specifications ................................................................40
Table of contents
EN_TH-U1[B]-03body.fm Page 1 Wednesday, July 25, 2007 4:06 PM

2
Introduction
Thank you for purchasing a JVC product.
Please read all instructions carefully before operation, to
ensure your complete understanding and to obtain the best
possible performance from the system.I
7Important cautions
Installation of the system
• Select a place which is level, dry and neither too hot nor
too cold; between 5°C and 35°C.
• Leave sufficient distance between the system and the TV.
• Do not use the system in a place subject to vibration.
Power cord
• Do not handle the power cord with wet hands.
• A small amount of power is always consumed while the
power cord is connected to the wall outlet.
• When unplugging the power cord from the wall outlet,
always pull on the plug, not the power cord.
To prevent malfunctions of the system
• There are no user-serviceable parts inside. If anything
goes wrong, unplug the power cord and consult your
dealer.
• Do not insert any metallic object into the system.
• Do not use any non-standard shape disc (like a heart,
flower or credit card, etc.) available in the market,
because it may damage the system.
• Do not use a disc with tape, stickers, or paste on it,
because it may damage the system.
Note about copyright laws
Check the copyright laws in your country before recording
from the discs. The recording of copyrighted material may
infringe copyright laws.
Note about the copyguard system
The discs are protected by a copyguard system. When you
connect the system to your VCR directly, the copyguard
system activates and the picture may not be played back
correctly.
7Safety precautions
Avoid moisture, water and dust
Do not place the system in moist or dusty places.
Avoid high temperatures
Do not expose the system to direct sunlight and do not
place it near a heating device.
When you are away
When away on travel or for other reasons for an extended
period of time, disconnect the power cord plug from the
wall outlet.
Do not block the vents
Blocking the vents may damage the system.
Care of the cabinet
When cleaning the system, use a soft cloth and follow the
relevant instructions on the use of chemically-coated cloths.
Do not use benzene, thinner or other organic solvents
including disinfectants. These may cause deformation or
discoloring.
If water gets inside the system
Turn the system off and disconnect the power cord plug
from the wall outlet, then call the store where you made
your purchase. Using the system in this condition may
cause a fire or electrical shock.
Check to be sure you have all of the supplied accessories.
The number in parentheses is the quantity of the pieces
supplied.
If anything is missing, contact your dealer immediately.
• Remote control (1)
•Batteries(2)
•FMantenna(1)
•AMloopantenna(1)
• Feet (for the front speakers) (8)
Notes on handling
Paste
Sticker
Label sticker
Supplied accessories
EN_TH-U1[B]-03body.fm Page 2 Wednesday, July 25, 2007 4:06 PM

3
About discs
This system has been designed to play back the following
discs:
The √in the list below shows the available disc types and
recording formats.
*1This system can play finalized discs only.
*2Recorded in UDF Bridge format.
*3This system may not be able to play back a file if the file
size is too large.
• It is possible to play back finalized +R/+RW (DVD Video
Format only) discs. “DVD” lights on the display panel
when a +R/+RW disc is loaded.
• DVD Logo is a trademark of DVD Format/Logo
Licensing Corporation.
• The Non-DVD side of a “DualDisc” does not comply
with the “Compact Disc Digital Audio” standard.
Therefore, the use of Non-DVD side of a DualDisc on
this product may not be recommended.
•On some DVD VIDEOs, VCDs or SVCDs, their actual
operation may be different from what is explained in
this manual. This is due to the disc programming and
disc structure, not a malfunction of this system.
• Some discs may not be played back because of their disc
characteristics, recording conditions, or damage or stains
on them.
Notes on DVD-R and DVD-RW
This system does not support “multi-border” disc.
Notes on CD-R and CD-RW
• This system can play CD-Rs or CD-RWs recorded in ISO
9660 format.
• This system supports “multi-session” discs (up to 20
sessions).
• This system cannot play “packet write” discs.
Region code of DVD VIDEO
DVD VIDEO players and DVD VIDEO discs have their
own Region Code numbers. This system can play back
DVD VIDEO discs whose Region Code numbers include
the system’s Region Code, which is indicated on the rear
panel.
If a DVD with an improper Region Code number is loaded,
“REGION CODE ERROR!” appears on the TV screen and
playback cannot start.
Notes on color system
This system accommodates the PAL system, and can also
play discs recorded with the NTSC system. Note that an
NTSC video signal on a disc is converted to the PAL60
signal and output.
Playable disc types
DVD VIDEO Audio CD
VCD SVCD
Disc type
CD-R/-RW *1DVD-R*1DVD-RW*1
Recording
format
DVD Video — √√
DVD VR — √√
VCD/SVCD √——
Audio CD √——
MP3 √√*2√*2
WMA √√*2√*2
JPEG √√*2√*2
ASF √√*2√*2
MPEG-2 √*3√*2√*2
MPEG-1 √*3√*2√*2
DivX √√*2√*2
Unplayable discs
DVD-ROM, DVD-RAM, CD-I (CD-I Ready), Photo CD,
SACD, etc.
Playing back these discs will generate noise and damage
the speakers.
Example of playable DVD:
EN_TH-U1[B]-03body.fm Page 3 Wednesday, July 25, 2007 4:06 PM

4
About discs
For all playable files
• The system can only recognize and play files with one of
the following extensions, which can be in any
combination of upper and lower case:
MP3: “.MP3 ”, “. mp 3 ”
WMA: “.WMA”, “. w m a”
JPEG: “.JPG”, “.JPEG”, “.jpg”, “.jp e g”
ASF: “. A SF ”, “. as f ”
MPEG-2/MPEG-1:“.MPG”, “.MP E G”, “.mpg”, “.mp eg”,
“.mod” (MPEG-2 only)
DivX: “.DIVX”, “.DIV”, “.divx”, “.div”, and “.AVI”, “.avi”
• The system recognizes up to 150 tracks (files) per group,
99 groups per disc/device, and the total number of the
tracks (files) that the system can play is 4000.
• Some files may not be played back normally because of
their disc characteristics or recording conditions.
• MP3/WMA/JPEG/ASF/MPEG-2/MPEG-1/DivX files
require a longer readout time. (It differs according to the
complexity of the directory/file configuration.)
• If different kinds of files are mixed, set the FILE TYPE
setting in the PICTURE menu to the appropriate setting
for the data to be read (“AUDIO”, “STILL PICTURE” or
“VIDEO”). (See page 33.)
For MP3/WMA files
• The system supports MP3/WMA files recorded with a bit
rate of 32 kbps – 320 kbps and a sampling frequency of 16
kHz, 22.05 kHz, 24 kHz*, 32 kHz, 44.1 kHz, or 48 kHz.
• If the track information (album name, artist, and track
title, etc.) is recorded, it appears in the file control display
on the TV screen. (See page 25.)
• We recommend that you record each piece of material
(song) at a sample rate of 44.1 kHz and at a data transfer
rate of 128 (96*) kbps.
*For WMA only
For JPEG files
• We recommend that you record a file at 640 x480
resolution. (If a file has been recorded at a resolution of
more than 640 x480, it will take a longer time to be
displayed.)
• This system can only play baseline JPEG files.
For ASF files
• The system supports the types of the advanced simple
profile as MPEG-4 files (MPEG-4 ASF).
• The system supports MPEG-4 files with the following
conditions:
File format: ASF
Visual profile: MPEG-4 SP (Simple Profile)
Audio CODEC: G.726
Max. picture size: 352 x288 (CIF)
Max. bit rate: 384 kbps
For MPEG-2/MPEG-1 files
• The stream format should conform to MPEG system/
program stream.
• 720 x576 pixels (25 fps)/720 x480 pixels (30 fps) is
recommended for the highest resolution.
• This system also supports the resolutions of 352 x576/
480 x576/352 x288 pixels (25 fps) and 352 x480/480 x
480/352 x240 pixels (30 fps).
• The file format should be MP@ML (Main Profile at Main
Level)/SP@ML (Simple Profile at Main Level)/MP@LL
(Main Profile at Low Level).
• Audio streams should conform to MPEG1 Audio Layer-2
or MPEG2 Audio Layer-2.
For DivX files
• The system supports DivX 6.x, 5.x, 4.x and 3.11.
• The system supports DivX files whose resolution is 720 x
480 pixels or less (30 fps), and 720 x576 pixels or less
(25 fps).
• The audio stream should conform to Dolby Digital
(including multi channel) or MPEG1 Audio Layer-3
(MP3).
• The system does not support GMC (Global Motion
Compression).
• Files encoded in an interlaced scanning mode may not be
played back correctly.
• The system has its own Registration Code for DivX
playback.
If necessary, you can confirm the Registration Code of
your system using the OTHERS menu. (See page 34.)
• Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic”, and the double-D symbol are
trademarks of Dolby Laboratories.
• “DTS” and “DTS Digital Surround” are registered
trademarks of DTS, Inc.
• Microsoft and Windows Media are either registered
trademarks or trademarks of Microsoft Corporation in
the United States and/or other countries.
• DivX, DivX Ultra Certified, and associated logos are
trademarks of DivX, Inc. and are used under license.
• Official DivX®Ultra Certified product
• Plays all versions of DivX®video (including DivX®6)
with enhanced playback of DivX®media files and the
DivX®Media Format
• USE OF THIS PRODUCT IN ANY MANNER THAT
COMPLIES WITH THE MPEG-4 VISUAL STANDARD
IS PROHIBITED, EXCEPT FOR USE BY A
CONSUMER ENGAGING IN PERSONAL AND NON-
COMMERCIAL ACTIVITIES.
• This product incorporates copyright protection
technology that is protected by U.S. patents and other
intellectual property rights. Use of this copyright
protection technology must be authorized by
Macrovision, and is intended for home and other limited
viewing uses only unless otherwise authorized by
Macrovision. Reverse engineering or disassembly is
prohibited.
Playable file types
EN_TH-U1[B]-03body.fm Page 4 Wednesday, July 25, 2007 4:06 PM

5
Index of parts and controls
The numbers in the figures indicate the pages where the details of the parts are described.
Front panel (center unit)
Rear panel (center unit)
Display window
20 35 17, 18 20
17 36
36 38
16
16
16
13
Disc tray (inside): 16 Remote sensor: 6
16
13
13
12
17 28
17
12
25
29,30
29
10
35
19
710
9
10
EN_TH-U1[B]-03body.fm Page 5 Wednesday, July 25, 2007 4:06 PM

6
Remote control
Putting batteries in the remote control
If the range or effectiveness of the remote control decreases,
replace both batteries.
CAUTION
• Battery shall not be exposed to excessive heat such as
sunshine, fire or the like.
Operating the system from the remote
control
Aim the remote control directly at the front panel of the
center unit.
• Do not block the remote sensor.
Number buttons: 18
12
13
19, 23, 32
17, 36
13, 16
16, 35
13, 16
18, 27
26, 27
26, 27
16, 36
29
15
11, 13, 14, 15, 23, 26, 27, 29,
30, 32, 36, 37, 38
28, 29
11
11
19
15, 19,
23
13, 35
18, 35
20
18, 23
13
14, 28
11, 13
11, 15
29
30 14
13
21, 22, 24, 26, 27, 30, 31
14, 19, 22, 23, 24, 25, 26, 27, 28,
30, 31, 32, 37
R6P (SUM-3)/AA (15F) type dry-cell batteries
(supplied)
Index of parts and controls
EN_TH-U1[B]-03body.fm Page 6 Wednesday, July 25, 2007 4:06 PM

7
Connections
7Basic speaker connection—for speaker layout A(see page 8)
The supplied center surround speaker reproduces the sound of center channel, surround right channel and surround left
channel by one speaker.
Connecting the speakers and the subwoofer
SP-THU1C
Center surround speaker
SP-THU1F
Front speakers
SP-THU1W
Subwoofer Before connecting
the speaker cords;
Twist and pull the
insulation coat off.
7Optional speaker connection—for speaker layout B(see page 8)
You can connect separately purchased speakers to this unit as the center, surround right and surround left speaker. With
using optional speakers, you can use some optional function through this system.
• Leave the supplied front speakers and subwoofer connected as illustration above.
• When you connect the optional speakers, place the speakers as speaker layout B(see page 8) and select the speaker
position mode to “S. SPK R” (see page 15).
• The supplied center surround speaker can be used as the center speaker. When you connect the supplied center
surround speaker as the center speaker, connect only the CENTER speaker cord to the CENTER speaker terminal of
the unit.
About Icon
In this manual, indicates that the function is available only when you connect the optional speakers and set the
speaker position mode to “S. SPK R”.
Surround left speaker
(separately purchased)
Surround right speaker
(separately purchased)
Center speaker
(separately purchased)
• Connect the black cords to the black
(–) terminals.
• Connect the gray cords to the red
(+) terminals.
Speaker cord
Do not connect the power cord until all other connections have been made.
EN_TH-U1[B]-03body.fm Page 7 Wednesday, July 25, 2007 4:06 PM

8
Connections
CAUTION
• If you connect speakers other than the supplied ones, use
speakers of the same speaker impedance (SPEAKER
IMPEDANCE) indicated on the rear of the center unit.
• DO NOT connect more than one speaker to each speaker
terminal.
• When installing the speakers on the wall:
– Be sure to have them installed on the wall by qualified
personnel.
DO NOT install the speakers on the wall by yourself to
avoid unexpected damage from falling off the wall due to
incorrect installation or weakness in wall structure.
– Care must be taken in selecting a location for speaker
installation on a wall. Injury to personnel or damage to
equipment may result if the speakers installed interfere
with daily activities.
• When you connect the supplied center surround speaker as
the center speaker for speaker layout B, be sure to keep the
following for the unused cords and handle them with care.
– Do insulate the SURROUND RIGHT and SURROUND
LEFT speaker cords with insulating tape.
– Do not let the unused cords touch any materials.
Precautions for daily use
• When moving the speakers, do not pull the speaker
cords; otherwise, the speakers may fall over, causing
damage or injury.
• Do not reproduce sounds at so high volume that the
sound is distorted; otherwise, the speakers may be
damaged by internal heat buildup.
7Speaker layout A(basic layout)
Place the front speakers as follows so that the curved-sides
face outwards.
EX.: Overhead view
The front speakers can be placed vertically as follows.
• You can turn the JVC logos to make them legible.
7Speaker layout B(only when connecting optional
speakers)
• Select “S. SPK R” as the speaker position mode for this
layout. (See page 15.)
• To obtain the best possible sound from this system, you
need to place all the speakers except subwoofer at the
same distance from the listening position.
If your speakers cannot be placed at the same distance
from the listening position
You can adjust the delay time of the speakers. See “Delay
menu (DELAY)” on page 33.
NOTE
• Place the speakers on a flat and level surface.
• The front and center surround speakers are magnetically
shielded to avoid causing color distortions on TVs. However,
if not installed properly, they may cause color distortions. So,
pay attention to the following when installing the speakers.
– When placing the speakers near a TV set, turn off the TV’s
main power switch or unplug it before installing the
speakers. Then wait at least 30 minutes before turning on
the TV’s main power switch again.
Some TVs may be still affected even though you have
followed the above. If this happens, move the speakers away
from the TV.
• The subwoofer is not magnetically shielded.
If it is located near the TV or monitor, it will probably cause
color distortion on the screen. To avoid this, do not place the
speakers near the TV or monitor.
• Be sure to place the subwoofer to the right of the TV. If you
place the subwoofer to the left, keep sufficient distance
between them to prevent the TV screen from appearing
mottled.
Speaker layout
Subwoofer
Front right
speaker
Front left
speaker
Center surround speaker
Front right
speaker
Center surround
speaker
Front left
speaker
Peel off.
Feet (supplied)
Front right
speaker
Center speaker
(separately purchased)
Subwoofer
Surround left
speaker
(separately
purchased)
Surround right
speaker
(separately
purchased)
Front left
speaker
Do not connect the power cord until all other connections have been made.
EN_TH-U1[B]-03body.fm Page 8 Wednesday, July 25, 2007 4:06 PM

9
Connections
7AM (MW) loop antenna
Setting up the supplied AM (MW) loop antenna
Connecting the AM (MW) loop antenna
• Turn the loop antenna until you have the best reception
during AM (MW) broadcast program reception.
NOTE
• Make sure the antenna conductors do not touch any other
terminals, connecting cords or power cords. This could cause
poor reception.
• Keep the AM loop antenna cable wrapped around the AM
loop antenna frame, otherwise the effectiveness and
sensitivity of the AM loop antenna may be reduced.
If reception is poor
7FM antenna
If reception is poor
We recommend that you use a coaxial cable for the FM
antenna as it is well-shielded against interference.
Connecting the FM and AM
(MW) antennas
If the antenna cord is covered with an
insulation coat, twist and pull the
insulation coat off.
White Black
Outdoor single vinyl-covered wire
antenna (not supplied)
AM (MW) loop
antenna (white)
Center unit
Extend the supplied FM antenna
horizontally.
Center unit FM antenna (supplied)
Outdoor FM antenna
(not supplied)
Outdoor FM antenna cord
(not supplied)
Center unit
Standard type (75 Ω
coaxial) connector
(IEC or DIN45325)
Do not connect the power cord until all other connections have been made.
EN_TH-U1[B]-03body.fm Page 9 Wednesday, July 25, 2007 4:06 PM

10
Connections
• Picture distortion may occur when connecting the TV via
a VCR, or to a TV with a built-in VCR.
• You need to set “MONITOR TYPE” in the PICTURE
menu correctly according to the aspect ratio of your TV.
(See page 32.)
*Some TV’s SCART connectors emit audio signals. In such
a case, you can enjoy the TV sound through this system
by selecting TV SOUND as the source to play. (See page
13.)
NOTE
• No sound signal comes out from AV OUT (SCART)
connector.
• Select the appropriate video output mode according to your
TV. (See page 14.)
You can connect a USB mass storage class device such as a
USB flash memory device, hard disk drive, multimedia card
reader, digital camera, etc. to this system.
• After connecting a USB mass storage class device to this
system and selecting USB MEMORY as the source, the
file control display appears on the TV screen. (See page
25.)
NOTE
• When connecting a USB mass storage class device, refer also
to its manual.
• Connect one USB mass storage class device to the system at a
time. Do not use a USB hub.
• While playing back a file on a USB mass storage class device,
do not disconnect the device. It may cause a malfunction of
both the system and the device.
• Some USB mass storage class devices may not be recognized
or may not work properly.
• JVC bears no responsibility for any loss of data on the USB
mass storage class device while using this system.
• This system is compatible with the USB 2.0 Full Speed.
• You can play back the following types of files on a USB mass
storage class device (maximum data transfer rate: 2 Mbps):
–Music:MP3,WMA
–Picture:JPEG
– Movie: MPEG-4 (ASF), DivX (maximum frame rate of
30 fps for progressive)
• This system may not play back some files even though their
formats are listed above.
• You cannot play back a file larger than 2 GB.
• When playing a file which has a large transfer rate, frames or
sounds may be dropped during playback.
• This system cannot recognize a USB mass storage class
device whose rating exceeds 5 V/500 mA.
• You cannot connect a computer to the USB MEMORY
terminal of the system.
• Always set the volume to the minimum level when
connecting or disconnecting the other equipment.
• You cannot send any data to your USB mass storage class
device from this system.
• When connecting with a USB cable, use the USB 2.0 cable
whose length is less than 1 m.
Make sure that all other connections have been completed.
CAUTION
• Disconnect the power cord before cleaning or moving the
system.
• Do not pull on the power cord to unplug it. When
unplugging the cord, always grasp and pull the plug so as not
to damage the cord.
NOTE
• Preset settings, such as preset stations and surround mode
adjustments, may be erased after a few days in the following
cases:
– If you unplug the power cord of the center unit.
– If a power failure occurs.
Connecting a TV
Connecting a USB mass
storage class device
Center unit TV
SCART cable (not supplied)
To SCART connector*
Center unit (on the front panel)
USB memory (not
supplied)
USB cable (not supplied)
Or
Connecting the power cord
Center unit
Power cord
Plug into an AC outlet.
Do not connect the power cord until all other connections have been made.
EN_TH-U1[B]-03body.fm Page 10 Wednesday, July 25, 2007 4:06 PM

11
Operating the TV
7To operate a JVC TV
You can perform the following operations on the TV.
You can use the remote control to operate not only this system but also JVC TVs.
• Refer also to the manuals supplied with the TV.
• To operate the TV, aim the remote control directly at the remote sensor on the TV.
TV: Turn on or off the TV.
TV VOL +/– while holding
SHIFT:
Adjust the volume.
TV/VIDEO: Select the input mode
(either TV or VIDEO).
TV CH +/– while holding
SHIFT:
Change the channels.
EN_TH-U1[B]-03body.fm Page 11 Wednesday, July 25, 2007 4:06 PM

12
Basic operations
On the remote control:
Press AUDIO.
On the center unit:
Press .
When DVD or USB MEMORY is selected as the source (see
page 13), the following messages will appear on the TV
screen.
NOTE
• The STANDBY lamp goes off when the power is turned on,
and the lamp lights when the power is turned off.
• A small amount of power is consumed even when the power
is turned off. This is called standby mode and the STANDBY
lamp lights in this mode. Unplug the power cord from the
AC outlet to shut the power off completely.
• You can also turn on the system by pressing the following
buttons:
–0on the center unit
– One of the source selecting buttons (DVD 3, USB
MEMORY 3, FM/AM or TV SOUND) on the remote
control
–3on the center unit
In this manual, the operations using the remote control
are mainly explained; however, you can use the buttons
and controls on the main unit if they have the same (or
similar) name and marks.
The buttons described below are used on pages 12 to
15.
Turning the system on/off
• “OPEN”/“CLOSE”:
Appears when opening or closing the disc tray.
• “NOW READING”:
Appears when the system is reading the disc/file
information.
• “REGION CODE ERROR!”:
Appears when the Region Code of the DVD VIDEO
does not match the code the system supports. The
disc cannot be played back.
•“NODISC”:
Appears when disc is not loaded.
• “NO USB DEVICE”:
Appears when USB mass storage class device is not
connected.
• “CANNOT PLAY THIS DISC”:
Appears when an unplayable disc is loaded.
• “CANNOT PLAY THIS DEVICE”:
Appears when an unplayable USB mass storage class
device is connected.
EN_TH-U1[B]-03body.fm Page 12 Wednesday, July 25, 2007 4:06 PM

13
Basic operations
On the remote control:
Press one of the source selecting
buttons (DVD 3, USB MEMORY 3,
FM/AM or TV SOUND).
DVD 3: To play back a disc (DVD VIDEO, VCD, etc.).
(See page 16.)
USB MEMORY 3: To play back a file on a USB mass storage
class device. (See page 16.)
FM/AM: To tune in an FM or AM (MW) station. (See page
35.)
Each time you press the button, the band alternates between
FM and AM (MW).
TV SOUND: To select the TV connected to the AV OUT
(SCART) connector.
• Some TVs cannot emit sound signals. In this case, you
cannot listen to the TV sound through the system. (See
page 10.)
On the center unit:
Press SOURCE repeatedly until the
source name you want appears on
the display window.
NOTE
• When a source except DVD or USB MEMORY is selected,
this system does not output video signals.
• It may take time to change the source.
CAUTION
• Always set the volume to the minimum level before starting
any source. If the volume is set at a high level, the sudden
blast of sound could permanently damage your hearing and/
or blow out the speakers.
On the remote control:
Press AUDIO VOL +/–.
On the center unit:
Press VOLUME +/–.
CAUTION
Be sure to turn down the volume:
• Before connecting or putting on headphones as high volume
may damage both the headphones and your hearing.
• Before disconnecting headphones as high volume may
suddenly be emitted from the speakers.
While connecting a pair of headphones to the PHONES
jack on the center unit, the system automatically cancels the
surround mode (see page 20) currently selected, deactivates
the speakers, and activates the headphone mode.
“H.PHONE” appears on the display window.
Headphone mode
When using the headphones, the following signals are
emitted regardless of your speaker settings:
• For 2 channel sources, the front left and right channel
signals are emitted through the headphones.
• Multi-channel signals are down-mixed and emitted
through the headphones.
Press MUTING.
To restore the sound
Perform one of the following:
•PressMUTING again.
•PressAUDIO VOL +/– (or VOLUME +/– on the center
unit).
Press DIMMER while holding SHIFT.
Each time you repeat the procedure, you can change the
brightness level in 3 steps.
Selecting the source to play
Adjusting the volume
[VOLUME]
Listening with headphones
(not supplied)
Turning off the sound
temporarily [MUTING]
Adjusting the brightness of
the indications [DIMMER]
See page 12 for button locations.
EN_TH-U1[B]-03body.fm Page 13 Wednesday, July 25, 2007 4:06 PM

14
Basic operations
The system turns off automatically when the specified
period of time has passed.
Press SLEEP while holding SHIFT.
Each time you repeat the procedure, the shut-off time
changes.
Example:
To check the remaining time
Press SLEEP once while holding SHIFT.
To change the remaining time
Press SLEEP repeatedly while holding SHIFT.
To cancel
Press SLEEP repeatedly while holding SHIFT , until “SLEEP – –”
appears.
• Turning off the power also cancels the Sleep Timer.
The system can be accommodated to your TV’s video input
mode.
7While DVD or USB MEMORY is selected as the source
and before playback
1Press and hold SCAN MODE for 2
seconds.
The current setting appears in the display window.
2Press Cursor 3/2to select the
desired mode.
Select one of the following:
• RGB: Select this if your TV accommodates interlaced
RGB/composite video input.
• Y/C: Select this if your TV accommodates interlaced
S-video input.
You can get better picture quality in the following order
— “RGB” > “Y/C” > “composite”
3Press ENTER while the selected
mode is displayed.
NOTE
• Although the picture may be distorted when you press
ENTER, this is not a malfunction of the system.
• “RGB” is selected when shipped from the factory.
Sleep Timer [SLEEP]
minutes
Changing video output mode
See page 12 for button locations.
EN_TH-U1[B]-03body.fm Page 14 Wednesday, July 25, 2007 4:06 PM

15
Basic operations
Switch the speaker position mode to “S. SPK R” only when
you connect optional speakers (see pages 7 and 8).
1Press AUDIO.
The system turns off.
2Press and hold SETTING while
holding SHIFT.
The current setting appears on the display window.
3Press SETTING while holding
SHIFT to select “S. SPK R”.
• S. SPK F (Initial setting): For speaker layout A.
• S. SPK R: For speaker layout B. Select this only when
you connect optional speakers and place the speakers
as layout B.
•The adjustment display automatically disappears a few
seconds later with the current setting.
NOTE
• If you disconnect optional speakers and place the speakers as
speaker layout A, switch the speaker position mode to “S.
SPK F”.
• As the speaker position mode is changed, the following
settings are also changed automatically:
– The output level settings of each speaker are initialized.
– The surround mode (see page 20) is set to “AUTO SUR”.
1Press SPK-LEVEL to show the
target speaker indication on the
display window.
Each time you press the button, the indication of the
channel changes as follows:
7When the speaker position mode is “S. SPK F”
7 When the speaker position mode is “S. SPK R”
2Press LEVEL +/– to adjust the
output level from –6 to 6.
NOTE
• When the speaker position mode is “S. SPK R”, you can also
make adjustments by using the setup menu shown on the TV
screen. (See page 33.)
• These adjustments take effect for all sources.
You can adjust the balance between the front left and front
right speakers.
NOTE
• This function also takes effect for the sources other than
DVD.
• Before you start the operation;
There is a time limit when doing the following steps. If the
setting is canceled before you finish, start from step 1 again.
1Press SETTING while holding
SHIFT.
Example:
2Press Cursor 3/2to make an
adjustment or selection.
Example:
•The adjustment display automatically disappears a few
seconds later with the current setting.
Switching the speaker
position mode
Adjusting the output level of
the speakers
CENTER (Center channel sound of center surround
speaker) ZSURR (Surround channel sound of center
surround speaker) ZSUBWFR (Subwoofer) Z
(back to the beginning)
FRNT L (Front left speaker) ZFRNT R (Front right
speaker) ZCENTER (Center speaker) ZSURR L
(Surround left speaker) ZSURR R(Surround right
speaker) ZSUBWFR (Subwoofer) Z(back to the
beginning)
Balance Setting
See page 12 for button locations.
EN_TH-U1[B]-03body.fm Page 15 Wednesday, July 25, 2007 4:06 PM

16
Playback
• Icons such as show the disc formats or file types the
operation is available for.
7To play a disc
1Press 0on the
center unit.
The system turns on and the disc
tray opens.
2Place a disc.
3Press DVD 3(play button).
7To play a file on a USB mass storage class device
Press USB MEMORY 3(play button).
The operations of the files on a USB mass storage class
device depend on the file types stored on the device.
For MP3/WMA files
The file control display (see page 25) appears on the TV
screen.
For JPEG files
Each file (still picture) is shown on the TV screen for about
3 seconds (slide-show). When stopping playback, the file
control display (see page 25) appears on the TV screen.
For ASF/MPEG-2/MPEG-1 files
Pressing TOP MENU/PG or MENU/PL shows the file control
display (see page 25) on the TV screen during playback.
For DivX files
While reading a DivX file, “READING INDEX” may appear
on the TV screen.
Pressing TOP MENU/PG or MENU/PL shows the file control
display (see page 25) on the TV screen during playback.
NOTE
• When several types of files are recorded on a disc/device,
select the appropriate file type on the set up menu. (See page
33.)
7To pause
Press 8.
To continue playback, press the play button for the
corresponding source (DVD 3or USB MEMORY 3).
7To stop
Press 7.
7On-screen guide icons
During playback, the following guide icons may appear for
a while on the TV screen:
• : appears at the beginning of a scene containing
multi-subtitle languages.
• : appears at the beginning of a scene containing
multi-audio languages.
• : appears at the beginning of a scene containing
multi-angle views.
• (Play), (Pause), / (Fast
forward/fast-reverse), / (Slow-
motion forward/reverse): appears when you perform
each operation.
• : the disc cannot accept the operation you have tried
to do.
NOTE
• For JPEG: The system cannot accept any operations if you
press some buttons before the entire picture appears on the
TV screen.
• If you do not want the on-screen guide icons to appear, see
page 34.
The buttons described below are used on pages 16 to
19.
Basic Playback
Number
buttons
Cursor
(3/2/Y/5)/
ENTER
Label side up When placing an 8 cm (3
inches) disc
EN_TH-U1[B]-03body.fm Page 16 Wednesday, July 25, 2007 4:06 PM

17

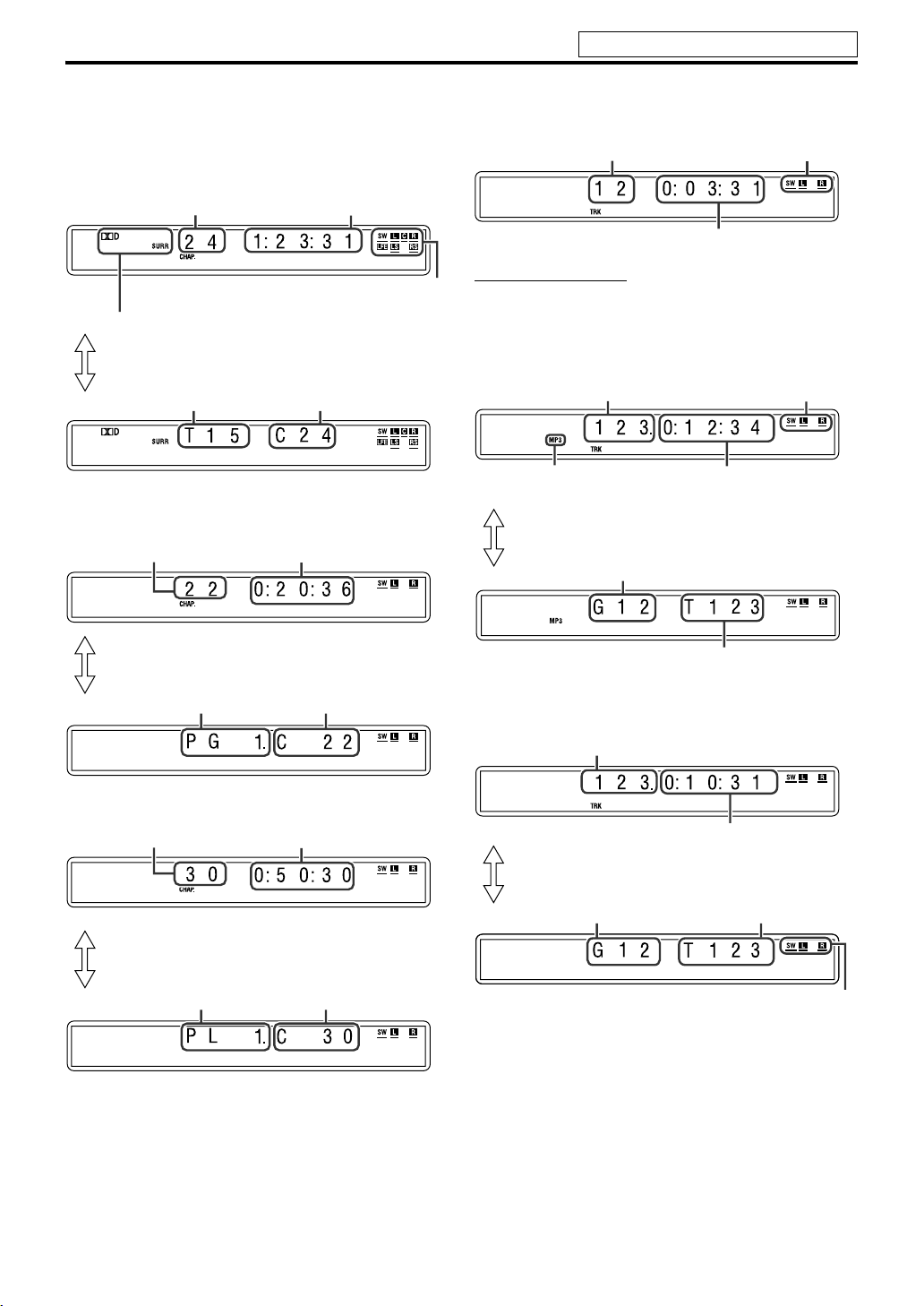

7Playback information on the display window
DVD VIDEO
Example: When a DVD VIDEO encoded with Dolby
Digital 5.1ch is played
DVD VR disc
Example: During playback of the Original program*1
Example: During playback of the Playlist*1
*1By pressing TOP MENU/PG or MENU/PL, you can
change the play mode. (See page 19.)
VCD/SVCD/CD
Example: When a CD is played back
NOTE
• When a VCD or SVCD with the PBC function is played, the
elapsed playing time does not appear, but “PBC” appears.
MP3/WMA file
Example: When an MP3 file is played back
*2WMA indicator lights for WMA file.
ASF/MPEG-2/MPEG-1/DivX file
Example: When an ASF file is played back
Signal and speaker indicators (See page 20.)
Chapter number
Elapsed playing time
(hour:minute:second)
Surround mode and digital signal format (See page 20.)
Title number
Press FL DISPLAY
Chapter number
Original program number
Press FL DISPLAY
Chapter number
Elapsed playing time
(hour:minute:second)
Chapter number
Playlist number
Press FL DISPLAY
Chapter number
Elapsed playing time
(hour:minute:second)
Chapter number
Track number
Elapsed playing time (hour:minute:second)
Signal and speaker
indicators
Track number
Elapsed playing time
(hour:minute:second)
Group number
Track number
Press FL DISPLAY
Signal and speaker
indicators
MP3 indicator*2
Signal and speaker indicators
Group number Track number
Elapsed playing time (hour:minute:second)
Track number
Press FL DISPLAY
Playback See page 16 for button locations.
EN_TH-U1[B]-03body.fm Page 17 Wednesday, July 25, 2007 4:06 PM
