SERVICE MANUAL
CD/CDR MULTIPLE COMPACT DISC RECORDER
No.A0013
Oct. 2001
COPYRIGHT 2001 VICTOR COMPANY OF JAPAN, LTD.
XL-R2010BK
XL-R2010BK
This service manual is printed on 100% recycled paper.
Contents
Safety precautions ------------------------ 1-2
Preventing static electricity ------------- 1-3
Importance admistering point
on the safety ------ 1-4
Precautions for service ------------------ 1-5

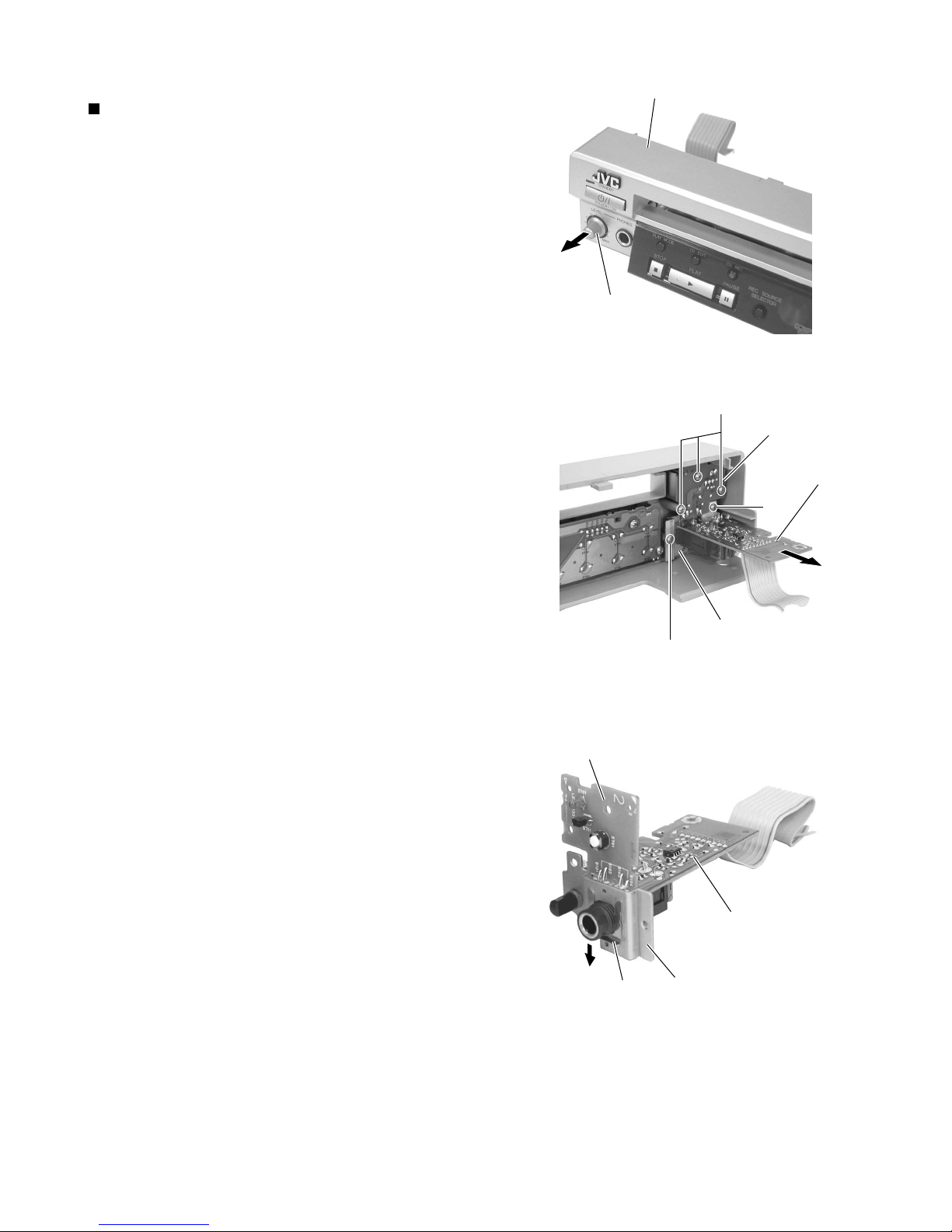

Disassembly method -------------------- 1-6
Confirm method of operation ----------- 1-17
Description of major ICs ---------------- 1-20
Area Suffix
J ------------- U.S.A.
C ---------- Canada
STANDBY/ON
CD REC
PLAY
MODE
REC
REC MUTING
REC
SOURCE
MENU
PITCH
0
CHANCEL
REPEAT CD
PITCH
+
SET
PITCH-
RM- SXLR2010A REMOTE CONTROL
CDR
CD EDIT FINALIZE DISPLAY
1 2
4 5
7 8
3
6
9
10 +10
FAD E SYNCHRO
CONTROL
STANDBY
STANDBY/ON
MAXMIN
LEVEL PHONES
PLAY MODE CD EDIT
REC SOURCE
SELECTOR
CD REC
STOP PLAY PAUSE
REC SOURCE
DIGITAL CD LINE MIC
OPEN/CLOSEOPEN/CLOSE
CANCELSETMENU
PAUSE REC/
REC MUTING
PLAYSTOP
SYNCHRO
FINALIZE
MIX BLANCE
CD
LINE
LINE
MIC
MIC
MULTI JOG/REC LEVEL
+
-
<ATTENTION of CD-R/RW mechanism unit>
Because the CD-R/RW mechanism unit is a unit exchange,
Moreover, the [Disassembly method],[Adjustment method],[Description of major ICs],
[Standard schematic diagram],[Printed circuit board],[Block diagram] of the CD-R/RW
mechanism unit is not described.

XL-R2010BK
1-2
1. This design of this product contains special hardware and many circuits and components specially for safety
purposes. For continued protection, no changes should be made to the original design unless authorized in
writing by the manufacturer. Replacement parts must be identical to those used in the original circuits. Services
should be performed by qualified personnel only.
2. Alterations of the design or circuitry of the product should not be made. Any design alterations of the product
should not be made. Any design alterations or additions will void the manufacturer`s warranty and will further
relieve the manufacture of responsibility for personal injury or property damage resulting therefrom.
3. Many electrical and mechanical parts in the products have special safety-related characteristics. These
characteristics are often not evident from visual inspection nor can the protection afforded by them necessarily
be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts which
have these special safety characteristics are identified in the Parts List of Service Manual. Electrical
components having such features are identified by shading on the schematics and by ( ) on the Parts List in
the Service Manual. The use of a substitute replacement which does not have the same safety characteristics
as the recommended replacement parts shown in the Parts List of Service Manual may create shock, fire, or
other hazards.
4. The leads in the products are routed and dressed with ties, clamps, tubings, barriers and the like to be
separated from live parts, high temperature parts, moving parts and/or sharp edges for the prevention of
electric shock and fire hazard. When service is required, the original lead routing and dress should be
observed, and it should be confirmed that they have been returned to normal, after re-assembling.
5. Leakage current check (Electrical shock hazard testing)
After re-assembling the product, always perform an isolation check on the exposed metal parts of the product
(antenna terminals, knobs, metal cabinet, screw heads, headphone jack, control shafts, etc.) to be sure the
product is safe to operate without danger of electrical shock.
Do not use a line isolation transformer during this check.
Plug the AC line cord directly into the AC outlet. Using a "Leakage Current Tester", measure the leakage
current from each exposed metal parts of the cabinet, particularly any exposed metal part having a return
path to the chassis, to a known good earth ground. Any leakage current must not exceed 0.5mA AC (r.m.s.).
Alternate check method
Plug the AC line cord directly into the AC outlet. Use an AC voltmeter having, 1,000 ohms per volt or more
sensitivity in the following manner. Connect a 1,500 10W resistor paralleled by a 0.15 F AC-type capacitor
between an exposed metal part and a known good earth ground.
Measure the AC voltage across the resistor with the AC
voltmeter.
Move the resistor connection to each exposed metal part,
particularly any exposed metal part having a return path to
the chassis, and measure the AC voltage across the resistor.
Now, reverse the plug in the AC outlet and repeat each
measurement. Voltage measured any must not exceed 0.75 V
AC (r.m.s.). This corresponds to 0.5 mA AC (r.m.s.).
1. This equipment has been designed and manufactured to meet international safety standards.
2. It is the legal responsibility of the repairer to ensure that these safety standards are maintained.
3. Repairs must be made in accordance with the relevant safety standards.
4. It is essential that safety critical components are replaced by approved parts.
5. If mains voltage selector is provided, check setting for local voltage.
Good earth ground
Place this
probe on
each exposed
metal part.
AC VOLTMETER
(Having 1000
ohms/volts,
or more sensitivity)
1500 10W
0.15 F AC TYPE
!
Burrs formed during molding may
be left over on some parts of the
chassis. Therefore, pay attention to
such burrs in the case of
preforming repair of this system.
In regard with component parts appearing on the silk-screen printed side (parts side) of the PWB diagrams, the
parts that are printed over with black such as the resistor ( ), diode ( ) and ICP ( ) or identified by the " "
mark nearby are critical for safety.
When replacing them, be sure to use the parts of the same type and rating as specified by the manufacturer.
(Except the J and C version)

XL-R2010BK
1-3
Preventing static electricity
Electrostatic discharge (ESD), which occurs when static electricity stored in the body, fabric, etc. is discharged,
can destroy the laser diode in the traverse unit (optical pickup). Take care to prevent this when performing repairs.
1. Grounding to prevent damage by static electricity
Static electricity in the work area can destroy the optical pickup (laser diode) in devices such as CD players.
Be careful to use proper grounding in the area where repairs are being performed.
1.1. Ground the workbench
1. Ground the workbench by laying conductive material (such as a conductive sheet) or an iron plate over
it before placing the traverse unit (optical pickup) on it.
1.2. Ground yourself
1. Use an anti-static wrist strap to release any static electricity built up in your body.
1.3. Handling the optical pickup
1. In order to maintain quality during transport and before installation, both sides of the laser diode on the
replacement optical pickup are shorted. After replacement, return the shorted parts to their original condition.
(Refer to the text.)
2. Do not use a tester to check the condition of the laser diode in the optical pickup. The tester's internal power
source can easily destroy the laser diode.
2. Handling the traverse unit (optical pickup)
1. Do not subject the traverse unit (optical pickup) to strong shocks, as it is a sensitive, complex unit.
2. Cut off the shorted part of the flexible cable after replacing the optical pickup. For specific
details, refer to the replacement procedure in the text. Remove the anti-static pin when replacing the traverse
unit. Be careful not to take too long a time when attaching it to the connector.
3. Handle the flexible cable carefully as it may break when subjected to strong force.
4. It is not possible to adjust the semi-fixed resistor that adjusts the laser power. Do not turn it

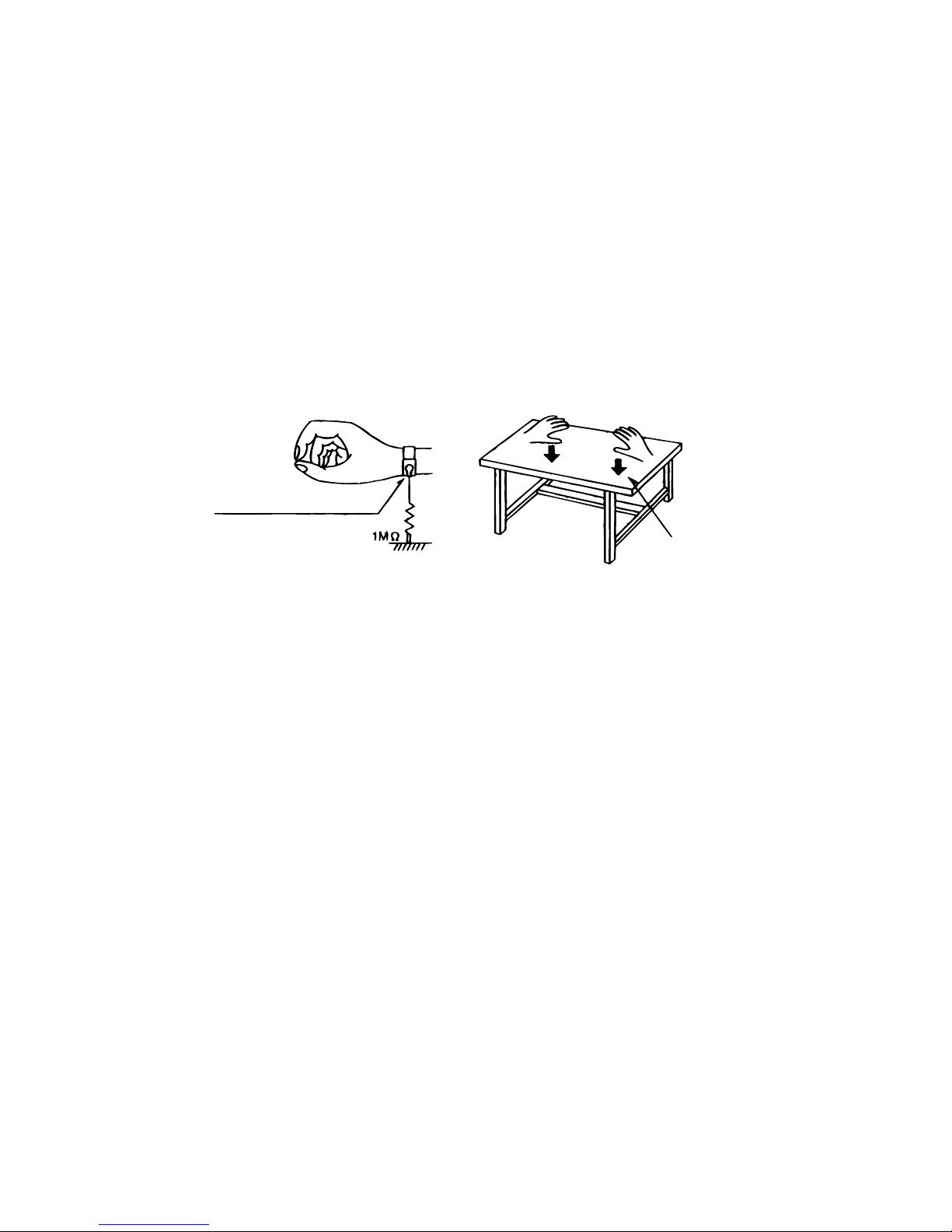

Conductive material
(conductive sheet) or iron plate
(caption)
Anti-static wrist strap

XL-R2010BK
1-4
Full Fuse Replacement Marking
Graphic symbol mark
(This symbol means fast blow type fuse.)
should be read as follows ;
FUSE CAUTION
FOR CONTINUED PROTECTION AGAINST RISK
OF FIRE, REPLACE ONLY WITH SAME TYPE
AND RATING OF FUSES ;
F901 : 1.6 A / 125 V F901 : 1.6 A / 125 V
Marquage Pour Le Remplacement
Complet De Fusible
PRECAUTIONS SUR LES FUSIBLES
POUR UNE PROTECTION CONTINUE CONTRE
DES RISQUES D'INCENDIE, REMPLACER
SEULEMENT PAR UN FUSIBLE DU MEME TYPE ;
Le symbole graphique (Ce symbole signifie
fusible de type a fusion rapide.)
doit etre interprete comme suit ;
Importance Admistering point on the Safety
B925
B911
K3602
K3601
K3600
B3603
B3604
B3605
B3606
C111
C114
C115
C151
C171
C172
C182
C211
C214
C215
C251
C271
C272
C282
C352
C356
C361
C362
C365
C366
C380
C381
C501
C502
C543
C802
C804
C812
C830
C840
C872
C874
C881
C902
C903
C906
C907
C908
C909
C913
C914
C916
C917
C918
C919
C920
C921
C922
C923
C924
C960
C961
C962
C963
C964
C965
C966
C967
C970
C973
C974
C975
C977
C979
C980
C981
C982
C983
C984
C985
C987
C989
C997
C1301 C1302
C1303
C1312
C1505
C2301
C2302
C2303
C2505
CN501
CN505
CN615
CN616
B434
CN712 CN711
CN721
CN722
CN723
B163
CP951
D812
D901
D902 D903
D904
D905
D907
D910
D912
D913
D921
D951
D952
D953
D954
D956
D957
D960
D970
D971
D972
D973
D974
EP951
FC901FC902
IC502
IC901
IC951
J351
J352
J353
J354 J541
J871
K801
K901
R973
L951
L952
L953 L955
L957L958
L959
L960
P901
PC901
PC902
Q181
Q182
Q183
Q191
Q281
Q282
Q283
Q501
Q541
Q542
Q821
Q822
Q831
Q832
Q841
Q842
Q861
Q862
Q881
Q921
Q922
Q965
Q966
Q1301
Q2301
R501
R801
R802
R803
R804
R821
R861
R901
R903
R904
R905
R906
R907
R908
R910
R911
R912
R913
R914
R915
R917
R918
R919
R952
R954
R956
R969
R972
S531
T301
T901
T902
X501
X502
EP801
B904
B407
B62
B901
B906
B910
B907
B46
B233
B42
B104
B49
B926
HS901
HS922
B146
B933
B147
B923
B530
B103
B999
B139
B11
B304
B165
B101
B503
B401
B102
B601
B302
B204
B510
B305
B201
B502
B504
B6
B7
B5
B202
B603
B505
B106
B117
B213
B507
B406
B113
B402
B501 B405
B303
B149
B404
B506
B403
B214
B3 B307
B105
Q967
B602
B12
B203
B18
B15
B109
B9
B306
B110
B752
B16
B107
WC102
B17
WC101
B943
B216
B509
B409
B128
B327
B412
B413
B324
B131
B129
B130
B512
B408
B56
B13
B433
B524
B45
B138
B47
B48
B143
B148
B44
B43
B234
B914
B915
B757
B758
B235
B331
B10
B706
B328
B332
B39
B620
B330
B618
B58
B619
B756
B27
B145
B142
B329
B38
B134
W900
W900
B310
B137
B40
CP952
B158
B14
B917
B133
B614
C183
B141
B229
B508
B410
B411
B308
B211
B417
B114
B8
B309
B326
B115
B1
B230
B29
B28
B226
B215
B210
B132
B30
B32
B608
B751
B34
R974
B31
B525
B924
B526
B929
B934
B432
B755
B615
B36
B166
B24
B205
B23
C990
B514
B703
B513
B938
B313
B418
B940
B323
B936
B112
B322
B206
B610
B111
B517
B122
B121
B754
B935
B939
B422
B701
B916
B612
B942
B325
B941
B605
B419
B609
B702
B212
B222
B912
B33
B607
B613
B705
B144
B918
B913
B21
B416
B511
B20
B116
B604
B108
B937
B2
Q369
R390
B312
B905
B127
B209
B208
B207
B919
B320
B928
C994
B22
B944
B909
B217
B753
B51
B920
B125
B60
B945
B932
B611
B224
B120
B64
R909
B154
B931
B236
B124
B521
B140
B947
B119
B948
B54
FC903
FC904
B150
L901
B151
WC100
B527
B529
B946
B528
CN900
B57
B123
B53
B435
R975
B169
B155
B153
B35
B3612
B3613 B3611
C394
B135
W901
W901
EP999
EP998
EP997
C999
C998
B161
B157
W902
W902
W903
W903
W904
W904
B997
B25
B63
C367
B136
B152
C283
B61
B52
B998
Q361
B37
B118
B55
B156
B41
Q980
R981
R982
D980
R980
B26
B126
B301
B50
B159
B160
CN841
B707
B164
B162
B59
B167
B168
W913
W913
B930
B436
F901

XL-R2010BK
1-5
CN601 on
mechanism
board
Flexible wire
Shorting round
Please refer to [ Removing the mechanism board ] and [ Removing the pickup ] of the
Disassembly method < CD Mechanism assembly >.
CD Mechanism assembly
Precautions for Service
Handling of Traverse Unit and Laser Pickup
1. Do not touch any peripheral element of the pickup or the actuator.
2. The traverse unit and the pickup are precision devices and therefore must not be subjected to
strong shock.
3. Do not use a tester to examine the laser diode. (The diode can easily be destroyed by the
internal power supply of the tester.)
4. To replace the traverse unit, pull out the metal short pin for protection from charging.
5. When replacing the pickup, after mounting a new pickup, remove the solder on the short land
which is provided at the center of the flexible wire to open the circuit.
6. Half-fixed resistors for laser power adjustment are adjusted in pairs at shipment to match the
characteristics of the optical block.
Do not change the setting of these half-fixed resistors for laser power adjustment.
Destruction of Traverse Unit and Laser Pickup by Static Electricity
Laser diodes are easily destroyed by static electricity charged on clothing
or the human body. Before repairing peripheral elements of the traverse
unit or pickup, be sure to take the following electrostatic protection:
1. Wear an antistatic wrist wrap.
2. With a conductive sheet or a steel plate on the workbench on which
the traverse unit or the pick up is to be repaired, ground the sheet
or the plate.
3. After removing the flexible wire from the connector (CN601),
short-circuit the flexible wire by the metal clip.
4. Short-circuit the laser diode by soldering the land which is provided
at the center of the flexible wire for the pickup. After completing the repair, remove the solder
to open the circuit.
<ATTENTION of CD-R/RW mechanism unit>
Because the CD-R/RW mechanism unit is a unit exchange,
the pick-up need not be detached alone.
Moreover, the [Disassembly method],[Adjustment method],
[Description of major ICs],[Standard schematic diagram],
[Printed circuit board],[Block diagram] of the CD-R/RW
mechanism unit is not described.

XL-R2010BK
1-6
Remove the four screws Aon both sides of the body.
Remove the two screws Bon the back of the body.
Remove the top cover from behind in the direction of
the arrow while pulling its sides outwards. Disengage
the three joints awith the front panel section.
1.
2.
3.
Disassembly method
<Main body>
Removing the top cover (See Fig.1)
Prior to performing the following procedure, remove
the top cover.
Insert a Philips screwdriver into the hole of the
chassis base on the bottom and turn it as shown in
the figure. The tray will move forward.
Pull out the tray manually.
Release the joint bon each side of the fitting
upward, then remove the fitting from the tray.
Push and return the tray.
1.
2.
3.
4.
Removing the fitting of the CD
mechanism section (See Fig.2 to 5)
Fig.1
Fig.2
Fig.3
Fig.4Fig.5
Joints a Top cover
A 2
A 2
B
(Bottom)
Front panel assembly
CD mechanism assembly
Fitting
CD mechanism assembly
Front panel assembly
Joint b
Joint b
Fitting
Tray
Front panel assembly
CD mechanism assembly
Tray
Hole of the CD mechanism
section to pull out the tray

XL-R2010BK
1-7
Prior to performing the following procedure, remove
the top cover.
Push the slide cam cuntil it stops through the slot on
the left side of the CD-R/RW mechanism assembly.
Pull out the tray manually.
Release the joint don each side of the fitting
upward, then remove the fitting from the tray.
Push and return the tray.
1.
2.
3.
4.
Removing the fitting of the CD-R/RW
mechanism section (See Fig.6 to 9) CD-R/RW mechanism
assembly
Fig.6
Fig.7
Fig.8
Fig.9
Joint d
Joint d
Fitting
Tray
CD-R/RW mechanism assembly
Tray
Front panel assembly
Slide cam c
Slot
CD-R/RW mechanism assembly
Front panel assembly
Fitting
CD-R/RW mechanism assembly
Slot of the CD-R/RW mechanism
section to pull out the tray

XL-R2010BK
1-8
Prior to performing the following procedure, remove
the top cover and both fittings of the CD mechanism
section and the CD-R/RW mechanism section.
Disconnect the card wires from connector CN501,
CN841 and the wires from CN711 and CN712 on the
main board from above.
Remove the screw Cand the screw Dattaching the
headphone board and the mic board on the top of
the body.
Remove the four screws Eattaching the right and
left foot at the bottom.
Remove the two screws Fand the screw G
attaching the front panel assembly at the bottom.
Disengage the joint eon the bottom and the joints f
on each side of the body to release the front panel
assembly from the chassis base using a slotted
screwdriver. Then remove the front panel assembly
toward the front.
1.
2.
3.
4.
5.
Removing the front panel assembly
(See Fig.10 to 14)
Front panel assembly
Fig.10
Fig.11
Fig.12
Fig.13Fig.14
(Bottom)
(Bottom)
Front panel assembly
Front panel assembly
FF
Joint e
G
CN712
CN711
CN501
CN841
Main board
Mic board
Headphone board
CD
Foot
Foot
E
E
Front panel assembly
Front panel assembly
Mic board
CN801 Chassis base
Joint f
Joint f
D
C
Headphone board

XL-R2010BK
1-9

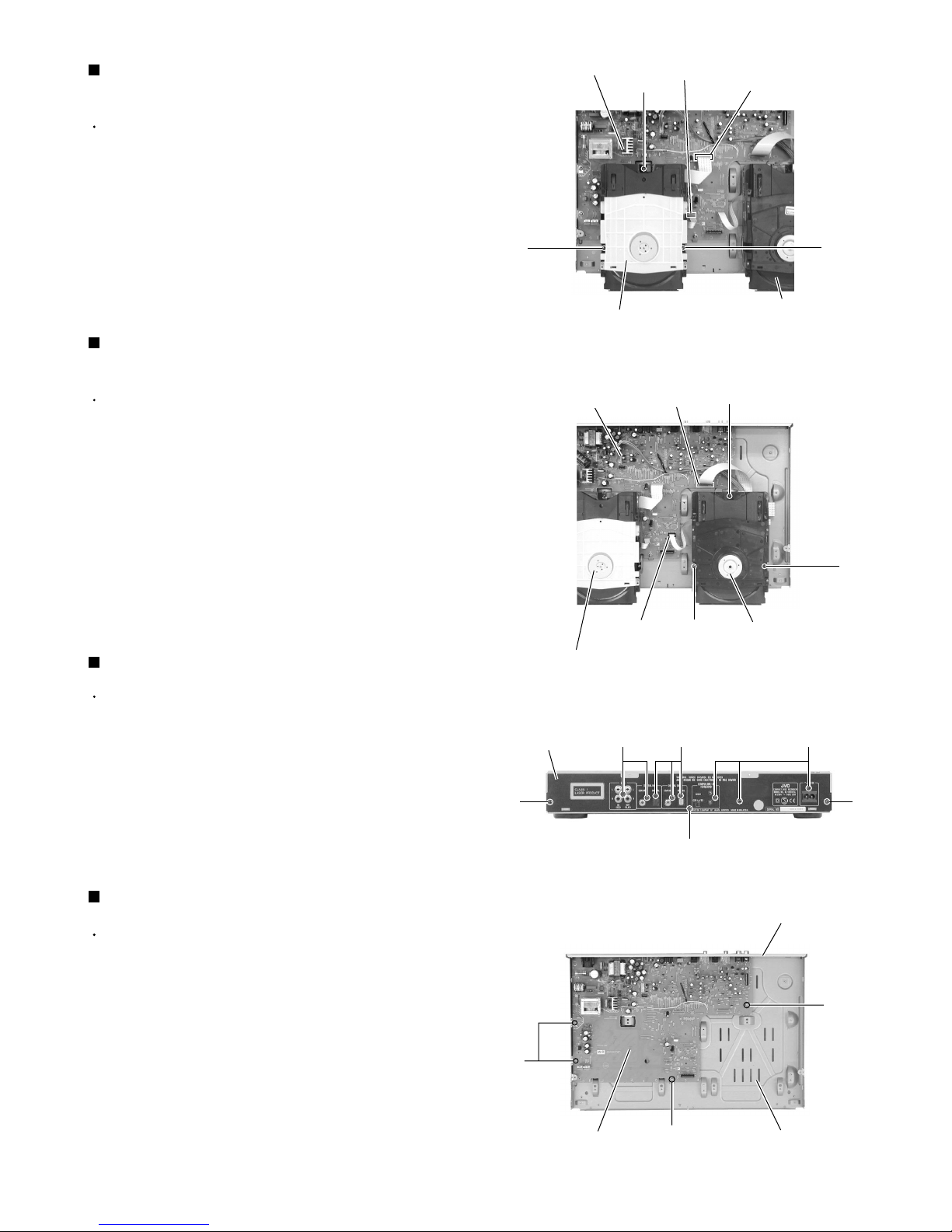

Prior to performing the following procedure, remove
the top cover and the fitting.
(Remove the front panel assembly is easy to work.)
Disconnect the card wire from connector CN615 and
CN616 on the main board from above.
Remove the three screws Hattaching the CD
mechanism assembly.
1.
2.
Removing the CD mechanism assembly
(See Fig.15)
Prior to performing the following procedure, remove
the top cover and the fitting.
(Remove the front panel assembly is easy to work)
Disconnect the wire from connector CN721 and the
card wires from CN722 and CN723 on the main
board from above.
Remove the three screws Iattaching the CD-R/RW
mechanism assembly.
1.
2.
Removing the CD-R/RW mechanism
assembly (See Fig.16)
Prior to performing the following procedure, remove
the top cover.
Remove the three screws Jand the eight screws K
on the back of the body.
1.
Removing the rear panel (See Fig.17)
Prior to performing the following procedure, remove
the top cover, the front panel assembly, the CD
mechanism assembly, the CD-R/RW mechanism
assembly and the rear panel.
Remove the four screws Lattaching the main board.1.
Removing the main board (See Fig.18)
Rear panel
Fig.15
Fig.16
Fig.17
Fig.18
Rear panel K
J
J
J
KK
Main board
CD mechanism assembly CD-R/RW mechanism
assembly
CN615
CN616
H
HH
CD mechanism assembly
CN721 Main board
CN722
CD-R/RW mechanism
assembly
CN723
I
I
I
L
L
L
Main board Chassis base

XL-R2010BK
1-10
Pull out the volume knob on the front panel
assembly.
Remove the two screws Mattaching the headphone
board bracket and the three screws Nattaching the
power switch board. Remove the headphone board
and the power switch board at the same time.
Pull out the stopper attaching the headphone board
bracket in the direction of the arrow.
1.
2.
3.
<Front panel assembly>
Removing the headphone board / power
switch board (See Fig.19 to 21)
Fig.19
Fig.20
Fig.21
Front panel assembly
Volume knob
Headphone board
Headphone board bracket
Power switch board
M
M
N
Power switch board
Headphone board bracket
Stopper
Headphone board

XL-R2010BK
1-11
Pull out the jog dial knob and the mix balance knob
on the front panel assembly.
Remove the two screws Oattaching the mic board
bracket and the three screws P attaching the jog dial
board. Remove the mic board and the jog dial board
at the same time.
Pull out the stopper attaching the mic board bracket
in the direction of the arrow.
1.
2.
3.
Removing the mic board / jog dial board
(See Fig.22 to 24)
Remove the nine screws Qon the back of the front
panel assembly.
1.
Removing the front board (See Fig.25)
Fig.22
Fig.23
Fig.24
Fig.25
Front panel assembly
Mic board
Stopper
Jog dial knob
Mix balance knob
Mic board
O
P
P
O
Mic board
Mic board bracket
Jog dial board
Jog dial board
Mic board bracket
Front board
Front panel assembly
QQ
Q
Q
Q

XL-R2010BK
1-12
Fig. 1
Fig. 2
Fig. 3
Fig. 4Fig. 5
A
Clamper base assembly
A
Hook a
Hook a
Idle gear
Traverse
mechanism
assembly
Tray
Traverse mechanism assembly
Idle gear
Tray
Tray gear
Part c
Idle gear
Tray gear
Hook e
Hook d
Tray Part b
Note: When drawing out the tray, shift down the
traverse mechanism assembly to the
position where the tray does not contact the
turn table assembly of the traverse
mechanism assembly.
Note: When reinstalling the tray:
Turn the idle gear so that the part bof the
tray gear is positioned in the part cshown in
Fig. 4. (Eject position)
Engage the right and left hooks dand eof
the tray with the right and left grooves of the
loading mechanism assembly respectively
for retaining the tray.

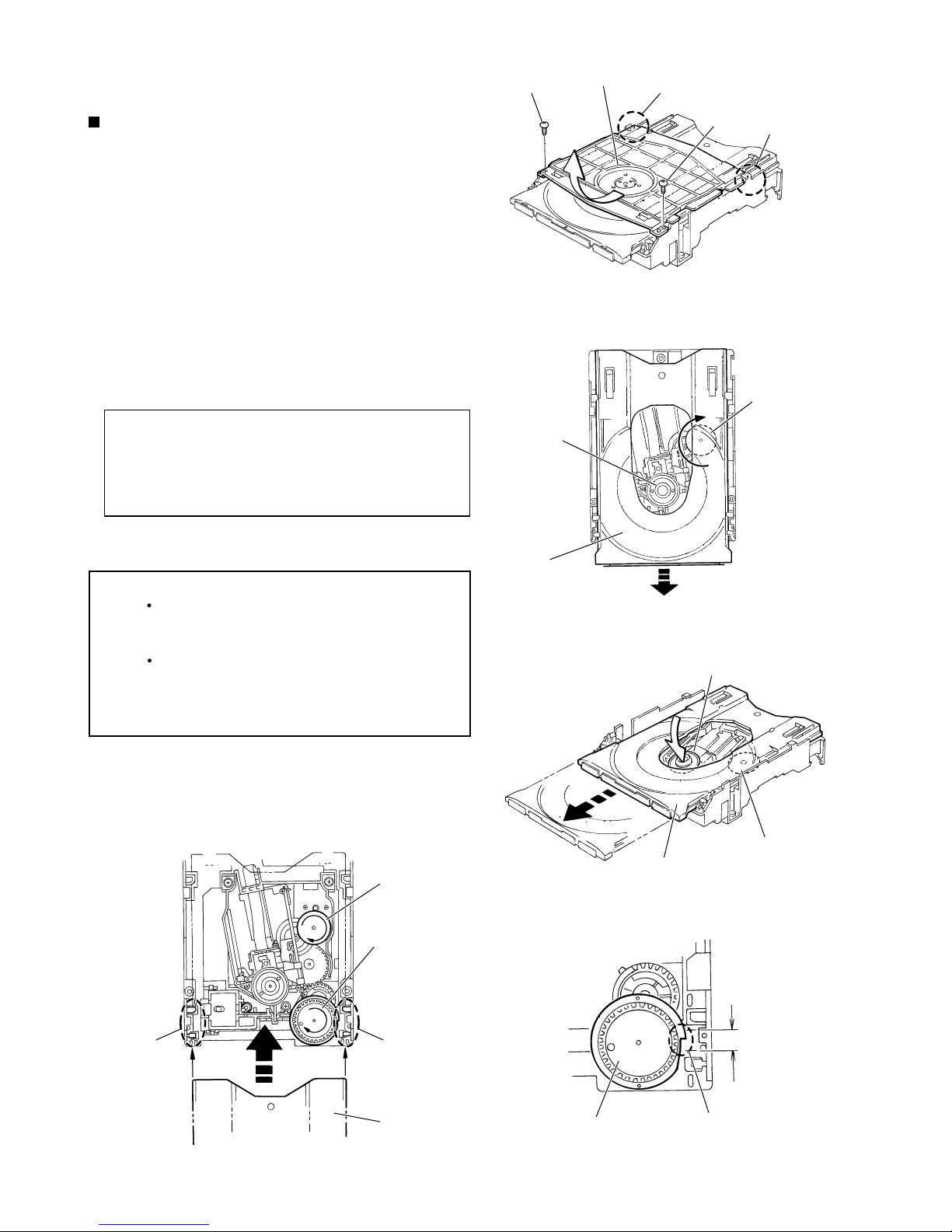

<CD Mechanism assembly>
Removing the clamper base assembly and
tray (See Figs. 1 to 5)
1. Remove the two screws Aattaching the clamper
base assembly from the top of the CD mechanism
assembly.
2. Move the clamper base assembly diagonally
upwards as indicated by the arrow to release it from
the two hooks a.
3. Turn the idle gear in the arrow-marked direction
from the upper side of the CD mechanism
assembly. Accordingly, the traverse mechanism
assembly moves downwards.
4. Draw out the tray frontwards for removing it.

XL-R2010BK
1-13
Fig. 6
Fig. 7
Fig. 8
Fig. 9
BB
Idle gear
Traverse
mechanism
assembly
B
Tray gear
Part g
Tray gear
Part f
Loading base assembly
Spring
Part g
Spring
Groove of CH. base assembly
Reference: The traverse mechanism assembly can
be removed without removal of the
mechanism board.
Note: When reinstalling the traverse mechanism
assembly:

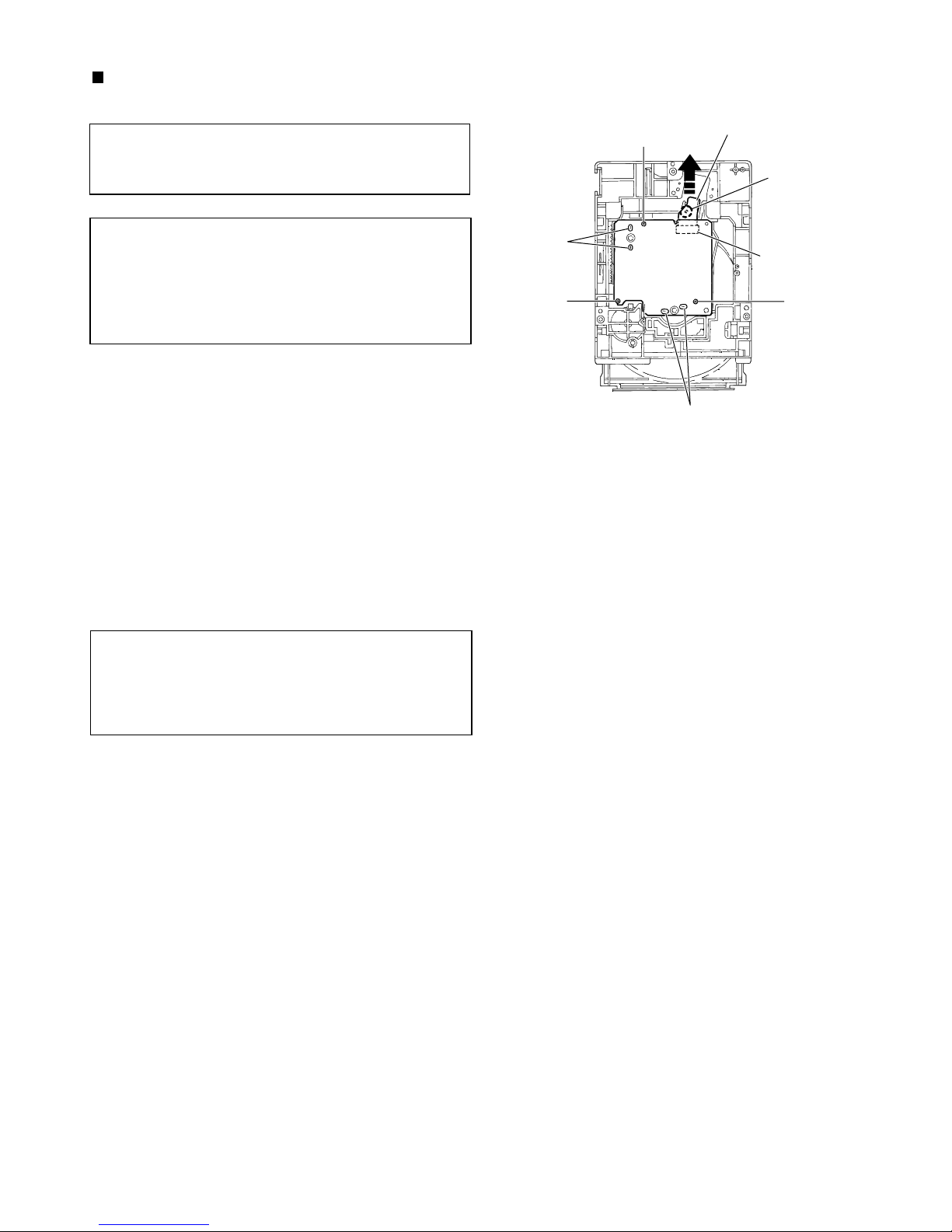

Removing the traverse mechanism assembly
(See Figs. 6 to 9)
Remove the clamper base assembly and tray.
1. If the traverse mechanism assembly is lowered and it is
located out of the PLAY position, turn the idle gear in the
arrow-marked direction so that the hole in the part fof the
tray gear meets the hole on the loading base assembly.
(Set the traverse mechanism assembly at the PLAY
position.)
2. Remove the three screws Battaching the traverse
mechanism assembly and then remove the traverse
mechanism assembly upwards from the front side.
3. At the same time, remove the spring from the groove of the
CH. base assembly in the part gof the traverse
mechanism assembly.
Check to see if the spring is properly
engaged with groove of the CH. base
assembly in the part gof the traverse
mechanism assembly.
After making sure that the three insulators of
the traverse mechanism assembly are
properly set on the bosses of the loading
base assembly's guide, fasten them with the
screws.

XL-R2010BK
1-14
Fig. 10
C
CC
CN601 on
mechanism
board
Flexible wire
Shorting round
Soldered
part h
Soldered part i
Reference:The mechanism board can be removed
without removal of the traverse
mechanism assembly.
Note: Before disconnecting the flexible wire coming
from the pickup from the connector, be sure to
solder its shorting round.
If the flexible wire is connected without
soldering, it may cause breakdown of the
pickup.

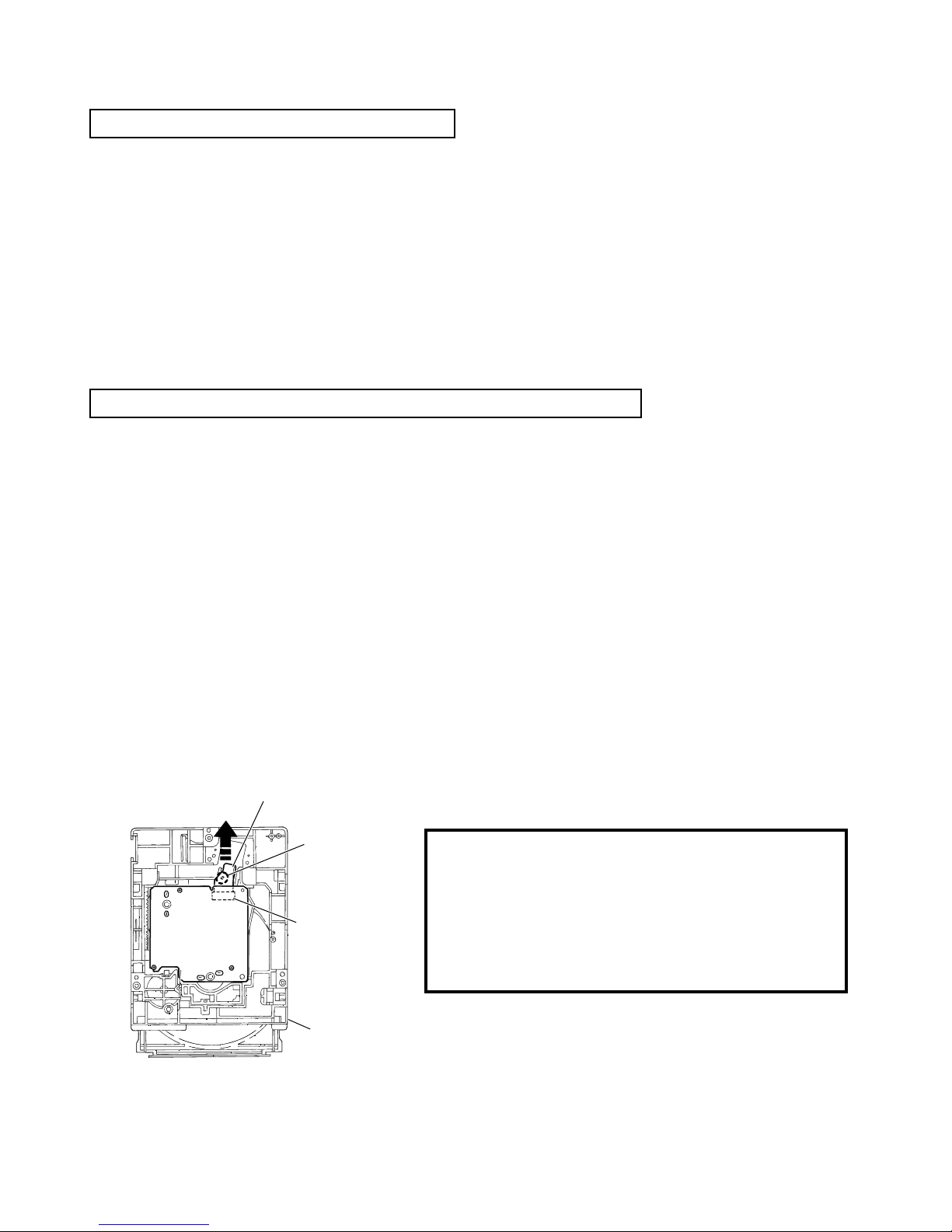

Removing the mechanism board
(See Fig 10)
1. Solder the shorting round of the flexible wire
connected with the mechanism board from the back
of the mechanism assembly.
2. Disconnect the flexible wire from the connector
CN601 on the mechanism board.
3. Remove the three screws Cattaching the
mechanism board.
4. Unsolder the two points of the part hand two point
of the part iof the mechanism board. Then, remove
the mechanism board upwards.
Note: When reinstalling the mechanism board,
connect the flexible wire coming from the
pickup to the connector first and then remove
the solder from the shorting round of the
flexible wire.

XL-R2010BK
1-15
Fig. 11
Fig. 12
Fig. 13
Fig. 14
D
D
Pickup assembly
Flexible wire
Shorting round
CN601 on
mechanism
board
Pickup assembly
Turn table assembly
CH. base
assembly
Part j of
rack plate
Idle gear
Part k
CH. base
assembly
Shaft
E
Pickup
P.S. spring
F
Part j
Rack plate
Reference: The pickup can be removed without
removal of the mechanism board.
Note: Before disconnecting the flexible wire coming
from the pickup from the connector, be sure to
solder its shorting round.
If the flexible wire is connected without
soldering, it may cause breakdown of the
pickup.

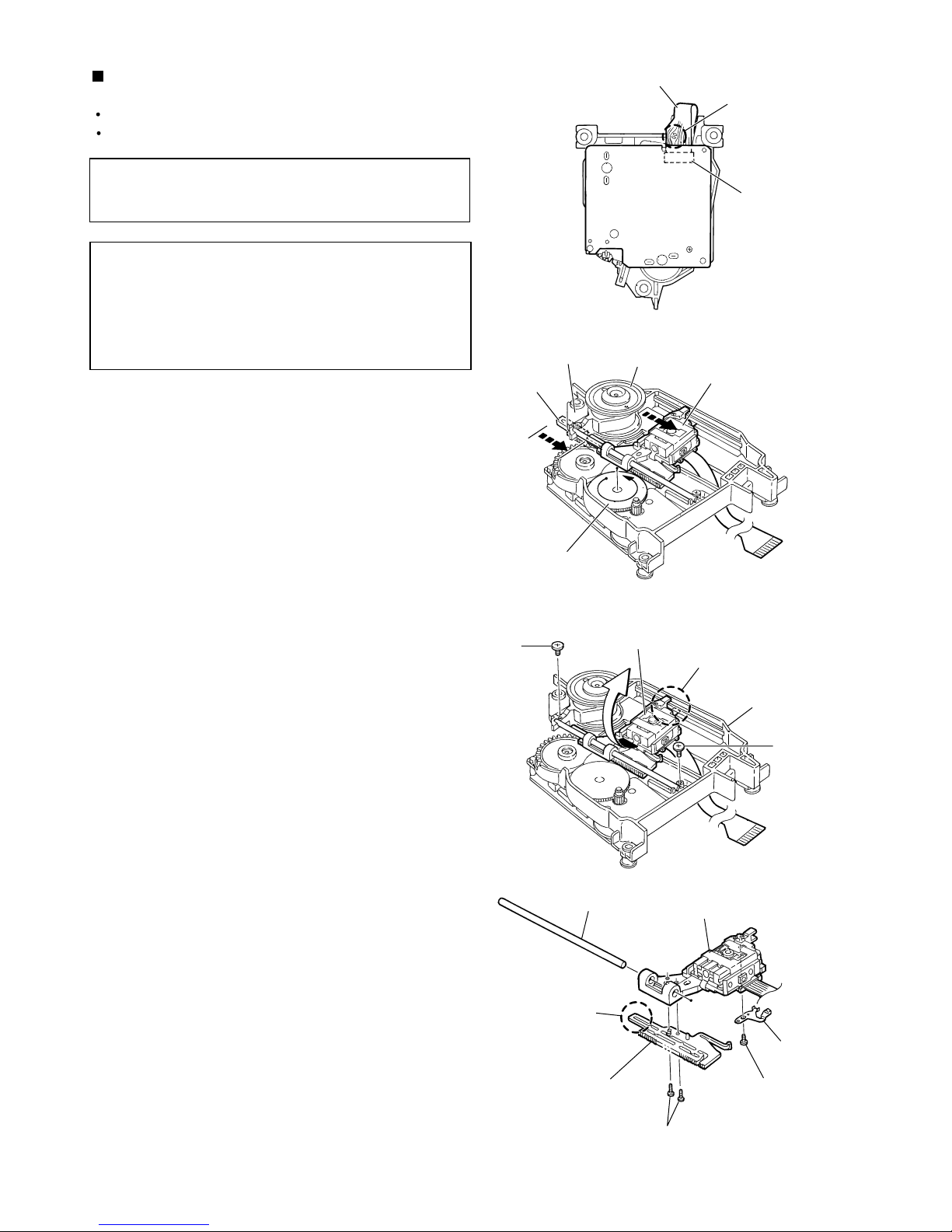

Removing the pickup (See Figs. 11 to 14)
Remove the clamper base assembly and tray.
Remove the traverse mechanism assembly.
1. Solder the shorting round of the flexible wire
connected with the mechanism board from the back
of the traverse mechanism assembly.
2. Disconnect the flexible wire from the connector
CN601 on the mechanism board.
3. Turn the idle gear in the arrow-marked direction from
the top of the traverse mechanism assembly so that
the pickup assembly is shifted to the reverse side of
the turn table assembly.
Move the pickup assembly until the part jof the rack
plate in the lower part of the pickup assembly comes
out of the CH. base assembly.
4. Remove the two screws Dattaching the shaft of the
pickup assembly. Next, disengage the part kfrom
the CH. base assembly and then remove the pickup
assembly together with the shaft.
5. Pull the shaft out of the pickup.
6. Remove the two screws Eattaching the rack plate
from the pickup.
7. Remove the screw Fattaching the P.S. spring from
the pickup.

XL-R2010BK
1-16
Fig. 15
Fig. 16
Fig. 17
Part k
Part j
Pickup
assembly
Part I CH. base
assembly
Middle gear
Part n
Rack plate
Part m
Feed motor assembly
G
Reference: Refer to the explanation of "Removing
the Pickup" on the preceding page.
Note: When reinstalling the pickup assembly,
remove the solder from the shorting round
after connecting the flexible wire coming from
the pick to the connector CN601.
Reinstalling the pickup assembly
(See Figs. 15 and 16)
1. Fit the P.S. spring and rack plate to the pickup.
2. Insert the shaft into the pickup.
3. Engage the part kof the pickup assembly with the
CH. base assembly first, and set the part jof the
rack plate in the opening Inext. Then, reinstall the
pickup assembly while shifting it to the turn table
side (inward) so that the part mof the rack plate is
positioned as shown in Fig. 16.
4. Move the pickup assembly to the center position
and fasten the shaft with the two screws D. (Make
sure that the part nof the rack plate is correctly
engaged with the middle gear.)
5. After passing the flexible wire coming from the
pickup through the opening of the CH. base
assembly, connect it to the connector CN601.
Removing the feed motor assembly
(See Fig. 17)
Remove the clamper base assembly and tray.
Remove the mechanism board.
Remove the two screws Gattaching the feed motor
assembly from the top of the mechanism assembly.

XL-R2010BK
1-17
Confirm method of operation
Check mode (All lighting FL display)
All release of set content
<Setting method>
"STANDBY/ON" key is pushed while pushing "REC/REC MUTING" key by the stand-by state.
<Release method>
The key to "STANDBY/ON" is pushed.
(Please set the above-mentioned again to light all FL displays again after the check mode is made clear
after pulling out the power cord once.)
<Setting method>
"STANDBY/ON" key is pushed while pushing "REC SOURCE SELECTOR" key by the stand-by state.
The program of the program play is deleted.
The content of the registration of the listening editing and the program editing is deleted.
The repeat setting is turned off.
Release of disc lock
A current unit is set to the CD mechanism unit side.
The play mode of CD mechanism unit is made a normal mode.
The pitch control setting is turned off.
The selection of the recording source is made DIGITAL of CD.
DUB-SPEED setting is made HIGH.
AUTO TRACK setting is turned ON.
TRACK SPACE setting is turned ON.
CONVERTER setting is turned ON.
D-IN SYNCHRO setting is START
FINALIZE setting is OFF
[Set items]
Service menu
The running operation and the version of the firmware can be confirmed by the undermentioned method.
(Does not use excluding "SYSTEM_AGING" and "READ_VERSION" by the item displayed in the service menu.)
<Setting method of service menu>
1."STANDBY/ON" key is pushed while pushing "FINALIZE" key by the stand-by state.
2.When the blinking display of the disc distinction ends, "MENU" key is pushed.
The menu display changes if "MULTI JOG" knob of the main body is turned.
3.The execution of the each item is completed or either "CANCEL"key, "CD-RW STOP"key or "MENU"key
is pushed when going out of the menu mode.
<Release method>
If "STANDBY/ON" key is pushed, and the power supply is turned off once, becomes a normal menu.
STANDBY
STANDBY/ON
MAXMIN
LEVEL PHONES
PLAY MODE CD EDIT
REC SOURCE
SELECTOR
CD REC
STOP PLAY PAUSE
REC SOURCE
DIGITAL CD LINE MIC
OPEN/CLOSEOPEN/CLOSE
CANCELSETMENU
PAUSE REC/
REC MUTING
PLAYSTOP
SYNCHRO
FINALIZE
MIX
CD
LINE
LINE
MIC
MIC
MULTI JOG/REC LEVEL
+
-
All content of the item in the following set is returned to initial state. (State of factory shipment)
STANDBY/ON key
CD Mechanism unit
CD-R/RW
Mechanism unit
REC SOURCE SELECTOR key
(All release of set content)
FINALIZE key
(Service menu) STOP key
(Release of menu mode)
REC/REC MUTING key
(All lighting FL display)
MULTI JOG knob
(Service menu display switch)
MENU key
(Menu mode ON) SET key
(Execution) CANCEL key
(Release of menu mode)
FL Display

XL-R2010BK
1-18

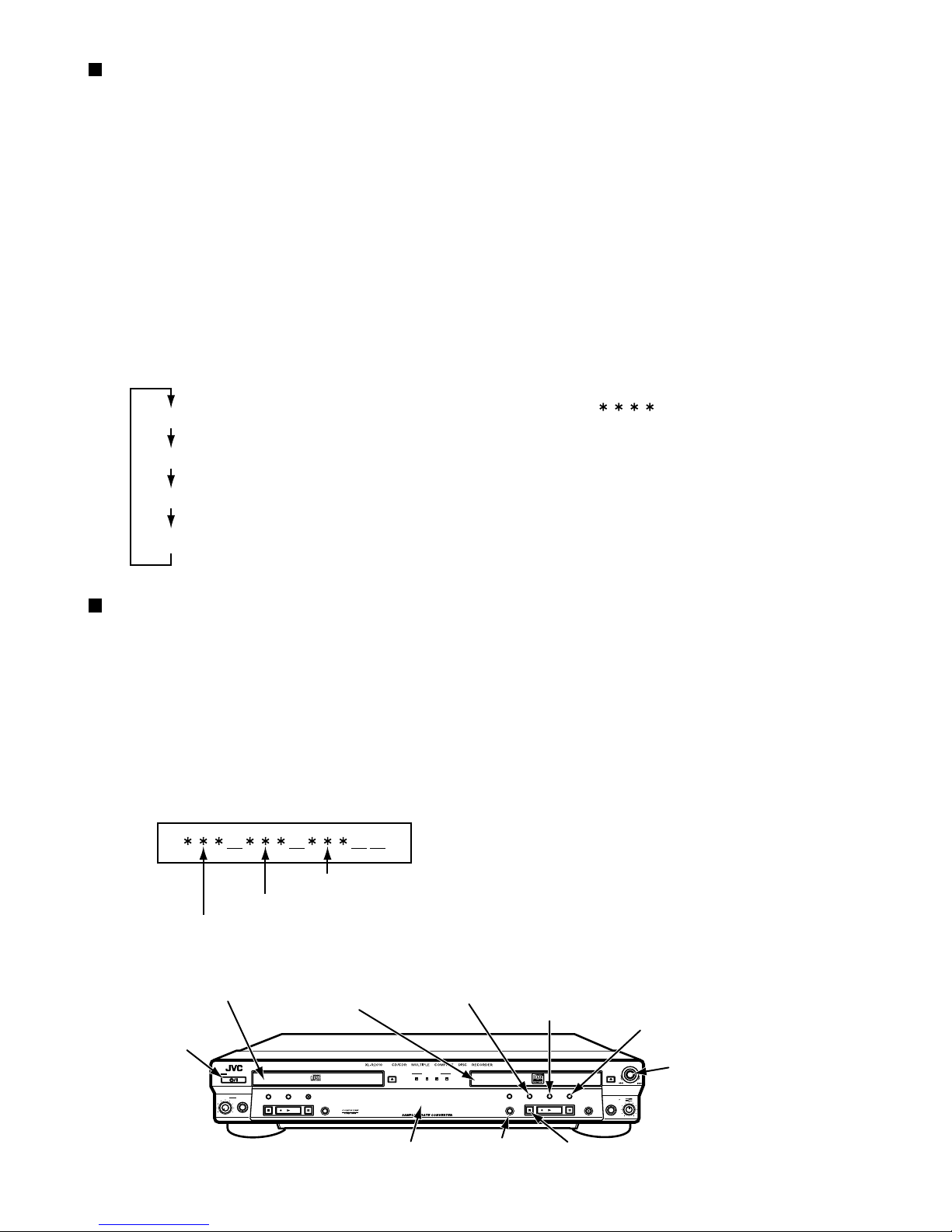

Running operation
When this mode is executed, the operation of the recording and the playback is repeated.
Please use to confirm operation.
<Setting method of running operation>
1."Service menu" is made to be displayed on the FL display referring to the previous page.
2."SYSTEM_AGING" is made to turn "MULTI JOG" knob, and to be displayed on the FL display.
3.The undermentioned operation starts when "SET" key is pushed.
The undermentioned control becomes possible according to the content of the disc turned on to tray
of CD mechanism unit.
* The time required of operation of running once
* Movement frequency of pick-up
Display of version number
When this item is executed, version number "system controller", "CD-R/RW mechanism unit", and
"CD mechanism unit" respectively is displayed in FL display for five seconds.
When five seconds pass, this mode is automatically made clear.
<Setting method of display of version number>
1."Service menu" is made to be displayed on the FL display referring to the previous page.
2."READ_VERSION" is made to turn "MULTI JOG" knob, and to be displayed on the FL display.
3.The undermentioned operation starts when "SET" key is pushed.
It is necessary to put the recorded disc or CD-DA in tray of CD mechanism unit beforehand to
execute this item, and put CD-RW of the blank disc in CD-R/RW mechanism unit.
1 Disc recording
Finalize
CD-RW is playback to the last minute.
DISC ERASE for CD-RW.
F L display becomes " ", and the frequency to
which the running operation is done is displayed by the
figure when "STOP" key is pushed to the running working
or interrupted because of the error etc.
FL Display
CD mechanism unit version number
CD-R/RW mechanism unit version number
System controller version number
It is displayed instead of version
number when failing in reading
version number, "000".
STANDBY
STANDBY/ON
MAXMIN
LEVEL PHONES
PLAY MODE CD EDIT
REC SOURCE
SELECTOR
CD REC
STOP PLAY PAUSE
REC SOURCE
DIGITAL CD LINE MIC
OPEN/CLOSEOPEN/CLOSE
CANCELSETMENU
PAUSE REC/
REC MUTING
PLAYSTOP
SYNCHRO
FINALIZE
MIX
CD
LINE
LINE
MIC
MIC
MULTI JOG/REC LEVEL
+
-
STANDBY/ON key
CD Drive unit CD-R/RW Drive unit
FINALIZE key
(Service menu) STOP key
(Release of menu mode)
MULTI JOG knob
(Service menu display switch)
MENU key
(Menu mode ON) SET key
(Execution) CANCEL key
(Release of menu mode)
FL Display

XL-R2010BK
1-19
CN651
CN606 CN615
CN616
Parts No. QUQ110-1936AJ
Parts No. QUQ110-0838AJ
Extension cord for diagnosis of CD mechanism unit
It is an extension cord to operate with the CD mechanism unit removed from the main body.
Each connector is connected by the extension cord and used as shown in the figure below.
CD Servo control board
Main board

XL-R2010BK
1-20
1. Pin layout
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
PD
LD
VCC
RFN
RF OUT
RF IN
C.AGC
ARF
CEA
3TOUT
CBDO
BDO
COFTR
OFTR
RFDET
APC Amp. Input terminal
APC Amp.Output terminal
Power supply terminal
RF addition Amp.Reversing input terminal
RF addition Amp.Output terminal
AGC input terminal
Terminal of connection of capacity of AGC loop
filter.
AGC output terminal
Capacity connection terminal for HPF-Amp.
3TENV output terminal
Capacity connection terminal for RF shade side
envelope detection
BDO output terminal
Capacity connection terminal for RF discernment
side envelope detection
OFTR output terminal
RFDET output terminal
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
GND
VREF
VDET
TEBPF
TEOUT
TEN
FEN
FEOUT
GCTRL
FBAL
TBAL
PDE
PDF
D
B
C
A
Connect to ground
VREF output terminal
VDET output terminal
VDET input terminal
TE Amp. output terminal
TE Amp. reversing input terminal
FE Amp. reversing input terminal
FE Amp. output terminal
Terminal GCTL & APC
FBAL control terminal
TBAL control terminal
Tracking signal input terminal 1
Tracking signal input terminal 2
Focus signal input terminal 4
Focus signal input terminal 2
Focus signal input terminal 3
Focus signal input terminal 1
2. Pin function
AN22000A-W(IC601):RF & SERVO AMP
Pin
No. Symbol Description Pin No. Symbol Description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
PD
LD
VCC
RFN
RFOUT
RFIN
CAGC
ARF
CEA
3TOUT
CBDO
BDO
COFTR
OFTR
RFDET
GND
A
C
B
D
PDF
PDE
TBAL
FBAL
GCTRL
FEOUT
FEN
TEN
TEOUT
TEBPF
VDET
VREF
Dscription of major ICs
Control
H
L
Switch
ON
OFF
BU4066BCF-X(IC821,IC831,IC841,IC861):Source selector
1.Pin layout & block diagram 2.Truth table
1
2
3
4
5
6
7
14
13
12
11
10
9
8
I/O1
O/I1
O/I2
I/O2
C2
C3
Vss
Vdd
C1
C4
I/O4
O/I4
O/I3
I/O3
