LT-19DA1BU
WIDE LCD PANEL TV INSTRUCTIONS
16:9 LCD TV BEDIENUNGSANLEITUNG
TELEVISEUR A ECRAN LCD PANORAMIQUE MANUEL D’INSTRUCTIONS
TELEVISOR CON PANEL LCD PANORÁMICO MANUAL DE INSTRUCCIONES
ŠIROKOÚHLÝ LCD MONITOR PŘÍRUČKA K OBSLUZE

2
EN
PRECAUTIONS
POWER SUPPLY
The main power supply is engaged when the main plug is
plugged in a 220-240 V~, 50 Hz AC outlet. To operate the
unit, press [ (standby-on)] to turn on the unit.
WARNING: LIVE PARTS INSIDE.
DO NOT REMOVE ANY SCREWS.
CAUTION
1) Do not attempt to open the cabinet. There are no user
serviceable parts inside. Refer all servicing to qualified
service personnel.
2) Slots and openings in the cabinet and the sides or
bottom are provided for ventilation. To ensure reliable
operation and to protect the unit from overheating, these
openings must not be blocked or covered.
Avoid installation in enclosed spaces such as bookcases
unless proper ventilation is provided.
3) Keep the unit away from radiators and other heat
sources.
4) Do not push objects of any kind into the unit through
the cabinet slots or openings as they could touch
electrically live parts or short circuit parts resulting in a
fire or electric shock.
5) To prevent fire or shock hazard, do not expose this
apparatus to dripping or splashing, no objects filled with
liquids, such as vases, should be placed on the apparatus.
6) Use the unit on a horizontal (flat) surface only.
7) Do not place any combustible objects on the device
(candles, etc.).
8) The LCD panel used in this product is made of glass.
Therefore, it can break when the product is dropped or
applied with impact. Be careful not to be injured by
broken glass pieces in case the LCD panel breaks.
The LCD panel is a very high technology product with
921,600 thin film transistors, giving you fine picture
details. Occasionally, a few non-active pixels may appear
on the TV screen as a fixed point of blue, green or red.
Please note that this does not affect the performance of
your product.
9) Disconnect the mains plug to switch off when the unit
becomes faulty or not in use.
10) The mains plug shall remain readily operable.
11) Read the manual instructions to ensure correct and safe
installation and interconnection of the unit in
multimedia systems.
12) Keep a distance of 20 cm around the ventilation
openings of the apparatus.
-
WARNING:
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPARATUS TO RAIN OR MOISTURE.
CAUTION:
TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the apparatus’s
enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the apparatus.
Do not place the unit on the furniture that is capable of
being tilted by a child or an adult leaning, pulling, standing
or climbing on it. A falling unit can cause serious injury or
even death.

3EN
English
TABLE OF CONTENTS
PRECAUTIONS.................................................................................................................................................2
THINGS TO DO FOR THE FIRST TIME ...........................................................................................................4
OPERATING CONTROLS AND FUNCTIONS ..................................................................................................5
PREPARATION FOR USE ................................................................................................................................7
SETUP FOR USE..............................................................................................................................................9
OPERATIONS .................................................................................................................................................12
OTHER SETTINGS .........................................................................................................................................18
MAINTENANCE...............................................................................................................................................21
TROUBLESHOOTING GUIDE ........................................................................................................................21
SPECIFICATIONS...........................................................................................................................................22
Features
• Integrated Digital Terrestrial Tuner (DVB)
• EPG (Electronic Programme Guide)
• Stereo Sound System
• On-Screen Display
• Sleep Timer
• Teletext

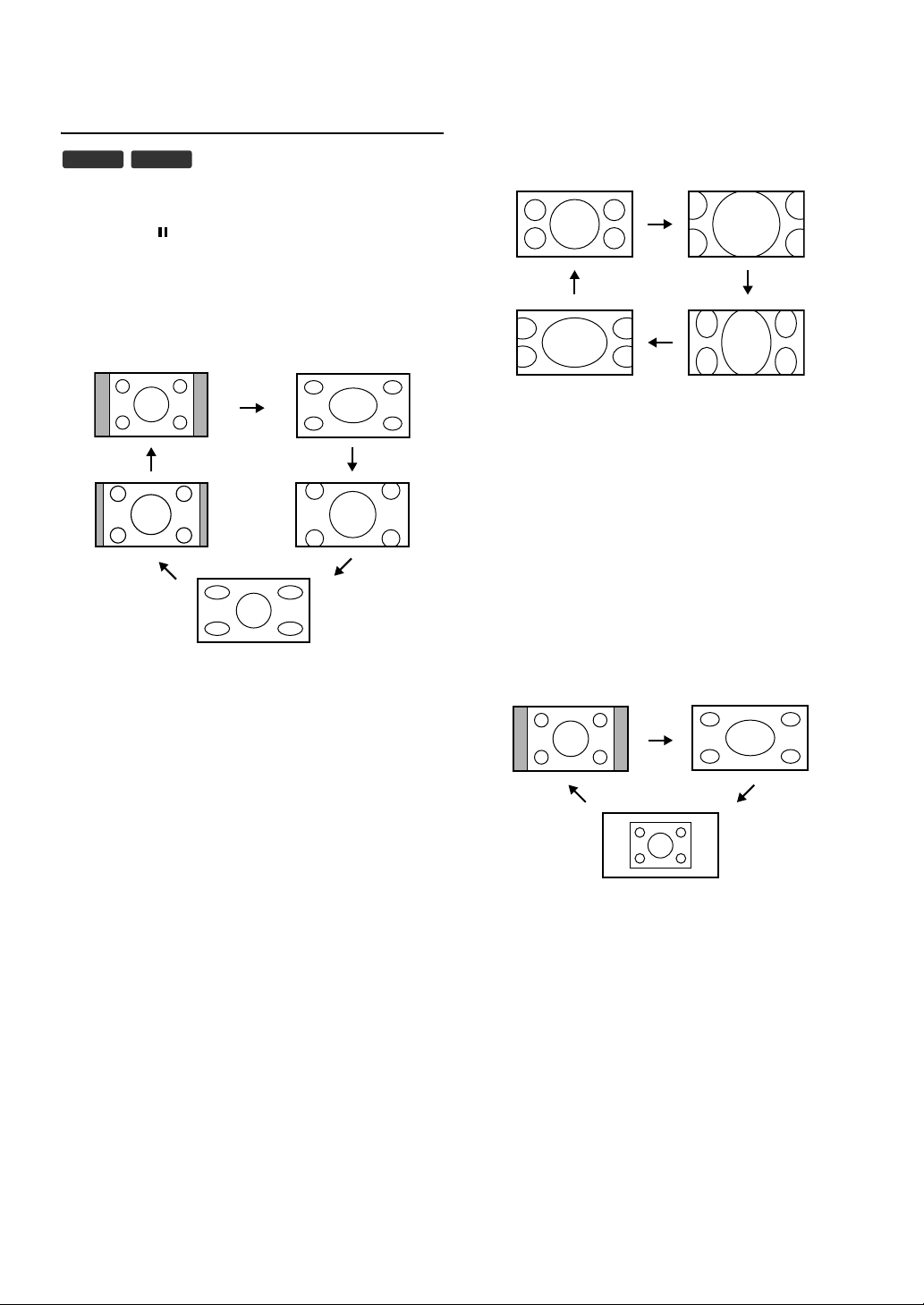

• TV Screen Mode Selection
•Auto Power Off Function - If there is no signal input from the
antenna terminal and no user operation for 15 minutes, the unit
will be turned off automatically.
• HDMI Input
• COMPONENT Input
• S-VIDEO Input
• PC Input
Supplied Accessories
•Remotecontrol
•TwoR6(AA)batteries
• INSTRUCTIONS
Trademark Information
• HDMI, the HDMI logo and High-Definition Multimedia
Interface are trademarks or registered trademarks of HDMI
Licensing LLC.
• DVB is a registered trademark of the DVB Project
Symbols Used in this Manual
The followings are the description for the symbols used in this
manual.
Model/Serial Number
To aid reporting in case of loss or theft, please record the unit’s
model and serial numbers in the space provided. The numbers are
located at the rear of the unit.
Model number: _________________
Serial number: _________________
A Note about Recycling
Information for Users on Disposal of Old
Equipment and Batteries
Digital TV operation
Analogue TV operation
DTV
ATV
This unit’s packaging materials are recyclable and
can be reused. Please dispose of any materials in
accordance with your local recycling regulations.
This product consists of materials which can be
recycled and reused if disassembled by a
specialised company.
[European Union]
These symbols indicate that the electrical and
electronic equipment and the battery with this
symbol should not be disposed of as general
household waste at its end-of-life. Instead, the
products should be handed over to the
applicable collection points for the recycling of
electrical and electronic equipment as well as
batteries for proper treatment, recovery and
recycling in accordance with your national
legislation and the Directive 2002/96/EC and
2006/66/EC. By disposing of these products
correctly, you will help to conserve natural
resources and will help to prevent potential
negative effects on the environment and human
health which could otherwise be caused by
inappropriate waste handling of these products.
For more information about collection points
and recycling of these products, please contact
your local municipal office, your household
waste disposal service or the shop where you
purchased the product.
Penalties may be applicable for incorrect
disposal of this waste, in accordance with
national legislation.
[Business users]
If you wish to dispose of this product, please
visit our web page www.jvc-europe.com to obtain information
about the take-back of the product.
[Other Countries outside the European Union]
These symbols are only valid in the European Union.
If you wish to dispose of these items, please do so in accordance
with applicable national legislation or other rules in your country
for the treatment of old electrical and electronic equipment and
batteries.
Notice:
Battery
Products
The sign Pb below
the symbol for
batteries indicates
that this battery
contains lead.
Dear Customer,
This apparatus is in conformance with the valid European
directives and standards regarding electromagnetic compatibility
and electrical safety.
European representative of Victor Company of Japan, Limited is:
JVC Technical Services Europe GmbH
Postfach 10 05 04 61145 Friedberg Germany

4
EN
THINGS TO DO FOR THE FIRST TIME
Attaching the stand
You need to attach the stand to the unit to display upright. Make sure the front and rear of the stand match the proper direction.
To remove the stand from the unit
Handling the glossy finish of the unit
Be careful when handling the glossy finish of the unit. The glossy finish of the unit scratches easily.
• Protection films have been pasted onto the glossy finish of the
unit to prevent scratches. Peel off the films after the unit has
been placed properly.
• If the glossy finish gets dirty, clear the dust off the glossy finish
first. Then wipe softly with soft cloth. If you do not clear the
dust first, or you wipe the glossy finish too hard, the glossy finish
may be scratched.
1) Place the unit face down onto
the soft stuff such as a cloth on a
table. Be careful not to damage
the TV screen.
2) Insert the stand all the way to
the unit slowly. Be careful not to
put the AC cord between the
stand and the unit.
3) Make sure the stand clicks.
Pull the stand toward the direction Bpressing the hooks Aat once and
remove the stand from the unit slowly. Be careful not to drop the stand
when you remove it.
Note: • Make sure to use the table which can support the weight and size of the unit.
• Make sure the table is in a stable location.
A
A
B
Glossy finish

5EN
English
OPERATING CONTROLS AND FUNCTIONS
All operations described are based on the use of the remote control. Some operations can be carried out using the buttons on the control panel.
CONTROL PANEL
1. (standby-on)
Press to turn on or off (standby) the unit.
2. INPUT SELECT/OK(control panel) / AV (remote control)
Press to switch TV or external input mode.
INPUT SELECT/OK(control panel)
Press to determine the setting on the menu.
3. PROG. / (control panel)
Press to select the setting on the menu.
Press to select the item you want to adjust in the picture
control mode.
Press to go to the next page or the previous page of teletext.
Same function as Cursor K/L(remote control) on the
menu.
PROG. / (control panel) / P /P (prog.) (remote
control)
Press to select memorised channel or other modes.
4. VOL. / (control panel) / +/ – (vol.) (remote
control)
Press to control the volume level.
VOL. (control panel)
Same function as Cursor B(remote control) on the menu.
VOL. (control panel)
Same function as Cursor s(remote control) on the menu.
5. MENU
Press to display the menu.
Press to call up the VCR menu. (VCR)
Press to call up the menu on a DVD. (DVD)
6. STAND BY/POWER indicator
Lights up in green when power is on.
Lights up in red when power is in standby mode.
7. (mute)
Press to mute the sound.
Press this button again or press VOL. / on the control panel
or
+/ – (vol.) on the remote control to restore sound.
8. TV / VCR / DVD switch
Switch to control basic operations of VCR / DVD using
this remote control on our JVC brand.
9. Number buttons
Press two digits to directly access the desired channel in
analogue mode.
Press three digits to directly access the desired channel in
digital mode.
Press to enter the password in the password input field.
10. I(information)
Press to display the TV screen information.
11. RED/GREEN/YELLOW/BLUE
Press to directly select the page numbers of teletext.
12. TV/DTV
Press to select digital or analogue mode.
13. Cursor K/ L/ s/ Bbuttons
Press to select the setting on the menu.
Press to select item you want to adjust in the picture control mode.
Press to go to the next page or the previous page of teletext.
REMOTE CONTROL
14. OK
Press to determine the setting on the menu.
Press to select or adjust from a particular menu.
Press to display the channel list while watching a programme.
15. GUIDE
Press to display EPG (Electronic Programme Guide) in digital mode.
16. BACK
Press to return to the previous display.
17. (sound) / (VCR: programme +, DVD: skip forward)
Press to change the sound modes.
Press to change TV channels. (VCR)
Press to skip chapters or tracks. (DVD)
18. (text) / (VCR: programme –, DVD: skip backward)
Press to display the teletext information.
Press to change TV channels. (VCR)
Press to skip chapters or tracks. (DVD)
19. (audio language) / (VCR: rewind, DVD: reverse)
Press to change the audio language.
Press to rewind the tape. (VCR)
Press to search backward through the disc. (DVD)
20. COLOUR SYSTEM / (VCR, DVD: forward)
Press to select the colour input signal from external devices.
Press to fast forward the tape. (VCR)
Press to search forward through the disc. (DVD)
21. TV/RADIO / B(VCR, DVD: play)
Press to switch TV or RADIO mode.
Press to begin playback.(VCR / DVD)
22. ZOOM / (VCR, DVD: pause)
Press to switch the aspect ratio available for the TV screen.
Press to pause playback. (VCR / DVD)
23. (sleep) / (VCR: recording)
Press to set the sleep timer.
Press to start recording with pressing TV/RADIO / Bat
the same time. (VCR)
Press to pause recording with pressing / at the same
time. (VCR)
Press to call up the title menu on a DVD. (DVD)
24. (subtitle) / (VCR, DVD: stop)
Press to change the available subtitle languages.
Press to stop playback or recording. (VCR)
Press to stop playback. (DVD)
25. (index)
Press to go back to the start page of teletext.
26. (sub page)
Press to select subpages of teletext.
27. (reveal)
Press to call up the hidden information of teletext.
28. (expand)
Press to enlarge fonts of teletext.
29. Infrared sensor window
Receives the infrared rays transmitted from the remote control.
629
1
2
3
4
5
7
9
10
11
12
13
15
8
2
5
14
16
1
3
19
23
25
27
17
18
4
22
24
26
28
20
21

6
EN
Installing the Batteries
1) Open the battery compartment cover.
2) Insert “R6” penlight batteries into battery compartment in the
direction as indicated by the polarity (+/–) markings. Batteries
installed with incorrect polarity may damage the remote unit.
3) Close the cover.
4) Push the cover on its top side until it clicks in order to fit the
cover completely to the compartment.
REAR PANEL
30. PC-IN (RGB) input jack
Connect a VGA cable (commercially available) to the
monitor jack of a PC.
31. HDMI-IN input jack
Connect an HDMI cable (commercially available) to the
HDMI output jack of an external device.
32. COMPONENT (Y/Pb/Pr) / AUDIO (L/R) input jack
Connect an RCA component video and an RCA audio
cable (commercially available) to the component video and
audio output jack of an external device.
33. (Aerial) input jack
Connect an RF coaxial cable (commercially available) to an
antenna or RF output jack of a cable system.
34. HEAD PHONE jack
Connect a headphone.
35. VIDEO input jack
Connect an RCA video cable (commercially available) to the
video output jack of an external device.
36. AUDIO (L/R) input jack
Connect an RCA audio cable (commercially available) to
the audio output jack of an external device.
37. S-VIDEO input jack
Connect an S-video cable (commercially available) to the
S-video output jack of an external device.
38. PC-IN (Audio) input jack
Connect a mini-plug audio cable (commercially available)
to the audio line out jack of a PC.
39. SCART jack
Connect a scart cable (commercially available) to the scart
jack of an external device.
40. C.I. (COMMON INTERFACE) slot
Common Interface (CI) Module: Insert the CI module.
Note: Batteries (battery pack or batteries installed) shall not be
exposed to excessive heat such as sunshine, fire or the
like.
VIDEO
SCART
L
AUDIO
R VIDEO S-VIDEO PC-IN
HEAD
PHONE
COMPONENT
Pr L
AUDIO
RPbY
PC-IN
RGB
HDMI IN
HDMI
COMPONENT
Pr L
AUDI O
C. I.
RPbY
VIDEO
SCART
L
AUDI O
R VIDEO S-VIDEO PC-IN
HEAD
PHONE
32
33
38
34
35
36
37
39
30
31 40
Note: The AUDIO (L) jack is for monaural input. The
sound is heard from both speakers. Use this jack for
a monaural audio device.

7EN
English
PREPARATION FOR USE
Antenna Connection
1) Connect an RF cable (commercially available) to (Aerial)
input jack at the rear of this unit.
2) Plug this unit into an AC outlet.
3) The STAND BY/POWER indicator on the front panel lights
red, then press [ (standby-on)] to turn on the unit.
External Connection
[HDMI CONNECTION]
HDMI connection offers the highest picture quality. HDMI
(High Definition Multimedia Interface) transports high
definition video and multi-channel digital audio through a single
cable.
Connect the HDMI output jack of your video device and the
HDMI-IN jack of the unit. Use an HDMI cable (commercially
available).
[SCART CONNECTION]
Scart connection offers better picture quality.
Connect the scart jack of your video device and the SCART jack
of this unit. Use a scart cable (commercially available).
Note: If you like to connect a active DVB-T antenna, the
antenna must have its own power supply.
It is not possible to power the antenna from the TV.
To (Aerial) input jack
Rear of this unit
RF cable (not supplied)
VHF/UHF
MIXER
VHFUHF
Dear Customer,
By connecting an HDMI cable to your JVC LCD TV, you have
to use only a certified HDMI cable to guarantee a sufficient
immunity against parasitic frequency radiation.
A certified HDMI cable can be identified by the HDMI logo
on the cable or the cable package.
Note:
• This unit accepts 480i / 480p / 576i / 576p / 720p /
1080i video signals and 32 kHz / 44.1 kHz / 48 kHz
audio signals.
• This unit accepts only 2 channel audio signals
(LPCM).
• You need to select “PCM” for the digital audio
output of the device you connect. Make sure the
device outputs the digital audio. Audio sometimes
makes no sound if you select “Bitstream”, etc.
HDMI OUT
Rear of this unit
HDMI cable
(not supplied)
VIDEO
SCART
L
AUDIO
R VIDEO S-VIDEO P
AD
ONE
scart cable (not supplied)
Rear of this unit

8
EN
[COMPONENT CONNECTION]
RCA component video connection offers better picture quality.
1) Connect the component video output jack (Y, Pb, Pr) of your
video device and the COMPONENT video(Y, Pb, Pr) input
jack of this unit. Use an RCA component video cable
(commercially available).
2) Connect the audio output jack of your device and the
AUDIO (L/R) input jack of this unit. Use an RCA audio
cable (commercially available).
[S-VIDEO CONNECTION]
S-video connection offers good picture quality.
1) Connect the S-video output jack of your video device and the
S-VIDEO input jack of this unit. Use an S-video cable
(commercially available).
2) Connect the audio output jack of your device and the
AUDIO (L/R) input jack of this unit. Use an RCA audio
cable (commercially available).
[VIDEO CONNECTION]
RCA video connection offers standard picture quality.
1) Connect the video output jack of your video device and the
VIDEO input jack of this unit. Use an RCA video cable
(commercially available).
2) Connect the audio output jack of your video device and the
AUDIO (L/R) input jack of this unit. Use an RCA audio
cable (commercially available).
[PC CONNECTION]
If you connect this unit and your PC, you can use this unit as a
computer monitor.
1) Connect the monitor jack of your PC and the PC-IN (RGB)
jack of this unit. Use a VGA cable with ferrite core
(commercially available).
2) Connect the audio line out jack of your PC and the PC-IN
(Audio) jack of this unit. Use a mini-plug audio cable
(commercially available).
Precautions for the connection to other devices:
Please use the VGA cable that has a ferrite core.
Note: This unit accepts 480i / 480p / 576i / 576p / 720p /
1080i video signals.
Note: If you connect to the S-VIDEO jack and the VIDEO
jack at the same time, S-video connection will have
priority.
COMPONENT
Pr L
AUDIO
RPbY
Rear of this unit
RCA component video cable (not supplied)
RCA audio cable (not supplied)
VIDEO
SCART
L
AUDIO
R VIDEO S-VIDEO PC-IN
HEAD
PHONE
AUDIO
OUT
VIDEO
OUT
S-VIDEO
OUT
Rear of this uni
t
RCA audio cable (not supplied)
S-video cable (not supplied)
VIDEO
SCART
L
AUD IO
R VIDEO S-VIDEO P
AD
ONE
AUDIO
OUT
VIDEO
OUT
Rear of this unit
RCA video cable (not supplied)
RCA audio cable (not supplied)
S-VIDEO PC-IN
Rear of this unit
mini-plug audio cable (not supplied)
To PC-IN jack
VGA cable with ferrite core (not supplied)
To monitor jack
To audio line out jack

9EN
English
SETUP FOR USE
Initial Setting
You need to set the followings to use the unit appropriately for the
first time you turn on the unit.
1) Press [ (standby-on)] to turn on the unit.
• “Initial Setup” language menu will appear.
2) Press [K/ L]repeatedly to select the menu language you
want, then press [OK].
• “Initial Setup” country setting menu will appear.
3) Press [K/ L]to select the country you want, then press
[OK].
• “Initial Setup” antenna confirmation menu will appear.
4) Press [K/ L]to select “Yes”, then press [OK].
• Channel scanning will start automatically.
• When the scanning is completed, the lowest memorised
digital channel will be displayed.
Auto Scan
You can scan the digital channels receivable in your area
automatically.
1) Press [MENU] to display the menu in digital mode.
2) Press [K/ L]to select “CHANNEL”, then press [OK].
3) Press [K/ L]to select “Auto Scan”, then press [OK].
• Scanning will start automatically.
• When the scanning is completed, the lowest memorised
digital channel will be displayed.
•Ifyoupress[MENU] during the scanning, this operation
will be stopped and the lowest memorised digital channel
will be displayed.
You can scan the analogue channels receivable in your area
automatically.
1) Press [MENU] to display the menu in analogue mode.
2) Press [K/ L]to select “CHANNEL”, then press [OK].
3) Press [K/ L]to select “Auto Scan”, then press [OK].
• Scanning will start automatically.
• When the scanning is completed, the lowest memorised
analogue channel will be displayed.
•Ifyoupress[MENU] during the scanning, this operation
will be stopped and the lowest memorised analogue
channel will be displayed.
• Please note that after tuning, the analogue channels will be
stored in the order that they are broadcast by your local
transmitter. This may not be in the same order in which
you would like them to be stored. If this is the case, you can
change the order according to your preference. To do this,
see “To change the channel order manually” on page 16.
Note: • If you select “No” in antenna confirmation menu, the
operation will be cancelled.
• If you press [MENU] during auto scanning, the
operation will be cancelled.
• If there is no signal input from the antenna terminal
and no operation for several seconds, the next display
will appear. Follow the instructions on the TV screen.
DTV ATV
MENU
Ȼɴɥɝɚɪɫɤɢ
þHã
1HGHUODQGV
English
)UDQoDLV
'HXWVFK
Initial Setup
Select OK Exit
Select the language for setup display.
MENU
BACK
Initial Setup
Please Select the country. France
Spain
Germany
Czech Republic
Poland
Select OK Back Exit
Other 2
Greece
Other 1
26%
No Items
00
No Items
MENU
Now the system is scanning for channels, please wait.
DTV Services Radio Services
Exit
Initial Setup
No channel is registered. Press and hold "OK" key on the remote
control for 3 seconds. Set proceeds to initial channel search.
DTV
32%
No Items
0
No Items
0
BACK
EXIT
SOUND
CHANNEL
DETAIL
LANGUAGE
Auto Scan
Radio ServicesDTV Services
Back
Now the system is scanning for channels, please wait.
ATV
VHF-L
25%
0 ch
BACK
EXIT
SOUND
CHANNEL
DETAIL
LANGUAGE
Auto Scan
Analog channels
Back
Now the system is scanning for channels, please wait.

10
EN
Manual Scan
You can adjust a digital channel individually.
1) Press [MENU] to display the menu in digital mode.
2) Press [K/ L]to select “CHANNEL”, then press [OK].
3) Press [K/ L]to select “Manual Scan”, then press [OK].
4) Press [s/ B]to select the channel number you want to scan.
• The tuner will start searching up or down automatically.
When a channel is found, the searching will stop.
5) Press [MENU] to exit.
You can adjust an analogue channel individually.
1) Press [MENU] to display the menu in analogue mode.
2) Press [K/ L]to select “CHANNEL”, then press [OK].
3) Press [K/ L]to select “Manual Scan”, then press [OK].
4) Press [s/ B]to select the channel number you want to scan.
5) Press [K/ L]to select “Frequency”.
6) Press [the Number buttons] to enter the frequency.
• To select 24, enter [0] first, then press [2] and [4].
7) Press [s/ B]to start searching.
• The tuner will start searching up or down automatically.
When a channel is found the searching will stop.
8) Press [K/ L]to select “Color System”, then press [OK].
9) Press [K/ L]to select the system (“Pal, SECAM”) you want,
then press [OK].
10) Press [K/ L]to select “Sound System”, then press [OK].
11) Press [K/ L]to select the system you want, then press [OK].
e.g.) “Color System” is “SECAM”
12) Press [MENU] to exit.
Language Selection
You can select the main language.
1) Press [MENU] to display the menu.
2) Press [K/ L]to select “LANGUAGE”, then press [OK].
3) Press [K/ L]to select your desired item, then press [OK].
4) Press [K/ L]repeatedly to select the language you want, then
press [OK].
5) Press [MENU] to exit.
DTV
69
100 100
P
P
BACK
EXIT Manual Scan
SOUND
CHANNEL
DETAIL
LANGUAGE
Channel Number
Signal Strength
Now Peak
10 key OK BackCh change
ATV
21%
1
222 MHz
Manual Scan
SOUND
CHANNEL
DETAIL
LANGUAGE
Channel
Frequency
Color System
Sound System
EXIT
Pal
B/G
Manual Scan
Channel
Frequency
Color System
Sound System
EXIT
SOUND
CHANNEL
DETAIL
LANGUAGE
Pal
SECAM
Note: • “Audio Language” and “Subtitle Language” are
available only for digital mode.
• While watching a programme, you can change the
audio language easily using [(audio language) /
]when it is available.
• While watching a programme, you can change the
subtitle language easily using [(subtitle) / ]
when it is available.
Manual Adjust
Channel
Frequency
Color System
Sound System
EXIT
SOUND
CHANNEL
DETAIL
LANGUAGE
B/G
L
D/K
L'
Manual Scan
Channel
Frequency
Color System
Sound System
EXIT
SOUND
CHANNEL
DETAIL
LANGUAGE
B/G
L
D/K
L'
DTV ATV
EXIT Setup
SOUND
CHANNEL
English
French
French
Menu Language
Audio Language
Subtitle Language
DETAIL
LANGUAGE

11 EN
English
Country Setting
You can select the channels according to the country you select.
1) Press [MENU] to display the menu.
2) Press [K/ L]to select “DETAIL”, then press [OK].
3) Press [K/ L]to select “Country”, then press [OK].
4) Press [ K / L ] to select the country you want, then press [OK] .
5) Press [K/ L]to exit.
Teletext
You can retrieve the teletext information along with TV channels.
1) Press [(text) / ]to turn on the teletext decoder.
• Teletext information will appear.
• If you want to select other pages, press
[the Number buttons] or [K/ L].
2) Press [(text) / ]again to show the teletext in
transparent mode.
3) Press [(text) / ]to turn off the teletext decoder.
C.I. (Common Interface)
This unit is equipped with a C.I. (Common Interface) slot. You
can enjoy additional services with this function, for example Pay
TV. The access restrictions menu will appear on the TV screen
when a CI module is installed.
1) Turn off the unit and unplug from an AC outlet.
2) Insert the CI module straight to the C.I. slot of this unit.
• Some CI modules may be a two-piece design consisting of a card
reader with the viewing card. When using this kind of card,
insert the card reader firmly into the C.I. slot on the unit first.
Then, insert the viewing card into the reader.
3) Plug this unit into an AC outlet and press
[ (standby-on)] to turn on the unit.
4) Press [MENU] to display the menu.
5) Press [K/ L]to select “DETAIL”, then press [OK].
6) Press [K/ L]to select “CI Menu”, then press [OK].
7) Follow the instructions on the TV screen.
Colour System
You can change the TV colour system in video or scart mode.
Press [COLOUR SYSTEM / ]to change the TV colour
system.
• Each time you press [COLOUR SYSTEM / ], the TV
screen will change as follows.
AUTO, PAL, PAL60, SECAM, NTSC, NTSC4.43
Note: • To enlarge fonts, press [(expand)].
• To select teletext subpages, press [(sub page)].
• To directly select the page numbers shown at the
bottom of the TV screen, use [RED/GREEN/
YELLOW/BLUE].
• To call up the hidden information, press
[(reveal)].
• To go back to the start page, press [(index)].
DTV ATV
France
Spain
Germany
Czech Republic
Poland
Other 2
Greece
Other 1
EXIT
SOUND
CHANNEL
DETAIL
LANGUAGE
Detail
Lock Setting
PC Settings
Time Zone
CI Menu
Transparency
Country
Factory Preset
DTV ATV
Note: • In case of failure, you need to call your CI service
provider.
• Menu operations may vary depending on the viewing
card. Refer to the manual accompanying the viewing
card.
Note: When you select “AUTO” by pressing
[COLOUR SYSTEM / ], this unit will distinguish
the system automatically according to the input signal
from the external devices.
DTV
N
ENT
L
AUDIO
C. I.
R

12
EN
OPERATIONS
Watching a TV Programme
To select a channel
Press [TV/DTV] to switch digital or analogue mode.
Press [P /P(prog.)] repeatedly to select your desired
channel.
or
Press [the Number buttons] to enter a channel number as
three digits for quicker access.
e.g.) If you want to select the channel 24, press [0] first, then press
[2] and [4] within 3 seconds.
Press [P /P(prog.)] repeatedly to select your desired
channel.
or
Press [the Number buttons] to enter a channel number as two
digits for quicker access.
e.g.) If you want to select the channel 24, press [2] and [4] within
3 seconds.
To adjust the volume
Press [+/–(vol.)] to adjust the audio volume.
• You can see the volume bar while adjusting the volume.
Press [(mute)] to turn on or off the sound right away.
• You can recover the original volume by pressing [(mute)]
again or [+/–(vol.)] .
Sleep Timer
You can set the unit to be turned off automatically after a set time
period.
1) Press [(sleep) /].
• Sleep timer display will appear.
2) Press [(sleep) /]repeatedly to change the sleep time
period.
• Each time you press [(sleep) /], the timer increases
by 30 minutes up to 120 minutes.
To cancel the sleep timer
Press [(sleep) /]repeatedly until “Sleep Off” will appear.
Switching the Input Mode
You can switch the input mode to digital mode, analogue mode or
external input mode.
Press [AV] repeatedly to cycle through the input mode.
You can also change the input mode using [BLUE].
1) Press [BLUE].
• “Select Input” menu will appear.
2) Press [K/ L]to select the input mode you want, then press
[OK].
DTV ATV
DTV
ATV
20
Volume
Mute
DTV ATV
Sleep 30min.
Note: If you disconnect the unit from the AC outlet or if a
power failure occurs, the sleep timer will be cancelled.
Note: • To watch the digital channel, select “DTV”.
• To watch the analogue channel, select “ATV”.
• To use the video or S-VIDEO input jack on the unit,
select “Video”.
• To use the SCART jack on the unit, select “SCART”.
• To use the COMPONENT (Y/Pb/Pr) input jack on
the unit, select “Component”.
• To use the HDMI-IN jack on the unit, select
“HDMI”.
• To use the PC-IN (RGB) jack on the unit, select “PC”.
Sleep Off
DTV ATV
PC HDMI
Component SCART
VideoDigital channel Analogue channel
Select Input
1. DTV
2. ATV
3. Video
4. SCART
5. Component
6. HDMI
7. PC

13 EN
English
Sound Select
Press [(sound) / ]repeatedly to cycle through the available
sound mode.
“STEREO”
Outputs stereo sound
“LEFT”
Outputs left sound
“RIGHT”
Outputs right sound
“MONO”
Outputs monaural sound
“Main”
Outputs main sound
“Sub”
Outputs second sound
“Main/Sub”
Outputs main and sub sound
“MONO”
Outputs monaural sound
TV Screen Information
You can see the broadcasting information.
Press [I(information)].
• TV screen information menu will appear.
1Channel name
2Present programme name / time
3Category name
4Programme information
5Time
6Channel number
7Audio language
8Resolution / Format / TV aspect ratio
9TV/Radio
10 Teletext
11 Lock status
12 Parental rating
13 Pay TV
14 Subtitle
1Channel number
2Audio mode
3Resolution / Format / TV aspect ratio
In external input mode, the following TV screen information will
appear.
e.g.) “SCART”
Press [I(information)] again or [BACK] to exit.
• TV screen information menu will automatically disappear in a
few seconds.
Note: Available sound modes differ depending on a
programme.
DTV ATV
DTV
STEREO LEFT
MONO RIGHT
ATV
Main Sub
MONO Main/Sub
Note: When the programme information consists of more than
4 lines, press [K/ L]to scroll.
DTV ATV
DTV
576i SD 4 : 3
The Sounds
Hit Music
Special Characteristics :
07:00-09:59
09:37 018
You're turned to the Sounds, keep it here for the biggest sounds
around, it doesn't get fresher than this! Call 09012 345 678 now
to select a video








English
ATV
576i SD 4 : 3
1
MONO
1
23
576i SD 4 : 3
SCART

14
EN
Changing the TV Screen Display Mode
You can select your favourite TV screen size in both 4:3 and 16:9
TV aspect ratios.
Press [ZOOM / ]repeatedly to switch the TV screen display
mode.
• You may not switch the TV screen display mode depending on
the programme.
For 4:3 video signal
“Regular”
Displays a 4:3 picture at its original size. Sidebars appear on both
edge of the TV screen.
“Full”
Displays a 4:3 picture at a 16:9 size; the picture is stretched
horizontally to fill the TV screen.
“Cinema”
Displays a 4:3 picture at a 16:9 size; the picture is stretched
horizontally and vertically to fill the TV screen. This crops out the
top and bottom of the picture.
“Panoramic”
Displays a 4:3 picture at a 16:9 size; the centre of the picture is at
its original size and the edges stretched horizontally to fill the TV
screen.
“14:9”
Displays a 4:3 picture at a 14:9 size. Sidebars will be displayed on
both edge of the TV screen.
For 16:9 video signal
“Full”
Displays a 16:9 picture at its original size.
“Zoom1”
Displays a 16:9 picture at its maximum size without changing its
horizontal and vertical ratio.
“Zoom2”
Displays a vertically stretched picture.
“Zoom3”
Displays a horizontally stretched picture.
For PC input signal
“Regular”
Displays a proportionally stretched picture. Sidebars appear on
both edges of the TV screen.
“Full”
Displays a picture that is stretched out of proportion to fill the TV
screen.
“Dot By Dot”
Displays a picture in its original size.
DTV ATV
“Regular” “Full”
“14:9” “Cinema”
“Panoramic”
Note: You may not select “Regular” depending on the aspect
ratio of the PC input signal.
“Full” “Zoom1”
“Zoom3” “Zoom2”
“Regular” “Full”
“Dot By Dot”

15 EN
English
Channel List
You can easily find a channel you want.
1) Press [OK] while watching a programme.
• Channel list will appear.
e.g.) Digital
e.g.) Analogue
2) Press [K/ L]to select the channel you want to watch.
3) Press [OK] or [BACK] to exit.
Channel Edit
You can select a channel, change the channel order, delete the
channel, etc.
1) Press [MENU] to display the menu.
2) Press [K/ L]to select “CHANNEL”, then press [OK].
3) Press [K/ L]to select “Channel List”, then press [OK].
e.g.) Digital
e.g.) Analogue
To allocate the decoder
Some TV stations transmit encoded TV signals which can only be
viewed with a purchased or hired decoder. You can connect such
a decoder to SCART jack of the unit. This function will
automatically activate the connected decoder for the channel.
4) Press [K/ L]to select the channel you want to allocate the
decoder, then press [B].
5) Press [K/ L]to select “Decoder”.
6) Press [OK] to decoder on or off.
• “ ” will appear on the left of the channel.
7) Press [MENU] to exit.
Note: You can edit the channel list. Refer to “Channel Edit” on
page 15 to page 17.
DTV ATV
18. The Sounds
19. Cinema
20. Drama
21. Today's News
22. The Musical
38. Motors
BACK
Select OK BackDTV/Radio
Channels List-DTV
P02.TV02
P01.TV01
BACK
P02.TV02
P01.TV01
BACK
P01.TV01
BACK
BackOKSelect
Channels List-ATV
DTV ATV
18. The Sounds
19. Cinema
20. Drama
21. Today's News
22. The Musical
38. Motors
BACK
Channel List
Select OK BackDTV/Radio
EXIT
SOUND
CHANNEL
DETAIL
LANGUAGE
Channels List-DTV
P02.TV02
P01.TV01
BACK
P02.TV02
P01.TV01
BACK
P01.TV01
BACK
EXIT
SOUND
CHANNEL
DETAIL
LANGUAGE
Channel List
BackOKSelect
Channels List-ATV
ATV
P02.TV02
P01.TV01
BACK
P02.TV02
P01.TV01
BACK
P01.TV01
BACK
EXIT
SOUND
CHANNEL
DETAIL
LANGUAGE
Channel List
BackOKSelect
Channels List-ATV

16
EN
To skip the channel
4) Press [K/ L]to select the channel you want to skip, then
press [B].
5) Press [K/ L]to select “Skip”, then press [OK].
• “ ” will appear on the left of the channel.
e.g.) Digital
6) Press [MENU] to exit.
• When using [ P/P (prog.)] , the channel will be skipped.
If you want to cancel
4) Press [K/ L]to select the channel set to be skipped, then
press [B].
5) Press [K/ L]to select “Skip”, then press [OK].
• “ ” will disappear.
To lock the channel
4) Press [K/ L]to select the channel you want to lock, then
press [B].
5) Press [K/ L]to select “Lock”, then press [OK].
• Password input field will appear.
6) Press [the Number buttons] to enter the 4-digit number
for your password.
• “ ” will appear on the left of the channel.
e.g.) Analogue
7) Press [MENU] to exit.
• When you select the locked channel, you need to enter the
password to watch.
If you want to unlock
4) Press [K/ L]to select the locked channel, then press [B].
5) Press [K/ L]to select “Unlock”, then press [OK].
• Password input field will appear.
6) Press [the Number buttons] to enter the 4-digit number.
• “ ” will disappear.
7) Press [MENU] to exit.
To delete the channel
4) Press [K/ L]to select the channel you want to delete, then
press [B].
5) Press [K/ L]to select “Delete”, then press [OK].
• Confirmation window will appear.
e.g.) Digital
6) Press [OK] to confirm.
• The selected channel will be deleted from the memorised
channel.
7) Press [MENU] to exit.
To change the channel order manually
4) Press [K/ L]to select the channel you want to move, then
press [B].
5) Press [K/ L]to select “Move Up” or “Move Down”, then
press [OK].
• The channel will move one line up or down.
e.g.) Analogue
6) Press [MENU] to exit.
DTV ATV
18. The Sounds
19. Cinema
20. Drama
21. Today's News
22. The Musical
38. Motors
BACK
Channel List
EXIT
SOUND
CHANNEL
DETAIL
LANGUAGE
Channels List-DTV
Select OK BackDTV/Radio
DTV ATV
P02.TV02
P01.TV01
BACK
P02.TV02
P01.TV01
BACK
P02.TV02
P01.TV01
BACK
EXIT
SOUND
CHANNEL
DETAIL
LANGUAGE
Channel List
BackOKSelect
Channels List-ATV
Note: To watch the channel, press [K/ L]to select the channel
you want to watch, then press [OK] at the step 3.
DTV ATV
18. The Sounds
19. Cinema
20. Drama
21. Today's News
22. The Musical
38. Motors
BACK
Channel List
EXIT
SOUND
CHANNEL
DETAIL
LANGUAGE
BACK
Delete the service?
Confirm Back
Channels List-DTV
Select OK BackDTV/Radio
DTV ATV
P02.TV02
P01.TV01
BACK
P02.TV02
P01.TV01
BACK
EXIT
SOUND
CHANNEL
DETAIL
LANGUAGE
Channel List
BackOKSelect
Channels List-ATV
Delete
Sort:Ch No
Sort:Frequency
Move Up
Move Down
Lock
Skip
Decoder

17 EN
English
To change the channel order automatically
4) Press [B].
5) Press [K/ L]to select “Sort:LCN” , “Sort:Name Down”, or
“Sort:Name Up”, then press [OK].
“Sort:LCN”
Arrange in channel number.
“Sort:Name Down”
Arrange in alphabetical order (A-Z).
“Sort:Name Up”
Arrange in alphabetical order (Z-A).
6) Press [MENU] to exit.
4) Press [B].
5) Press [K/ L]to select “Sort:Ch No” or “Sort:Frequency”,
then press [OK].
“Sort:Ch No”
Arrange in channel number.
“Sort:Frequency”
Arrange in channel frequency.
6) Press [MENU] to exit.
EPG (Electronic Programme Guide)
You can easily find a channel or see the detailed channel
information. EPG (Electronic Programme Guide) gives you
scheduled information of the TV programmes.
Press [GUIDE].
• You can also display EPG as follows.
1) Press [MENU] to display the menu.
2) Press [K/ L]to select “CHANNEL”, then press [OK].
3) Press [K/ L]to select “EPG”, then press [OK].
• EPG will appear.
1Programme information
2Picture window
3Channel list
4Programme list
Press [K/ L/ s/ B]to select a programme.
• Press [RED] or [GREEN] to scroll down or up the channel list.
• Press [YELLOW] or [BLUE] to move the programme list to
the previous or next day.
Press [OK] to watch the selected programme if it is currently
available.
Select the programme, then press [I(information)] to display
more detailed programme information.
Press [GUIDE] or [BACK] to exit.
DTV
18. The Sounds
19. Cinema
20. Drama
21. Today's News
22. The Musical
38. Motors
BACK
Channel List
EXIT
SOUND
CHANNEL
DETAIL
LANGUAGE
Channels List-DTV
Select OK BackDTV/Radio
Skip
Delete
Lock
Move Up
Move Down
Sort:Name Up
Sort:Name Down
Sort:LCN
ATV
P02.TV02
P01.TV01
BACK
P02.TV02
P01.TV01
BACK
EXIT
SOUND
CHANNEL
DETAIL
LANGUAGE
Channel List
BackOKSelect
Channels List-ATV
Delete
Sort:Ch No
Sort:Frequency
Move Up
Move Down
Lock
Skip
Decoder
DTV
Thu 01/12/2005 09:37
Thu 01/12/2005
Special 09:00-09:59
09:30 10:00 10:30
BB Special: Mr.Smith introduces unseen
items from previous programmes in the series and
talks to expect Mrs. Cole about the history of
BB House.
Hit Music
Special
Drama's
Daily News
Triangle
The Sounds
Cinema
Drama
Today's News
The Musical
Pick Up Number
Our Home The Frying Winem
Morning News
Dog&Cats
BACK
EPG
Select
Page+ Page- Prev. Day Next Day
Invoke CH. EPG Detail Back
2
4
1
3
09:00-09:59 Cinema
BB Special: Mr.Smith introduces unseen items from previous programmes
in the series and talks to expect Mrs. Cole about the history of BB House.
BACK
Select EPG Back
EPG Detail

18
EN
OTHER SETTINGS
Picture Adjustment
You can adjust the picture settings according to your personal
preference. These settings are automatically stored after exiting the
picture menu.
1) Press [MENU] to display the menu.
2) Press [K/ L]to select “PICTURE”, then press [OK].
3) Press [K/ L]to select the item you want, then press [OK].
4) Adjust the picture quality.
“Picture Mode”
Press [K/ L]to select the setting (“Standard, Dynamic, Movie,
News”) you want, then press [OK].
“Brightness, Contrast, Color, Tint, Sharpness”
Press [s/ B]to adjust.
“Reset Settings”
Press [K/ L]to select “Reset”, then press [OK] to restore the
picture settings to the default.
“Color Temp.”
Press [K/ L]to select the setting (“Cool, Neutral, Warm”) you
want, then press [OK].
5) Press [MENU] to exit.
Setting [s][B]
OK
30
Brightness
Adjust Move OK
“Brightness” decrease
brightness
increase
brightness
OK
30
Contrast
Adjust Move OK
“Contrast” decrease
contrast
increase
contrast
OK
30
Color
Adjust Move OK
“Color” decrease
colour
increase
colour
OK
0
Tint
Adjust Move OK
“Tint”
add red add green
OK
30
Sharpness
Adjust Move OK
“Sharpness”
make soft make clear
Note: •Press[K/ L]to change the items.
• You can adjust “Tint” only when receiving NTSC
signals from the connected external device.
DTV ATV
EXIT
SOUND
CHANNEL
DETAIL
LANGUAGE
Picture Mode
Brightness
Contrast
Color
Tint
Sharpness
Reset Settings
Color Temp.
Standard
Dynamic
Movie
News
EXIT
SOUND
CHANNEL
DETAIL
LANGUAGE
Reset Settings
This function resets the setting for
Cancel
Reset
current Picture Mode to factory
default.
EXIT
SOUND
CHANNEL
DETAIL
LANGUAGE
Picture Mode
Brightness
Contrast
Color
Tint
Sharpness
Reset Settings
Color Temp.
Cool
Neutral
Warm

19 EN
English
Sound Adjustment
You can adjust the sound settings according to your personal
preferences. These settings are automatically stored after exiting
the sound menu.
1) Press [MENU] to display the menu.
2) Press [K/ L]to select “SOUND”, then press [OK].
3) Press [K/ L]to select the item you want, then press [OK].
4) Adjust the sound quality.
“Treble, Bass”
Press [s/ B]to adjust.
“Reset Settings”
Press [K/ L]to select “Reset”, then press [OK] to restore the
sound settings to the default.
5) Press [MENU] to exit.
Lock Setting
You can lock the channel or set the parental rating to avoid
watching an inappropriate programme.
1) Press [MENU] to display the menu.
2) Press [K/ L]to select “DETAIL”, then press [OK].
3) Press [K/ L]to select “Lock Setting”, then press [OK].
4) Press [the Number buttons] to enter the 4-digit number.
• If you have not set up your password, enter 0000.
5) Press [MENU] to exit.
To set the new password
5) Press [K/ L]to select “Change Password.”.
6) Press [the Number buttons] to enter the new 4-digit
number.
7) Press [the Number buttons] to enter the same 4-digit
number again.
• After entering the password, “Lock Setting” menu will appear.
8) Press [MENU] to exit.
To set the parental rating
5) Press [K/ L]to select “Parental Rating”.
6) Press [K/ L]to select your desired parental rating.
7) Press [MENU] to exit.
Setting [s][B]
OK
0
Treble
Adjust Move OK
“Treble”
decrease increase
OK
0
Bass
Adjust Move OK
“Bass”
Note: Press [K/ L]to change the settings.
EXIT
SOUND
CHANNEL
DETAIL
LANGUAGE
Reset Settings
This function resets the Sound
settings to factory default.
Cancel
Reset
Note: If the locked channel is found during the channel
scanning, you need to enter the password.
BACK
EXIT
SOUND
CHANNEL
DETAIL
LANGUAGE
Lock Setting
Enter password.
PIN Code Back
BACK
EXIT
SOUND
CHANNEL
DETAIL
LANGUAGE
Change Password
Enter password.
PIN Code Back
Confirm password.
4
5
6
7
8
9
EXIT
SOUND
CHANNEL
DETAIL
LANGUAGE
Lock Setting
Parental Rating No Block
Change Password

20
EN
PC Settings
You can adjust the PC screen position, clock and phase. Make sure
your PC is connected.
1) Press [MENU] to display the menu.
2) Press [K/ L]to select “DETAIL”, then press [OK].
3) Press [K/ L]to select “PC Settings”, then press [OK].
4) Press [K/ L]to select the item you want, then press [OK].
5) Adjust the settings.
“Auto Adjustment”
Press [K/ L]to select “Adjust”, then press [OK].
• Each setting will be adjusted automatically.
“Horizontal Position, Vertical Position”
Press [s/ B]to adjust.
“Clock, Phase”
Press [s/ B]to adjust.
6) Press [MENU] to exit.
Time Zone
You can set the time zone according to the resident area.
1) Press [MENU] to display the menu.
2) Press [K/ L]to select “DETAIL”, then press [OK].
3) Press [K/ L]to select “Time Zone”, then press [OK].
4) Press [K/ L]to select the time difference you want, then
press [OK].
5) Press [MENU] to exit.
Transparency
You can set the menu transparent level.
1) Press [MENU] to display the menu.
2) Press [K/ L]to select “DETAIL”, then press [OK].
3) Press [K/ L]to select “Transparency”, then press [OK].
4) Press [K/ L]to select the transparent level you want, then
press [OK].
5) Press [MENU] to exit.
Factory Preset
You can restore all the settings to the default.
1) Press [MENU] to display the menu.
2) Press [K/ L]to select “DETAIL”, then press [OK].
3) Press [K/ L]to select “Factory Preset”, then press [OK].
4) Press [K/ L]to select “Reset”, then press [OK].
• All the settings are restored to the default.
5) Press [MENU] to exit.
Setting [s][B]
OK
0
H. Position
Adjust Move OK
“Horizontal Position” move PC
screen left
move PC
screen right
OK
0
V. Position
Adjust Move OK
“Vertical Position” move PC
screen down
move PC
screen up
Setting [s][B]
OK
0
Clock
Adjust Move OK
“Clock”
decrease
setting value
increase
setting value
OK
42
Phase
Adjust Move OK
“Phase”
Note: Press [K/ L]to change the items.
EXIT
SOUND
CHANNEL
DETAIL
LANGUAGE
Auto Adjustment
This function automatically
adjusts the position, clock and
phase of the picture element.
Cancel
Adjust
0
+1
+2
+3
+4
+5
0
+1
+2
+3
+4
+5
EXIT
SOUND
CHANNEL
DETAIL
LANGUAGE
Detail
Country
Transparency
CI Menu
Time Zone
PC Settings
Lock Setting
Factory Preset
Auto
-1
-2
-3
-4
-5
-6
0
-1
-2
-3
-4
-5
-6
0
SOUND
CHANNEL
DETAIL
LANGUAGE
Detail
Country
Transparency
CI Menu
Time Zone
PC Settings
Lock Setting
Factory Preset
EXIT
