SCHEMATIC DIAGRAMS
DVD RECEIVER WITH MONITOR
No.MA403SCH<Rev.001>
2008/4
KW-AVX810J,KW-AVX810E,KW-AVX810EU
KW-AVX810EE,KW-AVX810U,KW-AVX810UN
KW-AVX810UT,KW-AVX810A,KW-AVX814UI
COPYRIGHT 2008 Victor Company of Japan, Limited.
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
Lead free solder used in the board (material : Sn-Cu, melting point : 230 Centigrade)
KW-AVX810E
KW-AVX810EE
KW-AVX810J
!Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.
Safety precaution
!Please use enough caution not to see the beam directly or touch it in case of an
adjustment or operation check.
2-1
SD_IN(CD )

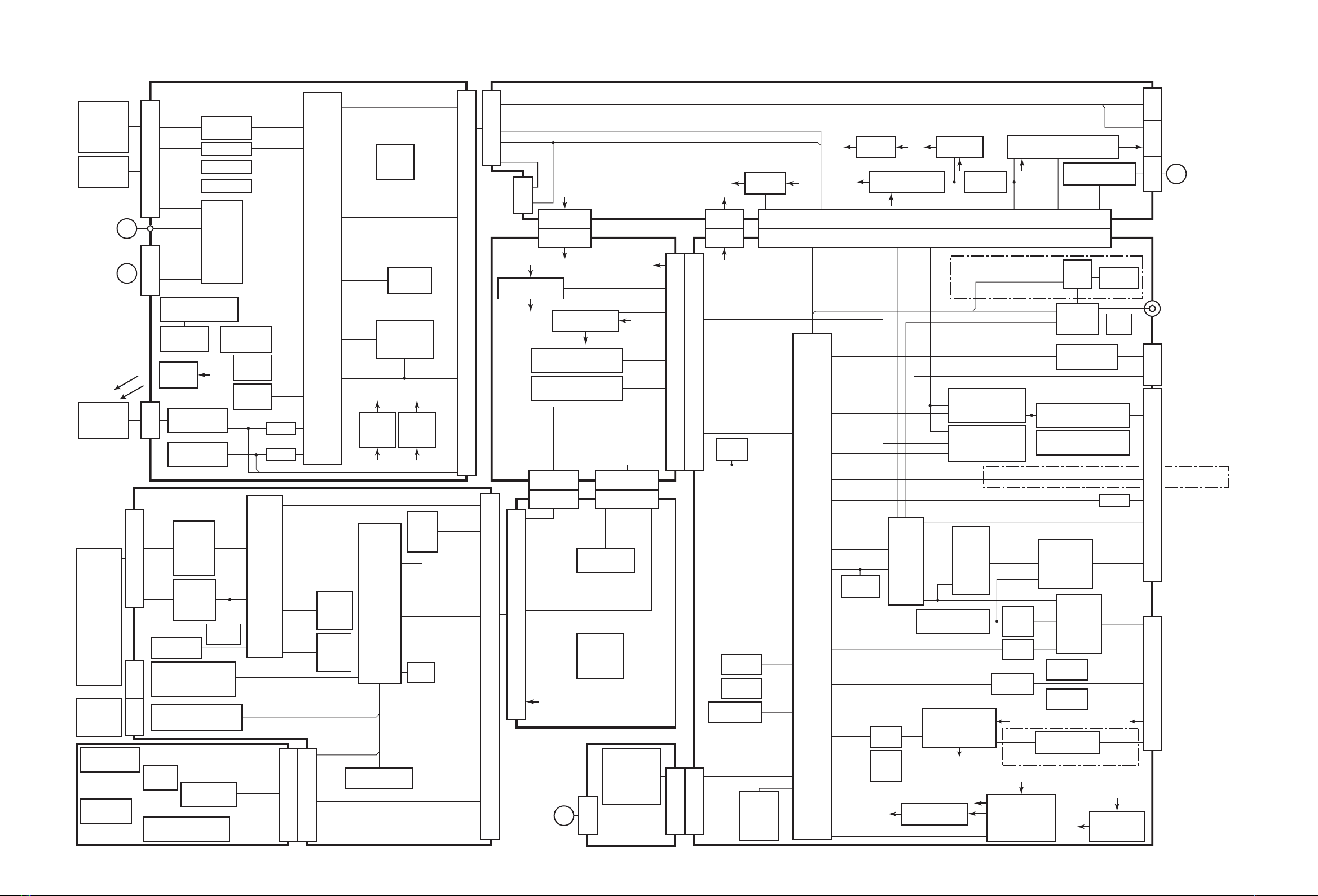

Block diagram
VIDEO
BATT
Q9461
Q9462
PS2
VDD5V, SW5V, ACC5V,A9V, CD8V, ILMI
TPX1, TPX2
TPY1, TPY2
TPKEY1, TPKEY2
TFT_PWR
SW_FREQ_SEL
IC921,IC922
Q9131,Q9132
Q9241 to Q9243
10/18.5V REG.
ILMI
IC912
Q9151,Q9152
D3.3V REG.
SW3.3V
U3.3V
VDD5V
10V,LED18.5V
PANEL18.5V
PANEL-12V
Q9251
PANEL-12V REG.
X1201
4.332MHz
X1101
4MHz
X7301
32.768kHz
X401
10MHz
X5001
16.5MHZ
X5002,IC502
9.6MHZ
X7302
20MHz
CN502CN403
Sub section
Connection
section
Connection
section
Main amplifier
& System control
section
IC111
ATOMIC
IC701
MAIN
CPU
IC301
SEL
&
EQ.
IC331 to
IC333
Q3031
Q3032
BOOST
AMP.
Q3151,Q3251
Q3351,Q3451
Q3551
LINE OUT
MUTING
Q9401 to Q9403
LINE OUT MUTING
Q3071
Q3072
Q3074
IC121
RDS
D9005
AUTO ANTENNA
IC371
POWER
AMP.
TU-L/R
ST_REM
FL
FR
RL
RR
OUTAFL/ FR
OUTARL/RR
OUTSW
OUTSW
BACKLAMP
FRONT L+/-
FRONT R+/-
REAR L+/-
REAR R+/-
VOL_MUTE
STBY
J1001
ANT
SPK
BATTERY
CN901
TUNER_DA, TUNER_CK
RDS_DA, RDS_CK, FM/AM
MPX
AUTO ANT
ACC, REMOTE
CFL14.4V
ANT
ACC
ANTREM
IC951,IC952
JVC BUS
BUS_SI, BUS_SO
BUS_IO, BUS_SCK-
SCK
SI/SO
BUZZER
CN902
IC608
FRONT/REAR
/SUB WOOFER
LINE OUT
PM0, PM1, PM-KICK
MOTOR+/-
IC731
RESET
RESET_SW
IC741
EPROM
VOL_DA
VOL_CK
MUTE
SUBMUTE MUTE
REVERSE
GEAR
OE REMOTE
AMPKILL
P_BRK
TEL
ILL
PARK
ILLUMI
Q9561
Q9562
TELMUTE
IC961
Q9601
PANEL
DRIVER
BZ951,Q9551
BUZZER
Q3073
Q7001
Q9451
TEL MUTE
Q9453
DIMMER Q9454
PARKING
Q9701
IC911
SYSTEM REG
CFL14.4V
CFL14.4V
EACH BLOCK
Used for Area suffix E/EE/EU
Used for Area suffix J/A/U/UI/UN/UT
IC452
Q402
Q403
RESET
SUB_RST
SUB_RESET
DETACH_SW
VIDEO, HMI_RST
SUB_RESET
SUB-REQUEST
CFL-F-CNT
RESET_SW
REMOCON
HMI_PWR
CFL_PWR
SLOT_LED
SD_HLOCK
KEY_DATA
DISP_CE
DISP_CLK
DISP_DATA
DETACH_SW
HMI_RST
SUB_RESET
SUB-REQUEST
CFL-F-CNT
REMOCON
DETACH_SW
CFL_PWR
SUBRST
OPTICAL
DIGITAL OUT
CN503
CN881
CN882
CN803
CN883
CN804
CN802
CN981
CN551
CN501
CN401
IC451
Q401
MICON
IC411
IC412
GANMA
IC501
IC503
Q5001
HMI
LCD
MODULE
TOUCH
PANEL
V0 to 10
Panel
section
Key,Lighting
& Remocon
LCD Display control
& Touch senser
S551 to S559
KEYMATRIX
D553 to D563
LIGHTING DISPLAY
IR0 to 5, IG0 to 5, IB0 to 5
HOUT, VOUT
DEN, CLK, CSY, OE
SDA, SCK
CE
IC551
REMOCON
REMOCON
M-LED M-LED
LED-ON
DIMMER
SUB-REQUEST
LED-ON
DIMMER
POWERLED
LED-B-3
LED-B-4-1 to 2
M-LED, M-SENSE
KEYIN1, KENIN2, KEY1, KEY2, RESETSW
KEY1, KEY2
KEYIN1, KENIN2
IC402
Q4001
to Q4007
VCOM
DRIVER
Q508 to Q511
TOUCH SENSE AMP.
IC513,Q506,Q507
LED DRIVER
VCOM
COM_DC
COMAC
IC461 to IC464
Q4605,Q4607
CFL CTL & DRIVER
D551
M LED POWERLED
RESETSW, POWERLED, REMOCON
D552
POWER LED
BL-ON
CFL-CTL, OZ_PWR
CFL-F-CNT
PNL_SW
CN903
CD CHANGER
CONTROL
FL-CH
FR-CH
CHL/R
VIDEO, KEYDATA, DISPCE, DISPCLK, DISPDATA, HMI-RST
KEY_DATA
DISP_CE
DISP_CLK
DISP_DATA
KEY_DATA
DISP_CE
DISP_CLK
DISP_DATA
LED-B-3
LED-B-4-1 to 2
LED-B-3
LED-B-4-1 to 2
CFL14.4V
CFL14.4V
Q8010,Q8015
CFLPOWER SW
HMI_PWR
PANEL5V
PANEL5V
SLOT_LED
Q8005,Q8017
HMI POWER SW
D0 to 15
A0 to 21
CS, WE
FOE
FRST IC512
FLASH
ROM
Q8801
to Q8805
DIMMER
CONTROL
S8801
DETACH SW
SDDATA0 to 15
SDAD0 to 11
SDBA0/1
SDM0/1
SDCKE
SDWE
SDCS
SDRAS
SDCAS
MEMCLK IC511
SDRAM
LINE-L/R
FRONT L/R
REAR L/R
SUB WOOFER
LINE INPUT
Used for Area suffix J/E/EE/EU
CTRLPWCONT
DVD
FL-CH, FR-CH
XD_UCS, XD_SCS, XD_SCLK, XD_U2SDT, XD_S2UDT, XD_LRMUTE, XD_CPURST, MSW1, MSW4
XD_UCS, XD_SCS
XD_U2SDT, XD_S2UDT
XD_SCLK, XD_LRMUTE
XD_CPURST, MSW1
MSW4, HMI_PWR
DVD_SW, SW_FREQ
USB_PWR, FANCONT
CN605
CN982
CN606
CN801
CN607
WR981
CN961
VIDEO
HMI_RST
SUB_RESET
SUB-REQUEST
CFL-F-CNT
RESET_SW
REMOCON
CN851
Door Motor
& Panel sw
S8501,S8502
IC851,Q8501
PANEL SW
/PHOTO
SENSOR
CN852
DOOR
MOTOR M
X354,IC308
48MHz
USBCLK
D1.2V
D2V
MA0 to 11
MDQ0 to 15
DQM0/1
BA0/1
MCK, NWE
NCSM
NCAS, NRAS IC399
SDRAM
UCS, SCS, SCLK
U2SDT, S2UDT, LRMUTE
WP, CD, CLK, CMD
DATA0 to 3
A, B, C, D, E, F, RF+/-, LPC1, LPC2
CD/DVD
CD VR
DVD VR Q105
to Q107
HFVC
HFM VCC Q8,Q9
Q103,Q104
Q101,Q102
D9,D11
SENSOR
EXADT0 to 15
EXADR16 to 20
NEXOE
NEXCE
NEXWE IC398
IC501,IC502
FLASH ROM
IC302
1.2V
REG.
D3.3V
P3.3V
S3.3V
D4V
IC3
3.3V
REG.
EPWP
I2CSCL
I2CSDT
IC400
DAC
PCMCLK, BCK
LRCLK, DACPDN
AOUT3, DAC0CS
DCLK
DDATA
IC1
Q2
DRIVER
IC307
IPOD DECODER
F+/-
T+/-
M
M
LOAD
MOTOR
LDO+/-
REST
H1+/-
H2+/-
H3+/-
SLED1+/-
SLED2+/-
SM1 to SM3
TRVSW
LM, FG, DRVCNT
/DRVMUTE
TRDRV, FODRV
SPDRV, PRTOUT
SL1IN, SL2IN
SPINDLE
MOTOR
REST SW
CN1
FL-CH
FR-CH
D6,D7
IR LED
Q4,Q7
PHOTO SW
S1
DETECT SW
M5V
ACC5V
CN101
DVD section
PICK UP
IC301
IC7
DV5
FOCUS
&
TRACKING
COIL
LPCO1
DVDLDCUR
DVD LD
LPCO2
CDLDCUR
CD LD
SW3
SW1
SW1, SW4
IC481
EPROM
X351
27MHz
Q301
Q302
SW4
CPURST
CN401
CN602
CN2
/FL_RST
USB_D+/-
TX
TX, USB_D+/- TX, USB_D+/-
DAC4 (DVD)
X353
32.768kHz
CP_RDY, RST_I
I2CSDT_I,
I2CSCL_I
IC251
LINE VIDEO
SELECT
IC261
MONITOR VIDEO
SELECT
IC201
VIDEO IN AMP.
IC211
BACK CAMERA AMP.
VIDEO IN
BACK
CAMERA
VIDEO OUT
VIDEO
DVD
VIDEOMSW1
VIDEOMSW2
VOUTSW1
VOUTSW2
WP, CLK, CMD
DATA0 to 3
CN604CN601
Q6201 to Q6203
FAN CONTROL
FANCONTHMI_PWR
M681
FAN
MOTOR
M
Q6107
A5V REG.
A5V A9V
IC607
3.3V REG.
A_3.3V
D_3.3V
PANEL5V
D5V,M5V,S5V
PANEL5V
DVD_SW
IC603
M8V REG.
IC606
FREQ SW
M8V
CFL14.4V
IC605,Q6105,Q6106
5V REG.
CFL14.4V
U3.3V, ACC5V
CFL14.4V
PANEL18.5V
LED18.5V
PANEL-12V
A3.3V,D3.3V,U3.3V
ACC5V,PANEL5V
CFL14.4V
PANEL18.5V,LED18.5V
PANEL-12V
A_3.3V, D_3.3V
PANEL5V USB_PWRSW_FREQ
IC601,IC602
USB POWER REG.
VBUS
USB OUT
D8003,D8004,Q8012
SLOT LED
SD_HLOCK
D8007,Q8001,Q8002
SD DET
SD
SLOT
CN603
CFL14.4V
2-2

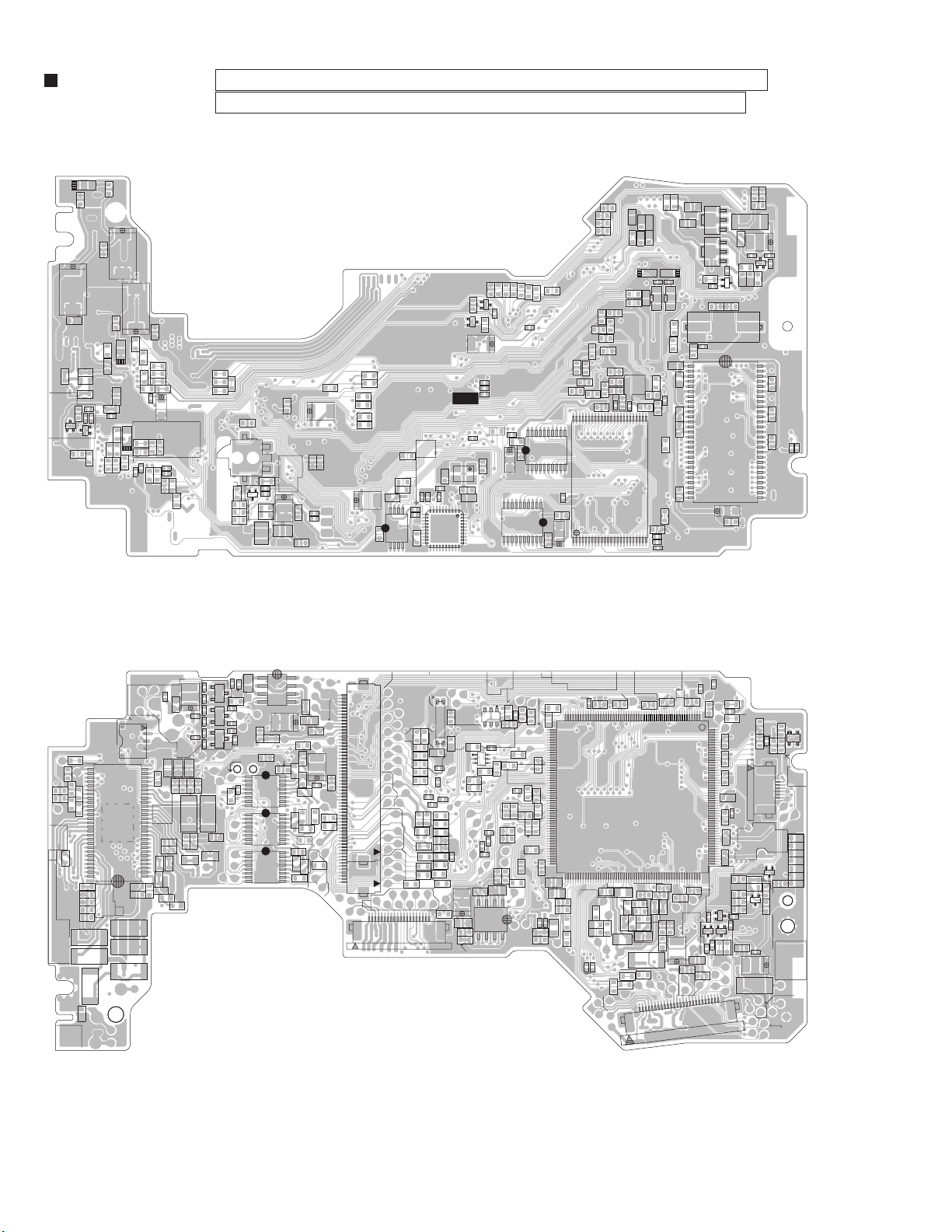

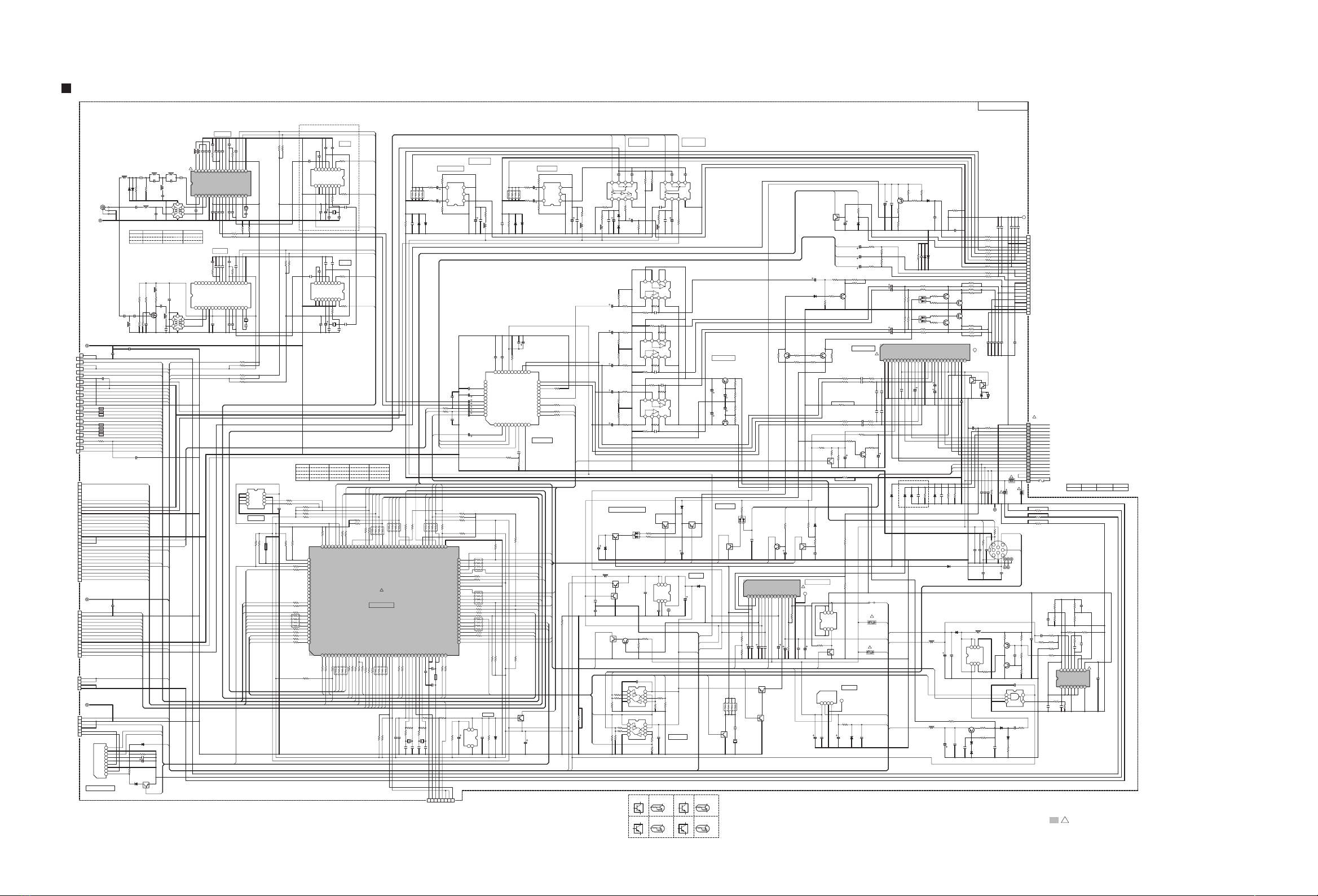

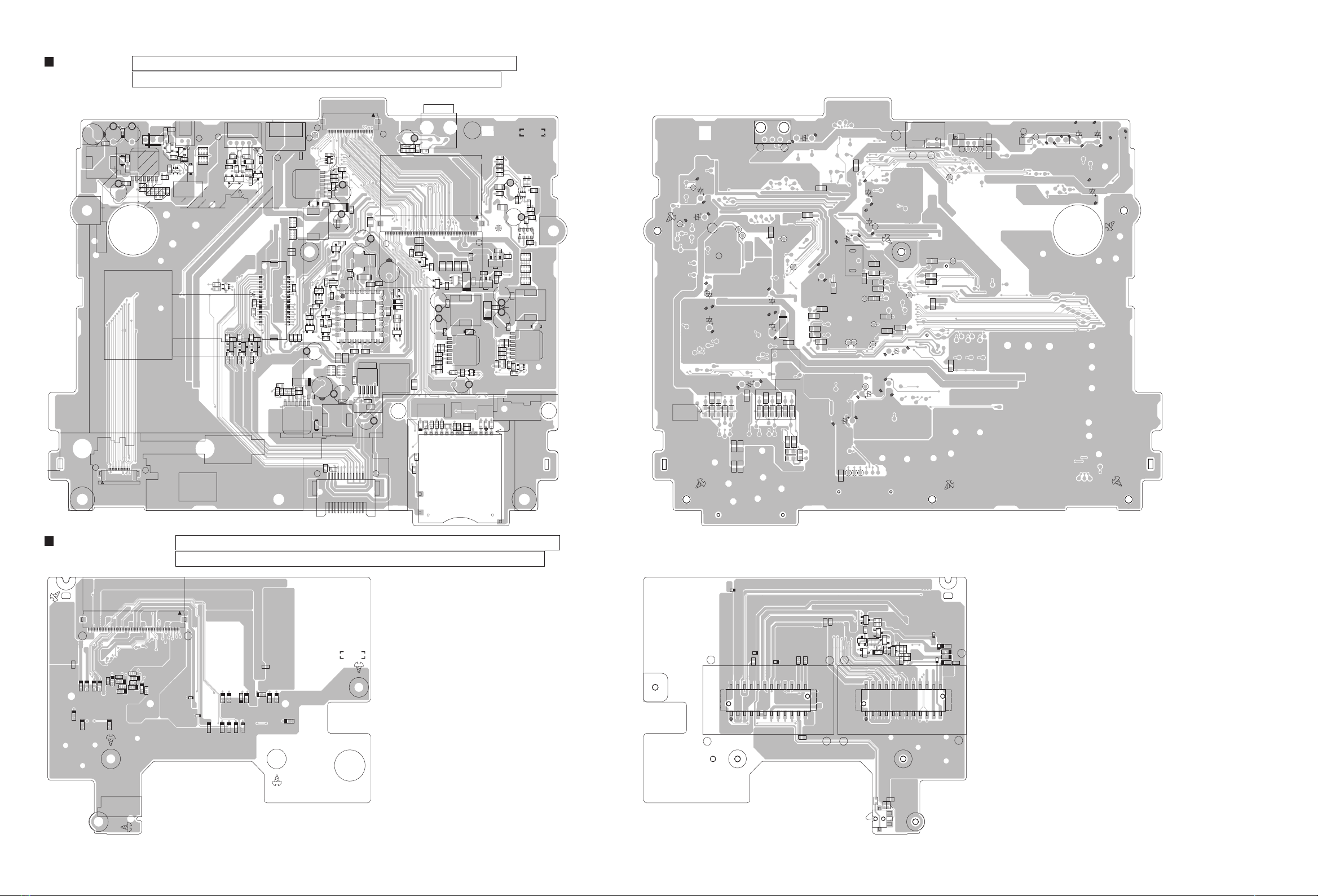

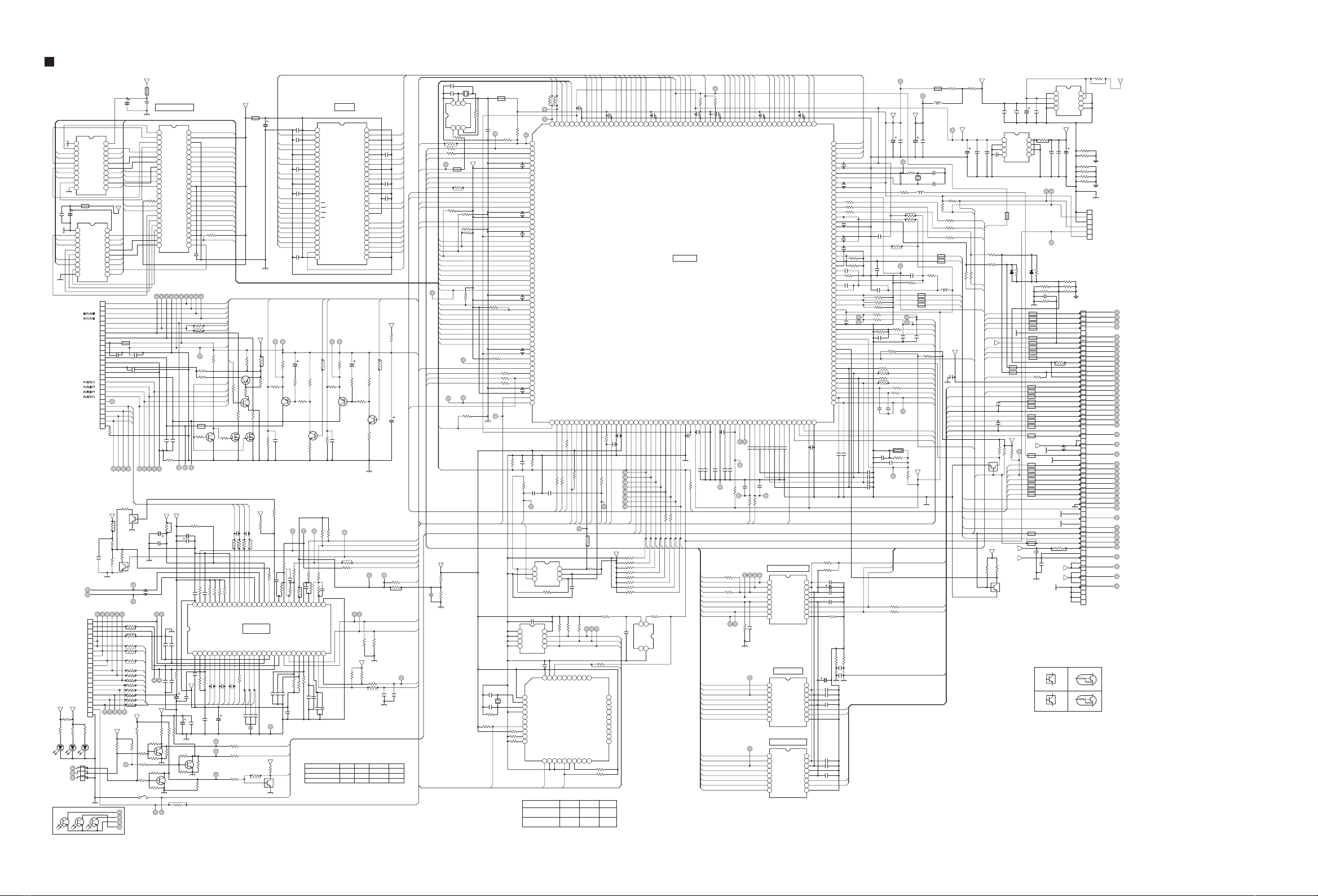

Standard schematic diagrams
