JVC FS-XA3UF User manual

SERVICE MANUAL
COPYRIGHT © 2006 Victor Company of Japan, Limited No.MB546
2006/7
COMPACT COMPONENT SYSTEM
MB54620067
FS-XA3UF,FS-XA1B,FS-XA1E,
FS-XA1EN,FS-XA1EV
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
TABLE OF CONTENTS
1 PRECAUTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
2 SPECIFIC SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
3 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
4 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-24
5 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-27
CA-FSXA3 SP-FSXA3SP-FSXA3
CA-FSXA1 SP-FSXA1SP-FSXA1

1-2 (No.MB546)
SPECIFICATION
•Manufactured under license from Dolby Laboratories. "Dolby", "Pro Logic", "MLP lossless", and the double-D symbol are trademarks of Dolby
Laboratories.
• "DTS" and "DTS 2.0+ Digital Out" are trademarks of Digital Theater Systems, Inc.
• Official DivX® Certified product" "Plays all versions of DivX® video (including DivX® 6) with standard playback of DivX® media files" "DivX, DivX
certified, and associated logos are trademarks of DivX, Inc. and are used under licence.
• USE OF THIS PRODUCT IN ANY MANNER THAT COMPLIES WITH THE MPEG-4 VISUAL STANDARD IS PROHIBITED, EXCEPT FOR USE
BY A CONSUMER ENGAGING IN PERSONAL AND NON-COMMERCIAL ACTIVITIES.
• This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copy-
right protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise
authorized by Macrovision. Reverse engineering or disassembly is prohibited.
•Designs and Specifications are subject to change without notice.
General Power source AC 230 V , 50 Hz
AC 220 V , 50 Hz (for FS-XA3UF)
Power consumption 25 W (in operation)/
4.0 W(on standby/display on)
1.0 W (on standby/display off)
Weight 2.6 kg
External dimensions (W ×H ×D) 150 mm ×152.6 mm ×252.9 mm
DVD player Playable discs DVD VIDEO, DVD AUDIO, VCD, SVCD, CD
CD-R/RW (VCD/SVCD/CD/MP3/WMA/JPEG/MPEG1/MPEG2 format)
DVD-R/-RW (MP3/WMA/JPEG/DVD VIDEO/DVD VR [CPRM]/MPEG1/
MPEG2 format)
DVD-ROM (MP3/WMA/JPEG/MPEG1/ MPEG2/DVD VR [CPRM] format)
Video output Color system PAL
PAL/NTSC selectable (for FS-XA3UF)
Horizontal resolution 500 lines
Composite ×1 1.0 V (p-p)/75 Ω,synchronization negative
S-video ×1 Y output: 1.0 V (p-p)/75 Ω,synchronization negative
at PAL 0.3 V (p-p)/75 Ω
at NTSC 0.286 V (p-p)/75 Ω
Component ×1 Y output: 1.0 V (p-p)/75 Ω
PB/PR output: 0.7 V (p-p)/75 Ω
Audio output Analog sound output Speakers ×2
Output power 20 W per channel min., RMS, at 4 Ωat 1 kHz with no more than 10% total har-
monic distortion
Fitting impedance 4 Ωto 16 Ω
Headphones ×1 11 mW/32 Ω
Fitting impedance 16 Ωto 1 kΩ
Subwoofer ×1 500 mVrms/10 kΩ
Digital sound output (FS-XA3UF) Optical ×1 -21 dBm to -15 dBm
Audio input Sound input AUX 1 400 mV/50 kΩ
200 mV/50 kΩ
AUX 2 1.5 V/50 kΩ
750 mV/50 kΩ
Tuner FM tuner Receiving frequency 87.5 MHz to 108.0 MHz
Antenna 75 ΩUnbalanced type
AM (MW) tuner Receiving frequency 522 kHz to 1 629 kHz
531 kHz to 1 710 kHz (9 kHz step) (FS-XA3UF)
530 kHz to 1 710 kHz (10 kHz step) (FS-XA3UF)
Antenna External antenna jack (loop antenna)
Speaker Type Full range
1-way bass-reflex type
Magnetically shielded type
Speaker 8cm wood cone ×1
Frequency response 55 Hz to 20 000 Hz
Power handling capacity 20 W
Impedance 4Ω
Sound pressure level 82 dB/W m
Dimension (W ×H ×D) 120 mm ×150.5 mm ×243 mm
Weight 1.7 kg each

(No.MB546)1-3
SECTION 1
PRECAUTION
1.1 Safety Precautions
(1) This design of this product contains special hardware and
many circuits and components specially for safety purpos-
es. For continued protection, no changes should be made
to the original design unless authorized in writing by the
manufacturer. Replacement parts must be identical to
those used in the original circuits. Services should be per-
formed by qualified personnel only.
(2) Alterations of the design or circuitry of the product should
not be made. Any design alterations of the product should
not be made. Any design alterations or additions will void
the manufacturers warranty and will further relieve the
manufacture of responsibility for personal injury or property
damage resulting therefrom.
(3) Many electrical and mechanical parts in the products have
special safety-related characteristics. These characteris-
tics are often not evident from visual inspection nor can the
protection afforded by them necessarily be obtained by us-
ing replacement components rated for higher voltage, watt-
age, etc. Replacement parts which have these special
safety characteristics are identified in the Parts List of Ser-
vice Manual. Electrical components having such features
are identified by shading on the schematics and by ( ) on
the Parts List in the Service Manual. The use of a substitute
replacement which does not have the same safety charac-
teristics as the recommended replacement parts shown in
the Parts List of Service Manual may create shock, fire, or
other hazards.
(4) The leads in the products are routed and dressed with ties,
clamps, tubings, barriers and the like to be separated from
live parts, high temperature parts, moving parts and/or
sharp edges for the prevention of electric shock and fire
hazard. When service is required, the original lead routing
and dress should be observed, and it should be confirmed
that they have been returned to normal, after reassem-
bling.
(5) Leakage shock hazard testing
After reassembling the product, always perform an isola-
tion check on the exposed metal parts of the product (an-
tenna terminals, knobs, metal cabinet, screw heads,
headphone jack, control shafts, etc.) to be sure the product
is safe to operate without danger of electrical shock.Do not
use a line isolation transformer during this check.
• Plug the AC line cord directly into the AC outlet. Using a
"Leakage Current Tester", measure the leakage current
from each exposed metal parts of the cabinet, particular-
ly any exposed metal part having a return path to the
chassis, to a known good earth ground. Any leakage cur-
rent must not exceed 0.5mA AC (r.m.s.).
• Alternate check method
Plug the AC line cord directly into the AC outlet. Use an
AC voltmeter having, 1,000Ωper volt or more sensitivity
in the following manner. Connect a 1,500Ω10W resistor
paralleled by a 0.15µF AC-type capacitor between an ex-
posed metal part and a known good earth ground.
Measure the AC voltage across the resistor with the AC
voltmeter.
Move the resistor connection to each exposed metal
part, particularly any exposed metal part having a return
path to the chassis, and measure the AC voltage across
the resistor. Now, reverse the plug in the AC outlet and
repeat each measurement. Voltage measured any must
not exceed 0.75 V AC (r.m.s.). This corresponds to 0.5
mA AC (r.m.s.).
1.2 Warning
(1) This equipment has been designed and manufactured to
meet international safety standards.
(2) It is the legal responsibility of the repairer to ensure that
these safety standards are maintained.
(3) Repairs must be made in accordance with the relevant
safety standards.
(4) It is essential that safety critical components are replaced
by approved parts.
(5) If mains voltage selector is provided, check setting for local
voltage.
1.3 Caution
Burrs formed during molding may be left over on some parts
of the chassis.
Therefore, pay attention to such burrs in the case of pre-
forming repair of this system.
1.4 Critical parts for safety
In regard with component parts appearing on the silk-screen
printed side (parts side) of the PWB diagrams, the parts that are
printed over with black such as the resistor ( ), diode ( )
and ICP ( ) or identified by the " " mark nearby are critical
for safety. When replacing them, be sure to use the parts of the
same type and rating as specified by the manufacturer.
(This regulation dose not Except the J and C version)
Good earth ground
Place this
probe on
each exposed
metal part.
AC VOLTMETER
(Having 1000
ohms/volts,
or more sensitivity)
1500 10W
0.15 F AC TYPE

1-4 (No.MB546)
1.5 Safety Precautions (U.K only)
(1) This design of this product contains special hardware and many circuits and components specially for safety purposes. For con-
tinued protection, no changes should be made to the original design unless authorized in writing by the manufacturer. Replace-
ment parts must be identical to those used in the original circuits.
(2) Any unauthorised design alterations or additions will void the manufacturer's guarantee; furthermore the manufacturer cannot
accept responsibility for personal injury or property damage resulting therefrom.
(3) Essential safety critical components are identified by ( ) on the Parts List and by shading on the schematics, and must never
be replaced by parts other than those listed in the manual. Please note however that many electrical and mechanical parts in
the product have special safety related characteristics. These characteristics are often not evident from visual inspection. Parts
other than specified by the manufacturer may not have the same safety characteristics as the recommended replacement parts
shown in the Parts List of the Service Manual and may create shock, fire, or other hazards.
(4) The leads in the products are routed and dressed with ties, clamps, tubings, barriers and the like to be separated from live parts,
high temperature parts, moving parts and/or sharp edges for the prevention of electric shock and fire hazard. When service is
required, the original lead routing and dress should be observed, and it should be confirmed that they have been returned to
normal, after re-assembling.
1.5.1 Warning
(1) Service should be performed by qualified personnel only.
(2) This equipment has been designed and manufactured to meet international safety standards.
(3) It is the legal responsibility of the repairer to ensure that these safety standards are maintained.
(4) Repairs must be made in accordance with the relevant safety standards.
(5) It is essential that safety critical components are replaced by approved parts.
(6) If mains voltage selector is provided, check setting for local voltage.
Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.

(No.MB546)1-5
1.6 Preventing static electricity
Electrostatic discharge (ESD), which occurs when static electricity stored in the body, fabric, etc. is discharged, can destroy the laser
diode in the traverse unit (optical pickup). Take care to prevent this when performing repairs.
1.6.1 Grounding to prevent damage by static electricity
Static electricity in the work area can destroy the optical pickup (laser diode) in devices such as laser products.
Be careful to use proper grounding in the area where repairs are being performed.
(1) Ground the workbench
Ground the workbench by laying conductive material (such as a conductive sheet) or an iron plate over it before placing the
traverse unit (optical pickup) on it.
(2) Ground yourself
Use an anti-static wrist strap to release any static electricity built up in your body.
(3) Handling the optical pickup
• In order to maintain quality during transport and before installation, both sides of the laser diode on the replacement optical
pickup are shorted. After replacement, return the shorted parts to their original condition.
(Refer to the text.)
• Do not use a tester to check the condition of the laser diode in the optical pickup. The tester's internal power source can easily
destroy the laser diode.
1.7 Handling the traverse unit (optical pickup)
(1) Do not subject the traverse unit (optical pickup) to strong shocks, as it is a sensitive, complex unit.
(2) Cut off the shorted part of the flexible cable using nippers, etc. after replacing the optical pickup. For specific details, refer to the
replacement procedure in the text. Remove the anti-static pin when replacing the traverse unit. Be careful not to take too long a
time when attaching it to the connector.
(3) Handle the flexible cable carefully as it may break when subjected to strong force.
(4) I t is not possible to adjust the semi-fixed resistor that adjusts the laser power. Do not turn it.
1.8 Attention when traverse unit is decomposed
*Please refer to "Disassembly method" in the text for the pickup unit.
• Apply solder to the short land sections before the card wire is disconnected from the connecto on the servo board. (If the card wire
is disconnected without applying solder, the pickup may be destroyed by static electricity.)
• In the assembly, be sure to remove solder from the short land sections after connecting the card wire.
1M
Conductive material
(conductive sheet) or iron palate
(caption)
Anti-static wrist strap
Short land section
Card wire
Traverse mechanism assembly
pickup

1-6 (No.MB546)
1.9 Important for laser products

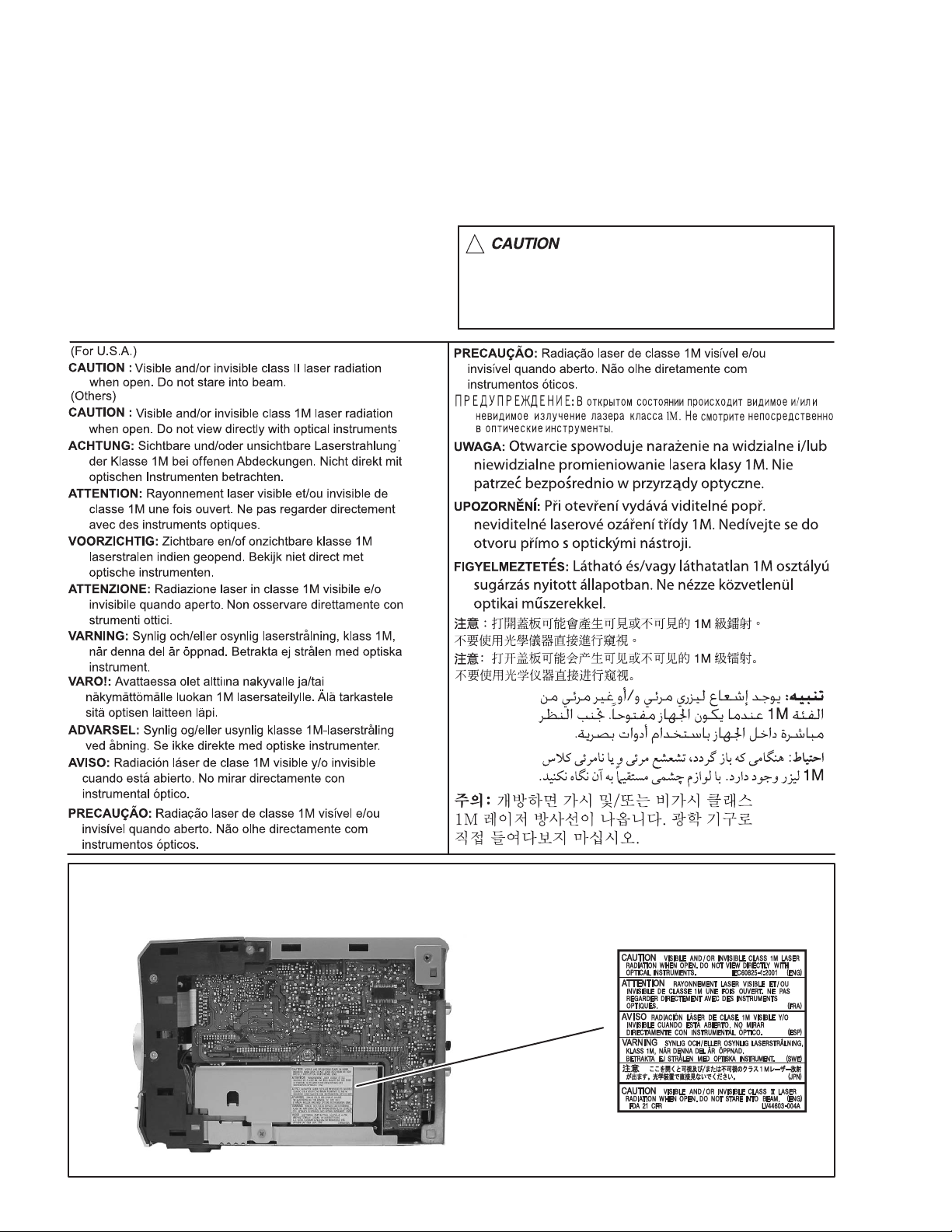

1.CLASS 1 LASER PRODUCT
2.CAUTION :
(For U.S.A.) Visible and/or invisible class II laser radiation
when open. Do not stare into beam.
(Others) Visible and/or invisible class 1M laser radiation
when open. Do not view directly with optical instruments.
3.CAUTION : Visible and/or invisible laser radiation when
open and inter lock failed or defeated. Avoid direct
exposure to beam.
4.CAUTION : This laser product uses visible and/or invisible
laser radiation and is equipped with safety switches which
prevent emission of radiation when the drawer is open and
the safety interlocks have failed or are defeated. It is
dangerous to defeat the safety switches.
5.CAUTION : If safety switches malfunction, the laser is able
to function.
6.CAUTION : Use of controls, adjustments or performance of
procedures other than those specified here in may result in
hazardous radiation exposure.
REPRODUCTION AND POSITION OF LABELS and PRINT
!Please use enough caution not to
see the beam directly or touch it
in case of an adjustment or operation
check.
WARNING LABEL and PRINT

(No.MB546)1-7
SECTION 2
SPECIFIC SERVICE INSTRUCTIONS
This service manual does not describe SPECIFIC SERVICE INSTRUCTIONS.

1-8 (No.MB546)
SECTION 3
DISASSEMBLY
3.1 Main body section
3.1.1 Removing the side panel L and side panel R
(See Figs.1 to 4)
(1) From the back side of the main body, remove the four
screws Aattaching the side panels L/R. (See Fig.1.)
(2) From the bottom side of the main body, remove the four
screws Battaching the side panels L/R. (See Fig.2.)
(3) From the both sides of the main body, release the joint ain
the direction of the arrow and remove the side panels L/R
toward this side. (See Figs.3 and 4.)
Fig.1
Fig.2
Fig.3
Fig.4
A
A
Side panel R Side panel L
B
B
Side panel R
Side panel L
a
a
Side panel R
a
a
Side panel L

(No.MB546)1-9
3.1.2 Removing the top panel assembly
(See Figs.5 and 6)
• Remove the side panels L/R.
(1) From the both sides of the main body, remove the two
screws C. (See Figs.5 and 6)
(2) From the back side of the main body, remove the screw D
attaching the top panel assembly. (See Fig.6.)
(3) From the both sides of the main body, release the joints b
and c. (See Figs.5 and 6.)
(4) Take out the top panel assembly in the direction of the ar-
row. (See Fig.6.)
Fig.5
Fig.6
b
c
Top panel assembly
C
C
Db
c
Top panel assembly

1-10 (No.MB546)
3.1.3 Removing the front panel assembly
(See Figs.7 and 8)
• Remove the side panels L/R and top panel assembly.
(1) From the bottom side of the main body, remove the two
screws Eattaching the front panel assembly. (See Fig.7.)
(2) From the forward side of the micom board, disconnect the
card wire from the connector CN426. (See Fig.8.)
(3) From the bottom and both sides of the main body, release
the joints (d, e) of the front panel assembly and remove the
front panel assembly in the direction of the arrow. (See
Figs.7 and 8.)
Fig.7
Fig.8
3.1.4 Removing the tuner
(See Fig.9)
• Remove the side panels L/R and top panel assembly.
(1) From the back side of the main body, remove the two
screws Fattaching the tuner to the rear panel.
(2) Disconnect the card wire from the connector CN1 on the
tuner.
Fig.9
E
d
Front panel assembly
e
Micom board
CN426
F
Tuner Rear panelCN1

(No.MB546)1-11
3.1.5 Removing the rear panel
(See Fig.10)
• Remove the side panels L/R and top panel assembly.
(1) From the back side of the main body, remove the ten
screws Gand screw Hattaching the rear panel.
(2) From the top side of the main body, disconnect the earth
wire from the rear panel.
(3) From the both sides of the main body, release the joints f
and remove the rear panel.
3.1.6 Removing the switching power supply
(See Figs.10 and 11)
• Remove the side panels L/R and top panel assembly.
(1) From the back side of the main body, remove the screw H
attaching the rear panel. (See Fig.10.)
(2) From the top side of the main body, disconnect the wire
from the connector CN200 on the regulator board. (See
Fig.11.)
(3) From the left side of the main body, remove the screw Jat-
taching the main body. (See Fig.11.)
(4) Take out the switching power supply. (See Fig.11.)
3.1.7 Removing the digital amplifier board assembly
(See Figs.11 and 12)
• Remove the side panels L/R, top panel assembly, rear panel

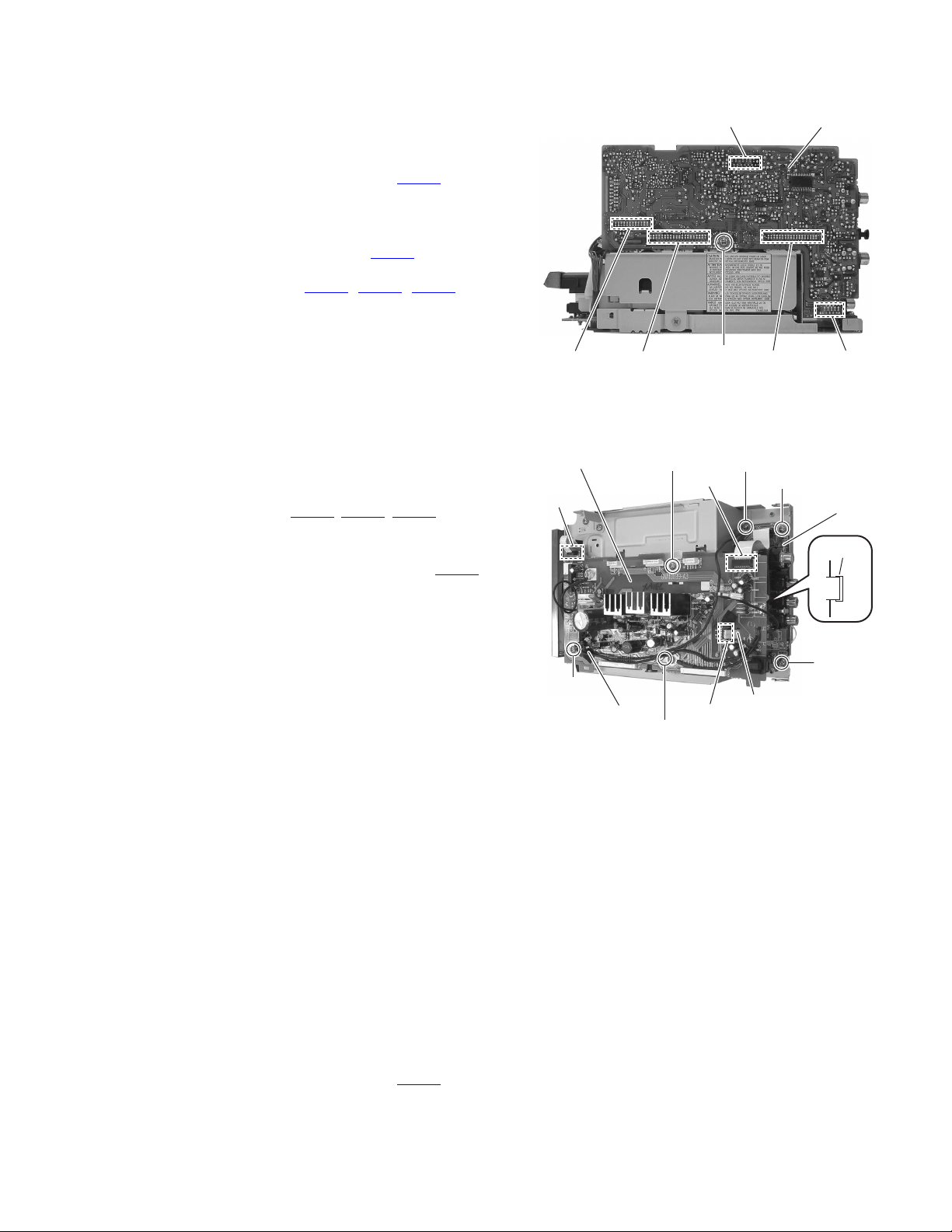

and switching power supply.
(1) From the top side of the main body, remove the screw Kat-
taching the digital amplifier board assembly. (See Fig.11.)
Reference:
When attaching the screw K, attach the earth wire with it.
(2) From the left side of the main body, disconnect the connec-
tors (CN310, CN311, CN312) on the digital amplifier board
assembly from the regulator board. (See Fig.12.)
(3) Release the joint gof the shield case B in the direction of
the arrow and take out the digital amplifier board assembly
from the regulator board. (See Fig.12.)
Fig.10
Fig.11
Fig.12
G
G
GG
H
ff
Rear panel
Earth wire
J
K
CN200
Regulator board
Switching power supply
Digital amplifier board assembly
CN312 CN311 CN310
Regulator board
g
Digital amplifier board assembly

1-12 (No.MB546)
3.1.8 Removing the digital amplifier board
(See Figs.13 to 18)
• Remove the side panels L/R, top panel assembly, rear panel,
switching power supply and digital amplifier board assembly.
(1) From the forward side of the digital amplifier board assem-
bly, remove the screw M. (See Fig.13.)
(2) From the top and bottom sides of the digital amplifier board
assembly, remove the three screws N. (See Figs.14 and
15.)
(3) Release the joints (h, j, k, m) and remove the shield case
B with the heat sink in the direction of the arrow. (See
Figs.14 to 17.)
(4) From the forward side of the digital amplifier board, remove
the screw Nattaching the heat sink. (See Fig.18.)
(5) Remove the solders from the soldered sections (n, p) and
bend the sections (q, r) of the shield case A in the direction
of the arrow. (See Fig.18.)
(6) Take out the digital amplifier board from the shield case A.
Fig.13
Fig.14
Fig.15
Fig.16
Fig.17
Fig.18
M
Digital amplifier board
N
h
Shield case B
Digital amplifier board
Heat sink
j
N
Shield case B Digital amplifier board
N
k
Shield case B
m
Shield case B
n
q
rp
N
Digital amplifier board
Shield case A
Heat sink

(No.MB546)1-13
3.1.9 Removing the micom board
(See Fig.19)
• Remove the side panels L/R, top panel assembly, rear panel
and front panel assembly.
(1) From the right side of the main body, remove the screw P
attaching the micom board.
(2) Disconnect the card wire from the connector CN421 on the
forward side of the micom board.
Reference:
Remove the tuner as required. (See Fig.9)
(3) Disconnect the wire from the connector CN501 on the for-
ward side of the micom board.
(4) Disconnect the connectors (CN423, CN424, CN425) on
the micom board from the regulator and video boards to-
ward this side to remove the micom board.
Fig.19
3.1.10 Removing the regulator board
(See Fig.20)
• Remove the side panels L/R, top panel assembly, tuner, rear
panel, switching power supply, digital amplifier board assem-
bly and micom board.
(1) From the top side of the main body, disconnect the card
wires from the connectors (CN208, CN210, CN212) on the
regulator board.
Reference:
When connecting the card wire to the connector CN208,
pass it through the hole sof the regulator board as be-
fore.
(2) Remove the screws Qand Q'.
Reference:
When attaching the screw Q', attach the earth wire with
it.
(3) Remove the screws Q".
Reference:
When attaching the screw Q", attach the earth wire and
the wire holder with it.
(4) Remove the screw Rand screw S' attaching the earth wire.
Reference:
When attaching the screw Rand S', attach the earth wire
with it.
3.1.11 Removing the video board
(See Fig.20)
• Remove the side panels L/R, top panel assembly, tuner, rear
panel, switching power supply, digital amplifier board assem-
bly and micom board.
Reference:
Remove the regulator board as required.
(1) From the top side of the main body, remove the two screws
S.
Reference:
When attaching the screw S, attach the earth wire with it.
(2) Take out the video board from the main body.
(3) Disconnect the card wire from the connector CN703 on the
video board.
Fig.20
P
CN424 CN423 CN425
CN421
CN501
Micom board
CN703
Q
Q'
Q''
R
s
Regulator board
CN210
CN208
Wire holder
Video board
CN212 S'
S

1-14 (No.MB546)
3.1.12 Removing the DVD mechanism assembly
(See Figs.21 to 23)
• Remove the side panels L/R, top panel assembly, front panel
assembly, tuner, rear panel, switching power supply, digital
amplifier board assembly, micom board and regulator board.
(1) From the right side of the main body, remove the screw T
attaching the metal chassis. (See Fig.21.)
(2) From the top side of the main body, remove the screw U
and take out the metal chassis. (See Fig.22.)
Reference:
When attaching the metal chassis, pass the card wire
through the hole ton the metal chassis as before.
(3) Disconnect the card wire from the connector CN703 on the
video board. (See Fig.23.)
(4) Remove the three screws Vand take out the DVD mecha-
nism assembly from the bottom chassis. (See Fig.23.)
Fig.21
Fig.22
Fig.23
T
Metal chassis
U
tMetal chassis
Video board
CN703
V
V
DVD mechanism assembly

(No.MB546)1-15
3.1.13 Removing the switch board and front FL board
(See Figs.24 to 26)
• Remove the side panels L/R, top panel and front panel assem-
bly.

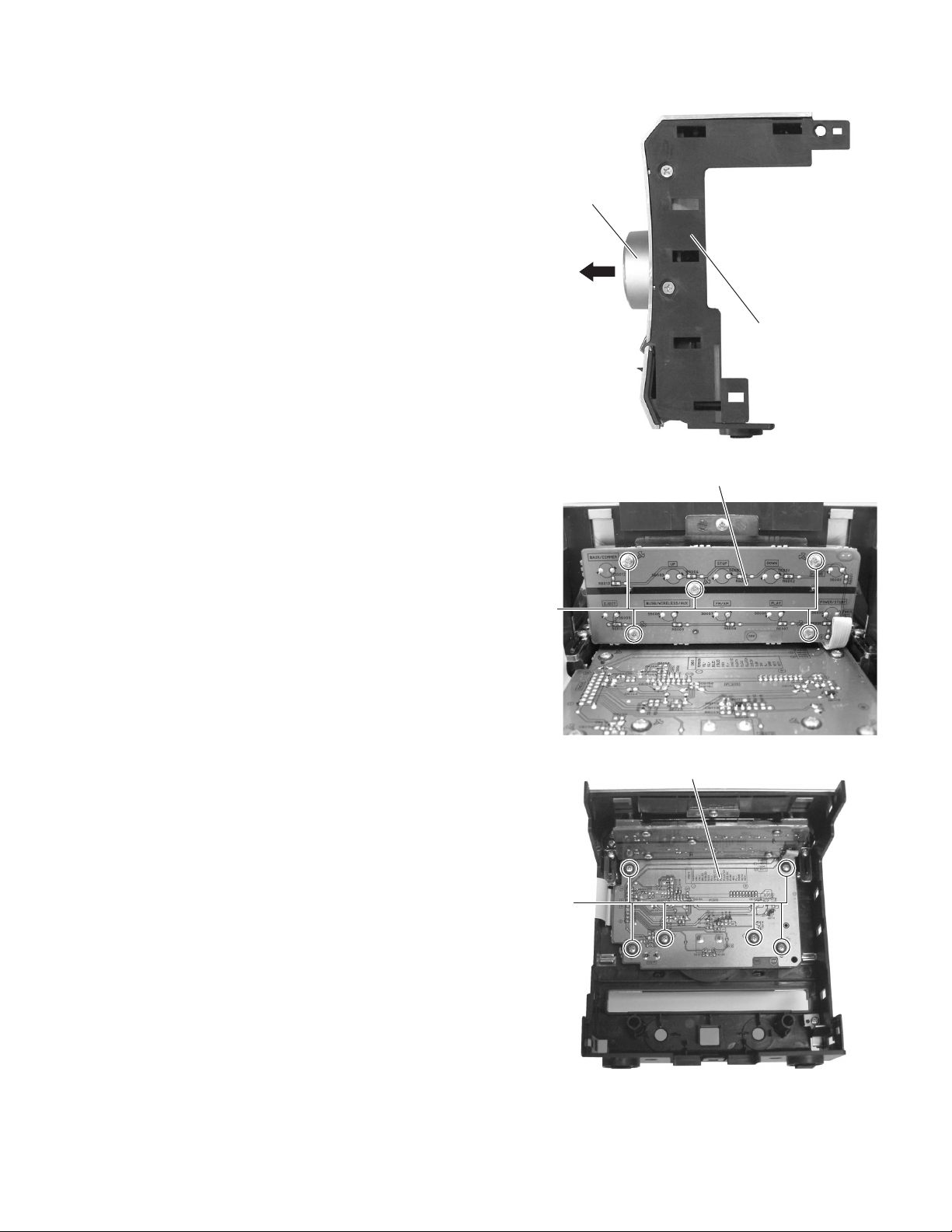

(1) From the front side of the main body, pull out the volume
knob assembly in the direction of the arrow. (See Fig.24.)
(2) From the inside of the front panel assembly, remove the
five screws Wattaching the switch board. (See Fig.25.)
(3) Remove the six screws Xattaching the front FL board.
(See Fig.26.)
(4) Take out the switch board and the front FL board.
Fig.24
Fig.25
Fig.26
Front panel
assembly
Volume knob
assembly
W
Switch board
X
Front FL board

1-16 (No.MB546)
3.1.14 Removing the headphone board
(See Fig.27)
• Remove the side panels L/R, top panel assembly, front panel
assembly, tuner, rear panel, switching power supply, digital
amplifier board assembly, micom board, regulator board and
DVD mechanism assembly.

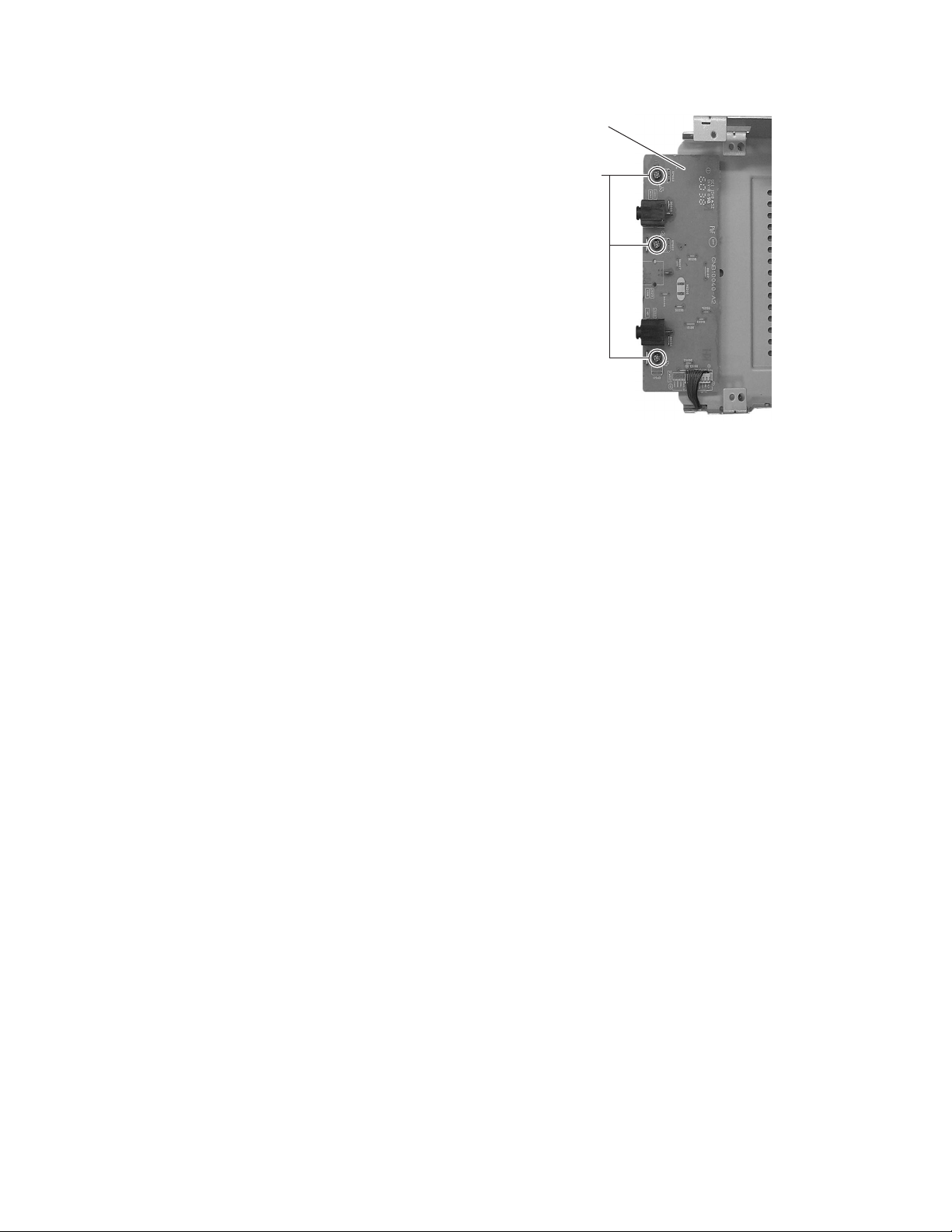

(1) Remove the three screws Yand take out the headphone
board.
(2) Take out the headphone board.
Fig.27
Y
Headphone board

(No.MB546)1-17
3.2 DVD mechanism section
• Remove the DVD mechanism assembly from the main body.

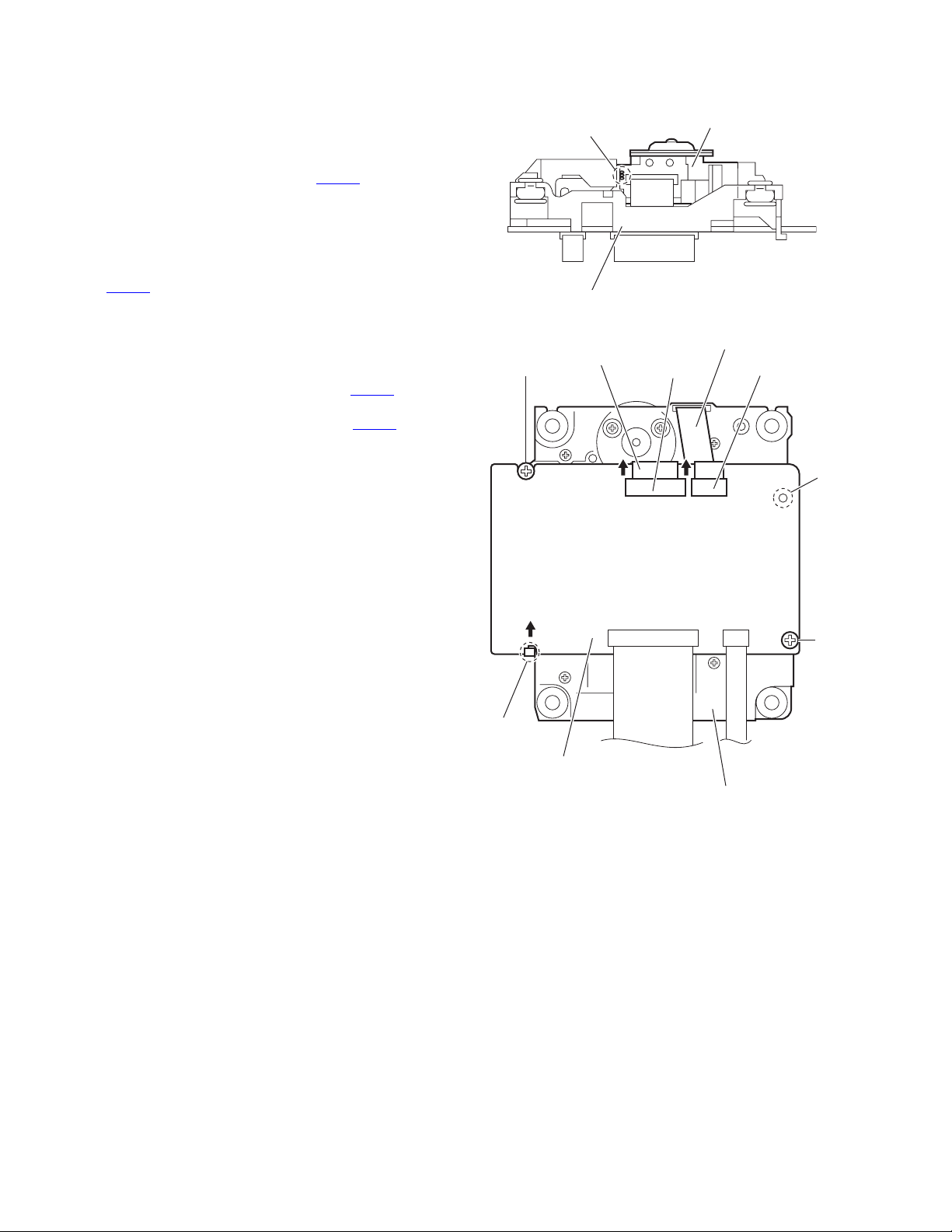

3.2.1 Removing the traverse mechanism assembly
(See Fig.1)
From the bottom side of the DVD mechanism assembly, remove
the four screws Aattaching the traverse mechanism assembly
and take out the traverse mechanism assembly with the DVD
module board.
Fig.1
AA
DVD module board
Traverse mechanism assembly
DVD mechanism assembly

1-18 (No.MB546)
3.2.2 Removing the DVD module board
(See Figs.2 and 3)
• Remove the traverse mechanism assembly.
(1) From the side of the traverse mechanism assembly, solder
the short land sections aon the DVD pickup. (See Fig.2.)
(2) From the bottom side of the traverse mechanism assem-
bly, release the lock of the connector CN101 on the DVD
module board in the direction of the arrow and disconnect
the card wire. (See Fig.3.)
Caution:
• Solder the short land sections aon the DVD pickup be-
fore disconnecting the card wire from the connector
CN101 on the DVD module board. If the card wire is
disconnected without attaching solder, the DVD pick-
up may be destroyed by static electricity. (See Figs.2
and 3.)
• When attaching the DVD module board, be sure to re-
move solders from the short land sections aafter con-
necting the card wire to the connector CN101 on the
DVD module board. (See Figs.2 and 3.)
(3) Disconnect the card wire from the connector CN201 on the
DVD module board. (See Fig.3.)
(4) Remove the two screws Battaching the DVD module
board. (See Fig.3.)
(5) Remove the DVD module board from the engagement sec-
tion bin an upward and remove the engagement section c
in the direction of the arrow. (See Fig.3.)
Fig.2
Fig.3
Traverse mechanism assembly
DVD pickup
a
Card wire
CN101 CN201
Card wire
b
c
B
B
DVD module board
Traverse mechanism assembly

(No.MB546)1-19
3.2.3 Removing the DVD pickup
(See Figs.2,4 to 6)
• Remove the traverse mechanism assembly.
(1) From the side of the traverse mechanism assembly, solder
the short land sections aon the DVD pickup. (See Fig.2.)
(2) Release the lock of the connector on the DVD pickup in the
direction of the arrow and disconnect the card wire. (See
Fig.4.)
Caution:
• Solder the short land sections aon the DVD pickup be-
fore disconnecting the card wire from the connector on
the DVD pickup. If the card wire is disconnected with-
out attaching solder, the DVD pickup may be de-
stroyed by static electricity. (See Figs.2 and 4.)
• When attaching the DVD pickup, be sure to remove
solders from the short land sections aafter connecting
the card wire to the connector on the DVD pickup.
(See Figs.2 and 4.)
(3) Remove the screw Cand remove the feed bracket from the
sections d. (See Fig.4.)
(4) Release the claw eof the thrust spring in the direction of
the arrow and remove the thrust spring. (See Fig.4.)
(5) Remove the guide shaft of the DVD pickup from the section
fon the traverse mechanism assembly and remove the
guide shaft from the section gwhile moving it in the direc-
tion of the arrow. (See Fig.5.)
(6) Remove the DVD pickup from the section hof the traverse
mechanism assembly and take out the DVD pickup with
the guide shaft. (See fig.5.)
(7) From the bottom side of the DVD pickup, remove the two
screws Dattaching the rack arm and rack arm spring. (See
Fig.6.)
(8) Pull the guide shaft out of the DVD pickup. (See Fig.6.)
Fig.4
Fig.5
Fig.6
Thrust spring
e
Thrust spring
DVD pickup
Connector
Feed bracket
Card wire
C
Traverse mechanism assembly
DVD pickup
Guide shaft
f
g
h
Torsion spring
DVD pickup
Rack arm
Rack arm spring
D
Guide shaft

1-20 (No.MB546)
3.2.4 Attaching the DVD pickup
(See Figs.2,4 to 7)
• See "3.2.3 Removing the DVD pickup".
(1) Attach the guide shaft, rack arm and rack arm spring to the
DVD pickup. (See Fig.6.)
(2) Align the DVD pickup to the section hof the traverse mech-
anism assembly first, and set the both ends of the guide
shaft of the DVD pickup in the sections fand gof the
traverse mechanism assembly. (See Fig.5.)
Reference:
When attaching the guide shaft to the section g, attach it
under the rod spring. (See Fig.5.)
(3) Attach the feed bracket and thrust spring. (See Fig.4.)
(4) Remove solders from the short land sections aafter con-
necting the card wire to the connector on the DVD pickup.
(See Figs.2 and 4.)
(5) Turn the screw shaft gear in the direction of the arrow 1 to
move the DVD pickup fully in the direction of the arrow 2.
(See Fig.7.) Fig.7
1
22
Screw shaft gear
DVD pickup
