JVC MX-J800 User manual

SERVICE MANUAL
COMPACT COMPONENT SYSTEM
No.20835
JUN. 2000
COPYRIGHT 2000 VICTOR COMPANY OF JAPAN, LTD.
MX-J800 / MX-J850R
MX-J800
MX-J850R
This service manual is printed on 100% recycled paper.
Area Suffix(MX-J800)
J ----------------------U.S.A.
C ------------------- Canada
Area Suffix(MX-J850R)
B ------------------------ U.K.
E ---- Continental Europe
EN ------ Nothern Europe
EV -------Eastern Europe
Parts list -------------------- 1
Contents
CD-ROM No.SML200006
This model is a change of the model name of preceding model MX-J70/MX-J75R.
Therefore, a basic specification is the same as preceding model MX-J70/MX-J75R.
This service manual is composed only of the parts list (except the mechanism part).
For others, please refer to the SERVICE MANUAL for MX-J70/MX-J76/MX-J75R
(issue No.20762).
A concrete difference point is as follows.
TIMER/CLOCK
CLOCK/TIMER
DECK A/B
TAPE A/B
SP-DS99SL
SP-DS99BU
MX-J70/J75R
MX-J800/J850R
Button name Center/Surround speaker
Difference point with preceding model
(MX-J850R ONLY)
(SP-DSC99BU) (SP-DSS99BU)
SP-DS99BU
This illustration is MX-J850R

< MEMO >

MX-J800/MX-J850R
1
PARTS LIST
* All printed circuit boards and its assemblies are not available as service parts.
- Contents -
Exploded view of general assembly and parts list
CD changer mechanism assembly and parts list
CD mechanism assembly and parts list
Cassette mechanism assembly and parts list
Electrical parts list
Packing materials and accessories parts list
[ MX-J800 ]
[ MX-J850R ]
3
6
8
9
14
28
Area suffix
J ----------------------------- U.S.A.
C -------------------------- Canada
MX-J800
CA-MXJ850R/SP-MXJ850R
Area suffix
B ------------------------------- U.K.
E ----------- Continental Europe
EN ------------ Northern Europe
EV -------------- Eastern Europe

MX-J800/MX-J850R
2
< MEMO >

MX-J800/MX-J850R
3
121
120
122
FL Display
& System
Control Board
Main Board
Regulator
Board
Operation
Switch Board
Accessories
Only
Ver. C/J
Only
Ver.C/J

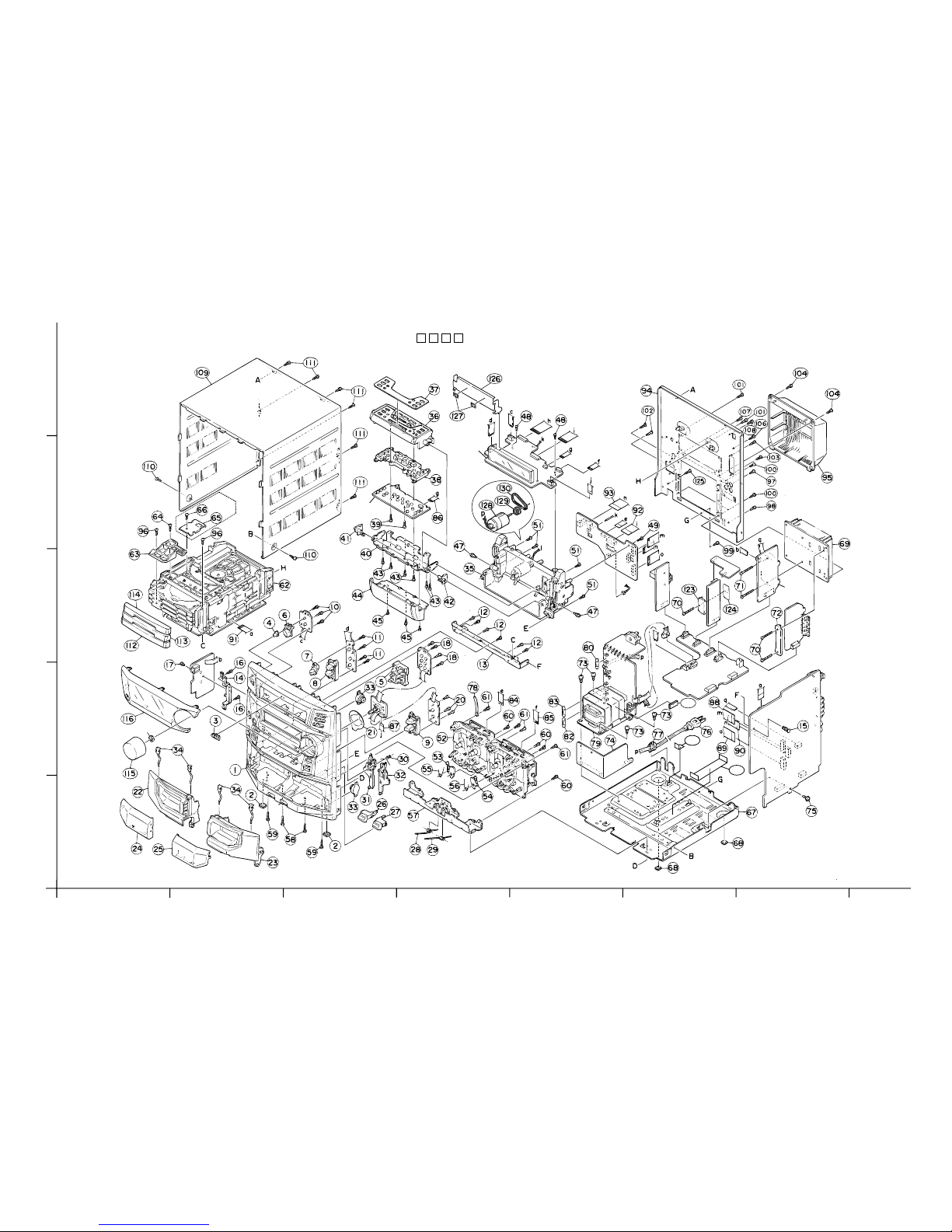

Exploded view of general assembly and parts list
Block No. MM
M
1
Power AMP
Board
HAB C DE FG
1
2
3
4
5

MX-J800/MX-J850R
4
Item Parts number Parts name Area
A
Parts list (General assembly)
Q'ty Description
Block No. M1MM
1 GV10010-028A FRONT PANEL 1CA-MXJ850R
GV10010-026A FRONT PANEL 1MX-J800
2 E75896-001 FELT SPACER 2
3 VJD5429-001 JVC MARK 1
4 GV40016-001A STBY.INDICATOR 1
5 GV30047-009A CD BUTTON ASSY 1
6 GV30029-008A POWER BUTTON 1MX-J800
GV30029-009A POWER BUTTON 1CA-MXJ850R
7 GV30045-005A PUSH BUTTON 1
8 GV20033-001A SOURCE BUTTON(A) 1
9 GV20034-001A SOURCE BUTTON(B) 1
10 QYSDSF2608Z SCREW 3ON/STANDBY BOARD
11 QYSDSF2608Z SCREW 4AUX/TAPE S.BOARD
12 QYSDSF2608Z SCREW 6STY.BKT+F.PANEL
13 GV30030-001A STAY BRACKET 1
14 GV40030-001A PHONE BRACKET 1
15 FMYH4004-001 PLASTIC RIVET 1MAIN BOARD&BKT.
16 QYSDSF2608Z SCREW 2PHONE BKT.+F.PANEL
17 QYSBST3006Z T.SCREW 1PHONE BKT.+BOARD
18 QYSDSF2608Z SCREW 4CD SWITCH BOARD
20 QYSDSF2608Z SCREW 3TUNER/CD S.BOARD
21 GV40043-001A VOLUME SHEET 1
22 GV20022-005A CASSETTE HOLDER(L) 1
23 GV20023-005A CASSETTE HOLDER(R) 1
24 GV20024-001A CASSETTE LENS(L) 1
25 GV20025-001A CASSETTE LENS(R) 1
26 GV30026-005A EJECT BUTTON(A) 1
27 GV30027-005A EJECT BUTTON(B) 1
28 FMKW4009-001 HOLDER SPRING(A) 1
29 FMKW4010-001 HOLDER SPRING(B) 1
30 FMKW4011-001 SPRING 1FOR EJECT LEVER
31 FMKS3002-003 EJECT LEVER(A) 1
32 FMKS3003-003 EJECT BUTTON(B) 1
33 GV40034-001A DAMPER ASSY 2
34 VKY4180-401 CASSETTE SPRING 4
35 GV10014-005A CASE ASSY 1
36 GV30039-004A MOVING PANEL(A) 1
37 GV30040-025A CONTROL SHEET 1MX-J800
GV30040-026A CONTROL SHEET 1CA-MXJ850R
38 GV30041-012A CONTROL BUTTON 1CA-MXJ850R
GV30041-011A CONTROL BUTTON 1MX-J800
39 QYSDSF2608Z SCREW 2
40 GV30042-002A PANEL BRACKET 1
41 GV40028-001A PANEL HOLDER(L) 1
42 GV40028-002A PANEL HOLDER(R) 1
43 QYSDSF2608Z SCREW 6
44 GV30043-004A MOVING PANEL(B) 1
45 QYSBST2606Z T.SCREW 3
Item Parts number Parts name Area
A
Parts list (General assembly)
Q'ty Description
Block No. M1MM
47
VKZ4341-204 SPECIAL SCREW
2
48
QYSDSF2608Z SCREW
2MICOM BOARD/CASE
49
QYSDSF2608Z SCREW
1CONN.BOARD/CASE
51
QYSSSF3012Z TAP SCREW
4MOVING PANEL/F.PANEL
52
--------------- CASSETTE MECHA
1
53
FMKL4012-004 EJECT SAFETY(A)
1
54
FMKL4013-001 EJECT SAFETY(B)
1
55
FMKW4007-001 SPRING (A)
1EJECT SAFETY(A)
56
FMKW4008-001 SPRING (B)
1EJECT SAFETY(B)
57
GV20030-001A HOLDER BRACKET
1
58
QYSBSG3010E T.SCREW
2F.P.TO H.BKT.
59
QYSBSG3010E T.SCREW
2F.P.TO CHS.BASE
60
QYSBSG3010Z T.SCREW
4MECHA & H.BKT.
61
QYSBSF3010Z SCREW
4MECHA & F.PANEL
62
--------------- VIDEO 3CD CHANGER
1
63
E309662-001SM DISC STOPPER
1
64
QYSBSF3008Z SCREW
1FOR DISC STOPPER
65
FMKL4008-001 LOD STOPPER J,C
1
66
QYSBSF3008Z SCREW J,C
1FOR LOD STOPPER
67
GV10011-001A CHASSIS BASE
1
68
E75896-006 FELT SPACER
2CHASSIS BASE FOOT
69
GV30044-002A HEAT SINK
1
70
QYSBSG3014E T.SCREW
3
71
QYSBSG3020E TAP SCREW
2
72
GV40029-001A LEAF SPRING
1
73
QYSDSTL4008Z SPECIAL SCREW
4
74
LE30469-001A SHIELD PLATE
1
75
QYSBSGG3008E T.SCREW
1M.BOARD & C.BASE
76
QMPD220-200-JD POWER CORD J,C
A
1
QMPK090-205-JN POWER CORD E,EN,EV
A
1
QMPN090-200-JC POWER CORD
B
A
1
77
QZW0033-001 STRAIN RELIEF
1
78
VKZ4001-110S WIRE HOLDER
1
79
QQT0250-001 POWER TRANSF J,C
A
1T001
QQT0250-002 POWER TRANSF B,E,EN,EV
A
1T001
80
QMF51U1-4R0-J1 FUSE J,C
A
1F001
QMF51E2-1R25-J1 FUSE B,E,EN,EV
A
1F001
82
QMF51U1-5R0-J1 FUSE J,C
A
1F101
QMF51E2-3R15-J1 FUSE B,E,EN,EV
A
1F101
83
QMF51U1-5R0-J1 FUSE J,C
A
1F102
QMF51E2-3R15-J1 FUSE B,E,EN,EV
A
1F102
84
QUQ412-1014CJ FFC WIRE(FC854)
1SLC TO FMB(C)
85
QUQ412-1115DJ FFC WIRE(FC803)
1SLC TO FMB(FL)
86
QUQ610-0915BJ FFC WIRE(FC921)
1MOV.P TO FMB(FL)
87
QUQ412-1012CJ FFC WIRE(FC971)
1FMB TO FMB(FL)
88
QUQ412-2109CJ FFC WIRE(FC857)
1FMB(C) TO FMC
89
QUQ412-2109CJ FFC WIRE(FC855)
1FMB(C) TO FMC
90
QUQ412-1712CJ FFC WIRE(FC856)
1FMB(C) TO FMC

MX-J800/MX-J850R
5
Item Parts number Parts name Area
A
Parts list (General assembly)
Q'ty Description
Block No. M1MM
91 QUQ110-1916BJ FFC WIRE(FC410) 1CD TO FMC
92 QUQ412-2112CJ FFC WIRE(FC801) 1FMB(FL)TO FMB(C)
93 QUQ412-2308CJ FFC WIRE(FC802) 1FMB(FL)TO FMB(C)
94 GV10013-060A REAR PANEL B,E,EN,EV 1CA-MXJ850R
GV10013-058A REAR PANEL C 1MX-J800
GV10013-057A REAR PANEL J 1MX-J800
95 E207356-002SM REAR COVER 1
96 QYSBSG3008Z T.SCREW 2C3 & STAY BRACKET
97 QYSBSGY3008E SPECIAL SCREW 1AUX/REAR PANEL
98 QYSBSGY3008E SPECIAL SCREW 1E.PLATE/R.PANEL
99 QYSBSGY3008E SPECIAL SCREW 1R.PANEL/ C.BASE
100 QYSBSGY3008E SPECIAL SCREW 4H.SINK/ R.PANEL
101 QYSBSGY3008E SPECIAL SCREW 2C3 / REAR PANEL
102 QYSBSGY3008E SPECIAL SCREW 2SPK.TEM./R.PANE
103 QYSBSGY3008E SPECIAL SCREW 2ANTENA/ R.PANEL
104 QYSBSGY3008E SPECIAL SCREW 2R.COVER/R.PANEL
106 QYSBSGY3008E SPECIAL SCREW 1GROUND/R.PANEL
107 QYSBSGY3008E SPECIAL SCREW 1SUBWOOFER/R.PANEL
108 QYSBSGY3008E SPECIAL SCREW 1OPTICAL/R.PANEL
109 GV10012-001A/S/ METAL COVER 1
110 QYSDSG3006M T.SCREW 2M.COVER+C.BASE
111 QYSBSGY3008E SPECIAL SCREW 6M.COVER+R.PANEL
112 GV30033-006A CD FITTING 1DISC 1
113 GV30034-004A CD FITTING 1DISC 2
114 GV30035-006A CD FITTING 1DISC 3
115 GV30028-004A VOLUMA KNOB 1
116 GV20026-017A WINDOW SCREEN 1MX-J800
GV20026-018A WINDOW SCREEN 1CA-MXJ850R
120 GV40048-001A PROTECT SHEET(A) 1
121 GV40049-001A PROTECT SHEET(B) J,C 1
122 FMYSH103-003 SPACER 1STICK TO TRANSH
123 FMKL4007-001 BRACKET 1
124 FMPK4003-001T MICA SHEET 1
125 QYSBSGY3008E SPECIAL SCREW 1PROLOGIC/R.PANE
126 GV30032-001A FL HOLDER 1
127 E3400-439 FELT SPACER 2
128 MXN-13FB12F DC MOTOR 1
129 GV40022-001A MOTOR PULLEY 1
130 GV30038-001A CAPSTAN BELT 1
131 FMYSH103-004 FELT SPACER 1CA-MXJ850R

MX-J800/MX-J850R
6
27
27
27
27
27
27
27
27
34
65
51
21
69
25
F
75
F
G
72
76
G
VC3-22M
17
H
H

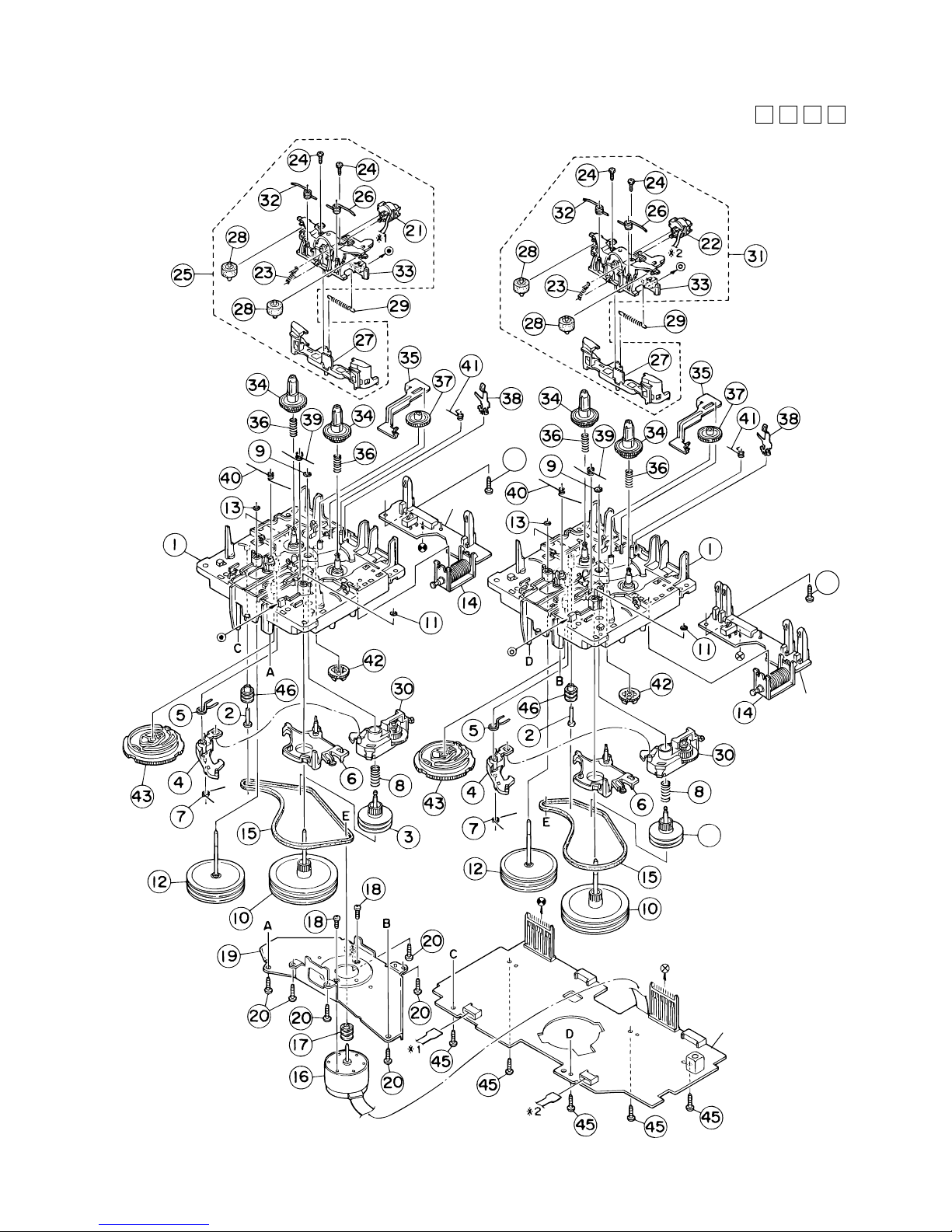

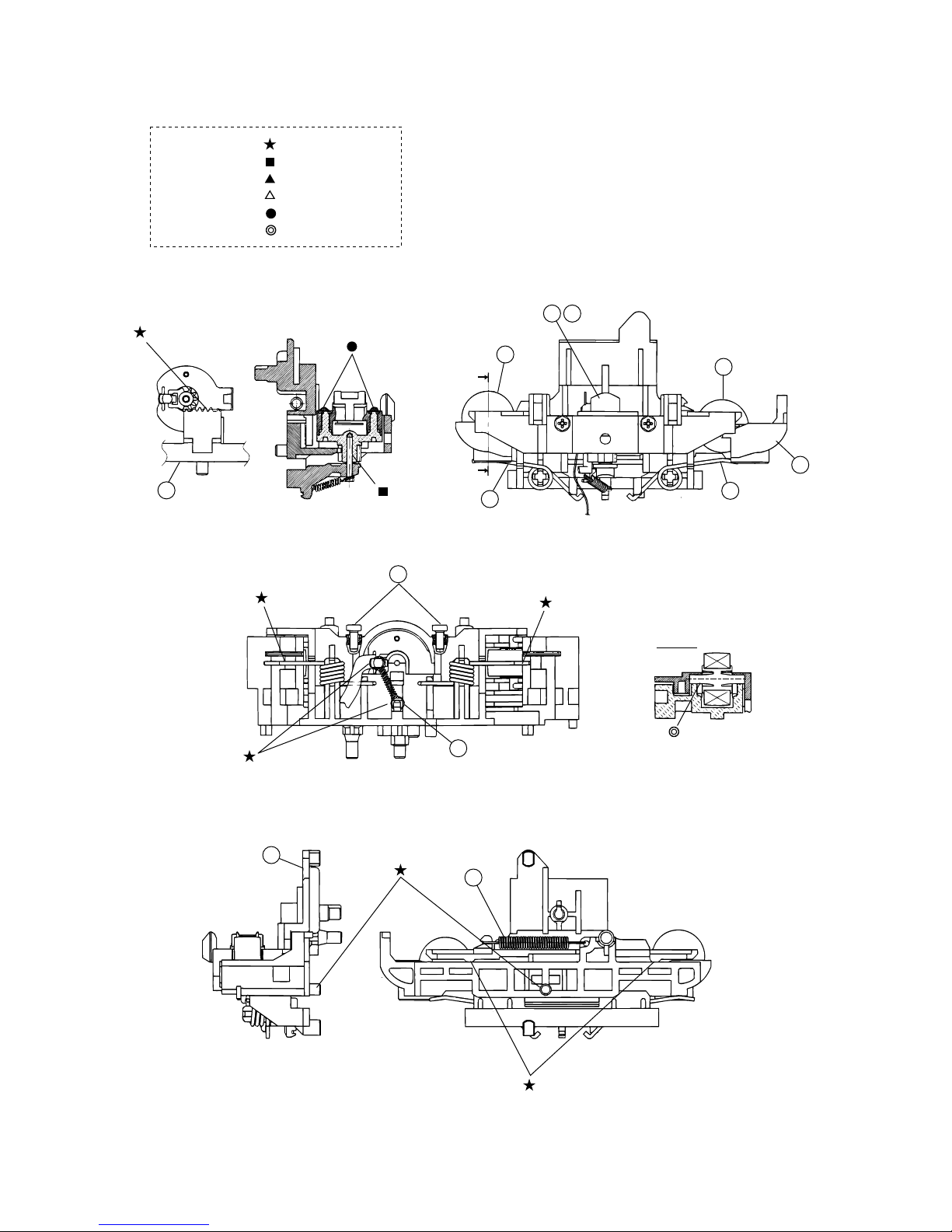

CD changer mechanism assembly and parts list
Block No. MM
M
2
Grease = EM-30L = EBS0006-009B = FL-7750
FIG B
FIG A
FIG A
FIG C
FIG B
Opposite side the same.
FIG C
11.6 0.2mm

MX-J800/MX-J850R
7
Item Parts number Parts name Area
A
Parts list (CD changer mechanism)
Q'ty Description
Block No. M2MM
1 VKS1144-003 CHASSIS 1
2 VKS3698-003 TRAY GUIDE 2
3 VKS5532-003 PULLEY GEAR 2
4 VKB3000-164 BELT 2
5 VKS5505-003 GEAR B 2
6 VKS5506-002 GEAR C 3
7 VKS5507-002 CROSS GEAR U 1
8 VKS5508-002 CROSS GEAR L 1
9 VKS5510-003 SELECT LEVER 1
10 VKH5769-001 S.G.SHAFT 1
11 VKS5511-002 SELECT GEAR 1
12 VKW5155-003 COMP.SPRING 1FOR SELECT GEAR
13 VKM3846-002 GEAR BRACKET 1
14 VKS5509-002MM CYLINDER GEAR 1
15 MSN5D257A-SA2 D.C.MOTOR ASS'Y 2
16 QYSPSPD2616Z SCREW 2FOR MOTOR
17 LV40612-001A COMP.SPRING 1
18 VKM3825-00AMM C.G.BASE ASS'Y 1
19 VKZ3172-00ASS CAM SW. R ASS'Y 1
20 VKZ3173-00ASS CAM SW. L ASS'Y 1
21 QYSPST2606Z SCREW 4
22 VKS2263-002MM CAM R1 1
23 VKS2264-002MM CAM R2 1
24 VKS2265-002MM CAM GEAR L 1
25 WDL316050MM SLIT WASHER 2
27 QYSBSF2608Z T.SCREW 16
28 VKS3702-00FMM DRIVE UNIT 1
29 VKS2247-004 MECHA HOLDER A 1
30 VKL7767-00B BRACKET ASS'Y 1
31 QYSBSF2606Z SCREW 2FOR BRACKET
32 VKM3860-00A M.HOLDER B AS'Y 1
33 VKL7802-00C M.HOLDER C AS'Y 1
34 QYSDST2604Z SCREW 3
35 VKL7810-00A LIFTER ASS'Y R 1
36 VKL7811-00A LIFTER ASS'Y L 1
37 VKL7812-00A LIFTER ASS'Y H 1
38 VKL2732-002 LIFTER BASE 1
39 VKM3857-001 LIFTER BRACKET 1
41 WDL266035-2 SLIT WASHER 1
43 VKS5514-002MM LOCK LEVER 3
44 VKY3133-002MM RETURN SPRING 1
46 VKY3134-003MM CLICK SPRING 1
47 VKS2252-00E TRAY ASS'Y 3
48 VKS2250-003 TOP BRACKET 1
49 VKS5515-002 S.TRAY STOPPER 1
50 VKW5156-004 TORSION SPRING 1
51 VKS3703-00G CLAMPER ASS'Y 1
62 LV40761-003A INSULATOR 4
65 --------------- CD MECHA 1
69 QGB2012J1-10 CONNECTOR 1
71 VKW5187-001 ROD 1
72 VYSA1R2-033 SPACER 1FOR EWS176-008
73 LE30611-001A C.B HOLDER 1FOR CD CB
74 QYSBSF3008Z SCREW 2FOR HOLDER
75 QUQ610-1509AJ CARD WIRE 1TRAVERSE 15
76 EWS176-008 FLAT WIRE 1TRAVERSE 6

MX-J800/MX-J850R
8
12
FG-87HS
FG-87HS
FG-87HS
Grease Point
FG-87HS
(Grease to apply have to be a little for the exchange.)

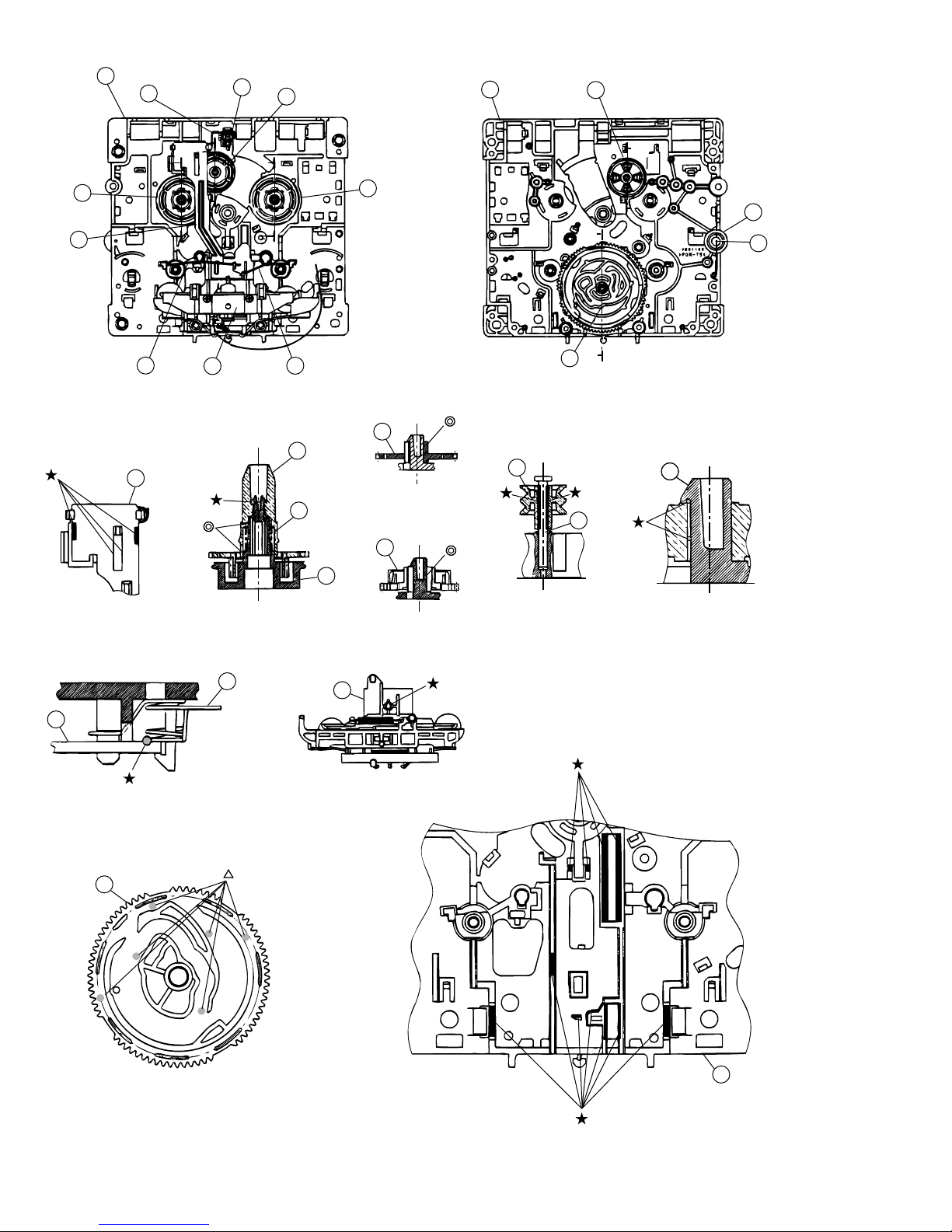

CD mechanism assembly and parts list
Block No. MM
M
3
EXL-M7TMB
EXL-M7MB
Item Parts number Parts name Area
A
Parts list ( CD mechanism )
Q'ty Description
Block No. M3MM
1 E102731-221SM MECHA BASE 1
2 OPTIMA-7B OPTICAL PICK UP 1
3 E406777-002SM CD SHAFT 1
4 LV31002-001A CD RACK 1
5 E307745-441SM MECHA GEAR 1
6 QYSDSP2003N SCREW 4
7 E406750-442SM PINION GEAR 1
8 EPB-001PK TURN TABLE 1SINGLE CD
EPB309173PKA TURN TABLE 1CHANGER CD
9 E406784-001 FEED MOTOR 1
10 QAR0130-001 SPPINDLE MOTOR 1
11 EMW10190-441 P.C.BOARD 1
12 QGA2001F1-06 6P PLUG ASSY 1
13 QSW0506-001 LEAF SWITCH 1
14 E75832-221SS SPECIAL SCREW 1

MX-J800/MX-J850R
9
3
47
47
G
G
F
F
SLC-W6M
Cassette
switch board
Head amplifier &
mechanism control board
Cassette
switch board
Cassette mechanism assembly and parts list
Block No. MM
M
4

MX-J800/MX-J850R
10
Item Parts number Parts name Area
A
Parts list (Cassette mechanism)
Q'ty Description
Block No. M4MM
1 VKS1165-00H CHASSIS B.ASS'Y 2
2 VKH5786-002 SHAFT 2
3 VKS5603-00D MAIN PULLEY ASY 2
4 VKS3785-001MM FR ARM 2
5 VKW5284-002 SWING SPRING 2
6 VKS2278-003 TRIGGER ARM 2
7 VKW5301-001 FR SPRING 2
8 VKW5266-001 ELEVATOR SPRING 2
9 WDL214025 WASHER 2
10 VKF3205-00B F.WHEEL ASSY(R) 2
11 WDL183425 SLIT WASHER 2
12 VKF3207-00B F.WHEEL ASSY(L) 2
13 WDL173525-6 SLIT WASHER 2
14 VKZ3174-00A DC SOLENOID 2
15 VKB3000-182 CAPSTAN BELT(B) 2
16 MSI-5U2LWA D.C.MOTOR ASS'Y 1
17 VKR4761-001 MOTOR PULLEY 1
18 QYSPSP2604Z SCREW 2
19 VKM3907-001 JOINT BRACKET 1
20 QYSBSF2608Z T.SCREW 6
21 LV41090-001A P.B.HEAD 1
22 LV41089-001A R/P&E HEAD 1
23 VKW5302-001 HEAD SPRING 2
24 VKZ4730-001 SPECIAL SCREW 4
25 VKS2279-00D HEAD MOUNT ASSY 1
26 VKW5299-002 PIN ROL.SP.(R) 2
27 VKS2277-005 DIRECTION LEVER 2
28 VKP4233-00A PINCH ROL. ASSY 4
29 VKW5285-001 RETURN SPRING 2
30 VKS3786-00G CLUTCH ASS'Y 2
31 VKS2275-00D HEAD MOUNT ASSY 1
32 VKW5300-002 PIN ROL.SP.(L) 2
33 VKS1167-001 HEAD MOUNT BASE 2
34 VKS2274-002 REEL GEAR 4
35 VKM3906-003 PLAY SW LEVER 2
36 VKW5286-002 B.T. SPRING 4
37 VKS5559-001 PLAY IDLE GEAR 2
38 VKY3149-002 CASSETTE SP. 2
39 VKW5279-001 HEAD BASE SP(R) 2
40 VKW5280-001 HEAD BASE SP(L) 2
41 VKW5296-001 EARTH SPRING 2
42 VKS5597-00A BLIND 2
43 VKS1166-003 CONTROL CAM 2
45 QYSBSF2608Z T.SCREW 5FOR P.W.B.
46 VKR4749-002 IDLE PULLEY 2
47 QYSBSF2006Z SCREW 2

MX-J800/MX-J850R
11
A
A
Grease point
=JC-525
=FL-7750
=UD-24
=UD-24H2
=LX-1349B
=MOBIL-1
Should be applied to the rack
of dir.lever fully.
27
21 22
32 26
28
27
24
23
Between head holder and spring's hook.
A - A
Apply oil to the shaft of pinch roller
on both sides before assembly.
Between direction lever and head mount base.
29
33
Between head holder
and shaft.
28
Grease

MX-J800/MX-J850R
12
41
35
34
36
1
A - A (2/1, 2 places)
46
2
D - D (2/1)
4343
E - E (5/1)
35
25 Grease appllying on boss.
1
43
25
40 39
34
35
41 37
38
1
34
A
AA
A
B
B
42
46
2
43
D
D
C
E
C
E
42
C - C (2/1)
37
B - B (2/1)
1
Front view Rear view

MX-J800/MX-J850R
13
4
1
630
12 10 3
B mecha
A mecha

MX-J800/MX-J850R
14
Item Parts number Parts name Area
Electrical parts list (Power AMP board)
Remarks
Block No. 01
A
C 201 QFV72AJ-104Z M CAPACITOR .10MF 5% 100V
C 202 QFV72AJ-104Z M CAPACITOR .10MF 5% 100V
C 203 QFV72AJ-104Z M CAPACITOR .10MF 5% 100V
C 204 QEZ0461-478 E CAPACITOR
A4700MF
C 205 QEZ0461-478 E CAPACITOR
A4700MF
C 211 QFVJ1HJ-104Z TF CAPACITOR .10MF 5% 50V
C 212 QFVJ1HJ-104Z TF CAPACITOR .10MF 5% 50V
C 213 QFVJ1HJ-104Z TF CAPACITOR .10MF 5% 50V
C 214 QETM1VM-228 E CAPACITOR
A2200MF 20% 35V
C 215 QETM1VM-228 E CAPACITOR
A2200MF 20% 35V
C 216 QETN1VM-107Z E CAPACITOR 100MF 20% 35V
C 217 QETN1JM-476Z E CAPACITOR 47MF 20% 63V
C 218 EETC1HM-226ZJC E CAPACITOR
C 219 QDYB1CM-103Y C CAPACITOR
C 220 EETC1HM-226ZJC E CAPACITOR
C 221 EETC1HM-475ZJC E CAPACITOR
C 222 EETC1HM-475ZJC E CAPACITOR
C 223 EETC1HM-105ZJC E CAPACITOR
C 224 EETC1HM-105ZJC E CAPACITOR
C 233 QFLM1HJ-103Z M CAPACITOR .010MF 5% 50V
C 238 QFLM1HJ-223Z M CAPACITOR C.022MF 5% 50V
C 238 QFLM1HJ-223Z M CAPACITOR B,E,EN,EV.022MF 5% 50V
C 239 QFLM1HJ-223Z M CAPACITOR B,E,EN,EV.022MF 5% 50V
C 239 QFLM1HJ-223Z M CAPACITOR C.022MF 5% 50V
C 253 QETM1EM-338 E CAPACITOR 3300MF 20% 25V
C 360 EETC1EM-226ZJC E CAPACITOR
C 361 QCF11HZ-103 C CAPACITOR .010MF +80:-20%
C 362 EETC1EM-226ZJC E CAPACITOR
C 366 EETC1EM-226ZJC E CAPACITOR
C 367 QCF11HZ-103 C CAPACITOR .010MF +80:-20%
C 368 EETC1EM-226ZJC E CAPACITOR
C 369 EETC1EM-226ZJC E CAPACITOR
C 370 QCF11HZ-103 C CAPACITOR .010MF +80:-20%
C 371 EETC1EM-226ZJC E CAPACITOR
C 372 EETC1EM-226ZJC E CAPACITOR
C 373 QCF11HZ-103 C CAPACITOR .010MF +80:-20%
C 374 EETC1EM-226ZJC E CAPACITOR
C 703 QCBB1HK-471Y C CAPACITOR 470PF 10% 50V
C 704 QCBB1HK-471Y C CAPACITOR 470PF 10% 50V
C 705 QCS11HJ-220 C CAPACITOR 22PF 5% 50V
C 706 QCS11HJ-220 C CAPACITOR 22PF 5% 50V
C 707 QETN1EM-476Z E CAPACITOR 47MF 20% 25V
C 708 QETN1EM-476Z E CAPACITOR 47MF 20% 25V
C 709 QCS11HJ-100 C CAPACITOR 10PF 5% 50V
C 710 QCS11HJ-100 C CAPACITOR 10PF 5% 50V
C 711 QETN1JM-476Z E CAPACITOR 100MF 20% 50V
C 712 QETN1JM-476Z E CAPACITOR 47MF 20% 63V
C 713 QFVJ1HJ-104Z TF CAPACITOR C.10MF 5% 50V
C 713 QFVJ1HJ-104Z TF CAPACITOR B,E,EN,EV.10MF 5% 50V
C 714 QFVJ1HJ-104Z TF CAPACITOR B,E,EN,EV.10MF 5% 50V
C 714 QFVJ1HJ-104Z TF CAPACITOR C.10MF 5% 50V
C 715 QFVJ1HJ-104Z TF CAPACITOR C.10MF 5% 50V
C 715 QFVJ1HJ-104Z TF CAPACITOR B,E,EN,EV.10MF 5% 50V
C 716 QFVJ1HJ-104Z TF CAPACITOR B,E,EN,EV.10MF 5% 50V
C 716 QFVJ1HJ-104Z TF CAPACITOR C.10MF 5% 50V
C 717 QFLM1HJ-473Z M CAPACITOR J.047MF 5% 50V
C 718 QFLM1HJ-473Z M CAPACITOR J.047MF 5% 50V
C 721 QTE1V06-106Z E CAPACITOR
C 722 QTE1V06-106Z E CAPACITOR
C 723 QFVJ1HJ-474Z CAPACITOR .47MF 5% 50V
C 726 EETC1EM-106ZJC E.CAPACITOR
C 729 EETC1CM-476ZJC E.CAPACITOR
C 739 QFLM1HJ-103Z M CAPACITOR .010MF 5% 50V
C 781 EETC1HM-225ZJC E CAPACITOR
C 782 EETC1HM-225ZJC E CAPACITOR
C 783 QCBB1HK-471Y C CAPACITOR B,E,EN,EV470PF 10% 50V
C 783 QCBB1HK-101Y C CAPACITOR J,C100PF 10% 50V
C 784 QCBB1HK-101Y C CAPACITOR J,C100PF 10% 50V
C 784 QCBB1HK-471Y C CAPACITOR B,E,EN,EV470PF 10% 50V
C 785 QCBB1HK-181Y C CAPACITOR 180PF 10% 50V
C 786 QCBB1HK-181Y C CAPACITOR 180PF 10% 50V
C 787 EETC1EM-476ZJC E CAPACITOR
C 788 EETC1EM-476ZJC E CAPACITOR
C 789 QCS11HJ-100 C CAPACITOR 10PF 5% 50V
C 790 QCS11HJ-100 C CAPACITOR 10PF 5% 50V
C 791 EETC1HM-226ZJC E CAPACITOR
C 792 EETC1HM-226ZJC E CAPACITOR
C 793 QFVJ1HJ-104Z TF CAPACITOR C.10MF 5% 50V
C 793 QFVJ1HJ-104Z TF CAPACITOR B,E,EN,EV.10MF 5% 50V
C 794 QFVJ1HJ-104Z TF CAPACITOR B,E,EN,EV.10MF 5% 50V
C 794 QFVJ1HJ-104Z TF CAPACITOR C.10MF 5% 50V
C 795 QFVJ1HJ-104Z TF CAPACITOR C.10MF 5% 50V
C 795 QFVJ1HJ-104Z TF CAPACITOR B,E,EN,EV.10MF 5% 50V
C 796 QFVJ1HJ-104Z TF CAPACITOR B,E,EN,EV.10MF 5% 50V
C 796 QFVJ1HJ-104Z TF CAPACITOR C.10MF 5% 50V
C 797 QFLM1HJ-473Z M CAPACITOR J.047MF 5% 50V
C 798 QFLM1HJ-473Z M CAPACITOR J.047MF 5% 50V
C 799 QDYB1CM-103Y C CAPACITOR J,C
C 799 QFLM1HJ-103Z C CAPACITOR B,E,EN,EV.010MF 5% 50V
CN102 QGB2510J1-10 CONNECTOR
CN103 QGB2501J1-11 B TO B CONNE
CN104 QGB2501J1-06 B TO B CONNE
CN105 QGB2510J1-11 CONNECTOR
CN106 QGB2501K2-10 B TO B CONNE
CN107 QGB2501K2-07 B TO B CONNE
CN109 QGA3901C1-05 5P CONNECTOR
CN111 QGD2501C1-04Z SOCKET
CN112 QGB2510K2-10 CONNECTOR
CN113 QGB2501K2-11 B TO B CONNE TO FMH-001-2
CN114 QGB2501K2-06 B TO B CONNE TO FMH-001-2
CN119 EWS285-202V SKT WIRE
CN120 QGA2501C4-03 CONNECTOR
CN703 QGB2510K2-06 CONNECTOR TO CONN. BOARD
CN704 QGB2510K2-05 CONNECTOR TO CONN. BOARD
CN713 QGB2510J1-06 CONNECTOR
CN714 QGB2510J1-05 CONNECTOR
CN915 QGD2501C1-04Z SOCKET FOR H/PHONE FW
D 201 1N5402M-20 DIODE
A
D 202 1N5402M-20 DIODE
A
D 203 1N5402M-20 DIODE
A
D 204 1N5402M-20 DIODE
A
D 211 30DF2-FC DIODE
A
D 212 30DF2-FC DIODE
A
D 213 30DF2-FC DIODE
A
D 214 30DF2-FC DIODE
A
D 217 1SR35-400A-T5 DIODE
A
D 218 1SR35-400A-T5 DIODE
A
D 219 MTZJ33C-T2 Z DIODE
D 220 MTZJ9.1C-T2 Z DIODE
D 221 MTZJ5.1B-T2 ZENER DIODE
D 223 1SS133-T2 SI DIODE
D 224 1SS133-T2 SI DIODE
D 225 1SS133-T2 SI DIODE
D 227 1SR35-400A-T5 DIODE
A
D 231 RN1Z-F1 SI DIODE
A
D 232 RN1Z-F1 SI DIODE
A
Item Parts number Parts name Area Remarks
A

MX-J800/MX-J850R
15
Item Parts number Parts name Area Remarks
A
D 233 RN1Z-F1 SI DIODE
A
D 234 RN1Z-F1 SI DIODE
A
D 245 1SS133-T2 SI DIODE
D 360 MTZJ5.1B-T2 ZENER DIODE
D 361 MTZJ11C-T2 Z DIODE
D 362 MTZJ6.8C-T2 Z DIODE
D 365 MTZJ9.1B-T2 ZENER DIODE
D 366 MTZJ11C-T2 ZENER DIODE
D 367 MTZJ10C-T2 Z.DIODE
D 368 MTZJ11C-T2 Z.DIODE
D 369 MTZJ10C-T2 Z.DIODE
D 370 MTZJ11C-T2 Z.DIODE SHORT TEST
D 703 MTZJ8.2C-T2 ZENER DIODE
D 704 MTZJ8.2C-T2 ZENER DIODE
D 719 1SS133-T2 SI DIODE
D 720 1SS133-T2 SI DIODE
D 721 MTZJ8.2C-T2 ZENER DIODE
D 722 MTZJ8.2C-T2 ZENER DIODE
D 723 MTZJ33C-T2 Z DIODE
D 724 MTZJ33C-T2 Z DIODE
D 728 1SS133-T2 SI DIODE
D 789 1SS133-T2 SI DIODE
D 790 1SS133-T2 SI DIODE
EP201 E409182-001SM GRAND TERMINAL
FT111 QNG0020-001Z FUSE CLIP
FT112 QNG0020-001Z FUSE CLIP
FT511 QNG0020-001Z FUSE CLIP
FT512 QNG0020-001Z FUSE CLIP
FT521 QNG0020-001Z FUSE CLIP
FT522 QNG0020-001Z FUSE CLIP
FW101 QUM134-12DGZ4 FLAT WIRE
FW411 QUM137-13DGZ4 FLAT WIRE
IC701 STK411-210E IC
IC781 TDA7295 IC
IC782 TDA7295 IC
L 201 QQR0779-001Z INDUCTOR B,E,EN,EV
L 201 QQR0779-001Z INDUCTOR C
L 701 QQLZ005-R45 INDUCTOR
L 702 QQLZ005-R45 INDUCTOR
L 781 QQLZ005-R45 INDUCTOR
L 782 QQLZ005-R45 INDUCTOR
Q
201 2SB1274/RS/ TRANSISTOR
Q
203 KRC107M-T D.TRANSISTOR
Q
204 KRC107M-T D.TRANSISTOR
Q
205 KRC107M-T D.TRANSISTOR
Q
240 KTC3199/GL/-T TRANSISTOR
Q
241 KTC3199/GL/-T TRANSISTOR
Q
242 KTC3199/GL/-T TRANSISTOR
Q
360 2SD2394/EF/ TRANSISTOR B,E,EN,EV
Q
360 2SD2061/EF/ TRANSISTOR J,C
A
Q
361 KTC3199/GL/-T TRANSISTOR
Q
362 KTC3199/GL/-T TRANSISTOR
Q
365 2SD2394/EF/ TRANSISTOR B,E,EN,EV
A
Q
365 2SD2061/EF/ SI.TRANSISTOR J,C
A
Q
366 2SD2061/EF/ SI.TRANSISTOR J,C
A
Q
366 2SD2394/EF/ TRANSISTOR B,E,EN,EV
A
Q
367 KTA1267/YG/-T TRANSISTOR
Q
368 KTC3199/GL/-T TRANSISTOR
Q
369 2SD2394/EF/ TRANSISTOR B,E,EN,EV
A
Q
369 2SD2061/EF/ SI.TRANSISTOR J,C
A
Q
370 KTC3199/GL/-T TRANSISTOR
Q
371 2SB1565/EF/ TRANSISTOR
A
Q
373 KRA104M-T D.TRANSISTOR
Q
374 KRC104M-T D.TRANSISTOR
Q
375 KRC104M-T D.TRANSISTOR
Q
376 KRA104M-T D.TRANSISTOR
Q
701 2SA1038S/SE/-T TRANSISTOR
Q
702 2SA1038S/SE/-T TRANSISTOR
Q
726 2SC2389S/SE/-T TRANSISTOR
Q
727 2SA1038S/SE/-T TRANSISTOR
Q
728 KTC3199/GL/-T TRANSISTOR
Q
733 2SC3576-JVC-T TRANSISTOR
Q
734 2SC3576-JVC-T TRANSISTOR
Q
735 2SC3576-JVC-T TRANSISTOR
Q
736 2SC3576-JVC-T TRANSISTOR
Q
737 KRA111M-T D.TRANSISTOR
Q
758 2SA1038S/S/-T TRANSISTOR
Q
781 2SA1038S/SE/-T TRANSISTOR
Q
782 2SA1038S/SE/-T TRANSISTOR
R 202 QRJ146J-4R7X UNF C.RESISTOR J
A4.7 5% 1/4W
R 203 QRE141J-332Y C RESISTOR 3.3K 5% 1/4W
R 204 QRE141J-223Y C RESISTOR 22K 5% 1/4W
R 205 QRE141J-104Y C RESISTOR 100K 5% 1/4W
R 209 QRE141J-103Y C RESISTOR 10K 5% 1/4W
R 210 QRE141J-472Y C RESISTOR 4.7K 5% 1/4W
R 211 QRE141J-182Y C RESISTOR 1.8K 5% 1/4W
R 215 QRE141J-473Y C RESISTOR 47K 5% 1/4W
R 216 QRE141J-473Y C RESISTOR 47K 5% 1/4W
R 238 QRJ146J-4R7X UNF C.RESISTOR C4.7 5% 1/4W
R 238 QRJ146J-4R7X UNF C.RESISTOR B,E,EN,EV4.7 5% 1/4W
R 239 QRJ146J-4R7X UNF C.RESISTOR B,E,EN,EV4.7 5% 1/4W
R 239 QRJ146J-4R7X UNF C.RESISTOR C4.7 5% 1/4W
R 242 QRE141J-222Y C RESISTOR 2.2K 5% 1/4W
R 245 QRE141J-222Y C RESISTOR 2.2K 5% 1/4W
R 246 QRE141J-222Y C RESISTOR 2.2K 5% 1/4W
R 247 QRE141J-222Y C RESISTOR 2.2K 5% 1/4W
R 290 QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R 291 QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R 292 QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R 293 QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R 294 QRE141J-103Y C RESISTOR 10K 5% 1/4W
R 295 QRE141J-183Y C RESISTOR 18K 5% 1/4W
R 296 QRT01DJ-R22X UNF.MF.RESISTOR 5% 1/1W
R 299 QRL012J-332 UNF.OMF.RES. 3.3K 5% 1/1W
R 360 QRZ9042-2R2X F RESISTOR C
A2.2 1/0W
R 360 QRZ9042-2R2X F RESISTOR B,E,EN,EV
A2.2 1/0W
R 361 QRZ9006-4R7X F RESISTOR B,E,EN,EV
A4.7 1/0W
R 361 QRZ9042-2R2X F RESISTOR C
A2.2 1/0W
R 362 QRE141J-331Y C RESISTOR 330 5% 1/4W
R 363 QRE141J-331Y C RESISTOR 330 5% 1/4W
R 364 QRE141J-122Y C RESISTOR 1.2K 5% 1/4W
R 365 QRE141J-561Y C RESISTOR 560 5% 1/4W
R 366 QRE141J-561Y C RESISTOR 560 5% 1/4W
R 367 QRE141J-122Y C RESISTOR 1.2K 5% 1/4W
R 368 QRE141J-331Y C RESISTOR 330 5% 1/4W
R 371 QRE141J-4R7Y C RESISTOR 4.7 5% 1/4W
R 372 QRE141J-4R7Y C RESISTOR 4.7 5% 1/4W
R 373 QRZ9021-220 FUSI RESISTOR C
A22 1/0W
R 373 QRZ9021-220 FUSI.RESISTOR B,E,EN,EV
A22 1/0W
R 374 QRZ9021-220 FUSI.RESISTOR B,E,EN,EV
A22 1/0W
R 374 QRZ9021-220 FUSI RESISTOR C
A22 1/0W
R 374 QRL022J-220 O.M.F.RESISTOR J
A22 5% 1/2W
R 375 QRZ9021-220 FUSI.RESISTOR B,E,EN,EV
A22 1/0W
R 375 QRZ9021-220 FUSI.RESISTOR C
A22 1/0W
R 375 QRL022J-220 UNF.OMF.RES. J
A22 5% 1/2W
R 376 QRE141J-221Y C RESISTOR 220 5% 1/4W
Electrical parts list (Power AMP board)
Block No. 01
Item Parts number Parts name Area Remarks
A

MX-J800/MX-J850R
16
Item Parts number Parts name Area Remarks
A
R 377 QRE141J-681Y C RESISTOR 680 5% 1/4W
R 378 QRE141J-182Y C RESISTOR 1.8K 5% 1/4W
R 379 QRL022J-220 UNF.OMF.RES. J22 5% 1/2W
R 380 QRL022J-220 UNF.OMF.RES. J22 5% 1/2W
R 381 QRE141J-272Y C RESISTOR 2.7K 5% 1/4W
R 382 QRE141J-562Y C RESISTOR 5.6K 5% 1/4W
R 383 QRL01DJ-150X OMF RESISTOR J
A15 5% 1/1W
R 384 QRE141J-272Y C RESISTOR 2.7K 5% 1/4W
R 385 QRE141J-562Y C RESISTOR 5.6K 5% 1/4W
R 388 QRE141J-103Y C RESISTOR 10K 5% 1/4W
R 389 QRE141J-103Y C RESISTOR 10K 5% 1/4W
R 390 QRL022J-220 UNF.OMF.RES. J22 5% 1/2W
R 391 QRL022J-220 UNF.OMF.RES. J22 5% 1/2W
R 701 QRL01DJ-101X OMF RESISTOR 100 5% 1/1W
R 702 QRL01DJ-101X OMF RESISTOR 100 5% 1/1W
R 703 QRE141J-563Y C RESISTOR 56K 5% 1/4W
R 704 QRE141J-563Y C RESISTOR 56K 5% 1/4W
R 705 QRJ146J-681X UNF C.RESISTOR 680 5% 1/4W
R 706 QRJ146J-681X UNF C.RESISTOR 680 5% 1/4W
R 707 QRE141J-563Y C RESISTOR 56K 5% 1/4W
R 708 QRE141J-563Y C RESISTOR 56K 5% 1/4W
R 709 QRT01DJ-R22X UNF.MF.RESISTOR 5% 1/1W
R 710 QRT01DJ-R22X UNF.MF.RESISTOR 5% 1/1W
R 711 QRT01DJ-R22X UNF.MF.RESISTOR 5% 1/1W
R 712 QRT01DJ-R22X UNF.MF.RESISTOR 5% 1/1W
R 713 QRJ146J-100X UNF.C RESISTOR 10 5% 1/4W
R 714 QRJ146J-100X UNF.C RESISTOR 10 5% 1/4W
R 715 QRJ146J-100X UNF.C RESISTOR 10 5% 1/4W
R 716 QRJ146J-100X UNF.C RESISTOR 10 5% 1/4W
R 717 QRE141J-122Y C RESISTOR 1.2K 5% 1/4W
R 718 QRE141J-122Y C RESISTOR 1.2K 5% 1/4W
R 719 QRE141J-223Y C RESISTOR 22K 5% 1/4W
R 720 QRE141J-223Y C RESISTOR 22K 5% 1/4W
R 721 QRE141J-103Y C RESISTOR 10K 5% 1/4W
R 722 QRE141J-103Y C RESISTOR 10K 5% 1/4W
R 723 QRE141J-392Y C RESISTOR 3.9K 5% 1/4W
R 724 QRE141J-392Y C RESISTOR 3.9K 5% 1/4W
R 725 QRE141J-823Y C RESISTOR 82K 5% 1/4W
R 726 QRE141J-104Y C RESISTOR 100K 5% 1/4W
R 727 QRE141J-104Y C RESISTOR 100K 5% 1/4W
R 728 QRE141J-103Y C RESISTOR 10K 5% 1/4W
R 729 QRE141J-104Y C RESISTOR 100K 5% 1/4W
R 730 QRE141J-103Y C RESISTOR 10K 5% 1/4W
R 733 QRE141J-472Y C RESISTOR 47K 5% 1/4W
R 734 QRE141J-472Y C RESISTOR 4.7K 5% 1/4W
R 735 QRE141J-472Y C RESISTOR 47K 5% 1/4W
R 736 QRE141J-472Y C RESISTOR 4.7K 5% 1/4W
R 739 QRL01DJ-821X OMF RESISTOR 820 5% 1/1W
R 740 QRL01DJ-821X OMF RESISTOR 820 5% 1/1W
R 741 QRE141J-223Y C RESISTOR 22K 5% 1/4W
R 742 QRE141J-223Y C RESISTOR 22K 5% 1/4W
R 743 QRE141J-223Y C RESISTOR 22K 5% 1/4W
R 744 QRE141J-223Y C RESISTOR 22K 5% 1/4W
R 745 QRE141J-103Y C RESISTOR 10K 5% 1/4W
R 746 QRE141J-103Y C RESISTOR 10K 5% 1/4W
R 747 QRE141J-823Y C RESISTOR 82K 5% 1/4W
R 748 QRE141J-104Y C RESISTOR 100K 5% 1/4W
R 749 QRE141J-471Y C RESISTOR 470 5% 1/4W
R 750 QRE141J-471Y C RESISTOR 470 5% 1/4W
R 751 QRJ146J-100X UNF.C RESISTOR 10 5% 1/4W
R 752 QRJ146J-100X UNF.C RESISTOR 10 5% 1/4W
R 766 QRE141J-333Y C RESISTOR 33K 5% 1/4W
R 767 QRE141J-683Y C RESISTOR 68K 5% 1/4W
R 771 QRE141J-222Y C RESISTOR 2.2K 5% 1/4W
R 772 QRE141J-103Y C RESISTOR 10K 5% 1/4W
R 774 QRJ146J-100X UNF.C RESISTOR 10 5% 1/4W
R 775 QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R 776 QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R 783 QRE141J-563Y C RESISTOR 56K 5% 1/4W
R 784 QRE141J-563Y C RESISTOR 56K 5% 1/4W
R 785 QRJ146J-182X C RESISTOR 1.8K 5% 1/4W
R 786 QRJ146J-182X UNF C.RESISTOR 1.8K 5% 1/4W
R 787 QRE141J-563Y C RESISTOR 56K 5% 1/4W
R 788 QRE141J-563Y C RESISTOR 56K 5% 1/4W
R 789 QRT01DJ-R22X UNF.MF.RES.I.M 5% 1/1W
R 790 QRT01DJ-R22X UNF.MF.RES.I.M 5% 1/1W
R 791 QRT01DJ-R22X UNF.MF.RES.I.M 5% 1/1W
R 792 QRT01DJ-R22X UNF.MF.RES.I.M 5% 1/1W
R 793 QRJ146J-100X UNF.C RESISTOR 10 5% 1/4W
R 794 QRJ146J-100X UNF.C RESISTOR 10 5% 1/4W
R 795 QRJ146J-100X UNF.C RESISTOR 10 5% 1/4W
R 796 QRJ146J-100X UNF.C RESISTOR 10 5% 1/4W
R 797 QRE141J-122Y C RESISTOR 1.2K 5% 1/4W
R 798 QRE141J-122Y C RESISTOR 1.2K 5% 1/4W
R1001 QRZ9044-335 C RESISTOR J,C3.3M 1/0W
SP200 E3400-439 FELT SPACER
TB101 QNZ0079-001Z TAB
TB102 QNZ0079-001Z TAB
TH202 QAD0095-4R7Z P.THERMISTOR B,E,EN,EV
TH202 QAD0095-4R7Z POSISTOR C
TW120 WJK0040-001A E-SI C WIRE C-B
Electrical parts list (Power AMP board)
Block No. 01
Item Parts number Parts name Area Remarks
A

MX-J800/MX-J850R
17
Item Parts number Parts name Area
Electrical parts list (Function,Tuner,Main board)
Remarks
Block No. 02
A
C 1 QCBB1HK-223Y C CAPACITOR .022MF 10% 50V
C 3 QCBB1HK-473Y C CAPACITOR .047MF 10% 50V
C 4 QDYB1CM-103Y C CAPACITOR
C 5 QETN1AM-107Z E CAPACITOR B,E,EN,EV100MF 20% 10V
C 5 EETC1CM-476ZJC E CAPACITOR J,C
C 8 QCSB1HJ-150Y C CAPACITOR B,E,EN,EV15PF 5% 50V
C 9 QDXB1CM-272Y C CAPACITOR B,E,EN,EV
C 10 EETC1HM-474ZJC E CAPACITOR
C 12 QCSB1HJ-100Y C CAPACITOR J,C10PF 5% 50V
C 12 QCSB1HJ-150Y C CAPACITOR B,E,EN,EV15PF 5% 50V
C 13 QFLM1HJ-473Z M CAPACITOR .047MF 5% 50V
C 14 QCBB1HK-473Y C CAPACITOR .047MF 10% 50V
C 15 QCBB1HK-391Y C CAPACITOR B,E,EN,EV390PF 10% 50V
C 18 QCBB1HK-471Y C CAPACITOR J,C470PF 10% 50V
C 18 QDXB1CM-152Y C CAPACITOR B,E,EN,EV
C 19 QCBB1HK-471Y C CAPACITOR J,C470PF 10% 50V
C 19 QDXB1CM-152Y C CAPACITOR B,E,EN,EV
C 20 EETC1HM-226ZJC E CAPACITOR
C 21 QCBB1HK-473Y C CAPACITOR .047MF 10% 50V
C 22 QFVJ1HJ-274Z CAPACITOR .27MF 5% 50V
C 23 EETC1HM-105ZJC E CAPACITOR
C 24 EETC1HM-226ZJC E CAPACITOR
C 25 QFLM1HJ-223Z C CAPACITOR B,E,EN,EV.022MF 5% 50V
C 25 QFLM1HJ-273Z C CAPACITOR J,C.027MF 5% 50V
C 26 EETC1EM-106ZJC E CAPACITOR
C 27 EETC1HM-105ZJC E CAPACITOR
C 28 EETC1HM-105ZJC E CAPACITOR
C 29 QFLM1HJ-182Z M CAPACITOR B,E,EN,EV1800PF 5% 50V
C 29 QFLM1HJ-222Z M CAPACITOR J,C2200PF 5% 50V
C 30 QFLM1HJ-222Z M CAPACITOR J,C2200PF 5% 50V
C 30 QFLM1HJ-182Z M CAPACITOR B,E,EN,EV1800PF 5% 50V
C 31 QCSB1HJ-330Y C CAPACITOR B,E,EN,EV33PF 5% 50V
C 31 QCSB1HJ-560Y C CAPACITOR J,C56PF 5% 50V
C 32 QDGB1HK-102Y C CAPACITOR
C 33 QCBB1HK-473Y C CAPACITOR .047MF 10% 50V
C 34 EETC1HM-474ZJC E CAPACITOR
C 35 QDYB1CM-103Y C CAPACITOR
C 36 EETC1HM-105ZJC E CAPACITOR
C 37 EETC1HM-474ZJC E CAPACITOR
C 38 EETC1HM-105ZJC E CAPACITOR
C 39 QCBB1HK-223Y C CAPACITOR .022MF 10% 50V
C 40 QETN1EM-107Z E CAPACITOR 100MF 20% 25V
C 41 QCBB1HK-473Y C CAPACITOR .047MF 10% 50V
C 42 QCBB1HK-473Y C CAPACITOR .047MF 10% 50V
C 43 QCBB1HK-473Y C CAPACITOR .047MF 10% 50V
C 44 QDGB1HK-102Y C CAPACITOR J,C
C 51 EETC1HM-105ZJC E CAPACITOR
C 52 EETC1HM-105ZJC E CAPACITOR
C 60 QEKC1AM-107Z E CAPACITOR 100MF 20% 10V
C 61 QCSB1HJ-120Y C CAPACITOR 12PF 5% 50V
C 62 QCSB1HJ-120Y C CAPACITOR 12PF 5% 50V
C 63 QCBB1HK-473Y C CAPACITOR .047MF 10% 50V
C 65 QDGB1HK-102Y C CAPACITOR
C 66 QCBB1HK-151Y C CAPACITOR 150PF 10% 50V
C 67 QCSB1HJ-270Y C CAPACITOR 27PF 5% 50V
C 68 QCBB1HK-101Y C CAPACITOR 100PF 10% 50V
C 69 QFVJ1HJ-105Z TF.CAPACITOR 1.0MF 5% 50V
C 70 QDXB1CM-392Y C CAPACITOR
C 71 EETC1CM-476ZJC E CAPACITOR
C 72 QDGB1HK-102Y C CAPACITOR
C 80 QCBB1HK-820Y C CAPACITOR B,E,EN,EV82PF 10% 50V
C 81 QCSB1HJ-470Y C CAPACITOR B,E,EN,EV47PF 5% 50V
C 82 EETC1CM-106ZJC E CAPACITOR B,E,EN,EV
C 83 QCBB1HK-473Y C CAPACITOR B,E,EN,EV.047MF 10% 50V
C 84 EETC1HM-225ZJC E CAPACITOR B,E,EN,EV
C 85 QCBB1HK-331Y C CAPACITOR B,E,EN,EV330PF 10% 50V
C 86 QCBB1HK-561Y C CAPACITOR B,E,EN,EV560PF 10% 50V
C 89 QDGB1HK-102Y C CAPACITOR B,E,EN,EV
C 90 QDYB1CM-103Y C CAPACITOR B,E,EN,EV
C 98 QCSB1HJ-100Y C CAPACITOR B,E,EN,EV10PF 5% 50V
C 360 QFVJ1HJ-104Z TF CAPACITOR .10MF 5% 50V
C 361 QFVJ1HJ-104Z TF CAPACITOR .10MF 5% 50V
C 365 QETN1CM-227Z E CAPACITOR 220MF 20% 16V
C 366 QETN1AM-108Z E CAPACITOR 1000MF 20% 10V
C 372 EETC1HM-475ZJC E CAPACITOR
C 373 QDYB1CM-103Y C CAPACITOR
C 380 EETC1HM-224ZJC E CAPACITOR
C 381 QCFB1HZ-104Y C CAPACITOR .10MF +80:-20%
C 382 QCFB1HZ-104Y C CAPACITOR .10MF +80:-20%
C 383 EETC1EM-476ZJC E CAPACITOR
C 385 EETC1HM-105ZJC E CAPACITOR
C 386 QDGB1HK-681Y C CAPACITOR
C 387 QFLM1HJ-153Z M CAPACITOR .015MF 5% 50V
C 388 QDXB1CM-182Y C CAPACITOR
C 389 QCS11HJ-330 C CAPACITOR 33PF 5% 50V
C 390 EETC1HM-224ZJC E CAPACITOR
C 398 QFLM1HJ-103Z M CAPACITOR .010MF 5% 50V
C 399 QFLM1HJ-103Z M CAPACITOR .010MF 5% 50V
C 401 QFLM1HJ-222Z M CAPACITOR
A2200PF 5% 50V
C 402 QFLM1HJ-222Z M CAPACITOR
A2200PF 5% 50V
C 403 QFLM1HJ-102Z M CAPACITOR 1000PF 5% 50V
C 404 QFLM1HJ-102Z M CAPACITOR 1000PF 5% 50V
C 407 QTE1V06-106Z E CAPACITOR
C 408 QTE1V06-106Z E CAPACITOR
C 411 EETC1EM-106ZJC E CAPACITOR
C 412 EETC1EM-106ZJC E CAPACITOR
C 413 QCBB1HK-221Y C CAPACITOR 220PF 10% 50V
C 414 QCBB1HK-221Y C CAPACITOR 220PF 10% 50V
C 415 EETC1EM-106ZJC E CAPACITOR
C 416 EETC1EM-106ZJC E CAPACITOR
C 417 QEKC1HM-225Z E CAPACITOR 2.2MF 20% 50V
C 418 QEKC1HM-225Z E CAPACITOR 2.2MF 20% 50V
C 419 EETC1EM-106ZJC E CAPACITOR
C 420 QETN1AM-107Z E CAPACITOR 100MF 20% 10V
C 421 QFVJ1HJ-104Z TF CAPACITOR .10MF 5% 50V
C 422 QFVJ1HJ-104Z TF CAPACITOR .10MF 5% 50V
C 423 QFVJ1HJ-104Z TF CAPACITOR .10MF 5% 50V
C 424 QFVJ1HJ-104Z TF CAPACITOR .10MF 5% 50V
C 425 QFLM1HJ-183Z M CAPACITOR .018MF 5% 50V
C 426 QFLM1HJ-183Z M CAPACITOR .018MF 5% 50V
C 427 QFLM1HJ-223Z M CAPACITOR .022MF 5% 50V
C 428 QFLM1HJ-223Z M CAPACITOR .022MF 5% 50V
C 429 QFLM1HJ-562Z M CAPACITOR 5600PF 5% 50V
C 430 QFLM1HJ-562Z M CAPACITOR 5600PF 5% 50V
C 431 QETN1HM-225Z E CAPACITOR 2.2MF 20% 50V
C 432 QETN1HM-225Z E CAPACITOR 2.2MF 20% 50V
C 433 QTE1H39-225Z E CAPACITOR
C 434 QTE1H39-225Z E CAPACITOR
C 435 QETN1EM-106Z E CAPACITOR 10MF 20% 25V
C 436 QETN1EM-106Z E CAPACITOR 10MF 20% 25V
C 445 QCBB1HK-101Y C CAPACITOR 100PF 10% 50V
C 446 QCBB1HK-101Y C CAPACITOR 100PF 10% 50V
C 447 QTE1C39-106Z E CAPACITOR
C 448 QTE1C39-106Z E CAPACITOR
C 453 QCBB1HK-101Y C CAPACITOR B,E,EN,EV100PF 10% 50V
C 455 QCBB1HK-101Y C CAPACITOR B,E,EN,EV100PF 10% 50V
Item Parts number Parts name Area Remarks
A

MX-J800/MX-J850R
18
Item Parts number Parts name Area Remarks
A
C 457 QTE1V06-106Z E CAPACITOR
C 458 QTE1V06-106Z E CAPACITOR
C 459 QFLM1HJ-333Z M CAPACITOR .033MF 5% 50V
C 460 EETC1HM-475ZJC E CAPACITOR
C 461 EETC1HM-474ZJC E CAPACITOR
C 462 QFLM1HJ-393Z M CAPACITOR .039MF 5% 50V
C 463 EETC1HM-475ZJC E CAPACITOR
C 464 QETN1AM-107Z E CAPACITOR 100MF 20% 10V
C 465 QFLM1HJ-473Z M CAPACITOR .047MF 5% 50V
C 466 QFLM1HJ-473Z M CAPACITOR .047MF 5% 50V
C 467 EETC1HM-105ZJC E CAPACITOR
C 468 EETC1EM-476ZJC E CAPACITOR
C 477 EETC1HM-475ZJC E CAPACITOR
C 481 QDGB1HK-102Y C CAPACITOR B,E,EN,EV
C 481 QCBB1HK-221Y C CAPACITOR J,C220PF 10% 50V
C 482 QCBB1HK-221Y C CAPACITOR J,C220PF 10% 50V
C 482 QDGB1HK-102Y C CAPACITOR B,E,EN,EV
C 483 QDXB1CM-222Y C CAPACITOR B,E,EN,EV
C 483 QCBB1HK-101Y C CAPACITOR J,C100PF 10% 50V
C 484 QDXB1CM-222Y C CAPACITOR B,E,EN,EV
C 484 QCBB1HK-101Y C CAPACITOR J,C100PF 10% 50V
C 485 QETN1AM-107Z E CAPACITOR 100MF 20% 10V
C 489 EETC1CM-476ZJC E CAPACITOR
C 490 EETC1CM-476ZJC E CAPACITOR
C 493 QFVJ1HJ-104Z TF CAPACITOR .10MF 5% 50V
C 494 QFVJ1HJ-104Z TF CAPACITOR .10MF 5% 50V
C 495 QFVJ1HJ-104Z TF CAPACITOR .10MF 5% 50V
C 496 QFVJ1HJ-104Z TF CAPACITOR .10MF 5% 50V
C 501 QTE1V06-106Z E CAPACITOR
C 502 QTE1V06-106Z E CAPACITOR
C 503 QFLM1HJ-223Z M CAPACITOR .022MF 5% 50V
C 504 QFLM1HJ-473Z M CAPACITOR .047MF 5% 50V
C 505 QETN0JM-227Z E CAPACITOR 220MF 20% 6.3V
C 506 EETC1EM-106ZJC E CAPACITOR
C 507 EETC1EM-106ZJC E CAPACITOR
C 508 EETC1EM-106ZJC E CAPACITOR
C 509 EETC1EM-106ZJC E CAPACITOR
C 510 QETN0JM-227Z E CAPACITOR 220MF 20% 6.3V
C 511 QFVJ1HJ-104Z TF CAPACITOR .10MF 5% 50V
C 512 QFVJ1HJ-104Z TF CAPACITOR .10MF 5% 50V
C 513 QFVJ1HJ-104Z TF CAPACITOR .10MF 5% 50V
C 514 QFVJ1HJ-104Z TF CAPACITOR .10MF 5% 50V
C 515 QEKC1HM-474Z E CAPACITOR
A.47MF 20% 50V
C 516 QEKC1HM-474Z E CAPACITOR .47MF 20% 50V
C 517 QEKC1HM-475Z E CAPACITOR 4.7MF 20% 50V
C 518 QEKC1HM-475Z E CAPACITOR 4.7MF 20% 50V
C 519 EETC1HM-474ZJC E CAPACITOR
C 520 EETC1HM-474ZJC E CAPACITOR
C 521 EETC1HM-475ZJC E CAPACITOR
C 522 EETC1HM-475ZJC E CAPACITOR
C 523 QFVJ1HJ-154Z TF CAPACITOR .15MF 5% 50V
C 524 QFVJ1HJ-154Z TF CAPACITOR .15MF 5% 50V
C 525 QETN1HM-335Z E CAPACITOR 3.3MF 20% 50V
C 526 QETN1HM-335Z E CAPACITOR 3.3MF 20% 50V
C 527 QFVJ1HJ-154Z TF CAPACITOR .15MF 5% 50V
C 528 QFVJ1HJ-154Z TF CAPACITOR .15MF 5% 50V
C 529 QFVJ1HJ-474Z CAPACITOR .47MF 5% 50V
C 530 EETC1EM-476ZJC E CAPACITOR
C 531 QETN1AM-227Z E CAPACITOR 220MF 20% 10V
C 532 QDGB1HK-681Y C CAPACITOR
C 533 QCS11HJ-470 C CAPACITOR 47PF 5% 50V
C 535 QCBB1HK-561Y C CAPACITOR 560PF 10% 50V
C 536 QCZ0205-155Z ML C CAPACITOR 1.5MF
C 541 EETC1HM-225ZJC E CAPACITOR
C 542 QETN1AM-227Z E CAPACITOR 220MF 20% 10V
C 543 QCZ0205-155Z C CAPACITOR
A1.5MF
C 544 EETC1HM-474ZJC E CAPACITOR
C 545 EETC1HM-474ZJC E CAPACITOR
C 546 QFLM1HJ-823Z M CAPACITOR .082MF 5% 50V
C 547 QCB31HK-332Z C CAPACITOR 3300PF 10% 50V
C 548 QFLM1HJ-823Z M CAPACITOR .082MF 5% 50V
C 549 QETN0JM-227Z E CAPACITOR 220MF 20% 6.3V
C 550 QCF11HZ-473 C CAPACITOR .047MF +80:-20%
C 551 QCS11HJ-300 C CAPACITOR 30PF 5% 50V
C 552 QCS11HJ-300 C CAPACITOR 30PF 5% 50V
C 553 QETN1EM-106Z E CAPACITOR
A10MF 20% 25V
C 554 QETN1EM-106Z E CAPACITOR
A10MF 20% 25V
C 555 EETC1EM-106ZJC E CAPACITOR
C 556 EETC1EM-106ZJC E CAPACITOR
C 561 EETC1HM-225ZJC E CAPACITOR
C 562 EETC1HM-225ZJC E CAPACITOR
C 563 EETC1HM-105ZJC E CAPACITOR
C 564 EETC1HM-105ZJC E CAPACITOR
C 565 EETC1EM-106ZJC E CAPACITOR
C 566 QETN1AM-107Z E CAPACITOR 100MF 20% 10V
C 580 QDX31EM-473Z C CAPACITOR
C 581 QDGB1HK-102Y C CAPACITOR B,E,EN,EV
A
C 581 QDYB1CM-103Y C CAPACITOR J,C
A
C 582 QDYB1CM-103Y C CAPACITOR J,C
A
C 582 QDGB1HK-102Y C CAPACITOR B,E,EN,EV
A
C 583 QFLM1HJ-103Z M CAPACITOR B,E,EN,EV.010MF 5% 50V
C 584 QCS31HJ-391Z C CAPACITOR B,E,EN,EV
A390PF 5% 50V
C 586 QFLM1HJ-102Z M CAPACITOR B,E,EN,EV
A1000PF 5% 50V
C 587 EETC1EM-106ZJC E CAPACITOR
C 589 QDYB1CM-103Y C CAPACITOR
CF 1 QAX0419-001Z C FILTER J,C
CF 1 QAX0420-001 C FILTER B,E,EN,EV
CF 2 QAX0419-001Z C FILTER J,C
CF 2 QAX0421-001 C FILTER B,E,EN,EV
CF 3 QAX0519-001Z C FILTER
CN410 QGF1016F1-19 CONNECTOR
CN411 QGF1201C3-21 FFC/FPC CONNE
CN412 QGF1201C3-21 FFC/FPC CONNE
CN413 QGF1201C3-17 VMC0332-017
CN414 QGD2501C1-03Z SOCKET
CN415 QGD2501C1-04Z SOCKET
CN416 QGB2501J1-10 B TO B CONNE
CN417 QGB2501J1-07 B TO B CONNE
CP403 ICP-N15-T ICP J
D 1 1SS133-T2 SI DIODE
D 2 1SS133-T2 SI DIODE
D 3 1SS133-T2 SI DIODE
D 4 1SS133-T2 SI DIODE
D 5 MTZJ5.6B-T2 ZENER DIODE
D 6 MTZJ5.6B-T2 ZENER DIODE B,E,EN,EV
D 8 1SS133-T2 SI DIODE
D 303 1SS133-T2 SI DIODE
D 305 1SS133-T2 SI DIODE
D 306 1SS133-T2 SI DIODE
D 307 1SS133-T2 SI DIODE
D 403 1SR35-100A-T5 SI DIODE
D 481 1SS133-T2 SI DIODE
D 482 1SS133-T2 SI DIODE
D 483 1SS133-T2 SI DIODE
D 484 1SS133-T2 SI DIODE
D 485 1SS133-T2 SI DIODE
Electrical parts list (Function,Tuner,Main board)
Block No. 02
Item Parts number Parts name Area Remarks
A
