JVC UX-G950V User manual

MICRO COMPONENT SYSTEM
UX-G950V
—Consists of CA-UXG950V and SP-UXG950V
SUPER VIDEO
INSTRUCTIONS
GVT0254-001A
[B]
Cover_UX-G950V[B].indd 1Cover_UX-G950V[B].indd 1 08.4.15 5:26:37 PM08.4.15 5:26:37 PM

G-1
IMPORTANT FOR LASER PRODUCTS
1. CLASS 1 LASER PRODUCT
2. CAUTION: Do not open the top cover or cabinet. There are
no user serviceable parts inside the unit; leave all servicing to
qualified service personnel.
3. CAUTION: Visible and/or invisible class 1M laser radiation
when open. Do not view directly with optical instruments.
4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED INSIDE
THE UNIT.
CAUTION
• Do not block the ventilation openings or holes.
(If the ventilation openings or holes are blocked by a
newspaper or cloth, etc., the heat may not be able to get
out.)
• Do not place any naked flame sources, such as lighted
candles, on the apparatus.
• When discarding batteries, environmental problems must
be considered and local rules or laws governing the disposal
of these batteries must be followed strictly.
• Do not expose this apparatus to rain, moisture, dripping
or splashing and that no objects filled with liquids, such as
vases, shall be placed on the apparatus.
CAUTION:
Excessive sound pressure from earphones or headphones can
cause hearing loss.
Dear Customer,
This apparatus is in conformance with the valid European
directives and standards regarding electromagnetic
compatibility and electrical safety.
European representative of Victor Company of Japan, Limited is:
JVC Technical Services Europe GmbH
Postfach 10 05 04
61145 Friedberg
Germany
Warnings, Cautions and Others
IMPORTANT for the U.K.
DO NOT cut off the mains plug from this equipment. If the
plug fitted is not suitable for the power points in your home
or the cable is too short to reach a power point, then obtain
an appropriate safety approved extension lead or consult
your dealer.
BE SURE to replace the fuse only with an identical approved
type, as originally fitted.
If nonetheless the mains plug is cut off ensure to remove the
fuse and dispose of the plug immediately, to avoid a possible
shock hazard by inadvertent connection to the mains supply.
If this product is not supplied fitted with a mains plug then
follow the instructions given below:
IMPORTANT:
DO NOT make any connection to the terminal which is
marked with the letter E or by the safety earth symbol or
coloured green or green-and-yellow.
The wires in the mains lead on this product are coloured in
accordance with the following code:
Blue: Neutral
Brown: Live
As these colours may not correspond with the coloured
markings identifying the terminals in your plug proceed as
follows:
The wire which is coloured blue must be connected to the
terminal which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the
terminal which is marked with the letter L or coloured red.
IF IN DOUBT - CONSULT A COMPETENT ELECTRICIAN.
CAUTION
The button in any position does not disconnect the mains
line.
Disconnect the mains plug to shut the power off completely (the
STANDBY lamp goes off).
The MAINS plug or an appliance coupler is used as the
disconnect device, the disconnect device shall remain readily
operable.
• When the system is on standby, the STANDBY lamp lights red.
• When the system is turned on, the STANDBY lamp goes off.
The power can be remote controlled.
CAUTION
To reduce the risk of electrical shocks, fire, etc.:
1. Do not remove screws, covers or cabinet.
2. Do not expose this appliance to rain or moisture.
Safety_UX-G950V[B].indd 1Safety_UX-G950V[B].indd 1 08.4.14 4:35:30 PM08.4.14 4:35:30 PM

G-2
Information for Users on Disposal of Old equipment
Attention:
This symbol is only valid in
the European Union.
[European Union]
This symbol indicates that the electrical and electronic equipment should not be disposed as general
household waste at its end-of-life. Instead, the product should be handed over to the applicable
collection point for the recycling of electrical and electronic equipment for proper treatment, recovery
and recycling in accordance with your national legislation.
By disposing of this product correctly, you will help to conserve natural resources and will help
prevent potential negative effects on the environment and human health which could otherwise
be caused by inappropriate waste handling of this product. For more information about collection
point and recycling of this product, please contact your local municipal office, your household waste
disposal service or the shop where you purchased the product.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national
legislation.
(Business users)
If you wish to dispose of this product, please visit our web page www.jvc-europe.com to obtain
information about the take-back of the product.
[Other Countries outside the European Union]
If you wish to dispose of this product, please do so in accordance with applicable national legislation
or other rules in your country for the treatment of old electrical and electronic equipment.
Caution: Proper Ventilation
To avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follows:
1. Front: No obstructions and open spacing.
2. Sides/Top/ Back: No obstructions should be placed in the areas shown by the dimensions below.
3. Bottom: Place on the level surface. Maintain an adequate air path for ventilation by placing on a stand with a height of 10 cm or
more.
Front view Side view
Safety_UX-G950V[B].indd 2Safety_UX-G950V[B].indd 2 08.4.14 4:35:32 PM08.4.14 4:35:32 PM

1
How to Read This Manual
• Button and control operations are explained in the table
below.
• Some related tips and notes are explained later in
the sections “Learning More about This System”
and “Troubleshooting,” but not in the same section
explaining the operations (
INFO
indicates that the
content has some information).
Indicates that you press the button briefly.
Indicates that you press the button briefly
and repeatedly until the option you want
is selected.
Indicates that you press one of the buttons.
2 sec.
Indicates that you press and hold the
button for a specified period.
Indicates that you turn the control in the
specified direction(s).
Remote
ONLY
Indicates that this operation is only
possible using the remote control.
Main Unit
ONLY
Indicates that this operation is only
possible using the main unit.
How to cancel the demonstration
Press and hold DEMO button on the main unit (until
“DEMO CLR” appears on the display) while on standby.
• Refer to the attached sheet “Information about the
demonstration function.”
Introduction
Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to ensure your complete
understanding and to obtain the best possible performance from the System.
Precautions
Installation
• Install the System in a location with adequate ventilation
to prevent internal heat build-up in the System.
DO NOT install the System in a location near
heat sources, or in a place subject to direct
sunlight, excessive dust or vibration.
• Install in a place which is level, dry and neither too hot
nor too cold—between 5°C and 35°C.
• Leave sufficient distance between the System and the TV.
• Keep the speakers away from the TV to avoid
interference with the TV.
Power sources
• When unplugging the System from the wall outlet, always
pull on the plug, not the power cord.
DO NOT handle the power cord with wet
hands.
Moisture condensation
Moisture may condense on the lens inside the System in the
following cases:
• After starting to heat the room
• In a damp room
• If the System is brought directly from a cold to a warm
place.
Should this occur, the System may malfunction. In this
case, leave the System turned on for a few hours until the
moisture evaporates, unplug the power cord, then plug it
in again.
Internal heat
• Make sure there is good ventilation around the System.
Poor ventilation could overheat and damage the System.
DO NOT block the ventilation openings or
holes. If they are blocked by a newspaper or
cloth, etc., the heat may not be able to get out.
Others
Should any metallic object or liquid fall into the System,
unplug the power cord and consult your dealer before
operating any further.
DO NOT disassemble the System since there
are no user serviceable parts inside.
• If you are not going to operate the System for an
extended period of time, unplug the power cord from the
wall outlet.
If anything goes wrong, unplug the power cord and consult
your dealer.
EN_UX-G950V[B]5.indb 1EN_UX-G950V[B]5.indb 1 08.4.18 5:31:51 PM08.4.18 5:31:51 PM

2
Connections ............................................................ 4
Preparing the remote control ............................................... 6

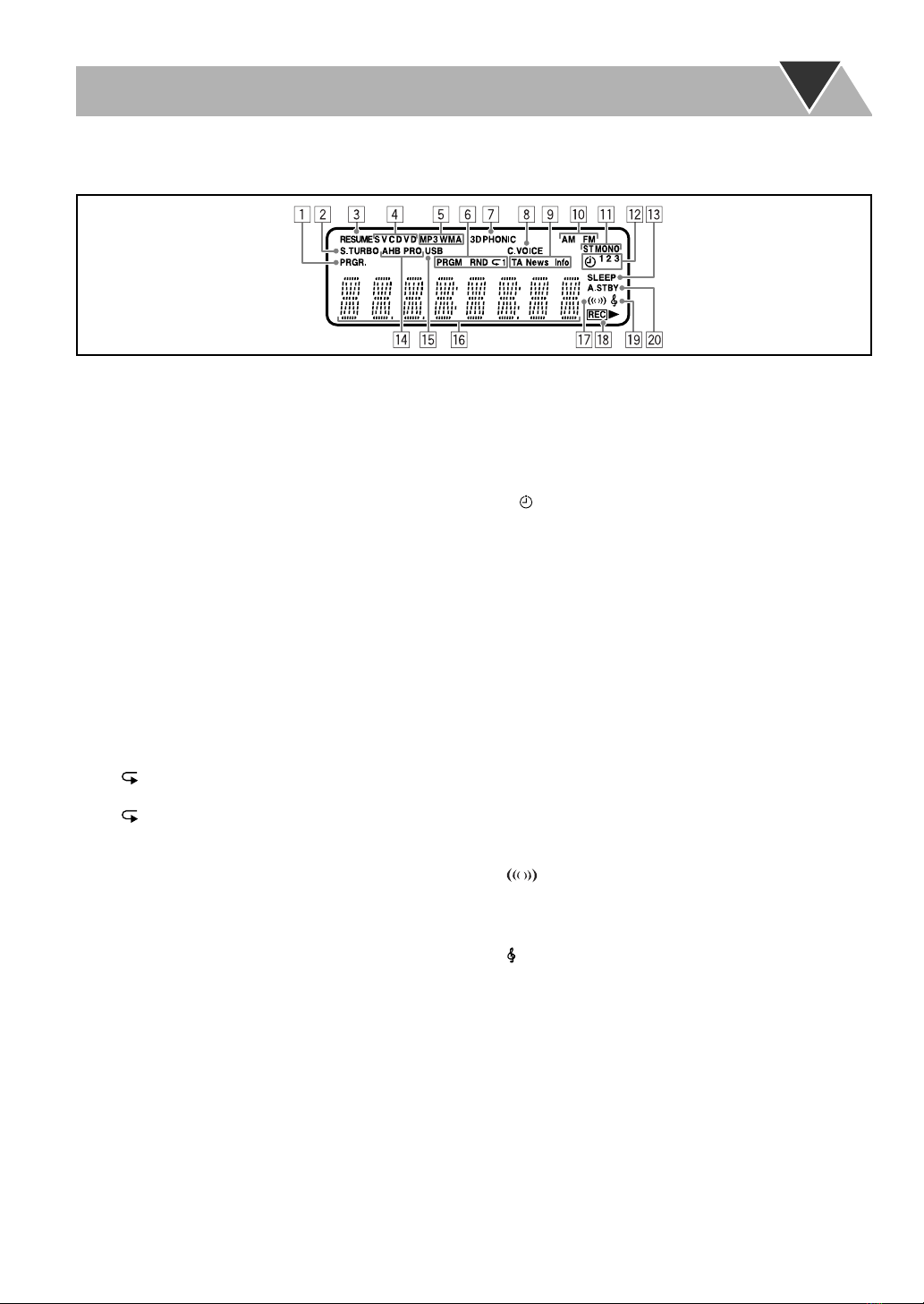

Display Indicators .................................................... 7
Daily Operations—Playback .................................... 8
Listening to the Radio......................................................... 9
Listening to the TV Sound ................................................. 10
Playing Back a Disc/USB Mass Storage Class Device..... 10
Playing Back a Digital Audio Player ................................. 12
Daily Operations—Sound & Other Adjustments......... 13
Adjusting the Volume......................................................... 13
Adjusting the Sound ........................................................... 13
Creating a Soothing Tone for Your Ear
—MY SOUND................................................................. 14
Creating 3-Dimensional Sound Field—3D Phonic ........ 15
Making Dialogues Clear—Clear Voice ............................ 15
Presetting Automatic DVD Sound Increase Level ......... 16
Changing the Display Brightness ...................................... 16
Setting the ECO (ecology) Mode....................................... 16
Changing the Scanning Mode ........................................... 16
Changing the Picture Tone ................................................ 17
Setting the Clock.................................................................. 18
Turning Off the Power Automatically ............................. 18
Advanced Radio Operations...................................... 19
Receiving FM Stations with Radio Data System ............. 19
Searching for a Program by PTY Codes........................... 19
Switching Temporarily to a Program of Your Choice
Automatically................................................................... 20
Unique Video Disc/File Operations ............................ 21
Selecting the Audio Track .................................................. 21
Selecting the Subtitle Language ......................................... 22
Special Effect Playback........................................................ 23
Advanced Playback Operations ................................. 24
Programming the Playing Order—Program Play........... 24
Playing at Random—Random Play .................................. 25
Playing Repeatedly .............................................................. 26
Prohibiting Disc Ejection—Child Lock............................ 26
Recording and Editing Operations............................. 27
Recording from a Disc........................................................ 28
Giving (Editing) Titles to Tracks or Groups ................... 28
Erasing the Tracks or Groups............................................ 30
On-Screen Operations .............................................. 31
On-screen Bar Operations ................................................. 31
Control Screen Operations ................................................ 34
Daily Timer Operations............................................. 36
Setting the Daily Timer....................................................... 36
Setup Menu Operations............................................ 38
Initial Settings ...................................................................... 38
Additional Information............................................ 40
Learning More about This System.................................... 40
Maintenance......................................................................... 42
Troubleshooting .................................................................. 43
Display Messages for Recording or Editing
Operations........................................................................ 44
Language Code List ............................................................. 45
Optical Digital Out Signals ................................................ 46
Operating JVC’s TVs Using the Remote Control........... 46
Specifications ....................................................................... 47
Parts Index ............................................................. 48
Contents
EN_UX-G950V[B]5.indb 2EN_UX-G950V[B]5.indb 2 08.4.18 5:31:56 PM08.4.18 5:31:56 PM

3
Playable Disc/File Types
DIGITAL VIDEO
SUPER VIDEO
COMPACT
DIGITAL AUDIO
• CD-R/-RW: Recorded in the Audio CD, Video
CD, and SVCD formats. MP3, WMA, WAV,
JPEG, MPEG-1, MPEG-2 and DivX files written in
accordance with the “ISO 9660” format can also be
played.
• DVD-R/-RW, +R/+RW: Recorded in the DVD Video
format. MP3, WMA, WAV, JPEG, MPEG-1, MPEG-2
and DivX files written in the UDF-Bridge format can
also be played.
• DVD-R/-RW: Recorded in the DVD Video Recording
(VR) format.
• DVD-ROM: Recorded in the MP3, WMA, WAV
format.
• USB mass storage class device: MP3, WMA, WAV,
JPEG, MPEG-1, MPEG-2 and DivX*files.
In addition to the above discs/files, this System can
play back audio data recorded on CD-Extra and CD-G
(CD-Graphics).
• The following discs cannot be played back:
DVD-RAM, CD-I (CD-I Ready), CD-ROM, and Photo
CD.
Playing back these discs will generate noise and damage
the speakers.
• CD Text and DVD Text can be played, but Text
information will not be shown on the display.
• In this manual, “file” and “track” are used
interchangeably.
• It is possible to play back finalized +R/+RW (DVD Video
format only) discs. DVD indicator lights on the front
display panel when a +R/+RW disc is loaded.
• “DVD Logo” is a trademark of DVD Format/Logo
Licensing Corporation.
• This System can play back EVERIO files (see page 41)
recorded on DVD, CD*, and USB mass storage class
device*.
*Only when the maximum bit rate is less than 2 Mbps.
About color system
This System is compatible with PAL video format. You
cannot play back NTSC discs properly.
Note on Region Code
DVD players and DVDs have their own Region Code
numbers. This System can play back only DVDs with
Region Code numbers including “2.”
• “RG ERROR” appears if DVD with other Region Code is
loaded.
Ex.:
Caution for DualDisc playback
The Non-DVD side of a “DualDisc” does not comply with
the “Compact Disc Digital Audio” standard. Therefore,
the use of the Non-DVD side of a DualDisc in this product
may not be recommended.
IMPORTANT: Before playing a disc/file, make sure of the
following...
• Turn on the TV and select an appropriate input mode
on the TV to view the pictures or on-screen displays.
• For disc/file playback, you can change the initial setting
to your preference. See “Setup Menu Operations” on
page 38.
If “ ” appears on the TV screen when you press a
button, the disc/file cannot perform the operation you
have tried to do.
• When playing a multi-channel encoded software, the
System properly converts the multi-channel signals into
2 channels, and emits the downmixed sound from the
speakers. To enjoy the powerful sound of these multi-
channel encoded software, connect a proper decoder
or an amplifier with a proper built-in decoder to the
OPTICAL DIGITAL OUT terminal on the rear.
EN_UX-G950V[B]5.indb 3EN_UX-G950V[B]5.indb 3 08.4.18 5:31:57 PM08.4.18 5:31:57 PM

4
Connections
INFO
Do not connect the power cord until all other
connections have been made.
• Connect AV (SCART) directly to the video input of your
TV. Connecting AV (SCART) to a TV via a VCR may
interfere with your viewing when playing back copy-
protected discs/files. Connecting AV (SCART) to an
integrated TV/VCR system may also interfere with your
viewing.
Supplied accessories
Check to be sure that you have all the following items.
• FM antenna (×1)
• AM loop antenna (×1)
• Remote control, RM-SUXG500VR (×1)
• Batteries (×2)
• Core filter (×1), see page 44 for details
If any items are missing, consult your dealer
immediately.

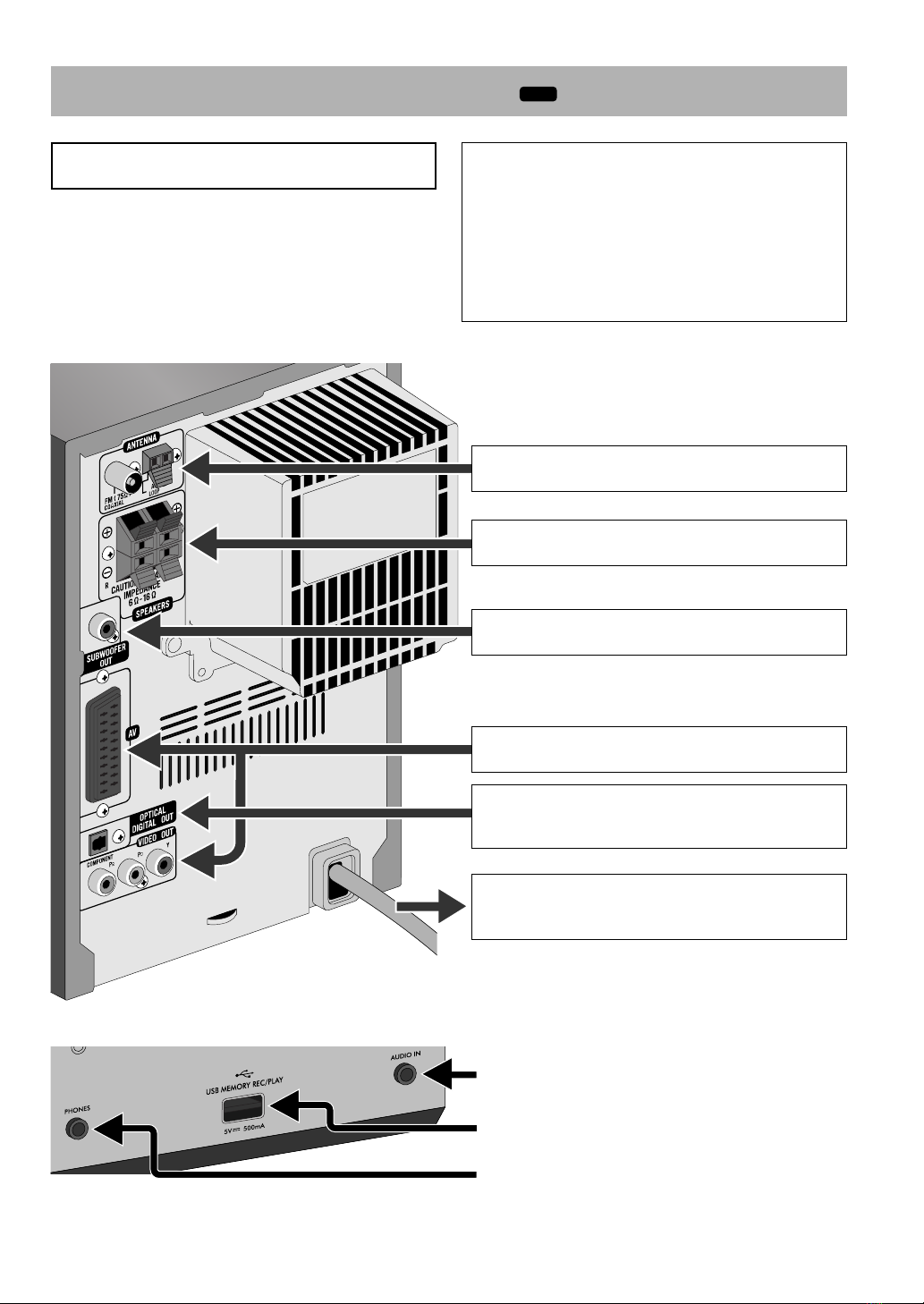

Rear panel
~From AM/FM antenna
See page 5.
ŸFrom the speakers
See page 5.
@From the digital input of digital audio
component
See page 5.
!From the powered subwoofer
See page 6.
⁄From the input of TV/monitor
See page 6.
¤To a wall outlet
Plug in the power cord only after all connections
have been completed.
Front panel
From the digital audio player
See page 6.
From the USB mass storage class device
See page 6.
To the headphones
EN_UX-G950V[B]5.indb 4EN_UX-G950V[B]5.indb 4 08.4.18 5:31:58 PM08.4.18 5:31:58 PM

5
~AM/FM antenna
To assemble the AM loop antenna
To connect AM/FM antenna
For better FM reception
Disconnect the supplied FM antenna, and connect to an
outdoor FM antenna using a 75 Ωwire with coaxial type
connector (IEC or DIN45325).
AM loop antenna (supplied)
Turn it until the best reception is obtained.
If the cords are covered with vinyl,
remove the vinyl to expose the tip of the
cord by twisting the vinyl.
FM antenna (supplied)
Extend it so that you can obtain the
best reception.
FM outdoor antenna
(not supplied)
ŸSpeakers
• When connecting the speaker cords, match the polarity
of the speaker terminals: red to (+) and black to (–)
• DO NOT connect more than one speaker to
each terminal.
• DO NOT push or pull the speakers as this
will damage the foot spacers at the bottom of
the speakers.
!Digital audio component
• Set “DIGITAL AUDIO OUTPUT” in the “AUDIO”
menu correctly according to the connected digital audio
equipment (see page 39).
• The digital signal through the OPTICAL DIGITAL OUT
terminal is transmitted only when “DVD/CD” is selected
as the source.
Insert Release
Red
Black
From right speaker From left speaker
Press and hold
Optical digital cord
(not supplied)
Protective cap
Red
Black
EN_UX-G950V[B]5.indb 5EN_UX-G950V[B]5.indb 5 08.4.18 5:31:59 PM08.4.18 5:31:59 PM

6
⁄To connect the powered subwoofer
The connected subwoofer can reproduce the bass sounds
recorded in front left and right channels, but cannot
reproduce the LFE signals encoded in multi-channel
software.
• Before plugging the System to the power supply, make
sure that the powered subwoofer is turned off.
@TV/monitor
Connect either component cord or SCART cord.
• This connection allows you to use the progressive
scanning mode. To select progressive (PROGRE)
scanning mode (see page 16), use VIDEO OUT
(COMPONENT) jacks.
• This connection sends the
video signal (Composite, Y/C,
or RGB) and receives audio
signal from TV. To listen to
the TV sound, see page 10.
• After connecting a TV, select the appropriate video
signal output according to the connection method. See
“Changing the Scanning Mode” on page 16.
When connecting a USB mass storage class device
From the powered subwoofer
(not supplied)
Green
Red
Blue
Component video
cord (not supplied)
SCART cord
(not supplied)
On the front panel
• When connecting with a USB cable, use the USB 2.0 cable
whose length is less than 1 m.
• You can connect a USB mass storage class device such as
a USB flash memory device, hard disk drive, multimedia
card reader, etc. to this System.
• You cannot connect a computer to the USB MEMORY
REC/PLAY ( ) terminal of the System.
• You cannot connect JVC Everio camcorder to the USB
MEMORY REC/PLAY ( ) terminal of the System.
• Noise and static electricity may stop the USB mass
storage class device sound. In this case, disconnect and
connect the USB mass storage class device again after
turning off the System.
When connecting a digital audio player
Preparing the remote control
Insert the battery into the remote control by matching the
polarity (+ and –) correctly.
If the range or effectiveness of the remote control decreases,
replace both batteries.
Caution
Battery shall not be exposed to excessive heat such as
sunshine, fire, or the like.
When using the remote control
Point the top of the remote control towards the remote
sensor as directly as possible. If you operate it from a
diagonal position, the operating range (approx. 5 m) may
be shorter.
Stereo mini plug (not supplied)
On the front panel
From audio output (or
headphone out, etc.)
USB cable (not supplied)
EN_UX-G950V[B]5.indb 6EN_UX-G950V[B]5.indb 6 08.4.18 5:32:00 PM08.4.18 5:32:00 PM

7
Display Indicators
The indications on the display tell you a lot of things while you are operating the System.
Before operating the System, be familiar with when and how the indicators illuminate on the display.
qFM reception indicators
• ST (stereo): lights while an FM stereo station with
sufficient signal strength is tuned in.
• MONO (monaural): lights while receiving an FM
stereo station in monaural.
wDaily Timer indicators
• : lights when Daily Timer is on standby or is being
set; flashes while it is working.
• 1/2/3: lights when a Daily Timer (1, 2, or 3) is on
standby or is working; flashes while being set.
eSLEEP indicator
• Lights when the Sleep Timer is activated.
rAHB PRO indicator
• Lights when AHB Pro (Active Hyper Bass Pro) is
activated.
tUSB indicator
• Lights when “USB MEM” is selected as the source.
yMain display
• While listening to the radio: band (or preset number)
and station frequency appear.
• While “AUDIO IN” is selected as the source:
“AUDIO IN” appears.
• While “TV” is selected as the source: “TV SOUND”
appears.
• While playing a disc or file: current status appears.
u(EALA surround mode) indicator
• Lights when EALA surround sound is activated.
iREC 3(recording) indicator
• Lights when recording started.
o(My Sound) indicator
• Lights when MY SOUND is activated.
;A.STBY (Auto Standby) indicator
• Lights when Auto Standby is activated.
• Flashes when playback stops with Auto Standby
activated.
1PRGR. (progressive) indicator
• Lights when the progressive scanning mode is
selected.
2S.TURBO (Sound Turbo) indicator
• Lights when Sound Turbo II is activated.
3RESUME indicator
• Lights when the System memorizes the position where
the playback is interrupted.
4Disc format indicators
• SVCD: lights when playing back an SVCD.
• VCD: lights when playing back a VCD.
• CD: lights when playing back a CD.
• DVD: lights when playing back a DVD.
5Audio format indicators
• MP3: lights when an MP3 file is detected.
• WMA: lights when a WMA file is detected.
6Playback mode indicators
• PRGM: lights when Program Play is activated.
• RND: lights when Random Play is activated.
• Repeat Mode indicators:
– 1: lights when One Track/File/Chapter/Step
Repeat is activated.
– : lights when any Repeat Mode other than above
is activated.
73D PHONIC indicator
• Lights when 3D Phonic is activated.
8C. VOICE (Clear Voice) indicator
• Lights when Clear Voice is activated.
9Enhanced Other Networks indicators
• TA/News/Info:
– Lights to indicate the currently selected program
type for PTY Standby Reception.
– Flashes when a program is automatically tuned in
with PTY Standby Reception.
pRadio band indicators
• AM: lights when tuning in to an AM station.
• FM: lights when tuning in to an FM station.
EN_UX-G950V[B]5.indb 7EN_UX-G950V[B]5.indb 7 08.4.18 5:32:02 PM08.4.18 5:32:02 PM

8
Daily Operations—Playback
In this manual, operations using the remote control
are mainly explained; however, you can use the buttons
and controls on the main unit if they have the same (or
similar) name and marks.
1Turn on the power.
The STANDBY lamp on the main unit turns off.
• Instead of pressing AUDIO/TV , the System is
turned on by pressing one of the source buttons.
2Select the source.
• Playback automatically starts if the selected source
is ready.
• You can change the display information by pressing
DISP/CHARA. For details, see page 18.
3Adjust the volume.
To turn off (standby) the System
The STANDBY lamp on the main unit
lights in red.
• A small amount of power is always
consumed even while on standby.
For private listening
Connect a pair of headphones to the PHONES jack
on the main unit. The sound will no longer come out
of the speakers. “H-PHONE” appears on the display
for a while. Be sure to turn down the volume before
connecting or putting on the headphones.
• Disconnecting the headphones will activate the
speakers again.
DO NOT turn off (standby) the System
with the volume set at an extremely high
level; otherwise, the sudden blast of sound
may damage your hearing, speakers and/or
headphones when you turn on the System or
start playback.
Remote control
Number
buttons
EN_UX-G950V[B]5.indb 8EN_UX-G950V[B]5.indb 8 08.4.18 5:32:03 PM08.4.18 5:32:03 PM

9

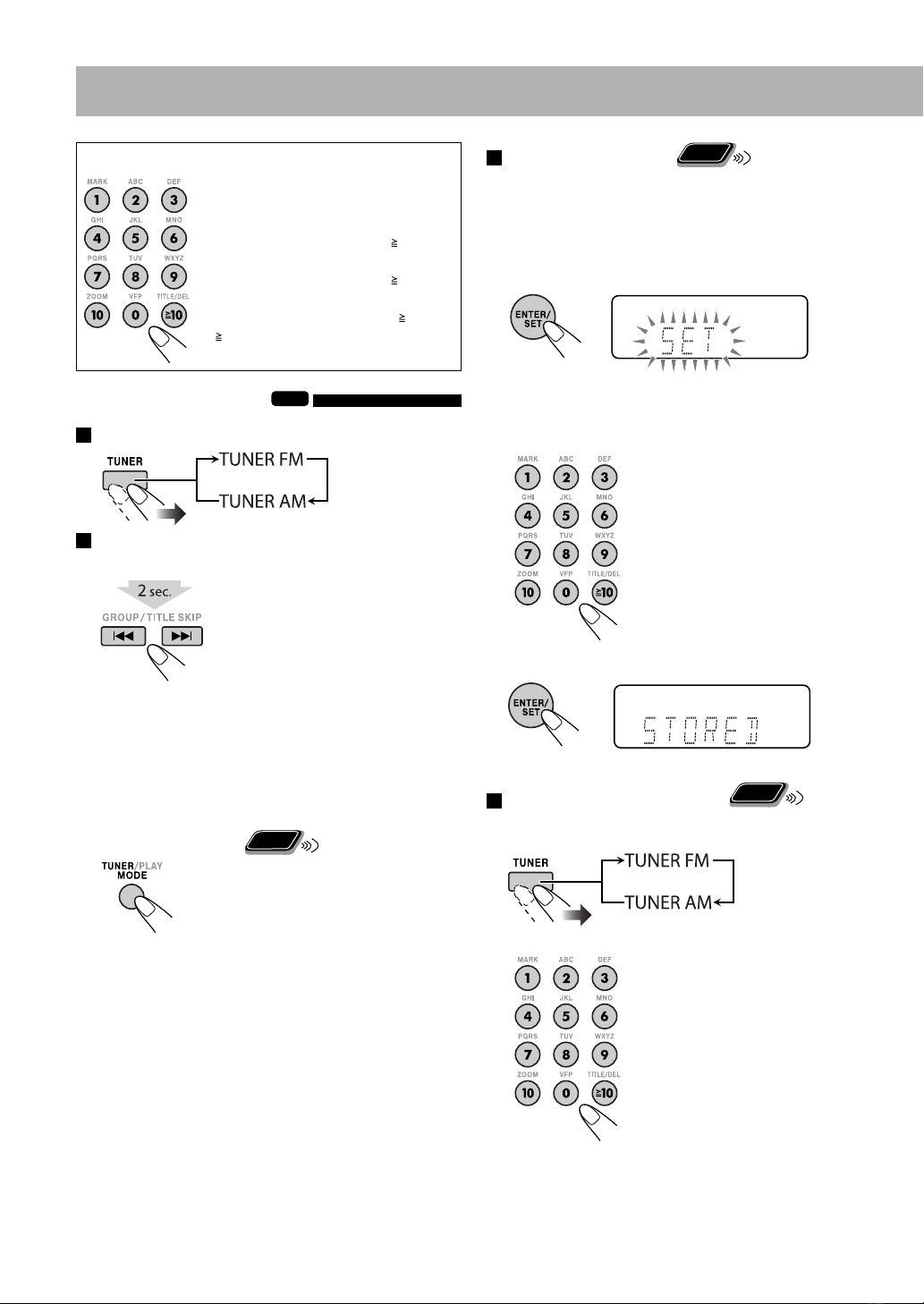

How to select a number
Examples:
To select number 5, press 5.
To select number 10, press 10.
To select number 15, press 10, 1,
then 5.
To select number 30, press 10, 3,
then 0.
To select number 125, press 10,
10, 1, 2, then 5.
Listening to the Radio
INFO
To select the band (FM or AM)
To tune in to a station
While FM or AM is selected...
Frequency starts changing on the display.
When a station (frequency) with sufficient signal strength
is tuned in, the frequency stops changing.
• When you repeatedly press the button, the frequency
changes step by step.
To manually stop the search, press either button.
If the FM reception is poor
Remote
ONLY
The MONO (monaural) indicator lights on the display.
Reception will improve though stereo effect is lost—
Monaural reception.
To restore the stereo effect, press the button again. The
MONO (monaural) indicator disappears.
To preset the stations
Remote
ONLY
You can preset 30 FM and 15 AM stations.
1Tune in to a station you want to preset.
• You can also store the monaural reception mode for
FM preset stations if it is selected.
2Activate the preset number entry mode.
• Finish the following process while the indication on
the display is flashing.
3Select a preset number for the station you store.
• To select a number, see “How
to select a number” on the left
column.
4Store the station.
To tune in to a preset station
Remote
ONLY
1Select the band (FM or AM).
2Select the preset number for the station you stored.
• To select a number, see “How
to select a number” on the left
column.
EN_UX-G950V[B]5.indb 9EN_UX-G950V[B]5.indb 9 08.4.18 5:32:04 PM08.4.18 5:32:04 PM

10

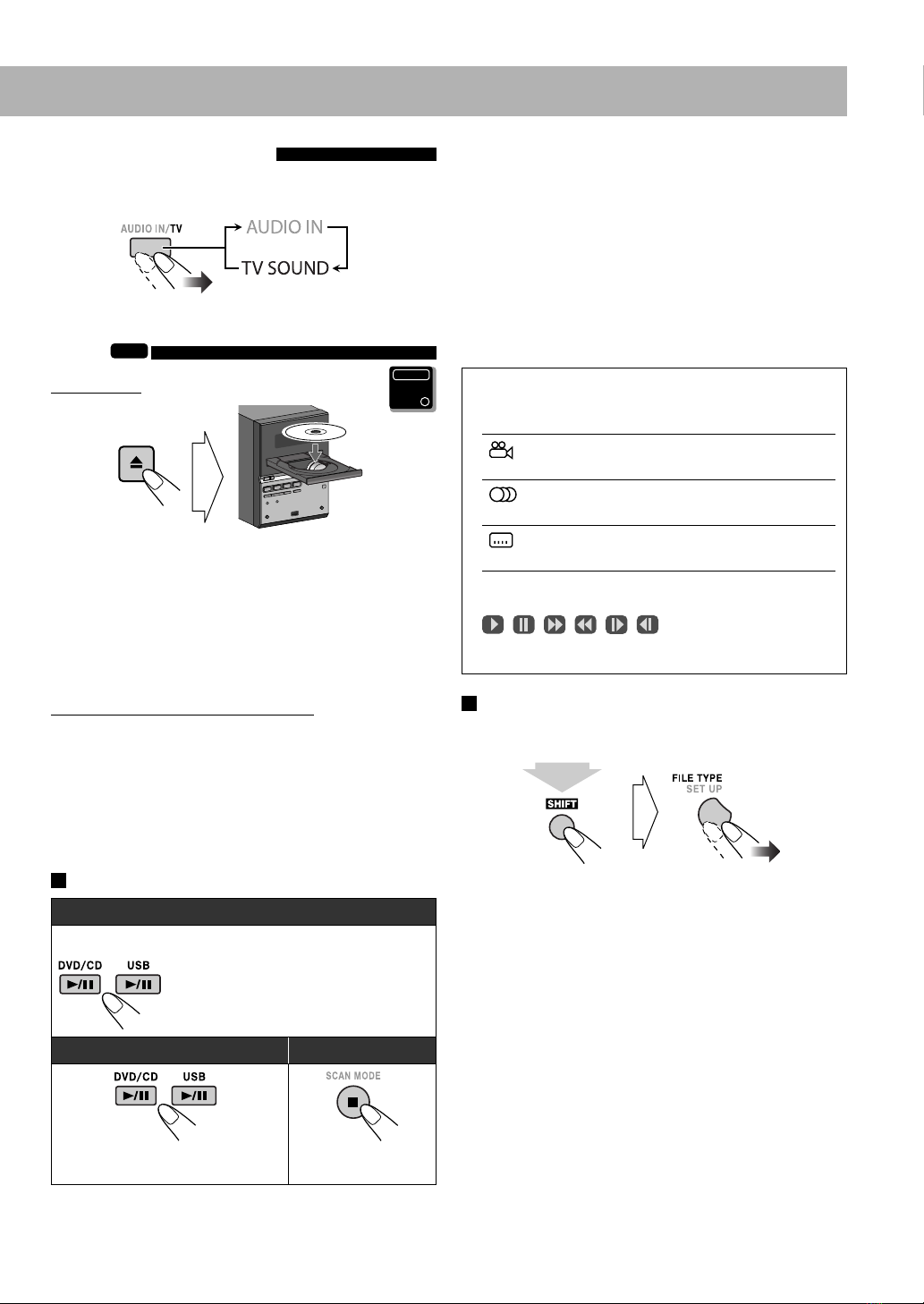

Listening to the TV Sound
You can listen to the TV sound through this System when
the TV is connected using the SCART cord (see page 6).
Playing Back a Disc/USB Mass Storage Class
Device
INFO
To insert a disc
• When using an 8 cm disc, place it on the inner circle of
the disc tray.
To close the disc tray, press 0again.
• If you press DVD/CD 6, disc tray closes automatically
and playback starts (depending on how the disc is
programmed internally).
To connect a USB mass storage class device
• For connecting a USB mass storage class device, see page
6.
• Always set volume level to the minimum level when
connecting or disconnecting a USB mass storage class
device.
• To disconnect a USB mass storage class device safely,
turn off the System before disconnecting it.
To play back a disc/USB mass storage class device
To start:
To pause: To stop:
To release, press the same button
again.
• You can use the control screen shown on the TV. (For
still/moving picture files, it appears while playback is
stopped.) For details, see page 34.
• The System can store the stop point, and when you start
playback again by pressing DVD/CD 6or USB 6
(even while on standby), it starts from the position where
you have stopped—Resume Play. (RESUME indicator
lights on the display when you stop playback.)
To stop completely while Resume is activated, press
7twice. (To deactivate Resume, see “RESUME” in
“OTHERS” menu on page 39.)
On-screen guide icons
• During playback, the following icons may appear on
the TV:
At the beginning of a scene containing
multi-angle views.
At the beginning of a scene containing
multi-audio sounds.
At the beginning of a scene containing
multi-subtitles.
• The following icons will also be shown on the TV to
indicate your current operation.
, , , , ,
• To deactivate the on-screen guide icon, see “ON
SCREEN GUIDE” in “OTHERS” menu on page 39.
To select the file type
If different types of playable files (audio/still picture/
moving picture) are recorded, select a file type to play.
• You can also select the file type using Setup Menu. See
“FILE TYPE” in “PICTURE” menu on page 38.
USB mass storage class deviceDisc
(See page 12.)
Main Unit
ONLY
(while holding...)
EN_UX-G950V[B]5.indb 10EN_UX-G950V[B]5.indb 10 08.4.18 5:32:05 PM08.4.18 5:32:05 PM

11

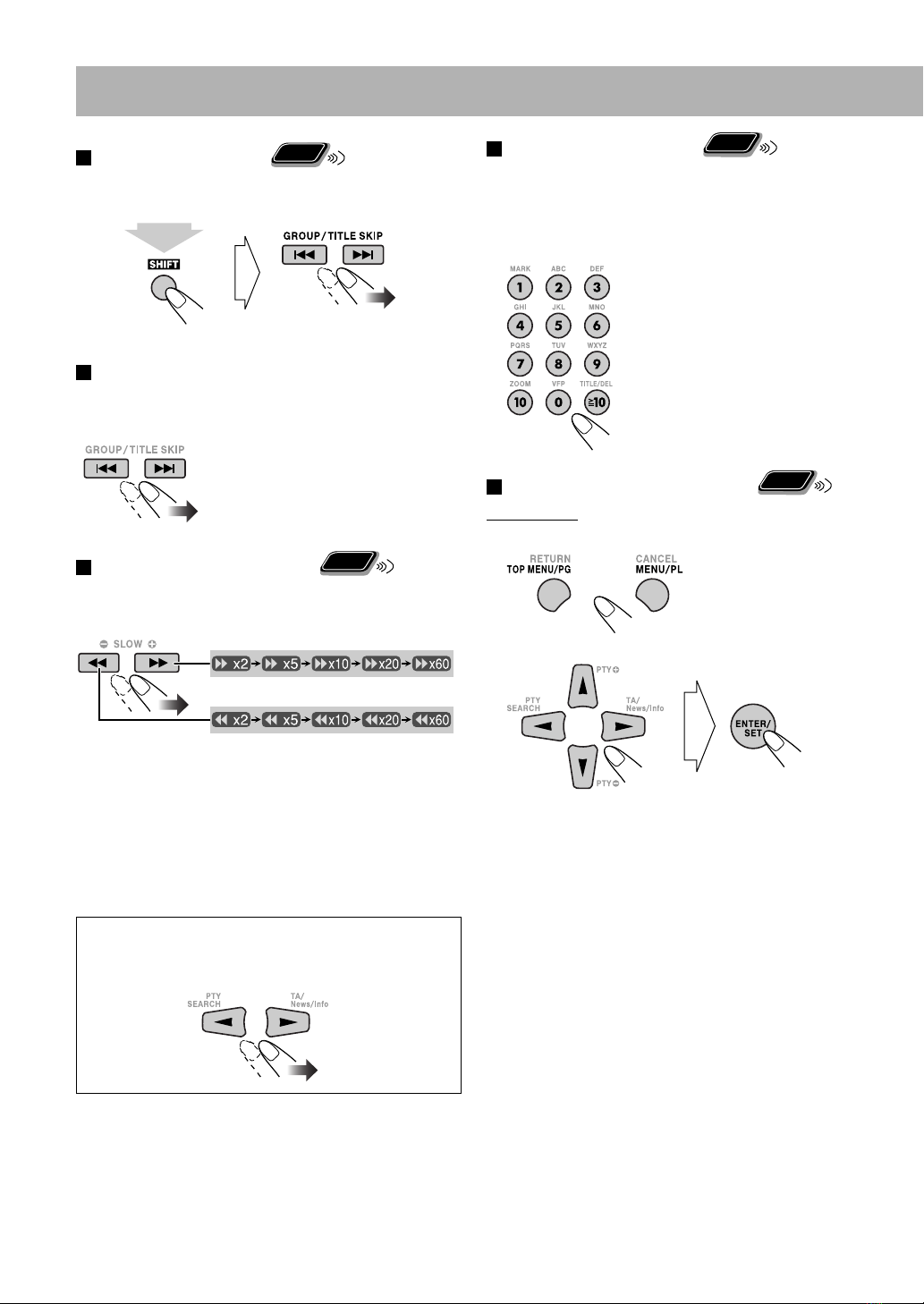

To select a title/group
Remote
ONLY
• Not applicable for DVD-VR.
While playing...
To select a chapter/track/file
• For SVCD/VCD, cancel PBC (see page 12).
While playing...
• When you press 4for the
first time, you will go back to
the beginning of the current
chapter/track/file.
To locate a particular portion
Remote
ONLY
• This does not function for JPEG files.
While playing...
• For MP3/WMA/WAV/MPEG-1/MPEG-2/DivX files,
the search speed and indications on the TV are different
from those above.
• No sound comes out if searching is carried out while
showing the moving picture.
To return to normal playback, press DVD/CD 6or
USB 6(depending on the current source).
For DivX/MPEG-1/MPEG-2 files, each time you press
the 3or 2button, you can skip to a scene by 30 seconds
or 5 minutes depending on the files.
To locate an item directly
Remote
ONLY
You can select a title/chapter/track/file directly and start
playback.
• For DVD Video, you can select a title before starting
playback, while you can select a chapter after starting
playback.
• To select a number, see “How to
select a number” on page 9.
To play back using the disc menu
Remote
ONLY
For DVD Video:
1Show the disc menu.
2Select an item on the disc menu.
• For some discs, you can also select items by entering
the number using the number buttons.
(while holding...)
EN_UX-G950V[B]5.indb 11EN_UX-G950V[B]5.indb 11 08.4.18 5:32:07 PM08.4.18 5:32:07 PM

12
Playing Back a Digital Audio Player
• For connecting a digital audio player, see page 6.
You can listen to the digital audio player connected to the
AUDIO IN jack.
• Make sure to turn down the volume on the System to
minimum level before starting playback.
To adjust the audio input level
Remote
ONLY
If the sound from the device connected to the
AUDIO IN jack is too loud or too quiet, you can preset the
audio input level through the AUDIO IN jack (without
changing the volume level).
While “AUDIO IN” is selected as the source...
• As the number of the level increases, the preset input
level is increased.
For SVCD/VCD with PBC:
While playing a disc with PBC, “PBC” appears on the
display.
When disc menu appears on the TV, select an item on the
menu. Playback of the selected item starts.
• To select a number, see “How to
select a number” on page 9.
To move to the next or previous page of the current
menu:
To return to the previous menu:
To cancel PBC, press 7, then select a track by using the
number buttons (see page 9). Playback starts with the
selected track.
To reactivate PBC, press 7(twice if Resume is turned on),
then press DVD/CD 6.
Moves to the next page.
(See page 10.)
(while holding...)
Moves to the previous page.
(while holding...)
EN_UX-G950V[B]5.indb 12EN_UX-G950V[B]5.indb 12 08.4.18 5:32:09 PM08.4.18 5:32:09 PM

13
Adjusting the Volume
You can adjust the volume level from “VOL MIN” (level 0)
to “VOL MAX” (level 40).
Remote control: Main unit:
To drop the volume in a moment
Remote
ONLY
To restore the volume, press again, or
adjust the volume level.
Adjusting the Sound
INFO
To activate EALA surround mode
• As the number of the surround mode increases, the
surround effect becomes stronger.
To reinforce the heavy sound
This boosts the low and high frequency sound—Sound
Turbo II.
• When Sound Turbo II is turned on, AHB Pro (see below)
is automatically turned on, and cannot be turned off.
(The AHB PRO indicator does not light even though the
function is turned on.)
To reinforce the bass sound
Remote
ONLY
While Sound Turbo II is off, the richness and fullness of the
bass sound is clearly maintained regardless of how you set
the volume—AHB Pro (Active Hyper Bass Pro).
Daily Operations—Sound & Other Adjustments
(while holding...)
Remote control
Main unit
(Canceled)
(Canceled)
(Canceled)
EN_UX-G950V[B]5.indb 13EN_UX-G950V[B]5.indb 13 08.4.18 5:32:10 PM08.4.18 5:32:10 PM

14
3Start the measurement.
A test tone comes out of the speakers.
4Memorize the measurements.
Each time you hear a test tone, press the button. You
hear 5 test tones from the speakers.
5Select a preset number from 1 to 3 to store the
equalization pattern.
After finishing the measurement, an appropriate
equalization pattern is created and it is shown in white
on the TV screen.
• The last equalization pattern stored into the selected
preset number is shown in green.
• To return to the measurement, select “EXIT” on the
TV screen then press ENTER/SET.
Canceled
To adjust the tone
Remote
ONLY
You can adjust the bass and treble level from –3 to +3.
To adjust the bass
To adjust the treble
Creating a Soothing Tone for Your Ear
—MY SOUND
INFO
Remote
ONLY
The sound tone you can hear is different in individuals.
MY SOUND creates an appropriate equalization pattern
for your listening condition.
To set up MY SOUND
1While playing...
2Enter MY SOUND setup.
“MYSOUND” and “MEASURE” appear alternately on
the display.
Canceled
3
EXIT
1
2
PRESET
MY SOUND
SELECT PRESET 1 TO 3 AND PRESS
THE ENTER KEY TO STORE.
MY SOUND
MEASURING... DATA 12 3 4 5
PRESS THE ENTER KEY IMMEDIATELY
AFTER YOU HEAR THE TEST TONE.
ENTER EXIT
On the TV
On the TV
Signal level
Continued on the next page
MY SOUND
SELECT START AND PRESS THE ENTER KEY
TO START MEASUREMENT.
START EXIT
On the TV
EN_UX-G950V[B]5.indb 14EN_UX-G950V[B]5.indb 14 08.4.18 5:32:11 PM08.4.18 5:32:11 PM

15
Canceled
On
(while holding...)
Creating 3-Dimensional Sound Field
—3D Phonic
Remote
ONLY
• This only functions while listening to disc/USB mass
storage class device.
• This does not function for MPEG-1/MPEG-2/DivX files.
While playing...
ACTION Suitable for action movies and sports
programs.
DRAMA Creates natural and warm sound. Enjoy
movies in a relaxed mood.
THEATER Enjoy sound effects like in a major theater.
Making Dialogues Clear
—Clear Voice
Remote
ONLY
Clear Voice works for multi-channel software which
contains a center channel signal and for 2-channel software
with 3D Phonic activated.
• This only functions while listening to disc/USB mass
storage class device.
(Canceled)
(while holding...)
(Canceled)
6Store the equalization pattern.
• To store other equalization patterns, press the button
again and repeat steps 3to 6.
To exit MY SOUND setup
To select the preset MY SOUND
Remote
ONLY
• This does not function for DivX file.
EN_UX-G950V[B]5.indb 15EN_UX-G950V[B]5.indb 15 08.4.18 5:32:12 PM08.4.18 5:32:12 PM

16
Presetting Automatic DVD Sound
Increase Level
Remote
ONLY
DVD sound is sometimes recorded at a lower level than
other discs and sources. You can set the increase level for
the currently loaded DVD, so you do not have to adjust the
volume when you change the source.
• This only functions for DVD Video and DVD-VR.
While “DVD/CD” is selected as the source...
NORMAL Original recording level.
MIDDLE Output level is increased (less than
“HIGH”).
HIGH Output level is increased (more than
“MIDDLE”). [Initial setting]
Changing the Display Brightness
You can dim the display.
While the System is turned on...
DIM 1/2 Dims the display.
AUTO Dims the display during playback of still/
moving pictures.
• Dimmer is canceled when playback stops.
(Canceled)
(while holding...)
Setting the ECO (ecology) Mode
Setting the ECO mode allows you to reduce power
consumption by turning the display off while on standby.
While the System is on standby...
Changing the Scanning Mode
INFO
This System supports progressive scanning.
Select the video signal output according to the type of your
TV. If you connect a progressive TV through the VIDEO
OUT (COMPONENT) jacks, you can enjoy a high quality
picture playback by selecting “PROGRE.”
Before playback...
RGB For a conventional TV.
Select to send the composite video signals
or RGB signals through the AV (SCART)
terminal.
Y/C For a conventional TV.
Select to send S-Video signals through the
AV (SCART) terminal.
PROGRE For a progressive TV.
Select to enjoy a progressive scanned
picture through the VIDEO OUT
(COMPONENT) jacks.
• The PRGR. (Progressive) indicator lights
on the display.
(while holding...)
Remote
ONLY
(Canceled)
EN_UX-G950V[B]5.indb 16EN_UX-G950V[B]5.indb 16 08.4.18 5:32:13 PM08.4.18 5:32:13 PM

17
To adjust the picture tone
1Select “USER1” or “USER2.”
• Follow steps 1and 2explained in “To select a preset
picture tone.”
2Select a parameter you want to adjust.
GAMMA Adjust if the neutral color is bright or
dark (–3 to +3).
BRIGHTNESS Adjust if the entire picture is bright
or dark (–8 to +8).
CONTRAST Adjust if the brightness ratio is
unnatural (–7 to +7).
SATURATION Adjust if the picture is whitish or
blackish (–7 to +7).
TINT Adjust if the human skin color is
unnatural (–7 to +7).
SHARPNESS Adjust if the picture is indistinct
(–8 to +8).
3Adjust the parameter.
4Repeat steps 2and 3to adjust other parameters.
To clear the screen, press VFP again while holding SHIFT.
Changing the Picture Tone
Remote
ONLY
While showing a playback picture on the TV, you can
select a preset picture tone, or adjust it and store your own
preference.
To select a preset picture tone
1While playing, display VFP setting screen.
2Select a preset picture tone.
NORMAL Normally select this.
CINEMA Suitable for a movie source.
USER1/USER2 You can adjust parameters and can
store the settings. (See the right
column.)
To clear the screen, press VFP again while holding SHIFT.
(while holding...)
On the TV
EN_UX-G950V[B]5.indb 17EN_UX-G950V[B]5.indb 17 08.4.18 5:32:13 PM08.4.18 5:32:13 PM
