JVC AV-14F33 User manual

No.52021
Jul. 2002
AV-14F13
AV-14F33
1COPYRIGHT © 2002 VICTOR COMPANY OF JAPAN, LTD. Jul. 2002
AV-14F13/PH
AV-14F33/PH
CONTENTS
!SPECIFICATIONS ････････････････････････････････
････････････････････････････････････････････････････････････････
･････････････････････････････････････････････････････････････
･･････････････････････････････････････････････････････････
･････････････････････････････ 2
!SAFETY PRECAUT IONS ････････････････････････････････
････････････････････････････････････････････････････････････････
･･･････････････････････････････････････････････････････
･･････････････････････････････････････････････
･･･････････････････････ 3
!FEATURES････････････････････････････････
････････････････････････････････････････････････････････････････
････････････････････････････････････････････････････････････････
････････････････････････････････････････････････････････････････
･･･････････････････････････････････
･･ ･･･ ･
･･ ･ 4
!MAIN DIFFERENCE LIST ････････････････････････････････
････････････････････････････････････････････････････････････････
･･･････････････････････････････････････････････････････
･･････････････････････････････････････････････
･･･････････････････････ 5
!FUNCTIONS ････････････････････････････････
････････････････････････････････････････････････････････････････
････････････････････････････････････････････････････････････････
････････････････････････････････････････････････････････････････
･･････････････････････････････････
････
･･ 6
!SPECIFIC SERVICE INSTRUCTIONS ････････････････････････････････
････････････････････････････････････････････････････････････････
･････････････････････････････････････････････
･･････････････････････････
･････････････ 8
!SERVICE ADJUSTMENTS ････････････････････････････････
････････････････････････････････････････････････････････････････
･････････････････････････････････････････････････････
･･････････････････････････････････････････
･････････････････････ 15
!PARTS LIST ････････････････････････････････
････････････････････････････････････････････････････････････････
････････････････････････････････････････････････････････････････
････････････････････････････････････････････････････････････････
･････････････････････････････････
･･
･33
★OPERATING INSTRUCTIONS
★STANDAR D CIRCUIT DIAGRAM (APPENDIX) ････････････････････････････････
････････････････････････････････････････････････････････････････
･････････････････････････････････････
･･････････
･････ 2- 1
SERVICE MANUAL
COLOR TELEVISION
BASIC CHASSIS
GA2
RM-C372GY
[AV-14F13/PH]
RM-C373GY
[AV-14F33/PH]

No.52021
A
V-14F13
A
V-14F33
2
SPECIFICATIONS
Contents
Items
AV-14F13/PH AV-14F33/PH
Dimensions (W×
××
×H×
××
×D) 462mm×340.5mm×375mm
Mass 10kg
TV RF System CCIR (M)&(N)
Color / Sound System NTSC / PAL-M / PAL-N NTSC / PAL-M / PAL-N
BTSC (Multi Channel Sound)
TV Receiving Channels
and Frequency
VL Band
VH Band
UHF Band
(02～06) 54MHz～88MHz
(07～13) 174MHz～216MHz
(14～69) 470MHz～806MHz
CATV Receiving Channels
and Frequency
Low Band
High Band
Mid Band
Super Band
Hyper Band
Ultra Band
Sub Mid Band
(02～06)
(07～13)
(14～22)
(23～36)
(37～64)
(65～94, 100～125)
(01, 96～99)
TV/CATV Total Channel 181 Channels
Intermediate Frequency Video IF Carrier
Sound IF Carrier
45.75MHz
41.25MHz (4.5MHz)
Color Sub Carrier NTSC : 3.579545MHz
PAL-M : 3.57561149MHz
PAL-N : 3.58205625MHz
Antenna terminal 75Ω(VHF/UHF) Terminal, F-Type Connector
Power Input Rated Voltage
Operating Voltage
110V～240V AC, 50Hz/60Hz
90V～260V AC, 50Hz/60Hz
Power Consumption 42W 44W
Picture Tube (measured diagonally) Picture tube 36cm
Visible aria 34cm
High Voltage 22.5kV±1.0kV (at zero beam current)
Speaker 5cm×12cm Oval type×2 (monaural) 5×12cm Oval type×2 (stereo)
Audio Power Output 2W (monaural) 1.5W+1.5W (stereo)
Input Video input
Audio input
1Vp-p, 75Ω(RCA pin jack)
500mVrms (-4dBs), High impedance
(RCA pin jack)
Output Video output
Audio output
1Vp-p, 75Ω
500mVrms (-4dBs), Low impedance
Headphone Jack Stereo mini jack (dia. 3.5mm, Sound is Monaural) Stereo mini jack (dia. 3.5mm, Sound is Stereo)
Remote Control Unit RM-C372GY
(AA/R6/UM-3 battery×2)
RM-C373GY
(AA/R6/UM-3 battery×2)
Design & specifications are subject to change without notice.
(54MHz～804MHz)

No.52021
A
V-14F13
A
V-14F33
3
SAFETY PRECAUTIONS
1. The design of this product contains special hardware, many
circuits and components specially for safety purposes. For
continued protection, no changes should be made to the original
design unless authorized in writing by the manufacturer.
Replacement parts must be identical to those used in the original
circuits. Service should be performed by qualified personnel
only.
2. Alterations of the design or circuitry of the products should not be
made. Any design alterations or additions will void the
manufacturer's warranty and will further relieve the manufacturer
of responsibility for personal injury or property damage resulting
therefrom.
3. Many electrical and mechanical parts in the products have
special safety-related characteristics. These characteristics are
often not evident from visual inspection nor can the protection
afforded by them necessarily be obtained by using replacement
components rated for higher voltage, wattage, etc. Replacement
parts which have these special safety characteristics are
identified in the parts list of Service manual. Electrical
components having such features are identified by shading
on the schematics and by (!
!!
!) on the parts list in Service
manual. The use of a substitute replacement which does not
have the same safety characteristics as the recommended
replacement part shown in the parts list of Service manual may
cause shock, fire, or other hazards.
4. Don't short between the LIVE side ground and ISOLATED
(NEUTRAL) side ground or EARTH side ground when
repairing.
Some model's power circuit is partly different in the GND. The
difference of the GND is shown by the LIVE : (") side GND, the
ISOLATED(NEUTRAL) : (#) side GND and EARTH : ($) side
GND. Don't short between the LIVE side GND and
ISOLATED(NEUTRAL) side GND or EARTH side GND and
never measure with a measuring apparatus (oscilloscope etc.)
the LIVE side GND and ISOLATED(NEUTRAL) side GND or
EARTH side GND at the same time.
If above note will not be kept, a fuse or any parts will be broken.
5. If any repair has been made to the chassis, it is recommended
that the B1 setting should be checked or adjusted (See
ADJUSTMENT OF B1 POWER SUPPLY).
6. The high voltage applied to the picture tube must conform with
that specified in Service manual. Excessive high voltage can
cause an increase in X-Ray emission, arcing and possible
component damage, therefore operation under excessive high
voltage conditions should be kept to a minimum, or should be
prevented. If severe arcing occurs, remove the AC power
immediately and determine the cause by visual inspection
(incorrect installation, cracked or melted high voltage harness,
poor soldering, etc.). To maintain the proper minimum level of
soft X-Ray emission, components in the high voltage circuitry
including the picture tube must be the exact replacements or
alternatives approved by the manufacturer of the complete
product.
7. Do not check high voltage by drawing an arc. Use a high voltage
meter or a high voltage probe with a VTVM. Discharge the
picture tube before attempting meter connection, by connecting
a clip lead to the ground frame and connecting the other end of
the lead through a 10kΩ2W resistor to the anode button.
8. When service is required, observe the original lead dress. Extra
precaution should be given to assure correct lead dress in the
high voltage circuit area. W here a short circuit has occurred,
those components that indicate evidence of overheating should
be replaced. Always use the manufacturer's replacement
components.
9. Isolation Check
(Safety for Electrical Shock Hazard)
After re-assembling the product, always perform an isolation
check on the exposed metal parts of the cabinet (antenna
terminals, video/audio input and output terminals, Control knobs,
metal cabinet, screw heads, earphone jack, control shafts, etc.)
to be sure the product is safe to operate without danger of
electrical shock.
(1) Dielectric Strength Test
The isolation between the AC primary circuit and all metal parts
exposed to the user, particularly any exposed metal part having a
return path to the chassis should withstand a voltage of 3000V
AC (r.m.s.) for a period of one second.
(. . . . Withstand a voltage of 1100V AC (r.m.s.) to an appliance
rated up to 120V, and 3000V AC (r.m.s.) to an appliance rated
200V or more, for a period of one second.)
This method of test requires a test equipment not generally found
in the service trade.
(2) Leakage Current Check
Plug the AC line cord directly into the AC outlet (do not use a line
isolation transformer during this check.). Using a "Leakage
Current Tester", measure the leakage current from each exposed
metal part of the cabinet, particularly any exposed metal part
having a return path to the chassis, to a known good earth
ground (water pipe, etc.). Any leakage current must not exceed
0.5mA AC (r.m.s.).
However, in tropical area, this must not exceed 0.2mA AC
(r.m.s.).
"
""
"Alternate Check Method
Plug the AC line cord directly into the AC outlet (do not use a line
isolation transformer during this check.). Use an AC voltmeter
having 1000 ohms per volt or more sensitivity in the following
manner. Connect a 1500Ω10W resistor paralleled by a 0.15µF
AC-type capacitor between an exposed metal part and a known
good earth ground (water pipe, etc.). Measure the AC voltage
across the resistor with the AC voltmeter. Move the resistor
connection to each exposed metal part, particularly any exposed
metal part having a return path to the chassis, and measure the
AC voltage across the resistor. Now, reverse the plug in the AC
outlet and repeat each measurement. Any voltage measured
must not exceed 0.75V AC (r.m.s.). This corresponds to 0.5mA
AC (r.m.s.).
However, in tropical area, this must not exceed 0.3V AC (r.m.s.).
This corresponds to 0.2mA AC (r.m.s.).
0.15
μ
F AC-TYPE
1500 Ω10W
GOOD EARTH GROUND
PLACE THIS PROBE
ON EACH EXPOSED
METAL PART
AC VOLTMETER
(HAVING 1000 Ω/V,
OR MORE SENSITIVITY)

No. 52021
A
V-14F13
A
V-14F33
4
FEATURES
"New chassis design enables use of a main board with simplified
circuitry.
"Provided with miniature tuner (TV/CATV).
"PLL synthesizer system TV/CATV totaling 181 channels.
"Multifunctional remote control permits picture adjustment.
"Adoption of the VIDEO STATUS function.
"Adoption of the ON/OFF TIMER function.
"With 75ΩV/U in common (F-Type) ANT Terminal.
"SLEEP TIMER for setting in real time.
"Wide range voltage (110V～240V) AC power input.
"With AUDIO / VIDEO INPUT & OUTPUT terminal.
"Closed-caption broadcast can be viewed.

No. 52021
A
V-14F13
A
V-14F33
5
MAIN DIFFERENCE LIST
!Model Name
Part Name (Item)
AV-14F13/PH AV-14F33/PH
MAIN PWB SGA-1066A SGA-1065A
!FRONT CABINET LC-10831-028A-H LC-10831-027A-H
TERMINAL SHEET GG40021-002A-H GG40021-001A-H
!SPEAKER CEBSS09D-05KJ2 CEBSS09D-03KJ2
PACKING CASE GG10056-079A-H GG10056-077A-H
REMOTE CONTROL UNIT RM-C372GY-1H RM-C373GY-1H
Color / Sound System NTSC / PAL-M / PAL-N NTSC / PAL-M / PAL-N
BTSC(Multi Channel Sound)
Power Consumption 42W 44W
Speaker 5cm×12cm Oval type×2 (monaural) 5×12cm Oval type×2 (stereo)
Audio Power Output 2W (monaural) 1.5W+1.5W (stereo)

No. 52021
A
V-14F13
A
V-14F33
6

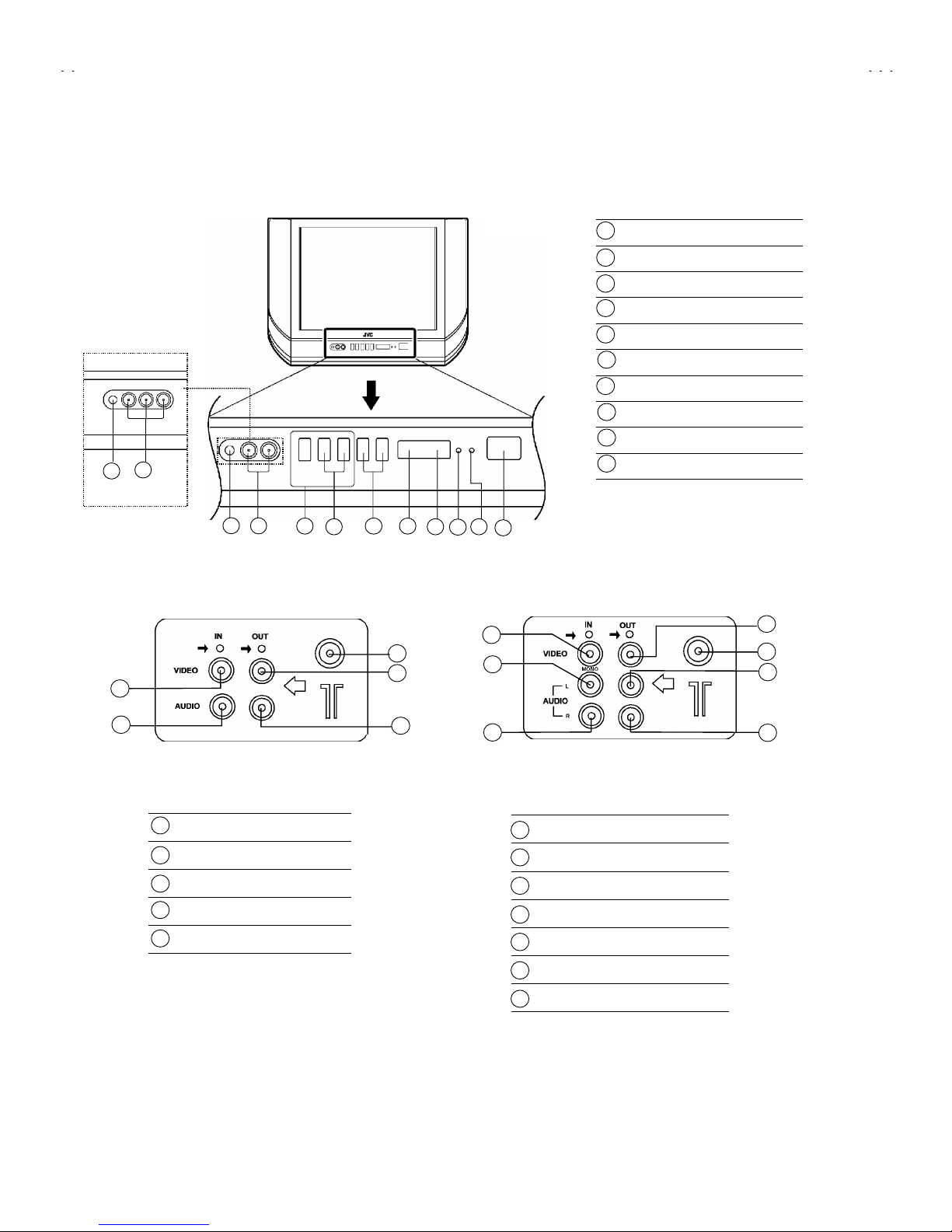

FUNCTIONS
■FRONT PANEL
■REAR TERMINAL
MENU buttons
CHANNEL －/＋buttons
VOLUME －/＋buttons
AI ECO sensor
REMOTE CONTROL sensor
ON TIMER lamp
POWER lamp
MAIN POWER button
A/V INPUT terminal
HEADPHONE jack
1
2
3
4
5
6
7
8
9
10
10 9123 4 5678
[AV-14F33/PH]
9
10
[AV-14F13/PH]
ANTTerminal
VIDEO INPUT Terminal
AUDIO L/MONO INPUT Terminal
AUDIO R INPUT Terminal
VIDEO OUTPUT Terminal
AUDIO L OUTPUT Terminal
AUDIO R OUTPUT Terminal
ANTTerminal
VIDEO INPUT Terminal
AUDIO INPUT Terminal
VIDEO OUTPUT Terminal
AUDIO OUTPUT Terminal
1
2
3
4
5
2
3
4
5
1
[AV-14F13/PH] [AV-14F33/PH]
1
2
3
4
5
6
7
1
2
3
4
5
6
7

No. 52021
A
V-14F13
A
V-14F33
7

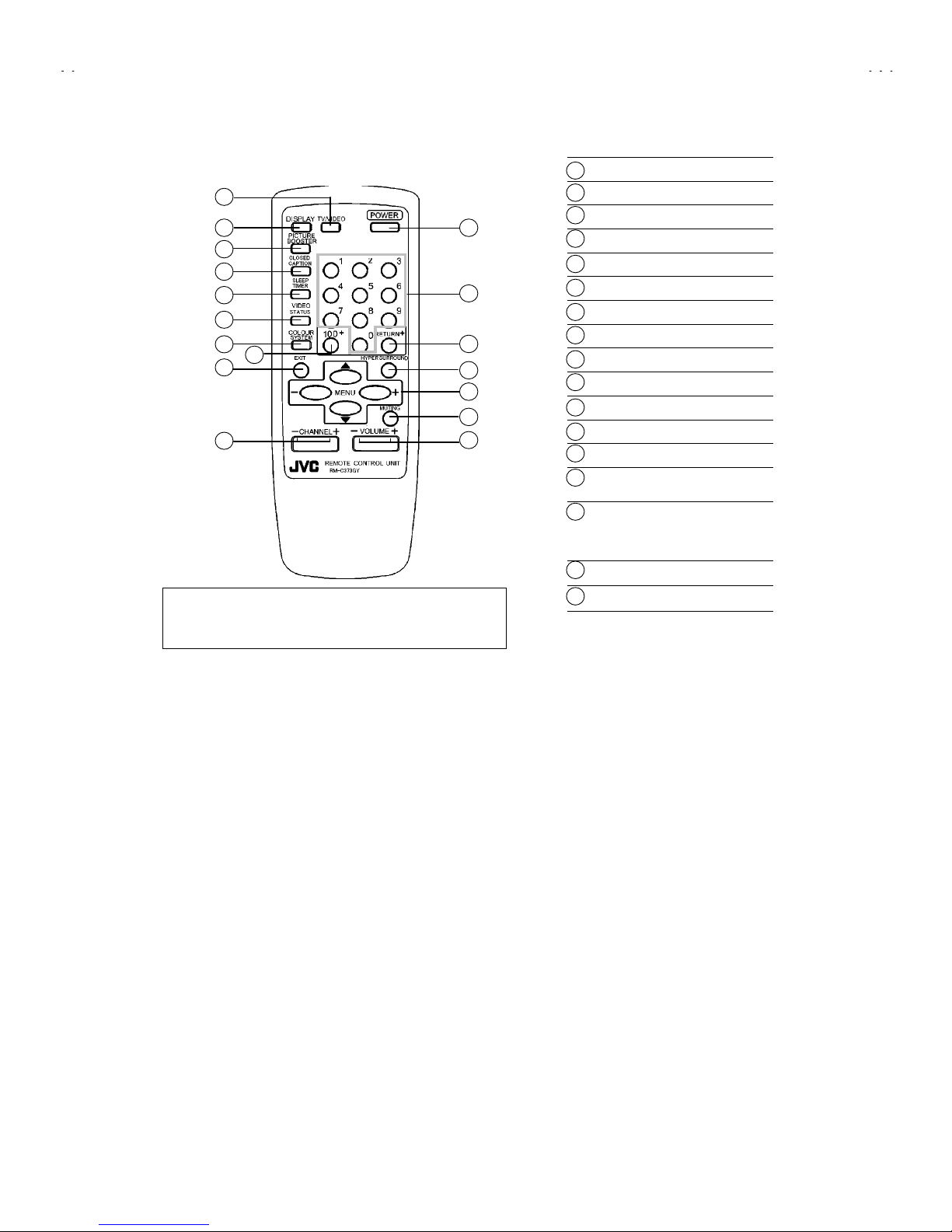

■REMOTE CONTROL UNIT TV/VIDEO key
DISPLAY key
PICTURE BOOSTER key
CLOSED CAPTION key
SLEEP TIMER key
VIDEO STATUS key
COLOUR SYSTEMkey
100+ key
EXIT key
CHANNEL－/＋key
POWER key
Number (CH.) key
RETURN＋key
HYPER SURROUND key
[AV-14F33/PH Only]
MENU key
MENU ▲/▼key
MENU －/＋key
MUTING key
VOLUME－/＋key
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
2
3
4
5
6
78
9
10
11
12
13
14
15
This illustration is written about RM-373GY(AV-14F33/PH),
There are no key of HYPER SURROUND in the
RM-C372GY(AV-14F13/PH).
16
17
17

No. 52021
A
V-14F13
A
V-14F33
8
SPECIFIC SERVICE INSTRUCTIONS
DISASSEMBLY PROCEDURE
REMOVING THE REAR COVER
1. Unplug the power plug.
2. As shown in figure, remove the 4screws marked !
!!
!and a screw
marked "
""
".
3. As shown in figure, remove the 2screws marked #
##
#
4. Withdraw the rear cover toward you.
[CAUTION]
"When reinstalling the rear cover, carefully push it inward after
inserting the MAIN PWB into the rear cover groove.
REMOVING THE MAIN PW BOARD
"After removing the rear cover.
1. Slightly raise the both side of the MAIN PW BOARD by hand, and
remove the PWB stopper marked $%
$%$%
$%from the front cabinet.
2. Withdraw the MAIN PW BOARD backward.
(If necessary, remove the wire clamp, connectors etc.)
REMOVING THE SPEAKER
"After removing the rear cover.
1. As shown in figure, remove the 2screws marked &
&&
&, then
remove the speaker.
CHECKING THE MAIN PW BOARD
1. To check the back side of the PW board.
(1) Pull out the MAIN PW board. (Refer to REMOVING THE MAIN
PW Board)
(2) Erect the PW Board vertically so that you can easily check the
back side of the PW Board.
[CAUTION]
"When erecting the PW Board, be careful so that there will be no
contacting with other PW Board.
"Before turning on power, make sure that the CRT earth wire
and other connector are properly connected.
WIRE CLAMPING AND CABLE TYING
1. Be sure to clamp the wire.
2. Never remove the cable tie used for tying the wires together.
Should it be inadvertently removed, be sure to tie the wires with
a new cable tie.

No. 52021
A
V-14F13
A
V-14F33
9

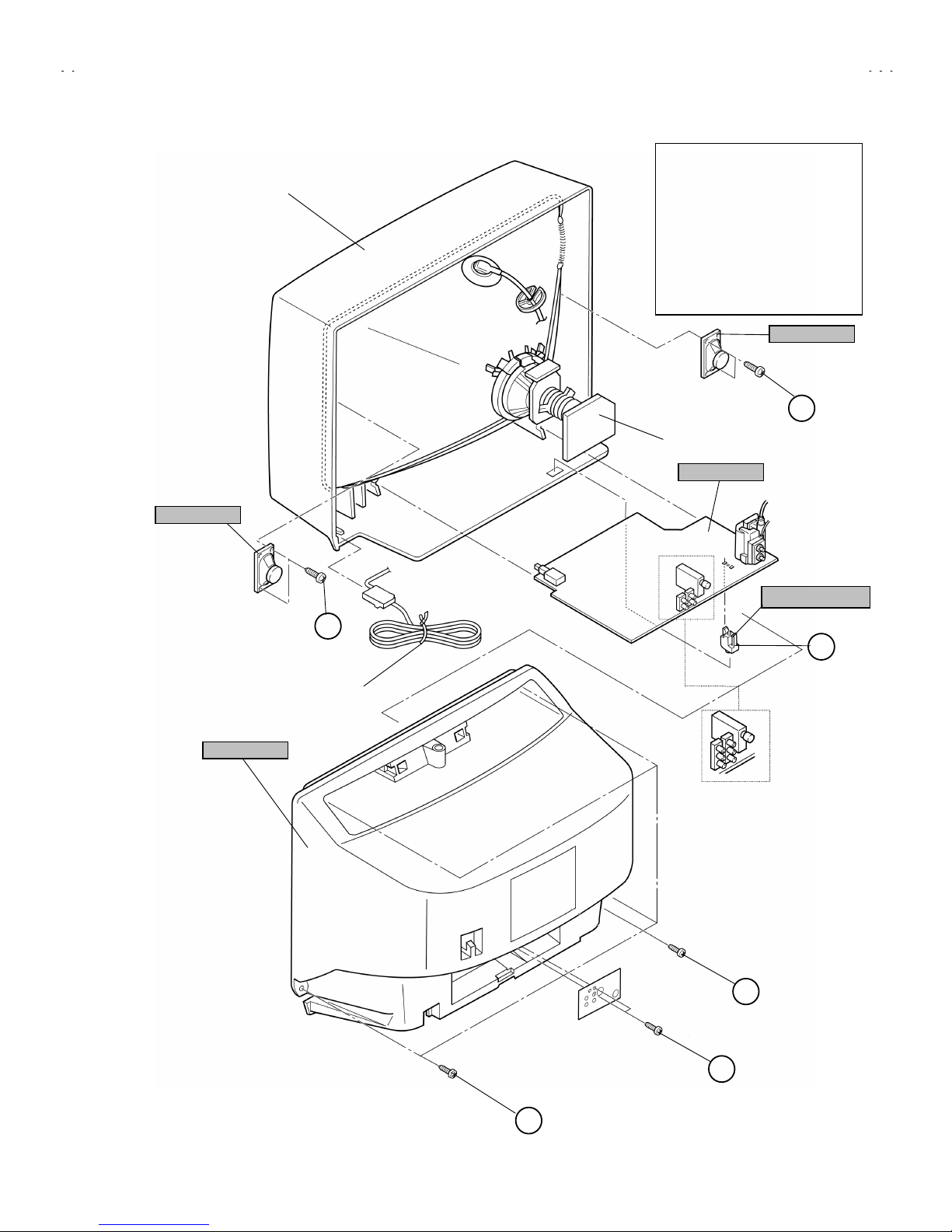

This exploded view describes
about AV-14F13/PH.
Although AV-14F33/PH is slightly
different from this figure, you
can use the exploded view for
disassembling the AV-14F33/PH
in the same step as for the AV-
14F13/PH.
FRONT CABINET
CRT SOCKET PWB
POWER CORD
C
A
D
E
MAIN PWB
SPEAKER
PWB STOPPER
REAR COVER
(×
××
×4)
(×
××
×2)
(×
××
×2)
SPEAKER
E
(×
××
×2)
AV-14F13/PH
AV-14F33/PH
B(×
××
×1)

No.52021
A
V-14F13
A
V-14F33
10
MEMORY IC REPLACEMENT
1. Memory IC
This model uses a memory IC.
The memory IC stores data for proper operation of video and deflection circuits.
When replacing, be sure to use an IC containing this (initial value) data.
2. Memory IC replacement procedure
(1) Power off
Switch off the power and disconnect the power cord from the wall
outlet.
(2) Replace the memory IC.
Be sure to use memory ICs written with the initial data values.
(3) Power on
Connect the power cord to the wall outlet and switch on the
power.
(4) System constant check and setting
1) Simultaneously press the DISPLAY key and VIDEO STATUS
key of the remote control unit.
2) The SERVICE MENU screen of Fig.1 is displayed.
3) While the SERVICE MENU is displayed, again simultaneously
press the DISPLAY and VIDEO STATUS keys to display the
Fig.2 SYSTEM CONSTANT screen.
4) Refer to the SYSTEM CONSTANT table and check the setting
items. Where these differ, select the setting item with the
MENU UP / DOWN key and adjust the setting value with the
MENU LEFT / RIGHT keys.
5) After adjusting, release the MENU LEFT / RIGHT key to store
the setting value.
6) Press the EXIT key twice to return the normal screen.
This illustration is written about RM-C373GY(AV-14F33/PH),
There are no key of HYPER SURROUND in the RM-C372GY
(AV-14F13/PH).
(5) Receive channel setting
Refer to the OPERATING INSTRUCTIONS (USER’S GUIDE)
and set the receive channels (Channels Preset) as described.
(6) User settings
Check the user setting items according to Table 2.
Where these do not agree, refer to the OPERATING
INSTRUCTIONS (USER ’S GUIDE) and set the items as
described.
(7) SERVICE MENU setting
Verify what to set in the SERVICE MENU, and set whatever is
necessary. (Fig.1) Refer to the SERVICE ADJUSTMENT for
setting.
SERVICE MENU
SELECT BY
OPERATE BY
EXIT BY
IT
PICTURE SOUND
VIDEO STATUS OTHERS
LOW LIGHT HIGH LIGHT
RF AFC CHK
VCO (CW) I2C BUS CTRL
SETUP TOUR(OFF)
EXIT
Fig.1 [ AV-14F33/PH Only ]
SYSTEM CONSTANT
SELECT BY
OPERATE BY
EXIT BY
VIDEO :
AUDIO :
VARI. OUT : NO
GAME : YES
CINEMA : YES
EXIT
SYSTEM CONSTANT
SELECT BY
OPERATE BY
EXIT BY
CCD : YES
RETURN+ : YES
SURROUND :
M37272M8- ×××
××××××
××× SP
EXIT
*
**
*
***
******
***
***
******
***
Fig.2
DISPLAY
Key
VIDEO STATUS
Key
EXIT
Key
NAME OF REMOTE CONTROL KEYS
MENU
(UP) Key
MENU ＋
(RIGHT) Key
MENU
(DOWN) Key
POWER Key
NUMBER Key
MENU －
(LEFT) Key

No.52021
A
V-14F13
A
V-14F33
11
TABLE 1(System Constant Setting)
Setting value
Setting item Setting content AV-14F13/PH AV-14F33/PH
VIDEO 1 2
AUDIO MONO MTS
VARI. OUT NO NO
GAME YES YES
CINEMA YES YES
CCD YES YES
RETURN+ YES YES
SURROUND NO YES
TABLE 2 (User setting value)
Setting item Setting value
"Setting of FUNCTION
MAIN POWER OFF
SUB POWER ON
CHANNEL CH 02 (AIR)
PICTURE BOOSTER OFF
VOLUME 10
TV/VIDEO TV
CAPTION OFF (CC1/T1)
DISPLAY POSITION INDICATION
SLEEP TIMER 0
VIDEO STATUS STANDARD
HYPER SURROUND OFF [ AV-14F33/PH Only ]
COLOR SYSTEM AUTO PAL
SETUP TOUR ON
"Setting of MENU
TINT
COLOR
PICTURE STANDARD
BRIGHT
DETAIL
BASS CENTER
TREBLE CENTER
BALANCE CENTER
MTS STEREO
SET CLOCK Unnecessary to set : (000)
ON/OFF TIMER NO
CHANNEL SUMMARY necessary to set
NOISE MUTING OFF
BACK GROUND BLACK
CLOSED CAPTION CC1 / T1 ( OFF at shipping )
LANGUAGE ENG.
YES NO
12
YES NO
YES NO
YES NO
YES NO
YES NO
MONO MONO MTS
[ AV-14F33/PH Only ]

No.52021
A
V-14F13
A
V-14F33
12
INITIAL SETTING VALUE OF SERVICE MENU
1. Adjustment of the SERVICE MENU is made on the basis of the initial setting values; however, the new setting values which set the
screen in its optimum condition may differ from the initial setting.
2. Do not change the initial Setting Values of the Setting (Adjustment) items not listed In “ADJUSTMENT”.
"
""
"PICTURE MODE (1/2)
"The four setting items in the video mode No.8 EXT PIC., No.9 EXT BRI., No.10 EXT COL. and No.11 EXT TINT are linked to the items in
the TV MODE No.1 PICTURE, No.2 BRIGHT, No.5 COL. NTSC and No.6 TINT, respectively. W hen the setting items in the TV mode are
adjusted, the values in the setting items in the video mode are revised automatically to the same values in the TV mode.(The initial setting
values given in ( ) are off-set values.)
"When the four items (No.8, 9, 10 and 11) are adjusted in the video mode, the setting values in each item are revised independently.
:Donotadjustinthisarea.
No. Setting (Adjustment) item Variable range Initial setting value
1. PICTURE 000～127 040
2. BRIGHT 000～127 064
3. COL. PALM 000～127 070
4. COL. PALN 000～127 070
5. COL. NTSC 000～127 072
6. TINT 000～127 065
7. TV DTL 000～063 028
8. EXT PIC. ±025 (±000)
9. EXT BRI. ±025 (±000)
10. EXT COL. ±025 (±000)
11. EXT TINT ±025 (+001)
12. EXT DTL 000～063 030
13. P/N KILL 000 / 001 001
14. Y S CONT 000～031 031
15. TV Y-DL 000～007 001
16. EXR Y-DL 000～007 002
17. WPL SW 000 / 001 000
18. Y GAMMA 000 / 001 000
19. P/N G P. 000 / 001 000
20. COL. L SW 000 / 001 001
21. COL. LMT. 000～003 001
22. PN C. ATT 000～003 001
23. OFST. SW 000 / 001 000
24. OFSET. B-Y 000～015 008
25. OFSET. R-Y 000～015 008
26. C-TOF SW 000 / 001 001
27. TV T FO 000～003 001
28. TV T Q 000～003 000
29. EXT T FO 000～003 000
30. EXT T Q 000～003 000
31. C-TRAP 000 / 001 000
32. C-TR. FO 000～003 002
33. C-TRAP Q 000～003 000
34. FIX B/W 000 / 001 000
35. APA P. FO 000～003 001
36. DC TRAN. 000～007 006
37. B. ST. SW 000 / 001 000
38. B. ST. PO. 000～001 000
39. ABL GAIN 000～007 004
40. ABL PO. 000～007 000

No.52021
A
V-14F13
A
V-14F33
13
"PICTURE MODE (2/2)
No. Setting (Adjustment) item Variable range Initial setting value
41. HALF T. 000～002 001
42. DRV G SW 000 / 001 000
43. NT. COMB 000 / 001 001
44. COIN DET 000～003 001
45. NOISE L. 000～003 003
46. VCD MODE 000 / 001 000
47. V AGC SP 000 / 001 000
48. H POS. 50 000～031 007
49. H BLK. 50 000～007 000
50. V POS. 50 000～007 000
51. V SIZE50 000～127 024
52. V S CR50 000～127 018
53. V LIN. 50 000～031 004
54. H POS. 60 000～031 012
55. H BLK. 60 000～007 000
56. V POS. 60 000～007 000
57. V SIZE60 000～127 028
58. V S CR60 000～127 046
59. V LIN. 60 000～031 004
60. RF AGC 000～255 183
"SOUND MODE
No. Setting (Adjustment) item Variable range Initial setting value
1. NOISE 000 / 001 001
2. IN LEVEL 000～063 020
3. FH MON. 000 / 001 000
4. ST VCO 000～063 025
5. PILOT 000 / 001 000
6. FILTER 000～063 030
7. LOW SEP. 000～063 022
8. HI SEP. 000～063 023
9. 5FH MON. 000 / 001 000
10. SAP VCO 000～063 026
11. IN GAIN 000 / 001 000
12. FIL. OFF. ±010 (±000)
"VIDEO STATUS MODE
Initial setting value
No. Setting (Adjustment) item Variable range
CINEMA GAME
1. TINT ±20 (±0) (±0)
2. COLOR ±20 －3－3
3. PICTURE ±20 －10 －10
4. BRIGHT ±20 (±0) (±0)
5. DETAIL ±15 (±0) －5
6. G DRIVE －99～+50 －22 (±0)
7. B DRIVE －99～+50 －54 (±0)
8. R CUT. ±10 (±0) (±0)
9. G CUT. ±10 (±0) (±0)
10. B CUT. ±10 (±0) (±0)
[ AV-14F33/PH Only ]

No.52021
A
V-14F13
A
V-14F33
14
"OTHERS MODE
No. Setting (Adjustment) item Variable range Initial setting value
1. OSD HP 000～031 023
2. OSD VP 000～015 012
3. H-CK SW 000 / 001 000
"LOW LIGHT MODE
No. Setting (Adjustment) item Variable range Initial setting value
1. R CUTOFF 000～255 020
2. G CUTOFF 000～255 020
3. B CUTOFF 000～255 020
"HIGH LIGHT MODE
No. Setting (Adjustment) item Variable range Initial setting value
1. G DRIVE 000～255 128
2. B DRIVE 000～255 128
"RF AFC CHK MODE
No. Setting (Adjustment) item Variable range Initial setting value
1. RF AFC ON / OFF ON
2. FINE －77～+77 ±＊＊
"I2C BUS CTRL MODE
No. Setting (Adjustment) item Variable range Initial setting value
1. I2C BUS ON / OFF [Fixed ON]
(DO NOT ADJUST)

No.52021
A
V-14F13
A
V-14F33
15
SERVICE ADJUSTMENTS
ADJUSTMENT PREPARATION
1. You can make the necessary adjustments for this unit with
either the Remote Control Unit or With the adjustment tools
and parts as given below.
2. Adjustment with the Remote Control Unit is made on the
basis of the initial setting values, however, the new setting
values which set the screen to its optimum condition may
differ from the initial settings.
3. Make sure that connection is correctly made to AC power
source.
4. Turn on the power of the set and equipment before use, and
start the adjustment procedures after waiting at least 30 minutes.
5. Unless otherwise specified, prepare the most suitable reception
or input signal for adjustment.
6. Never touch any adjustment parts, which are not specified
in the list for this adjustment VRs, transforms, condensers,
etc.
7. Preparation for adjustment
Unless otherwise specified in the adjustment instructions, preset
the following functions with the REMOTE CONTROL UNIT.
User mode position
VIDEO STATUS STANDARD
TINT / COLOR / PICTURE
BRIGHT / DETAIL STANDARD
BASS / TREBLE / BALANCE CENTER
[AV-14F33/PH Only]
MTS STEREO
[AV-14F33/PH Only]
HYPER SURROUND OFF
[AV-14F33/PH Only]
SETUP TOUR ON
ADJUSTMENT EQUIPMENT
1.DC voltmeter (or digital voltmeter)
2. Oscilloscope
3.Signal generator (Pattern generator) [NTSC / PAL-M / PAL-N ]
4. Remote control unit
5.TV audio multiplex signal generator.
6. Frequency counter.
ADJUSTMENT ITEMS
Adjustment item Adjustment item
B1 POWER SUPPLY DEFLECTION adjustment
IF VCO adjustment VIDEO / CHROMA adjustment
RF AGC adjustment MTS circuit adjustment [AV-14F33/PH Only]
FOCUS adjustment PURITY / CONVERGENCE adjustment.

No.52021
A
V-14F13
A
V-14F33
16
BASIC OPERATION IN SERVICE MENU
1. TOOL OF SERVICE MENU OPERATION
Operate the SERVICE MENU with the REMOTE CONTROL UNIT.
2. SERVICE MENU ITEMS
In general basic setting (adjustments) items or verifications are performed in the SERVICE MENU.
(1) PICTURE ･･･････････････････ This set the setting values (adjustment values) of the VIDEO/CHROMA and DEFLECTION circuits.
(2) SOUND [ AV-14F33/PH ] ･････ This set the setting values (adjustment values) of the AUDIO circuit.
(3) VIDEO STATUS ･････････････ This is used when the THEATER and GAME MODE is adjusted.
(4) OTHERS ･･･････････････････ This is used when the OTHERS MODE is adjusted.
(5) LOW LIGHT･････････････････ This sets the setting values (adjustment values) of the WHITE BALANCE circuit.
(6) HIGH LIGHT ････････････････ This sets the setting values (adjustment values) of the WHITE BALANCE circuit.
(7) RF AFC CHK････････････････ This is used when the RF AFC CHK MODE is verified. [Do not adjust]
(8) VCO (CW) ･･････････････････ This is used when the IF VCO is adjusted.
(9) I2C BUS CTRL･･･････････････ This is used when ON/OFF of the I2C BUS CTRL is set. [Fixed ON]
(10)
SETUP TOUR OFF･･････････ It should be able to select mode (LANGUAGE and SET CLOCK).
[Should be OFF]
3. Basic Operations of the SERVICE MENU
(1) How to enter the SERVICE MENU.
Press the DISPLAY key and VIDEO STATUS key of the remote control unit
at the same time to enter the SERVICE MENU screen ①
shown in figure page later.
(2) SERVICE MENU screen selection
Press the UP / DOWN key of the MENU to select any of the
following items.
(The letters of the selected items are displayed in yellow.)
(3) Enter the any setting ( adjustment ) mode
"PICTURE, SOUND and OTHERS mode
1) If select any of PICTURE, SOUND or OTHERS items, and the LEFT / RIGHT key is pressed from SERVICE MENU ( MAIN
MENU ), the screen ②will be displayed as shown in figure page later.
2) Then the UP / DOWN key is pressed, the PICTURE mode screen ③or the SOUND mode screen ④or the OTHERS mode
screen ⑤is displayed, and the PICTURE, SOUND or OTHERS setting can be performed.
"VIDEO STATUS, LOW LIGHT, HIGH LIGHT, RF AFC CHK, VCO (CW) and I2C BUS CTRL mode
1) If select any of VIDEO STATUS / LOW LIGHT / HIGH LIGHT / RF AFC CHK / VCO (CW) / I2C BUS CTRL items, and the LEFT
/ RIGHT key is pressed from SERVICE MENU ( MAIN MENU ), the screens ⑥⑦⑧⑨⑩⑪will be displayed as shown in
figure page later.
2) Then the settings or verifications can be performed.
"SETUP TOUR OFF mode
1) If select of SETUP TOUR OFF item from SERVICE MENU , and you can change the ON or OFF(should be OFF).
(ShouldbeOFF)
%If it is ON, then you turn the TV power off, when you are turn the TV power on again.
TheJVCislogowillbeshownabout15secondsautomatically.
2) MENU -/+ Key ･････････････ Select Language.
3) MENU ▼Key･････････････ Auto Search.
SERVICE MENU
SELECT BY
OPERATE BY
EXIT BY
IT
PICTURE SOUND
VIDEO STATUS OTHERS
LOW LIGHT HIGH LIGHT
RF AFC CHK
VCO (CW) I2C BUS CTRL
SETUP TOUR(OFF)
EXIT
[AV-14F33/PH Only]

No.52021
A
V-14F13
A
V-14F33
17
(4) Setting method
1) UP / DOWN key of the MENU
Select the SETTING ITEM.
2) LEFT / RIGHT key of the MENU
Setting (adjust) the SETTING VALUE of the SETTING ITEM.
When the key is released the SETTING VALUE will be stored
(memorized).
3) EXIT key
Returns to the previous screen.
[NOTE] (PICTURE MODE ONLY)
When the INITIAL SETTING VALUE is turned to yellow, you can adjust the
values but you cannot adjust the values when it is turned to red.
(Because the signal conditions, etc. are not met.)
(5) Releasing SERVICE MENU
1) After returning to the SERVICE MENU upon completion of the setting
(adjustment) work, press the EXIT key again.
★The settings for LOW LIGHT and HIGH LIGHT are described in the WHITE
BALANCE page of ADJUSTMENT.
★The setting for VCO (CW) are described in the IF VCO page of ADJUSTMENT.
SELECT BY
OPERATE BY
EXIT BY
IT
1. NOISE ***
******
***
STATUS ********
****************
********
EXIT
SOUND MODE
[ AV-14F33/PH Only ]
SELECT BY
OPERATE BY
EXIT BY
IT
1. PICTURE ***
******
***
********
****************
******** ****
********
****
EXIT
PICTURE MODE
SETTING
VALUE
SETTING
ITEM
SELECT BY
OPERATE BY
EXIT BY
IT
1. OSD HP ***
******
***
EXIT
OTHERS MODE
CINEMA
SELECT BY
OPERATE BY
EXIT BY
TINT G DRIVE
COLOR B DRIVE
PICTURE R CUT.
BRIGHT G CUT.
DETAIL B CUT.
EXIT
***
******
*** ***
******
***
***
******
*** ***
******
***
***
******
*** ***
******
***
***
******
*** ***
******
***
***
******
*** ***
******
***
GAME
SELECT BY
OPERATE BY
EXIT BY
TINT G DRIVE
COLOR B DRIVE
PICTURE R CUT.
BRIGHT G CUT.
DETAIL B CUT.
EXIT
***
******
*** ***
******
***
***
******
*** ***
******
***
***
******
*** ***
******
***
***
******
*** ***
******
***
***
******
*** ***
******
***
Press
VIDEO
STATUS
Key
The letter of the selected
Items are displayed in yellow.
VIDEO STATUS MODE

No.52021
A
V-14F13
A
V-14F33
18
SERVICE MENU FLOW CHART
HIGH LIGHT
***
******
*** ***
******
***
TOO HIGH
ABOVE REFERENCE
BELOW REFERENCE
TOO LOW
SYNC : YES
①
①①
① SERVICE MENU (MAIN MENU) ②
②②
② SCREEN
⑧
⑧⑧
⑧ HIGH LIGHT MODE
⑩
⑩⑩
⑩ VCO (CW) MODE
⑪
⑪⑪
⑪ I
2
C BUS CTRL MODE
⑥
⑥⑥
⑥ VIDEO STATUS MODE
⑨
⑨⑨
⑨ RF AFC CHK MODE
⑦
⑦⑦
⑦ LOW LIGHT MODE
④
④④
④ SOUND MODE ⑤
⑤⑤
⑤ OTHERS MODE
③
③③
③ PICTURE MODE
SERVICE MENU
SELECT BY
OPERATE BY
EXIT BY
PICTURE SOUND
VIDEO STATUS OTHERS
LOW LIGHT HIGH LIGHT
RF AFC CHK
VCO (CW) I2C BUS CTRL
SETUP TOUR OFF
EXIT
EXIT BY
EXIT
RF AFC ON
FINE
***
******
***
SELECT BY
OPERATE BY
EXIT BY
EXIT
EXIT BY
I
T
EXIT
I2C BUS ON
OPERATE BY
EXIT BY
EXIT
SELECT BY EXIT BY
EXIT
SELECT BY
OPERATE BY
EXIT BY
1. NOISE
***
******
***
STATUS
********
****************
********
EXIT
CINEMA
SELECT BY
OPERATE BY
EXIT BY
TINT G DRIVE
COLOR B DRIVE
PICTURE R CUT.
BRIGHT G CUT.
DETAIL B CUT.
EXIT
***
******
*** ***
******
***
***
******
*** ***
******
***
***
******
*** ***
******
***
***
******
*** ***
******
***
***
******
*** ***
******
***
GAME
SELECT BY
OPERATE BY
EXIT BY
TINT G DRIVE
COLOR B DRIVE
PICTURE R CUT.
BRIGHT G CUT.
DETAIL B CUT.
EXIT
***
******
*** ***
******
***
***
******
*** ***
******
***
***
******
*** ***
******
***
***
******
*** ***
******
***
***
******
*** ***
******
***
BRIGHT
***
******
***
***
******
*** *** ***
*** ****** ***
*** ***
BRIGHT
EXIT BY
EXIT
SELECT BY
OPERATE BY
EXIT BY
1. PICTURE
***
******
***
********
****************
******** ****
********
****
EXIT
SELECT BY
OPERATE BY
EXIT BY
1. OSD HP
***
******
***
EXIT
DO NOT ADJUST
Press
VIDEO
STATUS
Key
FIXED ON
AV-14F33 Only
AV-14F33 Only
ON / OFF

No.52021
A
V-14F13
A
V-14F33
19
ADJUSTMENT LOCATIONS
MAIN PWB
HV
UPPER : FOCUS
LOWER : SCREEN
T
TUNER
IC704
IC701
F901
T111
31
PW
DEG.
S
B1
CW
X
AV-14F13/PH : MONO
AV IN
3Pin:GND(TP-E)
1Pin:B1(TP-91)
MPX
15
[Only AV-14F33/PH]
FRONT
AV IN OUT
CRT SOCKET PWB
(Within MAIN PWB ASS'Y)
TP-E
(SOLDER SIDE)
TOP
CRT EARTH
(BRAIDED ASS'Y)
E1
TP-47B
U
HVT
T
U
S901
POWER
SW
AV-14F13/PH : MONO
MEMORY IC
ANT
AV-14F33/PH : STEREO
AV-14F33/PH : STEREO

No.52021
A
V-14F13
A
V-14F33
20
■
■■
■ADJUSTMENTS
B1 POWER SUPPLY
Item Measuring
instrument
Test point Adjustment item Description
Check of
B1 POWER
SUPPLY
DC Voltmeter B1 ( B1
Connector
1pin)
(TP-91)
TP-E(#)
(B1
Connector
3pin)
1. Receive a black and white signal (color off). (NTSC)
2. Connect a DC voltmeter to TP-91(B1) and TP-E(#).
3. Confirm that the voltage is DC134.5V±2V.
IF VCO ADJUSTMENT
Item Measuring
instrument
Test point Adjustment item Description
"Under normal conditions, no adjustment is required.
IF VCO
adjustment
Signal
generator
CW TRANSF. (T111)
[ VCO (CW) ] mode 1. Receive a broadcast. (use channels without offset frequency).
2. Select the VCO(CW) mode from the SERVICE MENU.
3. Confirm the color change (yellow) from TOO HIGH to TOO
LOW by CW TRANSF.(T111) and SYNC : YES being shown
on the screen. Then, adjust CW TRANSF.(T111) until BELOW
REFERENCE mark turns yellow and confirm again SYNC :
YES being shown on the screen.
RF AGC ADJUSTMENT
RF AGC
adjustment
No.60 RF AGC 1. Receive a broadcast.
2. Select No.60 RF AGC of the PICTURE mode in SERVICE
MENU.
3. Press the MUTE key and turn off color.
4. With the MENU LEFT key, get noise in the screen picture. (0
side of setting value)
5. Press the MENU RIGHT key and stop when noise disappears
from the screen.
6. Change to other channels and make sure that there is no
irregularity.
7. Press the MUTE key and get color out.
FOCUS ADJUSTMENT
FOCUS
adjustment
Signal
generator
FOCUS VR
[ In HVT ]
1. Receive a crosshatch signal.
2. While looking at the screen, adjust FOCUS VR so that the
vertical and horizontal lines will be clear and in fine detail.
3. Make sure that the picture is in focus even when the screen
gets darkened.
TOO HIGH
ABOVE REFERENCE
BELOW REFERENCE
TOO LOW
SYNC : YES
EXIT BY
IT
EXIT
YELLOW
No. Setting item Variable
range
Initial setting
value
60 RF AGC 000～255 183
