JVC HV-53PRO/K User manual

No.51984
HV-53PRO
1COPYRIGHT © 2002 VICTOR COMPANY OF JAPAN, LTD.
Feb. 2002
HV-53PRO /K
HV-53PRO /AU
CONTENTS
SPECIFICATIONS ････････････････････
････････････････････････････････････････
････････････････････ 2
SAFETY PRECAUTIONS ･･････････････
････････････････････････････
･･････････････ 3
FEATURES･･････････････････････････
････････････････････････････････････････････････････
･･････････････････････････ 4
MAIN DIFFERENCE LIST ･･････････････
････････････････････････････
･･････････････ 4
FUNCTIONS ･････････････････････････
･･････････････････････････････････････････････････
･････････････････････････ 6
INSTALLATION ･･････････････････････
････････････････････････････････････････････
･･････････････････････ 8
MAIN PARTS LOCATION ･････････････
･･････････････････････････
･････････････ 9
SPECIFIC SERVICE INSTRUCTIONS ･･･
･･････
･･･ 10
SERVICE ADJUSTMENTS････････････
････････････････････････
････････････ 19
PARTS LIST ･･･････････････････････
･･････････････････････････････････････････････
･･･････････････････････ 41
★
OPERATING INSTRUCTIONS
★
STANDARD CIRCUIT DIAGRAM ･･･････
･･････････････
･･･････ 2-1
SERVICE MANUAL
REAR PROJECTION TELEVISION
BASIC CHASSIS
MF

No.51984
HV-53PRO
2
SPECIFICATIONS
Item Content
Dimensions ( W×
××
×H×
××
×D ) 120cm×145.4cm×61.9cm
Mass 85.0kg
TV RF System B/G, I, D/K, K1, M
Colour System PAL / SECAM / NTSC 3.58 / NTSC 4.43
Stereo System A2 (B/G) / NICAM (B/G, I, D/K, K1)
Teletext System Fastext (UK system)
WST(world standard system)
VL46.25MHz ～168.25MHz
VH175.25MHz ～463.25MHz
UHF 471.25MHz ～863.25MHz
Receiving
Frequency
CATV Mid (X～Z+2, S1～S10), Super (S11～S20) & Hyper (S21～S41)
VIF 38.0MHz
Intermediate
Frequency SIF 32.5MHz(5.5MHz) / 32.0MHz(6.0MHz) / 31.5MHz(6.5MHz) / 33.5MHz (4.5MHz)
PAL 4.43MHz
SECAM 4.40625MHz / 4.25MHz
Colour Sub Carrier
Frequency
NTSC 3.58MHz / 4.43MHz
Power Input AC 110V～240V , 50/60Hz
Power Consumption Max 287W / Avg. 208W
Aerial Input Terminal 75Ωunbalanced, Coaxial
Screen Transparent screen (Unitized Fresnel lens / Double lenticular lens)
Screen size 53”(135cm) measured diagonally (W : 107.7 cm×H : 80.8 cm)
Projection tube 17 cm (6.7”) tube ×3 (R / G / B)
High Voltage 31.0kV (At zero beam current )
Audio Power Output 20W + 20W
Speaker φ16cm Round type×2
Video 1Vp-p 75Ω
Audio(L/R) 500mVrms(-4dBs), High Impedance
Input
Terminal S – Video
[VIDEO-1]
Y : 1V(p-p) Positive (Negative sync provided) 75Ω
C : 0.286V(p-p) (burst signal), 75Ω
Mini-DIN 4 pin connector ×1
Component
[VIDEO-2]
Y : 1V(p-p), 75Ω
CB: B-Y 0.7V(p-p), 75Ω/ CR: R-Y 0.7V(p-p), 75Ω
Output Video 1V(p-p) 75Ω,
Terminal Audio(L/R) 500mVrms(-4dBs), Low Impedance2
AV Compulink Mono mini jack (φ3.5mm )
Headphone jack Stereo mini
j
ack
(
φ3.5mm
)
Remote Control Unit RM-C214 (AA/R06 / UM-3 Dry cell battery×2)
Design & specifications are subject to change without notice.
+1.0kV
-1.5kV

No.51984
HV-53PRO
3
SAFETY PRECAUTIONS
1. The design of this product contains special hardware, many
circuits and components specially for safety purposes. For
continued protection, no changes should be made to the original
design unless authorized in writing by the manufacturer.
Replacement parts must be identical to those used in the original
circuits. Service should be performed by qualified personnel
only.
2. Alterations of the design or circuitry of the products should not be
made. Any design alterations or additions will void the
manufacturer's warranty and will further relieve the manufacturer
of responsibility for personal injury or property damage resulting
therefrom.
3. Many electrical and mechanical parts in the products have
special safety-related characteristics. These characteristics are
often not evident from visual inspection nor can the protection
afforded by them necessarily be obtained by using replacement
components rated for higher voltage, wattage, etc. Replacement
parts which have these special safety characteristics are
identified in the parts list of Service manual. Electrical
components having such features are identified by shading
on the schematics and by (

) on the parts list in Service
manual. The use of a substitute replacement which does not
have the same safety characteristics as the recommended
replacement part shown in the parts list of Service manual may
cause shock, fire, or other hazards.
4. Don't short between the LIVE side ground and ISOLATED
(NEUTRAL) side ground or EARTH side ground when
repairing.
Some model's power circuit is partly different in the GND. The
difference of the GND is shown by the LIVE : () side GND, the
ISOLATED(NEUTRAL) : () side GND and EARTH : () side
GND. Don't short between the LIVE side GND and
ISOLATED(NEUTRAL) side GND or EARTH side GND and
never measure with a measuring apparatus (oscilloscope etc.)
the LIVE side GND and ISOLATED(NEUTRAL) side GND or
EARTH side GND at the same time.
If above note will not be kept, a fuse or any parts will be broken.
5. If any repair has been made to the chassis, it is recommended
that the B1 setting should be checked or adjusted (See
ADJUSTMENT OF B1 POWER SUPPLY).
6. The high voltage applied to the picture tube must conform with
that specified in Service manual. Excessive high voltage can
cause an increase in X-Ray emission, arcing and possible
component damage, therefore operation under excessive high
voltage conditions should be kept to a minimum, or should be
prevented. If severe arcing occurs, remove the AC power
immediately and determine the cause by visual inspection
(incorrect installation, cracked or melted high voltage harness,
poor soldering, etc.). To maintain the proper minimum level of
soft X-Ray emission, components in the high voltage circuitry
including the picture tube must be the exact replacements or
alternatives approved by the manufacturer of the complete
product.
7. Do not check high voltage by drawing an arc. Use a high voltage
meter or a high voltage probe with a VTVM. Discharge the
picture tube before attempting meter connection, by connecting
a clip lead to the ground frame and connecting the other end of
the lead through a 10k:2W resistor to the anode button.
8. When service is required, observe the original lead dress. Extra
precaution should be given to assure correct lead dress in the
high voltage circuit area. Where a short circuit has occurred,
those components that indicate evidence of overheating should
be replaced. Always use the manufacturer's replacement
components.
9. Isolation Check
(Safety for Electrical Shock Hazard)
After re-assembling the product, always perform an isolation
check on the exposed metal parts of the cabinet (antenna
terminals, video/audio input and output terminals, Control knobs,
metal cabinet, screwheads, earphone jack, control shafts, etc.)
to be sure the product is safe to operate without danger of
electrical shock.
(1) Dielectric Strength Test
The isolation between the AC primary circuit and all metal parts
exposed to the user, particularly any exposed metal part having a
return path to the chassis should withstand a voltage of 3000V
AC (r.m.s.) for a period of one second.
(. . . . Withstand a voltage of 1100V AC (r.m.s.) to an appliance
rated up to 120V, and 3000V AC (r.m.s.) to an appliance rated
200V or more, for a period of one second.)
This method of test requires a test equipment not generally found
in the service trade.
(2) Leakage Current Check
Plug the AC line cord directly into the AC outlet (do not use a line
isolation transformer during this check.). Using a "Leakage
Current Tester", measure the leakage current from each exposed
metal part of the cabinet, particularly any exposed metal part
having a return path to the chassis, to a known good earth
ground (water pipe, etc.). Any leakage current must not exceed
0.5mA AC (r.m.s.).
However, in tropical area, this must not exceed 0.2mA AC
(r.m.s.).
z
zz
zAlternate Check Method

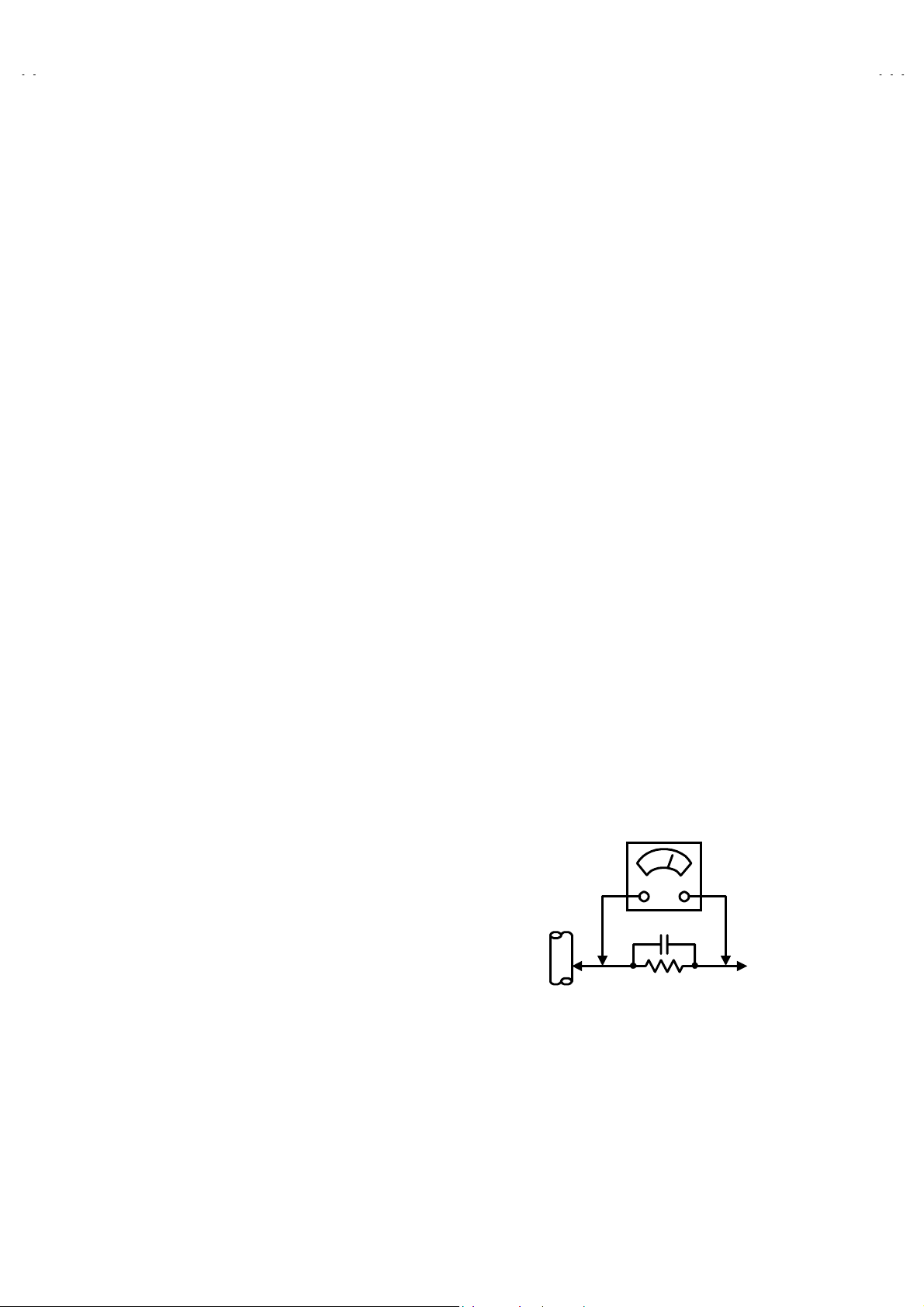

Plug the AC line cord directly into the AC outlet (do not use a line
isolation transformer during this check.). Use an AC voltmeter
having 1000 ohms per volt or more sensitivity in the following
manner. Connect a 1500:10W resistor paralleled by a 0.15PF
AC-type capacitor between an exposed metal part and a known
good earth ground (water pipe, etc.). Measure the AC voltage
across the resistor with the AC voltmeter. Move the resistor
connection to each exposed metal part, particularly any exposed
metal part having a return path to the chassis, and measure the
AC voltage across the resistor. Now, reverse the plug in the AC
outlet and repeat each measurement. Any voltage measured
must not exceed 0.75V AC (r.m.s.). This corresponds to 0.5mA
AC (r.m.s.).
However, in tropical area, this must not exceed 0.3V AC (r.m.s.).
This corresponds to 0.2mA AC (r.m.s.).
0.15
μ
F AC-TYPE
1500
:
10W
GOOD EARTH GROUND
PLACE THIS PROBE
ON EACH EXPOSED
METAL PART
AC VOLTMETER
(HAVING 1000
:
/V,
OR MORE SENSITIVITY)

No. 51984
HV-53PRO
4
FEATURES
zNew chassis design enable use of an interactive on screen
control.
zThe TELETEXT SYSTEM has a built-in FASTEXT (UK system),
and WST (world standard system) system.
zDigi Pure pro : Auto digi pure with motion picture compensation.
z2-3PULL DOWN : You can enjoy DVD movies at the highest
picture quality.
zMOTION COMPENSATION : With this function, the seamless
reproduction of dynamic motion on the screen has been realized.
zBecause this TV unit corresponds to multiplex broadcast, users
can enjoy music programs and sporting events with live realism.
In addition, BILINGUAL programs can be heard in their original
language.
zBuilt-in 100Hz (PAL / SECAM) scanning & progressive scan
(NTSC) TV.
MAIN DIFFERENCE LIST


Model name
Part name HV-53PRO/K HV-53PRO/AU
POWER CORD QMPR390-200-JC QMP2980-185J5
RATING LABEL LC21093-001A LC20700-013A-0L
INST BOOK LCT1165-001A LCT1078-001A
INST SHEET LCT1166-001A LCT1159-001B
ADAPTER PLUG QAM0401-001 ×
WARRANTY CARD BT-56010-1 BT-56001-2
S CENTER LIST ×BT-56002-2
CARTON LABEL LC41280-001A ×

No. 51984
HV-53PRO
5
SYSTEM BLOCK DIAGRAM
IC001
MICRO COMPUTER
SDA 0
SCL
0
IC004
MEMORY
IC301
DEF & RGB
PROCESSOR
TU001
TUNER
IC101
VIDEO PROCESS
&
CODEC MAIN
IC151
VIDEO PROCESS
&
CODEC SUB
IC201
SAMPLE RATE
CONVERTER
IC301
ENHANCE
IC701
BBE CONTROL
IC101
MULTI SOUND
PROCESSOR
IC301
SYNC SEP PWB
IC101
SW
TU001
TUNER
MAIN PWB
SDA 1
SCL
1
SDA 2
SCL 2
SYNC SEP PWB 100Hz PWB
AV SW PWB
MICON PWB

No. 51984
HV-53PRO
6
FUNCTIONS
■
■■
■FRONT TERMINAL & CONTROL
■
■■
■REAR TERMINAL
1
11
1Headphone jack
2
22
2Video-4 terminal
(S-VIDEO / VIDEO / L/MONO / R)
3
33
3MENU/OK Button
4
44
4Channel -/+
(MENU UP/DOWN) Button
5
55
5VOLUME -/+
(MENU LEFT/RIGHT) Button
6
66
6TV/VIDEO / EXIT Button
7
77
7SPATIALIZER LAMP (Green)
8
88
8POWER LAMP (Orange / Green)
9
99
9MAIN POWER SW Button
12
3
4 5
9
6
8
7
6
3
2
4
5
1
11
1Video-1 (INPUT) terminal
(S-VIDEO / VIDEO / L/MONO / R)
2
22
2Video-2 (INPUT) terminal
(VIDEO / L/MONO / R)
3
33
3Video-3 /COMPONENT
(INPUT) terminal
(Y/VIDEO /CB/CR/ L/ MONO / R)
4
44
4Output (AUDIO/VIDEO) terminal
(VIDEO / AUDIO L / R)
5
55
5AV COMPULINK terminal
6
66
6Aerial socket
1

No. 51984
HV-53PRO
7
■
■■

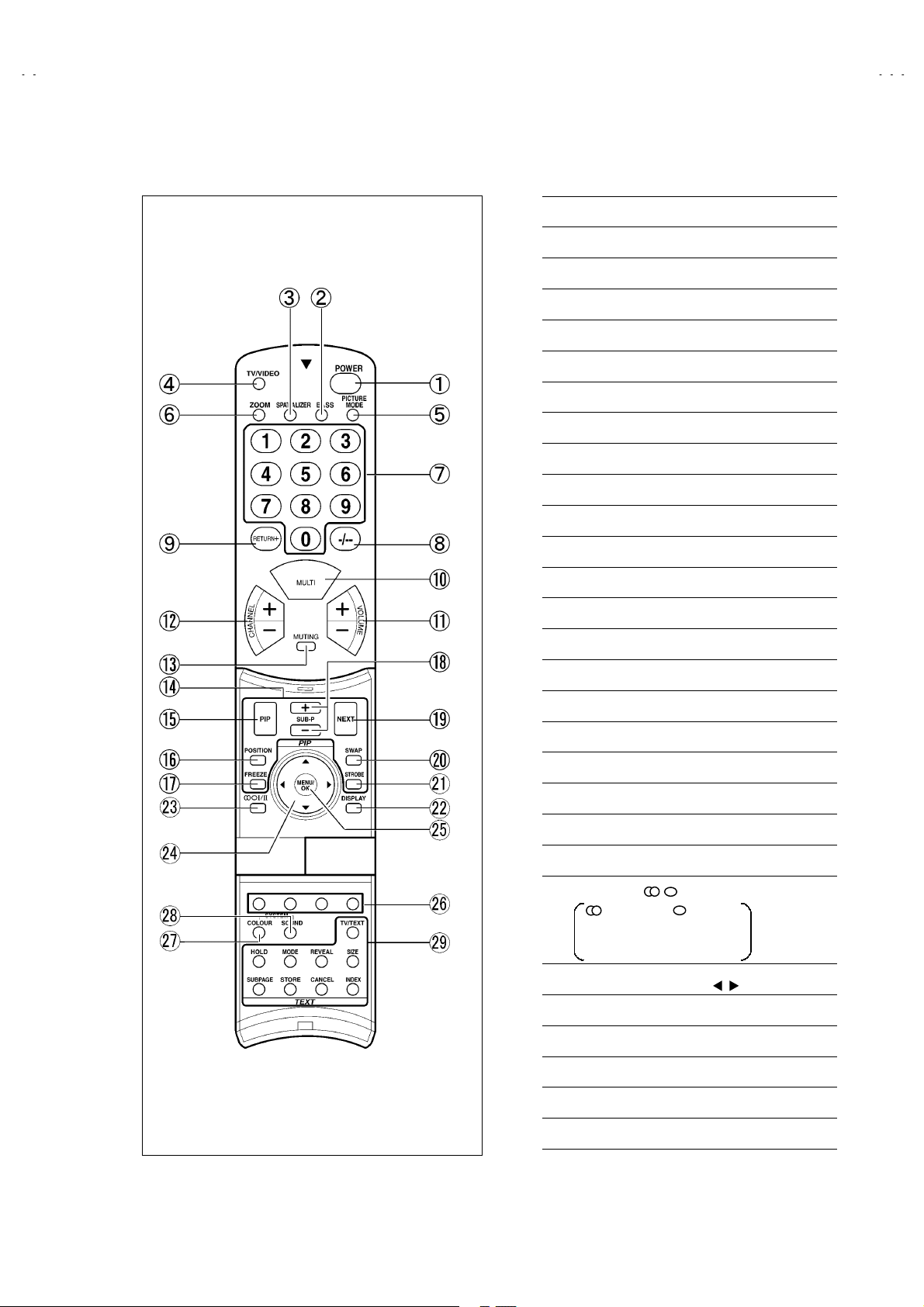

■REMOTE CONTROL UNIT [RM-C214]
1
11
1POWER Key
2
22
2BASS Key
3
33
3SPATIALIZER Key
4
44
4TV/VIDEO Key
5
55
5PICTURE MODE Key
6
66
6ZOOM Key
7
77
7CHANNEL Key
8
88
8-/-- Key
9
99
9RETURN + Key
A
AA
AMULTI Key
B
BB
BVOLUME +/- Key
C
CC
CCHANNEL +/- Key
D
DD
DMUTING Key
E
EE
EPIP MODE
F
FF
FPIP Key
G
GG
GPOSITION Key
H
HH
HFREEZE Key
I
II
ISUB P (PIP)+&- Key
J
JJ
JNEXT Key
K
KK
KSWAP Key
L
LL
LSTROBE Key
M
MM
MDISPLAY Key
N
NN
NSTEREO Ⅰ
ⅠⅠ
Ⅰ/Ⅱ
ⅡⅡ
ⅡKey
:Stereo/ :Mono
Ⅰ
ⅠⅠ
Ⅰ: Bilingual (subⅠ
ⅠⅠ
Ⅰ)
Ⅱ
ⅡⅡ
Ⅱ: Bilingual (subⅡ
ⅡⅡ
Ⅱ)
O
OO
OFUNCTION (▼
▼▼
▼/▲
▲▲
▲& / ) Key
P
PP
PMENU/OK Key
Q
QQ
QCOLOUR Key
R
RR
RCOLOUR SYSTEM Key
S
SS
SSOUND SYSTEM Key
U
UU
UTELETEXT Keys

No. 51984
HV-53PRO
8
INSTALLATION
1. INSTALLATION SITE
1.The rear of this set is provided with ventilation openings. Install the set
more than 10 cm from a wall and in a location with good ventilation.
2.Avoid the following types of locations.
(1) Unstable locations (location must be able to withstand heavy weight).
(2) Locations subjected to direct sunlight.
(3) Near stoves or other heating devices.
(4) Locations subjected to humidity or oily smoke.
(5) Dusty locations.
(6) Locations with strong vibration.
2. INSTALLATION ADJUSTMENT
When installing, moving or changing the orientation of the set, perform
static convergence adjustment according to the following procedure.
1. Press the MENU/OK key of the remote control unit.
2. Select the "DIGITAL CONVERGENCE" in the PICTURE FEATURES menu.
Then press the MENU / OK key.
3. The convergence adjustment screen appears with crosses (+) displayed in
9 locations.
Locations where the crosses appear in 3 colours:
Convergence adjustment is required. Perform steps 4 to 5.
Locations where the crosses are white:
The convergence is adjusted correctly.
zlf all the crosses are white, no convergence adjustment is needed.
4. The locations of the crosses correspond to the positions of the number keys on
the remote control. A box appears around the selected cross.
5. Press the NEXT button to change the colour of the box to the colour of the
cross you want to adjust (red or blue).
zYou cannot adjust the green cross.
6. Use the (▲/▼) and ( / ) buttons to adjust the position of the cross.
7. Press the MENU/OK button to end the convergence adjustment procedure.
zlf you do not use the TV controls for roughly one minute, the convergence
adjustment screen automatically disappears.
Fig:1
Fig:2
Wall
(more than 10cm)
VENTILATION OPENING

No. 51984
HV-53PRO
9
MAIN PARTS LOCATION
■
PWB ASS’Y ARRANGEMENT
The PWB ASS’Y is indicated below.
①MAIN PWB ASS’Y ⑧CONVERGENCE PWB ASS’Y
②POWER & DEF PWB ASS’Y ⑨DIGITAL CONVERGENCE MODULE PWB ASS’Y
(Included in CONVERGENCE PWB)
R CRT SOCKET PWB ASS’Y ⑩CONVERGENCE POWER PWB ASS’Y
③G CRT SOCKET PWB ASS’Y ⑪REACTOR PWB ASS’Y
B CRT SOCKET PWB ASS’Y ⑫LINE FILTER PWB ASS’Y
R VM PWB ASS’Y ⑬DEF OSC PWB ASS’Y
④G VM PWB ASS’Y ⑭MICOM PWB ASS’Y
B VM PWB ASS’Y ⑮SYNC SEP PWB ASS’Y
⑤FRONT CONTROL PWB ASS’Y ⑯100Hz PWB ASS’Y
⑥REMOCON SENSOR PWB ASS’Y ⑰AV TERMINAL PWB ASS’Y
⑦POWER SW PWB ASS’Y
⑦POW ER SW PWB
⑨DIGITAL
CONVERGENCE
MODULE
⑤FRON TCONTROL PWB
⑧CONVERGENCE
PW B
⑭MICOM PWB
⑫LINE FILTER
PW B
⑰AV TERMINAL PWB
⑯100Hz PW B
①MAIN PWB
⑬DEF OSC PWB
②POWER & DEF PWB
④VM PWB (R/G/B)
③CRT SOCKET
PWB
(
R/G/B
)
⑪REACTOR PWB
⑩CONVERGENCE
POWER PWB
⑥REMOCON SENSOR PWB
FRONT CONTROL ASS’Y
⑮SYNC SEP PWB
(This figure is only MAIN UNIT)

No. 51984
HV-53PRO
10
SPECIFIC SERVICE INSTRUCTIONS
SCREEN HANDLING CAUTIONS
■
■■
■SCREEN STORAGE
Store the SCREEN ASS’Y in a standing position in order to avoid deformation. If the screen is stored horizontally, there is risk of deforming the
screen face.
When necessary to place the SCREEN ASS’Y horizontally, position the screen side upwards and sure to place spacers between the screen and
resting site (floor or stand etc.) to prevent the screen from sagging.
■
SCREEN SURFACE
Since the screen surface is easily scratched or soiled, use ample care when handling.
PROJECTION UNIT REPLACEMENT
■
ADJUSTMENT DURING REPLACEMENT
When replcing the three R, G and B projection units, first replace the R and B units and perform focus / screen / raster centering adjustments
With reference to the G unit. Then replace the G unit and perform G focus / screen / convergence adjustment. Finally perform R & B
Convergence adjustments. Use care to simultaneously removes all three-projection units.
■
DISASSEMBLY CAUTION
The projection units include locations that are not to be disassembled during service. When replacing projection unit parts, disassemble to the
state indicated in the figure below.
The figure indicates screws and wires that are not to be removed. Use care not to remove these.

DISASSEMBLY PROCEDURE
If the screen or screen panel need to
be replaced, remove the A screws
FRONT CABINET
SCREEN BRACKET (TOP)
A
(X4)
SCREEN BRACKET
A
(X4)
A
(X4)
A
(X4)
SCREEN BRACKET
(BOTTOM)
SCREEN BRACKET
LENS ASS’Y
CRT ASS’Y(COUPLER ASS’Y)
DEF / CONVER. YOKE
PC MAGNET
TAPE
VM PWB PWB (R/G/B)
Do not remove screws
PC MAGNET
Check that tape is applied to the CRT neck.
If absent, the deflection yoke can dislodge.
LENS ASS’Y SCREW (X 4)
R CRT SOCKET PWB ASS’Y
G CRT SOCKET PWB ASS’Y
B CRT SOCKET PWB ASS’Y
Deflection yoke wires : To connector on POWER & DEF. PWB ASS’Y.
[R=”RHV”, G=”GHV”, B=”BHV”]
Convergence yoke wires : To connector on CONVERGENCE PWB ASS’Y.
[R=”R”, G=”G”, B=”B”]
SCREEN
Leave the screen with flannel
lens and double lenticular lens attached.
If cannot be disassembled further.
Do not disassembly
●
ANODE wires : to DIVIDER

No.51984
HV-53PRO
11
DISASSEMBLY PROCEDURE
SPEAKER GRILLE
1. Remove 4 screws marked #
##
#from rear side.
2. Remove the SPEAKER GRILLE.
SPEAKER
zRemove the SPEAKER GRILLE
1. Remove 4 screws marked $
$$
$.
2. Remove the SPEAKER.
3. Disconnect the speaker wire from speaker terminal.
FRONT BOARD
zRemove the SPEAKER GRILLE.
1. Remove 4 screws marked %
%%
%from rear side.
2. Remove the FRONT BOARD.
CONTROL BOX
zRemove the SPEAKER GRILLE.
1. Remove 4 screws marked &
&&
&attaching the CONTROL BOX.
2. Disconnect the connector
W, PS , Hon the POWER SW
PWB.
3. Disconnect the connector G,F, X,R,Hon the FRONT
CONTROL PWB.
4. Remove the CONTROL BOX.
SCREEN ASS’Y
zRemove the SPEAKER GRILLE.
zRemove the CONTROL BOX.
1. Remove 2 screws marked '
''
'under the SCREEN ASS’Y from
front side.
2. Remove 2 screws marked (
((
(under the SCREEN ASS’Y from
front side.
3. Remove 12 screws marked )
))
)from rear side.
4. Remove the SCREEN ASS’Y.
NOTE :
zPlace the screen with face upwards on a flat stand.
zBecause of the large size, at least two parsons are
recommended for removal and reassemble.
zUse core not to scratch the screen during work.
zDuring assembly, be sure to engage the left and right tabs
with the cabinet mounting positions.
zWhen than sporting the SCREEN ASS’Y, avoid grasping the
top of the screen panel, instead grasp the left and right areas.
SCREEN ASS’Y
G
SPEAKER GRILL
F
E
C
D
CONTROL BOX
FRONT BOARD
FRONT CONTROL PWB
POWER SW PWB
PSWH
GF X RH
FRONT CONTROL ASS’Y
REAR SIDE
A
A
SPEAKER WIRE
B
SPEAKER

No.51984
HV-53PRO
12
MIRROR
zRemove the SPEAKER GRILLE.
zRemove the CONTROL BOX.
zRemove the SCREEN ASS’Y.
1. Remove 2 screws marked *
**
*attaching the mirror stopper.
2. Raise slightly to disengage of the mirror from the hooks.
3. Remove the MIRROR.
NOTE :
zThe MIRROR is front-coated. Do not touch the front of the
MIRROR.
zAt least 2 persons are recommended for removing are
reassemble.
REAR PANEL
1. Loosen 7 screws marked +
++
+.
2. Remove 4 screws marked ,
,,
,.
3. Raise slightly REAR PANEL upward.
4. Remove the REAR PANEL.
PARTITION
zRemove the REAR PANEL.
1. Remove the PARTITION back ward.
REAR COVER
zRemove the SPEAKER GRILLE.
zRemove the FRONT BOARD.
zRemove the CONTROL BOX.
zRemove the SCREEN ASS’Y.
1. Remove 2 screws marked -
--
-attaching the REAR COVER.
2. Remove 2 screws marked .
..
.attaching the REAR COVER from
front side
3. Slightly pull for backside to disengage of the REAR COVER from
hooks.
4. Remove the REAR PANEL.
AV TERMINAL BOARD
zRemove the REAR PANEL
1. Remove 5 screws marked/
//
/.
2. Remove the power cord clamp from AV TERMINAL BOARD left
side.
3. Remove the AV TERMINAL BOARD.
MIRROR
HL
L
HOOKS
BRACKET
MIRROR STOPPER
M
AV TERMINAL BOARD
PARTITION
K
I
I
K
REAR PANEL
J
I
REAR COVER

No.51984
HV-53PRO
13
MAIN UNIT
zRemove the SPEAKER GRILLE.
zRemove the FRONT BOARD.
zRemove the CONTROL BOX.
zRemove the SCREEN ASS’Y.
zRemove the REAR COVER.
1. Remove 4 screws marked0
00
0from front side.
2. Remove the MAIN UNIT rear side.
NOTE :
zExcept for confirmation of projection of images on the
screen and audio output through the speakers, the
removed main unit is still workable in the same state as if
it is still built in the TV set. Therefore, the main unit can
be removed, if necessary, for board diagnosis, electric
testing, etc. apart from confirmation of screen images
and audio output.
zWhen wire clamps are removed during work, use care to
restore them precisely to their original positions.
Performance can be affected if these are not returned to
the original positions.
zBecause of the large size, at least two persons are
recommended for removal and reassemble.
zWhen carrying the main unit, use care not to drop, shock
or shake it.
zDo not stain or damage the lens of the projection unit.
zDo not look through the projection unit.
CHECKING THE P.W. BOARD
When checking the MAIN PWB, POWER & DEF PWB, etc., raise
the MAIN UNIT with the DIVIDER side down for the sake of
convenience.
LINE FILTER P.W. BOARD
zRemove the REAR PANEL.
zRemove the AV TERMINAL BOARD.
1. Disconnect the connector Won the LINE FILTER P.W .
BOARD.
2. Remove 3 screws marked1
11
1 attaching the LINE FILTER
BRACKET.
3. Remove 2 screws marked2
22
2 attaching LINE FILTER P.W.
BOARD.
4. Remove the LINE FILTER P.W. BOARD.
MAIN CHASSIS
zRemove the REAR PANEL.
zRemove the AV TERMINAL BOARD.
zRemove the LINE FILTER BRACKET.
1. Remove 2 screws marked3
33
3 both side of the MAIN CHASSIS.
2. Remove the MAIN CHASSIS for back side.
NOTE :
zIf necessary, remove the anode wires, connectors,
respectively.
MAIN CHASSIS
Q
Q
N
MAIN UNIT
O
O
LINE FILTER BRACKET
P
LINE FILTER P.W.BOARD
LINE FILTER BRACKET
W

No.51984
HV-53PRO
14
PROJECTION UNIT
zRemove the SPEAKER GRILLE
zRemove the CONTROL BOX
zRemove the SCREEN ASS’Y
zRemove the REAR PANEL
zRemove the REAR COVER
1. Remove the CRT SOCKET PWB.
2. Remove 4 screws marked4
44
4 attaching the PROJECTION
UNIT.
3. Remove the PROJECTION UNIT, upward.
NOTE :
zRefer to “PROJECTION UNIT REPLACEMENT”
on page10 when taking out and replacing the
PROJECTION UNIT.
zWhen wire clamps are removed during work, use care to
restore them precisely to their original positions.
Performance can be affected if these are not returned to
the original positions.

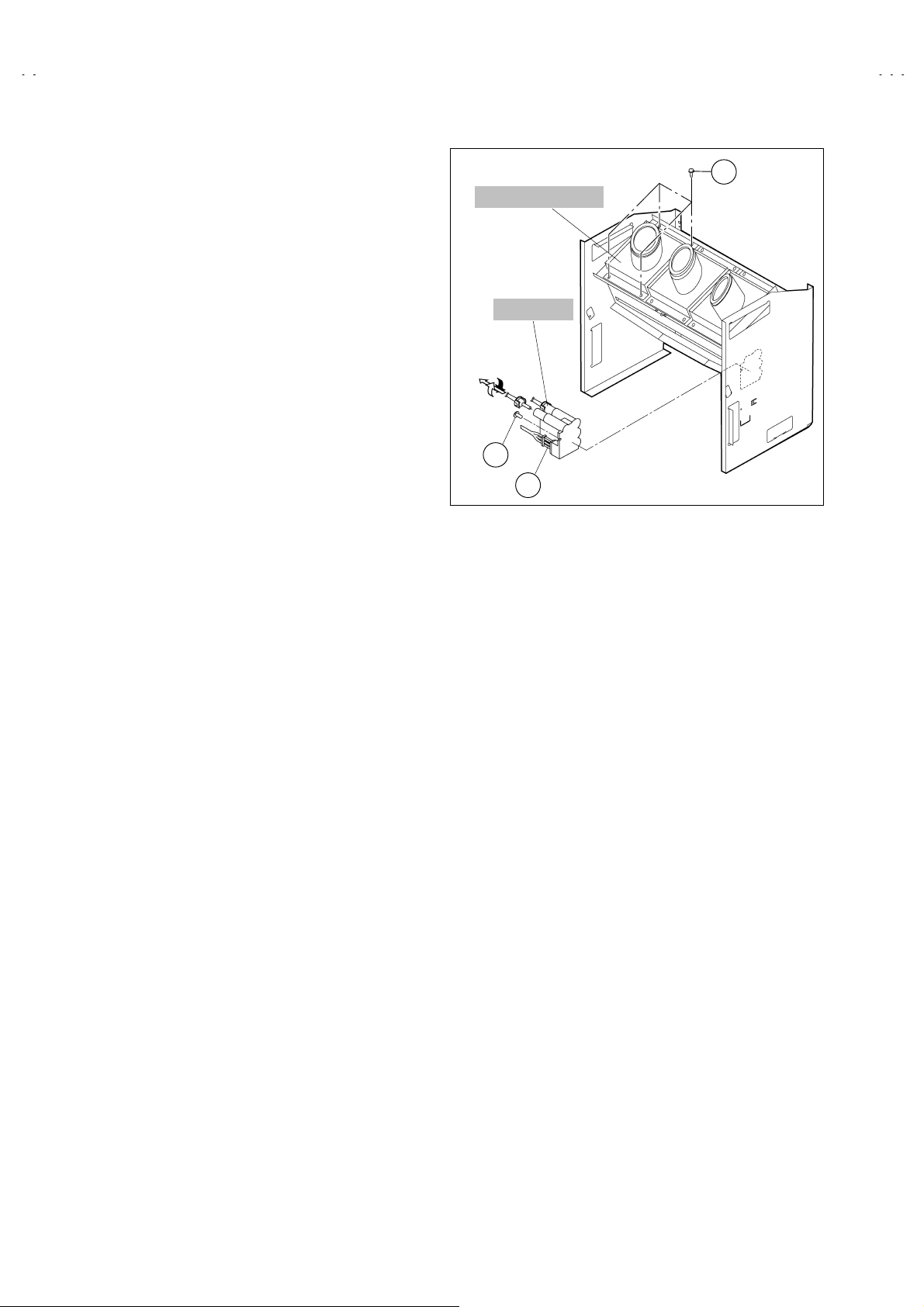

HV DIVIDER
zRemove the REAR PANEL
1. Remove 1 screws marked5
55
5attaching the DIVIDER.
2. Remove the HV DIVIDER.
*Wires of the transformer (FBT) and CRT of each PROJECTION
UNIT can be removed by turning the connector portions.
NOTE :
zIf necessary, remove the anode wires, and replacing the
HV DIVIDER, take care to correctly engage the
markedV
VV
Vconnector.
R
HV DIVIDER
PROJECTION UNIT
S
TurnPull
T

No.51984
HV-53PRO
15
REPLACEMENT OF CHIP COMPONENT
CAUTIONS
1. Avoid heating for more than 3 seconds.
2. Do not rub the electrodes and the resist parts of the pattern.
3. When removing a chip part, melt the solder adequately.
4. Do not reuse a chip part after removing it.
SOLDERING IRON
1. Use a high insulation soldering iron with a thin pointed end of it.
2. A 30w soldering iron is recommended for easily removing parts.
REPLACEMENT STEPS
1. How to remove Chip parts


Resistors, capacitors, etc
(1) As shown in the figure, push the part with tweezers and
alternately melt the solder at each end.
(2) Shift with tweezers and remove the chip part.


Transistors, diodes, variable resistors, etc
(1) Apply extra solder to each lead.
(2) As shown in the figure, push the part with tweezers and
alternately melt the solder at each lead. Shift and remove the
chip part.
Note : After removing the part, remove remaining solder from the
pattern.
2. How to install Chip parts


Resistors, capacitors, etc
(1) Apply solder to the pattern as indicated in the figure.
(2) Grasp the chip part with tweezers and place it on the solder.
Then heat and melt the solder at both ends of the chip part.


Transistors, diodes, variable resistors, etc
(1) Apply solder to the pattern as indicated in the figure.
(2) Grasp the chip part with tweezers and place it on the solder.
(3) First solder lead Aas indicated in the figure.
(4) Then solder leads
Band C.




SOLDER





SOLDER
















A
B
C




A
B
C

No. 51984
HV-53PRO
16
REPLACEMENT OF MEMORY IC
1. MEMORY IC
This PROJECTION TV use memory IC. In the memory IC, there are
memorized data for correctly operating the video and deflection circuits.
When replacing memory IC, be sure to use IC written with the initial
values of data.
2. PROCEDURE FOR REPLACING MEMORY IC
(1) Power off
Switch the power off and unplug the power cord from the wall outlet.
(2) Replace ICs.
Be sure to use memory IC written with the initial data values.
(3) Power on
Plug the power cord into the wall outlet and switch the power on.
(4) Check and set SYSTEM CONSTANT SET
*
**
*
It must not adjust without signal.
1) Press the DISPLAY key and the PICTURE MODE key of the REMOTE CONTROL UNIT simultaneously.
2) The SERVICE MENU screen of Fig. 1 will be displayed.
3) While the SERVICE MENU is displayed, press the DISPLAY key and PICTURE MODE key simultaneously, and the SYSTEM
CONSTANT SET screen of Fig. 2 will be displayed.
4) Check the setting values of the SYSTEM CONSTANT SET of Table 1. If the value is different, select the setting item with the
FUNCTION (▼/▲) key, and set the correct value with the FUNCTION ( / ) key.
5) Press the MENU / OK key to memorize the setting value.
6) Press the DISPLAY key twice, and return to the normal screen.
(5) Setting of receive channels
Set the receive channel.
For setting, refer to the OPERATING INSTRUCTIONS.
(6) Setting of SERVICE MENU
Verify the setting items of the SERVICE MENU of Table 2 &
Table3, and reset where necessary.
For setting, refer to the SERVICE ADJUSTMENTS.
(7) User settings
Check the user setting values of Table 4, and if setting value is
different, set the correct value.
For setting, refer to the OPERATING INSTRUCTIONS.
SERVICE MENU
1. IF 2. V/C
3. AUDIO 4. DEF
5. VSM PRESET 6. STATUS
7. PIP 8. WB PRESET
9. SHIPPING(OFF) 0. BUS FREE
1-9 : SELECT DISP : EXIT
Fig.1
SYSTEM CONSTANT SET
+ : STORE DISP : EXIT
1. TEXT
**
OK
Fig.2
2. BLUE BACK MUTE
3. E.M.C
4. WHITE BACK
5. COLOUR AUTO
6. PICTURE TILT
**
**
**
**
**
CONTENTS key
PIP key
MENU/OK key
SETTING ITEM
SELECT key
(Numbers key)
MODE key
SERVICE MENU KEY
ZOOM
(ASPECT) key
DISPLAY key
FUNCTION key
(
▼/▲& / key)
SERVICE MENU
& SYSTEM
CONSTANT key
MEMORY
(STORE) key

No. 51984
HV-53PRO
17
SETTING VALUES OF SYSTEM CONSTANT SET (TABLE 1)
MODEL No.
Setting item
HV-53PRO/K HV-53PRO/AU
1. TEXT YES ←
2. BLUE BACK MUTE NO ←
3. E. M. C NO ←
4. WHITE BACK NO ←
5. COLOUR AUTO NO ←
6. PICTURE TILT NO ←
SERVICE MENU SETTING ITEMS (TABLE 2)
Setting item Setting value Setting item Setting value
1. IF 1. VCO
2. ATT ON / OFF
5. VSM PRESET
BRIGHT
STANDARD
SOFT
1. CONT.
2. BRIGHT
3. SHARP
4. COLOUR
5. TINT
2. V / C 1. RGB BLK
2. WDR R
3. WDR G
4. WDR B
5. BRIGHT
6. CONTRAST
7. COLOUR
8. TINT
9. SHARP
10. VCO AGC
11. VID AGC
12. SYNC SLI
6. STATUS
(Do not adjust)
1. SOFT
2. TELETEXT
3. ASPECT
3. AUDIO
(Do not adjust)
1. ERR LIMIT
2. A2 ID THR
3. QUASI
7. PIP 1. PIP VCO ADJ
2. PIP VID AGC
3. PIP SNC SLI
4. DEF. 1. V-SHIFT
2. V-SIZE
3. H-CENT
4. H-SIZE
5. TRAPEZ
6. EW-PIN
7. COR-PIN
8. COR-UP
9. COR-LO
10. ANGLE
11. BOW
12. V-S.CR
13. V-LIN
8. WB PRESET
COOL
MID
WARM
1. WDR R
2. WDR G
3. WDR B
SERVICE MENU STANDARD SETTING VALUES (TABLE 3)
■
■■
■PICTURE MODE SETTING VALUE : ( 5. VSM PRESET)
VSM preset mode
Setting item BRIGHT STANDARD SOFT
1. CONT. +16 +2 -2
2. BRIGHT 0 0 0
3. SHARP -5 -5 -7
4. COLOUR +3 0 -2
5. TINT 0 0 0
■WHITE BALANCE SETTING VALUE : ( 8. WB PRESET)
WB preset mode
Setting item
COOL MID WARM
1. WDR R +3 0 +9
2. WDR G 0 0 0
3. WDR B +9 0 +2

No. 51984
HV-53PRO
18
USER SETTING VALUES (TABLE 4)
Setting item Setting value Setting item Setting value
MAIN POWER SW OFF SUB POWER ON
SHIPPING CHANNEL PR1 DISPLAY INDICATED
PRESET CHANNEL See ; OPERATING
INSTRUCTIONS. VOLUME LEVEL 10
PICTURE SETTING INSTALL
PICTURE MODE BRIGHT LANGUAGE ENGLISH
CONTRAST +16 AUTO PROGRAM zAutomatically register the TV
channel
BRIGHT 0 EDIT PR channel only
Other : space
SHARP -5
COLOUR +3 TELETEXT LANGUAGE GROUP-1
WHITE BALANCE COOL
DIGITAL ECO SENSOR OFF
PICTURE FEATURES FEATURES
DIGITAL VNR AUTO SLEEP TIMER OFF
Digi Pure Pro AUTO CHILD LOCK OFF (for all the channels)
PULL DOWN AUTO CHANNEL GUARD ALL CH : OFF
COLOUR SYSTEM zTV : Depends on Preset
channel AUTO SHUT OFF OFF
zVIDEO : AUTO VIDEO-3 SETTING COMPONENT
ZOOM REGULAR BLUE BACK ON
DIGITAL CONVERGENCE zAdjust CRT colour
conver
g
ence
SOUND SETTING
BASS CENTER BEE ON
TREBLE CENTER SPATIALIZER OFF
BALANCE CENTER SUPER BASS ON
AI VOLUME ON HEAD PHONE ON

No. 51984
HV-53PRO
19
SERVICE ADJUSTMENTS
BEFORE STARTING SERVICE ADJUSTMENT
1. There are 2 ways of adjusting this TV: One is with the
REMOTE CONTROL UNIT and the other is the conventional
method using adjustment parts and components.
2. The setting (adjustment) using the REMOTE CONTROL
UNIT is made on the basis of the initial setting values. The
setting values which adjust the screen to the optimum
condition can be different from the initial setting values.
3. Make sure that connection is correctly made to AC power
source.
4. Turn on the power of the TV and measuring instrument for
warming up for at least 30 minutes before starting adjustment.
5. If the receive or input signal is not specified, use the most
appropriate signal for adjustment.
6. Never touch parts (such as variable resistors, transformers and
condensers) not shown in the adjustment items of this
service adjustment.
7. Preparation for adjustment (presetting):
Unless otherwise specified in the adjustment items, preset the
following functions with the REMOTE CONTROL UNIT.
zSetting position
COLOUR SYSTEM AUTO
ZOOM REGULAR
PIP OFF (One Screen)
PICTURE MODE (VSM)
CONT = 0
BRIGHT = 0
SHARP = 0
COLOUR = 0
TINT = 0
WHITE BALANCE MID
SUPER BASS OFF
SPATIALIZER OFF
TREBLE CENTER
BASS CENTER
BALANCE CENTER
BBE OFF
SLEEP TIMER OFF
AUTO SHUTOFF OFF
MEASURING INSTRUMENT AND FIXTURES
1. DC voltmeter (or digital voltmeter)
2. Oscilloscope
3. Signal generator (Pattern generator) [PAL / SECAM / NTSC]
4. Remote control unit
ADJUSTMENT ITEMS
CHECKING ITEMS
FOCUS & BEEM SPOT ADJUSTMENT
CONVERGENCE & DEFLECTION ADJUSTMENT
VSM PRESET SETTING
WHITE BALANCE PRESET SETTING
VIDEO / CHROMA CIRCUIT ADJUSTMENT
PIP COLOUR DECODER VCO SETTING
AUDIO CIRCUIT ADJUSTMENT (Do not adjust)

No. 51984
HV-53PRO
20
ADJUSTMENT LOCATIONS
MAIN PWB POWER & DEF PWB










1pin:B1(TP-91)
2pin:NC
3pin:X-RAY
4pin:X-RAY
5pin:GND
POWER SW PWB
FRONT
BHV
FRONT CONTROL PWB
HVT











































MICON PWB
100Hz PWB
ANT-IN
FRONT
TOP
Speaker



SYNC
PWB
TUNER 2


CN003
CN007
E
C1
CN001
CN004
CN005
CN006
TUNER
F
F. CONT. PWB
AV SW
PWB
FRONT







S1
CONVERGENCE PWB
FRONT

POWER SW


S801
DIGITAL
CONVERGENCE
MODULE
SERVICE SW
CH - TV/VIDEO EXT
VOL +
VOL -
MENU/
OK CH +
H R X F G
TOP
DEF. OSC PWB
CN010
GHV
RHV
B
R
M
WPS H
FOCUS PACK
