JVC AV-14F702 User manual

®
COLOR rEt EVISION
USER'S GUIDE
Formodel:
AV-14F702
Serial Number

C,OT.O,. !

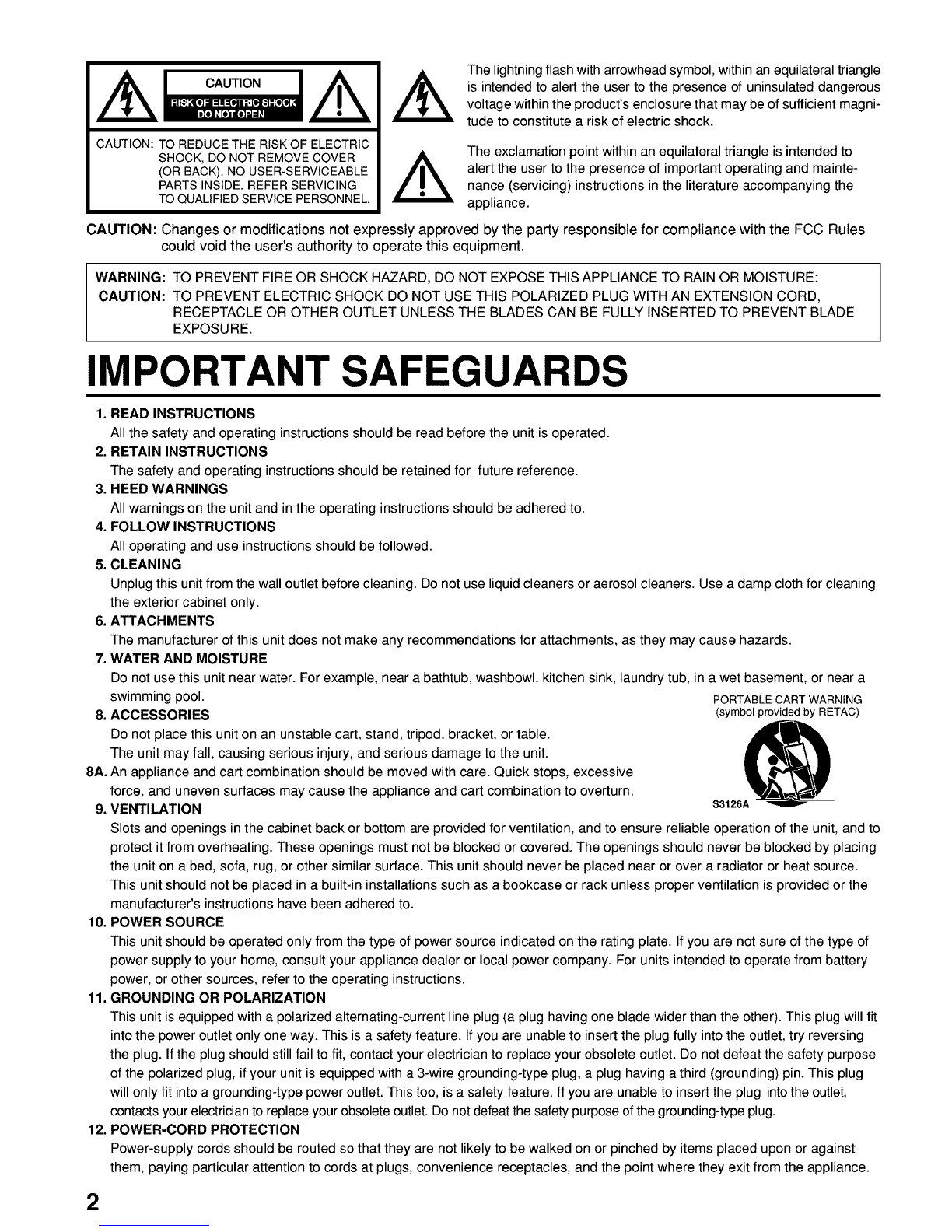

CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER
(OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle
is intended to alert the user to the presence of uninsulated dangerous
voltage within the product's enclosure that may be of sufficient magni-
tude to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is intended to
alert the user to the presence of important operating and mainte-
nance (servicing) instructions in the literature accompanying the
appliance.
CAUTION: Changes or modifications not expressly approved by the party responsible for compliance with the FCC Rules
could void the user's authority to operate this equipment.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE:
CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT USE THIS POLARIZED PLUG WITH AN EXTENSION CORD,
RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE
EXPOSURE.
IMPORTANT SAFEGUARDS
1. READ INSTRUCTIONS
All the safety and operating instructions should be read before the unit is operated.
2. RETAIN INSTRUCTIONS
The safety and operating instructions should be retained for future reference.
3. HEED WARNINGS
All warnings on the unit and in the operating instructions should be adhered to.
4. FOLLOW INSTRUCTIONS
All operating and use instructions should be followed.
5. CLEANING
Unplug this unit from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning
the exterior cabinet only.
6. ATTACHMENTS
The manufacturer of this unit does not make any recommendations for attachments, as they may cause hazards.
7. WATER AND MOISTURE
Do not use this unit near water. For example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a
swimming pool. PORTABLE CART WARNING
8. ACCESSORIES (symbol provided by RETAC)
Do not place this unit on an unstable cart, stand, tripod, bracket, or table. ,_j._,
The unit may fall, causing serious injury, and serious damage to the unit.
8A. An appliance and cart combination should be moved with care. Quick stops, excessive
force, and uneven surfaces may cause the appliance and cart combination to overturn.
9. VENTILATION S3126A
Slots and openings in the cabinet back or bottom are provided for ventilation, and to ensure reliable operation of the unit, and to
protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing
the unit on a bed, sofa, rug, or other similar surface. This unit should never be placed near or over a radiator or heat source.
This unit should not be placed in a built-in installations such as a bookcase or rack unless proper ventilation is provided or the
manufacturer's instructions have been adhered to.
10. POWER SOURCE
This unit should be operated only from the type of power source indicated on the rating plate. If you are not sure of the type of
power supply to your home, consult your appliance dealer or local power company. For units intended to operate from battery
power, or other sources, refer to the operating instructions.
11. GROUNDING OR POLARIZATION
This unit is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit
into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing
the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose
of the polarized plug, if your unit is equipped with a 3-wire grounding-type plug, a plug having a third (grounding) pin. This plug
will only fit into a grounding-type power outlet. This too, is a safety feature. If you are unable to insert the plug into the outlet,
contacts your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.
12. POWER-CORD PROTECTION
Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against
them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.
2

13. LIGHTNING
To protect your unit during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the
wall outlet and disconnect the antenna or cable system. This will prevent damage to the unit due to lightning and power line
surges.
14. POWER LINES
An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits,
or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken
to keep from touching such power lines or circuits, as contact with them might be fatal.
15. OVERLOADING
Do notoverload wall outlets and extension cords as this can result in a risk of fire or electric shock.
16. OBJECT AND LIQUID ENTRY
Do notpush objects through any openings in this unit, as they may touch dangerous voltage points or short out parts that could
result in fire or electric shock. Never spill or spray any type of liquid intothe unit.
17. OUTDOOR ANTENNA GROUNDING
If an outside antenna or cable system is connected to the unit, be sure the antenna or cable system isgrounded to provide
some protection against voltage surges and built-up static charges, Section 810 of the National Electrical Code, ANSI/NFPA
70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to
an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding elec-
trodes, and requirements for the grounding electrode.
18. SERVICING
Do notattempt to service this unit yourself as opening or removing covers may expose you to dangerous voltage or other
hazards. Refer all servicing to qualified service personnel.
19. DAMAGE REQUIRING SERVICE
Unplug this unit from the wall outlet and refer servicing to qualified service personnel under the following conditions:
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the unit.
c. If the unit has been exposed to rain or water.
d. If the unit does not operate normally by following the operating instructions. Adjust only those controls that are covered by
the operating instructions, as an improper adjustment of other controls may result in damage and will often require
extensive work by a qualified technician to restore the unit to its normal operation.
e. If the unit has been dropped or the cabinet has been damaged.
f. When the unit exhibits a distinct change in performance, this indicates a need for service.
20. REPLACEMENT PARTS
When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer or
those that have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock or other hazards.
21. SAFETY CHECK
Upon completion of any service or repairs to this unit, ask the service technician to perform safety checks to determine that the
unit is in proper operating condition.
22. HEAT
The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including
amplifiers) that produce heat.
23. NOTE TO CATV SYSTEM INSTALLER
This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for
proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building,
as close to the point of cable entry as practical.
EXAMPLE OF ANTENNA GROUNDING AS PER THE NATIONAL ELECTRICAL CODE
ANTENNA LEAD IN WIRE
NEC-NATIONAL ELECTRICAL CODE
$2898A
ANTENNA DISCHARGE UNIT (NEC
SECTION 810-20)
GROUNDING CONDUCTORS (NEC SECTION
810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING ELECTRODE
SYSTEM (NEC ART 250, PART H)
3

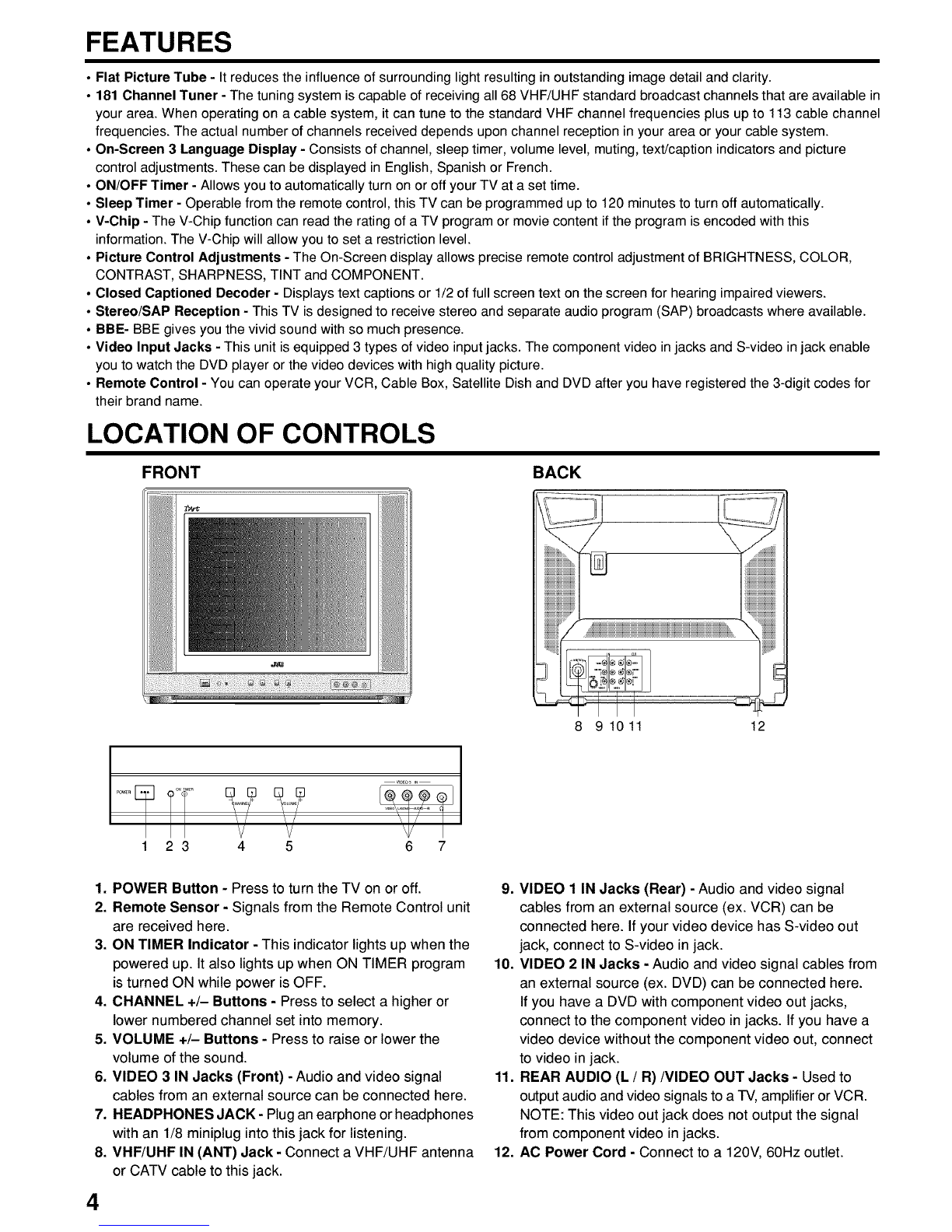

FEATURES
•Flat Picture Tube - It reduces the influence of surrounding light resulting in outstanding image detail and clarity.
• 181 Channel Tuner - The tuning system is capable of receiving all 68 VHF/UHF standard broadcast channels that are available in
your area. When operating on a cable system, it can tune to the standard VHF channel frequencies plus up to 113 cable channel
frequencies. The actual number of channels received depends upon channel reception in your area or your cable system.
• On-Screen 3 Language Display - Consists of channel, sleep timer, volume level, muting, text/caption indicators and picture
control adjustments. These can be displayed in English, Spanish or French.
• ON/OFF Timer - Allows you to automatically turn on or off your TV at a set time.
• Sleep Timer - Operable from the remote control, this TV can be programmed up to 120 minutes to turn off automatically.
• V-Chip - The V-Chip function can read the rating of a TV program or movie content if the program is encoded with this
information. The V-Chip will allow you to set a restriction level.
•Picture Control Adjustments - The On-Screen display allows precise remote control adjustment of BRIGHTNESS, COLOR,
CONTRAST, SHARPNESS, TINT and COMPONENT.
• Closed Captioned Decoder - Displays text captions or 1/2 of full screen text on the screen for hearing impaired viewers.
• Stereo/SAP Reception - This TV is designed to receive stereo and separate audio program (SAP) broadcasts where available.
•BBE- BBE gives you the vivid sound with so much presence.
• Video Input Jacks - This unit is equipped 3 types of video input jacks. The component video in jacks and S-video in jack enable
you to watch the DVD player or the video devices with high quality picture.
• Remote Control - You can operate your VCR, Cable Box, Satellite Dish and DVD after you have registered the 3-digit codes for
their brand name.
LOCATION OF CONTROLS
FRONT BACK
23 6 7
1. POWER Button - Press to turn the TV on or off.
2. Remote Sensor - Signals from the Remote Control unit
are received here.
3, ON TIMER Indicator - This indicator lights up when the
powered up. It also lights up when ON TIMER program
is turned ON while power is OFF.
4. CHANNEL +/- Buttons - Press to select a higher or
lower numbered channel set into memory.
5. VOLUME +/- Buttons - Press to raise or lower the
volume of the sound.
6, VIDEO 3 IN Jacks (Front) - Audio and video signal
cables from an external source can be connected here.
7. HEADPHONES JACK- Plug an earphone or headphones
with an 1/8 miniplug into this jack for listening.
8. VHF/UHF IN (ANT) Jack - Connect aVHF/UHF antenna
or CATV cable to this jack.
4
8 9 10 11 12
9. VIDEO 1 IN Jacks (Rear) -Audio and video signal
cables from an external source (ex. VCR) can be
connected here. Ifyour video device has S-video out
jack, connect to S-video in jack.
10, VIDEO 2 IN Jacks - Audio and video signal cables from
an external source (ex. DVD) can be connected here.
Ifyou have a DVD with component video out jacks,
connect to the component video in jacks. If you have a
video device without the component video out, connect
to video in jack.
11, REAR AUDIO (L /R)/VIDEO OUT Jacks - Used to
output audio and video signals to a TV,amplifier or VCR.
NOTE: This video out jack does not output the signal
from component video in jacks.
12. AC Power Cord - Connect to a 120V, 60Hz outlet.

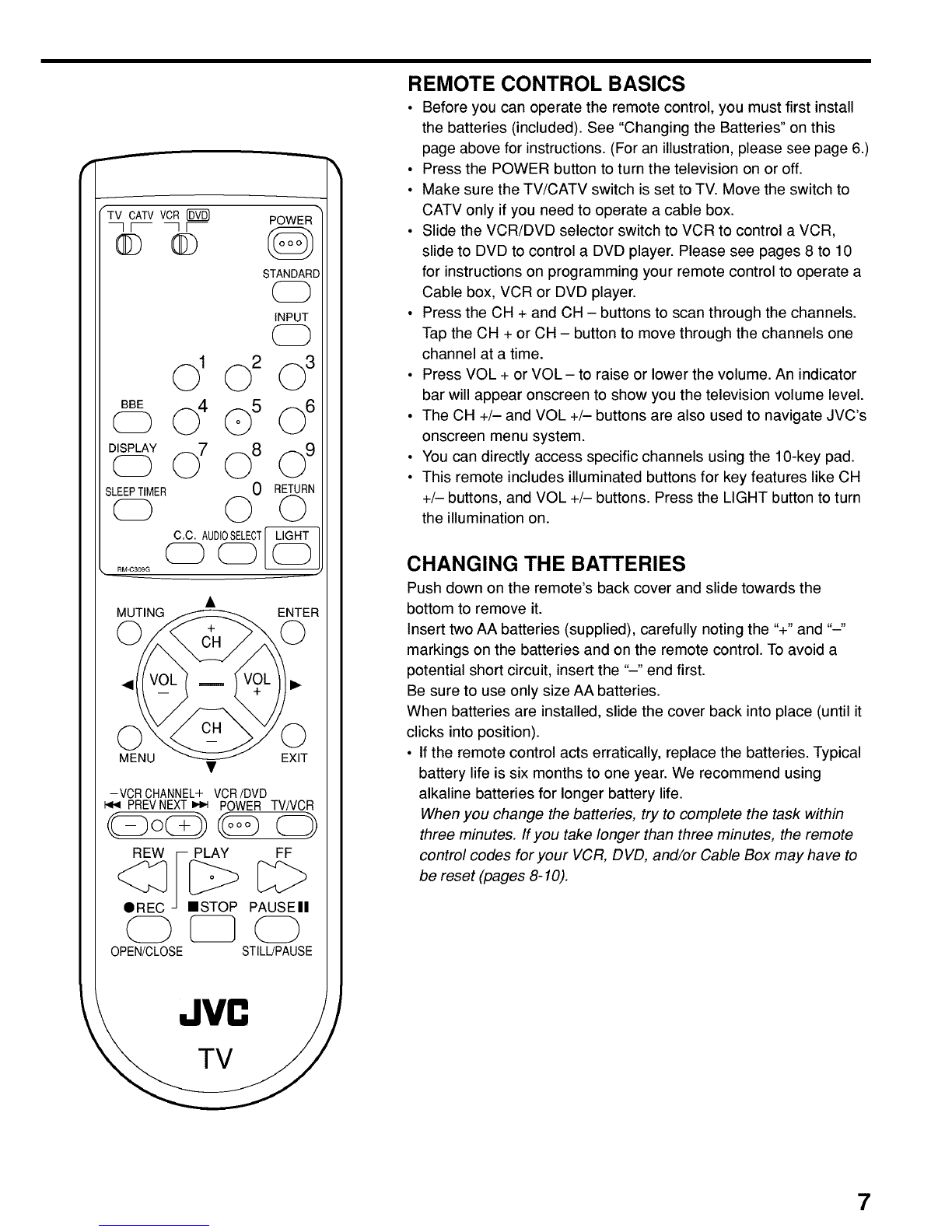

REMOTE CONTROL
rv CATVVCR POWER
@
STANDARE
C)
INPUT
(_1 {_2 (_3
(_4 @5 (_)6
©9
VCRCHANNEL+ VCR/DVD
_ POWER TV/VCR
PAUSE||
OPEN/CLOSE STILUPAUSE
11
jJ
12
13
14
15
16
17
18
19
20
1. TV/CATV Switch - Used to select the TV or Cable Box
to be operated. (You can operate your cable box after
you have programed the remote control.)
2. VCR/DVD switch - Used to select the VCR or DVD to
be operated. (You can operate your VCR or DVD after
you have programed the remote control.)
3. BBE Button -Press to turn BBE On or Off.
4. DISPLAY Button -Displays the current status time,
channel (or Input), the present settings on the TV screen.
5. SLEEP TIMER Button -Sets the TV to turn off auto-
matically after up to 120 minutes.
6. C.C. (Closed Caption) Button -Switches between
Caption, Text and TV modes for Closed-Captioned
programs.
7. MUTING Button -Press to turn off the sound. Press
again to turn the sound back on.
8. CH +/- Buttons -Press the + button to change to a
higher numbered channel set into memory. Press the -
button to change to a lower numbered channel set into
memory. Press to select the desired item during On-
Screen operations.
9. MENU Button -Press to display the On-Screen menu
function.
10. VCR or DVD Operation Buttons - Press to operate
your VCR or DVD.
11. POWER Button - Pressto turnthe TV on or off.
12. STANDARD Button- Press to reset the On-Screen
picture adjustmentsor Audio adjustmentto their factory
preset positions.
13. INPUT Button - Switches between the TV and external
inputsources.
14. 10-key pad - Allowsdirect access to any channel of the
TV, VCR or Cable box.
15. RETURN Button - Switches between the present
channel and the lastchannel selected.
16. LIGHT Button - Press toturnthe illuminationon forCH
+/- and VOL +/- buttons.
17. AUDIO SELECT Button - Switches sound between
mono and stereo, and SAP when receiving broadcasts
in stereo or SAP.
18. ENTER Button - Press toenter selected setup.
19. VOL +/- Buttons - Press the + button to increase, or
the - button to decrease the volume level. Press to
select the desired setting or arrangement during On-
Screen operations.
20. EXIT Button - Pressto exitthe On-Screen menu
function.
5

REMOTE CONTROL (CONTINUED)

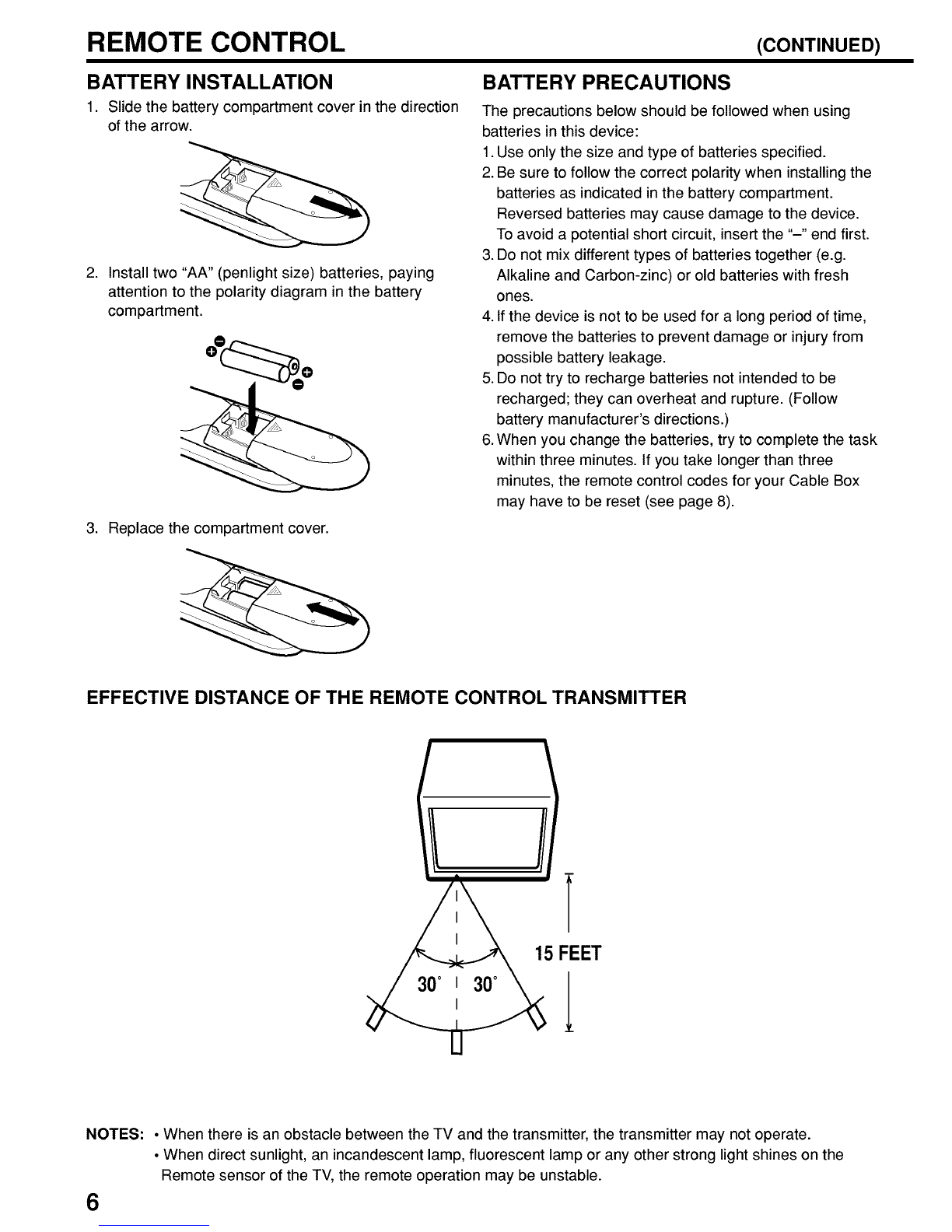

BATTERY INSTALLATION
1. Slide the battery compartment cover in the direction
of the arrow.
2. Install two "AA" (penlight size) batteries, paying
attention to the polarity diagram in the battery
compartment.
3. Replace the compartment cover.
BATTERY PRECAUTIONS
The precautions below should be followed when using
batteries in this device:
1. Use only the size and type of batteries specified.
2. Be sure to follow the correct polarity when installing the
batteries as indicated in the battery compartment.
Reversed batteries may cause damage to the device.
To avoid a potential short circuit, insert the "-" end first.
3. Do not mix different types of batteries together (e.g.
Alkaline and Carbon-zinc) or old batteries with fresh
ones.
4. If the device is not to be used for a long period of time,
remove the batteries to prevent damage or injury from
possible battery leakage.
5. Do not try to recharge batteries not intended to be
recharged; they can overheat and rupture. (Follow
battery manufacturer's directions.)
6.When you change the batteries, try to complete the task
within three minutes. If you take longer than three
minutes, the remote control codes for your Cable Box
may have to be reset (see page 8).
EFFECTIVE DISTANCE OF THE REMOTE CONTROL TRANSMITTER
NOTES: • When there is an obstacle between the TV and the transmitter, the transmitter may not operate.
• When direct sunlight, an incandescent lamp, fluorescent lamp or any other strong light shines on the
Remote sensor of the TV, the remote operation may be unstable.
6

CATV VCR
ir i1_
@ © POWER
STANDARD
CD
ENTER
EXIT
-VCRCHANNEL+VCR/DVD
PREVNEXT_ POWERTV/VCR
REW _-- _._ FF
OREC ==STOP PAUSEII
OPEN/CLOSE STILL/PAUSE
TV
REMOTE CONTROL BASICS
• Before you can operate the remote control, you must first install
the batteries (included). See "Changing the Batteries" on this
page above for instructions.(For an illustration,please see page 6.)
•Press the POWER button to turn the television on or off.
•Make sure the TV/CATV switch is set to TV. Move the switch to
CATV only if you need to operate acable box.
• Slide the VCR/DVD selector switch to VCR to control aVCR,
slide to DVD to control a DVD player. Please see pages 8 to 10
for instructions on programming your remote control to operate a
Cable box, VCR or DVD player.
•Press the CH + and CH - buttons to scan through the channels.
Tap the CH + or CH - button to move through the channels one
channel at atime.
•Press VOL + or VOL- to raise or lower the volume. An indicator
bar will appear onscreen to show you the television volume level.
•The CH +/- and VOL +/- buttons are also used to navigate JVC's
onscreen menu system.
• You can directly access specific channels using the 10-key pad.
•This remote includes illuminated buttons for key features like CH
+/- buttons, and VOL +/- buttons. Press the LIGHT buttonto turn
the illumination on.
CHANGING THE BATTERIES
Push down on the remote's back cover and slide towards the
bottom to remove it.
Insert two AA batteries (supplied), carefully notingthe "+" and "-"
markings on the batteries and on the remote control. To avoid a
potential short circuit, insert the "-" end first.
Be sure to use only size AA batteries.
When batteries are installed, slide the cover back into place (until it
clicks into position).
• Ifthe remote control acts erratically, replace the batteries. Typical
battery life is six months to one year. We recommend using
alkaline batteries for longer battery life.
When you change the batteries, try to complete the task within
three minutes. If you take longer than three minutes, the remote
control codes for your VCR, DVD, and/or Cable Box may have to
be reset (pages 8-10).
7

REMOTE CONTROL
REMOTE PROGRAMMING
Setting the CATV, VCR and DVD Codes
(CONTINUED)
Cable Box or Satellite setup
The remote control is programmed with CATV and/or Satellite codes for power on, power off, channel up, channel
down, and 10 key operation.
1) Find the CATV/Satellite brand from the list of codes shown below.
2) Slide the 2-way selector switch to "CATV ".
3) Press and hold down the DISPLAY button.
4) With the DISPLAY button held down, enter the first code number listed using the 10 key pad.
5) Release the DISPLAY button.
6) Confirm the operation of the Cable Box/Satellite receiver.
• If your CATV or Satellite box does not respond to the first code, try the others listed. If it does not respond to any
code, try the Search Codes Function as shown below.
ABC
Archer
Cableview
Citizen
Curtis
Diamond
Eagle
Eastern
GC Brand
Gemini
General Instrument
Hamlin
Hitachi
Jerrold
Macom
Magnavox
Memorex
Movietime
Oak
Panasonic
Paragon
Philips
Pioneer
024
032,025
051,032
022,051
058,059
024,032,025
029
034
032,051
022,043
065,024,025,026,027,020,021,022,057,023
040,041,042,045,058,064
049,024
065102410251026102710201021102210571023
049,050,051,054
033
030
032,051
039,037,048
055,056,060,071
063
028,029,030,052,053,031,069
047,062
Pulsar
Puser
RCA
Realistic
Regal
Regency
Rembrandt
Samsung
Scientific Atlanta
SLMark
Sprucer
Stargate
Telecaption
Teleview
Texscan
Tocom
Toshiba
Unika
Universal
Videoway
Viewstar
Zenith
Zenith/Drake Satellite
051,032
032
061,070
032
058,064,
034
037,032,
051
057,058,
051,047
051,056
032,051
067
047,051
044
035,036,
050
032,025
022,032
052
029,030
063,046
046
040,041,042,045,068
051,038
059
066
Echostar
Express VU
G.E.
G.I.
Gradiente
Hitachi
HNS (Hughes)
Pranasonic
100,113,114
100,113
106
108
112
104,111
104
105
Philips
Primestar
Proscan
RCA
Sony
Star Choice
Toshiba
Uniden
102,103
108
106,109,110
106,109,110
107
104,108
101
102,103
Cable/Satellite Search Codes Function:
1) Slide the 2-Way Mode Selector switch to CATV.
2) Press the TV POWER and RETURN buttons. Hold for at least three seconds and release.
3) Press TV POWER, see if the CATV or Satellite box responds.
4) Ifthere was a response, press RETURN. The operating codes are now set. Ifthere was no response, repeat Step 3.
Ifyou repeat Step 3 a total of 52 times without a response, use the remote control which came with the equipment.
5) Press RETURN to exit.
8

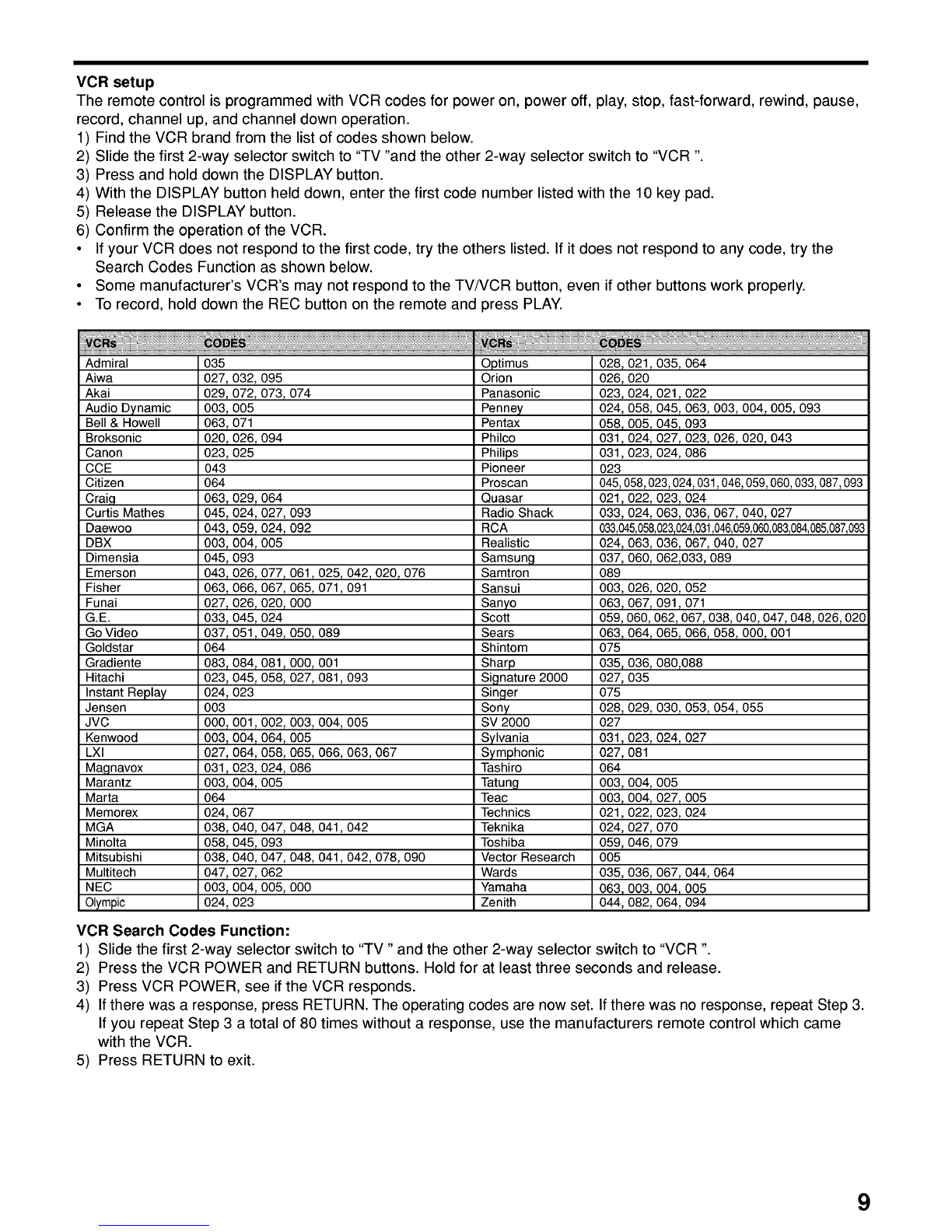

VCR setup
The remote control is programmed with VCR codes for power on, power off, play, stop, fast-forward, rewind, pause,
record, channel up, and channel down operation.
1) Find the VCR brand from the list of codes shown below.
2) Slide the first 2-way selector switch to "TV "and the other 2-way selector switch to "VCR"
3) Press and hold down the DISPLAY button.
4) With the DISPLAY button held down, enter the first code number listed with the 10 key pad.
5) Release the DISPLAY button.
6) Confirm the operation of the VCR.
• If your VCR does not respond to the first code, try the others listed. If it does not respond to any code, try the
Search Codes Function as shown below.
• Some manufacturer's VCR's may not respond to the TV/VCR button, even if other buttons work properly.
• To record, hold down the REC button on the remote and press PLAY.
Admiral
Aiwa
Akai
Audio Dynamic
Bell & Howell
Broksonic
Canon
CCE
Citizen
Craig
Curtis Mathes
Daewoo
DBX
Dimensia
Emerson
Fisher
Funai
G.E.
Go Video
Goldstar
Gradiente
Hitachi
Instant Replay
Jensen
JVC
Kenwood
LXI
Magnavox
Marantz
Marta
Memorex
MGA
Minolta
Mitsubishi
Multitech
NEC
Olympic
035
027, 032, 095
029, 072_ 073_ 074
003, 005
063, 071
020_ 026_ 094
023, 025
043
064
063_ 029_ 064
045, 024,027, 093
043_ 059_ 024, 092
003, 004,005
045, 093
043_ 026_ 077, 061 _025, 042, 020_ 076
063, 066,067, 065, 071,091
027_ 026_ 020, 000
033, 045,024
037_ 051 _049, 050_ 089
064
083_ 084_ 081,000_ 001
023, 045,058, 027, 081,093
024, 023
003
000, 001,002, 003, 004, 005
003_ 004_ 064, 005
027, 064,058, 065, 066, 063, 067
031 _023_ 024, 086
003, 004,005
064
024, 067
038, 040,047, 048, 041,042
058, 045,093
038, 040,047, 048, 041,042, 078, 090
047_ 027_ 062
003, 004,005, 000
024, 023
Optimus
Orion
Panasonic
Penney
Pentax
Philco
Philips
Pioneer
Proscan
Quasar
Radio Shack
RCA
Realistic
Samsung
Samtron
Sansui
Sanyo
Scott
Sears
Shintom
Sharp
Signature 2000
Singer
Sony
SV 2OOO
Sylvania
Symphonic
Tashiro
Tatung
Teac
Technics
Teknika
Toshiba
Vector Research
Wards
Yamaha
Zenith
028, 021_ 035_ 064
026, 020
023, 024_ 021 _022
024, 058, 045, 063, 003, 004,005, 093
058, 005, 045, 093
031,024_ 027_ 023, 026_ 020_ 043
031,023, 024, 086
023
045,058,023,024,031,046,059,060,033,087,093
021,022_ 023_ 024
033, 024, 063, 036, 067, 040,027
033,045,058,023,024,031,046,059,060,083,084,085,087,093
024, 063, 036, 067, 040, 027
037, 060, 062,033,089
089
003, 026, 020, 052
063, 067_ 091 _071
059, 060,062, 067, 038, 040,047,048, 026, 020
063, 064_ 065_ 066, 058_ 000_ 001
075
035, 036_ 080_088
027, 035
075
028, 029_ 030_ 053, 054_ 055
027
031,023_ 024_ 027
027, 081
064
003, 004, 005
003, 004_ 027_ 005
021,022, 023, 024
024, 027, 070
059, 046, 079
005
035, 036_ 067_ 044, 064
063, 003, 004, 005
044, 082, 064, 094
VCR Search Codes Function:
1) Slide the first 2-way selector switch to "TV" and the other 2-way selector switch to "VCR"
2) Press the VCR POWER and RETURN buttons. Hold for at least three seconds and release.
3) Press VCR POWER, see if the VCR responds.
4) If there was a response, press RETURN. The operating codes are now set. Ifthere was no response, repeat Step 3.
If you repeat Step 3 a total of 80 times without a response, use the manufacturers remote control which came
with the VCR.
5) Press RETURN to exit.
9

REMOTE CONTROL (CONTINUED)

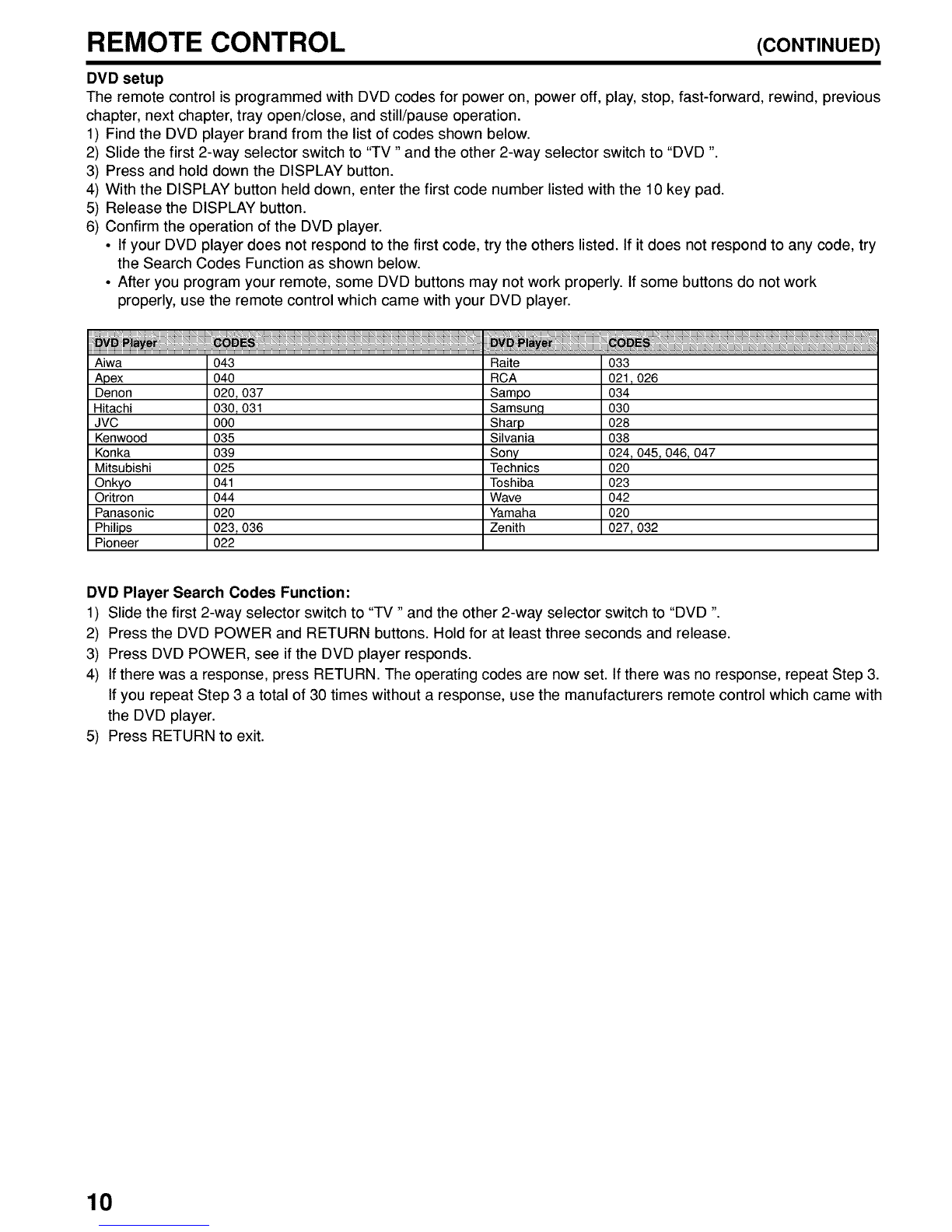

DVD setup
The remote control is programmed with DVD codes for power on, power off, play, stop, fast-forward, rewind, previous
chapter, next chapter, tray open/close, and still/pause operation.
1) Find the DVD player brand from the list of codes shown below.
2) Slide the first 2-way selector switch to 'q-v" and the other 2-way selector switch to "DVD ".
3) Press and hold down the DISPLAY button.
4) With the DISPLAY button held down, enter the first code number listed with the 10 key pad.
5) Release the DISPLAY button.
6) Confirm the operation of the DVD player.
• If your DVD player does not respond to the first code, try the others listed. If it does not respond to any code, try
the Search Codes Function as shown below.
• After you program your remote, some DVD buttons may not work properly. If some buttons do not work
properly, use the remote control which came with your DVD player.
Aiwa
Apex
Denon
Hitachi
JVC
Kenwood
Konka
Mitsubishi
Onkyo
Oritron
Panasonic
Philips
Pioneer
043
040
020_037
030,031
000
035
039
025
041
044
020
023_036
022
Raite
RCA
Sampo
Samsunq
Sharp
Silvania
Sony
Technics
Toshiba
Wave
Yamaha
Zenith
033
021,026
034
030
028
038
024,045_046,047
020
023
042
020
027,032
DVD Player Search Codes Function:
1) Slide the first 2-way selector switch to "TV "and the other 2-way selector switch to "DVD ".
2) Press the DVD POWER and RETURN buttons. Hold for at least three seconds and release.
3) Press DVD POWER, see if the DVD player responds.
4) Ifthere was a response, press RETURN. The operating codes are now set. Ifthere was no response, repeat Step 3.
If you repeat Step 3 a total of 30 times without a response, use the manufacturers remote control which came with
the DVD player.
5) Press RETURN to exit.
10

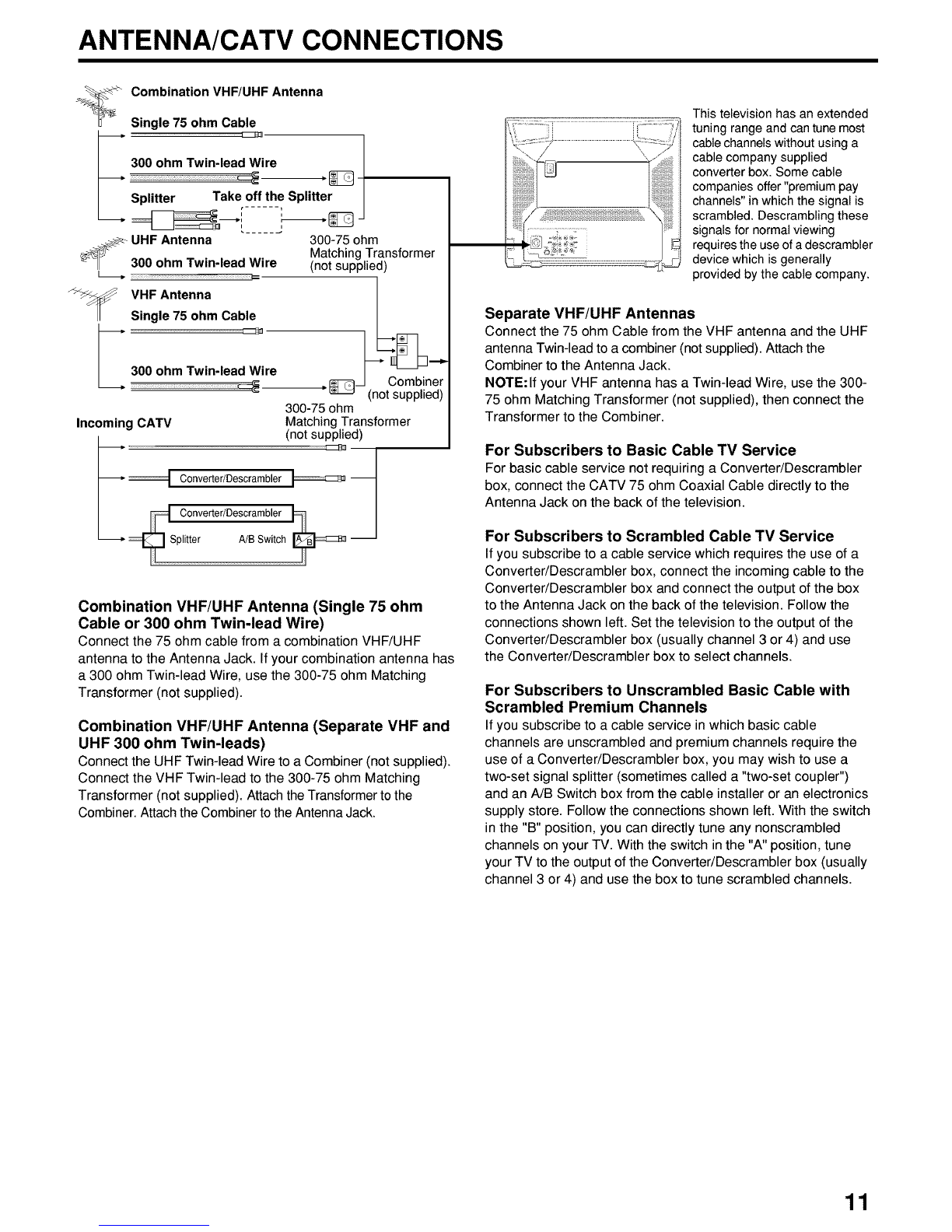

ANTENNA/CATV CONNECTIONS
Combination VHF/UHF Antenna
Single 75 ohm Cable
300 ohm Twin-lead W_ire 1
Splitter Take off the Splitter /
UHF Antenna
300 ohm Twin-lead Wire
VHF Antenna
Incoming CATV
300-75 ohm
Matching Transformer
(not supplied)
supphed)
300-75 ohm
Matching Transformer
(not supplied)
Converter/Descrambler
/ _ Converter/Descrambler _
Combination VHF/UHF Antenna (Single 75 ohm
Cable or 300 ohm Twin-lead Wire)
Connect the 75 ohm cable from a combination VHF/UHF
antenna to the Antenna Jack. If your combination antenna has
a 300 ohm Twin-lead Wire, use the 300-75 ohm Matching
Transformer (not supplied).
Combination VHF/UHF Antenna (Separate VHF and
UHF 300 ohm Twin-leads)
Connect the UHF Twin-lead Wire to a Combiner (not supplied).
Connect the VHF Twin-lead to the 300-75 ohm Matching
Transformer (not supplied). Attach the Transformer to the
Combiner. Attach the Combiner to the Antenna Jack.
This television has an extended
tuning range and can tune most
cablechannels without using a
cable company supplied
converter box. Some cable
companies offer "premium pay
channels" in which the signal is
scrambled. Descrambling these
signals for normal viewing
requires the use of a descrambler
device which isgenerally
provided by the cable company.
Separate VHF/UHF Antennas
Connect the 75 ohm Cable from the VHF antenna and the UHF
antenna Twin-lead to a combiner (not supplied). Attach the
Combiner to the Antenna Jack.
NOTE: If your VHF antenna has a Twin-lead Wire, use the 300-
75 ohm Matching Transformer (not supplied), then connect the
Transformer to the Combiner.
For Subscribers to Basic Cable TV Service
For basic cable service not requiring a Converter/Descrambler
box, connect the CATV 75 ohm Coaxial Cable directly to the
Antenna Jack on the back of the television.
For Subscribers to Scrambled Cable TV Service
If you subscribe to a cable service which requires the use of a
Converter/Descrambler box, connect the incoming cable to the
Converter/Descrambler box and connect the output of the box
to the Antenna Jack on the back of the television. Follow the
connections shown left. Set the television to the output of the
Converter/Descrambler box (usually channel 3 or 4) and use
the Converter/Descrambler box to select channels.
For Subscribers to Unscrambled Basic Cable with
Scrambled Premium Channels
If you subscribe to a cable service in which basic cable
channels are unscrambled and premium channels require the
use of a Converter/Descrambler box, you may wish to use a
two-set signal splitter (sometimes called a "two-set coupler")
and an A/B Switch box from the cable installer or an electronics
supply store. Follow the connections shown left. With the switch
in the "B" position, you can directly tune any nonscrambled
channels on your TV. With the switch in the "A" position, tune
your TV to the output of the Converter/Descrambler box (usually
channel 3 or 4) and use the box to tune scrambled channels.
11

CONNECTION TO OTHER EQUIPMENT
The exact arrangement you use to interconnect various video and audio components to the TV is dependent on the model
and features of each component. Check the User's Guide provided with each component for the location of video and audio
inputs and outputs.
The connection diagrams in the following are offered as suggestions. You may need to modify them to accommodate your
particular assortment of components. The diagrams are intended to show component video and audio interconnections only.
Press the INPUT button to select the AV mode to use the TV as a monitor.
Operate your VCR as usual.
TV/AV SELECTION
Ifyou connect the TV to VCR, camcorder, TV game or DVD you can select by pressing the INPUT button.
Press the INPUT button repeatedly to select the desired _. TV _ VIDEO 1_ VIDEO 2
mode. COMPONENT _ VIDEO 3
An indication of input source will display
on the screen for 4 seconds.
VIDEO 1 I
1. To connect the TV to a VCR
(ex. Use VIDEO 1 IN jacks to connect it.)
RearofTV
VCR VID,EO_ 1
AUD,O__i_:l_:q /_= _ _°lp/
t t t Zo,Au2?/_R// IAUDIO/4/
vioeo o,
| (notsupplied)
• Select "VIDEO 1" by pressing the INPUT button to
display the VCR picture.
3. To connect the TV to a camcorder
To playback fromthe camcorder, connectthe camcorder
tothe TV as shown.
ToAudio(L/R)/
VideoOUT
Frontof TV
VIDEO_RO_. ®%-I
_I__t-o°,r\ ,,
AUDIO (L) /(_AU_DIO (R)
(notsupplied)
• Select "VIDEO 3" by pressing the INPUT button to
display the camcorder picture.
2. To connect the TV to a VCR with an S-VIDEO jack
Ifyou connect a VCR with an S-video jack to the S-
VIDEO jack on the rear of TV, you must also connect the
audio cables to the AUDIO IN (VIDEO 1) jacks on the
rear of the TV. The S-video cable only carries the video
signal. Audio signal is separate.
RearofTV
AUDIO (L)_ =@"@ @' @_
VCR
I= I I /t=' -'_t_
t t t S-VIDEO,, \/
yAUD'O/R/I
/(Not supplied) / /
(Not supplied)
4. To connect the TV to a DVD with COMPONENT
VIDEO OUT Jacks.
If you connecta DVD with the COMPONENT VIDEO
OUT jacks tothe COMPONENT VIDEO IN (Y, PB, PR)
jacks on the rear ofTV, you must also connectthe audio
cablesto the AUDIO IN (VIDEO 2IN)jacks on the rear of
the TV.
/DVD
tit tt
RearofTV
AUDIO/,)_ _i_
(Not supplied)
(Not supplied)
1
NOTE: When the S-video cable and the video cable are
connected to each jack at the same time, the S-video
cable takes precedence over the video cable.
• Select "COMPONENT" by pressing the INPUT button
to display the DVD picture.
• If you have a DVD without COMPONENT VIDEO OUT
jacks, connect the video cable to VIDEO IN (VIDEO 2
IN) jack. In this case, select "VIDEO 2" by pressing the
INPUT button to display the DVD picture.
12

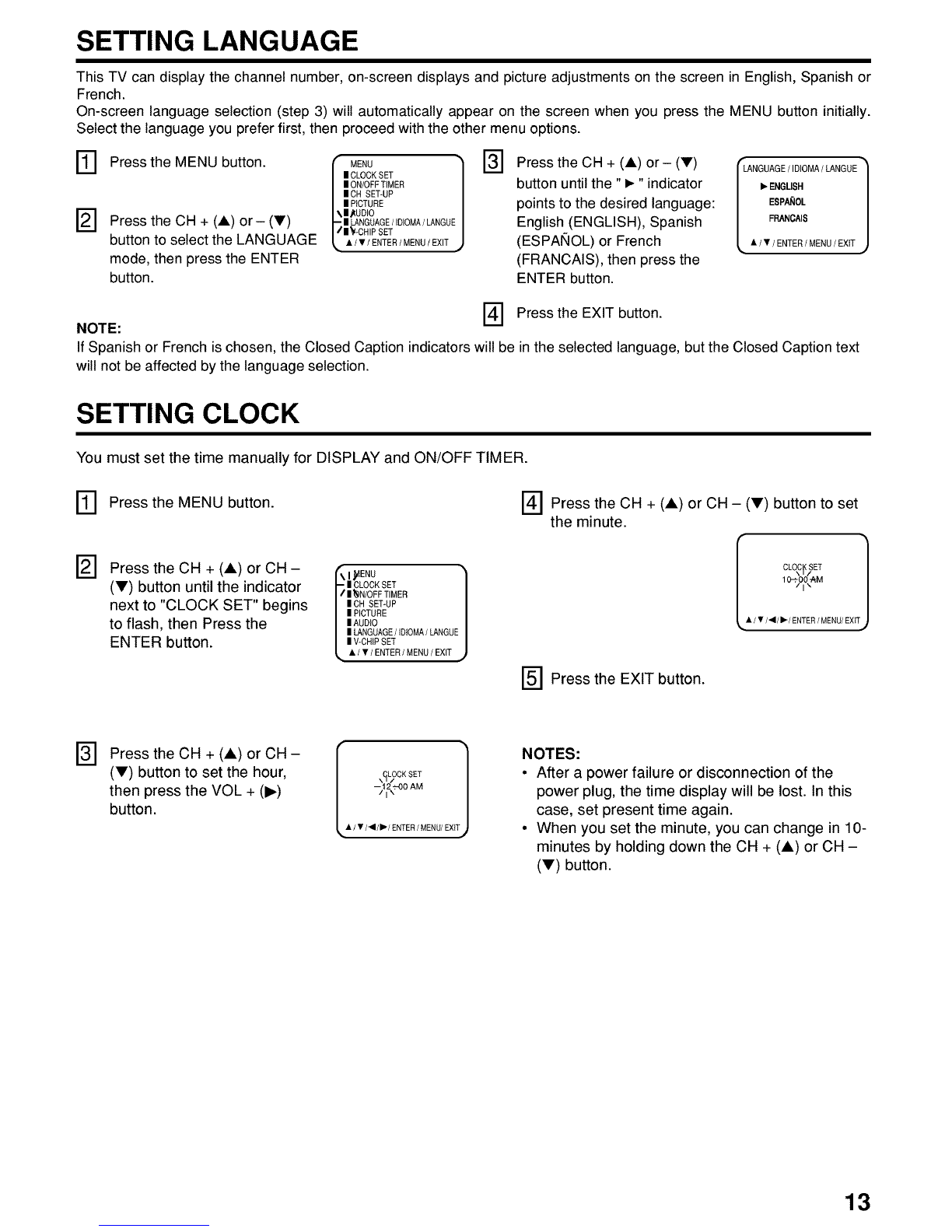

SETTING LANGUAGE
This TV can display the channel number, on-screen displays and picture adjustments on the screen in English, Spanish or
French.
On-screen language selection (step 3) will automatically appear on the screen when you press the MENU button initially.
Select the language you prefer first, then proceed with the other menu options.
_7 Pressthe MENU button. ( MENU
|| CLOCK SET
| | ON/OFF TIMER
| |CH SET-UP
| | PICTURE
r_ i\l_UDiO
Press the OH + (A) or- (V) I--ILANGUAGE/IDIOMA/LANGUE
V|_-CHIP SET
button to select the LANGUAGE k. A/V/ENTER/MENU/EXIT,_
mode, then press the ENTER
button.
@Press the CH + (All,)or- (V)
button until the "I_" indicator
points to the desired language:
English (ENGLISH), Spanish
(ESPAIklOL) or French
(FRANCAIS), then press the
ENTER button.
LANGUAGE /IDIOMA/LANGUE
•ENGLISH
ESPANOL
FRANCAIS
•/•/ENTER/MENU/EXIT
[_] Pressthe EXIT button.
NOTE:
If Spanish or French is chosen, the Closed Caption indicators will be in the selected language, but the Closed Caption text
will not be affected bythe language selection.
SETTING CLOCK
You must set the time manually for DISPLAY and ON/OFF TIMER.
_7 Press the MENU button. [_] Press the CH + (A) or CH - (V) button to set
the minute.
[] Press the CH + (A) or CH -
(V) button until the indicator
next to "CLOCK SET" begins
to flash, then Press the
ENTER button.
('\ I_ENU
I-- | CLOCKSET
I/| _N/OFETIMER
| | CH SET-UP
|II PICTURE
/ I AUDIO
I I LANGUAGE/IDIOMA/LANGUE
IIV-CHIPSET
•/•/ENTER/MENU/EXIT •
['5"] Press the EXIT button.
CLOCk<SET
l_0'd_M
/I \
•/•/_1/1_/ENTER /MENU/EXIT
Press the CH + (A) or CH -
(V) button to set the hour,
then press the VOL + (1_)
button.
qLOCK SET
--_1_2/._00 AM
/I \
•/•/_1/1_/ENTER /MENU/EXIT
NOTES:
• After a power failure or disconnection of the
power plug, the time display will be lost. In this
case, set present time again.
• When you set the minute, you can change in lO-
minutes by holding down the CH + (A) or CH -
(V) button.
13

TO MEMORIZE CHANNELS
This TV is equipped with a channel memory feature which
allows channels to skip up or down to the next channel set
into memory, skipping over unwanted channels.
Before selecting channels, they must be programmed into
the TV's memory. In addition to normal VHF and UHF
channels, this TV can receive up to 113 Cable TV channels.
To use this TV with an antenna, set the TV/CATV menu
option to the TV setting. When shipped from the factory, this
menu option is in the CATV setting.
TV/CATV SELECTION
IT I Pressthe MENUbutton.
[] Press the CH + (A) or- (V) button
until the indicator next to "CH SET-
UP" begins to flash, then press the
ENTER button.
I\ MENU
= CLOCK SET
m_N/OFF T(MER
NCN SET-UP
I-/m _ICTURE
L AUD(O
ILANGUAGE /ID(OMA /LANGUE
IV CHIP SET
A/T /ENTER /MENU /EXIT ,
@Press the CH + (All,)or - (V) button
until the indicator next to "TV/CATV"
begins to flash.
Press the VOL + (1_) or - (_1)button
to select the TV or CATV mode. The
arrow indicates the selected mode.
, tH SET-UP 1
I TV I_ CATV
/I_AUTO CH MEMORY
I ADD /DELETE
I CN LABEL
•I• I.(IIIblMENUIEXIT
I'_ Press the EXIT button.
NOTE: Contact your cable company to determine the
type of cable system used in your area.
AUTOMATIC CHANNEL MEMORY
Press the MENU button.
Press the CH + (A) or- (V) button
until the indicator next to "CH SET-
UP" begins to flash, then press the
ENTER button.
l\ MENU
I CLOCK SET
I .I_N/OFF TIMER
"_ I CN SET-UP
I_iCTURE
lAUDIO
ILANGUAGE /(DIOMA /LANGUE
I V-CHiP SET
•/•/ENTER /MENU /EXiT
@
I CH SETUP
Press the CH + (All,)or - (V) button ,m,TV,-SATV
IAUTO CN MEMORY
until the indicator next to "AUTO CH "_DD/DELETE
ICH LABEL
MEMORY" begins to flash, then press
the ENTER button. The TV will begin •/•/ENTER/MENU/EXF
memorizingallthechannelsavailable
inyourarea.
[] Press the EXIT button.
TO
[9
@
ADD/DELETE CHANNELS
PresstheMENUbutton.
Press the CH + (A) or- (V) button
until the indicator next to "CH SET-
UP" begins to flash, then press the
ENTER button.
Press the CH + (All,)or - (V) button
until the indicator next to "ADD/
DELETE" begins to flash, then press
the ENTER button.
l\ MENU
I CLOCK SET
I .@t_OFF TIMER
I CH SET-UP
I'_ I _IICTURE
L I AUDIO
I LANGUAGE / IDIOMA /LANGUE
I V-CN(P SET
•/•/ENTER /MENU /EXIT
i CH SET-UP
I TV I_CATV
\I,_UTO OH MEMORY
I ADD /DELETE
riSH LABEL
•/•/ENTER /MENU /EXIT
Select the desired channels to be
added or deleted using the lO-key
pad (0-9) or the CH + or- button.
[] Press the VOL + (1_)or - (41)button to select ADD or
DELETE.
If an unmemorized channel was selected (step 4), the
channel indication will be red. Press the VOL + (1_)or-
(41)button if you wish to ADD the unmemorized
channel. The channel indicator will change from red to
green when a channel is added and the channel will be
memorized. If a memorized channel was selected (step
4), the channel indication will be green.
Press the VOL + (1_)or - (_1)button if
you wish to DELETE the channel from
memory. The channel indicator will
change from green to red when a
channel is deleted.
Repeat Steps 4 and 5 for each
channel to be added or deleted.
I_l Press the EXIT button after adding or deleting all of the
desired channels, to return to normal TV viewing.
14

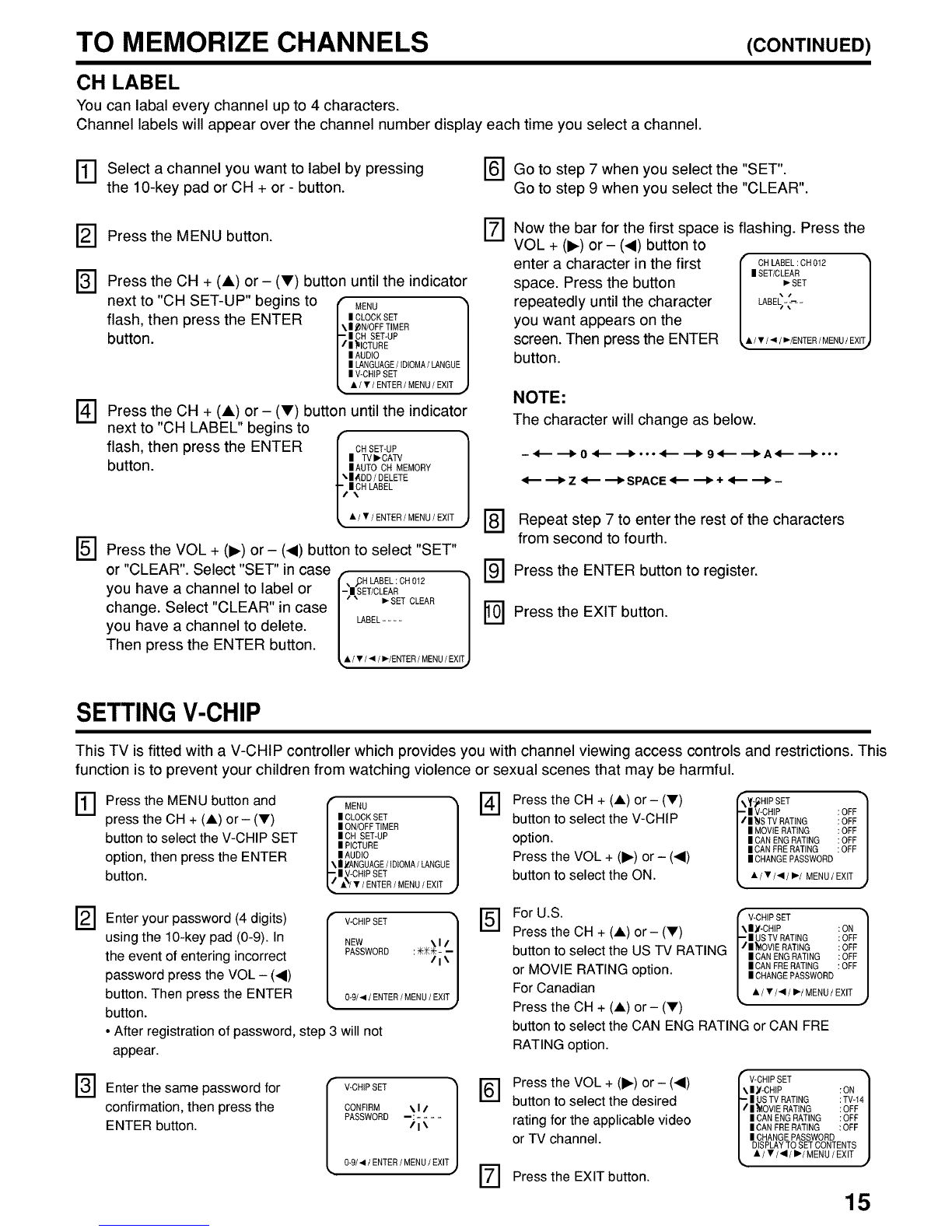

TO MEMORIZE CHANNELS
CH LABEL
You can labal every channel up to 4 characters.
Channel labels will appear over the channel number display each time you select a channel.
(CONTINUED)
D] elect a channel you want to label by pressing
the lO-key pad or CH + or - button. [_]Go to step 7 when you select the "SET". Go to step 9 when you select the "CLEAR".
[_ Press the MENU button, r_
r_ Press the CH button until the indicator
(A) (T)+or
next to"CH SET-UP" begins to r MENU
flash, then press the ENTER /ICLOCKSET |
_\ II_N/OFF TIMER /
button. PiCH SET-UP /
I/II_ICTURE 1
I I AUDIO /
/ i LANGUAGE/IDIOMMLANGUE/
/" V-CROPSET /
_. A/T/ENTER/MENU/EXIT ,,,,)
Press the CH + (A) or - (V) button until the indicator
next to "CH LABEL" begins to f
flash, then press the ENTER | CHSET-UP |
/ I TVI_CATV J
button. /IIAUTOCH MEMORY
[ \I4DD /DELETE
r llOR_nEL
t, " '/ENTER/MENU EX'T
Press the VOL + (1_)or- (<) button to select "SET"
or "CLEAR". Select "SET" in case i', ,CnLAnEL:C.012
you have a channel to label or I-IISET/CLEAR /
change. Select "CLEAR" in case |'" ,-SETCLEAn |
yOUhave a channel to delete. / 0EL.... /
Then press the ENTER button. /_b,/V/4/>./ENTER/MENU/EXIT)/
Now the bar for the first space is flashing. Press the
VOL + (1_)or - (<) button to
enter a character in the first I CHLABEL:CH012
space. Press the button / IISET/CLI_EAsRET /
repeatedly until the character / LAnE_-'-- /
yOUwant appears on the
screen. Then press the ENTER _A/T/</I_/ENTER/MENU/EXITJ
button.
NOTE:
The characterwillchangeas below.
- <'_ "_1_0 <'_ "_1_• •• <'_ "_1_ 9 <'_ "_1_ A <1"_"_1_• • •
•_l_Z _ "--I_SPACE <'_ "--I_+ _"_>-
[_] Repeat 7 to enter the rest of the characters
step
from second to fourth.
'9-'] Press the ENTER button to register.
E_] Press the EXIT button.
SETTING V-CHIP
This TV is fitted with a V-CHIP controller which provides you with channel viewing access controls and restrictions. This
function is to prevent your children from watching violence or sexual scenes that may be harmful.
B]
[]
m
Press the MENU button and
press the CH + (A) or - (V)
button to select the V-CHIP SET
option, then press the ENTER
button.
MENU
ICLOCK SET
ION/OFF TIMER
ICH SET-UP
IPICTURE
IAUDIO
II_tANGUAGE /IDIOMA /LANGU[
IV-CHIP SET
_A1 T/ENTER /MENU /EXIT
Enter your password (4 digits)
using the lO-key pad (0-9). In
the event of entering incorrect
password press the VOL - (41)
button. Then press the ENTER
button.
V-CHIPSET 1
I
0-9/< /ENTER/MENU/EXIT,,)
•After registration of password, step 3 will not
appear.
Enter the same password for
confirmation, then press the
ENTER button.
I V-CHIP SET
CONFIRM \ I/
PASSWORD --: ....
/I \
0-9/< /ENTER /MENU /EXll
@
[]
[]
Press the CH + (A) or - (V)
button to select the V-CHIP
option.
Press the VOL + (1_) or - (_1)
button to select the ON. -J_HIPSET ]
II V-CHIP :OFF
!ii'_ISTVRATING :OFF
II MOVIERATING :OFF
ICANENGRATING :OFF
ICANFRERATING :OFF
II CHANGEPASSWORD
I/T/_I/>'/ MENU/EXIT
For U.S.
Press the CH + (A) or- (T)
button to select the US TV RATING
or MOVIE RATING option.
For Canadian
Press the CH + (A) or - (V)
V-CHIP SET ]
II_#-CHIP :ON
II US TV RATING : OFF
II_OVIE RATING : OFF
II CAN ENG RATING : OFF
II CAN FRE RATING : OFF
II CHANGE PASSWORD
A/"/_/I_/MENU/EXIT
button to select the CAN ENG RATING or CAN FRE
RATING option.
Press the VOL + (1_) or - (_1)
button to select the desired
rating for the applicable video
or TV channel.
Press the EXIT button.
V-CHIPSET
I_#-CHIP :ON /
II USTVRATING :TVq41
II _OVlE RATING :OFF /
ICANENGRATING :OFF/
ICANFRERATING :OFF /
II CHANGEPASSWORD /
DISPLAYTO SETCONTENTSl
.&/T /</>'/MENU/EXIT ,)
15

SETTING V-CHIP (continued)
for U.S.
TV RATING MOVIE RATING
VOL - (_I) _ VOL + (I_) VOL-(4) _ VOL+(_)
OFF _ TV-Y _ TV-Y7 _ TV-G <--->TV-PG _ TV-14 <--->TV-MA
f t
TV-Y : all children TV-PG :parental guidance
TV-Y7 : 7 years old and above TV-14 : 14 years old and above
TV-G : childrens program TV-MA : 17 years old and above
When you select TV-Y7, TV-PG, TV-14 or TV-MA, press the DISPLAY
button to explain the rating.
Press the CH + (A) or - (V) button to select the desired rating you
want. Press the VOL + (1_) or - (_1) button to select the setting ON
or OFF. If you want to back to V-CHIP SET menu, press the MENU
button.
OFF <--> G <--> PG <--> PG-13 <--> R <--> NC-17 <---> X
t t
G : all ages R : under 17 years old
PG : parental guidance parental guidance
PG-13 : parental guidance suggested
less than 13 years old NC-17 : 17 years old and above
X : adult only
for Canadian
CAN ENG RATING
VOL - (_) _ VOL + (I_)
OFF <--->E _C <---->C,8+<--->G <---->PG <--->14+ _ 18+
f ,
E : Exempt
C : Programming Intended for Children
C8+ : Programming Intended for Children 8 and Over
G : General Audience
PG : ParentaIGuidance
14+ : 14Yearsand Older
18+ :Adult
CAN FRE RATING
VOL+(_) _ VOL-(I_)
OFF <-'-->E <-'-->G (--->8ans+_13ans+ (---->16ans+<--->18ans+
E : Exempt_es.
G :G_n_ral.
8ans+ : G_n_raI-D_conseill_ aux jeunes enfants.
13ans+ : Cette _mission peut ne pas convenir aux enfants de
moins de 13 ans.
16ans+ : Cette _mission ne convient pas aux moins de 16 ans.
18ans+ : Cette _mission est r_serv_e aux adultes.
NOTES:
• If you want to change password, follow steps 1 and 2 and select "CHANGE PASSWORD" option then enter your
new password.
• The V-Chip function is activated only on programs and tapes that have the rating signal.
• Once you block a program using the V-Chip function, the blocked program cannot be watched based on the content
of the show. When the program starts, the "IF YOU CANCEL PROTECT, INPUT PASSWORD" will appear on the
screen. When you want to release the V-Chip temporarily, enter the password.
If you change the channel or turn off and on the TV while releasing the V-Chip temporarily, the V-Chip setting will be
resumed.
• When you watch the TV from the cable box or the VCR with the RF Modulator, then you release the V-Chip
temporarily, the V-Chip setting will not be resumed until you turn off the TV. The TV channel is not used in this case.
• When changing the channel with the cable box or the VCR, approximately 10 seconds will pass until the program
appears.
• When you dislocated or lost the password, you can cancel the existing password by the following procedure:
- Press VOLUME - button of main unit.
- Keep pressing VOLUME - button of main unit and press "0" key of remote control simultaneously for a few
seconds.
16

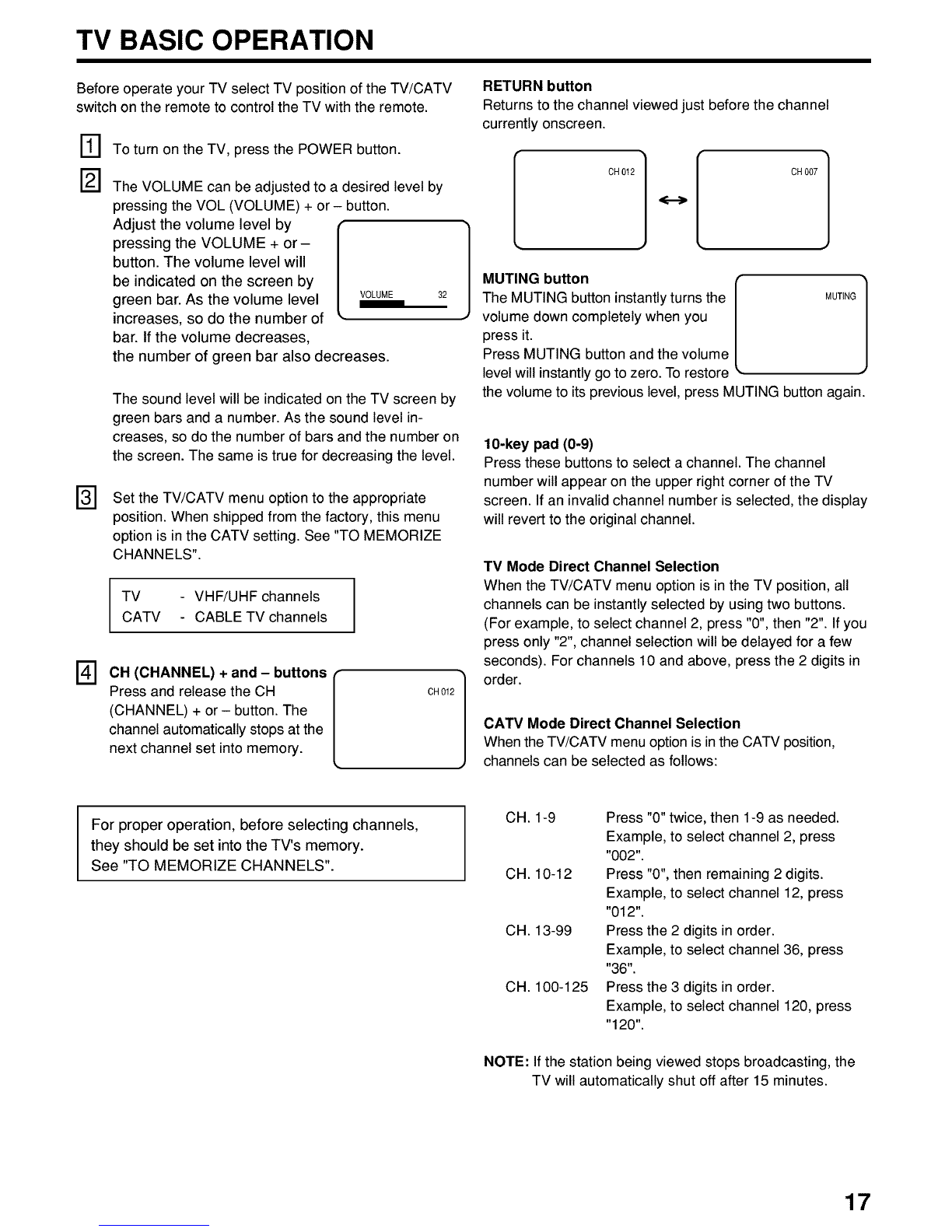

TV BASIC OPERATION
Before operate your TV select TV position of the TV/CATV
switch on the remote to control the TV with the remote.
To turn on the TV, press the POWER button.
The VOLUME can be adjusted to a desired level by
pressing the VOL (VOLUME) + or- button.
Adjust the volume level by
pressing the VOLUME + or-
button. The volume level will
be indicated on the screen by
green bar. As the volume level VOLUME 32
increases, so do the number of
bar. If the volume decreases,
the number of green bar also decreases.
The sound level will be indicated on the TV screen by
green bars and a number. As the sound level in-
creases, so do the number of bars and the number on
the screen. The same is true for decreasing the level.
Set the TV/CATV menu option to the appropriate
position. When shipped from the factory, this menu
option is in the CATV setting. See "TO MEMORIZE
CHANNELS".
TV VHF/UHF channels
CATV CABLE TV channels
B]CH (CHANNEL) + and - buttons
Press and release the CH
(CHANNEL) + or- button. The
channel automatically stops at the
next channel set into memory.
CH012
RETURN button
Returns to the channel viewed just before the channel
currently onscreen.
CH012 CH007
MUTING button
The MUTING button instantly turns the
volume down completely when you
press it.
Press MUTING button and the volume
level will instantly go to zero. To restore
MUTINGI
the volume to its previous level, press MUTING button again.
10-key pad (0-9)
Press these buttons to select a channel. The channel
number willappear on the upper right corner ofthe TV
screen. Ifan invalid channel number is selected, the display
willrevert to the originalchannel.
TV Mode Direct Channel Selection
When the TV/CATV menu option is in the TV position, all
channels can be instantly selected by using two buttons.
(For example, to select channel 2, press "0", then "2". Ifyou
press only "2", channel selection will be delayed for a few
seconds). For channels 10 and above, press the 2 digits in
order.
CATV Mode Direct Channel Selection
When the TV/CATV menu option is inthe CATV position,
channels can be selected as follows:
For proper operation, before selecting channels,
they should be set into the TV's memory.
See "TO MEMORIZE CHANNELS".
CH. 1-9
CH. 10-12
CH. 13-99
CH. 100-125
Press "0" twice, then 1-9 as needed.
Example, to select channel 2, press
"002".
Press "0", then remaining 2 digits.
Example, to select channel 12, press
"012".
Press the 2 digits in order.
Example, to select channel 36, press
"36".
Press the 3 digits in order.
Example, to select channel 120, press
"120".
NOTE: If the station being viewed stops broadcasting, the
TV will automatically shut off after 15 minutes.
17

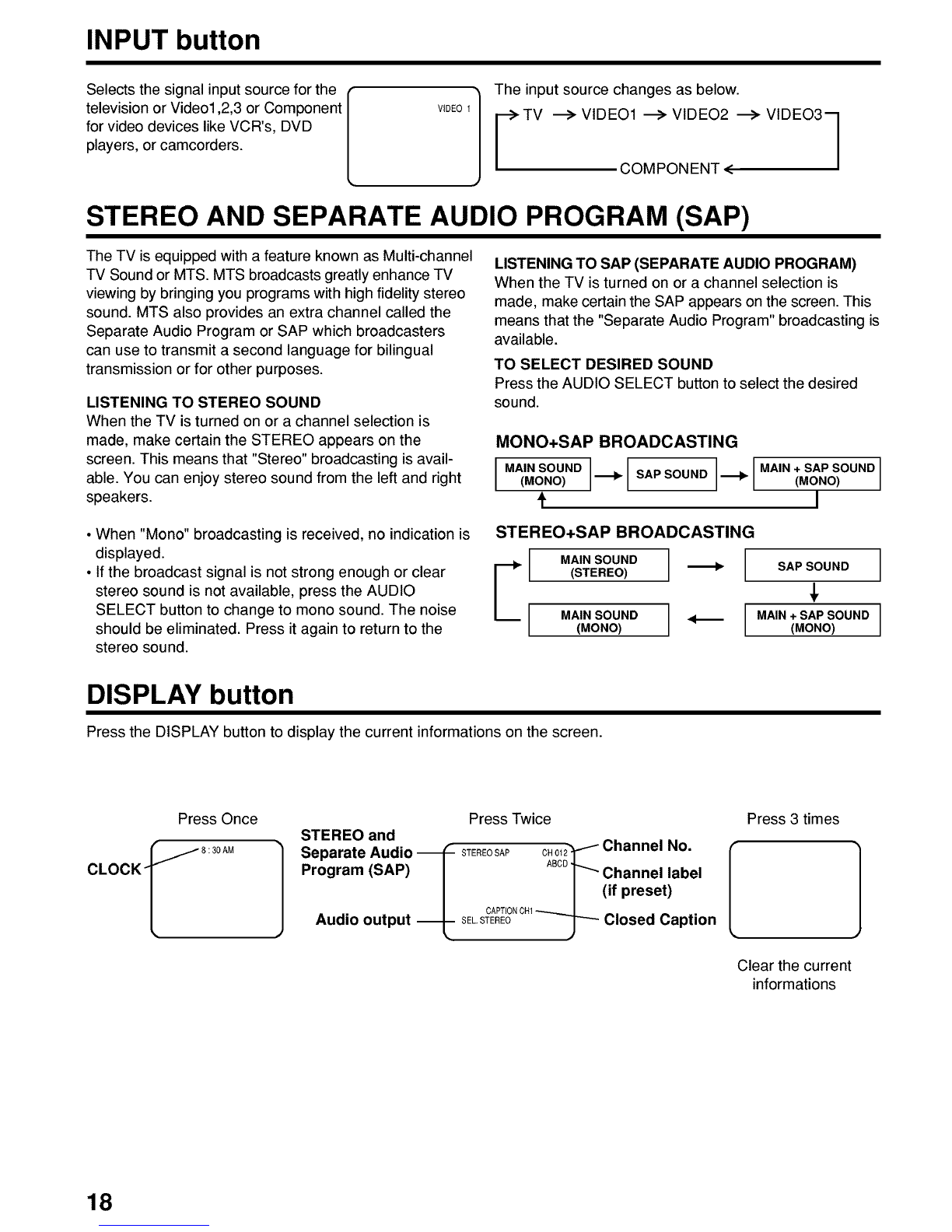

INPUT button
Selects the signal input source for the
television or Video1,2,3 or Component
for video devices like VCR's, DVD
players, or camcorders. VIDEO 1 I
The input source changes as below.
TV ----_ VIDEO1 ----> VIDEO2 ---_ VIDEO3_
COMPONENT <
STEREO AND SEPARATE AUDIO PROGRAM (SAP)
The TV is equipped with a feature known as Multi-channel
TV Sound or MTS. MTS broadcasts greatly enhance TV
viewing by bringing you programs with high fidelity stereo
sound. MTS also provides an extra channel called the
Separate Audio Program or SAP which broadcasters
can use to transmit a second language for bilingual
transmission or for other purposes.
LISTENING TO STEREO SOUND
When the TV is turned on or a channel selection is
made, make certain the STEREO appears on the
screen. This means that "Stereo" broadcasting is avail-
able. You can enjoy stereo sound from the left and right
speakers.
LISTENING TO SAP (SEPARATE AUDIO PROGRAM)
When the TV is turned on or a channel selection is
made, make certain the SAP appears on the screen. This
means that the "Separate Audio Program" broadcasting is
available.
TO SELECT DESIRED SOUND
Press the AUDIO SELECT button to select the desired
sound.
MONO+SAP BROADCASTING
MAIN SOUND ] _MAIN + SAP SOUND
(MONO) I_ SAP SOUND (MONO)
I
• When "Mono" broadcasting is received, no indication is
displayed.
• If the broadcast signal is not strong enough or clear [_
stereo sound is not available, press the AUDIO /
SELECT button to change to mono sound. The noise
should be eliminated. Press it again to return to the
stereo sound.
STEREO+SAPBROADCASTING
MAIN SOUND
(STEREO) _SAP SOUND
MAIN SOUND ,1_ MAIN + SAP SOUND
(MONO) (MONO)
DISPLAY button
Press the DISPLAY button to display the current informations on the screen.
Press Once
f/8:30AM
CLOCK _
Press Twice
STEREO and
Separate Audio _- STEREOSAP CH0_2_rI_ Channel No.
Program (SAP) /ABCDT"'"_/(ifChannelpreset)label
Audio output _-- SELSTC_NCH'_ Closed Caption
Press 3 times
Clear the current
informations
18

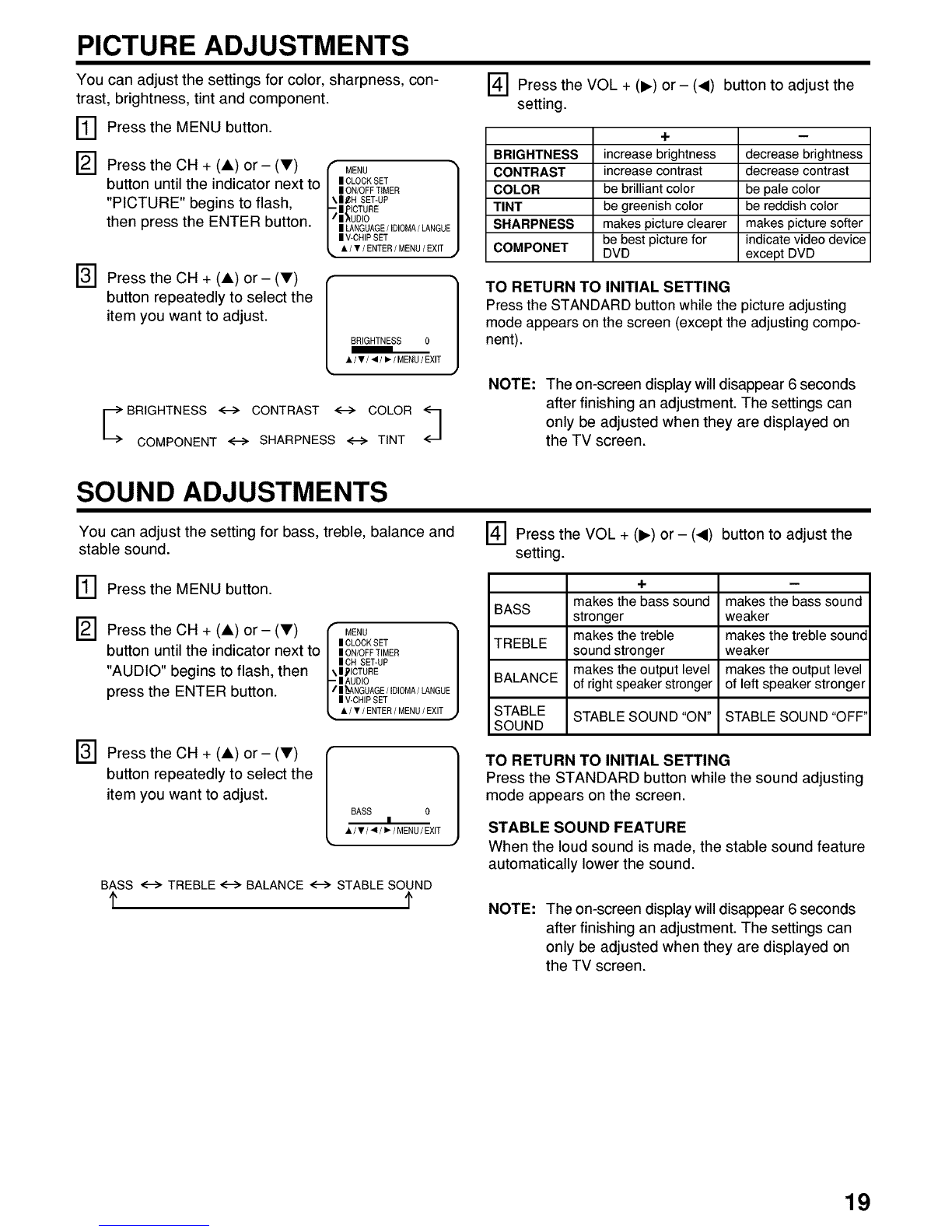

PICTURE ADJUSTMENTS
You can adjust the settings for color, sharpness, con-
trast, brightness, tint and component.
[_ Press the MENU button.
[] Press the CH + (A) or - (V)
button until the indicator next to
"PICTURE" begins to flash,
then press the ENTER button.
Press the CH + (A) or - (V)
button repeatedly to select the
item you want to adjust.
f ENU "_
II CLOCK SET |
II 0N/OFF TIMER |
II,_H SET-UP |
IIPtCTURE l
•_UD,O /
II LANGUAGE/IDIOMA/ LANGUEI
IV-CHIPSET /
•/•/ENTER /MENU /EXIT ,,)
I BRIGHTNESS 0 1
A/•/_1/),,-/MENU /EXIT
BRIGHTNESS <----> CONTRAST <---> COLOR
COMPONENT <----> SHARPNESS <---> TINT
[_] Press the VOL + (1_)or - (_1) button to adjust the
setting.
BRIGHTNESS increasebrightness decreasebrightness
CONTRAST increasecontrast decreasecontrast
COLOR be brilliantcolor be palecolor
TINT be greenishcolor be reddishcolor
SHARPNESS makespictureclearer makespicturesofter
bebest picturefor indicatevideo device
COMPONET DVD exceptDVD
TO RETURN TO INITIAL SETTING
Press the STANDARD button while the picture adjusting
mode appears on the screen (except the adjusting compo-
nent).
NOTE: The on-screen display will disappear 6 seconds
after finishing an adjustment. The settings can
only be adjusted when they are displayed on
the TV screen.
SOUND ADJUSTMENTS
You can adjust the setting for bass, treble, balance and
stable sound.
[_ Press the MENU button.
Press the CH + (A) or - (V)
button until the indicator next to
"AUDIO" begins to flash, then
press the ENTER button.
f MENU
ICLOCK SET
ION/0FF TIMER
liON SET-UP
I,_ICTURE
II AUDIO
I[_ANGUAGE /IDIOMA /LANGUE
II V-CHIP SET
•/•/ENTER /MENU /EXIT
Press the CH + (A) or - (V)
button repeatedly to select the
item you want to adjust.
I BASS 0
I
•/•/41/I_/MENU/EXIT
BASS<--->TREBLE<--->BALANCE<--->STABLE SOUND
t t
[_] Press the VOL + (1_)or - ('4) button to adjust the
setting.
makesthe bass sound makesthe bass sound
BASS stronger weaker
makesthe treble makesthe treble sound
TREBLE sound stronger weaker
makesthe output level makesthe output level
BALANCE of rightspeakerstronger of left speaker stronger
STABLE STABLE SOUND "ON" STABLESOUND"OFF"
SOUND
TO RETURN TO INITIAL SETTING
Press the STANDARD button while the sound adjusting
mode appears on the screen.
STABLE SOUND FEATURE
When the loud sound is made, the stable sound feature
automatically lower the sound.
NOTE: The on-screen display will disappear 6 seconds
after finishing an adjustment. The settings can
only be adjusted when they are displayed on
the TV screen.
19

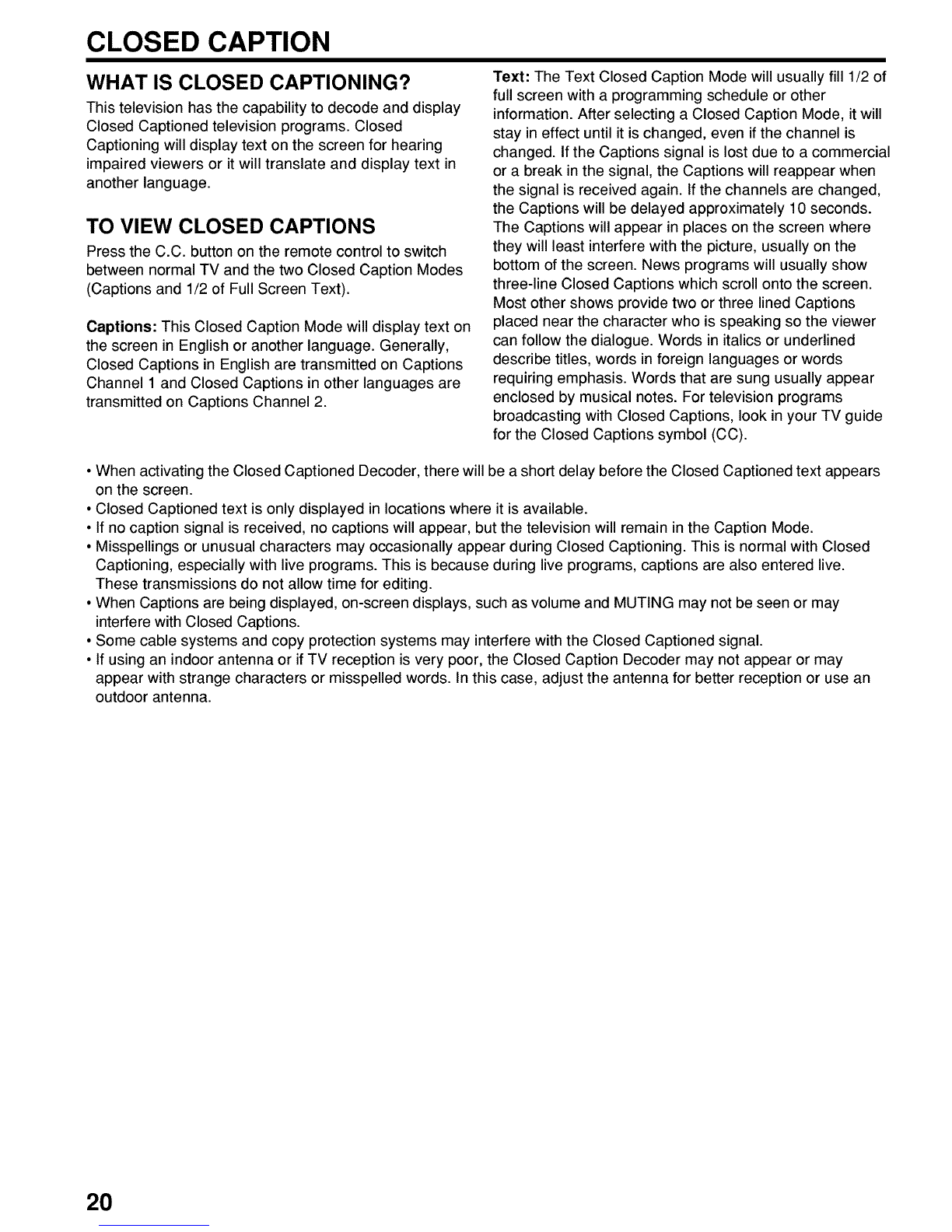

CLOSED CAPTION
WHAT IS CLOSED CAPTIONING?
This television has the capability to decode and display
Closed Captioned television programs. Closed
Captioning will display text on the screen for hearing
impaired viewers or it will translate and display text in
another language.
TO VIEW CLOSED CAPTIONS
Press the C.C. button on the remote control to switch
between normal TV and the two Closed Caption Modes
(Captions and 1/2 of Full Screen Text).
Captions: This Closed Caption Mode will display text on
the screen in English or another language. Generally,
Closed Captions in English are transmitted on Captions
Channel 1 and Closed Captions in other languages are
transmitted on Captions Channel 2.
Text: The Text Closed Caption Mode will usually fill 1/2 of
full screen with a programming schedule or other
information. After selecting a Closed Caption Mode, it will
stay in effect until it is changed, even if the channel is
changed. If the Captions signal is lost due to a commercial
or a break in the signal, the Captions will reappear when
the signal is received again. If the channels are changed,
the Captions will be delayed approximately 10 seconds.
The Captions will appear in places on the screen where
they will least interfere with the picture, usually on the
bottom of the screen. News programs will usually show
three-line Closed Captions which scroll onto the screen.
Most other shows provide two or three lined Captions
placed near the character who is speaking so the viewer
can follow the dialogue. Words in italics or underlined
describe titles, words in foreign languages or words
requiring emphasis. Words that are sung usually appear
enclosed by musical notes. For television programs
broadcasting with Closed Captions, look in your TV guide
for the Closed Captions symbol (CC).
• When activating the Closed Captioned Decoder, there will be a short delay before the Closed Captioned text appears
on the screen.
• Closed Captioned text is only displayed in locations where it is available.
• If no caption signal is received, no captions will appear, but the television will remain in the Caption Mode.
• Misspellings or unusual characters may occasionally appear during Closed Captioning. This is normal with Closed
Captioning, especially with live programs. This is because during live programs, captions are also entered live.
These transmissions do not allow time for editing.
• When Captions are being displayed, on-screen displays, such as volume and MUTING may not be seen or may
interfere with Closed Captions.
• Some cable systems and copy protection systems may interfere with the Closed Captioned signal.
• If using an indoor antenna or if TV reception is very poor, the Closed Caption Decoder may not appear or may
appear with strange characters or misspelled words. In this case, adjust the antenna for better reception or use an
outdoor antenna.
20
