JVC AV28CT1EI User manual

COLOUR TELEVISION
INSTRUCTIONS
LCT1138-001A-U
0112-T-CR-JMUK
COLOUR TELEVISION
AV28CT1EK / AV28CT1EI
VICTOR COMPANY OF JAPAN, LIMITED
© 2001 VICTOR COMPANY OF JAPAN, LIMITED
AV28CT1EK
(UK model)
AV28CT1EI
(Ireland model)
Contents
Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Setting up your TV . . . . . . . . . . . . . . . . . . . . . . . . . . .4
T-V LINK functions . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Using your TV–the basics . . . . . . . . . . . . . . . . . . . . . .8
Remote control buttons and functions . . . . . . . . . . . . .11
Using the TV’s menus. . . . . . . . . . . . . . . . . . . . . . . .16
Picture setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Picture features. . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Sound setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
EXT SETTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
INSTALL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
DEMO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Other menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Further preparation . . . . . . . . . . . . . . . . . . . . . . . . . .31
TV buttons and parts. . . . . . . . . . . . . . . . . . . . . . . . .33
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
LCT1138-001A-U_cover.fm Page 1 Friday, December 21, 2001 3:00 PM

2
AV28CT1EK/EI / LCT1138-001A-U / English
Thank you for buying this colour television.
To make sure you fully understand how to use your new TV, please read this manual thoroughly before
you begin.
Safety precautions
Safety precautionsSafety precautions
Safety precautions
■
■■
■Warning
WarningWarning
Warning
To prevent fire or shock hazard, do not expose
this appliance to rain or moisture.
■
■■
■Caution
CautionCaution
Caution
To ensure personal safety, observe the following
rules regarding the use of this unit.
1 Operate only from the power source specified
(AC 220 – 240 V, 50 Hz) on the unit.
2 Avoid damaging the mains plug and power
cord.
3 Avoid improper installation and never position
the unit where good ventilation is unattainable.
When installing this television, distance
recommendations must be maintained
between the floor and wall, as well as
installation in a tightly enclosed area or piece of
furniture.
Please adhere to the minimum distance
guidelines shown for safe operation.
4 Do not allow objects or liquid into the cabinet
openings.
5 In the event of a fault, unplug the TV and call a
service technician. Do not attempt to repair it
yourself or remove the rear cover.
6 The surface of the TV screen is easily
damaged. Be very careful with it when handling
the TV.
Should the TV screen become soiled, wipe it
with a soft dry cloth. Never rub it forcefully.
Never use any cleaner or detergent on it.
7 The main power button on the TV does not fully
isolate the TV from the mains supply. If you are
not going to use this TV for a long period of
time, be sure to disconnect the mains plug from
the mains outlet.
8 Do not place any naked flame sources, such as
lighted candles, on the apparatus.
■
■■
■Warning
WarningWarning
Warning
DO NOT cut off the mains plug from this
equipment. If the plug fitted is not suitable for the
power points in your home or the cable is too short
to reach a power point, then obtain an appropriate
safety approved extension lead or adaptor or
consult your dealer.
If nonetheless the mains plug is cut off, remove
the fuse and dispose of the plug immediately, to
avoid a possible shock hazard by inadvertent
connection to the mains supply.
If a new mains plug has to be fitted, then follow the
instruction given below:
Important
Do not make any connection to the larger terminal
which is marked with the letter E or by the safety
earth symbol or coloured green or green-and-
yellow.
The wires in the mains lead on this product are
coloured in accordance with the following code:
Blue: Neutral
Brown: Live
As these colours may not correspond with the
coloured marking identifying the terminals in your
plug proceed as follows:
The wire which is coloured blue must be
connected to the terminal which is marked with the
letter N or coloured black.
The wire which is coloured brown must be
connected to the terminal which is marked with the
letter L or coloured red.
When replacing the fuse only a correctly rated
approved type should be used and be sure to
re-fit the fuse cover.
If in doubt — consult a competent
electrician.
How to replace the fuse
Open the fuse
compartment with a blade
screwdriver, and replace
the fuse.
15 cm
10 cm 10 cm 15 cm
Fuse
AV28CT1EKEI.book Page 2 Tuesday, December 18, 2001 10:20 AM

3
AV28CT1EK/EI / LCT1138-001A-U / English
■
■■
■Guidelines for safe operation
Guidelines for safe operationGuidelines for safe operation
Guidelines for safe operation
This equipment has been designed and manufactured to comply with international safety standards.
However, as with any electrical appliance, care must be taken to ensure optimal results and operational
safety.
•Before attempting to use this equipment, read the operating instructions thoroughly.
•Ensure that all electrical connections (including the mains plug, extension leads, etc.) have been made
in accordance with the manufacturer’s instructions.
•If ever in doubt about the installation, operation or safety of this equipment, consult your dealer.
•Handle all glass panels or covers with care.
•Never operate this equipment if it appears damaged or operates abnormally. Turn the power off,
disconnect the main power plug and consult your dealer.
•Never remove any affixed panels or covers. Doing so may result in electrical shock.
•Never leave this equipment operating unattended unless otherwise specifically stated that it is designed
to do so or in standby mode. Only use the designated power switch to turn off the power and ensure
that all potential users are instructed how to do so. Make special arrangements for infirm or handicapped
persons.
•Never watch TV while operating a motor vehicle. It is illegal to watch TV while driving.
•Never listen to headphones at high volume. Doing so may damage your hearing.
•Never obstruct the ventilation of this equipment. Doing so may cause overheating and result in a
malfunction or damage.
•Never use makeshift stands or attempt to affix legs with wood screws. When using a manufacturer’s
approved stand or legs, use only the fixtures provided and follow the installation instructions.
•Never allow this equipment to be exposed to rain or moisture.
•Never allow anyone, especially children, to insert anything into an opening in the case. Doing so may
result in a fatal electrical shock.
•Never guess or take chances with electrical equipment of any kind. It is better to be safe than sorry.
AV28CT1EKEI.book Page 3 Tuesday, December 18, 2001 10:20 AM

4
AV28CT1EK/EI / LCT1138-001A-U / English
Setting up your TV
Setting up your TVSetting up your TV
Setting up your TV
■
■■
■Connecting the aerial and video cassette recorder (VCR)
Connecting the aerial and video cassette recorder (VCR)Connecting the aerial and video cassette recorder (VCR)
Connecting the aerial and video cassette recorder (VCR)
If you are connecting a VCR, follow
A→B→Cin the diagram opposite.
If you are not connecting a VCR, follow 1.
•For more details, see the manuals that came with the
equipment you want to connect.
•The connecting cables are not provided.
•You can watch a video using the VCR without doing C.
For details, see your VCR instruction manual.
•To connect more equipment, please see “Further
preparation” on page 31.
•If you connect a decoder to a T-V LINK compatible VCR,
set the DECODER (EXT-2) function to ON. For details, see
“Using the DECODER (EXT-2) function” on page 30.
Otherwise, you will not be able to watch scrambled
channels.
To use the T-V LINK functions, you must have a T-V LINK
compatible VCR connected by a SCART cable Cto the EXT-
2 terminal on the TV. For details about T-V LINK functions,
see “T-V LINK functions”on page 7.
■
■■
■Connecting the power cord to the mains outlet
Connecting the power cord to the mains outletConnecting the power cord to the mains outlet
Connecting the power cord to the mains outlet
Caution:
•
Use only the power source specified on the unit
(AC 220 –240 V, 50 Hz).
■
■■
■Putting batteries into the remote control
Putting batteries into the remote controlPutting batteries into the remote control
Putting batteries into the remote control
Use two AAA/R03 dry cell batteries.
Insert the batteries holding the -end, making sure the +and
-terminals are correctly lined up.
To open the battery compartment, slide the door downwards
and lift off. Replace the door by sliding it upwards until it
fastens into place.
•Follow the warnings printed on the batteries.
•Battery life is about six months to one year, depending on
how much you use the remote control.
•If the remote control does not work properly, fit new
batteries.
•The batteries we supply are only for setting up and
testing your TV. Please replace them as soon as you
need to.
•Always use good-quality batteries.
EXT-2
EXT-1
EXT-3
SS
Aerial
75-ohm
coaxial
cable
21-pin SCART
cable
75-ohm
coaxial
cable
AV IN/OUT
terminal
To aerial
output
To aerial
input
Back of the TV
VCR
AV28CT1EKEI.book Page 4 Tuesday, December 18, 2001 10:20 AM

5
Setting up your TV
AV28CT1EK/EI / LCT1138-001A-U / English
■
■■

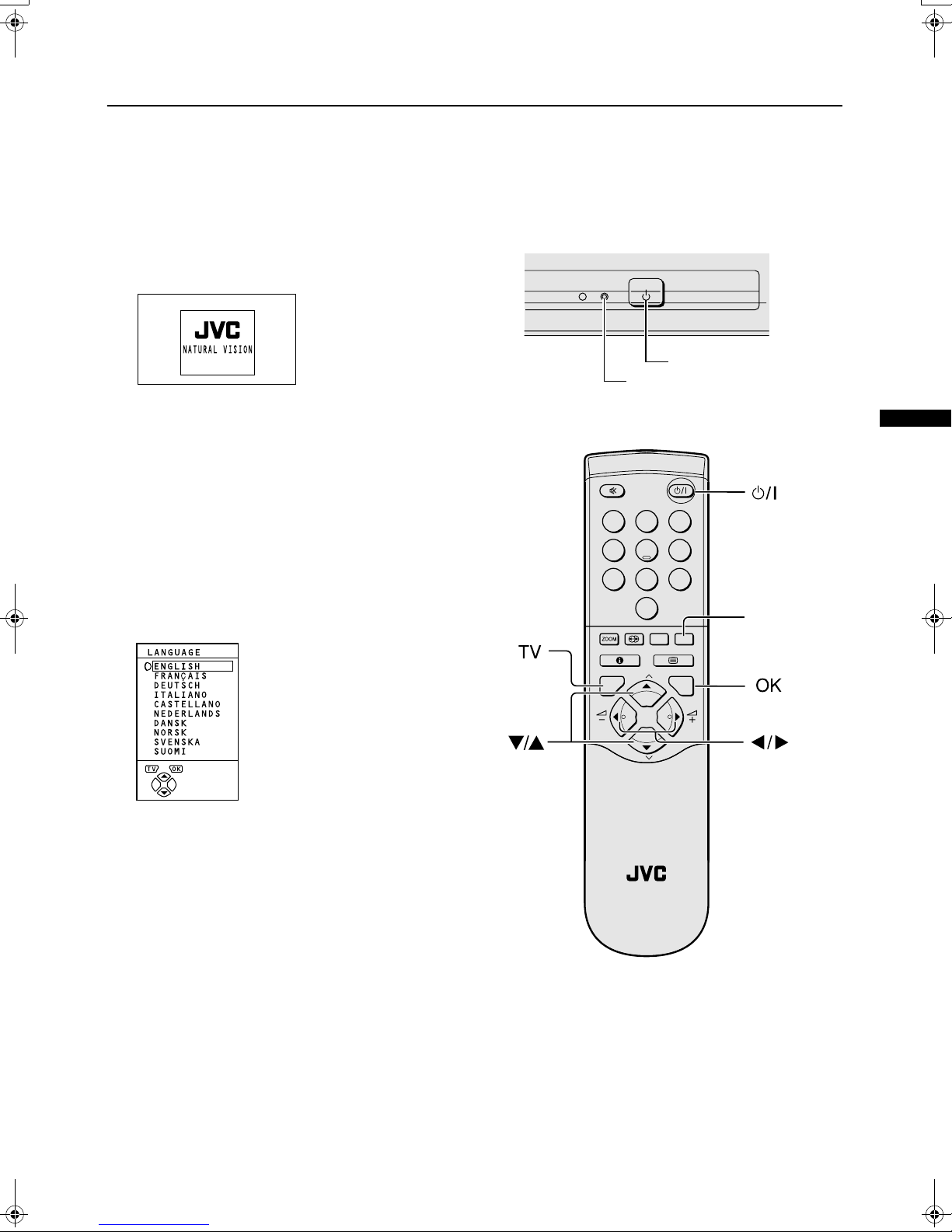

■Initial settings
Initial settingsInitial settings
Initial settings
When the TV is first turned on, it goes into the initial setting
mode, and you will see the JVC logo. Follow the instructions
on the screen to make the initial settings.
1
Press the main power button on the TV
The power lamp lights red (for power on), then green (for
TV on) and the JVC logo appears.
•If the power lamp stays red and does not change to
green:
your TV is in the standby mode. Press the #
(standby) button on the remote control to turn your
TV on.
•If the JVC logo does not appear this is because your
TV has already been turned on for the first time:
use the “LANGUAGE”and “AUTO PROGRAM”
functions to make the initial settings. For details, see
“INSTALL”on page 25.
2Press the abutton
The LANGUAGE menu appears.
3Press the 5and 6buttons to
choose ENGLISH
The on-screen display will then be in English.
1 2 3
4 5 6
7 8 9
0
P
AV
TV OK
MENU
P
TV
main power button
power lamp
blue button
AV28CT1EKEI.book Page 5 Tuesday, December 18, 2001 10:20 AM

6
Setting up your TV
AV28CT1EK/EI / LCT1138-001A-U / English

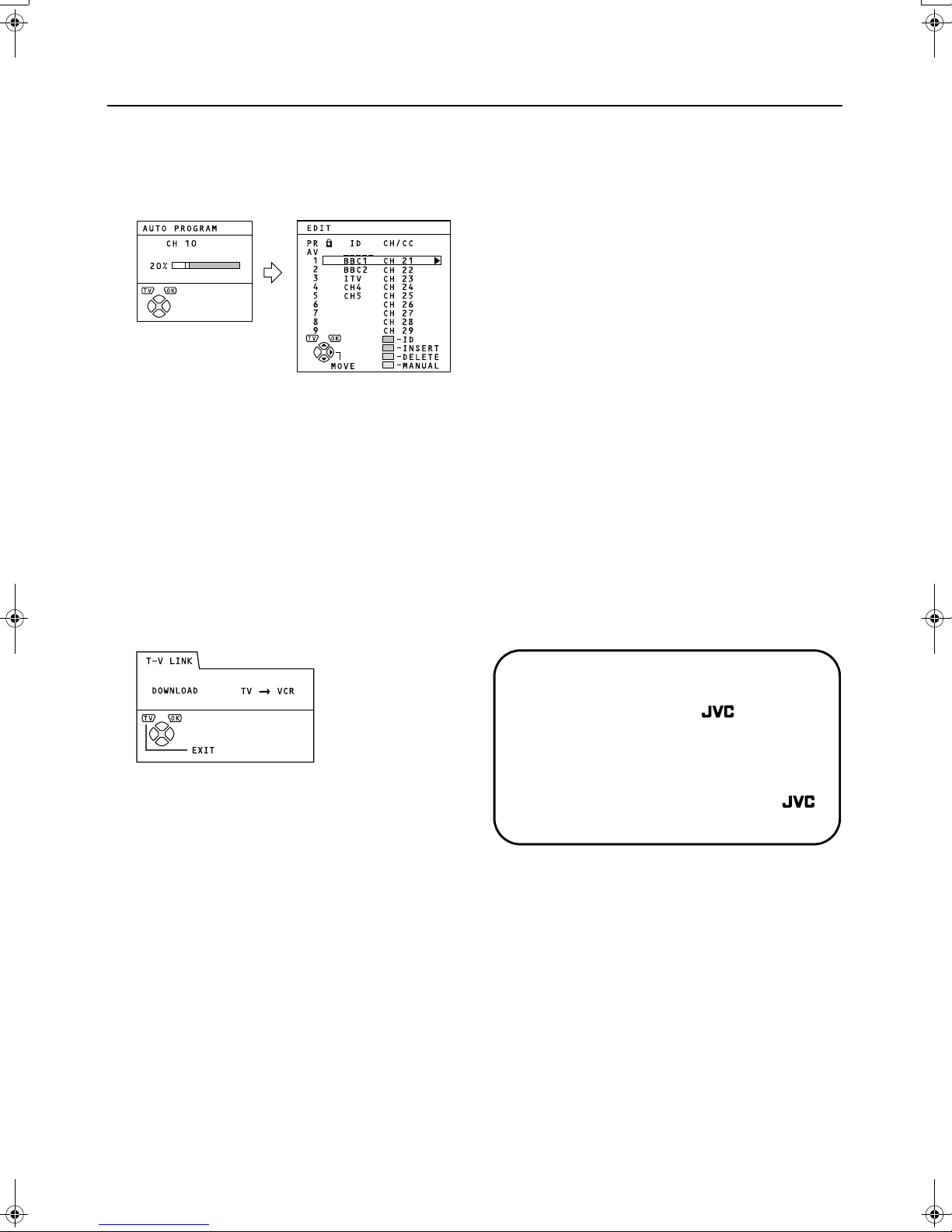

4Press the abutton to start the AUTO
PROGRAM function
The AUTO PROGRAM menu appears and the TV
channels you receive are automatically stored in the
programme numbers list (PR).
To cancel the AUTO PROGRAM function:
Press the bbutton.
5After the TV channels have been
registered in the programme numbers
list (PR), the EDIT menu appears
If you want to, you can now edit the programme numbers
(PR) using the EDIT/MANUAL function. For details, see
“EDIT/MANUAL”on page 26.
If you do not want to edit programme numbers (PR), go
to the next step.
6Press the abutton to display the T-V
LINK menu
7Follow the T-V LINK menu according to
the type of VCR you have connected to
the EXT-2 terminal
If you do not have a T-V LINK compatible VCR
connected:
Press the bbutton to leave the T-V LINK menu.
The T-V LINK menu disappears.
If you have a T-V LINK compatible VCR
connected:
Follow the operating procedure “Downloading data to a
VCR”on page 30 to transmit the programme number
(PR) data.
8Now, the initial settings are complete,
and you can watch the TV
Note:
•For UK model (AV28CT1EK):
BBC1, BBC2, ITV, Channel 4 and Channel 5 are
automatically set to the programme numbers PR1 to
PR5.
If the TV doesn't receive one of these TV channels,
that programme number (PR) will not be set.
Programme number PR6 is not normally set.
•For Ireland model (AV28CT1EI):
If your TV can detect the TV channel name from the
TV channel broadcast signal, the TV channel name
is assigned to the programme number (PR) to which
the TV channel has been set.
However, which TV channels are set to which
programme numbers (PR) will depend on the area in
which you live.
•If a TV channel you want to view is not set to a
programme number (PR), you can set it using the
MANUAL function. For details, see “EDIT/MANUAL”
on page 26.
•The AUTO PROGRAM function does not set the
programme number PR 0 (AV) for your video
cassette recorder. You will need to set this using the
MANUAL function.
•In some areas you may get TV reception from more
than one transmitter, for example different ITV
regions. In this case each TV channel could be set
twice. If this happens, the first set of channels will
have the stronger signal. If you want to delete the
second set of channels, you will have to do it
manually (see page 28).
For users in the UK:
If you have any problems setting up your
new TV, please call the
Helpline on 0870 330 5000.
For users in the Republic of Ireland:
If you have any problems setting up your
new TV, please contact your local
dealer.
AV28CT1EKEI.book Page 6 Tuesday, December 18, 2001 10:20 AM

7
AV28CT1EK/EI / LCT1138-001A-U / English
T-V LINK functions
T-V LINK functionsT-V LINK functions
T-V LINK functions
When you have a T-V LINK compatible VCR connected to the
EXT-2 Terminal on the TV, it is easier to set up the VCR and
to view videos. T-V LINK uses the following features:
■
■■
■Pre-set download
Pre-set downloadPre-set download
Pre-set download
The VCR will automatically download the registered data on
the TV channels from the TV. This means you do not need to
set up the program channels on your VCR manually.
The preset download function automatically begins when the
initial setting is complete or whenever you carry out the AUTO
PROGRAM or EDIT/MANUAL functions.
You can also carry out this function using your VCR controls.
When “FEATURE NOT AVAILABLE”is displayed:
If “FEATURE NOT AVAILABLE”is displayed, the download
was not performed correctly. Before trying to download again,
check that:
•the VCR power is turned on
•the VCR is T-V LINK compatible
•the VCR is connected to the EXT-2 terminal
•the SCART cable is fully wired
■
■■
■Direct Rec
Direct RecDirect Rec
Direct Rec
“What You See Is What You Record”
You can easily record to VCR the images that you are
watching on the TV.
For details, read the manual for your VCR.
Use your VCR controls. “VCR IS RECORDING”is displayed.
In the following situations, the VCR will stop recording if
the TV is turned off, if the TV channel or input is changed,
or if the menu is displayed on the TV:
•when recording images from an external device connected
to the TV (for example a camcorder)
•when recording a TV channel after it has been unscrambled
on a decoder
•when recording a TV channel by using the TV’s output
because the VCR’s own tuner cannot properly receive that
channel
•You cannot carry out Direct Rec using your TV’s control.
•Generally, the VCR cannot record a TV channel that it
cannot receive properly on its own tuner, even if you can
view that TV channel on the TV. However, some VCRs
can record a TV channel by using the TV’s output if that
channel can be viewed on the TV. For details, see your
VCR instruction manual.
■
■■
■TV auto power on/VCR
TV auto power on/VCRTV auto power on/VCR
TV auto power on/VCR
image view
image viewimage view
image view
When the VCR starts playing, the TV automatically turns on
and the images from the EXT-2 terminal appear on the
screen.
When the VCR menu is operated, the TV automatically turns
on and the images from the EXT-2 terminal appear on the
screen.
This function does not happen if your TV’s main power is
turned off. Set your TV’s main power to on (standby mode).
Note:
•A “T-V LINK compatible VCR”means a JVC video
cassette recorder with the T-V LINK logo, or with one of
the following logos. However, these VCRs may support
some or all of the features described earlier. For details,
see your VCR instruction manual.
“Q-LINK”(a trademark of Panasonic Corporation)
“Data Logic”(a trademark of Metz Corporation)
“Easy Link”(a trademark of Phillips Corporation)
“Megalogic”(a trademark of Grundig Corporation)
“SMARTLINK”(a trademark of Sony Corporation)
AV28CT1EKEI.book Page 7 Tuesday, December 18, 2001 10:20 AM

8
AV28CT1EK/EI / LCT1138-001A-U / English
Using your TV–the basics
Using your TV–the basicsUsing your TV–the basics
Using your TV–the basics
■
■■

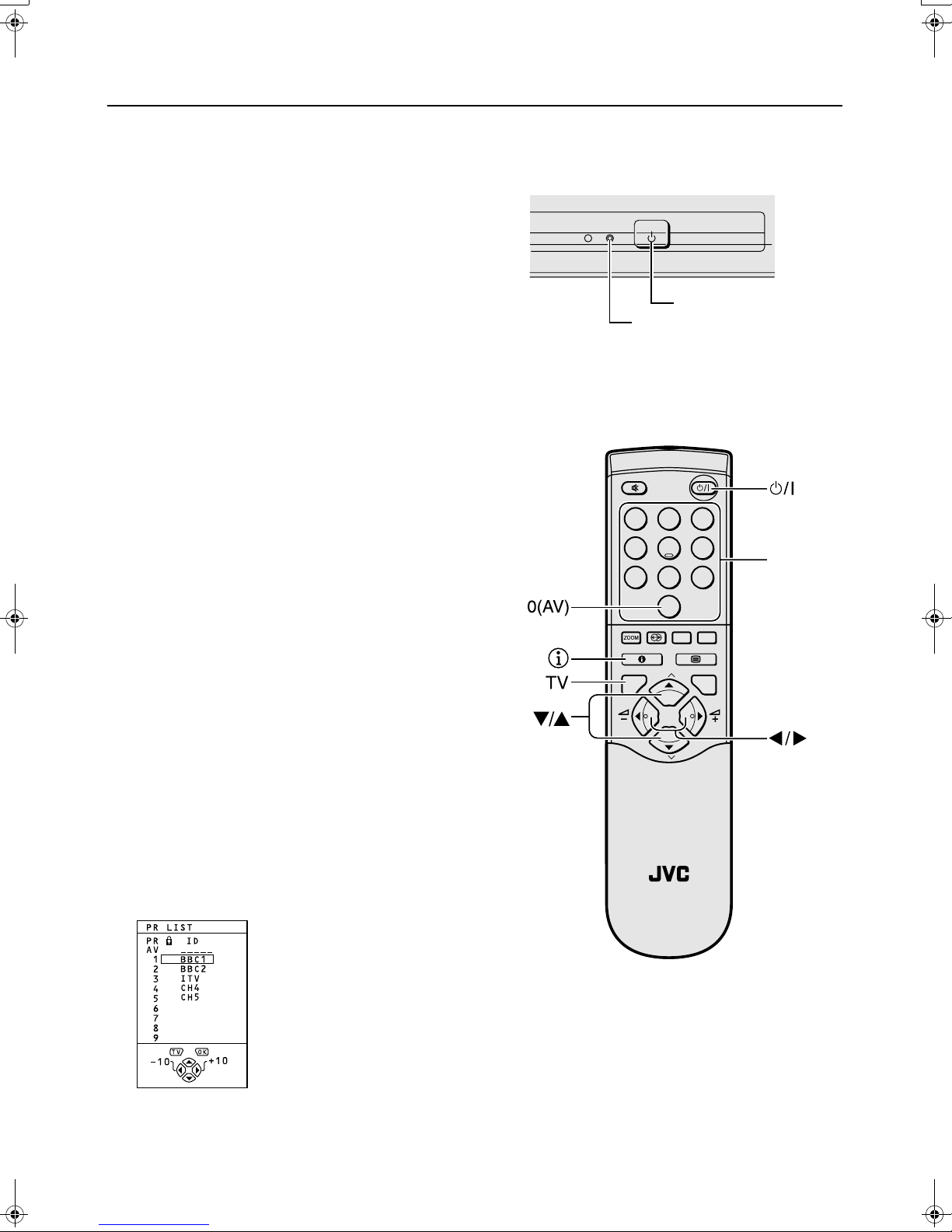

■Turn the main power on
Turn the main power onTurn the main power on
Turn the main power on
Press the main power button on the TV
The power lamp lights red and your TV is in the standby mode.
If the power lamp lights green, the TV is already on.
To turn the main power off:
Press the main power button again.
The power lamp goes off.
The main power button on the TV does not fully cut the TV off
from the mains supply. If you are not going to use this TV for a
long time, be sure to pull the mains plug out of the mains outlet.
■
■■
■Turn the TV on from standby mode
Turn the TV on from standby modeTurn the TV on from standby mode
Turn the TV on from standby mode
Press the #(standby) button, the b
button, the 6buttons or the number
buttons
The power lamp goes from red to green and your TV will be
turned on.
To turn the TV off:
Press the #(standby) button again.
The power lamp changes from green to red and the TV goes
into standby mode.
■
■■
■Choose a TV channel
Choose a TV channelChoose a TV channel
Choose a TV channel
Choose the programme number (PR) that the TV channel has
been set to.
Use the 6buttons:
Press the 6buttons to choose the programme number
(PR) you want.
Use the number buttons:
Enter the programme number (PR) of the channel using the
number buttons.
Example
•PR12
→
press
1
and
2
.
•PR6
→
press
6
.
Use the PR LIST:
1Press the h(information) button to
display the PR LIST
main power button
power lamp
123
456
789
0
P
AV
TV OK
MENU
P
FREEZE
SUB-P
F
.T/L
TV
number
buttons
AV28CT1EKEI.book Page 8 Tuesday, December 18, 2001 10:20 AM

9
Using your TV–the basics
AV28CT1EK/EI / LCT1138-001A-U / English
2Press the 5and 6buttons to choose
a programme number (PR). Then press the
abutton
•For programme numbers (PR) where you have the CHILD
LOCK function set, the n(CHILD LOCK) mark appears
next to the programme number (PR) in the PR LIST.
•You cannot use the 6buttons to choose a programme
number (PR) which has the CHILD LOCK set.
•Even if you try to choose a programme number (PR) with
the CHILD LOCK set, the n(CHILD LOCK) mark will
appear, and you cannot watch the TV channel. To watch
the TV channel, see “CHILD LOCK” on page 23.
•If you do not have a clear picture or no colour appears,
change the colour system manually. See “COLOUR
SYSTEM” on page 18.
■
■■
■Changing the volume
Changing the volumeChanging the volume
Changing the volume
Press the 5buttons to change the
volume.
The volume indicator appears, and the volume changes, as
you press the
q buttons.
■
■■
■Watching images from
Watching images fromWatching images from
Watching images from
external equipment
external equipmentexternal equipment
external equipment
Choose the EXT terminal that the external equipment has
been connected to.
Use the obutton:

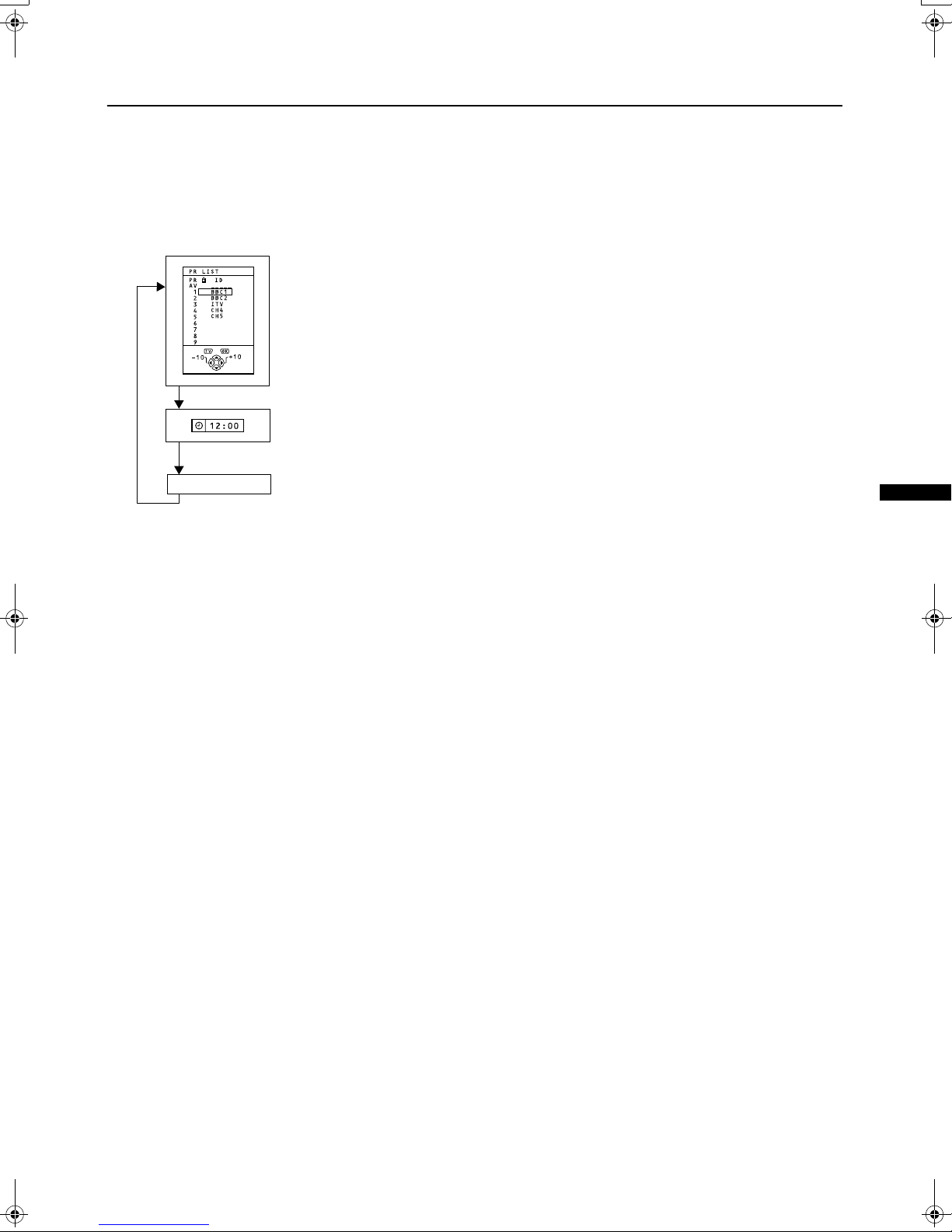

Press the obutton to choose an EXT terminal.
Pressing the obutton changes the choice as follows:
Use the 6buttons:
Press the 6buttons to choose an EXT terminal
Use the PR LIST:
1Press the h(information) button to
display the PR LIST
2Press the 5and 6buttons to choose
an EXT terminal. Then press the abutton
•The EXT terminals are listed after programme number PR
99.
•You can choose two types of video input signal:
S-VIDEO (Y/C signal) and regular video (composite
signal). For details, see “y(S-VIDEO input)” on
page 21.
•If you do not have a clear picture or no colour appears,
change the colour system manually. See “COLOUR
SYSTEM” on page 18.
•If you choose an EXT terminal with no input signal, the
EXT terminal number becomes fixed on the screen.
•This TV set can automatically change over the input
according to a special signal from an external device.
(The EXT-4 terminal does not support it.)
To use the programme number PR 0 (AV):
When the TV and VCR are connected only by the aerial cable,
choosing the programme number PR 0 (AV) allows you to
view images from the VCR. Set the VCR RF channel to
programme number PR 0 (AV) manually. For details, see
“EDIT/MANUAL” on page 26.
Pressing the obutton changes the choice as follows:
•The VCR sends its playback image along the aerial cable
as an RF (radio frequency) signal.
•Also see your VCR instruction manual.
To return to a TV channel:
Press the bbutton, the 6buttons or the number
buttons.
EXT-1
EXT-4
EXT-2
EXT-3
TV mode EXT modes
Programme
numbers
PR 1 to PR 99
EXT-1PR 0
EXT-4
EXT-2
EXT-3
TV mode EXT modes
Programme
numbers
PR 1 to PR 99
JVC TV_MF1.fm Page 9 Friday, December 21, 2001 2:49 PM

10
Using your TV–the basics
AV28CT1EK/EI / LCT1138-001A-U / English
■
■■

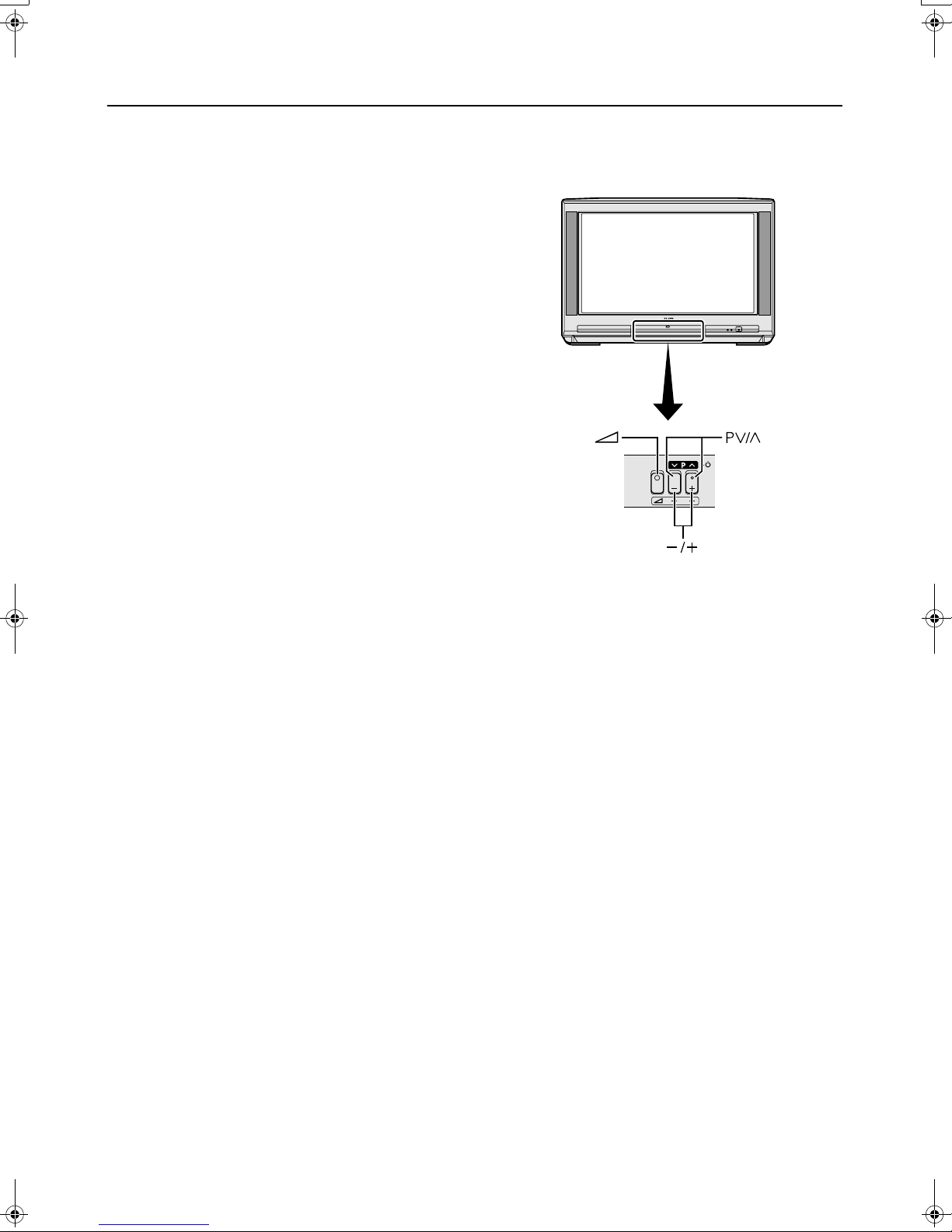

■Using the buttons on the TV
Using the buttons on the TVUsing the buttons on the TV
Using the buttons on the TV
1Press the P pbuttons to turn the
TV on from standby mode
2
Press the P
p
buttons to choose a
programme number (PR) or an EXT
terminal
3Press the r(volume) button and the
qbuttons to change the volume
1Press the r(volume) button
The volume level indicator appears
2Press the qbuttons while the volume
level indicator is on screen
Behind the Cover
AV28CT1EKEI.book Page 10 Tuesday, December 18, 2001 10:20 AM

11
AV28CT1EK/EI / LCT1138-001A-U / English
Remote control buttons and functions
Remote control buttons and functionsRemote control buttons and functions
Remote control buttons and functions
1Muting button
Muting buttonMuting button
Muting button
You can turn the sound off instantly.
Press the l(muting) button to turn off the
sound. Pressing the l(muting) button again
restores the previous volume level
2Number buttons
Number buttonsNumber buttons
Number buttons
You can choose a programme number (PR) by
entering the programme number
Example
•PR12
→
press
1
and
2
.
•PR6
→
press
6
.
You can also press the obutton repeatedly to choose
an EXT terminal.
3ZOOM button
ZOOM buttonZOOM button
ZOOM button
You can change the screen size by changing the picture
aspect ratio. The normal aspect ratio is 4:3 (width:height).
Choose the ideal one from the following ZOOM modes.
AUTO (WSS):
For any picture format except normal picture (4:3 aspect
ratio), the picture will be automatically displayed in the ideal
screen size.

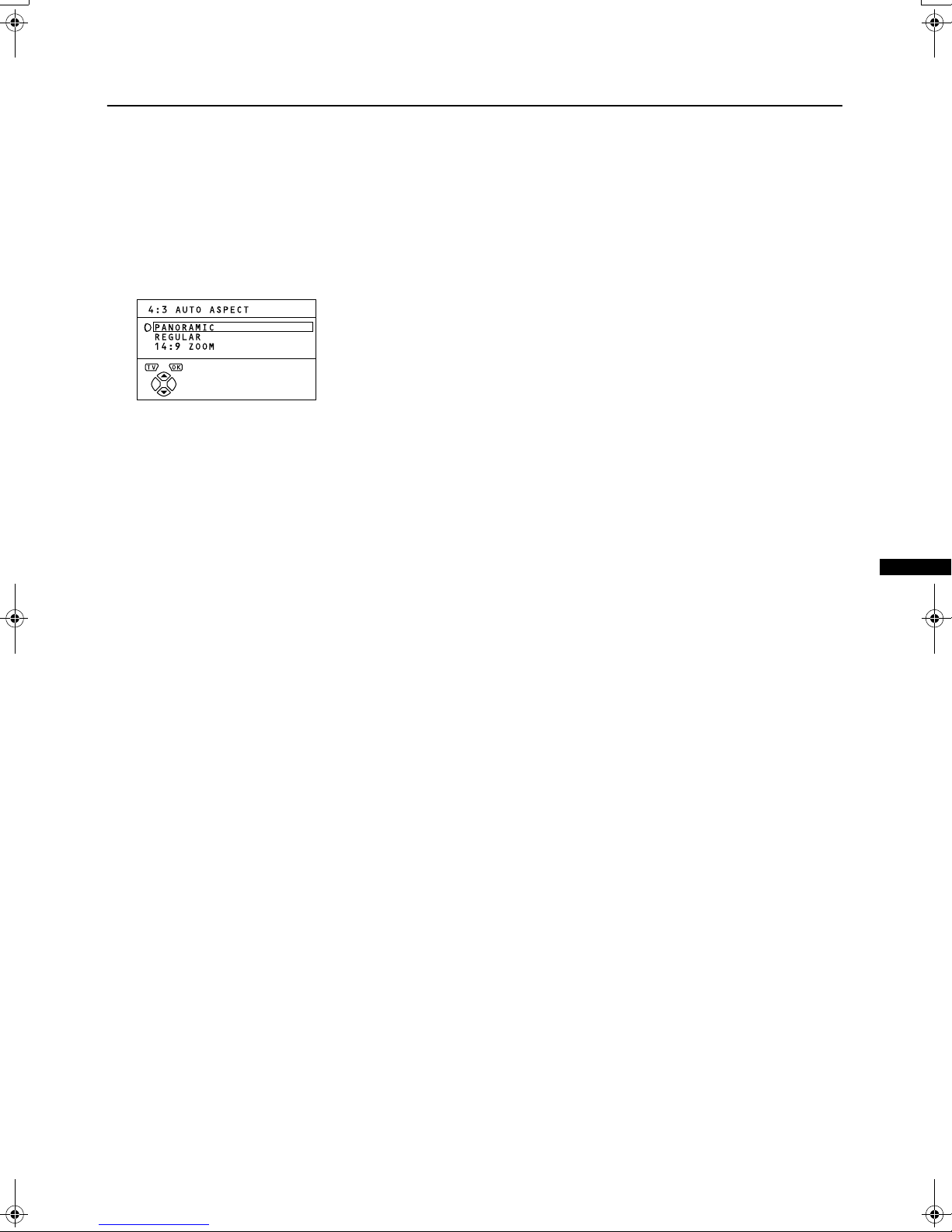

For normal picture (4:3 Aspect Ratio), you can choose a
ZOOM mode from the 4:3 AUTO ASPECT menu. For details,
see “4:3 AUTO ASPECT”on page 19.
•AUTO may not work properly with poor signal quality. In
this case, choose the best ZOOM mode manually.
•This TV supports WSS (wide-screen signals). When
broadcasts with WSS are received with the ZOOM mode
set at AUTO (WSS), the most suitable ZOOM mode is
automatically chosen according to the WSS received.
REGULAR:
Use to view a normal picture (4:3 aspect ratio) as this is its
original shape.
PANORAMIC:
This stretches the left and right sides of a normal picture (4:3
aspect ratio) to fill the screen, without making the picture
appear unnatural.
•The top and bottom of the picture are slightly cut off.
1 2 3
4 5 6
7 8 9
0
P
AV
TV OK
MENU
P
TV
How to open the cover
AV28CT1EKEI.book Page 11 Tuesday, December 18, 2001 10:20 AM

12
Remote control buttons and functions
AV28CT1EK/EI / LCT1138-001A-U / English
14:9 ZOOM:
This zooms up the wide picture (14:9 aspect ratio) to the
upper and lower limits of the screen.
16:9 ZOOM:
This zooms up the wide picture (16:9 aspect ratio) to the full
screen.
16:9 ZOOM SUBTITLE:
This zooms up the wide picture (16:9 aspect ratio) with
subtitles to the full screen.
FULL:
This uniformly stretches the left and right sides of a normal
picture (4:3 aspect ratio) to fill the wide TV screen.
•For 16:9 aspect ratio pictures that have been squeezed
into a normal picture (4:3 aspect ratio), use the FULL
mode to restore the picture to its original shape.
Choose the ZOOM mode
Choose the ZOOM modeChoose the ZOOM mode
Choose the ZOOM mode
1Press the cbutton to display the
ZOOM menu
2Press the 6buttons to choose a ZOOM
mode. Then press the abutton
The picture expands and the chosen ZOOM mode is
displayed in about 5 seconds.
•The ZOOM mode may be automatically changed by
the control signal from an external device. When you
want to return to the previous ZOOM mode, choose
the ZOOM mode again.
Adjusting the visible area of the
Adjusting the visible area of theAdjusting the visible area of the
Adjusting the visible area of the
If subtitles or the top (or bottom) of the picture are cut off, you
can adjust the visible area of the picture manually.
1Press the cbutton
The ZOOM menu appears.
2Press the abutton to display the ZOOM
mode indicator
The indicator appears.
3While it is displayed, press the 6
buttons to change the height of the picture
•You cannot adjust the visible area in REGULAR or
FULL mode.
4HYPER SOUND button
HYPER SOUND buttonHYPER SOUND button
HYPER SOUND button
You can enjoy sounds with a wider ambience.
Press the /(HYPER SOUND) button to turn
the HYPER SOUND function on or off
•The HYPER SOUND function does not work properly with
mono sound.
•The HYPER SOUND function can be also turned on or off
by using the SOUND SETTING menu. For details, see
“HYPER SOUND”on page 20.
AV28CT1EKEI.book Page 12 Tuesday, December 18, 2001 10:20 AM

13
Remote control buttons and functions
AV28CT1EK/EI / LCT1138-001A-U / English
5Information button
Information buttonInformation button
Information button
You can display the PR LIST or the current time on the
screen.
Press the h(information) button
Pressing the h(information) button changes the
display as follows:
•You can choose programme numbers (PR) or EXT
terminals with the PR LIST. For details, see “Use the PR
LIST:”on page 8.
•This TV uses teletext data to set the time. If the TV has not
received a TV channel that has teletext programmes
since it was turned on, the time display is blank. To see
the time, choose a TV channel that has teletext
programmes. The time will still be displayed as long as
you do not turn off the TV, even if you choose other TV
channels.
•When watching videos, the incorrect time is sometimes
displayed.
•The h(information) button will also operate menus. For
details, see “Using the TV’s menus”on page 16.
6TV button
TV buttonTV button
TV button
You can return to a TV channel instantly.
Press the bbutton.
The TV returns to the TV mode and a TV channel appears.
•The bbutton will also operate menus. For details, see
“Using the TV’s menus”on page 16.
75Buttons
ButtonsButtons
Buttons
You can adjust the volume.
Press the 5buttons to adjust the sound.
•The 5buttons will also operate menus. For details, see
“Using the TV’s menus”on page 16.
8Standby button
Standby buttonStandby button
Standby button
Press the #(standby) button to turn the TV
on or off.
When the TV is turned on, the power lamp changes from red
to green.
9Colour buttons
Colour buttonsColour buttons
Colour buttons
The colour buttons are used for the teletext operations or the
menu operations. For details, see “~Teletext control buttons
and VCR PDVD switch”on page 14 or “Using the TV’s
menus”on page 16.
0OK button
OK buttonOK button
OK button
The abutton is used to operate menus. For details, see
“Using the TV’s menus”on page 16.
-6Buttons
ButtonsButtons
Buttons
You can choose a programme number (PR) or an EXT
terminal.
Press the 6buttons to choose a
Programme number (PR) or an EXT terminal.
The 6buttons will also operate menus.
For details, see “Using the TV’s menus”on page 16.
=VCR/DVD control buttons and
VCR/DVD control buttons andVCR/DVD control buttons and
VCR/DVD control buttons and
VCR
VCRVCR
VCR P
PP
PDVD switch
DVD switchDVD switch
DVD switch
These buttons will operate a JVC brand VCR or DVD player.
Pressing a button that looks the same as the device’s original
remote control button has the same effect as the original
remote control.
1Set the VCR P
PP
PDVD switch to the VCR or
DVD position.
VCR:
When you are using a VCR, set the switch to the VCR
position.
DVD:
When you are using a DVD player, set the switch to the
DVD position.
2Press the VCR/DVD control button to
control your VCR or DVD player
•If your device is not made by JVC, these buttons will
not work.
•Even if your device is made by JVC, some of these
buttons may not work, depending on the device you
are using.
•You can use the pbuttons to choose a TV channel
the VCR will receive, or choose the chapter the DVD
player plays back.
•Some models of DVD player use the pbuttons for
both operating the fast forward/backward functions
and for choosing the chapter. In this case, the
253
253253
253 buttons do not work.
No display
Current time
AV28CT1EKEI.book Page 13 Tuesday, December 18, 2001 10:20 AM

14
Remote control buttons and functions
AV28CT1EK/EI / LCT1138-001A-U / English
■
■■
■~
Teletext control buttons and VCR
Teletext control buttons and VCRTeletext control buttons and VCR
Teletext control buttons and VCR P
PP
PDVD
DVDDVD
DVD switch
switchswitch
switch
Basic operation
Basic operationBasic operation
Basic operation
You can view two types of teletext broadcasts on the TV:
FLOF (Fastext) and WST (World Standard Text).
1Choose a TV channel with a teletext
broadcast
2Set the VCR P
PP
PDVD switch to the P(Text)
position
3Press the g(Text) button to display the
teletext
Pressing the g(Text) button changes the mode as follows:
4Choose a teletext page by pressing the
6buttons, number buttons or colour
buttons
To return to the TV mode:
Press the bbutton or g(Text) button.
•If you have trouble receiving teletext broadcasts,
contact your local dealer or the teletext station.
•The ZOOM function will not work in the text mode or
TV and text mode.
•You cannot operate menus when viewing a teletext
programme.
Using the List Mode
Using the List ModeUsing the List Mode
Using the List Mode
You can store the numbers of your favourite teletext pages in
memory and call them up quickly using the colour buttons.
To store the page numbers:
1Press the Mbutton to go into the List
mode
The page numbers you have stored are displayed at the
bottom of the screen.
2Press a colour button to choose a
position. Then press the number buttons
to enter the page number
3Press and hold down the Pbutton
The four page numbers blink white to show that they are
stored in memory.
To call up a stored page:
1Press the Mbutton to enter the List
mode
2Press a colour button having a stored page
To leave the List mode:
Press the Mbutton again.
P
TV OK
MENU
P
TV mode TV and text mode
1 2 3
4 5 6
7 8 9
0
AV
AV28CT1EKEI.book Page 14 Tuesday, December 18, 2001 10:20 AM

15
Remote control buttons and functions
AV28CT1EK/EI / LCT1138-001A-U / English
Hold
HoldHold
Hold
You can hold a teletext page on the screen for as long as you
want, even while several other teletext pages are being
received.
Press the Nbutton
To cancel the Hold function:
Press the Nbutton again.
Sub-page
Sub-pageSub-page
Sub-page
Some teletext pages include sub-pages that are automatically
displayed.
You can hold any sub-page, or view it at any time.
1Press the Obutton to operate the
sub-page function
2Press the number buttons to enter a sub-
page number
Example
•3rd sub-page
→
press
0
,
0
,
0
, and
3
.
To cancel the sub-page function:
Press the Obutton again.
•You can also choose a sub-page by pressing the
red or green button.
Reveal
RevealReveal
Reveal
Some teletext pages include hidden text (such as the
answers to a quiz).
You can display the hidden text.
Each time you press the Qbutton, text
is hidden or revealed
Size
SizeSize
Size
You can double the height of the teletext display.
Press the Rbutton
Index
IndexIndex
Index
You can return to the index page instantly.
Press the T
TT
Tbutton
FLOF (Fastext)/WST (World Standard Text):
Returns to page 100 or a previously specified page.
List mode:
Returns to the page number displayed in the lower left area of
the screen.
Cancel
CancelCancel
Cancel
You can search for a teletext page while watching TV.
1Press the number button to enter a page
number, or press a colour button
The TV searches for a teletext page.
2Press the Sbutton
The TV programme appears. When the TV finds the
teletext page, its page number appears in the upper left
of the screen.
3Press the Sbutton to return to a
teletext page when the page number is on
the screen
Note:
•The TV mode cannot be resumed by pressing the
Sbutton. To return to the TV mode press
b.
Hold indication
AV28CT1EKEI.book Page 15 Tuesday, December 18, 2001 10:20 AM

16
AV28CT1EK/EI / LCT1138-001A-U / English

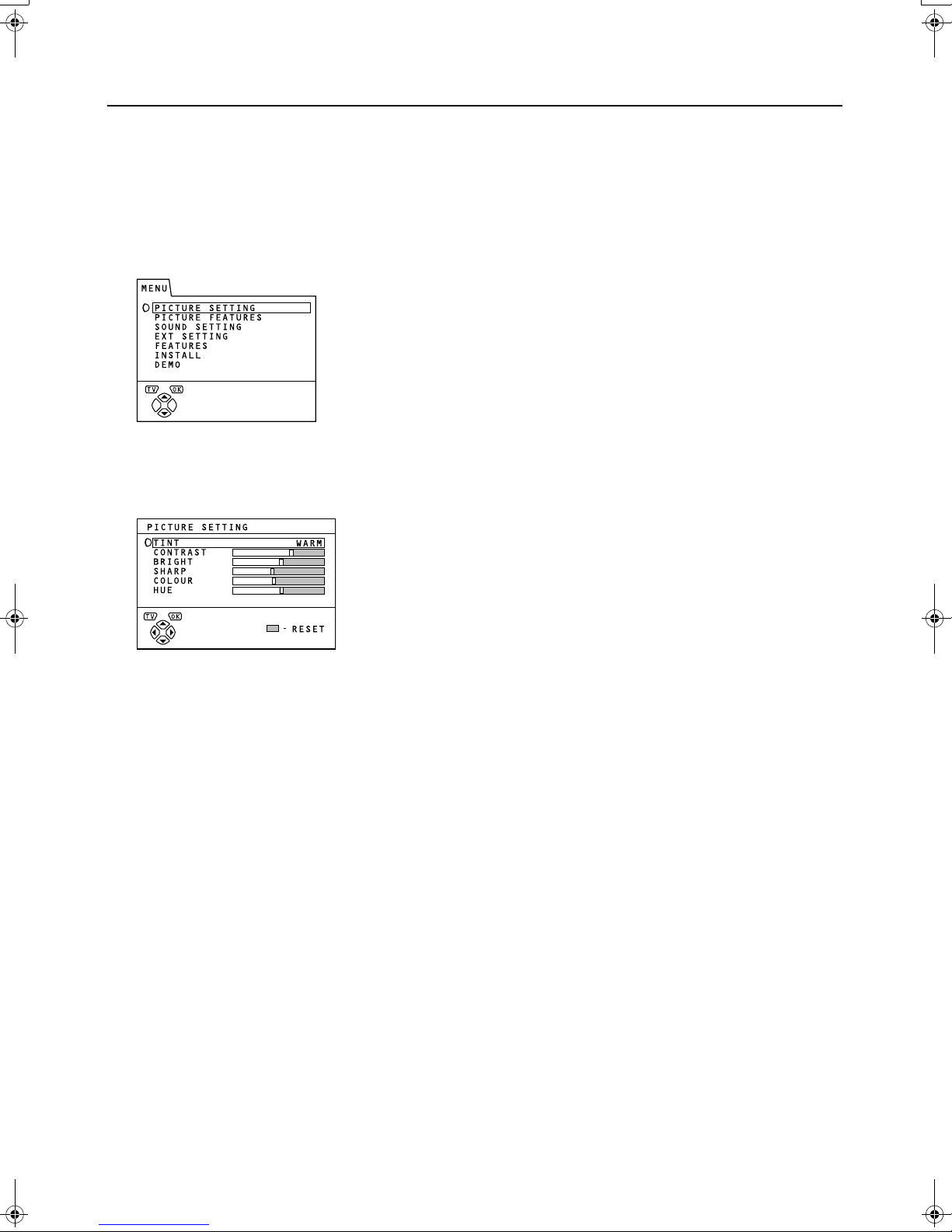

Using the TV’s menus
Using the TV’s menusUsing the TV’s menus
Using the TV’s menus
This TV has a number of functions you can operate using
menus. To use all your TV’s functions fully, you need to
understand how to use the basic menus.
1Press the abutton to display the
MENU (main menu)
The MENU (main menu) appears. In it, the titles of the
menus are displayed.
2Press the 6buttons to choose a
menu title, and press the abutton
The menu appears.
3Follow the menus according to the
function you want to use
•For more details, see the descriptions of each menu
and its functions on the following pages.
•The display appearing at the bottom of a menu
shows you a button on the remote control that you
can use when you operate a chosen function.
4Press the abutton to complete the
setting
The menu disappears.
To return to the previous menu:
Press the h(information) button.
To exit a menu instantly:
Press the bbutton.
•When watching the television with the NTSC system,
the menus are displayed at about half of their normal
vertical size.
AV28CT1EKEI.book Page 16 Tuesday, December 18, 2001 10:20 AM

17
AV28CT1EK/EI / LCT1138-001A-U / English
Picture setting
Picture settingPicture setting
Picture setting
To display the PICTURE SETTING menu:
1Press the abutton to display the MENU
(main menu)
2Press the 6buttons to choose PICTURE
SETTING, and press the abutton
■
■■
■TINT
TINTTINT
TINT
You can select one of three TINT modes (three kinds of
picture settings) to adjust the picture settings automatically.
1Press the 6buttons to choose TINT
2Press the 5buttons to choose a mode
COOL:
A cool white colour base with a boost in the colour and
contrast levels that creates a more vivid picture.
WARM:
A warm orange/red colour base that creates the
appropriate colour and contrast levels for watching films.
NORMAL :
A normal white colour base with normal colour and
contrast levels.
3Press the abutton to complete the
setting
The menu disappears.
■
■■
■Picture adjustment
Picture adjustmentPicture adjustment
Picture adjustment
You can change the picture settings of each TINT mode as
you like.
The picture settings changed are stored in the TINT mode.
1Press the 6buttons to choose an item
2Press the 5buttons to change the
setting
•You can change the HUE setting (picture hue) only
when the colour system is NTSC 3.58 or NTSC 4.43.
(See “Specifications”on the back cover.)
To return to the default settings in each TINT
mode:
Press the blue button.
This returns the picture settings in the TINT mode you
have chosen to the default settings, and stores them in
the TINT mode.
3Press the abutton to complete the
settings
The menu disappears.
2Item 3
Lower CONTRAST
(picture contrast)
Higher
Darker BRIGHT
(picture brightness)
Brighter
Softer SHARP
(picture sharpness)
Sharper
Lighter COLOUR
(picture colour)
Deeper
Reddish HUE
(picture hue)
Greenish
AV28CT1EKEI.book Page 17 Tuesday, December 18, 2001 10:20 AM

18
AV28CT1EK/EI / LCT1138-001A-U / English

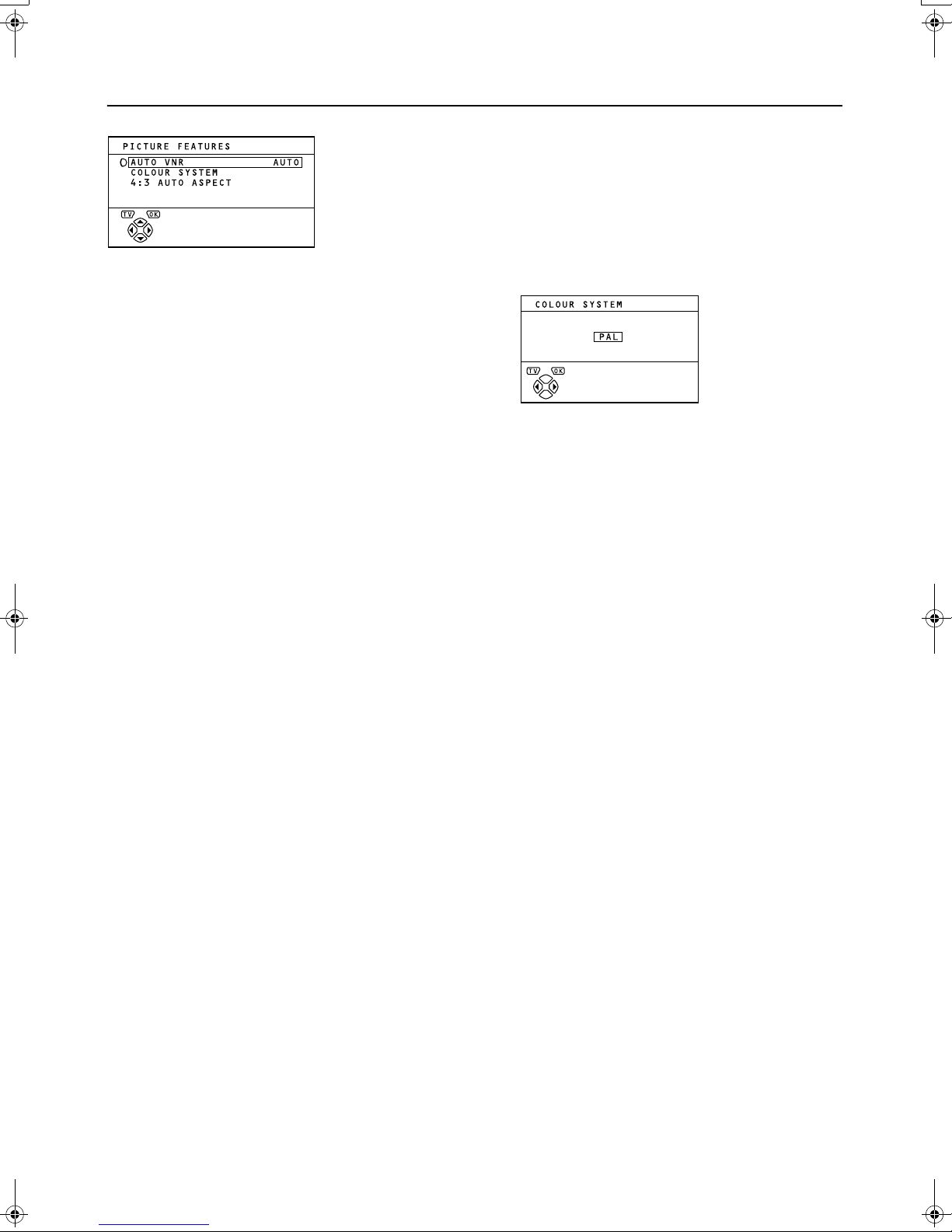

Picture features
Picture featuresPicture features
Picture features
To display the PICTURE FEATURES menu:
1Press the abutton to display MENU
(main menu)
2Press the 6buttons to choose PICTURE
FEATURES, and press the abutton
■
■■
■AUTO VNR
AUTO VNRAUTO VNR
AUTO VNR
VNR Stands for “video noise reduction”.
The AUTO VNR function reduces any “noise” (interference or
snowing) in the current picture. The function also adjusts the
optimum Sharpness of the picture (SHARP).
1Press the 6buttons to choose AUTO
VNR
2Press the 5buttons to choose AUTO
MIN:
The AUTO VNR function is cancelled. When you set the
mode to AUTO but feel that the sharpness of the original
picture has not been reproduced fully, change the mode
to MIN. However, any noise remaining in the original
picture may be emphasized.
MAX:
This mode always reduces any noise as much as
possible, irrespective of state of the picture. When you
set the mode to AUTO but still notice some noise,
change the mode to MAX. However, this may reduce the
sharpness of the picture.
3Press the a
aa
abutton to complete the
setting
The menu disappears.
■
■■
■COLOUR SYSTEM
COLOUR SYSTEMCOLOUR SYSTEM
COLOUR SYSTEM
The colour system is chosen automatically. However, if the
picture is not clear or no colour appears, choose the colour
system manually.
1Press the 6buttons to choose COLOUR
SYSTEM. Then press the abutton
The sub-menu of the COLOUR SYSTEM function
appears.
2Press the 5buttons to choose the
appropriate colour system
PAL:
PAL system
NTSC 3.58:
NTSC 3.58 MHz system
NTSC 4.43:
NTSC 4.43 MHz system
AUTO:
This function detects a colour system from the input
signal. You can only use this when you are viewing a
picture from programme number PR 0 (AV), or an EXT
terminal.
3Press the abutton to complete the
setting
The menu disappears.
•The AUTO function may not work properly if you
have poor signal quality. If the picture is abnormal in
the AUTO function, choose another colour system
manually.
•You cannot choose NTSC 3.58 or NTSC 4.43 for
programme numbers PR 0 (AV) to PR 99.
JVC TV_MF2.fm Page 18 Friday, December 21, 2001 2:48 PM

19
Picture features
AV28CT1EK/EI / LCT1138-001A-U / English
■
■■
■4:3 AUTO ASPECT
4:3 AUTO ASPECT4:3 AUTO ASPECT
4:3 AUTO ASPECT
You can choose one of three ZOOM modes, REGULAR,
PANORAMIC or 14:9 ZOOM, as the ZOOM mode for the
normal picture (4:3 aspect ratio).
1Press the 6buttons to choose 4:3 AUTO
ASPECT. Then press the abutton
The sub-menu of the 4:3 AUTO ASPECT function
appears.
2Press the 6buttons to choose a ZOOM
mode
3Press the abutton to complete the
setting
The menu disappears.
AV28CT1EKEI.book Page 19 Tuesday, December 18, 2001 10:20 AM

20
AV28CT1EK/EI / LCT1138-001A-U / English
Sound setting
Sound settingSound setting
Sound setting
To display the SOUND SETTING menu:
1Press the abutton to display the MENU
(main menu)
2Press the 6buttons to choose SOUND
SETTING. Then press the abutton
■
■■
■STEREO / I•II
STEREO / I•IISTEREO / I•II
STEREO / I•II
When you are viewing a bilingual broadcast programme, you
can choose the sound from Bilingual I (Sub I) or Bilingual II
(Sub II). If you have poor reception on a stereo broadcast, you
can change from stereo to mono sound so that you can hear
the broadcast more clearly and easily.
1
Press the
6
buttons to choose
STEREO / I •II
2Press the 5buttons to choose a sound
mode
s: Stereo sound
v: mono sound
t
tt
t: Bilingual I (sub I)
u : Bilingual II (sub II)
3Press the abutton to complete the
setting
The menu disappears.
•The sound mode you can choose differs depending
on the TV programme.
•This function does not work in the EXT modes. And
this function does not appear in the SOUND
SETTING menu.
■
■■
■Sound adjustment
Sound adjustmentSound adjustment
Sound adjustment
You can adjust the sound to your liking.
1Press the 6buttons to choose an item
2Press the 5buttons to adjust it
3Press the abutton to complete the
setting
The menu disappears.
■
■■
■HYPER SOUND
HYPER SOUNDHYPER SOUND
HYPER SOUND
You can enjoy sounds with a wider ambience.
1Press the 6buttons to choose HYPER
SOUND
2Press the 5buttons to choose ON
To cancel the HYPER SOUND function:
Press the 5buttons to choose OFF.
3Press the abutton to complete the
setting
The menu disappears
•The HYPER SOUND function does not work properly
with mono sound.
•You can turn the HYPER SOUND function on or off
with a single press. For details, see “4HYPER
SOUND button”on page 12.
2Item 3
Weaker BASS Stronger
Weaker TREBLE Stronger
Left BALANCE Right
AV28CT1EKEI.book Page 20 Tuesday, December 18, 2001 10:20 AM
